Online Human Activity Recognition Using Efﬁcient Neural Architecture

Search with Low Environmental Impact

Nassim Mokhtari

, Alexis Nédélec

, Marlène Gilles

and Pierre De Loor

Lab-STICC (CNRS UMR 6285), ENIB,

Centre Européen de Réalité Virtuelle, Brest, France

Keywords:

3D Skeleton Data, Image Encoding, Online Human Activity Recognition, Deep Learning, Neural Architecture

Search, FireFly Algorithm, NAS-BENCH-101, Efﬁciency Estimation, Energy Consumption.

Abstract:

Human activity recognition using sensor data can be approached as a problem of classifying time series data.

Deep learning models allow for great progress in this domain, but there are still some areas for improvement.

In addition, the environmental impact of deep learning is a problem that must be addressed in today’s machine

learning studies.

In this research, we propose to automate deep learning model design for human activity recognition by using

an existing training-free Neural Architecture Search method. By this way, we decrease the time consumed by

classical NAS approaches (GPU based) by a factor of 470, and the energy consumed by a factor of 170.

Finally, We propose a new criterion to estimate the relevance of a deep learning model based on a balance

between both performance and computational cost. This criterion allows to reduce the size of neural architec-

tures by preserving its capacity to recognize human activities.

1 INTRODUCTION

Many techniques today use a deep learning approach

applied to video or temporal data to recognize human

activities. An activity is characterized by a spatial and

temporal evolution of data, therefore one problem is

managing this spatio-temporal evolution with a deep

learning architecture.

Some solutions involve using recurrent architec-

tures, such as LSTM, which are able to process se-

quences (Ordóñez and Roggen, 2016), or using con-

volutional neural networks to process the data (Li

et al., 2018). Other approaches consist of encod-

ing the time into an image and then use traditional

image recognition architectures on this image (Liu

et al., 2017b; Laraba et al., 2017; Ludl et al., 2019;

Mokhtari et al., 2022b; Mokhtari et al., 2023). What-

ever the approach, another challenge is to ﬁnd the best

architecture and encoding to optimize the recognition

rate.

Furthermore, the number of possibilities to de-

sign the architecture is so great that a new challenge

https://orcid.org/0000-0002-9402-3638

https://orcid.org/0000-0003-3970-004X

https://orcid.org/0000-0003-1806-1672

https://orcid.org/0000-0002-5415-5505

is to ﬁnd it with algorithms named Neural Architec-

ture Search (NAS) (Elsken et al., 2019; Wistuba et al.,

2019). They usually test a lot of architectures and run

for several days on a GPU before ﬁnding a good one.

However, today, it is also important to take into ac-

count the cost of computational power as it is linked

to energy costs and environmental concerns.

(Strubell et al., 2019) showed that AI (training and

use of deep neural networks) has a signiﬁcant impact

on the environment through its energy consumption

and carbon emission. According to (Schwartz et al.,

2019), we should evaluate AI on the basis of its ef-

ﬁciency, alongside accuracy and related metrics. For

a certain amount of accuracy, it is better to use the

smallest architecture and to ﬁnd it with less tests.

The aim of the work presented in this article is to

ﬁnd the most appropriate deep learning model for on-

line recognition of human activity based on 3D skele-

ton data, while addressing the various problems listed

above. To this end, two proposals are combined:

1. We applied a metaheuristic named "Improved Fire

Fly Algorithm" to avoid the training of networks

during a Neural Architecture Search, in order to

design our deep learning model. By this way, we

decrease the time consumed by classical NAS ap-

Mokhtari, N., Nédélec, A., Gilles, M. and De Loor, P.

Online Human Activity Recognition Using Efﬁcient Neural Architecture Search with Low Environmental Impact.

DOI: 10.5220/0012314600003660

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2024) - Volume 2: VISAPP, pages

357-365

ISBN: 978-989-758-679-8; ISSN: 2184-4321

357

proaches (GPU based) by a factor of 470,

and the energy consumed by a factor of 170.

2. We ﬁnally propose a new criterion to estimate the

relevance of a deep learning model based on a

balance between both performance and computa-

tional cost. This criterion allows to reduce the size

of neural architectures by preserving its capacity

to recognize human activities.

These propositions are in line with current envi-

ronmental concerns of humanity. We reduce the ar-

chitecture search time by a factor of 476 compared

to baseline techniques, and a factor of 114 compared

to (Wang et al., 2023) proposition. We also reduce

energy consumption and carbon footprint by a fac-

tor of 14 compared to (Wang et al., 2023) proposi-

tion. This article details the different algorithms and

presents various results that show the relevance of our

proposition. Moreover, our proposition could be ex-

tended to a lot of applications of deep learning.

The remainder of the document is organized as

follows: Section 2 introduces a synthesis of the var-

ious works carried out in the of ﬁeld skeleton data

representation, Neural Architecture Search, and neu-

ral network efﬁciency. In Section 3 we detail our pro-

posed method for building our deep learning model,

and our proposed method for evaluating neural net-

work efﬁciency. Section 4, shows the data set that

used for the experimental part of the work, addressed

in Section 5. Finally, we discuss the results of this

work as well as the possible developments to improve

the proposed metric in Section 6.

2 RELATED WORKS

In this section we will review existing work related

to our proposition to perform online human activity

recognition in an efﬁcient way.

2.1 Skeleton Based Human Activity

Recognition

According to (Wang et al., 2019), Human Activity

Recognition (HAR) falls into two categories: sensor-

based (e.g., accelerometers) and video-based (e.g., 3D

skeleton data from a Kinect). Successful HAR re-

quires encoding data while handling spatial and tem-

poral dependencies. In this study, we utilize skeletons

obtained from an RGB-D camera, but this approach is

applicable to various types of spatio-temporal data.

To encode skeletal data, some prior research, such

as (Yan et al., 2018; Delamare et al., 2021) and (Chen

et al., 2022) proposed to use graphs. This approach

effectively addresses both spatial and temporal depen-

dencies, as each node connects with its spatial neigh-

bors (in accordance with skeletal structure) and its

temporal counterparts (representing the previous and

subsequent states of the joint). Typically, this rep-

resentation is paired with Graph Convolutional Net-

works (GCN) (Yan et al., 2018; Delamare et al., 2021;

Chen et al., 2022).

Conversely, several studies have employed images

to represent skeletal data (Ludl et al., 2019; Laraba

et al., 2017; Mokhtari et al., 2022b; Mokhtari et al.,

2023). In this approach, each joint is encoded as a

pixel within an image. To achieve this, the coordi-

nates (X, Y, Z) of a joint are ﬁrst normalized and then

used to calculate the values for the (R, G, B) color

channels. Figure 1 provides an illustration of skeletal

data encoding using the Encoded Human Pose Image

(EHPI) method introduced by (Ludl et al., 2019).

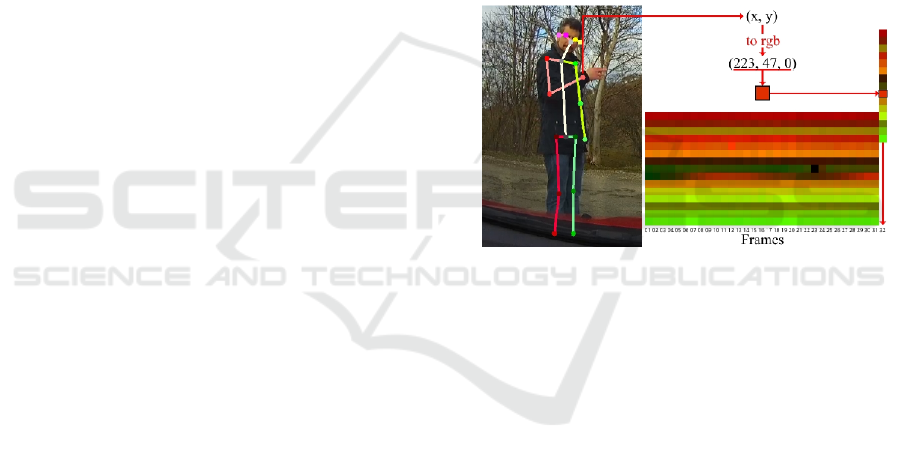

Figure 1: From skeletal joints to an Encoded Human Pose

Image (EHPI) (Ludl et al., 2019).

In a related study, (Mokhtari et al., 2022b) intro-

duced the Spatio-Temporal Image Encoding (STIE)

technique to represent a sequence of human skele-

ton data as an image. To enhance the performance of

Convolutional Neural Networks (CNNs) and address

both spatial and temporal dependencies effectively,

they proposed a method of reordering the skeleton

data based on the human body’s structure. This re-

ordering allocates speciﬁc areas of the image to each

body part, such as the legs (see ﬁgure 2). They also

proposed to use the VGG16 model introduced in (Si-

monyan and Zisserman, 2014), this model was ﬁrst

trained on the ImageNet Dataset, then frozen and used

as a feature extractor. As a result, the model achieved

an accuracy of 86.81% on the Online Action Detec-

tion (OAD) dataset (Li et al., 2016).

In an effort to enhance the Spatio-Temporal Image

Encoding (STIE) approach, (Mokhtari et al., 2023)

introduced the concept of motion energy, originally

presented by Liu et al. (Liu et al., 2017b). This con-

cept emphasizes the impact of motion on generating

color images by assigning weights to skeleton joints

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

358

Figure 2: Writing encoded using the STIE (Mokhtari et al.,

2022b).

based on their motion. To create a more comprehen-

sive and detailed representation of human actions, the

motion energy image is integrated with STIE, result-

ing in a comprehensive view of the action (as illus-

trated in Figure 3). Additionally, the authors retrained

the VGG16 model using the Online Action Detection

(OAD) dataset. Consequently, this approach achieved

an outstanding accuracy rate of 95.22%, establishing

a new benchmark for the dataset.

Figure 3: Writing encoded using the ESTIE (Mokhtari

et al., 2022b).

Real-time human action recognition faces a sig-

niﬁcant challenge in identifying the start and end of

actions within a continuous data stream. To address

this challenge, prior research has suggested utilizing

a sliding window approach, which allows the model

to be trained on the continuous stream of data. This

method has been proposed as a solution to effectively

handle this issue in real-time HAR (Liu et al., 2019;

Weng et al., 2017; Delamare et al., 2021; Mokhtari

et al., 2022b; Mokhtari et al., 2023).

In this work, we are interested to ﬁnd the most

appropriate deep learning model to the OAD dataset,

by using ESTIE proposed by (Mokhtari et al., 2023)

to encode the skeletal data.

2.2 Neural Architecture Search

One of the challenges in Deep Learning is to design

the architecture of the network automatically due to

the large number of hyperparameters that can be used

and the many possible conﬁgurations of the network

that these hyperparameters allow.

For this purpose, several works have been inter-

ested in the use of metaheuristics. For example, (Sun

et al., 2020) used a Genetic Algorithm to automat-

ically design a convolutional neural network by us-

ing the trained network accuracy as a ﬁtness function.

(Carvalho et al., 2010) proposed a ﬁtness function

based on both train and test errors that was used with

VNS, SA, GEO and GA algorithms. (Strumberger

et al., 2019) preferred to use a FireFly algorithm to de-

sign their CNN, where the used ﬁtness function was

based on the error computed on the test set. These

studies showed that metaheuristics are suitable for

neural architecture search, since they are well known

for solving combinatorial problems, such as ﬁnding a

good neural network organisation among several pos-

sibilities offered by the search space. However, they

can also be slow due to the need to train each archi-

tecture to evaluate its quality. (Wang et al., 2023) pro-

posed a multi-objective evolutionary algorithm NAS,

by setting weighted f1-score, ﬂoating-point opera-

tions per second (FLOPs) and the number of param-

eters as objectives, to speed up search by a factor of

4.17. It is therefore useful to be able to evaluate the

quality of an architecture without training it, to save

time and computational resources.

(Mellor et al., 2021) proposed a method to eval-

uate a neural network without previous training by

identifying a binary indicator (0 for inactive unit, and

1 for active unit), focusing only on the rectiﬁed lin-

ear units (ReLU) of an untrained network (randomly

initialized weights). The intuition behind their ap-

proach is that the more similar the binary codes as-

sociated with two inputs are, the more challenging

it is for the network to learn how to discriminate

these inputs. A mini-batch of data X = [x

, x

, ..., x

]

is mapped through a neural network (composed of

ReLU and several other units type) to get binary codes

C = [c

, c

, ...c

], where each c

(obtained from ReLU

outputs only) refers to the binary code of x

. To evalu-

ate the neural network, (Mellor et al., 2021) compute

the log of the determinant of a matrix Kh, where each

component is calculated using the Hamming distance

(Eq (1)). The higher the score, the better the network.

[i, j] = N

− Hamming_distance(c

, c

) (1)

where N

is the number of rectiﬁed linear units

(ReLU).

Online Human Activity Recognition Using Efﬁcient Neural Architecture Search with Low Environmental Impact

359

(Mokhtari et al., 2022a) proposed another way to

evaluate a neural network without training. Based

on the work of (Mellor et al., 2021), they proposed

to use binary codes for calculating an intra-class dis-

tance (ICD) for evaluating the ability of an untrained

neural network to distinguish data. They propose that

the ICD would be more interesting to assess this dis-

persion of representation, since it is used to assess the

quality of clustering, where the objective is to pro-

duce distinct clusters. This ICD metric was used as

the ﬁtness function of an improved version of the ﬁre-

ﬂy algorithm (IFA) which uses genetic operators (se-

lection, crossover and mutation) to be more robust to

local optimum. Algorithm 1 illustrates this propo-

sition. Note that the choice of the optimal solution

from the "candidates" list is determined based on the

models’ performance after training. As the ICD met-

ric serves as an approximation of model quality rather

than an exact measurement, maintaining a candidate

list enhances the likelihood of identifying a promising

architecture (Mokhtari et al., 2022a).

Algorithm 1: Improved FireFly Algorithm.

Randomly generate the population

Deﬁne MaxChances

chances = MaxChances

candidates = [ ]

LocalBest = NULL

while not Stopping criteria do

Running an iteration of FireFly

Best

= current population’s best solution

if LocalBest = NULL then

LocalBest = Best

else

if f itness(Best

) ≥ f itness(Best

t−1

)

then

LocalBest = Best

else

chances - -

end

if chances = 0 then

add LocalBest to candidates

LocalBest = NULL

Perform an iteration of the Genetic

Algorithm

chances = MaxChances

end

Determining the best solution from the

candidates list

This method outperform existing NAS without

training techniques, and obtained results that are close

to those obtained by the NAS with training. Con-

sequently, in this work, we focus on the use of the

Improved Fireﬂy Algorithm proposed by (Mokhtari

et al., 2022a), to build a model dedicated to human

activity recognition.

2.3 Neural Network Efﬁciency

There has been a lot of discussion and debate recently

about our energy consumption and the impact it has

on the environment.

Recent studies reported by (Strubell et al., 2019)

have shown that performing a neural architecture

search (including training) for a big transformer emits

about 626,155 lbs of CO

, which is ﬁve times more

than a car in its lifetime (126,000 lbs).

According to (Schwartz et al., 2019), the amount

of computation needed for deep learning research has

been growing rapidly, with a doubling rate of every

few months. This has resulted in a signiﬁcant increase

in computation, estimated to be 300,000 times higher

in 2018 than it was in 2012. This leads the author

to propose the evaluation of the neural network efﬁ-

ciency through several indices such as carbon emis-

sion, electricity consumption or ﬂoating point opera-

tions (FPO). (Schwartz et al., 2019) proposed to use

the following formula (Eq. 2) to estimate the cost of

obtaining a result (R) using according to the cost of

executing (E) the model on a single example, the size

of the dataset (D) and the number of hyperparameters

(H).

cost(R) = E × D × H (2)

This proposed metric illustrates three quantities

that are important factors in the cost of generating a

result, but it ignores other factors such as the number

of training epochs.

In this work, we propose to use a new metric

(that goes beyond the proposition of (Schwartz et al.,

2019)) to evaluate a deep neural network according to

its performance and efﬁciency including its training.

3 PROPOSED METHOD

In this section, we will outline our proposals to ﬁnd

the most appropriate deep learning model for online

human activity recognition based on skeletons. To do

that, we propose to apply the Improved FireFly Algo-

rithm proposed by (Mokhtari et al., 2022a) to build

a model dedicated to the Online Action Detection

dataset. This dataset will be ﬁrst encoded using the

Enhanced Spatio-Temporal Image Encoding (ESTIE)

proposed by (Mokhtari et al., 2023).

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

360

We also outline our proposal to evaluate a model

according to its performance and efﬁciency by using

a beneﬁt cost ratio (BCR). This metric will be used to

compare our model to the state-of-the-art methods.

3.1 Deep Learning Model

We use the Improved FireFly Algorithm for which

the ﬁtness function of each architecture is evaluated

without training according to the work of (Mokhtari

et al., 2022a). This method explores the NAS-Bench-

101 search space which is of 423,624 neural networks

(CNN) (Ying et al., 2019), using the data from the

OAD dataset presented in Section 4, that will be en-

coded using the ESTIE method.

In the NAS-BENCH-101, all the networks share

the same pattern, which is composed of one or sev-

eral stacks, each one includes one or several cells.

The networks are different in the « module » (cell),

which is represented by directed acyclic graphs (up to

7 vertices and 9 edges). The valid operations at each

vertex are 3x3 convolution, 1x1 convolution, and 3x3

max-pooling (Ying et al., 2019).

Figure 4 shows an example of a network archi-

tecture from the NAS-BENCH-101 composed of 3

stacks, each one including 3 cells.

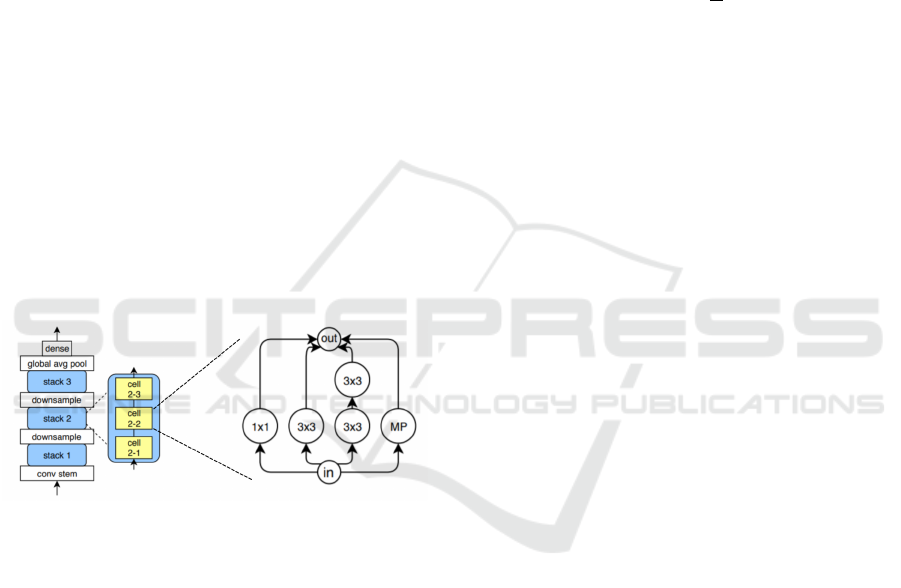

Figure 4: Network architecture in the NAS-BENCH-101

(Ying et al., 2019): Left part is the skeleton shared by all

models, middle part is a stack of cells and the right part is

an example of a cell (module) (Mokhtari et al., 2022a).

We explored various combinations of the number

of stacks and cells, ranging from 1 to 5 for each, a

total of 25 network pattern organizations.

3.2 Performance and Efﬁciency

Evaluation

To take into account the training cost of the networks,

we propose to modify the formula of Schwartz et al.

(Schwartz et al., 2019) (Eq. 2) by introducing the

number of epoch used during the training. This train-

ing cost can be estimated as follow:

training_cost = E

× D × H (3)

where E

is the number of epochs, D is the size of

the training dataset and H, the number of parameters.

This training cost can be used to evaluate the ef-

fectiveness of a neural network, in the same way as

the total number of ﬂoating point operations (FPO)

required to generate a result.

Since it is already possible to evaluate the perfor-

mance of a deep learning model using metrics like

accuracy or F1-Score, we propose to combine these

performance indices with an estimation of the neural

network efﬁciency using a beneﬁt cost ratio (BCR) as

follow:

BCR =

(4)

where P refers to a performance metric which can

be the test accuracy, the F1-Score, etc., and the C

refers to the network efﬁciency estimation through the

training cost (Eq. 3) or the FPO.

The use of such a metric can allow us to evaluate

a neural network in terms of its performance and efﬁ-

ciency, in order to choose a model that performs well

but does not consume too much energy.

4 THE OAD DATASET

The proposed method is evaluated on the Online Ac-

tion Detection dataset (OAD) collected from a Kinect

v2, including 25 joints because it provides unseg-

mented online sequences of skeleton data (Li et al.,

2016). It includes 59 long sequences and 10 actions,

including drinking, eating, writing, opening a cup-

board, washing hands, opening a microwave, sweep-

ing, gargling, throwing trash, and wiping. The train-

ing is done on 30 sequences, and tested on 20 se-

quences. The remaining 9 sequences are ignored in

our work, since they are used for the evaluation of the

running speed (Li et al., 2016).

Several studies like (Mokhtari et al., 2023;

Mokhtari et al., 2022b) and (Delamare et al., 2021)

proposed to use a sliding window 40 frames, to seg-

ment this dataset, to allow real-time recognition with-

out having to identify the start or end of the action.

5 RESULTS AND DISCUSSION

In this part of the work, we present our experimen-

tal results, obtained on the OAD dataset. On the

one hand, a comparison between the different results

obtained from the neural architecture search using

the Improved Fireﬂy Algorithm (IFA) for the OAD

dataset is done. Then, the best model obtained from

Online Human Activity Recognition Using Efﬁcient Neural Architecture Search with Low Environmental Impact

361

the IFA will be compared to the state-of-the-art mod-

els according to the accuracy metric. Finally, we com-

pare our model to the best known model from the

state-of-the-art according to our proposed BCR that

takes into account the efﬁciency of the models.

5.1 Neural Architecture Search

In this part of the experiment, we run the IFA method

on the NAS-BENCH-101 in order to ﬁnd the most

suitable network for the OAD dataset.

We experimented various combinations of the

number of stacks and cells, ranging from 1 to 5 for

each. On each combination, the IFA runs for 100 gen-

erations, using a population of 20 solutions. All ex-

ecutions were done on a DELL precision 5760, with

an Intel(R) Core(TM) i7-11850H as CPU, and 32Gb

of RAM.

Table 1 summarises the search time in second for

each run, where we can notice that the search time is

ranging from 1328 seconds (22 minutes), to 12991 (3

hours and 36 minutes).

Table 1: Search time in seconds for each run of the Im-

proved Fireﬂy Algorithm on NAS-BENCH-101.

#Cells

#Stacks 1 2 3 4 5

1 1328 2875 2719 5690 9728

2 2885 5993 3223 11404 15481

3 2710 7670 7062 8081 8716

4 2931 6685 10765 12991 10059

5 2989 5688 7130 12162 10504

Each resulting architecture is trained for 100

epochs on an NVIDIA RTX A3000 Laptop GPU,

for 5 times on the segmented OAD dataset using the

ESTIE method. Table 2 summarizes the mean test ac-

curacy and the standard deviation (std) obtained by

each mode on the OAD dataset, while Table 3 con-

tains the best test accuracy (on a test set not used for

the learning phase) for each network.

According to the results presented in Table 2, we

notice that the best mean accuracy is obtained by a

network architecture composed of 5 stacks, where

each one includes only one cell, with a mean accu-

racy of 93.58% and a standard deviation of 0.5. Fol-

lowed by the model a smaller architecture, composed

of 2 stacks and one cell by stack only, with 93.24% as

mean accuracy and 0.45 as standard deviation.

Table 3 conﬁrms the previous observation, by

showing that the best model, reaching 94.47% of test

accuracy is composed of 5 stacks, each one includ-

ing only one cell, followed by the one composed of 2

stacks and one cell by stack, reaching 93.77%. It can

also be seen from the two tables that the performance

of the models decreases when the network is larger

than 5 stacks and one cell.

For the rest of the experiment, we choose to keep

both well performing models, since the ﬁrst one (5

stacks, 1 cell) is getting the best accuracy, and the sec-

ond one (2 stacks, 1 cell) offers an interesting result

while being more than 2 time smaller. We will refer to

the model composed of 5 stacks and 1 cell as IFA

5.1

and the one composed of 2 stacks and 1 cell as IFA

2.1

5.1.1 Search Time Improvement

The design of IFA

2.1

required to explore at least 2020

models: 20 by epoch over 100 epochs, in addition

to the ﬁrst population composed of 20 architectures.

Evaluating a model using the training-free approach

costs only 1 second, for this reason our IFA explo-

ration took 2885 seconds (48 minutes) to generate this

model (IFA

2.1

). In the case of classical NAS (that

involves training the model to evaluate it), we esti-

mate the required time to perform the same task to

be 147 days 7 hours 15 minutes, considering a train-

ing over 100 epochs on the Intel(R) Core(TM) i7-

11850H which lasts around 6300 seconds (1h45m).

Furthermore, we estimate the required time to per-

form this exploration to be 15 days 21 hours and 48

minutes, considering a training over 100 epochs on

the NVIDIA RTX A3000 Laptop GPU which lasts

around 680 seconds (11m20s).

These estimations conﬁrm that using NAS with

a training-free evaluation is more efﬁcient than clas-

sic NAS which use train-based evaluation over 100

epochs, since the IFA is being more than 4400 times

faster compared to the version on CPU, and 476 times

faster than the GPU version, hence, our proposition

improves (Wang et al., 2023) proposition by a factor

of 114.

5.1.2 Energy Consumption and Carbon

Footprint Improvement

We estimated the carbon footprint resulting from

these explorations, and their energy consumption, us-

ing Green Algorithms Calculator proposed by (Lan-

nelongue et al., 2021). We found out that the IFA

consumes about 298 Wh, while the consumption of

the CPU and GPU versions are estimated to be re-

spectively 15.55 MWh and 50.547 KWh. In terms

of carbon footprint, the IFA produce approximately

15.26g CO

, while the CPU and GPU versions have

a carbon footprint around 797.46 kg CO

and 2.6 kg

. From the above estimations, we notice that

training-free NAS are less energy consuming and less

polluting by around 52 000 times compared to the

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

362

Table 2: Mean test accuracy (from 5 runs) and standard deviation(std) on the OAD dataset, obtained by the result of the

Improved Fireﬂy Algorithm search on NAS-BENCH-101, for each combinition.

#Cells

#Stack 1 2 3 4 5

1 91.24%±0.59 92.72%±0.55 91.8%±0.53 92.23%±0.87 91.43%±0.33

2 93.24%±0.45 93.04%±0.66 91.9%±0.59 90.91%±0.68 91.72%±0.45

3 92.43%±0.32 92.06%±0.83 91.94%±0.2 90.99%±0.85 90.8%±1.16

4 91.74%±0.43 91.88%±0.42 91.76%±0.52 93.03%±0.39 89.0%±3.55

5 93.58%±0.5 90.9%±0.37 89.98%±0.62 88.3%±3.6 90.07%±0.7

Table 3: Test accuracy on the OAD dataset obtained by the best result of the Improved Fireﬂy Algorithm search on NAS-

BENCH-101, for each combination.

#Cells

#Stack 1 2 3 4 5

1 91.91% 93.55% 92.62% 93.04% 91.79%

2 93.77% 93.74% 92.89% 91.96% 92.42%

3 92.92% 93.58% 92.31% 91.84% 92.16%

4 92.28% 92.37% 92.44% 93.49% 92.27%

5 94.47% 91.35% 90.83% 91.35% 90.7%

training NAS (over 100 epochs) based on CPU, and

around 170 times compared to the training NAS based

on GPU.

5.2 Comparison with State-of-Art

Methods

We compared our obtained models (IFA

2.1

and

IFA

5.1

) to several existing works on the OAD dataset.

Table 4 summarizes the obtained results. We no-

tice that the two models performed well, since they

both outperforms state-of-the-art methods, except the

ESTIE from (Mokhtari et al., 2023), which obtained

95.22% on the OAD dataset by using a VGG16

model, while IFA

5.1

obtained 94.47%.

Table 4: Comparison with related works on the OAD

dataset according to accuracy.

Method Authors Accuracy

JCR-RNN (Li et al., 2016) 78.8%

ST-LSTM (Liu et al., 2018) 77.5 %

Attention Net (Liu et al., 2017a) 78.3%

FSNet (Liu et al., 2019) 81.3 %

SSNet (Liu et al., 2019) 82.8%

STIE (Mokhtari et al., 2022b) 86.81 %

ESTIE (Mokhtari et al., 2023) 95.22%

IFA

2.1

our proposition 93.77%

IFA

5.1

our proposition 94.47%

5.3 Efﬁciency Evaluation

In this part of the work, we will compare our ob-

tained result from the IFA, to the VGG16 model from

(Mokhtari et al., 2023).

The VGG16 model contains 18,939,722 parame-

ters, the IFA

5.1

model is composed from 3,385,018

parameters, while the IFA

2.1

is comprises 63,866 pa-

rameters. All of them were trained for 100 epochs, on

the OAD dataset that includes 11935 samples. From

this data, we can compute, for each model, the train-

ing cost (TC) and ﬂoating point operations (FPO),

which will be combined with the test accuracy (suf-

ﬁxed acc) to compute the BCR

acc

and BCR

f po

acc

re-

spectively .

From Table 5 we can notice that the most efﬁcient

model is the IFA

2.1

according to the training cost and

the FPO score. This model also obtained the best ratio

for both BCR

acc

and BCR

f po

acc

. The less efﬁcient is the

VGG16 model, which is also the worst in terms of

BCR

acc

and BCR

f po

acc

Note that, in terms of performance, the VGG16 is

only 1.45% better than the IFA

2.1

, while being almost

300 larger in terms of size, with nearly 19 millions

parameters against 64 thousands parameters. In addi-

tion, the IFA

2.1

requires only 998KB of storage space,

allowing it to be easily embedded when needed.

Moreover, training the VGG16 on the NVIDIA

RTX A3000 Laptop GPU takes 1915 seconds (2.8

times more than IFA

2.1

), and according to Green Al-

gorithms Calculator proposed by (Lannelongue et al.,

2021) it consumes around 4.22 kWh of energy and

released about 216.43 g of CO

, meaning that the

IFA

2.1

is 14 times less energy consuming and less pol-

luting compared to VGG16.

This result conﬁrms the observation of (Schwartz

et al., 2019) that there is an urgent need to evaluate the

efﬁciency of a neural network with the same impor-

tance as its performance, because increasing the ac-

Online Human Activity Recognition Using Efﬁcient Neural Architecture Search with Low Environmental Impact

363

Table 5: Efﬁciency comparaison between VGG16, IFA

2.1

and IFA

5.1

Model Test Accuracy Training Cost BCR

acc

Floating Point Operations BCR

f po

acc

VGG16 95.22% 2.26e+13 4.21e-12 2.52e+09 3.79e-08

IFA

2.1

93.77% 7.62e+10 1.23e-09 9.95e+07 9.42e-07

IFA

5.1

94.47% 4.04e+12 2.34e-11 2.30e+08 4.10e-07

curacy by 1.45% with a 300 times larger network that

consumes 14 times more energy is not such a good

deal.

6 CONCLUSION

In this research, we apply the Improved Fireﬂy Algo-

rithm, a training-free neural architecture search tech-

nique, to automate the model design and ﬁnd the most

suitable neural network for the chosen dataset. This

method produced interesting results for on the Online

Action Data (OAD) dataset in 48 minutes on a sin-

gle CPU, improving the baseline NAS (using train-

ing over 100 epochs) by a factor of 476 (GPU based)

and a factor of 4400 (CPU based), while improving

(Wang et al., 2023) proposition by a factor of 114.

this method is also 170 times less power consuming

and polluting than training-based NAS using GPU.

While achieving high performance, it is important

to take into account the efﬁciency of neural networks,

which are growing exponentially. With this in con-

sideration, we propose the beneﬁt cost ratio (BCR), a

metric to evaluate the quality of a neural network in

terms of its performance, but also its cost.

Experimentation on the Online Action Detection

dataset showed that using the IFA provides a little

lower performing model (93.77% of accuracy 95.22%

from the state-of-the-art) but allows reducing the

computation cost in terms of time by a factor of 2.8,

and 14 times in terms of energy consumption and

pollution, by producing a neural network that is 300

times smaller than the VGG16 model.

As a future work, we consider using the BCR as

the ﬁtness of the Improved FireFly algortihm, to bring

the aspect of efﬁciency into the architecture search.

ACKNOWLEDGEMENTS

This work has been carried out within the French-

Canadian project DOMAID which is funded by the

National Agency for Research (ANR-20-CE26-0014-

01) and the FRQSC

REFERENCES

Carvalho, A., Ramos, F., and Chaves, A. (2010). Meta-

heuristics for the feedforward artiﬁcial neural network

(ann) architecture optimization problem. Neural Com-

puting and Applications, 20.

Chen, S., Xu, K., Jiang, X., and Sun, T. (2022). Pyramid

spatial-temporal graph transformer for skeleton-based

action recognition. Applied Sciences, 12(18):9229.

Delamare, M., Laville, C., Cabani, A., and Chafouk, H.

(2021). Graph convolutional networks skeleton-based

action recognition for continuous data stream: A slid-

ing window approach. In Proceedings of the 16th

International Joint Conference on Computer Vision,

Imaging and Computer Graphics Theory and Applica-

tions - Volume 4: VISAPP,, pages 427–435. INSTICC,

SciTePress.

Elsken, T., Metzen, J. H., and Hutter, F. (2019). Neural

architecture search: A survey. Journal of Machine

Learning Research, 20(55):1–21.

Lannelongue, L., Grealey, J., and Inouye, M. (2021). Green

algorithms: Quantifying the carbon footprint of com-

putation. Advanced Science, 8(12):2100707.

Laraba, S., Brahimi, M., Tilmanne, J., and Dutoit, T. (2017).

3d skeleton-based action recognition by representing

motion capture sequences as 2d-rgb images. Com-

puter Animation and Virtual Worlds, 28.

Li, C., Zhong, Q., Xie, D., and Pu, S. (2018). Co-occurrence

feature learning from skeleton data for action recog-

nition and detection with hierarchical aggregation. In

Proceedings of the Twenty-Seventh International Joint

Conference on Artiﬁcial Intelligence, IJCAI-18, pages

786–792. International Joint Conferences on Artiﬁcial

Intelligence Organization.

Li, Y., Lan, C., Xing, J., Zeng, W., Yuan, C., and Liu, J.

(2016). Online human action detection using joint

classiﬁcation-regression recurrent neural networks. In

Leibe, B., Matas, J., Sebe, N., and Welling, M., edi-

tors, Computer Vision – ECCV 2016, pages 203–220,

Cham. Springer International Publishing.

Liu, J., Shahroudy, A., Wang, G., Duan, L.-Y., and Kot, A.

(2019). Skeleton-based online action prediction using

scale selection network. IEEE Transactions on Pattern

Analysis and Machine Intelligence, PP.

Liu, J., Shahroudy, A., Xu, D., Kot, A., and Wang,

G. (2018). Skeleton-based action recognition using

spatio-temporal lstm network with trust gates. IEEE

Transactions on Pattern Analysis and Machine Intel-

ligence, 40:3007–3021.

Liu, J., Wang, G., Hu, P., Duan, L.-Y., and Kot, A. C.

(2017a). Global context-aware attention lstm net-

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

364

works for 3d action recognition. In 2017 IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 3671–3680.

Liu, M., Liu, H., and Chen, C. (2017b). Enhanced skeleton

visualization for view invariant human action recogni-

tion. Pattern Recognition, 68:346–362.

Ludl, D., Gulde, T., and Curio, C. (2019). Simple yet efﬁ-

cient real-time pose-based action recognition. In 2019

IEEE Intelligent Transportation Systems Conference

(ITSC), pages 581–588.

Mellor, J., Turner, J., Storkey, A., and Crowley, E. J. (2021).

Neural architecture search without training. In Meila,

M. and Zhang, T., editors, Proceedings of the 38th In-

ternational Conference on Machine Learning, volume

139 of Proceedings of Machine Learning Research,

pages 7588–7598. PMLR.

Mokhtari, N., Fer, V., Nédélec, A., Gilles, M., and De Loor,

P. (2023). Enhanced spatio-temporal image encod-

ing for online human activity recognition. In Inter-

national Conference on Machine Learning and Appli-

cations (ICMLA) 2023, page to appear.

Mokhtari, N., Nédélec, A., Gilles, M., and De Loor, P.

(2022a). Improving neural architecture search by mix-

ing a ﬁreﬂy algorithm with a training free evaluation.

In 2022 International Joint Conference on Neural Net-

works (IJCNN), pages 1–8.

Mokhtari, N., Nédélec, A., and Loor, P. D. (2022b). Hu-

man activity recognition: A spatio-temporal image en-

coding of 3d skeleton data for online action detection.

In Proceedings of the 17th International Joint Con-

ference on Computer Vision, Imaging and Computer

Graphics Theory and Applications - Volume 4: VIS-

APP,, pages 448–455. INSTICC, SciTePress.

Ordóñez, F. J. and Roggen, D. (2016). Deep convolutional

and lstm recurrent neural networks for multimodal

wearable activity recognition. Sensors, 16(1).

Schwartz, R., Dodge, J., Smith, N., and Etzioni, O. (2019).

Green ai. Communications of the ACM, 63:54 – 63.

Simonyan, K. and Zisserman, A. (2014). Very deep con-

volutional networks for large-scale image recognition.

CoRR, abs/1409.1556.

Strubell, E., Ganesh, A., and McCallum, A. (2019). Energy

and policy considerations for deep learning in NLP.

In Proceedings of the 57th Annual Meeting of the As-

sociation for Computational Linguistics, pages 3645–

3650, Florence, Italy. Association for Computational

Linguistics.

Strumberger, I., Tuba, E., Bacanin, N., Zivkovic, M., Beko,

M., and Tuba, M. (2019). Designing convolutional

neural network architecture by the ﬁreﬂy algorithm.

In 2019 International Young Engineers Forum (YEF-

ECE), pages 59–65.

Sun, Y., Xue, B., Zhang, M., Yen, G. G., and Lv, J.

(2020). Automatically designing CNN architectures

using the genetic algorithm for image classiﬁcation.

IEEE Transactions on Cybernetics, 50(9):3840–3854.

Wang, J., Chen, Y., Hao, S., Peng, X., and Hu, L. (2019).

Deep learning for sensor-based activity recognition: A

survey. Pattern Recognition Letters, 119:3–11.

Wang, X., He, M., Yang, L., Wang, H., and Zhong, Y.

(2023). Human activity recognition based on an

efﬁcient neural architecture search framework using

evolutionary multi-objective surrogate-assisted algo-

rithms. Electronics, 12(1).

Weng, J., Weng, C., and Yuan, J. (2017). Spatio-temporal

naive-bayes nearest-neighbor (st-nbnn) for skeleton-

based action recognition. In 2017 IEEE Conference

on Computer Vision and Pattern Recognition (CVPR).

Wistuba, M., Rawat, A., and Pedapati, T. (2019). A survey

on neural architecture search.

Yan, S., Xiong, Y., and Lin, D. (2018). Spatial temporal

graph convolutional networks for skeleton-based ac-

tion recognition.

Ying, C., Klein, A., Christiansen, E., Real, E., Murphy, K.,

and Hutter, F. (2019). NAS-bench-101: Towards re-

producible neural architecture search. In Chaudhuri,

K. and Salakhutdinov, R., editors, Proceedings of the

36th International Conference on Machine Learning,

volume 97 of Proceedings of Machine Learning Re-

search, pages 7105–7114. PMLR.

Online Human Activity Recognition Using Efﬁcient Neural Architecture Search with Low Environmental Impact

365
