Practical Deep Feature-Based Visual-Inertial Odometry

Charles Hamesse

1,2 a

, Michiel Vlaminck

2 b

, Hiep Luong

2 c

and Rob Haelterman

1 d

Department of Mathematics, Royal Military Academy, Belgium

imec, IPI, URC, Ghent University, Belgium

Keywords:

Visual-Inertial Odometry, Visual Features, Deep Features.

Abstract:

We present a hybrid visual-inertial odometry system that relies on a state-of-the-art deep feature matching

front-end and a traditional visual-inertial optimization back-end. More precisely, we develop a fully-ﬂedged

feature tracker based on the recent SuperPoint and LightGlue neural networks, that can be plugged directly to

the estimation back-end of VINS-Mono. By default, this feature tracker returns extremely abundant matches.

To bound the computational complexity of the back-end optimization, limiting the number of used matches is

desirable. Therefore, we explore various methods to ﬁlter the matches while maintaining a high visual-inertial

odometry performance. We run extensive tests on the EuRoC machine hall and Vicon room datasets, showing

that our system achieves state-of-the-art odometry performance according relative pose errors.

1 INTRODUCTION

Visual-inertial odometry (VIO) is a technique for es-

timating the 6-degree-of-freedom (6DoF) pose of a

camera from a sequence of images and inertial mea-

surements. It is widely used in robotics, augmented

reality (AR), and virtual reality (VR) applications. If

we add a loop detection and closure method to VIO,

we have a complete Visual-Inertial Simultaneous Lo-

calization and Mapping (VISLAM) system. The in-

creased accuracy makes that such SLAM systems are

used in a wide range of large-scale industries such as

autonomous vehicles, civil engineering or agriculture.

Traditional VIO and VISLAM methods rely on

hand-crafted feature extraction and matching algo-

rithms for their front-ends, i.e. the image process-

ing pipeline between the sensor input and the op-

timization back-end. Prominent methods include

VINS-Mono (Qin et al., 2018), ORB-SLAM3 (Cam-

pos et al., 2021) or OpenVINS (Geneva et al.,

2020). These methods typically use descriptor or

KLT-based feature tracking, both having their respec-

tive strengths and weaknesses. KLT tracking is usu-

ally faster but less robust to large viewpoint changes

(which could be due to fast camera motion), poor im-

https://orcid.org/0000-0002-2321-0620

https://orcid.org/0000-0003-3986-823X

https://orcid.org/0000-0002-6246-5538

https://orcid.org/0000-0002-1610-2218

Figure 1: Features tracked with our system in the EuRoC

sequence MH 01. The red-green-blue color code indicates

features that have been observed in respectively 2 to 8, 8 to

16 and more than 16 frames.

age contrast (e.g. difﬁcult visibility conditions) and

occlusions. Descriptor-based tracking allows to track

features in the longer term, but is more expensive

computationally. One of the most studied VIO al-

gorithms is VINS-Mono, which has achieved state-

of-the-art performance for several years and whose

open-source code is at the core of an important quan-

tity of research works. To name a few, VINS-Fusion

(Qin et al., 2019) extends VINS-Mono to multi-

ple sensors, PLI-VINS (Zhao et al., 2022) extends

VINS-Mono with line features, R2Live (Lin et al.,

2021) uses VINS-Mono’s feature tracker in a LiDAR-

visual-inertial odometry pipeline.

240

Hamesse, C., Vlaminck, M., Luong, H. and Haelterman, R.

Practical Deep Feature-Based Visual-Inertial Odometry.

DOI: 10.5220/0012320200003654

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 13th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2024), pages 240-247

ISBN: 978-989-758-684-2; ISSN: 2184-4313

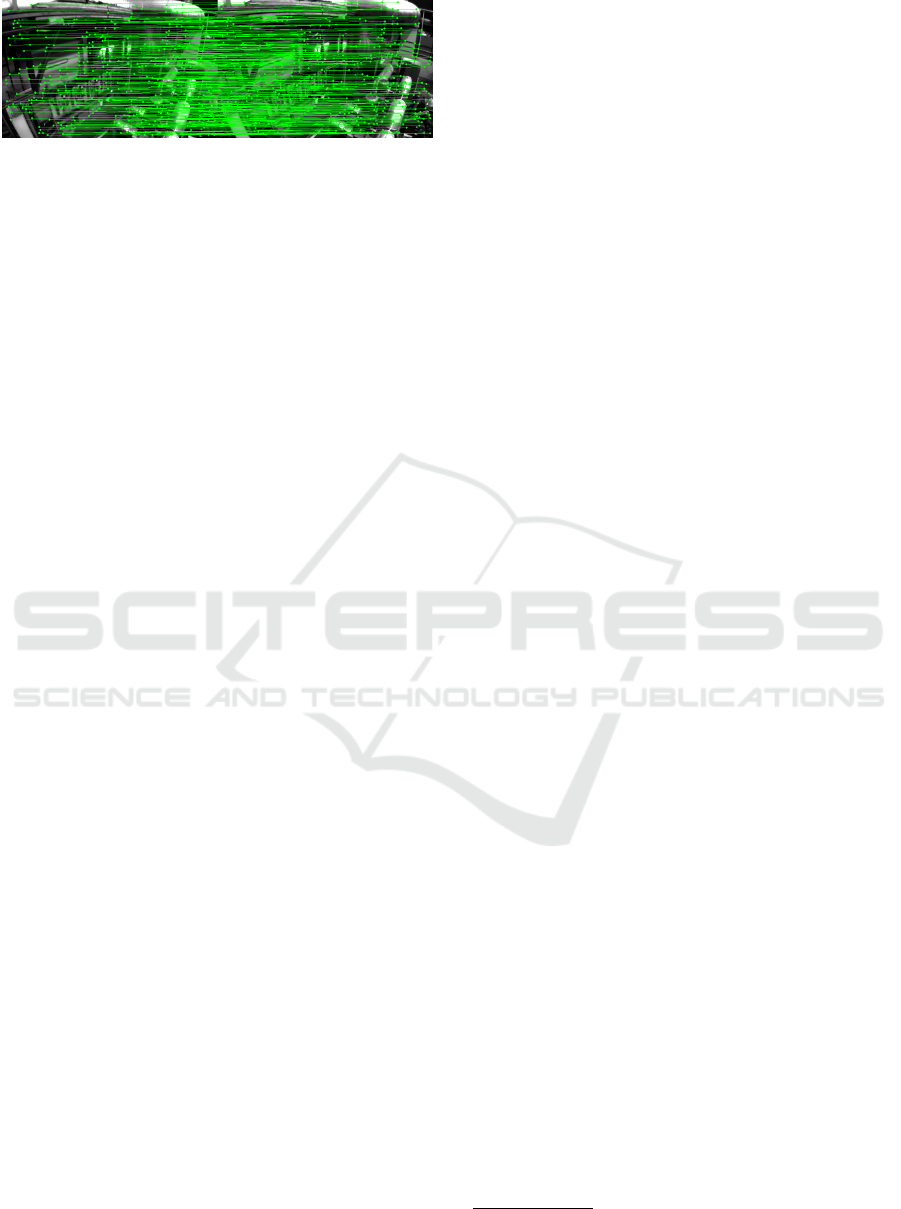

Figure 2: Matches obtained with SuperPoint and LightGlue

on a sample frame pair of EuRoC’s MH01 sequence, with-

out ﬁltering.

In recent years, there has been a signiﬁcant

progress in image feature extraction and matching

techniques. More precisely, deep learning-based fea-

ture algorithms based on variants of convolutional

neural networks (CNNs) have been shown to achieve

state-of-the-art results. The applications of these

methods are numerous (e.g., automated object track-

ing, motion-based segmentation), but they are par-

ticularly well suited for visual odometry tasks. The

recently introduced LightGlue (Lindenberger et al.,

2023) algorithm presents a signiﬁcant increase of per-

formance of the state-of-the-art of deep feature ex-

traction and matching. One key property is that Light-

Glue is adaptive to the difﬁculty of the problem: the

inference is much faster on image pairs that are intu-

itively easy to match, for example because of a larger

visual overlap or limited appearance change. This is

precisely the case for visual odometry tasks, where it

is expected that adjacent frames have a large overlap.

By default, the combination of SuperPoint and

LightGlue returns extremely abundant matches. Fig-

ure 2 shows the density of matches on a sample frame

of the EuRoC’s dataset MH01 sequence. For practi-

cal purposes, it is important to limit this number of

matches that are actually used in VIO estimator back-

end, in order to bound the computational complex-

ity. Therefore, it becomes relevant to develop ways of

limiting the number of matches.

In this paper, we propose a new VIO front-end

that uses a deep learning-based feature extraction and

matching algorithm. Our method is built upon VINS-

Mono and LightGlue and can serve as a direct re-

placement for VINS-Mono’s default feature tracker,

making it easy to integrate in existing, practical sys-

tems. Through experiments on the EuRoC micro-

aerial vehicle dataset (Burri et al., 2016), we show

that our feature tracker consistently improves the per-

formance compared to the default VINS-Mono. Our

contributions are the following:

1. We develop a fast and accurate deep feature

tracker for visual odometry, which we integrate

in the VINS-Mono VIO system. With default set-

tings, this feature tracker already achieves better

odometry performance than the ordinary VINS-

Mono. In some variants, our feature tracker with

VINS-Mono’s backend achieves an accuracy su-

perior to the current state-of-the-art deep feature-

based HFNet-SLAM system (Liu and Aitken,

2023).

2. To bound the computational complexity of the

visual-inertial estimator and thus guarantee a cer-

tain operational frame rate, we study different

ways of ﬁltering feature matches and limiting the

number of feature observations returned by our

feature tracker. This allows to pick a variant of

our system according to the performance / speed

trade-off for each application.

Following open science principles and to stimu-

late further work on our system, we make all of our

contributions available open source

2 RELATED WORK

Although odometry and SLAM systems exist with

a plethora of sensor setups involving one or multi-

ple cameras, LiDARs, IMUs, etc, the classic visual-

inertial setup remains of great interest thanks to

its simplicity, small physical dimension and perfor-

mance. However, since our contribution does not af-

fect the processing of IMU measurements in the VIO

system, we start with an overview of the techniques

to process visual information for odometry. We cover

the main trends that have emerged in the ﬁeld, start-

ing from the inception of such methods in the 2000s

with classical, hand-made features until today’s neu-

ral network-based learned features.

2.1 Traditional Feature-Based Visual

Odometry

Visual SLAM, or Simultaneous Localization and

Mapping through visual data, has been a subject of

extensive research and development over the years.

The inception of monocular SLAM can be traced

back to 2007 when Davison introduced MonoSLAM

(Davison et al., 2007). This algorithm utilized an ex-

tended Kalman ﬁlter (EKF) to achieve real-time lo-

calization by leveraging large image patch features

and sparse prior scene knowledge. However, it had

limitations in handling occlusions, motion blur, and

scenarios with sparse texture details. Some of these

challenges were overcome with the introduction of

the multi-state constraint Kalman ﬁlter (MSCKF)

https://github.com/charleshamesse/LightGlue-VIN

S-Mono

Practical Deep Feature-Based Visual-Inertial Odometry

241

in (Mourikis and Roumeliotis, 2007), which pro-

poses a tightly coupled visual-inertial approach that

jointly optimizes camera poses and IMU measure-

ments. Although Kalman ﬁlter-based odometry sys-

tems are relatively simple and elegant, optimization-

based methods have been introduced to increase accu-

racy. Odometry systems based on bundle adjustment

optimization have been adopted with a great success,

albeit at the cost of increased computational complex-

ity. However, this increase can be controlled with a

clever control of the number of variables considered

in the optimization problem. This can be achieved

by limiting the number of active feature tracks and

using keyframe-based or sliding window optimiza-

tion. VINS-Mono (Qin et al., 2018) is a robust visual-

inertial odometry estimation system that maintains re-

cent states of map points and cameras in a sliding

window, optimized with local bundle adjustment. Vi-

sual features are tracked using KLT and optical ﬂow.

ORB-SLAM (Campos et al., 2021) uses ORB features

and a descriptor-based approach for matching, which

is more expensive computationally but can offer bet-

ter long-term data association performance. (Note

that both VINS-Mono and ORB-SLAM also have full

SLAM capabilities, with loop closure detection and

optimization methods.)

2.2 Deep Feature-Based Visual

Odometry

Nowadays, deep learning techniques for feature ex-

traction and matching signiﬁcantly outperform their

traditional counterparts. In (DeTone et al., 2018),

the authors have introduced a self-supervised fully

convolutional model called SuperPoint, capable of

computing pixel-wise features with excellent match-

ing capabilities. This has shown to be very suc-

cessful in numerous subsequent works. For exam-

ple, SuperPointVO (Han et al., 2020) proposes a

stereo odometry system based on feature extraction

by SuperPoint. The features are fed to a traditional

stereo VO backend without loop closing. Exper-

iments on the KITTI dataset show a performance

close to other state-of-the-art stereo SLAM system.

(Tang et al., 2019) moved from SuperPoint and in-

troduced the GCNv2 network to replace the ORB al-

gorithm for extracting local features in the RGB-D

variant of the ORB-SLAM system. DF-SLAM (Kang

et al., 2019) integrated learned features with a tradi-

tional stereo SLAM system, achieving both high ac-

curacy and real-time performance. In a similar man-

ner, LIFT-SLAM (Bruno and Colombini, 2020) uses

the Learned Invariant Feature Transform (LIFT) pro-

posed by (Yi et al., 2016) for feature detection, ori-

entation estimation and description, then uses a tra-

ditional stereo ORB-SLAM backend. HFNet-SLAM

(Liu and Aitken, 2023) integrates HFNet features

(Sarlin et al., 2019) for feature tracking and loop de-

tection on the ORB-SLAM3 framework, achieving

state-of-the-art performance for full SLAM in various

conﬁgurations (monocular and monocular-inertial).

Furthermore, with the optimisation of TensorRT tech-

nology, the authors show that the entire system can

run in real-time at 50 FPS on a standard Nvidia

RTX2070 GPU. Unfortunately, HFNet-SLAM only

reports full SLAM results with loop closing, making

the comparison difﬁcult. DXSLAM (Li et al., 2020)

similarly integrates HFNet features, but this time in

a traditional RGB-D SLAM backend (also based on

ORB-SLAM).

Evaluation of visual odometry methods is com-

monly done on the EuRoC micro aerial vehicle

dataset (Burri et al., 2016), the TUM dataset (Sturm

et al., 2012) or KITTI (Geiger et al., 2013). Among

all the deep feature-based methods mentioned in the

previous paragraph, only HF-Net has an open source

monocular-inertial variant against which we can com-

pare our results.

3 METHOD

We start with an overview of the proposed VIO

pipeline, then focus on each speciﬁc component and

variant that we have implemented.

3.1 Overview

We propose a monocular visual-inertial odometry sys-

tem called LightGlue-VINS-Mono. As the name

indicates, this system is built upon the existing

SuperPoint-LightGlue deep feature matcher (DeTone

et al., 2018) (Lindenberger et al., 2023) and the tra-

ditional VINS-Mono visual-odometry system (Qin

et al., 2018). To do so, we develop a fully-ﬂedged

visual feature tracker based on LightGlue, which we

connect to the VINS-Mono VIO back-end. From an

input-output perspective, our feature tracker functions

exactly the same as the original feature tracker from

VINS-Mono: it takes image frames as input, and re-

turns feature observation tuples containing the feature

identiﬁer, its coordinates in the current image frame,

etc. We implement a strategy to run the feature ex-

traction only once on each image, saving the results to

avoid unnecessary re-execution of SuperPoint. Then,

for every pair of adjacent frames, we run LightGlue

and then ﬁlter out potentially bad matches: the match

ﬁlter component of our pipeline implements various

ICPRAM 2024 - 13th International Conference on Pattern Recognition Applications and Methods

242

Figure 3: Overview of our visual-inertial odometry pipeline. Each incoming image frame I

is fed to SuperPoint, which

outputs features F

. Together with the previous features F

i−1

, they are fed to LightGlue, which returns the matches M

. Then,

the MatchFilter component selects a relevant subset of all matches M

∗

, which is ﬁnally fed to the state estimator back-end.

0.2 0.4

0.6

0.8 1.0

Score

Density

Figure 4: Histogram of the score values of the 443 matches

returned by applying SuperPoint+LightGlue on one pair of

frames, taken exactly in the middle of EuRoC’s MH 01 se-

quence. Note that the vertical scale of the plot is logarith-

mic.

strategies to reject matches based on their score out-

put by LightGlue, as explained in the next sections.

A key difference between our LightGlue and

VINS-Mono’s traditional feature tracker is the abun-

dance of matches that are returned. As shown in the

introduction on Figure 2, SuperPoint and LightGlue

return signiﬁcantly more matches than the traditional

tracker, even in the presence of large parallax or mo-

tion blur. However, the optimization-based VIO back-

end has a computational complexity that grows dras-

tically with this number of matches. Therefore, match

ﬁltering should be applied to bound the complexity of

the optimization problem. To do so, we use an in-

teresting property of LightGlue: its ability to return

a conﬁdence score with each match. Based on this

score, we implement various match ﬁltering strate-

gies, as we will explain in the next sections.

Further operations in our VIO system follow the

default VINS-Mono implementation. For simplicity

and to better study the performance contribution of

our feature tracker, we do not develop an associated

0.2 0.4

0.6

0.8 1.0

Score

−1

Density

Figure 5: Histogram of the score values of the 1.5M

matches returned by applying SuperPoint+LightGlue on

all adjacent pairs of frames of EuRoC’s MH 01 sequence.

Note that the vertical scale of the plot is logarithmic.

loop closure method. If need be, one could append a

loop closure method to our pipeline or use that from

VINS-Mono. Figure 3 shows the main components

of the LightGlue-VINS-Mono system. The following

sections describe each component.

3.1.1 Feature Extraction

The SuperPoint neural network takes the i-th image I

as input and returns the set of features:

= {f

i,0

, f

i,1

, . . . , f

i,N

features

−1

} (1)

where f

i j

= ⟨x

i j

, y

i j

, d

i j

⟩ (2)

Here x

i j

, y

i j

and d

i j

are respectively the coordinates

of the j-th feature in the i-th image and the associ-

ated feature descriptor. N

features

is the target number

of features to ﬁnd in each image, which is a user-input

parameter of SuperPoint.

3.1.2 Feature Matching

Once the features are extracted for I

, the LightGlue

feature matcher takes the current features F

and pre-

Practical Deep Feature-Based Visual-Inertial Odometry

243

Figure 6: Matches returned for a frame pair in EuRoC’s

MH01 sequence. Top: all points found by SuperPoint, cen-

ter: points used in matches found by LightGlue, bottom:

points matched with connecting line.

vious features F

i−1

and returns the following set of

matches:

= {m

i,0

, m

i,1

, . . . , m

i,M−1

} (3)

where m

= ⟨f

i−1, j

−

, f

i, j

, s

⟩ (4)

where M is the number of matches returned in the cur-

rent frame pair which are indexed by k, j

−

is the index

of the matched feature in the set F

i−1

, and similarly

for j

and F

. Then, s

∈ [0, 1] is the match conﬁ-

dence score. The match scores returned by LightGlue

are often very close to the unit. We study their distri-

bution and show the results in Figures 4 and 5. More-

over, LightGlue returns extremely abundant matches,

successfully matching a large portion of feature points

extracted by SuperPoint (see Figure 6).

Each feature needs a unique identiﬁer number so

that the VIO back-end may optimize its location in

a window of frames. Therefore, we augment each

match such that:

= ⟨f

i−1, j

−

, f

i, j

, s

, n

⟩ (5)

where n

is the unique feature identiﬁer which can be

either propagated from the previously matched frame

pair if the feature was already observed, or created by

incrementing the current total feature count if it is a

newly observed feature.

3.1.3 Match Filtering

Our feature extraction and matching pipeline outputs

extremely abundant matches, and we want to limit the

number of matches actually used in the optimization

back-end. This is important to limit the computa-

tional complexity of the visual-inertial optimization

and guarantee a certain speed. We use the conﬁdence

score to implement two different strategies to discard

these potentially wrong matches:

• The ﬁrst strategy is to discard all matches m

with

a score s

below some threshold. As shown on

Figures 4 and 5, the scores returned by the feature

matcher are mostly concentrated in values close

to 1. Therefore, we implement two variants of the

ﬁlter with the threshold s

k,max

set at 0.9 and 0.95.

• The second strategy is to take the M

max

-best

matches at each frame pair. We evaluate this

method with the maximum number of matches

max

set to 300, 400 and 500.

The set of ﬁltered matches for the i-th frame is noted

∗

and is the complete output of the feature tracker

which is fed to the VIO back-end. For its state-of-the-

art performance and to make our solution practical,

we use VINS-Mono’s VIO back-end estimator, with-

out any modiﬁcation.

4 EVALUATION

We evaluate our system against the baseline VINS-

Mono, the state-of-the-art traditional VIO, and

HFNet-SLAM, a state-of-the-art deep feature-based

VI-SLAM system. In both cases, we deactivate the

loop closure methods to perform a fair evaluation,

testing the pure visual-inertial odometry capabilities

of the algorithms. We test several variants of our pro-

posed system, using the score threshold-based match

rejection strategy and the M

max

-best match retention

strategy, and one without any ﬁltering. All of our

tests are executed on a laptop computer with an Intel

i9-11900H CPU and an Nvidia RTX3080 GPU. All

methods are executed on the same device and evalu-

ated with the same method.

4.1 Accuracy

The metrics considered are the Absolute Trajectory

Error (ATE) and the Relative Pose Error (RPE, com-

puted for each adjacent frame pair), which we split

into the Translation part (RPE-T) and Rotation part

(RPE-R). It is common knowledge that the RPEs are

more relevant than the ATE for the evaluation of vi-

sual odometry, as they target the local quality of the

trajectory estimation. Also, the ATE is sensitive to

when the errors happen along the trajectory (Zhang

and Scaramuzza, 2018). Therefore, the ATE is more

ICPRAM 2024 - 13th International Conference on Pattern Recognition Applications and Methods

244

Table 1: Evaluation of our proposed method LightGlue-VINS-Mono with the minimum s

(set to 0.9 and 0.95), and the

max

-best (from 200 to 1000) against state-of-the-art traditional and deep feature-based methods. The RMS Relative Pose

Error in Translation (RPE-T) is reported in millimeters. VINS and HFNet represent VINS-Mono and HFNet-SLAM, both

executed with the loop closure component deactivated and otherwise default settings. Bold indicates the best performance.

VINS HFNet LightGlue-VINS-Mono (ours)

Seq. Def. Def. m-0.9 m-0.95 b-200 b-300 b-400 b-500 b-600 b-700 b-800 b-900 b-1000

MH 01 4.07 3.92 3.23 455.21 120.65 2.95 2.39 2.32 2.32 2.12 2.01 1.89 1.86

MH 02 3.19 3.40 2.41 6.33 2.67 2.09 1.85 1.72 2.08 1.90 1.76 1.66 1.49

MH 03 6.95 5.80 10.73 65.45 4.61 131.92 4.06 3.91 4.17 4.02 3.83 3.88 3.77

MH 04 7.46 6.55 58.28 79.54 5.37 4.62 4.51 4.47 4.47 4.39 4.35 4.37 4.41

MH 05 6.69 4.43 40.41 39.33 64.33 4.15 3.88 3.78 4.05 3.89 3.70 3.70 3.86

V1 01 5.27 3.39 3.24 3.43 3.21 2.92 2.80 2.75 2.88 2.82 2.74 2.80 2.78

V1 02 5.76 2.86 3.07 74.70 87.36 2.88 2.78 2.78 2.83 2.77 2.78 2.77 2.75

V1 03 6.42 3.44 34.43 44.16 3.66 2.98 2.79 3.27 2.78 2.75 2.76 2.77 2.73

V2 01 3.10 3.32 2.77 3.31 2.81 1.91 1.62 1.47 1.74 1.61 1.47 1.39 1.46

V2 02 4.52 3.19 2.86 3.50 61.61 2.33 2.01 1.97 2.12 1.97 1.91 1.89 1.89

V2 03 7.39 3.32 75.78 54.58 5.24 3.75 3.62 3.62 3.49 3.57 3.54 3.45 3.45

Table 2: Evaluation of our proposed method LightGlue with the minimum s

(set to 0.9 and 0.95), and the M

max

-best (from

200 to 1000) against state-of-the-art traditional and deep feature-based methods. For readability, the RMS Relative Pose Error

in Rotation (RPE-R) is reported in hundredths of degrees. VINS and HFNet represent VINS-Mono and HFNet-SLAM, both

executed with the loop closure component deactivated and otherwise default settings. Bold indicates the best performance.

VINS HFNet LightGlue-VINS-Mono (ours)

Seq. Def. Def. m-0.9 m-0.95 b-200 b-300 b-400 b-500 b-600 b-700 b-800 b-900 b-1000

MH 01 0.41 0.39 0.32 45.52 12.06 0.29 0.24 0.23 0.23 0.21 0.20 0.19 0.19

MH 02 0.32 0.34 0.24 0.63 0.27 0.21 0.18 0.17 0.21 0.19 0.18 0.17 0.15

MH 03 0.69 0.58 1.07 6.55 0.46 13.19 0.41 0.39 0.42 0.40 0.38 0.39 0.38

MH 04 0.75 0.66 5.83 7.95 0.54 0.46 0.45 0.45 0.45 0.44 0.43 0.44 0.44

MH 05 0.67 0.44 4.04 3.93 6.43 0.41 0.39 0.38 0.41 0.39 0.37 0.37 0.39

V1 01 0.53 0.34 0.32 0.34 0.32 0.29 0.28 0.27 0.29 0.28 0.27 0.28 0.28

V1 02 0.58 0.29 0.31 7.47 8.74 0.29 0.28 0.28 0.28 0.28 0.28 0.28 0.27

V1 03 0.64 0.34 3.44 4.42 0.37 0.30 0.28 0.33 0.28 0.28 0.28 0.28 0.27

V2 01 0.31 0.33 0.28 0.33 0.28 0.19 0.16 0.15 0.17 0.16 0.15 0.14 0.15

V2 02 0.45 0.32 0.29 0.35 6.16 0.23 0.20 0.20 0.21 0.20 0.19 0.19 0.19

V2 03 0.74 0.33 7.58 5.46 0.52 0.38 0.36 0.36 0.35 0.36 0.35 0.35 0.35

relevant for full SLAM systems, where the aim is

to produce globally consistent trajectories. However,

since it remains very often reported, we chose to com-

pute both type of metrics in this paper.

Tables 1 and 2 report the results of the RMS RPE-

T and RPE-R, respectively. On both of these ta-

bles, we see that LightGlue-VINS-Mono in the higher

max

variants achieves state-of-the-art performance,

with an RMS RPE-T signiﬁcantly lower than VINS-

Mono and HFNet-SLAM in most cases. Also, we

see that the threshold-based match rejection results

in relatively poor performance. This might be due

to the fact that in some sequences, the camera mo-

tion is such that very few matches can be found in

frame pairs, resulting in too few matches being used

with such a strong rejection policy. With the M

max

best retention strategy, we ensure that some matches

are always used, even if they are relatively scarce. An

interesting remark is that the accuracy continues to

increase as we add more matches (and thus allow-

ing lower quality matches compared to lower M

max

variants), which testiﬁes for the general quality of

matches returned by SuperPoint and LightGlue.

Table 3 reports the results of the RMS ATE. Here,

unlike with the relative errors, HFNet-SLAM shows

a consistent superior performance. This could be ex-

plained by the fact that it matches features in the cur-

rent frame against all known features in the local map,

Practical Deep Feature-Based Visual-Inertial Odometry

245

Table 3: Evaluation of our proposed method LightGlue with the minimum s

(set to 0.9 and 0.95), and the M

max

-best (from

200 to 1000) against state-of-the-art traditional and deep feature-based methods. The RMS Absolute Translation Error (ATE)

is reported in meters. VINS and HFNet represent VINS-Mono and HFNet-SLAM, both executed with the loop closure

component deactivated and otherwise default settings. Bold indicates the best performance.

VINS HFNet LightGlue-VINS-Mono (ours)

Seq. Def. Def. m-0.9 m-0.95 b-200 b-300 b-400 b-500 b-600 b-700 b-800 b-900 b-1000

MH 01 1.49 1.24 2.43 26.10 72.04 1.67 1.53 1.59 2.18 2.15 2.04 1.86 1.88

MH 02 2.47 1.03 2.65 6.42 3.63 2.67 2.21 2.12 3.09 2.67 2.32 2.50 2.18

MH 03 1.79 1.15 2.94 4.07 2.80 161.76 1.66 1.61 1.73 1.49 1.38 1.40 1.28

MH 04 1.03 1.00 1.06 1.60 1.65 1.28 1.19 1.31 1.40 1.43 1.35 1.36 1.57

MH 05 0.84 0.60 0.87 0.95 6.00 1.11 1.00 0.92 1.10 1.06 1.12 0.98 1.28

V1 01 6.19 5.51 6.29 6.65 6.20 5.87 5.50 5.42 5.25 5.26 5.31 5.56 5.34

V1 02 2.62 1.99 2.46 34.43 173.23 2.55 2.12 2.23 2.30 2.28 2.27 2.27 2.30

V1 03 5.29 2.36 26.82 171.53 5.47 3.91 3.38 3.98 3.18 3.18 3.31 3.34 3.27

V2 01 1.87 0.78 3.03 6.21 3.00 1.73 1.03 1.00 1.51 1.33 1.21 1.06 1.21

V2 02 2.68 0.97 2.49 3.33 175.51 1.90 1.86 1.88 1.66 1.65 1.68 1.67 1.67

V2 03 3.28 0.90 8.21 12.39 9.24 2.88 2.56 2.61 1.95 2.66 2.59 2.12 2.15

allowing to potentially re-use features that are not de-

tected in a given past frame, leading to better global

trajectory consistency. This is not the case with our

tracker: if a feature was detected in frame i − 1 and i

but not in frame i +1, detecting it again in frame i+ 2

will have our matcher treat it as a new feature and

the previous feature track is lost. In other words, our

matcher only operates on adjacent frame pairs, which

could also explain its better performance in relative

errors. The combination of both approaches would be

an interesting direction for further research.

4.2 Computational Complexity

In terms of computational complexity, the evaluation

is harder to perform as the time needed by the opti-

mizer of VINS-Mono to converge depends on numer-

ous factors: the number of matches, which directly

impacts the number of feature observations for which

we need to compute a residual, and the current state of

the system with respect to the optimization landscape,

including the minimum to reach.

To give an order of magnitude of the inﬂuence of

the number of matches used in the optimization, we

measure the average iteration time in M

max

-best vari-

ants of our system, as well as the default VINS-Mono

system. Table 4 reports these measurements. In prac-

tice, we can limit the number of iterations or the to-

tal time used by the solver, potentially stopping be-

fore reaching the local minimum

. Our variants can

For example, on the EuRoC dataset, the default max

iteration number for VINS-Mono is 8, and the total solver

time is 40ms, so that it can achieve real-time at roughly 20

Table 4: Evaluation of the average iteration time required by

VINS-Mono’s estimator back-end, computed on the MH01

sequence. Default means VINS Mono’s default feature

tracker.

Variant Iteration time [ms]

Default 1.67

b-300 2.11

b-400 3.23

b-500 3.94

b-600 4.11

b-700 4.78

b-800 5.38

b-900 6.70

b-1000 7.41

be slightly or severely slower than the default VINS-

Mono, and thus depending on the target application

and resources, we may choose a certain match ﬁlter-

ing strategy.

5 CONCLUSIONS

In this paper, we have presented a practical visual-

inertial odometry system that relies on state-of-the-art

deep feature matching and traditional visual-inertial

optimization-based state estimation. More precisely,

we develop a fully-ﬂedged feature tracker that can be

plugged directly to the estimation back-end of VINS-

Mono. Our deep feature tracker uses SuperPoint,

LightGlue, and custom methods to limit the num-

frames per second.

ICPRAM 2024 - 13th International Conference on Pattern Recognition Applications and Methods

246

ber of matches to bound the complexity of the VIO

optimization while maintaining maximum accuracy.

Our extensive tests on the EuRoC datasets show that

our system achieves state-of-the-art odometry perfor-

mance according to relative translation and rotation

errors, at the cost of a slight increase of computational

complexity. Now, our tests highlight different ways in

which this work could be improved:

1. A dedicated, deep feature-based loop closure sys-

tem could be appended for full SLAM capability.

2. As shown in the tests, the local map-based match-

ing of HFNet-SLAM and ORB-SLAM could po-

tentially improve the global consistency of the tra-

jectories returned by our system.

3. The current implementation of the feature tracker

is in Python and PyTorch; important speed im-

provements could be obtained by switching to a

C++ / TensorRT implementation.

Following open science principles and to stimulate

work in the directions mentioned hereabove, we open

source the code of our system (upon acceptance).

REFERENCES

Bruno, H. M. S. and Colombini, E. (2020). Lift-slam:

a deep-learning feature-based monocular visual slam

method. Neurocomputing, 455:97–110.

Burri, M., Nikolic, J., Gohl, P., Schneider, T., Rehder, J.,

Omari, S., Achtelik, M. W., and Siegwart, R. (2016).

The euroc micro aerial vehicle datasets. The Interna-

tional Journal of Robotics Research.

Campos, C., Elvira, R., Gomez, J. J., Montiel, J. M. M.,

and Tardos, J. D. (2021). ORB-SLAM3: An accu-

rate open-source library for visual, visual-inertial and

multi-map SLAM. IEEE Transactions on Robotics,

37(6):1874–1890.

Davison, A. J., Reid, I. D., Molton, N., and Stasse, O.

(2007). Monoslam: Real-time single camera slam.

IEEE Transactions on Pattern Analysis and Machine

Intelligence, 29:1052–1067.

DeTone, D., Malisiewicz, T., and Rabinovich, A. (2018).

Superpoint: Self-supervised interest point detection

and description. In Proceedings of the IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR) Workshops.

Geiger, A., Lenz, P., Stiller, C., and Urtasun, R. (2013).

Vision meets robotics: The kitti dataset. International

Journal of Robotics Research (IJRR).

Geneva, P., Eckenhoff, K., Lee, W., Yang, Y., and Huang,

G. (2020). OpenVINS: A research platform for visual-

inertial estimation. In Proc. of the IEEE Interna-

tional Conference on Robotics and Automation, Paris,

France.

Han, X., Tao, Y., Li, Z., Cen, R., and Xue, F. (2020). Super-

pointvo: A lightweight visual odometry based on cnn

feature extraction. In 2020 5th International Confer-

ence on Automation, Control and Robotics Engineer-

ing (CACRE), pages 685–691.

Kang, R., Shi, J., Li, X., Liu, Y., and Liu, X. (2019). Df-

slam: A deep-learning enhanced visual slam system

based on deep local features. ArXiv, abs/1901.07223.

Li, D., Shi, X., Long, Q., Liu, S., Yang, W., Wang, F., Wei,

Q., and Qiao, F. (2020). DXSLAM: A robust and ef-

ﬁcient visual SLAM system with deep features. arXiv

preprint arXiv:2008.05416.

Lin, J., Zheng, C., Xu, W., and Zhang, F. (2021). R2live: A

robust, real-time, lidar-inertial-visual tightly-coupled

state estimator and mapping. IEEE Robotics and Au-

tomation Letters, 6:7469–7476.

Lindenberger, P., Sarlin, P.-E., and Pollefeys, M. (2023).

LightGlue: Local Feature Matching at Light Speed.

In ICCV.

Liu, L. and Aitken, J. M. (2023). Hfnet-slam: An accu-

rate and real-time monocular slam system with deep

features. Sensors, 23(4).

Mourikis, A. I. and Roumeliotis, S. I. (2007). A multi-state

constraint kalman ﬁlter for vision-aided inertial navi-

gation. Proceedings 2007 IEEE International Confer-

ence on Robotics and Automation, pages 3565–3572.

Qin, T., Li, P., and Shen, S. (2018). Vins-mono: A robust

and versatile monocular visual-inertial state estimator.

IEEE Transactions on Robotics, 34(4):1004–1020.

Qin, T., Pan, J., Cao, S., and Shen, S. (2019). A general

optimization-based framework for local odometry es-

timation with multiple sensors.

Sarlin, P.-E., Cadena, C., Siegwart, R., and Dymczyk, M.

(2019). From coarse to ﬁne: Robust hierarchical local-

ization at large scale. In Proceedings of the IEEE/CVF

Conference on Computer Vision and Pattern Recogni-

tion, pages 12716–12725.

Sturm, J., Engelhard, N., Endres, F., Burgard, W., and Cre-

mers, D. (2012). A benchmark for the evaluation of

rgb-d slam systems. In Proc. of the International Con-

ference on Intelligent Robot Systems (IROS).

Tang, J., Ericson, L., Folkesson, J., and Jensfelt, P. (2019).

Gcnv2: Efﬁcient correspondence prediction for real-

time slam. IEEE Robotics and Automation Letters,

4(4):3505–3512.

Yi, K., Trulls, E., Lepetit, V., and Fua, P. (2016). Lift:

Learned invariant feature transform. volume 9910,

pages 467–483.

Zhang, Z. and Scaramuzza, D. (2018). A tutorial on quanti-

tative trajectory evaluation for visual(-inertial) odom-

etry. In 2018 IEEE/RSJ International Conference on

Intelligent Robots and Systems (IROS), pages 7244–

7251.

Zhao, Z., Song, T., Xing, B., Lei, Y., and Wang, Z. (2022).

Pli-vins: Visual-inertial slam based on point-line fea-

ture fusion in indoor environment. Sensors, 22(14).

Practical Deep Feature-Based Visual-Inertial Odometry

247
