Assembling Close Strains in Metagenome Assemblies Using Discrete

Optimization

Tam Khac Minh Truong

1,∗

, Roland Faure

1,2,∗ a

and Rumen Andonov

1 b

Univ. Rennes, INRIA RBA, CNRS UMR 6074, Rennes, France

Service Evolution Biologique et Ecologie, Universit

e Libre de Bruxelles (ULB), 1050 Brussels, Belgium

Keywords:

Metagenomes, Strain Separation, Integer Linear Programming.

Abstract:

Metagenomic assembly is essential for understanding microbial communities but faces challenges in distin-

guishing conspeciﬁc bacterial strains. This is especially true when dealing with low-accuracy sequencing reads

such as PacBio CLR and Oxford Nanopore. While these technologies provide unequaled throughput and read

length, the high error rate makes it difﬁcult to distinguish close bacterial strains. Consequently, current de novo

metagenome assembly methods excel to assemble dominant species but struggle to reconstruct low-abundance

strains. In our study, we innovate by approaching strain separation as an Integer Linear Programming (ILP)

problem. We introduce a strain-separation module, strainMiner, and integrate it into an established pipeline

to create strain-separated assemblies from sequencing data. Across simulated and real experiments encom-

passing a wide range of error rates (5-12%), our tool consistently compared favorably to the state-of-the-art in

terms of assembly quality and strain reconstruction. Moreover, strainMiner substantially cuts down the com-

putational burden of strain-level assembly compared to published software by leveraging the powerful Gurobi

solver. We think the new methodological ideas presented in this paper will help democratizing strain-separated

assembly.

1 INTRODUCTION

In the ﬁeld of metagenomic sequencing, the analysis

of bacterial communities is a complex undertaking,

complicated by the presence of conspeciﬁc strains

(i.e. strains of the same species). Current de novo

metagenome assembly methods can reconstruct the

chromosomal sequences of prevalent species but gen-

erally struggle to produce strain-level reconstructions.

This capability is vital for discerning subtle genetic

differences among microorganisms that hold crucial

functional signiﬁcance in different environments. For

instance, many Escherichia coli strains are commen-

sal, while others are pathogenic (Frank et al., 2011).

The challenge posed by the “strain separation

problem,” as outlined in (Vicedomini et al., 2021),

arises from two primary factors: the uncertain and

potentially substantial quantity of conspeciﬁc strains

and their uneven distribution within the sample. In

this study, we will use the term “haplotype” to de-

https://orcid.org/0000-0003-2245-4284

https://orcid.org/0000-0003-4842-7102

∗

These authors contributed equally to this work.

scribe each strain’s genome. It is important to note

that this problem isn’t perfectly deﬁned because the

concept of a “strain” lacks absolute clarity, given that

any two individuals naturally exhibit some genetic

distinctions. Within the scope of this research, we

consider a haplotype to be a contiguous sequence of

nucleotides present in sufﬁcient abundance within the

sample. This approach aligns with similar practices

found in other relevant works, including (Vicedomini

et al., 2021).

Numerous studies have focused on addressing the

strain separation problem primarily in the context

of short-read sequencing. Methods like DESMAN

(Quince et al., 2017), STRONG (Quince et al., 2020),

ConStrains, LSA (Cleary et al., 2015), OPERA-MS

(Bertrand et al., 2019), SAVAGE (Baaijens et al.,

2017), and strainXpress (Kang et al., 2022) have

made notable attempts to tackle this problem, albeit

with various limitations. Additionally, StrainPhlAn

(Truong et al., 2017) and StrainEst (Albanese and

Donati, 2017) have introduced references-based tech-

niques to proﬁle communities and ﬁnely distinguish

known strains.

However, with the advent of long-read metage-

Truong, T., Faure, R. and Andonov, R.

Assembling Close Strains in Metagenome Assemblies Using Discrete Optimization.

DOI: 10.5220/0012320700003657

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 17th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2024) - Volume 1, pages 347-356

ISBN: 978-989-758-688-0; ISSN: 2184-4305

347

nomic sequencing, previous methods designed for

short-read data are no longer suitable due to funda-

mental differences in data characteristics. Existing

long-read assemblers, including Canu (Koren et al.,

2017) and metaFlye (Kolmogorov et al., 2020), have

emerged as state-of-the-art solutions for metagenome

assembly but are not designed to fully address the

strain separation challenge.

PacBio High-Fidelity (HiFi) sequencing technol-

ogy has emerged as a promising solution for metage-

nomic strain separation, as the extremely low error

rate can help distinguish very similar sequences. Spe-

cialized software such as hiﬁasm-meta (Feng et al.,

2022), strainFlye (Fedarko et al., 2022) and stRainy

(Kazantseva et al., 2023) have been developed to

exploit this kind of data. However, achieving suf-

ﬁcient coverage to recover rare strains in complex

metagenomes is challenging and expensive. In this ar-

ticle we will focus on higher-error rates technologies

such as Oxford Nanopore and Pacbio CLR, which are

more affordable and have higher throughput.

MagPhase (Bickhart et al., 2022) and iGDA (Feng

et al., 2021) have been proposed to phase Single

Nucleotide Polymorphisms (SNPs) in metagenomes.

However, these tools were not meant to recover

full haplotypes, but rather phase speciﬁc regions of

genomes. MagPhase only returns lists of SNPs, ne-

glecting more complex variants, while iGDA failed to

run on the full metagenomes on which we tested it.

Strainberry (Vicedomini et al., 2021) has been the

ﬁrst tool to propose a solution to tackle the strain

separation problem at the scale of full metagenome

assembly. It applies iteratively HapCUT2 (Bansal,

2022), a tool developed for diploid phasing. The au-

thors proved that Strainberry was capable of phasing

simple genomes, but the tool is intrinsically limited

to simple metagenomes, i.e. no more two or three

conspeciﬁc strains. More recently, the software Hair-

Splitter (Faure et al., 2023) has been introduced. Hair-

Splitter begins by aligning all the reads on a ﬁrst draft

assembly and calls polymorphisms. It then clusters

reads by similarity, aiming to obtain one cluster per

strain. Finally, it re-assembles the reads to obtain the

phased assembly.

In this article, we introduce a new method to

separate strains in metagenome assemblies using

error-prone long reads. This method introduces

a completely new methodological tool by framing

strain separation as an Integer Linear Programming

(ILP) problem, allowing us to harness the power

of the Gurobi solver (through gurobipy v.10.0.3,

gurobi.com) to achieve high computational efﬁciency

(Gurobi Optimization, LLC, 2023). We implement

this method in an algorithm named strainMiner. We

(i) Alignment

Reads

Assembly

(ii) Separation

windows

(iii) Re-assembly

Reassembled

contigs

(iv) Scaolding

New

assembly

Read groups

Figure 1: The strainMiner pipeline: (i) Reads are aligned on

the reference or draft assembly, (ii) on each window of the

assembly, reads are separated by haplotype of origin - only

three windows are shown here, (iii) all groups of reads are

locally reassembled and (iv) the locally reassembled contigs

are scaffolded to produce longer contigs.

integrate it in the HairSplitter pipeline to obtain a

complete software capable of producing a new assem-

bly, which we will call “the strainMiner pipeline”.

We show that on mock communities (based on real

and simulated data) the strainMiner pipeline improves

over Strainberry and compares favorably with Hair-

Splitter to phase metagenome assemblies in terms

of assembly completeness, while being an order of

magnitude faster (than Strainberry) or more memory-

efﬁcient (than HairSplitter).

2 CONTRIBUTION

2.1 Pipeline

The strainMiner pipelines takes as input a draft as-

sembly or a reference genome and a set of long

reads and aims at producing a strain-separated assem-

bly. It comprises four primary stages and is illus-

trated Figure 1. These stages include: (i) aligning

the reads to the draft assembly or reference genome,

(ii) the strainMiner algorithm - clustering the reads

based on their respective haplotypes, (iii) conducting

haplotype-speciﬁc assembly of the reads, and (iv) en-

hancing assembly contiguity through scaffolding. Ex-

cluding step 2, this pipeline mirrors the one detailed

in (Faure et al., 2023).

Our contribution lies in an original method to pro-

pose a solution for the second step of the pipeline,

i.e. separating aligned reads by haplotype of origin.

The rest of the pipeline was forked from (Faure et al.,

2023), replacing a native HairSplitter module with a

module of our own.

The speciﬁc challenge we are addressing can be

described as follows: given a set of reads aligned to

a reference sequence, distinguish groups of reads ac-

cording to their haplotype of origin. In an ideal sce-

BIOINFORMATICS 2024 - 15th International Conference on Bioinformatics Models, Methods and Algorithms

348

nario, all the reads of the dataset originating from

the same strain would be grouped together. How-

ever, achieving this level of separation across an en-

tire genome is not always feasible. Indeed, it is im-

possible to phase two consecutive variants when they

are too far apart to be spanned by at least one read.

Therefore, our task focuses on separating reads lo-

cally by their haplotype of origin. Here we choose

to cut the genome in windows of length w, where w

should be smaller than the average read length (5000

by default).

2.2 Intuition

The intuition behind strainMiner is similar to the one

behind (Faure et al., 2023), originally introduced in

(Feng et al., 2021).

The crucial information for segregating reads by

their haplotype of origin is found within the poly-

morphic sites—speciﬁc genomic locations where dif-

ferent strains exhibit variations. However, it is im-

possible to distinguish on a given read a sequencing

error from a variation at a polymorphic locus. Us-

ing the pileup of read might give us an indication, if

many reads show the same nucleotide at the same lo-

cus. Nevertheless, this approach has its limitations,

as alignment artifacts can also create such loci in the

pileup, and the signal from rare strains may not be

very pronounced. The trick lies in examining multi-

ple loci simultaneously, as reads originating from a

particular strain will consistently display similar be-

havior at polymorphic sites. Conversely, the base

pileup between two non-polymorphic sites should not

exhibit signiﬁcant correlation since alignment or se-

quencing errors occur randomly among all the reads.

As a result, strainMiner endeavors to identify a set

of positions which share identical patterns of varia-

tion. We expect these to represent, for example, all

loci bearing variants speciﬁc to one strain.

This strategy allows us to detect even rare strains

effectively. For instance, consider a hypothetical sce-

nario involving a mixture of two strains, where strain

A constitutes 99% of the mix and strain B a mere

1%. Consider also a collection of a thousand reads

spanning two polymorphic sites, denoted as a and

b. In an ideal, error-free pileup, conducting a chi-

square test for independence with one degree of free-

dom between the two loci yields a p-value smaller

than 10

−215

However, the introduction of errors signiﬁcantly

diminishes the statistical power. In our simulations,

we introduced random substitution errors with a prob-

ability of p = 0.1 for all bases across 10,000 sim-

ulations. The p-value for the correlation between a

and b remained low, averaging 10

−16

and reaching

−6

in the most unfavorable scenario. Neverthe-

less, it is important to consider that thousands of non-

polymorphic positions can potentially correlate with a

in one pileup. We need also to emphasize that align-

ment artifacts can introduce more complex errors with

locally higher error rates, further reducing the statisti-

cal power of correlation.

The solution is to include more loci to drastically

reduce the risk of spurious correlations. In this same

example, we introduced a third locus, denoted as c,

while maintaining the 0.1 error rate. We applied the

one-degree of freedom chi-square test to assess the re-

lationship between the three positions. This time, the

probability of encountering three non-polymorphic

positions with correlations as strong as those observed

between a, b, and c by chance was found to be be-

low 10

−200

in all 10,000 simulations. While this ex-

ample simpliﬁes the complexities of pileup errors, it

emphasizes two fundamental aspects of the method:

a) the joint observation of multiple loci signiﬁcantly

enhances the statistical power to distinguish between

errors and polymorphism, and b) even low-abundance

strains can be reliably identiﬁed.

2.3 Preprocessing

In each window, strainMiner considers only reads that

span at least 60% of the window’s length. Subse-

quently, strainMiner transforms the read pileup into a

binary matrix, where each row corresponds to a read,

each column corresponds to a position, and cell (i, j)

contains the number one if the base at position j of

read i matches the dominant base at that position, the

number zero if it matches the most common alterna-

tive allele, and remains empty otherwise. Empty cells

can occur if a read doesn’t cover a position or if the

base in a read at a given position isn’t among the two

most common bases at that position.

Next, columns are ﬁltered to retain only those in

which the most common base is present in less than

a proportion p of the aligned reads at that position.

By default, strainMiner sets p to 0.95, striking a bal-

ance between computational efﬁciency and precision.

However, users seeking to ensure the recovery of low-

abundance strains can set p to a higher value.

To populate the empty cells, strainMiner imple-

ments the well-known K-nearest-neighbor imputation

strategy (Fix and Hodges, 1989), used widely, for

example in (Troyanskaya et al., 2001). It identiﬁes

for each read its “nearest neighbors,” i.e. reads with

the smallest hamming-distance proportionally. Then,

for each empty cell in a row, strainMiner uses a ma-

jority vote from the ﬁve closest neighbors that have

Assembling Close Strains in Metagenome Assemblies Using Discrete Optimization

349

non-empty cells at that position to impute the missing

value.

The result is a binary matrix ﬁlled with zeroes and

ones. Our primary objective is to identify groups of

positions where reads exhibit similar behavior, hence

strainMiner essentially ﬁnds sets of similar columns

in the matrix. Each of these groups will represent a

bipartition of strains, distinguishing strains with the

predominant allele from those with the secondary al-

lele.

In practice, this task is considerably more chal-

lenging than it may initially appear. Attempting to

identify position groups through a straightforward hi-

erarchical clustering approach often proves ineffec-

tive. The reason behind this lies in the calculation of

pairwise distances between two positions, which can

be deceptive. In many cases, sequencing and align-

ment errors can overshadow small differences result-

ing from low-abundance strains. As emphasized ear-

lier, the key is to jointly examine more than just two

loci simultaneously.

2.4 Finding Bipartitions of Reads

The approach used to identify bipartitions is depicted

in Figure 2. It begins by identifying the largest bi-

cluster (a cluster of row and columns) of ones in the

matrix, allowing a small number of zeros to be toler-

ated to account for sequencing errors (referred to as

a quasi-bicluster of ones). Figure 2.b visualises the

largest quasi-bicluster found in the ﬁrst step. Next,

another submatrix is formed, including the columns

from the ﬁrst quasi-bicluster and all the reads not

included in the initial one. In this new submatrix,

the largest quasi-bicluster of zeros is sought (Fig-

ure 2.c). This process continues, alternating between

quasi-biclusters of ones and zeros, until all reads have

been included in these clusters or all columns ex-

cluded from the biclusters. The columns shared by all

the clusters deﬁne a bipartition of reads (Figure 2.e).

These columns are excluded from the total matrix and

the process is repeated to ﬁnd another bipartition of

reads using the remaining columns.

Once a list of bipartitions has been determined,

reads are split in groups following a very simple ra-

tionale: two reads are in the same group if and only if

they are grouped together in all bipartitions.

2.4.1 Finding Largest Submatrix

In strainMiner, the primary problem is to discover

the largest bicluster during each iteration. We ac-

complish this by employing a Integer Linear Prob-

lem (ILP) model. This model’s purpose is to select

a group of rows and columns where you can ﬁnd the

highest count of a speciﬁc value (either 0s or 1s).

This problem is known as ﬁnding a maximum edge

biclique problem and it has been proven to be NP-

complete (Peeters, 2003). In strainMiner, we search

for a maximum edge quasi-biclique that tolerates a

small amount of errors.

In the context of a matrix A ∈ Z

|U |×|V |

with coef-

ﬁcients being 0 or 1, and with a set of rows U and a

set of columns V , we use binary variables x

i j

, u

and

to denote cell selection, row selection, and column

selection, respectively. Here, a binary variable equals

1 to indicate the selection of a cell, row, or column,

and 0 otherwise.

The following Integer Linear Program is then for-

mulated:

max

∑

i∈U

∑

j∈V

i, j

i j

, (1)

i j

≤ u

, ∀i ∈ U, ∀ j ∈ V (2)

i j

≤ v

, ∀i ∈ U, ∀ j ∈ V (3)

i j

≥ u

+ v

− 1, ∀i ∈ U, ∀ j ∈ V (4)

∑

i∈U

∑

j∈V

(1 − A

i, j

i j

≤ ε ×

∑

i∈U

∑

j∈V

i j

(5)

, v

∈ {0, 1}, x

i j

∈ {0, 1} ∀i ∈ U, ∀ j ∈ V (6)

The function to maximize, (1), counts for the

number of ones in a submatrix determined by the bi-

nary variables having value 1. Constraints (2), (3),

(4) mean that cell A

i j

is selected into the solution (i.e.

i j

= 1) if and only if its corresponding row i and col-

umn j are also chosen into the solution (i.e. u

= 1

and v

= 1).

The coefﬁcient A

i j

represents the value of the cell

at position i and j, when searching for occurrences of

1s in the matrix, A

i j

is used directly. However, if the

search is for 0s, the coefﬁcient is reversed to (1−A

i j

max

∑

i∈U

∑

j∈V

(1 − A

i, j

i j

(7)

Constraint (5) ensures that the submatrix contains

at least a proportion 1 −ε of ones. This constraint can

be reversed to ensure a minimum proportion of zeros:

∑

i∈U

∑

j∈V

i, j

i j

≤ ε ×

∑

i∈U

∑

j∈V

i j

(8)

To identify a bipartition, strainMiner involves

solving a series of this ILP models using the Gurobi

solver, alternating between looking for ones and ze-

ros. This process is repeated to discover new biparti-

tions until the model identiﬁes a submatrix with less

than 5 rows or 5 columns — a threshold empirically

set to identify a statistically signiﬁcant signal. When

this condition is met, the algorithm terminates and re-

turns the identiﬁed bipartitions.

BIOINFORMATICS 2024 - 15th International Conference on Bioinformatics Models, Methods and Algorithms

350

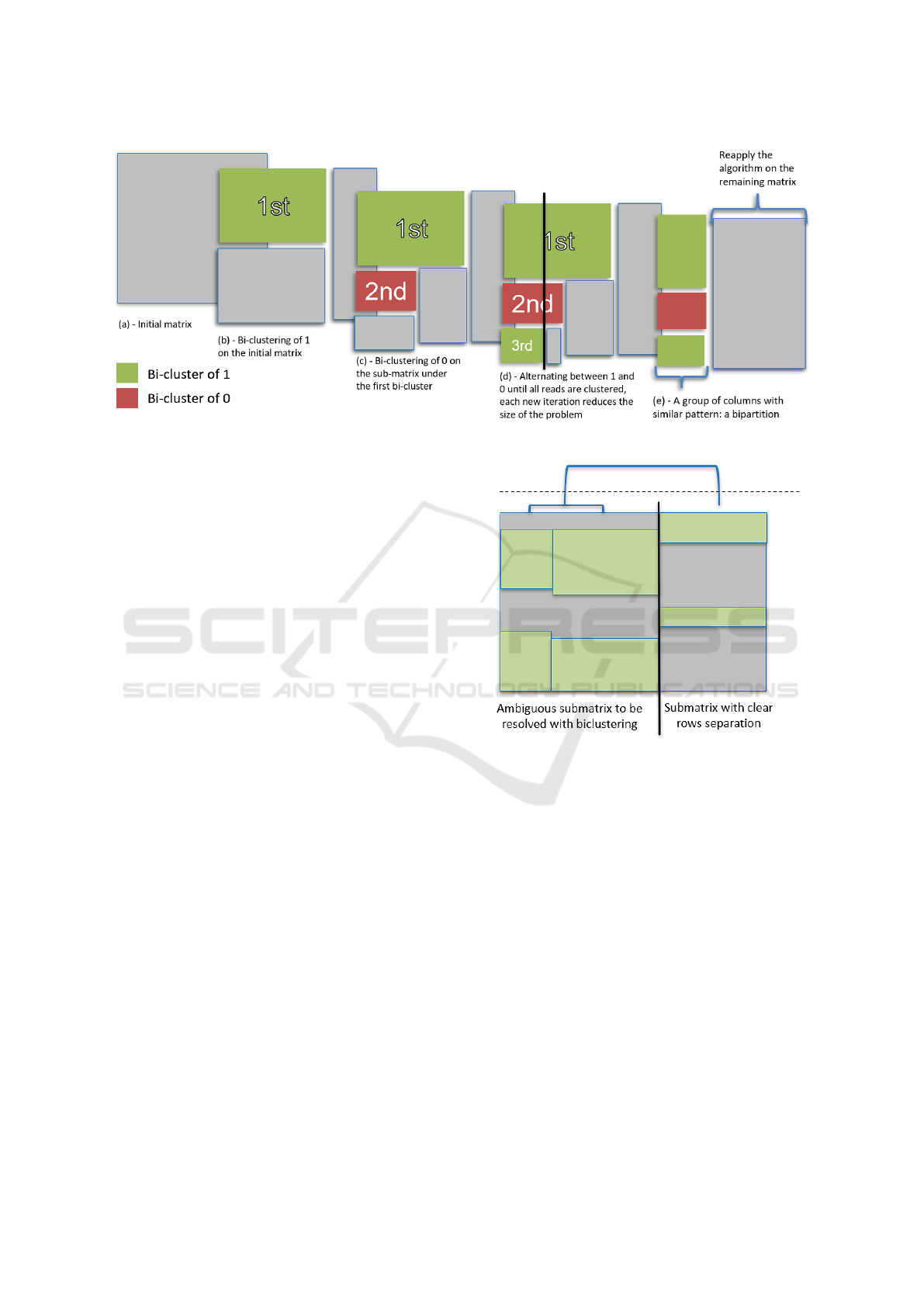

Figure 2: Strategy implemented to ﬁnd bipartitions.

2.4.2 Acceleration with Divide and Conquer

In order to reduce the computational cost as well as

the runtime of strainMiner, we implement a strategy

aiming to reduce the size of the matrices prior to run-

ning the model.

If a straightforward column-wise hierarchical

clustering cannot be used to make ﬁne distinctions

between bipartitions (for reasons explained above), it

remains an effective strategy for distinguishing highly

divergent positions. Thus, a basic hierarchical cluster-

ing of the positions with Hamming distance and com-

plete linkage is performed. The clusters are formed

by splitting vertically the initial matrix, a threshold of

35% is set as the distance threshold. Clusters with

the linkage distance higher than the limit will not be

merged. This means that two columns in two dif-

ferent clusters have more than 35% divergence and

will never be even considered to be grouped in the

same bipartition - we purposefully chose a conserva-

tive threshold.

The distance threshold needs to balance creating

separate sub-matrices while preserving smaller pat-

terns. If the threshold is too low, even minor data

variations and errors can wrongly divide related posi-

tions, breaking patterns. If it is too high, sub-matrices

that could be split get grouped, forming fewer, larger

sub-matrices and the computational gain is not opti-

mal.

The resulting sub-matrices are subsequently as-

sessed for “ambiguity”. A submatrix consisting of

full rows of zeros or ones is by itself a bipartition

c.f. Figure 3 right. The other submatrices are “am-

biguous” c.f. Figure 3 left. Bipartitions are sought

only in the ambiguous matrices, using the algorithm

described above.

Figure 3: Hierarchical clustering is performed to cut the

matrix into smaller distinct sub-matrices deﬁnining distinct

bipartitions.

3 RESULTS

3.1 Datasets

We benchmarked strainMiner on three datasets of

increasing complexity. The ﬁrst one is a mix of

ﬁve Vagococcus ﬂuvialis strains sequenced in (Ro-

driguez Jimenez et al., 2022). The bacteria were

sequenced using a R9.4.1 Nanopore ﬂowcell. The

reads were barcoded by strain of origin, allowing

us to assemble the ﬁve strains separately. By ig-

noring the barcodes, we obtain our dataset of ﬁve

mixed strains of approximately equal abundance se-

quenced with Nanopore. Three of these strains were

almost identical, approximately turning the problem

in a three-strain separation problem with one predom-

Assembling Close Strains in Metagenome Assemblies Using Discrete Optimization

351

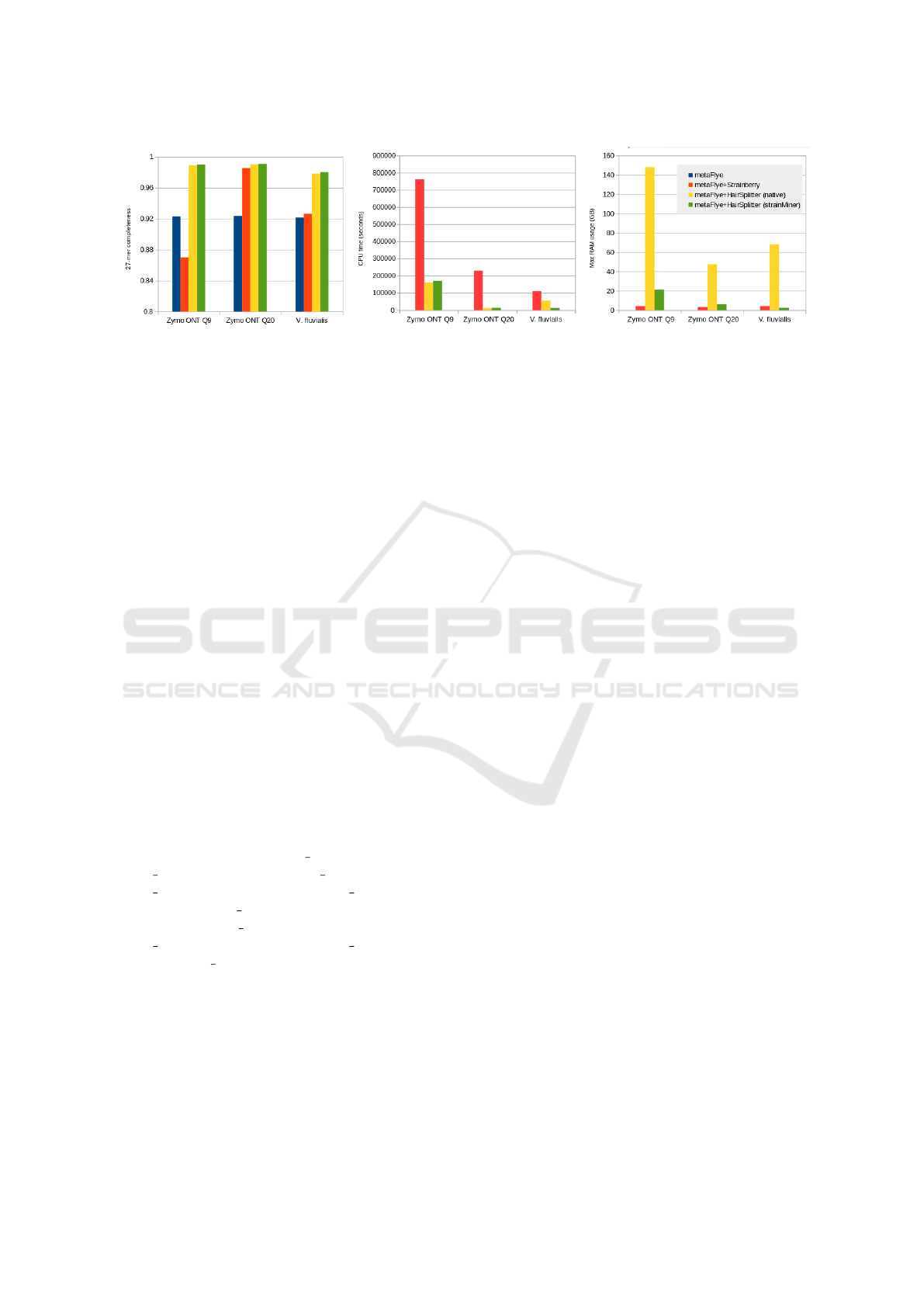

Figure 4: Comparison of Strainberry, HairSplitter and strainMiner on the three real sequencing experiments in terms of, from

left to right, completeness of assembly, CPU time and maximum memory usage. The legend applies to the three plots.

inant species.

The second dataset is the sequencing of the Zy-

mobiomics gut microbiome standard by Nanopore

R9.4.1 (Q9 reads) and Nanopore 10.4.1 (Q20+

reads) ﬂowcells (accession numbers SRR17913199

and SRR17913200). The mix contains a total of 21

strains of bacteria, archea and yeast. In particular, it

contains ﬁve Escherichia coli strains in equal abun-

dance, for which we will compare strain separation

techniques. This is the dataset having a known so-

lution with highest number of conspeciﬁc strains we

could ﬁnd.

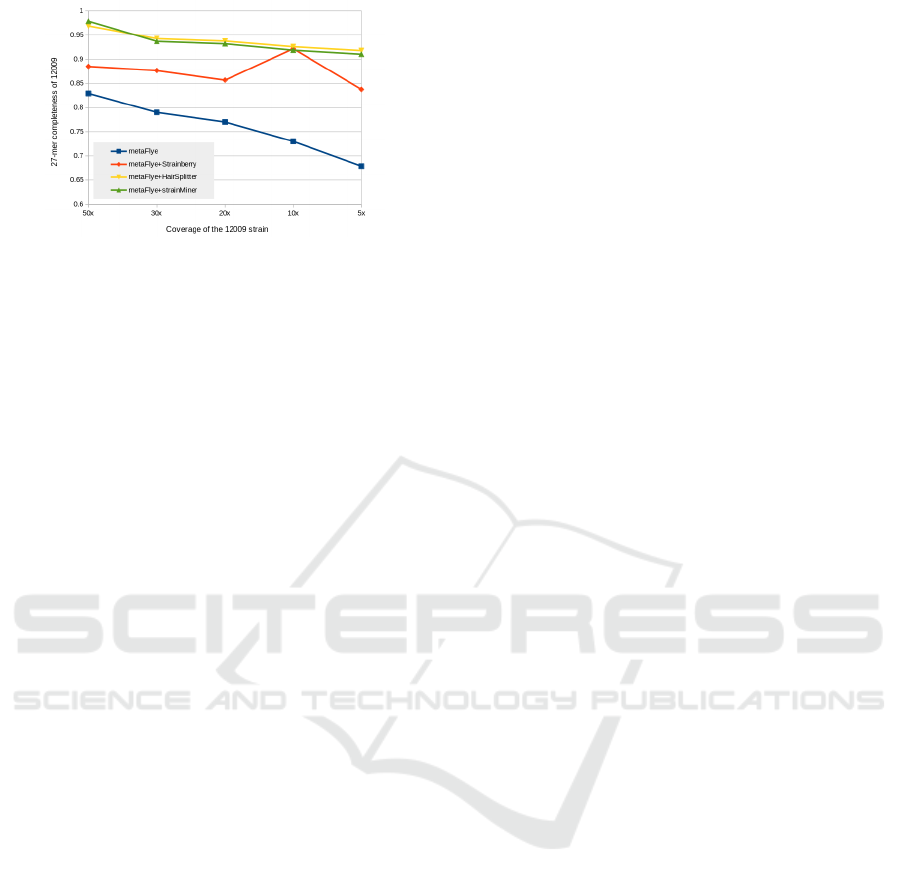

In a ﬁnal step, we conducted simulations to

gauge the limits of strainMiner’s strain separation

capabilities. We adapted the simulation protocol

outlined in (Vicedomini et al., 2021) and (Faure

et al., 2023) to investigate how the number of strains

and the depth of coverage inﬂuence the effectiveness

of strain separation. We downloaded reference

genomes for ten distinct strains of Escherichia coli

from the SRA and proceeded to simulate Nanopore

reads with a 5% error rate and 50x coverage using

the default “Nanopore2023” mode of Badreads

(Wick, 2019). These reads were then combined to

emulate metagenomic sequencing scenarios. The ten

strains mirrored those used in (Faure et al., 2023)

and included 12009 (GCA 000010745.1), IAI1

(GCA 000026265.1), F11 (GCA 018734065.1), S88

(GCA 000026285.2), Sakai (GCA 003028755.1),

SE15 (GCA 000010485.1), Shigella

ﬂexneri (GCF 000006925.2), UMN026

(GCA 000026325.2), HS (GCA 000017765.1),

and K12 (GCF 009832885.1). The simulated reads

are available at https://zenodo.org/records/10362565.

To assess the impact of the number of strains on

assembly completeness, we assembled and separated

mixtures of 2, 4, 6, 8, and all 10 strains. Additionally,

to evaluate the inﬂuence of coverage on assembly

completeness, we downsampled the 12009 strain to

30x, 20x, 10x, and 5x within the context of the 10-

strain mixture, measuring the 27-mer completeness

of the 12009 strain in the various assemblies.

All of these datasets were assembled using

metaFlye (Kolmogorov et al., 2020) because it is to

our knowledge the only noisy long-read assembler

specialized in metagenome assembly. The metaFlye

assembly was then run through the three software.

3.2 Evaluation Metrics

To evaluate the quality of obtained assemblies we

measured assembly length, N50, misassemblies, mis-

matches and indels, measured by software metaQuast

(Mikheenko et al., 2015). We used options –

unique-mapping and –reuse-combined-alignments in

metaQuast to avoid a sequence (a contig, or part of

it) to be mapped on multiple distinct reference lo-

cations. The evaluation of metagenome assemblies

in presence of highly similar references is however a

challenging task. As metaQuast is based on sequence

alignment, it could suffer from a sub-optimal map-

ping of contigs to the references. For this reason,

we decided to complement metaQuast’s metrics by

computing the k-mer completeness (k=27) with KAT

(Mapleson et al., 2016).

3.3 Benchmark

All results were obtained by running the software on

a server housing 16 Intel Xeon CPUs with four cores

each, running at 2.7GHz. 3.1 TB of RAM was avail-

able.

3.3.1 Assembly Evaluation

The summarized metaQuast metrics in Table 1 show

that the strainMiner pipeline yields highly precise

assemblies, exhibiting fewer misassemblies, mis-

matches, and indels compared to Strainberry or Hair-

Splitter. However, this enhanced precision is balanced

by lower contiguity. To manage the size of Table

1, we haven’t included all the E. coli experiments,

BIOINFORMATICS 2024 - 15th International Conference on Bioinformatics Models, Methods and Algorithms

352

Figure 5: 27-mer completeness of the 12009 strain in a 10-

strain mix. Coverage of the 12009 strain on x axis, the nine

other strains are covered at 50x.

but the downsampling experiments displayed similar

statistics to the 10-strains mix.

On the Zymobiomics and the Vagococcus ﬂuvialis

datasets, the strainMiner pipeline proved the best soft-

ware to recover strain diversity as measured by 27-

mer completeness, though the performances of Hair-

Splitter were almost equivalent (Figure 4). Notably,

the strainMiner pipeline yielded assemblies of equiv-

alent quality when using Q9 and Q20+ chemistry, un-

derscoring its robustness in managing variations in

read quality.

In our experiments with E. coli (Figure 6), strain-

Miner consistently demonstrated its capability to sep-

arate a substantial number of strains, maintaining a

stable 27-mer completeness across scenarios involv-

ing 2, 4, 6, 8, and 10 strains. The strainMiner pipeline

consistently outperformed HairSplitter to a slight ex-

tent in all mix scenarios.

The coverage reduction experiment depicted in

Figure 5 revealed that both strainMiner and Hair-

Splitter exhibited an impressive capability to retrieve

strains with low coverage. Even when the strain’s

coverage dropped to as low as 5x, representing only

1.1% of the total mix, these tools managed to recover

a substantial portion of the previously lost 27-mers.

There remained a noticeable positive correlation be-

tween the coverage level of the downsampled 12009

strain and its resulting completeness.

The performance of Strainberry is difﬁcult to as-

sess, as it performed extremely well in 2-strain, 4-

strain, 8-strain and 20x-downsampling mixtures but

failed to produce good strain-separated assemblies in

the other E. coli scenarios. This inconsistent behav-

ior is probably due to it being conceived for relatively

simple metagenomes (i.e., up to ﬁve strains).

These experiments offer insights indicating that

all three software solutions can attain assemblies of

comparable quality, albeit with varying tradeoffs be-

tween contiguity and accuracy, when employing high-

quality Nanopore reads. Figure 4 and additional ex-

aminations performed on mixtures of E. coli with

more error-prone data (not shown) suggest that Strain-

berry encounter difﬁculties when confronted with

higher error rates.

3.3.2 Resource Usage

All the times reported are total CPU times. Stain-

Miner is trivially parallel, like HairSplitter and Strain-

berry, but in practice we ran it on only one thread be-

cause we were limited by the Gurobi license.

Across all datasets, strainMiner consistently ex-

hibited a processing speed more than tenfold faster

than Strainberry, while its runtime was approximately

on par with that of HairSplitter (Figures 4, 6). For all

three approaches we expect a linear increase in run-

time when increasing the length of the assembly and

the number of species, as aligning is an almost-linear

process in the length of the reference and contigs are

processed independently by the strain-separation soft-

ware.

On the real sequencing data, strainMiner used be-

tween 7 and 30 times less peak memory than Hair-

Splitter (Figure 4).

As a whole, strainMiner signiﬁcantly diminishes

the memory usage of the HairSplitter pipeline without

impacting negatively on its speed.

4 DISCUSSION

In this manuscript, we introduce strainMiner, an inno-

vative approach aimed at enhancing the performance

of the read-separation module within the HairSplit-

ter strain-separation pipeline, leading to strain-aware

metagenome assemblies. For the ﬁrst time, we frame

the strain separation as an ILP problem. This al-

lows us to use a well-established, highly optimized

solver to tackle the intensive computations needed

for such a task. By helping the solver with sim-

ple preprocessing techniques inspired from data min-

ing, the ﬁnal pipeline is considerably more frugal in

time and memory than the state-of-the-art software.

This development presents new opportunities for bi-

ologists, as strain separation is a computationally de-

manding task, and having access to such computa-

tional resources can be a signiﬁcant constraint for bi-

ology laboratories. On real datasets, the strainMiner

pipeline also compared favorably to published soft-

ware in terms of strain recovery and arguably pro-

vided the most accurate assemblies. Additionally, we

showed that strainMiner could perform well on long

reads with varying error rate without any manual ﬁne-

tuning.

Assembling Close Strains in Metagenome Assemblies Using Discrete Optimization

353

Figure 6: Comparison of Strainberry, HairSplitter and strainMiner on mixes of an increasing number of E. coli strains in terms

of, from left to right, completeness of assembly, CPU time and maximum memory usage. Note that CPU time is represented

in logarithmic scale. The legend applies to the three plots.

Table 1: metaQuast metrics measuring the quality of assemblies on the three real and two simulated datasets. The best value

or best values among of the three strain-separated assemblies (excluding the original assembly) is in bold font.

Total length (Mb) N50 (kb) Misassemblies

Mismatches

/100kbp

Indels

/100kbp

Vagococcus metaFlye 4.35 162 40 340.14 383.57

(14 Mb) Strainberry 5.51 135 135 77.71 510.25

HairSplitter 9.43 82 117 89.93 327.91

strainMiner 8.63 30 48 50.8 340.26

Zymo Q9 metaFlye 61.9 1904 110 91.14 56.28

(78 Mb) Strainberry 62.8 225 122 133.04 109.85

HairSplitter 86.9 74 170 124.54 124.54

strainMiner 68.4 225 95 69.8 55.44

Zymo Q20 metaFlye 49.8 383 126 109.51 75.79

(78 Mb) Strainberry 59.7 121 141 109.12 67.23

HairSplitter 66.2 84 142 75.42 61.23

strainMiner 59.8 51 109 67.97 65.14

E. coli metaFlye 11.6 56 79 469.27 277.71

10 strains Strainberry 18.3 63 175 363.06 137.01

(48 Mb) HairSplitter 50.5 48 812 266.55 68.04

strainMiner 50.1 56 335 81.65 72.73

E. coli metaFlye 6.05 374 22 216.18 216.53

2 strains Strainberry 10.8 1152 11 24.83 64.73

(9.9 Mb) HairSplitter 10.4 230 47 53.75 62.67

strainMiner 9.65 45 8 15.4 59.77

A limitation of the strainMiner pipeline, for now,

is the limited contiguity of the assembly produced.

Adapting the pipeline to the speciﬁcities of the strain-

Miner module would be the ﬁrst lead to pursue to im-

prove this. Indeed, the assemblies obtained through

the strainMiner pipeline had often much lower con-

tiguity compared to the one obtained by HairSplitter,

suggesting that the properties of the read separation

computed by the strainMiner module and the native

HairSplitter read-separation module may be quite dif-

ferent. Tailoring a scaffolding step could thus im-

prove contiguity.

One aspect of strainMiner that would require

further investigation is its approach of dividing the

problem into non-overlapping ﬁxed-length windows.

While this division results in a clean input matrix

for the Integer Linear Programming (ILP) solver, it

introduces an arbitrary separation of loci that may

jointly carry valuable information. This division di-

minishes the sensitivity of strainMiner when dealing

with highly similar strains, as the number of loci in

a single window may be too low for detection, while

there may be enough loci overall to detect the strain.

A possible solution to address this limitation would

be considering overlapping windows. Another option

would be the adaptation of the model to handle miss-

BIOINFORMATICS 2024 - 15th International Conference on Bioinformatics Models, Methods and Algorithms

354

ing values without the need for imputation, which for

now limits the length of the windows.

Finally, users might ﬁnd themselves limited by the

Gurobi license. Academic license is free but limited

to three instances of Gurobi running at the same time,

limiting the multi-threading potential. Attempts to

use the free CBC solver showed a decrease in per-

formance.

SOFTWARE AVAILABILITY

strainMiner is freely availabe on github at

github.com/RolandFaure/strainMiner, with the

Affero GPL3 license.

ACKNOWLEDGEMENTS

We wish to thank Dominique Lavenier, who formu-

lated the ﬁrst version of the optimization problem.

Many thanks to Riccardo Vicedomini for his help

in pre-reviewing the article.

ChatGPT was used to correct and reformulate the

writing of the article.

REFERENCES

Albanese, D. and Donati, C. (2017). Strain proﬁling and

epidemiology of bacterial species from metagenomic

sequencing. Nature Communications, 8.

Baaijens, J., Aabidine, A., Rivals, E., and Sch

onhuth, A.

(2017). De novo assembly of viral quasispecies using

overlap graphs. Genome Research.

Bansal, V. (2022). Hapcut2: A method for phasing genomes

using experimental sequence data. Methods in molec-

ular biology, 2590:139–147.

Bertrand, D., Shaw, J., Kalathiyappan, M., Ng, A. H. Q.,

Kumar, M. S., Li, C., Dvornicic, M., Soldo, J. P.,

Koh, J. Y., Tong, C., Ng, O. T., Barkham, T., Young,

B., Marimuthu, K., Chng, K. R., Sikic, M., and Na-

garajan, N. (2019). Hybrid metagenomic assembly

enables high-resolution analysis of resistance deter-

minants and mobile elements in human microbiomes.

Nature Biotechnology, 37(8):937–944.

Bickhart, D., Kolmogorov, M., Tseng, E., Portik, D., Ko-

robeynikov, A., Tolstoganov, I., Uritskiy, G., Liachko,

I., Sullivan, S., Shin, S., Zorea, A., Pascal, V., Panke-

Buisse, K., Medema, M., Mizrahi, I., Pevzner, P., and

Smith, T. (2022). Generating lineage-resolved, com-

plete metagenome-assembled genomes from complex

microbial communities. Nature Biotechnology, 40.

Cleary, B., Brito, I., Huang, K., Gevers, D., Shea, T.,

Young, S., and Alm, E. (2015). Detection of low-

abundance bacterial strains in metagenomic datasets

by eigengenome partitioning. Nature biotechnology,

33.

Faure, R., Flot, J.-F., and Lavenier, D. (2023). Hairsplit-

ter: separating strains in metagenome assemblies with

long reads. In Proceedings of JOBIM 2023, pages

124–131.

Fedarko, M., Kolmogorov, M., and Pevzner, P. (2022). An-

alyzing rare mutations in metagenomes assembled us-

ing long and accurate reads. Genome research, 32.

Feng, X., Cheng, H., Portik, D., and Li, H. (2022).

Metagenome assembly of high-ﬁdelity long reads

with hiﬁasm-meta. Nature Methods, 19:1–4.

Feng, Z., Clemente, J., Wong, B., and Schadt, E. (2021).

Detecting and phasing minor single-nucleotide vari-

ants from long-read sequencing data. Nature Commu-

nications, 12:3032.

Fix, E. and Hodges, J. L. (1989). Discriminatory analy-

sis. nonparametric discrimination: Consistency prop-

erties. International Statistical Review / Revue Inter-

nationale de Statistique, 57(3):238–247.

Frank, C., Werber, D., Cramer, J. P., Askar, M., Faber, M.,

an der Heiden, M., Bernard, H., Fruth, A., Prager,

R., Spode, A., Wadl, M., Zoufaly, A., Jordan, S.,

Kemper, M. J., Follin, P., M

uller, L., King, L. A.,

Rosner, B., Buchholz, U., Stark, K., and Krause, G.

(2011). Epidemic proﬁle of shiga-toxin–producing

escherichia coli o104:h4 outbreak in germany. New

England Journal of Medicine, 365(19):1771–1780.

PMID: 21696328.

Gurobi Optimization, LLC (2023). Gurobi [computer soft-

ware]. gurobi.com.

Kang, X., Luo, X., and Sch

onhuth, A. (2022). StrainXpress:

strain aware metagenome assembly from short reads.

Nucleic Acids Research, 50(17):e101–e101.

Kazantseva, E., Donmez, A., Pop, M., and Kolmogorov, M.

(2023). stRainy: assembly-based metagenomic strain

phasing using long reads. preprint, Bioinformatics.

Kolmogorov, M., Bickhart, D. M., Behsaz, B., Gurevich,

A., Rayko, M., Shin, S. B., Kuhn, K., Yuan, J., Pole-

vikov, E., Smith, T. P. L., and Pevzner, P. A. (2020).

metaFlye: scalable long-read metagenome assembly

using repeat graphs. Nature Methods, 17(11):1103–

1110.

Koren, S., Walenz, B. P., Berlin, K., Miller, J. R., Bergman,

N. H., and Phillippy, A. M. (2017). Canu: scalable

and accurate long-read assembly via adaptive k -mer

weighting and repeat separation. Genome Research,

27(5):722–736.

Mapleson, D., Accinelli, G., Kettleborough, G., Wright, J.,

and Clavijo, B. (2016). Kat: A k-mer analysis toolkit

to quality control ngs datasets and genome assemblies.

Bioinformatics (Oxford, England), 33.

Mikheenko, A., Saveliev, V., and Gurevich, A. (2015).

Metaquast: Evaluation of metagenome assemblies.

Bioinformatics, 32:btv697.

Peeters, R. (2003). The maximum edge biclique problem is

NP-complete. 131:651–654.

Quince, C., Delmont, T. O., Raguideau, S., Alneberg, J.,

Darling, A. E., Collins, G., and Eren, A. M. (2017).

Assembling Close Strains in Metagenome Assemblies Using Discrete Optimization

355

DESMAN: a new tool for de novo extraction of strains

from metagenomes. Genome Biology, 18(1):181.

Quince, C., Nurk, S., Raguideau, S., James, R., Soyer, O. S.,

Summers, J. K., Limasset, A., Eren, A. M., Chikhi,

R., and Darling, A. E. (2020). Metagenomics Strain

Resolution on Assembly Graphs. preprint, Bioinfor-

matics.

Rodriguez Jimenez, A., Guiglielmoni, N., Goetghebuer,

L., Dechamps, E., George, I., and Flot, J.-F. (2022).

Comparative genome analysis of vagococcus ﬂuvi-

alis reveals abundance of mobile genetic elements in

sponge-isolated strains. BMC Genomics, 23.

Troyanskaya, O., Cantor, M., Sherlock, G., Brown, P.,

Hastie, T., Tibshirani, R., Botstein, D., and Altman,

R. B. (2001). Missing value estimation methods for

dna microarrays. Bioinformatics, 17(6):520–525.

Truong, D. T., Tett, A., Pasolli, E., Huttenhower, C., and

Segata, N. (2017). Microbial strain-level population

structure and genetic diversity from metagenomes.

Genome Research, 27:gr.216242.116.

Vicedomini, R., Quince, C., Darling, A. E., and Chikhi, R.

(2021). Strainberry: automated strain separation in

low-complexity metagenomes using long reads. Na-

ture Communications, 12(1):4485.

Wick, R. (2019). Badread: simulation of error-prone long

reads. Journal of Open Source Software, 4(36):1316.

BIOINFORMATICS 2024 - 15th International Conference on Bioinformatics Models, Methods and Algorithms

356
