Machine Learning-Based Classiﬁcation of Hardware Trojans in FPGAs

Implementing RISC-V Cores

Stefano Ribes

, Fabio Malatesta

, Grazia Garzo

and Alessandro Palumbo

4 a

Department of Computer Science and Engineering, Chalmers University of Technology, Sweden

University of Siena, Italy

CentraleSup

elec, Inria, Univ Rennes, CNRS, IRISA, France

Keywords:

Hardware Security, Machine Learning, Hardware Trojans, Feature Importance, FPGA, RISC-V.

Abstract:

Hardware Trojans (HTs) pose a severe threat to integrated circuits, potentially compromising electronic de-

vices, exposing sensitive data, or inducing malfunction. Detecting such malicious modiﬁcations is particu-

larly challenging in complex systems and commercial CPUs, where they can occur at various design stages,

from initial HDL coding to the ﬁnal hardware implementation. This paper introduces a machine learning-

based strategy for the detection and classiﬁcation of HTs within RISC-V soft cores implemented in Field-

Programmable Gate Arrays (FPGAs). Our approach comprises a systematic methodology for comprehensive

data collection and estimation from FPGA bitstreams, enabling us to extract insights ranging from hardware

performance counters to intricate metrics like design clock frequency and power consumption. Our ML mod-

els achieve perfect accuracy scores when analyzing features related to both synthesis, implementation results,

and performance counters. We also address the challenge of identifying HTs solely through performance

counters, highlighting the limitations of this approach. Additionally, our work emphasizes the signiﬁcance of

Implementation Features (IFs), particularly circuit timing, in achieving high accuracy in HT detection.

1 INTRODUCTION

The threat of malicious undesired modiﬁcations in in-

tegrated circuits is especially relevant in the current

global economy, where complex electronic devices,

such as commercial CPUs, are often designed, man-

ufactured and sold by different companies in differ-

ent countries (DIGITIMES, 2012). CAD tools used

throughout their design cycle can be produced by

other companies, typically independently from the

design and manufacturing processes. On top of that,

the IP building blocks included in such devices are

often purchased from yet different parties (Roy et al.,

2008), (Potkonjak, 2010). As several actors have ac-

cess to the production ﬂow, there are multiple stages

where a malicious hardware modiﬁcation, known as

Hardware Trojan (HT), may undergo (Rostami et al.,

2013). Hence, it is challenging to demonstrate that

the integrity of a manufactured product of such com-

plexity has not been compromised. Even minor, mali-

cious, hardware changes can have devastating effects,

such as allowing an attacker to acquire supervisor

https://orcid.org/0000-0002-0034-6189

privileges, obtain a cryptographic key, or even exe-

cute malicious software, as demonstrated in (Jin et al.,

2012), (Tsoutsos and Maniatakos, 2014), (Wang et al.,

2012). A notable example of HT giving supervi-

sor mode permissions, the Rosenbridge backdoor,

was found in 2018 in a commercial Via Technolo-

gies C3 processor (Domas, 2018). These results se-

riously question the security of any modern system

and call for a reliable and efﬁcient way of identifying

compromised CPU devices, ideally at the end-user

level (Nikiema et al., 2023), (Cassano et al., 2022).

Being not only able to identify but also to classify a

malicious HT in a device could allow the end-user to

gain insights on the threat and counter-attack it either

in the chip itself, if necessary when a viable solution,

or when developing defense mechanisms for future

designs.

Incorporating Machine Learning (ML) into the

realm of integrated circuit security presents a promis-

ing direction for addressing the challenge of detect-

ing and classifying HTs, potentially overcoming tra-

ditional methods for identifying malicious modiﬁca-

tions. ML algorithms, powered by advanced algo-

rithms and computational capabilities, offer a data-

Ribes, S., Malatesta, F., Garzo, G. and Palumbo, A.

Machine Learning-Based Classiﬁcation of Hardware Trojans in FPGAs Implementing RISC-V Cores.

DOI: 10.5220/0012324200003648

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 10th International Conference on Information Systems Security and Privacy (ICISSP 2024), pages 717-724

ISBN: 978-989-758-683-5; ISSN: 2184-4356

717

driven approach to this problem. By analyzing intri-

cate patterns and anomalies in the behavior of inte-

grated circuits, ML models can enhance our ability to

uncover hidden threats.

2 CONTRIBUTIONS

We summarize our contributions to the ﬁeld of HT

detection and classiﬁcation as follows:

• A systematic methodology for an extensive col-

lection and estimation of numerical data from

FPGA bitstreams: our proposed approach in-

cludes the extraction of valuable insights from

the soft RISC-V microprocessor, spanning var-

ious data sources, including hardware perfor-

mance counters, and extending to more complex-

to-acquire metrics such as, for instance, design

clock frequency and power consumption.

• ML model performance and robustness: we

demonstrate the high performance and robustness

of our ML model to address the unexplored chal-

lenge of detecting and classifying HTs introduced

by an untrusted CAD tool in a trusted IP core.

• Comprehensive feature evaluation: we conduct

an extensive exploration of feature importance

in ML-based HT detection and classiﬁcation.

Our experiments suggest a critical role of fea-

tures derived from the synthesis and implemen-

tation process in achieving high models’ perfor-

mance. We further leverage Uniform Manifold

Approximation and Projection (UMAP) (McInnes

et al., 2018) to visually conﬁrm the signiﬁcance of

bitstream-related input features, such as the num-

ber of used LUTs in the design or the circuit’s

worst negative slack.

3 RELATED WORK

Most of the existing work on HT focuses on system-

level implementation methodologies that allow the

user to obtain a trusted system even when containing

untrusted components (

sejkovi

c et al., 2019), (Shila

et al., 2015), (Basak et al., 2017). One way to do this

is by running trustworthy software on systems with an

untrusted CPU (Dubeuf et al., 2013), (Bloom et al.,

2009), (Arıkan et al., 2022).

During the last two decades, several techniques to

limit HTs effects by detecting them before system de-

ployment have been proposed. They generally consist

of circuit-level approaches that aim at detecting HTs

at design time via logic testing (Chuan et al., 2017),

RTL

Design

Layer

Netlist

High-Level

Simulation

Place &

Route

P&R

Netlist

Low-Level

Simulation

Bench

Impl. and Perf. Counter Features

Train

Set

Test

Set

Cross-Val.

Training

Evaluation

Cleaned and Split Datasets

Model

Performance

and Scores

XGBoost Model

Figure 1: Overview of the data collection pipeline and mod-

els’ training and evaluation.

formal property veriﬁcation (Zhang et al., 2015),

side-channel analysis (Liu et al., 2017), structural

and behavioral analysis (Salmani and Tehranipoor,

2013), (Salmani and Tehranipoor, 2012), (Palumbo

et al., 2021), and machine learning (Dong et al.,

2019), (Huang et al., 2020).

Regarding possible attacking fronts, CAD tools

can become a threat to FPGA-based systems se-

curity (Sunkavilli et al., 2021b), (Zhang and Qu,

2019), (Duncan et al., 2019). In particular, they may

interfere directly with the FPGA conﬁguration by in-

jecting HTs in the produced bitstream (Ender et al.,

2019), (Sunkavilli et al., 2021a). To the best of our

knowledge, detecting HTs introduced by an untrusted

CAD tool in a trusted IP core has been explored in

a limited manner in prior research. In order to pre-

vent malicious CAD tools, a security rule checking

paradigm has recently been proposed for driving the

adoption of CAD tools supporting the trustworthiness

and security of systems throughout the whole design

process (Xiao et al., 2016). For checking the trust-

worthiness of CAD tools, in (Palumbo et al., 2022) is

proposed a ML-based solution to detect the presence

of HTs in FPGA bitstreams.

4 METHODOLOGY

This section outlines our methodology, which covers

data collection and cleaning, followed by ML model

selection and implementation for classifying HTs.

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

718

4.1 System Setup for Data Collection

Figure 1 shows the followed steps to deﬁne, train and

evaluate the ML-based models for classifying HTs.

On the left side of the ﬁgure, we report the FPGA-

related ﬂow, which aims at extracting and gather rele-

vant features from the RISC-V bitstreams. Our fea-

ture extraction process started with the implemen-

tation of the RTL design of a soft 3-stage pipeline

RISC-V Ibex processor, which was further modiﬁed

to include one of four potential HT models described

in Trust-Hub (Shakya et al., 2017), i.e., Clk Mod,

Critical, MitM, and Fetch. In our detection and

classiﬁcation modeling, we categorized HTs as either

“triggered” or “not-triggered”, with the exception of

the Critical HT, which operates continuously. The

selected HT models are detailed as follows:

• Clk Mod. This model corresponds to the B15-

T100 model in the Trust-Hub platform. It encom-

passes an HT capable of slowing down the mi-

croprocessor’s clock, thereby impacting program

throughput and potentially causing a denial-of-

service.

• Critical. Inspired by models S35932-T300 and

MAC10GE-T100 from Trust-Hub, this HT model

introduces additional logic into the combinatorial

path. It alters the microprocessor’s timing behav-

ior and performance. It operates as an always-on

HT and can potentially lead to a denial of service.

This HT model has been positioned between the

core’s instruction bus and its instruction memory.

• MitM. Drawing inspiration from the PIC16F84-

T100 Trust-Hub model, the MitM HT simulates

a man-in-the-middle scenario between the micro-

processor and the instruction memory. It requires

a speciﬁc trigger event to activate, and once trig-

gered, it modiﬁes fetched instructions, coercing

the execution of a malicious program and result-

ing in changes to the microprocessor’s functional-

ity.

• Fetch. The Fetch HT model is akin to the B19-

T300 model proposed in the Trust-Hub platform.

It interferes with the microprocessor’s fetching

activity, altering the address of loaded instruc-

tions. Similar to MitM, it forces the execution of a

malicious program, thereby modifying the micro-

processor’s behavior and functionality.

Following the completion of the RTL design

phase, we proceeded to execute synthesis, place &

route (P&R), and implementation utilizing the Xil-

inx Vivado toolchain, speciﬁcally version 2018.2. We

targeted a Xilinx XC7Z020-1CLG484C Zynq-7000

FPGA. In order to generate a more diverse and realist

Table 1: The used Vivado settings for generating the bit-

streams implementing the altered soft RISC-V micropro-

cessor.

Synthesis Settings Implementation Settings Logic Opt.

Vivado default Vivado default On

Vivado default Vivado default Off

Flow Area Opt. (medium) Ultra Low Fast Methodology On

Flow Area Alternate Routability Ultra Low Fast Methodology On

set of data, we deﬁned four distinct combinations of

synthesis and implementation settings, as detailed in

Table 1, during the bitstream generation phase.

Once our designs were ready, we performed a set

of tests with a software testbench, both during the

synthesis phase, simulating their layer netlist, and

during the P&R phase, simulating their post-P&R

netlist. During simulation, we collected a diverse ar-

ray of features, which can be categorized into two

main groups, as detailed in Table 2. The ﬁrst subset of

features is derived from hardware performance coun-

ters integrated into the design. This includes metrics

like the number of executed cycles, the count of re-

tired instructions, and more. These measurements are

obtained while running selected benchmarks, which

consist of Coremark, Median, Multiply, Rsort, and

Towers, similarly to what considered in the approach

outlined in (Palumbo et al., 2022).

A second set of collected data reports design char-

acteristics extracted from the FPGA synthesis and im-

plementation phases. These characteristics include

parameters such as design area, quantiﬁed in terms of

the number of Look-Up Tables (LUTs) and Flip-Flops

(FFs), as well as timing metrics like worst negative

slack. Furthermore, power consumption and device

temperature trends were also recorded as part of this

data collection.

We subsequently categorize the ﬁrst group of fea-

tures as “Performance Features” (PFs) and the second

group as “Implementation Features” (IFs). Our data

collection process resulted in a total of 160 data sam-

ples: four distinct HT types with triggering and non-

triggering conditions, as well as a HT-free scenario,

each combined with four different Vivado settings and

ﬁve distinct benchmarks.

4.2 Features Extraction from the end

Users’ Perspective

In an industrial context, extracting feature data from

a bitstream that implements a microprocessor, as de-

tailed in Table 2, is a practical and achievable pro-

cess, despite being challenging. In this section, we

propose and discuss a series of methods for collecting

the aforementioned data features from a given FPGA

bitstream.

Machine Learning-Based Classiﬁcation of Hardware Trojans in FPGAs Implementing RISC-V Cores

719

Table 2: Features extracted from the considered dataset.

Feature ID Description

Performance Features (PFs)

Cycles Number of clock cycles to execute the program

InstrRet Number of instructions retired in the program

LSUs Total waiting cycles to access data memory

FetchWait Total waiting cycles before instruction fetch

Loads Number of executed load instructions

Stores Number of executed store instructions

Jumps Number of executed jump instructions

CondBran Number of executed conditional branches

ComprIns Number of executed compressed instruction

TakCBran Number of taken conditional branches

MulWait Cycles for multiplication operation completion

DivdWait Cycles for division operation completion

Benchmark Program under execution (text label)

Implementation Features (IFs)

LUTs Final number of LUTs in the design

FFs Final number of FFs in the design

AvgDynPow Avg. dynamic power consumption [W]

AvgTotPower Avg. total power consumption [W]

Timing Worst negative slack (the circuit critical path) [ns]

Temperature Temperature trend

4.2.1 Performance Features Extraction

PFs comprise the values written by the microproces-

sor into its registers during program execution. These

values can be accessed through versatile interfaces

such as AXI, UART, I

C, or dedicated debugging in-

terfaces. Virtually all modern microprocessors offer

dedicated registers for storing predeﬁned and conﬁg-

ured hardware performance counters, eliminating the

need for additional hardware modiﬁcations to acquire

this data.

4.2.2 Timing and Number of LUTs and FFs

Estimation

The synthesis and implementation of the circuit on

the FPGA via Vivado provide essential information,

including the count of Look-Up Tables (LUTs), Flip-

Flops (FFs), and timing characteristics. Vivado fur-

nishes these metrics directly once the implementation

process is completed. In case users do not have access

to the Vivado reports about detailed timing analysis,

an external tunable clock generator can be leveraged

for retrieving such information, i.e., the circuit’s criti-

cal path slack. By incrementally increasing the clock

frequency until the system experiences its ﬁrst failure,

it becomes possible to discern when the critical path’s

timing is breached. This frequency corresponds to the

maximum achievable circuit clock frequency, and its

reciprocal deﬁnes the worst negative slack. A sim-

ilar discussion can be made for LUTs and FFs: an

estimate of their number can be extracted through re-

verse engineering of the circuit logic netlist. How-

ever, the precise contents of programmed LUTs and

FFs still remains a challenging and impractical en-

deavor (Benz et al., 2012).

4.2.3 Power Consumption Estimation

Vivado provides a reliable method for estimating cir-

cuit power consumption through post-implementation

simulations. This estimation is grounded in

the ﬁdelity of the system’s behavior in post-

implementation test benches, which are considered

the most trustworthy as they exclusively focus on real

signals synthesized and implemented during the pro-

cess. By conﬁguring Vivado settings, one can gener-

ate “SAIF” (Switching Activity Interchange Format)

ﬁles that collect power trace data via test-bench sim-

ulations.

4.2.4 Temperature Estimations

Temperature estimations have been obtained through

the Vivado XADC monitor. Such a monitor dumps

the temperature trace over program execution. We

considered the mathematical integral value of the

dumped temperature traces as a feature. The Zynq-

7000 board features a temperature sensor linked to

XADC signals, enabling the monitoring of FPGA

runtime temperature trends. To ensure independent

measurements, we adopted the following procedure:

1. Powering on the board.

2. Loading the bitstream of the desired implementa-

tion after 20 minutes of board activation.

3. Keeping the reset active for 1 minute and then de-

activating it to initiate program execution.

4. Powering off the board and repeating the entire

process after a 30-minute interval upon powering

on the board.

This meticulous approach ensures reliable temper-

ature data, regardless of Vivado tool implementation

positional choices, and facilitates accurate tempera-

ture trend estimation.

4.3 Datasets Generation

We here outline the process of generating datasets for

training and testing our ML models.

4.3.1 Combining Non- and Triggered HTs

Measurements and data collection are done either af-

ter a selected HT has been turned on, i.e., triggered, or

when left inactive, i.e., non-triggered (Critical trojans

cannot be turned off). We include both triggered and

non-triggered HTs in the initial dataset before subse-

quent splits. By including both triggered and non-

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

720

triggered HTs in the initial dataset we provide a more

realistic view over the real data distribution.

4.3.2 Diverse Distribution of HT-free Samples

We offer two dataset options:

• Uniform Distribution (80-20 split): we maintain

an 80-20 random split between train and test sets,

respectively, while ensuring equal class represen-

tation, serving as a performance baseline.

• Realistic Distribution (80-20 split with 50% HT-

free samples in test set): this scenario mirrors

real-world conditions, emphasizing the practical

challenge of distinguishing HTs from HT-free in-

stances.

4.3.3 Exploring Model Robustness

To explore the minimal data requirements for achiev-

ing high accuracy, we conducted a series of experi-

ments where the test set remained ﬁxed (i.e., 20% of

the data), and we progressively reduced the size of the

training set. This process involves sampling a subset

of the training data and training separate models on

these subsets. Through this investigation, we better

understand the models’ robustness and their ability

to maintain accuracy scores, i.e., generalize to new

data, under data scarcity, providing valuable informa-

tion for practical deployment scenarios.

4.4 Model Training

In this sub-section, we delve into our choice of model,

our validation strategy, and our exploration of the im-

pact of input features on model performance.

4.4.1 Selection of XGBoost

For our machine learning framework, we opt for XG-

Boost (Chen et al., 2015), a state-of-the-art model rec-

ognized for its effectiveness in handling tabular data

with relatively limited sample sizes.

4.4.2 Cross-Validation for Robustness

To ensure the robustness and reliability of our cho-

sen model, we employ k-fold cross-validation with k

set to 5 during the training phase on speciﬁc datasets.

Cross-validation enhances our conﬁdence in model

performance by evaluating it across multiple folds or

subsets of the dataset. This rigorous validation ap-

proach helps us measure how well the model general-

izes to unseen data, providing a robust assessment of

its capabilities.

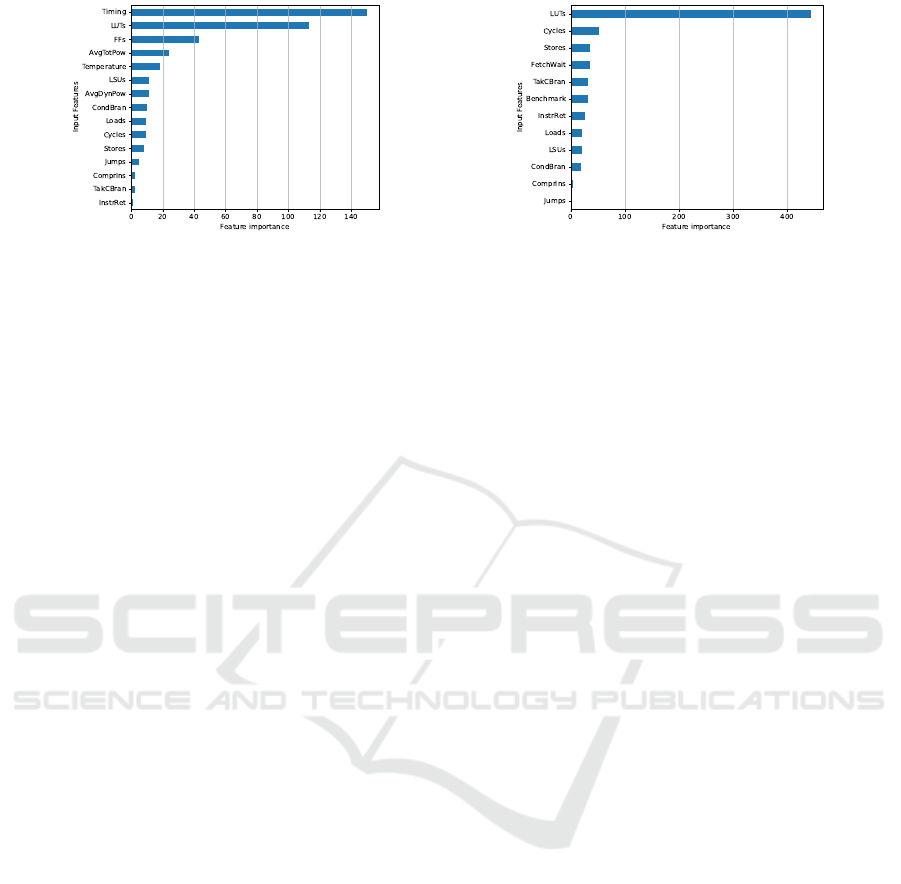

4.4.3 Feature Impact Analysis

Understanding the inﬂuence of input features on our

model’s performance is essential. To this end, we con-

duct an in-depth analysis of feature impact on HT de-

tection and classiﬁcation. We explore three distinct

scenarios:

• Both PFs and IFs as inputs: in this conﬁguration,

we leverage both performance features and imple-

mentation features as inputs to the model.

• PFs only: since IFs can be challenging to acquire,

especially when synthesis and implementation re-

ports are unavailable, this scenario isolates the

contribution of performance-related metrics.

• PFs plus one IF: here, we introduce a single im-

plementation feature alongside PFs to investigate

the individual inﬂuence of an implementation-

related metric on model performance.

Through these analyses, we gain additional in-

sights into the relative importance of different feature

categories, helping us optimize the model’s perfor-

mance for HT-related tasks.

5 RESULTS AND DISCUSSION

We here present the results of our HT classiﬁcation

and detection accuracy experiments. The experiments

were conducted with varying training percentages and

dataset compositions, as detailed in the methodology

section.

5.1 HT Classiﬁcation and Detection

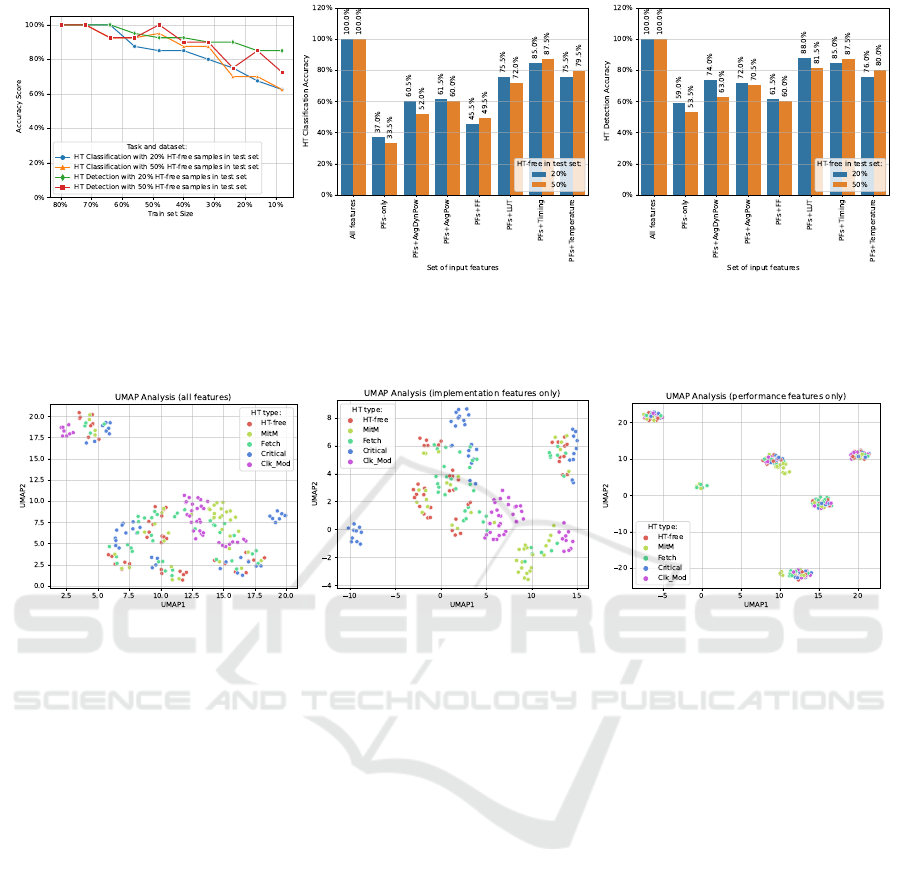

Figure 2a shows the HT accuracy when we systemat-

ically adjusted the training percentage, ranging from

80% down to 8%, while maintaining a ﬁxed 20% test

set size. When the test set featured a uniform class

distribution with 20% HT-free samples, the classiﬁ-

cation accuracy remained consistently high at 100%,

even as the training set size decreased. The detec-

tion accuracy followed a similar pattern, staying at

100% until a training set size of 56%, where it slightly

dropped to 95% but remained robust. However, in

the more realistic scenario with 50% HT-free samples

in the test set, the classiﬁcation accuracy remained

at 100% with a training set size of 72% and 64%.

The detection accuracy also stayed at 100% for these

conﬁgurations. As the training set size reduced fur-

ther, the classiﬁcation and detection accuracy scores

demonstrated some variation, but the model’s perfor-

mance remained notably strong. These results high-

Machine Learning-Based Classiﬁcation of Hardware Trojans in FPGAs Implementing RISC-V Cores

721

(a) (b) (c)

Figure 2: HT classiﬁcation and detection performance of the XGBoost models trained on different datasets. (a) Classiﬁcation

and detection scores when varying training set size. (b) HT classiﬁcation accuracy and (c) HT detection accuracy with

different input features and percentages of HT-free samples in the test set.

(a) (b) (c)

Figure 3: UMAP plots highlighting input feature distributions. When considering (a) all features or (b) only the implemen-

tation ones, the data points appear spread out and separable. On the other hand, (c) performance features alone are clumped

together in UMAP space, suggesting the need of higher efforts in classifying HT classes.

light the model’s resilience in achieving high accu-

racy even with limited training data.

5.1.1 Performance with Limited Input Features

Figures 2b and 2c report the HT classiﬁcation and de-

tection accuracy scores with different input features

and diverse percentages of HT-free samples in the test

set (20% or 50%). Firstly, when considering all fea-

tures in the model, regardless of the proportion of

HT-free samples in the test set, the classiﬁcation and

detection accuracy scores consistently reach 100%.

However, the performance of models relying solely

on PFs exhibits limitations. In scenarios featuring

20% HT-free samples in the test set, PFs-only models

yield relatively lower accuracy scores, with classiﬁca-

tion accuracy dropping to 37% and detection accuracy

to 59% on the uniform test set (33.5% and 53.5% ac-

curacy with 50% HT-free test samples). This suggests

that PFs alone are insufﬁcient for achieving high per-

formance in both classiﬁcation and detection tasks.

When we augment PFs with one additional feature,

such as the average dynamic power (AvgDynPow),

average total power (AvgTotPow), FFs, LUT, timing,

and temperature, the model’s accuracy scores gener-

ally improve. Notably, models incorporating infor-

mation about timing consistently perform well, with

classiﬁcation and detection accuracy scores reaching

85% and 100%, respectively, when 50% HT-free sam-

ples are present in the test set. This highlight the sig-

niﬁcance of timing-related features in distinguishing

between HT and HT-free instances.

Overall, our ﬁndings highlight the crucial role of

feature selection in HT detection and classiﬁcation

tasks. While PFs alone may fall short, the inclusion

of timing features proves instrumental in enhancing

the model’s accuracy and effectiveness, especially in

scenarios where HT-free samples are more prevalent.

5.2 Features Importance and

Distribution

The analysis of feature importance in our XG-

Boost model provides an additional understanding

of the discriminative power of different input fea-

tures. When utilizing all input features, IFs emerge

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

722

(a) (b)

Figure 4: Feature importance ranking for XGBoost models trained on different input features. (a) Feature importance scores

for XGBoost trained on all features. (b) Feature importance for XGBoost trained on PFs+LUTs.

as the most inﬂuential, with “timing” ranking highest,

achieving a score of approximately 150, followed by

LUTs at around 115, as showed in Figure 4a. How-

ever, if we focus on PFs and LUTs as input features,

for example, as highlighted in Figure 4b, the impor-

tance of LUTs becomes particularly prominent, with

a score of around 450, followed by Cycles at 60. This

shift highlights the signiﬁcance of LUTs when PFs

are the primary input features.

To reinforce the argument regarding the impor-

tance of IFs, we can employ a Uniform Mani-

fold Approximation and Projection (UMAP) analysis

(McInnes et al., 2018), which helps visualize the dis-

tribution of input features in a reduced-dimensional

space. In Figures 3a and 3b, which consider all fea-

tures or only the implementation ones, respectively,

we can see that data points are well-spread and sep-

arable, illustrating the effectiveness of IFs in feature

discrimination. However, in Figure 3c, where only

PFs are used, data points cluster together in UMAP

space, indicating the need for more substantial efforts

in classifying HT classes when relying solely on PFs.

6 CONCLUSIONS

In this work we provided a comprehensive and de-

tailed methodology for Hardware Trojan (HT) detec-

tion and classiﬁcation using machine learning. Key

takeaways include the critical role of Implementation

Features (IFs), with timing, i.e., circuit worst negative

slack, as the standout factor, in distinguishing HTs

from HT-free instances. When leveraging all input

features, our XGBoost model consistently achieves

classiﬁcation and detection accuracy scores of 100%.

However, we showed that using Performance Features

(PFs) alone is insufﬁcient for achieving high accu-

racy, especially with a more realistic test data distribu-

tion. To overcome this, augmenting PFs with at least

one IFs signiﬁcantly improves model performance.

UMAP analysis visually conﬁrmed the effectiveness

of IFs in feature discrimination. Overall, our ﬁndings

emphasize the importance of IFs and the resilience of

XGBoost as a robust HT detection and classiﬁcation

in integrated circuits.

REFERENCES

Arıkan, K., Palumbo, A., Cassano, L., Reviriego, P.,

Pontarelli, S., Bianchi, G., Ergin, O., and Ottavi, M.

(2022). Processor security: Detecting microarchitec-

tural attacks via count-min sketches. IEEE Transac-

tions on Very Large Scale Integration (VLSI) Systems,

30(7):938–951.

Basak, A., Bhunia, S., Tkacik, T., and Ray, S. (2017). Se-

curity assurance for system-on-chip designs with un-

trusted ips. IEEE Transactions on Information Foren-

sics and Security, 12(7):1515–1528.

Benz, F., Seffrin, A., and Huss, S. A. (2012). Bil: A tool-

chain for bitstream reverse-engineering. In 22nd In-

ternational Conference on Field Programmable Logic

and Applications (FPL), pages 735–738.

Bloom, G., Narahari, B., and Simha, R. (2009). Os support

for detecting trojan circuit attacks. In 2009 IEEE In-

ternational Workshop on Hardware-Oriented Security

and Trust, pages 100–103.

Cassano, L., Mascio, S. D., Palumbo, A., Menicucci, A.,

Furano, G., Bianchi, G., and Ottavi, M. (2022). Is

risc-v ready for space? a security perspective. In

2022 IEEE International Symposium on Defect and

Fault Tolerance in VLSI and Nanotechnology Systems

(DFT), pages 1–6.

Chen, T., He, T., Benesty, M., Khotilovich, V., Tang, Y.,

Cho, H., Chen, K., Mitchell, R., Cano, I., Zhou, T.,

et al. (2015). XGBoost: extreme gradient boosting. R

package version 0.4-2, 1(4):1–4.

Chuan, X., Yan, Y., and Zhang, Y. (2017). An efﬁcient

triggering method of hardware Trojan in AES crypto-

graphic circuit. In Proc. Int. Conf. Integrated Circuits

and Microsystems, pages 91–95.

DIGITIMES (2012). Trends in the global IC design service

market. http://www.digitimes.com/news/a20120313

RS400.html?chid=2.

Machine Learning-Based Classiﬁcation of Hardware Trojans in FPGAs Implementing RISC-V Cores

723

Domas, C. (2018). Hardware backdoors in x86 cpus.

https://i.blackhat.com/us-18/Thu-August-9/us-18-

Domas-God-Mode-Unlocked-Hardware-Backdoors-

In-x86-CPUs-wp.pdf.

Dong, C., Chen, J., Guo, W., and Zou, J. (2019).

A machine-learning-based hardware-trojan detection

approach for chips in the internet of things. In-

ternational Journal of Distributed Sensor Networks,

15(12):1550147719888098.

Dubeuf, J., H

ely, D., and Karri, R. (2013). Run-time de-

tection of hardware trojans: The processor protection

unit. In 2013 18th IEEE European Test Symposium

(ETS), pages 1–6.

Duncan, A., Rahman, F., Lukefahr, A., Farahmandi, F., and

Tehranipoor, M. (2019). Fpga bitstream security: A

day in the life. In 2019 IEEE International Test Con-

ference (ITC), pages 1–10.

Ender, M., Swierczynski, P., Wallat, S., Wilhelm, M.,

Knopp, P. M., and Paar, C. (2019). Insights into the

mind of a trojan designer: the challenge to integrate a

trojan into the bitstream. In Proceedings of the 24th

Asia and South Paciﬁc Design Automation Confer-

ence, pages 112–119.

Huang, Z., Wang, Q., Chen, Y., and Jiang, X. (2020). A

survey on machine learning against hardware trojan

attacks: Recent advances and challenges. IEEE Ac-

cess, 8:10796–10826.

Jin, Y., Maniatakos, M., and Makris, Y. (2012). Exposing

vulnerabilities of untrusted computing platforms. In

Proc. Int. Conf. Computer Design, pages 131–134.

Liu, Y., Zhao, Y., He, J., Liu, A., and Xin, R. (2017). Scca:

Side-channel correlation analysis for detecting hard-

ware trojan. In Proc. Int. Conf. Anti-counterfeiting,

Security, and Identiﬁcation, pages 196–200.

McInnes, L., Healy, J., and Melville, J. (2018). Umap: Uni-

form manifold approximation and projection for di-

mension reduction. arXiv preprint arXiv:1802.03426.

Nikiema, P. R., Palumbo, A., Aasma, A., Cassano, L., Kri-

tikakou, A., Kulmala, A., Lukkarila, J., Ottavi, M.,

Psiakis, R., and Traiola, M. (2023). Towards depend-

able risc-v cores for edge computing devices. In 2023

IEEE 29th International Symposium on On-Line Test-

ing and Robust System Design (IOLTS), pages 1–7.

Palumbo, A., Cassano, L., Luzzi, B., Hern

andez, J. A., Re-

viriego, P., Bianchi, G., and Ottavi, M. (2022). Is your

fpga bitstream hardware trojan-free? machine learn-

ing can provide an answer. Journal of Systems Archi-

tecture, 128:102543.

Palumbo, A., Cassano, L., Reviriego, P., Bianchi, G., and

Ottavi, M. (2021). A lightweight security checking

module to protect microprocessors against hardware

trojan horses. In 2021 IEEE International Symposium

on Defect and Fault Tolerance in VLSI and Nanotech-

nology Systems (DFT), pages 1–6.

Potkonjak, M. (2010). Synthesis of trustable ics using un-

trusted cad tools. In Proceedings of the 47th Design

Automation Conference, pages 633–634.

Rostami, M., Koushanfar, F., Rajendran, J., and Karri, R.

(2013). Hardware security: Threat models and met-

rics. In Proc. Int. Conf. Computer-Aided Design,

pages 819–823.

Roy, J. A., Koushanfar, F., and Markov, I. L. (2008). Ex-

tended abstract: Circuit cad tools as a security threat.

In 2008 IEEE International Workshop on Hardware-

Oriented Security and Trust.

Salmani, H. and Tehranipoor, M. (2012). Layout-aware

switching activity localization to enhance hardware

trojan detection. IEEE Trans. Information Forensics

and Security, 7(1):76–87.

Salmani, H. and Tehranipoor, M. (2013). Analyzing circuit

vulnerability to hardware trojan insertion at the behav-

ioral level. In Proc. Int. Symp. Defect and Fault Tol-

erance in VLSI and Nanotechnology Systems, pages

190–195.

Shakya, B., He, T., Salmani, H., Forte, D., Bhunia, S., and

Tehranipoor, M. (2017). Benchmarking of hardware

trojans and maliciously affected circuits. Journal of

Hardware and Systems Security, 1(1):85–102.

Shila, D. M., Venugopalan, V., and Patterson, C. D. (2015).

Fides: Enhancing trust in reconﬁgurable based hard-

ware systems. In 2015 IEEE High Performance Ex-

treme Computing Conference (HPEC), pages 1–7.

Sunkavilli, S., Zhang, Z., and Yu, Q. (2021a). Analysis of

attack surfaces and practical attack examples in open

source fpga cad tools. In 2021 22nd International

Symposium on Quality Electronic Design (ISQED),

pages 504–509.

Sunkavilli, S., Zhang, Z., and Yu, Q. (2021b). New security

threats on fpgas: From fpga design tools perspective.

In 2021 IEEE Computer Society Annual Symposium

on VLSI (ISVLSI), pages 278–283.

Tsoutsos, N. G. and Maniatakos, M. (2014). Fabrica-

tion attacks: Zero-overhead malicious modiﬁcations

enabling modern microprocessor privilege escalation.

IEEE Trans. Emerging Topics in Computing, 2(1):81–

93.

sejkovi

c, D., Merchant, F., Leupers, R., Ascheid, G., and

Kegreiss, S. (2019). Control-lock: Securing processor

cores against software-controlled hardware trojans. In

Proceedings of the 2019 on Great Lakes Symposium

on VLSI, GLSVLSI ’19, pages 27–32.

Wang, X., Mal-Sarkar, T., Krishna, A., Narasimhan, S., and

Bhunia, S. (2012). Software exploitable hardware tro-

jans in embedded processor. In 2012 IEEE Interna-

tional Symposium on Defect and Fault Tolerance in

VLSI and Nanotechnology Systems (DFT), pages 55–

58. IEEE.

Xiao, K., Nahiyan, A., and Tehranipoor, M. (2016). Secu-

rity rule checking in ic design. Computer, 49(8):54–

61.

Zhang, J. and Qu, G. (2019). Recent attacks and defenses on

fpga-based systems. ACM Transactions on Reconﬁg-

urable Technology and Systems (TRETS), 12(3):1–24.

Zhang, J., Yuan, F., Wei, L., Liu, Y., and Xu, Q. (2015).

Veritrust: Veriﬁcation for hardware trust. IEEE Trans.

Computer-Aided Design of Integrated Circuits and

Systems, 34(7):1148–1161.

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

724
