An Improved PUF-Based Privacy-Preserving IoT Protocol for Cloud

Storage

Cédrick De Pauw

, Jan Tobias Mühlberg

and Jean-Michel Dricot

École Polytechnique de Bruxelles, Université Libre de Bruxelles, Av. Roosevelt 50, 1050 Bruxelles, Belgium

Keywords:

SRAM PUF, Extended Lifetime, Supply Chain Security, Embedded Devices.

Abstract:

The IoT technology allows many types of personal data to be measured by many kinds of devices and sensors,

and to be sent over the Internet for various applications. However, this data transmission has to be secure and

the privacy of the users should ideally be preserved. In this work, we propose a SRAM PUF-based privacy-

preserving IoT protocol for cloud storage based on an existing protocol from the literature. Proposals are

made to increase the supply chain security of the PUF construction used by a device, to extend the secure

lifetime of this device by increasing the number of keys it may generate and avoiding reboot-based attacks,

and to allow a PUF construction to be used for different applications. These proposals only require changes

on the device enrollment and on the master key generation procedure, leaving the PUF construction, the fuzzy

extractor construction and the cryptographic key derivation unchanged. Beneﬁts and limitations of this new

protocol are evaluated and security objectives achieved with these proposals are analyzed.

1 INTRODUCTION

The Internet of Things (IoT) technology has signif-

icantly grown in popularity and raised new security

and privacy issues. With the use of IoT devices, more

and more personal data is exchanged and some man-

ufacturers underestimate potential security threats in

their product (Babaei and Schiele, 2019). Moreover,

sensitive data may be exposed to third-party infras-

tructure during transport and processing, where this

data may then be monetized without consent.

Strong cryptographic primitives and protocols

may not be suited for IoT devices which should be in-

expensive and often have limited resources in terms

of computing power or battery autonomy (Babaei

and Schiele, 2019; Ashur et al., 2018). There-

fore, dedicated protocols are proposed in the liter-

ature. Common solutions for keys storage rely on

power-backed volatile memory or non-volatile mem-

ory (NVM) (Mostafa et al., 2020), both solutions be-

ing vulnerable to attacks (Mostafa et al., 2020). Phys-

ically unclonable functions (PUFs) were proposed to

address the key storage problem and to provide se-

cure and lightweight authentication and session keys.

https://orcid.org/0009-0002-1223-3285

https://orcid.org/0000-0001-5035-0576

https://orcid.org/0000-0002-8539-9940

PUFs are based on established concepts, i.e., identi-

ﬁcation or randomness extraction from the measure-

ments of manufacturing variations, which have pre-

viously been used for document and hardware iden-

tiﬁcation (Graybeal and McFate, 1989; Herder et al.,

2014; Anderson, 2021; Rührmair, 2022).

Prior research proposes to use the PUF construc-

tion for one application only. For constrained de-

vices, however, it would be beneﬁcial to re-use a

PUF construction for different applications, in com-

parison with storing distinct cryptographic keys in a

NVM (Ferreira, 2022). Commonly, the PUF usage

is also limited, e.g., to a certain number of encryp-

tions. This approach limits the lifetime of the PUF

and thereby often the life span of the device, in par-

ticular for devices that frequently send sensitive data.

E.g., the protocol proposed by Ashur et al. (2018) re-

lies on electronic fuses to prevent the reuse of memory

segments that were previously used to generate keys.

Here, the PUF construction is limited to one-time and

one-application use with an electronic fuse being con-

sumed on every reboot, which presents an attack vec-

tor and imposing limitations on the secure lifetime of

a device. Finally, application service providers of-

ten perform the enrollment of the PUF, which poses

a problem in case of a supply-chain compromise.

In Ashur et al. (2018), master keys are extracted at

the manufacturing site and provided to the user via

De Pauw, C., Mühlberg, J. and Dricot, J.

An Improved PUF-Based Privacy-Preserving IoT Protocol for Cloud Storage.

DOI: 10.5220/0012326000003648

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 10th International Conference on Information Systems Security and Privacy (ICISSP 2024), pages 725-732

ISBN: 978-989-758-683-5; ISSN: 2184-4356

725

Quick Response (QR) codes. Although these QRs

is sealed in a tamper-evident packaging, it could be

compromised at earlier stages. Foreseeing options for

the user to parameterize and extract new keys would

thwart such attacks and extend the lifetime of devices.

Contributions. We propose improvements

to Ashur et al. (2018) towards a privacy-preserving

cloud storage protocol which takes the PUF construc-

tion lifetime into account, which allows the user to

reset and manage their key generation parameters,

and which can be used to protect data associated to

distinct applications. We select Ashur et al. (2018)’s

protocol for its privacy-preserving properties: unlink-

ability, anonymity and pseudonymity, conﬁdentiality

and plausible deniability. Our proposal inherits these

properties and improves the master key generation

process in terms of ﬂexibility and sustainability.

Speciﬁcally, our proposal allows for all memory

segments of the PUF to be reused in order to derive

a unlimited number of keys, to roll out these keys af-

ter a reset, and hence to extend the secure lifetime of

the device. This “unlimited” number of keys is possi-

ble due to the use of three distinct random numbers, a

PUF response and different hash computations, mak-

ing the key generation sequence hard to predict. The

improved protocol shall further allow the user to re-

conﬁgure the key generation parameters for different

applications. Finally, if enough memory is available

on the device, it should be possible to simultaneously

use the PUF construction for different applications.

The scope of this contribution is deﬁned by the

following objectives:

• Propose improvements to the PUF (and device)

enrollment and the key generation procedure of

Ashur et al. (2018)’s protocol;

• Perform an analysis of the security objectives

achieved by this improved protocol.

2 BACKGROUND

This section introduces required PUFs concepts and

presents Ashur et al. (2018), on which our work is

based, in detail.

2.1 Physically Unclonable Functions

A physically unclonable function is a physical func-

tion built from an integrated circuit (IC) and relying

on the physical variations introduced by the manufac-

turing process of some components (Mostafa et al.,

2020; Herder et al., 2014). A PUF is used to gener-

ate challenge-response pairs (CRPs): as illustrated by

Figure 1, a challenge is a sequence of bits given as in-

put to the function, while a response is a sequence of

bits obtained as output from the function for a given

challenge (Babaei and Schiele, 2019; Mostafa et al.,

2020; Herder et al., 2014).

PUF

1011. . . 010

Response

0110. . . 100

Challenge

Figure 1: PUF challenge-response pair.

This section will introduce main PUF properties

and the static random-access memory (SRAM) PUF

architecture, on which the current work relies.

PUF Properties. PUFs obey two main proper-

ties: identiﬁability and physical unclonability (Maes,

2013; Schrijen, 2018; van der Leest and Tuyls, 2013).

These properties are deﬁned as follows (Maes, 2013).

Identiﬁability. A PUF circuit can precisely be iden-

tiﬁed based on its generated CRPs.

Physical Unclonability. A PUF circuit can not be

physically reproduced even if an adversary con-

trols its manufacturing process.

The identiﬁability of a PUF is only possible due

to its reproducibility, also called reliability (Schrijen,

2018), and uniqueness (Maes, 2013; Schaller et al.,

2014; Maiti et al., 2012). These properties are brieﬂy

deﬁned and illustrated below (Maes, 2013).

Reproducibility. A PUF circuit reproduces the same

response for a given challenge with a high proba-

bility.

Let the reference response to a challenge be the

response obtained for the ﬁrst trial. Let another re-

sponse be obtained for any trial i > 1. The repro-

ducibility is illustrated by Figure 2, where high-

lighted bits are bits ensuring this property.

PUF

01101010

10110010

Trial 1

PUF

01101010

10110010

Trial i

= =

Figure 2: PUF reproducibility.

Uniqueness. Two PUF circuits generate distinct re-

sponses for a common challenge with a high prob-

ability.

Let us consider responses from any PUF i and any

PUF j ̸= i to the same challenge. The uniqueness

is illustrated by Figure 3, where highlighted bits

are bits ensuring this property.

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

726

PUF i

01101010

10 1 1 0010

PUF j

01101010

10 0 1 1101

̸=

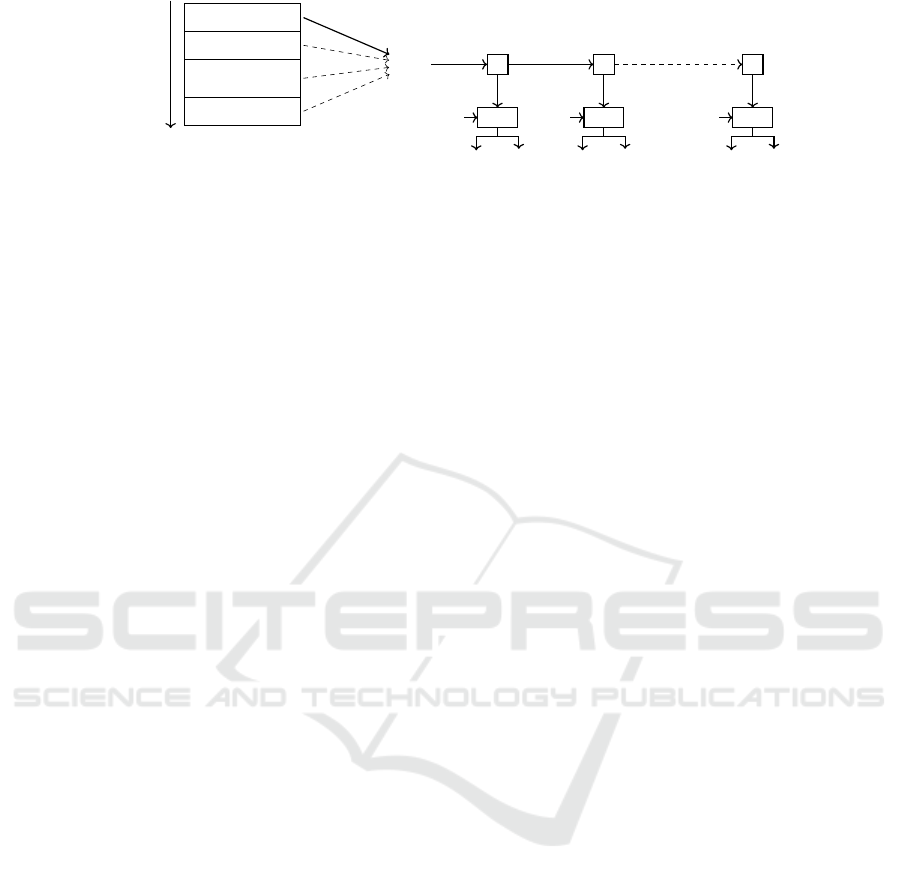

Figure 3: PUF uniqueness.

When the response of a PUF to a challenge is used

for security applications, e.g. as a key, it is necessary

to ensure additional properties (Maes, 2013; Maiti

et al., 2012; Schaller et al., 2014).

SRAM PUF. A SRAM PUF is a silicon PUF which

uses variations in the manufacturing of SRAM cells

(Herder et al., 2014; Maes, 2013) as a source of ran-

domness. The manufacturing of a SRAM cell induces

physical differences between its two inverters (Maes,

2013) that will lead the SRAM cell to one of its two

stable states on power-up, i.e. either “1” or “0”. When

the difference between inverters from a SRAM cell is

small, the cell may be metastable (Maes, 2013) be-

fore getting its default value with a certain probability.

Thus, an algorithm like fuzzy extractor can be used to

provide a reliable PUF response extraction (Mostafa

et al., 2020; Schrijen, 2018; Kang et al., 2013).

If such a PUF receives a challenge, the response

may be generated by reading a set of cells determined

by the challenge, e.g. a ﬁxed number of cells selected

based on a given address. It reads initial binary values

from each selected SRAM cell on power-up to obtain

a sequence of bits that will serve as the response from

its CRP. SRAM PUF responses may be seen as a set

of physically obfuscated keys (POKs) (Maes, 2013).

2.2 Ashur et al. (2018)’s Protocol

We build upon Ashur et al. (2018) and propose a cloud

storage method in the following sections. The pro-

tocol uses a SRAM PUF as a basis for a privacy-

preserving tracking system that allows for end-to-

end encryption between IoT devices and application

users. A new pair of ephemeral key and identity is

generated for each message, by applying a key deriva-

tion function (KDF) with a key domain separator on a

session key which is obtained from a hash chain.

Context. The tracking application using the se-

lected protocol may be summarized as follows:

1. A tag is attached to personal belongings of a user

and the user collects tag master keys by scanning

a QR code provided with the tag;

2. The tag collects IDs from emitting beacons, used

for the tracking, on Bluetooth Low Energy (BLE)

at regular intervals;

3. The tag regularly sends, using Long Range

(LoRa), the encrypted list of observed beacons,

whose length is ﬁxed, to dedicated LoRa Wide

Area Network (LoRaWAN) gateways, ﬁrst, and

through a dedicated secure communication chan-

nel, eventually relying on intermediary servers

and Transport Layer Security (TLS), to the appli-

cation server using an ephemeral pseudonym de-

rived from a PUF-based master key;

4. The corresponding user can collect location his-

tory data of its device from the application server

(through Tor) and determine the device location.

Protocol Description. Ashur et al. (2018) propose

to use a SRAM PUF based on a SRAM which is suf-

ﬁciently large to be partitioned into m > 1 segments.

Each segment produces a PUF response which is then

used to generate a new master key k

tag

, similarly to

what Aysu et al. (2015) proposed and as illustrated by

Figure 4. The latter is reproduced, and its uniformity

and integrity are guaranteed, by using a robust version

of the fuzzy extractor proposed by Kang et al. (2014).

At boot, a segment is selected and the correspond-

ing k

tag

is used as the genesis of a hash chain of length

v. Each hash value obtained from this hash chain is a

session key k

which is given to a KDF together with a

domain separator d to generate a one-time pseudonym

p and a one-time encryption key k

. Once the KDF

input is consumed, the next session key in the chain

is computed. Once the end of the hash chain has been

reached, the next SRAM segment is used to generate

a new master key. The previous steps are also illus-

trated by Figure 4. To provide backward secrecy, the

SRAM segment selection relies on m fuses. Once a

segment has been used, the corresponding fuse is de-

stroyed and the segment becomes unreachable.

Each message (p, c,t) sent to the server by the

tag contains a one-time pseudonym p, the cipher-

text c and the message authentication tag t generated

from an authenticated encryption with associated data

(AEAD), the associated data being the pseudonym.

The user can send a request for the pseudonym p,

and receives all entries for this pseudonym from the

server. While the response may contain collisions,

these cannot be decrypted.

The hash chains of the tag and the user terminal

may become desynchronized. Knowing the transmis-

sion interval between messages, an upper bound on

the number of messages sent since the last successful

request can be computed and all pseudonyms related

to the tag can be requested. This synchronization is

performed, one request at a time, with a random de-

lay between requests to avoid the linking between the

tag and the user terminal and between pseudonyms.

An Improved PUF-Based Privacy-Preserving IoT Protocol for Cloud Storage

727

Segment 1

Segment 2

Segment m

SRAM

tag,i

Reading

order

KDF

Figure 4: Memory segments are used in turn to produce a master key k

tag,i

; the generation of one-time authenticated encryption

keys k

and corresponding pseudonyms p from a master key is performed using a hash function H, a key derivation function

KDF and a domain separator d (Ashur et al., 2018).

Limitations. The main limitation of Ashur et al.

(2018)’s protocol is the number of keys which may

be generated. Even though it is not a problem in the

context given by Ashur et al. (2018) — a lifetime

of 5 years is obtained from 100 memory segments

used as master keys, each generating 438 session keys

and providing encryption for, at most, 18.25 days of

records — it may not be sufﬁcient for other applica-

tions. As such, the approach imposes a planned ob-

solescence for the PUF. Another issue is the method

used to share keys with the user; the master keys are

ﬁxed and the user can not generate new keys if the

previous ones were compromised or if an additional

set of keys is required for a speciﬁc application.

3 PROPOSED SOLUTION

3.1 Threat Model

The application context from Ashur et al. (2018) is

easily generalizable: sensing devices send data to re-

mote terminals, eventually for distinct applications.

The data passes through untrusted third-party servers

before being fetched by the terminals.

Following the MITRE (2007) classiﬁcation, our

work aims to mitigate communications and, eventu-

ally, supply chain attacks. These domains of attack

are non-exhaustively illustrated below:

Communications. A ﬁrst possible attack on commu-

nications is a ﬂooding attack. An adversary may

perform a denial of service (DoS) attack by over-

ﬂowing the server with a large quantity of pack-

ets and saturating either the server database or the

channel. The user would have to download more

entries, including fake ones, for each of their re-

quest. A second attack consists in the cryptanal-

ysis of the trafﬁc in order to ﬁnd the content of

messages and obtain cryptographic keys. If fu-

ture generated keys depend on the keys which are

found, the security of future communications is

compromised.

Supply Chain. An adversary may interact with the

device and its QR code before its delivery to the

user. It would then be possible for the adversary to

inject a spyware into the device, to collect master

keys from the QR code or to alter it, or to clone

the PUF if they act early in the supply chain.

3.2 Improved Protocol

Ashur et al. (2018)’s protocol can be “improved” by

implementing together all the following proposals,

which are described one by one to clarify their pur-

pose. First, let x

be the key of size K, associated to

segment i, being the result of a hash function H im-

plemented in the fuzzy extractor proposed by Kang

et al. (2014), i.e. the key previously denoted by k

tag

Ashur et al. (2018); it is referred as a “PUF response”.

Let also k

tag,i

be the master key associated to segment

i. For simplicity, we assume that every hash function

H used in this work provides an output of K bits.

Proposal 1. The ﬁrst proposal allows the re-use of

memory segments by cycling over them, i.e. jump to

segment 1 after segment m has been used. Since the

re-use of previously generated master keys should be

avoided, fresh master keys are generated on each cy-

cle for each memory segment. Nonces help to achieve

this goal, but they should be produced in a predictable

way to retrieve data encrypted with generated keys.

Here, a genesis nonce g

is given as initial input to

a hash chain. For each cycle k and for each memory

segment i, the hash value r

i,k

of K bits is generated on

the ﬂy and a fresh master key k

tag,i,k

= x

⊕r

1,i,k

is ob-

tained, similarly to what is done with the one-time pad

(OTP) encryption (Stallings, 2022). The result k

tag,i,k

is then used as a fresh master key (Algorithm 1).

Proposal 2. When iterating over the memory seg-

ments, an adversary may determine which segment

generates the current master key if they know the it-

eration order of the segments. This second proposal

consists in the pseudo-randomization of the order in

which memory segments are visited. For each cycle,

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

728

generate g

= {0, 1}

;

foreach cycle k in cycles do until end of service

foreach segment i in memory segments do

// generate new nonce

1,i,k

← H(g

);

// generate new master key

tag,i,k

← x

⊕ r

1,i,k

;

// overwrite with nonce

← r

1,i,k

;

end

Algorithm 1: Master key re-freshing when cycling.

a nonce is generated using a hash chain and a gen-

esis nonce g

, as previously, and helps to determine

the segment order. The randomization pseudo-code

given by Algorithm 2 is inspired by a countermea-

sure against side-channel attacks proposed by Witte-

man (2017) and may be used for a memory providing

a number of segments m which is a power of two.

However, it may be adapted, depending on the needs,

when the number of segments is not a power of two.

generate g

= {0, 1}

;

foreach cycle k in cycles do until end of service

// generate new nonce

2,k

← H(g

);

for i from 0 to m − 1 do for each memory

segment

j ← (i + r

2,k

) AND (m − 1);

generate key from segment j;

end

// overwrite with nonce

← r

2,k

;

end

Algorithm 2: Cycle randomization, inspired by Wit-

teman (2017).

Proposal 3. While the second proposal obfuscates

the order in which memory segments are accessed, if

an adversary manages to discover a PUF response and

an iteration-ordered sequence of master keys from a

cycle, they may XOR the known response with all mas-

ter keys, apply H on the results to obtain new potential

hash values, XOR these values with the next master key

in the captured sequence, for each master key, and re-

peat the process. The adversary succeeds once they

retrieve a part of the g

hash chain and, hence, obtain

associated PUF responses. This attack is possible be-

cause of the link between master keys in the genera-

tion procedure. A possible improvement is to perform

the master key generation from the ﬁrst proposal us-

ing k

tag,i,k

= x

⊕ H(r

1,i,k

||r

2,k

). This trick allows to

break the apparent link between master keys.

Proposal 4. Previous proposals mask the PUF re-

sponses, cut links between the different master keys

and make the segment order unpredictable for an ad-

versary. However, to generate master keys on a termi-

nal, PUF responses and corresponding genesis nonces

must be stored on it. Thus, if they are retrieved by any

malicious software on a terminal, the security of mas-

ter keys dedicated to other applications resides in the

ignorance of their genesis nonces. A method to pre-

vent the leakage of the PUF responses, and hence a

loss regarding the security of the master key genera-

tion for other applications, is to use per-application

PUF responses. This method does not use responses

as described in proposal 3 but replaces x

by y

with

= H(x

||r

3,i

), where r

3,i

is a nonce, dedicated to

one memory segment i and to one application, which

should be computed with r

3,i

= H(s + i), where s is a

random value of K bits used as a seed and i is the seg-

ment index. By doing so, the pseudo-randomization

of the segment order does not require to re-compute

a hash chain for r

3,i

on each iteration, in the worst

case. With this last proposal, the ﬁnal expression to

compute the master key is the following:

tag,i,k

= y

⊕ H(r

1,i,k

||r

2,k

)

= H(x

||H(s + i)) ⊕ H(r

1,i,k

||r

2,k

)

As a consequence, the enrollment must be per-

formed by the user by connecting the device exploit-

ing the PUF to their terminal. The application soft-

ware exchanges genesis nonces with the device, and

generates nonces if it does not have a random number

generator, retrieves the PUF CRPs, the i-th response

being y

, and manages data securely.

Depending on the application, the genesis nonces

may either be stored in NVM and be overwritten as

the cursor moves along the hash chain, i.e. previous

values cannot be accessed anymore, or a copy may

be created and updated such that the original value

may be retrieved from the NVM. However, the ﬁrst

option is more interesting for security reasons and is

therefore recommended. Finally, in order to recover

from a reboot, current iteration in the current cycle

should be stored in the NVM.

4 DISCUSSION

4.1 System Properties

Beneﬁts and limitations of our proposals are dis-

cussed below:

Beneﬁt 1 - Lifetime. The lifetime of the PUF, as it is

the case for the lifetime or the security of the tag,

An Improved PUF-Based Privacy-Preserving IoT Protocol for Cloud Storage

729

is signiﬁcantly extended by cycling over memory

segments to generate new master keys.

Beneﬁt 2 - Supply Chain Security. The security of

the PUF supply chain is improved as no QR code

allows one to collect all master keys. Instead, the

enrollment is performed by the user themselves by

connecting the PUF to the software managing the

secure storage of the nonces and the CRPs.

Beneﬁt 3 - Increase Difﬁculty for the Adversary.

By adding per-iteration nonces to the PUF

responses, the discovering of these responses is

made harder for the adversary. Moreover, they

must retrieve the seed used for loop randomiza-

tion and determine the current cycle to ﬁnd the

order in which memory segments are read.

Beneﬁt 4 - Helper Data Overhead. The helper data

overhead caused by the use of new nonces is re-

duced by using hash chains; only three random

numbers are stored for an eventually large num-

ber of cycles over the memory segments.

Beneﬁt 5 - Per-Application Keys. By generating

two new genesis nonces with an “application-

speciﬁc” enrollment, considering the device

exploiting the PUF has enough memory to

store additional helper data or the previous

helper data is overwritten, it is possible to pro-

duce per-application keys using the same PUF

responses.

Limitation 1 - Synchronization Data Overhead.

The fuzzy extractor used by Ashur et al. (2018),

initially proposed by Kang et al. (2014), does not

require to store any random number in the helper

data it generates. Moreover, no constant has to be

saved to allow the recovery of the current iteration

after a reboot. These additional data require an

extra space which is not negligible. However,

thanks to the proposed use of the hashing chains

to generate nonces, this overhead may be limited

to (3K + T )A bits, A being the number of distinct

applications relying on master keys generated

from the PUF, K being the number of output bits

generated by the selected hash function, T being

the size in bits of the smallest word allowing to

store the maximum number of iterations, i.e. the

number of memory segments, per cycle (e.g. 1

byte is sufﬁcient to iterate over maximum 256

memory segments, hence t = 8). This estimation

only stands if no copy of the genesis nonces is

stored, as previously recommended.

Limitation 2 - Additional Computations.

Additional computations are introduced to

generate the new master keys. Note that the

PUF construction and the fuzzy extractor are

identical to the ones used in the original protocol

design, and the method to derive pseudonyms

and associated keys remains unchanged too. The

additional computations can be evaluated in terms

of hash computations. To generate new master

keys for each cycle with our four proposals,

one hash computation is required to obtain r

2,k

for the current cycle, one hash computation is

required per memory segment to obtain r

1,i,k

and three hash computations are required per

memory segment to obtain a master key with

tag,i,k

= H(x

||H(s + i)) ⊕ H(r

1,i,k

||r

2,k

). Thus,

4m + 1 additional hash computations are required

per cycle and per application, m being the number

of memory segments used by the PUF.

Limitation 3 - Impact on Backward Secrecy.

When a master key is discovered, the protocol

from Ashur et al. (2018) limits the number of

compromised messages to the hash chain length

L. In the worst case, the improvement proposed

in this work allows an adversary to discover CL

messages if they uncover the new PUF responses

and the genesis nonces, where C is the number of

cycles performed over the memory segments.

Limitation 4 - Storage of Genesis Nonces. The two

genesis numbers and the application seed must be

stored in an NVM which may be read or manipu-

lated if not secure. This may help the adversary to

ﬁnd PUF responses and impact backward secrecy,

as described in the previous limitation. However,

if genesis nonces are overwritten during the pro-

cess, the forward secrecy should be preserved.

4.2 Security Analysis

The selected protocol provides several security ser-

vices (Ashur et al., 2018; Nieles et al., 2017; Boyd

et al., 2020; Shostack, 2014; Mees, 2020); none of

these are altered by our proposals.

Data Integrity. Any unauthorized information ma-

nipulation during a message transmission is de-

tected. This service is guaranteed thanks to the

authenticated encryption.

Data Origin and Entity Authentication. The

source of the message is authentic. Data integrity

is required for this service. This service is

guaranteed thanks to the authenticated encryption

with associated data.

Conﬁdentiality. Unauthorized parties do not have

access to the message content. This service is

guaranteed thanks to the authenticated encryption.

Anonymity and Pseudonymity. It is impossible to

distinguish an entity from other entities, or to link

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

730

an entity to an action or a message. This service

is guaranteed by the use of one-time pseudonyms,

by introducing collisions between pseudonyms

and by transferring all entries corresponding to a

requested pseudonym on user’s request.

Unlinkability. It is impossible to link two or more en-

tities, actions or messages. This service is guar-

anteed by using one-time pseudonyms, by forcing

the tag to send encrypted messages of ﬁxed length

at random intervals and by allowing the user to

connect via Tor.

Plausible Deniability. The identity of any actor, e.g.

the source of a message, can not be proven by

another entity. This is performed thanks to the

pseudonymity and the unlinkability.

Backward Secrecy. The leakage of previously gen-

erated keys does not allow an adversary to dis-

cover future keys. It is not possible to ﬁnd keys

related to unexplored memory segments, nor to

ﬁnd master keys of new cycles except if nonces

and PUF responses are known.

Forward Secrecy. The leakage of previously gener-

ated keys does not allow an adversary to discover

other keys generated in the past. It is not possible

to ﬁnd master keys of previous cycles, except if

PUF responses and previous nonces are known.

5 RELATED WORK

Maes (2013) presents the different PUF properties

in details and describes different PUF architectures.

Two types of applications based on PUFs are illus-

trated: authentication and key generation.

Cambou et al. (2022) proposes a PUF-based

method to generate session keys to establish a secure

client-server channel based on password sets provided

by the users. Zheng et al. (2023) proposes to use a

trusted server as a starting point to provide peer-to-

peer mutual authentication and encryption, and Gua-

jardo et al. (2010) presents a combination of PUFs

and biometrics to link patients and health monitor-

ing devices to transmitted measurements for remote

healthcare applications.

Lounis and Zulkernine (2021) analyses the secu-

rity of ﬁfteen IoT-dedicated authentication protocols,

lists PUF-related threats and draws lessons from pro-

tocol misconceptions for future designs. Similarly,

Mall et al. (2022) presents a survey of PUF-based au-

thentication and key agreement (AKA) protocols for

the IoT, wireless sensor networks and smart grids. It

describes threats affecting them and compares their

performance and their security.

Regarding applications, Skoric et al. (2007) and

van der Leest and Tuyls (2013) propose to use a

SRAM PUF as a secure key storage module, and

Schrijen (2018) proposes a method based on a SRAM

PUF to securely provide root keys to devices and to

secure software images. Other works present anti-

counterfeiting mechanisms (Schaller et al., 2014).

Rührmair (2022) provides a tutorial to achieve

secret-free security and avoid PUF secret extraction

risks. Examples illustrate how standard PUF con-

structions are not secret-free and why more advanced

constructions present the secret-free property. Del-

vaux (2017) analyses the security of fuzzy extractors,

as vectors of attacks on PUFs, and Müelich (2020) de-

scribes attacks on PUFs and solutions to prevent side-

channel attacks on fuzzy extractor components.

Finally, Ferreira (2022) proposes a privacy-

preserving authenticated key exchange protocol,

based on a preshared pair of identity and master key,

to derive new ephemeral identities and session keys.

6 CONCLUSION

We make four proposals to improve the privacy-

preserving device tracking protocol by Ashur et al.

(2018). These proposals improve the lifetime of the

PUF, reduce risks related to the supply chain security

and make the key generation less predictable for an

adversary. We also enable a single PUF to generate

keys for distinct applications, at the cost of a slightly

higher power consumption and data overhead.

As future work, we envision to explore addi-

tional privacy-oriented objectives, e.g. unobservabil-

ity, content awareness and policy and consent com-

pliance (Deng et al., 2010). Unobservability — both

anonymity regarding entities, actions and messages,

and undetectability of dummy entities, actions and

messages — is most relevant for application. There-

fore, it would be interesting to propose a privacy-

preserving mechanism to only allow authorized user

to generate dummy trafﬁc, while also rate-limiting

this trafﬁc. Cryptanalysis (Kraleva et al., 2023) of our

proposals should be performed to evaluate if the gen-

eration of an unlimited number of keys is realistic.

ACKNOWLEDGEMENTS

This research is supported by the CyberExcellence

program of the Wallon region of Belgium under GA

#2110186.

An Improved PUF-Based Privacy-Preserving IoT Protocol for Cloud Storage

731

REFERENCES

Anderson, R. (2021). Security Engineering A Guide to

Building Dependable Distributed Systems. Wiley &

Sons, Limited, John.

Ashur, T., Delvaux, J., Lee, S., Maene, P., Marin, E.,

Nikova, S., Reparaz, O., Roži

c, V., Singelée, D., Yang,

B., and Preneel, B. (2018). A privacy-preserving de-

vice tracking system using a low-power wide-area net-

work. In CANS, pages 347–369. Springer.

Aysu, A., Gulcan, E., Moriyama, D., Schaumont, P.,

and Yung, M. (2015). End-to-end design of a puf-

based privacy preserving authentication protocol. In

Güneysu, T. and Handschuh, H., editors, CHES 2015,

pages 556–576. Springer.

Babaei, A. and Schiele, G. (2019). Physical unclonable

functions in the internet of things: State of the art and

open challenges. Sensors, 19(14):3208.

Boyd, C., Mathuria, A., and Stebila, D. (2020). Protocols

for Authentication and Key Establishment. Springer.

Cambou, B., Telesca, D., and Jacinto, H. S. (2022). PUF-

protected methods to generate session keys. In LNNS,

pages 744–764. Springer.

Delvaux, J. (2017). Security Analysis Of PUF-Based Key

Generation And Entity Authentication. PhD thesis,

KU Leuven.

Deng, M., Wuyts, K., Scandariato, R., Preneel, B., and

Joosen, W. (2010). A privacy threat analysis frame-

work: supporting the elicitation and fulﬁllment of

privacy requirements. Requirements Engineering,

16(1):3–32.

Ferreira, L. (2022). Privacy-preserving authenticated key

exchange for constrained devices. In ACNS, pages

293–312. Springer.

Graybeal, S. N. and McFate, P. B. (1989). Getting out of

the starting block. Scientiﬁc American, 261(6):61–67.

Guajardo, J., Asim, M., and Petkovi

c, M. (2010). To-

wards reliable remote healthcare applications using

combined fuzzy extraction. In ISC, pages 387–407.

Springer.

Herder, C., Yu, M.-D. M., Koushanfar, F., and Devadas, S.

(2014). Physical unclonable functions and applica-

tions: A tutorial. Proceedings of the IEEE, 102:1126–

1141.

Kang, H., Hori, Y., Katashita, T., and Hagiwara, M. (2013).

The implementation of fuzzy extractor is not hard to

do : An approach using puf data. In 2013 SCIS.

Kang, H., Hori, Y., Katashita, T., Hagiwara, M., and Iwa-

mura, K. (2014). Cryptographic key generation from

puf data using efﬁcient fuzzy extractors. In 2014

ICACT. IEEE.

Kraleva, L., Mahzoun, M., Posteuca, R., Toprakhisar, D.,

Ashur, T., and Verbauwhede, I. (2023). Cryptanalysis

of strong physically unclonable functions. IEEE OJ-

SSCS, 3:32–40.

Lounis, K. and Zulkernine, M. (2021). More lessons:

Analysis of puf-based authentication protocols for iot.

Cryptology ePrint Archive, Paper 2021/1509. https:

//eprint.iacr.org/2021/1509.

Maes, R. (2013). Physically Unclonable Functions: Con-

structions, Properties and Applications. Springer,

2013 edition.

Maiti, A., Gunreddy, V., and Schaumont, P. (2012). A

systematic method to evaluate and compare the per-

formance of physical unclonable functions. In Em-

bedded Systems Design with FPGAs, pages 245–267.

Springer.

Mall, P., Amin, R., Das, A. K., Leung, M. T., and Choo,

K.-K. R. (2022). Puf-based authentication and key

agreement protocols for iot, wsns, and smart grids: A

comprehensive survey. IEEE JIOT, 9(11):8205–8228.

Mees, W. (2020). Pragmatic cybersecurity. Independently

Published, Place of publication not identiﬁed.

MITRE (2007). Common Attack Pattern Enumeration and

Classiﬁcation. Last visit: 2023-05-15.

Mostafa, A., Lee, S. J., and Peker, Y. K. (2020). Phys-

ical unclonable function and hashing are all you

need to mutually authenticate IoT devices. Sensors,

20(16):4361.

Müelich, S. (2020). Channel coding for hardware-intrinsic

security. PhD thesis, Universität Ulm.

Nieles, M., Dempsey, K., and Pillitteri, V. Y. (2017). An

introduction to information security. Technical report,

National Institute of Standards and Technology.

Rührmair, U. (2022). Secret-free security: a survey and

tutorial. Journal of Cryptographic Engineering.

Schaller, A., Arul, T., van der Leest, V., and Katzenbeisser,

S. (2014). Lightweight anti-counterfeiting solution for

low-end commodity hardware using inherent PUFs. In

TRUST, pages 83–100. Springer.

Schrijen, G. J. (2018). Physical unclonable functions to the

rescue: A new way to establish trust in silicon. In

2018 Embedded World.

Shostack, A. (2014). Threat modeling. Wiley.

Skoric, B., Schrijen, G.-J., Tuyls, P., Ignatenko, T., and

Willems, F. (2007). Secure key storage with PUFs. In

Security with Noisy Data, pages 269–292. Springer.

Stallings, W. (2022). Cryptography and Network Security

Principles and Practice, Global Edition. Pearson Ed-

ucation, Limited, 8 edition.

van der Leest, V. and Tuyls, P. (2013). Anti-counterfeiting

with hardware intrinsic security. In 2013 DATE, pages

1137–1142.

Witteman, M. (2017). Secure application programming in

the presence of side channel attacks.

Zheng, Y., Liu, W., Gu, C., and Chang, C.-H. (2023). Puf-

based mutual authentication and key exchange pro-

tocol for peer-to-peer iot applications. IEEE TDSC,

20(4):3299–3316.

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

732
