Subgoal Reachability in Goal Conditioned Hierarchical

Reinforcement Learning

Michał Bortkiewicz

1 a

, Jakub Łyskawa

1 b

, Paweł Wawrzy

nski

1,2 c

, Mateusz Ostaszewski

1 d

Artur Grudkowski

, Bartłomiej Sobieski

and Tomasz Trzci

nski

1,2,3,4,5 e

Warsaw University of Technology, Institute of Computer Science, Poland

IDEAS NCBR, Poland

Jagiellonian University, Poland

Tooploox, Poland

Ensavid, Poland

Keywords:

Hierarchical Reinforcement Learning, Deep Reinforcement Learning, Control.

Abstract:

Achieving long-term goals becomes more feasible when we break them into smaller, manageable subgoals.

Yet, a crucial question arises: how speciﬁc should these subgoals be? Existing Goal-Conditioned Hierarchical

Reinforcement Learning methods are based on lower-level policies aiming at subgoals designated by higher-

level policies. These methods are sensitive to the proximity threshold under which the subgoals are considered

achieved. Constant thresholds make the subgoals impossible to achieve in the early learning stages, easy to

achieve in the late stages, and require careful manual tuning to yield reasonable overall learning performance.

We argue that subgoal precision should depend on the agent’s recent performance rather than be predeﬁned. We

propose Adaptive Subgoal Required Distance (ASRD), a drop-in replacement method for subgoal threshold

creation that considers the agent’s current lower-level capabilities for appropriate subgoals. Our results

demonstrate that subgoal precision is essential for HRL convergence speed, and our method improves the

performance of existing HRL algorithms.

1 INTRODUCTION

Hierarchical reinforcement learning (HRL) performs

remarkably well on complex tasks, unsolvable by ﬂat

methods (Gehring et al., 2021; Gürtler et al., 2021;

Nachum et al., 2018; Levy et al., 2017; Ghosh et al.,

2019; Eysenbach et al., 2019). This is because the

control of sequential decision making in complex dy-

namical systems is often easier to synthesize when

decomposed hierarchically (Nachum et al., 2019). The

high-level agent breaks down the problem into a series

of subgoals to be sequentially executed by the low-

level policy. To illustrate this concept, consider how a

child learns to walk: they don’t need to master it per-

fectly from the beginning; instead, they initially grasp

the fundamental dynamics of the skill and then progres-

https://orcid.org/0000-0001-5470-7878

https://orcid.org/0000-0003-0576-6235

https://orcid.org/0000-0002-1154-0470

https://orcid.org/0000-0001-7915-6662

https://orcid.org/0000-0002-1486-8906

sively reﬁne it as they go along (Adolph et al., ). This

hierarchical approach simpliﬁes learning higher-level

skills while continuously improving basic abilities.

Most existing works in Goal Conditioned HRL

(GCHRL) assume ﬁxed criteria of subgoal required

distance (SRD), i.e. a radius of the region in the state

space, which the agent should reach to accomplish a

subgoal (Nachum et al., 2018; Gürtler et al., 2021;

Lee et al., 2022). In a sparse reward setting, if the

lower-level (LL) policy achieves SRD within a higher-

level (HL) action time, it receives a positive reward.

Notably, SRD is usually predeﬁned by a human expert

or found using a hyperparameter search (Chane-Sane

et al., ; Colas et al., ; Liu et al., 2022).

However, two serious issues can arise from a prede-

ﬁned SRD when the HL policy is not well-trained. If

the SRD is too small, it can create subgoals that are too

narrow and impossible to achieve. As a result, the LL

policy may never accomplish any subgoal, making it

difﬁcult to learn anything. However, if the SRD is too

large, the LL policy may learn to reach given subgoals

Bortkiewicz, M., Łyskawa, J., Wawrzy

nski, P., Ostaszewski, M., Grudkowski, A., Sobieski, B. and Trzci

nski, T.

Subgoal Reachability in Goal Conditioned Hierarchical Reinforcement Learning.

DOI: 10.5220/0012326200003636

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 16th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2024) - Volume 1, pages 221-230

ISBN: 978-989-758-680-4; ISSN: 2184-433X

221

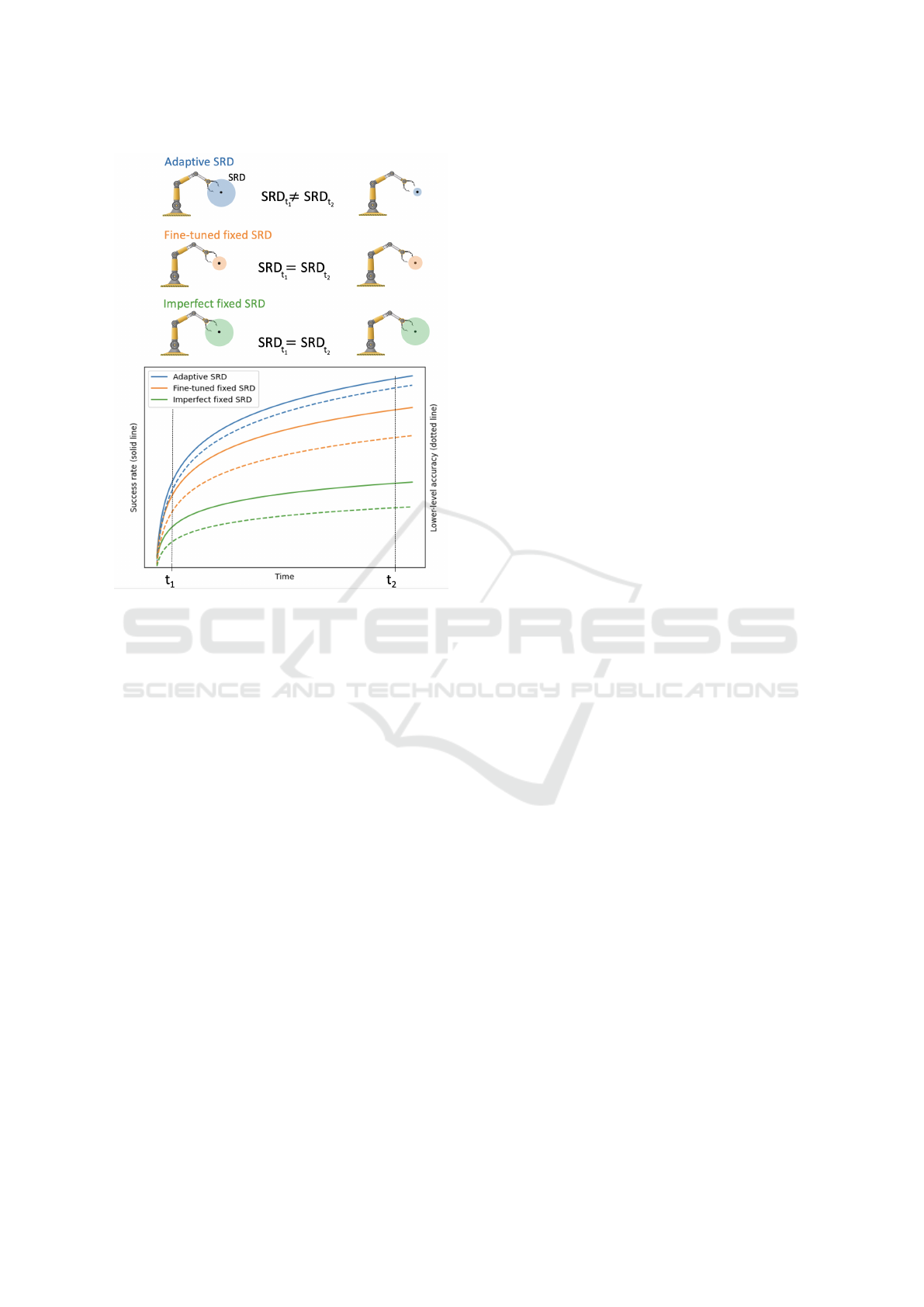

Figure 1: Conceptual illustration of the SRD impact on algo-

rithm performance. Fixed SRD yields high-performing algo-

rithms only when adjusted to agent capabilities. However,

in practice, it usually needs to be found using ﬁne-tuning.

Thus, too wide or narrow SRD may limit LL policy accuracy

in subgoal reaching and result in lower performance.

imprecisely, leading to clumsy control and unsatisfac-

tory progress in the main task. Thus, this approach is

sensitive to SRD and works only with expert domain

knowledge or after meticulous SRD tuning (Fournier

et al., 2018). In this work, we empirically demonstrate

this sensitivity.

We recognize this limitation in GCHRL and ad-

dress it by adjusting SRD along the training. We ar-

gue that precision is more prominent in later train-

ing phases but may be eased initially. Thus, the

SRD should depend on the agent’s recent performance

rather than be ﬁxed. We propose a simple method that

adapts the SRD to the current performance of the agent

as measured during the training process, forming a cur-

riculum of subgoal thresholds (Figure 1). We indicate

that curricular approaches were widely surveyed re-

garding exploration (Portelas et al., 2020; Zhang et al.,

2020b; Li et al., 2021); however, few works explored

it in the context of subgoal reachability issue (Fournier

et al., 2018), especially in HRL.

This work closely examines the problem of tuning

SRD in GCHRL. Our contributions are as follows:

We show that HRL methods are highly sensitive to

subgoal precision and environment goal precision.

We propose Adaptive Subgoal Required Distance

(ASRD), a novel, easy-to-implement method adapt-

ing SRD that boosts training robustness, improves

ﬁnal policy performance and simpliﬁes the hyper-

parameter tuning procedure.

3. We perform an extensive analysis of the proposed

method, showing that it allows us to obtain higher

control precision faster.

2 PROBLEM STATEMENT

We consider the typical RL setup (Sutton and Barto,

2018) based on a Markov Decision Process (MDP): An

agent operates in its environment in discrete time

t =

1, 2, . . .

. At time

it ﬁnds itself in a state,

∈ S

, per-

forms an action,

∈ A

, receives a reward,

∈ R

, and

the state changes to

t+1

. The agent is trained to maxi-

mize the discounted rewards sum

∑

i=0

t+i

)

for

each state s

where γ ∈ [0, 1) is the discount factor.

We assume that effective hierarchical control is

possible in this MDP. Let there be

L > 1

levels of

the hierarchy. Each

-th level deﬁnes an MDP with

its state space

, its action space

and rewards.

For the highest level

= S

and for the bottom level

= A

. Taking action at

-th level,

l ≥ 2

, launches

an episode of the MDP at

l − 1

-st level.

deﬁnes the

goal in this lower-level episode and may specify the

time to achieve this goal, thus the states and rewards

in this episode are co-deﬁned by

. Once this episode

is ﬁnished, another action at l-th level is taken.

Actions at the l-th level are deﬁned by a policy,

∼ π

(·|s

), l = L, . . . , 1, (1)

where

is the state of the agent perceived at

-th level

of the hierarchy at time

. For

l < L

, the goal of the

episode at level

is for a certain state projection,

)

to approach a given goal

∈ G

(optionally,

is the

environment goal in the current episode). For

l < L

= A

l+1

The

function,

: S → G

l+1

, usually

just extracts certain coordinates from its vector input.

For

l < L

, the state

also includes a subgoal of

-th

level

. SRD value

> 0

speciﬁes the precision with

which the policy

must approach the state projection

)

of subgoal

. The reward for the

-th level

depends on the successful approaching of

)

in the

assumed time.

The overall task considered in this paper is to learn

the hierarchy of policies (2) so that the expected sum

of future discounted rewards is maximized in each

state at each hierarchy level.

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

222

3 RELATED WORK

Hierarchical Reinforcement Learning (HRL) is a

framework that introduces hierarchy into control by

decomposing a Markov Decision Process (MDP) into

smaller MDPs. This approach enhances structured

exploration and facilitates credit assignment (fam-

ily=Vries et al., ), particularly in scenarios with sparse

rewards (Pateria et al., ; Nachum et al., 2019). HRL

comprises three main branches: option-based (Sut-

ton et al., 1999; Barto and Mahadevan, 2003; Pre-

cup, 2000; Bagaria and Konidaris, 2019; Shankar

and Gupta, 2020), skill-based (Eysenbach et al., 2018;

Sharma et al., 2019; Campos et al., 2020), and goal-

based.

Our research primarily focuses on the goal-

conditioned hierarchical reinforcement learning

(GCHRL) approach, where the high-level policy com-

municates with a lower-level policy (Schmidhuber,

1991; McGovern and Barto, 2001; Vezhnevets et al.,

2017; Zhang et al., 2020a). In this setup, the high-

level policy typically returns a subgoal that conditions

the lower-level policies. Consequently, the low-level

policy is rewarded for approaching the designated sub-

goal. Nevertheless, training a hierarchy of policies

using prior experience introduces non-stationarity is-

sues (Jiao and Tsuruoka, ), as selecting subgoals for

lower-level policies can yield different results due to

policy changes during learning. To address this chal-

lenge, various methods of subgoal re-labelling have

been proposed.

Levy et al. (Levy et al., 2017) introduced hierar-

chical experience replay (HAC), employing hindsight

experience replay, where actual states achieved are

treated as if they had been selected as subgoals. On

the other hand, Nachum et al. (Nachum et al., 2018)

presented HIRO, a method based on off-policy cor-

rection, where unattained subgoals in transition data

are re-labelled with alternatives drawn from the dis-

tribution of subgoals that maximize the probability of

observed transitions.

Furthermore, recent advancements have enhanced

high-level guidance and introduced timed subgoals in

Hierarchical Reinforcement Learning with Timed Sub-

goals (HiTS) (Gürtler et al., ). This method enhances

the precision of communication between hierarchical

levels, which is particularly crucial in dynamic envi-

ronments.

Nevertheless, as far as we can tell, there is a notable

absence of literature on utilising varying SRD within

a hierarchical setup, even though there is an extensive

body of knowledge concerning subgoals impact on

exploration (Portelas et al., 2020; Zhang et al., 2020b;

Li et al., 2021). In HRL, varying subgoal criteria

emerge naturally due to the ongoing training of low-

level and high-level policies. Therefore, we must gain

a deeper understanding of this interaction.

3.1 Varying Subgoal Achievement

Criterion in Sparse Reward GCHRL

In most of the GCRL methods (Levy et al., 2017;

Gürtler et al., ), the goal (or subgoal) is reached when

the distance between each of the corresponding ele-

ments of the current state and the subgoal state

smaller than

> 0

. Thus, the goal is not reached when

part of the achievement criteria is unsatisﬁed. This for-

mulation enforces strict control over goal-conditioned

policy. However, (Fournier et al., 2018) shows that

reachability is poor at the beginning of the training

and adaptive strategies of SRD improve the training

efﬁciency in ﬂat RL.

The SRD impacts the performance of goal-

conditioned RL (Liu et al., 2022), especially GCHRL

methods with sparse rewards on every level. This is be-

cause HRL methods like HAC (Levy et al., 2017) and

HiTS (Gehring et al., 2021) use a mechanism to test if

the subgoals deﬁned by the higher level are attainable.

This mechanism, dubbed testing transitions, results

in additional penalties for HL if generated subgoals

are not reachable by the deterministic LL policy. As

a consequence, HL policy is encouraged to produce

mostly reachable subgoals.

However, the frequent cause of failure of GCHRL

methods with sparse rewards and testing transition

mechanism arises from the wrong ratio of HL rewards

environmental and reachability (Levy et al., 2017).

Usually, the environment yields sporadic positive feed-

back for task completion, and reachability rewards

are designed a priori by the algorithm author. The

failure manifests itself with optimization of reacha-

bility rather than environmental return, which results

in easily achievable subgoals that do not lead to task

progression. In practice, there is a narrow range of

possible penalty values for testing transitions that do

not interfere with environmental reward, i.e. balances

these two sources of the reward signal. Thus, for ef-

ﬁcient learning of the HRL method, there is a need

to either ﬁnd a proper hyperparameter of the percent-

age of testing transitions or

that deﬁnes the subgoal

SRD.

We propose a new method that effectively identi-

ﬁes suitable SRDs to address this limitation. Unlike

Fournier’s approach (Fournier et al., 2018), our method

does not make any assumptions about the SRD and

instead learns it directly from past experience. This

makes our approach more ﬂexible and applicable to a

wider range of scenarios with limited prior knowledge

Subgoal Reachability in Goal Conditioned Hierarchical Reinforcement Learning

223

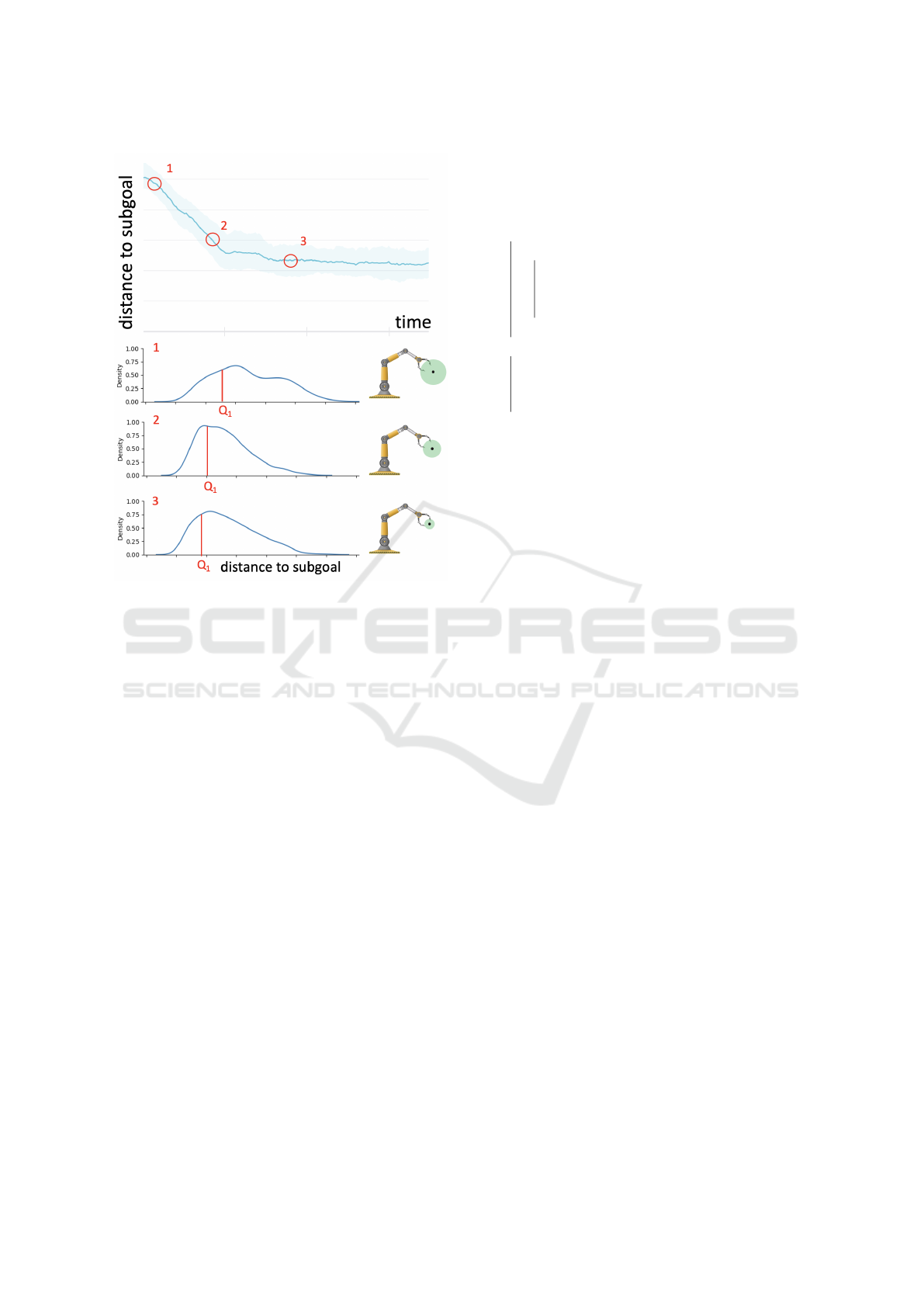

Figure 2: During the training, the average distance to the

subgoal, i.e. subgoal error, decreases over time due to higher

LL policy precision. In this symbolic diagram, black dots

represent the subgoal position, while green circle represents

SRD. We propose SRD deﬁned as the function of recent

distances to subgoals to consider current LL performance.

As the training progresses, the distribution errors approach

a distribution determined by the physical constraints of the

manipulator.

about the problem domain.

4 ADAPTIVE SUBGOAL

REQUIRED DISTANCE (ASRD)

Within our approach, SRD is designated online for a

given fraction of recent ﬁnal episode states to have got

close enough to their goals. The method’s primary goal

is to aid the training robustness in ﬁnding a proper SRD

and, as a result, increase higher ﬁnal performance. The

following sections call the proposed method adaptive

subgoal required distance (ASRD).

Speciﬁcally, at the end of every

(l +1)

-level action

we store the distances to the subgoal

, l < L

in a

buffer

. We use a cyclic buffer of maximum size

. We deﬁne a new SRD,

, based on the distances

stored in the buffer

. Speciﬁcally,

-th element of

the subgoal equals the quantile of order

of the

-th

Require :s

, g

Ensure :l-level episode ended at t

Store (g

− f

)) in a FIFO buffer B

of max

size N;

if size(B

) = N then

for j := 1, . . . , dim(G

) do

/* Calculate new SRD for each

goal dimension */

:= Q



{|d

| : d ∈ B

}



end

else

/* If the buffer is not yet

filled, use a fixed SRD */

:= ε

end

Algorithm 1: ASRD algorithm, to be run after gath-

ering the ﬁnal state of the l-th level episode.

elements of the distances stored in the buffer B

= Q



{|d

| : d ∈ B

}



(2)

where

denotes the quantile of order

of its argu-

ment. At the beginning of the training, when there is

not enough data in the buffer to accurately determine

the quantile, we use a ﬁxed SRD

. We present our

ASRD method in Algorithm 1.

It is worth noting that the higher dimensional the

subgoal, the lower the chances of successfully reach-

ing it, which has already been shown in (Gehring et al.,

2021). The overall likelihood of achieving a subgoal

results from the conjunction of probabilities of achiev-

ing the subgoal criteria per element.

5 EMPIRICAL RESULTS

Our experiments aim to evaluate the effect of the pro-

posed mechanism of ASRD in GCHRL methods with

sparse reward in terms of SRD robustness. Speciﬁcally,

we compare the performance of baseline GCHRL

methods with their equivalent enhanced with ASRD.

In particular, we verify the following hypothesis in

this section:

•

H0: performance of HRL methods is highly sensi-

tive to environment goal required distance.

•

H1: the proposed method of varying SRD aids the

robustness of the training process of GCHRL with

sparse rewards.

•

H2: adjustable SRD allows obtaining higher con-

trol precision faster.

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

224

5.1 Experimental Setup

We evaluate our method for two goal-conditioned hier-

archical algorithms, namely HAC (Levy et al., 2017)

with ﬁxed-length subgoals and HiTS (Gehring et al.,

2021) with timed subgoals, both using hindsight expe-

rience replay (Andrychowicz et al., 2017). These two

methods are used because both use sparse rewards on

every hierarchy level. We assess the effectiveness of

our method using the same hyperparameters for HAC

and HiTS as those in (Gehring et al., 2021), without

making any changes. Results are reported across

dif-

ferent environments (shown in Figure 3) where spatial

and timed precision of subgoal reachability is crucial

in order to achieve high performance:

Drawbridge: The agent controls a ship travelling

on a straight river. Its goal is to cross the draw-

bridge the moment it opens. Therefore, the agent

must synchronise its actions with the position of

the drawbridge and accelerate early enough to pass

it without hitting it and losing all of the momen-

tum. It is impossible for the agent to actively slow

down the ship – this makes this simple problem

challenging as it requires the agent to learn to wait.

Pendulum: This environment is based on the clas-

sic problem in control theory and consists of a pen-

dulum attached at one end to a ﬁxed point, and the

other end being free. The agent’s goal is to apply

torque on the free end to swing it into an upright

position, each time starting with a random angle

and velocity. Despite being conceptually simple,

this problem requires a sequence of properly timed

swings to ﬁnish in the desired position.

Platforms: In this environment, the agent starts on

the lower level and must get to the upper level us-

ing a pair of moving platforms. The ﬁrst platform

moves up and down independently of the agent’s

actions, while the second platform is only activated

when the agent steps on a special button. In this

challenging scenario, the agent must learn to syn-

chronize the activation of the second platform with

the position of the ﬁrst, and then use both to get to

the higher level.

UR5Reacher: The agent’s task is to move a robotic

arm, which it controls by rotating its joints, to a

speciﬁed location. Because the joints affect each

other’s position, it must learn and synchronise

these interdependencies. Decomposing this prob-

lem into a sequence of sensible subgoals can solve

it much faster than using ﬂat RL.

Our method considers distances to subgoals over

the most recent 1000 HL actions. It calculates a pre-

deﬁned quantile of them to use as an SRD in the fol-

Figure 3: The environments used in our experiments.

From the left: Drawbridge, Pendulum, Platforms and

UR5Reacher.

lowing HL action. In the following experiments, we

use three different quantiles of orders

0.1

0.25

, and

0.5

for adapting SRD with different target goal achiev-

ability. It is worth noting that the proposed method

reduces the burden of tuning every element of subgoal

achievement criteria (which may be as big as state

space) separately. Instead, using the proposed method

one can replace this tunning with a grid search for one

scalar (quantile) that works best.

5.2 H0: Sensitivity to Goal Required

Distance

We recognize that the task of achieving sparse reward

heavily depends on the environmental goal required

distance. In particular, the task becomes harder if the

environmental goal requires higher precision. Environ-

mental requirements might not be fulﬁlled if the agent

does not adjust subgoals precision to learn ﬁne-grained

control. This issue is depicted in Figure 4, which il-

lustrates how the need for greater precision affects the

agent’s ability to achieve the environmental goal.

In our observations, we found that when we in-

creased the necessary precision by 4 and 10 times, both

algorithms were affected, but HAC showed a greater

sensitivity. Furthermore, when comparing vanilla

HAC and HiTS to cases where the ASRD mechanism

was used, we noticed that the former two algorithms

took longer to reach their ﬁnal performance. Notably,

our method only slightly delayed convergence in sce-

narios where environmental precision remained un-

altered, but it enhanced performance in cases with

disturbances.

Subgoal Reachability in Goal Conditioned Hierarchical Reinforcement Learning

225

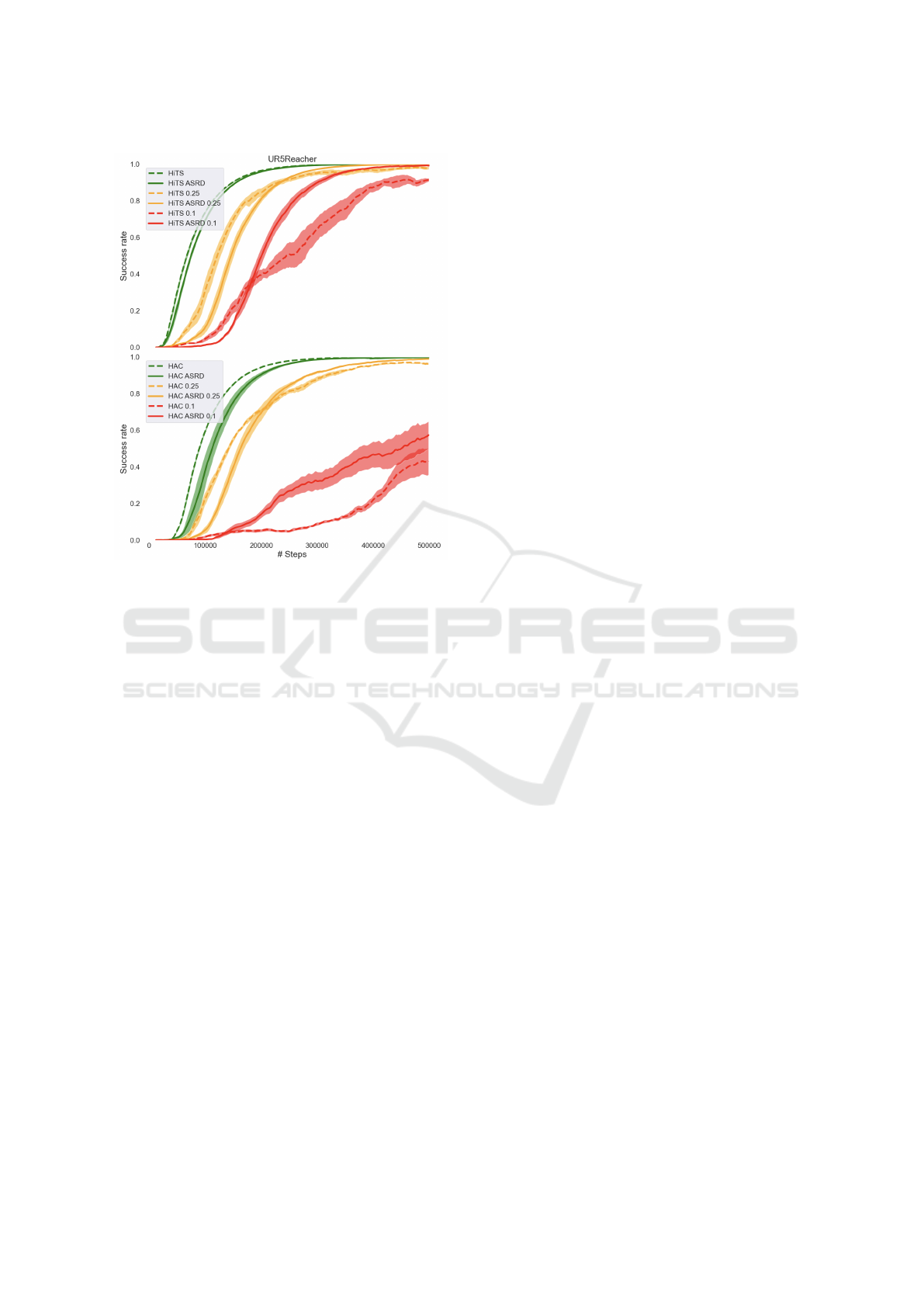

Figure 4: Sensitivity to environmental goal required distance

on UR5Reacher environment for HAC and HiTS with and

without ASRD. In the legend, numbers describe the coefﬁ-

cient by which we scaled the environmental goal required

distance. The smaller the number, the harder the task of

reaching the environmental reward.

5.3

H1: Robustness of GCHRL Training

to Varying SRD

To test the sensitivity of the considered HRL methods

to the SRD parameter, we disturb its value ﬁne-tuned

by their authors. Speciﬁcally, we scale them with

a predeﬁned factor called the SRD multiplier. We

examine the agents’ performance with and without

ASRD in this setting. In particular, we evaluate agents’

performance based on the average success rate from

the ﬁnal training performance, i.e. last

10%

of time

steps, to reduce the noise in the results.

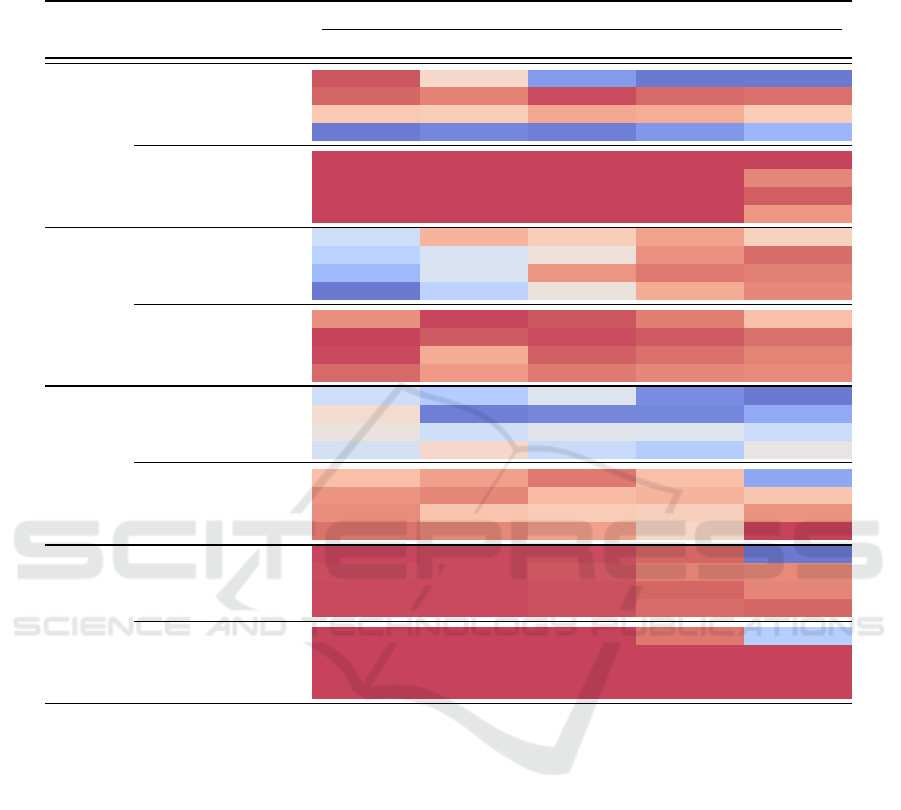

We show the aggregated results obtained by the

base HAC and HiTS algorithms with constant SRD

and with SRD adapted by our method in Table 1 for

better clarity. The results of methods enhanced with

ASRD are the same or higher for almost all environ-

ment/algorithm/SRD multiplier combinations for at

least one quantile. The performance of agents in the

undisturbed scenario, i.e. where SRD Multiplier is

our method yields a boost in performance for every

environment/algorithm combination except for HiTS

in the Platforms environment.

The SRD Multiplier has a greater impact on

the ﬁnal outcome of the HiTS algorithm than the

tested ASRD variations on Pendulum, Platforms, and

UR5Reacher environments. On the other hand, the

HAC algorithm is more affected by the initial SRD

on Drawbridge and UR5Reacher. HAC achieves a

low average success rate on the Platforms environment

regardless of SRD. However, when using SRD adapta-

tion with

q = 0.25

and

q = 0.5

, it consistently achieves

a higher success rate compared to the base algorithm.

For all environments, HAC with SRD adaptation

obtains good results when using

q = 0.25

, although

for Drawbridge, it obtains even better results using

q = 0.1

and for UR5Reacher using

q = 0.5

. HiTS with

SRD adaptation obtains good results using any

value,

however, the best

value varies between environments.

The best results on HiTS with SRD adaptation obtains

using

q = 0.25

for Drawbridge,

q = 0.1

for Pendulum,

q = 0.5 for Platforms, and any q for UR5Reacher.

Our method helps address the issue of varying lev-

els of achieved testing transitions by deﬁning SRD

based on recent data. The level of testing transitions

success is determined by the quantile and the explo-

ration of the lower level, which in our experiments

forces it to stay low along the training. As a result, our

method improves the training stability of HiTS and

HAC. However, it should be noted that the quantile

order hyperparameter should be tuned per environment

because there is no clear indication of one quantile that

performs best across all environments. Also, due to the

inherent noisiness of sparse reward HRL, the reported

standard deviations indicate a signiﬁcant discrepancy

in performance across runs. Overall, adaptive SRD re-

sults in faster algorithm convergence to optimal policy

in HiTS and a boost in the performance of HAC, which

without our method cannot solve the Drawbridge envi-

ronment.

5.4 H2: Adaptive SRD Convergence

In this section, we closely examine the impact of

ASRD on agents’ precision, deﬁned as a distance to the

subgoal, i.e. subgoal error, at the end of the HL action.

We also explore the implications of using different

length time windows in ASRD. Given the current ca-

pabilities of the lowest level, we would assume that

adaptive SRD should result in sufﬁciently demanding

but still realistic subgoals.

To calculate the distance to the subgoal, we store

the vectors representing the ﬁnal state of the agent

and the subgoal state for each HL action. We then

subtract the state vector from the subgoal vector and

calculate the

norm of this difference. By splitting the

data acquired in this way into

equal-sized parts from

different training phases, we observe how precise our

agent was in reaching subgoals and how its capability

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

226

Table 1: Comparison of ﬁnal average success rates for different environments, algorithms, adaptive SRD quantile orders, and

initial SRD value multipliers. Q order of ’-’ denotes the base algorithm with constant SRD. The reported averages and standard

deviations are calculated using ﬁve different seeds.

SRD Multiplier

Env Method Q order 0.25 0.5 1 2 4

Drawbridge

HAC

- 97.5±1.7 60.1±30.4 10.8±6.7 0.1±0.0 0.4±1.0

0.1th 94.9±7.6 88.7±18.7 98.5±1.8 94.3±9.1 92.6±8.0

0.25th 66.9±22.4 65.8±27.4 78.2±21.6 76.6±28.7 65.4±5.2

0.5th 0.7±0.1 4.5±4.8 2.4±3.9 9.9±9.7 19.9±27.3

HiTS

- 99.9±0.0 100.0±0.0 99.6±0.7 99.8±0.1 100.0±0.0

0.1th 99.9±0.1 99.9±0.1 99.9±0.1 99.9±0.1 87.7±28.7

0.25th 99.8±0.3 99.8±0.2 99.9±0.0 99.9±0.2 96.6±6.7

0.5th 99.9±0.1 99.8±0.3 99.9±0.0 99.9±0.1 83.6±32.7

Pendulum

HAC

- 47.3±33.3 73.3±11.5 66.0±15.0 77.1±13.6 64.9±23.9

0.1th 41.8±30.5 50.8±36.1 58.6±27.0 81.1±15.8 87.2±4.7

0.25th 34.1±31.4 51.1±33.8 80.0±7.1 85.3±5.6 84.0±7.5

0.5th 18.5±21.7 42.6±36.2 57.4±27.6 75.1±8.2 82.8±5.1

HiTS

- 81.2±10.9 91.7±0.4 90.2±2.0 84.6±7.9 70.8±7.3

0.1th 92.0±4.1 89.8±6.9 91.1±3.6 89.9±2.4 86.9±5.5

0.25th 91.2±3.2 75.2±18.5 89.3±5.7 86.9±4.2 83.5±4.6

0.5th 87.8±1.5 79.4±7.9 85.4±8.1 82.6±3.1 82.3±5.5

Platforms

HAC

- 37.0±36.3 27.6±17.5 43.5±29.2 6.0±8.5 0.3±0.6

0.1th 54.3±39.7 2.4±4.6 4.1±6.8 4.3±6.5 14.5±16.4

0.25th 49.7±37.3 37.8±38.0 45.1±39.9 44.4±39.3 35.7±34.1

0.5th 39.6±3.1 55.9±21.8 35.1±18.2 27.4±26.9 48.0±23.4

HiTS

- 66.8±46.4 75.8±24.2 85.7±35.0 66.7±47.1 14.3±35.0

0.1th 79.0±25.9 82.0±19.0 67.4±34.5 69.9±29.4 64.2±35.5

0.25th 80.7±31.5 64.4±43.2 61.6±41.1 60.5±41.3 79.5±33.0

0.5th 86.9±23.4 82.2±22.7 75.7±22.8 57.2±38.2 93.9±4.6

UR5Reacher

HAC

- 99.9±0.0 99.9±0.1 99.8±0.1 99.5±0.7 90.1±23.8

0.1th

99.8±0.1 99.9±0.0 99.7±0.2 98.9±0.9 98.7±0.7

0.25th 99.9±0.1 99.9±0.0 99.8±0.1 99.5±0.2 98.8±1.1

0.5th 99.9±0.0 99.9±0.1 99.8±0.1 99.4±0.4 99.5±0.3

HiTS

- 100.0±0.0 100.0±0.0 100.0±0.0 99.1±1.0 93.1±3.0

0.1th 100.0±0.0 100.0±0.0 100.0±0.0 100.0±0.0 100.0±0.0

0.25th 100.0±0.0 100.0±0.0 100.0±0.0 100.0±0.0 100.0±0.0

0.5th 100.0±0.0 100.0±0.0 100.0±0.0 100.0±0.0 100.0±0.0

evolved during the training.

Indeed, the effect of squashed subgoal error dis-

tribution across training can be observed in Figure 5.

It shows that, from the beginning of the training, our

method makes the agent more focused on ﬁnishing

closer to the assigned subgoal. Because, during the

training, the LL performance increases and HL learns

what the lower level is currently capable of, subgoals

are getting gradually more reachable in terms of dis-

tance as the training progresses.

We analyzed how the window length inﬂuence the

adaptive SRD method by comparing the average suc-

cess rates of HAC+ASRD and HiTS+ASRD for dif-

ferent window lengths, namely

500

, and

1000

. In

Table 2 we report the results of this experiment for

each environment.

Clearly, HiTS method is less susceptible to window

length changes in terms of ﬁnal average performance

than HAC. However, HiTS and HAC exhibit the high-

est variance in results in the Platforms environment,

which is the hardest among tested environments. There

is also a considerable difference between HAC perfor-

mance in Drawbridge and Pendulum environments

which indicates higher dependence on window length

for HAC. The highest results for HiTS+ASRD are ob-

tained using shorter window lengths, while there is no

clear relation between window length and performance

for HAC.

It is important to not that HAC and HiTS differ in

how they determine the length of their high-level (HL)

actions. HAC uses ﬁxed times, whereas HiTS learns

the optimal timing for each HL action. As a result,

the length of HL actions may vary greatly between

these two algorithms. This difference in action length

can cause a delay between the current low-level (LL)

capabilities and the subgoal distances recorded in the

distances to the subgoal replay buffer. In fact, this is

particularly noticeable in the HiTS algorithm, where

Subgoal Reachability in Goal Conditioned Hierarchical Reinforcement Learning

227

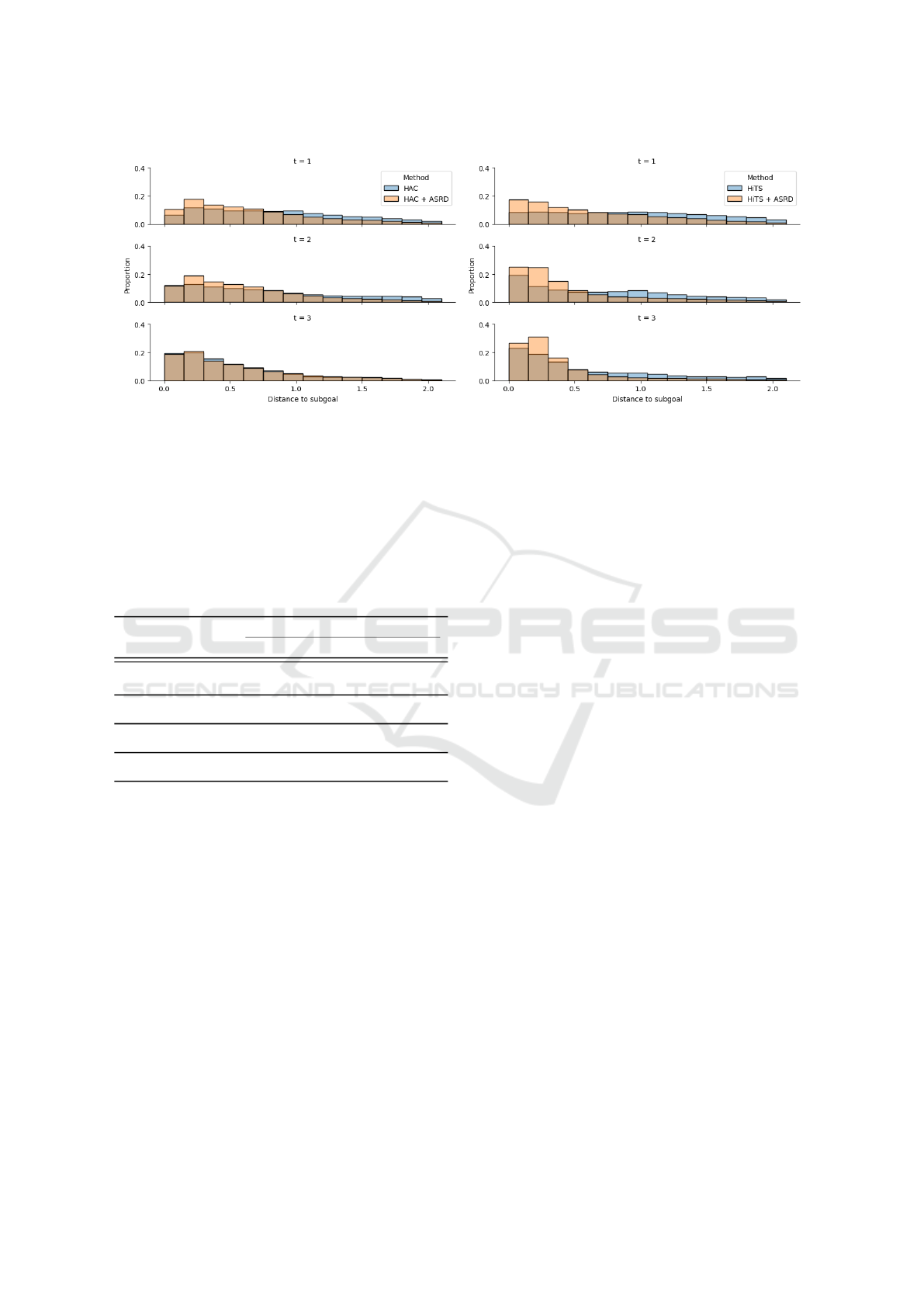

Figure 5: Normalized histograms of the distances to the subgoals throughout training on the Platforms-v1 environment. In

both cases (left: vs. HAC, right: vs. HiTS), our method leads to distributions with smaller mean and variance. The distribution

change across training is evident for the HiTS+ASRD method where subgoal error forms distribution with a signiﬁcantly

thinner tail than HiTS.

using a smaller window length for learning HL actions

leads to better performance in every environment.

Table 2: Inﬂuence of window length on ASRD performance

for HiTS and HAC algorithm. The ﬁnal success rate’s re-

ported averages and standard deviations are calculated using

multiple seeds.

Window length

Env Method 50 500 1000

Drawbridge

HAC 88.9± 15.7

87.7

17.3

98.5 ± 1.8

HiTS 99.9± 0.1 98.5± 1 99.9 ± 0.1

Pendulum

HAC 87.0 ± 3.0

76.0

16.5

80.0 ± 7.1

HiTS 91.4 ± 2.6 90.3 ± 2.8 91.1± 3.6

Platforms

HAC

21.0

29.8 50.6

14.7

35.1 ±18.2

HiTS 99.3 ± 0.2 64.0 ±45.3 75.7±22.8

UR5Reacher

HAC 99.8 ± 0.1 99.5± 0.2 99.8±0.1

HiTS 100 ± 0 100 ± 0 100 ± 0

6 DISCUSSION AND FURTHER

WORK

We consider the ASRD a step forward in formulat-

ing suitable subgoals in the control task for GCHRL,

especially in a sparse reward setting. The proposed

method leads to higher results in 7 out of 8 environ-

ment/algorithm combinations while using the original

SRD proposed by HAC and HiTS authors. While

disturbing the SRD by the predeﬁned multiplier, our

method signiﬁcantly boosts performance in most cases.

However, our method’s main limitation is that no sin-

gle quantile order or window length universally works

for all environments. Further research is needed to des-

ignate these parameters without trial-and-error tuning.

We speculate that environment dimensionality and,

as a consequence, subgoal dimensionality are critical

factors in determining the optimal quantile order for

ASDR. This is supported by the monotonic tendency

for performance increase/decrease in Table 1 with re-

spect to the quantile order.

The relation between window length and perfor-

mance is clear for HiTS. The window length should be

short to consider only the most recent HL actions and

LL capabilities. However, there is no clear prescrip-

tion for window length in HAC, as it appears to be

more environment-speciﬁc. Further research is needed

to understand this difference.

One promising avenue for future research involves

the development of adaptive masks for state vectors.

These masks would identify critical state coordinates

that could be used as subgoals, with varying levels of

importance assigned to each component. This would

enable the subgoal vector to be composed of coor-

dinates with highly disparate levels of importance

for successful task completion without sacriﬁcing

the agent’s performance. Additionally, the proposed

method could be extended to scenarios where each

coordinate of the subgoal vector has its quantile or-

der, allowing less important elements to use higher

quantiles. This way, only key subgoal elements would

determine the reachability bottleneck.

7 CONCLUSIONS

Our work addresses a signiﬁcant limitation in GCHRL

algorithms by proposing a novel method that adapts the

subgoal range dynamically based on the agent’s recent

performance. We show that ﬁxed subgoal ranges can

lead to either too narrow or imprecise subgoals, which

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

228

hinder the learning process. Our adaptive approach

improves training robustness and method performance

while simplifying the hyperparameter tuning proce-

dure. Our ﬁndings also suggest that our method leads

to higher control precision and faster convergence in

most cases. Overall, our work contributes to the on-

going effort to improve HRL methods, especially in

subgoal reachability issues in sparse reward GCHRL.

ACKNOWLEDGEMENTS

This research was partially funded by the Warsaw Uni-

versity of Technology within the Excellence Initiative:

Research University (IDUB) programme LAB-TECH

of Excellence (grant no. 504/04496/1032/45.010013),

research project "Bio-inspired artiﬁcial neural net-

work" (grant no. POIR.04.04.00-00-14DE/18-00)

within the Team-Net program of the Foundation

for Polish Science co-ﬁnanced by the European

Union under the European Regional Development

Fund, and National Science Centre, Poland (grant no

2020/39/B/ST6/01511). This research was supported

in part by PLGrid Infrastructure.

REFERENCES

Adolph, K. E., Cole, W. G., Komati, M., Garciaguirre, J. S.,

Badaly, D., Lingeman, J. M., Chan, G. L. Y., and Sot-

sky, R. B. How Do You Learn to Walk? Thousands of

Steps and Dozens of Falls per Day. 23(11):1387–1394.

Andrychowicz, M., Crow, D., Ray, A., Schneider, J., Fong,

R., Welinder, P., McGrew, B., Tobin, J., Abbeel, P.,

and Zaremba, W. (2017). Hindsight experience replay.

ArXiv, abs/1707.01495.

Bagaria, A. and Konidaris, G. (2019). Option discovery

using deep skill chaining. In International Conference

on Learning Representations (ICLR).

Barto, A. G. and Mahadevan, S. (2003). Recent advances

in hierarchical reinforcement learning. Discrete event

dynamic systems, 13(1):41–77.

Campos, V., Trott, A., Xiong, C., Socher, R., Giró-i Nieto,

X., and Torres, J. (2020). Explore, discover and learn:

Unsupervised discovery of state-covering skills. In

International Conference on Machine Learning, pages

1317–1327. PMLR.

Chane-Sane, E., Schmid, C., and Laptev, I. Goal-

Conditioned Reinforcement Learning with Imagined

Subgoals.

Colas, C., Karch, T., Sigaud, O., and Oudeyer, P.-Y.

Autotelic Agents with Intrinsically Motivated Goal-

Conditioned Reinforcement Learning: A Short Survey.

74.

Eysenbach, B., Gupta, A., Ibarz, J., and Levine, S. (2018).

Diversity is all you need: Learning skills without a

reward function. In International Conference on Learn-

ing Representations.

Eysenbach, B., Salakhutdinov, R. R., and Levine, S. (2019).

Search on the replay buffer: Bridging planning and re-

inforcement learning. Advances in Neural Information

Processing Systems, 32.

family=Vries, given=Joery A., p. u., Moerland, T. M., and

Plaat, A. On Credit Assignment in Hierarchical Rein-

forcement Learning.

Fournier, P., Sigaud, O., Chetouani, M., and Oudeyer, P.-Y.

(2018). Accuracy-based Curriculum Learning in Deep

Reinforcement Learning.

Gehring, J., Synnaeve, G., Krause, A., and Usunier, N.

(2021). Hierarchical skills for efﬁcient exploration.

Advances in Neural Information Processing Systems,

34:11553–11564.

Ghosh, D., Gupta, A., Reddy, A., Fu, J., Devin, C., Eysen-

bach, B., and Levine, S. (2019). Learning to reach

goals via iterated supervised learning. arXiv preprint

arXiv:1912.06088.

Gürtler, N., Büchler, D., and Martius, G. (2021). Hier-

archical reinforcement learning with timed subgoals.

Advances in Neural Information Processing Systems,

34:21732–21743.

Gürtler, N., Büchler, D., and Martius, G. Hierarchical Rein-

forcement Learning with Timed Subgoals.

Jiao, Y. and Tsuruoka, Y. HiRL: Dealing with Non-

stationarity in Hierarchical Reinforcement Learning

via High-level Relearning.

Lee, S., Kim, J., Jang, I., and Kim, H. J. (2022). Dhrl: A

graph-based approach for long-horizon and sparse hi-

erarchical reinforcement learning. Neural Information

Processing Systems.

Levy, A., Konidaris, G., Platt, R., and Saenko, K.

(2017). Learning multi-level hierarchies with hind-

sight. arXiv:1712.00948.

Li, S., Zhang, J., Wang, J., Yu, Y., and Zhang, C. (2021).

Active hierarchical exploration with stable subgoal rep-

resentation learning. In International Conference on

Learning Representations.

Liu, M., Zhu, M., and Zhang, W. (2022). Goal-Conditioned

Reinforcement Learning: Problems and Solutions.

McGovern, A. and Barto, A. G. (2001). Automatic discovery

of subgoals in reinforcement learning using diverse

density.

Nachum, O., Gu, S. S., Lee, H., and Levine, S. (2018). Data-

efﬁcient hierarchical reinforcement learning. In Neural

information processing systems (NeurIPS), volume 31.

Nachum, O., Tang, H., Lu, X., Gu, S., Lee, H., and Levine,

S. (2019). Why does hierarchy (sometimes) work so

well in reinforcement learning? arXiv preprint arXiv:

Arxiv-1909.10618.

Pateria, S., Subagdja, B., Tan, A.-h., and Quek, C. Hier-

archical Reinforcement Learning: A Comprehensive

Survey. 54(5):1–35.

Portelas, R., Colas, C., Weng, L., Hofmann, K., and Oudeyer,

P.-Y. (2020). Automatic Curriculum Learning For Deep

RL: A Short Survey.

Precup, D. (2000). Temporal abstraction in reinforcement

learning. University of Massachusetts Amherst.

Subgoal Reachability in Goal Conditioned Hierarchical Reinforcement Learning

229

Schmidhuber, J. (1991). Learning to generate sub-goals for

action sequences. In Artiﬁcial neural networks, pages

967–972.

Shankar, T. and Gupta, A. (2020). Learning robot skills

with temporal variational inference. In International

Conference on Machine Learning, pages 8624–8633.

PMLR.

Sharma, A., Gu, S., Levine, S., Kumar, V., and Hausman,

K. (2019). Dynamics-aware unsupervised discovery of

skills. arXiv:1907.01657.

Sutton, R. S. and Barto, A. G. (2018). Reinforcement Learn-

ing: An Introduction. Second edition. The MIT Press.

Sutton, R. S., Precup, D., and Singh, S. (1999). Between

mdps and semi-mdps: A framework for temporal ab-

straction in reinforcement learning. Artiﬁcial intelli-

gence, 112(1-2):181–211.

Vezhnevets, A. S., Osindero, S., Schaul, T., Heess, N., Jader-

berg, M., Silver, D., and Kavukcuoglu, K. (2017).

Feudal networks for hierarchical reinforcement learn-

ing. In International Conference on Machine Learning,

pages 3540–3549. PMLR.

Zhang, T., Guo, S., Tan, T., Hu, X., and Chen, F. (2020a).

Generating adjacency-constrained subgoals in hierar-

chical reinforcement learning. Advances in Neural

Information Processing Systems, 33:21579–21590.

Zhang, Y., Abbeel, P., and Pinto, L. (2020b). Automatic

Curriculum Learning through Value Disagreement.

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

230
