Important Pixels Sampling for NeRF Training Based on Edge Values and

Squared Errors Between the Ground Truth and the Estimated Colors

Kohei Fukuda, Takio Kurita and Hiroaki Aizawa

Graduate School of Advanced Science and Engineering, Hiroshima University,

Higashi-Hiroshima, Japan

Keywords:

Neural Radiance Fields, Novel View Synthesis.

Abstract:

Neural Radiance Fields (NeRF) has impacted computer graphics and computer vision by enabling ﬁne 3D

representations using neural networks. However, depending on the data (especially on synthetic datasets with

single-color backgrounds), the neural network training of NeRF is often unstable, and the rendering results

become poor. This paper proposes a method to sample the informative pixels to remedy these shortcomings.

The sampling method consists of two phases. In the early stage of learning (up to 1/10 of all iterations), the

sampling probability is determined based on the edge strength obtained by edge detection. Also, we use the

squared errors between the ground truth and the estimated color of the pixels for sampling. The introduction of

these tweaks improves the learning of NeRF. In the experiment, we conﬁrmed the effectiveness of the method.

In particular, for small amounts of data, the training process of the neural network for NeRF was accelerated

and stabilized.

1 INTRODUCTION

In the ﬁelds of computer graphics and computer vi-

sion, learning three-dimensional (3D) representations

from 2D images has been a longstanding problem. To

model a 3D structure of a scene and an object, var-

ious methods, such as point clouds, voxels, and im-

plicit functions, have been proposed. A point cloud

represents the surface and interior of the object or

scene as a set of points. While it can represent ar-

bitrary shapes, it is necessary to increase the number

of points for complex shapes, leading to high storage

requirements. On the other hand, voxels represent the

object’s surface and internal structure on regular grids

in 3D space. Similar to point clouds, the drawback is

high memory cost when high resolution is needed for

complex shapes. Implicit function representation uses

a mathematical equation to represent shapes. Unlike

explicit representations such as point clouds and vox-

els, it can represent complex shapes with a ﬁxed num-

ber of parameters, allowing for more efﬁcient storage.

In the context of 3D modeling, neural ﬁelds are

a type of neural network to represent a complex 3D

structure of shapes or scenes. Instead of explicitly

representing the 3D structure using point clouds and

voxels, the neural ﬁelds take 3D coordinates as in-

put and output 3D properties like color or occupancy.

Precrop sampling

Training views

Rendering results

Ours: Edge+SE sampling

Figure 1: Our problem setting and rendering results.

The advantage of such an approach is to provide com-

pact and learnable representations from given data. It

also facilitates the manipulation of the 3D structure,

such as interpolation, rendering, and transformation,

through neural network inference.

Among them, Neural Radiance Fields

(NeRF) (Mildenhall et al., 2020) leverage the

capability of the neural ﬁelds and a differentiable

rendering technique to model the 3D structure and

render novel views. NeRF predicts the colors of

pixels sampled from known camera pose images

using fully connected neural networks and volume

rendering techniques, and solves a regression prob-

lem that approaches the ground truth colors, allowing

the generation of ﬁne-grained novel viewpoint

102

Fukuda, K., Kurita, T. and Aizawa, H.

Important Pixels Sampling for NeRF Training Based on Edge Values and Squared Errors Between the Ground Truth and the Estimated Colors.

DOI: 10.5220/0012346200003660

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2024) - Volume 2: VISAPP, pages

102-111

ISBN: 978-989-758-679-8; ISSN: 2184-4321

images. Thus, NeRF has made a great impact, and

various follow-up works have been proposed (Yu

et al., 2021; Jang and Agapito, 2021; Niemeyer et al.,

2022; Wang et al., 2021; Lin et al., 2021; Meng

et al., 2021; Metzer et al., 2023; Poole et al., 2022;

Srinivasan et al., 2021; Yang et al., 2022; Barron

et al., 2022; Deng et al., 2022; Oechsle et al., 2021;

Park et al., 2021b; Du et al., 2021; Pumarola et al.,

2021; Park et al., 2021a; Martin-Brualla et al., 2021;

Ueda et al., 2022; Fukuda et al., 2023). Although

many improvement methods have been proposed, the

issue of training stability remains an open problem.

Speciﬁcally, it is known that training NeRF on scenes

with a single background color can lead to instability

or a lack of convergence in the training process. We

assume that the reason for the issue is due to the

sampling of pixels to be trained. In the training phase,

we randomly sample the pixels to be trained from

the image in each iteration; hence, NeRF’s model

overﬁts the background color by sampling a large

number of background pixels, resulting in the failure

to render the object part. To solve this problem, the

original NeRF employs a temporary technique called

Precrop, which samples pixels from the center of

the image only in the initial stage of training to be

able to sample pixels in the object part. Precrop

requires an object in the center of the training image.

However, images in which objects are small or not

centered cannot beneﬁt from Precrop. In the ﬁrst

case, you have to set a hyperparameter to determine

what ratio of the image to Precrop, and Precrop does

not address the second case.

Therefore, we propose pixels sampling method

that can stably train NeRF for any image (whether the

object is in the center or not). The proposed method

consists of a two-stage sampling technique. The ﬁrst

is to introduce pixel sampling based on edge detection

as an alternative to precrop for stability in the early

stages of training. The edge detection is performed

on the training images as prior knowledge, and each

pixel is weighted and sampled using the edge detec-

tion. Second, we introduce pixel sampling based on

the squared error between the ground truth and the

predicted color to make the subsequent training more

stable. Pixels that are twice the size of the pixel to be

trained are sampled randomly, weighted based on the

squared error of each pixel, and sampled.

Our contributions are summarized as follows:

• We propose pixel sampling methods for NeRF to

be trained with higher stability than the original

NeRF.

• Our proposed method succeeded in eliminating

the hyperparameters that were present in precrop.

2 RELATED WORK

2.1 Neural Radiance Fields

Neural Radiance Fields (NeRF) (Mildenhall et al.,

2020) is the method of 3D structural representation.

NeRF can learn the 3D structure of the objects or the

scene and render novel-view images by using multi-

view images with camera poses. In this method, by

approximating fully connected neural networks to ra-

diance ﬁelds, which are vector ﬁelds each coordinate

is given a color and a volume density, and 3D struc-

tural representation is made possible.

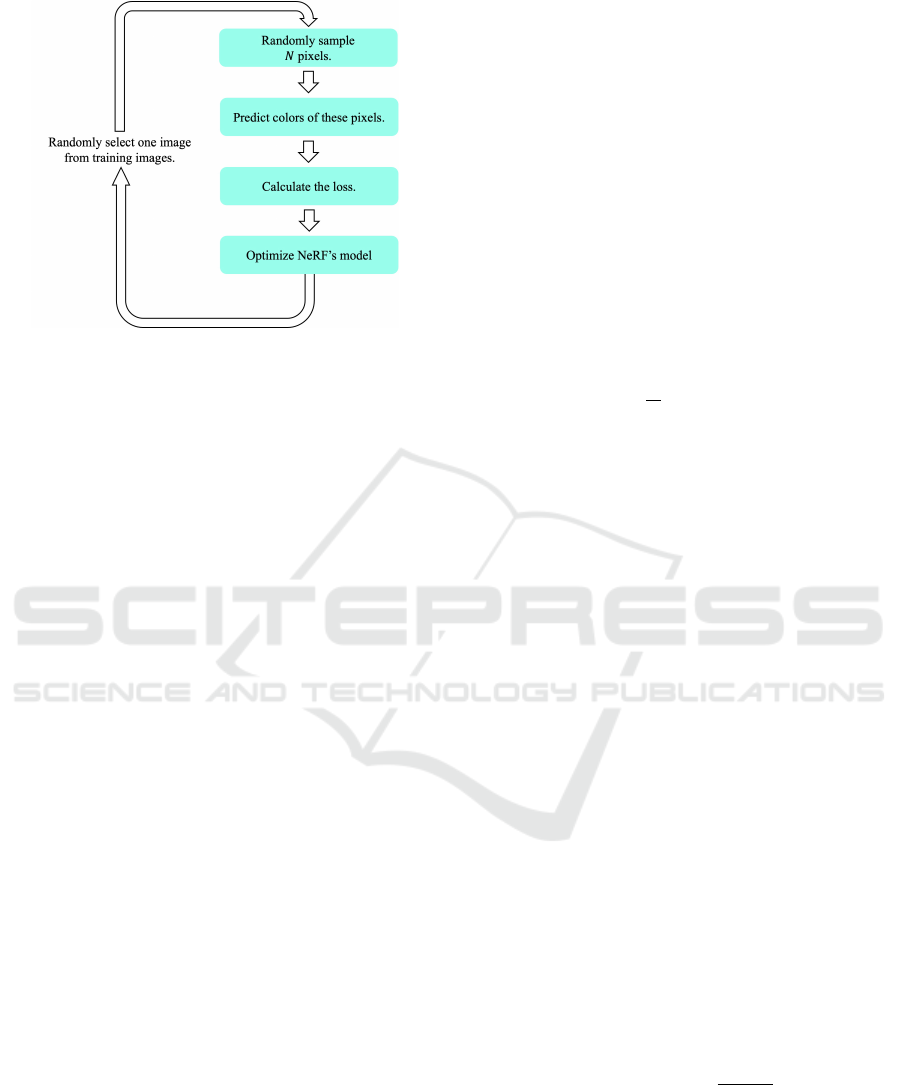

In this training ﬂow, one image is sampled from

the training images randomly, some pixels in this

image are sampled randomly, their mean squared

error (MSE) is calculated, and the parameters of

NeRF’s networks are optimized. However, one prob-

lem arises when learning images with a single-color

background (Blender). This problem is that the train-

ing loss does not converge and rendering fails. This

training instability is caused by network dependence

and data dependence. For network dependencies,

(Mildenhall et al., 2020) introduces the network struc-

ture to positional encoding, and (Barron et al., 2022)

uses softplus function (Glorot et al., 2011). However,

few methods have been proposed to improve data de-

pendent problems. In the usual random sampling, the

NeRF’s model overﬁts the background color. This

phenomenon is especially noticeable when there is

only a small amount of training data. In contrast, the

original NeRF employs Precrop as a temporary tech-

nique, which crops only the center of the image and

samples pixels from there.

2.2 Edge Detection

Edge detection is a type of image-processing tech-

nique that ﬁnds the edges of objects where the bright-

ness changes signiﬁcantly in the image. By using

edge detection, we can understand the contours and

shapes of the object in the image.

There are some methods of edge detection. The

Sobel method (Sobel et al., 1968) uses a gradient de-

tection ﬁlter with ﬁrst-order differentiation to detect

edges. The Canny method (Canny, 1986) uses thresh-

olds to detect edges. The Laplacian method uses a

gradient detection ﬁlter with second-order differen-

tiation to detect edges. These edge detection meth-

ods are used in many previous works related to im-

ages (Singh et al., 2016; Ali and Clausi, 2001).

Edges in an image give rich information about

the shape and structure of an object. In practice, the

edge information is used for face emotion recognition

Important Pixels Sampling for NeRF Training Based on Edge Values and Squared Errors Between the Ground Truth and the Estimated

Colors

103

: A sampling space of Precrop

Training Images

Center

Precroped Images

Non-center

Rendering Results

Figure 2: The comparisons between training center and non centered images. This ﬁgure shows the results of training with

NeRF for images with and without an object in the center, respectively. In the upper, an object is centered in the left image.

In this image, the Precrop range captures the object and the rendering result is clear (bottom). In contrast, an object is not

centered in the right image. In this, the Precrop space does not capture the object and the rendering result overﬁts this white

background.

tasks (Zhang et al., 2019), face detection tasks (Singh

et al., 2016), and remote sensing images process-

ing (Ali and Clausi, 2001). For NeRF, (Gai et al.,

2023) was improved by using canny edge detec-

tion. We guess that edge information is effective for

NeRF’s training because the base of objects or scenes

can be represented more accurately. Therefore, we

propose a sampling method using this edge informa-

tion for NeRF’s training.

2.3 Data Sampling

Machine learning can create a model to predict ac-

curately by using large amounts of training data and

optimizing this parameter. However, there are many

kinds of training data (e.g., data that is valid for learn-

ing and data that is not, Data with and without noise).

In previous studies, a number of methods have been

proposed to train machine learning models by taking

into account the features of the data. Dataset distil-

lation methods (Nguyen et al., 2020; Nguyen et al.,

2021) reduce computational cost by distilling large

amounts of datasets into smaller synthetic datasets.

Curriculum learning methods (Soviany et al., 2021)

are techniques that mimic the human learning pro-

cess, learning difﬁcult data from easy-to-learn data.

For a large dataset, statistical sampling methods are

often used. Sampling is a method to extract a sub-

set from a large training dataset, namely random sam-

pling, cluster sampling, and hierarchical sampling.

In NeRF, random sampling is used to select pixels

to be trained from images. However, as mentioned in

Sec. 2.1, random sampling results in unstable learning

depending on the data. Therefore, we propose a new

sampling method.

3 PROPOSED APPROACH

3.1 Problem Setting

The goal of this study is to improve the stability of the

training of NeRF. While NeRF can represent novel 3D

ﬁelds, the training may not converge, especially for

images with a single-color background (Blender). We

assume that the training is affected by the background

in the early stages of training when using training data

with a single-color background, therefore, the error

does not converge, resulting in failure to learn a 3D

structural representation of the object. That’s why

we think that if the important pixels to the learning

process are sampled at the beginning of the training,

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

104

Figure 3: Training Flow of NeRF.

NeRF’s training could go well.

As mentioned in Sec. 2.1, the original NeRF em-

ploys Precrop as a temporary technique. However,

this technique is effective only when the rendering

target occupies most of the image and is centered. If

the object is centered but too small, the cropping rate

must be manually changed. If the object is not in the

center, it is overﬁtted with the background color. The

actual rendering result is shown in Fig 2.

We propose a simple yet effective pixels sampling

method that can stably train NeRF’s model for any

images (whether object-centered or not).

3.2 The Training Flow of NeRF

NeRF is a 3D representation method of objects or

scenes in 2D training images by training multi-view

images with camera poses and optimizing the param-

eters of a fully connected network. The training ﬂow

per one iteration of the original NeRF consists of (1)

data sampling and pixel sampling, (2) rendering the

color in the image, and (3) calculation of the loss

value and update of the network parameters, as shown

in Fig 3.

Data Sampling and Pixel Sampling. In this step,

we decide the pixels to predict colors and calculate

loss values. Firstly, we select one image randomly

from the training dataset. Next, we sample pixels for

NeRF’s training from the given image. In the orig-

inal NeRF, the initial stage of training uses the Pre-

crop technique, which samples pixels in the center of

the image, to avoid the biased sampling of the back-

ground color. After that, pixels are randomly sampled

from the whole image (Random sampling). As men-

tioned in Sec. 2.1, Precrop and Random sampling re-

main the issue for training stability in the case where

a single-color background dominates a large area of

the image. Therefore, we propose a novel pixel sam-

pling strategy that enables stable learning even in such

cases.

Rendering the Color in the Image: In the next step,

by shooting rays to these pixels from the camera po-

sition and inputting the coordinates of multiple points

on the rays and the ray direction vectors to the neu-

ral network, we obtain the color of each point and the

volume density, which indicates the probability that

the ray hits an object as outputs. Then, we predict

the colors of the N pixels with these outputs of the

network and volume rendering techniques.

Optimizing the NeRF’s Model: The loss values

are calculated between these predicted and the ground

truth colors to update the network’s parameters. The

loss function of the original NeRF is described as fol-

lows:

mse

∑

n=1

∥

−C

∥

, (1)

where

C is the predicted color and C is the ground

truth color. Finally, we perform error backpropaga-

tion and update the network parameters.

3.3 The Sampling Method Based on

Edge Detection

In this section, we explain a new pixels sampling

method based on edge detection instead of Precrop

method. This method achieves stability in learning

NeRF by simply detecting edges from training im-

ages and using this information for sampling in the

ﬁrst phase.

For all training images, we detect edges by us-

ing edge ﬁlters (e.g., Laplacian, Sobel). These cal-

culated values represent the intensity of edges, with

pixels with higher values indicating stronger edges,

and conversely, pixels with lower values indicating

weaker edges. By using these values, we calculate

the sampling probability of each pixel and perform

weighted sampling based on this probability.

We consider a pixel I

k,i, j

in a training image I

where 0 ≤ i < H, 0 ≤ j < W , H is the height and

W is width of the image I

. In the original random

sampling method, the probability that I

k,i, j

is chosen

is as follows:

random

k,i, j

] =

H ×W

, (2)

where H ×W means the number of pixels in one im-

age. Precrop sampling, the pixels sampling method

from images cropped out the central part of the full

images, has been used in the original NeRF’s imple-

mentation. Then, the probability that I

k,i, j

is sampled

Important Pixels Sampling for NeRF Training Based on Edge Values and Squared Errors Between the Ground Truth and the Estimated

Colors

105

Initial Training Stage After Initial Training Stage

Figure 4: An overview of our proposed method. This ﬁgure shows our pixels sampling method. In the initial training

stage (before about 1/10 of all epochs), we use our Edge sampling method which calculates the sampling probability of each

pixel from the values obtained by edge detection of the original images and performs weighted sampling based on it. After the

initial training stage, we use our SE sampling method which randomly samples twice the number of pixels used for training,

computes their squared errors, and performs weighted sampling based on their ranking.

is as follows:

precrop

k,i, j

] =

H ×W

, (3)

where

≤ i <

and

≤ i <

. However, there

is not always an object in the center of the image, in

which case the Precrop sampling method will have no

effect. Then, our new sampling method is effective.

Firstly, edge detection is performed for I

as fol-

lows:

= φ(G(I

)), (4)

where φ(·) is the edge detection and G(·) is the gray

scale transformation function.

By using Eq (4), we deﬁne the sampling probabil-

ity of pixels in the image as follows:

edge

k,i, j

] =

k,i, j

| + ε

H−1

∑

W −1

∑

(|E

k,h,w

| + ε)

, (5)

where ε > 0. In Eq (6), we use absolute values of

E because E includes negative numbers. Also, in or-

der to target non-edge areas to sampling areas, ε is

added to the numerator and the denominator and de-

ﬁned so that the sampling probabilities of all pixels

are greater than 0. Based on this probability P

edge

, we

perform weighted-pixel sampling at the beginning of

training instead of Precrop sampling. The effect of

this method is to enable sampling pixels, which is im-

portant for NeRF training, and to improve stability in

the early stages of training.

3.4 The Sampling Method Based on

Squared Errors

We propose a method to stabilize not only the learn-

ing stability in the early stages of training but also the

training thereafter. After the ﬁrst phase of training,

we use a new pixels sampling method based on the

squared error between the predicted and the ground

truth colors instead of Random sampling in Sec. 3.2.

Firstly, we sample 2 × N pixels randomly from a

training image when the number of pixels, that are

used for training, is N. Next, the colors of these pix-

els are predicted, and each squared error value is cal-

culated based on Eq (1). If a pixel in an image (I

k,l

)

is sampled at random, let SE

k,l

be this squared error,

where 0 ≤ l < 2 × N. Then, we sort these values in

ascending order and assign a rank to each pixel as fol-

lows:

Rank

k,n

= argsort

0≤n<2×N

k,n

. (6)

Based on these rank values, the sampling proba-

bility is determined, and weighted sampling of N pix-

els is performed from 2 × N pixels as follows:

k,l

] =

Rank

k,l

∑

2×N

(Rank

k,n

)

. (7)

4 EXPERIMENT

To evaluate the effectiveness of our proposed method,

experiments comparing the original random sampling

method with our proposed sampling method were

conducted with the synthetic dataset. In the follow-

ing sections, we explain the evaluation metrics, the

dataset, and the experimental results.

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

106

4.1 Experimental Settings

4.1.1 Datasets

In these experiments, we used three datasets. The

ﬁrst dataset is the synthetic dataset created in

Blender (Chair, Drums, Ficus, Hotdog, Lego, Ma-

terials, and Mic), used in the original NeRF pa-

per (Mildenhall et al., 2020). This dataset is designed

so that the object is the center of the image. We call

it centered Blender. The second is the dataset created

based on the ﬁrst, in which the object is not centered

in the image. We call it non-centered Blender.

4.1.2 Evaluation Metrics

For quantitative evaluation, we used Peak Signal to

Noise Ratio (PSNR). PSNR can reﬂect the ratio of

the maximum possible power of a signal to the power

of corrupting noise that affects the ﬁdelity of its rep-

resentation. The larger value of PSNR represents less

image degradation.

4.1.3 Baseline Methods

In this paper, we introduce our sampling method to

the original NeRF (Mildenhall et al., 2020) and In-

foNeRF (Kim et al., 2022). InfoNeRF is a method for

mitigating inconsistencies in reconstruction and over-

ﬁtting to the training images taken from a few view-

points. These two introduction experiments to NeRF

show whether the effect depends on the number of

data.

4.1.4 Sampling Methods

We evaluated the following pixels sampling methods.

Since we changed only the pixels sampling method

in the experiments, the main algorithms of NeRF and

InfoNeRF were not changed. In the following exper-

iments, we deﬁned 1/10 of all iterations as the initial

training stage from our experience.

Random Sampling: we sample the training pixels

from all pixels of the image in all iterations as de-

scribed in Eq (2).

Precrop + Random Sampling: we sample the training

pixels from pixels in the center of the images up to

1/10 of the total number of iterations and use Random

method

SE Sampling: we sample the training pixels from all

pixels randomly up to 1/10 of the total number of it-

erations and use our sampling method based on the

squared errors

Precrop + SE Sampling: we use Precrop method up

to 1/10 and use SE sampling

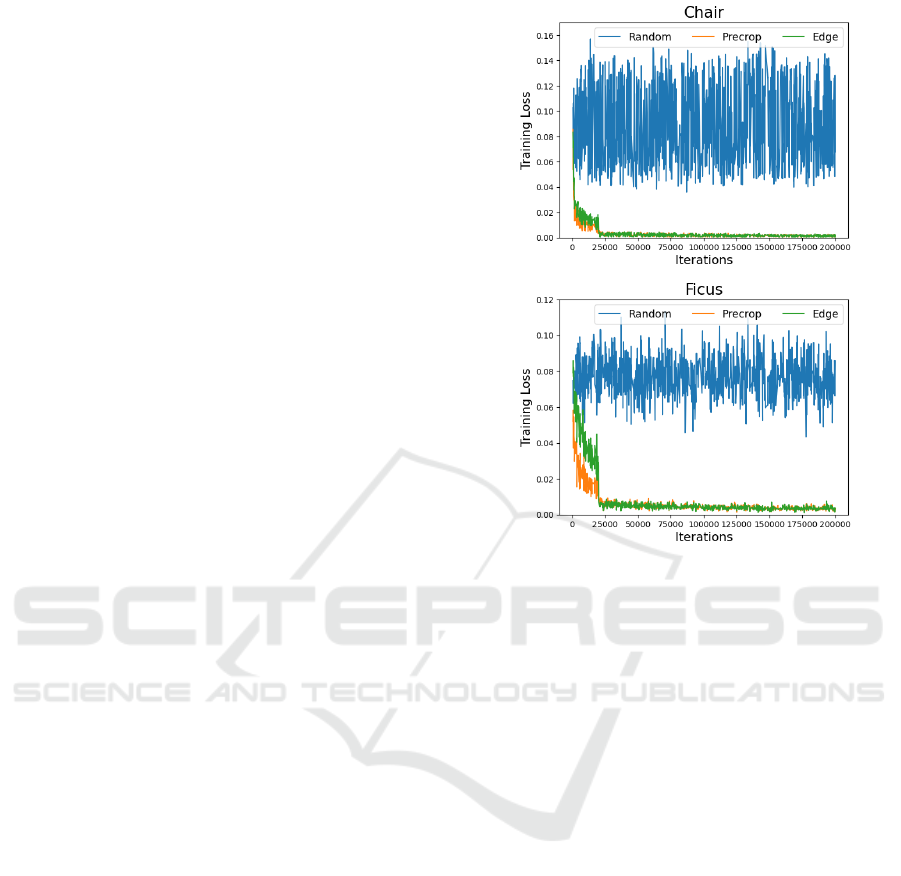

Figure 5: Training loss comparisons. These ﬁgures show

training loss comparisons of Random, Precrop, and Edge

sampling. In Chair (left) and Ficus (right), Random’s train-

ing loss (blue) has not dropped. On the other hand, Pre-

crop’s (orange) and Edge sampling’s (green) have done.

These results indicate that the sampling method in the ini-

tial training stage has a signiﬁcant impact on the training of

NeRF.

Edge Sampling: we use our sampling method based

on edge detection up to 1/10 and use Random

method. Although the Canny edge detector is used

in (Gai et al., 2023), we didn’t use it because it has

two threshold parameters. Also, since the PSNR of

using Laplacian ﬁlter and Sobel ﬁlter for edge detec-

tion in Lego showed 31.76 and 31.97, respectively,

Sobel was used for edge sampling in this paper.

Edge sampling + SE sampling: we use Edge

sampling method up to 1/10 and use SE sampling

method.

4.2 Results on the Original NeRF

4.2.1 Centered Blender Dataset

This experiment is the original NeRF trained by 7

blender data in which the object is centered. Table 1

shows these results. Random results show training in-

stability depending on the data (especially Chair, Fi-

cus, and Mic). The reason for this is that the image

has a large background area, which causes overﬁtting

Important Pixels Sampling for NeRF Training Based on Edge Values and Squared Errors Between the Ground Truth and the Estimated

Colors

107

Table 1: PSNR of the original NeRF using Centered Blender Dataset.

Sampling Methods Chair Drums Ficus Hotdog Lego Materials Mic Avg.

Random 13.69 23.94 14.26 36.63 31.97 29.82 13.12 23.34

Precrop+Random 33.42 26.36 29.36 36.87 31.85 29.65 32.88 31.48

SE sampling 13.69 24.07 14.26 37.09 32.26 29.99 13.12 23.49

Precrop+SE sampling 33.73 26.62 29.61 37.36 32.27 29.89 33.33 31.83

Edge sampling 33.47 26.38 29.35 36.7 31.97 29.71 32.72 31.47

Edge sampling+SE sampling 33.9 26.55 29.7 37.14 32.18 29.84 33.19 31.78

to the background area in the early stages of train-

ing. For this problem, the original NeRF introduces

Precrop, and the results can be seen to be improved

in Precrop+Random results. Edge sampling results

show that our proposed Edge sampling method ef-

fect achieves the same training stability as Precrop

and there is no signiﬁcant difference in the effective-

ness between Precrop and Edge sampling for these

datasets. Comparing Random and SE sampling, Pre-

crop+Random and Precrop+SE sampling, Edge sam-

pling and Edge sampling+SE sampling, the value of

PSNR increases regardless of the sampling method

used in the initial training stage. These results indi-

cate that SE sampling has the effect of accelerating

learning.

4.2.2 Non-Centered Blender Dataset

This experiment is the original NeRF trained by 7

Blender datasets in which the object is not centered.

Table 2 shows these results. In Chair, Precrop stabi-

lized the training when the object was at the center of

the image (Table 1). However, the training was not

successful in this case. From this result, Precrop may

also have unstable learning depending on the data. On

the other hand, when Edge sampling is used, the train-

ing is stable regardless of the data.

4.3 Results on Few-Shot NeRF

4.3.1 Centered Blender Dataset

This experiment is InfoNeRF (Kim et al., 2022) by

7 blender data in which the object is centered. This

result is shown in Table 3. Since only 10 training im-

ages are used in InfoNeRF, the performance of each

sampling method is different from Table 1. Compar-

ing Precrop and Edge sampling, the PSNR values in

Table 1 are almost the same, while those of Edge sam-

pling are better in Table 3. This indicates that the edge

information is more important for training because

the number of training images is smaller. In addition,

SE sampling accelerates learning in all combinations,

which is the same as the result of the original NeRF.

4.3.2 Non-Centered Blender Dataset

This experiment is InfoNeRF by 7 blender data in

which the object is not centered. This result is shown

in Table 4. The results of Chair and Ficus show that

when the object is in the center of the image, the train-

ing is successful by using Precrop in Table 3, but

when the object is not in the center, it is not suc-

cessful. However, the use of Edge sampling solves

this problem. We also ﬁnd that SE sampling acceler-

ates the training process more than the use of ordinary

Random sampling.

5 DISCUSSIONS

From the experiments in Section 4, we found that

Edge sampling stabilizes the initial stage of training,

independent of the data. In this section, we examine

the effect of Edge sampling on the part of the image.

Fig 6 shows where Edge sampling shows its ef-

fects for Chairs and Drums. This ﬁgure compares

Precrop and Edge sampling rendering accuracy by us-

ing the images cropped from the full-image images

with many edges. In Chair, the mean squared error

between the ground truth and predicted colors (MSE)

of Precrop is 0.00096. On the other hand, the MSE of

Edge sampling is 0.00093. In the case of Drums, the

MSE of Precrop is 0.005306. On the other hand, the

MSE of Edge sampling is 0.00413. Also, the red cir-

cles in Fig 6 show that the rendering results of Edge

sampling are cleaner than those of Precrop. Based on

these results, we think that Edge sampling is effective

not only in improving the stability of training but also

in improving the rendering accuracy of the edges. In

addition to this, the edge parts in the images are very

important for NeRF’s rendering.

There are two limitations of our method. The ﬁrst

is that, as with Precrop, we have to set a hyperparam-

eter to determine how far to perform Edge sampling.

The second is that SE sampling requires more mem-

ory than normal Random sampling.

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

108

Table 2: PSNR of the original NeRF using Non-centered Blender Dataset.

Sampling Methods Chair Drums Ficus Hotdog Lego Materials Mic Avg.

Random 13.69 11.12 14.26 29.4 25.6 22.82 13.12 18.57

Precrop+Random 13.69 18.46 28.71 29.56 25.61 23.13 13.12 21.75

SE sampling 13.69 11.12 14.26 29.07 25.73 22.76 13.12 18.53

Precrop+SE sampling 13.69 18.55 28.97 29.25 25.64 23.21 13.12 21.77

Edge sampling 27.13 19.38 28.88 29.72 29.56 23.02 29.38 26.72

Edge sampling+SE sampling 27.12 19.15 29.27 29.07 29.89 22.82 29.25 26.65

Table 3: PSNR of Few-shot NeRF using Centered Blender Dataset.

Sampling Methods Chair Drums Ficus Hotdog Lego Materials Mic Avg.

Random 14.03 10.93 14.22 26.63 25.14 22.14 13.04 18.01

Precrop+Random 25.45 19.19 22.87 26.4 24.91 22.07 26.91 23.97

SE sampling 14.03 19.13 14.22 27.71 25.37 22.28 13.04 19.39

Precrop+SE sampling 25.68 18.89 22.86 27.22 24.89 22.05 27.12 24.10

Edge sampling 25.52 19.94 22.89 26.71 25.77 22.03 27 24.26

Edge sampling+SE sampling 25.75 19.83 22.89 27.55 26.03 22.05 27.38 24.49

Table 4: PSNR of Few-shot NeRF using Non-centered Blender Dataset.

Sampling Methods Chair Drums Ficus Hotdog Lego Materials Mic Avg.

Random 14.03 17.5 14.22 22.2 21.84 8.73 13.04 15.93

Precrop+Random 14.03 16.71 14.22 21.76 20.99 18.14 20.02 17.98

SE sampling 14.03 17.44 14.22 22.25 21.82 8.73 13.04 15.93

Precrop+SE sampling 14.03 16.92 14.22 21.97 21.71 18.2 20.08 18.16

Edge sampling 22.38 17.5 21.87 22.13 21.3 18.21 20.69 20.58

Edge sampling+SE sampling 22.43 17.4 21.8 22.31 21.42 18.44 20.73 20.64

Figure 6: The effects of Edge sampling other than training stability. This ﬁgure shows the comparison of rendering accuracy

between Precrop and Edge sampling of Chair (upper) and Drums (lower). We consider the red circles to be microscopic but

clean.

6 CONCLUSION

In this paper, we propose a new pixels sampling

method to stabilize NeRF training instead of Precrop

sampling. This method consists of two steps. In the

ﬁrst stage, instead of Precrop in the early stage of

learning, we use a pixels sampling method based on

edge detection to sample the pixels to be trained. This

stabilizes the learning of NeRF. In the second stage,

after the initial learning stage, pixel sampling is per-

formed based on the value of the squared error be-

tween the predicted pixel and the correct pixel. Here,

Important Pixels Sampling for NeRF Training Based on Edge Values and Squared Errors Between the Ground Truth and the Estimated

Colors

109

the learning of NeRF is accelerated. The combination

of these two sampling methods makes the learning of

NeRF more stable.

In our experiments, we compare each sampling

method with conventional NeRF and InfoNeRF,

which corresponds to a small amount of data. By us-

ing Edge sampling, we have achieved stable learning

for any training data. SE sampling also achieves ac-

celeration of learning. In the case of the small amount

of data, Edge sampling not only stabilizes the learning

but also tends to improve the PSNR results. These re-

sults indicate that edges are very important for NeRF

training.

Our proposed method has two limitations. The

ﬁrst is that the hyperparameter for how far Edge sam-

pling should be performed must be set appropriately.

Research will be needed on pixels sampling methods

that can learn NeRF for any data without setting this

hyperparameter. The second is that SE sampling re-

quires a large amount of memory space because the

squared error of twice as many pixels used for train-

ing must be calculated. So, we need to consider pix-

els sampling methods that are more efﬁcient with the

number of pixels used for training.

REFERENCES

Ali, M. and Clausi, D. (2001). Using the canny edge de-

tector for feature extraction and enhancement of re-

mote sensing images. In IGARSS 2001. Scanning the

Present and Resolving the Future. Proceedings. IEEE

2001 International Geoscience and Remote Sensing

Symposium (Cat. No. 01CH37217), volume 5, pages

2298–2300. Ieee.

Barron, J. T., Mildenhall, B., Verbin, D., Srinivasan, P. P.,

and Hedman, P. (2022). Mip-nerf 360: Unbounded

anti-aliased neural radiance ﬁelds. In Proceedings of

the IEEE/CVF Conference on Computer Vision and

Pattern Recognition, pages 5470–5479.

Canny, J. (1986). A computational approach to edge de-

tection. IEEE Transactions on pattern analysis and

machine intelligence, (6):679–698.

Deng, K., Liu, A., Zhu, J.-Y., and Ramanan, D. (2022).

Depth-supervised nerf: Fewer views and faster train-

ing for free. In Proceedings of the IEEE/CVF Con-

ference on Computer Vision and Pattern Recognition,

pages 12882–12891.

Du, Y., Zhang, Y., Yu, H.-X., Tenenbaum, J. B., and Wu,

J. (2021). Neural radiance ﬂow for 4d view synthe-

sis and video processing. In 2021 IEEE/CVF Interna-

tional Conference on Computer Vision (ICCV), pages

14304–14314. IEEE Computer Society.

Fukuda, K., Kurita, T., and Aizawa, H. (2023). Neural

radiance ﬁelds with regularizer based on differences

of neighboring pixels. In 2023 International Joint

Conference on Neural Networks (IJCNN), pages 1–7.

IEEE.

Gai, Z., Liu, Z., Tan, M., Ding, J., Yu, J., Tong, M., and

Yuan, J. (2023). Egra-nerf: Edge-guided ray alloca-

tion for neural radiance ﬁelds. Image and Vision Com-

puting, 134:104670.

Glorot, X., Bordes, A., and Bengio, Y. (2011). Deep sparse

rectiﬁer neural networks. In Proceedings of the four-

teenth international conference on artiﬁcial intelli-

gence and statistics, pages 315–323. JMLR Workshop

and Conference Proceedings.

Jang, W. and Agapito, L. (2021). Codenerf: Disentangled

neural radiance ﬁelds for object categories. In Pro-

ceedings of the IEEE/CVF International Conference

on Computer Vision, pages 12949–12958.

Kim, M., Seo, S., and Han, B. (2022). Infonerf: Ray en-

tropy minimization for few-shot neural volume ren-

dering. In Proceedings of the IEEE/CVF Conference

on Computer Vision and Pattern Recognition, pages

12912–12921.

Lin, C.-H., Ma, W.-C., Torralba, A., and Lucey, S. (2021).

Barf: Bundle-adjusting neural radiance ﬁelds. In Pro-

ceedings of the IEEE/CVF International Conference

on Computer Vision, pages 5741–5751.

Martin-Brualla, R., Radwan, N., Sajjadi, M. S., Barron,

J. T., Dosovitskiy, A., and Duckworth, D. (2021). Nerf

in the wild: Neural radiance ﬁelds for unconstrained

photo collections. In Proceedings of the IEEE/CVF

Conference on Computer Vision and Pattern Recogni-

tion, pages 7210–7219.

Meng, Q., Chen, A., Luo, H., Wu, M., Su, H., Xu, L., He,

X., and Yu, J. (2021). Gnerf: Gan-based neural ra-

diance ﬁeld without posed camera. In Proceedings of

the IEEE/CVF International Conference on Computer

Vision, pages 6351–6361.

Metzer, G., Richardson, E., Patashnik, O., Giryes, R., and

Cohen-Or, D. (2023). Latent-nerf for shape-guided

generation of 3d shapes and textures. In Proceedings

of the IEEE/CVF Conference on Computer Vision and

Pattern Recognition, pages 12663–12673.

Mildenhall, B., Srinivasan, P., Tancik, M., Barron, J., Ra-

mamoorthi, R., and Ng, R. (2020). Nerf: Represent-

ing scenes as neural radiance ﬁelds for view synthesis.

In European conference on computer vision.

Nguyen, T., Chen, Z., and Lee, J. (2020). Dataset meta-

learning from kernel ridge-regression. arXiv preprint

arXiv:2011.00050.

Nguyen, T., Novak, R., Xiao, L., and Lee, J. (2021).

Dataset distillation with inﬁnitely wide convolutional

networks. Advances in Neural Information Processing

Systems, 34:5186–5198.

Niemeyer, M., Barron, J. T., Mildenhall, B., Sajjadi, M. S.,

Geiger, A., and Radwan, N. (2022). Regnerf: Regu-

larizing neural radiance ﬁelds for view synthesis from

sparse inputs. In Proceedings of the IEEE/CVF Con-

ference on Computer Vision and Pattern Recognition,

pages 5480–5490.

Oechsle, M., Peng, S., and Geiger, A. (2021). Unisurf:

Unifying neural implicit surfaces and radiance ﬁelds

for multi-view reconstruction. In Proceedings of the

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

110

IEEE/CVF International Conference on Computer Vi-

sion, pages 5589–5599.

Park, K., Sinha, U., Barron, J. T., Bouaziz, S., Goldman,

D. B., Seitz, S. M., and Martin-Brualla, R. (2021a).

Nerﬁes: Deformable neural radiance ﬁelds. In Pro-

ceedings of the IEEE/CVF International Conference

on Computer Vision, pages 5865–5874.

Park, K., Sinha, U., Hedman, P., Barron, J. T., Bouaziz, S.,

Goldman, D. B., Martin-Brualla, R., and Seitz, S. M.

(2021b). Hypernerf: A higher-dimensional represen-

tation for topologically varying neural radiance ﬁelds.

arXiv preprint arXiv:2106.13228.

Poole, B., Jain, A., Barron, J. T., and Mildenhall, B. (2022).

Dreamfusion: Text-to-3d using 2d diffusion. arXiv

preprint arXiv:2209.14988.

Pumarola, A., Corona, E., Pons-Moll, G., and Moreno-

Noguer, F. (2021). D-nerf: Neural radiance ﬁelds

for dynamic scenes. In Proceedings of the IEEE/CVF

Conference on Computer Vision and Pattern Recogni-

tion, pages 10318–10327.

Singh, A., Singh, M., and Singh, B. (2016). Face detection

and eyes extraction using sobel edge detection and

morphological operations. In 2016 Conference on Ad-

vances in Signal Processing (CASP), pages 295–300.

IEEE.

Sobel, I., Feldman, G., et al. (1968). A 3x3 isotropic gradi-

ent operator for image processing. a talk at the Stan-

ford Artiﬁcial Project in, pages 271–272.

Soviany, P., Ionescu, R. T., Rota, P., and Sebe, N.

(2021). Curriculum learning: A survey. CoRR,

abs/2101.10382.

Srinivasan, P. P., Deng, B., Zhang, X., Tancik, M., Milden-

hall, B., and Barron, J. T. (2021). Nerv: Neural re-

ﬂectance and visibility ﬁelds for relighting and view

synthesis. In Proceedings of the IEEE/CVF Confer-

ence on Computer Vision and Pattern Recognition,

pages 7495–7504.

Ueda, I., Fukuhara, Y., Kataoka, H., Aizawa, H., Shishido,

H., and Kitahara, I. (2022). Neural density-distance

ﬁelds. In Computer Vision–ECCV 2022: 17th Eu-

ropean Conference, Tel Aviv, Israel, October 23–

27, 2022, Proceedings, Part XXXII, pages 53–68.

Springer.

Wang, Z., Wu, S., Xie, W., Chen, M., and Prisacariu, V. A.

(2021). Nerf–: Neural radiance ﬁelds without known

camera parameters. arXiv preprint arXiv:2102.07064.

Yang, W., Chen, G., Chen, C., Chen, Z., and Wong, K.-Y. K.

(2022). Ps-nerf: Neural inverse rendering for multi-

view photometric stereo. In European Conference on

Computer Vision, pages 266–284. Springer.

Yu, A., Ye, V., Tancik, M., and Kanazawa, A. (2021). pix-

elnerf: Neural radiance ﬁelds from one or few im-

ages. In Proceedings of the IEEE/CVF Conference

on Computer Vision and Pattern Recognition, pages

4578–4587.

Zhang, H., Jolfaei, A., and Alazab, M. (2019). A face

emotion recognition method using convolutional neu-

ral network and image edge computing. IEEE Access,

7:159081–159089.

Important Pixels Sampling for NeRF Training Based on Edge Values and Squared Errors Between the Ground Truth and the Estimated

Colors

111
