Off-Chaining Approaches for Cost-Efﬁciency in Threshold-Based Elliptic

Curve Systems over Blockchains

Visakh K. Vijayan, Maria Francis and Kotaro Kataoka

Department of Computer Science and Engineering, Indian Institute of Technology, Hyderabad, India

Keywords:

Off-Chaining, Threshold-Based Anonymous Credentials, Blockchains.

Abstract:

In this work, we propose an off-chaining technique – threshold off-chain computation (TOC) – to reduce the

gas cost of threshold-based elliptic curve cryptographic systems over blockchains (TEB), while preserving

the security guarantees. We use threshold-based anonymous credentials with opening (TACO) and without

opening (TAC) as examples and instantiate them with a PoC implementation of a blockchain-based credential

management system. These implementations are built for both Ganache and Sepolia. Based on the evalu-

ation results, we propose a) selective off-chaining where functions are off-chained using the TOC approach

solely for gas cost reduction, and b) empirical push-back off-chaining where operations within the off-chained

functions are pushed back on-chain for a balance between gas cost reduction and execution time. We observe

that selective off-chaining of the TACO system results in a signiﬁcant reduction of gas cost – 32x and 29x

w.r.t. to the on-chain system in Ganache and Sepolia, respectively, but with a degradation in execution time.

The empirical push-back off-chaining of the TACO system results in gas costs that are 6x and 4x lower than

the original system in Ganache and Sepolia, respectively with an improvement in execution time of 59% in

Ganache and 23% in Sepolia.

1 INTRODUCTION

The properties of decentralization, immutability, and

availability of blockchains make them an ideal choice

for implementing systems that assume the thresh-

old trust assumption, i.e. where at least a thresh-

old number of honest participants must cooperate

to perform the operation. Threshold-based crypto-

graphic systems with elliptic curve operations over

blockchains (TEB) are blockchain systems where the

cryptographic functionalities are achieved using ellip-

tic curve operations that run on-chain and follow the

threshold trust assumption. However, they have high

gas costs

because elliptic curve operations are com-

putationally intensive to run on blockchain smart con-

tracts. The execution times and gas costs for a few

anonymous credentials based on elliptic curve opera-

tions and use blockchains are given in Table 1.

Anonymous credentials are privacy-preserving

mechanisms where the credentials are randomized ev-

ery time the user presents it to a service provider,

making the user unlinkable across multiple creden-

tial shows, and preserves the anonymity of the user

Gas cost is the cryptocurrency required to perform an

operation in the blockchain and varies with network conges-

tion, ﬂuctuating gas prices, type of transaction, transaction

prioritization by the miners, etc.

even if the service provider and the credential issuer

collude. They are built using bilinear pairings over

elliptic curve groups. To avoid having to trust a sin-

gle credential issuer, threshold-based anonymous cre-

dential schemes proposed over blockchains such as

Coconut (Sonnino et al., 2019), DTRAC (Naaz et al.,

2022) rely on multiple credential issuers who follow

the threshold trust assumption to issue a credential.

They are, therefore, examples of threshold-based sys-

tems with elliptic curve operations over blockchains

(TEB) and we use them as a running example in

this paper. They require computationally intensive

elliptic curve operations and pairings-based opera-

tions primarily for the construction and veriﬁcation of

zero-knowledge proofs (ZKPs), cryptographic com-

mitments, signature veriﬁcations, etc., all of which

lead to high gas costs. Most works that use anony-

mous credentials either remain theoretical (H

ebant

and Pointcheval, 2022; Fuchsbauer et al., 2018; Con-

nolly et al., 2022; Sanders, 2020; Camenisch et al.,

2015) or are limited to local blockchains such as

Ganache (Naaz et al., 2022; Sonnino et al., 2019;

Rathee et al., 2022; Yu et al., 2019; Muth et al., 2023)

and only a very few have mainnet simulations like

Goerli and Ropsten testnets (Buccafurri et al., 2022).

Recent anonymous credentials that are blockchain-

based – zk-creds (Rosenberg et al., 2023) and ZEBRA

Vijayan, V., Francis, M. and Kataoka, K.

Off-Chaining Approaches for Cost-Efﬁciency in Threshold-Based Elliptic Curve Systems over Blockchains.

DOI: 10.5220/0012361600003648

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 10th International Conference on Information Systems Security and Privacy (ICISSP 2024), pages 411-422

ISBN: 978-989-758-683-5; ISSN: 2184-4356

411

(Rathee et al., 2022) – reduce gas costs and execution

time by using zk-SNARKs, and batched veriﬁcations

but they assume a single trusted authority for creden-

tial issuance and do not support threshold issuance.

Also, credential veriﬁcation in both zk-creds and ZE-

BRA are on-chain, primarily to enable efﬁcient cre-

dential revocation. Thus credential veriﬁcation, a fre-

quently performed operation, has a large gas cost.

Table 1: Gas costs and execution times of credential veriﬁ-

cation in different anonymous credential systems.

Anonymous cre-

dentials

Avg. gas cost

(M: million)

Avg. time

(s: seconds)

Coconut (Son-

nino et al., 2019)

2.8 M 15s

DTRAC (Naaz

et al., 2022 )

1 M 6s

BASS (Yu et al.,

2019)

1.5 M 85s

ZEBRA (Rathee

et al., 2022 )

0.3 M -

TSCVAC (Muth

et al., 2023 )

32 M -

A possible solution to improve cost efﬁciency is

to move inefﬁcient and expensive on-chain opera-

tions to an off-chain entity. Off-chaining is a widely

studied method to improve the performance and re-

duce the costs of blockchain smart contracts (Eber-

hardt and Heiss, 2018; Liu et al., 2021; Eberhardt and

Tai, 2017; Molina-Jimenez et al., 2018; Eberhardt and

Tai, 2018; Kalodner et al., 2018). However, it can

also lead to centralization of trust, introduce security

vulnerabilities and scalability issues. To the best of

our knowledge, there are no off-chaining works that

concretely study threshold-based systems with elliptic

curve operations over blockchains or anonymous cre-

dential systems or any other threshold-based crypto-

graphic systems. In this work, we study off-chaining

approaches speciﬁcally tailored for TEB systems by

leveraging the threshold trust assumption. The fol-

lowing are the key contributions of this work.

1. We present a computation off-chaining solution,

threshold off-chain computation (TOC) that uses

the threshold trust assumption to ensure the same

trust guarantees and computational correctness

as the original on-chain system. It eliminates

the need of introducing complex on-chain veri-

ﬁcations for every off-chained computation as in

(Rathee et al., 2022).

The systems do not provide execution time for creden-

tial veriﬁcation.

2. We use threshold anonymous credential systems

over blockchains (TACO), as an instance of a TEB

system, to implement the proposed off-chaining

approach. From the evaluation of the off-chained

system, we make a critical observation that is

valid for any TEB system – despite signiﬁcant

improvement in gas costs, the execution time de-

grades. This happens when we off-chain pairings-

based operations to nodes that are less power-

ful than the miner nodes. Pairings are resource-

intensive elliptic curve operations that do not have

many optimizations, both on-chain and off-chain.

They are more in number – linear in the num-

ber of openers – in anonymous credentials that

support opening of the credential. To reduce ex-

ecution time, we push pairings-based operations

back on-chain for just opening. We thus introduce

two implementation approaches: 1) selective off-

chaining, that off-chains all the on-chain elliptic

curve operations and is ideal for threshold-based

anonymous credentials that do not have opening

(TAC), and 2) empirical push-back off-chaining

for those that support opening (TACO), where the

pairings-based operations are retained on-chain.

We benchmark the system under multiple evalu-

ation setups. The TAC system exhibits a gas cost

reduction of 13x in Ganache and 11x in Sepo-

lia after selective off-chaining. For a TACO sys-

tem, threshold off-chain computation with selec-

tive off-chaining results in a gas cost reduction of

32x and 29x on Ganache and Sepolia respectively,

but with a degradation in the execution time. The

empirical push-back off-chaining of TACO results

in a 6x and 4x lower gas cost than the original

system in Ganache and Sepolia, respectively with

improved execution times.

3. This work gives a comprehensive set of steps – the

ﬁrst of its kind – for off-chaining a TEB system

using the TOC approach.

2 RELATED WORKS

Elliptic curve cryptography (Miller, 1986; Koblitz,

1987) is immensely popular because parameter val-

ues are typically shorter than other classical cryp-

tographic primitives. Bilinear pairings using ellip-

tic curves were ﬁrst used in cryptography to build

an identity-based encryption scheme (Boneh and

Franklin, 2001), the ﬁrst instantiation of such a

scheme. Since then, pairings have been the go-to

framework to build privacy preserving mechanisms

such as anonymous credentials, group signatures,

etc. Anonymous credentials (Chaum, 1985) were

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

412

ﬁrst instantiated using CL-signatures (Camenisch and

Lysyanskaya, 2001). Based on a general distributed

ledger, (Garman et al., 2014) proposed the ﬁrst de-

centralized anonymous credential, which did not re-

quire a trusted credential issuer. Coconut (Son-

nino et al., 2019), the state-of-the-art threshold-

based anonymous credential scheme, modiﬁes PS-

signatures (Pointcheval and Sanders, 2016), to enable

a distributed set of credential issuers to issue partial

credentials and requires at least a threshold number

of partial credentials to construct a valid credential.

DTRAC (Naaz et al., 2022) extends Coconut to in-

clude threshold opening where at least a threshold

number of openers come together to open the creden-

tial and reveal the identity. Nevertheless, both Co-

conut and DTRAC are far from being practical pri-

marily due to their high gas cost. ZEBRA (Rathee

et al., 2022) provides accumulator-based revocable

anonymous credentials over blockchains, and here,

the credential veriﬁcation happens on-chain. It main-

tains a list of revoked credentials in an on-chain ac-

cumulator and a non-membership ZKP is veriﬁed on-

chain each time a credential is veriﬁed. Another re-

cent work that is also accumulator-based is zk-creds

(Rosenberg et al., 2023), where credential veriﬁcation

happens off-chain but the hash of the credential needs

to be looked up on-chain. This is relatively a cheap

operation in terms of gas cost but still will incur a few

hundred to a few thousand gas units for every creden-

tial veriﬁcation. In zk-creds, blockchains are used to

store the list of issued credentials which is updated if

any credential is revoked. So, when a service provider

veriﬁes a credential, it has to check if the credential

belongs to the on-chain accumulator. Thus, to ensure

revocation and accountability, ZEBRA and zk-creds

use the blockchain for credential veriﬁcation. In the

off-chained DTRAC, since there is no revocation and

only opening, the credential veriﬁcation does not use

blockchains and thus has zero gas cost.

Initial works studied off-chaining by focusing on

applications (Eberhardt and Tai, 2017). For a good

overview of various off-chaining approaches one can

refer to (Eberhardt and Heiss, 2018) but these ap-

proaches do not analyze security and trust trade-

offs. Research has focused on automatically gener-

ating FSM (Finite State Machine) and HSM (Hierar-

chical State Machine) models to decide which pro-

cesses should go off-chain (Liu et al., 2021, 2022)

but they are not applicable to smart contracts with

cryptographic operations. Some works explores off-

chaining as a solution to improve the security of smart

contracts such as Cloak (Ren et al., 2022), which uses

veriﬁable off-chaining multiparty computations, and

Zokrates (Eberhardt and Tai, 2018), which uses veriﬁ-

able computations, but they are not applicable to TEB

systems as we show in Section 3.3.

3 PRELIMINARIES

3.1 Pairing-Based Operations

Elliptic curve cryptography (ECC) builds crypto-

graphic primitives that exploit the algebraic structure

of elliptic curves over ﬁnite ﬁelds. It provides the

same level of security with shorter key lengths com-

pared to classical primitives like RSA. However, they

are computationally expensive for they do operations

on large inputs with multiple iterations. These op-

erations include elliptic curve point addition, point

doubling, point negation, scalar multiplication and

bilinear pairings. A bilinear pairing (Boneh et al.,

2004) maps two elements g

and g

, from two cyclic

pairing-friendly elliptic curve groups G

and G

re-

spectively, to a third element g

from a subgroup

of a ﬁnite ﬁeld. They are efﬁciently computable

maps that satisfy the properties of bilinearity and non-

degeneracy. They have enabled the construction of

many cryptographic systems that, previously, had no

feasible implementations such as identity-based en-

cryption (Boneh and Franklin, 2001), anonymous cre-

dentials (Sonnino et al., 2019), attribute-based en-

cryption (Goyal et al., 2006), etc. PS signatures

(Pointcheval and Sanders, 2016) are short randomiz-

able pairings-based signatures that allow for the sign-

ing of committed messages where the user can prove

the knowledge of the signature efﬁciently, without re-

vealing the message. They are randomizable, i.e. the

user can generate fresh valid signatures from a given

signature for the same message. This helps make the

credential generated from a PS signature, unlinkable.

Coconut (Sonnino et al., 2019) is a threshold-based

anonymous credential system that uses a modiﬁed PS

signature scheme to support threshold credential is-

suance, where a distributed set of issuers issues partial

credentials and a threshold number of such credentials

are required for the user to be able to generate a valid

credential.

Bilinear pairings are computationally more inten-

sive than other ECC operations. They require multi-

ple elliptic curve point operations that need to com-

bine points from different elliptic curve groups. In

Ethereum, the Ethereum Virtual Machine (EVM) is

stack-based which means that all the data must be

ﬁrst pushed onto the stack before it can be operated

on. Pairings-based operations require a large num-

ber of intermediate values which leads to a signiﬁcant

growth in stack size, which, in turn, results in high

Off-Chaining Approaches for Cost-Efﬁciency in Threshold-Based Elliptic Curve Systems over Blockchains

413

gas costs. The elliptic curve operations that are not

pairings-based require relatively less gas. However,

they are generally more in number than pairings (refer

Table 2) and thus collectively result in large gas costs.

For ECC operations there are several optimizations

and some of them are available on-chain too. But op-

timizations for pairings-based operations, on the other

hand, are not very efﬁcient whether it is for off-chain

or for on-chain systems.

3.2 Threshold Anonymous Credentials

with Opening (TACO)

A threshold anonymous credential system (TAC) has

a set of (possibly malicious) distributed issuers who

issue partial credentials over a blockchain and at least

a threshold number of them are required to con-

struct the ﬁnal credential. A TAC system that sup-

ports threshold opening after consensus from at least

a threshold number of credential openers is referred

to as a TACO system. Coconut (Sonnino et al., 2019)

is a TAC system and DTRAC (Naaz et al., 2022) ex-

tends Coconut to enable opening, i.e. a TACO system.

We describe a generic TACO system, modelled along

the lines of Coconut and DTRAC, as shown in Fig-

ure 1. The stakeholders of the system are a) the user,

who requires an anonymous credential that attests to

her attributes – without revealing them – to avail a

service, b) certiﬁers, who attest the attributes of the

user and sign on the attribute commitments to gen-

erate veriﬁable certiﬁcates, c) credential issuers (CI),

who are distributed entities that generate partial cre-

dentials – a threshold number of which are required

to construct the ﬁnal credential – after verifying the

certiﬁcates issued by the certiﬁer, d) service provider

(SP), who veriﬁes the anonymous credential of the

user and grants the service, and e) credential openers

(CO) who are distributed entities with partial opening

information that can open/deanonymize the user if at

least a threshold number of them come together.

A threshold anonymous credential with opening

(TACO) can be described in four phases: 1) Registra-

tion Phase, where the user obtains veriﬁable certiﬁ-

cates on the attributes from the certiﬁers. 2) Issuance

Phase, where the user sends these certiﬁcates along

with the commitments to her attributes, the opening

shares and the corresponding ZKPs to the credential

issuers via the blockchain, who issue the partial cre-

dentials after veriﬁcation. Then the openers are pro-

vided with their individual opening (deanonymizing)

information called partial opening shares. The en-

tire process is referred to as credential request veri-

ﬁcation, Credreq

ver

(Step 4, Figure1). A TAC sys-

tem has no openers, and therefore Credreq

ver

does

1.Request

certificates

User

Credential Issuer

7. Issue

credentials

Openers

Credential Opener

2.Issue

certificates

Certifier

Service Provider

9. Requests

service

1.1 Sends

for verification

1.3 Verification

successful

1.2 Verification of

user details

Blockchain

12. Provides

service

11. Forwards

service request

8. Forward

credentials

to user

3. Requests

credential

5. Forwards

credential request

6. Sends

opening

information

4. Credential

request verification

Credreq

ver

Credential request

smart contract

10. Credential

verification

Cred

ver

Credential verification

smart contract

Figure 1: Overview of TACO over blockchains for creden-

tial management.

not have to verify the ZKP for the correctness of the

opening shares. Once the user receives a threshold

number of partial credentials, she aggregates them to

obtain the ﬁnal anonymous credential. 3) Veriﬁca-

tion Phase, where the user randomizes the creden-

tial and presents it to the service provider who veri-

ﬁes the proofs on-chain. We refer to this as credential

veriﬁcation, Cred

ver

(Step 10, Figure 1). 4) Open-

ing Phase, which is initiated if deemed necessary to

deanonymize the user. Once a credential opener re-

ceives a threshold number of opening shares from the

other openers, it can deanonymize the user.

The credential request veriﬁcation Credreq

ver

and

credential veriﬁcation Cred

ver

are the only on-chain

functions where cryptographic operations are per-

formed. Credreq

ver

is run once per credential is-

suance and Cred

ver

is run every time a service is

availed. They perform several ECC operations in-

cluding pairings on-chain for the veriﬁcation of ZKPs

which is the main reason for high gas costs.

3.3 Off-Chaining

Off-chaining (Smith and Doe, 2022) takes smart con-

tract computations outside the blockchain node reduc-

ing transaction/gas costs. The off-chain nodes that ex-

ecute the computation are called solver nodes. Even

though off-chaining reduces transaction costs, it has

its limitations. The system may become more com-

plex as off-chaining can add additional stakehold-

ers and communication links to realize all the origi-

nal functionalities. Off-chain solutions typically re-

quire additional infrastructure, maintenance and op-

erational costs. The security will have to be analyzed

again because the off-chain data and processes lack

the consensus mechanisms and immutability proper-

ties of the blockchain which can lead to new attacks

and collusion of various entities. It can also create

interoperability challenges.

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

414

We assume that the TEB system does not have 1)

any inter-smart contract dependencies, 2) any time-

sensitive data requirements, 3) any intermediate inter-

stakeholder communications, 4) any interoperarabil-

ity requirements, and 5) any veriﬁable on-chain com-

putations. Existing off-chaining approaches such as

those discussed in (Eberhardt and Heiss, 2018) are

not suitable for TEB systems. Veriﬁable off-chaining

computation (eg. (Miers et al., 2013), (Sasson et al.,

2014)) requires that the function being off-chained is

a veriﬁable function but TEB systems do not necessi-

tate having any. Secure multiparty computation-based

off-chaining (eg. (Zhu et al., 2018)) performs com-

putations on private inputs, which are split as shares

across the solver nodes, who generate outputs that are

aggregated for the ﬁnal result. However, this can-

not be generalized for all TEB systems – for e.g. in

TACO, the blockchain veriﬁcations do not use private

inputs and the output of each threshold entity is in-

dependent. Enclave-based off-chain computations re-

quire the system to place trust in external hardware

which compromises the strong privacy guarantees of

TEB systems. Incentive-driven off-chain computa-

tions (eg. (Teutsch and Reitwießner, 2019)) are used

typically when the execution traces are short. In a

TEB system, if we have to maintain traces for all the

cryptographic operations off-chain and run the traces

that differ, on-chain, for every dispute, then there will

be considerable memory and computation overhead,

which is undesirable.

4 SOLUTION OVERVIEW

All elliptic curve operations, especially pairings, are

computationally expensive as we saw in Section

3.1. Over blockchains, such computations incur huge

gas costs. We propose a new off-chaining tech-

nique – threshold off-chain computation (TOC) – for

threshold-based elliptic curve cryptographic systems

over blockchains (TEB). The key idea here is to lever-

age the threshold trust assumption – i.e. at least a

threshold number of entities are not malicious – to

off-chain elliptic curve cryptographic computations

to solver nodes while ensuring the same security and

privacy guarantees as long as they follow the thresh-

old assumption. The solver nodes can be motivated

by incentives. The immutability and trust guaran-

tees of the blockchain are replaced by the threshold

trust assumption. The system does not trust individual

solvers and assumes that the off-chained code is pub-

lic. It uses only public inputs and generates only pub-

lic outputs. We use threshold anonymous credential

system with opening (TACO) and without opening

(TAC) as examples of TEB systems.

We make an important non-intuitive observation

that the execution time of the overall system does

not beneﬁt from the off-chaining, but rather shows a

degradation. The reason for this is that blockchains

including Ethereum have in-built pre-compiled con-

tracts optimized for elliptic curve pairings which are

executed on dedicated mining hardware when run

on-chain. The same operations on solver nodes, do

not have access to such optimizations and have im-

plementations typically running on general-purpose

hardware, thus resulting in longer execution times.

Given the threshold assumption as well as the draw-

back mentioned above, we use two different imple-

mentation approaches to reinforce the threshold off-

chain computation: 1) selective off-chaining for TAC,

and 2) empirical push-back off-chaining for TACO. In

selective off-chaining, we off-chain all the functions

we identify as resource-intensive, whereas in the em-

pirical push-back approach, we make use of both on-

chain and off-chain optimizations to achieve a balance

between gas costs and execution time.

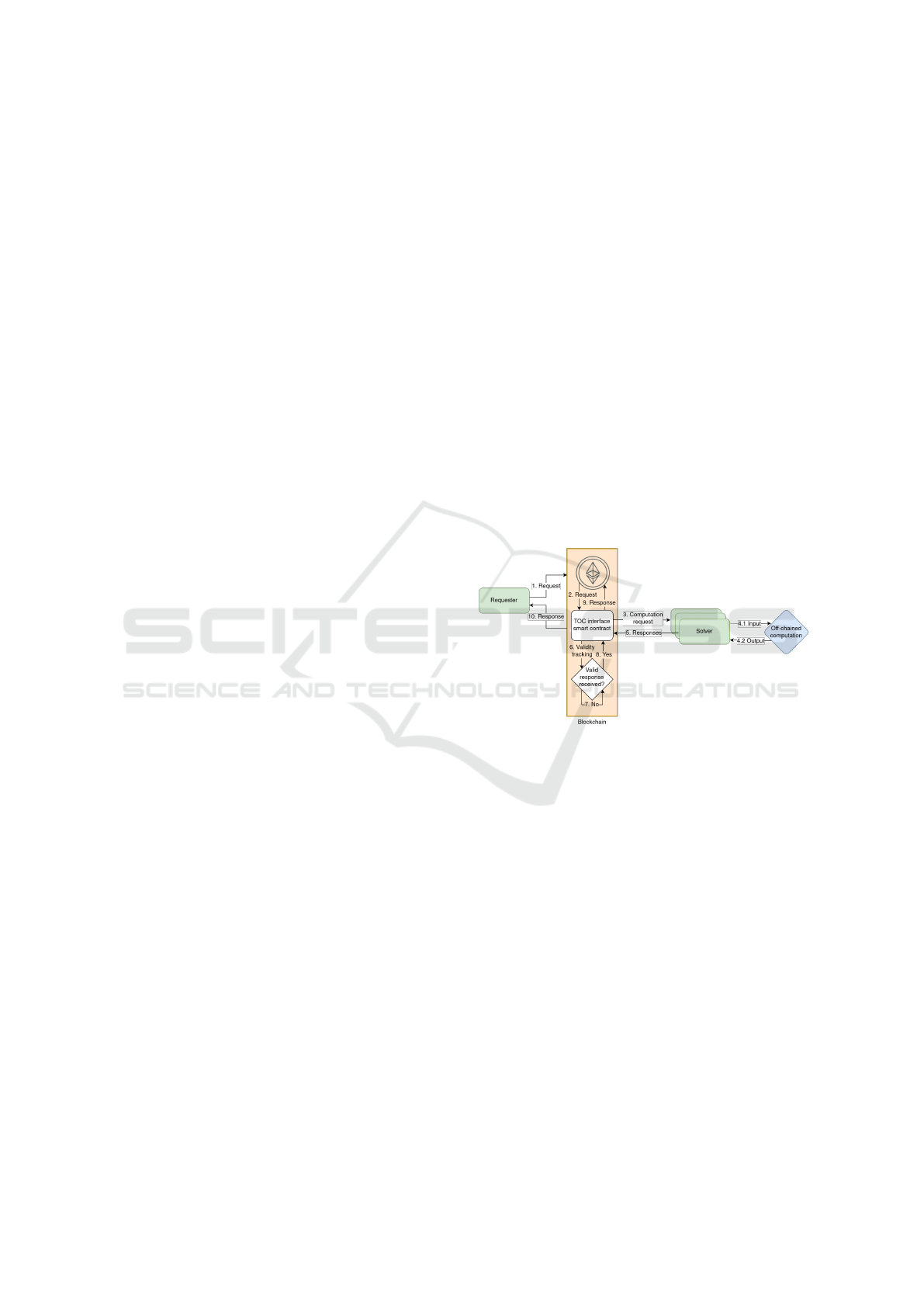

Figure 2: Overview of threshold off-chain computation.

We introduce an on-chain threshold off-chain

computation (TOC) interface smart contract as an in-

terface to facilitate communication between the on-

chain components and the solver nodes. Figure 2 de-

picts the workﬂow. When a requester makes a request

to the blockchain for a function to be off-chained

(Step 1), the request is forwarded to the TOC inter-

face smart contract (Step 2). The interface ensures ac-

cess control, integrity, data synchronization, format-

ting and processing, error handling of the input and

output data between the original system and the off-

chain nodes as per speciﬁc requirements of the sys-

tem. After the request is validated, it is forwarded

to the solver nodes (Step 3) who independently exe-

cute the required functions for the same set of inputs

(Step 4.1) and generate the outputs (Step 4.2). The

solvers send the responses to the interface (Step 5)

and it checks whether the responses are valid (Step

6). The computation is deemed valid (Step 8) only

Off-Chaining Approaches for Cost-Efﬁciency in Threshold-Based Elliptic Curve Systems over Blockchains

415

if at least a threshold number of them responds. The

outputs from the solvers are sent to the on-chain sys-

tem by the interface for further computations (Step 9).

The interface can also track incentives by recording

the addresses of the off-chain nodes that respond. Fig-

ure 3 provides a high-level view of data propagation

and data reception in the proposed TOC approach.

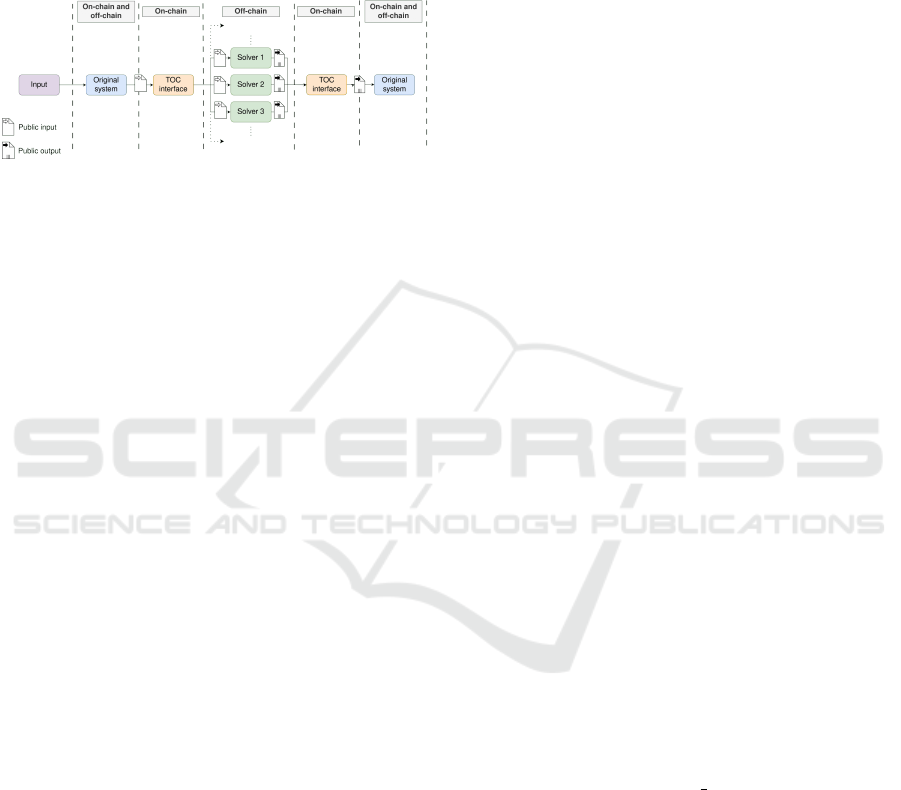

Figure 3: Input-output data ﬂow diagram of threshold off-

chain computation.

5 IMPLEMENTATION

This work applies the threshold off-chain

computation (TOC) approach to a threshold-based

elliptic curve cryptographic system over blockchains

(TEB). For an instance of a TEB system, this work

chooses threshold anonymous credential system with

opening (TACO) as it has multiple on-chain elliptic

curve operations. As TEB systems using TAC and

TACO, Coconut (Sonnino et al., 2019) and DTRAC

(Naaz et al., 2022) can be considered as the base

systems, respectively. DTRAC (Naaz et al., 2022)

is used as a reference implementation of a TACO

scheme since it can be modiﬁed to operate in both

TAC and TACO modes. The major difference be-

tween TAC and TACO is in the issuance phase which

executes the credential request veriﬁcation function

Credreq

ver

– the credential issuers must verify the

correctness of the opening shares in a TACO system,

which they do not have to do in a TAC system. In the

TACO system, TOC is applied to credential request

veriﬁcation, Credreq

ver

and credential veriﬁcation,

Cred

ver

as they use several pairings and non-pairings

based elliptic curve operations, and therefore, are

resource-intensive. The off-chaining of a TEB system

with TOC happens in ﬁve phases: 1) the assessment

phase, to decide whether a TEB system is feasible for

threshold off-chaining, 2) the classiﬁcation phase, to

classify the functions to be off-chained, 3) the design

phase, to formulate a new system with the identiﬁed

functions running on the solver nodes, 4) the security

analysis phase, to verify the security and consistency

of the new system, and 5) the implementation and

evaluation phase, to execute the new system on an

instantiation of a TEB system.

5.1 Off-Chaining Approaches for TAC

and TACO

The asymptotic analysis for the number of elliptic

curve cryptographic operations for DTRAC is given

in Table 2. Bilinear pairings-based elliptic curve cryp-

tographic operations are more complex and have high

gas usage than other elliptic curve operations (Section

3.1). However, non-pairings-based operations still in-

cur a similar gas cost because they are more in num-

ber. Therefore, both pairings-based and non-pairings-

based elliptic curve operations are potential candi-

dates for off-chaining to reduce gas costs. Another

important observation in Table 2 is that for the open-

ing functionality, the number of pairings increases lin-

early with the number of openers, whereas for all the

other functionalities, it remains constant. As noted

before, since pairings have very limited optimizations

both on-chain and off-chain, off-chaining these oper-

ations to less powerful solver nodes can lead to in-

creased execution times. This will impact TACO sys-

tems more than TAC systems since the number of

pairings increases linearly with the number of open-

ers. To accommodate these differences, we introduce

two off-chain implementation approaches: 1) Selec-

tive off-chaining for TAC systems and 2) Empirical

push-back off-chaining for TACO systems.

Selective off-chaining approach for TAC. In this ap-

proach, we identify the two resource-intensive func-

tions that use elliptic curve operations – credential re-

quest veriﬁcation, Credreq

ver

and credential veriﬁca-

tion function, Cred

ver

– to off-chain.

Empirical push-back off-chaining approach for

TACO. Here also, Credreq

ver

and Cred

ver

are iden-

tiﬁed as functions to be off-chained for a TACO sys-

tem. However, even though it reduces the gas costs as

shown in Figure 7, a performance degradation is ob-

served as shown in Figure 11, due to pairings-based

operations that grow linearly in the number of open-

ers. The Ethereum Virtual Machine (EVM) uses built-

in pre-compiled contracts for all elliptic curve opera-

tions including addition (alt bn128), scalar multipli-

cation (EIP-196) and pairings (EIP-197). All these

contracts are optimized to ﬁt within the block gas

limit. However, the gas costs incurred by pairings

are still large due to their complex and non-trivial na-

ture. Also, the nature of the bilinear pairing operation,

which combines elements from two different groups,

limits its ﬂexibility to be optimized in general. How-

ever, this is not the case with standard elliptic curve

operations, which can utilize compiler optimizations

and parallelizations run off-chain on a solver node.

The empirical data relating to execution time (Fig-

ure 11) indicates that, if off-chaining is limited to

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

416

Table 2: Asymptotics of elliptic curve operations for on-chain veriﬁcation operations in DTRAC.

Elliptic curve

operation

point

negation

Scalar multi-

plication

Pairing G

Point

addition

Modular ex-

ponentiation

point

addition

Gas cost per unit

operation

100 6000 34000 ×

k +

45000

150 200 28474

Veriﬁcation

operation

Credential

veriﬁcation

O(n

attr

) O(n

attr

) O(1) O(1) O(1)

Correctness

of opening

O(n

) O(n

priv.attr

)

O(n

) O(n

priv.attr

)

O(n

)

Signature on

certiﬁcate

O(n

certs

) O(n

certs

) O(n

certs

)

Correctness

of attributes

O(n

attr

) O(n

attr

)

k is the no. of points on which pairing is done, n

attr

is the total number of attributes, n

is the total number of credential

openers, n

priv.attr

is the number of private attributes, t

is the threshold value for credential openers and n

certs

is the total

number of certiﬁcates.

non-pairing based elliptic curve cryptographic oper-

ations and pairings-based functions are pushed back

on-chain, the execution time improves. The pairings-

based operations beneﬁt from running on the miner

nodes. This enables us to achieve the best of both

worlds at a slightly higher gas cost.

Using Table 2 as a reference, we off-chain the

non-pairing elliptic curve operations of Credreq

ver

the TACO system, while keeping the pairing opera-

tions on-chain. That is, the veriﬁcation of ZKPoKs

that proves the correctness of the commitments of the

user attributes and the signature veriﬁcation of the

certiﬁcates issued by the certiﬁers are off-chained.

However, the veriﬁcation of the ZKPoK that proves

the correctness of the encrypted opening shares is

pushed back on-chain. The execution time of the off-

chained Cred

ver

is lesser than the average block time

of Ethereum because it has only very few (constant

number) pairings-based operations. It is therefore off-

chained as per the selective off-chaining approach.

5.2 Instantiation of TAC and TACO

DTRAC is a threshold anonymous credential sys-

tem over blockchains that extends Coconut to enable

threshold opening of the credential. To instantiate the

TACO system, we use DTRAC as-is, and to instanti-

ate the TAC system we disable the opening function-

ality. Using DTRAC for both TAC and TACO sys-

tems ensures consistency in our comparisons of the

performances over various benchmarks. Note that in

DTRAC, credential issuers of the TACO system are

referred to as validators and credential openers are

referred to as openers. The Credreq

ver

operation in-

cludes both Verify Vcerts and Verify proofs functions

of DTRAC and Cred

ver

is the same as VerifyCred in

DTRAC.

Assessment Phase. The bottleneck estimation of

DTRAC (Table 3) reveals that the two on-chain pro-

cesses 1) Verify Vcerts and Verify proofs (Credreq

ver

)

executed by the validators in the issuance phase

((Naaz et al., 2022, Figure 4)) and 2) VerifyCred

(Cred

ver

) executed by the service provider in the ver-

iﬁcation phase ((Naaz et al., 2022, Figure 5)) take up

94% of the gas cost and 80% of the execution time,

respectively. The elliptic curve cryptographic com-

putations in these smart contracts are the cause of

the performance bottleneck and since they are con-

tained in speciﬁc smart contracts with no architecture

or ecosystem-related dependency, off-chaining is a vi-

able option.

Classiﬁcation Phase. The credential request veriﬁca-

tion Credreq

ver

(Step 4) and the credential veriﬁca-

tion Cred

ver

(Step 10) functions do not incur any ma-

jor communication overhead because they only have

data inputs typically in the range of tens of bytes and

the output of a veriﬁcation function is either true or

false. These functions do not produce output data that

needs to be shared with other stakeholder nodes, and

thus they have minimal immutability requirements.

The functions Credreq

ver

and Cred

ver

do not use any

private code and thus can be shared with untrusted

entities for execution. The inputs to the function are

public parameters shared on-chain, and the output are

public values as they are veriﬁcation functions out-

putting either true or false. We thus conclude that

Off-Chaining Approaches for Cost-Efﬁciency in Threshold-Based Elliptic Curve Systems over Blockchains

417

Table 3: Bottleneck Estimation of DTRAC.

Method

Avg. gas

cost

Avg.

time

(in million) (in sec)

Verify Vcerts and Verify

proofs (Credreq

ver

)

6 35.2

VerifyCred (Cred

ver

) 1 5.3

Others 0.4 10.3

Total 7.4 50.8

Credreq

ver

and Cred

ver

are viable candidates to be

off-chained.

Design Phase. Threshold off-chain computation

(TOC) is applied to Credreq

ver

and direct off-

chaining – which can be described as the TOC ap-

proach with the threshold value set to 1 – is applied to

off-chain Cred

ver

. The reason for the TOC approach

is that the on-chain Credreq

ver

function is performed

by issuers that follow the threshold trust assump-

tion. In the off-chain system, the issuers are extended

to additionally perform the role of the solver nodes.

The threshold trust assumption ensures the same trust

guarantees in the off-chain system. In Cred

ver

, the

choice of providing the service or not is solely up to

the service provider regardless of it being performed

on-chain or off-chain. This is the case even if the cre-

dential is valid. Thus, the trust guarantee solely re-

lies on the service provider, and therefore, having the

service provider perform the function off-chain will

still ensure the same trust guarantees and computa-

tional availability. Figure 4 describes a TACO sys-

tem after off-chaining and the modiﬁed entities and

functionalities are marked with the ”Extended” pre-

ﬁx. The two timeline charts compare and contrast

the chronological sequence of events in a threshold

anonymous credential system before (Figure 5) and

after off-chaining (Figure 6).

3. Requests

credential

1.Request

certificates

User

4. Forwards certificate

verification request

6. Issues

credentials

5.3 Sends

verification

status

9. Sends

opening

information

7. Forward

credentials to user

Openers

Credential Opener

2.Issue

certificates

Certifier

Extended Service

Provider

8. Requests

service

1.1 Sends

for verification

1.3 Verification

successful

9.1 Sends

for verification

9.3 Verification

successful

5.1 Sends

for verification

Blockchain

10. Provides

service

Extended

Credential

request

smart contract

User

Extended

Credential Issuer

9.2 Verification

of user credentials

Cred

ver

5.2 Credential

request verification

Credreq

ver

1.2 Verification

of user details

Figure 4: Threshold anonymous credentials after off-

chaining.

Security Analysis Phase. Here, checks are made to

determine if the security requirements of the on-chain

Figure 5: Timeline of credential issuance and availing a ser-

vice before off-chaining.

Time

User

Openers

Blockchain

Validators

Extended

Service

Provider

Requests

credential

Forwards

credential

request

Creates

proofs

Validators

Extended

Credential

Issuer (CI)

Issues

credentials

Forwards

credentials

Aggregates

credentials

Stores

opening

shares into

database

Openers

Credential

Opener

Sends

Opening

Info

Requests

service

Verifies user

credentials

Avails service

Validates

proofs

Extended SC

chooses CIs

Blind signs

commitments

Provides

service

Figure 6: Timeline of credential issuance and availing a ser-

vice after off-chaining.

system are met off-chain. The off-chained TEB sys-

tem has no/minimal data immutability requirements

and uses on-chain storage which ensures data avail-

ability as blockchains are a highly available platform.

The privacy and trust guarantees of the system are

preserved as discussed in the design phases. The TOC

interface smart contract ensures access control.

Implementation and Evaluation Phase. TOC and

direct off-chaining approaches are implemented for

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

418

both TACO and TAC as per the design we ﬁnalized.

This is implemented on the same DTRAC system by

enabling and disabling the opening functionality.

6 EVALUATION

We present the evaluation of the off-chained DTRAC

after implementing selective off-chaining for DTRAC

with and without opening, and empirical pushback

off-chaining for DTRAC with opening.

6.1 Experimental Setup

The speciﬁcations of the computation environment

and the number of entities are given in Table 5 and Ta-

ble 6, respectively. The experiments were performed

on a 64-bit Ubuntu 22.04.2 LTS with AMD Ryzen

5 5600H CPU (6 core and 12 threads at 4.2 GHz)

and 16 GB RAM. The implementation was built us-

ing Python for the codebase and Solidity for the smart

contracts. The smart contracts were deployed on the

local blockchain, Ganache and to accurately reﬂect

the real-world execution time of a blockchain, we also

deploy the smart contracts on the public testnet, Sepo-

lia. We consider several combinations of the evalua-

tion setup which are summarized in Table 4.

6.2 Gas Costs

For selective off-chaining for TAC (Figure 8), the gas

cost for Credreq

ver

improves by 5.65x and 5.15x for

Ganache and Sepolia, respectively. When using se-

lective off-chaining in TACO (Figure 7), the gas cost

reduces signiﬁcantly for Credreq

ver

– 25x in Ganache

and 23x in Sepolia. However, the execution time de-

grades (refer Section 5.1 and Figure 11) and there-

fore to balance that, we do empirical push-back for

TACO (Figure 9) where the gas cost for Credreq

ver

still improves by 4.75x and 3.61x for Ganache and

Sepolia, respectively. This is as expected as less on-

chain computations result in lower gas costs. The gas

cost for the credential veriﬁcation function, Cred

ver

zero for both TAC and TACO systems since we by-

pass the blockchain completely.

6.3 Execution Time

Figure 10 depicts the execution time for TAC after

applying selective off-chaining to the Credreq

ver

and

Cred

ver

functions. In Ganache, the execution time

reduces drastically for Credreq

ver

when off-chained.

However, in Sepolia, the off-chained Credreq

ver

waits

Gas cost (in million)

Credential request

verification on

Ganache

Credential

verification on

Ganache

Credential request

verification on

Sepolia

Credential

verification on

Sepolia

TACO DTRAC Selective off-chained TACO DTRAC

Figure 7: Gas costs of threshold anonymous credentials

with opening (TACO) using selective off-chaining.

Gas cost (in million)

0.0

2.5

5.0

7.5

10.0

Smart

contract

deployment

on Ganache

Credential

request

verification

on Ganache

Credential

verification

on Ganache

Smart

contract

deployment

on Sepolia

Credential

request

verification

on Sepolia

Credential

verification

on Sepolia

TAC DTRAC Selective off-chained TAC DTRAC

Figure 8: Gas costs of threshold anonymous credentials

without opening (TAC) using selective off-chaining.

Gas cost (in million)

0.0

2.5

5.0

7.5

10.0

Smart

contract

deployment

on Ganache

Credential

request

verification

on Ganache

Credential

verification

on Ganache

Smart

contract

deployment

on Sepolia

Credential

request

verification

on Sepolia

Credential

verification

on Sepolia

TACO DTRAC Empirical push-back off-chained TACO DTRAC

Figure 9: Gas costs of threshold anonymous creden-

tials with opening (TACO) using empirical push-back off-

chaining.

for the data to be published on the blockchain to ini-

tiate the veriﬁcation computations, making the execu-

tion time comparable with the on-chain case. The exe-

cution time for the off-chain Cred

ver

for both Ganache

and Sepolia resulted in comparable outcomes to the

on-chain case. This is because 1) the optimizations

for pairings provided by pre-compiled on-chain con-

tracts and the optimizations for non-pairing opera-

tions offered by the off-chain nodes offset each other,

and 2) Cred

ver

performs fewer elliptic curve opera-

tions, including pairings, compared to Credreq

ver

(Ta-

ble 2).

Off-Chaining Approaches for Cost-Efﬁciency in Threshold-Based Elliptic Curve Systems over Blockchains

419

Table 4: Evaluation setup summarized.

Mode of

system

Blockchain

platform

On-chain

(original)

Selective off-chaining Empirical push-back

off-chaining

TAC

Ganache

Considered in

all evaluation

items

Gas cost (Figure 8), Execution

time (Figure 10)

N/A

Sepolia

TACO

Ganache

Gas cost (Figure 7), Execution

time (Figure 11)

Gas cost (Figure 9),

Execution time (Figure 12)

Sepolia

Table 5: Speciﬁcations of the computation environment.

Components Speciﬁcation Version

Blockchain Ethereum 1

Ethereum emula-

tor

Ganache 2.5.4

Sepolia 0x90000069

Smart contracts Solidity 0.8.19

Cryptographic

library

py ecc 6.0.0

Table 6: Number of Entities.

Type No of entities

Certiﬁers 2

Validators (total, threshold) (3,2)

Openers (total, threshold) (3,2)

Execution time (in sec)

Credential

request

verification on

Ganahce

Credential

verification on

Ganache

Credential

request

verification on

Sepolia

Credential

verification on

Sepolia

TAC DTRAC Selective off-chained TAC DTRAC

Figure 10: Execution times of threshold anonymous creden-

tials without opening (TAC) using selective off-chaining.

For a TACO system, Figure 11 depicts the exe-

cution time with selective off-chaining and Figure 12

depicts the execution time with empirical push-back

off-chaining. A signiﬁcant degradation of the exe-

cution time for Credreq

ver

is observed with selective

off-chaining, despite the substantial reduction of gas

cost (Figure 7), for both Ganache and Sepolia. As

discussed in Section 5.1, a solution to this is empiri-

Execution time (in sec)

Credential request

verification on

Ganache

Credential

verification on

Ganache

Credential request

verification on

Sepolia

Credential

verification on

Sepolia

TACO DTRAC Selective off-chained TACO DTRAC

Figure 11: Execution time of threshold anonymous creden-

tials with opening (TACO) using selective off-chaining.

Execution time (in sec)

Credential

request

verification on

Ganahce

Credential

verification on

Ganache

Credential

request

verification on

Sepolia

Credential

verification on

Sepolia

TACO DTRAC Empirical push-back off-chained TACO DTRAC

Figure 12: Execution times of threshold anonymous cre-

dentials with opening (TACO) using empirical push-back

off-chaining.

cal push-back off-chaining, which improves the exe-

cution time at the cost of slightly increased gas cost.

After the empirical push-back of TACO, the improve-

ment in execution time of Credreq

ver

is signiﬁcant for

Ganache, as shown in Figure 12. However, in Sepo-

lia, the execution time remains comparable to the on-

chain case. This is because the system waits one block

time for the on-chain veriﬁcation of the correctness of

the opening shares and only after that do the off-chain

nodes fetch the data from the blockchain and perform

the efﬁcient off-chain operations. The off-chaining of

Cred

ver

in TACO is similar to that of TAC because

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

420

it has no opening operations, and therefore the ob-

servations and justiﬁcations are the same as that of

TAC, for both Ganache and Sepolia. The empirical

push-back off-chaining approach reduces the overall

gas costs while maintaining or improving the execu-

tion times as summarized in Figure 12.

7 CONCLUSION AND FUTURE

WORK

This work addressed the problem of high gas con-

sumption of smart contracts when they are used in

threshold-based elliptic curve cryptographic systems

(TEB) such as anonymous credential systems over

blockchains. A new approach, threshold off-chain

computation (TOC), was introduced which ofﬂoads

on-chain functions from smart contracts to off-chain

solver nodes, that follow the threshold trust assump-

tion, thus reducing gas costs. The off-chained func-

tions preserve the trust guarantees and computation

correctness as long as at least a threshold number of

solver nodes are honest. This paper ﬁrst described

a threshold-based anonymous credential system a)

with opening (TACO) and b) without opening (TAC)

over a blockchain as a base TEB system to illustrate

the proposed TOC approach. Both TACO and TAC

were instantiated using DTRAC. Two different TOC

approaches were adopted: 1) selective off-chaining

for TAC and 2) empirical push-back off-chaining for

TACO, based on the asymptotic analysis of the num-

ber of pairings to be off-chained. The performance

evaluation of both gas consumption and execution

time demonstrated the effectiveness of the solution.

A possible future direction is to explore whether

the non-interactive zero-knowledge proofs used in

these TACO systems can be replaced with the shorter

zk-SNARKS such Groth16 (Groth, 2016). This may

allow selective off-chaining for TACO without any

performance degradation. This will also allow the

batching of off-chain veriﬁcations, which will make

the system scalable. Rewarding off-chain comput-

ing nodes is also another direction to ensure compu-

tational correctness. A formal security analysis of the

off-chained system in the UC framework was skipped

since the work do not modify the underlying crypto-

graphic primitives. However, this can be attempted as

a future work.

REFERENCES

Boneh, D., Boyen, X., and Shacham, H. (2004). Short

group signatures. In Annual international cryptology

conference, pages 41–55. Springer.

Boneh, D. and Franklin, M. (2001). Identity-based encryp-

tion from the weil pairing. In Advances in Cryp-

tology—CRYPTO 2001, Santa Barbara, California,

USA, August 19–23, 2001 Proceedings, pages 213–

229. Springer.

Buccafurri, F., Angelis, V., and Lazzaro, S. (2022). A

blockchain-based framework to enhance anonymous

services with accountability guarantees. Future Inter-

net, 14:243.

Camenisch, J., Dubovitskaya, M., Haralambiev, K., and

Kohlweiss, M. (2015). Composable and modular

anonymous credentials: Deﬁnitions and practical con-

structions. In Iwata, T. and Cheon, J. H., editors, Ad-

vances in Cryptology – ASIACRYPT 2015, pages 262–

288, Berlin, Heidelberg. Springer Berlin Heidelberg.

Camenisch, J. and Lysyanskaya, A. (2001). An identity es-

crow scheme with appointed veriﬁers. In Advances in

Cryptology—CRYPTO 2001, Santa Barbara, Califor-

nia, USA, August 19–23, 2001 Proceedings 21, pages

388–407. Springer.

Chaum, D. (1985). Security without identiﬁcation: Trans-

action systems to make big brother obsolete. Com-

mun. ACM, 28(10):1030–1044.

Connolly, A., Lafourcade, P., and Perez Kempner, O.

(2022). Improved constructions of anonymous

credentials from structure-preserving signatures on

equivalence classes. In Public-Key Cryptography –

PKC 2022: 25th IACR International Conference on

Practice and Theory of Public-Key Cryptography, Vir-

tual Event, March 8–11, 2022, Proceedings, Part I,

Berlin, Heidelberg. Springer-Verlag.

Eberhardt, J. and Heiss, J. (2018). Off-chaining models and

approaches to off-chain computations. In Proceedings

of the 2nd Workshop on Scalable and Resilient Infras-

tructures for Distributed Ledgers, SERIAL’18, page

7–12, New York, NY, USA. Association for Comput-

ing Machinery.

Eberhardt, J. and Tai, S. (2017). On or off the blockchain?

insights on off-chaining computation and data. In

Service-Oriented and Cloud Computing: 6th IFIP

WG 2.14 European Conference, ESOCC 2017, Oslo,

Norway, September 27-29, 2017, Proceedings 6,

pages 3–15. Springer.

Eberhardt, J. and Tai, S. (2018). Zokrates - scalable

privacy-preserving off-chain computations. In 2018

IEEE International Conference on Internet of Things

(iThings) and IEEE Green Computing and Commu-

nications (GreenCom) and IEEE Cyber, Physical and

Social Computing (CPSCom) and IEEE Smart Data

(SmartData), pages 1084–1091.

Fuchsbauer, G., Hanser, C., and Slamanig, D. (2018).

Structure-preserving signatures on equivalence

classes and constant-size anonymous credentials.

Journal of Cryptology, 32.

Garman, C., Green, M., and Miers, I. (2014). Decentral-

ized anonymous credentials. Network and Distributed

System Security Symposium (NDSS), San Diego, Cal-

ifornia.

Goyal, V., Pandey, O., Sahai, A., and Waters, B. (2006).

Attribute-based encryption for ﬁne-grained access

Off-Chaining Approaches for Cost-Efﬁciency in Threshold-Based Elliptic Curve Systems over Blockchains

421

control of encrypted data. In Proceedings of the 13th

ACM conference on Computer and communications

security, pages 89–98.

Groth, J. (2016). On the size of pairing-based non-

interactive arguments. In Fischlin, M. and Coron, J.-

S., editors, Advances in Cryptology – EUROCRYPT

2016, pages 305–326, Berlin, Heidelberg. Springer

Berlin Heidelberg.

ebant, C. and Pointcheval, D. (2022). Traceable constant-

size multi-authority credentials. In Galdi, C. and

Jarecki, S., editors, Security and Cryptography for

Networks, pages 411–434, Cham. Springer Interna-

tional Publishing.

Kalodner, H., Goldfeder, S., Chen, X., Weinberg, S. M.,

and Felten, E. W. (2018). Arbitrum: Scalable, private

smart contracts. In 27th USENIX Security Symposium

(USENIX Security 18), pages 1353–1370, Baltimore,

MD. USENIX Association.

Koblitz, N. (1987). Elliptic curve cryptosystems. Mathe-

matics of computation, 48(177):203–209.

Liu, C., Bodorik, P., and Jutla, D. (2021). A tool for moving

blockchain computations off-chain. In Proceedings of

the 3rd ACM International Symposium on Blockchain

and Secure Critical Infrastructure, BSCI ’21, page

103–109, New York, NY, USA. Association for Com-

puting Machinery.

Liu, C. G., Bodorik, P., and Jutla, D. (2022). Automating

smart contract generation on blockchains using multi-

modal modeling [j]. Journal of Advances in Informa-

tion Technology, 13.

Miers, I., Garman, C., Green, M., and Rubin, A. D. (2013).

Zerocoin: Anonymous distributed e-cash from bit-

coin. In 2013 IEEE Symposium on Security and Pri-

vacy, pages 397–411. IEEE.

Miller, V. S. (1986). Use of elliptic curves in cryptogra-

phy. In Williams, H. C., editor, Advances in Cryp-

tology — CRYPTO ’85 Proceedings, pages 417–426,

Berlin, Heidelberg. Springer Berlin Heidelberg.

Molina-Jimenez, C., Sfyrakis, I., Solaiman, E., Ng, I.,

Weng Wong, M., Chun, A., and Crowcroft, J. (2018).

Implementation of smart contracts using hybrid archi-

tectures with on and off–blockchain omponents. In

2018 IEEE 8th International Symposium on Cloud

and Service Computing (SC2), pages 83–90.

Muth, R., Galal, T., Heiss, J., and Tschorsch, F. (2023). To-

wards smart contract-based veriﬁcation of anonymous

credentials. Financial Cryptography and Data Secu-

rity. FC 2022 International Workshops, pages 481–

498.

Naaz, A., Pavan Kumar B, T. V., Francis, M., and

Kataoka, K. (2022). Integrating threshold open-

ing with threshold issuance of anonymous credentials

over blockchains for a multi-certiﬁer communication

model. IEEE Access, 10:128697–128720.

Pointcheval, D. and Sanders, O. (2016). Short randomizable

signatures. In Topics in Cryptology-CT-RSA 2016:

The Cryptographers’ Track at the RSA Conference

2016, San Francisco, CA, USA, February 29-March

4, 2016, Proceedings, pages 111–126. Springer.

Rathee, D., Policharla, G. V., Xie, T., Cottone, R., and Song,

D. (2022). ZEBRA: anonymous credentials with prac-

tical on-chain veriﬁcation and applications to KYC in

deﬁ. IACR Cryptol. ePrint Arch., page 1286.

Ren, Q., Wu, Y., Liu, H., Li, Y., Victor, A., Lei, H., Wang,

L., and Chen, B. (2022). Cloak: Transitioning states

on legacy blockchains using secure and publicly veri-

ﬁable off-chain multi-party computation. In Proceed-

ings of the 38th Annual Computer Security Applica-

tions Conference, pages 117–131.

Rosenberg, M., White, J., Garman, C., and Miers, I. (2023).

zk-creds: Flexible anonymous credentials from zk-

snarks and existing identity infrastructure. In 2023

2023 IEEE Symposium on Security and Privacy (SP)

(SP), pages 1882–1900, Los Alamitos, CA, USA.

IEEE Computer Society.

Sanders, O. (2020). Efﬁcient redactable signature and ap-

plication to anonymous credentials. In Kiayias, A.,

Kohlweiss, M., Wallden, P., and Zikas, V., editors,

Public-Key Cryptography – PKC 2020, pages 628–

656, Cham. Springer International Publishing.

Sasson, E. B., Chiesa, A., Garman, C., Green, M., Miers, I.,

Tromer, E., and Virza, M. (2014). Zerocash: Decen-

tralized anonymous payments from bitcoin. In 2014

IEEE symposium on security and privacy, pages 459–

474. IEEE.

Smith, J. and Doe, J. (2022). Off-chaining models and ap-

proaches to off-chain computations. Journal of Off-

chain Computing, 1(1):1–10.

Sonnino, A., Al-Bassam, M., Bano, S., Meiklejohn, S.,

and Danezis, G. (2019). Coconut: threshold is-

suance selective disclosure credentials with applica-

tions to distributed ledgers. 26th Annual Network and

Distributed System Security Symposium (NDSS), San

Diego, California.

Teutsch, J. and Reitwießner, C. (2019). A scalable ver-

iﬁcation solution for blockchains. arXiv preprint

arXiv:1908.04756.

Yu, Y., Zhao, Y., Li, Y., Wang, L., Du, X., and Guizani, M.

(2019). Blockchain-based anonymous authentication

with selective revocation for smart industrial applica-

tions. IEEE Transactions on Industrial Informatics,

PP:1–1.

Zhu, Y., Song, X., Yang, S., Qin, Y., and Zhou, Q. (2018).

Secure smart contract system built on smpc over

blockchain. In 2018 IEEE International Conference

on Internet of Things (iThings) and IEEE Green Com-

puting and Communications (GreenCom) and IEEE

Cyber, Physical and Social Computing (CPSCom) and

IEEE Smart Data (SmartData), pages 1539–1544.

IEEE.

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

422
