Non-Local Context-Aware Attention for Object Detection in Remote

Sensing Images

Yassin Terraf

1 a

, El Mahdi Mercha

1 b

and Mohammed Erradi

HENCEFORTH, Rabat, Morocco

ENSIAS, Mohammed V University, Rabat, Morocco

Keywords:

Object Detection, Deep Learning, Attention, Remote Sensing Images.

Abstract:

Object detection in remote sensing images has been widely studied due to the valuable insights it provides for

different ﬁelds. Detecting objects in remote sensing images is a very challenging task due to the diverse range

of sizes, orientations, and appearances of objects within the images. Many approaches have been developed to

address these challenges, primarily focusing on capturing semantic information while missing out on contex-

tual details that can bring more insights to the analysis. In this work, we propose a Non-Local Context-Aware

Attention (NLCAA) approach for object detection in remote sensing images. NLCAA includes semantic and

contextual attention modules to capture both semantic and contextual information. Extensive experiments were

conducted on two publicly available datasets, namely NWPU VHR and DIOR, to evaluate the performance

of the proposed approach. The experimental results demonstrate the effectiveness of the NLCAA approach

against various state-of-the-art methods.

1 INTRODUCTION

The rise and rapid development of Earth observa-

tion technology have resulted in the fast generation

of high-quality remote sensing images. These images

carry valuable information that can advance several

real-life applications such as intelligent monitoring,

urban planning, precision agriculture, and geographic

information system updating (Li et al., 2020). How-

ever, manually processing and analyzing these large

volumes of generated images to extract useful infor-

mation is extremely difﬁcult. Therefore, considerable

efforts have been invested in developing automated

systems such as object detection. Object detection fo-

cuses on detecting, localizing, and identifying objects

in images. Given its signiﬁcance in the analysis of

remote sensing images, numerous studies have been

carried out in this area. Nevertheless, these studies

face challenges, such as the lack of important visual

clues details which signiﬁcantly constrain their per-

formance.

Earlier approaches often are based on traditional

methods with hand-crafted features like the histogram

of orientation gradient (Zhang et al., 2013), scale-

https://orcid.org/0009-0004-4026-5887

https://orcid.org/0000-0003-2034-1737

invariant feature transform (Cheng and Han, 2016),

and Hough transform (Xu et al., 2014). While these

methods are easy to use and computationally efﬁcient,

they do not meet the desired accuracy. The main rea-

sons for this include their limitations in adapting to

varying conditions in remote sensing images and their

dependence on hand-crafted features, which may not

effectively capture the complex patterns of objects.

In recent years, deep learning techniques, espe-

cially convolutional neural networks (CNNs), have

made signiﬁcant improvements in object detection. A

wide range of CNN-based object detection systems

(Ren et al., 2015; Redmon et al., 2016) have been de-

veloped and they showed promising results on vari-

ous datasets. Even though CNN-based methods have

made substantial progress, ﬁnding objects in remote

sensing images is still a big challenge due to the difﬁ-

culty in capturing the salient features that are key for

effective object detection. To tackle this challenge,

many researchers have intended to create better fea-

ture representations to improve the performance of

object detection in remote sensing. One of the com-

monly adopted techniques to obtain these features is

through attention mechanisms, which help the model

focus on important parts of the images. Most attention

mechanism-based works focus on capturing effective

features from objects based on semantic characteris-

130

Terraf, Y., Mercha, E. and Erradi, M.

Non-Local Context-Aware Attention for Object Detection in Remote Sensing Images.

DOI: 10.5220/0012363700003660

In Proceedings of the 19th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2024) - Volume 2: VISAPP, pages

130-138

ISBN: 978-989-758-679-8; ISSN: 2184-4321

tics, such as object shape and color, but they often

overlook key clues, which are contextual information.

Contextual information is essential in object detection

as it highlights the interactions between objects and

their surroundings, which improves the performance

of object detection in remote sensing images (Perko

and Leonardis, 2010; Oliva and Torralba, 2007).

Given the importance of contextual information in

object detection, we introduce a new attention mech-

anism, Non-Local Context-Aware Attention (NL-

CAA). This mechanism effectively integrates both se-

mantic characteristics of the object as well as contex-

tual features within a uniﬁed framework. Our main

contributions are as follows:

• We present a new attention mechanism that com-

bines both semantic and contextual information

into a uniﬁed framework to improve object detec-

tion in remote sensing images.

• We integrate NLCAA into the existing YOLOv3

architecture to enhance its feature detection capa-

bilities.

• Extensive experiments have been conducted on

object detection in remote sensing images using

the DIOR and NWPU-VHR datasets.

The rest of this paper is organized as follows: Section

II covers related works. Section III describes the pro-

posed method. Section IV presents the implementa-

tion details and experimental results. Section V con-

cludes the paper.

2 RELATED WORK

Attention mechanisms have become increasingly

popular in the ﬁeld of remote sensing object detection

to improve performance. Notably, several approaches

have developed speciﬁc attention modules to capture

relationships between different regions or pixels in

the image space, known as spatial dependencies, to

enhance the accuracy of object detection. CAD-Net

(Zhang et al., 2019) incorporated a spatial-and-scale-

aware attention module to capture spatial dependen-

cies by highlighting informative regions within the in-

put data. Similarly, SCRDet (Yang et al., 2019) used

a multi-dimensional attention network module to cap-

ture additional feature information, thereby enhanc-

ing the discriminative power of the model. FADet (Li

et al., 2019) focused on enhancing object-related rep-

resentations while suppressing background and noise

information to improve object detection performance.

MSA-Network (Zhang et al., 2021) integrates a mul-

tiscale module along with a channel and position at-

tention module to concentrate on important regions

by extracting attention-based features. Furthermore,

MTCNet (Wang et al., 2022b) employed the convolu-

tional block attention module (Woo et al., 2018) to de-

rive ﬁner-grained features, thereby improving object

detection effectiveness. However, these methods pre-

dominantly employ simpler attention techniques that

focus on nearby features, learned through convolu-

tions with local receptive ﬁelds, and do not account

for relationships between distant regions. This limita-

tion results in a missed opportunity to include global

contextual information, thereby restricting their un-

derstanding of long-range dependencies.

To address existing limitations, a variety of non-

local attention mechanisms have been proposed,

drawing inspiration from the Non-Local Network

(Wang et al., 2018). These mechanisms excel in ex-

tracting relationships from remote sensing images.

In deep learning contexts, images are represented

as a series of feature maps, emphasizing distinct at-

tributes. These feature maps are further divided into

channels, each focusing on speciﬁc image character-

istics. While these attention mechanisms effectively

capture relationships within a single channel, they

face challenges in bridging interactions across dif-

ferent channels. Addressing this challenge, CGNL

(Yue et al., 2018) introduced a methodology that fa-

cilitates interactions across these channels. How-

ever, these non-local networks operate at the pixel-

to-pixel level, where each pixel is compared with ev-

ery other pixel, potentially introducing noise into the

feature representations. In response, (Zhang et al.,

2021) introduced the Non-local Pyramid Attention

(NP-Attention), which employs correlations between

patches instead of pixels. These patches are gener-

ated by partitioning the feature maps into multiple

subregions, typically achieved through pooling opera-

tions at varying scales. By focusing on patches rather

than individual pixels, NP-Attention efﬁciently cap-

tures feature representations while reducing computa-

tional complexity. Although NP-Attention is effective

in extracting features at the patch level, it primarily

relies on the semantic characteristics of objects.

To address this limitation, we introduce a novel

approach, NLCAA, that integrates both semantic

characteristics and contextual information at the patch

level. By including contextual information, our

method better understands the relationships between

objects and their surrounding environment, thereby

enhancing object detection performance.

Non-Local Context-Aware Attention for Object Detection in Remote Sensing Images

131

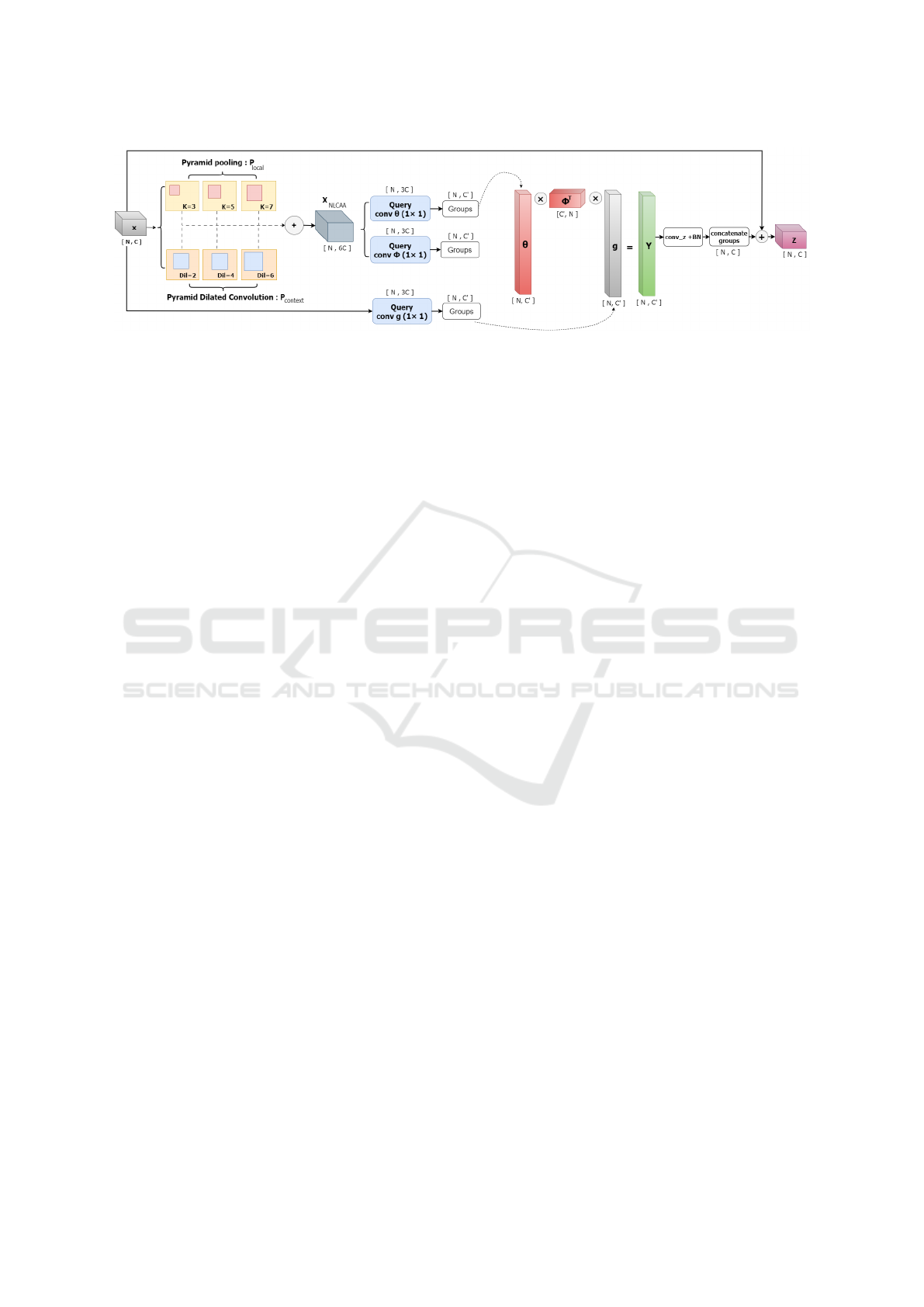

Figure 1: The architecture of the proposed NLCAA approach. The ⊕ symbolizes concatenation, while the ⊗ denotes the dot

product operation.

3 THE PROPOSED APPROACH

In this section, we present the YOLOv3 architecture

along with its components and we provide a compre-

hensive understanding of its operational characteris-

tics and advantages. Furthermore, we describe the

proposed NLCAA approach and we provide details

about the methodology adopted to integrate it into the

YOLOv3 architecture to enhance object detection in

remote sensing images.

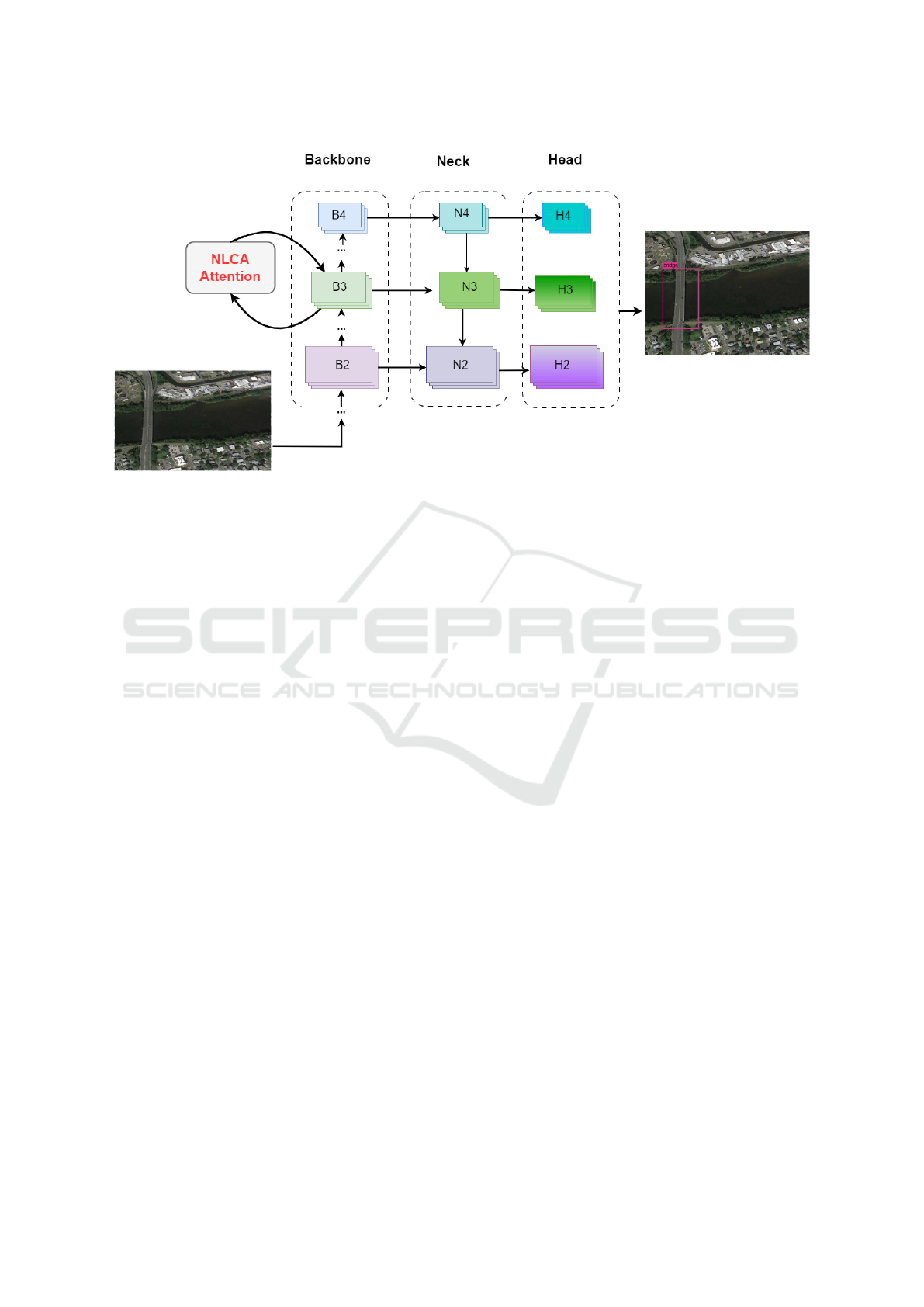

3.1 NLCAA: Yolov3-Based

In the domain of object detection in remote sensing

images, selecting an appropriate framework model

is crucial for validating and implementing new ap-

proaches. Widely acknowledged for its efﬁcacy in

object detection, YOLOv3 has been extensively em-

ployed in several studies, including those by Zhang

et al. (Zhang et al., 2020), Wang et al. (Wang et al.,

2020), and Zhang et al. (Zhang et al., 2022). The

extensive use of YOLOv3 in these studies establishes

it as a standard benchmark. Therefore, to evaluate

the proposed NLCAA against several baseline mod-

els, we select YOLOv3 as a base framework model.

This choice ensures that comparisons with the pro-

posed NLCAA approach are consistent, providing a

clear framework for evaluating the improvements of

the proposed approach.

YOLOv3 introduces signiﬁcant improvements

over its predecessors. The key innovation lies in its

ability to divide an image into a grid and predict

bounding boxes and class probabilities directly, in a

single pass. It consists of several key components that

contribute to its object detection capabilities:

Backbone. The backbone of YOLOv3, based on the

Darknet-53 architecture, is integral in extracting com-

plex features from images. This functionality is cru-

cial for NLCAA, which depends on detailed feature

extraction to accurately detect and analyze objects in

remote sensing images. By providing an in-depth and

comprehensive analysis of image data, the Darknet-

53 backbone ensures that NLCAA has access to the

detailed features necessary for its advanced attention

mechanism.

Neck. The neck processes the features from the back-

bone at multiple scales, which is essential for detect-

ing objects of different sizes. This is in line with the

NLCAA objective to understand contextual relation-

ships in images, where the scale of features plays a

signiﬁcant role in accurate object detection.

Head. The head of YOLOv3 is responsible for con-

verting processed features into the ﬁnal object de-

tection outputs. This involves generating bounding

boxes, class labels, and conﬁdence scores, which are

crucial for reliable detection in various remote sens-

ing scenarios.

3.2 Non-Local Context-Aware Attention

(NLCAA)

Drawing inspiration from the Non-Local Network

(Wang et al., 2018), we introduce the Non-Local

Context-Aware Attention (NLCAA) approach. We

start with a brief review of the original non-local op-

eration, which detects relationships between any two

positions in an image. Consider a remote sensing im-

age denoted by the feature map X ∈ R

N×C

, where C is

the number of channels and N = HW is the combina-

tion of the spatial dimensions of width W and height

H. The non-local operation’s primary goal is to dis-

cern relationships across the entire feature map, com-

puting the output Y ∈R

N×C

as a weighted sum of fea-

tures from all positions.

Y = f (θ(X), φ(X))g(X) (1)

where θ(·), φ(·), and g(·) are learnable parameters,

typically implemented using 1 by 1 convolutions.

Figure 1 illustrates the global architecture of NLCAA

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

132

Figure 2: YOLOv3 Architecture with NLCAA Attention: Feature Map representations : Backbone B

, Neck N

, and Head H

approach. NLCAA employs pyramid pooling with

varying kernel sizes k ∈K = {3, 5, 7}. Smaller kernel

sizes capture ﬁne-detail semantic information, while

larger kernels capture global semantic features. These

multi-scale semantic feature maps, denoted as P

local

are concatenated along the channel dimension:

local

k∈K

MaxPool

(X) (2)

Additionally, NLCAA uses pyramid dilated convolu-

tion on the input feature map X. Different dilation

rates d ∈ D = {2, 4, 6} are used, expanding the con-

volution ﬁlters’ receptive ﬁeld. This process captures

multi-scale contextual information, with smaller dila-

tion rates focusing on closer contexts and larger rates

encompassing broader contexts without compromis-

ing spatial resolution. The resulting feature maps,

contextual

, are also concatenated along the channel di-

mension:

contextual

d∈D

DilatedConv

(X) (3)

The feature maps P

local

and P

contextual

, incorporat-

ing multi-scale semantic and contextual information,

are combined to form the aggregated feature map

NLCAA

= Concatenate(P

local

, P

contextual

) (4)

To apply the non-local operation to X

NLCAA

, a 1 by

1 convolution is applied to extract three fundamental

components: the Query (θ), Key (φ), and Value (g).

They are represented as:

θ(X

NLCAA

)

vec

= vec(X

NLCAA

) ∈ R

N×3C

(5)

φ(X

NLCAA

)

vec

= vec(X

NLCAA

) ∈ R

N×3C

(6)

g(X)

vec

= vec(XW

) ∈ R

N×3C

(7)

Following this extraction, X

NLCAA

is divided into sep-

arate groups using the same approach as in (Yue

et al., 2018). This division enables parallel process-

ing, thereby decreasing computational time. Each

divided group performs processing through the non-

local operation, generating individual outputs Y

= f (θ(X

NLCAA

)

, φ(X

NLCAA

)

, g(X)

) (8)

After processing, the individual outputs Y

are com-

bined. The resulting merged output is normalized and

then added to the original input X to generate the ﬁnal

feature map Y .

Y = GroupNorm (Concatenate(Y

, Y

, . . . , Y

) + X )

(9)

The obtained Y , enriched with multi-scale semantic

and contextual features details.

To effectively integrate NLCAA into the YOLOv3

architecture and improve its object detection capabil-

ities, we have chosen a strategic approach. As shown

in Figure 2, instead of applying NLCAA to the ini-

tial or ﬁnal feature maps, we incorporate it into the

intermediate feature maps for several reasons. In-

termediate feature maps inherently capture a higher

level of semantic information compared to initial fea-

ture maps, which is crucial for effective object de-

tection. Furthermore, applying NLCAA to the ini-

tial feature maps can be computationally expensive,

especially when dealing with high-dimensional input

Non-Local Context-Aware Attention for Object Detection in Remote Sensing Images

133

data. Conversely, intermediate feature maps typically

have lower dimensionality, allowing for more efﬁcient

computation of attention mechanisms. Additionally,

the ﬁnal feature maps in a neural network often ex-

hibit high spatial resolution but may contain signif-

icant noise or irrelevant information. Applying NL-

CAA to these feature maps can lead to incorrect re-

sults, a loss of model stability, or overﬁtting. In com-

parison, intermediate feature maps are better poised to

contain relevant information without the interference

of excessive noise. By integrating NLCAA into these

intermediate feature maps, we enhance the YOLOv3

architecture’s contextual understanding, reduce com-

putational complexity, and prioritize pertinent infor-

mation, thereby improving its capabilities in object

detection in remote sensing images.

3.3 Loss Function

The loss function used in our object detection sys-

tem is a composite loss function, which is expressed

through the following equation:

total

= λ

loc

+λ

obj

+λ

noobj

+λ

class

(10)

where L

loc

, L

obj

, L

noobj

, L

class

represent respectively

the localization loss, objectness loss, no-objectness

loss, and the classiﬁcation loss. L

loc

is the localiza-

tion loss, this component evaluates the accuracy of

the predicted bounding boxes. For every detected ob-

ject, the predicted bounding box is characterized by

its center coordinates (x, y) and its dimensions (w, h).

The mathematical representation is:

loc

∑

i=0

∑

j=0

obj

i j

− ˆx

)

+ (y

− ˆy

)

+ (

√

−

ˆw

)

+ (

−

)

(11)

Here, (x, y, w, h) denote the predictions, and ( ˆx, ˆy, ˆw,

are the actual values. The indicator 1

obj

i j

conﬁrms the

presence of an object in cell i for bounding box j. L

obj

is the conﬁdence of object presence loss, this compo-

nent measures the conﬁdence regarding the presence

of objects within the bounding boxes. The formula is:

obj

∑

i=0

∑

j=0

obj

i j

−

)

(12)

where S represents the grid size, determining the

number of cells along each dimension in the image

grid, and B denotes the number of predicted bound-

ing boxes for each grid cell. For bounding boxes that

do not contain any objects, another no-objectness loss

is considered:

noobj

∑

i=0

∑

j=0

noobj

i j

−

)

(13)

In both equations, C

represents the predicted conﬁ-

dence, while

denotes the true conﬁdence. L

class

the classiﬁcation loss that classiﬁes the detected enti-

ties. The classiﬁcation loss measures how accurately

the approach used to classify objects manages this. It

is represented as:

class

∑

i=0

obj

∑

c∈classes

(c))

(14)

Here, p

cell i, and ˆp

4 EXPERIMENTS

This section validates the effectiveness of the pro-

posed NLCAA approach through experiments on two

public remote sensing datasets. It demonstrates the

impact of incorporating contextual and semantic in-

formation in remote sensing object detection using

NLCAA.

4.1 Datasets

4.1.1 NWPU-VHR10

The NWPU-VHR10 dataset (Cheng et al., 2014), con-

sists of a total of 800 very-high-resolution remote

sensing images, of which 650 are positive samples

containing various objects of interest, and 150 are

negative samples that do not contain any objects of in-

terest. The dataset provides annotations for ten types

of objects, namely plane, ship, storage tank, baseball

diamond, tennis court, basketball court, ground track

ﬁeld, harbor, bridge, and vehicle. The objects of inter-

est are annotated using publicly accessible horizontal

bounding boxes (HBB).

4.1.2 DIOR

The DIOR dataset (Li et al., 2020), is a comprehen-

sive aerial image dataset designed for object detec-

tion, consisting of 23,463 images with 190,288 in-

stances. All images in the dataset have a size of 800 ×

800 pixels. The dataset is divided into three subsets:

5,862 images for training, 5,863 images for valida-

tion, and 11,738 images for testing. It encompasses

20 prevalent object categories: Airplane (c1), Airport

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

134

(c2), Baseball ﬁeld (c3), Basketball court (c4), Bridge

(c5), Chimney (c6), Dam (c7), Expressway service

area (c8), Expressway toll station (c9), Golf course

(c10), Ground track ﬁeld (c11), Harbor (c12), Over-

pass (c13), Ship (c14), Stadium (c15), Storage tank

(c16), Tennis court (c17), Train station (c18), Vehicle

(c19), and Windmill (c20).

4.2 Settings

For our experiments, two datasets were primarily con-

sidered: NWPU-VHR10 and DIOR. The NWPU-

VHR10 dataset does not come with a predeﬁned train-

ing and testing split. To address this, we used a

random sampling technique. Speciﬁcally, 75% of

the positive images were allocated to the training

set, with the remainder reserved for testing. In the

case of the DIOR dataset, we conformed to its exist-

ing training/testing split. For training hyperparame-

ters, after performing ﬁne-tuning, we obtained an ini-

tial learning rate of 1 ×10

−4

, a ﬁnal learning rate

of 1 ×10

−6

, a cosine update strategy for the learn-

ing rate, a weight decay of 5 ×10

−4

, a momentum

of 0.9, a maximum training epoch of 180, an Inter-

section over Union (IoU) threshold of 0.5, a conﬁ-

dence threshold of 0.05, a Non-Maximum Suppres-

sion (NMS) threshold of 0.5, and pretraining on the

ImageNet dataset. By controlling aspects such as

the rate of parameter updates, regularization, con-

vergence, and post-processing, these hyperparameters

ensure consistency in the training process. All exper-

iments in this study were conducted on a computer

equipped with an Intel Xeon(R) CPU running at 2.20

GHz, 83.48 GB of memory, and an NVIDIA A100-

SXM4-40GB GPU with 40 GB of memory, facilitat-

ing accelerated computations.

4.3 Baseline

In our study, we adopted the YOLOv3 model (Red-

mon and Farhadi, 2018) as the foundational bench-

mark for assessments. YOLOv3, a notable one-stage

detector, stands as a reference in the object detec-

tion domain. The architecture’s backbone relies on

Darknet-53, a convolutional network designed specif-

ically for high-performance object detection tasks.

The strength of Darknet-53 lies in its ability to capture

hierarchical representations that are essential for de-

tailed object detection. Following the backbone, the

architecture employs the Feature Pyramid Network

(FPN) as its neck. FPN enhances the model’s capa-

bility by integrating high-level semantic features with

lower-level features, ensuring accurate object local-

ization across different scales. The head component

of YOLOv3 is responsible for ﬁnal object classiﬁca-

tion and bounding box regression, retaining the archi-

tecture’s inherent accuracy in object detection and lo-

calization.

4.4 Evaluation Metrics

To evaluate the effectiveness of our introduced archi-

tecture, we used the Mean Average Precision (mAP)

metric, a commonly used measure in object detection.

The mAP provides a comprehensive performance as-

sessment by combining the Average Precision (AP)

across various object categories. The mathematical

exposition is presented as:

Precision =

T P

T P + FP

(15)

Recall =

T P

T P + FN

(16)

AP =

precision(r) d(recall(r)) (17)

mAP =

∑

i=1

(18)

In Equations (15) and (16), Precision and Recall

are detailed. Equation (17) delineates the AP, which

is essentially the area under the precision-recall curve.

Finally, Equation (18) computes the mAP by averag-

ing the AP over all object classes, where C denotes the

count of object classes. A high mAP score is indica-

tive of strong detection capabilities, signifying highly

effective performance across all object classes.

4.5 Experimental Results

After evaluating YOLOv3 with NLCAA on the

NWPU-VHR and DIOR datasets, we have summa-

rized the performance results in Table 1 and 2. Ta-

ble 1 presents the experimental results from the

DIOR dataset test set and offers a comparison with

state-of-the-art methods. The achieved results show

that the proposed NLCAA signiﬁcantly exceeds the

vanilla YOLOv3 baseline with an improvement of

+21.2% in mAP. This notable gain underscores the ef-

ﬁcacy of integrating NLCAA into the YOLOv3 base-

line, markedly enhancing its object detection perfor-

mance in remote sensing images. Moreover, NL-

CAA exceeds the performance of several state-of-the-

art methods: it achieves a +24.2% mAP compared to

Faster R-CNN, a +13.1% mAP against Mask R-CNN,

and outperforms NPMMR-De by +0.9% mAP.

A deeper dive into individual object performances

demonstrates that NLCAA exceeds other methods

Non-Local Context-Aware Attention for Object Detection in Remote Sensing Images

135

Table 1: Comparative analysis on DIOR dataset.

Methods C1 C2 C3 C4 C5 C6 C7 C8 C9 C10 C11 C12 C13 C14 C15 C16 C17 C18 C19 C20 mAP

Faster R-CNN (Ren et al., 2015) 53.6 53.2 78.8 66.2 28.0 70.9 62.3 69.0 55.2 68.0 56.9 50.2 50.1 27.7 73.0 39.8 75.2 38.6 23.6 45.4 54.1

Faster R-CNN with FPN(Lin et al., 2017a) 54.0 74.5 63.3 80.7 44.8 72.5 60.0 75.6 62.3 76.0 76.8 46.4 57.2 71.8 68.3 53.8 81.1 59.5 43.1 81.2 65.1

Mask-RCNN (He et al., 2017) 53.9 76.6 63.2 80.9 40.2 72.5 60.4 76.3 62.5 76.0 75.9 46.5 57.4 71.8 68.3 53.7 81.0 62.3 43.0 81.0 65.2

SSD (Liu et al., 2016) 53.9 76.6 63.2 80.9 40.2 72.5 60.4 76.3 62.5 76.0 75.9 46.5 57.4 71.8 68.3 53.7 81.0 62.3 43.0 81.0 65.2

YOLOv3 (Redmon and Farhadi, 2018) 72.2 29.2 74.0 78.6 31.2 69.7 26.9 48.6 54.4 31.1 61.1 44.9 49.7 87.4 70.6 68.7 87.3 29.4 48.3 78.7 57.1

RetinaNet (Lin et al., 2017b) 53.3 77.0 69.3 85.0 44.1 73.2 62.4 78.6 62.8 78.6 76.6 49.9 59.6 71.1 68.4 45.8 81.3 55.2 45.1 85.5 66.1

PANet (Wang et al., 2019) 60.2 72.0 70.6 80.5 43.6 72.3 61.4 72.1 66.7 72.0 73.4 45.3 56.9 71.7 70.4 62.0 80.9 57.0 47.2 84.5 66.1

CornetNet (Law and Deng, 2018) 58.8 84.2 72.0 80.8 46.4 75.3 64.3 81.6 76.3 79.5 79.5 26.1 60.6 37.6 70.7 45.2 84.0 57.1 43.0 75.9 64.9

CSFF (Law and Deng, 2018) 57.2 79.6 70.1 87.4 46.1 76.6 62.7 82.6 73.2 78.2 81.6 50.7 59.5 73.3 63.4 58.5 85.9 61.9 42.9 86.9 68.0

SCRDet++ (Yang et al., 2022) 71.9 85.0 79.5 88.9 52.3 79.1 77.6 89.5 77.8 84.2 83.1 64.2 65.6 71.3 76.5 64.5 88.0 70.9 47.1 85.1 75.1

NPMMR-Det (Huang et al., 2021) 88.1 87.1 82.0 92.6 49.6 80.6 73.4 83.7 70.5 85.0 84.8 64.8 63.3 91.6 71.3 76.1 92.0 69.1 58.6 83.6 77.4

Ours( NLCAA) 85.8 88.4 80.8 92.7 53.1 82.8 73.3 91.2 79.8 85.2 83.3 66.5 63.3 90.9 70.6 77.4 92.0 62.4 57.8 89.8 78.3

Class names: Airplane (C1), Airport (C2), Baseball ﬁeld (C3), Basketball court (C4), Bridge (C5), Chimney (C6), Dam (C7), Expressway service area (C8), Expressway toll station (C9),

Golf course (C10), Ground track ﬁeld (C11), Harbor (C12), Overpass (C13), Ship (C14), Stadium (C15), Storage tank (C16), Tennis court (C17), Train station (C18), Vehicle (C19),

Windmill (C20)

Table 2: Comparative analysis on NWPU-VHR dataset.

Methods PL ship ST BD TC BC GTF harbor bridge vehicle mAP

COPD (Cheng et al., 2014) 62.3 69.4 64.5 82.1 34.1 35.3 84.2 56.3 16.4 44.3 54.9

Faster RCNN(Ren et al., 2015) 90.9 86.3 90.5 98.2 89.7 69.6 100 80.1 61.5 78.1 84.5

Transferred CNN (Krizhevsky et al., 2012) 66.0 57.1 85.0 80.9 35.1 45.5 79.4 62.6 43.2 41.3 59.6

RICNN (Cheng et al., 2016) 88.7 78.3 86.3 89.1 42.3 56.9 87.7 67.5 62.3 72.0 73.1

YOLOv3 (Redmon and Farhadi, 2018) 95.4 87.1 70.9 99.1 73.2 81.2 96.2 85.6 60.6 56.1 80.5

Li et al. (Li et al., 2017) 99.7 90.8 90.6 92.2 90.3 80.1 90.8 80.3 68.5 97.1 87.1

CAD-Net (Zhang et al., 2019) 97.0 77.9 95.6 93.6 87.6 87.1 99.6 100 86.2 89.9 91.5

NPMMR-Det (Huang et al., 2021) 99.8 93.7 96.6 99.6 96.2 96.8 100 95.9 71.7 98.1 94.83

Ours( NLCAA) 99.78 94.5 96.7 99.0 96.0 91.0 100 97.6 89.1 97.7 96.15

Class names: PL (plane), ship, ST (storage tank), BD (baseball diamond), TC (tennis court), BC (basketball court), GTF (ground track ﬁeld), harbor, bridge, vehicle.

across multiple categories, especially in detecting the

airport, basketball court, bridge, chimney, express-

way service area, expressway toll station, harbor, golf

course, overpass, storage tank, and tennis court. A

common thread among these objects is that they are

not only characterized by semantic features such as

shape, color, size, and texture but also by their con-

textual settings. For instance, bridges in the DIOR

dataset are often pictured with rivers below, harbors

are accompanied by seas, and airports often have air-

planes nearby. This underlines that these objects are

deﬁned both by their semantic and contextual fea-

tures. The superior performance of NLCAA in de-

tecting these objects highlights its capability to cap-

ture both the semantic and contextual features, distin-

guishing it from other methods.

Table 2 continues this evaluation, detailing our

tests on the NWPU-VHR10 dataset and benchmark-

ing NLCAA against other state-of-the-art models.

The results in Table 2 further validate the effective-

ness of NLCAA. It outperforms the vanilla YOLOv3

baseline by +15.65% mAP, outdoes Faster R-CNN

by +11.65% mAP, and edges out NPMMR-De by

+1.31% mAP. Similar to its performance on the DIOR

dataset, NLCAA exhibits its effectiveness at detecting

and classifying several objects when benchmarked

against other leading methods. For example, it excels

in identifying ships, bridges, tennis courts, among

others. In this context, the ability of NLCAA to

capture both semantic and contextual features under-

scores its importance in the task of object detection in

remote sensing images. Some of the results obtained

by integrating NLCAA into the YOLOv3 architecture

are depicted in Figure 3.

However, while NLCAA is integrated into the

YOLOv3 architecture as the base model for our ap-

proach, facilitating benchmarking and comparisons

with state-of-the-art methodologies, its design is in-

herently modular. The pyramid pooling and dilated

convolution components of NLCAA are designed to

be compatible with various versions of YOLO ar-

chitectures, including YOLOv4 (Bochkovskiy et al.,

2020), YOLOv7 (Wang et al., 2022a), YOLOv8

(Reis et al., 2023), and YOLOX (Ge et al., 2021).

These versions demonstrate enhanced detection per-

formance compared to YOLOv3. Integrating NL-

CAA into these advanced architectures could further

augment their capabilities in detecting objects from

remote sensing images. Despite these advancements,

the NLCAA approach to object detection, with its fo-

cus on extracting both semantic and contextual fea-

tures, faces certain limitations. For example, in sce-

narios where objects such as vehicles are primarily

deﬁned by their semantic attributes rather than con-

textual ones, NLCAA encounters speciﬁc challenges.

These challenges highlight areas for potential reﬁne-

ment in NLCAA performance.

5 CONCLUSION

In conclusion, this study presents NLCAA, a novel

approach speciﬁcally designed for object detection in

remote sensing images. The evaluations on the DIOR

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

136

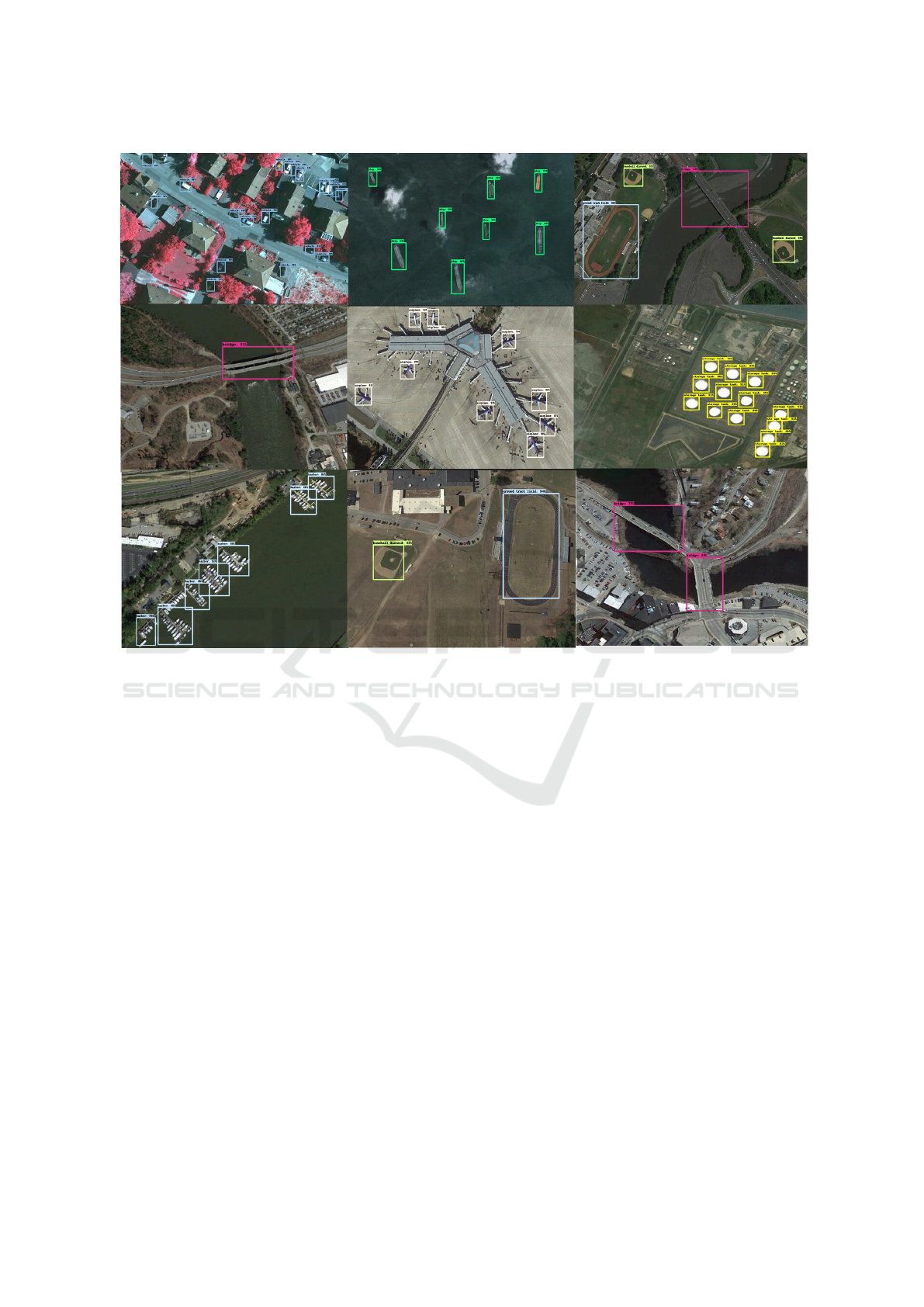

Figure 3: Examples of object detection using YOLOv3 enhanced by NLCAA in diverse remote sensing images.

and NWPU VHR datasets revealed that NLCAA con-

sistently outperformed several existing methods. The

strength of NLCAA lies in its capability to inte-

grate both detailed and broader contextual features

of objects, enhancing its detection accuracy. As we

progress, our objective is to further reﬁne the pro-

posed approach. Speciﬁcally, we will focus on op-

timizing the Neck and Head components of YOLOv3

to enrich its feature extraction ability.

REFERENCES

Bochkovskiy, A., Wang, C.-Y., and Liao, H.-Y. M. (2020).

Yolov4: Optimal speed and accuracy of object detec-

tion. arXiv preprint arXiv:2004.10934.

Cheng, G. and Han, J. (2016). A survey on object detection

in optical remote sensing images. ISPRS journal of

photogrammetry and remote sensing, 117:11–28.

Cheng, G., Han, J., Zhou, P., and Guo, L. (2014). Multi-

class geospatial object detection and geographic im-

age classiﬁcation based on collection of part detectors.

ISPRS Journal of Photogrammetry and Remote Sens-

ing, 98:119–132.

Cheng, G., Zhou, P., and Han, J. (2016). Learning rotation-

invariant convolutional neural networks for object de-

tection in vhr optical remote sensing images. IEEE

Transactions on Geoscience and Remote Sensing,

54(12):7405–7415.

Ge, Z., Liu, S., Wang, F., Li, Z., and Sun, J. (2021).

Yolox: Exceeding yolo series in 2021. arXiv preprint

arXiv:2107.08430.

He, K., Gkioxari, G., Doll

ar, P., and Girshick, R. (2017).

Mask r-cnn. In Proceedings of the IEEE international

conference on computer vision, pages 2961–2969.

Huang, Z., Li, W., Xia, X.-G., Wu, X., Cai, Z., and Tao,

R. (2021). A novel nonlocal-aware pyramid and mul-

tiscale multitask reﬁnement detector for object detec-

tion in remote sensing images. IEEE Transactions on

Geoscience and Remote Sensing, 60:1–20.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012). Im-

agenet classiﬁcation with deep convolutional neural

networks. Advances in neural information processing

systems, 25.

Law, H. and Deng, J. (2018). Cornernet: Detecting objects

as paired keypoints. In Proceedings of the European

conference on computer vision (ECCV), pages 734–

750.

Li, C., Xu, C., Cui, Z., Wang, D., Zhang, T., and Yang, J.

(2019). Feature-attentioned object detection in remote

sensing imagery. In 2019 IEEE international confer-

Non-Local Context-Aware Attention for Object Detection in Remote Sensing Images

137

ence on image processing (ICIP), pages 3886–3890.

IEEE.

Li, K., Cheng, G., Bu, S., and You, X. (2017). Rotation-

insensitive and context-augmented object detection in

remote sensing images. IEEE Transactions on Geo-

science and Remote Sensing, 56(4):2337–2348.

Li, K., Wan, G., Cheng, G., Meng, L., and Han, J. (2020).

Object detection in optical remote sensing images: A

survey and a new benchmark. ISPRS journal of pho-

togrammetry and remote sensing, 159:296–307.

Lin, T.-Y., Doll

ar, P., Girshick, R., He, K., Hariharan, B.,

and Belongie, S. (2017a). Feature pyramid networks

for object detection. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 2117–2125.

Lin, T.-Y., Goyal, P., Girshick, R., He, K., and Doll

ar, P.

(2017b). Focal loss for dense object detection. In

Proceedings of the IEEE international conference on

computer vision, pages 2980–2988.

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S.,

Fu, C.-Y., and Berg, A. C. (2016). Ssd: Single shot

multibox detector. In Computer Vision–ECCV 2016:

14th European Conference, Amsterdam, The Nether-

lands, October 11–14, 2016, Proceedings, Part I 14,

pages 21–37. Springer.

Oliva, A. and Torralba, A. (2007). The role of context

in object recognition. Trends in cognitive sciences,

11(12):520–527.

Perko, R. and Leonardis, A. (2010). A framework

for visual-context-aware object detection in still im-

ages. Computer Vision and Image Understanding,

114(6):700–711.

Redmon, J., Divvala, S., Girshick, R., and Farhadi, A.

(2016). You only look once: Uniﬁed, real-time object

detection. In Proceedings of the IEEE conference on

computer vision and pattern recognition, pages 779–

788.

Redmon, J. and Farhadi, A. (2018). Yolov3: An incremental

improvement. arXiv preprint arXiv:1804.02767.

Reis, D., Kupec, J., Hong, J., and Daoudi, A. (2023).

Real-time ﬂying object detection with yolov8. arXiv

preprint arXiv:2305.09972.

Ren, S., He, K., Girshick, R., and Sun, J. (2015). Faster

r-cnn: Towards real-time object detection with region

proposal networks. Advances in neural information

processing systems, 28.

Wang, C., Bochkovskiy, A., and Liao, H. (2022a). Yolov7:

Trainable bag-of-freebies sets new state-of-the-art for

real-time object detectors. arxiv 2022. arXiv preprint

arXiv:2207.02696.

Wang, J., Xiao, W., and Ni, T. (2020). Efﬁcient object

detection method based on improved yolov3 network

for remote sensing images. In 2020 3rd International

Conference on Artiﬁcial Intelligence and Big Data

(ICAIBD), pages 242–246. IEEE.

Wang, K., Liew, J. H., Zou, Y., Zhou, D., and Feng, J.

(2019). Panet: Few-shot image semantic segmenta-

tion with prototype alignment. In proceedings of the

IEEE/CVF international conference on computer vi-

sion, pages 9197–9206.

Wang, W., Tan, X., Zhang, P., and Wang, X. (2022b). A

cbam based multiscale transformer fusion approach

for remote sensing image change detection. IEEE

Journal of Selected Topics in Applied Earth Observa-

tions and Remote Sensing, 15:6817–6825.

Wang, X., Girshick, R., Gupta, A., and He, K. (2018). Non-

local neural networks. In Proceedings of the IEEE

conference on computer vision and pattern recogni-

tion, pages 7794–7803.

Woo, S., Park, J., Lee, J.-Y., and Kweon, I. S. (2018). Cbam:

Convolutional block attention module. In Proceed-

ings of the European conference on computer vision

(ECCV), pages 3–19.

Xu, J., Sun, X., Zhang, D., and Fu, K. (2014). Auto-

matic detection of inshore ships in high-resolution re-

mote sensing images using robust invariant general-

ized hough transform. IEEE geoscience and remote

sensing letters, 11(12):2070–2074.

Yang, X., Yan, J., Liao, W., Yang, X., Tang, J., and He, T.

(2022). Scrdet++: Detecting small, cluttered and ro-

tated objects via instance-level feature denoising and

rotation loss smoothing. IEEE Transactions on Pat-

tern Analysis and Machine Intelligence, 45(2):2384–

2399.

Yang, X., Yang, J., Yan, J., Zhang, Y., Zhang, T., Guo, Z.,

Sun, X., and Fu, K. (2019). Scrdet: Towards more ro-

bust detection for small, cluttered and rotated objects.

In Proceedings of the IEEE/CVF International Con-

ference on Computer Vision, pages 8232–8241.

Yue, K., Sun, M., Yuan, Y., Zhou, F., Ding, E., and Xu,

F. (2018). Compact generalized non-local network.

Advances in neural information processing systems,

31.

Zhang, G., Lu, S., and Zhang, W. (2019). Cad-net: A

context-aware detection network for objects in remote

sensing imagery. IEEE Transactions on Geoscience

and Remote Sensing, 57(12):10015–10024.

Zhang, G., Xu, W., Zhao, W., Huang, C., Yk, E. N., Chen,

Y., and Su, J. (2021). A multiscale attention network

for remote sensing scene images classiﬁcation. IEEE

Journal of Selected Topics in Applied Earth Observa-

tions and Remote Sensing, 14:9530–9545.

Zhang, L.-g., Wang, L., Jin, M., Geng, X.-s., and Shen,

Q. (2022). Small object detection in remote sensing

images based on attention mechanism and multi-scale

feature fusion. International Journal of Remote Sens-

ing, 43(9):3280–3297.

Zhang, S., Mu, X., Kou, G., and Zhao, J. (2020). Object de-

tection based on efﬁcient multiscale auto-inference in

remote sensing images. IEEE Geoscience and Remote

Sensing Letters, 18(9):1650–1654.

Zhang, W., Sun, X., Fu, K., Wang, C., and Wang, H.

(2013). Object detection in high-resolution remote

sensing images using rotation invariant parts based

model. IEEE Geoscience and Remote Sensing Letters,

11(1):74–78.

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

138
