EBA-PRNetCC: An Efﬁcient Bridge Attention-Integration PoseResNet

for Coordinate Classiﬁcation in 2D Human Pose Estimation

Ali Zakir

1 a

, Sartaj Ahmed Salman

1 b

, Gibran Benitez-Garcia

1 c

and Hiroki Takahashi

1,2

Department of Informatics, Graduate School of Informatics and Engineering,

The University of Electro-Communications, Tokyo, Japan

Artiﬁcial Intelligence Exploration/Meta-Networking Research Center,

The University of Electro-Communications, Tokyo, Japan

Keywords:

2D Human Pose Estimation, EBA-PRNetCC, MLP, EBA, COCO Dataset.

Abstract:

In the current era, 2D Human Pose Estimation has emerged as an essential component in advanced Computer

Vision tasks, particularly for understanding human behaviors. While challenges such as occlusion and un-

favorable lighting conditions persist, the advent of deep learning has signiﬁcantly strengthened the efﬁcacy

of 2D HPE. Yet, traditional 2D heatmap methodologies face quantization errors and demand complex post-

processing. Addressing this, we introduce the EBA-PRNetCC model, an innovative coordinate classiﬁcation

approach for 2D HPE, emphasizing improved prediction accuracy and optimized model parameters. Our

EBA-PRNetCC model employs a modiﬁed ResNet34 framework. A key feature is its head, which includes a

dual-layer Multi-Layer Perceptron augmented by the Mish activation function. This design not only improves

pose estimation precision but also minimizes model parameters. Integrating the Efﬁcient Bridge Attention

Net further enriches feature extraction, granting the model deep contextual insights. By enhancing pixel-level

discretization, joint localization accuracy is improved. Comprehensive evaluations on the COCO dataset vali-

date our model’s superior accuracy and computational efﬁciency performance compared to prevailing 2D HPE

techniques.

1 INTRODUCTION

Human Pose Estimation (HPE) stands as a signiﬁ-

cant challenge within the Computer Vision (CV) do-

main, with its signiﬁcance emphasized by a multi-

tude of practical applications. Over time, the ef-

fort for precise HPE has fostered a deep engagement

with Deep Learning (DL) and Convolutional Neural

Networks (CNNs) among the CV community. The

current state-of-the-art methods have indeed achieved

commendable success, delivering impressive qualita-

tive and quantitative results. This progress naturally

sparks interest regarding the potential advancements

in the coming years and the room for further improve-

ment in this domain. However, a practical dispar-

ity exists. Despite the high accuracy achieved by re-

cent models, many applications have yet to reap the

beneﬁts of these advancements fully. The essence

of this limitation hinges on two factors: (a) the as-

https://orcid.org/0000-0002-3187-9551

https://orcid.org/0000-0001-9344-6658

https://orcid.org/0000-0003-4945-8314

Figure 1: Overall framework of the proposed EBA-

PRNetCC model.

sumption of abundant computational resources such

as GPUs, memory, and power, which often con-

tradicts the reality for many applications, and (b)

the imperative of maintaining accuracy, particularly

in critical domains like autonomous driving where

there is minimal tolerance for error when transitioning

to more compact, memory-efﬁcient methods(Zakir

et al., 2023a). The existing literature presents nu-

merous methods demonstrating superior performance

on rigorous benchmarks such as MPII (Andriluka

et al., 2014), LSP (Johnson and Everingham, 2010),

and Common Objects in Context (COCO) (Lin et al.,

2014). However, a signiﬁcant gap persists as none

Zakir, A., Salman, S., Benitez-Garcia, G. and Takahashi, H.

EBA-PRNetCC: An Efﬁcient Bridge Attention-Integration PoseResNet for Coordinate Classiﬁcation in 2D Human Pose Estimation.

DOI: 10.5220/0012366300003660

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2024) - Volume 3: VISAPP, pages

133-144

ISBN: 978-989-758-679-8; ISSN: 2184-4321

133

attain this high accuracy level under memory and

computational power constraints. The primary objec-

tive of our effort is to bridge this gap, proposing ad-

vancements over the current state-of-the-art methods

in these challenging settings. Simultaneously, the on-

going expansion and integration of CV in devices like

smartphones and surveillance systems have led to a

constant ﬂow of image and video data. The informa-

tion extracted regarding human actions and events is

highly valuable. HPE aims to identify and record dif-

ferent joints within the human body, thus estimating a

person’s posture through the spatial positions of body

parts such as arms and head, referred to as keypoints

(Zhang et al., 2023).

Over the past decade, the CV ﬁeld has exten-

sively explored the automatic understanding of HPE.

2D HPE is a foundation for numerous advanced CV

tasks, including transitioning from 2D to 3D poses,

detecting human actions, and improving Human-

Computer Interaction (HCI). The intricacy of 2D HPE

arises from challenges such as obscured keypoints,

difﬁcult lighting conditions, and the demanding task

of real-time deployment due to the model’s large

number of parameters(Chen et al., 2022). Tradi-

tionally, the initial approaches utilized standard tech-

niques such as probabilistic graphical models, which

were heavily dependent on manually designed fea-

tures, thereby limiting the model’s adaptability and

effectiveness. The emergence of DL addressed these

constraints by enabling automatic feature extraction

from data. Speciﬁcally, the advancements made by

CNNs in 2D HPE have inspired a multitude of deep

learning techniques(Cao et al., 2017).

Recently, methods predicated on 2D heatmaps

have emerged as the predominant approach but of-

ten falter due to quantization errors, leading to is-

sues like poor performance at low resolutions, high

computational demands, the need for multiple upsam-

pling layers, and complex post-processing steps such

as non-maximum suppression and heatmap smooth-

ing. These factors signiﬁcantly contribute to these

methods’ high computational demand and complex

post-processing(Xiao et al., 2018; Yang et al., 2021;

Salman et al., 2023b). Contrary to existing solu-

tions, our research introduces a coordinated classiﬁ-

cation approach for 2D HPE, presenting an alterna-

tive to the conventional 2D heatmap-based method.

This paper’s primary objective is to improve predic-

tion accuracy and optimize the model by reducing the

number of parameters addressing the computational

constraints. This initiative guides the focus toward

enhancing the precision of existing models without

exacerbating the computational demands, providing

a balanced approach to tackling the challenges in 2D

HPE.

We propose the EBA-PRNetCC model, as de-

picted in Figure 1. This model utilizes an efﬁcient

version of ResNet as its foundational backbone for

primary feature extraction(He et al., 2016). In our

adaptation, we have preserved only the convolutional

structures, omitting both the average pooling and

the ﬁnal fully connected layers. The selection of

ResNet34 is intentional, aiming for a balance between

computational efﬁciency and model complexity, espe-

cially when compared against more complex variants

like ResNet50, 101, and 152. Recognizing the trade-

off between precision and model size, our approach

employs speciﬁc strategies to counter potential reduc-

tions in accuracy. We have integrated the EBANet—a

sophisticated version of Bridge Attention (BA) (Zhao

et al., 2022)—into ResNet34. This integration em-

phasizes BA’s role in the architecture, enhancing com-

munication between layers. By serving as a chan-

nel for feature transference and regulating the promi-

nence of speciﬁc features, it reﬁnes the network’s

focus on critical patterns in the feature representa-

tion, efﬁciently addressing potential information bot-

tlenecks. One fundamental reﬁnement resides in the

model’s head: introducing a dual-layer Multi-Layer

Perceptron (MLP) complemented by the Mish activa-

tion function. This enhancement not only pares down

the parameter volume but also boosts pose estimation

accuracy, a feat we attribute to the non-linear prop-

erties of the MLP and the Mish function’s enriched

gradient dynamics. Upon capturing the keypoint rep-

resentations using the backbone, EBA-PRNetCC pro-

cesses the vertical and horizontal coordinates individ-

ually, leading to its ﬁnal predictions. Our suggested

model partitions every pixel into several bins, reduc-

ing quantization inaccuracies and offering precision

that surpasses single-pixel localization.

The threefold contribution of the proposed model

can be summarized as follows:

• We proposed EBA-PRNetCC as a transition from

the conventional 2D heatmap-based methods.

This approach adopts a coordinated classiﬁca-

tion strategy, utilizing an efﬁcient ResNet34 for

foundational feature extraction. This ensures a

notable balance between keypoint prediction ac-

curacy and computational efﬁciency, as demon-

strated by a controlled parameter count.

• We integrated the EBANet into ResNet34, en-

hancing the model’s capability in feature recogni-

tion and contextual understanding, which is cru-

cial for human pose estimation. An essential

modiﬁcation is the redesigned head, comprised

of a two-layer MLP with Mish activation. This

change reduces parameters and improves accu-

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

134

racy. Our pixel segmentation approach also min-

imizes quantization errors, optimizing joint local-

ization precision.

• A comprehensive evaluation on the COCO

dataset afﬁrmed the effectiveness of our proposed

method. Our approach demonstrated superior pre-

cision when assessing the results and required

fewer computational resources than current 2D

human pose estimation methods.

The structure of the paper is laid out as follows

for ease of understanding: Section 2 provides an

overview of prior studies in this ﬁeld. Section 3

describes the techniques and principles behind our

EBA-PRNetCC. In Section 4, we discuss the experi-

mental setup and the speciﬁc details of our implemen-

tation. Section 5 and 6 offers an in-depth analysis of

our results. Concluding the paper, Section 7 summa-

rizes the discussions and points out potential paths for

future studies.

2 RELATED WORK

In 2D HPE, DL methods have gained importance

due to their expertise in extracting features rang-

ing from simple to sophisticated. Initially, 2D

HPE research primarily centered on regression-based

approaches (Tian et al., 2019; Nie et al., 2019).

These models aimed to locate keypoint coordinates

directly, but their inconsistent reliability hindered

widespread adoption. The landscape evolved signif-

icantly when (Li et al., 2021) introduced the Resid-

ual Log-Likelihood (RLE). This method leveraged the

beneﬁts of normalizing ﬂows and delivered perfor-

mance comparable to premier heatmap techniques.

Following this, much of the HPE research shifted

towards utilizing two-dimensional Gaussian distribu-

tion heatmaps for precise joint coordinate mapping

(Cao et al., 2017; Cai et al., 2020; Cheng et al.,

2020). Pioneering contributions from researchers like

(Tompson et al., 2014) and (Newell et al., 2016)

were contributory to this shift, leading to innova-

tive architectures such as the celebrated hourglass

design. As investigations in the ﬁeld deepened, a

strong push emerged for methods that maintained

high-resolution outputs from start to ﬁnish in the com-

putation process (Sun et al., 2019). However, even

with these advances, heatmap-based strategies faced

difﬁculties. Notably, quantization error remained a

persistent challenge, becoming even more evident in

scenarios with lower resolutions.

A signiﬁcant challenge in 2D heatmap-based

HPE is quantization errors, particularly prominent

in smaller-dimensional heatmaps. Recognizing this,

many researchers have developed innovative solu-

tions(Zakir et al., 2023b; Salman et al., 2023a;

Salman et al., 2023c). (Zhang et al., 2020) intro-

duced a post-processing method using Taylor expan-

sion to improve heatmap distribution approximation.

In a distinctive approach, (Yin et al., 2020) proposed

transitioning from traditional 2D heatmaps to a more

compact 1D heatmap format, incorporating special

adjustable layers. They further enhanced the resolu-

tion of these 1D heatmaps using additional deconvo-

lution layers. While many HPE research efforts focus

on such techniques, some avant-garde methods stand

out. For instance, in facial landmark detection, the use

of 1D heatmap techniques is gaining traction, as seen

in pioneering works like that of (Yin et al., 2020), who

introduced a pivotal 1D heatmap regression method,

setting a new benchmark in the ﬁeld.

(Chen et al., 2021) proposed Pix2Seq, an innova-

tive technique bridging the ﬁeld of object detection

and linguistic modeling. SimCC (Li et al., 2022) ex-

plored a departure from conventional heatmap-centric

strategies for HPE in a related development. Their ap-

proach, compatible with both CNN and Transformer-

based HPE systems, eliminates the need for a distinct

Transformer decoder during predictions(Mao et al.,

2021). In contrast, our work, anchored on EBA-

PRNetCC, presents a reﬁned solution to classical

heatmap-based HPE approaches, bypassing the de-

mands of resource-heavy post-processing.

3 EBA-PRNetCC

In the ﬁeld of 2D HPE, given an RGB image or a

video frame labeled as I, the goal is to identify the

pose: the pose P of any individual is represented in

this visual content. This posture, expressed as P, is

characterized by a set of N speciﬁc keypoints. Each

keypoint is denoted by a two-dimensional coordinate

, y

). The number of keypoints, N, can vary based

on the dataset used for training a model. Thus, our ob-

jective is to pinpoint the pose P = {P

}

i=1

for every k

individual within the input, as described in Algorithm

1. proposed

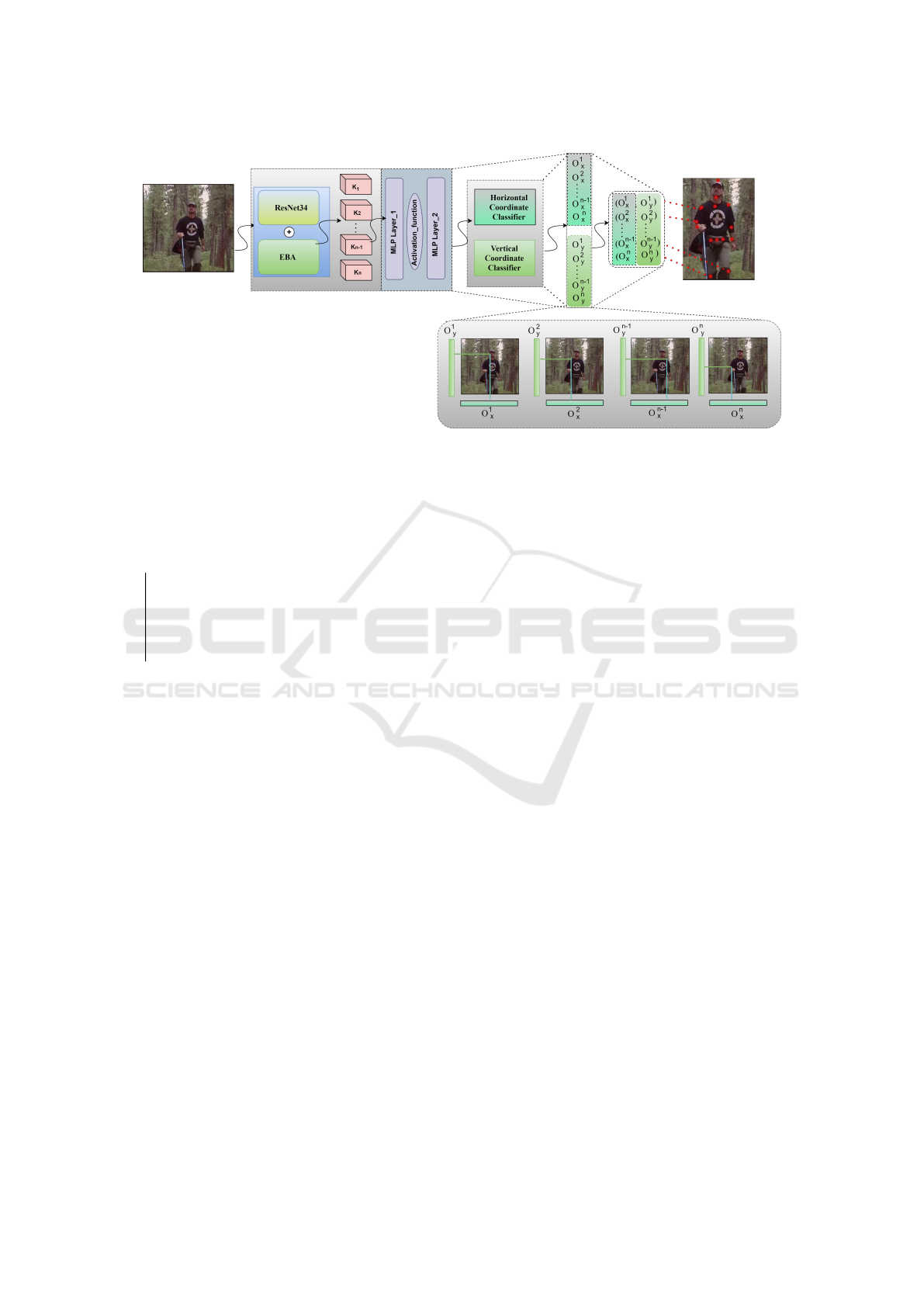

Our EBA-PRNetCC model, as illustrated in Fig-

ure 2, clearly demonstrates our proposed approach.

As depicted, we have deliberately selected ResNet34

for an optimal balance between computational de-

mands and model complexity. The illustration em-

phasizes the incorporation of Efﬁcient Bridge Atten-

tion (EBA) Net within the ResNet34 structure, em-

phasizing its role in enhancing inter-layer communi-

cation. The diagram also captures the model’s unique

methodology in processing vertical and horizontal co-

EBA-PRNetCC: An Efﬁcient Bridge Attention-Integration PoseResNet for Coordinate Classiﬁcation in 2D Human Pose Estimation

135

Figure 2: Detail architecture of our proposed EBA-PRNetCC model for coordinate classiﬁcation in 2D HPE.

Data: RGB image or video frame I

Result: Posture P of every individual in I

Initialize P =

0 (Set to store postures of

individuals);

Detect number of individuals k in image I;

for i = 1 to k do

Detect K keypoints for individual i in I;

For each keypoint n, obtain its

coordinates (x

, y

);

Store the keypoints for individual i as P

;

Add P

to P;

end

Return P;

Algorithm 1: 2D Human Pose Estimation (HPE).

ordinates, concluding in its ﬁnal predictive outcomes.

For a more comprehensive understanding of its intri-

cate design and functionality, we discuss each of its

components in greater detail in the subsequent sub-

sections.

3.1 Backbone Enhancement Using

Adapted ResNet

Autoencoder network architectures are gaining attrac-

tion within research communities, especially in tasks

requiring complicated annotations or detailed dataset

labeling. These architectures demonstrate a distinc-

tive capability to manage and optimize feature repre-

sentations effectively. In response to these require-

ments, we adopted an autoencoder design that logi-

cally reduces the resolution of feature representations

in stages. This step-by-step reduction optimizes com-

putational efﬁciency and retains broad spatial details,

guaranteeing the preservation of essential informa-

tion. One of the primary advantages of this design

lies in its capability to both intensify and recover the

original spatial clarity of the feature maps, making

the processing more robust and accurate. In contrast,

architectures like the Hourglass frequently produce

feature maps with more constrained dimensions than

their original inputs. Challenges can emerge when re-

sizing these condensed outputs to their initial dimen-

sions. One of the signiﬁcant issues is the risk of quan-

tization, where the understated details might get over-

shadowed or lost. Further complicating the process

are potential biases during data transformation, which

can introduce errors. This is particularly noticeable

in scenarios where models misunderstand data due to

operations like horizontal mirroring, emphasizing the

importance of precise and bias-free data handling.

In our search to address the abovementioned chal-

lenges, we gravitated toward integrating ResNet34

into our proposed model. This decision was grounded

in the model’s inherent efﬁciency, particularly high-

lighted when considering the parsimonious parameter

count of ResNet34 compared to its denser counter-

parts, such as ResNet 50, 101, and 152. Our revision

of ResNet (He et al., 2016) allowed us to omit the av-

erage pooling and fully connected stages, setting the

stage for a more efﬁcient processing approach. In-

stead of these, our model features four distinct ResNet

blocks as shown in Figure 3. Each block is a sequence

of convolution operations, batch normalization, ad-

vanced Mish activation, and max pooling operations.

The input process through our model begins with a

convolutional layer promptly followed by a pooling

layer, effectively reducing the spatial dimensions of

the feature maps by a factor of 2. These reﬁned

feature maps then serve as inputs to the subsequent

ResNet blocks. Complexities within these blocks in-

volve convolutional layers, further reducing feature

dimensions by a factor of two, although the initial

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

136

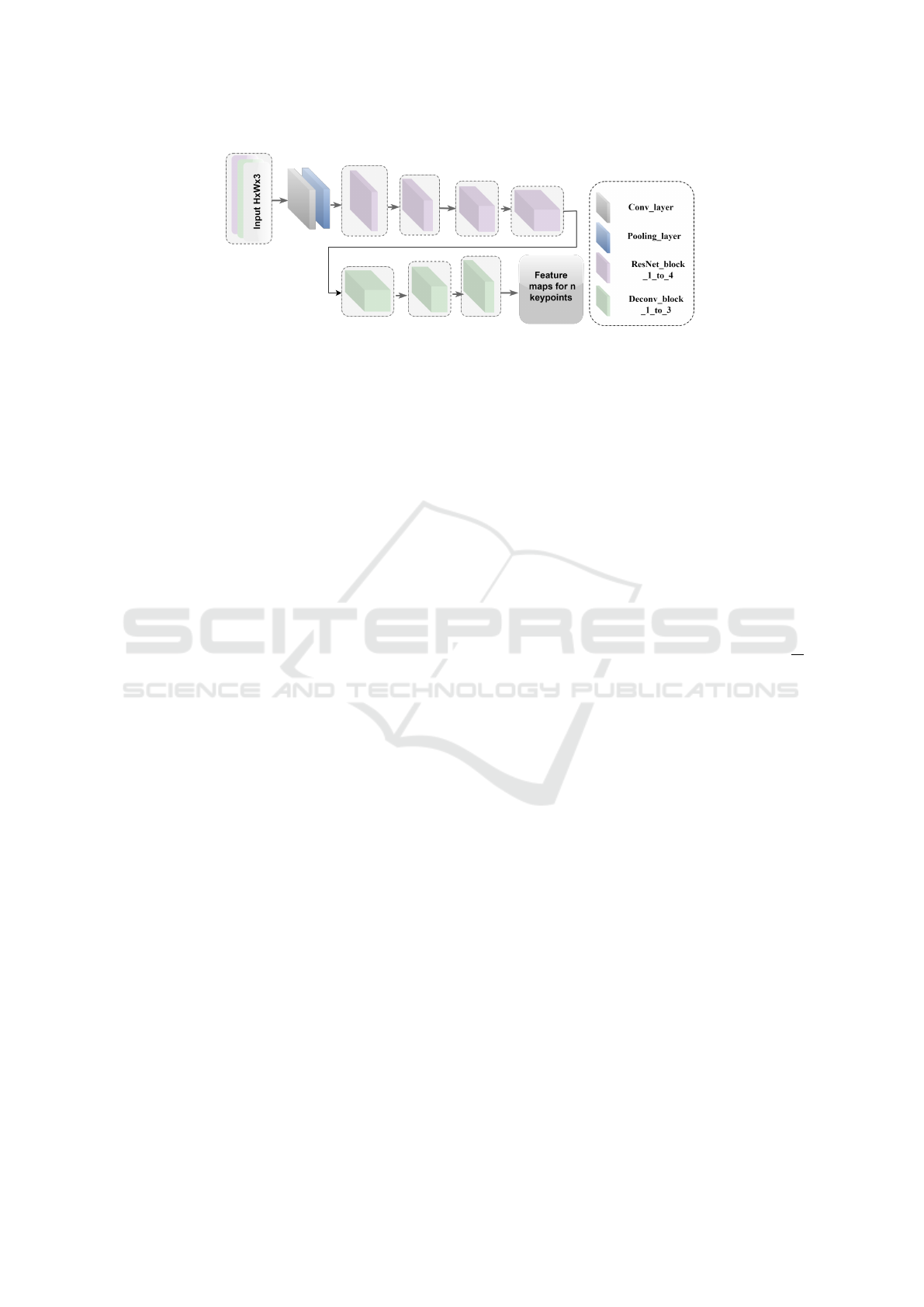

Figure 3: Efﬁcient ResNet-Based architecture with integrated deconvolutional modules for precise feature representation for

n Keypoints.

ResNet block stands as an exception to this behavior.

We incorporated three deconvolutional modules, each

enhanced by batch normalization and employing the

Mish activation function. A notable feature of these

deconvolutional stages is their ability to upscale the

resolution of the feature maps iteratively. This pro-

cess continues until the feature maps align with the

spatial dimensions of the original input, guaranteeing

a thorough and detailed feature representation.

The EBA-PRNetCC model is tailored to process

images of dimensions H × W × 3. In this format,

H and W symbolize the image’s height and width,

respectively. The third dimension, represented by

3, corresponds to the familiar RGB color scheme,

breaking down into Red, Green, and Blue channels.

ResNet34 plays a pivotal role within this setup as the

primary mechanism for extracting detailed features

from the image. As the image progresses through the

analytical depth of the ResNet34 backbone, the model

adeptly identiﬁes and maps out n speciﬁc keypoint

representations, each corresponding to its designated

keypoint within the image.

3.2 Efﬁcient Bridge Attention Net

In deep convolutional networks, attention mecha-

nisms serve as essential enhancements, enabling mod-

els to prioritize salient features in data dynami-

cally. The BA methodology is particularly distinc-

tive among these mechanisms. It offers solutions

to challenges inherent in conventional attention tech-

niques, primarily by ensuring an optimized utiliza-

tion of information across neural networks. A no-

table attribute of the BA approach is its adept fea-

ture compression within the attention layer. A crit-

ical insight underlying BA-Net is the recognition in

the observation that while advanced layers in neu-

ral structures primarily interpret high-level features,

preliminary layers provide contextual features. Due

to their layer-speciﬁc focus and computational con-

straints, traditional attention methodologies often by-

pass the nuanced information available in these ini-

tial layers. Addressing this gap, BA-Net introduces

a strategic ’bridge,’ facilitating a comprehensive in-

tegration of features throughout the network’s depth.

Expanding on the foundational concepts of our ap-

proach, we will probe further into the detailed oper-

ations of the EBA module as illustrated in Figure 4.

Given a block, an output from a function is character-

ized as X

∈ R

×H×W

. Here, C

denotes the feature

map’s depth at the i

layer. An essential operation in

our methodology is the application of Global Average

Pooling (GAP) to these outputs, reducing their spatial

dimensions to C

× 1 × 1. This condensed representa-

tion is crucial for facilitating subsequent feature inte-

gration and processing. Post-GAP, these features un-

dergo transformation through matrices sized C

producing “squeezed” features. Here, C

is the n

number of channels in the feature map at the deepest

or current layer under consideration. This particular

dimensional transformation is essential to guarantee

the smooth integration of features from diverse lay-

ers. However, this procedure can induce variations in

feature distributions. Batch normalization BN is em-

ployed to counteract this, standardizing these distribu-

tions and bolstering their non-linear representations.

Mathematically, the integration process is expressed

as:

= BN

(GAP(F

))) (1)

is the feature map at the i-th layer of the network.

The transformation matrix is denoted by W

, where S

encapsulates the squeezed feature. For the BA mech-

anism, the comprehensive feature representation, de-

noted as I

(·), emerges as a summation of these fea-

tures:

(·) =

∑

i=n−q

(2)

where features from the (n − q)-th layer up to the n-

th layer are summed together. The value of q de-

termines how many previous layers’ features are in-

cluded in this summation. This composite feature

then advances to the generation phase G, resulting in

EBA-PRNetCC: An Efﬁcient Bridge Attention-Integration PoseResNet for Coordinate Classiﬁcation in 2D Human Pose Estimation

137

Figure 4: Visualization of the EBA module’s feature integration and weights W generation mechanisms.

the ﬁnal attention weights W :

W = G(I

) (3)

However, simply fusing the features isn’t the ﬁnal

step. The generation sequence in the module, distin-

guished by the use of the Mish activation function,

further reﬁnes this fused feature. This sequence cul-

minates with a sigmoid activation, ensuring the re-

sultant attention weights are bounded between 0 and

1. These weights are instrumental in modulating the

original feature maps, emphasizing salient regions

while deemphasizing others. The EBA module fea-

ture processing is describe in Algorithm 2.

Its integration within the ResNet-34 architecture

deserves special mention. ResNet34, with its series of

convolutional layers, offers a fertile ground for EBA-

Net’s capabilities. Both the BasicBlock and Bottle-

neck classes within ResNet34 incorporate the BA-

Net. During their forward passes, features are ex-

tracted at various stages, processed, and then modu-

lated by the EBA-Net derived attention weights. This

integration ensures that as data ﬂows through the

ResNet34 architecture, the model continually reﬁnes

its focus, leveraging the combined wisdom of current

and preceding features. The result is a more attentive,

context-aware ResNet-34, poised to discern intricate

patterns with heightened precision.

3.3 Head and Coordinate Classiﬁcation

As visualized in Figure 2, our improved model incor-

porates a reﬁned head classiﬁcation technique. One

essential reﬁnement resides in the model’s head: in-

troducing a dual-layer MLP complemented by the

Mish activation function. This enhancement not only

pares down the parameter volume but also boosts pose

estimation accuracy, a feat we attribute to the non-

linear properties of the MLP and the Mish function’s

enriched gradient dynamics. Instead of simply ap-

pending horizontal and vertical classiﬁers with a sin-

gle linear layer for each, we have embedded these

MLPs. Each MLP is structured to ﬁrst transform the

Data: Block output X

∈ R

×H×W

Result: Attention weights W that modulate

the original feature maps

Initialize C

as the number of channels in the

feature map at the deepest/current layer;

Initialize r as the reduction ratio;

/* GAP Function */ Apply Global Average

Pooling (GAP) to feature maps X

to get the

condensed representation C

× 1 × 1;

/* Integration Function */ For each layer i

from n − q to n:

• Apply GAP to X

to get the condensed

representation;

• Transform the features using matrices of size

;

• Apply Batch Normalization (BN) to the

transformed features;

• Deﬁne S

as S

= BN

× GAP(X

));

Initialize I

to zero;

for i = n − q to n do

= Integration of X

;

+= S

;

end

/* Generation Function */ Apply Mish

activation function to I

;

Apply sigmoid activation function to the

output of Mish;

Deﬁne W as the output of sigmoid activation;

Return the resultant attention weights W;

Algorithm 2: EBA Module Feature Processing.

representation into an intermediate dimension before

outputting the classiﬁcation results. With respect to

the ResNet backbone, the resultant keypoint represen-

tations are reformatted from (n, H

′

) → (n, H

′

) for the classiﬁcation phase. This modiﬁed ap-

proach still retains the lightweight nature of the origi-

nal SimCC head but is designed for enhanced feature

capture, especially crucial for intricate object scenar-

ios.

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

138

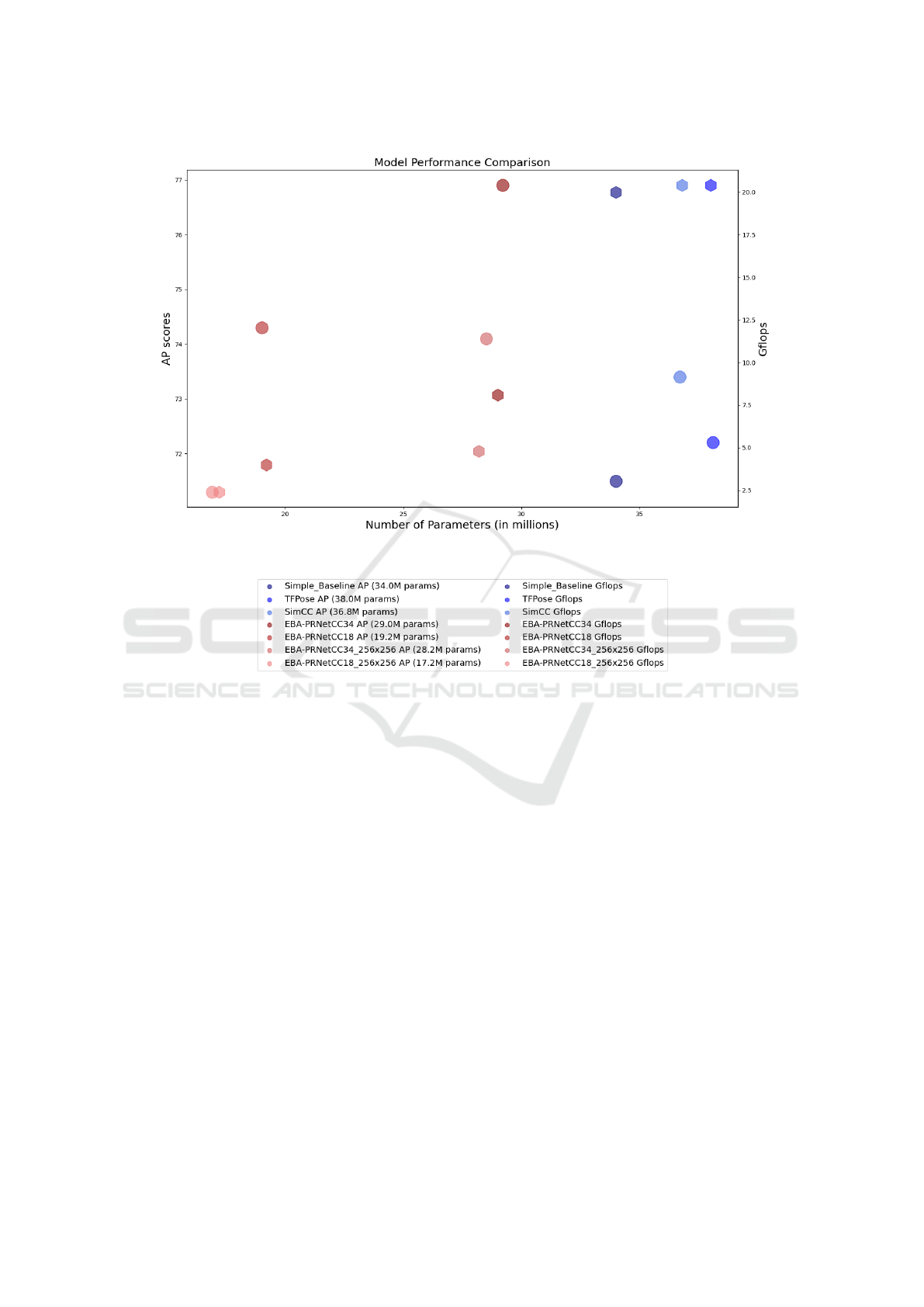

Figure 5: Visual analysis of 2D HPE models in terms of accuracy, parameters, and computational efﬁciency.

For the classiﬁcation task, our method is rooted

in the principle of evenly converting each continuous

coordinate into an integer, which then acts as a train-

ing class label: c

falls within [1, N

], and c

within

[1, N

]. Here N

= W × k and N

= H × k specify the

bin counts for the horizontal and vertical dimensions,

respectively. The division factor, k, is sensibly cho-

sen to be ≥ 1 to curtail quantization discrepancies,

assuring granular localization accuracy. In generat-

ing the concluding predictions, EBA-PRNet indepen-

dently carries out vertical and horizontal coordinate

classiﬁcations, drawing on the n keypoint representa-

tions discerned by the backbone. For a given i

key-

point representation, the associated predictions o

and

are procured through the respective horizontal and

vertical classiﬁers.

3.4 Loss Function

Our 2D HPE EBA-PRNet methodology adopts a dis-

tinctive loss function termed KLDiscretLoss. This

loss function utilizes the Kullback-Leibler Diver-

gence (KLD) to measure the closeness between the

predicted pose coordinate distributions and the actual

ground truth distributions. At its core, this function

is an adaptation of PyTorch’s KLDivLoss, emphasiz-

ing non-aggregated loss outputs. Before computing

the divergence, predictions undergo a transformation

via the LogSoftmax layer, rendering them into a log-

probability format conducive to the KLD evaluation.

During the forward pass, the loss is computed for

each joint’s x and y coordinates. For every joint, the

predicted coordinates are juxtaposed with the ground

truth, and a speciﬁc weight modiﬁes the resulting loss.

The aggregate loss is then derived by averaging these

individual joint losses, providing a holistic assess-

ment of the model’s efﬁcacy in pinpointing human

pose coordinates. Mathematically, the loss for the i

joint is expressed as:

Loss[i] = W[i] ×



KLD



logSoftmax(o

), gt(o

)



+ KLD



logSoftmax(o

), gt(o

)





(4)

EBA-PRNetCC: An Efﬁcient Bridge Attention-Integration PoseResNet for Coordinate Classiﬁcation in 2D Human Pose Estimation

139

The overall KLDiscretLoss is then computed as

the mean of losses across all joints:

KLD

iscretLoss

∑

i=1

Loss[i] (5)

Here, N represents the total number of joints. (o

and

) indicate the predicted x and y coordinates for the

joint, respectively, while gt(o

) and gt(o

) are the

corresponding ground truth coordinates. W symbol-

izes the weight designated for the i

joint. The term

KLD(A, B) deﬁnes the KLD between distributions A

and B.

4 EXPERIMENTAL SETUP

4.1 Dataset

The COCO keypoint dataset (Lin et al., 2014) oc-

cupies a prominent position in the ﬁeld of 2D HPE.

Valued for its extensive range and variety, it has over

200K images. These images, captured across diverse

real-world settings, annotate a notable 250K individ-

uals across 17 distinct human joint categories. This

variety not only facilitates the training of complex

models but also presents challenges due to diverse

lighting, occlusions, and complex human poses. For

our research, we carefully limited our training to the

COCO 2017 training subset, which includes 57K im-

ages annotated for 150K individuals. It’s essential

to highlight that our training routine remained exclu-

sively within this dataset, preserving the integrity and

uniformity of our outcomes without the addition of

any outside data. Additionally, the dataset allocates

5K images for validation, a vital process in optimizing

and enhancing model accuracy. Another 20K images

are reserved for testing efforts, facilitating a thorough

evaluation of the model’s performance in unfamiliar

situations.

4.2 Evaluation Metric

We utilize evaluation metrics derived from the Ob-

ject Keypoint Similarity (OKS) methodology to as-

sess the accuracy of our keypoint localization. OKS

offers a measure of the difference between the pre-

dicted keypoints and their true ground-truth positions.

The mathematical representation of OKS is:

OKS =

∑

exp



−



δ(v

> 0)

∑

δ(v

> 0)

(6)

In this formula, d

represents the Euclidean distance

between the predicted and ground-truth keypoints.

The term s refers to the scale of the person and k

is a

constant speciﬁc to each keypoint, accounting for its

inherent variability. The variable v

is an indicator of

keypoint visibility, taking a value of 1 if the keypoint

is visible and 0 if it’s either not visible or not labeled.

The function δ acts as an indicator, yielding 1 if its

condition is satisﬁed and 0 otherwise.

Our primary evaluation metric is the Average Pre-

cision (AP), which we carefully compute across ten

distinct OKS thresholds. For an in-depth analysis, we

offer a range of metrics. The AP metric provides a

wide-ranging perspective, averaging AP scores over

OKS values from 0.50 to 0.95, incremented by 0.05.

We further clarify performance at speciﬁc OKS values

with AP50 and AP75 metrics. We introduce metrics

AP(M) and AP(L) for medium and large objects to ad-

dress different object sizes. Lastly, the Averaging Re-

call metric, AR values over the selected OKS thresh-

olds, gives a comprehensive insight into the model’s

recall proﬁciency.

4.3 Implementation Details

We integrated speciﬁc data augmentation techniques

to enhance the proposed model’s adaptability to spa-

tial rotations and scale variations. These included ran-

dom horizontal reﬂections, rotations varying from -30

to +30 degrees, and scale changes within the 0.7 to 1.3

range. We constructed our model using the PyTorch

framework. During the training phase, we set the

learning rate at 1e-05, established a batch size of 16

for training and testing, utilized six dedicated work-

ers for parallel tasks, and conducted training over 140

epochs. The Mish activation function was our pref-

erence over the traditional ReLU, primarily because

Mish effectively navigates the challenges of vanishing

gradients, a limitation often associated with ReLU.

By retaining gradients during operations, Mish pro-

motes both efﬁcient and steady training, especially

crucial for deeper network structures, positioning it as

an indispensable tool for our model’s superior func-

tionality. For optimization purposes, we included the

AdamW optimizer, an advanced iteration of the clas-

sic Adam method. A deﬁning trait of AdamW is its

ability to handle weight decay and learning rate mod-

iﬁcations distinctly, facilitating enhanced tuning ac-

curacy and substantially diminishing the tendency for

overﬁtting.

5 RESULTS AND DISCUSSION

In our study, we compared the performance of var-

ious pose estimation methodologies, including our

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

140

Table 1: EBA-PRNetCC Performance Evaluation in Comparison with Previous Pose Estimation Methods.

Method Repr. Backbone Input AP AP(50) AP(75) AP(M) AP(L) AR

Simple Baseline Heatmap-based ResNet-50

384x288

71.5 91.1 78.7 67.8 78.0 76.9

TFPose Reg.-based ResNet-50T. 72.2 90.9 80.1 69.1 78.8 -

SimCC Coord.-based ResNet-50 73.4 89.2 80.0 69.7 80.6 78.8

EBA-PRNetCC Coord.-based

ResNet-18 74.3 92.5 81.5 71.5 79.0 77.2

ResNet-34 76.9 93.5 83.6 73.9 81.6 79.6

Figure 6: Qualitative Results of EBA-PRNetCC for 2D HPE on COCO Dataset Under Viewpoint Changes, Occlusions, and

Adverse Imaging Conditions.

Table 2: Comparison of EBA-PRNetCC vs. Previous Meth-

ods: Input, AP, Parameters, and Computational Efﬁciency

(GFLOPS).

Method Input AP P(M) GF

Simple Baseline

384×288

71.5 34.0 20.0

TFPose 72.2 38.0 20.4

SimCC 73.4 36.8 20.4

EBA-PRNetCC18 74.3 19.0 4.0

EBA-PRNetCC34 76.9 29.0 8.1

EBA-PRNetCC18

256x256

71.3 17.0 2.4

EBA-PRNetCC34 74.1 28.0 4.8

proposed model EBA-PRNetCC. The results are pre-

sented in Table 1, which summarizes the performance

metrics across different models. From Table 1, it

is obvious that the Simple Baseline method (Xiao

et al., 2018), based on a heatmap representation with a

ResNet-50 backbone, achieved an AP of 71.5, AP(50)

of 91.1, and AP(75) of 78.7. When considering

medium-sized objects AP(M), the method attained

67.8 and 78.0 for larger objects AP(L). The aver-

age recall (AR) for this model stands at 76.9. The

TFPose (Mao et al., 2021), a regression-based ap-

proach with a combined ResNet-50 and Transformer

backbone, slightly outperformed the Simple Baseline

with an AP of 72.2, AP(50) of 90.9, and AP(75) of

80.1. However, the AR for this model is not provided.

SimCC (Li et al., 2022), another competitive model,

uses a coordinate-based representation with a ResNet-

50 backbone. It showed a promising AP of 73.4 and

an AR of 78.8. Notably, its performance on larger ob-

jects, AP(L), is 80.6, which is marginally better than

the aforementioned models. Our proposed method,

EBA-PRNetCC, was tested with two different back-

bones: ResNet18 and ResNet34. With the ResNet18

backbone, EBA-PRNetCC achieved an AP of 74.3,

which is higher than both the Simple Baseline and

TFPose methods.

The performance further improved with the

ResNet34 backbone, reaching an AP of 76.9, making

it the best-performing model among the ones tested.

Furthermore, the EBA-PRNetCC with ResNet34

achieved impressive results on AP(50) and AP(75)

with scores of 93.5 and 83.6, respectively. The AR

for this variant is 79.6, which is also the highest

among the models presented. Table 2 offers a deeper

dive, focusing on the balance between AP, model pa-

EBA-PRNetCC: An Efﬁcient Bridge Attention-Integration PoseResNet for Coordinate Classiﬁcation in 2D Human Pose Estimation

141

Table 3: Performance comparison of EBA-PRNetCC with SLP and MLP Head.

Method Head Input AP AP(50) AP(75) AP(M) AP(L) AR Param(M) GFLOPS

EBA-PRNetCC

SLP

384×288

76.3 93.5 82.6 73.2 80.9 79.0 35 8.2

MLP 76.9 93.5 83.6 73.9 81.6 79.6 29 8.1

Table 4: Performance comparison of EBA-PRNetCC variants with different backbones.

Method Backbone Input AP AP(50) AP(75) AP(M) AP(L) AR

EBA-PRNetCC

ResNet18

256×256

71.3 91.4 78.1 68.2 75.8 74.5

ResNet34 74.3 92.5 81.5 71.5 79.0 77.2

rameters, and computational complexity in Gﬂops.

The Simple Baseline (Xiao et al., 2018), with its

384x288 input size, demands approximately 34.0M

parameters and 20.0 Gﬂops. TFPose (Mao et al.,

2021), despite having a slightly better AP of 72.2,

requires more parameters (38.0M) while maintain-

ing a computational complexity of 20.4 Gﬂops, sim-

ilar to SimCC’s requirements (Li et al., 2022). Our

EBA-PRNetCC models, notably EBA-PRNetCC34

and EBA-PRNetCC18, stand out for their efﬁciency.

EBA-PRNetCC34, with its ResNet34 backbone, not

only tops in AP with 76.9 but does so with just 29M

parameters, consuming only 8.1 GFLOPS. When

competitive AP of 74.3, but with a drastic reduction

in parameters to 19M and computational need to 4.0

GFLOPS. Even with a reduced input size of 256x256,

both models continue to impress. Their performance,

combined with reduced parameters and GFLOPS, un-

derlines their efﬁciency. our EBA-PRNetCC models,

both with ResNet34 and ResNet18 backbones, offer a

compelling balance between accuracy and efﬁciency,

we visualized the AP, GPLOPS, and number of Pa-

rameters of our models and other previous models in

Figure 5.

Figure 6 provides a thorough qualitative evalua-

tion of our EBA-PRNetCC for 2D HPE, illustrating

its effectiveness on the COCO dataset under a va-

riety of challenging conditions. The model adeptly

manages complex situations, including alterations in

viewpoint, diverse occlusions, blurry imagery, ex-

treme lighting variations, and complex human-object

interactions. The displayed outcomes emphasize the

model’s ability to precisely comprehend and adapt

to the nuanced dynamics of the human kinematic

chain, ensuring reliable and accurate pose estimation

throughout these demanding scenarios.

6 ABLATION STUDY

To understand the inﬂuence of the enhancements

made to the model’s head, we conducted an ablation

study comparing two key conﬁgurations of our EBA-

PRNetCC model: one employing a Single Layer Per-

ceptron (SLP) and the other utilizing a dual-layer

MLP with the Mish activation function. The results of

this study are presented in Table 3. EBA-PRNetCC-

SLP used a ResNet34 backbone, this version with

an appended SLP achieved an AP of 76.3 and re-

quired 35M parameters with 8.2 GFLOPS computa-

tional complexity. While EBA-PRNetCC-MLP intro-

ducing a dual-layer MLP with Mish activation, this

variant not only improved the AP to 76.9 but also

reduced the parameters to 29M while maintaining a

similar computational complexity of 8.1 GFLOPS.

The results highlight the efﬁciency and performance

gains achieved by embedding an MLP with Mish ac-

tivation in the model’s head, making EBA-PRNetCC

more effective without increasing computational de-

mands.

Table 4 presents the performance of the EBA-

PRNetCC model with a reduced input size of

256×256, using both ResNet-18 and ResNet34 as

backbones. With the ResNet18 backbone, the model

achieved an AP of 71.3. Its AP(50) score was partic-

ularly impressive at 91.4, indicating its ability to ac-

curately detect more obvious poses. The AR for this

conﬁguration stood at 74.5. Switching to the ResNet-

34 backbone brought about signiﬁcant improvements.

The AP increased to 74.3, and the AP(50) rose to an

impressive 92.5. The overall recall also saw an en-

hancement, registering at 77.2. These results high-

light the model’s consistent performance, even when

the input size is changed.

7 CONCLUSIONS AND FUTURE

WORK

This paper introduces EBA-PRNetCC, a novel

methodology that shifts from the conventional 2D

heatmap-centric techniques to a sophisticated, coordi-

nated classiﬁcation strategy in 2D HPE. Leveraging a

modiﬁed ResNet34 architecture, our system achieves

reliable keypoint detection while reducing the num-

ber of parameters. A crucial enhancement in our

model’s design lies in its head incorporating a dual-

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

142

layer MLP accentuated by the Mish activation func-

tion. This deliberate inclusion reduces the parameters

and ampliﬁes pose estimation accuracy—a result we

link to the non-linear attributes of the MLP and the

gradient-rich dynamics of the Mish function. More-

over, the EBA infusion within ResNet34 enhances

our model’s feature extraction capabilities, granting

it deeper contextual insights. By emphasizing pixel-

level discretization, we curtail quantization irregular-

ities and boost joint localization precision. Experi-

mental results produce EBA-PRNetCC superior per-

formance on the COCO dataset, attributed to its re-

ﬁned feature mapping, optimal activation function,

and sophisticated optimization techniques. In the fu-

ture, we aim to adopt increasingly efﬁcient architec-

tures and expand training over varied datasets to en-

hance model generalization.

REFERENCES

Andriluka, M., Pishchulin, L., Gehler, P., and Schiele, B.

(2014). 2d human pose estimation: New bench-

mark and state of the art analysis. In Proceedings of

the IEEE conference on computer vision and pattern

recognition (CVPR).

Cai, Y., Wang, Z., Luo, Z., Yin, B., Du, A., Wang, H.,

Zhang, X., Zhou, X., Zhou, E., and Sun, J. (2020).

Learning delicate local representations for multi-

person pose estimation. In Computer Vision–ECCV

2020: 16th European Conference, Glasgow, UK, Au-

gust 23–28, 2020, Proceedings, Part III, pages 455–

472. Springer.

Cao, Z., Simon, T., Wei, S.-E., and Sheikh, Y. (2017). Real-

time multi-person 2d pose estimation using part afﬁn-

ity ﬁelds. Proceedings of the IEEE conference on

computer vision and pattern recognition, pages 7291–

7299.

Chen, H., Feng, R., Wu, S., Xu, H., Zhou, F., and Liu, Z.

(2022). 2d human pose estimation: A survey. Multi-

media Systems, pages 1–24.

Chen, T., Saxena, S., Li, L., Fleet, D. J., and Hinton, G.

(2021). Pix2seq: A language modeling framework for

object detection. arXiv preprint arXiv:2109.10852.

Cheng, B., Xiao, B., Wang, J., Shi, H., Huang, T. S., and

Zhang, L. (2020). Higherhrnet: Scale-aware repre-

sentation learning for bottom-up human pose estima-

tion. In Proceedings of the IEEE/CVF conference on

computer vision and pattern recognition, pages 5386–

5395.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

Johnson, S. and Everingham, M. (2010). Clustered pose and

nonlinear appearance models for human pose estima-

tion. In British Machine Vision Conference (BMVC).

Li, J., Bian, S., Zeng, A., Wang, C., Pang, B., Liu, W., and

Lu, C. (2021). Human pose regression with resid-

ual log-likelihood estimation. In Proceedings of the

IEEE/CVF international conference on computer vi-

sion, pages 11 025–11 034.

Li, Y., Yang, S., Liu, P., Zhang, S., Wang, Y., Wang, Z.,

Yang, W., and Xia, S.-T. (2022). Simcc: A simple

coordinate classiﬁcation perspective for human pose

estimation. In European Conference on Computer Vi-

sion, pages 89–106. Springer.

Lin, T.-Y., Maire, M., Belongie, S., Hays, J., Perona, P.,

Ramanan, D., Dollar, P., and Zitnick, C. L. (2014).

Microsoft coco: Common objects in context. In Euro-

pean Conference on Computer Vision (ECCV).

Mao, W., Ge, Y., Shen, C., Tian, Z., Wang, X., and Wang,

Z. (2021). Tfpose: Direct human pose estimation with

transformers. arXiv preprint arXiv:2103.15320.

Newell, A., Yang, K., and Deng, J. (2016). Stacked

hourglass networks for human pose estimation. In

Computer Vision–ECCV 2016: 14th European Con-

ference, Amsterdam, The Netherlands, October 11-

14, 2016, Proceedings, Part VIII, pages 483–499.

Springer.

Nie, X., Feng, J., Zhang, J., and Yan, S. (2019). Single-

stage multi-person pose machines. In Proceedings of

the IEEE/CVF international conference on computer

vision, pages 6951–6960.

Salman, S. A., Zakir, A., Benitez-Garcia, G., and Taka-

hashi, H. (2023a). Acenet: Attention-driven contex-

tual features-enhanced lightweight efﬁcientnet for 2d

hand pose estimation. In 2023 38th International Con-

ference on Image and Vision Computing New Zealand

(IVCNZ), pages 1–6. IEEE.

Salman, S. A., Zakir, A., and Takahashi, H. (2023b). Cas-

caded deep graphical convolutional neural network for

2d hand pose estimation. In International Workshop

on Advanced Imaging Technology (IWAIT) 2023, vol-

ume 12592, pages 227–232. SPIE.

Salman, S. A., Zakir, A., and Takahashi, H. (2023c).

Sdfposegraphnet: Spatial deep feature pose graph

network for 2d hand pose estimation. Sensors,

23(22):9088.

Sun, K., Xiao, B., Liu, D., and Wang, J. (2019). Deep high-

resolution representation learning for human pose es-

timation. In Proceedings of the IEEE/CVF conference

on computer vision and pattern recognition, pages

5693–5703.

Tian, Z., Chen, H., and Shen, C. (2019). Directpose: Di-

rect end-to-end multi-person pose estimation. arXiv

preprint arXiv:1911.07451.

Tompson, J. J., Jain, A., LeCun, Y., and Bregler, C. (2014).

Joint training of a convolutional network and a graph-

ical model for human pose estimation. Advances in

neural information processing systems, 27.

Xiao, B., Wu, H., and Wei, Y. (2018). Simple baselines

for human pose estimation and tracking. In Proceed-

ings of the European conference on computer vision

(ECCV), pages 466–481.

Yang, S., Quan, Z., Nie, M., and Yang, W. (2021). Trans-

pose: Keypoint localization via transformer. In Pro-

EBA-PRNetCC: An Efﬁcient Bridge Attention-Integration PoseResNet for Coordinate Classiﬁcation in 2D Human Pose Estimation

143

ceedings of the IEEE/CVF International Conference

on Computer Vision, pages 11802–11812.

Yin, S., Wang, S., Chen, X., Chen, E., and Liang, C. (2020).

Attentive one-dimensional heatmap regression for fa-

cial landmark detection and tracking. In Proceedings

of the 28th ACM International Conference on Multi-

media, pages 538–546.

Zakir, A., Salman, S. A., Benitez-Garcia, G., and Taka-

hashi, H. (2023a). Aeca-prnetcc: Adaptive efﬁ-

cient channel attention-based poseresnet for coordi-

nate classiﬁcation in 2d human pose. In 2023 38th

International Conference on Image and Vision Com-

puting New Zealand (IVCNZ), pages 1–6. IEEE.

Zakir, A., Salman, S. A., and Takahashi, H. (2023b). Sahf-

lightposeresnet: Spatially-aware attention-based hier-

archical features enabled lightweight poseresnet for

2d human pose estimation. In International Confer-

ence on Parallel and Distributed Computing: Appli-

cations and Technologies, pages 43–54. Springer.

Zhang, F., Zhu, X., Dai, H., Ye, M., and Zhu, C. (2020).

Distribution-aware coordinate representation for hu-

man pose estimation. In Proceedings of the IEEE/CVF

conference on computer vision and pattern recogni-

tion, pages 7093–7102.

Zhang, T., Lian, J., Wen, J., and Chen, C. P. (2023). Multi-

person pose estimation in the wild: Using adversarial

method to train a top-down pose estimation network.

IEEE Transactions on Systems, Man, and Cybernet-

ics: Systems.

Zhao, Y., Chen, J., Zhang, Z., and Zhang, R. (2022). Ba-

net: Bridge attention for deep convolutional neural

networks. In European Conference on Computer Vi-

sion, pages 297–312. Springer.

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

144
