Semantic State Estimation in Robot Cloth Manipulations

Using Domain Adaptation from Human Demonstrations

∗

Georgies Tzelepis

, Eren Erdal Aksoy

, J

ulia Borr

and Guillem Aleny

Institut de Rob

otica i Inform

atica Industrial, CSIC-UPC, Llorens i Artigas 4-6, 08028 Barcelona, Spain

Halmstad University, Center for Applied Intelligent Systems Research, Halmstad, Sweden

Keywords:

Robotic Perception, Garment Manipulation, Semantics, Cloth, Transfer Learning, Domain Adaptation.

Abstract:

Deformable object manipulations, such as those involving textiles, present a signiﬁcant challenge due to their

high dimensionality and complexity. In this paper, we propose a solution for estimating semantic states in

cloth manipulation tasks. To this end, we introduce a new, large-scale, fully-annotated RGB image dataset of

semantic states featuring a diverse range of human demonstrations of various complex cloth manipulations.

This effectively transforms the problem of action recognition into a classiﬁcation task. We then evaluate

the generalizability of our approach by employing domain adaptation techniques to transfer knowledge from

human demonstrations to two distinct robotic platforms: Kinova and UR robots. Additionally, we further

improve performance by utilizing a semantic state graph learned from human manipulation data.

1 INTRODUCTION

While rigid object manipulation has achieved matu-

rity, cloth manipulation remains in its infancy due to

its high complexity. Recent results mainly focused on

cloth state estimation, grasp point selection, and efﬁ-

cient representations (Hoque et al., 2020; Lippi et al.,

2020; Pumarola et al., 2018; Corona et al., 2018; Qian

et al., 2020), but the high-level understanding of the

cloth deformation state is still an uncharted challenge.

Unlike their rigid and articulated counterparts, where

the number of possible states for an object is man-

ageable and can be semantically deﬁned and linked to

actions, identifying semantic deformation states of a

textile object is a high dimensional problem that has

so far been unexplored, to the best of our knowledge.

One of the core challenges in cloth manipulation

is the difﬁculty of obtaining reliable labeled data, hin-

dering the training of AI systems. This becomes

even more challenging due to substantial performance

drops of such AI systems when switching from one

∗

This work receives funding from the Spanish

State Research Agency through the project CHLOE-

GRAPH (PID2020-118649RB-l00); by MCIN/ AEI

/10.13039/501100011033 and by the ”European Union

(EU) NextGenerationEU/PRTR under the project CO-

HERENT (PCI2020-120718-2); and the EU H2020 Pro-

gramme under grant agreement ERC–2016–ADG–741930

(CLOTHILDE).

domain (e.g., from humans) to another one involv-

ing, for instance, robots with different embodiments

running in new scenes. We tackle this challenge by

extracting semantic cloth states and employing them

to reduce the shift between different domains. Our

method for semantic state estimation also requires la-

beled data, but we show how we can apply our net-

work trained with labeled human demonstrations to

different robotic domains using domain shift adapta-

tion techniques, without requiring additional labeled

data (See Fig. 1). This opens the door to learning from

human demonstrations and automatic data segmenta-

tion, allowing the application of tailored techniques

for each semantic state.

In the past, cloth state estimation has usually been

focused on estimating the corresponding mesh (Li

et al., 2018; Pumarola et al., 2018) or interesting

grasping points (Seita et al., 2018; Corona et al.,

2018). Instead, in this work, we utilize a high-

level semantic description of the cloth state, following

a framework introduced in (Garcia-Camacho et al.,

2022), that includes not only semantic information

on the cloth deformation types (e.g. crumpled, ﬂat,

folded) but also the tags representing where the cloth

is grasped from (e.g. right/left corners, edge, etc.) and

what contacts the cloth has with the environment.

Unlike techniques such as edge tracking (Schul-

man et al., 2013; Kumar et al., 2018), trajectory trac-

ing (Lee et al., 2022) or reconstruction (Chi and Song,

172

Tzelepis, G., Aksoy, E., Borràs, J. and Alenyà, G.

Semantic State Estimation in Robot Cloth Manipulations Using Domain Adaptation from Human Demonstrations.

DOI: 10.5220/0012368200003660

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2024) - Volume 4: VISAPP, pages

172-182

ISBN: 978-989-758-679-8; ISSN: 2184-4321

Figure 1: First, we train on fully labeled data from hu-

man demonstration, from which we also learn an adjacency

graph. In the second step, we regularize the latent space

with time contrastive learning in all domains and then per-

form domain adaptation separately on each robot domain.

When doing inference, accuracy is improved by performing

a post-process on the predictions using the learned graph.

2021; Bednarik et al., 2018; Bednarik et al., 2020)

which incorporate low-level features and time coher-

ence that are difﬁcult to extract to estimate the gar-

ment deformation from some target poses in a single

frame, the high-level information provided by the se-

mantic states make them ideal for monitoring, data

segmentation, and decision-making. Our framework

learns to recognize both the garment deformation and

its grasping state. Thus, it acts as a link between the

low and high-level features.

Our framework’s central purpose is knowledge

transfer from human demonstrations. Deforming ob-

jects through human demonstration facilitates quicker

actions with more dynamic garment interactions

where robotic data collection poses challenges due

to control, grasping feasibility, and manipulation

speed complexities. Additionally, static environments

arise from limited robot mobility. Demonstration-to-

sample ratios underscore these claims: human data

(33.6K RGB images, 264 demos), UR (15.5K RGB

images, 20 demos), Kinova (32.7K RGB images, 20

demos).

Our contributions (summarized in Fig. 1) include:

• A solution for the semantic state estimation prob-

lem in cloth manipulation tasks, evaluating dif-

ferent state-of-the-art network models. Applica-

tion of time contrastive learning (Sermanet et al.,

2018) and domain adaptation (Ganin and Lempit-

sky, 2015) to generalize from human demonstra-

tion to two different robotic domains, without re-

quiring additional labeled data.

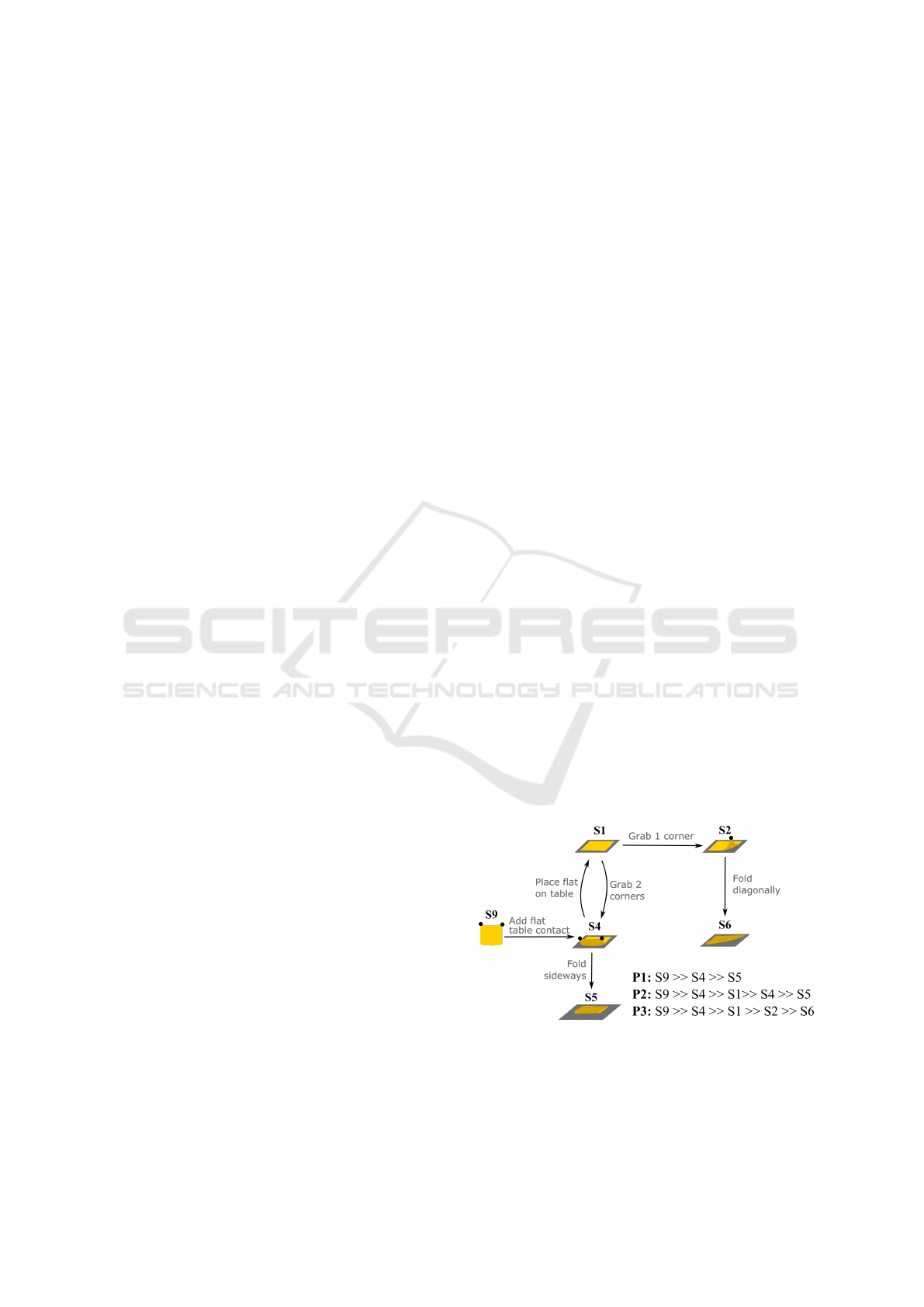

• Learning a graph of semantic state adjacencies

from our labeled data, to be further used to im-

prove the accuracy of the domain adaptation in-

ferences.

• A novel, fully-annotated dataset for uni- and bi-

manual cloth manipulation including human and

robotic manipulations.

Our experimental ﬁndings show our semantic

state estimation model trained with human demon-

strations can recognize states in completely different

robotic domains, using Kinova robotic arms and Uni-

versal Robot arms, without requiring additional la-

beled data. We will release our full dataset and code

to encourage further research on the subject.

2 RELATED WORK

Our work is inspired by the abstract semantic repre-

sentations of manipulation states done for rigid ob-

jects, based on contact interactions between the ob-

ject, the hands, and the environment (W

org

otter et al.,

2013), which was applied to manipulation recogni-

tion, segmentation (Aksoy et al., 2011) and robot ex-

ecution tasks (Aein et al., 2019).

Recognition of semantic tags in cloth manipula-

tion mainly consisted of identifying garment or fab-

ric types. In (Mariolis et al., 2015), CNNs were

used to ﬁrst recognize the garment type and its pose.

In (Kampouris et al., 2016), attributes like garment or

fabric type were identiﬁed using multisensorial data.

In (Ramisa et al., 2013), the cloth category could be

identiﬁed using a descriptor from RGB-D data. How-

ever, these semantic tags differ from our work because

they are not related to the manipulation state. The

work in (Verleysen et al., 2022) could monitor the task

progression in human folding tasks using time con-

trastive learning, where task progress steps are similar

to semantic states. However, this approach has limita-

tions when applied to tasks where the same semantic

state repeats in different time frames. To the best of

our knowledge, no other semantic state identiﬁcation

has been applied to cloth manipulation.

Research on the perception of textiles has also

focused on other aspects than semantic state esti-

mation. For instance, to detect task-oriented grasp-

ing points (Ramisa et al., 2016), to identify cor-

ners in RGB-D images (Seita et al., 2018), or to do

semantic area segmentation to identify corners and

edges from a cloth (Qian et al., 2020) or to esti-

mate the mesh (Pumarola et al., 2018). Others use

directly the RGB-D image as the state deﬁnition for

image-based learning approaches (Hoque et al., 2020;

Seita et al., 2018; Jangir et al., 2020; Lippi et al.,

2020), sometimes by adding state parameters on grip-

per states (Matas et al., 2018) or on robotic arm

joints (Yang et al., 2016). While all these methods

extract visual information through a neural network,

Semantic State Estimation in Robot Cloth Manipulations Using Domain Adaptation from Human Demonstrations

173

they either focus on static garments or learn control

policies for reinforcement learning.

In the context of the robotic manipulation of tex-

tiles, several datasets have been released. Human

demonstrations of folding tasks have been recorded

with the corresponding skeletal labels of the per-

son performing the manipulations (Verleysen et al.,

2020). Other datasets include one for tracking

clothes (Schulman et al., 2013), for reconstruction

purposes (Bednarik et al., 2018), or to identify rele-

vant parts of deformables, with labels obtained from

UltraViolet light (Thananjeyan et al., 2022). Ex-

cept (Verleysen et al., 2020), these datasets have a

limited spectrum of actions because they omitted the

gripper interactions. They either focus only on one

single domain or are very problem-speciﬁc, such as

the detection of grasping points. Our approach, how-

ever, derives the high-level semantic scene represen-

tation that can be used to link multiple domains, e.g.,

human and robotic.

Domain adaptation has also been an active area of

research since the emerged popularity and success of

deep learning. One of the most popular approaches

to unsupervised domain adaptation is Domain Adver-

sarial Neural Networks (DANN) (Ganin and Lempit-

sky, 2015), which uses a classiﬁer and a discrimi-

nator to align the feature representation between the

source and target domains. Domain Separation Net-

works (DSN) (Bousmalis et al., 2016) employed do-

main confusion loss to encourage the model to learn

domain-invariant features. Adversarial Discrimina-

tive Domain Adaptation (ADDA) (Tzeng et al., 2017)

further extended DANN by incorporating adversarial

learning to learn domain-invariant features. Condi-

tional Domain Adaptation Network (CDAN) (Long

et al., 2018) employed a conditioned multilinear map

to fully capture cross-variance between the feature

representation and classiﬁer prediction, resulting in

a better alignment of the joint distributions. Finally,

Batch Spectral Penalization (BSP) (Chen et al., 2019)

penalizes the largest singular values to enhance the

feature discriminability of the lower-rank representa-

tions.

Time contrastive learning (Sermanet et al., 2018)

focuses on capturing temporal relationships and de-

pendencies within sequential data and thus regulariz-

ing the latent space.

3 METHOD

Inspired by the work in (Garcia-Camacho et al., 2022)

in which complex garment manipulations were bro-

ken down into semantic states by observing humans,

Table 1: Cloth manipulation tasks and semantic states.

1: For each state, we deﬁne the grasp type, the location of

the grasps and the semantic description of deformation.

Following (Borr

as et al., 2020), PP: pinch grasp, 2PP:

bi-manual pinch, and Π

: the extrinsic contact with the

table.

2: By crumpled we mean the cloth is deformed enough so

that it cannot go back to a ﬂat conﬁguration without

additional manipulation, as opposed to ﬂat in the S2 state,

which can be reversed to its previous state.

3: This manipulation is repeated at different distances from

the corner grasp, always on the same edge.

our research focuses on cloth manipulations, primar-

ily through human demonstrations that utilize a pair

of two-point grippers, and later through robotic ma-

nipulations executed in new scene contexts using dif-

ferent platforms. Towels and kitchen towels are in-

cluded in both human and robotic experiments since

they share the same topology. To facilitate the evalua-

tion we introduce two restrictions in our experiments:

one refers to the cloth size which should ﬁt the edges

of the table, while the other is the initial position,

which is either ﬂat on the table or is lifted in the air

by two grippers (see Fig. 1 and Table 1).

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

174

3.1 Cloth Manipulation Tasks and

Semantic States

In our framework, seven different uni- and bi-manual

cloth manipulation tasks such as folding diagonally

and lifting with two grippers are performed on eigh-

teen different clothes. Since not all clothes are square-

shaped, we consider the manipulations that involve

diagonally folding only with clothes that are square.

Table 1 shows the seven manipulations considered

(one in each column). Ten semantic states are re-

quired in total (rows), each of which deﬁnes a unique

deformation type of the cloth. They are deﬁned by

the corresponding grasp type, location of grasp in the

cloth, and deformation category (Borr

as et al., 2020;

Garcia-Camacho et al., 2022). The deﬁnition of the

states takes inspiration from works like (Aksoy et al.,

2011) where each change of contact interaction be-

tween hand, object, and environment was treated as

a different scene state, however, in our case changes

in the deformation category are also considered. The

states are enough to represent these manipulations,

but we note that other manipulations may require new

states. We also follow the same principles in robotic

manipulations, excluding only the semantic state S10:

middle edge grasp in Table 1 due to grasping-related

challenges.

As can be observed, each manipulation is com-

posed of a sequence of semantic states. For instance,

the uni-manual cloth manipulation folding sideways

(shown in the ﬁrst column in Table 1) involves three

states: S1: ﬂat, S2: ﬂat semi-lifted with one gripper,

and S5: folded sideways. On the other hand, as shown

in the last column in Table 1, the bi-manual manipu-

lation edge grasping has only two states: S1: ﬂat and

S10: middle edge grasp. Note that for the sake of clar-

ity, each manipulation task in Table 1 is shown with a

different textile object from our proposed dataset.

By labeling each frame under a semantic state,

we essentially project the relatively complex action

recognition problem into the simpler classiﬁcation

task. However, it is worth noting that two different

time frames that fall under the same state can look

very different as shown in Table 1 and Fig. 4 which

makes the problem more ambiguous.

3.2 Data Collection and Annotation

We create a large-scale dataset showing various hu-

man manipulation and robotic demonstrations on dif-

ferent cloth types. During each demonstration, an

RGB video is recorded. Each extracted frame in hu-

man demonstrations is then manually annotated with

one of ten semantic states described in Table 1.

At the start of each demonstration, the cloth is

placed in the initial state, i.e., lying ﬂat on the table or

bi-manually held in the air by two grippers that grasp

the opposite corners. For the sake of having more nat-

ural scenes, the initial ﬂat position of the cloth also

contains slight deformations such as wrinkles.

To increase the amount of deformation, we in-

cluded a total of eighteen garments with various sizes

and shapes in our human demonstrations, while we

used four of these garments in our robotic manip-

ulations. Out of these garments, seven are square-

shaped, ten are rectangular, and one has smoothed

corners but is still square-shaped. During all these

manipulation demonstrations, we kept the table, grip-

pers, and background constant, and the RGB camera

was mostly stationary with only minor adjustments

introduced between manipulations.

In total, we collected 33.6K RGB images featur-

ing 10 different semantic states (Table 1) using 18 dis-

tinct textile objects, which were demonstrated by hu-

mans. For each garment, a minimum of ﬁve or more

demonstrations were performed, and the total number

of demonstrations was 264.

The annotation has been done manually through

human observation. To facilitate the heavy workload

of data labeling, the images are annotated once they

exhibit a state change. Otherwise, the remaining im-

age frames are automatically labeled with the last ad-

jacent state name. Some short and ﬂickering states,

which either last less than 3 frames or are not in our

state list in Table 1, are omitted.

3.3 Semantic State Estimation

Framework

We treat the semantic state estimation as a classiﬁca-

tion problem. For that purpose, we employ ﬁve dif-

Figure 2: The three sample long manipulation scenarios are

presented as a graph of the semantic states. Following the

state deﬁnitions in Table 1, in these three test demonstra-

tions, the goal states are either S5: Folded sideways or S6:

Folded diagonally. All possible paths to reach the goals are

shown in the bottom right corner of the ﬁgure.

Semantic State Estimation in Robot Cloth Manipulations Using Domain Adaptation from Human Demonstrations

175

ferent advanced neural network classiﬁers (ResNet-

50 (He et al., 2016), ResNeXt-50 (Xie et al., 2017),

EfﬁcientNet (Tan and Le, 2019), ConvNext (Tan and

Le, 2019), DeiT (Touvron et al., 2021)) and train them

using our labeled demonstrations in the source do-

main.

In order to validate the generalization and the scal-

ability of our method, we perform domain adapta-

tion, where we transfer the semantic states learned

from human demonstrations into two different robotic

platforms. To do so, we record ﬁve different robotic

manipulations with kitchen clothes and towels. Two

of those manipulations are P1 and P2 depicted in

Fig. 2, while the other three are the single gripper

manipulations Folding Diagonal, Dropping, and Lift-

ing. The domain adaptation is performed individually

from the human domain to each of these robotic do-

mains. Therefore, in our method, the human demon-

stration acts as the source domain, while the robotic

manipulations are the target domain.

Given the nature of video data, where time coher-

ence can be learned, prior to commencing the domain

adaptation training process, a preliminary step involv-

ing time contrastive learning is undertaken to impart

regularization to the latent space. This strategic ap-

proach is adopted to ﬁne-tune the latent space across

both domains while preserving temporal awareness

and thus reducing the instability of domain adapta-

tion. We perform time contrastive learning on each

manipulation individually by minimizing the time

contrastive loss as follows:

=max(∥ f (x

) − f (x

)∥

− ∥ f (x

) − f (x

)∥

+ α , 0) ,

where x

, x

and x

are the anchor, positive and nega-

tive samples. The hyperparameter α denotes the mar-

gin between positive and negative pairs. Notably, its

value is domain-dependent, as it is subject to varia-

tion across different domains arising from dissimilar

manipulation speed characteristics in each domain.

The selection of hyperparameters in the context of

both robotic domains depends on the choice of the

human domain. For the manipulation task denoted

as P1 in Fig. 2, the hyperparameter α is assigned

to be two times the positive range, which is 0.2 sec-

onds. Subsequently, the corresponding value of α is

adjusted within each respective robotic domain. This

adjustment process involves estimating the equivalent

value based on the duration of the human demonstra-

tion. In practice, the duration of robotic demonstra-

tions plays a crucial role. For instance, if the duration

of a robotic demonstration is longer in comparison

to a human demonstration, the associated value of α

is increased according to that difference in durations.

This approach seeks to maintain a consistent relation

between the manipulation speeds across domains.

Once the training is completed with known labels

in the source domain, we obtain the adjacency matrix

A for the neighboring state graph. For example, the

state S1 is a neighboring state with S2, but not with S3

since such a state transition to S3 is not possible with-

out visiting S2 (see Table 1). We then use the trained

network predictions and adjacency matrix A to de-

termine whether a prediction at time t + 1 is feasible

from time t. Starting at time t, we designate the cur-

rent frame as an anchor. If the prediction for the frame

at time t + 1 is feasible, we designate it as the new

anchor and continue. However, in case the predic-

tion is not feasible according to A , we provide a dis-

tance threshold T and examine whether other predic-

tions within that certain distance from the initial pre-

diction are feasible. If there are feasible predictions

within the predeﬁned threshold, we choose the pre-

diction that is the closest to the current anchor. Other-

wise, we keep the prediction and the anchor remains

unchanged. This process allows us to autonomously

identify and eliminate wrong predictions in an unsu-

pervised manner. It is worth noting that the graph is

generated automatically from the training data.

4 EXPERIMENTS

We evaluate the effectiveness of semantic state esti-

mation networks in two different scenarios which in-

volve monitoring of human and robot manipulations.

In both cases, we use accuracy scores as the primary

evaluation metric to measure the correct classiﬁcation

rate. For the human demonstrations, we employ su-

pervised training, whereas, for the robotic manipula-

tion, the training is completely unsupervised, as the

aim is for the manipulations to be learned from anno-

tated human demonstrations.

4.1 Human Demonstrations for

Training

In section 3.3, we trained ﬁve networks by partition-

ing our annotated dataset of 33.6K samples using a

75-25 stratiﬁed split. The optimization method of

our choice is stochastic gradient descent with warm

Table 2: Quantitative evaluation.

Validation Test Scores

Networks Scores White Orange Grid Average

ResNet-50 (He et al., 2016) 97.77 96.27 91.79 95.54 94.53

ResNeXt-50 (Xie et al., 2017) 97.50 95.67 92.30 95.51 94.49

EfﬁcientNet (Tan and Le, 2019) 97.71 95.53 93.16 96.61 95.10

DeiT (Touvron et al., 2021) 98.20 93.85 86.18 91.60 90.54

ConvNext (Tan and Le, 2019) 98.45 96.92 94.16 97.02 96.03

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

176

restarts (Loshchilov and Hutter, 2016). We ﬁnetune

the network for 30 epochs with batch size 32 and

apply random cropping, ﬂipping, and 15-degree ro-

tation during data augmentation. We wanted to en-

sure that the trained networks were not biased towards

any particular type of cloth, therefore, we excluded all

manipulations involving certain cloth types from the

training data and reserved them only for testing pur-

poses. For instance, all demonstrations featuring the

cloth Orange are reserved as unseen test data, while

the remaining data is utilized for training. We ap-

ply the same leave-one-out testing practice for the

garments White and Grid. Table 2 shows accuracy

scores in percentage (%) for the validation and indi-

vidual test cases with these three clothes. As shown

in Table 2, ConvNext (Liu et al., 2022) performs the

best on average in contrast to the other three networks.

Having a minor difference between the validation and

average test scores conﬁrms that ConvNext is not bi-

ased with the cloth types in the training data.

4.2 Domain Adaptation for Robotic

Manipulations

We generated data in two different domains by per-

forming Folding Diagonal, Dropping, and Lifting ma-

nipulations, as outlined in Table 1 columns, using

both two Kinova and two Universal robot arms. These

robots act as the target domains for our domain adap-

tation network. Additionally, we executed two long

test scenarios (P1 and P2) described in Fig. 2 using

either of the same two robot arms. For instance, the

ﬁrst scenario represents folding a cloth sideways by

following a path (P1 in Fig. 2) with three states: S9, S4

and S5, whereas the second scenario follows P2 with

ﬁve states to reach the same goal: S9, S4, S1, S4

and S5. The Universal Robot manipulation involved

four different garments (White, Orange, Green, and

Pink), while for the Kinova manipulator, we added

the Grid garment as well. A total of 48.2K frames

were collected from the robot executions, with about

12K frames used for testing the garments. Out of the

48, 2K frames, 15.5K were obtained from the UR ma-

nipulations and 32.7K from the Kinova robot.

Before initiating the train of domain adaptation,

we perform time contrastive learning to regularize the

latent space. We train the time contrastive loss with

Adam (Kingma and Ba, 2014) with initial learning

rate at 5e

−4

decreased to 5e

−5

. Then we choose for

the positive range to be 2 in the human domain, 4 in

the UR, and 6 for the Kinova, while the negative sam-

ples are chosen outside that range. We perform time

contrastive learning for 40 epochs.

As a source domain, we used the human demon-

stration data that were described in section 4.1, ex-

cluding the Edge Grasping manipulation. Addition-

ally, we included three long human demonstrations

(P1, P2, and P3) described in Fig. 2. For the tar-

get domain, like in section 4.1 we applied the same

policy by keeping one garment out as the unseen test

case and employing the rest to train the discrimi-

nator. For our testing, we selected squared-shaped

garments, speciﬁcally the Green, Orange, and Pink

ones, as they allow for diagonal folding. Our mod-

els were trained using a DANN architecture (Ganin

and Lempitsky, 2015) with a BSP loss (Chen et al.,

2019) and combined with a pre-trained ConvNext fea-

ture extractor from Imagenet. Since the same number

of classes are shared amongst all domains, we opted

to use the combination DANN-BSP because we ob-

tained the best results amongst other domain adapta-

tion methods such as CDAN (Chen et al., 2019) and

MCD (Saito et al., 2018). We also used Adam with

pre-warmed-up initial rate for training the classiﬁca-

tion branch of DANN for 3 epochs which is decreased

to 5e

−5

. Due to the instability associated with domain

adaptation methods, we trained our network 5 times

for 50 epochs and reported the best score obtained

for each test scenario in Table 3. This table shows

that there is no signiﬁcant bias among the tested gar-

ments, as they all show similar performance. Table 3

also indicates that our proposed post-process (PP) us-

ing the adjacency graph improves the network predic-

tions. Note also that the mean accuracy and standard

deviation scores in Table 3 increase over 5 training

sessions. Table 4 shows that using time contrastive

learning on the latent space before performing domain

adaptation contributes to stability. Note that Table 4

reports the average scores over 5 training sessions, un-

like Table 3 which reveals the best scores obtained.

Figure 3 shows the confusion matrices reporting

the network predictions for Kinova and UR robot ma-

nipulations. The diagonal of each matrix represents

the per-class prediction. We obtain high classiﬁcation

accuracy for each state except one for each robot do-

main. For instance, S6 is mainly mixed with S2 in UR

robot manipulations, although the average accuracy

Table 3: Quantitative evaluation of domain adaptation. The

term w. PP stands for ”with post-process” using the adja-

cency graph. PP. M. STD stands for ”post-process mean

and standard deviation” and denotes the mean increase and

its standard deviation over 5 training sessions.

Garments

Green Orange Pink Average

Kinova 65.25 72.75 70.05 69.40

w. PP 66.60 73.35 71.95 70.65

PP. M. STD 1.28 ± 0.29 0.98 ± 0.14 1.32 ± 0.34 1.19 ± 0.26

UR 80.15 82.25 81.50 81.30

w. PP 80.45 83.65 82.45 82.20

PP. M. STD 0.62 ± 0.27 1.91 ± 0.21 1.05 ± 0.17 1.19 ± 0.21

Semantic State Estimation in Robot Cloth Manipulations Using Domain Adaptation from Human Demonstrations

177

Figure 3: The confusion matrices for the network predictions in both the Kinova (on the left) and UR (on the right) domains.

The diagonal of each matrix represents the per-class prediction, while the number of samples is indicated on the right of each

matrix. The states are listed in the y-axis from top to bottom as follows: Flat (S1), Flat semi-lifted 2 grippers (S4), Lifted w.

2 grippers (S9), Flat semi-lifted 1 gripper (S2), Crumpled semi-lifted 1 gripper (S3), Lifted w. 1 gripper (S8), Crumpled (S7),

Folded sideways (S5), and Folded diagonally (S6).

still reaches up to 82%.

Figure 4 shows the network performance for hu-

man and robotic demonstrations of the same manipu-

lation scenario P1 described in Fig. 2. The red frames

depict incorrect predictions, which emerged, for in-

stance, before and after applying our knowledge from

the graph adjacency matrix, when the garment just

switched from states S9:lifted with two grippers to

S4:ﬂat semi-lifted with two grippers. The blue frames

depict incorrect predictions only before the use of

post-processing. The colored blocks in Fig. 4 clearly

show that such false positive predictions are border-

line cases where the state is either about to change or

just switched to the next. It is worth mentioning that

even before applying the post-processing, predictions

which are incorrect are very similar to other states

(e.g. the state S4:Semi-lifted w. 2 grippers shares

similarities with the borderline case transition from

S1:Flat to S2:Semi-lifted w. 1 gripper when the grip-

pers are very close to the table).

We make use of the adjacency matrix information

Table 4: Ablation study of time contrastive learning. Each

number represents the average ﬁve training sessions. The

term TCL stands for ”time contrastive learning”.

Garments

Green Orange Pink Average

Kinova 53.10 57.25 54.95 55.10

w. TCL 58.25 65.75 63.30 62.45

UR 72.60 74.85 73.30 73.60

w. TCL 74.35 79.70 76.10 76.70

in the graph by applying an empirical threshold of

0.05. However, since each prediction at time t + 1 is

dependent only on the anchor or the prediction at time

t, we reset the anchor every 10 frames as the most

probable prediction. This is done to avoid carrying

the information of incorrect predictions and positions

on the graph nodes for an extended period.

5 DISCUSSION

We ﬁrst would like to highlight the fact that in this

work, we do not propose any novel network model

but rather a novel framework transferring semantic

state estimations learned from human demonstrations

to robot manipulation tasks without requiring any ad-

ditional data annotation effort in the target robot do-

main. We show that the state-of-the-art models (e.g.,

ConvNext (Liu et al., 2022)) can already handle the

challenging state estimation problem. The reported

high accuracy scores in Table 2, Fig. 3, and Fig.4 al-

ready show that there is no need to focus on designing

new deep network architectures. Instead, we address

the domain shift problem where we use the rich in-

formation of the human-labeled dataset to make in-

ferences in two distinct robotic domains.

During domain adaptation, low per-class accura-

cies are observed in the states where the garment is

Diagonally Folded. For instance, in Fig. 3 S6 is con-

fused with S2 at the end of the manipulation with the

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

178

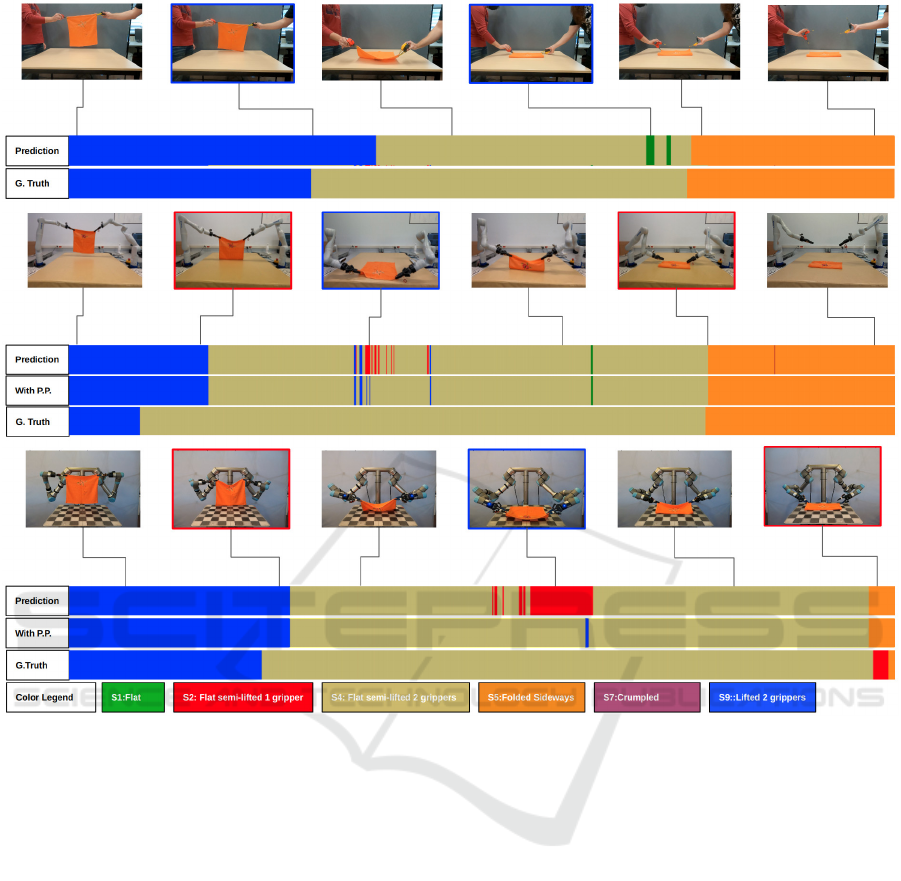

Figure 4: The event plots display the manipulation scenario P1, as described in Fig. 2. On the top, we show the network

performance for the human demonstration. Next, prediction results are illustrated for both the Kinova and UR robot manipu-

lators. The colored blocks in both cases represent the predictions made by the network, the predictions after post-processing

(PP), and the human-labeled ground truth. The red frames around images indicate false positive predictions before and after

post-processing, while the blue image frames represent predictions that are false positives only before post-processing. Note

that the post-processing is applied to the target robot domains only.

UR manipulator. S2 appears because one gripper re-

leases a corner before the other by just some frames,

but it may not be observable if the gripper is opened

or not. This leads to false detection of S2, probably

due to the fact that the network is placing too much

emphasis on the position of the gripper, rather than

the shape of the garment, particularly when it is not

visible whether the gripper is open or closed.

It is evident from Fig. 4 that the network’s wrong

predictions are mostly due to borderline cases where

two consecutive states are very similar to each other.

We here note that false state estimates, which are

irrelevant to borderline cases, can easily be solved

by incorporating temporal state information during

the monitoring task. As our network is focused on

single-frame predictions, we do not utilize informa-

tion on optical ﬂow, which limits our ability to cap-

ture temporal coherence outside the post-processing

stage. This leads to difﬁculties during domain adap-

tation, for example, in manipulation scenario P2 the

network is unable to differentiate between the state of

S4: Semi-lifted w. 2 grippers when it occurs due to

lowering the garment versus lifting it.

From our experiments, we observe that domain

adaptation in dynamic cloth manipulation is highly

unstable. Thus, we train the network on average 5

times to achieve optimal performance. The predic-

tions are, however, improved when more target do-

main data are introduced.

Furthermore, we pose the following questions to

better understand the performance of our domain

adaptation framework:

Does the Post-Prediction Processing Improve the

Performance? In Table 3 and in Fig. 4 it is shown

Semantic State Estimation in Robot Cloth Manipulations Using Domain Adaptation from Human Demonstrations

179

that introducing prior knowledge from the graph ad-

jacency matrix signiﬁcantly improves predictions in

every test case. Additional information (such as in-

tegrating the knowledge of manipulation success or

failure, or incorporating information from a prede-

ﬁned plan) can further be utilized to improve the per-

formance.

What Is the Cause of the High Instability? The

instability associated with domain adaptation in our

framework poses a challenge for investigating im-

provements in the loss function. The results show

that the stability is increased by regularizing the la-

tent space with time contrastive learning. However,

it is difﬁcult to ascertain whether any improvement

results from a better loss function or a randomly se-

lected initial weight before training. This instability

may limit our ability to make meaningful advance-

ments in the domain adaptation process.

How Can We Incorporate Temporal Coherence

During Training? Our approach to the semantic state

estimation problem is based on treating it as a classiﬁ-

cation task without incorporating temporal coherence

during training. However, the non-linear transition

sequence between states in the P2 scenario depicted

in Fig. 2, where we return to the same state again,

highlights the limitations of techniques such as time

contrastive learning that rely solely on single frames.

We plan to investigate recurrent networks to capture

temporal information.

How Do We Deal with Cases Where the Cloth Is

in an Undeﬁned State? Out-of-distribution classes

are difﬁcult to handle in classiﬁcation problems. In

our framework, when a new class is introduced dur-

ing learning, a human demonstration of that speciﬁc

class is required before the adaptation step is trig-

gered in the robot domain. However, it is not neces-

sary to demonstrate an entire manipulation sequence,

only the newly introduced class. Another method

of dealing with such cases is stochastic neural net-

works, where the uncertainty can be quantiﬁed and

acted upon.

6 CONCLUSION

In this paper, we presented and evaluated a novel

framework to solve the problem of semantic state es-

timation in continuous cloth manipulation tasks. We

make use of a convenient high-level semantic descrip-

tion of the cloth state which couples the cloth defor-

mation type, the grasping state, and the contact with

the environment. To validate our approach, we bench-

marked ﬁve different networks on our new dataset

coming with 33.6K annotated RGB images.

Furthermore, we show that our approach can be

used to learn a representation using labeled human

demonstrations, which can be further exploited to pre-

dict the semantic states in robotic manipulation tasks

in an unsupervised manner. This domain adaptation is

evaluated in two distinct robotic domains (Kinova and

UR5) and evaluated on unseen garments. To further

boost the prediction accuracy, we re-evaluated predic-

tions using the graph adjacency matrix learned from

the training data.

In future work, we plan to enlarge our dataset by

introducing a higher variety of deformable shapes (se-

mantic states) and more complex manipulation tasks.

Furthermore, we would like to incorporate the depth

cue which can capture geometrical information in the

scene, and thus, play a crucial role in autonomously

deﬁning unseen textile deformations and planning a

proper grasping accordingly. We hope that the here

presented approach will be adopted by the cloth ma-

nipulation community and trigger further contribu-

tions to robotics.

REFERENCES

Aein, M. J., Aksoy, E. E., and W

org

otter, F. (2019). Library

of actions: Implementing a generic robot execution

framework by using manipulation action semantics.

The Int. Journal of Robotics Research, 38(8):910–934.

Aksoy, E. E., Abramov, A., D

orr, J., Ning, K., Dellen, B.,

and W

org

otter, F. (2011). Learning the semantics of

object–action relations by observation. The Int. Jour-

nal of Robotics Research, 30(10):1229–1249.

Bednarik, J., Fua, P., and Salzmann, M. (2018). Learning

to reconstruct texture-less deformable surfaces from a

single view. In Int. Conf. on 3d vision (3DV), pages

606–615.

Bednarik, J., Parashar, S., Gundogdu, E., Salzmann, M.,

and Fua, P. (2020). Shape reconstruction by learning

differentiable surface representations. In IEEE/CVF

Conf. on Computer Vision and Pattern Recognition,

pages 4716–4725.

Borr

as, J., Aleny

a, G., and Torras, C. (2020). A grasping-

centered analysis for cloth manipulation. IEEE Trans-

actions on Robotics, 36(3):924–936.

Bousmalis, K., Trigeorgis, G., Silberman, N., Krishnan, D.,

and Erhan, D. (2016). Domain separation networks.

Advances in neural information processing systems,

29.

Chen, X., Wang, S., Long, M., and Wang, J. (2019). Trans-

ferability vs. discriminability: Batch spectral penal-

ization for adversarial domain adaptation. In Int. Conf.

on Machine Learning, pages 1081–1090.

Chi, C. and Song, S. (2021). Garmentnets: Category-

level pose estimation for garments via canonical space

shape completion. In IEEE/CVF Int. Conf. on Com-

puter Vision, pages 3324–3333.

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

180

Corona, E., Alenya, G., Gabas, A., and Torras, C. (2018).

Active garment recognition and target grasping point

detection using deep learning. Pattern Recognition,

74:629–641.

Ganin, Y. and Lempitsky, V. (2015). Unsupervised domain

adaptation by backpropagation. In Int. Conf. on Ma-

chine Learning, pages 1180–1189.

Garcia-Camacho, I., Borr

as, J., and Aleny

a, G. (2022).

Knowledge representation to enable high-level plan-

ning in cloth manipulation tasks. In ICAPS Workshop

on Knowledge Engineering for Planning and Schedul-

ing.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In IEEE Conf. on

Computer Vision and Pattern Recognition, pages 770–

778.

Hoque, R., Seita, D., Balakrishna, A., Ganapathi, A., Tan-

wani, A. K., Jamali, N., Yamane, K., Iba, S., and

Goldberg, K. (2020). Visuospatial foresight for multi-

step, multi-task fabric manipulation. In Robotics: Sci-

ence and Systems.

Jangir, R., Aleny

a, G., and Torras, C. (2020). Dynamic

cloth manipulation with deep reinforcement learning.

In IEEE Int. Conf. on Robotics and Automation, pages

4630–4636.

Kampouris, C., Mariolis, I., Peleka, G., Skartados, E.,

Kargakos, A., Triantafyllou, D., and Malassiotis, S.

(2016). Multi-sensorial and explorative recognition

of garments and their material properties in uncon-

strained environment. In IEEE Int. Conf. on Robotics

and Automation, pages 1656–1663.

Kingma, D. P. and Ba, J. (2014). Adam: A

method for stochastic optimization. arXiv preprint

arXiv:1412.6980.

Kumar, S., Cherian, A., Dai, Y., and Li, H. (2018). Scalable

dense non-rigid structure-from-motion: A grassman-

nian perspective. In IEEE Conf. on Computer Vision

and Pattern Recognition, pages 254–263.

Lee, R., Abou-Chakra, J., Zhang, F., and Corke, P. (2022).

Learning fabric manipulation in the real world with

human videos. arXiv preprint arXiv:2211.02832.

Li, Y., Wang, Y., Yue, Y., Xu, D., Case, M., Chang, S.-

F., Grinspun, E., and Allen, P. K. (2018). Model-

driven feedforward prediction for manipulation of de-

formable objects. IEEE Transactions on Automation

Science and Engineering, 15(4):1621–1638.

Lippi, M., Poklukar, P., Welle, M. C., Varava, A., Yin,

H., Marino, A., and Kragic, D. (2020). Latent space

roadmap for visual action planning of deformable and

rigid object manipulation. In IEEE/RSJ Int. Conf. on

Intelligent Robots and Systems, pages 5619–5626.

Liu, Z., Mao, H., Wu, C.-Y., Feichtenhofer, C., Darrell,

T., and Xie, S. (2022). A convnet for the 2020s.

In IEEE/CVF Conf. on Computer Vision and Pattern

Recognition, pages 11976–11986.

Long, M., Cao, Z., Wang, J., and Jordan, M. I. (2018). Con-

ditional adversarial domain adaptation. Advances in

neural information processing systems, 31.

Loshchilov, I. and Hutter, F. (2016). Sgdr: Stochastic

gradient descent with warm restarts. arXiv preprint

arXiv:1608.03983.

Mariolis, I., Peleka, G., Kargakos, A., and Malassiotis, S.

(2015). Pose and category recognition of highly de-

formable objects using deep learning. In Int. Conf. on

advanced robotics, pages 655–662.

Matas, J., James, S., and Davison, A. J. (2018). Sim-to-real

reinforcement learning for deformable object manip-

ulation. In Conf. on Robot Learning, pages 734–743.

PMLR.

Pumarola, A., Agudo, A., Porzi, L., Sanfeliu, A., Lepetit,

V., and Moreno-Noguer, F. (2018). Geometry-aware

network for non-rigid shape prediction from a single

view. In IEEE Conf. on Computer Vision and Pattern

Recognition, pages 4681–4690.

Qian, J., Weng, T., Zhang, L., Okorn, B., and Held, D.

(2020). Cloth region segmentation for robust grasp se-

lection. In IEEE/RSJ Int. Conf. on Intelligent Robots

and Systems, pages 9553–9560.

Ramisa, A., Alenya, G., Moreno-Noguer, F., and Torras, C.

(2013). Finddd: A fast 3d descriptor to characterize

textiles for robot manipulation. In IEEE/RSJ Int. Conf.

on Intelligent Robots and Systems, pages 824–830.

Ramisa, A., Alenya, G., Moreno-Noguer, F., and Torras, C.

(2016). A 3d descriptor to detect task-oriented grasp-

ing points in clothing. Pattern Recognition, 60:936–

948.

Saito, K., Watanabe, K., Ushiku, Y., and Harada, T. (2018).

Maximum classiﬁer discrepancy for unsupervised do-

main adaptation. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 3723–3732.

Schulman, J., Lee, A., Ho, J., and Abbeel, P. (2013). Track-

ing deformable objects with point clouds. In IEEE Int.

Conf. on Robotics and Automation, pages 1130–1137.

Seita, D., Jamali, N., Laskey, M., Tanwani, A. K., Beren-

stein, R., Baskaran, P., Iba, S., Canny, J., and Gold-

berg, K. (2018). Deep transfer learning of pick points

on fabric for robot bed-making. In Robotics Research:

The 19th Int. Symposium ISRR.

Sermanet, P., Lynch, C., Chebotar, Y., Hsu, J., Jang, E.,

Schaal, S., Levine, S., and Brain, G. (2018). Time-

contrastive networks: Self-supervised learning from

video. In 2018 IEEE international conference on

robotics and automation (ICRA), pages 1134–1141.

IEEE.

Tan, M. and Le, Q. (2019). Efﬁcientnet: Rethinking model

scaling for convolutional neural networks. In Int.

Conf. on Machine Learning, pages 6105–6114.

Thananjeyan, B., Kerr, J., Huang, H., Gonzalez, J. E.,

and Goldberg, K. (2022). All you need is LUV:

Unsupervised collection of labeled images using uv-

ﬂuorescent markings. In IEEE/RSJ Int. Conf. on In-

telligent Robots and Systems, pages 3241–3248.

Touvron, H., Cord, M., Douze, M., Massa, F., Sablayrolles,

A., and J

egou, H. (2021). Training data-efﬁcient im-

age transformers & distillation through attention. In

Int. Conf. on Machine Learning, pages 10347–10357.

Tzeng, E., Hoffman, J., Saenko, K., and Darrell, T. (2017).

Adversarial discriminative domain adaptation. In

Semantic State Estimation in Robot Cloth Manipulations Using Domain Adaptation from Human Demonstrations

181

IEEE Conf. on Computer Vision and Pattern Recog-

nition, pages 7167–7176.

Verleysen, A., Biondina, M., and Wyffels, F. (2020). Video

dataset of human demonstrations of folding clothing

for robotic folding. The Int. Journal of Robotics Re-

search, 39(9):1031–1036.

Verleysen, A., Biondina, M., and Wyffels, F. (2022). Learn-

ing self-supervised task progression metrics: a case of

cloth folding. Applied Intelligence, pages 1–19.

org

otter, F., Aksoy, E. E., Kr

uger, N., Piater, J., Ude, A.,

and Tamosiunaite, M. (2013). A simple ontology of

manipulation actions based on hand-object relations.

IEEE Transactions on Autonomous Mental Develop-

ment, 5(2):117–134.

Xie, S., Girshick, R., Doll

ar, P., Tu, Z., and He, K. (2017).

Aggregated residual transformations for deep neural

networks. In IEEE Conf. on Computer Vision and Pat-

tern Recognition, pages 1492–1500.

Yang, P.-C., Sasaki, K., Suzuki, K., Kase, K., Sugano, S.,

and Ogata, T. (2016). Repeatable folding task by

humanoid robot worker using deep learning. IEEE

Robotics and Automation Letters, 2(2):397–403.

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

182
