Hand Mesh and Object Pose Reconstruction Using Cross Model

Autoencoder

Chaitanya Bandi

and Ulrike Thomas

Robotics and Human Machine Interaction Lab, Technical University of Chemnitz, Chemnitz, Germany

Keywords:

Hand, Object, Pose, Reconstruction, Autoencoder.

Abstract:

Hands and objects severely occlude each other, making it extremely challenging to estimate the hand-object

pose during human-robot interactions. In this work, we propose a framework that jointly estimates 3D hand

mesh and 6D object pose in real-time. The framework shares the features of a single network with both the

hand pose estimation network and the object pose estimation network. Hand pose estimation is a parametric

model that regresses the shape and pose parameters of the hand. The object pose estimation network is a

cross-model variational autoencoder network for the direct reconstruction of an object’s 6D pose. Our method

shows substantial improvement in object pose estimation on two large-scale open-source datasets.

1 INTRODUCTION

Hands are the primary tools that interpret the ac-

tions of humans and interact with the real environ-

ment. To understand human action and behavior in

human-robot interaction environments, the poses of

the hand and the poses of the interacting objects are

necessary. With advancements in computer vision

and deep learning, both hand pose estimation (Zim-

mermann and Brox, 2017; Spurr et al., 2018; Mueller

et al., 2018; Ge et al., 2019; Hasson et al., 2019; Park

et al., 2022; Mueller et al., 2017; Garcia-Hernando

et al., 2018; Yuan et al., 2018; Moon et al., 2018;

Zhou et al., 2020) and object pose estimation (Kehl

et al., 2017; Xiang et al., 2018; Rad and Lepetit,

2017; Tekin et al., 2018; Peng et al., 2019; Hu et al.,

2019) have made signiﬁcant progress independently.

3D hand and object pose estimation is a central part of

applications like human-robot interaction (Yang et al.,

2021; Ortenzi et al., 2021), virtual reality (H

oll et al.,

2018), and augmented reality (Piumsomboon et al.,

2013). To avoid implausible mesh representations,

the strict relationship between the hand and the ob-

ject must be understood. Although joint hand-object

pose estimation has gained interest in recent studies,

it requires further attention.

Combined hand-object pose estimation is quite

challenging because of the self and mutual occlusions

of hands and objects. 3D hand-object pose estimation

https://orcid.org/0000-0001-7339-8425

Figure 1: The basic structural process of the cross-model

conditional variational autoencoder. Each autoencoder con-

sists of an encoder, a low dimensional latent distribution,

and a decoder. The latent space is shared between the mod-

els and paths are switched depending on the decoder.

research falls into two categories: optimization- based

and learning-based. The optimization requires reﬁne-

ment where the process is repeated multiple times to

achieve convergence, unlike the end-to-end learnable

models. Because convergence takes a considerable

amount of time for optimization methods, real-time

applicability is out of the question. Similarly, in this

study, we focus on a learning-based approach with

Bandi, C. and Thomas, U.

Hand Mesh and Object Pose Reconstruction Using Cross Model Autoencoder.

DOI: 10.5220/0012370700003660

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2024) - Volume 4: VISAPP, pages

183-193

ISBN: 978-989-758-679-8; ISSN: 2184-4321

183

a user-friendly scenario in which hand pose and ob-

ject pose reconstruction are performed using a sin-

gle RGB image. Learning-based approaches can be

broadly categorized as those that rely on implicit rep-

resentations and parametric mesh models. The well-

known parametric hand model is MANO (Romero

et al., 2017). With prior shape knowledge and actual

3D human hand scans, MANO produces anthropo-

morphically valid hand meshes. Although paramet-

ric meshes have limited resolution, it is difﬁcult to

recover intricate interactions from them. In addition

reconstructing 3D objects in hands is quite challeng-

ing. The complexity further increases during interac-

tion with the objects. Recent research (Tekin et al.,

2019; Doosti et al., 2020; Hasson et al., 2019; Tse

et al., 2022; Liu et al., 2021) has been successful

in addressing the challenges of estimating or recon-

structing hand-object pose estimation from a single

RGB image. Recently, there have been encouraging

ﬁndings regarding object reconstruction using neural

implicit representations (Karunratanakul et al., 2020).

In their work, the authors demonstrate how to model

hand-object interactions using the joint representation

of uniﬁed signed distance ﬁelds (SDFs). The net-

work does not consider any explicit prior details about

hands and objects that cause unrealistic meshes.

In this work, we propose reconstructing an ob-

ject’s 6D pose from a deep generative model known as

a conditional variational autoencoder (CVAE) (Sohn

et al., 2015) with cross-modality. Autoencoders usu-

ally generate n number of output samples for a given

input. In our case, we need one input and one out-

put from the generative model; therefore, we consider

cross-model CVAE. The basic cross-model CVAE ar-

chitecture is illustrated in Figure 1. We also exploit

the idea of using an attention module from the trans-

former (Vaswani et al., 2017) to enhance the encoder

and decoder features of CVAE.

To summarize, the core contributions of these

work areas are as follows:

[1] We propose a joint hand-object reconstruction

model from a single RGB image.

[2] We designed a novel framework for object pose

reconstruction using autoencoder models.

[3] We evaluate the framework on ObMan (Hasson

et al., 2019) and DexYCB (Chao et al., 2021) large-

scale open-source datasets and show that our frame-

work outperforms the state-of-the-art methods on ob-

ject mesh reconstruction.

2 RELATED WORK

Our research is related to hand pose estimation, ob-

ject pose estimation, joint hand-object pose estima-

tion, and variational autoencoders. Different input in-

formation, such as RGB, depth, and point cloud in-

formation, is used to estimate the hand-object pose.

Recent research work on hand pose estimation com-

pletely focused on regressing 2D and 3D hand poses

from a single RGB image.

Hand Pose Estimation. Zimmerman et al. (Zim-

mermann and Brox, 2017) present a cascaded archi-

tecture with segmentation, pose, and pose-prior net-

works. Initially, the region of the hand is segmented

and forwarded to a pose network for 2D heatmap re-

gression of hand joints. Later, the pose prior network

elevates the 2D keypoints to 3D keypoints. Adrian et

al. (Spurr et al., 2018) propose a cross-model latent

space reconstruction of the hand pose using a vari-

ational autoencoder. A simple regression of 2D or

3D hand pose does not convey the shape of the hand,

Ge et al. (Ge et al., 2019) present a graph convolu-

tional network-based architecture to recover 3D hand

mesh. Model-based approaches rely on a differen-

tiable MANO model (Romero et al., 2017) to obtain

a 3D hand pose and shape with a mesh. Later, the

research works were extended to model-based meth-

ods that regress the pose and shape parameters of a

hand (Boukhayma et al., 2019; Park et al., 2022; Has-

son et al., 2019; Kulon et al., 2020; Zhang et al., 2019)

instead of 3D keypoints.

Object Pose Estimation. The research work suggests

that there are two different methods of 6D object pose

estimation: direct regression and regression of 3D ob-

ject points for recovery of 6D object pose using the

perspective-n-point (PnP) algorithm. Yu et al. (Xiang

et al., 2018) propose a convolutional neural network-

based model for 6D object pose estimation using re-

gression translation and rotation as a quaternion. The

authors also introduce a large-scale 6D object pose

dataset known as the YCB dataset, which is widely

used. Due to the limitation of direct regression, the

works (Peng et al., 2019; Hu et al., 2019) rely on a

two-stage process of detecting 2D keypoints in RGB

images using convolutional neural networks and then

using the known 3D correspondences to obtain 6D

pose using the PnP algorithm. To further improve the

accuracy of 6D object pose, (Labb’e et al., 2020) in-

troduce multi-view multi-object pose estimation.

Uniﬁed Hand-Object Pose Estimation. The earli-

est uniﬁed hand-object pose estimation (Tekin et al.,

2019) solves four tasks simultaneously, i.e., object

pose estimation, 3D hand pose estimation, object

recognition, and action classiﬁcation, using a single-

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

184

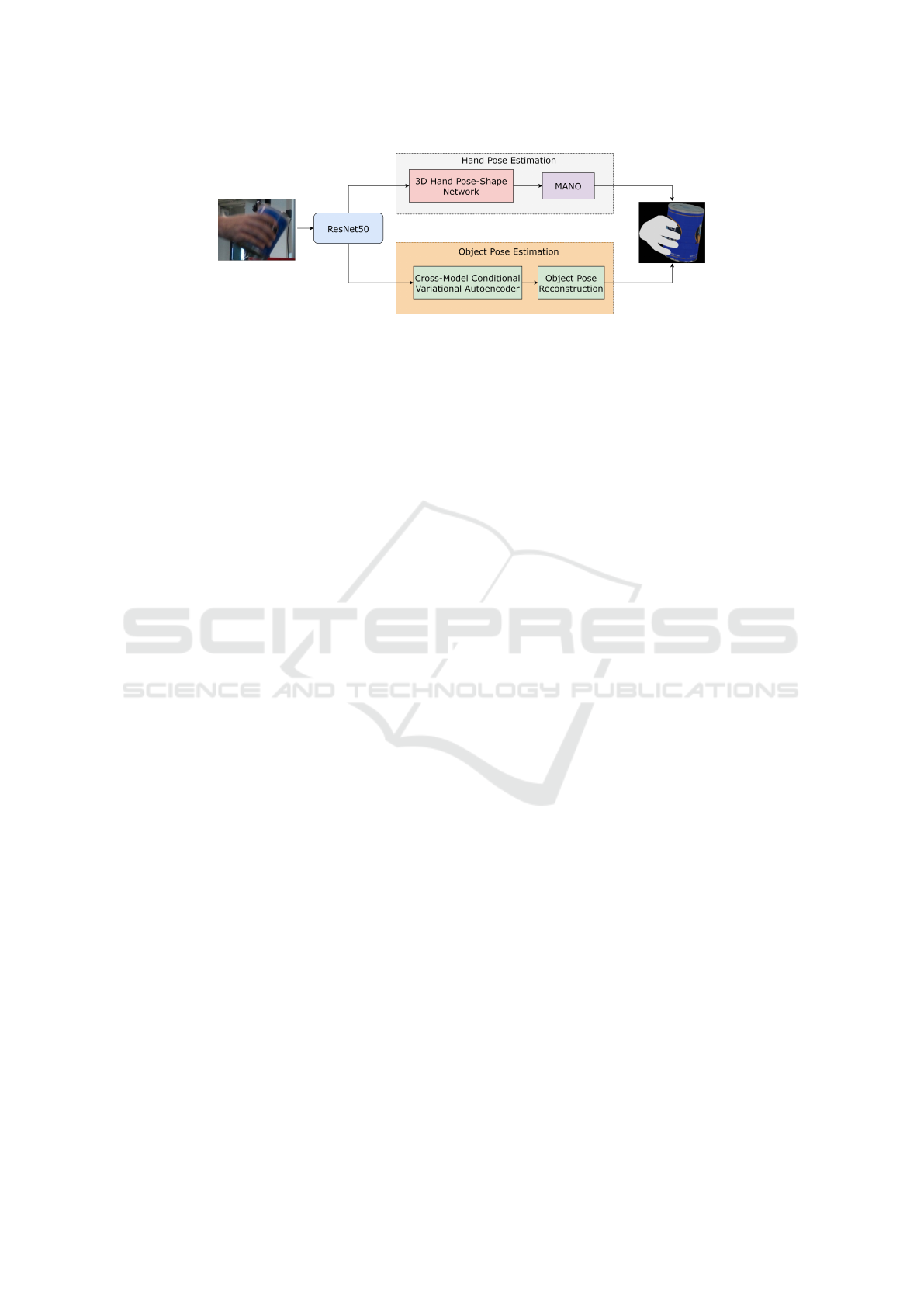

Figure 2: The basic overview of the proposed architecture. The input image is a closely cropped region of hand manipulating

object. The input image is passed through the ResNet50 architecture to obtain the shared features infromation for the hand

pose estimation and the object pose estimation. The output from the architectuer is a hand mesh from MANO model and 6D

object pose from autoencoder.

shot neural network. To compute the object pose,

the authors abandon the notion of 2D–3D correspon-

dences and instead regress the direct 3D bounding

box coordinates of the object. Doosti et al. (Doosti

et al., 2020) propose Graph UNet architecture to fur-

ther enhance the accuracy of combined 3D hand-

object pose estimation. For hand-object manipula-

tion applications, Hasson et al. (Hasson et al., 2019)

propose an end-to-end model for the regression of

plausible hand-object poses using a shared feature

backbone. Sharing the feature network for the hand-

object pose implicitly encodes contextual informa-

tion. Leveraging the context information of hand and

object, (Liu et al., 2021) introduces semi-supervised

learning for hand-object interactions. The work gen-

erates pseudolabels by considering spatial-temporal

consistencies. The architecture consists of two differ-

ent streams that share a similar FPN architecture with

the ResNet50 backbone. The features of the hand and

object were extracted from the FPN architecture, and

contextual reasoning was performed for object pose

estimation. The features are then forwarded to inde-

pendent decoders to regress the hand mesh and 6D

object pose. The work (Tse et al., 2022), presents col-

laborative learning for hand-object pose reconstruc-

tion using unsupervised associative loss. The hand-

object features are encoded independently at the input

without a shared backbone, and the information from

attention-guided graph convolution is shared with the

object mesh network and the hand mesh network.

The work (Wang et al., 2022) propose a dense mu-

tual attention module to reﬁne the hand and object

meshes estimated in the ﬁrst stage. The network mod-

els the ﬁne-grained dependencies between hands and

objects using a graph convolution network and at-

tention. AlignSDF (Chen et al., 2022) is one of the

early works to propose a hybrid model that combines

a parametric model with an implicit representation

model known as SDFs. The authors consider pose pri-

ors to the SDFs, unlike the work in (Karunratanakul

et al., 2020) to further enhance the hand-object recon-

struction.

Variational and Conditional Variational Au-

toencoder. Conditional variational autoencoders

(CVAE) (Sohn et al., 2015) are an extension of

the variational autoencoders (VAE) (Kingma and

Welling, 2014; Rezende et al., 2014). VAEs are

deep learning generative models for learning the la-

tent distribution of input samples instead of ﬁxed vec-

tor learning. VAE comprises an encoder, latent dis-

tribution, and a decoder. To convert the input data

samples to a compressed low-dimensional latent rep-

resentation, a probabilistic encoder with a mean and

standard deviation is used. In CVAE, an additional

condition variable is added to the encoder input and

respectively to a decoder. Li et al. (Li et al., 2020)

propose an augmented autoencoder for hand pose es-

timation during object occlusions. The authors used a

variational autoencoder to estimate the 3D hand pose

during object occlusion from a point cloud input. The

work in (Chen et al., 2020) presents an idea of learn-

ing shape using VAE for size estimation, in addition

to pose and shape. The work (Spurr et al., 2018)

introduces cross-model variational autoencoders that

result in a single latent space for input with multiple

modalities, and we draw inspiration from this work

for the cross-model CVAE that we propose.

3 METHODOLOGY

In Figure 2, we introduce our hand-object joint re-

construction network. The network consists of a fea-

ture extraction network in the ﬁrst stage that takes

an RGB image R

3×256×256

of a combined hand-

object region. The feature extraction network is a

well-known ResNet-50 (He et al., 2016) architecture.

The features from the ResNet50 backbone are passed

through a deep neural network layer with an atten-

tion module to obtain the pose and shape parameters

Hand Mesh and Object Pose Reconstruction Using Cross Model Autoencoder

185

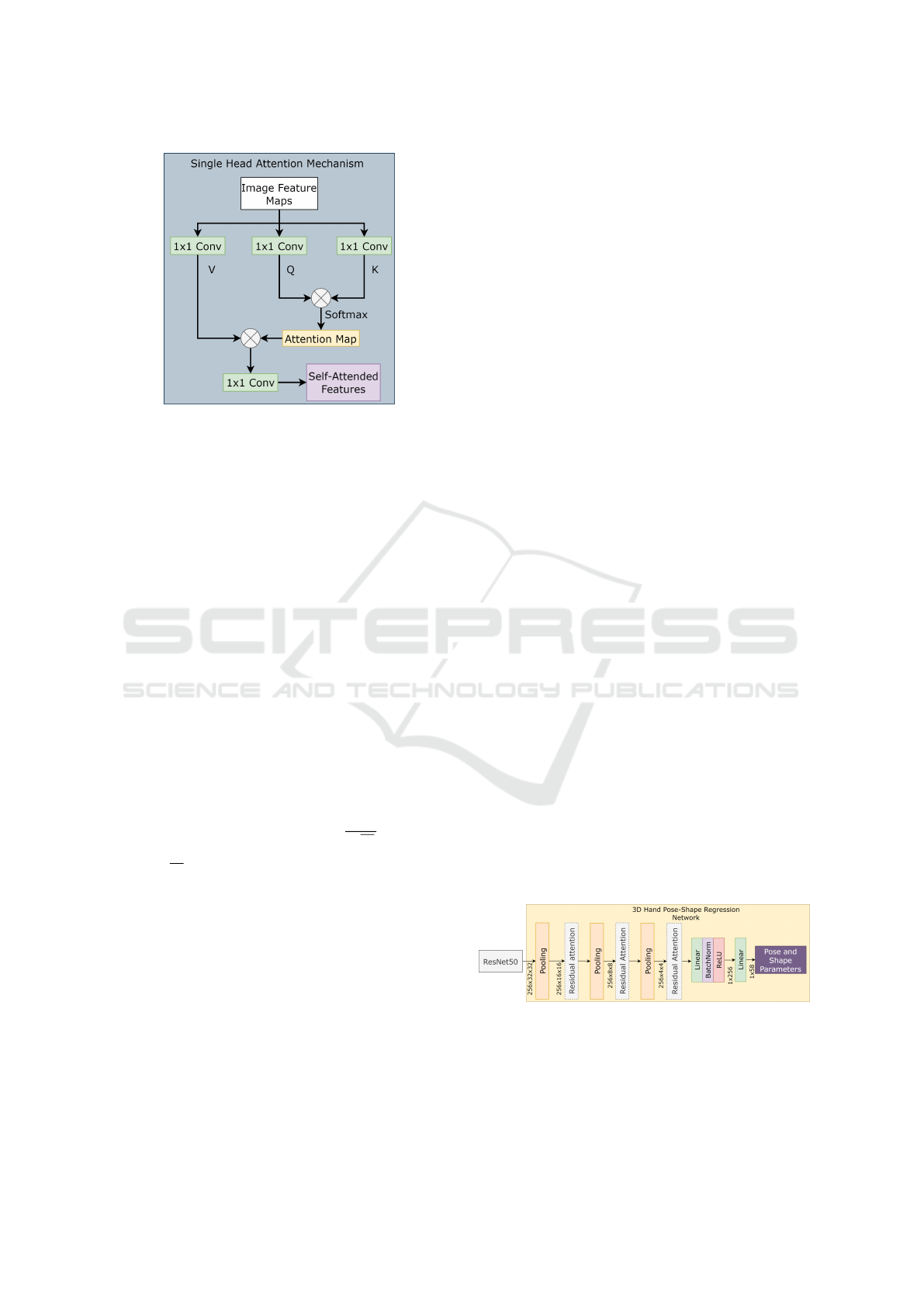

Figure 3: The single head attention mechanism used in the

transformer.

for the parametric MANO (Romero et al., 2017) hand

model. The object pose estimation network comprises

a cross-model variational autoencoder to reconstruct

the object pose.

3.1 Attention Mechanism

The attention mechanism introduced in (Vaswani

et al., 2017) works well for many applications such

as natural language processing and computer vi-

sion (Dosovitskiy et al., 2021). The attention mech-

anism takes n features as input and returns n output

features. The basic operation of attention is that it

learns to pay more attention to the necessary features.

The attention mechanism is also known as scaled dot-

product attention and consists of queries (Q), keys

(K), and values (V ) as inputs. The same input fea-

tures are copied to queries, keys, and values, and the

attention is computed as follows:

Attention (Q,K,V ) = softmax



√



V (1)

where

√

is a scaling factor. The attention mecha-

nism can be used for n dimensional (D) space. The

attention mechanism is illustrated in Figure 3 single

head attention block. The single-head attention mech-

anism is further extended to multi-head attention by

combining multiple heads in parallel. The attention

mechanism works for an n-dimensional input.

3.2 Hand Pose Shape Regression

Network

The hand pose estimation network is a direct shape

and pose parameter regression model with self-

attention combined with residuals as represented in

Figure 4, and a MANO (Romero et al., 2017) model

to obtain hand vertices and 3D hand joints. The pro-

cess of hand mesh extraction is similar to the work in

(Liu et al., 2021). The only difference is the pose and

shape regression network, in which the attention mod-

ules are included to further enhance the features. For

learning supervision, we consider L

loss between the

groundtruth joints J

and the predicted joints J

from

the MANO model.

∑

j=i

∥J

−J

∥

(2)

The hand pose and shape regression network con-

sists of three residual attention modules with pooling

layers. Each residual layer consists of two convo-

lutional attention layers. As the attention layer has

the same input and output sizes, the pooling layers

are introduced after the residual attention as repre-

sented in the Figure 4. After the residual attention

layers, two fully connected layers are connected with

a batch normalization and ReLU activation unit. The

ﬁnal layers output a total of R

. The output from

the regression network consists of pose θ ∈ R

and

shape β ∈ R

parameters for the MANO model. The

MANO model reconstructs the hand vertices and 3D

hand joints from the pose and shape parameters of the

regression network. The L

loss is computed on the

pose parameters θ, and shape parameters β for further

regularization. The overall loss of the hand branch is

the sum of the 2D heatmap loss, pose-shaped regres-

sion loss, and MANO (Romero et al., 2017) loss. Due

to the limitations of the parametric MANO model,

we include an additional loss known as biomechan-

ical constraint loss L

BMC

using hand kinematics as

in (Spurr et al., 2020). This loss is also considered

during training to avoid undesirable hand joint kine-

matics.

handloss

= λ

+ λ

+ L

BMC

(3)

where λ

= 0.5, λ

= 5 ×10

−7

, λ

= 5 ×10

−5

to bal-

ance the joint loss and pose-shape parameters.

Figure 4: The hand pose and shape regression network.

The network consists of three residual attention layers with

pooling in between to reduce the feature size. The output

from the attention layers is further passed to the linear lay-

ers to regress hand pose and shape parameters.

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

186

3.3 Object Pose Estimation Network

The object pose estimation network comprises a

cross-model conditional variational autoencoder net-

work for 6D pose reconstruction. The cross-model

CVAE network consists of two VAEs or one CVAE

and one VAE that share the latent space and decoders,

as shown in Figure 5 and Figure 1. There are two

different branches in cross-model CVAE: the object

reconstruction branch and the image reconstruction

branch.

3.4 Cross-Model Conditional

Variational Autoencoder

A CVAE (Sohn et al., 2015) is a deep generative

model with a conditional argument that is widely

used in applications such as robotics (Ivanovic et al.,

2021), image classiﬁcation (Bao et al., 2017), and ob-

ject detection. Simple CVAE takes object pose x as in-

put, a conditional variable y, and learns to reconstruct

′

, which is similar to the input object pose. CVAE

comprises an encoder network that resembles the la-

tent distribution z, or q

(z|x,y). The latent distribution

is Gaussian with unit variance. The following section

describes a decoder network that is an approximation

of p

(x|z,y). The decoder network generates a grasp

pose from the learned distribution p

(x|z,y) given the

conditional variable y and a sample from the latent

distribution. The loss function for weight learning is

given by Eq. 4.

L (θ,φ) = −E

z∼q

(z|x,y)

[log p

(x|z,y)]

+ β

vae

(z|x,y)||p

(z|y)) (4)

Eq. 4 consists of a L

reconstruction loss in the

ﬁrst term, which represents the disparity between the

real pose x and the reconstructed pose x

′

obtained

from the decoder. The Kullback-Leibler divergence

(KLD) between the learned latent distribution and the

unit-variance Gaussian is managed in the second part

of Eq. 4. KL divergence serves as a regularization to

maintain the variational posterior near the prior distri-

bution over latent variables. The parameter β

vae

bal-

ances the capacity of the latent variables with the re-

construction error (Higgins et al., 2017).

KLD = −0.5(1 + log(σ

) −µ

−σ

) (5)

For the ﬁrst branch, the object pose vector is con-

sidered as the input. The input object pose x is for-

warded to the CVAE encoder layers. The encoder

consists of three fully connected layers with batch

normalization and leaky ReLU, except for the last

layer. The ﬁrst, second, and third layer output fea-

tures are 128, 256, and 512, respectively. We pass the

fully connected features to a self-attention module as

in Figure 3 and a linear layer to obtain the mean and

variance features for latent distribution z, or q

(z|x,y).

Similarly, in the decoder, the latent features are for-

warded to two fully connected layers with output sizes

of 512 and 256. Finally, we add another self-attention

layer with a linear module to obtain enhanced features

and obtain the reconstructed 9D object pose vector.

The object pose vector is then transformed into a 6D

object pose.

The second branch is utilized for the reconstruc-

tion of the input hand-object image. The second

branch consists of six convolutional layers with batch

normalization and leaky ReLU activation in the en-

coder. The features are then forwarded to two fully

connected layers and a self-attention module to obtain

the mean and variance of the latent distribution. The

complete process is illustrated in Figure 5. The input

to the second branch or VAE is of size 256 ×32 ×32.

Each convolution layer in the encoder consists of a

convolution block, batch normalization, and activa-

tion layer. The ﬁrst convolution layer outputs 64 fea-

tures with kernel size 1 and zero padding, resulting in

64 ×32 ×32 features. The kernel size and padding

for the next layer are changed to 3 and 1, respectively,

and the output feature size is 32 ×32 ×32. The pa-

rameters of the ﬁrst and second convolutions are re-

peated two more times, resulting in features of size

2 ×32 ×32. Finally, the features are linearized and

downsampled to 1 ×1024. The features were further

reduced to 256 by applying two fully connected lay-

ers, and the features were enhanced via self-attention.

The attended features are used for the latent distribu-

tion z computation. Finally, in the decoder, the pro-

cess is repeated with 2D convolution transpose to ob-

tain an output image of size 256×256 ×3. The cross-

model autoencoders are trained in a manner similar

to the work in (Spurr et al., 2018). Each sample is

trained in a data-pairs manner so that the model out-

puts a single latent space with multiple modalities. Fi-

nally, we obtain the modality based on the selection

of the decoder. In this work, during inference, we se-

lect the encoder from branch 2 and the decoder from

branch 1 to estimate the single object pose based on

the input image and neglect the other decoder from

branch 2 because it is not necessary for this applica-

tion. The loss function of the overall pose estimation

network is computed individually for both branches,

summed, and updated during training. During experi-

mentation, we added a conditional variable to branch

1 as in Figure 1. The conditional variable is a one-

hot coded vector of the object ID number of known

objects.

Hand Mesh and Object Pose Reconstruction Using Cross Model Autoencoder

187

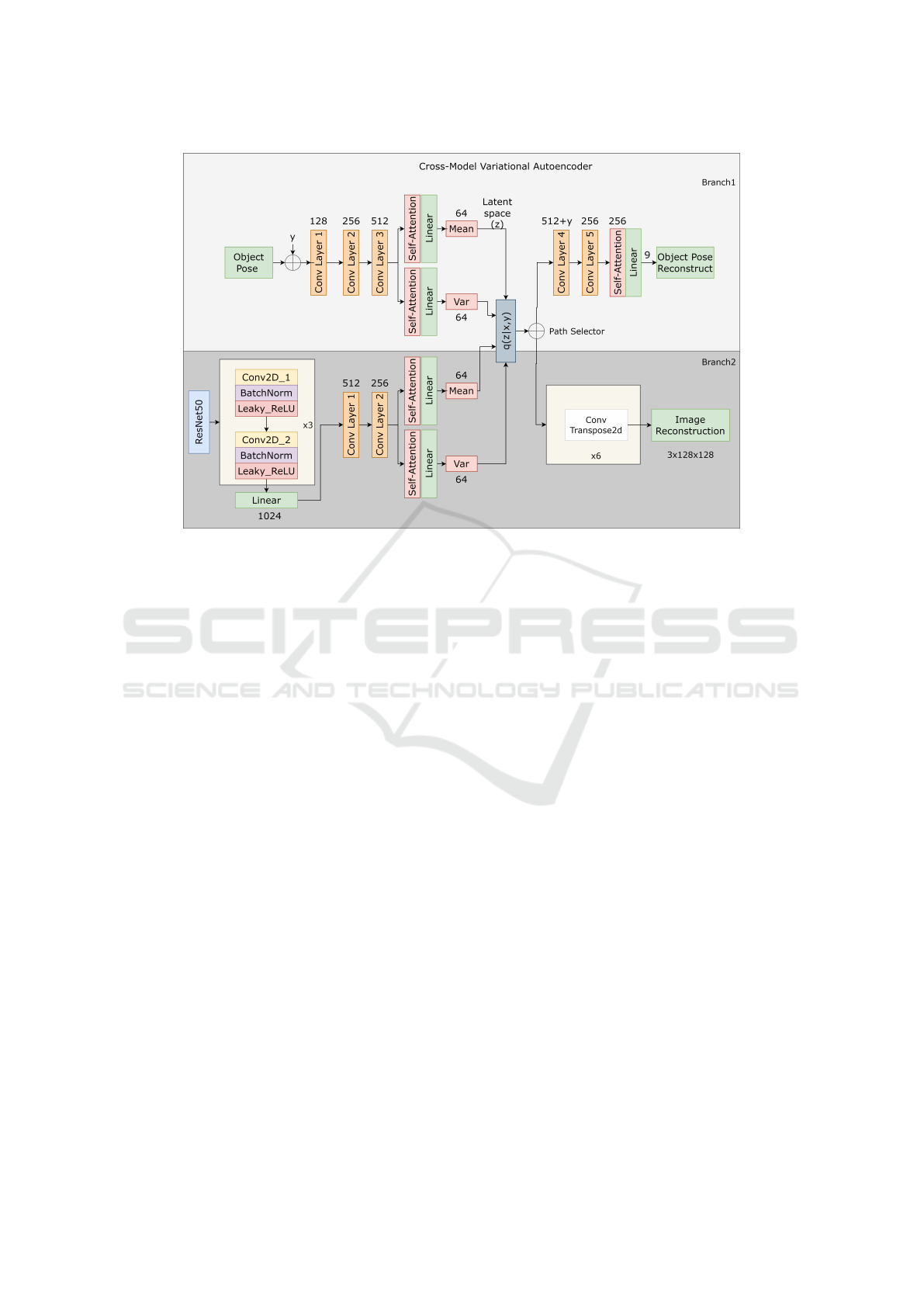

Figure 5: The basic structural process of the cross-model conditional variational autoencoder. Each autoencoder consists of

an encoder, a low dimensional latent distribution, and a decoder. The latent space is shared between the models and paths are

switched depending on the decoder.

3.5 Object Pose Representation

The input is an object pose with a translation T and

rotation R component. Different representations of

rotation components exist, such as rotation matrices,

quaternions, and Euler angles. Singularities and the

antipodal issue for regression are constraints of Eu-

ler angles and quaternions. Additionally, (Zhou et al.,

2019) has shown that any rotation representation in

3D with fewer than ﬁve dimensions is discontinuous

and more difﬁcult to learn. As a result, we use the

Gram-Schmidt process to take advantage of the or-

thogonal features of a rotation matrix and create an

orthonormal basis from two vectors, as shown in Eq.6.

The third column of the rotation matrix component is

unnecessary. The rotation matrix R is reconstructed

by multiplying the ﬁrst and second column vectors, e

and e

, respectively. The object pose input for CVAE

is the translation vector T and the ﬁrst two columns

from the rotation matrix R.

R =











⃗e

×⃗e



(6)

x =





(7)

Once the object pose x

′

is reconstructed from

CVAE, the 6D rotation representation is converted

to a rotation matrix by applying the abovementioned

process.

The total loss function is a combination of the

hand pose estimation loss and the object pose estima-

tion loss. The hand pose estimation loss is the sum of

the heatmap loss, pose-shaped regression loss, BMC

loss, and MANO loss, as shown in Eq. 3. The object

pose estimation loss is the sum of the two VAE losses,

as shown in Eq. 4. The β

cvae

in the CVAE loss can

either be ﬁxed or varied.

Total

= L

handloss

+ λ

branch

L(θ,φ)

branch

+ λ

branch

L(θ,φ)

branch

(8)

where the β

cvae

parameter is set to 0.01 in the ini-

tial stages and is modiﬁed during the experimentation.

The λ

branch

and λ

branch

is the loss scaling factors

for training the proposed end-to-end model, which is

empirically computed. The β

cvae

parameter is mod-

iﬁed with respect to the epoch number as suggested

in (Higgins et al., 2017). The value of β

cvae

is set to

0.5 until epoch 10, which changes to 0.1 from epoch

10 to epoch 20. From epochs 20 to 40, the value is set

to 0.01, and the reduction process is repeated every 20

epochs until the β

cvae

reaches 0.0001.

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

188

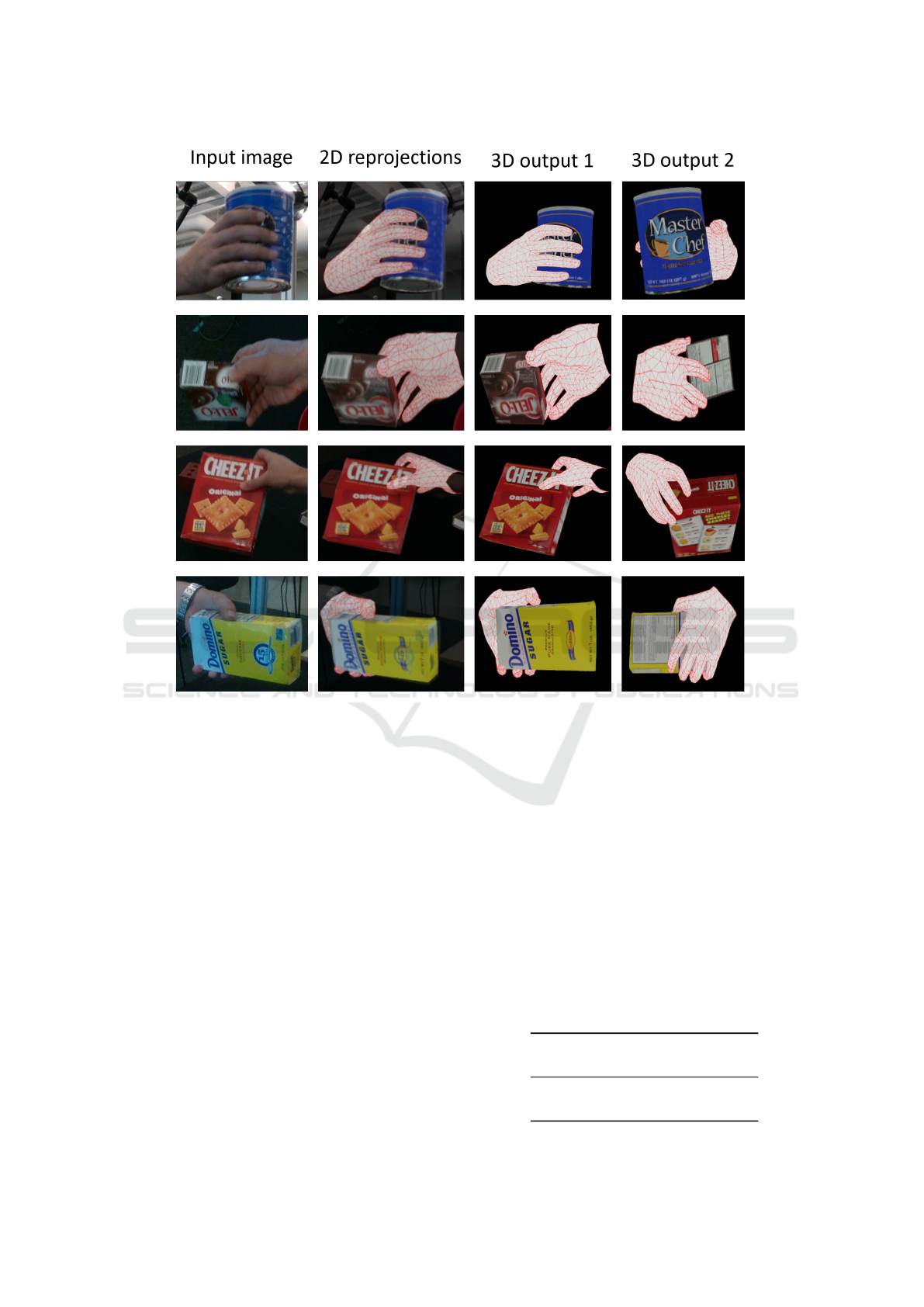

Figure 6: The visualization of the results from the proposed architecture. The ﬁrst image in each row is the input image, the

second image is the output reprojections on 2D images, and the last two images are 3D meshs of hand and object0 from two

different views.

4 EXPERIMENTS

4.1 Implementation Details

The introduced framework is entirely implemented in

PyTorch (Paszke et al., 2019). The complete model

is trained in an end-to-end manner with Adam op-

timizer (Kingma and Ba, 2015). We intiliatize the

ResNet50 (He et al., 2016) architecture with pre-

trained weights and shared input features for the hand

pose estimation and object pose estimation networks.

The model is trained with an initial learning rate of

1e-4 with a decay factor for every 20 epochs until we

reach 100 epochs and a constant rate until 200 epochs

with a batch size of 128. The input images are re-

sized to 256 ×256 ×3, and we perform simple data

augmentation techniques such as scaling, color jitter,

brightness, and contrast. The input image is a closely

cropped region of hands and objects with bounding

box information provided by the datasets.

4.2 Datasets and Evaluation Metrics

ObMan (Hasson et al., 2019). A large-scale syn-

thetic dataset contains various hand-grasping poses

with high-quality meshes on a variety of imported

ShapeNet objects but for experimentation, we con-

Table 1: The architecture is trained in two different ways.

The hand pose and shape regression is trained individually

and end-to-end with object pose reconstruction on DexYCB

dataset.

Hand

Architecture MJE (mm ↓)

Joint Training 13.1

Independent Hand 12.1

Hand Mesh and Object Pose Reconstruction Using Cross Model Autoencoder

189

Figure 7: The qualitative reconstructed outputs of failure scenarios.

Table 2: Comparison of the proposed architecture to the state-of-the-art methods on DexYCB dataset.

Hand Object Interaction

Method MJE(cm↓) MCE(cm↓) PD(mm↓)

(Hasson et al., 2019) 1.76 - -

(Hasson et al., 2021) 1.88 5.25 0.79

(Tse et al., 2022) 1.53 - -

(Wang et al., 2022) 1.27 3.26 0.67

Ours 1.21 3.02 0.60

Table 3: Comparison to the state-of-the-art methods on ObMan dataset.

Hand Object Interaction

Method MJE(mm↓) CD(mm↓) PD(mm↓)

(Hasson et al., 2019) 11.6 637.8 9.2

(Tse et al., 2022) 9.1 385.7 7.4

(Chen et al., 2022) - 338 6.6

Ours 8.7 315.6 6.8

sider 8 different objects. To generate plausible grasps

between synthetic hands and objects, GraspIt soft-

ware was utilized. From this dataset, we consider 80K

samples for training and over 6K samples for testing.

DexYCB (Chao et al., 2021). The DexYCB dataset

is a large-scale real dataset with over 580K RGB-

D images from 10 human subjects manipulating 20

YCB objects. The dataset is captured from 8 Re-

alsense cameras simultaneously at a rate of 30 fps

with a resolution of 640×480. The evaluation setup

consists of different scenarios with unseen subjects,

unseen views, and grasping from which we select the

default setup known as S0. The val/test split does not

share anything except the sequences in the S0 setup.

The dataset consists of videos of subjects grasping the

ycb objects where the distance between hands and ob-

jects is quite large at the beginning and some times not

visible in the scene. For a fair comparison, we follow

a process similar to (Wang et al., 2022) to neglect im-

ages where the distance between hands and objects is

greater than 1cm to assume contact between them.

Evaluation Metrics. The standard evaluation met-

rics of hand pose estimation are mean hand joint er-

ror (MJE). For object pose estimation, we compute

the mean corner error (MCE). To measure the re-

construction quality of joint meshes we also com-

pute the penetration depth (PD) in mm to check for

plausible collisions between hands and objects simi-

lar to (Wang et al., 2022) for a fair comparison of the

DexYCB dataset. Similarly for the ObMan dataset,

we use mean joint error (MJE) for hand pose evalua-

tion, chamfer distance (CD) in mm for object pose es-

timation, and penetration depth (PD) for hand-object

interactions as proposed in (Hasson et al., 2019) for

fair comparison.

4.3 Results

We test the performance of the proposed hand-object

framework on the ObMan and the DexYCB datasets.

Few reconstructed qualitative samples can be ob-

served in Figure 6. The ﬁrst column consists of in-

put images to the network which is a closely cropped

hand object region. The second column represents

the output reprojections on 2D images. The last two

columns are the output 3D hand and object pose from

two different views. Two scenarios where the pro-

posed architecture achieved low or failed to recon-

struct are shown in Figure 7. From this we can ob-

serve that, the proposed algorithm fails to reconstruct

the right poses when partial hand is visible in the im-

age or when the objects are highly occluded by the

hands.

Hand Only Experiments. Although we propose

the joint learning framework, we evaluate the perfor-

mance of training the hand pose estimation network

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

190

Table 4: Ablation study and the effect of attention layers.

Hand Object

Methods MJE (cm ↓) MCE (cm ↓)

w/out Attention-Hand 1.76 -

With Attention-Hand 1.27 -

With Attention-Hand and BMC Loss 1.21 -

w/out y and w/out Attention-Object - 9.8

with y and w/out Attention-Object - 4.8

with Attention-Object - 3.02

individually. From the experiments, we noticed that

there is a slight performance improvement in the hand

pose estimation when trained independently. The

mean hand joint errors (MJE) for both experiments

are mentioned in Table 1. From the experiments, we

can observe that the hand pose estimation achieves

better outcomes when trained independently.

Comparison with the State-of-the-Art Methods.

The model trained on the DexYCB (Chao et al., 2021)

dataset and the comparison results are shown in Ta-

ble 2. As shown, our method achieved a mean hand

joint error of 12.1 mm. Recent works such as (Chen

et al., 2022; Chen et al., 2023) also achieved bet-

ter results on the DexYCB dataset but the results are

represented in chamfer distance rather than the tradi-

tional MJE and MCE so, we could not compare their

methods. The results on the ObMan (Hasson et al.,

2019) dataset are represented in Table 3. We can ob-

serve that the hand pose estimation achieved a mean

joint error of 8.7mm and object chamfer distance is

315.6mm. Although the chamfer distance achieved

state-of-the-art performance, the interaction parame-

ter is a bit higher than in previous works. To this end,

adding a further reﬁnement stage would improve the

interaction parameter further.

4.4 Ablation Study

The ablation study gives a deeper understanding of

the architecture and the importance of each block in

the proposed network. To study the network, we con-

sider the DexYCB (Chao et al., 2021) dataset. The

signiﬁcance of each block can be observed in Ta-

ble 4. For hand mesh reconstruction, we ﬁrst use

just the ResNet block and regress the pose and shape

parameters for the MANO (Romero et al., 2017)

model. From that, we obtain the hand mean joint er-

ror of 1.76cm and after adding the hand pose shape

regression network with attention blocks the error

is reduced to 1.27cm and it is further improved to

1.21cm by using BMC loss during training. Similarly,

conduct these experiments for object reconstruction

block where the conditional variable y and attention

mechanism are modiﬁed. At ﬁrst, we consider train-

ing without the conditional variable y and attention

mechanism and achieve object MCE of 9.8cm which

is quite high. Further, we added variable y and noticed

a huge improvement resulting in 4.8cm object MCE.

Finally, by considering all the parameters and proper

hyperparameter tuning we achieve object MCE of

3.02cm. In adddition to that, we test the real-time

usability of the architecture by estimating the frames

per second. From the experimentation, we achieve

around 19 fps.

5 CONCLUSION

In this work, we propose a joint learning framework

for hand-object pose estimation. The features from a

single backbone are shared between the hand pose es-

timation network and the object pose estimation net-

work. We propose a unique cross-model conditional

variational autoencoder for 6D object pose estimation

via multi-model pair learning. We trained the archi-

tecture on the DexYCB and the ObMan open-source

large-scale dataset and achieved good performance on

hand pose estimation and better than state-of-the-art

performance on object pose estimation. The perfor-

mance of interaction parameter needs further atten-

tion and we are currently aiming to improve it by

adding a reﬁnement stage.

REFERENCES

Bao, J., Chen, D., Wen, F., Li, H., and Hua, G. (2017).

Cvae-gan: Fine-grained image generation through

asymmetric training. 2017 IEEE International Con-

ference on Computer Vision (ICCV), pages 2764–

2773.

Boukhayma, A., Bem, R. d., and Torr, P. H. (2019). 3d hand

shape and pose from images in the wild. In Proceed-

ings of the IEEE Conference on Computer Vision and

Pattern Recognition, pages 10843–10852.

Chao, Y.-W., Yang, W., Xiang, Y., Molchanov, P., Handa,

A., Tremblay, J., Narang, Y. S., Van Wyk, K., Iqbal,

U., Birchﬁeld, S., Kautz, J., and Fox, D. (2021).

DexYCB: A benchmark for capturing hand grasping

of objects. In IEEE/CVF Conference on Computer Vi-

sion and Pattern Recognition (CVPR).

Chen, D., Li, J., and Xu, K. (2020). Learning canoni-

cal shape space for category-level 6d object pose and

size estimation. 2020 IEEE/CVF Conference on Com-

puter Vision and Pattern Recognition (CVPR), pages

11970–11979.

Chen, Z., Chen, S., Schmid, C., and Laptev, I. (2023).

gSDF: Geometry-Driven signed distance functions for

3D hand-object reconstruction. In CVPR.

Chen, Z., Hasson, Y., Schmid, C., and Laptev, I. (2022).

Alignsdf: Pose-aligned signed distance ﬁelds for

hand-object reconstruction. ArXiv, abs/2207.12909.

Hand Mesh and Object Pose Reconstruction Using Cross Model Autoencoder

191

Doosti, B., Naha, S., Mirbagheri, M., and Crandall, D. J.

(2020). Hope-net: A graph-based model for hand-

object pose estimation. 2020 IEEE/CVF Conference

on Computer Vision and Pattern Recognition (CVPR),

pages 6607–6616.

Dosovitskiy, A., Beyer, L., Kolesnikov, A., Weissenborn,

D., Zhai, X., Unterthiner, T., Dehghani, M., Min-

derer, M., Heigold, G., Gelly, S., Uszkoreit, J., and

Houlsby, N. (2021). An image is worth 16x16 words:

Transformers for image recognition at scale. ArXiv,

abs/2010.11929.

Garcia-Hernando, G., Yuan, S., Baek, S., and Kim, T.-

K. (2018). First-person hand action benchmark with

rgb-d videos and 3d hand pose annotations. 2018

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition, pages 409–419.

Ge, L., Ren, Z., Li, Y., Xue, Z., Wang, Y., Cai, J., and

Yuan, J. (2019). 3d hand shape and pose estimation

from a single rgb image. 2019 IEEE/CVF Conference

on Computer Vision and Pattern Recognition (CVPR),

pages 10825–10834.

Hasson, Y., Varol, G., Schmid, C., and Laptev, I. (2021).

Towards unconstrained joint hand-object reconstruc-

tion from rgb videos. 2021 International Conference

on 3D Vision (3DV).

Hasson, Y., Varol, G., Tzionas, D., Kalevatykh, I., Black,

M. J., Laptev, I., and Schmid, C. (2019). Learning

joint reconstruction of hands and manipulated objects.

In CVPR.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. 2016 IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 770–778.

Higgins, I., Matthey, L., Pal, A., Burgess, C. P., Glorot,

X., Botvinick, M. M., Mohamed, S., and Lerchner,

A. (2017). beta-vae: Learning basic visual concepts

with a constrained variational framework. In ICLR.

oll, M., Oberweger, M., Arth, C., and Lepetit, V. (2018).

Efﬁcient physics-based implementation for realistic

hand-object interaction in virtual reality. In Proc. of

Conference on Virtual Reality and 3D User Interfaces.

Hu, Y., Hugonot, J., Fua, P. V., and Salzmann, M. (2019).

Segmentation-driven 6d object pose estimation. 2019

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition (CVPR), pages 3380–3389.

Ivanovic, B., Leung, K., Schmerling, E., and Pavone, M.

(2021). Multimodal deep generative models for tra-

jectory prediction: A conditional variational autoen-

coder approach. IEEE Robotics and Automation Let-

ters, 6(2):295–302.

Karunratanakul, K., Yang, J., Zhang, Y., Black, M. J.,

Muandet, K., and Tang, S. (2020). Grasping ﬁeld:

Learning implicit representations for human grasps.

2020 International Conference on 3D Vision (3DV),

pages 333–344.

Kehl, W., Manhardt, F., Tombari, F., Ilic, S., and Navab, N.

(2017). Ssd-6d: Making rgb-based 3d detection and

6d pose estimation great again. 2017 IEEE Interna-

tional Conference on Computer Vision (ICCV), pages

1530–1538.

Kingma, D. P. and Ba, J. (2015). Adam: A method for

stochastic optimization. CoRR, abs/1412.6980.

Kingma, D. P. and Welling, M. (2014). Auto-encoding vari-

ational bayes. CoRR, abs/1312.6114.

Kulon, D., G

uler, R. A., Kokkinos, I., Bronstein, M. M.,

and Zafeiriou, S. (2020). Weakly-supervised mesh-

convolutional hand reconstruction in the wild. 2020

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition (CVPR), pages 4989–4999.

Labb’e, Y., Carpentier, J., Aubry, M., and Sivic, J. (2020).

Cosypose: Consistent multi-view multi-object 6d

pose estimation. In ECCV.

Li, S., Wang, H., and Lee, D. (2020). Hand pose estimation

for hand-object interaction cases using augmented au-

toencoder. In 2020 IEEE International Conference on

Robotics and Automation (ICRA), pages 993–999.

Liu, S., Jiang, H., Xu, J., Liu, S., and Wang, X.

(2021). Semi-supervised 3d hand-object poses esti-

mation with interactions in time. In Proceedings of

the IEEE conference on computer vision and pattern

recognition.

Moon, G., Chang, J., and Lee, K. M. (2018). V2v-

posenet: Voxel-to-voxel prediction network for accu-

rate 3d hand and human pose estimation from a single

depth map. In The IEEE Conference on Computer Vi-

sion and Pattern Recognition (CVPR).

Mueller, F., Bernard, F., Sotnychenko, O., Mehta, D., Srid-

har, S., Casas, D., and Theobalt, C. (2018). Ganerated

hands for real-time 3d hand tracking from monocular

rgb. In Proceedings of Computer Vision and Pattern

Recognition (CVPR).

Mueller, F., Mehta, D., Sotnychenko, O., Sridhar, S., Casas,

D., and Theobalt, C. (2017). Real-time hand tracking

under occlusion from an egocentric rgb-d sensor. 2017

IEEE International Conference on Computer Vision

Workshops (ICCVW), pages 1284–1293.

Ortenzi, V., Cosgun, A., Pardi, T., Chan, W. P., Croft, E. A.,

and Kuli

c, D. (2021). Object handovers: A review for

robotics. IEEE Transactions on Robotics, 37:1855–

1873.

Park, J., Oh, Y., Moon, G., Choi, H., and Lee, K. M. (2022).

Handoccnet: Occlusion-robust 3d hand mesh estima-

tion network. In Conference on Computer Vision and

Pattern Recognition (CVPR).

Paszke, A., Gross, S., Massa, F., Lerer, A., Bradbury, J.,

Chanan, G., Killeen, T., Lin, Z., Gimelshein, N.,

Antiga, L., Desmaison, A., K

opf, A., Yang, E., De-

Vito, Z., Raison, M., Tejani, A., Chilamkurthy, S.,

Steiner, B., Fang, L., Bai, J., and Chintala, S. (2019).

PyTorch: An Imperative Style, High-Performance

Deep Learning Library. Curran Associates Inc., Red

Hook, NY, USA.

Peng, S., Liu, Y., Huang, Q., Bao, H., and Zhou, X. (2019).

Pvnet: Pixel-wise voting network for 6dof pose es-

timation. 2019 IEEE/CVF Conference on Computer

Vision and Pattern Recognition (CVPR), pages 4556–

4565.

Piumsomboon, T., Clark, A., Billinghurst, M., and Cock-

burn, A. (2013). User-deﬁned gestures for augmented

reality. In CHI ’13 Extended Abstracts on Human

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

192

Factors in Computing Systems, CHI EA ’13, page

955–960, New York, NY, USA. Association for Com-

puting Machinery.

Rad, M. and Lepetit, V. (2017). Bb8: A scalable, accurate,

robust to partial occlusion method for predicting the

3d poses of challenging objects without using depth.

2017 IEEE International Conference on Computer Vi-

sion (ICCV), pages 3848–3856.

Rezende, D. J., Mohamed, S., and Wierstra, D. (2014).

Stochastic back-propagation and variational inference

in deep latent gaussian models. ArXiv, abs/1401.4082.

Romero, J., Tzionas, D., and Black, M. J. (2017). Embod-

ied hands: Modeling and capturing hands and bodies

together. ACM Transactions on Graphics, (Proc. SIG-

GRAPH Asia), 36(6):245:1–245:17.

Sohn, K., Lee, H., and Yan, X. (2015). Learning structured

output representation using deep conditional genera-

tive models. In Cortes, C., Lawrence, N., Lee, D.,

Sugiyama, M., and Garnett, R., editors, Advances in

Neural Information Processing Systems, volume 28.

Curran Associates, Inc.

Spurr, A., Iqbal, U., Molchanov, P., Hilliges, O., and

Kautz, J. (2020). Weakly supervised 3d hand pose

estimation via biomechanical constraints. ArXiv,

abs/2003.09282.

Spurr, A., Song, J., Park, S., and Hilliges, O. (2018).

Cross-modal deep variational hand pose estimation. In

CVPR.

Tekin, B., Bogo, F., and Pollefeys, M. (2019). H+o: Uniﬁed

egocentric recognition of 3d hand-object poses and in-

teractions. 2019 IEEE/CVF Conference on Computer

Vision and Pattern Recognition (CVPR), pages 4506–

4515.

Tekin, B., Sinha, S. N., and Fua, P. V. (2018). Real-time

seamless single shot 6d object pose prediction. 2018

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition, pages 292–301.

Tse, T. H. E., Kim, K. I., Leonardis, A., and Chang, H. J.

(2022). Collaborative learning for hand and object re-

construction with attention-guided graph convolution.

2022 IEEE/CVF Conference on Computer Vision and

Pattern Recognition (CVPR), pages 1654–1664.

Vaswani, A., Shazeer, N. M., Parmar, N., Uszkoreit, J.,

Jones, L., Gomez, A. N., Kaiser, L., and Polo-

sukhin, I. (2017). Attention is all you need. ArXiv,

abs/1706.03762.

Wang, R., Mao, W., and Li, H. (2022). Interacting hand-

object pose estimation via dense mutual attention.

2023 IEEE/CVF Winter Conference on Applications

of Computer Vision (WACV), pages 5724–5734.

Xiang, Y., Schmidt, T., Narayanan, V., and Fox, D. (2018).

Posecnn: A convolutional neural network for 6d

object pose estimation in cluttered scenes. ArXiv,

abs/1711.00199.

Yang, W., Paxton, C., Mousavian, A., Chao, Y.-W., Cak-

mak, M., and Fox, D. (2021). Reactive human-to-

robot handovers of arbitrary objects. In IEEE In-

ternational Conference on Robotics and Automation

(ICRA). IEEE.

Yuan, S., Garcia-Hernando, G., Stenger, B., Moon, G.,

Chang, J. Y., Lee, K. M., Molchanov, P., Kautz, J.,

Honari, S., Ge, L., Yuan, J., Chen, X., Wang, G.,

Yang, F., Akiyama, K., Wu, Y., Wan, Q., Madadi, M.,

Escalera, S., Li, S., Lee, D., Oikonomidis, I., Argy-

ros, A., and Kim, T.-K. (2018). Depth-based 3d hand

pose estimation: From current achievements to future

goals. In 2018 IEEE/CVF Conference on Computer

Vision and Pattern Recognition, pages 2636–2645.

Zhang, X., Li, Q., Zhang, W., and Zheng, W. (2019). End-

to-end hand mesh recovery from a monocular rgb im-

age. 2019 IEEE/CVF International Conference on

Computer Vision (ICCV), pages 2354–2364.

Zhou, Y., Barnes, C., Lu, J., Yang, J., and Li, H. (2019).

On the continuity of rotation representations in neural

networks. 2019 IEEE/CVF Conference on Computer

Vision and Pattern Recognition (CVPR), pages 5738–

5746.

Zhou, Y., Habermann, M., Xu, W., Habibie, I., Theobalt, C.,

and Xu, F. (2020). Monocular real-time hand shape

and motion capture using multi-modal data. 2020

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition (CVPR), pages 5345–5354.

Zimmermann, C. and Brox, T. (2017). Learning to estimate

3d hand pose from single rgb images. In IEEE In-

ternational Conference on Computer Vision (ICCV).

https://arxiv.org/abs/1705.01389.

Hand Mesh and Object Pose Reconstruction Using Cross Model Autoencoder

193
