Bone-Aware Generative Adversarial Network with Supervised Attention

Mechanism for MRI-Based Pseudo-CT Synthesis

Gurbandurdy Dovletov

1 a

, Utku Karadeniz

1 b

, Stefan L

orcks

1 c

, Josef Pauli

1 d

Marcel Gratz

2,3 e

and Harald H. Quick

2,3

Intelligent Systems Group, Faculty of Computer Science, University of Duisburg-Essen, Duisburg, Germany

High-Field and Hybrid MR Imaging, University Hospital Essen, University of Duisburg-Essen, Essen, Germany

Erwin L. Hahn Institute for MR Imaging, University of Duisburg-Essen, Essen, Germany

Keywords:

Deep Learning, Image-to-Image Translation, Pseudo-CT Synthesis, Attention Mechanisms, Attention U-Net,

Generative Adversarial Network.

Abstract:

Deep learning techniques offer the potential to learn the mapping function from MRI to CT domains, allowing

the generation of synthetic CT images from MRI source data. However, these image-to-image translation

methods often introduce unwanted artifacts and struggle to accurately reproduce bone structures due to the

absence of bone-related information in the source data. This paper extends the recently introduced Atten-

tion U-Net with Extra Supervision (Att U-Net ES), which has shown promising improvements for the bone

regions. Our proposed approach, a conditional Wasserstein GAN with Attention U-Net as the generator, lever-

ages the network’s self-attention property while simultaneously including domain-speciﬁc knowledge (or bone

awareness) in its learning process. The adversarial learning aspect of the proposed approach ensures that the

attention gates capture both the overall shape and the ﬁne-grained details of bone structures. We evaluate the

proposed approach using cranial MR and CT images from the publicly available RIRE data set. Since the

images are not aligned with each other, we also provide detailed information about the registration procedure.

The obtained results are compared to Att U-Net ES, baseline U-Net and Attention U-Net, and their GAN ex-

tensions.

1 INTRODUCTION

Computed Tomography (CT) and Magnetic Reso-

nance Imaging (MRI) are crucial medical imaging

techniques with signiﬁcant roles in healthcare. While

both techniques are invaluable for diagnosing and

treating various medical conditions, they each offer

distinct advantages owing to their diverse underlying

physical principles.

A CT scan is acquired by employing a rotating

source tube, emitting X-rays from various angles dur-

ing its rotation. As these X-rays traverse the patient’s

body, they are attenuated and subsequently captured

by a rotating detector opposite the source. As a re-

sult, a CT image visually represents the attenuating

properties within the patient’s tissues. CT values are

expressed in Hounsﬁeld Units (HU), a relative mea-

https://orcid.org/0000-0002-2401-8745

https://orcid.org/0009-0006-3456-1115

https://orcid.org/0000-0003-3641-4734

https://orcid.org/0000-0003-0363-6410

https://orcid.org/0000-0001-9723-5233

surement scale used to quantify the density of tissues

within the body.

On the other hand, MRI utilizes strong magnetic

ﬁelds and radiofrequency pulses to align the hydro-

gen nuclei present abundantly in the human body. Af-

ter the radiofrequency pulse is deactivated, the pro-

tons gradually realign themselves within the magnetic

ﬁeld and simultaneously emit their radiofrequency

signal (or resonance), which detectors (or receiver

coils) capture.

A CT scan thus can offer superior visualization

of bone anatomy due to its high-density contrast,

whereas an MRI image excels in revealing soft tis-

sues and organs. Both modalities can complement

each other in some cases, ensuring a comprehensive

assessment of a patient’s condition.

In the context of Radiation Treatment (RT) plan-

ning, MRI offers a notable advantage over CT by de-

livering a highly detailed map of soft tissues and facil-

itating a precise delineation of both organs at risk and

treatment targets (e.g., tumors) (Schmidt and Payne,

2015). However, MRI cannot map electron densities,

which is essential for radiation dose calculations in

Dovletov, G., Karadeniz, U., Lörcks, S., Pauli, J., Gratz, M. and Quick, H.

Bone-Aware Generative Adversarial Network with Supervised Attention Mechanism for MRI-Based Pseudo-CT Synthesis.

DOI: 10.5220/0012370900003657

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 17th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2024) - Volume 1, pages 223-235

ISBN: 978-989-758-688-0; ISSN: 2184-4305

223

RT planning. This necessitates an additional CT scan,

resulting in unwanted radiation exposure for patients,

which ideally should be reduced to zero, and, addi-

tionally, in increased healthcare costs.

One approach to mitigate these challenges is to

generate synthetic CT images directly from radiation-

free MRI data, often called pseudo-CT (pCT) images.

These synthetic CTs can also be used in Positron

Emission Tomography (PET) systems when com-

bined with MRI.

PET is a nuclear medicine imaging technique that

is used to reveal physiological and biochemical pro-

cesses within the body. It involves using a small

amount of a radioactive substance, known as a radio-

tracer, typically injected into the patient’s body. This

unstable radiotracer undergoes a radioactive decay

and emits positrons. When a positron collides with

an electron within the body, the annihilation process

produces two gamma rays, with 511 keV energy each,

that are emitted in opposite directions. While travers-

ing through some tissue or hardware parts (e.g., pa-

tient’s table) on their way to detectors, these photons

get attenuated. Thus, an Attenuation Correction (AC)

procedure is required for each PET image.

The absence of anatomical details in standalone

PET led to the development of integrated PET/CT

systems. In such hybrid modality imaging systems, a

complementary CT image is acquired within a single

gantry, allowing the generation of AC maps directly

from HUs by scaling the CT image’s energy level with

that of PET.

Superior soft tissue contrast and radiation-free

principles of MRI lead to PET/MRI systems (Quick,

2014; Paulus et al., 2015), where MRI-based pseudo-

CT is used for AC of PET.

Thus, accurate pseudo-CT synthesis, especially

for dense parts such as cortical bones, is crucial for

both AC of PET data and RT planning. At the same

time, it is a challenging task since standard T1- or T2-

weighted MRI cannot capture the signal from bone

regions (due to its relatively short relaxation time),

making it difﬁcult to translate it into an accurate

pseudo-CT image.

2 RELATED WORK

In deep learning, synthesizing pseudo-CT images

from MRI scans is an image-to-image translation

problem. Several methods have been proposed to

tackle this challenging task.

(Nie et al., 2016) propose utilizing a Fully Con-

volutional Network (FCN) to preserve the neighbor-

hood information better while mapping from MR to

CT images. (Han, 2017) proposes adapting and using

the U-Net (Ronneberger et al., 2015) architecture for

MRI-based pseudo-CT synthesis. On the other hand,

(Wolterink et al., 2017) suggest employing Genera-

tive Adversarial Networks (GAN) (Goodfellow et al.,

2014) and their cyclic extension, CycleGAN (Zhu

et al., 2017), to achieve more realistic image synthe-

sis.

While synthesizing pseudo-CTs using FCNs,

U-Nets, or GANs is feasible, the resulting images of-

ten contain errors, particularly in the bone regions.

To address this challenge, a popular solution is

to incorporate different MRI sequences and contrasts

as additional sources of information to improve the

accuracy of bone representation in the synthesized

images. To this end, (Leynes et al., 2018) pro-

pose the utilization of Zero-Echo-Time (ZTE) images

in conjunction with Dixon MRI’s in-phase and out-

of-phase images to capture more information about

bone structures. In an alternative approach, (Torrado-

Carvajal et al., 2019) suggest using 2-echo Dixon im-

ages and explicitly emphasizing their fat- and water-

only derivatives. (Gong et al., 2018) propose to

efﬁciently make use of both Dixon and ZTE in-

puts using grouped convolutions (Xie et al., 2017)

in the deeper layers of U-Net. (Qi et al., 2020)

propose leveraging multiple imaging sequences, in-

cluding T1, T2, contrast-enhanced T1, and contrast-

enhanced Dixon T1 (water-only image), to enhance

the quality of the synthesized pseudo-CTs. Although

these methods can potentially improve the quality

of synthesized pseudo-CTs, it is important to note

that this improvement comes with the trade-off of in-

creased MR image acquisition costs and longer acqui-

sition times.

Another approach to improve the quality of syn-

thesized images involves utilizing attention mecha-

nisms during the training process of neural networks.

Generally speaking, attention mechanisms allow net-

works to focus on speciﬁc parts of the input data and,

thus, to capture important details and structures more

effectively.

Spatial attention extends this idea by reﬁning the

focus to speciﬁc spatial regions within the input data.

Proposed by (Oktay et al., 2018) Attention U-Net

is a well-known semantic segmentation network that

incorporates a spatial attention mechanism in the form

of Attention Gates (AG) to self-focus on task-speciﬁc

features. One notable advantage of this approach is

that the model inherently possesses the ability to vi-

sualize learned attention maps, which enhances the

interpretability of models for human understanding.

Channel attention, such as e.g., Squeeze-and-

Excitation (SE) proposed by (Hu et al., 2018), gener-

BIOIMAGING 2024 - 11th International Conference on Bioimaging

224

ates attention masks along the channel dimension and

thus allows the feature recalibration for better use of

global abstract information for the classiﬁcation.

Bottleneck Attention Module (BAM) (Park et al.,

2018), or its extension, Convolutional Block Atten-

tion Module (CBAM) (Woo et al., 2018), incorporates

both spatial and channel attention mechanisms. Thus,

AG, SE, BAM, or CBAM are attention mechanisms

capable of capturing the most valuable information on

their own without explicit guidance.

Although self-attention is generally preferable,

there are situations where attention mechanisms en-

hanced by domain-speciﬁc knowledge prove to be a

more effective choice.

To this end, (Xiang et al., 2018) adopt CycleGAN

and introduce structural dissimilarity loss to its learn-

ing process, which is calculated for both MRI and

CT domains based on the Structural Similarity Index

Measure (SSIM) (Wang et al., 2004). Alternatively,

(Ge et al., 2019) propose a modiﬁcation that explic-

itly incorporates mutual information between MR and

synthesized CT images and enforces shape consis-

tency between these images using an additional seg-

mentation network. (Dovletov et al., 2022b) suggest

generating bone segmentations and utilizing them

for U-Net- and GAN-based models to penalize more

severely the errors in the bone regions. In (Dovle-

tov et al., 2022a), the same research group proposes

to use an additional classiﬁer in combination with the

Grad-CAM (Selvaraju et al., 2017) technique to guide

their U-Net, forcing it to focus more on bone regions

without any auxiliary input.

In this contribution, we extend the Attention

U-Net with Extra Supervision (Dovletov et al.,

2023a), a technique that guides the model to learn at-

tention maps that closely resemble bone segmentation

maps. More speciﬁcally, we adopt this technique and

introduce it in the context of Generative Adversarial

Networks. Through experimentation, we demonstrate

that this extra supervision substantially reduces er-

rors in regions around bones compared to the baseline

GAN models.

3 PROPOSED APPROACH

In this section, we ﬁrst introduce and formulate our

baseline Attention U-Net model in the context of an

MRI-based pseudo-CT synthesis. Then, we extend it

and thus deﬁne our baseline conditional Wasserstein

Generative Adversarial Network. After that, the pro-

posed conditional Wasserstein GAN with Extra Su-

pervision (ES) is explained.

2xConvolution,

followed by Max Pooling

Skip Connection

(Concatenation)

Data Flow Arrow

(no operation)

Transposed Convolution,

followed by 2xConvolution

1x1 Convolution

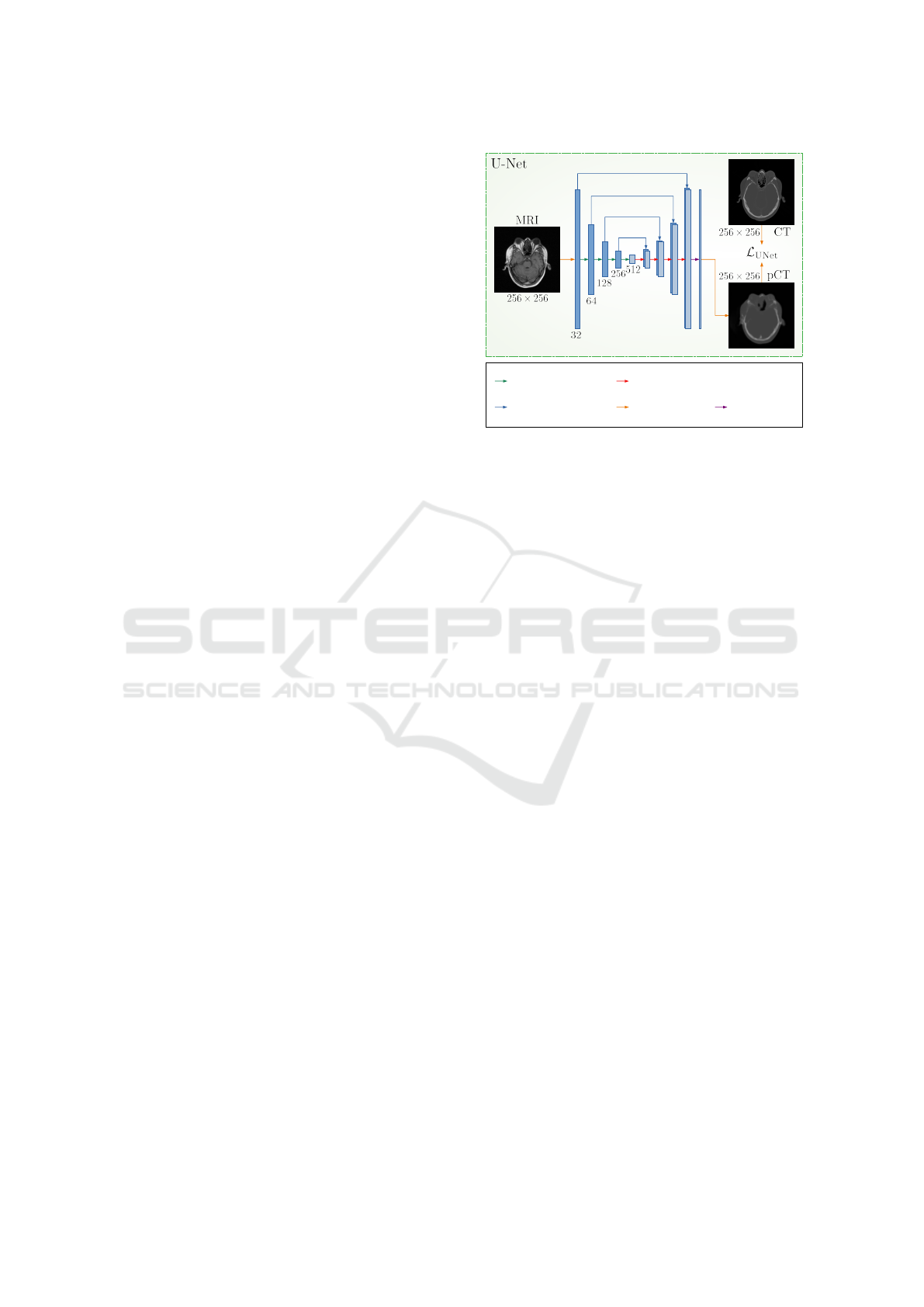

Figure 1: Baseline U-Net for MRI-based pseudo-CT syn-

thesis.

3.1 U-Net and Attention U-Net

U-Net (Ronneberger et al., 2015) is a Fully Convolu-

tional Network (FCN) architecture that was initially

designed for biomedical image segmentation but has

found its place in a wide range of tasks, including

MRI-based pseudo-CT synthesis. As can be seen

from Figure 1, the network has a distinctive U-shaped

structure and consists of contracting (encoding) and

expansive (decoding) paths and skip connections be-

tween them. The encoding path of the network con-

sists of a series of convolutional layers followed by a

downsampling (or pooling) operation. It is responsi-

ble for capturing abstract features from the input MR

images. Hence, its task is similar to the feature ex-

traction part of traditional CNNs. The decoding path

takes these features (with lower spatial resolution) as

input and learns to produce the output pseudo-CT

image of the same size as the input image. It in-

volves a sequence of transposed convolutional layers

in combination with skip connections from the encod-

ing path. These skip connections are a crucial part

of U-Net since they allow the network to transfer de-

tailed information from the encoder’s layers and help

the model recover the ﬁne-grained features in the de-

coder part.

Among its notable modiﬁcations, Attention

U-Net (Oktay et al., 2018) stands out as an exten-

sion that allows the network to self-focus on task-

speciﬁc regions. As shown in Figure 2 (middle block,

left side), the key difference compared to the original

U-Net is the incorporation of Attention Gates (AG).

These AGs are placed along the skip connections and

are responsible for selectively highlighting the most

task-relevant features and suppressing less relevant

details by learning suitable Attention Maps (AM).

Bone-Aware Generative Adversarial Network with Supervised Attention Mechanism for MRI-Based Pseudo-CT Synthesis

225

More speciﬁcally, this feature selection mechanism

is implemented using contextual information (repre-

sented as the gating signal) obtained at coarser scales.

The output of attention gates is the element-wise mul-

tiplication of input features and the attention coefﬁ-

cient of AMs. Thus, attention gates introduce a con-

cept of self-attention, where the network on its own

learns suitable AMs to solve the provided task better.

Both U-Net and Attention U-Net networks can be

used for MRI-based pseudo-CT synthesis. Thus, for

both baseline models, we choose Mean Absolute Er-

ror (MAE) to formulate their loss functions:

(Att)UNet

M · N

∑

i=1

∑

j=1



i j

− G(x)

i j



(1)

where G(x) represents the generated pseudo-CT im-

age with the size of M ×N pixels, x is the input MR

image, and y is its corresponding Ground Truth (GT)

CT image.

3.2 Conditional Wasserstein GAN

Generative Adversarial Network (GAN) (Goodfellow

et al., 2014) was initially proposed to create realistic

and high-quality data samples from noise. However,

its later adoptions, such as pix2pix (Isola et al., 2017),

can also be used for image-to-image translation tasks.

Thus, MRI-based pseudo-CT images can be synthe-

sized using generative models.

GANs consist of two networks: a generator and

a discriminator. The main goal of the generator G

is to synthesize data indistinguishable from the real

data (training data). The discriminator D, on the other

hand, has the task of distinguishing between real data

and synthetic data (created by the generator). Both G

and D networks are trained together by taking turns

and using an adversarial training approach, meaning

they compete against each other. While the generator

learns to synthesize data that can fool the discrimi-

nator, the discriminator strives to better differentiate

between real and fake data. The learning process for

G and D can be described using the adversarial objec-

tive function:

adv-GAN

[log(D(y))]+E

[log(1−D(G(x)))] (2)

where x and y represent images from the source (MRI)

and target (CT) domain correspondingly, and E de-

notes the expected value. Thus, the generator is

trained to minimize the probability of the discrimina-

tor classifying its synthetic data as fake. In contrast,

the discriminator tries to maximize this probability by

correctly identifying synthesized data as a fake class.

In a well-trained GAN framework, the generator be-

comes so good at synthesizing data that the discrim-

inator cannot tell the difference between synthesized

fake data and real data.

Wasserstein GAN (WGAN) (Arjovsky et al.,

2017) is one of GAN’s modiﬁcations that heavily con-

tributes to the training stability and reduces the mode

collapse problem, where the generator only produces

a limited variety of synthetic data. These improve-

ments are achieved by using an alternative adversar-

ial loss function that approximates the Earth Mover’s

Distance and changing the discriminator’s role from a

binary classiﬁer to a critic C, which assesses the de-

gree of realness by assigning continuous scores. An-

other extension of traditional GAN is a conditional

Generative Adversarial Network (cGAN) (Mirza and

Osindero, 2014), where both generator and discrim-

inator networks are provided with additional condi-

tioning information to better control the various as-

pects of the generative process.

Our baseline conditional WGANs (or cWGANs)

include image-based conditioning on the correspond-

ing critics to better preserve structural informa-

tion between the input MR image and synthesized

pseudo-CT image. More speciﬁcally, fake or real im-

ages are concatenated with the generator’s input im-

age before being propagated through the critic net-

work. Thus, our baseline adversarial objective is for-

malized as follows:

adv-cWGAN

= E

x,y

[C(x, y)] − E

[C(x, G(x ))] (3)

where x and y represent MR and CT images corre-

spondingly. While G tries to minimize L

adv-cWGAN

against adversarial critic C, the latter one attempts to

maximize the same objective. We use both U-Net and

Attention U-Net networks as generators, whereas a

CNN, depicted in Figure 2 (middle block, right side),

serves as the critic. For the sake of shortness, only

the architecture with Attention U-Net is depicted in

Figure 2 (middle block, left side). Thus, our ﬁnal ob-

jectives for generator and critic networks can be sum-

marized as follows:

= L

(Att)UNet

+ λ

adv

adv-cWGAN

= L

adv-cWGAN

(4)

where λ

adv

denotes the weighting factor of the condi-

tional Wasserstein GAN’s objective. The generator’s

loss contains the previously introduced L

(Att)UNet

loss

term that penalizes the distance between the synthe-

sized outputs and ground truth data, further encour-

aging the generator to create plausible translation re-

sults.

BIOIMAGING 2024 - 11th International Conference on Bioimaging

226

2xConvolution,

followed by Max Pooling

Skip Connection

(Concatenation)

Data Flow Arrow

(no operation)

Transposed Convolution,

followed by 2xConvolution

1x1 Convolution

Attention Gate

2x2 Max Pooling

Thresholding

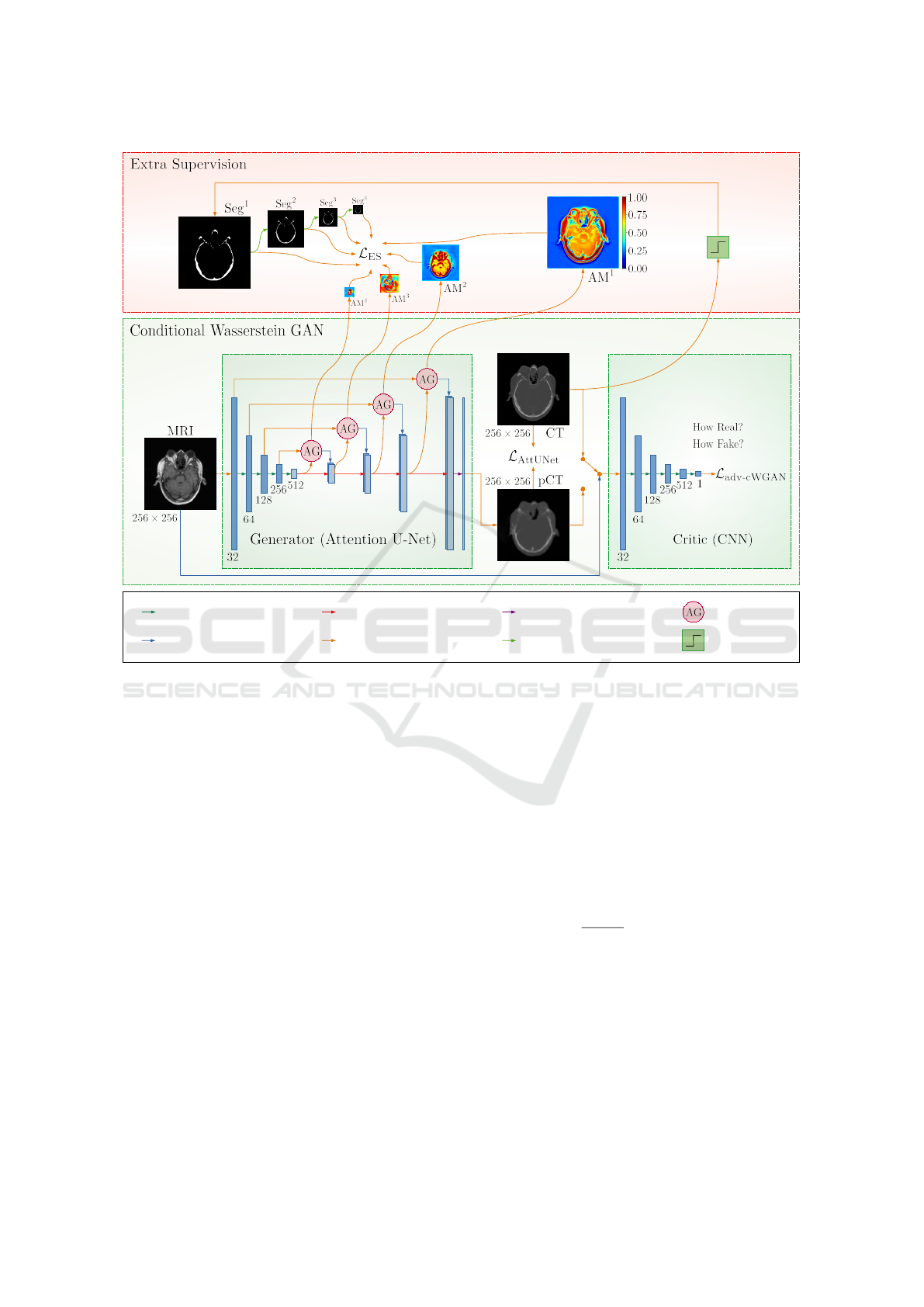

Figure 2: Proposed conditional Wasserstein Generative Adversarial Network with Extra Supervision for MRI-based

pseudo-CT synthesis. Compared to the baseline cWGAN (middle block), our approach has an additional Extra Super-

vision (ES) module (upper block), which forces the attention maps of the Generator (Attention U-Net) network (AM

l ∈ {1, 2, 3, 4}) to look as similar as possible to the (scaled) ground truth bone segmentation maps (Seg

, l ∈ {1, 2, 3, 4}).

3.3 Conditional Wasserstein GAN with

Extra Supervision

Our proposed network is based on the above-

mentioned conditional Wasserstein GAN architecture

utilizing the Attention U-Net network. We propose

imposing additional constraints on attention maps to

improve the generator’s ability to focus on crucial re-

gions, like the bone areas in MRI-based pseudo-CT

synthesis. Speciﬁcally, we adopt the Extra Supervi-

sion (ES) (Dovletov et al., 2023a) recently introduced

in the context of the pseudo-CT synthesis task and

utilize it for our generative model. The main idea of

ES is to force the Attention U-Net (or generator) to

pay more attention to the bone regions by using ad-

ditional supervision via coarse bone segmentations.

Our objective functions for generator G and critic C

networks can be summarized as follows:

= L

AttUNet

+ λ

adv

adv-cWGAN

= L

adv-cWGAN

(5)

where L

represents additional supervision for the

generator, and λ

is a hyperparameter that can be

used to control its relative importance. Similarly, as

in the original ES paper, we propose calculating L

as follows:

∑

l=1

· L

∑

l=1

· N

∑

i=1

∑

j=1



Seg

i j

− AM

i j



(6)

where AM

represents the attention map with size

× N

learned by the attention gate at the l-th im-

age resolution level (l ∈ {1, ..., L}), Seg

corresponds

to the ground truth segmentation scaled to match the

size of AM

, and L denotes the total number of reso-

lution levels in the network, excluding the bottleneck.

Since attention gates use the sigmoid function as the

ﬁnal activation, the attention values learned during the

training fall within the range of zero to one. Hence,

Bone-Aware Generative Adversarial Network with Supervised Attention Mechanism for MRI-Based Pseudo-CT Synthesis

227

attention maps share the same value range as ground

truth segmentations, with zeros and ones represent-

ing non-bone and bone regions. We propose using

to independently control the relative importance of

each extra supervision term L

. These hyperparam-

eters, hence, have to be chosen manually. Thus, while

AttUNet

and L

adv-cWGAN

provide general supervision

and allow the image-to-image translation network to

learn the mapping from MRI to CT domains, L

pro-

vides auxiliary guidance, enhancing the generator’s

ability to synthesize bone structures.

4 EXPERIMENTS

This section presents the data set utilized in the exper-

iments, followed by an overview of implementation

details and the metrics used for evaluation.

4.1 Data Set

The publicly available Retrospective Image Registra-

tion Experiment (RIRE) data set (West et al., 1997)

was initially introduced in the context of an image-

to-image registration task. It consists of cranial im-

age scans for sixteen patients, acquired with differ-

ent imaging techniques, such as MRI, CT, and PET.

Thus, the image volumes in this data set are not in-

herently aligned with each other, and the ground truth

registration data is also not included. Furthermore,

only a subset of CT scans within the data set contains

the patient’s table as part of the imagery. The images

are provided in the standard DICOM data format with

12-bit data representation.

We opted to use T1-weighted MRI scans with the

spatial size of 256 × 256 pixels, in conjunction with

CT images with a size of 512 × 512 pixels.

To register CT and MR volume pairs, we uti-

lized a mutual-information-based multi-resolution

algorithm (Mattes et al., 2003) using the Sim-

pleITK (Lowekamp et al., 2013; Yaniv et al., 2018;

Beare et al., 2018) framework. During the registration

process, due to its higher spatial resolution, the CT

volume was chosen as a ﬁxed volume, while the cor-

responding MR volume was considered as a moving

one. Furthermore, linear interpolation was utilized to

resize the MR scans, and the Gradient Descent with a

learning rate of 0.01 was used to optimize the mutual

information between both scans.

After alignment, the registered volumes were ﬁrst

brought to homogeneous voxel spacing. We then ad-

justed the ﬁeld of view of each volume based on the

achieved spatial resolution. By cropping from the

center of the image or adding padding around its bor-

ders, we achieved an approximately equivalent ﬁeld

of view. Next, we resized MR and CT image slices to

256 × 256 pixels, which is an input resolution for our

networks, and visually inspected them. Due to the dif-

fering initial ﬁelds of view between the unregistered

MR and CT volumes, speciﬁc MR/CT slices were left

without valid counterparts after registration. These

slices were typically located at the upper or lower ex-

tremities of the registered volumes (axial plane) and

were subsequently omitted. As a ﬁnal validation step,

we examined the retained 553 MR-CT image pairs

(from all sixteen patients).

Table 1: Cross-validation details; Train / Valid / Test de-

note which patients were used during the training / valida-

tion / testing phase within each of four folds. The last col-

umn (Slice) represents the number of available paired slices

per patient. Patient IDs (Pat. ID) correspond to ﬁlenames in

the original data set.

Pat. ID Fold1 Fold2 Fold3 Fold4 Slice

001 Train Train Train Test 25

002 Train Test Train Train 24

003 Train Train Valid Test 19

004 Valid Test Train Train 18

005 Train Valid Test Train 26

006 Test Train Train Train 23

007 Test Train Train Valid 26

101 Train Valid Test Train 47

102 Train Train Train Test 48

103 Train Test Train Train 44

104 Train Train Valid Test 46

105 Valid Test Train Train 37

106 Train Train Test Train 44

107 Train Train Test Train 45

108 Test Train Train Train 40

109 Test Train Train Valid 41

Total number of slices in the data set:

∑

553

4.2 Experimental Details

All experiments were conducted in a four-fold cross-

validation manner, with four patients reserved for

each testing phase, while of the remaining twelve, ten

were used for training and two for validation. De-

tailed information regarding the utilized data split is

provided in Table 1.

To improve the model’s ability to generalize to un-

seen data, we enhanced image diversity by employing

data augmentation techniques in the form of random

rotations (within a range of ±7.5 degrees), scaling

(with a factor ranging from 1 to 1.15), and horizon-

tal ﬂipping (with a 50% probability chance).

BIOIMAGING 2024 - 11th International Conference on Bioimaging

228

Table 2: Evaluation of pseudo-CT synthesis with respect to the images as a whole. Each evaluation metric is given with its

average value ± corresponding standard deviation. While MAE and MSE values are given in HU and HU

, SSIM and PSNR

values are reported in % and dB, respectively. The best results within U-Nets and cWGANs are highlighted bold.

Entire Image

Name ↓ MAE [HU] ↓ MSE [HU

] ↑ PSNR [dB] ↑ SSIM [%]

U-Net (Ronneberger et al., 2015) 101±35 69139±27664 24.3±1.9 79.6±6.8

Att U-Net (Oktay et al., 2018) 99±32 64919±22973 24.4±1.6 80.1±5.9

Att U-Net ES (Dovletov et al., 2023a) 99±35 61910±26966 24.8±2.0 80.2±6.3

cWGAN with U-Net 113±37 80507±31839 23.7±1.9 77.2±7.3

cWGAN with Att U-Net 114±39 75709±32252 23.9±2.0 76.5±7.6

cWGAN with Att U-Net ES 104±37 67125±29250 24.5±2.1 78.4±7.3

In our baseline U-Net implementation, we started

with 32 convolutional kernels of the size of 5× 5 pix-

els, and we doubled the number of learnable features

for each subsequent image resolution level. More-

over, we employed two consecutive convolutional

layers with zero-padding at each resolution level. In

the encoding path, max pooling with a window size of

2× 2 pixels and a stride of 2 pixels was utilized, while

in the decoding path, learnable transposed convolu-

tions were employed. At each upsampling step, the

number of output features was reduced by half com-

pared to the corresponding input channels. We ap-

plied the Rectiﬁed Linear Unit (ReLU) as a non-linear

activation function. We used 1 × 1 pixels convolution

as the ﬁnal layer to generate a single-channel output

image.

The core architecture of our baseline Attention

U-Net remains the same, except for the embedding

of attention gates. Similarly, as in the original paper,

we used the sigmoid activation function to normalize

attention coefﬁcients within the attention maps.

The previously described baseline U-Net and At-

tention U-Net architectures were used as the gener-

ator networks in our baseline Wasserstein GAN ap-

proaches. Furthermore, we included a hyperbolic tan-

gent (tanh) activation layer as the ﬁnal activation layer

of the generators to enhance the effectiveness of the

training process.

In our critic architecture, we started with 32 con-

volutional kernels at the initial resolution level. As

suggested by (Radford et al., 2015), we utilized 4 × 4

pixels kernels with a stride of 2 pixels and 1-pixel

padding in both spatial dimensions instead of using

max pooling layers. Following each convolutional

layer, we applied the LeakyReLU non-linear activa-

tion function. The number of ﬁlters was doubled with

each subsequent image resolution. We utilized an ad-

ditional batch normalization layer at each resolution

level to enhance training stability, except for the ﬁrst

one. Strided convolutional layers were iteratively em-

ployed until we obtained a single scalar value as the

output for each input image.

The exact same architecture as described previ-

ously (with Attention U-Net as a generator) was used

for the proposed conditional Wasserstein GAN ES.

We generated the required bone masks for ad-

ditional supervision by applying a global threshold-

based segmentation approach to the ground truth CT

images. We observed that the threshold value of

350 HU delivers reasonable results for the utilized

data set and is in the same range as suggested in the

literature (Buzug, 2009; Chougule et al., 2018; Wang

et al., 2019; Dovletov et al., 2023b; Yaakub et al.,

2023). However, since our GAN network expects nor-

malized images as input for its generator, this value

was mapped to the range between -1 and 1, which led

to the threshold value of -0.329.

When calculating the total loss function, we set

adv

to 10, following (Isola et al., 2017), and we chose

300 for λ

. We set all λ

(l ∈ {1, 2, 3, 4}) hyper-

parameters uniformly to 0.25, signifying the equal

importance of all attention gates of the Attention U-

Net network. We conducted additional experiments

with λ

values set to {0.012, 0.047, 0.118, 0.753} in

ascending and descending orders to analyze the im-

pact of hyperparameters on the quality of pseudo-CT

synthesis. These values were calculated by dividing

the pixel count of each attention map by the total num-

ber of pixels in all four attention maps, thus ensuring

a cumulative sum of one.

We implemented all our models in Python using

the PyTorch (Paszke et al., 2019) framework and exe-

cuted them on NVIDIA GTX 1080 TI GPUs equipped

with 11 GB VRAM.

The U-Net models were trained for 100 epochs us-

ing the Adam optimizer (β

= 0.9, β

= 0.999) with

a learning rate of 0.01. On the other hand, cWGAN

models were trained for 1000 epochs using the two

Bone-Aware Generative Adversarial Network with Supervised Attention Mechanism for MRI-Based Pseudo-CT Synthesis

229

time-scale update rule as suggested by (Heusel et al.,

2017). Thus, learning rates for generator and discrim-

inator networks were set to 0.0002 and 0.0004, re-

spectively. Moreover, in the case of cWGANs, we

incorporated an additional gradient penalty as pro-

posed by (Wu et al., 2018), and we used the RMSProp

optimizer during their training, as suggested by (Ar-

jovsky et al., 2017), to avoid instability issues. Addi-

tionally, one-sided label smoothing (Salimans et al.,

2016) was utilized. Both U-Net and cWGAN mod-

els were trained using mini-batches containing six-

teen images each.

4.3 Evaluation Metrics

Although the above-mentioned neural networks op-

erate in a 2D mode, it is crucial to evaluate using

3D volumes. Therefore, the produced 2D pseudo-CT

images of a patient were stacked to construct a 3D

volume before being compared to the desired ground

truth volume.

We chose Mean Squared Error (MSE) and Mean

Absolute Error (MAE) as pixel-wise quality assess-

ment metrics. These metrics were computed for both

entire volumes and speciﬁc regions of interest, the

head and bone regions.

To obtain the necessary head masks, we initially

generated them from MR images by applying Otsu’s

thresholding algorithm, followed by morphological

opening and closing operations. These masks were

subsequently validated and, if required, manually re-

ﬁned. Initially, we employed a morphological open-

ing operation with a circular structuring element of 5

pixels in radius to eliminate minor artifacts from the

initial segmentations. Following that, we used a clos-

ing operation with a radius of 25 pixels to ﬁll gaps in

the nasal areas. Lastly, a morphological dilation oper-

ation with a radius of 5 pixels was used to expand the

overall shape of the segments slightly.

For evaluating errors within the bone regions, we

utilized the same bone segmentation maps that had

been used during the training phase to guide the gen-

erator network (Attention U-Net).

Thus, bone masks allow quantifying errors in the

bone regions only, whereas head masks cover every-

thing except the background.

To facilitate a more comprehensive comparison of

the synthesized pseudo-CTs and ground truth CT im-

ages, we also computed the Peak Signal-to-Noise Ra-

tio (PSNR) (Hore and Ziou, 2010) as follows:

PSNR = 10 · log



MSE(CT, pCT)



(7)

where I represents the maximum intensity value for

the CT image. Thus, for the standard DICOM bit

depth of 12 bits, this value is set to 4095 (= 2

− 1).

Furthermore, we calculated the Structural Similarity

Index Measure (SSIM) (Wang et al., 2004) as follows:

SSIM =

(2µ

pCT

)(2σ

CTpCT

)

(µ

+ µ

pCT

)(σ

+ σ

pCT

)

(8)

where µ

pCT

and µ

denote the mean HU values of

pseudo-CT and CT images, with σ

pCT

and σ

repre-

senting their respective variances, while σ

CTpCT

sig-

niﬁes the covariance between two images. The pa-

rameters C

=(k

and C

=(k

are two variables

to stabilize division when dealing with weak denom-

inators (k

= 0.01, k

= 0.03). SSIM values vary be-

tween 0 and 1, and as the similarity between the gen-

erated pseudo-CT and the corresponding CT image

increases, the SSIM value approaches closer to 1.

To better assess the geometric accuracy of bone

structures, we also computed the Dice Similarity Co-

efﬁcient (DSC) between binarized CT and pseudo-CT

images using the following equation:

DSC =

2 · |Seg

∩ Seg

pCT

|Seg

| + |Seg

pCT

(9)

where Seg

and Seg

pCT

represent binarized bone

segmentations obtained from real CT and synthesized

pCT images, respectively. A higher DSC value repre-

sents a larger intersection between two segmentation

and thus indicates a greater similarity between the two

images.

5 RESULTS

We compare the performance of the six models

quantitatively using evaluation metrics from Subsec-

tion 4.3. The obtained results are outlined in Table 2

and Table 3, with the ﬁrst table focusing on values re-

lated to the images as a whole and the latter on areas

of interest.

Although we conducted cWGAN experiments

with different λ

(l ∈ {1, 2, 3, 4}) settings (as de-

scribed in Subsection 4.2), we only report the results

for one experiment with lambdas set uniformly to

0.25 value. The main reason is that we did not notice

a substantial improvement when using other conﬁgu-

rations, which is consistent with ﬁndings in (Dovletov

et al., 2023a).

Our proposed approach of cWGAN with At-

tention U-Net ES outperforms all other conditional

Wasserstein GAN models in every evaluation met-

ric. When considering entire generated pseudo-CTs,

our approach introduces a gain of 8.8% in MAE and

11.3% in MSE compared to its counterpart, namely,

BIOIMAGING 2024 - 11th International Conference on Bioimaging

230

Table 3: Evaluation of pseudo-CT synthesis with respect to head and bone regions of interest. Each evaluation metric is given

with its average value ± corresponding standard deviation. While MAE and MSE values are given in HU and HU

, SSIM

and PSNR values are reported in % and dB, respectively. DSC values are also reported in %. The best results within U-Nets

and cWGANs are highlighted bold.

Head Area Bone Area

Name ↓ MAE ↓ MSE ↓ MAE ↓ MSE ↑ DSC [%]

U-Net 180±30 131393±38343 595±120 532695±198331 60.1±9.4

Att U-Net 183±29 131679±32502 548±90 447014±122953 62.4±9.0

Att U-Net ES 173±30 117800±33330 432±88 310223±111930 67.3±7.7

cWGAN with U-Net 202±34 154101±42147 493±90 408417±131774 61.5±9.4

cWGAN with Att U-Net 193±32 138151±36758 463±91 357665±119125 63.8±8.6

cWGAN with Att U-Net ES 178±34 124601±37336 438±88 325305±115481 66.7±8.7

(a) MR. (b) U-Net. (c) Att U-Net. (d) Att U-Net ES.

(e) CT.

(f) cWGAN with

U-Net.

(g) cWGAN with

Att U-Net.

(h) cWGAN with

Att U-Net ES.

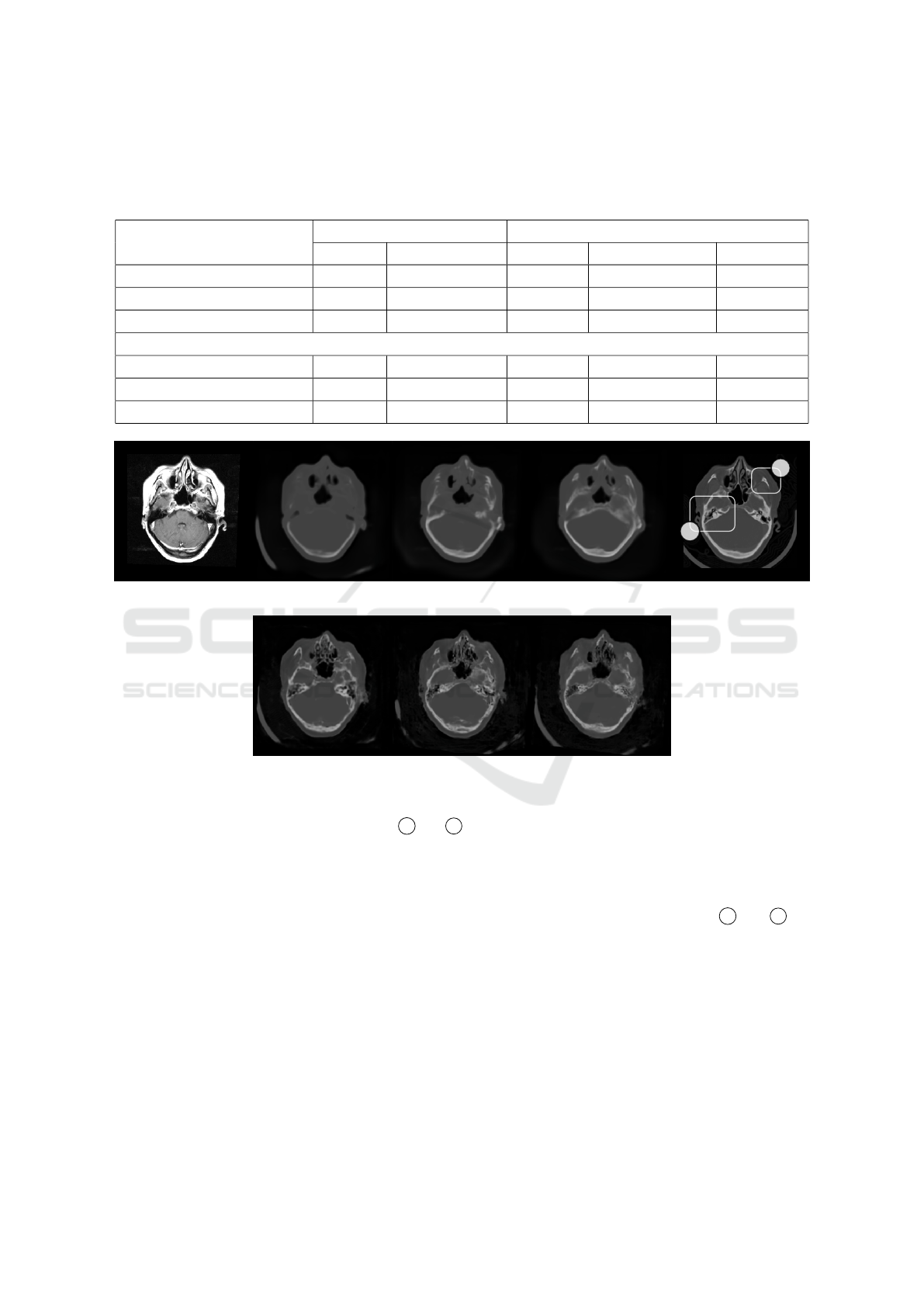

Figure 3: Synthetic pseudo-CT images. (a) Input MR image; Pseudo-CTs from (b-d) U-Nets and (f-h) cWGANs; (e) Corre-

sponding ground truth CT image. Bounding boxes A and B annotate the temporal and zygomatic bone, correspond-

ingly. Note the improved synthesis of bone structures from the proposed cWGAN approach with Attention U-Net

and ES in (h) compared to the results from baseline models in (f and g).

cWGAN with Attention U-Net, without additional su-

pervision. With 0.6 dB and 1.9% gain, the corre-

sponding PSNR and SSIM values are also slightly im-

proved.

More importantly, we achieved signiﬁcant im-

provements in bone areas. Speciﬁcally, DSC is 5.2%

and 2.9% higher when compared to cWGAN with U-

Net and cWGAN with Attention U-Net, respectively.

Additionally, the fact that results for the head area are

also better in our approach implies that the improve-

ment around the bone area is not coming at the cost

of error in other regions.

These ﬁndings can be further supported by the vi-

sual comparison of pseudo-CTs in Figure 3 (bottom

row) and by looking more closely at

A and B re-

gions in these images. It can be noted that both base-

line cWGAN models are capable of producing air-

ﬁlled cavities within the temporal bone of the cranium

at the correct positions. However, the bone structures

are not always correctly synthesized, such as in the

right half of the images. Moreover, the baseline mod-

els produce some bone artifacts around the zygomatic

bones (or cheeks). In contrast, our approach can more

accurately synthesize the previously mentioned bone

structures.

To investigate the impact of additional guid-

Bone-Aware Generative Adversarial Network with Supervised Attention Mechanism for MRI-Based Pseudo-CT Synthesis

231

(a) CT. (b) Pseudo-CT. (c) AM

. (d) AM

. (e) AM

. (f) AM

Figure 4: Learned Attention Maps (AMs) from cWGAN with Attention U-Net. (a) CT image; (b) Pseudo-CT; (c-f) AMs from

the corresponding generator (Attention U-Net). The superscript l in AM

indicates the attention map learned by the attention

gate at the l-th image resolution level as described in Subsection 3.3. The focus of attention maps is distributed along the

entire image space. Attention at lowest resolution levels (corresponds to abstract features) partially covers the bone regions.

(a) CT. (b) Pseudo-CT. (c) AM

. (d) AM

. (e) AM

. (f) AM

Figure 5: Learned Attention Maps (AMs) from Attention U-Net ES (Dovletov et al., 2023a). (a) CT image; (b) Pseudo-CT;

(c-f) AMs from Attention U-Net ES. Attention maps at all resolutions levels focus on the overall shape of bones without

capturing ﬁne details. As a result, this limitation is inherited by the synthesized pseudo-CT images.

(a) CT. (b) Pseudo-CT. (c) AM

. (d) AM

. (e) AM

. (f) AM

Figure 6: Learned Attention Maps (AMs) from cWGAN with Attention U-Net with Extra Supervision. (a) CT image;

(b) Pseudo-CT; (c-f) AMs from the corresponding generator (Attention U-Net ES). Attention maps at all resolution level

more accurately cover the bone regions, while at the same time almost completely ignore (zero values) irrelevant background

information.

ance, we visualize attention maps from the base-

line cWGAN with Attention U-Net as the generator

and from the proposed cWGAN with ES. Attention

maps from all four resolution levels from the baseline

model are depicted in Figure 4. As can be seen, the

generator’s focus is distributed along the whole image

space, and only the attention map at the lowest resolu-

tion level (see Figure 4f) partially focuses on the bone

structures. Such behavior implies that the network

relies more on high-level features when learning the

mapping from MRI to CT domain. In comparison, at-

tention maps from cWGAN with Attention U-Net ES

in Figure 6 clearly emphasize bone regions at all res-

olution levels. We also note that the extra supervision

allows the generator network to learn suitable AMs

that ignore other details, such as background noise or

the patient’s table.

Another important ﬁnding is seen when compar-

ing Attention U-Net ES (Dovletov et al., 2023a) with

the proposed approach, with the latter using an identi-

cal network as the generator in a conditional Wasser-

stein GAN setting. Both approaches clearly outper-

form the rest of the models when it comes to head

and bone areas. However, Attention U-Net ES is al-

ways quantitatively better than its GAN extension,

with the most signiﬁcant difference (percentage-wise)

being the MSE value around the head area at 5.4%.

The main reason for this discrepancy can be seen

in Figure 3, speciﬁcally when comparing images in

Figures 3d and 3h and their corresponding attention

maps. As seen from Figure 5, Attention U-Net ES

focuses well on areas with bones. However, it pays

little attention to details but instead captures the over-

all shape of the bones. This results in the network

distributing its values in every position where there

might be a bone, allowing it to gain the stat-wise ad-

BIOIMAGING 2024 - 11th International Conference on Bioimaging

232

vantage over the proposed approach. As a result, the

corresponding pseudo-CT in Figure 3d also lacks de-

tails. Moreover, bone structures appear slightly in-

creased in form, with a smoothly curved outer shape

and blurry inner parts. In comparison, the proposed

approach not only learns to focus on bone regions but

also learns to pay particular attention to details. This

statement can be supported by visually inspecting the

corresponding attention maps in Figure 6 that delin-

eate the bone structures in more detail. Furthermore,

attention values are more clearly distributed in two

high-density regions (two distinct peaks with values

close to zero or one), indicating that the proposed net-

work focuses more reliably on bone regions and thus

produces more realistic ﬁne-grained pseudo-CTs.

6 CONCLUSION

This paper presents a conditional Wasserstein GAN

approach that utilizes an Attention U-Net network as

the generator and includes a domain-speciﬁc atten-

tion mechanism for more accurate synthesis of bone

structures when generating pseudo-CT images from

the given MR images. The adopted attention mecha-

nism has been recently published in (Dovletov et al.,

2023a) and leverages the bone segmentation masks

obtained by thresholding from ground truth CTs to

guide the image-to-image translation network to learn

a better mapping function. Although this attention

mechanism improves the quantitative results within

the bone regions, the synthesized bone structures ap-

pear blurry and lack details. The proposed generative

approach allows for overcoming this limitation. The

presented qualitative and quantitative results conﬁrm

that incorporating additional domain knowledge can

signiﬁcantly reduce errors in bone regions and, thus,

provide more accurate pseudo-CT compared to two

baseline conditional Wasserstein GAN models.

REFERENCES

Arjovsky, M., Chintala, S., and Bottou, L. (2017). Wasser-

stein Generative Adversarial Networks. In Interna-

tional conference on machine learning, pages 214–

223. PMLR.

Beare, R., Lowekamp, B., and Yaniv, Z. (2018). Image

Segmentation, Registration and Characterization in R

with SimpleITK. Journal of statistical software, 86.

Buzug, T. M. (2009). Computed Tomography: From Photon

Statistics to Modern Cone-Beam CT.

Chougule, V., Mulay, A., and Ahuja, B. (2018). Clini-

cal Case Study: Spine Modeling for Minimum Inva-

sive Spine Surgeries (MISS) using Rapid Prototyping.

Bone (CT), 226:3071.

Dovletov, G., Karadeniz, U., L

orcks, S., Pauli, J., Gratz,

M., and Quick, H. H. (2023a). Learning to Pay Atten-

tion by Paying Attention: Attention U-Net with Ex-

tra Supervision for MRI-based Pseudo-CT Synthesis.

In Scandinavian Conference on Image Analysis, pages

229–242. Springer.

Dovletov, G., L

orcks, S., Pauli, J., Gratz, M., and Quick,

H. H. (2023b). Double Grad-CAM Guidance for Im-

proved MRI-based Pseudo-CT Synthesis. In BVM

Workshop, pages 45–50. Springer.

Dovletov, G., Pham, D. D., L

orcks, S., Pauli, J., Gratz,

M., and Quick, H. H. (2022a). Grad-CAM Guided

U-Net for MRI-based Pseudo-CT Synthesis. In 2022

44th Annual International Conference of the IEEE En-

gineering in Medicine & Biology Society (EMBC),

pages 2071–2075. IEEE.

Dovletov, G., Pham, D. D., Pauli, J., Gratz, M., and Quick,

H. H. (2022b). Improved MRI-based Pseudo-CT Syn-

thesis via Segmentation Guided Attention Networks.

In Proceedings of the 15th International Joint Confer-

ence on Biomedical Engineering Systems and Tech-

nologies - BIOIMAGING, pages 131–140. INSTICC,

SciTePress.

Ge, Y., Wei, D., Xue, Z., Wang, Q., Zhou, X., Zhan,

Y., and Liao, S. (2019). Unpaired MR to CT Syn-

thesis with Explicit Structural Constrained Adversar-

ial Learning. In 2019 IEEE 16th International Sym-

posium on Biomedical Imaging (ISBI 2019), pages

1096–1099. IEEE.

Gong, K., Yang, J., Kim, K., El Fakhri, G., Seo, Y., and

Li, Q. (2018). Attenuation Correction for Brain PET

Imaging Using Deep Neural Network Based on Dixon

and ZTE MR Images. Physics in Medicine & Biology,

63(12):125011.

Goodfellow, I., Pouget-Abadie, J., Mirza, M., Xu, B.,

Warde-Farley, D., Ozair, S., Courville, A., and Ben-

gio, Y. (2014). Generative Adversarial Nets. Advances

in neural information processing systems, 27.

Han, X. (2017). MR-based Synthetic CT Generation Using

a Deep Convolutional Neural Network Method. Med-

ical physics, 44(4):1408–1419.

Heusel, M., Ramsauer, H., Unterthiner, T., Nessler, B., and

Hochreiter, S. (2017). GANs Trained by a Two Time-

Scale Update Rule Converge to a Local Nash Equi-

librium. Advances in neural information processing

systems, 30.

Hore, A. and Ziou, D. (2010). mage Quality Metrics: PSNR

vs. SSIM. In 2010 20th international conference on

pattern recognition, pages 2366–2369. IEEE.

Hu, J., Shen, L., and Sun, G. (2018). Squeeze-and-

Excitation Networks. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 7132–7141.

Isola, P., Zhu, J.-Y., Zhou, T., and Efros, A. A. (2017).

Image-to-Image Translation with Conditional Adver-

sarial Networks. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 1125–1134.

Bone-Aware Generative Adversarial Network with Supervised Attention Mechanism for MRI-Based Pseudo-CT Synthesis

233

Leynes, A. P., Yang, J., Wiesinger, F., Kaushik, S. S.,

Shanbhag, D. D., Seo, Y., Hope, T. A., and Lar-

son, P. E. (2018). Zero-echo-time and Dixon Deep

Pseudo-CT (ZeDD CT): Direct Generation of Pseudo-

CT Images for Pelvic PET/MRI Attenuation Correc-

tion Using Deep Convolutional Neural Networks with

Multiparametric MRI. Journal of Nuclear Medicine,

59(5):852–858.

Lowekamp, B. C., Chen, D. T., Ib

nez, L., and Blezek, D.

(2013). The Design of SimpleITK. Frontiers in neu-

roinformatics, 7:45.

Mattes, D., Haynor, D. R., Vesselle, H., Lewellen, T. K., and

Eubank, W. (2003). PET-CT Image Registration in the

Chest Using Free-form Deformations. IEEE transac-

tions on medical imaging, 22(1):120–128.

Mirza, M. and Osindero, S. (2014). Conditional Generative

Adversarial Nets. arXiv preprint arXiv:1411.1784.

Nie, D., Cao, X., Gao, Y., Wang, L., and Shen, D. (2016).

Estimating CT Image from MRI Data Using 3D Fully

Convolutional Networks. In Deep Learning and Data

Labeling for Medical Applications: First Interna-

tional Workshop, LABELS 2016, and Second Inter-

national Workshop, DLMIA 2016, Held in Conjunc-

tion with MICCAI 2016, Athens, Greece, October 21,

2016, Proceedings 1, pages 170–178. Springer.

Oktay, O., Schlemper, J., Folgoc, L. L., Lee, M., Hein-

rich, M., Misawa, K., Mori, K., McDonagh, S., Ham-

merla, N. Y., Kainz, B., et al. (2018). Attention U-

Net: Learning Where to Look for the Pancreas. arXiv

preprint arXiv:1804.03999.

Park, J., Woo, S., Lee, J.-Y., and Kweon, I. S. (2018).

BAM: Bottleneck Attention Module. arXiv preprint

arXiv:1807.06514.

Paszke, A., Gross, S., Massa, F., Lerer, A., Bradbury, J.,

Chanan, G., Killeen, T., Lin, Z., Gimelshein, N.,

Antiga, L., et al. (2019). Pytorch: An imperative

style, high-performance deep learning library. In

Advances in neural information processing systems,

pages 8026–8037.

Paulus, D. H., Quick, H. H., Geppert, C., Fenchel, M.,

Zhan, Y., Hermosillo, G., Faul, D., Boada, F.,

Friedman, K. P., and Koesters, T. (2015). Whole-

body PET/MR Imaging: Quantitative Evaluation

of a Novel Model-based MR Attenuation Correc-

tion Method Including Bone. Journal of Nuclear

Medicine, 56(7):1061–1066.

Qi, M., Li, Y., Wu, A., Jia, Q., Li, B., Sun, W., Dai, Z.,

Lu, X., Zhou, L., Deng, X., et al. (2020). Multi-

sequence MR Image-based Synthetic CT Generation

Using a Generative Adversarial Network for Head

and Neck MRI-only Radiotherapy. Medical physics,

47(4):1880–1894.

Quick, H. H. (2014). Integrated PET/MR. Journal of mag-

netic resonance imaging, 39(2):243–258.

Radford, A., Metz, L., and Chintala, S. (2015). Un-

supervised Representation Learning with Deep Con-

volutional Generative Adversarial Networks. arXiv

preprint arXiv:1511.06434.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-Net:

Convolutional Networks for Biomedical Image Seg-

mentation. In International Conference on Medical

image computing and computer-assisted intervention,

pages 234–241. Springer.

Salimans, T., Goodfellow, I., Zaremba, W., Cheung, V.,

Radford, A., and Chen, X. (2016). Improved Tech-

niques for Training GANs. Advances in neural infor-

mation processing systems, 29.

Schmidt, M. A. and Payne, G. S. (2015). Radiotherapy

Planning Using MRI. Physics in Medicine & Biology,

60(22):R323.

Selvaraju, R. R., Cogswell, M., Das, A., Vedantam, R.,

Parikh, D., and Batra, D. (2017). Grad-CAM: Visual

Explanations from Deep Networks via Gradient-based

Localization. In Proceedings of the IEEE interna-

tional conference on computer vision, pages 618–626.

Torrado-Carvajal, A., Vera-Olmos, J., Izquierdo-Garcia, D.,

Catalano, O. A., Morales, M. A., Margolin, J., Sori-

celli, A., Salvatore, M., Malpica, N., and Catana,

C. (2019). Dixon-VIBE Deep Learning (DIVIDE)

Pseudo-CT Synthesis for Pelvis PET/MR Attenuation

Correction. Journal of nuclear medicine, 60(3):429–

435.

Wang, Y., Liu, C., Zhang, X., and Deng, W. (2019). Syn-

thetic CT Generation Based on T2 Weighted MRI

of Nasopharyngeal Carcinoma (NPC) Using a Deep

Convolutional Neural Network (DCNN). Frontiers in

oncology, 9:1333.

Wang, Z., Bovik, A. C., Sheikh, H. R., and Simoncelli, E. P.

(2004). Image Quality Assessment: From Error Vis-

ibility to Structural Similarity. IEEE transactions on

image processing, 13(4):600–612.

West, J., Fitzpatrick, J. M., Wang, M. Y., Dawant, B. M.,

Maurer Jr, C. R., Kessler, R. M., Maciunas, R. J., Bar-

illot, C., Lemoine, D., Collignon, A., et al. (1997).

Comparison and Evaluation of Retrospective Inter-

modality Brain Image Registration Techniques. Jour-

nal of computer assisted tomography, 21(4):554–568.

Wolterink, J. M., Dinkla, A. M., Savenije, M. H., Seevinck,

P. R., van den Berg, C. A., and I

sgum, I. (2017). Deep

MR to CT Synthesis Using Unpaired Data. In Interna-

tional Workshop on Simulation and Synthesis in Med-

ical Imaging, pages 14–23. Springer.

Woo, S., Park, J., Lee, J.-Y., and Kweon, I. S. (2018).

CBAM: Convolutional Block Attention Module. In

Proceedings of the European conference on computer

vision (ECCV), pages 3–19.

Wu, J., Huang, Z., Thoma, J., Acharya, D., and Van Gool,

L. (2018). Wasserstein Divergence for GANs. In Pro-

ceedings of the European conference on computer vi-

sion (ECCV), pages 653–668.

Xiang, L., Li, Y., Lin, W., Wang, Q., and Shen, D. (2018).

Unpaired Deep Cross-Modality Synthesis with Fast

Training. In Deep Learning in Medical Image Anal-

ysis and Multimodal Learning for Clinical Decision

Support: 4th International Workshop, DLMIA 2018,

and 8th International Workshop, ML-CDS 2018, Held

in Conjunction with MICCAI 2018, Granada, Spain,

September 20, 2018, Proceedings 4, pages 155–164.

Springer.

Xie, S., Girshick, R., Doll

ar, P., Tu, Z., and He, K. (2017).

Aggregated Residual Transformations for Deep Neu-

ral Networks. In Proceedings of the IEEE conference

BIOIMAGING 2024 - 11th International Conference on Bioimaging

234

on computer vision and pattern recognition, pages

1492–1500.

Yaakub, S. N., White, T. A., Roberts, J., Martin, E., Verha-

gen, L., Stagg, C. J., Hall, S., and Fouragnan, E. F.

(2023). Transcranial Focused Ultrasound-mediated

Neurochemical and Functional Connectivity Changes

in Deep Cortical Regions in Humans. Nature Commu-

nications, 14(1):5318.

Yaniv, Z., Lowekamp, B. C., Johnson, H. J., and Beare,

R. (2018). SimpleITK Image-analysis Notebooks:

a Collaborative Environment for Education and Re-

producible Research. Journal of digital imaging,

31(3):290–303.

Zhu, J.-Y., Park, T., Isola, P., and Efros, A. A. (2017).

Unpaired Image-to-Image Translation Using Cycle-

Consistent Adversarial Networks. In Proceedings of

the IEEE international conference on computer vi-

sion, pages 2223–2232.

Bone-Aware Generative Adversarial Network with Supervised Attention Mechanism for MRI-Based Pseudo-CT Synthesis

235
