System-Call-Level Dynamic Analysis for Code Translation Candidate

Selection

Narumi Yoneda, Ryo Hatano and Hiroyuki Nishiyama

Department of Industrial and Systems Engineering, Graduate School of Science and Technology,

Tokyo University of Science, 2641 Yamazaki, Noda, Chiba, Japan

Keywords:

Dynamic Analysis, System-Call Sequence, Code Translation, Natural Language Processing.

Abstract:

In this study, we propose a methodology that uses dynamic analysis (DA) data to select better code-translation

candidates. For the DA data, we recorded the history of system-call invocations to understand the actions of

the program during execution, providing insights independent of the programming language. We implemented

and publicized a DA system, which enabled a fully automated analysis. In our method, we generated multiple

translation candidates for programming languages using TransCoder. Subsequently, we performed DA on all

the generated candidates and original code. For optimal selection, we compared the DA data of the original

code with the generated data and calculated the similarity. To compare the DA data, we used natural language

processing techniques on DA data to ﬁx the sequence length. We also attempted to directly compare the

variable-length system-call sequences. In this study, we demonstrated that the characteristics of system-call

invocations vary even within the same code. For instance, the order of invocations and the number of times

the same system-calls an invocation differ. We discuss the elimination of these uncertainties when comparing

system-calls.

1 INTRODUCTION

Legacy migration has recently emerged as a global

issue. This is the process of transitioning from old

systems, known as legacy systems, which have been

in place for an extended period and have decreased

scalability and maintainability, to new systems. For

instance, the case study of the Commonwealth Bank

of Australia on legacy migration revealed that it spent

$750 million in ﬁve years transitioning its banking

system platform from COBOL to Java. This implies

that legacy migration can be costly in terms of both

ﬁnancial and temporal resources.

Translating programming languages is an im-

portant task in legacy migration. Meta devel-

oped an artiﬁcial intelligence (AI) system called

TransCoder (Roziere et al., 2020; Szafraniec et al.,

2023), a self-supervised neural transcompiler system

that automatically translates functions from one pro-

gramming language to another to reduce the costs as-

sociated with legacy migration. However, various is-

sues are associated with the code generated by these

transcompilers. For example, the generated code may

contain errors and thus cannot be executed. In addi-

tion, even if the code is executable, it may not per-

form the same operations or yield the same execution

results as the original code. To address these issues,

Meta suggested three strategies. First, they deﬁned

“computational accuracy” to evaluate the generated

functions. This metric is deﬁned as the ratio of the

generated function to the reference function returning

the same output when given the same arguments, be-

cause it is signiﬁcant that the translated code should

work properly. Second, they implemented a helpful

function called “Beam Search Decoding” which gen-

erates multiple translation candidates in TransCoder.

This function was implemented to increase the proba-

bility that the generated code contained no errors and

that the operations and execution results were consis-

tent before and after translation. Finally, they pro-

posed using an intermediate representation (IR) in the

learning process to teach source code semantics. The

IR holds information about the content that the pro-

gram executes and is independent of language and

machine.

When selecting the best candidate(s) generated us-

ing “Beam Search Decoding”, the selection process

must be investigated and improved from several per-

spectives. In this study, in addition to executing unit

tests, we conduct a system-call-level dynamic anal-

576

Yoneda, N., Hatano, R. and Nishiyama, H.

System-Call-Level Dynamic Analysis for Code Translation Candidate Selection.

DOI: 10.5220/0012372900003636

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 16th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2024) - Volume 3, pages 576-583

ISBN: 978-989-758-680-4; ISSN: 2184-433X

ysis (DA) on both the original code and generated

translation candidates and use the resultant DA data

to select better code translation candidates. We aimed

to develop and validate a new approach for using DA

data in programming language translation.

The remainder of this paper is organized as fol-

lows: Section 2 introduces relevant studies. The his-

torical development of TransCoder, relevant works,

the differences between their approach and ours are

discussed. Section 3 introduces the concept of

system-call-level DA, presents an overview of the

proposed method, and explains how the methodology

was evaluated using known metrics for sequence-to-

sequence comparisons. Section 4 explains our exper-

imental environment, and Section 5 presents the re-

sults of the experiment with a discussion, including

the characteristics of the DA data and how they should

be used.

2 RELATED WORK

2.1 Translation of Programming

Languages

(Roziere et al., 2020) developed a self-supervised

deep learning method for programming language

translation known as TransCoder. TransCoder can

translate functions between the Python, Java, and

C++ programming languages. As part of TransCoder,

they also implemented Beam Search Decoding, which

generates multiple translation candidates by allowing

small differences in the generated programs, such as

changes in return types or variable types between Java

and C++, or operator modiﬁcations in Python. In

addition, they deﬁned a new metric called “compu-

tational accuracy” for evaluating the generated pro-

grams. This metric was proposed to address the prob-

lem of traditional metrics for the machine translation

of natural languages, such as the BLEU score (Pap-

ineni et al., 2002), which does not consider syntactic

accuracy.

(Szafraniec et al., 2023) proposed a method to

enhance code translation using the intermediate rep-

resentation (IR). They employed a low-level virtual

machine intermediate representation (LLVM IR). By

leveraging LLVM IR, the probability of making mis-

takes in variable types and operators decreased.

2.2 Position of Present Work

First, (Roziere et al., 2020; Szafraniec et al., 2023) in-

vestigated models for programming language transla-

tion using the literal text of program datasets as train-

ing data. However, we not only investigated models

for programming language translation but also new

methods for using system-call-level DA data of trans-

lated programs using such models.

Second, (Szafraniec et al., 2023) adopted an ap-

proach similar to ours. The IR represents what

the source code will do when executed, whereas

the system-call sequence (DA data) reﬂects what the

source code did during execution. Therefore, both

IR and DA data contain information regarding the se-

mantics of the source code. However, an approach in-

volving compiler-level IR, such as LLVM IR , may re-

strict the scope of applicable programming languages;

it can only be applied to programming languages that

use a compiler, such as C++ and Java. Therefore, this

approach cannot handle scripting languages that use

interpreters to execute instructions. Furthermore, be-

cause the generated IR is dependent on the compiler’s

language-speciﬁc front end, there might exist some

variations in the generated IR, such as dialects in nat-

ural languages. To overcome this issue, we propose

an approach to use DA data, which is independent of

the programming language or ﬁle type and may be

helpful in improving the quality of code translations

for further development.

3 METHODS

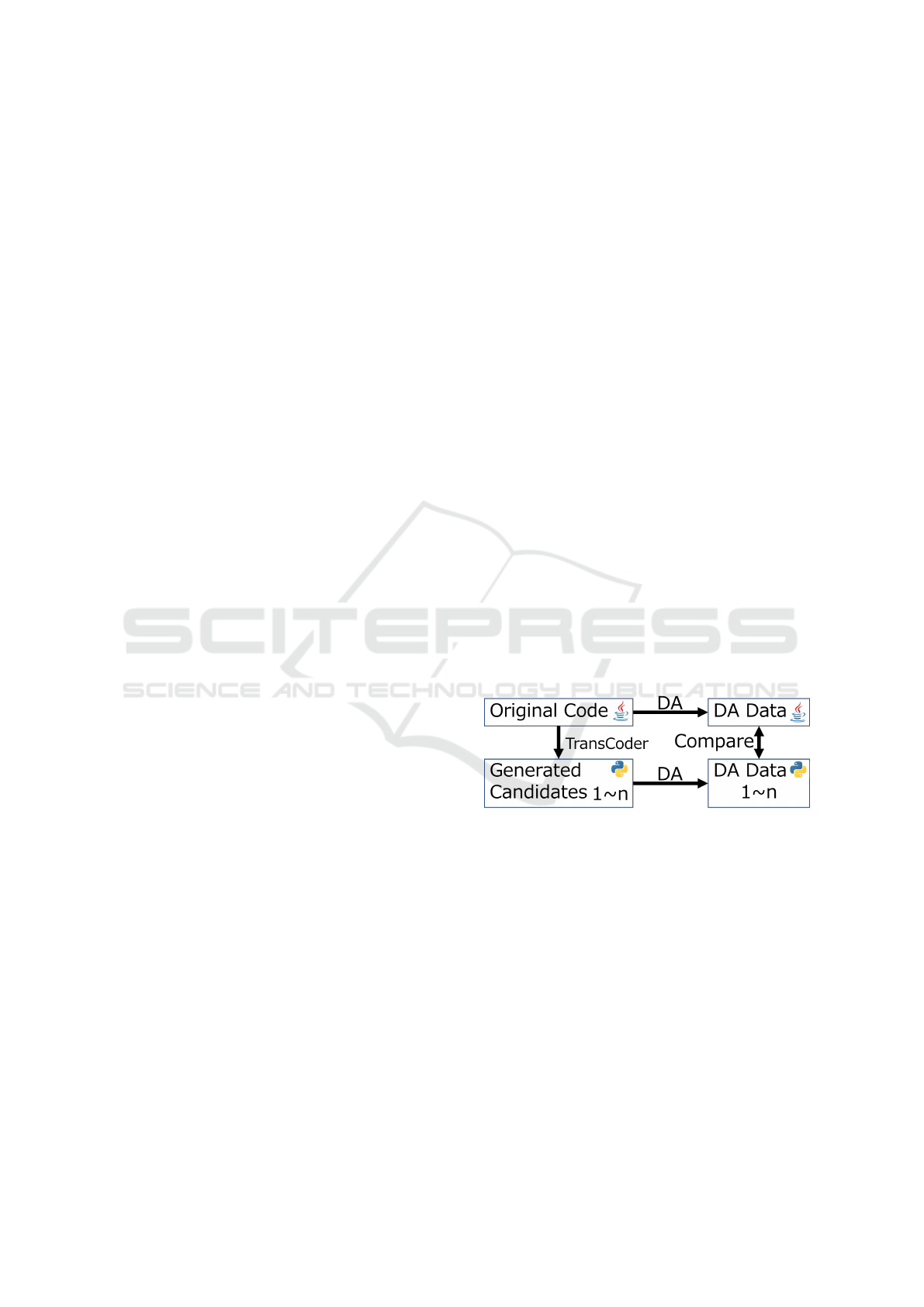

Figure 1: Overview of our Method.

Figure 1 shows an overview of the proposed ap-

proach. We used TransCoder to generate multiple

translation candidates from Python to Java and vice

versa. “Beam Search Decoding” was used to generate

100 translation candidates for each test. Next, system-

call-level DA was performed on both the original pro-

gram and generated translation candidates to obtain

the DA data. Subsequently, DA data of the original

program were compared with those of the generated

translation candidates, and their similarities were cal-

culated. Finally, the results were compared, and the

characteristics of the DA data were investigated. In

the following sections, we explain each of these pro-

cesses in detail.

System-Call-Level Dynamic Analysis for Code Translation Candidate Selection

577

3.1 Multiple Translation Candidates

Generation by TransCoder

In this study, we use the “original” TransCoder

(Roziere et al., 2020), instead of the latest version

(Szafraniec et al., 2023), because we want to stick to

the original implementation for simplicity. We ob-

tained a dataset of paired functions with the same

functionality in Java and Python (717 entries for Java

and 702 entries for Python) from the ofﬁcial GitHub

repository of the original implementation provided by

(Roziere et al., 2020). In this study, we used 615 en-

tries from the dataset in which the function names in

Java and Python matched and there were no errors in

the tests.

3.2 System-Call-Level DA

DA is a method for analyzing the behavior of a pro-

gram during its execution. In this study, we employed

DA to capture data with respect to program behav-

ior during execution, which should be independent of

the programming language or ﬁle type. We captured

the history (or time-series data) of the system-calls of

a process and its child processes invoked by an exe-

cuted program as DA data. The time-series data of

system-calls invoked by relevant process IDs (PIDs)

were serialized as single time-series DA data instead

of being segmented by PID.

Figure 2: Overview of System-Call.

A system-call is the only application program in-

terface (API) through which programs in the user

space can use the functionalities provided by an op-

erating system (OS) (Figure 2). User space is a

memory region that is not occupied by the core pro-

cesses of an OS. Numerous types of end-user pro-

grams can be executed in user spaces such as ofﬁce

applications, web browsers, scientiﬁc experimental

programs written in Python, and network programs

written in Java. Such programs in the user spaces

execute instructions by leveraging the functionalities

provided by the OS. In this study, we used Debian

Linux, which has 388 system-calls available, such as

“open” to open ﬁles and “write” to write ﬁles, as listed

in arch/x86/entry/syscalls/syscall 64.tbl in

the kernel source code. Thus, it can be stated that the

history of system-call invocations provides informa-

tion on the OS functionalities of the analysis program

used during its execution.

We employed a Debian Linux OS with a mod-

iﬁed Linux kernel and a Virtual Box-based virtual-

ization environment to capture the history of system-

call invocations. The modiﬁed kernel can transmit

system-call IDs and process IDs (PIDs), which ini-

tiate system-calls using UDP communication in the

do syscall 64 and do int80 syscall 32 functions

responsible for handling system-calls. In addition, we

revised the kernel clone function, which generates

processes for sending both the PID and parent PID

information. This modiﬁcation enables the tracking

of all the PIDs related to the program under analysis

through their parent-child relationships.

Our DA system can capture all initiated system-

calls in real time, regardless of their PID, while main-

taining temporal order. For DA, we executed all target

programs in separate processes, ﬁltering only those

with an exit status of zero, which indicated that the

program had been halted without error for data collec-

tion. Furthermore, we implemented a fully automated

system for DA of multiple ﬁles. The system was im-

plemented to perform DA using numerous programs.

In this study, we analyzed more than 500 million ﬁles.

Thus, we required a system that could operate the

desired analysis tasks properly for one month, con-

tinuously and automatically. Our system is currently

available at the GitHub repository (Yoneda, 2023).

3.3 Comparison of DA Data

Table 1: Comparison approaches for DA Data. Here, the

“Fix method” is assigned “N/A” if the sequence length is not

ﬁxed and “Doc2Vec (Bow; Bag of Words)” if the sequence

length is ﬁxed by Doc2Vec (Bow).

Fix method Metric Abbreviation

N/A Jaccard Coefﬁcient jaccard

N/A Dice Coefﬁcient dice

N/A Overlap Coefﬁcient overlap

N/A Levenshtein Distance levenshtein

Doc2Vec Cosine Similarity cossim d2v

Doc2Vec Euclidian Distance euclid d2v

BoW Cosine Similarity cossim bow

BoW Euclidian Distance euclid bow

We emphasize that DA data are merely a sequence (or

history) of system-calls and can be compared using

known similarity metrics in natural language process-

ing (NLP). To compare the sequences appropriately,

we used two approaches:

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

578

Table 2: Experimental Conditions: We used Google Colaboratory to generate translation with TransCoder. We used Local PC

for every culculation task including DA. “Python (on Windows)” was used to build a fully automated DA system. It controlled

a virtual environment, recieved UDP packets sent from the kernel, and saved them as a CSV ﬁle.

Name Conﬁguration

Google Colaboratory T4GPU w/ High Memory

Local PC Core i9-13900k CPU w/ RTX4090 GPU, Windows 11 Pro

Virtual OS Debian Linux ver. 11.7 w/ modiﬁed Kernel ver. 5.10.0-25-amd64

Virtualization software Virtual Box ver. 7.0.10 r158379

Python (on Windows) Python ver. 3.11.5

Python (on Virtual OS) Python ver. 3.9.2

Java (on Virtual OS) Oracle JDK ver. 11.0.20

(1) The variable-length sequences were compared us-

ing designated coefﬁcients or distance metrics

(rows 1–4 in Table 1).

(2) The vector similarity or distance was calculated

using ﬁxed-length vectors converted from DA

data by applying well-studied methods in NLP

(rows 5–8 in Table 1).

The key idea behind using Approach (1) is that we

can regard a system-call as a character in a letter. This

enables us to consider a sequence of system-calls as a

string or an ordered set over the alphabet. Hence, we

can evaluate the distance or coefﬁcient in the DA data.

We also consider treating a system-call as a word in

a sentence, which is the key idea in Approach (2).

From this perspective, NLP techniques can be used

to transform sequences into vectors. We can then use

the similarity between the vectors to compare the DA

data.

In this study, we used Word2Vec to transform the

DA data into vectors. Therefore, a unique Word2Vec

model (scsq2vec) that is trained on sequences of

system-calls (DA data, sentences of system-calls)

must be constructed. We extracted Python and Java

source codes from the CodeNet dataset (Puri et al.,

2021) and performed DA to obtain the DA data. We

then trained the scsq2vec model using the obtained

data.

CodeNet is a large-scale dataset of sample pro-

grams created for teaching programming to AI, ob-

tained from Atcoder or the AIZU online judge. Most

sample programs involve numerical computation and

string manipulation. Using source code from Co-

deNet is suitable for our purposes because the func-

tions used for our experiment also involve numerical

computations and string manipulations.

4 EXPERIMENT

The experimental conditions are listed in Table 2. The

programs used in our experiment are available in the

GitHub repository (Yoneda, 2023).

The outline of our experiment follows the ﬂow il-

lustrated in Figure 1 in Section 3. To perform DA

on a function of a certain program, we must provide

appropriate arguments and invoke that function. In

this study, we used the ﬁrst element from the list of

arguments (Roziere et al., 2020), which was used to

calculate the computational accuracy of TransCoder.

Furthermore, to conduct the DA experiment, we

additionally followed the following steps:

Python Programs. We added the declaration

import numpy as np to the original and gen-

erated Python source codes. This is because

TransCoder sometimes uses a NumPy module,

instead of a math module for generated functions.

Java Programs. We removed the lines containing

import javafx.* from the original and gener-

ated Java source codes. This is because it failed to

set up a DA environment to use the JavaFX mod-

ule. Fortunately, every testing program for this

experiment was successfully executed without re-

quiring declaration.

5 RESULTS AND DISCUSSION

5.1 Overview of Captured DA Data

Recall that the term “original source codes”

refers to the pre-translation functions input into

TransCoder (Roziere et al., 2020), while “generated

source codes” refers to the translation candidates gen-

erated by TransCoder. In this section, we provide an

overview of the DA data obtained from the execution

of the original source code, generated source code,

and source code from CodeNet. Because TransCoder

translates a source code at a function level, we will

merely refer to the source code of a function as

“source code” in the context of the translation. Here,

we show the number of DA data and the average se-

quence length. DA data are a sequence of system-

System-Call-Level Dynamic Analysis for Code Translation Candidate Selection

579

calls, and the average sequence length is the average

number of system-call invocations for executing each

source code.

Table 3: DA Data of Original Source Codes (Roziere et al.,

2020).

Language # of Obtained Data Average Length

Python 615 4,959.2

Java 615 2,469.5

Total 1,230 3,714.4

Table 4: DA Data of Generated Source Codes.

Language # of Obtained Data Average Length

Python 27,760 4,821.8

Java 20,080 2,457.6

Total 47,840 3,829.4

Table 5: DA Data of Source Codes from CodeNet (Puri

et al., 2021).

Language # of Obtained Data Average Length

Python 1,925,718 685.9

Java 427,832 2,541.4

Total 2,353,550 1,023.2

Tables 3, 4 and 5 show the DA data of the origi-

nal source codes, generated source codes, and source

codes from CodeNet, where “# of Obtained Data”

denotes the total number of source codes that were

successfully executed in our system (in other words,

the number of source codes whose exit status become

zero). “# of Obtained Data” of original source codes

(Table 3), for both Python and Java are marked as

“615”, which means all 615 functions obtained from

ofﬁcial TransCoder repository (Roziere et al., 2020)

were executed successfully. We generated 100 candi-

dates from each of the 615 functions; thus, 61,500

functions were executed in each language. “# of

Obtained Data” of generated source codes (Table 4)

shows the number of functions that were executed

successfully (those with an exit code of zero).

From the tables, we conclude that the average

Java sequence lengths were almost identical among

the three datasets. In addition, the average sequence

lengths in Python were almost identical for both the

original and generated source codes. However, there

were considerable differences between these codes

and the source code from CodeNet. The reason for

this is whether to import a NumPy module into the

Python code. Every original and generated source

code imports it, whereas the source code from Co-

deNet rarely imports it. Although it is just a single

line stating the “import numpy as np”, it executes the

initialization processes for NumPy modules, leading to

the potential for a certain amount of computational

activity (or invocations of system-calls). Therefore,

we split the CodeNet source codes based on whether

they imported NumPy.

Table 6: DA data for Python ﬁles in CodeNet, divided by

whether or not importing NumPy.

Import NumPy? # of Obtained Data Average Length

YES 35,590 4151.1

NO 1,890,128 620.7

Total 1,925,718 685.9

Table 6 presents the differences in the DA data for

importing NumPy. The average sequence length of the

execution of the NumPy-imported codes in CodeNet

was over 4,000, which was close to that of the origi-

nal and generated codes (cf. Tables 3 and 4). How-

ever, the average sequence length of the non-imported

code was approximately 620, which is much smaller

than that of the NumPy-imported code. We also per-

formed DA on the Python code with only one line of

import numpy as np 200 times to determine the to-

tal number of system-calls invoked for the NumPy ini-

tialization process. Figure 3 presents a bar graph with

the sequence length on the vertical axis and the order

of the trial counts on the horizontal axis. The aver-

age, maximum, and minimum sequence lengths were

4845.3, 9378, and 742, respectively.

From these results, we obtained the following in-

sights:

1) The DA data of the original and generated source

codes, which appeared similar, showed signiﬁ-

cant differences in the average sequence length of

the Python codes compared with that of CodeNet.

One possible reason for this discrepancy is the im-

portation of NumPy (By Tables3, 4, 5, and 6).

2) The system-calls invoked for the NumPy initializa-

tion process accounted for a large part of the DA

data for both the original and generated Python

codes. According to Table 6, approximately 85%

of the data were related to the initialization pro-

cess of NumPy.

3) We revealed that the DA data for the same code,

such as a code with only one line of import

numpy as np can have a signiﬁcant variation in

its sequence length. For example, Figure 3 shows

that the maximum length was 9,378, whereas the

minimum was 742, with a difference of more than

8,000. In addition, there is no correlation between

the number of executions and the sequence length;

that is, the length may be shortened or lengthened

almost randomly.

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

580

Figure 3: DA Data of import numpy as np in Python, 200 Times.

5.2 Similarity of DA Data

This section presents the results of evaluating the sim-

ilarity among DA data from the executions of Python

and Java source codes, and discusses why we obtained

the results and how we can improve our approach.

Table 7: Average Similarity of DA Data.

Evaluation Metric py2j j2py

jaccard 0.538 0.538

dice 0.696 0.696

overlap 0.760 0.760

levenshtein 4818.8 4687.8

cossim d2v 0.378 0.384

cossim bow 0.083 0.089

euclid d2v 3.851 3.836

euclid bow 2801.9 2671.1

Table 7 presents the similarity between the DA

data of the original code and generated translation

candidates. Here, “py2j” (“j2py”) is the average of the

similarity between the DA data of the original Python

(Java) code and that of the generated Java (Python)

translation candidate codes.

5.2.1 Evaluation of the scsq2vec Model

We created a Doc2Vec model that learns system-call

sequences (scsq2vec) to relax differences in how dif-

ferent program languages invoke system-calls. This

approach addresses the issue that the similarity be-

tween system-call sequences does not reﬂect the sim-

ilarity between the contents of their original source

codes. We attempted to reduce such differences

by training a Doc2vec model on a large dataset of

system-call sequences created by performing DA on

sample source code from CodeNet. However, as is

evident from the cossim d2v metric, which is cal-

culated by the cosine similarity with vectorized DA

data using scsq2vec, scsq2vec may distinguish be-

tween the DA data of Java and Python. A possi-

ble reason for this is the signiﬁcant difference in the

sequence length between the DA data from Python

and Java. The scsq2vec model may have learned to

distinguish between Python and Java based on their

sequence lengths, because we input these sequences

without any preprocessing. In addition, most of the

Python DA data were related to NumPy’s initializa-

tion process, as mentioned in the previous section. In

other words, the ratio of system-call sequences that

may be unrelated to NumPy and speciﬁc operations in

the Python ﬁles is expected to be low. This factor

accounts for the distinction of the scsq2vec model be-

tween Java and Python.

5.2.2 Possible Approach for Further

Improvement

One issue that must be addressed is that the similar-

ity between system-call sequences does not reﬂect the

similarity between the contents during the execution

of their source codes. A possible approach to resolve

this issue is to preprocess the system-call sequence to

remove unnecessary parts. For example, a system-call

comes with arguments, and returns a value. Obtain-

ing such data provides useful information for prepro-

cessing. A system-call may fail and return an error

code (typically a negative integer) as the return value.

Therefore, we should exclude the failed invocations

from our dataset.

System-Call-Level Dynamic Analysis for Code Translation Candidate Selection

581

Another issue is that the DA data for the same

source code can have signiﬁcant sequence length vari-

ations, as mentioned in Section 5.1 and as shown in

Figure 3. In the example shown in Figure 3, the

minimum and maximum sequence lengths were 742

and 9,378, respectively. Because we executed the

same source code, it was theoretically possible to rep-

resent a sequence of 9,378 system-calls using a se-

quence consisting of only 742 system-calls. A max-

imum sequence often involves multiple consecutive

invocations of the same system-call, whereas a mini-

mum sequence does not exhibit this behavior. We can

determine whether to compress multiple consecutive

invocations into the same system-call if we have in-

formation about the arguments and return the value.

For example, in a system-call write, the ﬁrst argu-

ment is ﬁle descriptor fd (an abstract handle of a re-

source managed by an operating system, represented

as a positive integer), the second argument is buf

(the starting address of the memory area where the

data are temporarily stored), and the third argument is

count (the number of bytes to write). In other words,

by invoking a write, the data speciﬁed by the sec-

ond and third arguments are written to a ﬁle descrip-

tor speciﬁed by the ﬁrst argument. Therefore, if the

write is invoked multiple times in succession and

the ﬁle descriptor has the same value for each invo-

cation, we can compress them into a single system-

call invocation while maintaining temporal order by

concatenating the writing data (Code 1). In the exam-

ple code, the second argument is written as a Python

string, which is a combined representation of buf and

count. In this manner, we can compress a sequence

of system-calls that are invoked multiple times.

Code 1: How we can compress write.

1 # current invocation

2 write (1 , " I h ave a pen ." )

3 write (1 , " I h ave an apple . " )

5 # possible compressing

6 write (1 , " I h ave a pen .

7 I hav e an apple . " )

Furthermore, we can consider the relationship be-

tween a single line of code and its associated system-

call subsequences. For example, Python has a built-in

open function. This provides the capability to open

ﬁles. The system-calls that enabled this functionality

were open (#2) and openat (#257). In other words,

when executing open(’a.txt’, ’w’) in Python, the

interpreter invokes either system-call 2 or 257 from

the user space to perform the ﬁle-opening process.

To conﬁrm this, we performed DA on both ﬁles ev-

ery 200 times: on a ﬁle containing only the line

open(’a.txt’, ’w’) and on an empty ﬁle. The av-

erage sequence length for invoking the open function

was 617.2, whereas that of the empty one was 587.1.

This implies that approximately 30 system-calls were

invoked to handle the open functions. In other words,

to invoke the most critical system-calls, numbers 2

or 257, 29 other system-calls were invoked. Thus, the

system-call subsequences for one line in the code con-

tain many less-important system-calls. The problems

depend on the implementation of the interpreter and

compiler because they decide what the system-calls

to invoke to execute a given line in the code. Conse-

quently, to accurately compare system-call sequences

obtained through any language, it may be effective to

consider the importance of each system-call and elim-

inate less important ones.

Therefore, we can apply NLP methods to calcu-

late the importance of system-calls because system-

call sequences and natural languages have similar

characteristics; They are both sequences of words or

system-calls arranged in lexical and temporal order.

Elements derive their meaning from the context or

sequence in which they appear; therefore, they have

a context-dependent nature. Furthermore, system-

call sequences have the advantage that the variety of

words in a corpus is signiﬁcantly smaller than in nat-

ural languages, making it easier to train the relation-

ships between adjacent words. In this study, we used

388 types of system-calls, and only 126 system-calls

were collected for the original source codes, gener-

ated source codes, and source codes from CodeNet,

which are signiﬁcantly smaller than the variety of

words that exist in natural language. This suggests

the possibility of constructing a powerful machine-

learning model by extending our approach.

6 CONCLUSION

This study introduced a novel approach for using

system-call-level DA data in programming language

translations. We introduced multiple comparison

methods for DA data. To relax the differences in

how different program languages invoke system-calls,

we developed the scsq2vec model, a Doc2Vec model

adopted to handle system-call sequences. This ap-

proach addresses the issue that the similarity between

system-call sequences does not reﬂect the similarity

between the contents of their source code. The key

insights obtained from our results are as follows:

1) We revealed that the DA data for the same code

can exhibit a large variation in sequence length.

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

582

2) We revealed that the initialization process for

modules, which might not be essential for their

source code, can potentially dominate the DA

data.

3) Preprocessing of the system-call sequence to re-

move unnecessary parts should be implemented.

For example, we should exclude failed invo-

cations or compress the sequence of the same

system-call invocation multiple times. Further-

more, obtaining information about the arguments

and return values of the system-calls provides use-

ful information for implementing preprocessing.

4) The system-call subsequences for one line in the

source code contain many less important system-

calls. This observation should be reﬂected in de-

veloping the preprocessing.

In future work, we will discuss the use of DA data

to select better codes, assuming that there are multi-

ple proper translation candidates; that is, TransCoder

generates multiple 100% computer accuracy func-

tions. For instance, the smaller the time and space

complexities, the better the candidate. Our current

DA system cannot compute or predict the approxi-

mate empirical computational efﬁciency (the time re-

quired to execute the code) or memory consumption

(the amount of memory allocated by the process).

Hence, by obtaining the arguments of the system-

calls, it may be feasible to improve our system to cal-

culate the approximate space and time complexities.

Code 2 shows the generated and reference source

codes for test ADD 1 TO A GIVEN NUMBER (Roziere

et al., 2020). In the reference source code, the con-

dition part for the while statement performs a bit-

wise AND operation between x and m. However, the

generated source code performs the same operation,

an integer typecasting operation, and veriﬁes whether

the result is one or greater. Therefore, the gener-

ated source code performs additional operations and

is more time consuming in terms of empirical compu-

tational efﬁciency, which should be captured by the

improved DA approach.

Code 2: Differences in conditional statements.

1 # generated translation

2 while int( x & m ) >= 1:

4 # reference source code

5 while x & m:

Another issue is the choice between simple and

advanced modules during library selection. For

example, when we use mathematical operations in

Python, we can select math and NumPy modules.

Code 3 shows the reference source code (“f gold,” us-

ing the math module) and the generated source code

(“f ﬁlled,” using the NumPy module) for a test called

PROGRAM FOR SURFACE AREA OF OCTAHEDRON. The

math module has minimal implementation, whereas

the NumPy module implements advanced parallel

processing. Therefore, although NumPy is effective

for large datasets, the parallel processing overhead

is relatively large for small datasets. DA data can

address these issues as they inﬂuence the manner in

which the interpreter or compiler triggers system-

calls. Our DA system can capture a sequence of

system-calls while maintaining their temporal order,

regardless of the PID or threads. Therefore, we must

use the DA data gathered by our system for better

code selection.

Code 3: Differences Between math and NumPy.

1 def f_g old ( side ):

2 return 2 * ( math . sqrt (3))

3 * ( side * sid e )

5 def f_fi l led ( s ide ):

6 return 2 * ( np . sqr t ( 3))

7 * ( side * sid e )

REFERENCES

Papineni, K., Roukos, S., Ward, T., and Zhu, W.-J. (2002).

BLEU: a method for automatic evaluation of machine

translation. In Proceedings of the 40th annual meeting

on association for computational linguistics, pages

311–318. Association for Computational Linguistics.

Puri, R., Kung, D. S., Janssen, G., Zhang, W., Domeniconi,

G., Zolotov, V., Dolby, J., Chen, J., Choudhury, M.,

Decker, L., Thost, V., Buratti, L., Pujar, S., Ramji, S.,

Finkler, U., Malaika, S., and Reiss, F. (2021). Co-

deNet: A large-scale ai for code dataset for learning a

diversity of coding tasks.

Roziere, B., Lachaux, M.-A., Chanussot, L., and Lample,

G. (2020). Unsupervised translation of programming

languages. In Larochelle, H., Ranzato, M., Hadsell,

R., Balcan, M., and Lin, H., editors, Advances in Neu-

ral Information Processing Systems, volume 33, pages

20601–20611. Curran Associates, Inc.

Szafraniec, M., Roziere, B., Leather, H. J., Labatut, P.,

Charton, F., and Synnaeve, G. (2023). Code transla-

tion with compiler representations. In The Eleventh

International Conference on Learning Representa-

tions.

Yoneda, N. (2023). langMorphDA. https://github.com/nar

u-99/langMorphDA.git.

System-Call-Level Dynamic Analysis for Code Translation Candidate Selection

583
