Teacher-Student Models for AI Vision at the Edge: A Car Parking Case

Study

Mbasa Joaquim Molo

1,2 a

, Emanuele Carlini

2 b

, Luca Ciampi

2 c

, Claudio Gennaro

2 d

and Lucia Vadicamo

2 e

Department of Computer Science, University of Pisa, Pisa, Italy

Institute of Information Science and Technologies (ISTI), Italian National Research Council (CNR), Pisa, Italy

Keywords:

Knowledge Distillation, Computer Vision, Object Recognition, Deep Learning, Edge Computing.

Abstract:

The surge of the Internet of Things has sparked a multitude of deep learning-based computer vision appli-

cations that extract relevant information from the deluge of data coming from Edge devices, such as smart

cameras. Nevertheless, this promising approach introduces new obstacles, including the constraints posed by

the limited computational resources on these devices and the challenges associated with the generalization

capabilities of the AI-based models against novel scenarios never seen during the supervised training, a situ-

ation frequently encountered in this context. This work proposes an efﬁcient approach for detecting vehicles

in parking lot scenarios monitored by multiple smart cameras that train their underlying AI-based models

by exploiting knowledge distillation. Speciﬁcally, we consider an architectural scheme comprising a power-

ful and large detector used as a teacher and several shallow models acting as students, more appropriate for

computational-bounded devices and designed to run onboard the smart cameras. The teacher is pre-trained

over general-context data and behaves like an oracle, transferring its knowledge to the smaller nodes; on the

other hand, the students learn to localize cars in new speciﬁc scenarios without using further labeled data, re-

lying solely on the distilled loss coming from the oracle. Preliminary results show that student models trained

only with distillation loss increase their performances, sometimes even outperforming the results achieved by

the same models supervised with the ground truth.

1 INTRODUCTION

The emergence of AI-driven computer vision algo-

rithms provides the opportunity to employ low-cost

video cameras for visual sensing in Internet of Things

(IoT) applications across various domains, ranging

from face recognition (George et al., 2023) and crowd

counting (Di Benedetto et al., 2022) to pedestrian

detection (Cafarelli et al., 2022) and people/vehicle

tracking (Foszner et al., 2023). Unlike cloud com-

puting, which boasts nearly unlimited resources, edge

computing in conjunction with IoT devices is char-

acterized by the existence of compute nodes with

limited computational capabilities and power alloca-

tion (Heckmann and Ravindran, 2023), promoting the

https://orcid.org/0000-0002-2096-1701

https://orcid.org/0000-0003-3643-5404

https://orcid.org/0000-0002-6985-0439

https://orcid.org/0000-0002-3715-149X

https://orcid.org/0000-0001-7182-7038

decentralization of data processing to the edge, where

the data itself originates. However, despite offering

advantages, such as latency reduction, lower costs,

and reduced data trafﬁc, this paradigm brings new

challenges.

Speciﬁcally, AI vision models are mainly based

on Deep Learning (DL) algorithms, sometimes re-

quiring signiﬁcant computational resources, espe-

cially for running in real-time requirements. Further-

more, state-of-the-art DL techniques rely on super-

vised learning, and they struggle when employed in

new scenarios never seen during the training phase,

a situation frequently encountered in the context of

Edge AI. Naive solutions based on collecting new

data are not only costly but sometimes even un-

feasible. Data collection and curation necessitates

manual labeling, often performed by human annota-

tors with extensive domain expertise, exploiting time-

consuming, expensive, and error-prone procedures.

As a result, models are often trained by leveraging al-

ready existing big collections of labeled data and con-

508

Molo, M., Carlini, E., Ciampi, L., Gennaro, C. and Vadicamo, L.

Teacher-Student Models for AI Vision at the Edge: A Car Parking Case Study.

DOI: 10.5220/0012376900003660

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2024) - Volume 4: VISAPP, pages

508-515

ISBN: 978-989-758-679-8; ISSN: 2184-4321

sequently suffer from shifts in data distributions when

applied in new application scenarios. These emerging

challenges create space for alternative solutions to ef-

ﬁciently train deep neural models for speciﬁc tasks

when human-annotated data is limited (Ciampi et al.,

2023) and with limited computational resources avail-

able (Ciampi et al., 2022).

In this work, we propose an efﬁcient DL approach

based on Knowledge Distillation (KD) (Hinton et al.,

2015) for localizing vehicles in parking areas moni-

tored by multiple smart cameras. KD has been intro-

duced to obtain compressed models suitable for small

devices, utilizing knowledge garnered from complex

and large models. Speciﬁcally, in our scenario, we

present a scheme comprising a powerful detector used

as a teacher and several shallow models acting as

students, tailored explicitly for devices with limited

computational resources and intended to operate di-

rectly on smart cameras. The teacher is pre-trained

on diverse generic datasets and behaves like an oracle,

transferring its knowledge to the smaller nodes; on the

other hand, the students rely only on the distilled loss

coming from the oracle, and they learn to detect ve-

hicles in new scenarios they are monitoring, without

the need of additional labeled data. The preliminary

results obtained in an experimental evaluation under

different settings show that the student models trained

only with the distillation loss coming from the teacher

increase their performances, sometimes even outper-

forming the outcomes achieved by the same models

supervised with the ground truth.

To summarize, the core contributions of this work

are the following:

• We propose an approach based on knowledge dis-

tillation for detecting vehicles from smart cameras

monitoring parking lots; our scheme includes a

large detector acting as a teacher/oracle and sev-

eral students, i.e., smaller models running on the

edge devices. The latter learn to localize vehicles

in their monitored areas by exploiting the distilla-

tion loss coming from the teacher without requir-

ing additional labeled data.

• We perform an experimental evaluation consid-

ering, as the teacher, a large object detector pre-

trained with data containing vehicles in general

contexts and, as the students, a smaller version of

the teacher. Results achieved by monitoring new

scenarios demonstrate that the students increase

their performances using the knowledge from the

oracle, sometimes even outperforming the results

obtained by the same models trained with the an-

notations.

The rest of the paper is organized as follows. Sec-

tion 2 presents the related works. Section 3 illustrates

the proposed approach. Section 4 discusses the setup

of the experiments, including the models and datasets

used, and discusses the results obtained. Section 5

draws the conclusions of this work.

2 RELATED WORKS

Knowledge Distillation-Based Computer Vision

Applications. Several computer vision applications

have recently exploited the Knowledge Distillation

(KD) paradigm. For instance, in (Wang et al., 2019;

Chen et al., 2021), knowledge distillation loss is de-

scribed as a feature matching distance, necessitating

both the teacher and the student models to share iden-

tical architectures. On the other hand, (Banitalebi-

Dehkordi, 2021) proposed a technique to improve

distillation effectiveness by utilizing unlabeled data,

thus diminishing the need for labeled data. (Gan

et al., 2019) presented a cross-modal auditory local-

ization approach, leveraging a student-teacher train-

ing method to enable the transfer of object detection

knowledge between vision and sound modalities. In

the same angle, (Liu et al., 2021) introduced a frame-

work that simultaneously utilizes domain adaptation

and knowledge distillation to enhance efﬁciency in

object detection, introducing a focal multi-domain

discriminator to improve the performance of both

teacher and student networks.

Finally, (Goh et al., 2023) investigated a self-

supervised distillation framework to train efﬁcient

computer vision models focusing on self-supervised

pre-training of teachers using a substantial dataset of

unlabeled images.

Edge AI for Distributed Computer Vision Applica-

tions. In the last years, numerous works have been

conducted in computer vision focusing on applica-

tions for distributed edge devices. For instance, a

notable work is (Kang et al., 2020), which proposed

a framework incorporating neural architecture search

to address teacher-student capacity issues, optimizing

structures for varying model sizes. The authors also

introduced an oracle knowledge distillation loss, en-

abling the student to achieve high accuracy using ora-

cle predictions. Another interesting study is (Bharad-

hwaj et al., 2022), which introduced a framework

named Detect-Track-Count (DTC) designed to efﬁ-

ciently count vehicles on edge devices. The primary

objective of this approach was to enhance the efﬁcacy

of compact vehicle detection models through the ap-

plication of the ensemble knowledge distillation tech-

nique. Moreover, (Kruthiventi et al., 2017) employed

knowledge distillation from a multi-modal pedestrian

Teacher-Student Models for AI Vision at the Edge: A Car Parking Case Study

509

detector. The network was designed to extract RGB

and thermal-like features from RGB images, miti-

gating the necessity for expensive automotive-grade

thermal cameras. On the other hand, (Alqaisi et al.,

2023) focused on leveraging Docker containers to

facilitate the deployment and management of com-

puter vision applications on edge devices with limited

resources, aiming at enabling the secure execution

of multiple applications concurrently while ensuring

ﬂexibility and efﬁciency in deployment. The authors

in (Seitbattalov et al., 2022) introduced a novel edge

computing application utilizing Raspberry Pi and an

OmniVision OV 5647 camera for efﬁcient data pre-

processing. The approach signiﬁcantly reduces net-

work trafﬁc and computational burden on centralized

servers, offering a cost-effective alternative to tradi-

tional solutions like FPGAs and personal computers.

In all of these works, the authors assumed that

computer vision tasks were conducted using labeled

data, and the models were trained after collecting data

from various nodes, consolidating them at a central

node to create a comprehensive representation of the

entire data distribution. In contrast to previous works,

our approach eliminates the need for extensive im-

age annotation for edge nodes and their centralization,

reducing the time and resources required for dataset

preparation.

3 KD-DRIVEN VEHICLE

DETECTION ON EDGE

DEVICES

This section describes our proposed KD-based ap-

proach for vehicle detection on edge devices moni-

toring parking lots. Usually, in a distributed camera

network scenario, each camera collects data indepen-

dently, resulting in diverse data distributions due to

varying perspectives, illuminations, angles of view,

backgrounds, and, in general, different contexts. This

diversity poses a challenge or the deployment of pre-

trained deep learning models on edge devices, lead-

ing to a signiﬁcant drop in performance in scenarios

not encountered during the learning phase. Directly

ﬁne-tuning these models on such varied data may be

unfeasible as it requires manual image annotations,

which is time-consuming, costly, and error-prone.

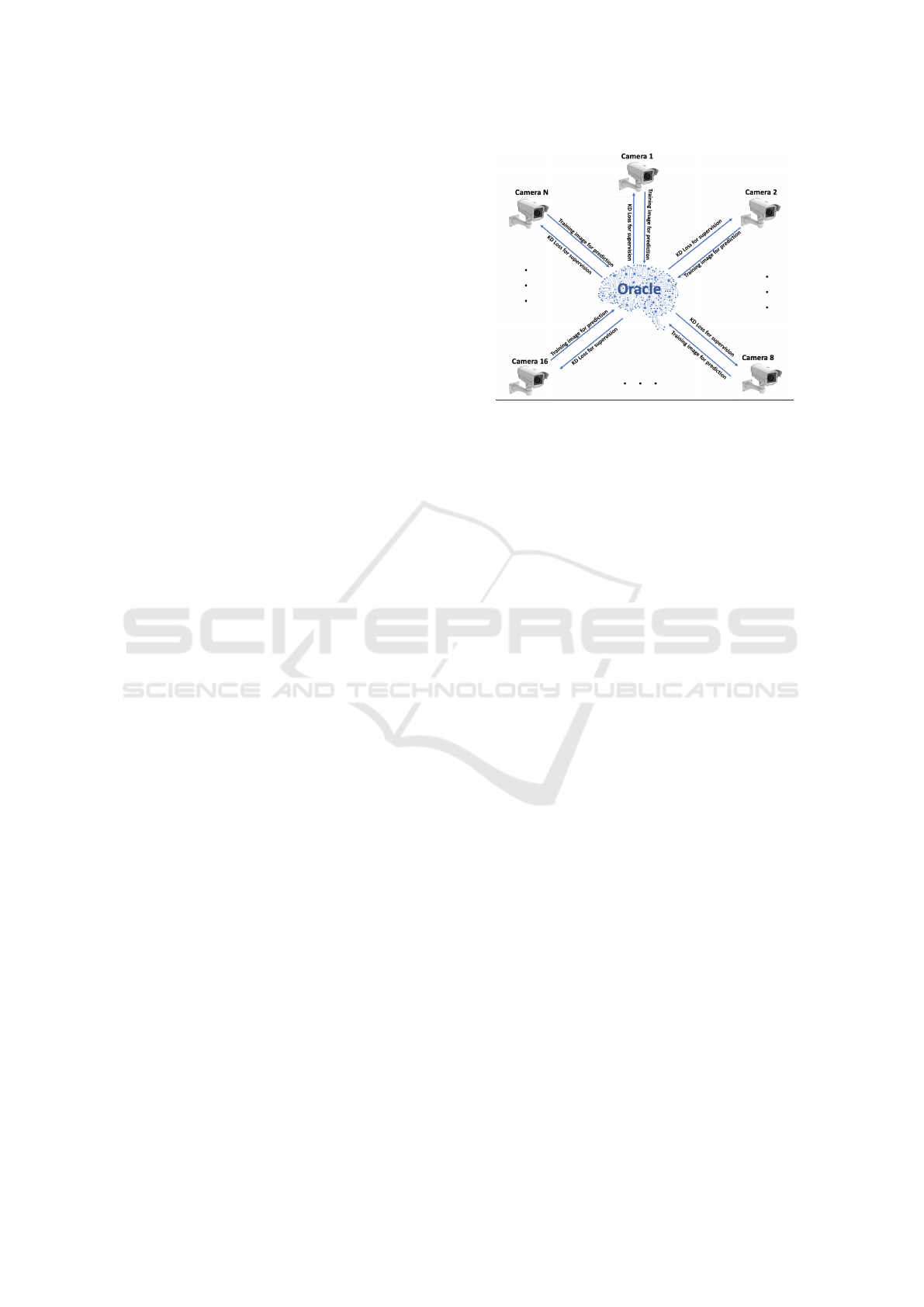

To mitigate these challenges, in this work, we pro-

pose a scheme that uses a centralized node serving as

a teacher model (oracle) that supervises the training

of the edge device models. The teacher is a power-

ful detector pre-trained over several general datasets

for vehicle detection that may operate on a robust

Figure 1: Overview of our proposed KD-based approach for

vehicle detection in parking areas through smart cameras.

The oracle is a powerful object detector trained with several

general datasets for vehicle detection, acting as a teacher.

Edge devices, i.e., smart cameras, rely on shallower models

for analyzing images from their speciﬁc monitored areas.

They are supervised only by the distilled knowledge from

the oracle, without requiring extra labels.

computing infrastructure, such as a central server or

cloud computing platform; on the other hand, the stu-

dents are shallow models, more suitable for running

on edge devices, and they learn to perform their job

over their monitored region of interest by exploiting

the distilled knowledge coming from the oracle, with-

out requiring additional annotated data. The proposed

scheme can be exploited in applications with a vari-

able number of devices, as illustrated in Figure 1,

showcasing its adaptability and scalability to differ-

ent deployment scales. In this paper, we provide a

practical case study of our paradigm by employing a

network of nine smart cameras placed across various

parking lots to monitor and detect vehicles in parking

areas.

Our training approach is based on a KD paradigm.

During the training of student models, the main loss

function L comprises two components: the super-

vised student loss (L

stu

) and the distillation loss

distil

) (Hinton et al., 2015). Each loss is weighted by

a scaling factor α (Zhou and Mosadegh, 2023) such

that:

L = α · L

stu

, G

) + (1 − α) · L

distil

, T

), (1)

where S

, T

, and G

represent the predictions of the

student model, the predictions of the teacher model,

and the targets used as ground truth by the student

model, respectively. The hyper-parameter α balances

the two components of the total loss.

In this work, we leverage a powerful pre-trained

vehicle detector used as an oracle to train a special-

ized student model for each node using only the distil-

lation loss, i.e., we set α to 0 in Equation (1) (see also

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

510

Input Images

Predictions T

Predictions S

Teacher (Oracle)

Student

Figure 2: Knowledge distillation-based car detection approach, illustrating the training process of the student model super-

vised by a larger and more complex teacher model, typically known as the teacher-student paradigm. This ﬁgure visually

represents how knowledge distillation transfers knowledge from the teacher to the student, resulting in a more compact yet

efﬁcient model for car detection tasks.

Figure 2). This means that we are not using ground-

truth labels during the training of the student model,

relying solely on the supervision coming from the dis-

tilled loss of the teacher. At inference time, the oracle

is not needed anymore, and the student model oper-

ates independently.

4 EXPERIMENTAL EVALUATION

This section details our experimental evaluation, cov-

ering the employed datasets and the experimental set-

tings and presenting results with subsequent discus-

sion.

4.1 The Datasets

For training and testing our proposed approach, we

exploited several datasets. Standard data augmen-

tation techniques (e.g., rotation, shear, brightness,

noise, etc.) are always employed during the training.

To train the teacher model in some of our exper-

iments, we combined images from several datasets

for vehicle detection in general contexts already ex-

isting in the literature; speciﬁcally, we collected

a total of 4,056 images from (i) the Vehicles Im-

age dataset (Roboﬂow 100, 2023), (ii) the PkLot

dataset (de Almeida et al., 2015), and (iii) the Find

a Car Park dataset (Carr, 2019). We divided these

data into training, validation, and test subsets, follow-

ing common standards of 70%, 20%, and 10% of the

total number of samples.

Additionally, we employed the CNRPark-EXT

dataset (Amato et al., 2017), an extension of CNR-

Park (Amato et al., 2016). This dataset serves a dual

purpose in the implementation of our approach. Ini-

tially, it is utilized for training and testing both the

teacher and subsequent students, as detailed in the

preliminary results in Section 4.3. Subsequently, in

the second phase of our experimental setting, it is

exclusively used for training and testing the students

when the oracle is trained with the combined dataset

described before. The CNRPark-EXT dataset encom-

passes parking lot images sourced from nine cameras

capturing diverse weather conditions and offering var-

ious perspectives and angles of view. It is worth not-

ing that this dataset was initially intended for parking

lot classiﬁcation. Therefore, the original bounding

boxes do not cover the entire car but rather a portion

of it since the authors wanted to prevent misclassiﬁ-

cations caused by cars overlapping in adjacent spaces.

This presented a challenge when evaluating our stu-

dent models trained under the supervision of the ora-

cle and tested on the CNRPark-EXT dataset. Indeed,

given that the oracle was trained on datasets where the

entire car was covered, in contrast to the CNRPark-

EXT dataset, assessing the Intersection over Union

(IoU) for student models on the latter led to poor per-

formance and unsatisfactory results. To address this

issue, we manually re-annotated the validation and

testing sets within the CNRPark-EXT subsets

, en-

suring that the bounding boxes were adjusted to cover

the entire car and, consequently, aligning the dataset

with the oracle’s training data conﬁguration.

Finally, we utilized an additional dataset, named

We make these new annotations pub-

licly available at https://github.com/joaquimbasa/

Teacher-Student-CarPark-Paper.git.

Teacher-Student Models for AI Vision at the Edge: A Car Parking Case Study

511

NDISPark (Ciampi et al., 2021), to evaluate our pro-

posed approach. This database comprises 141 images

collected from several distributed cameras in various

parking lots, showcasing common challenges encoun-

tered in real-life scenarios. It is worth noting that we

considered solely the training and validation sets, as

bounding box annotations are unavailable for the test

set since this dataset was initially created as a bench-

mark for the counting task.

4.2 Implementation Details

Our implementation choice concerning the detector

fell on the popular YOLOv5 architecture (Ultralytics,

2021) since it relies on the one-stage paradigm, thus

ensuring a good trade-off between performance and

efﬁciency. However, our proposed pipeline is model-

agnostic, i.e., a different detector can be used without

affecting the overall functioning. Speciﬁcally, we ex-

ploited the YOLOv5x object detector as the teacher

model, where "x" denotes a deeper version of the stan-

dard YOLOv5 model; on the other hand, for the stu-

dent models, we use a smaller and shallower version

of the latter, denoted as YOLOv5n, more suitable for

edge devices having limited computational require-

ment.

More in details, the YOLOv5x model we ex-

ploited as the teacher consists of a CNN with 322 lay-

ers, 86,173,414 parameters, and a computational load

of 203.8 GFLOPs. We considered the COCO pre-

trained version of this model, keeping its backbone

frozen during the training stage and back-propagating

the gradient only in the head layers. On the other

hand, the YOLOv5n architecture that acts as the foun-

dation for the student models is the most compact ver-

sion of YOLOv5, consisting of 157 layers, 1,760,518

parameters, and 4.1 GFLOPs. Even in this case, dur-

ing the training, its backbone is frozen, and only the

head layers were ﬁne-tuned by exploiting the distilla-

tion component of the KD loss.

YOLOv5 employs three distinct losses that consti-

tute its ﬁnal loss: a Classiﬁcation loss (L

cls

), address-

ing classiﬁcation errors, a Conﬁdence loss (L

ob j

dealing with objectness errors, and a Localization loss

bbox

), focusing on localization errors (Terven and

Cordova-Esparza, 2023). For both the classiﬁcation

and objectness losses, we used the Binary Cross En-

tropy with Logits Loss, while the Intersection Over

Union loss is employed as the Localization loss.

4.3 Results and Discussion

We conducted two distinct sets of experiments. In

the ﬁrst set, we operated under the assumption of a

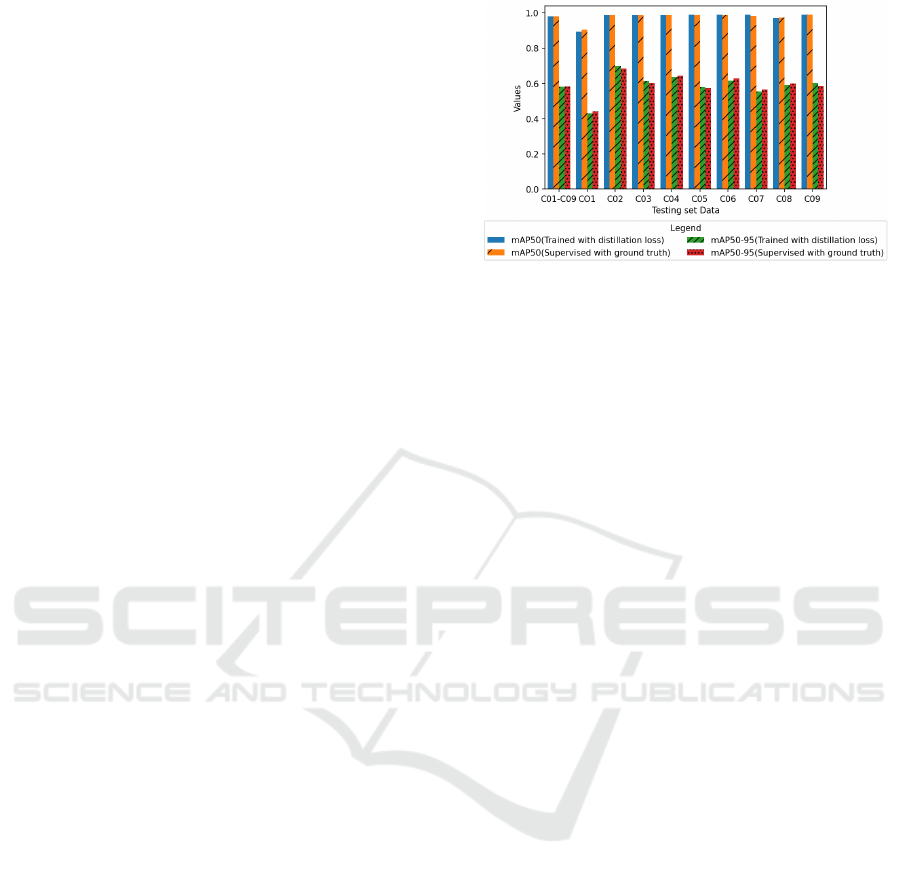

Figure 3: Comparison between the performance of

YOLOv5n with knowledge distillation-based training and

with supervised training on CNRPark-EXT. The student

model was trained on the whole CNRPark-EXT training set

and then tested on each camera.

teacher having some knowledge about the data distri-

bution used at inference time by the student model.

In other words, in this scenario, the teacher and the

student were trained on the same distribution, specif-

ically, the CNRPark-EXT dataset. In the second part

of the experiment, our approach introduced the uti-

lization of an oracle trained on a data distribution en-

tirely different from the one used for training the stu-

dents.

Preliminary Results with the CNRPark-EXT

Dataset. In this initial set of experiments, as pre-

viously mentioned, our teacher model is assumed to

be an almost perfect teacher over the considered sce-

nario, showcasing outstanding performance with F1-

Score, mAP50, and mAP50-95 scores of 0.99, 0.99,

and 0.90, respectively. It is important to note that the

performance evaluation in the whole of this study, in-

cluding the one just given, is based on the MS COCO

mean Average Precision (mAP), where the mAP50 is

the Average Precision at a speciﬁc IoU threshold of

0.50, and mAP50-95 is the AP averaged over a range

of IoU thresholds (0.50 to 0.95 with increments of

0.05) (Lin et al., 2014).

In the student training process, two cases are con-

sidered. On the one hand, we focused on training

the student model utilizing exclusively the distilla-

tion loss (L

distil

), which constitutes one component of

the loss function outlined in Equation (1). This aids

in training the student model effectively, even when

working with unlabeled data. On the other hand, we

trained the student model by exploiting the supervised

loss function (L

stu

), which makes use of the ground

truth (i.e., α set to 1 in Equation (1)). This latter case

can be regarded as an upper bound on the achievable

performance for each dataset.

Figure 3 provides a comparative analysis of the

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

512

Table 1: Comparison between the mAP50 and mAP50-95

performance of specialized student models trained with dis-

tillation loss (Dist.) and supervised (Super.) approach on a

single CNRPark-EXT camera.

Training Set Testing Set mAP50 mAP50-

Mode

CNR-EXT C1 CNR-EXT C1

0.95 0.50 Super.

0.91 0.45 Dist.

CNR-EXT C2 CNR-EXT C2

0.99 0.77 Super.

0.99 0.73 Dist.

CNR-EXT C3 CNR-EXT C3

0.99 0.66 Super.

0.99 0.60 Dist.

CNR-EXT C4 CNR-EXT C4

0.99 0.66 Super.

0.99 0.61 Dist.

CNR-EXT C5 CNR-EXT C5

0.99 0.60 Super.

0.98 0.55 Dist.

CNR-EXT C6 CNR-EXT C6

0.99 0.64 Super.

0.99 0.64 Dist.

CNR-EXT C7 CNR-EXT C7

0.99 0.60 Super.

0.98 0.53 Dist.

CNR-EXT C8 CNR-EXT C8

0.98 0.63 Super.

0.97 0.57 Dist.

CNR-EXT C9 CNR-EXT C9

0.99 0.66 Super.

0.99 0.60 Dist.

results obtained against the testing sets of CNRPark-

EXT in the two settings mentioned above. Speciﬁ-

cally, we show the performance considering the whole

CRNPark-EXT training set, as well as using the test-

ing sets of individual subsets belonging to speciﬁc

cameras.

The results indicate that the student model trained

solely with the distillation loss exhibits a comparable

level of performance to that of the same model super-

vised with labeled data. Moreover, it is worth noting

that results for Camera 1 are lower due to a severe

change in perspective compared to the other cameras.

Furthermore, we provide an experimental eval-

uation where the teacher supervises the training of

the student model using only a speciﬁc subset of the

data associated with a speciﬁc camera. Speciﬁcally,

Table 1 presents a comprehensive view of the per-

formance in terms of mAP exhibited by the student

models. These models are trained using data from

each camera subset and evaluated using the respec-

tive testing set data. Furthermore, their performance

is assessed on the testing set encompassing the entire

CNRPark-EXT dataset as shown in Table 2.

In the ﬁrst scenario, the results in Table 1 show

that a specialized student model tested on its speciﬁc

data exhibits a slightly lower performance when us-

ing solely the distillation loss, in comparison to su-

pervising it with the ground truth. However, in the

second scenario, as illustrated in Table 2, the results

Table 2: Comparison of mAP50 and mAP50-95 for stu-

dent models trained on a single CNRPark-EXT camera us-

ing distillation loss (Dist.) or supervised approach (Super.),

then tested on the complete CNRPark-EXT test set.

Training Set Test Set mAP50 mAP50-

Mode

CNR-EXT C1 CNR-EXT

0.70 0.23 Super.

0.88 0.37 Dist.

CNR-EXT C2 CNR-EXT

0.60 0.20 Super.

0.77 0.31 Dist.

CNR-EXT C3 CNR-EXT

0.79 0.32 Super.

0.90 0.43 Dist.

CNR-EXT C4 CNR-EXT

0.78 0.35 Super.

0.92 0.46 Dist.

CNR-EXT C5 CNR-EXT

0.79 0.36 Super.

0.97 0.47 Dist.

CNR-EXT C6 CNR-EXT

0.78 0.36 Super.

0.91 0.47 Dist.

CNR-EXT C7 CNR-EXT

0.80 0.37 Super.

0.91 0.46 Dist.

CNR-EXT C8 CNR-EXT

0.83 0.40 Super.

0.87 0.45 Dist.

CNR-EXT C9 CNR-EXT

0.82 0.36 Super.

0.91 0.45 Dist.

show that testing the specialized model on diverse dis-

tributions encompassing various cameras showcases

improved performance when employing only the dis-

tillation loss. This insight indicates that a highly accu-

rate and knowledgeable teacher, with extensive expe-

rience from a wide-ranging data distribution, enables

specialized models to maintain accurate predictions

even when the conﬁguration of the distribution of data

changes. Thus, the teacher’s comprehensive under-

standing of the data and ability to distill the knowl-

edge to the specialized models enable effective train-

ing with unlabeled data, resulting in enhanced predic-

tive capabilities.

Results Using the Oracle-Teacher Trained on a

Dataset Agnostic to the Test Dataset. Further ex-

periments were conducted using the combined dataset

described in subsection 4.1 to pre-train the oracle

and test the students against the NDISPark and the

CNRPark-EXT datasets; thus, we assume to have a

teacher agnostic to the data distribution used for the

tests. We report the results in Table 3, considering

only the training of the students with the distillation

loss and comparing the performance against the ones

obtained with the teacher. Concerning the NDISPark

dataset, we combined all subsets due to its small size;

on the other hand, for CNRParkEXT, as in the pre-

vious set of experiments, we considered the differ-

ent subsets associated with speciﬁc cameras. As can

Teacher-Student Models for AI Vision at the Edge: A Car Parking Case Study

513

Table 3: Results obtained through teacher-student dis-

tillation using the combined dataset and speciﬁc camera

datasets, respectively.

Role

Test

Dataset

Precision

Recall

mAP50

mAP50-95

Teach. Combined

Dataset

0.92 0.90 0.95 0.73

Teach.

NDISPark

0.95 0.86 0.94 0.63

Stud. 0.84 0.77 0.84 0.46

Teach.

CNR-EXT

(all cameras)

0.82 0.79 0.76 0.23

Stud. 0.86 0.76 0.83 0.26

Teach.

CNR-EXT C1

0.75 0.61 0.60 0.31

Stud. 0.76 0.75 0.88 0.37

Teach.

CNR-EXT C2

0.78 0.64 0.71 0.42

Stud. 0.84 0.79 0.88 0.59

Teach.

CNR-EXT C3

0.76 0.76 0.80 0.25

Stud. 0.87 0.85 0.91 0.39

Teach.

CNR-EXT C4

0.82 0.76 0.81 0.24

Stud. 0.87 0.79 0.86 0.36

Teach.

CNR-EXT C5

0.83 0.72 0.77 0.20

Stud. 0.89 0.82 0.84 0.29

Teach.

CNR-EXT C6

0.82 0.77 0.79 0.23

Stud. 0.85 0.82 0.86 0.31

Teach.

CNR-EXT C7

0.79 0.70 0.73 0.21

Stud. 0.86 0.76 0.82 0.27

Teach.

CNR-EXT C8

0.84 0.72 0.75 0.22

Stud. 0.92 0.82 0.87 0.28

Teach.

CNR-EXT C9

0.82 0.74 0.82 0.28

Stud. 0.85 0.84 0.74 0.42

be seen, we obtained moderate performance on the

NDISPark dataset, but, on the other hand, concerning

the CNRPark-EXT dataset, the student model some-

times even outperformed the oracle, demonstrating

that the student can achieve reliable performance just

exploiting the distillation loss from an oracle agnos-

tic to the inference data distribution, without requir-

ing any further annotations speciﬁc for the monitored

scenario.

5 CONCLUSION

This work introduced a Knowledge Distillation-based

approach tailored for computer vision applications

at the edge. We focus on a scenario where several

smart cameras, with limited computational capabil-

ities, monitor parking areas by detecting the vehi-

cles in their ﬁeld of view. We proposed a teacher-

student scheme where the teacher is a powerful and

large detector acting as an oracle for the students,

which in turn are shallow models more appropriate for

computational-bounded devices. The teacher has ex-

tensive knowledge that transfers to the smaller nodes,

which, on the other hand, learn to localize cars in

new speciﬁc scenarios without using further labeled

data, relying solely on the distilled loss from the or-

acle. This addresses challenges in Edge AI, where

models on edge devices need to generalize knowl-

edge to new scenarios and meet hardware constraints.

We performed an experimental evaluation under dif-

ferent settings, considering a teacher pre-trained over

different general-context datasets suitable for vehicle

detection and, as the students, a smaller version of

the teacher. The results demonstrate that students in-

crease their performance only with knowledge from

the oracle, sometimes even surpassing the results ob-

tained by models trained with annotations.

In future work, we aim to extend our approach to

various application scenarios and also explore com-

parisons or integrations with other distributed learn-

ing techniques, such as federated learning.

ACKNOWLEDGEMENTS

This work was partially supported by: PNRR-National Cen-

tre for HPC, Big Data and Quantum Computing project

CUP B93C22000620006; H2020 project AI4Media under

GA 951911; MOST - Sustainable Mobility Center funded

by European Union Next - Generation EU (Piano Nazionale

di Ripresa e Resilienza (PNRR) - Missione 4 Componente

2, Investimento 1.4 - D.D. 1022 17/06/2022, CN00000023).

This manuscript reﬂects only the authors’ views and opin-

ions; neither the European Union nor the European Com-

mission can be considered responsible for them.

REFERENCES

Alqaisi, O. I., ¸Saman Tosun, A., and Korkmaz, T. (2023).

Containerized computer vision applications on edge

devices. In 2023 IEEE International Conference

on Edge Computing and Communications (EDGE).

IEEE.

Amato, G., Carrara, F., Falchi, F., Gennaro, C., Meghini, C.,

and Vairo, C. (2017). Deep learning for decentralized

parking lot occupancy detection. Expert Systems with

Applications, 72:327–334.

Amato, G., Carrara, F., Falchi, F., Gennaro, C., and Vairo,

C. (2016). Car parking occupancy detection using

smart camera networks and deep learning. In 2016

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

514

IEEE Symposium on Computers and Communication

(ISCC). IEEE.

Banitalebi-Dehkordi, A. (2021). Knowledge distillation for

low-power object detection: A simple technique and

its extensions for training compact models using unla-

beled data. In 2021 IEEE/CVF International Confer-

ence on Computer Vision Workshops (ICCVW). IEEE.

Bharadhwaj, M., Ramadurai, G., and Ravindran, B. (2022).

Detecting vehicles on the edge: Knowledge distilla-

tion to improve performance in heterogeneous road

trafﬁc. In 2022 IEEE/CVF Conference on Computer

Vision and Pattern Recognition Workshops (CVPRW).

IEEE.

Cafarelli, D., Ciampi, L., Vadicamo, L., Gennaro, C.,

Berton, A., Paterni, M., Benvenuti, C., Passera, M.,

and Falchi, F. (2022). MOBDrone: A Drone Video

Dataset for Man OverBoard Rescue, page 633–644.

Springer International Publishing.

Carr, D. (2019). Find a car park. https://www.kaggle.com/

datasets/daggysheep/ﬁnd-a-car-park. visited on 2023-

10-17.

Chen, B.-C., Wu, Z., Davis, L. S., and Lim, S.-N. (2021).

Efﬁcient object embedding for spliced image retrieval.

In 2021 IEEE/CVF Conference on Computer Vision

and Pattern Recognition (CVPR). IEEE.

Ciampi, L., Gennaro, C., Carrara, F., Falchi, F., Vairo, C.,

and Amato, G. (2022). Multi-camera vehicle count-

ing using edge-ai. Expert Systems with Applications,

207:117929.

Ciampi, L., Santiago, C., Costeira, J., Falchi, F., Gen-

naro, C., and Amato, G. (2023). Unsupervised do-

main adaptation for video violence detection in the

wild. In Proceedings of the 3rd International Con-

ference on Image Processing and Vision Engineering.

SCITEPRESS - Science and Technology Publications.

Ciampi, L., Santiago, C., Costeira, J., Gennaro, C., and

Amato, G. (2021). Domain adaptation for trafﬁc den-

sity estimation. In Proceedings of the 16th Interna-

tional Joint Conference on Computer Vision, Imag-

ing and Computer Graphics Theory and Applications.

SCITEPRESS - Science and Technology Publications.

de Almeida, P. R., Oliveira, L. S., Britto, A. S., Silva, E. J.,

and Koerich, A. L. (2015). Pklot – a robust dataset for

parking lot classiﬁcation. Expert Systems with Appli-

cations, 42(11):4937–4949.

Di Benedetto, M., Carrara, F., Ciampi, L., Falchi, F.,

Gennaro, C., and Amato, G. (2022). An embed-

ded toolset for human activity monitoring in criti-

cal environments. Expert Systems with Applications,

199:117125.

Foszner, P., Szcz˛esna, A., Ciampi, L., Messina, N., Cygan,

A., Bizo

n, B., Cogiel, M., Golba, D., Macioszek, E.,

and Staniszewski, M. (2023). Development of a re-

alistic crowd simulation environment for ﬁne-grained

validation of people tracking methods. In Proceedings

of the 18th International Joint Conference on Com-

puter Vision, Imaging and Computer Graphics Theory

and Applications. SCITEPRESS - Science and Tech-

nology Publications.

Gan, C., Zhao, H., Chen, P., Cox, D., and Torralba, A.

(2019). Self-supervised moving vehicle tracking with

stereo sound. In 2019 IEEE/CVF International Con-

ference on Computer Vision (ICCV). IEEE.

George, A., Ecabert, C., Shahreza, H. O., Kotwal, K., and

Marcel, S. (2023). Edgeface: Efﬁcient face recogni-

tion model for edge devices.

Goh, E., Ward, I. R., Vincent, G., Pak, K., Chen, J., and Wil-

son, B. (2023). Self-supervised distillation for com-

puter vision onboard planetary robots. In 2023 IEEE

Aerospace Conference. IEEE.

Heckmann, O. and Ravindran, A. (2023). Evaluating kuber-

netes at the edge for fault tolerant multi-camera com-

puter vision applications. In 2023 IEEE/ACM 23rd

International Symposium on Cluster, Cloud and Inter-

net Computing Workshops (CCGridW). IEEE.

Hinton, G., Vinyals, O., and Dean, J. (2015). Distilling the

knowledge in a neural network.

Kang, M., Mun, J., and Han, B. (2020). Towards oracle

knowledge distillation with neural architecture search.

Proceedings of the AAAI Conference on Artiﬁcial In-

telligence, 34(04):4404–4411.

Kruthiventi, S. S. S., Sahay, P., and Biswal, R. (2017).

Low-light pedestrian detection from rgb images using

multi-modal knowledge distillation. In 2017 IEEE In-

ternational Conference on Image Processing (ICIP).

IEEE.

Lin, T.-Y., Maire, M., Belongie, S., Bourdev, L., Girshick,

R., Hays, J., Perona, P., Ramanan, D., Zitnick, C. L.,

and Dollár, P. (2014). Microsoft coco: Common ob-

jects in context. Lecture Notes in Computer Science

(including subseries Lecture Notes in Artiﬁcial Intel-

ligence and Lecture Notes in Bioinformatics), 8693

LNCS:740–755.

Liu, X., Zhang, F., Hou, Z., Mian, L., Wang, Z., Zhang, J.,

and Tang, J. (2021). Self-supervised learning: Gener-

ative or contrastive. IEEE Transactions on Knowledge

and Data Engineering, page 1–1.

Roboﬂow 100 (2023). Vehicles Dataset. https://universe.

roboﬂow.com/roboﬂow-100/vehicles-q0x2v. visited

on 2023-10-01.

Seitbattalov, Z. Y., Canbolat, H., Moldabayeva, Z. S., and

Kyzyrkanov, A. E. (2022). An intelligent automatic

number plate recognition system based on computer

vision and edge computing. In 2022 International

Conference on Smart Information Systems and Tech-

nologies (SIST). IEEE.

Terven, J. and Cordova-Esparza, D. (2023). A comprehen-

sive review of yolo: From yolov1 and beyond.

Ultralytics (2021). YOLOv5: A state-of-the-art real-time

object detection system. https://docs.ultralytics.com.

Accessed: insert date here.

Wang, T., Yuan, L., Zhang, X., and Feng, J. (2019). Dis-

tilling object detectors with ﬁne-grained feature imi-

tation. In 2019 IEEE/CVF Conference on Computer

Vision and Pattern Recognition (CVPR). IEEE.

Zhou, G. and Mosadegh, B. (2023). Distilling knowledge

from an ensemble of vision transformers for improved

classiﬁcation of breast ultrasound. Academic Radiol-

ogy.

Teacher-Student Models for AI Vision at the Edge: A Car Parking Case Study

515
