Setting a PACS on FHIR

Sébastien Jodogne

Institute of Information and Communication Technologies, Electronics and Applied Mathematics (ICTEAM),

Keywords:

FHIR, DICOM, Medical Imaging, Free and Open-Source Software.

Abstract:

FHIR has quickly emerged as the most important standard for the interoperability of clinical data. FHIR in-

cludes support for medical imaging through its ImagingStudy resource that can be used to create mappings

between FHIR entities and DICOM studies using the DICOMweb protocol. Unfortunately, there is currently a

lack of openly available software implementation combining FHIR with DICOM, which hinders the develop-

ment of new applications linking clinical data with imaging data. In this paper, the Orthanc server for medical

imaging is associated with the HAPI framework in a consistent framework to propose an implementation of

the ImagingStudy FHIR resource that is tightly coupled with the content of a DICOM server. The result-

ing framework is released as free and open-source software, with the goals of promoting support for medical

imaging in FHIR, of sharing technological knowledge about medical interoperability, and of providing a test

environment for developing new healthcare-related applications.

1 INTRODUCTION

Technical interoperability refers to the ability of dif-

ferent healthcare systems, software, and devices to

communicate and exchange data effectively and ef-

ﬁciently (Benson and Grieve, 2021). Technical in-

teroperability is critical for patient-centered care and

for continuity of care because patient information is

typically spread over multiple software entities, such

as electronic health records, hospital information sys-

tem, laboratory information system, or pharmacy in-

formation system, possibly across different hospitals

and different general practitioners. Technical interop-

erability is also becoming increasingly important as a

result of the growing interest in telemedicine, in tele-

expertise, in patient empowerment, and in artiﬁcial in-

telligence.

Many technical interoperability standards have

emerged over the years. The international FHIR stan-

dard (Fast Healthcare Interoperability Resources) is

nowadays attracting a lot of attention. FHIR is an

open, modern standard for exchanging clinical in-

formation electronically (Bender and Sartipi, 2013).

FHIR is actively developed by the HL7 International

organization. The original proposal for FHIR was re-

leased in 2011, its ﬁrst draft standard (referred to as

DSTU1, which stands for First Draft Standard for

https://orcid.org/0000-0001-6685-7398

Trial Use) was published in 2014, and its ﬁrst nor-

mative content (called Release 4) appeared in 2019.

FHIR is based on a set of standardized resources,

which represent discrete pieces of healthcare data,

such as patients, medications, allergies, and obser-

vations. These resources act as building blocks that

can be combined to represent complex clinical con-

cepts and workﬂows. Furthermore, FHIR employs

REST APIs (Representational State Transfer Appli-

cation Programming Interfaces) to access and ma-

nipulate the various resources. The fact that REST

APIs are widely used for the development of Web and

mobile applications explains the popularity of FHIR

among software engineers. FHIR also fully embraces

existing medical terminologies such as SNOMED-CT

and LOINC, which enables semantic interoperabil-

ity, ensuring that healthcare data is understood con-

sistently across different systems and organizations.

On the other hand, in the context of medical imag-

ing, DICOM (Digital Imaging and Communications

in Medicine) has been the de facto international stan-

dard for the encoding, transmission, storage, and shar-

ing of digital images since 1985 (NEMA, 2023). In

the DICOM workﬂow, imaging modalities create DI-

COM instances that are centralized in so-called PACS

servers (Picture Archiving and Communication Sys-

tem), which in turn provide features for the viewing

and distribution of the collected medical images. DI-

COM is adopted by any hospital in the world, and its

Jodogne, S.

Setting a PACS on FHIR.

DOI: 10.5220/0012384600003657

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 17th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2024) - Volume 2, pages 123-131

ISBN: 978-989-758-688-0; ISSN: 2184-4305

123

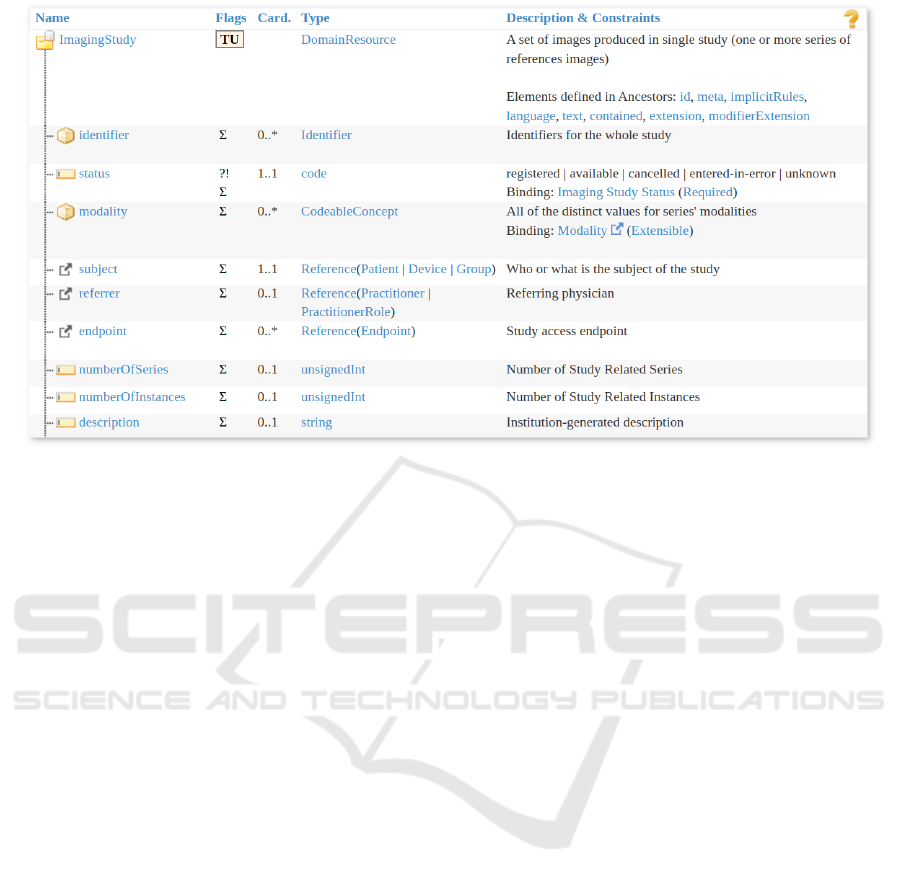

Figure 1: Excerpt of the main structure of the ImagingStudy resource in FHIR 5.0.0. For each ﬁeld in the resource, the

“Card.” column indicates its cardinality, and the “Type” column indicates the type of its values. Fields whose minimum

cardinality is 1 are mandatory. This is a screenshot of the ofﬁcial speciﬁcation of FHIR available at: https://hl7.org/fhir/R5/

ImagingStudy.html.

recent DICOMweb extensions have progressively in-

troduced REST APIs for medical imaging since the

2010s.

Evidently, because of the universal adoption of

DICOM by hospitals, researchers, and vendors, FHIR

does not try to introduce a new competing standard

dedicated to medical imaging. Instead, FHIR deﬁnes

the ImagingStudy resource as its ofﬁcial way to cre-

ate a connection between clinical and imaging data.

This resource allows FHIR systems to reference DI-

COM entities stored in separate PACS servers through

the DICOMweb API. FHIR-to-DICOM references

are used to link patients to medical images. Intu-

itively, the ImagingStudy resource can be thought of

as a higher-level service on the top of DICOMweb.

Unfortunately, there is currently a lack of open

reference software implementation combining FHIR

with DICOM. Even though implementations of the

ImagingStudy resource do exist and are available in

public test sandboxes for FHIR, their content is man-

aged separately from the content of a PACS server.

The availability of a DICOM server implementing

both the DICOMweb and the FHIR REST APIs could

hopefully promote the support of medical imaging in

FHIR, while providing a testing environment for the

development of new applications combining clinical

with imaging data. The difﬁculty in creating such an

implementation lies in the fact that both FHIR and DI-

COM are rich standards whose implementations are

usually developed by separate teams. Furthermore,

it is needed to create an infrastructure that continu-

ously keeps FHIR resources in synchronization with

DICOM instances. To ﬁll this gap, in this paper,

a free and open-source PACS server supporting DI-

COMweb is extended to publish the parts of the FHIR

REST API that are related to medical imaging, as a

complement to the DICOM primitives that are already

offered by this PACS server.

2 BACKGROUND

This section reviews the different building blocks that

will be combined to create an open reference imple-

mentation of a FHIR server for medical imaging.

2.1 DICOM Model of the Real World

In the DICOM model of the real world, a patient ben-

eﬁts from a sequence of imaging studies during his or

her lifetime. Each of these studies consists of a set

of series. In turn, each series is made of a set of DI-

COM instances that are created by the same imaging

device. An isolated DICOM instance can often (but

not always) be thought of as one 2D image slice that

is associated with a dataset providing patient-related

and acquisition-related information, which enriches

the pixel data. This dataset is a tree-like structure that

associates values to normalized DICOM tags, identi-

ﬁed by a pair of hexadecimal numbers. For instance, a

HEALTHINF 2024 - 17th International Conference on Health Informatics

124

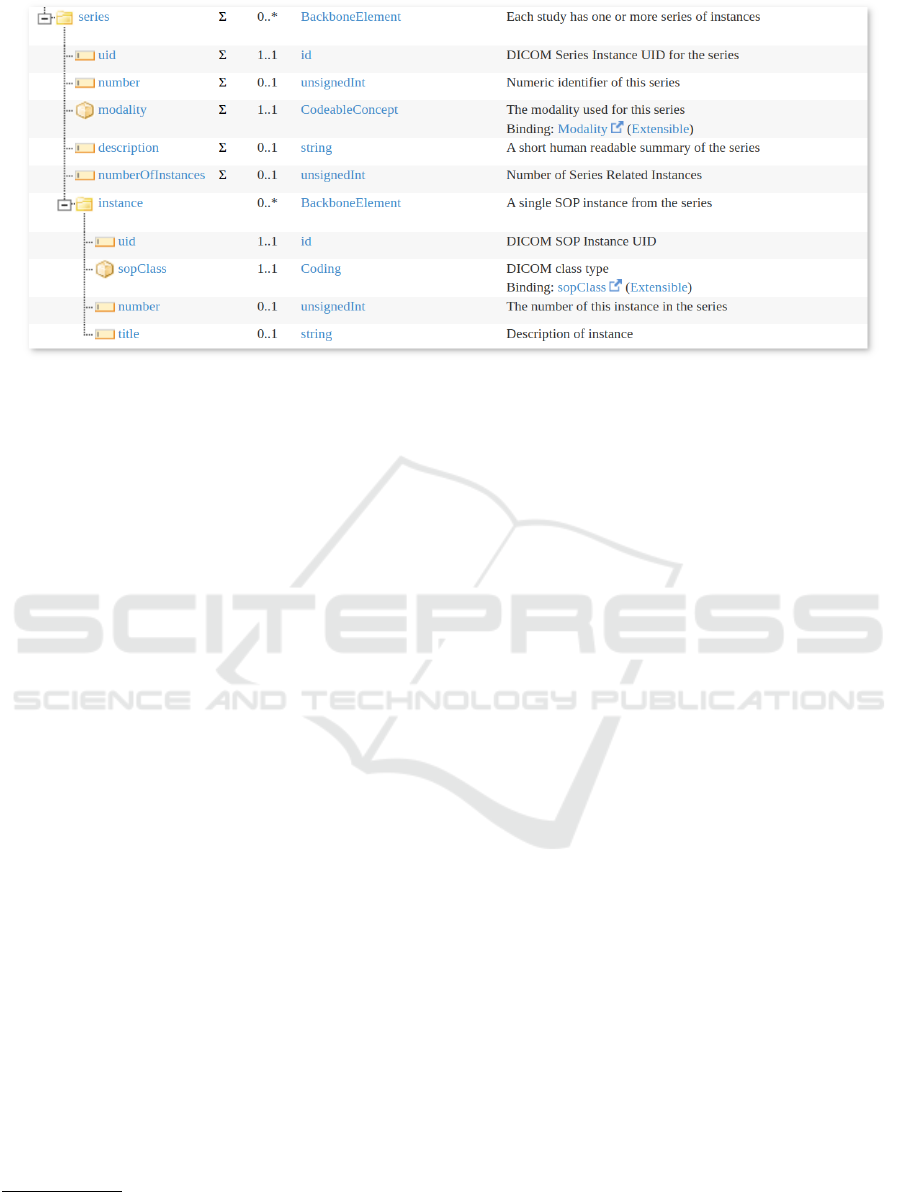

Figure 2: Excerpt of the information to be provided in the ImagingStudy for each of its associated DICOM series. This

screenshot is the continuation of Figure 1 in the FHIR standard.

DICOM study generated by a PET-CT-scanner would

typically correspond to a set of two DICOM series

(representing the PET volume and the CT volume),

with the two series encoded as a set of DICOM in-

stances that contain the individual 2D axial slices of

the parent 3D volume.

Each resource in the patient/study/series/instance

hierarchy can be identiﬁed by one speciﬁc DICOM

tag. The patient level is identiﬁed by the value of the

Patient ID (0x0010,0x0020) DICOM tag, the study

level by the Study Instance UID (0x0020,0x000d)

tag, the series level by the Series Instance UID

(0x0020,0x000e) tag, and ﬁnally the instance level by

the SOP Instance UID (0x0008,0x0018) tag. PACS

systems typically index the DICOM instances they

store according to the value of these four important

DICOM tags.

2.2 FHIR for Medical Imaging

As explained in the Introduction, FHIR brings sup-

port for medical imaging through its ImagingStudy

resource. ImagingStudy is associated with the ma-

turity level 4 in Release 5.0.0 of FHIR

. This ma-

turity level indicates that ImagingStudy has been

implemented in multiple prototype projects, hereby

showing a certain level of stability. Nonetheless, this

also means that the resource has been implemented

in less than ﬁve independent production systems, or

in no more than one country yet. This fact reinforces

the interest in developing an open implementation of

ImagingStudy to raise the maturity level of the asso-

FHIR 5.0.0 is the most recent version of FHIR at the

time of writing. It corresponds to the version of FHIR that

is used throughout this work.

ciated part of the FHIR standard.

The main content of the ImagingStudy resource

is depicted in Figure 1. One instance of this FHIR re-

source corresponds to one DICOM study. To create

the link between the ImagingStudy resource and its

associated DICOM study, the identifier ﬁeld of the

FHIR resource must contain the value of the Study

Instance UID DICOM tag. Very importantly, this

means that FHIR does not store the actual images, but

rather pointers to DICOM resources. The resources

themselves must be stored in a separate DICOMweb-

compliant server, the address of which must be pro-

vided in the endpoint ﬁeld. The latter ﬁeld con-

sists of a reference to a separate Endpoint FHIR

resource that speciﬁes the connection parameters to

the DICOMweb server, including its URL. Exist-

ing sandboxes for FHIR typically do not contain this

endpoint ﬁeld, which prevents access to the raw DI-

COM studies that are indexed by the ImagingStudy

resources.

As can be seen in Figure 1, besides the Endpoint

and ImagingStudy resources, a FHIR server for med-

ical imaging must also support the Patient resource,

because the subject ﬁeld must contain a reference

to the patient who is associated with the DICOM

study. Consequently, similarly to the one-to-one re-

lation that exists between a FHIR ImagingStudy and

a DICOM study, there exists a mapping between a

Patient FHIR resource and a DICOM patient.

In addition to the patients and to the studies, FHIR

for medical imaging also creates links with both the

DICOM series and the DICOM instances. To this end,

the ImagingStudy resource contains a ﬁeld named

series, as shown in Figure 2. This ﬁeld stores an ar-

ray, each item of which declares one DICOM series

whose Series Instance UID DICOM tag is con-

Setting a PACS on FHIR

125

tained in the uid subﬁeld. In turn, each item in the

series ﬁeld contains a subarray called instance

that provides the list of the DICOM instances of the

parent series, in which the uid subﬁeld indicates the

SOP Instance UID DICOM tag of the individual in-

stances. This means that, contrary to DICOM studies

that are mapped as separate ImagingStudy resources,

FHIR does not encode DICOM series and DICOM in-

stances as standalone resources: The series/instance

information can only be retrieved by accessing their

parent study.

Previous work about the ImagingStudy resource

has consisted in providing static databases as peda-

gogical resources to learn FHIR for medical imag-

ing (Hussain et al., 2018), in deploying a multi-site in-

frastructure dedicated to pediatric scoliosis (Shi et al.,

2021), in collecting radiation dose information (Bo-

ufahja et al., 2021), and in implementing complex

clinical imaging workﬂows (Tang et al., 2023). How-

ever, to the best of our knowledge, no free and open-

source PACS server can currently act as a standalone

FHIR server that transparently, automatically pub-

lishes its DICOM resources using DICOMweb.

2.3 HAPI Framework

The most complete implementation of the FHIR stan-

dard is HAPI (Ayaz et al., 2021). HAPI is free

and open-source software that is licensed under the

Apache Software License 2.0 and that is written in the

Java programming language

. HAPI closely follows

the release cycle of the FHIR standard. It can be used

as a building block to design both FHIR clients and

FHIR servers. Importantly, HAPI comes with support

for the ImagingStudy resource that is needed to im-

plement medical imaging in FHIR.

The HAPI framework proposes two approaches

for designing FHIR servers. On the one hand, the

“HAPI JPA Server” is a fully standalone applica-

tion that incorporates the Java Persistence API (JPA)

to store and retrieve FHIR resources in a relational

database such as PostgreSQL. On the other hand,

the HAPI project also provides the so-called “HAPI

Plain Server” as a software library that can be used to

create custom FHIR endpoints against arbitrary data

sources. This paper will focus on the combination of

the HAPI framework with a PACS server to provide a

tight integration between FHIR and DICOM.

The homepage of the HAPI project is available at:

http://hapifhir.io/.

2.4 Orthanc Server

In the context of medical imaging, multiple free and

open-source DICOM servers are available, such as

dcm4chee (Warnock et al., 2007) and Dicoogle (Costa

et al., 2010). This work is focused on the Orthanc DI-

COM server, which is licensed under the GPLv3 li-

cense and is developed in the C++ language (Jodogne,

2018). Besides its DICOM primitives, Orthanc comes

with a REST API that can be used to script imag-

ing workﬂows, which is widely used to set up auto-

routing between local DICOM servers or between re-

mote sites. This REST API can notably be used to re-

trieve the content of individual DICOM resources and

to search the content of the DICOM database, which

will be used in this work. Orthanc has the advantage

of being lightweight and extensible: Multiple Orthanc

servers can run on one single computer at low cost,

without necessitating any complex conﬁguration, and

the core features of Orthanc can be extended through

plugins that take the form of shared libraries.

Importantly, the fact that Orthanc plugins can ex-

tend the REST API of Orthanc has already been used

to integrate Web viewers such as OHIF (Ziegler et al.,

2020) and VolView (Xu et al., 2022), as well as to

provide an implementation of the DICOMweb stan-

dard. In this work, the extensibility of Orthanc will be

exploited to seamlessly combine it with HAPI, while

providing an architecture that is as easy to deploy

as possible on any computer by leveraging the small

footprint of Orthanc.

3 METHODS

In this section, a software architecture that integrates

Orthanc with HAPI is designed. This architecture is

based on the plugin system of Orthanc.

3.1 High-Level Architecture

Figure 3 depicts three possible high-level architec-

tures to combine HAPI with Orthanc. The ﬁrst ar-

chitecture consists in executing the HAPI JPA Server

next to the Orthanc server, in two separate processes.

In this architecture, a third process is used to en-

sure the continuous synchronization between HAPI

and Orthanc. To this end, the synchronization pro-

cess monitors the addition and removal of DICOM

resources using the REST API of Orthanc, and repli-

cates the detected modiﬁcations in the HAPI JPA

Server. In this architecture, the FHIR and DICOM

databases are kept separate, which results in a sub-

stantial risk of de-synchronization between the two

HEALTHINF 2024 - 17th International Conference on Health Informatics

126

(a)

(b)

(c)

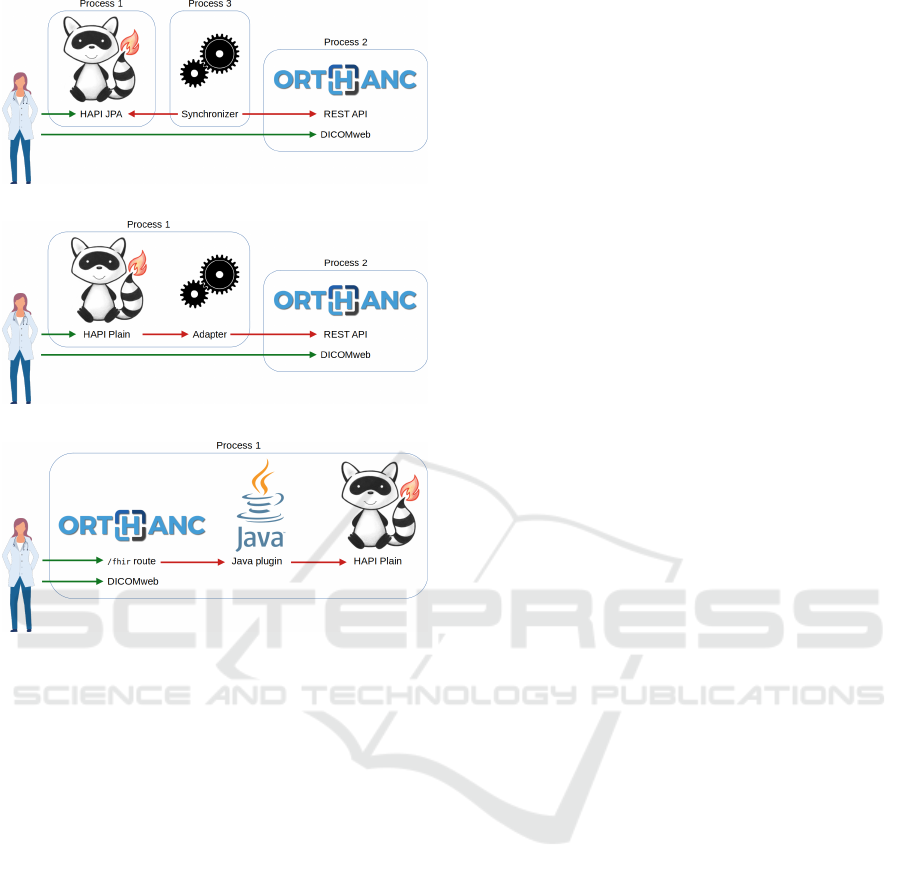

Figure 3: Three possible architectures to integrate the Or-

thanc server with the HAPI framework: (a) continuous syn-

chronization between Orthanc and HAPI JPA Server, (b)

custom HAPI Plain Server with a data source corresponding

to Orthanc, or (c) branching HAPI Plain Server as a plugin

to Orthanc.

servers, and which requires a speciﬁc infrastructure

dedicated to the execution of HAPI JPA Server.

The second possible architecture consists in re-

placing HAPI JPA Server by HAPI Plain Server. In

this architecture, a custom HAPI Plain Server is de-

ployed in a standalone Java servlet container and acts

as a facade in front of the Orthanc server. This facade

is responsible for generating the ImagingStudy and

Patient FHIR resources after querying the REST

API of Orthanc. This solution has the great advan-

tage of using a single database that is shared by the

FHIR and DICOM servers. However, this architec-

ture implies the deployment of two distinct processes

and two distinct Web servers (one for the servlet con-

tainer, and one for Orthanc), which keeps the setup

slightly complex, especially when it comes to the

mapping of the DICOMweb API.

Therefore, this work is focused on a third architec-

ture, in which HAPI Plain Server is directly branched

behind the Web server of Orthanc. In this architec-

ture, Orthanc acts similarly to a servlet container, by

redirecting all the FHIR requests to the HAPI frame-

work. This architecture has the advantage of necessi-

tating not only one single database, but also one sin-

gle process (which facilitates the setup for newcom-

ers), as well as of providing uniform access to FHIR

resources and to DICOMweb routes.

3.2 Java Plugins

The difﬁculty with the third architecture that was se-

lected in Section 3.1 is that the Orthanc server is de-

veloped in C++, which necessitates Orthanc plugins

to be written in C or C++. This contrasts with the

HAPI framework that is written in Java. To provide

compatibility between Orthanc and HAPI, a frame-

work to create Orthanc plugins in Java has been de-

signed by leveraging the JNI (Java Native Interface).

More precisely, a native C++ plugin for Orthanc

has been created that starts a Java virtual machine

from within Orthanc using JNI. This native plugin

ﬁrst loads the main Java class that is speciﬁed in the

conﬁguration ﬁle of Orthanc, which gives the oppor-

tunity to this main Java class to register Java handlers

in order to react to the various events that are pro-

cessed by Orthanc. In particular, the main Java class

can install handlers to answer HTTP requests that are

received by the Web server of Orthanc. The native

C++ plugin maintains the list of the registered Java

handlers and invokes these handlers once the corre-

sponding callback is triggered by Orthanc.

Besides the support of callbacks to react to events,

the Orthanc plugin SDK (Software Development Kit)

proposes a large library of C functions that can be

used to invoke the primitives implemented by the Or-

thanc core. In particular, the Orthanc plugin SDK

gives the possibility to make internal calls to the

REST API of Orthanc, which can be used to achieve

a wide variety of operations. The Java handlers need

to use this library of C functions.

To this end, two Python scripts have been im-

plemented to automatically wrap the Orthanc plugin

SDK as a collection of Java classes and methods. The

ﬁrst Python script ﬁrst analyzes the content of the

OrthancCPlugin.h C header ﬁle that deﬁnes the Or-

thanc plugin SDK, then creates a code model that is

saved in the JSON ﬁle format. This script automat-

ically discovers the classes that are managed by the

Orthanc core and that are accessible through the SDK

(such as DICOM instances, images, or responses to

REST requests). The resulting code model also in-

cludes the documentation. This analysis is achieved

using the libclang library that is part of the LLVM

project (Lattner and Adve, 2004).

Setting a PACS on FHIR

127

Once the code model is extracted, a second Python

script generates the Java classes that act as wrap-

pers around the native C objects (including the calls

to their destructors), as well as a speciﬁc Java class

named Functions that contains the wrappers around

the global C functions that do not correspond to ob-

jects. A Javadoc-compliant documentation is gener-

ated as well. This second script also generates a C++

ﬁle whose goal consists in associating the Java native

methods with their concrete implementation provided

by the Orthanc plugin SDK through JNI.

Thanks to this automated mechanism, 122 func-

tions from the Orthanc plugin SDK are automati-

cally wrapped in Java out of a total of 160 primi-

tives available in Orthanc 1.10.0, without any human

intervention, which would have been highly time-

consuming and error prone. This represents a cov-

erage of about 76%. The primitives that are not auto-

matically wrapped mostly correspond to the handling

of callbacks, which must be manually implemented.

Note that the extracted code model could be used to

wrap the Orthanc plugin SDK in languages other than

Java.

3.3 Integrating HAPI

The native plugin presented in Section 3.2 enables the

use of the HAPI framework inside Orthanc. Nonethe-

less, HAPI Plain Server is based on Java servlets that

are not directly compatible with the primitives offered

by the Orthanc plugin SDK. The solution to this is-

sue consists in using the MockHttpServletRequest

and MockHttpServletResponse classes that are pro-

vided by the Spring Framework. These two standard

classes can be used to turn the Web server of Or-

thanc into a servlet container: Whenever a HTTP re-

quest must be handled by a Java plugin, an instance

of the MockHttpServletRequest class is ﬁlled with

the parameters of the HTTP request and is sent to

the Java servlet. In turn, the Java servlet ﬁlls a

MockHttpServletResponse whose content can be

unwrapped and sent to the client through the Orthanc

Web server. In the context of the FHIR plugin for

Orthanc, the HAPI Plain Server servlet is by default

branched at the root path /fhir/ in the REST API of

Orthanc.

The last step to integrate HAPI within Orthanc

consists in implementing read-only providers that are

responsible to retrieve and search the ImagingStudy,

Patient, and Endpoint FHIR resources. To this

end, the FHIR plugin for Orthanc implements the

IResourceProvider interface provided by HAPI for

each of those resources. The Endpoint resource sim-

ply declares the address of the DICOMweb plugin,

which is a purely static behavior that does not require

querying the content of the Orthanc database.

As far as the ImagingStudy (resp. Patient) re-

sources are concerned, the content of an individual

DICOM study (resp. DICOM patient) with identiﬁer

id can be retrieved by GET-ing the /studies/{id}

(resp. /patients/{id}) route of the built-in REST

API of Orthanc. This route returns a JSON ob-

ject whose content can easily be converted as an

ImagingStudy (resp. Patient) Java object that is

expected by the HAPI framework.

To implement searching over the ImagingStudy

and Patient FHIR resources, the FHIR plugin for

Orthanc issues POST requests to the /tools/find

route of the built-in REST API of Orthanc. This route

implements a lookup in the Orthanc database, which

can be constrained by specifying values for selected

DICOM tags. These constraints can directly be de-

rived from the parameters of the FHIR query. The

route answers with a JSON array that contains the

matching resources, which can easily be converted

into the List<ImagingStudy> and List<Patient>

Java objects that are expected by the HAPI frame-

work.

4 RESULTS

Section 3 explained how HAPI can be started as a

plugin to Orthanc, which provides a working imple-

mentation of a FHIR server for medical imaging that

is tightly integrated with a PACS. As a byproduct of

this research, Orthanc plugins can now be developed

in the Java programming language. An example of a

Java plugin and an interaction with the FHIR server

plugin for Orthanc are now discussed.

4.1 Using dcm4che in Orthanc

The dcm4chee server was previously mentioned as

a free and open-source implementation of a PACS.

The dcm4chee server is built on the top of dcm4che,

a highly popular software library that provides an

advanced implementation of the DICOM standard

in Java. This contrasts with Orthanc that uses the

DCMTK library written in C++. Consequently, the

new Java plugin for Orthanc can be used to comple-

ment DCMTK with dcm4che, which allows to beneﬁt

from the respective strengths of these two software

libraries inside the Orthanc ecosystem. Depending

on his or her background, a software developer might

also ﬁnd it easier to develop a plugin in Java than in

C++.

As an illustration, Figure 4 shows a sample Java

HEALTHINF 2024 - 17th International Conference on Health Informatics

128

import org . dc m 4 c h e 3 . dat a . A ttr i b u t e s ;

import org . dc m 4 c h e 3 . io . D i c o mI n p u tS t r e am ;

public cl a s s Main {

static {

Call b a c k s . r e g i s t e r ( " / d c m4ch e - parse " , n ew Callba c k s . O n R e s tRe q u e st ( ) {

@Ove r r i d e

public vo id ca l l ( R e stO u t p u t outp ut ,

Htt p M e t h od metho d ,

String uri ,

String [] re gul a r E x pre s s i o nGr o u p s ,

Map < S trin g , St r ing > h e ader s ,

Map < S trin g , St r ing > ge t P a r a m e t e r s ,

byt e [] bo d y ) {

if ( m e t h o d != Ht t p M e t hod . POST ) {

output . s e nd M e t ho d N o tA l l ow e d ( " POST ") ; // Answer with HT T P status 405

} else {

By t e A rr a y In p u t St r e am stream = n ew By t e A rr a y I np u t St r e a m ( body );

tr y ( Di c o m In p u t St r e a m din = new Dico m I npu t S t re a m ( stream ) ) {

Att r i b u t es dataset = d in . r e a d Dat a s e t () ;

output . a n s w erB u f f er ( d a t a s e t . to S t r i n g () . g etByte s () , " t e x t / p l a i n " ) ;

} catch ( I O Exc e p t i on e ) {

output . s e n dHt t p S ta t u s (( s h ort ) 40 0 , " C a n n o t parse DI C O M file \ n " . get B y t e s () ) ;

}

}) ;

}

Figure 4: Example of a Java plugin for Orthanc that uses dcm4che.

plugin that uses the dcm4che library. The conﬁg-

uration ﬁle of Orthanc must specify both the class-

path for the Java virtual machine (which must con-

tain the .jar ﬁles providing dcm4che and the byte-

code of Main.class), and the name of the main Java

class whose static method will be executed during

the initialization of the plugin. In this sample Main

plugin, the static method registers a new route in

the REST API of Orthanc using the static method

Callbacks.register() that is implemented by the

Java SDK of Orthanc. Whenever a HTTP request

is received by Orthanc against the /dcm4che-parse

route in its REST API, the Java plugin is invoked.

Inside the Java plugin, the body of incoming HTTP

POST requests is parsed as a DICOM instance using

dcm4che. On success, the client receives the dump

of the DICOM dataset, as generated by dcm4che. In

a sense, such a Java plugin can be considered as a

servlet that extends the REST API of Orthanc.

4.2 FHIR Server in Orthanc

Starting the FHIR server plugin for Orthanc simply

consists in writing a conﬁguration ﬁle that loads the

.jar containing both the HAPI framework and the

Java plugin implementing the FHIR server. A single

precompiled .jar ﬁle that packages all the required

dependencies is freely available for download on the

Orthanc ofﬁcial homepage. This package is generated

by Maven and its maven-assembly-plugin plugin.

As soon as Orthanc is running, its FHIR server is ac-

cessible at default URL: http://localhost:8042/fhir/.

The FHIR clients can access the content of Orthanc

using this URL. The Endpoint resource of the FHIR

server is automatically mapped to the route of the DI-

COMweb server of Orthanc, whose default location

corresponds to: http://localhost:8042/dicom-web/stu

dies. This means that only one single Web server is

running at any time, with this Web server being shared

by the REST API of Orthanc, by the DICOMweb end-

point, and by HAPI Plain Server.

As an illustration, Figure 5 shows an interactive

session between the FHIRPACK client

and the FHIR

server plugin for Orthanc. Importantly, the reported

FHIR resources (Patient and ImagingStudy) are

generated on-the-ﬂy using HAPI Plain Server, di-

rectly from the DICOM resources that are stored by

Orthanc: No separate database dedicated to FHIR

The homepage of the FHIRPACK project is available

at: https://github.com/fhirpack/fhirpack

Setting a PACS on FHIR

129

$ fp -s http://localhost:8042/fhir -o "getPatients" -p all -o "gatherSimplePaths id name.family birthDate"

0 fYET5.0 [COMUNIX] 1941-09-01

1 5Yp0E [BRAINIX] 1949-03-01

2 Vafk,T,6 [PHENIX] 1991-01-01

3 SOtNwu [INCISIX] None

4 ozp00SjY2xG [KNIX] None

5 vAD7q3 [VIX] None

$ fp -s http://localhost:8042/fhir -o "getImagingStudies" -p all -o \

"gatherSimplePaths identifier.value subject.reference description numberOfSeries numberOfInstances"

identifier.value subject.reference description numberOfSeries numberOfInstances

0 [urn:oid:2.16.840.1.113669.632.20.1211.1000031... Patient/vAD7q3 Pied_cheville_UHR (Adulte) 1 250

1 [urn:oid:2.16.840.1.113669.632.20.1211.1000035... Patient/5Yp0E IRM cérébrale, neuro-crâne 7 232

2 [urn:oid:2.16.840.1.113669.632.20.1211.1000009... Patient/Vafk,T,6 CT2 tête, face, sinus 3 723

3 [urn:oid:1.2.840.113745.101000.1008000.38048.4... Patient/fYET5.0 Neck^1HEAD_NECK_PETCT 2 166

4 [urn:oid:1.2.840.113619.2.176.2025.1499492.739... Patient/ozp00SjY2xG Knee (R) 6 135

5 [urn:oid:2.16.840.1.113669.632.20.1211.1000023... Patient/SOtNwu Tête^Dental (Adulte) 1 166

Figure 5: Sample interactive session of the FHIRPACK client against an Orthanc server that contains sample DICOM studies

provided by the OsiriX project (Rosset et al., 2004). The ﬁrst request lists the Patient FHIR resources, while the second lists

the ImagingStudy FHIR resources.

resources is used, all the information is extracted

from the Orthanc database. This ensures that the DI-

COMweb and the FHIR views of the content of the

Orthanc server are always perfectly synchronized.

4.3 Software Availability

These new contributions are released as free and

open-source software under the GPLv3 license, which

corresponds to the license of the Orthanc server. The

software associated with this research contains more

than 14,000 lines of code, as reported by the cloc

command-line tool, which is an indication of its com-

plexity. The source code of both the Java plugin and

the FHIR server for Orthanc is available at: https:

//orthanc.uclouvain.be/hg/orthanc-java/. The ofﬁcial

download site of Orthanc provides precompiled bina-

ries and installers for the Java plugin and for the FHIR

server. Full technical documentation is available in-

side the Orthanc Book, the ofﬁcial documentation of

the Orthanc project.

5 CONCLUSIONS

This paper proposes a free and open-source frame-

work to run a FHIR server for medical imaging along-

side a DICOM server. This is achieved by combining

the Orthanc server with HAPI Plain Server through

a Java plugin for Orthanc. Both the FHIR resources

and the DICOMweb API are served through the Web

server of Orthanc, using one single process, which

simpliﬁes the deployment and provides a robust envi-

ronment. Furthermore, the internal architecture of the

solution guarantees that FHIR and DICOM resources

are synchronized at any time. Thanks to the lightness

of Orthanc, the application can easily be executed on

any computer equipped with a Java virtual machine.

As a byproduct, it is also shown how Java can be used

to create plugins that extend the core features of Or-

thanc.

The resulting software is hopefully a suitable can-

didate to promote the ImagingStudy FHIR resource

and hence to raise its maturity level. Even though

ImagingStudy is already supported by other open-

source implementations of FHIR, most notably HAPI,

these implementations are not tightly coupled with the

content of a DICOMweb server. Consequently, our

contributions could serve as a test bed for software en-

gineers to develop new, innovative, and interoperable

solutions for medical imaging. It could also be used as

a pedagogical platform to teach the principles of mod-

ern health interoperability. The main limitation of

the designed software is that it currently only imple-

ments the ImagingStudy, Patient, and Endpoint

resources: It would especially be interesting to cre-

ate a bridge between FHIR and DICOM worklists us-

ing the Task and ServiceRequest resources. Future

work will also expand the FHIR support in Orthanc

with a focus on artiﬁcial intelligence and will take ad-

vantage of FHIR in the context of medical research

combining clinical, imaging, and multi-omics data.

REFERENCES

Ayaz, M., Pasha, M. F., Alzahrani, M. Y., Budiarto, R., and

Stiawan, D. (2021). The fast health interoperability re-

sources (FHIR) standard: Systematic literature review

of implementations, applications, challenges and op-

portunities. JMIR Medical Informatics, 9(7):e21929.

Bender, D. and Sartipi, K. (2013). HL7 FHIR: An agile

and RESTful approach to healthcare information ex-

HEALTHINF 2024 - 17th International Conference on Health Informatics

130

change. In Proceedings of the 26th IEEE Interna-

tional Symposium on Computer-Based Medical Sys-

tems. IEEE.

Benson, T. and Grieve, G. (2021). Principles of Health In-

teroperability. Springer International Publishing.

Boufahja, A., Nichols, S., and Pangon, V. (2021). Custom

FHIR resources deﬁnition of detailed radiation infor-

mation for dose management systems. In Pesquita,

C., Fred, A. L. N., and Gamboa, H., editors, Pro-

ceedings of the 14th International Joint Conference

on Biomedical Engineering Systems and Technolo-

gies, BIOSTEC 2021, Volume 5: HEALTHINF, On-

line Streaming, February 11-13, 2021, pages 467–

474. SCITEPRESS.

Costa, C., Ferreira, C., Bastião, L., Ribeiro, L., Silva,

A., and Oliveira, J. L. (2010). Dicoogle: An open-

source peer-to-peer PACS. Journal of Digital Imag-

ing, 24(5):848–856.

Hussain, M. A., Langer, S. G., and Kohli, M. (2018). Learn-

ing HL7 FHIR using the HAPI FHIR server and its use

in medical imaging with the SIIM dataset. Journal of

Digital Imaging, 31(3):334–340.

Jodogne, S. (2018). The Orthanc ecosystem for medical

imaging. Journal of Digital Imaging, 31(3):341–352.

Lattner, C. and Adve, V. (2004). LLVM: A compilation

framework for lifelong program analysis & transfor-

mation. In Proceedings of the 2004 International

Symposium on Code Generation and Optimization

(CGO’04), Palo Alto, California.

NEMA (2023). National Electrical Manufacturers Associ-

ation PS3 / ISO 12052, Digital Imaging and Commu-

nications in Medicine (DICOM) standard.

http://www.dicomstandard.org/.

Rosset, A., Spadola, L., and Ratib, O. (2004). OsiriX: An

open-source software for navigating in multidimen-

sional DICOM images. Journal of Digital Imaging,

17(3):205–216.

Shi, W., Giuste, F. O., Zhu, Y., Carpenter, A. M., Iwin-

ski, H. J., Hilton, C., Wattenbarger, J. M., and Wang,

M. D. (2021). A fhir-compliant application for multi-

site and multi-modality pediatric scoliosis patient re-

habilitation. In Huang, Y., Kurgan, L. A., Luo, F.,

Hu, X., Chen, Y., Dougherty, E. R., Kloczkowski, A.,

and Li, Y., editors, IEEE International Conference on

Bioinformatics and Biomedicine, BIBM 2021, Hous-

ton, TX, USA, December 9-12, 2021, pages 1524–

1527. IEEE.

Tang, S.-T., Tjia, V., Noga, T., Febri, J., Lien, C.-Y., Chu,

W.-C., Chen, C.-Y., and Hsiao, C.-H. (2023). Cre-

ating a medical imaging workﬂow based on FHIR,

DICOMweb, and SVG. Journal of Digital Imaging,

36(3):794–803.

Warnock, M., Toland, C., Evans, D., Wallace, B., and Nagy,

P. (2007). Beneﬁts of using the DCM4CHE DICOM

archive. Journal of Digital Imaging, 20(S1):125–129.

Xu, J., Thevenon, G., Chabat, T., McCormick, M., Li,

F., Birdsong, T., Martin, K., Lee, Y., and Aylward,

S. (2022). Interactive, in-browser cinematic volume

rendering of medical images. Computer Methods in

Biomechanics and Biomedical Engineering: Imaging

& Visualization, 11(4):1019–1026.

Ziegler, E., Urban, T., Brown, D., Petts, J., Pieper, S. D.,

Lewis, R., Hafey, C., and Harris, G. J. (2020). Open

health imaging foundation viewer: An extensible

open-source framework for building web-based imag-

ing applications to support cancer research. JCO Clin-

ical Cancer Informatics, (4):336–345.

Setting a PACS on FHIR

131
