Learning from the Dark Side About How (not) to Engineer Privacy:

Analysis of Dark Patterns Taxonomies from an ISO 29100 Perspective

Philippe Valoggia

1 a

, Anastasia Sergeeva

2 b

, Arianna Rossi

3 c

and Marietjie Botes

4 d

ITIS, Luxembourg Institute of Science and Technology, Esch-sur-Alzette, Luxembourg

DBCS, University of Luxembourg, Esch-sur-Alzette, Luxembourg

LIDER Lab, Sant’Anna School of Advanced Studies, Pisa, Italy

University of KwaZulu Natal, South Africa

Keywords:

Privacy Principles, Dark Patterns, Privacy Engineering, ISO/IEC 29100:2011.

Abstract:

The privacy engineering literature proposes requirements for the design of technologies but gives little guid-

ance on how to correctly fulﬁl them in practice. On the other hand, a growing number of taxonomies document

examples of how to circumvent privacy requirements via ”dark patterns,” i.e., manipulative privacy-invasive

interface designs. To improve the actionability of the knowledge about dark patterns for the privacy engineer-

ing community, we matched a selection of existing dark patterns classiﬁcations with the ISO/IEC 29100:2011

standard on Privacy Principles by performing an iterative expert analysis, which resulted in clusters of dark

patterns that potentially violate the ISO privacy engineering requirements. Our results can be used to develop

practical guidelines for the implementation of technology designs that comply with the ISO Privacy Principles.

1 INTRODUCTION

Privacy-by-design is increasingly recognized as the

standard approach in ICT system engineering. Still,

developers face challenges when they translate high-

level privacy requirements into speciﬁc implemen-

tation solutions at a ﬁne-grained level (Huth and

Matthes, 2019) in software applications. These pri-

vacy requirements must be reﬁned to a granular level

that corresponds to the systems’ functionalities and

that can, at the same time, be easily matched with

the legal requirements that must be respected in the

design of technologies that process personal informa-

tion (Sangaroonsilp et al., 2023). There is a recog-

nized need for a uniﬁed privacy requirements imple-

mentation procedure that is able to translate legal pro-

visions, such as those of the General Data Protection

Regulation, and international standards, such as the

ISO/IEC 29100:2011 Privacy framework (ISO/IEC

29100:2011, 2011), into practical applications (San-

garoonsilp et al., 2023; Anthonysamy et al., 2017;

Martin and Kung, 2018). To address this gap, mul-

tiple privacy implementation frameworks have been

developed (e.g.,(Mead and Stehney, 2005; Deng et al.,

https://orcid.org/0000-0002-4294-0848

https://orcid.org/0000-0003-3701-3123

https://orcid.org/0000-0002-4199-5898

https://orcid.org/0000-0002-6613-6977

2011)); however, most of them currently offer broad

guidelines without sufﬁcient practical examples of

effective practices, thereby leaving developers un-

sure on whether their design choices are in con-

formity with standards and in compliance with ap-

plicable regulations. Simultaneously, various tax-

onomies of design practices have emerged that can

be regarded as counterexamples of privacy-enhancing

practices, also known as dark patterns or deceptive de-

sign patterns. These taxonomies collect and describe

privacy-invasive interface design solutions that intu-

itively contradict well-established privacy standards.

However, a direct link between the two has never been

established.

Dark patterns in user interfaces can be considered

one of the main obstacles to the ethical design of tech-

nologies that respect user preferences and interests

and that uphold consumer rights and data protection

rights. In general, they can be described as manip-

ulative design instances created to ignore the user’s

best interests in favor of the interests of the business

employing them, such as revenue. Academic schol-

ars, practitioners, and supervisory authorities have de-

veloped multiple taxonomies of dark patterns to ac-

count for such phenomenon (e.g.(Gray et al., 2018;

osch et al., 2016; Jarovsky, 2022; Conti and So-

biesk, 2010; Zagal et al., 2013). Still, no consensus

exists about their exact deﬁnition and systematization,

774

Valoggia, P., Sergeeva, A., Rossi, A. and Botes, M.

Learning from the Dark Side About How (not) to Engineer Privacy: Analysis of Dark Patterns Taxonomies from an ISO 29100 Perspective.

DOI: 10.5220/0012393100003648

Paper published under CC license (CC BY)

In Proceedings of the 10th International Conference on Information Systems Security and Privacy (ICISSP 2024), pages 774-784

ISBN: 978-989-758-683-5; ISSN: 2184-4356

even though recent attempts have tried to unify the

existing knowledge to create a common, reliable, in-

teroperable vocabulary (Gray et al., 2023b). In the

present article, we analyze a selection of the current

taxonomies of dark patterns by matching them with

the privacy principles deﬁned in ISO 29100 (ISO/IEC

29100:2011, 2011). Namely, we leveraged the diver-

siﬁed expertise of a focus group to group such dark

patterns based on the ISO privacy principle(s) they

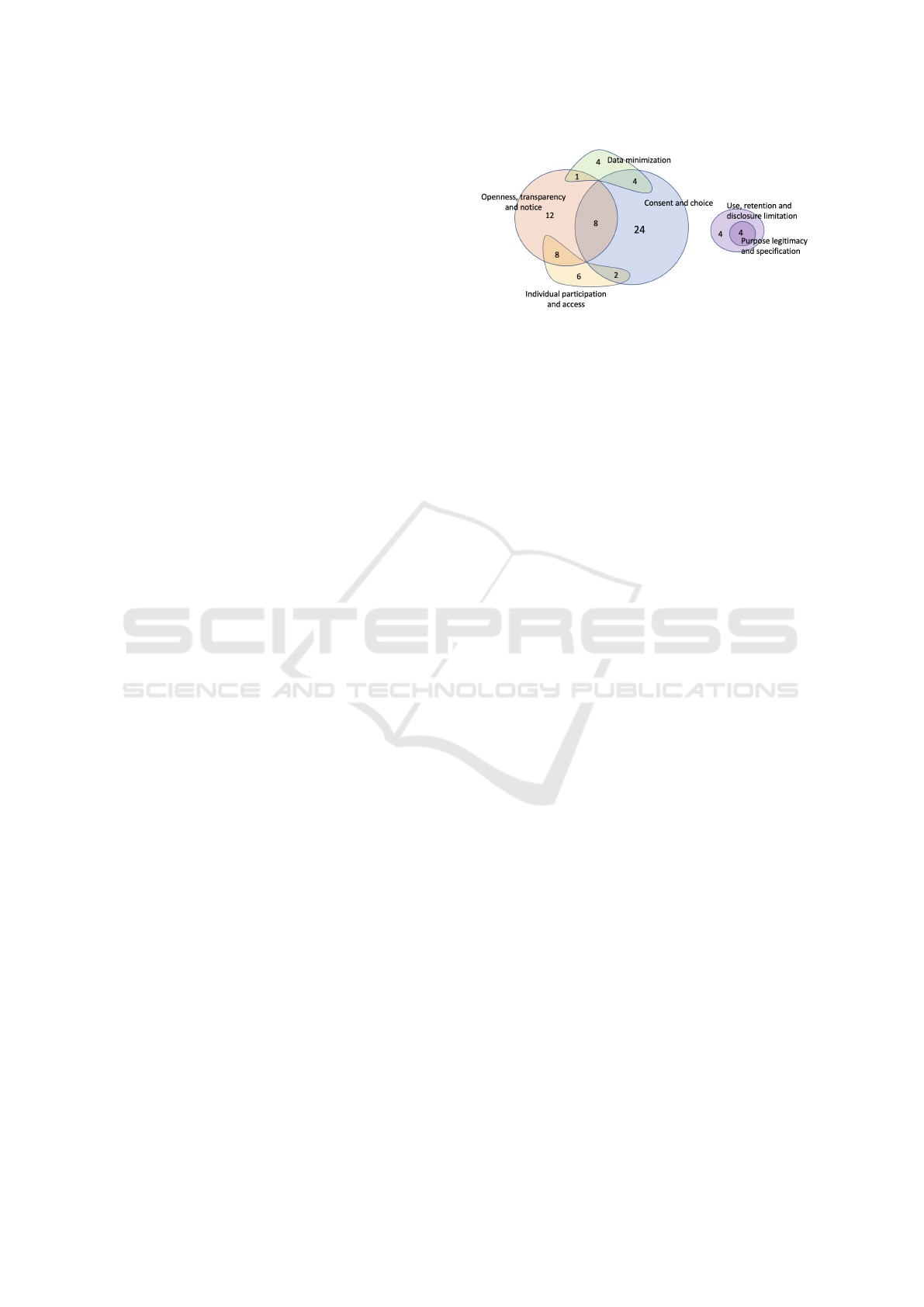

are likely to violate. We found that dark patterns are

likely to violate, in order of frequency, the following

privacy principles: ”Consent and choice,” ”Openness,

transparency and notice,” ”Data minimization,” ”Use,

retention and disclosure limitation,” and ”Purpose le-

gitimacy and speciﬁcation”. Our discussion focuses

on how our ﬁndings can be transformed into ac-

tionable recommendations for privacy engineers and

product developers, that can be useful also for audi-

tors and certiﬁcation bodies that perform conformity

checks.

2 RELATED WORK

2.1 The ISO/IEC 29100 Privacy

Framework

Among the various existing ISO standards related

to privacy and personal data, ISO/IEC 29100:2011

is the privacy framework that provides guidance

for handling personal information in Information

and Communication Technology systems (ISO/IEC

29100:2011, 2011) by establishing a set of pri-

vacy principles that govern various activities re-

lated to the processing of personal data, such as

their collection, storage, use, transfer, and dis-

posal. Translating legal obligations and standards

into speciﬁc privacy requirements for software sys-

tems is a well-recognized challenge for software en-

gineers(Sangaroonsilp et al., 2023). Organizations

currently adhere to two sources of regulation: legal

frameworks and standards (Antignac et al., 2016).

The ﬁrst ones are determined by lawmakers and dif-

fer across countries of jurisdiction, while the latter are

established by the industry through consensus proce-

dures and incorporate widely accepted best practices

across national boundaries. Compared to the legal

frameworks, industrial standards offer two advantages

in the analysis of the privacy aspects of a system de-

sign: they align closely with industry perspectives,

rather than policymakers’, and are not dependent on

the legislation of different countries (Antignac et al.,

2016).

Therefore, we have decided to consider the

eleven privacy principles outlined in the ISO/IEC

29100:2011 standard: ”Consent and choice,” ”Pur-

pose legitimacy and speciﬁcation,” ”Collection

limitation,” ”Data minimization,” ”Use, retention,

and disclosure limitation,” ”Accuracy and quality,”

”Openness, transparency, and notice,” ”Individual

participation and access,” ”Accountability,” ”Infor-

mation security,” ”Privacy compliance.” Each princi-

ple is decomposed into a ﬁxed and mandatory set of

goals (i.e., the privacy requirements).

2.2 Dark Patterns Taxonomies

Dark patterns can be used for various purposes on on-

line services, such as to make consumers spend more

money or share more personal data than necessary,

beneﬁting businesses that employ them. Dark pat-

terns have become a growing concern over the last ten

years because they can harm users in various man-

ners, particularly those less experienced with tech-

nology (Goodstein, 2021; Gray et al., 2018; Luguri

and Strahilevitz, 2021; Chamorro et al., 2022). To

address the problem, scholars have proposed various

methods to mitigate and eliminate the effects of dark

patterns (Rossi and Bongard-Blanchy, 2021). Some

approaches address the ”human side” of dark patterns,

focusing on raising awareness in users and designers

about the harmful effects of dark patterns use (Rossi

and Bongard-Blanchy, 2021; Fansher et al., 2018;

Bongard-Blanchy et al., 2021) and offer alternative

”fair patterns” or ”bright” patterns (e.g (Graßl et al.,

2021)). Other approaches are geared toward the engi-

neering community and aim to develop applications

that detect and ﬂag dark patterns in user interfaces

(Kollnig et al., 2021; Curley et al., 2021; Mathur

et al., 2019; Hasan Mansur et al., 2023). How-

ever, both approaches require a well-established and

feature-based classiﬁcation of dark patterns. Several

different researchers and organizations have proposed

their own taxonomies for dark patterns (e.g.(Gray

et al., 2018; Mathur et al., 2021; B

osch et al., 2016;

Zagal et al., 2013; Greenberg et al., 2014; NCC, 2018;

CNIL, 2019; EDPB, 2022)); Some taxonomies focus

on the high-level intention behind dark pattern de-

signs or their overarching attributes that distinguish

them from legitimate design patterns (Gray et al.,

2018; Mathur et al., 2021), while others focus on

speciﬁc tactics or techniques that are employed(Conti

and Sobiesk, 2010; B

osch et al., 2016). Some pat-

tern catalogues are domain-speciﬁc, such as those for

online shopping(Mathur et al., 2019) or video gam-

ing (Zagal et al., 2013); it is also possible to create a

taxonomy for a speciﬁc type of interface (Di Geron-

imo et al., 2020). Often, different terms are used to

Learning from the Dark Side About How (not) to Engineer Privacy: Analysis of Dark Patterns Taxonomies from an ISO 29100 Perspective

775

designate the same deceptive design pattern. More-

over, some practices could be discussed within the le-

gal framework of consumer protection, while others

are rather related to data protection (EDPB, 2022).

As a result of this divergent phase of classiﬁcation,

the interdisciplinary community experiences confu-

sion and disagreement about what constitutes a dark

pattern and how it should be classiﬁed. Recent ef-

forts are made to establish a standard set of categories

and deﬁnitions (Gray et al., 2023b; Gray et al., 2023a;

Gray et al., 2023c); however, this is still an ongoing

process with continuous evolution.

Dark patterns are a threat to users’ privacy (Gu-

nawan et al., 2022) since they can, for example, ma-

nipulate users into agreeing to privacy terms that are

not in their best interests (B

osch et al., 2016) or

nudge them to share more personal data than intended

(Jarovsky, 2022). The various data privacy implica-

tions of dark patterns have been discussed both in the

user experience (Gray et al., 2018; Habib et al., 2019)

and legal(Matte et al., 2020; Santos et al., 2021; Gray

et al., 2021; Jarovsky, 2022; Martini et al., 2022; Gu-

nawan et al., 2022; EDPB, 2022) domains, resulting

in a series of legislative and recommendation initia-

tives(Voigt and Von dem Bussche, 2017; CNIL, 2019;

CPRA, 2020; EDPB, 2022). In the present paper, we

go beyond the state of the art by deliberately focus-

ing on the privacy risks created by implementing dark

patterns in ICT systems by recurring to the ISO/IEC

29100 Privacy Principles framework.

3 RATIONALE AND RESEARCH

QUESTION

Except for (B

osch et al., 2016; Jarovsky, 2022; CNIL,

2019; EDPB, 2022; Kitkowska, 2023), most existing

taxonomies do not focus solely on privacy-invasive

deceptive design patterns that may violate data pro-

tection obligations. They rather have a broader scope

and usually include only a few examples of categories

threatening users’ privacy. Hence, they do not con-

stitute off-the-shelf solutions for privacy-focused sys-

tematic evaluations of ICT systems.

Moreover, the existing taxonomies seem to fo-

cus on infringements of the General Data Protec-

tion Regulation (GDPR)’s data protection require-

ments, which inherently constrains their applicability

primarily to the European Union’s context. In con-

trast, international organizations often operate within

a framework of multiple standards and guidelines.

For those already compliant with global benchmarks

like ISO/IEC 27001 for information security manage-

ment, there is an inherent ease in integrating ISO/IEC

29100 principles, given the synergy between their

structures and requirements. To address this gap and

conduct a comprehensive analysis of current dark pat-

tern categories and examples concerning potential pri-

vacy violations, we have sought to answer the follow-

ing research question: Which of the privacy prin-

ciples provided by the ISO 29100 International

Standard are most frequently violated by the dark

patterns presented in existing taxonomies?

4 METHODOLOGY

First, to collect dark patterns classiﬁcations from

existing literature, we scanned through the most

well-known research databases (ACM Digital Li-

brary, Google Scholar, ScienceDirect) by the key-

words ”dark patterns” and ”deceptive patterns.” We

largely based our list on the previous work in tax-

onomy’s analysis (Mathur et al., 2021) and updated

the list with taxonomies from our search. We ex-

cluded the experimental papers and focused on the

papers that addressed the problem of classifying dark

patterns. We included the non-academic publication

of Harry Brignul, presented on his website (Brignull,

2022), as this classiﬁcation is widely used within the

academic community. We also added to the analy-

sis the reports and guidelines issued by the regulatory

bodies (BEUC, 2022; CNIL, 2019; EDPB, 2022). As

some of the taxonomies were re-elaborations of exist-

ing ones and some categories were overlapping, we

merged several dark pattern deﬁnitions. We also con-

sider separately the categories and subcategories of

EDPB guidelines (EDPB, 2022). The ﬁnal body of

analysis included a list of 98 dark patterns out of 13

taxonomies. The list of taxonomies used for the anal-

ysis is presented in the APPENDIX.

Second, Authors 1 and 2 gathered a group of four

experts in data protection law and computer science

who have expertise on dark patterns (including au-

thors 3 and 4), to whom they sent the list of dark pat-

tern deﬁnitions and a short presentation containing the

ISO 29100 privacy principles. The experts were asked

to identify if the ﬁrst 25 dark patterns’ deﬁnitions

from the list represented a lack of conformity with the

privacy principles, with a maximum of two principles

per deﬁnition. Experts could also consider the deﬁ-

nition as not related to any privacy problem. Then,

Authors 1 and 2 leveraged their expertise in conduct-

ing focus groups and privacy engineering to organize

two 2-hour focus groups with the experts to discuss

the differences between the various experts’ attribu-

tions and reach an agreement where there was none.

This was pivotal in establishing and clarifying the cri-

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

776

teria for which deceptive pattern categories should be

assigned to certain privacy principles, which the ex-

perts then used to code the rest of the deﬁnitions.

Third, Authors 1 and 2 merged the experts’ re-

sults, proposed the ﬁnal attribution, and asked for

expert feedback. Then, they discussed the experts’

feedback about the ﬁnal classiﬁcation to ensure the

method’s robustness and to address disagreements be-

tween the experts. Overall, the experts co-developed

two main guiding strategies:

1. Law-Agnosticism. Many of the ISO 29100 pri-

vacy principles are closely related to the foundational

data protection principles enshrined by the GDPR,

although there are relevant differences. Hence, the

analysis was carried out by deliberately ignoring the

GDPR’s principles, which could have led the experts

astray, even though knowledge of the GDPR was im-

portant to reﬂect on the nuances of the ISO principles

and underline the differences between the two to ob-

tain a reliable matching.

2. Interpretation of Immediate Threats and Conse-

quences. The experts acknowledged that certain deﬁ-

nitions of dark patterns focused on the resulting effect

on users (e.g., ”Automating the user away”), whilst

others described the functioning mechanisms of the

dark pattern (e.g., ”Interruption”). The latter group

of patterns was excluded because it lacked exclusive

privacy-related consequences.

Fourth, Author 1 and 2 engaged in multiple rounds

of discussion with experts to resolve disagreements

and create a reliable classiﬁcation. The pre-ﬁnal ver-

sion of the classiﬁcation was shared with the experts.

The full cycle of expert analysis and discussion took

three months. The presented analysis was ﬁnalized in

April 2023.

5 FINDINGS

We ﬁrst provide an overview of the results of the

analysis (a graphical representation of ﬁndings is pre-

sented in Figure 1) and then provide more granular

information about each privacy principle.

The principle that is violated by most dark patterns

in our analysis (near 39% of analyzed patterns) is

”Consent and choice,” where dark patterns are likely

to violate the conditions for the validity of consent:

the ”user’s choice” must be freely given, speciﬁc,

and informed. Note that the user’s choice can have

a broader meaning than consent as one of the legal

bases under the GDPR, since it can also refer to other

kinds of data controls that users can use (e.g., app

permissions). Practices that pressure users to make a

choice or provide inadequate information about han-

Figure 1: The distribution of the analyzed dark patterns

across the various privacy principles that they are likely to

violate. Overlapping areas indicate those dark patterns that

may infringe two principles.

dling personal data based on that choice are likely

to threaten the validity of consent and choice. This

principle additionally concerns the need for ”clear,

prominent, easily understandable, accessible, and af-

fordable mechanisms to exercise choice and give con-

sent regarding the processing.” Some deceptive de-

sign patterns hide controls or offer deceptive, cum-

bersome affordances, making it hard or even impos-

sible for users to manage their privacy settings. The

second privacy principle most targeted by dark pat-

terns is ”Openness, transparency, and notice” (near

30% of all analyzed patterns). It refers to the obli-

gation to provide users with clear and easily acces-

sible information about the policies, procedures, and

practices regarding data processing to enable them to

make informed decisions. The third privacy principle

is ”Individual participation and access” (near 16% of

patterns): adhering to this principle means equipping

individuals with ”the ability to access and review”

their personal information. It is also necessary to im-

plement organizational and/or technical measures that

enable users ”to exercise these rights in a simple, fast,

and efﬁcient manner, without undue delay or cost.”

Dark patterns can hinder people from exercising their

data rights by adding unnecessary friction that raises

the costs of performing certain actions.

In this study, requirements related to the fourth

principle, “Collection limitation,” were merged with

the requirements of the “Data minimization” princi-

ple to ease their assessment (in sum near 9% of ana-

lyzed patterns). Dark patterns that pose a risk to these

principles aim to encourage users to share more per-

sonal data than necessary to achieve the processing

purpose, for example, by presenting privacy-invasive

default options.

The last two privacy principles that are likely to

be violated are “Use, retention and disclosure limita-

tion” and “Purpose legitimacy and speciﬁcation” (the

same 4% of analyzed patterns): the former concerns

those design practices that aim at collecting and re-

Learning from the Dark Side About How (not) to Engineer Privacy: Analysis of Dark Patterns Taxonomies from an ISO 29100 Perspective

777

taining personal data for longer than necessary, while

the latter is about adequately selecting and communi-

cating the purpose of processing. The analysis also

showed that nearly 32% of the dark patterns under

examination do not pose any direct risk to privacy.

Among those that do, at ﬁrst sight, none seems to

show non-conformity with the privacy principles of

”Accuracy and quality,” ”Accountability,” and ”Com-

pliance”. However, privacy-impacting dark patterns

may nevertheless infringe upon such principles, al-

beit indirectly: failing to conform with the principle

of data minimization ultimately impacts conformity

with the principle of accountability. In other words,

the use of deceptive design patterns overtly impacts

conformity with certain principles and, as a conse-

quence, indirectly impacts conformity with others.

There is a reason for the accentuated focus on the

direct violation of principles: dark patterns concern

the interaction between the user and the system at the

interface level, while they are less directly related to

the system’s back end. Moreover, the interconnected

nature of privacy requirements also explains why the

expert panel sometimes identiﬁed two privacy princi-

ples at risk due to a single dark pattern. As a result,

one-third of the dark patterns considered in this study

are likely to violate two privacy principles simultane-

ously.

5.1 Consent and Choice

The data highlights that ”Consent and Choice” is the

privacy principle most often violated by dark patterns,

corresponding to obtaining explicit and voluntary per-

mission before collecting and processing personal

data. A signiﬁcant privacy violation occurs when in-

dividuals are not given the option to allow or deny

such processing, but their authorization is taken for

granted, even though they are neither informed nor in

control of their data. For example, dark patterns such

as ”Automating the user away”(Gray et al., 2020) and

”Sneaking”(Chromik et al., 2019) correspond to this

kind of violation. In the case that consent is granted,

it is essential to provide individuals with a straightfor-

ward method to manage the permissions for their data.

However, patterns like ”Bait and change”(Kitkowska,

2023) violate this second core privacy aspect because

the affordances on the interface do not enable users

to understand the consequences of their interactions

with such affordances; therefore, the link between the

choice and the method to signify such a choice is ob-

scure.

Giving people a genuine choice regarding the pro-

cessing of their personal data implies that individuals

should make decisions freely and without any pres-

sure. However, dark patterns based on coercing users

(”Coercion” (Gray et al., 2018)), emotionally steering

them (e.g., ”Conﬁrmshaming”(Brignull, 2022) and

”Blaming the Individual”(CNIL, 2019)) or promis-

ing rewards to them (NCC, 2018) pressure individuals

into a decision. Similarly, consent can be requested

persistently, hoping that over time individuals will

relent (”Continuous prompting”(EDPB, 2022) and

”Repetitive incentive”(Kitkowska, 2023)). Freedom

of the user’s choice can be restricted by manipulating

the pace and complexity of the choice process like

in ”Safety Blackmail” (Kitkowska, 2023) ”Forced

Action,”(Gray et al., 2018) and ”Obstruction,”(Gray

et al., 2018) or by seeking consent in the manner,

interrupting the user’s task ﬂow (”Last Minute Con-

sent”(CNIL, 2019)). As the ISO/IEC29100 states,

the user’s choice should be ”clear, prominent, easily

understandable, accessible, and affordable.” Multiple

dark patterns challenge these criteria. Some subtly

diminish the clarity of the implemented mechanisms

to enable users to express a choice by manipulating

the user interface to prioritize certain actions over

others (”Interface Interference”(Gray et al., 2018)).

These manipulations might involve designs that art-

fully push users toward more privacy-invasive choices

(”Hidden in Plain Sight”(EDPB, 2022)) or frame set-

tings by emphasizing the beneﬁts of a certain decision

while downplaying its drawbacks (”Framing” (NCC,

2018)). Sometimes, explanations or questions are

worded to lead users astray (”Misrepresent”(Jarovsky,

2022) and ”Trick Questions”(Brignull, 2022)), or

contain conﬂicting information which reduces clar-

ity (”Conﬂicting Information”(EDPB, 2022)). Vio-

lations may be caused by both insufﬁcient informa-

tion (”False Continuity”(CNIL, 2019)) or overwhelm-

ing information and choices (”Overloading” (EDPB,

2022) and ”Too Many Options”(EDPB, 2022)). The

goal is often to create a long and tedious process for

expressing choice or providing consent, leading users

to give up expressing an informed decision or mis-

understand their chosen settings. Some dark patterns

become evident over time with repeated interactions.

For instance, it might be harder to withdraw consent

than give it in the ﬁrst place, a tactic known as ”Roach

Motel”(Brignull, 2022).

5.2 Openness, Transparency and Notice

This principle mandates that individuals be informed

about the processing of their personal data, includ-

ing the data processing policies, procedures, and prac-

tices. This includes the purposes for processing per-

sonal data and the options available to individuals for

exercising their rights. When signiﬁcant changes in

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

778

the handling of personal information arise, individu-

als must be notiﬁed. In addition to conveying this in-

formation to individuals, it should be ”clear and eas-

ily accessible.” Some dark patterns identiﬁed in this

study violate these stipulations.

Clear information should be straightforward, de-

void of ambiguity, and easy to understand. A group

of dark patterns introduces confusion or ambiguity by

using either ambiguous language or contradictory in-

formation (like ”Ambiguous Wording,”(EDPB, 2022)

”Hidden Legalese Stipulations,”(B

osch et al., 2016)

”Misrepresenting,”(Gray et al., 2020) and ”Two-

Faced”(Gray et al., 2020)). A disorganized presen-

tation of information can also lead to confusion (e.g.,

”Lack of Hierarchy”(EDPB, 2022)). The user’s abil-

ity to comprehend the information can also be ham-

pered when the information is unintelligible (”Con-

fusion”(Conti and Sobiesk, 2010)) or presented in a

language that the user is not familiar with (”Language

Discontinuity”(EDPB, 2022)). Information is easily

accessible when it is presented in a way that lets users

readily access its content. Some user interfaces de-

liberately make such access unfeasible (e.g., ”Hin-

dering,”(EDPB, 2022), ”Obfuscation” (Conti and So-

biesk, 2010)) or extremely challenging (”Privacy

Maze”(EDPB, 2022)). Moreover, some interface de-

signs intentionally divert users’ attention from data

processing details (”Look Over There,” (Brignull,

2022)). Another tactic involves overwhelming users

with excessive information, causing them to abandon

their search (”Overloading” (EDPB, 2022)).

5.3 Individual Participation and Access

The ”Individual Participation and Access” privacy

principle aligns with the rights of individuals con-

cerning their personal data management. To adhere

to this principle, users should be empowered to ac-

cess their data, review them, challenge their accu-

racy, and request modiﬁcations, corrections, or re-

movals. In practical terms, users should be provided

with the necessary tools to exercise these rights. If

these tools are malfunctioning, restricted, or missing,

as highlighted by the deceptive design patterns (like

”Dead End”(EDPB, 2022) and ”Restricting Function-

ality”(Conti and Sobiesk, 2010)), users lose their abil-

ity to control their personal data.

However, merely providing tools for users to man-

age their data doesn’t ensure compliance with this

principle. The ISO/IEC 29100 standard mandates

that users should be able to exercise their rights eas-

ily, quickly, and efﬁciently. However, several dark

patterns intentionally make this process challenging,

slow, and inefﬁcient. Some patterns hide controls,

making them hard to locate (e.g.”Decontextualising,”

(EDPB, 2022) ”Obfuscation,”(Conti and Sobiesk,

2010)), while others complicate the process to de-

ter users from proceeding further (e.g., ”Immortal

Account,”(B

osch et al., 2016) ”Obstruction,”(Gray

et al., 2018)). Some tactics deliberately extend the

process by demanding unnecessary steps from users

(e.g., ”Longer Than Necessary”(EDPB, 2022)), hop-

ing they will abandon the process. Additionally,

certain patterns compromise the process’ efﬁciency

by causing a mismatch between a user’s expectation

and the outcomes of the user’s action (e.g., ”Bait

and Change,”(Kitkowska, 2023) ”Misleading Infor-

mation”(EDPB, 2022)).

5.4 Data Minimization

Deceptive design patterns that potentially infringe

the data minimization principle are used to collect a

greater amount of personal data than what would be

necessary to fulﬁl the purpose of the processing ac-

tivity. The analysis identiﬁed three types of deceptive

design patterns that will likely breach this principle.

The ﬁrst one refers to services such as social networks

where users share more personal data than they in-

tend (”Privacy Zuckering(Brignull, 2022)”). The sec-

ond type implements a pre-checked privacy-invasive

option for data sharing that counters the ’privacy by

default’ approach and requests users to actively des-

elect such an option when conﬁguring their account

(”Default sharing”(CNIL, 2019)). Designers can also

obscure or hide privacy controllers to prevent users

from changing the pre-checked settings (”Default set-

ting”(CNIL, 2019)). The third type uses misleading

information. For example, they might suggest that

the data collection is for legitimate purposes such as

customizing services or improving the user experi-

ence when it is not (”Improving Experience”(CNIL,

2019)), or they might reassure users that their data

will remain private and under their control when it is

not the case (”Just You and Us” (CNIL, 2019)).

5.5 Use, Retention and Disclosure

Limitation

Deceptive design patterns can also violate the use, re-

tention, and disclosure of personal data. Just as with

data collection, the use, retention, and disclosure of

personal data should only extend to what is essential

for well-deﬁned, speciﬁc, and legitimate purposes.

Various dark patterns violate use limitations by ex-

ploiting the user’s personal contacts to create auto-

mated communication emails to the user’s contacts

(e.g., ”Address Book Leeching,”(B

osch et al., 2016)

Learning from the Dark Side About How (not) to Engineer Privacy: Analysis of Dark Patterns Taxonomies from an ISO 29100 Perspective

779

”Friend Spam(Brignull, 2022)).

5.6 Purpose Legitimacy and

Speciﬁcation

Finally, dark patterns violate the principles of pur-

pose legitimacy and speciﬁcation since they collect

and reuse information for purposes that are not ade-

quately communicated to the user. For instance, the

Address Book Leeching(B

osch et al., 2016) pattern

initially requests permission to access a user’s con-

tact list, claiming that it is necessary for the app’s

functionality, whereas, once granted permission, it

engages in an additional activity, such as sending invi-

tations to the people listed in the address book. Simi-

larly, the ”Shadow User Proﬁles”(B

osch et al., 2016)

pattern is employed to create and store information

about individuals from a contact list without disclos-

ing this purpose to the user. This lack of transparency

regarding the data’s ultimate usage infringes upon the

principle of purpose legitimacy, as users are left un-

aware of how their contact information is being lever-

aged for purposes beyond what they initially agreed

to.

6 DISCUSSION AND PRACTICAL

IMPLICATIONS

The study results indicate that dark patterns predomi-

nantly target privacy requirements described in terms

of subjective properties such as clarity, usability, and

accessibility of information and user choices related

to the graphical user interface design. This may re-

ﬂect the great attention of the academic and regula-

tory community to dark patterns used to maximize

consent rates (e.g., on cookie banners), which is a vis-

ible front-end phenomenon that can be analyzed more

easily than other deceptive strategies that are hid-

den in the back-end and therefore less blatant to the

user/researcher who may need sophisticated means to

detect them. For instance, it is difﬁcult to determine

whether data are collected for other purposes rather

than those that have been declared, as this would en-

tail audits of the actual data practices of the com-

pany which can not be uncovered through the mere

inspection of the user interface. There is a growing

awareness in the dark pattern academic, policy, and

regulatory community about the need to go beyond

the user interface to discover the deceptive practices

that are employed in the back-end (e.g., in mobile ap-

plications, machine-learning models, etc.) (OECD,

2023; Kocyigit et al., 2023) and to cover emerging

interfaces (e.g., embedded interfaces, VR, and AR)

(Krauß, 2022; Owens et al., 2022). Hence, future

work should analyze whether patterns that are pub-

lished in novel taxonomies impact other privacy prin-

ciples that appear only tangentially in the results of

the present study.

To fulﬁl ISO 29100, it is paramount to prioritize

protecting users’ privacy over illegitimate business

practices that maximize the collection and process-

ing of personal data. This can be achieved by plac-

ing the users at the center of the development pro-

cess, encouraging the adoption of respectful privacy-

enhancing design patterns, and avoiding dark patterns

that lower privacy safeguards. Dark patterns exem-

plify why a human-centered approach is necessary for

privacy engineering. Human-centered design, identi-

ﬁed as a requirement in the ISO/IEC 31700 standard

(31700-1:2023, 2002), refers to an approach to sys-

tem design and development that focuses on enhanc-

ing the interactions with a system for human users

(ISO/IEC 31700:2023, 3.21). Adopting this human-

centered engineering approach will assist privacy en-

gineers in avoiding the implementation of deceptive

design patterns, although it will not solve other sys-

temic aspects that favor their adoption, such as those

related to the AdTech business model that gathers

massive amounts of data for advertising purposes and

the race to the bottom in this respect that seems to be

happening in online services.

Moreover, per the ISO/IEC 15288 standard

(ISO/IEC, 2002) concerning System Life Cycle Pro-

cesses, privacy engineers should carefully consider

the privacy requirements jeopardized by dark patterns

and analyze, implement, and verify the technical and

organizational measures at all stages of the develop-

ment process. The results of the current work can

also be used for privacy threat modeling as part of

LINDDUN (Deng et al., 2011) and PriS (Islam et al.,

2012) methods, thereby informing system design. For

example, the dark patterns identiﬁed through this

work can be used to exemplify LINDDUN’s threat

types: “Data Disclosure,” “Unawareness and Uninter-

venability,” and, ultimately, “Non-compliance.” This

work can help broaden the understanding of system

vulnerability to include the vulnerability that derives

from human cognitive biases and human-machine in-

teraction (such as lack of consent, transparency, and

user empowerment (Wright and Raab, 2014)) and that

is exploited by manipulative designs. This can sup-

port the work of privacy engineers when they deﬁne

and test the system requirements. Similarly, our map-

ping can also be leveraged by ISO certiﬁcation enti-

ties to support their analysis and integrate design con-

siderations into their arguments for providing or con-

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

780

ﬁrming such certiﬁcations.

The ﬁndings of this study can also support a more

objective reconceptualization of privacy-related dark

patterns in terms of their violations of speciﬁc privacy

requirements, thereby solving terminological fuzzi-

ness and making the deﬁnition of this phenomenon

more easily actionable (e.g., when it comes to de-

veloping automated deception applications). Such

reconceptualization can be integrated into the meth-

ods used for evaluating the risks related to data prac-

tices (such as privacy and data protection impact as-

sessments), which do not traditionally consider the

user manipulation aspects in determining the risks to

individuals’ rights and freedoms. For example, in the

EU, Article 24 of the GDPR mandates companies to

put in place organizational and technical measures to

mitigate the identiﬁed risks and be compliant. The

risks generated by the design patterns mentioned in

these pages mainly encompass the privacy of users,

the lack of which can engender harms such as auton-

omy harms (e.g., lack of control over one’s own data),

reputational harms (e.g., derived from the overshar-

ing of conﬁdential information), psychological harms

(e.g., negative feelings of embarrassment, fear, anxi-

ety, etc) and discrimination harms (e.g., price discrim-

ination based on proﬁling) (Citron and Solove, 2022).

Our mapping clearly identiﬁes how avoiding speciﬁc

dark patterns can lower risks for users and, therefore,

simplify the obligations for companies, even in terms

of mitigation measures, while lowering their compli-

ance risks. More in general, given that the founda-

tional principles of the ISO 29100 are shared with the

GDPR, respecting these privacy principles may also

help privacy engineers implement measures within

their organizations to achieve compliance with legal

obligations.

Furthermore, the results could also be used to de-

termine whether the solutions proposed to tackle de-

ceptive design patterns (for an overview, see the ma-

trix in (Rossi and Bongard-Blanchy, 2021)) are effec-

tive. For example, the best practices that have been

proposed by the European Data Protection Board

(EDPB, 2022) mainly concern how to design trans-

parent and consistent communications towards users

(in sign-up interfaces, privacy policies, data breach

communications, privacy settings, etc.) (alike the ﬁrst

three principles that resulted from our analysis), but

do not provide guidance on how to implement the

principles of data minimisation or purpose legitimacy

and speciﬁcation without dark patterns. Lastly, identi-

fying risks related to deceptive designs and mitigation

measures can be useful to address online manipula-

tion more in general (that encompasses dark patterns,

social engineering, AI-based deception and misinfor-

mation), which is increasingly recognized as one of

the major digital threats of modern societies.

7 CONCLUSIONS, LIMITATIONS

AND FUTURE WORK

Our analysis showed that most privacy-impacting

dark patterns impact subjective properties of ICT

system design related to user choice and trans-

parency. Considering the requirements related to

human-centered engineering and system life cycle de-

sign, dark pattern types and examples can provide

practical guidance to privacy engineers and product

developers on what to avoid to fulﬁll the ISO 21900

requirements and to map privacy threats and system

vulnerability in a more comprehensive manner. Fu-

ture work should focus on further determining ”fair

design patterns” that can be adopted to implement pri-

vacy engineering in practice.

Our results are preliminary ﬁndings revealed by

a small group of experts (four in the ﬁrst stage of

discussion and three in the re-evaluation stage): fu-

ture studies will beneﬁt from a broader, diverse group

of researchers and practitioners. Another limita-

tion is that the collection of taxonomies was ﬁnal-

ized in June 2022 and did not include those pub-

lished later. Since then, several important attempts

have been made to address the actionabilities of tax-

onomies (Gray et al., 2023b) and leverage transdisci-

plinary cooperation (Gray et al., 2023a). Future work

should consider those and conduct a similar analysis

on the brand-new ISO 31700 on Privacy by Design

for Consumer Goods and Services (ISO, 2023) that

has a pronounced user experience slant. Addition-

ally, while one-third of the pattern deﬁnitions we dis-

cussed in the study do not create immediate privacy

risks, some of them (e.g., ”Scarcity”) can still hin-

der users’ ability to make well-considered decisions

(Botes, 2023). Outside the scope of privacy engi-

neering per se, the community should pay attention to

these cases and work towards disseminating an ethical

approach to the design and development of technolo-

gies.

ACKNOWLEDGEMENTS

We thank Emre Kocyigit and Lorena Sanchez

Chamorro for lending their expertise and participat-

ing in the expert analysis of dark patterns. This re-

search is supported by the Luxembourg National Re-

search Fund (FNR) under grant number IS/14717072

Learning from the Dark Side About How (not) to Engineer Privacy: Analysis of Dark Patterns Taxonomies from an ISO 29100 Perspective

781

(DECEPTICON - Deceptive Patterns Online) and by

the Italian National Recovery and Resilience Plan

(NRRP), Mission 4 Component 2 Investment 3.1 of

Italian Ministry of University and Research funded by

the European Union — NextGenerationEU (BRIEF -

Biorobotics Research and Innovation Engineering Fa-

cilities - Project identiﬁcation code IR0000036). Au-

thor 1’s work is funded by the European Union under

Grant Agreement No. 101092861. Views and opin-

ions expressed are however those of the author(s) only

and do not necessarily reﬂect those of the European

Union or the European Commission. Neither the Eu-

ropean Union nor the granting authority can be held

responsible.

REFERENCES

31700-1:2023, I. (2002). ISO iso 31700-1:2023 consumer

protection — privacy by design for consumer goods

and services — part 1: High-level requirements.

Anthonysamy, P., Rashid, A., and Chitchyan, R. (2017).

Privacy requirements: present & future. In 2017

IEEE/ACM 39th international conference on software

engineering: software engineering in society track

(ICSE-SEIS), pages 13–22. IEEE.

Antignac, T., Scandariato, R., and Schneider, G. (2016). A

privacy-aware conceptual model for handling personal

data. In Leveraging Applications of Formal Meth-

ods, Veriﬁcation and Validation: Foundational Tech-

niques: 7th International Symposium, ISoLA 2016,

Imperial, Corfu, Greece, October 10–14, 2016, Pro-

ceedings, Part I 7, pages 942–957. Springer.

BEUC (2022). ”dark patterns” and the eu consumer law

acquisition. Last accessed 9 January 2023.

Bongard-Blanchy, K., Rossi, A., Rivas, S., Doublet, S.,

Koenig, V., and Lenzini, G. (2021). ” i am deﬁ-

nitely manipulated, even when i am aware of it. it’s

ridiculous!”-dark patterns from the end-user perspec-

tive. In Designing Interactive Systems Conference

2021, pages 763–776.

osch, C., Erb, B., Kargl, F., Kopp, H., and Pfattheicher, S.

(2016). Tales from the dark side: Privacy dark strate-

gies and privacy dark patterns. Proc. Priv. Enhancing

Technol., 2016(4):237–254.

Botes, M. (2023). Autonomy and the social dilemma of on-

line manipulative behavior. AI and Ethics, 3(1):315–

323.

Brignull, H. (2022). Deceptive patterns. Last accessed 30

October 2022.

Chamorro, L. S., Bongard-Blanchy, K., and Koenig,

V. (2022). Justice in interaction design: pre-

venting manipulation in interfaces. arXiv preprint

arXiv:2204.06821.

Chromik, M., Eiband, M., V

olkel, S. T., and Buschek, D.

(2019). Dark patterns of explainability, transparency,

and user control for intelligent systems. In IUI work-

shops, volume 2327.

Citron, D. K. and Solove, D. J. (2022). Privacy harms. BUL

Rev., 102:793.

CNIL (2019). Shaping choices in the digital world.from

dark patterns to data protection: the inﬂuence of ux/ui

design on user empowerment. Last accessed 9 January

2023.

Conti, G. and Sobiesk, E. (2010). Malicious interface de-

sign: exploiting the user. In Proceedings of the 19th

international conference on World wide web, pages

271–280.

CPRA (2020). The california privacy rights act of 2020.

Last accessed 9 January 2023.

Curley, A., O’Sullivan, D., Gordon, D., Tierney, B., and

Stavrakakis, I. (2021). The design of a framework for

the detection of web-based dark patterns.

Deng, M., Wuyts, K., Scandariato, R., Preneel, B., and

Joosen, W. (2011). A privacy threat analysis frame-

work: supporting the elicitation and fulﬁllment of

privacy requirements. Requirements Engineering,

16(1):3–32.

Di Geronimo, L., Braz, L., Fregnan, E., Palomba, F., and

Bacchelli, A. (2020). Ui dark patterns and where to

ﬁnd them: a study on mobile applications and user

perception. In Proceedings of the 2020 CHI confer-

ence on human factors in computing systems, pages

1–14.

EDPB (2022). Guidelines 03/2022 on deceptive design

patterns in social media platform interfaces: how to

recognise and avoid them. Version 1.0.

Fansher, M., Chivukula, S. S., and Gray, C. M. (2018). #

darkpatterns: Ux practitioner conversations about eth-

ical design. In Extended Abstracts of the 2018 CHI

Conference on Human Factors in Computing Systems,

pages 1–6.

Goodstein, S. A. (2021). When the cat’s away: Techlash,

loot boxes, and regulating” dark patterns” in the video

game industry’s monetization strategies. U. Colo. L.

Rev., 92:285.

Gray, C. M., Chivukula, S. S., and Lee, A. (2020). What

kind of work do” asshole designers” create? describ-

ing properties of ethical concern on reddit. In Pro-

ceedings of the 2020 acm designing interactive sys-

tems conference, pages 61–73.

Gray, C. M., Kou, Y., Battles, B., Hoggatt, J., and Toombs,

A. L. (2018). The dark (patterns) side of ux design.

In Proceedings of the 2018 CHI conference on human

factors in computing systems, pages 1–14.

Gray, C. M., Sanchez Chamorro, L., Obi, I., and Duane, J.-

N. (2023a). Mapping the landscape of dark patterns

scholarship: A systematic literature review. In De-

signing Interactive Systems Conference, pages 188–

193.

Gray, C. M., Santos, C., and Bielova, N. (2023b). Towards a

preliminary ontology of dark patterns knowledge. In

Extended Abstracts of the 2023 CHI Conference on

Human Factors in Computing Systems, pages 1–9.

Gray, C. M., Santos, C., Bielova, N., and Mild-

ner, T. (2023c). An ontology of dark patterns

knowledge: Foundations, deﬁnitions, and a path-

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

782

way for shared knowledge-building. arXiv preprint

arXiv:2309.09640.

Gray, C. M., Santos, C., Bielova, N., Toth, M., and Clifford,

D. (2021). Dark patterns and the legal requirements

of consent banners: An interaction criticism perspec-

tive. In Proceedings of the 2021 CHI Conference on

Human Factors in Computing Systems, pages 1–18.

Graßl, P., Schraffenberger, H., Borgesius, F. Z., and Bui-

jzen, M. (2021). Dark and bright patterns in cookie

consent requests. Journal of Digital Social Research,

3(1):1–38.

Greenberg, S., Boring, S., Vermeulen, J., and Dostal, J.

(2014). Dark patterns in proxemic interactions: a criti-

cal perspective. In Proceedings of the 2014 conference

on Designing interactive systems, pages 523–532.

Gunawan, J., Santos, C., and Kamara, I. (2022). Redress for

dark patterns privacy harms? a case study on consent

interactions. In Proceedings of the 2022 Symposium

on Computer Science and Law, pages 181–194.

Habib, H., Zou, Y., Jannu, A., Sridhar, N., Swoopes, C.,

Acquisti, A., Cranor, L. F., Sadeh, N., and Schaub,

F. (2019). An empirical analysis of data deletion

and {Opt-Out} choices on 150 websites. In Fifteenth

Symposium on Usable Privacy and Security (SOUPS

2019), pages 387–406.

Hasan Mansur, S. M., Salma, S., Awoﬁsayo, D., and Moran,

K. (2023). Aidui: Toward automated recognition of

dark patterns in user interfaces. In 2023 IEEE/ACM

45th International Conference on Software Engineer-

ing (ICSE), page 1958–1970.

Huth, D. and Matthes, F. (2019). “appropriate technical

and organizational measures”: Identifying privacy en-

gineering approaches to meet gdpr requirements.

Islam, S., Mouratidis, H., Kalloniatis, C., Hudic, A., and

Zechner, L. (2012). Model based process to support

security and privacy requirements engineering. In-

ternational Journal of Secure Software Engineering

(IJSSE), 3(3):1–22.

ISO (2023). Iso 31700-1:2023 consumer protection — pri-

vacy by design for consumer goods and services —

part 1: High-level requirements.

ISO/IEC (2002). ISO/IEC 15288:2002 systems engineering

– systems life cycle processes.

ISO/IEC 29100:2011 (2011). Information technology - Se-

curity techniques - Privacy framework. Standard, In-

ternational Organization for Standardization, Geneva,

CH.

Jarovsky, L. (2022). Dark patterns in personal data collec-

tion: Deﬁnition, taxonomy and lawfulness. Taxonomy

and Lawfulness (March 1, 2022).

Kitkowska, A. (2023). The hows and whys of dark pat-

terns: Categorizations and privacy. Human Factors in

Privacy Research, pages 173–198.

Kocyigit, E., Rossi, A., and Lenzini, G. (2023). Towards

assessing features of dark patterns in cookie consent

processes. In Bieker, F., Meyer, J., Pape, S., Schiering,

I., and Weich, A., editors, Privacy and Identity Man-

agement, IFIP Advances in Information and Commu-

nication Technology, page 165–183, Cham. Springer

Nature Switzerland.

Kollnig, K., Datta, S., and Van Kleek, M. (2021). I want

my app that way: Reclaiming sovereignty over per-

sonal devices. In Extended Abstracts of the 2021 CHI

Conference on Human Factors in Computing Systems,

pages 1–8.

Krauß, V. (2022). Exploring dark patterns in xr.

Luguri, J. and Strahilevitz, L. J. (2021). Shining a light on

dark patterns. Journal of Legal Analysis, 13(1):43–

109.

Martin, Y.-S. and Kung, A. (2018). Methods and tools for

gdpr compliance through privacy and data protection

engineering. In 2018 IEEE European symposium on

security and privacy workshops (EuroS&PW), pages

108–111. IEEE.

Martini, P., Drews, C., et al. (2022). Making choice

meaningful–tackling dark patterns in cookie and con-

sent banners through european data privacy law. Avail-

able at SSRN 4257979.

Mathur, A., Acar, G., Friedman, M. J., Lucherini, E.,

Mayer, J., Chetty, M., and Narayanan, A. (2019). Dark

patterns at scale: Findings from a crawl of 11k shop-

ping websites. Proceedings of the ACM on Human-

Computer Interaction, 3(CSCW):1–32.

Mathur, A., Kshirsagar, M., and Mayer, J. (2021). What

makes a dark pattern... dark? design attributes, nor-

mative considerations, and measurement methods. In

Proceedings of the 2021 CHI conference on human

factors in computing systems, pages 1–18.

Matte, C., Bielova, N., and Santos, C. (2020). Do cookie

banners respect my choice?: Measuring legal compli-

ance of banners from iab europe’s transparency and

consent framework. In 2020 IEEE Symposium on Se-

curity and Privacy (SP), pages 791–809. IEEE.

Mead, N. R. and Stehney, T. (2005). Security quality re-

quirements engineering (square) methodology. ACM

SIGSOFT Software Engineering Notes, 30(4):1–7.

NCC (2018). Deceived by design, how tech companies

use dark patterns to discourage us from exercising our

rights to privacy. Norwegian Consumer Council Re-

port.

OECD (2023). Consumer vulnerability in the digital age.

Number 355 in OECD Digital Economy Papers. Paris.

Owens, K., Gunawan, J., Choffnes, D., Emami-Naeini, P.,

Kohno, T., and Roesner, F. (2022). Exploring decep-

tive design patterns in voice interfaces. In Proceedings

of the 2022 European Symposium on Usable Security,

pages 64–78.

Rossi, A. and Bongard-Blanchy, K. (2021). All in one

stroke? intervention spaces for dark patterns. arXiv

preprint arXiv:2103.08483.

Sangaroonsilp, P., Dam, H. K., Choetkiertikul, M.,

Ragkhitwetsagul, C., and Ghose, A. (2023). A taxon-

omy for mining and classifying privacy requirements

in issue reports. Information and Software Technol-

ogy, 157:107162.

Santos, C., Rossi, A., Sanchez Chamorro, L., Bongard-

Blanchy, K., and Abu-Salma, R. (2021). Cookie ban-

ners, what’s the purpose? analyzing cookie banner

text through a legal lens. In Proceedings of the 20th

Workshop on Workshop on Privacy in the Electronic

Learning from the Dark Side About How (not) to Engineer Privacy: Analysis of Dark Patterns Taxonomies from an ISO 29100 Perspective

783

Society, WPES ’21, page 187–194, New York, NY,

USA. Association for Computing Machinery.

Voigt, P. and Von dem Bussche, A. (2017). The eu gen-

eral data protection regulation (gdpr). A Practical

Guide, 1st Ed., Cham: Springer International Pub-

lishing, 10(3152676):10–5555.

Wright, D. and Raab, C. (2014). Privacy principles, risks

and harms. International Review of Law, Computers

& Technology, 28(3):277–298.

Zagal, J. P., Bj

ork, S., and Lewis, C. (2013). Dark pat-

terns in the design of games. In Foundations of Digital

Games 2013.

APPENDIX

In the presented study we used the following tax-

onomies:

1. European Data Protection Bord (EDPB) 2022.

Guidelines 03/2022 on deceptive design patterns

in social media platform interfaces: how to recog-

nise and avoid them.

2. Frobrukerr

adet. 2018. Deceived by design: How

tech companies use dark patterns to discourage us

from exercising our rights to privacy.

3. National Commission on Informatics and Liberty

(CNIL). 2020. Shaping Choices in the Digital

World.

4. B

osch, C., Erb, B., Kargl, F., Kopp, H., and

Pfattheicher, S. (2016). Tales from the dark side:

privacy dark strategies and privacy dark patterns.

Proc. Priv. Enhancing Technol., 2016(4), 237-

254.

5. Brignull H. 2018. Deceptive Patterns.

https://https://www.deceptive.design/. Accessed

June, 2022.

6. Conti, G., and Sobiesk, E. (2010, April). Mali-

cious interface design: exploiting the user. In Pro-

ceedings of the 19th international conference on

World wide web (pp. 271-280)

7. Gray, C. M., Chivukula, S. S., and Lee, A. (2020,

July). What Kind of Work Do” Asshole De-

signers” Create? Describing Properties of Ethical

Concern on Reddit. In Proceedings of the 2020

acm designing interactive systems conference (pp.

61-73).

8. Gray, C. M., Kou, Y., Battles, B., Hoggatt, J., and

Toombs, A. L. (2018, April). The dark (patterns)

side of UX design. In Proceedings of the 2018

CHI conference on human factors in computing

systems (pp. 1-14).

9. Greenberg, S., Boring, S., Vermeulen, J., and

Dostal, J. (2014, June). Dark patterns in proxemic

interactions: a critical perspective. In Proceedings

of the 2014 conference on Designing interactive

systems (pp. 523-532).

10. Jarovsky, L. (2022). Dark Patterns in Personal

Data Collection: Deﬁnition, Taxonomy and Law-

fulness. Taxonomy and Lawfulness (March 1,

2022).

11. Kitkowska, A. (2023). The Hows and Whys of

Dark Patterns: Categorizations and Privacy. Hu-

man Factors in Privacy Research, 173-198; as the

main aim of this taxonomy was to reorganize pre-

viously identiﬁed patterns based on psychological

principles, without changing their deﬁnitions, Au-

thors 1 and 2 decided to merge them with those

from the original taxonomies.

12. Mathur, A., Acar, G., Friedman, M. J., Lucherini,

E., Mayer, J., Chetty, M., and Narayanan, A.

(2019). Dark patterns at scale: Findings from

a crawl of 11K shopping websites. Proceed-

ings of the ACM on Human-Computer Interac-

tion, 3(CSCW), 1-32.

13. Zagal, J. P., Bj

ork, S., and Lewis, C. (2013). Dark

patterns in the design of games. In Foundations of

Digital Games 2013.

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

784
