Multi-Task Planar Reconstruction with Feature Warping Guidance

Luan Wei

, Anna Hilsmann

and Peter Eisert

1,2

Fraunhofer Heinrich Hertz Institute, Berlin, Germany

Humboldt University, Berlin, Germany

Keywords:

Planar Reconstruction, Real-Time, Neural Network, Segmentation, Deep Learning, Scene Understanding.

Abstract:

Piece-wise planar 3D reconstruction simultaneously segments plane instances and recovers their 3D plane

parameters from an image, which is particularly useful for indoor or man-made environments. Efﬁcient recon-

struction of 3D planes coupled with semantic predictions offers advantages for a wide range of applications

requiring scene understanding and concurrent spatial mapping. However, most existing planar reconstruction

models either neglect semantic predictions or do not run efﬁciently enough for real-time applications. We

introduce SOLOPlanes, a real-time planar reconstruction model based on a modiﬁed instance segmentation

architecture which simultaneously predicts semantics for each plane instance, along with plane parameters

and piece-wise plane instance masks. We achieve an improvement in instance mask segmentation by includ-

ing multi-view guidance for plane predictions in the training process. This cross-task improvement, training

for plane prediction but improving the mask segmentation, is due to the nature of feature sharing in multi-task

learning. Our model simultaneously predicts semantics using single images at inference time, while achieving

real-time predictions at 43 FPS. Code is available at: https://github.com/fraunhoferhhi/SOLOPlanes.

1 INTRODUCTION

Estimating the 3D structure of a scene holds impor-

tance across a variety of domains, including robotics,

virtual reality (VR), and augmented reality (AR). The

demand for real-time applications in these areas in-

creases over time as such technologies proliferate.

Man-made architectures and indoor environments,

where the application end-users spend a signiﬁcant

amount of time, often consist of regular structures

like planar surfaces, aligning well with the Manhattan

world assumption that such surfaces typically exist on

a regular 3D grid (Coughlan and Yuille, 2003). Esti-

mating plane parameters directly can reduce noise for

areas lying on a planar surface, which can be partic-

ularly useful for indoor scenes dominated by planar

surfaces. It also holds relevance for outdoor scenar-

ios, such as self-driving cars and outdoor AR appli-

cations, where streets and buildings often adhere to

similar geometric principles.

Several methods have been proposed to use deep

learning to recover planes of indoor scenes from a

single image (Liu et al., 2018a; Yu et al., 2019; Liu

et al., 2019; Xie et al., 2021b,a). While existing works

have made strides in predicting piece-wise instance

masks and plane parameters, they often ignore the

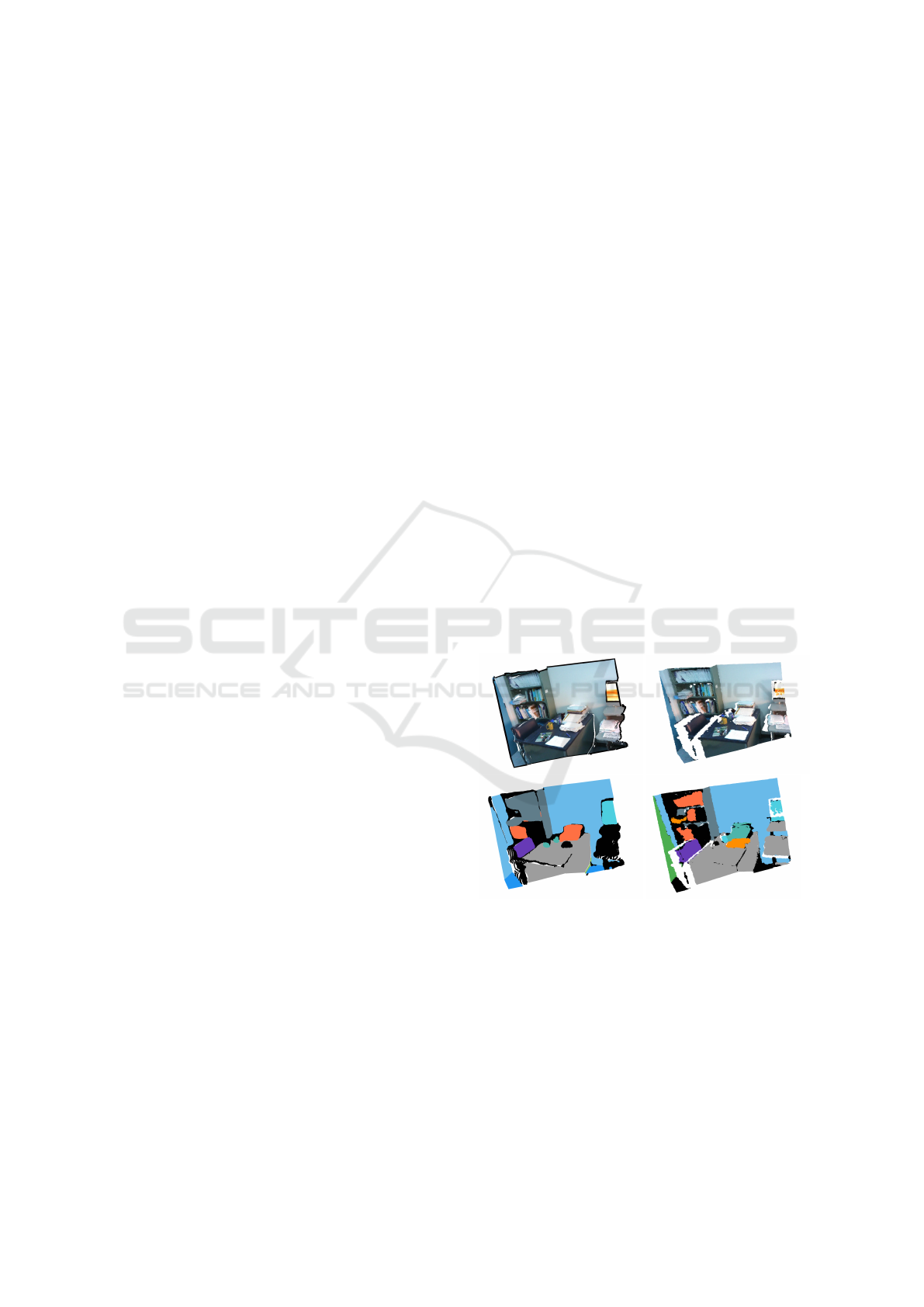

(a) Ours. (b) GT.

Figure 1: Comparison of SOLOPlanes output with ground

truth (GT). 3D projections using predicted plane parame-

ters (left) and GT depth (right). Textures use RGB (top),

predicted semantics (bottom left), and GT semantics (bot-

tom right).

added information from scene semantics. Incorporat-

ing semantics provides an added layer of scene under-

standing, which can be useful in many applications.

For instance, the semantic label for a planar surface

can help a service robot in determining the correct

652

Wei, L., Hilsmann, A. and Eisert, P.

Multi-Task Planar Reconstruction with Feature Warping Guidance.

DOI: 10.5220/0012396200003660

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2024) - Volume 2: VISAPP, pages

652-661

ISBN: 978-989-758-679-8; ISSN: 2184-4321

behaviour (e.g. mopping ﬂoor vs. wiping table), or

AR/VR experiences could offer semantics-dependent

retexturization. Some models predict semantics along

with plane parameters but are often too computation-

ally intensive to meet the real-time requirements of

practical applications (Liu et al., 2022).

Multi-task learning, the technique of using a sin-

gle model to learn multiple tasks concurrently, has

shown promise in terms of data efﬁciency and im-

proved generalization (Caruana, 1997). However, re-

cent studies indicate that there is also added difﬁculty

in jointly learning multiple tasks. While some tasks

may beneﬁt from being learned together, thereby

boosting accuracy, others may interfere with each

other, leading to worse performance (Standley et al.,

2020).

Our aim was to create a data-efﬁcient model with

improved run-time efﬁciency compared to existing

models for planar reconstruction with semantics. We

achieve the desired outcome via our model, SOLO-

Planes (SOLOP), where we make use of multi-view

guidance for improved data usage when acceptable

ground truth plane segments differ across views, and

made adjustments to the base architecture for im-

proved efﬁciency. Multi-view warping is done in fea-

ture space, by warping plane features from neighbour

to source view, decoding, then transforming the de-

coded plane parameters to the source view camera

view for comparison with ground truth data during

training. This additional warping guidance for plane

features positively impacts the learning of segmenta-

tion masks, particularly when using a more limited

dataset, while only requiring a single view at infer-

ence time.

In the context of our work, we found that multi-

view guidance using plane features leads to a notable

improvement in segmentation results. We attribute

this enhancement to our multi-task architecture and

the use of a shared trunk, meaning a global feature

extractor that is common to all tasks (Crawshaw,

2020). This architecture allows for loss propagation

through shared features and common base networks,

and may be particularly relevant in the case of

incomplete or varying data across overlapping views.

Our contributions include the following:

1. An empirical demonstration of cross-task im-

provement using multi-view guidance by fea-

ture warping, with particular relevance in cases

where ground truth data may be incomplete across

neighboring views.

2. A single-image planar reconstruction model, that

can concurrently predict semantics for planar seg-

ments while achieving the best efﬁciency com-

pared to other known planar reconstruction meth-

ods at a processing speed of 43 FPS.

Our approach may be a helpful method for other

multi-task models limited in some forms of ground

truth training data. The efﬁciency of the model makes

it suitable for a range of real-world applications.

2 RELATED WORK

Planar Reconstruction. Early works in planar recon-

struction using a single image predicted a set number

of planes per scene without using ground truth plane

annotations by employing a plane structure-induced

loss (Yang and Zhou, 2018). Another early end-to-

end planar reconstruction network from a single im-

age is PlaneNet, which uses separate branches for

plane parameter, mask, and non-planar area depth es-

timation (Liu et al., 2018a). Two major subsequent

models serve as the foundation for several later works.

PlaneRCNN is an extension of the two-stage instance

segmentation model, Mask-RCNN (He et al., 2017),

and predicts the plane instance normal and depth map,

then jointly process plane parameters along with seg-

mentation masks through a reﬁnement module (Liu

et al., 2019). PlaneAE predicts per-pixel parame-

ters and associative embeddings and employs efﬁ-

cient mean clustering to group the pixel embeddings

to plane instances (Yu et al., 2019). PlaneTR uses ge-

ometric guidance by generating and tokenizing line

segments, giving the input additional structural infor-

mation (Tan et al., 2021). Additional contributions

in this area include post-processing reﬁnement net-

works that enforce interplane relationships, via pre-

dicting the contact line or geometric relations be-

tween adjacent planes (Qian and Furukawa, 2020).

More recent works follow the approach of using an

instance segmentation model base. PlaneSegNet is

based on a real-time instance segmentation architec-

ture and introduces an efﬁcient Non-Maximum Sup-

pression (NMS) technique to reduce redundant pro-

posals (Xie et al., 2021a). PlaneRecNet predicts per-

pixel depth and plane segmentation masks, then use

classical methods like PCA or RANSAC to recover

plane parameters (Xie et al., 2021b). A number of

single-image plane reconstruction models use some

form of instance segmentation baseline. However,

most single-image models focus solely on spatial pa-

rameters and largely ignore the task of recovering se-

mantics.

Multi-View Approaches. The task of predicting 3D

plane parameters from a single image is inherently

ambiguous and challenging. Thus, several works have

incorporated multi-view information, either as a loss

Multi-Task Planar Reconstruction with Feature Warping Guidance

653

guidance or by using multiple image inputs at infer-

ence time. PlanarRecon (Xie et al., 2022) is a real-

time model using multiple image frames which makes

predictions directly in 3D by using a coarse-to-ﬁne

approach for building a sparse feature volume, then

clustering occupied voxels for instance planes, and

uses a tracking and fusion module to get a global

plane representation. PlaneMVS (Liu et al., 2022)

is the ﬁrst to apply a deep multi-view stereo (MVS)

approach to plane parameters. Although it achieves

state-of-the-art results and also predicts class seman-

tics, it is less computationally efﬁcient due to the use

of 3D convolutions and requires generation of plane

hypotheses. PlaneRCNN incorporates a multi-view

warping loss module that enforces consistency with

nearby views by projecting the predictions to 3D and

calculating the distance after transforming to the same

camera coordinates (Liu et al., 2019). Unlike our

approach, their warping module is applied directly

on the predictions rather than in feature space. An-

other work enhances the PlaneAE model with multi-

view regularization by warping the plane embedding

feature maps and using associative embeddings from

multiple views to improve the ﬁnal instance segmen-

tation (Xi and Chen, 2019).

Feature Warping. Feature warping is commonly

done in deep Multi-View Stereo (MVS) approaches,

as it was found that creating the cost volume using

features is as effective for artiﬁcial neural networks

and more computationally efﬁcient due to reduced

size (Im et al., 2019; Yao et al., 2018). While some

approaches use a similarity function on the features,

others simply concatenate the warped feature with the

original and let the model learn the relation rather

than calculate an explicit cost volume (Chen et al.,

2020; Yao et al., 2018). The latter approach is used by

PlaneMVS to construct a Feature/Cost volume, which

is then processed by a 3D CNN to get the plane pa-

rameters. Deep MVS methods are more commonly

used for depth estimation, and their application to

plane parameter estimation is relatively novel. Other

research suggests that calculating a feature error be-

tween frames is more robust than a photometric er-

ror (Guo et al., 2021). However, this cannot directly

be applied to plane reconstruction, as the plane fea-

tures contain information in different camera views

when considering a video dataset. Takanori et al. use

multi-frame attention via feature warping for the task

of drone crowd tracking (Asanomi et al., 2023). Ding

et al. take MVS as a feature matching task and use

a Transformer model to aggregate long-range global

context using warped feature maps (Ding et al., 2022).

In order to ensure differentiability, the warp to an-

other view using depth values and camera parame-

ters must be backprojected using bilinear interpola-

tion. Most existing works involving feature warping

do not speciﬁcally deal with plane features, which

require transformation to the correct view when de-

coded. Additionally, the majority of planar recon-

struction models do not offer semantic predictions for

the scene.

The majority of existing works primarily focus on

the geometric accuracy of planes without holistically

addressing the more practical requirements of speed

and semantic understanding of planar scenes. Our

work aims to ﬁll this gap by offering a uniﬁed frame-

work for semantic planar reconstruction. We improve

data efﬁciency during training and achieve cross-task

improvement using multi-view guidance for plane

features, while maintaining an inference speed that is

suitable for real-time applications.

3 METHOD

Our objective is to develop a real-time framework for

the task of 3D semantic planar reconstruction. This

section is organized as follows: Section 3.1 provides

details of the framework, Section 3.2 elaborates on the

loss terms, and Section 3.3 introduces our multi-view

guidance.

3.1 Framework

Our framework is built on a light version of the

SOLOv2 instance segmentation model (Wang et al.,

2020b) using a ResNet-50 backbone (He et al.,

2016). SOLOv2 is a single-stage instance segmen-

tation model that predicts instance masks and labels

based on their spatial location. It achieves an execu-

tion speed of around 31 FPS using a single V100 GPU

card (Wang et al., 2020b). The model employs dy-

namic convolution to generate the ﬁnal segmentation

mask, leveraging multi-scale features from the Fea-

ture Pyramid Network (FPN) (Lin et al., 2017a). Each

level of the FPN output features are used to predict

mask kernels and class semantics, with the features

reshaped to square grids of varying sizes, with each

responsible for predictions at a different scale. Each

grid location predicts a kernel and semantic category

scores. The mask feature is obtained through fea-

ture fusion of the ﬁrst four levels of the FPN outputs

via bilinear upsampling and convolution layers, and

the ﬁnal segmentation masks are obtained via con-

volution using the predicted kernels, with redundant

masks suppressed using matrix Non-Maximum Su-

pression (NMS) (Wang et al., 2020b). The mask and

kernel features receive spatial awareness information

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

654

from concatenated normalized coordinate, a method

from Liu et al. (2018b).

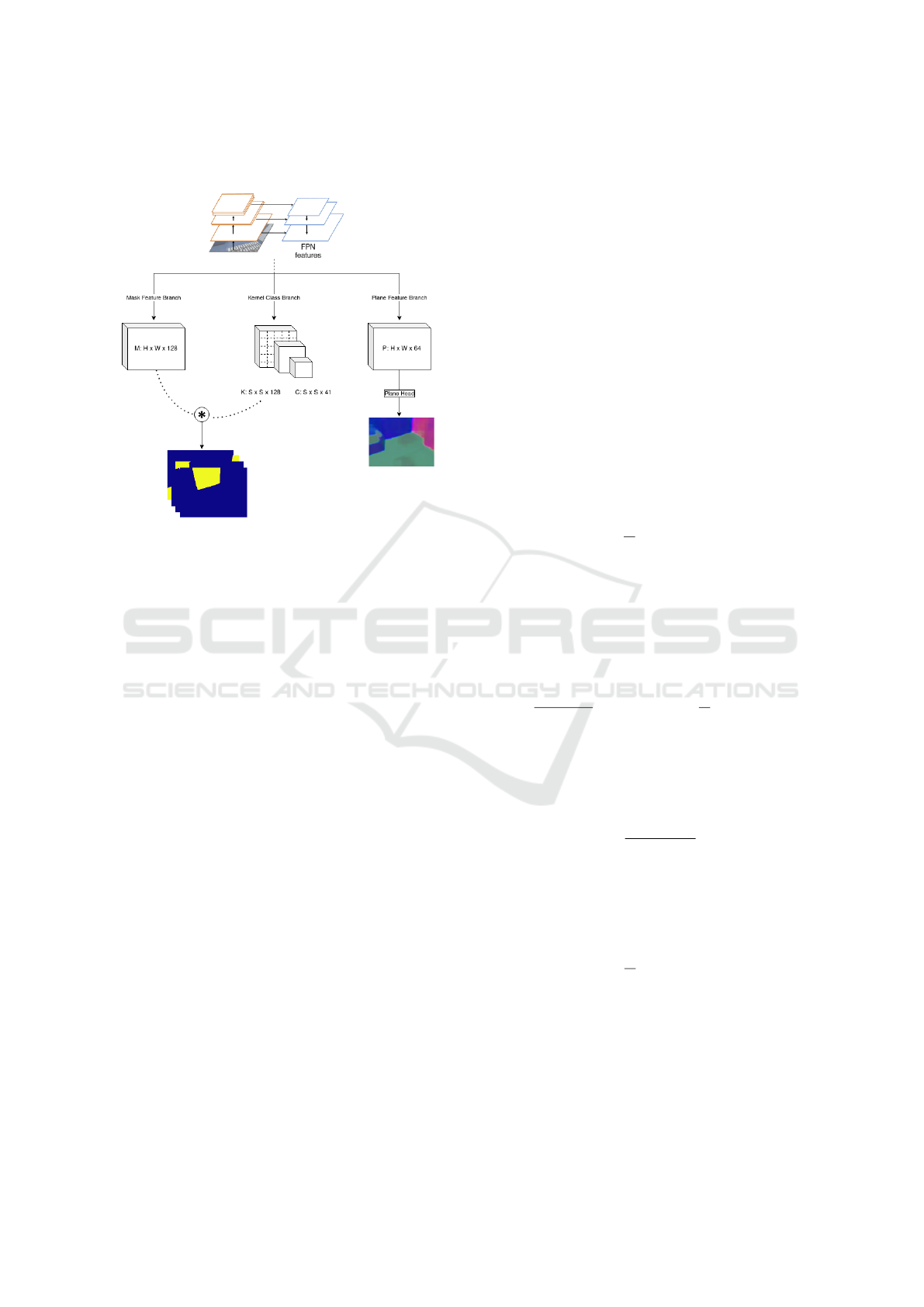

Figure 2: Simpliﬁed overview of SOLOPlanes architecture.

We extend the base architecture by introducing a

plane feature branch that fuses the ﬁrst two levels of

the feature map, along with a plane prediction head

that outputs per-pixel plane parameters via a convolu-

tion layer (see Fig. 2). This prediction is supervised

by a set of loss functions that leverage geometrical

constraints and ground truth depth information (de-

tailed in Section 3.2). The original architecture pre-

dicts the kernels and semantic categories using all ﬁve

feature map levels of the FPN. Based on the ﬁndings

of Chen et al. (2021), a divide-and-conquer approach

is more crucial than leveraging multi-scale features

for task-speciﬁc predictions, we experimented with

using different feature levels and found that using

fewer feature levels not only maintained compara-

ble performance in multi-task planar segmentation but

also improved the overall efﬁciency of the model.

Our ﬁnal architecture takes a single RGB image,

I ∈ R

H×W ×C

, as input during inference, and outputs

an arbitrary number of plane instance masks along

with instance level semantics and per-pixel plane pa-

rameters. We obtain the ﬁnal result by pooling per-

pixel parameter prediction using the predicted masks,

and retaining per-pixel predictions in areas without a

plane instance. The model is trained on the large-

scale public ScanNet dataset containing indoor scenes

from Dai et al. (2017), supplemented with ground

truth plane annotations from Liu et al. (2019).

3.2 Losses

Mask & Category. We retain the original loss func-

tions from Wang et al. (2020b) for mask and category

predictions. The Dice Loss, L

, guides mask predic-

tion with the original loss weight w

= 3, and focal

loss, L

, for semantic category prediction (Lin et al.,

2017b). For full details, we refer readers to (Wang

et al., 2020a). In order to address class imbalances

due to dominating negative samples, we modiﬁed L

to only consider grid locations containing an instance.

Plane Parameters. Plane parameters are represented

by the normal and offset of the plane, denoted as

p = (n, d), which we combine into a single parameter

p = n ∗d ∈ R

, with n normalized to unit length. Due

to the complexity of predicting plane parameters con-

taining both normal and depth information, we em-

ploy multiple loss functions for supervising per-pixel

plane predictions. We use L

loss for direct compari-

son with ground truth plane parameters:

plane

∑

i=1

∥p

− p

∗

∥. (1)

An asterisk is used to denote predicted values, and

N represents the total number of pixels. The cosine

distance, denoted L

sur f ace

, is used to guide the learn-

ing of surface normals. Due to the way we represent

plane parameter p, we get the equivalent result calcu-

lating cosine similarity on plane parameters directly.

sim

· p

∗

∥p

∥∥p

∗

∥

, L

sur f ace

∑

i=1

1 − sim

(2)

Due to noisy and incomplete ground truth plane

annotations, we also make use of ground truth depth

data, D ∈ R

H×W

, for additional supervision. We cal-

culate the plane induced depth at pixel location i by

∗

∗T

· K

−1

, (3)

where K represents the ground truth camera intrin-

sics of the scene and q

is the x and y index for pixel

location i. The plane induced depth loss, L

depth

, is

formulated as:

depth

∑

i=1

− D

∗

|. (4)

We use the plane structure induced loss, ﬁrst in-

troduced by (Yang and Zhou, 2018) and which we

denote by L

geom

, based on the principle that the dot

product of a 3D point on a plane with the normal

equals the offset, n

Q = d. We use ground truth depth

and camera intrinsics to retrieve the 3D point at each

Multi-Task Planar Reconstruction with Feature Warping Guidance

655

pixel location. Q

= D

−1

obtains the 3D point

projected at one location.

geom

∑

i=1

∗T

· Q

− d

∗

(5)

Gradient Weighting. We add gradient edge weight-

ing as a model variation, weighting L

depth

and L

geom

to emphasize learning at edges, areas which are typ-

ically more difﬁcult to learn. We choose to use the

gradient of the image, G ∈ R

H×W

rather than depth,

in order to better capture edges. Despite more noise

at non-edge areas, it can capture more plane edges

as some plane instances can have the same depth but

still represent different surfaces (e.g. picture frame on

a wall). This addition results in cross-task improve-

ments for segmentation mask prediction in the case

of the multi-view model (see Section 3.3).

depth,geom

∑

i=1

∗ L

(6)

The total loss for plane guidance is

= L

plane

+ L

sur f ace

+ L

geom

+ L

depth

, (7)

and the ﬁnal combined losses:

total

= L

∗ w

+ L

. (8)

3.3 Multiview Plane Feature Guidance

In this section, we introduce our multi-view guidance

approach, depicted in Fig 3. We take neighbouring

image pairs, which we denote by source and neigh-

bouring view (I

, I

), and extract the corresponding

2D features. The two ﬁnest pyramid feature maps are

fused to generate plane features f ∈ R

H×

W ×C

. We

backproject the neighbouring feature f

to the cor-

responding location of the source view using bilin-

ear interpolation. This process uses the ground truth

depth, intrinsic parameters, and the relative transform

between the views to obtain the warped 2D coordi-

nates, from which we obtain the out-projection mask.

We then decode the warped neighbouring feature

with the plane prediction head to get the correspond-

ing plane parameters. It is important to note that

contains plane information of the neighbouring

view, under the camera coordinates of I

. Therefore,

we transform the decoded plane parameters to the

source view’s camera coordinates before comparing

to ground truth. This transformation is given by:

= R n

= d

+ n

· t, (9)

where (R, t) represents the rotation matrix and trans-

lation vector from neighbour to source view, and

, d

) are the normal and offset in the neighbour-

ing view. We then calculate an additional plane loss

using the transformed plane parameters decoded

from the warped feature, excluding from the loss ar-

eas that are occluded or fall outside of the 2D image

coordinates using the out-projection mask.

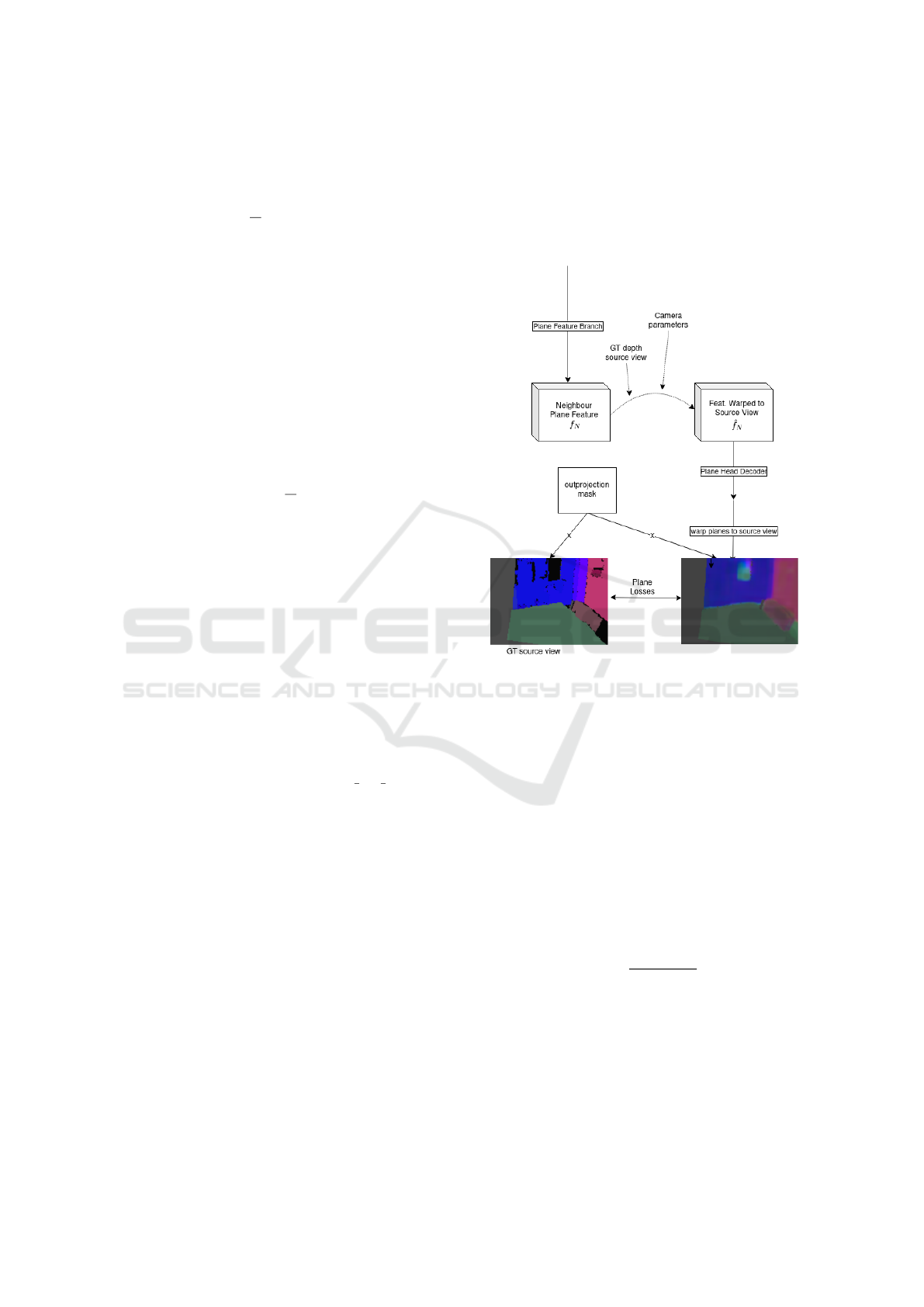

Figure 3: Overview of the feature warping guidance.

3.4 Instance Plane Soft-Pooling

To obtain the ﬁnal instance level plane parameters,

we use a soft-pooling technique which only considers

per-pixel parameters within the area of the predicted

instance. We found that restricting the pooling to this

binary area yields better results compared to using

soft-pooling across all pixel locations. We opted to

not use an instance level plane loss as it negatively im-

pacts the learning of mask segmentation. We generate

a binary segmentation mask by applying a threshold

to the predicted soft mask, denoted as m

∗

∈ [0, 1]. The

instance level parameter can be retrieved by

ins

∑

i=1

∗

∑

i=1

∗

, (10)

where M represents all the pixels falling within the re-

gion indicated by the binary segmentation mask, and

∗

the predicted plane parameter at the corresponding

location.

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

656

4 EXPERIMENTS

We evaluate various conﬁgurations of our model as

well as comparison models. The nomenclature for

our model versions is as follows: SOLOP-5lvls is a

single view version using the original 5 feature lev-

els for prediction, SOLOP-SV refers to the single-

view model trained on 60,000 samples, SOLOP-MV

is the multi-view model trained on 30,000 pairs,

and SOLOP-MV-gw incorporates gradient edge loss

weighting into the multi-view model. Qualitative re-

sults are obtained using the last conﬁguration, as it

achieved the best performance.

4.1 Setup & Training Details

For comparison between different model versions,

we train a base model initialized with a pretrained

ResNet-50 backbone and employ a data augmentation

scheme where each sample has a 15% chance of un-

dergoing one of several augmentations, such as a) jit-

ter of brightness, contrast, hue, saturation, b) Planck-

ian jitter (Zini et al., 2023), c) Gaussian noise, or d)

motion blur. We use learning rate warm-up for the

ﬁrst 2000 steps starting from a learning rate of 1e−6

and increases until 2e−4. After the initial warm-

up period, the learning rate is reduced by a factor

of 0.1 given no improvement to the validation loss.

For quicker and more fair comparison of model vari-

ations, a base model with the best validation loss was

saved at epoch 9 and used as initialization to our main

models, which were trained for 11 additional epochs.

We employ early stopping if validation loss fails to

improve for 5 consecutive epochs and save the model

with best validation performance as well as the last

checkpoint. For evaluation, we take the best of ei-

ther saved model. The additional models trained us-

ing the base model initialization do not use data aug-

mentation, and have 500 steps of learning rate warm-

up starting from 1e−6 to 1e−5. We use a batch size of

32 for the single view model with gradient accumula-

tion to mitigate the higher instability associated with

multi-task learning. We train the models on a single

NVIDIA Ampere A100 GPU. For evaluation and FPS

calculation, we use a single NVIDIA GeForce RTX

3090 GPU for all models.

4.2 Dataset

For training and evaluation, we use the ScanNet

dataset which contains RGB-D images from video

sequences, totalling 2.5 million views complete with

camera parameters and instance level semantics (Dai

et al., 2017). The ground truth plane instance anno-

tations for instance masks and plane parameters are

generated by the authors of PlaneRCNN, and we fol-

low the same process for ﬁltering and preprocessing

the planes (Liu et al., 2019). We also obtain the corre-

sponding plane instance semantics from the metadata

of the plane annotations. The ground truth plane data

often exhibited issues such as over-segmented, rough

edges, or missing plane instances, as planes with a

depth error above a 0.1 meter threshold were omit-

ted. For multi-view guidance training, we take sample

pairs which are 10 time-steps away. In some cases, a

neighbouring ground truth plane image might contain

a segment which is missing in the source view, and

vice versa. For the single-view model, we use 60,000

random samples from the training set and 10,000 from

the validation set. For the multi-view model, we use

30,000 neighboring pairs for training and 5,000 pairs

for validation.

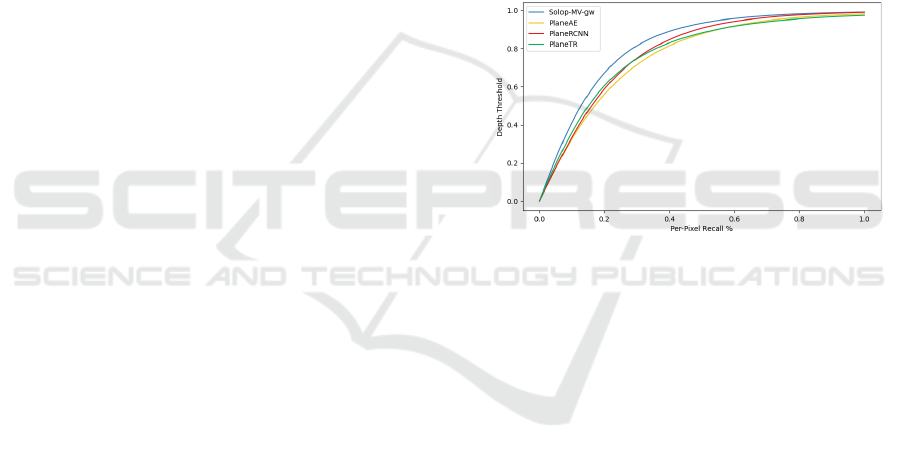

Figure 4: Per-pixel recall at varying depth thresholds in me-

ters.

4.3 Comparison

Our model is most comparable to the PlaneAE model

from Yu et al. (2019) and PlaneTR model from Tan

et al. (2021), primarily due to the speed of predic-

tion and the fact that they predict plane parameters di-

rectly using a single image as input. Given the incon-

sistent quality of ground truth plane data, the authors

of PlaneMVS manually selected stereo pairs for the

test set, which contained samples with more complete

plane annotations (Liu et al., 2022). We run our eval-

uations using the same test set. For a fair comparison,

we train the PlaneAE model for a total of 20 epochs

using a ResNet-50 backbone and the same data with

an input size of 480 x 640. The original model was

trained using an input size of 192 x 256, resulting

in a higher FPS. To align with our training regimen,

we train PlaneAE for 11 epochs using 60,000 sam-

ples and an additional 9 epochs with 100,000 random

samples. We retain the original training conﬁgura-

tion of the authors (Yu et al., 2019). We use the same

approach for retraining the PlaneTR model, and gen-

Multi-Task Planar Reconstruction with Feature Warping Guidance

657

Table 1: Model comparison results on ScanNet dataset for variations of SOLOP model and other single-image planar recon-

struction methods.

Method Depth Metrics Detection Metrics FPS

AbsRel↓ SqRel↓ RMSE↓ log RMSE↓ δ < 1.25 ↑ δ

< 1.25 ↑ δ

< 1.25 ↑ AP mAP

PlaneAE 0.181 0.092 0.325 0.208 0.746 0.931 0.983 - - 17

PlaneTR 0.178 0.133 0.365 0.215 0.768 0.930 0.977 - - 15

PlaneRCNN 0.165 0.070 0.278 0.187 0.780 0.954 0.991 0.193 - 7

SOLOP-5lvls

∗

0.143 0.059 0.276 0.185 0.813 0.960 0.990 0.416 0.314 38

SOLOP-SV

∗

0.134 0.052 0.259 0.178 0.832 0.964 0.991 0.389 0.267 43

SOLOP-MV

∗

0.136 0.054 0.261 0.177 0.832 0.962 0.991 0.427 0.344 43

SOLOP-MV-gw

∗

0.133 0.052 0.259 0.177 0.833 0.964 0.992 0.434 0.347 43

∗

= Ours

erate the required line segments using HAWPv3 (Xue

et al., 2023). While PlaneRCNN also takes a single

image at inference time, its slower inference speed

makes it a less direct comparison. We run evaluations

on the provided model from authors Liu et al. (2019).

4.4 Evaluation Metrics

We follow previous methods (Yu et al., 2019; Liu

et al., 2019) and calculate the per-pixel depth re-

call at varying thresholds in meters, shown in Fig. 4.

We also calculate standard depth and detection met-

rics for a comprehensive evaluation of model perfor-

mance. Average Precision (AP) is used to assess the

quality of the predicted masks, and Mean Average

Precision (mAP) takes into account the semantic la-

bels by averaging AP across class categories. For

depth metrics, we use Absolute Relative Difference

(AbsRel), Squared Relative Difference (SqRel), Root

Mean Squared Error (RMSE), log RMSE, and delta

accuracy (Eigen et al., 2014). We also calculate model

efﬁciency using Frames Per Second (FPS). The re-

sults of these evaluations are summarized in Table 1,

which shows a marked improvement using our archi-

tecture.

4.5 Results

The task of segmentation becomes more challeng-

ing when predicting multiple classes, as overlap-

ping masks from different classes are less likely to

be suppressed. The oversegmentation issue appears

to be more pronounced in the single view model,

whereas multi-view guidance using plane features

helped to produce more complete and less over-

segmented masks. This improvement is likely at-

tributable to feature sharing and the correlation be-

tween ground truth plane instance masks and plane

parameters.

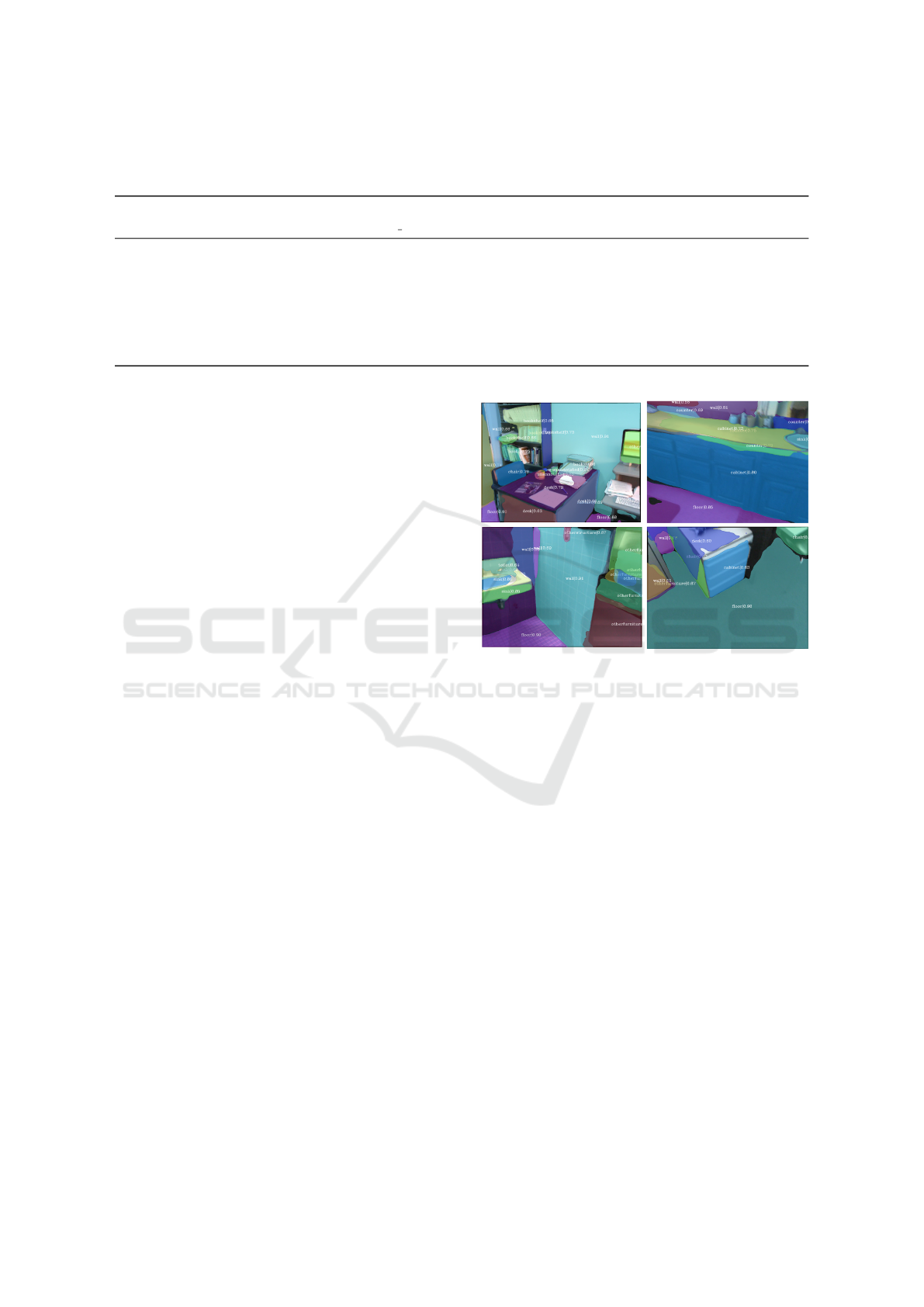

Figure 5: Visualization of semantic predictions using the

SOLOP-MV-gw model.

Despite using multi-view guidance on plane pre-

dictions, we observe an objective improvement in pre-

diction of segmentation masks. We hypothesize that

this is especially effective when adjacent views have

disparate ground truth data, such as in the case of

missing annotations. This would explain the similar

performance with regards to depth metrics between

SOLOP-SV and multiview variants, as the ground

truth depth is fairly stable across views. Ground

truth mask completeness can differ across neighbour-

ing views due to lower quality segments being ﬁltered

out. Even though the variants using multi-view guid-

ance saw a lower diversity of scenes compared to the

single view version, it nevertheless outperforms the

single view variant on the task of mask segmentation.

Quantitative. All results are obtained using the se-

lected test set chosen by the authors of PlaneMVS.

The authors Liu et al. (2022) manually selected a

higher quality set to evaluate on due to the incom-

plete and imprecise nature of the ground truth plane

annotations. The resulting test set contains 949 image

pairs. Our quantitative ﬁndings from model compar-

isons, summarized in Table 1, indicate that our multi-

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

658

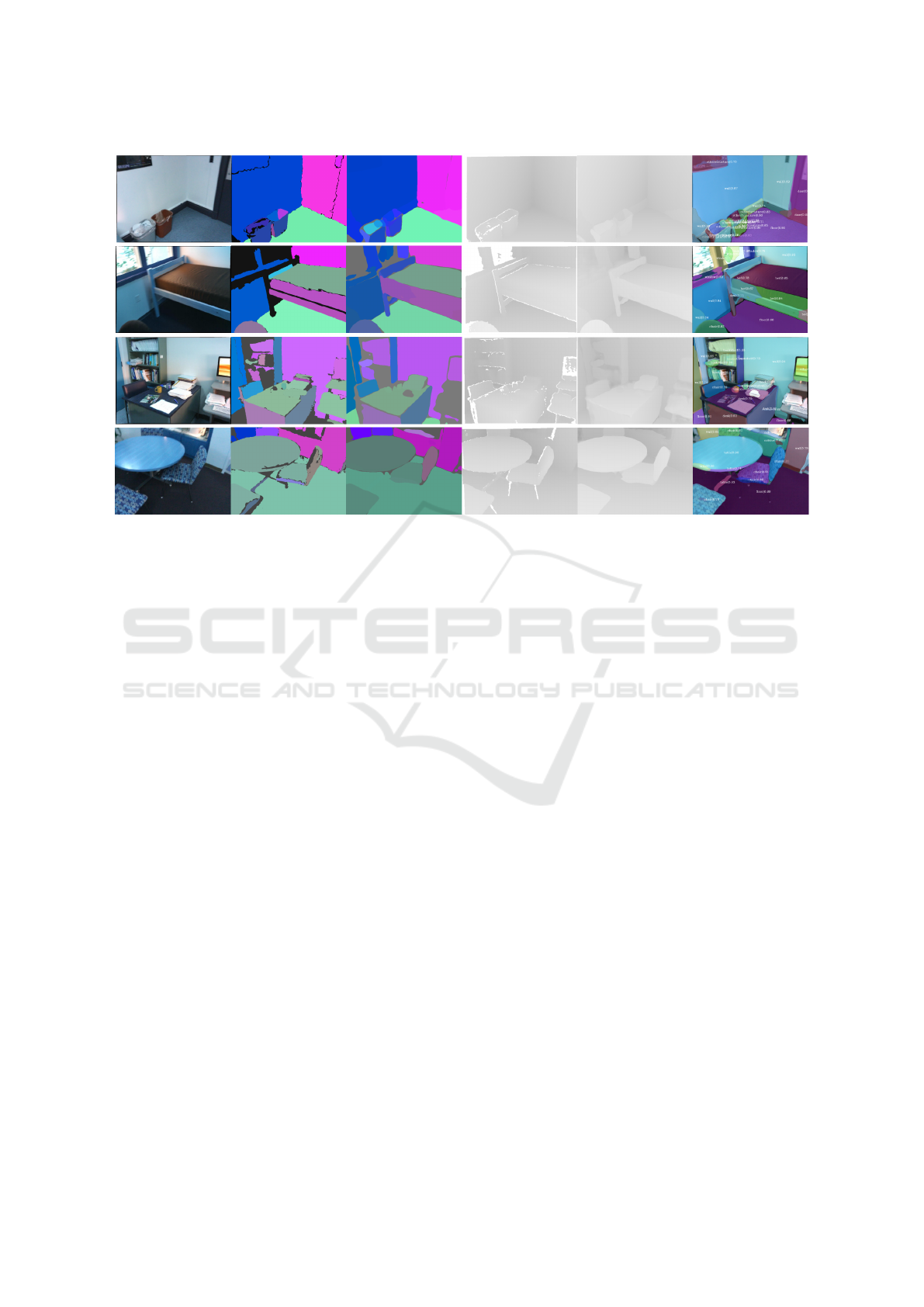

Figure 6: Qualitative results of instance plane and semantic prediction using model with best performance, SOLOP-MV-gw.

From left to right: Input image, GT planes, predicted planes, GT depth, predicted depth, predicted semantics.

view model variant not only matches the performance

of the single-view model in depth metrics, but also

shows a signiﬁcant improvement in detection metrics.

This demonstrates the efﬁcacy and improved data ef-

ﬁciency in using multi-view guidance via warping in

feature space, at least in the case of using shared fea-

tures for multitask learning. Since all SOLOP vari-

ants use a single image at inference time, the FPS re-

sult is the same for the versions of the model using

3 feature levels (SOLOP-SV, SOLOP-MV, SOLOP-

MV-gw), but signiﬁcantly reduced for the version

with the original 5 level architecture (SOLOP-5lvls).

SOLOP-MV-gw achieves better depth recall compar-

atively (see Fig. 4), while all SOLOP variants outper-

form the comparison models on standard metrics.

Qualitative. We display different types of visual re-

sults from our best model in Figures 1, 5, and 6.

In contrast to previous works that predicted a binary

plane indication, the incorporation of multi-class se-

mantics introduces an added complexity. The change

made to the focal loss for category predictions (see

Section 3.2) leads to more conﬁdent scoring as well

as a potential increase in false positives, which is

already exacerbated in the case of multi-class pre-

dictions. However, we found that raising the score

threshold for the ﬁnal masks partially mitigated this

issue. See Fig. 6 for visual results. The structure of

the scene is easier to predict than the exact depth, a

challenge presented when using a single image for in-

ference. Sample visualizations of the semantic pre-

dictions can be found in Fig. 5. Cases of oversegmen-

tation can occur due to prediction of different classes,

or different plane orientation, as each mask represents

a planar segment associated with a class label. Over-

all, our model demonstrates robust performance both

visually and quantitatively for the task of planar re-

construction with semantic labels.

5 DISCUSSION AND FUTURE

WORK

In this work, we introduce SOLOPlanes, a real-time

semantic planar reconstruction network which shows

cross-task improvement when using multi-view guid-

ance in feature space. The task of predicting plane

parameters from a single image is non-trivial, and

the complexity is further compounded by multi-task

learning. Despite these challenges, our model com-

petes favorably with other, less efﬁcient methods in

planar reconstruction that do not offer semantic pre-

dictions. To the best of our knowledge, our model also

outperforms all other planar reconstruction models in

computational efﬁciency, measured using FPS. Our

work advances semantic plane instance segmentation

without sacriﬁcing computational efﬁciency, striking

a balance between efﬁciency and performance. We

hope it will serve as an inspiration or stepping stone

for further research geared towards applications with

real-world impact.

Multi-Task Planar Reconstruction with Feature Warping Guidance

659

REFERENCES

Asanomi, T., Nishimura, K., and Bise, R. (2023). Multi-

frame attention with feature-level warping for drone

crowd tracking. In 2023 IEEE/CVF Winter Confer-

ence on Applications of Computer Vision (WACV),

pages 1664–1673.

Caruana, R. (1997). Multitask learning. Machine learning,

28:41–75.

Chen, Q., Wang, Y., Yang, T., Zhang, X., Cheng, J., and

Sun, J. (2021). You only look one-level feature. In

Proceedings of the IEEE/CVF Conference on Com-

puter Vision and Pattern Recognition (CVPR), pages

13039–13048.

Chen, R., Han, S., Xu, J., and Su, H. (2020). Visibility-

aware point-based multi-view stereo network. IEEE

transactions on pattern analysis and machine intelli-

gence, 43(10):3695–3708.

Coughlan, J. M. and Yuille, A. L. (2003). Manhattan World:

Orientation and Outlier Detection by Bayesian Infer-

ence. Neural Computation, 15(5):1063–1088.

Crawshaw, M. (2020). Multi-task learning with deep neural

networks: A survey. ArXiv, abs/2009.09796.

Dai, A., Chang, A. X., Savva, M., Halber, M., Funkhouser,

T., and Nießner, M. (2017). Scannet: Richly-

annotated 3d reconstructions of indoor scenes. In

Proc. Computer Vision and Pattern Recognition

(CVPR), IEEE.

Ding, Y., Yuan, W., Zhu, Q., Zhang, H., Liu, X., Wang,

Y., and Liu, X. (2022). Transmvsnet: Global context-

aware multi-view stereo network with transformers. In

Proceedings of the IEEE/CVF Conference on Com-

puter Vision and Pattern Recognition (CVPR), pages

8585–8594.

Eigen, D., Puhrsch, C., and Fergus, R. (2014). Depth map

prediction from a single image using a multi-scale

deep network. Advances in neural information pro-

cessing systems, 27.

Guo, E., Chen, Z., Zhou, Y., and Wu, D. O. (2021). Unsu-

pervised learning of depth and camera pose with fea-

ture map warping. Sensors, 21(3).

He, K., Gkioxari, G., Doll

ar, P., and Girshick, R. (2017).

Mask r-cnn. In 2017 IEEE International Conference

on Computer Vision (ICCV), pages 2980–2988.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In 2016 IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 770–778.

Im, S., Jeon, H.-G., Lin, S., and Kweon, I.-S. (2019). Dp-

snet: End-to-end deep plane sweep stereo. In 7th In-

ternational Conference on Learning Representations,

ICLR.

Lin, T.-Y., Doll

ar, P., Girshick, R., He, K., Hariharan, B.,

and Belongie, S. (2017a). Feature pyramid networks

for object detection. In 2017 IEEE Conference on

Computer Vision and Pattern Recognition (CVPR),

pages 936–944.

Lin, T.-Y., Goyal, P., Girshick, R., He, K., and Doll

ar, P.

(2017b). Focal loss for dense object detection. In 2017

IEEE International Conference on Computer Vision

(ICCV), pages 2999–3007.

Liu, C., Kim, K., Gu, J., Furukawa, Y., and Kautz, J. (2019).

Planercnn: 3d plane detection and reconstruction from

a single image. In Proceedings of the IEEE/CVF Con-

ference on Computer Vision and Pattern Recognition

(CVPR).

Liu, C., Yang, J., Ceylan, D., Yumer, E., and Furukawa, Y.

(2018a). Planenet: Piece-wise planar reconstruction

from a single rgb image. In Proceedings of the IEEE

Conference on Computer Vision and Pattern Recogni-

tion (CVPR).

Liu, J., Ji, P., Bansal, N., Cai, C., Yan, Q., Huang, X.,

and Xu, Y. (2022). Planemvs: 3d plane reconstruc-

tion from multi-view stereo. In Proceedings of the

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition (CVPR), pages 8665–8675.

Liu, R., Lehman, J., Molino, P., Petroski Such, F., Frank,

E., Sergeev, A., and Yosinski, J. (2018b). An in-

triguing failing of convolutional neural networks and

the coordconv solution. In Bengio, S., Wallach, H.,

Larochelle, H., Grauman, K., Cesa-Bianchi, N., and

Garnett, R., editors, Advances in Neural Information

Processing Systems, volume 31. Curran Associates,

Inc.

Qian, Y. and Furukawa, Y. (2020). Learning pairwise inter-

plane relations for piecewise planar reconstruction. In

European Conference on Computer Vision.

Standley, T., Zamir, A., Chen, D., Guibas, L., Malik, J., and

Savarese, S. (2020). Which tasks should be learned

together in multi-task learning? In III, H. D. and

Singh, A., editors, Proceedings of the 37th Interna-

tional Conference on Machine Learning, volume 119

of Proceedings of Machine Learning Research, pages

9120–9132. PMLR.

Tan, B., Xue, N., Bai, S., Wu, T., and Xia, G.-S. (2021).

Planetr: Structure-guided transformers for 3d plane

recovery. In Proceedings of the IEEE/CVF Interna-

tional Conference on Computer Vision (ICCV), pages

4186–4195.

Wang, X., Kong, T., Shen, C., Jiang, Y., and Li, L. (2020a).

Solo: Segmenting objects by locations. In Com-

puter Vision–ECCV 2020: 16th European Confer-

ence, Glasgow, UK, August 23–28, 2020, Proceed-

ings, Part XVIII 16, pages 649–665. Springer.

Wang, X., Zhang, R., Kong, T., Li, L., and Shen, C.

(2020b). Solov2: Dynamic and fast instance segmen-

tation. Advances in Neural information processing

systems, 33:17721–17732.

Xi, W. and Chen, X. (2019). Reconstructing piecewise pla-

nar scenes with multi-view regularization. Computa-

tional Visual Media, 5(4):337–345.

Xie, Y., Gadelha, M., Yang, F., Zhou, X., and Jiang, H.

(2022). Planarrecon: Real-time 3d plane detection and

reconstruction from posed monocular videos. In Pro-

ceedings of the IEEE/CVF Conference on Computer

Vision and Pattern Recognition, pages 6219–6228.

Xie, Y., Rambach, J., Shu, F., and Stricker, D. (2021a).

Planesegnet: Fast and robust plane estimation using a

single-stage instance segmentation cnn. In 2021 IEEE

International Conference on Robotics and Automation

(ICRA), pages 13574–13580. IEEE.

Xie, Y., Shu, F., Rambach, J. R., Pagani, A., and Stricker, D.

(2021b). Planerecnet: Multi-task learning with cross-

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

660

task consistency for piece-wise plane detection and re-

construction from a single rgb image. In British Ma-

chine Vision Conference.

Xue, N., Wu, T., Bai, S., Wang, F.-D., Xia, G.-S., Zhang, L.,

and Torr, P. H. S. (2023). Holistically-attracted wire-

frame parsing: From supervised to self-supervised

learning. IEEE Transactions on Pattern Analysis and

Machine Intelligence, 45(12):14727–14744.

Yang, F. and Zhou, Z. (2018). Recovering 3d planes from

a single image via convolutional neural networks. In

Ferrari, V., Hebert, M., Sminchisescu, C., and Weiss,

Y., editors, Computer Vision – ECCV 2018, pages 87–

103, Cham. Springer International Publishing.

Yao, Y., Luo, Z., Li, S., Fang, T., and Quan, L. (2018).

Mvsnet: Depth inference for unstructured multi-view

stereo. European Conference on Computer Vision

(ECCV).

Yu, Z., Zheng, J., Lian, D., Zhou, Z., and Gao, S.

(2019). Single-image piece-wise planar 3d recon-

struction via associative embedding. In Proceedings

of the IEEE/CVF Conference on Computer Vision and

Pattern Recognition, pages 1029–1037.

Zini, S., Gomez-Villa, A., Buzzelli, M., Twardowski, B.,

Bagdanov, A. D., and van de Weijer, J. (2023).

Planckian jitter: countering the color-crippling effects

of color jitter on self-supervised training. In The

Eleventh International Conference on Learning Rep-

resentations, ICLR 2023, Kigali, Rwanda, May 1-5,

2023. OpenReview.net.

Multi-Task Planar Reconstruction with Feature Warping Guidance

661
