Enterprise Architecture Governance of Excellence

Peter Hillmann

, Mario Kesseler, Diana Schnell, Goran Mihelcic and Andreas Karcher

Universit

at der Bundeswehr M

unchen, Department of Computer Science,

Werner-Heisenberg-Weg 39, 85577 Neubiberg, Germany

Keywords:

Enterprise Architecture, Enterprise Architecture Governance, Federated Management, Enterprise

Collaboration, Enterprise Architecture Management.

Abstract:

Every organization has an architecture that must be adapted to the given circumstances and future needs in

order to stay competitive. Particularly in the case of federated structures, there is a high degree of complexity

in terms of both business and IT. For a smooth process and a goal-oriented management, this should be done

as proactively as possible in an orderly manner. To make this possible, the principles of governance have

to be applied. This forms the organizational basis for Enterprise Architecture Management. It creates high-

quality information that is used for strategic and operational decisions. The challenge we address is the lack

of Enterprise Architecture Governance with focus on a federated environment. Our goal is a detailed and

applicable concept for Enterprise Architecture Governance. For this purpose, the several components are

examined more closely and detailed explanations are given in a compact form. The evaluation is based on

practical examples in both industry and government.

1 MOTIVATION FOR

GOVERNANCE

Every company and every organization has an Enter-

prise Architecture (EA), regardless of whether one is

aware of it. So, EA is always in the area of tension

between unstructured ad-hoc adaptation and planned,

structured change. This is where Enterprise Archi-

tecture Management comes in for a controlled de-

velopment. We deﬁne Enterprise Architecture Man-

agement (EAM) in line with deﬁnition of EA (Buckl

et al., 2010) as follows: EAM is a continuous and it-

erative discipline for the structured further develop-

ment, adaptation, and improvement of an organiza-

tion. The goal is to align the company and their op-

eration as a whole on the basis of a strategy, taking

the environment into account. This includes the areas

of governance and compliance, ﬁnance and risk, roles

and processes as well as IT. It is essential that they are

coordinated with each other with goal of Business-IT-

Alignment.

EAM requires a framework with a coherent set

of methods and principles for designing the organiza-

tional structure, business processes, information, ap-

plications, systems and infrastructure. It relies on an

https://orcid.org/0000-0003-4346-4510

adequate organizational form with adapted processes,

roles and responsibilities as well as functioning com-

mittees (Inge, 2022; Tiemeyer, 2023).The high im-

portance of structured business planning through EA

methods is reﬂected in the regulations and decrees of

several governments. In the USA, the Clinger-Cohen

Act mandated the use of EAM for all U.S. federal

agencies (U.S. House, Committee on National Secu-

rity, 1996; U.S. Federal Government, 2012). A well-

known example of non federated usage is the U.S.

Department of Veterans Affair (U.S. Department of

Veterans Affairs, 2023).

Therefore, we need governance to establish the or-

ganizational structures for an EAM. It ensures up-to-

date, complete, and high-quality information that is

used for strategic and operational management. We

deﬁne Enterprise Architecture Governance (EAG) as

follows: EAG is used to deﬁne goals and strate-

gies. It encompasses the control, administration and

monitoring of architecture-related work to achieve re-

quired business outcomes by evaluation of risk and

chances. This includes establishing frameworks with

rules, processes, actions, roles, and control mecha-

nisms for structuring, managing and maintaining EA.

It ensures that EA is effectively implemented, sus-

tained and regulated. It enforces compliance with

standards, guidelines and best practices to assure

Hillmann, P., Kesseler, M., Schnell, D., Mihelcic, G. and Karcher, A.

Enterprise Architecture Governance of Excellence.

DOI: 10.5220/0012399000003690

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 26th International Conference on Enterprise Information Systems (ICEIS 2024) - Volume 2, pages 603-613

ISBN: 978-989-758-692-7; ISSN: 2184-4992

603

control, transparency and accountability within an

organization.

Governance can be divided into different ar-

eas (Schelp and Stutz, 2007). The all-encompassing

level is thereby described by the corporate gover-

nance. This also includes federal associations. A sub-

set of this is the actual EAG, which is divided into the

areas of business architecture governance and IT gov-

ernance. The challenge we address is a detailed de-

scription for EAG and the missing link for Enterprise-

IT-Governance with focus on federal environments,

see Figure 1. Our goal is a detailed and applicable

concept for EAG, which goes in line with the large

frameworks of COBIT, TOGAF, and ITIL.

Figure 1: Abstract structure of Enterprise-IT-Governance

for coordination and management in federal cooperations.

Separation of process, content, and context is crit-

ical to successful governance. This allows for the de-

scription of governance matters without reciprocal in-

ﬂuence. The content-independent approach ensures

ﬂexible applicability. According to COBIT (ISACA

Germany, 2019), functioning governance helps to

identify and address problems at an early stage. We

see it as an proactive as well as reactive discipline.

By describing the components and their relationships

that constitute the whole enterprise, it provides a road

map for business and technological change (Rybaric,

2020). An enterprise architecture is a structured pro-

cess for the implementation of an organisation’s vi-

sion and strategy for effective change. It links the

strategy to the execution by bringing the decision

makers and the technical teams closer together and

providing them with the information they need. This

is done by creating, communicating and improving

the key principles and artefacts that describe the fu-

ture state of the enterprise and enable it to evolve.

2 PROBLEMS AND

REQUIREMENTS

Our example comprises a conglomerate of companies

focusing on energy systems, mobility solutions and

medical technology. Business units are given a de-

gree of autonomy in their development because they

know best how to evolve their capabilities. There are

various inter-dependencies between the business units

in terms of internal processes and reuse of existing

products. All units require, among other things, hu-

man resources and ﬁnancial management as well as

other functions. In addition, sub-products from the

energy systems are used in mobility solutions, for ex-

ample. In order to make targeted use of these synergy

effects between the business units as a joint company,

this federal structure requires holistic coordination.

The goal is to improve cooperation and integration.

The approaches of EAG are suitable for this purpose,

whereby these are to be transferred into a federal con-

text.

We see the following challenges for EA in general

and especially for collaborations on a federated EA

level:

• Lack of Clear Purpose:

Imprecise overall organizational goal of EA in

managing and maintaining the relation between

business innovations and complexity of growing

IT systems.

• Stakeholder Acceptance:

Missing understanding and support about the use-

fulness of EA in business development and es-

tablishment of business collaborations for pre-

planed, structured and organized procedures.

• Lack of Oversight:

Missing continuous overview and thus of the con-

nection from the upper business level to the lower

IT-technical realization level aligned with the

strategic goals for proper governance and man-

agement.

• Heterogeneous Structures:

Ingrained procedures and legacy systems create

diversity and complexity, particularly in federal

alliance with different approaches.

• Different Frameworks:

Usage of multiple EA frameworks and other ap-

proaches require alignment and dedicated appli-

cation descriptions.

• Difﬁculty in Integration:

Challenging interplay of EA approaches with

other management disciplines like project and

change management for gaining synergy of holis-

tic thinking and consistent planning.

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

604

Therefore, the following research questions will

be addressed:

1. How could a federated enterprise structure be or-

ganized for an efﬁcient collaboration?

2. What structure of Advisory Boards are needed and

how they should they be organized to make appro-

priate decisions?

3. What kind of architecture resources and skills are

recommended?

4. How should Multi-Portfolio controlling be han-

dled?

5. What kind of interfaces can occur and how could

they be approached?

In summary, we obtain the following main re-

quirements for an EAG of federated enterprise man-

agement:

• Collaborative Work Possibilities: Support em-

ployees work and interaction to achieve a com-

mon goal in ways that beneﬁt the enterprise.

• Coordinated Processes: Guiding the overall

business and EAM process towards a meaningful

goal between interdependent processes in terms of

syntax and semantic through the entire life cycle.

• Handling of Enterprise and Projects Artefacts:

Holistically structured and controlled architec-

tures with homogenization and generalization to

reduce complexity for overall simpliﬁcation.

• Transparency and Integration: Clear presenta-

tion and easy access to agreed results with version

and variant traceability for all stakeholders.

• Synchronization and Conﬂict Management:

Alignment of artifacts and processes for a coop-

erative approach and integrated collaboration via

working groups.

• Artefact Maintenance and Maturity: Regular

review of results for relevance and timeliness to

achieve higher sophistication.

3 RELATED WORK

In the area of governance, the frameworks of TO-

GAF (The Open Group, 2022), COBIT (ISACA,

2019), and BTS (Business Technology Forum, 2019)

provide initial information. All ot them have a large

scope and offer only abstract high-level descriptions.

So these are not practical, especially with regard to

small companies.

The compact approach of Hanschke (Inge, 2022)

and Behara (Behara, 2022) aims directly at gov-

ernance concerns. Similarly, Tiemeyer (Tiemeyer,

2023) provides a description for modern architec-

tures. While these designs list the essential areas, it

does not offer speciﬁc suggestions and structures.

For EAM, ADOIT offers an Airport Case

Study (BOC Academy, 2017) with detailed explana-

tions. However, these cannot be adapted to a feder-

ated governance approach.

With the goal of stakeholder management, Kur-

pjuweit (Kurpjuweit, 2009) provides a structured ap-

proach. Furthermore, Obermeier (Obermeier, 2014)

and the Federal Republic of Germany (Beauftragten

der Bundesregierung f

ur Informationstechnik, 2022)

provide a speciﬁc approach for public administration.

Both also describe best practices and guidelines for

creating artifacts. These are included here and kept

compatible.

ITIL (AXELOS, 2019) offers more in-depth infor-

mation on governance with version 4. However, these

have an IT speciﬁc focus and do not provide concrete

suggestions. An interaction with the ITIL speciﬁc

Service Knowledge Management System is planned.

A deep insight into EAG is provided by the Uni-

versity of Columbia (University Columbia, 2023).

Suitable parts are abstracted and adapted. Subse-

quently, the extension for the federal context takes

place.

Especially in the focus of a federated environment

considered here, none of the comparable frameworks

provides a suitable approach.

4 CONCEPT OF EA

GOVERNANCE FOR

FEDERATED ENTERPRISE

MANAGEMENT

For an efﬁcient interaction of a federally structured

Enterprise, different domains have to be addressed.

Figure 2 shows an overview of the essential domains

and their interrelationship for a functioning EAG.

The interrelationships extend to horizontal and ver-

tical domains, anchoring a holistic approach across

the entire organizational structure. Our integrative

approach using EA fosters the collaboration of the

federated grouping. Only through their more pre-

cise design can a goal-oriented EAM take place. In

particular, our concept reveals the expected interfaces

and transition points that need to be addressed. With

this concept, corresponding methods and coordina-

tion demands are identiﬁed. Requirements for pro-

cesses, transfer points and information become appar-

ent, whereby a kind of workﬂow chain or network is

created. For this purpose, corresponding workﬂows,

Enterprise Architecture Governance of Excellence

605

communication channels and formats have to be coor-

dinated in order to realize a professional exchange in

a federal context. Therefore, we describe operational

interoperability with uniﬁed management structures.

Application to multiple segments generates a multi-

plier effect with regard to an emergence across the

federal structure.

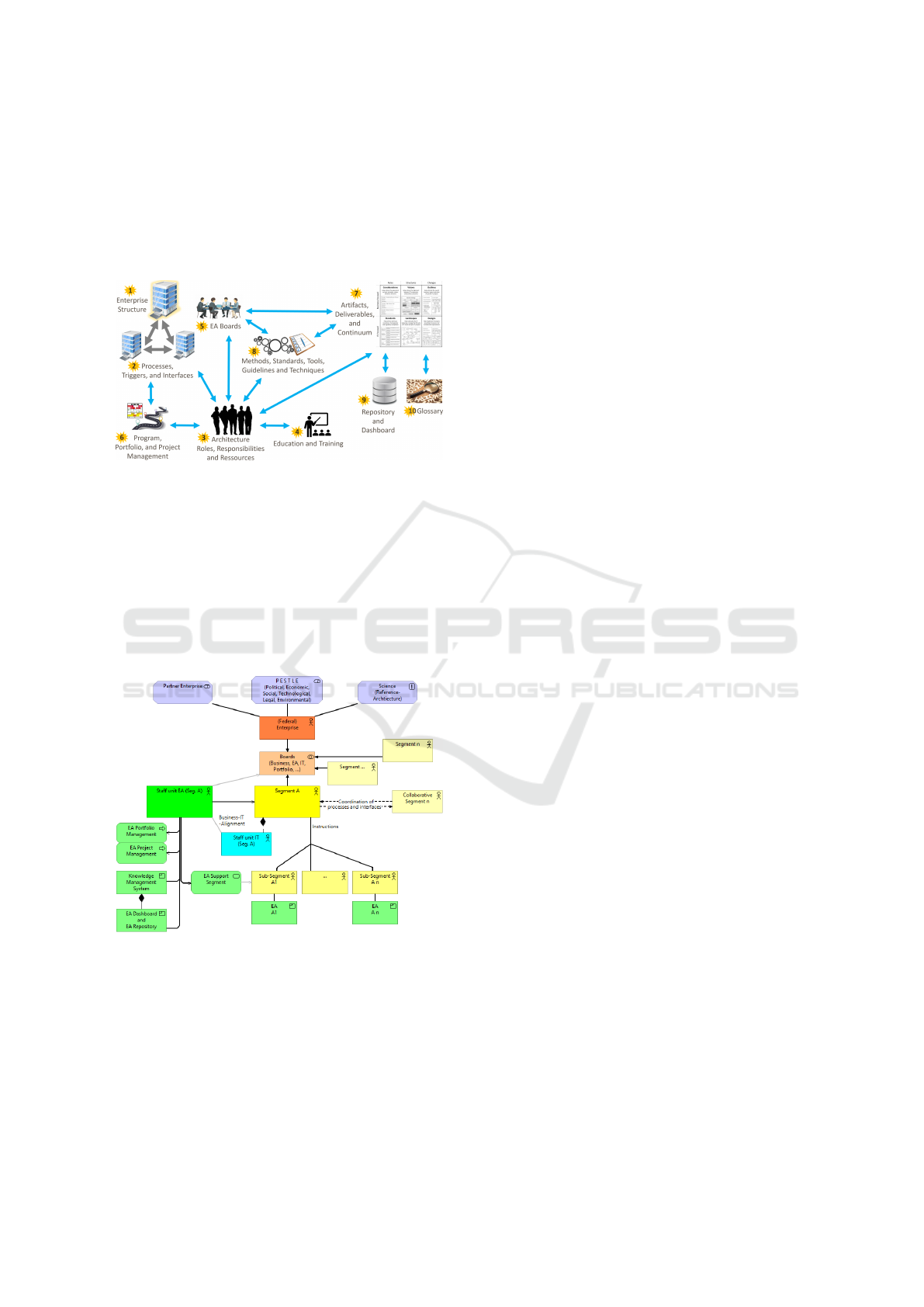

Figure 2: Essential domains and their interrelationship for a

functioning EAG.

4.1 Enterprise Structure

Within the federal afﬁliation, we have developed a

generic basic structure that can be adapted to a respec-

tive enterprise. Figure 3 shows the reference model

with the goal of structured governance. Based on the

design, this reveals interfaces between the business

units where coordination is mandatory.

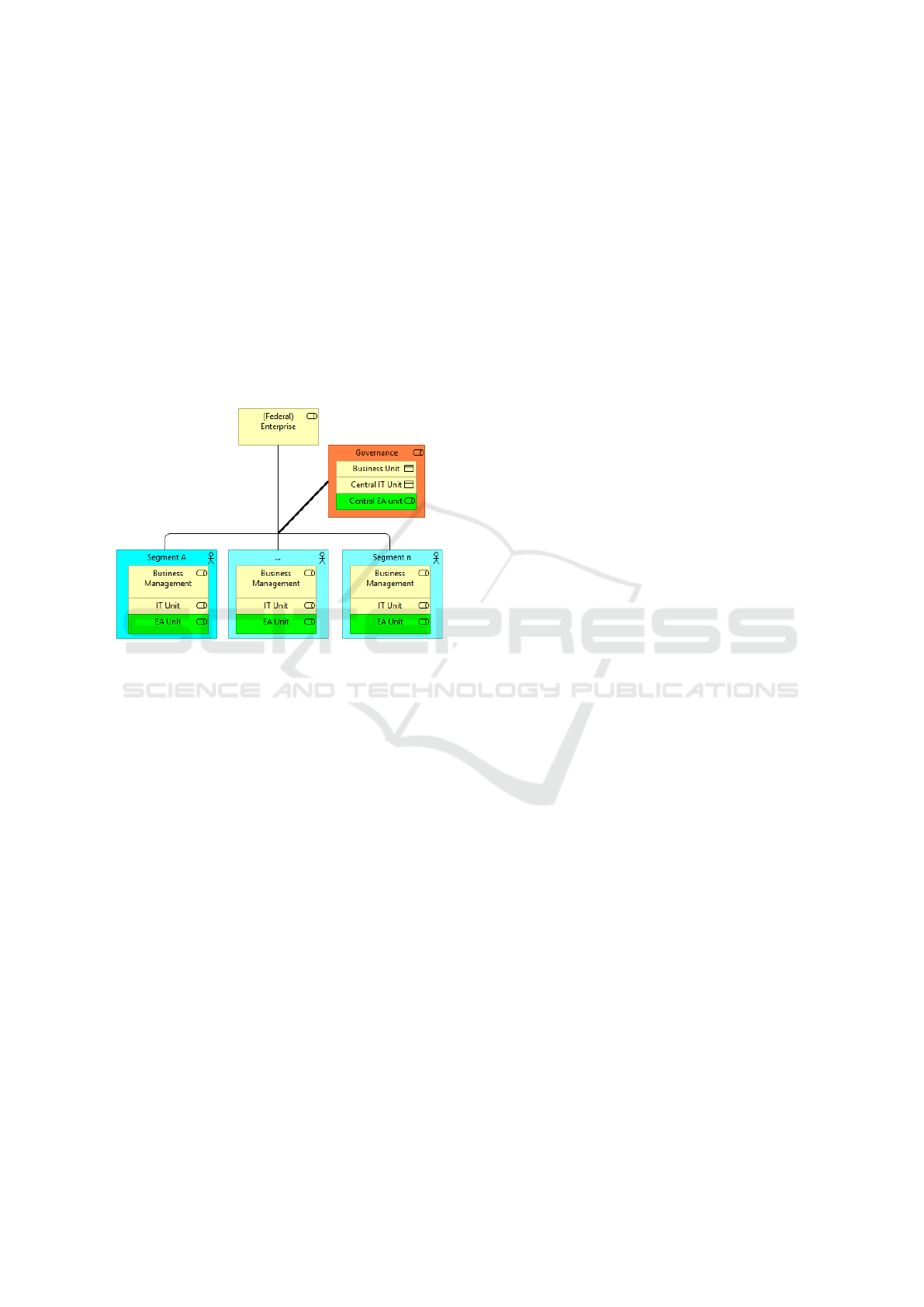

Figure 3: Reference model for structuring of Federale En-

terprise Architecture (according to ArchiMate, colors self-

selected with regard to grouping).

We start from Segment A in the middle, which be-

longs to a larger enterprise, but can itself have sev-

eral sub-segments. The federated enterprise is ex-

ternally inﬂuenced by other cooperation partners and

PESTLE (Aguilar, 1967) aspects as well as by science

and research. In particular, reference architectures are

listed here in the context of EA. On the same level

as the considered Segment A, there are further seg-

ments in the federated context. These cooperation is

managed via boards. According to the Business-IT-

Alignment, Segment A includes an IT staff unit. This

unit is in collaboration with an IT unit at enterprise

level via coordination bodies. Our focus is on the as-

sociated EA staff unit from Segment A. It supports

Segment A in its daily business and also coordinates

with the higher-level enterprise and the sub-segments

as well as IT. For the cooperation in the superordi-

nate federal enterprise, corresponding boards are to

be established for the various topic complexes, such

as architectures, IT and portfolio integration. The

same applies, if necessary, to the subordinate business

units. In accordance with the hierarchical structure,

instructions and directives can be made here from top-

down. For the cooperation of segments on the same

level, interfaces are created with the objective of col-

laboration. Here, no direct speciﬁcations can be made

on the basis of the hierarchy. Therefore, individual

coordination of products, processes and interfaces is

required and mandatory support is provided by the EA

staff unit.

We see three main cases for interfaces between

segments. If the segments use the same EA approach,

then the cooperation should be easily possible. If the

segments maintain different EA approaches, the inter-

face and alignments has to be coordinated. In the last

case, a segment has no EA approach at all, so it has to

be covered primarily by the superordinate structure.

The following areas and tasks are to be covered

by the EA staff unit. Project and portfolio manage-

ment is to be located here. The portfolio manage-

ment serves as an overview and takes over the holis-

tic coordination of existing as well as new artifacts.

Project management coordinates and supports dedi-

cated projects. In relation to TOGAF ADM, support

is provided in particular in Phase F and G, although

the previous Phases A-E should also be considered.

In addition, a knowledge management system is re-

quired for inventory administration. This also goes

hand in hand with the ITIL approach, in particular for

cooperation between Segment A and its IT staff unit.

All artifacts are to be managed accordingly in an EA

Repository. In addition, there is a support department

for EA, which serves as a resource pool. In particu-

lar, this provides support for the creation of artifacts

and the implementation of EA for the subordinate seg-

ments of Segment A. This has to be planned for the

sub-segments on a case-by-case basis depending on

whether a sub-segment requires its own EA staff unit

or not.

The structure can be extended upwards and down-

wards in the layers by focusing on a business unit as

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

606

the segment under consideration. Particularly in the

case of downward chaining, a decision must be made

as to whether detailing within the framework of en-

terprise architecture still makes sense or other meth-

ods shall be applied instead. In general, the coordina-

tion along the vertical axis for a parent enterprise with

its segments is carried out by means of boards. To

collaborate along the horizontal axis, individual co-

ordination between the collaborating segments is re-

quired. A segment n can simultaneously belong to the

supporting enterprise via boards and collaborate with

another segment.

4.2 Processes, Triggers, and Interfaces

The key aspects for governance processes are shown

below with a focus on EAM. Figure 4 shows an

overview of the essential tasks that are to be ad-

dressed by processes. These are divided into the

three levels: governance processes, main achievement

processes (performance processes) and support pro-

cesses. The governance processes also include the

management activities of the Board of Directors. The

main achievement processes are further subdivided

into Plan, Do, Check, and Act activities. The vari-

ous processes must be customised and adapted to the

needs of the company, so that no details are provided

here. An essential process for EA is the application

of the TOGAF ADM, whereby this extends with its

phases A-H over all sub-areas. In the case of a fed-

erated consortium, the various processes and commu-

nication plans must be coordinated and harmonized

with the federated partners. The representation typi-

cally takes place in several EA artefacts. This highly

effects the interfaces between the artifacts for chain-

ing. We suggest to double the interface from the prior

process output as input of the following process, so

disconnection becomes visible. Starting points of pro-

cesses and activation of the bodies are called triggers

and can be of various kinds. For a holistic view of the

interrelationships, an example sequence is visualized

in Figure 4.

4.3 Architecture Rolls, Responsibilities,

and Training

As part of EA governance, we see at least the follow-

ing role categories to ensure the basic areas of activity.

These are described with their respective areas of re-

sponsibility and adequate training. The roles and their

authoritative relationship is shown in the Figure 5.

• Enterprise Manager: Planning and further de-

velopment of the enterprise and the IT landscape

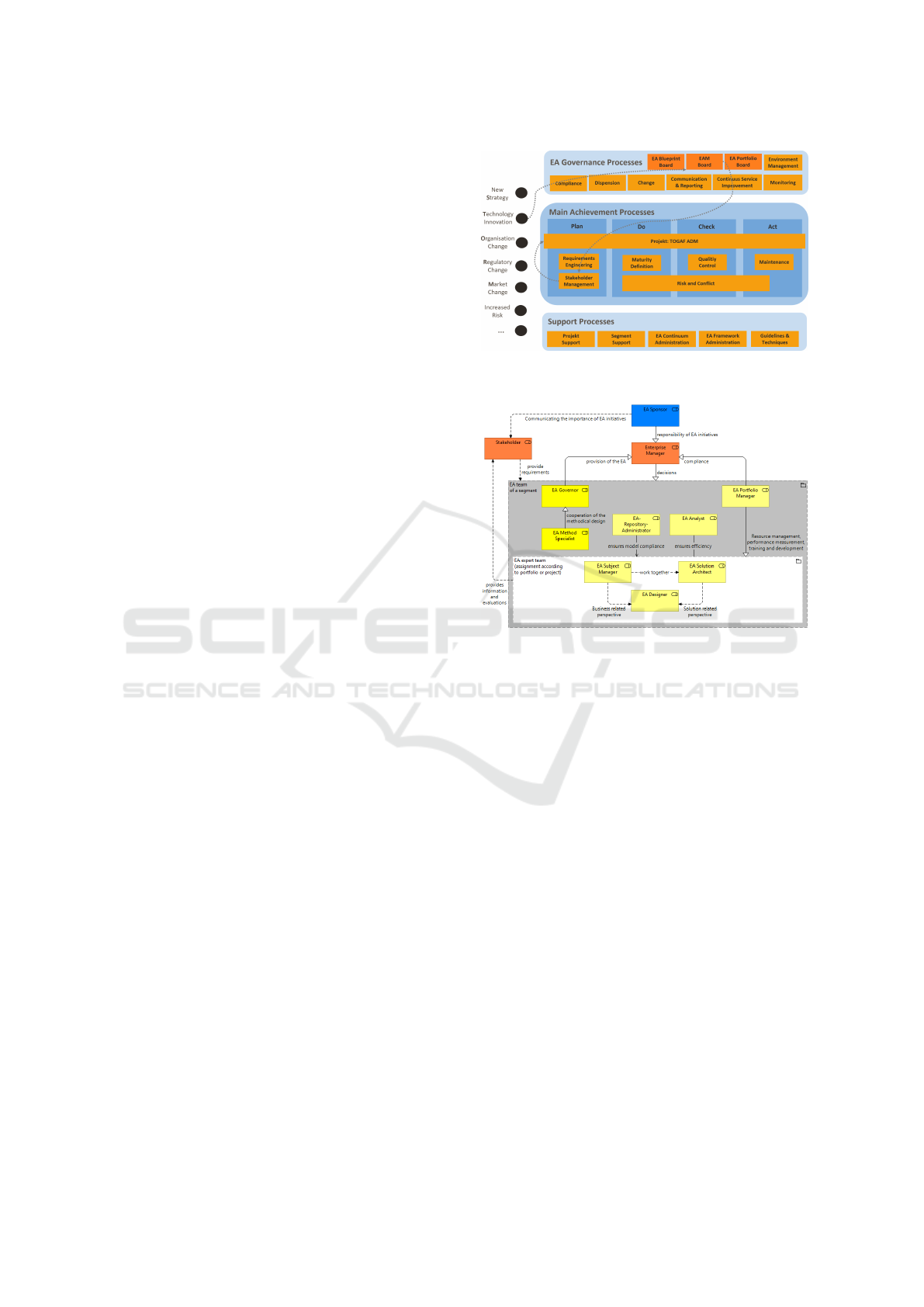

Figure 4: Overview of general EA processes for governance

and management with example workﬂow.

Figure 5: EA Governance roles and their relevant relation-

ships.

in speciﬁc areas; link between business area and

enterprise architects; responsibility for the con-

tent design; interpretation and documentation of

requirements and content design decisions.

• EA Sponsor: Responsibility for the EA initiative,

consistency with corporate objectives, provision

of resources.

• EA Governor: Overall responsibility for the ap-

plication; preservation of economic aspects and

EA capabilities; strategic development; risk and

change management; strategically develop and re-

ﬁne an enterprise architecture strategy that sup-

ports long-term goals of the business; identiﬁca-

tion of drivers and translation into architectural

requirements.

• EA Portfolio Manager: Coordinates, syn-

chronizes and controls architecture management;

assurance of interoperability; resource man-

agement; maintaining architecture capability;

overview and knowledge management, includ-

ing the repository; communication of architec-

ture concepts to non-technical stakeholders; qual-

ity assurance; performance and optimization man-

agement.

Enterprise Architecture Governance of Excellence

607

• EA Subject Manager: Responsible for the ar-

chitectural knowledge of the subject area; co-

ordinates, synchronizes and controls architecture

management in speciﬁc areas; content design of

architectures in compliance with the speciﬁca-

tions of the responsible business and solution ar-

chitects; part of subject matter expert network; re-

sponsible for the EA continuum of EA artifacts

and reference architectures of the subject area.

• EA Solution Architect: Are Subject Matter Ex-

perts and work closely with the project teams; re-

sponsible for architectural knowledge in speciﬁc

areas; technology assessment and administration

of reference architectures; creation and commu-

nication of architecture concepts to stakeholders;

governance implementation; following a cyclic

approach of Plan-Do-Check-Act Cycle: analyze

requirements, develop solutions, integration test-

ing, and documentation; supported by EA De-

signer to realization.

• EA Designer (Optional): Responsible for ar-

chitecture descriptions that conform to speciﬁ-

cations; creation and maintenance of architec-

tural artifacts; capture all relevant information and

interrelationships between the various architec-

tural elements; prepare documentation; compli-

ance with references, standards and best practices;

ensuring Guidelines of Modeling (Becker, 1995;

Ambysoft Inc., 2022) for accuracy, consistency

and completeness in relation to aesthetic represen-

tation.

• EA Analyst: Evaluate architecture models with

respect to speciﬁc and substantive issues; make

recommendations to various audiences, including

executive management, IT teams, and stakehold-

ers.

• EA Method Specialist: Develop and maintain

the methodologies, models, and frameworks to

design and manage enterprise architecture; cus-

tomization and integration of policies and stan-

dards for usage; training and support for success-

ful application across the enterprise; quality assur-

ance of EA artifacts; identiﬁcation and promotion

of best practices; continuous improvement in rela-

tion to life cycle management and maturity model.

• EA Repository Administrator (Optional): Re-

sponsible for EA artifact management; takes care

on version and variant control; does conﬁguration

management of the EA Repository; set up access

control to the EA Repository.

In addition, there is also the important role of the

stakeholders. We see this only indirectly as part of EA

governance, here. Their interests are manifold and

can vary greatly. Appropriate stakeholder maps must

be maintained for them with concerns, views and re-

lations. It is essential to be clear who the stakeholders

are, before an artifact is created.

According to these roles for the EAM, we have to

address the speciﬁc areas and domains of application.

This is especially important for the subdivision of the

role of EA Solution Architect, EA Designer and EA

Analyst. A more ﬁne-grained subdivision depends

on the size of the federated enterprise, especially in

the diversiﬁcation to specialized subject areas. In re-

lation to the hierarchical structuring of EA artifacts

and EA continuum, the following topics have to be

addressed: business; application and technology; in-

formation and data; infrastructure; process; security;

risk; demand.

We highly suggest that the EA Governor main-

tains a RACI-VS Matrix for the responsibility of each

roles and person. It show the conjunction with their

services and function with respect to all the service

areas and associated functions performed by the EA

organization. This matrix is an EA artifact by itself

and has to be maintained in the EA Repository. Fur-

thermore, a ﬂat hierarchy as a tree with two to three

level is recommended.

4.4 EA Boards

We see as least the following three boards for discus-

sions and decision making. Each board consists of up

to seven members. In practice, larger boards are per-

ceived as ineffective and should perhaps be structured

via additional hierarchies. These boards exist at the

federal level for vertical, superordinate alignment. If

necessary, these also exists at the segment level for

horizontal, inner coordination. The roles described

exist at each level with their own staff unit EA. As-

sociated to the boards are in each case the mentioned

role of the higher segment (level n+1) and the same

roles of the lower, parallel segments (level n). In ad-

dition, the management of the federation should be

involved, as EA is an integral part of the management

culture and thus an effective cooperation is designed

here.

• EA Blueprint Board: Ensure a coordinated and

consistent approach to the development, imple-

mentation and application of EA methodologies

within the federated enterprise. EA methods in-

clude the tools, techniques, processes, and stan-

dards used to design, manage, and optimize the

enterprise architecture. It is responsible for moni-

toring the appropriateness, viability, sustainabil-

ity, costs, and beneﬁts of the EA approach, es-

pecially for Governance and Compliance. Con-

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

608

duct reviews of EA artifacts to ensure architec-

tural alignment. Build standards, patterns, tem-

plates, and reference architectures. Involved roles

of EA subdivisions: EA Governor or representa-

tive EA Method Specialist or EA Portfolio Man-

ager. Informed business role of the federation

staff: CIO.

• EAM Board and Strategy Council: Coordinate

and direct strategic decisions and votes regarding

the enterprise architecture on a federal level. En-

sure that the various subdivisions and departments

are in harmony with the overall corporate goals.

Jointly develop EAM concerns and capabilities;

share a vision and best practices, establish strate-

gic direction for the EAM effort; set goals for

project portfolio management; recommendations

with regard to the further EAM project as well

as the development of the IT landscape to max-

imizing ICT’s effect. Involved EA roles of divi-

sions and subdivisions: Enterprise Manager and

EA Portfolio Manager or representative EA Sub-

ject Manager. Informed business role of the fed-

eration staff: CEO.

• EA Portfolio Board: Controlling the project

portfolio, evaluating and prioritizing project pro-

posals and demands. Thus, it is deﬁning and man-

aging the portfolio of the EA artefacts. Projects

are also started, stopped and paused, and in-

vestment decisions are made accordingly, if nec-

essary, to ensure the company’s long-term efﬁ-

ciency, ﬂexibility and innovation through appro-

priate EA initiatives. The focus is based on prod-

uct areas and products. It takes care of the user

and business owner perspectives. Involved EA

roles of divisions and subdivisions: EA Portfolio

Manager or representative EA Subject Managers,

if required EA Sponsor. Informed business role of

the federation staff: CTO.

Beside these, every enterprise has to address addi-

tional, not direct EA governance related boards, e.g.

IT and Security Council. It must still be coordi-

nated and guided with typical perspectives of holis-

tic ICT-service, -application and -technology archi-

tecture (Raad, 2023).

4.5 Program, Portfolio, and Project

Management

This unit represents the operational power center.

Here, the coordination of strategic intentions takes

place within the framework of programs and projects.

The activities in the portfolios of all projects must be

coordinated with each other, especially with regard to

dependencies, interconnections, and interfaces. This

includes prioritizing projects and planning resources.

It involves monitoring of budgets and progress. In

the event of difﬁculties, appropriate escalation is to

be made to the various boards. Depending on the

size, a separate unit for controlling can be created or

a division for the different programs can be installed.

The managing role is the EA Portfolio Manager and

should be centralized in one person if possible. For

support and reliability, a deputy should be appointed,

who is always informed and up to date. Typical arti-

facts for this are: Strategy Map, Program and Portfo-

lio Roadmaps with dependencies, Project Working-

Plans and Gantt-Charts with milestones, and Gap-

Analyses. They represent the knowledge center and

maintain an overview. A holistic expertise of the EA

Repository is required in order to provide precise in-

formation. Comprehensive communication of results

and interim information is essential for the success

of the entire EA approach. Within the framework of

the federal cooperation, a horizontal as well as verti-

cal exchange has to take place. The contact persons

for this are the respective EA Portfolio Manager or

the corresponding board. For this purpose, an appro-

priate reporting system with time, format, scope, and

medium has to be coordinated.

4.6 Artifacts, Deliverables, and

Continuum

Architecture artifacts can have a high degree of di-

versity. This ranges from simple catalogs and ma-

trices to structures and models to roadmaps and di-

agrams (Roth et al., 2014; Kotusev, 2019). In the

context of governance, this must be taken into ac-

count when creating artifacts. Therefore, the fed-

erated parties should agree in advance on the meth-

ods, standards, and guidelines for designing. The EA

blueprint board is particularly useful for this purpose.

It is recommended that the category or a speciﬁc type

of an artifact shall be determined appropriately ac-

cording to the purpose (Bundesministerium des In-

neren und f

ur Heimat, 2022; Bundesministerium des

Innern, 2007). This promotes cross-cutting collab-

oration by narrowing down the multiplicity, elimi-

nated ambiguity, and reduce complexity. Thus creat-

ing a uniform understanding and a common approach.

When artifacts are created, key design decisions are

to be tracked in a table with justiﬁcation. This sup-

ports the application and also serves in the context

of further development for new versions and diverse

variants. Especially, variants enable the adaptation to

one’s own speciﬁcs in a federal cooperation. In this

context, compatibility with the reference must be en-

Enterprise Architecture Governance of Excellence

609

sured (Ascher et al., 2022).

Efﬁcient implementation of variant creation re-

quires precise coordination across the Architecture

Continuum following TOGAF. Here, a clear separa-

tion between solution-independent architectures and

the realization-dependent solutions must be ensured.

These two types of artifacts must always be created,

maintained and linked to each other. This is impor-

tant in relation to the innovation cycle of technolo-

gies (Hillmann et al., 2021), e.g. for a change of

concrete solutions. A respective gradation of each

type from foundation to organization-speciﬁc should

take place as required. The additional effort in-

volved should be weighed up in advance in relation

to the beneﬁts. Basically, artifacts of the federated

enterprise describe the highest level of abstraction.

These have a comprehensive view of the coopera-

tion with often reduced details. Segment level arti-

facts are more detailed in terms of programs, port-

folio and projects. These include both business and

IT. Domain-speciﬁc artifacts and speciﬁc designs de-

scribe concrete services, systems, or effects for basic

activities and projects. The use of Architecture Build-

ing Blocks (ABB) can reduce the effort for both EA

and implementation, preferably using Model-Driven-

Architecture. For effective reuse in federated collabo-

ration, these ABB and artifacts should be made avail-

able transparently via a register.

For the use of ABB and in variant formation, we

see two possible uses in the federal domain:

• Take-Over: An artifact is adopted by a fed-

eral segment and is applied accordingly. Var-

ious techniques can be used in this process:

Copy, Analogy, Specialisation, Inheritance, In-

stantiation, Conﬁguration, Parametrisation (vom

Brocke, 2018).

• Joint use: A segment uses an artifact offered by

another segment without changes. This can be

done as reuse like a value chain or as aggregation

of ABBs into a higher value beneﬁt.

In both cases, the interfaces must be precisely deﬁned,

harmonized and coordinated so that the artifacts can

interact across areas. This can be done via the EA

Portfolio Board. The goal here is Day Zero Interop-

erability. The results of coordinated interfaces shall

be tracked as artifacts, e.g. as in Federated Mission

Networking

. Furthermore, all artifacts have to be

validated and veriﬁed, before these are released for ﬁt

for purpose by an EAM-Board.

Independently of this, the responsible role or per-

son must also be determined for each artifact in the

https://www.act.nato.int/activities/federated-mission-

networking/

federal cooperation. In the last instance, this is always

performed by the EA Portfolio Manager and, if nec-

essary, delegated. This person is then responsible for

maintenance and quality assurance. All members are

always responsible for use and compliance, whereas

the EA Governor is supervising the process.

4.7 Methods, Standards, Tools,

Guidelines and Techniques

The methods, standards, tools, guidelines and tech-

niques used for EA must be harmonised as part of

governance. A combination of frameworks can be

used to address the interests of stakeholders at both

business and IT level. Our approach follows The

Open Group and is based on the frameworks of TO-

GAF and ArchiMate in conjunction with ITIL. In ad-

dition, the use of a grid according to Zachmann for

the EA artefact organisation provides an overview.

Within the framework of federated architecture

management, our focus is on common principles and

best practices for collaboration. Establishing best

practices is an essential part of limiting degrees of

variety in the design of EA artifacts. In addition, it

gives the EAM direction for decisions and thus de-

ﬁnes a basic order for all partners. The principles are

documented classically using the following data: ID,

Name, Statement, Rationale, Implication. For better

clarity, it is advisable to categorize the principles ac-

cording to their area of application or roles. For one

area, a set of smaller than 30 principles has proven to

be practically usable. These can grow organically and

adapt to the needs of the enterprise. For the federal

context, we see the following overarching principles

in focus on a smooth cooperation:

1. EA pursues the goal of value creation, which must

be evident in every deliverable.

2. Before an EA artifact is designed, the stakeholder

has to be identiﬁed to be role concentrated.

3. For each EA artifact, a clear maturity level is ad-

dressed.

4. Each EA artifact is self-contained.

5. Every Design follows the Service-Oriented-

Architecture (SOA) principle with clear deﬁned

interfaces for input and output in relation to inter-

operability and modular extensibility.

6. Extensive usage of standards, reference designs,

interoperable open architecture, and glossary

wherever possible.

7. Every EA artifact has an identiﬁed owner for clear

responsibility.

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

610

8. EA artifacts follow the basics of proper modelling

approach (Becker, 1995; Bundesministerium des

Innern: Referat IT-Steuerung Bund, 2011) and

fullﬁl visualization guidelines.

9. Establishing a culture of digital information trans-

fer.

10. Establishing a welcoming culture for innovations

and suggestions for improvement.

4.8 Repository

The repository serves as a central knowledge base of

information by storing all artifacts. This also includes

the EA artifacts of the EA governance. The goal is

to make EA usable, widely available and comprehen-

sively transparent. It is managed by the EA Repository

Administrator or by the EA Portfolio Manager. In the

context of federal cooperation there are two possibil-

ities for the realization of the data library:

• Common Archive: The federal community main-

tains one central data repository, which is shared

between all parties. This has the advantage that

the contents can be directly linked with each other

and reduces the administrative effort.

• Multiple directories: Each party of the federal en-

terprise maintains its own data repository. Rele-

vant EA artifacts have to be made available to the

other parties (Heiland et al., 2021), preferably via

linking. For this purpose, Linked Data approaches

are suitable using HTML iFrames, REST, AMQP,

OSLC, RDF, or CSD. Here, the sovereignty over

the data obliges by the individual party.

Regardless of this, the principle of Single Source of

Truth must be adhered to avoid synchronization and

integration conﬂicts of shadow copies in different ver-

sions and variants (Zenz et al., 2023). We recommend

a common archive as Single Point of Information in

the context of a federated enterprise. This avoids syn-

chronization and conﬂict handling problems from the

outset.

As a realization, we use a web-platform to en-

sure easy access for all stakeholders and employ-

ees (Gidey et al., 2022; P

ohn and Hillmann, 2021). A

detailed design of an EA Repository is referred to this

work (Hillmann et al., 2022). To enable a broad use,

all approved and released EA artifacts should be ac-

cessible by everyone. This ensures full transparency.

We see at least the following categories for the orga-

nization of EA artifacts. These are not considered ex-

clusive, rather they serve as tags within the metadata.

• Governance and Methodologies Artifacts, Au-

thority Structures

• Business, Strategies and Capability Artifacts

• IT Architectures (Is-Plan-Goal)

• Processes and Data

• Portfolio and Project Architectures

• Reference Architectures, Building Blocks,

Blueprint and Service Architectures

• Standard Elements, Speciﬁcations, and Regula-

tory Requirements

4.9 Dashboard

The dashboard serves on the one hand as a live

overview and on the other hand as an entry point to the

EA Repository. It offers the entry into the EA world

of experience, as seen in the example Figure 6. For a

clear start there is an interactive live grid with the dif-

ferent aspects and subjects. For the management of

the portfolio and the running projects a graph is used,

where clockwise color notations serve as progress in-

dicators

. The Gantt chart provides a roadmap of

deadlines and project dependencies (NATO Training

Architecture Framework, 2019). Current information

and changes can be found in the news feed and in

the change log. This includes objectives, drivers, and

history graphs. Metrics and alerts are displayed for

monitoring purposes (Ofﬁce of VA Enterprise Archi-

tecture, 2016). In addition, it provides a wiki like tool

for: Reference Models, Requirements (Heiland et al.,

2023) , Baseline Documents and the Glossary.

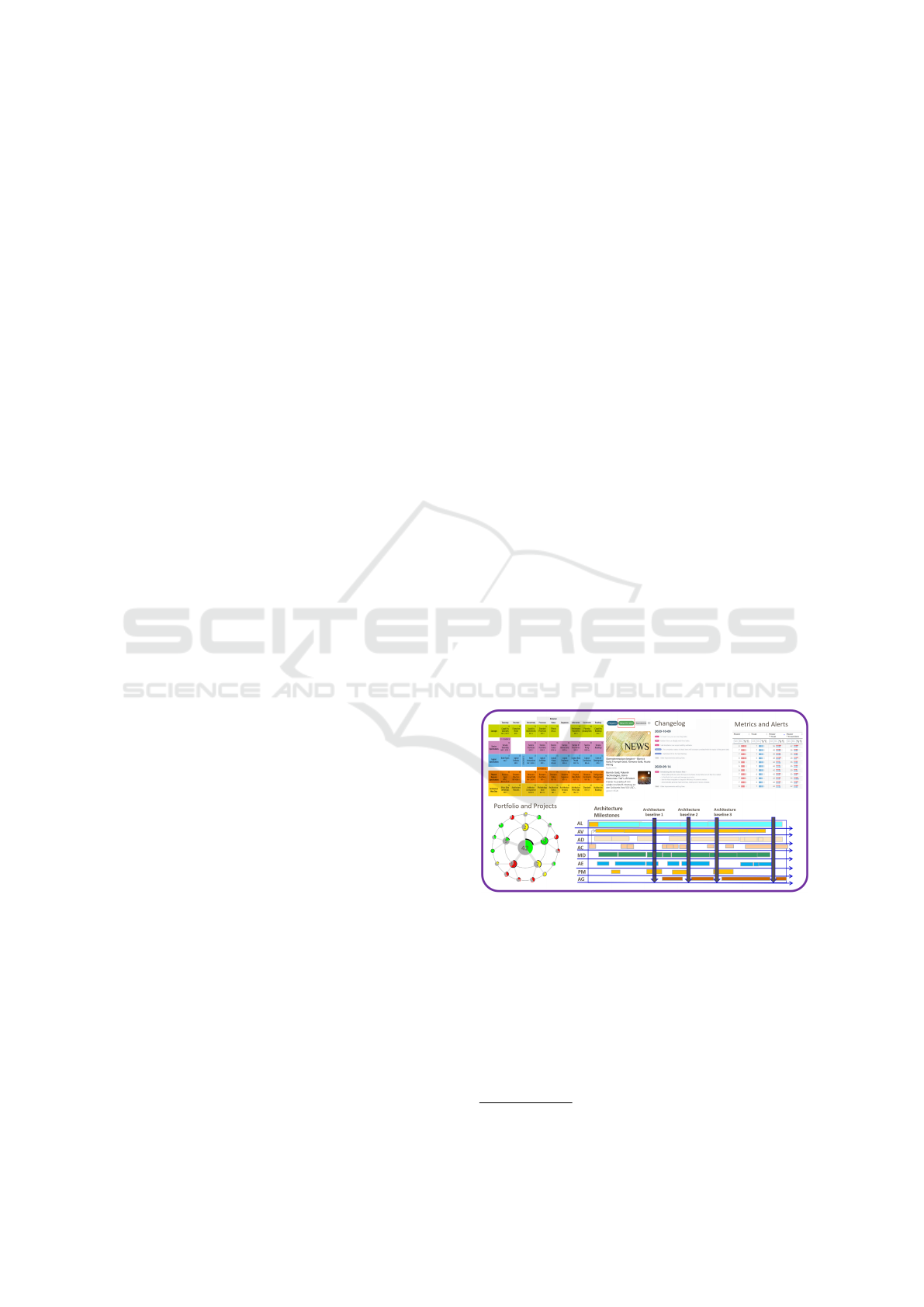

Figure 6: Example of an EA Dashboard as entry point of

the EA Repository.

4.10 Glossary

A common understanding of terminology is essential

for cooperation in a federal context. This is particu-

larly important for discussions within the boards. For

this purpose, a cross-company glossary must be es-

tablished and maintained. The glossary itself rep-

resents an EA artifact and is to be kept in the EA

https://principiamentis.com/de/main

Enterprise Architecture Governance of Excellence

611

Repository. A deep integration enables glossary el-

ements to be referenced within EA artifacts through

the tool landscape. This allows to provide further in-

formation in a targeted manner. In addition, linking

via ontology is recommended, as this makes it easy

to identify inconsistencies. The machine-processable

format enables comprehensive analyses, especially if

links to the EA artifacts are traced. If standardized

glossaries or ontologies already exist for a domain,

these should preferably be used, such as NATO C3

Taxonomy (NATO Consultation, Command and Con-

trol Board (C3B), 2021) or Ontology for simulation,

modeling, and optimization (Horsch et al., 2022). In

the context of EA artifact creation, always unique des-

ignations shall be used where possible. To avoid con-

fusion, the singular and a gender neutral form should

always be used.

5 PRELIMINARY IMPRESSIONS

The concept was transferred to a multidisciplinary

company, like Siemens AG. This company is struc-

tured as follows. Our considered segment is the pro-

duction division for Medical Devices, e.g. MRI sys-

tems. Parallel segments are e.g. Finance, Energy,

Industrial Automation, Drive Technology. We co-

operate with these parallel segments on a horizontal

level. This relates in particular to the handling of

ﬁnances and the development of components. Our

Medical Devices segment is further subdivided into

digital twin, radiology and training, among others.

By means of a table-top exercise, the presented ap-

proach is validated as a whole. For this purpose, the

roles were assigned to different persons. Everyone

is given a general overview and speciﬁc instructions

on their tasks and responsibilities. Boards are formed

by all participants, with the main responsible role be-

ing the moderator. Starting point for the processes

are done by randomly selecting different triggers on

a card deck that typically occur in EA like technol-

ogy innovations or market changes. Through these,

the deﬁned processes are triggered. The processes are

manually replicated and tracked using pen and paper.

One hurdle is initiating the right process and linking a

suitable path across several processes. Each role must

act according to its area of responsibility and create

its necessary EA artifacts. The project speciﬁc EA ar-

tifacts are mapped using puzzles, dominoes or Lego

bricks. Here, a single piece symbolizes an ABB with

deﬁned service interfaces. Figure 7 shows a factual

example of the overarching interaction.

Experience has shown that our EAG concept

works both for individual companies and in a federal

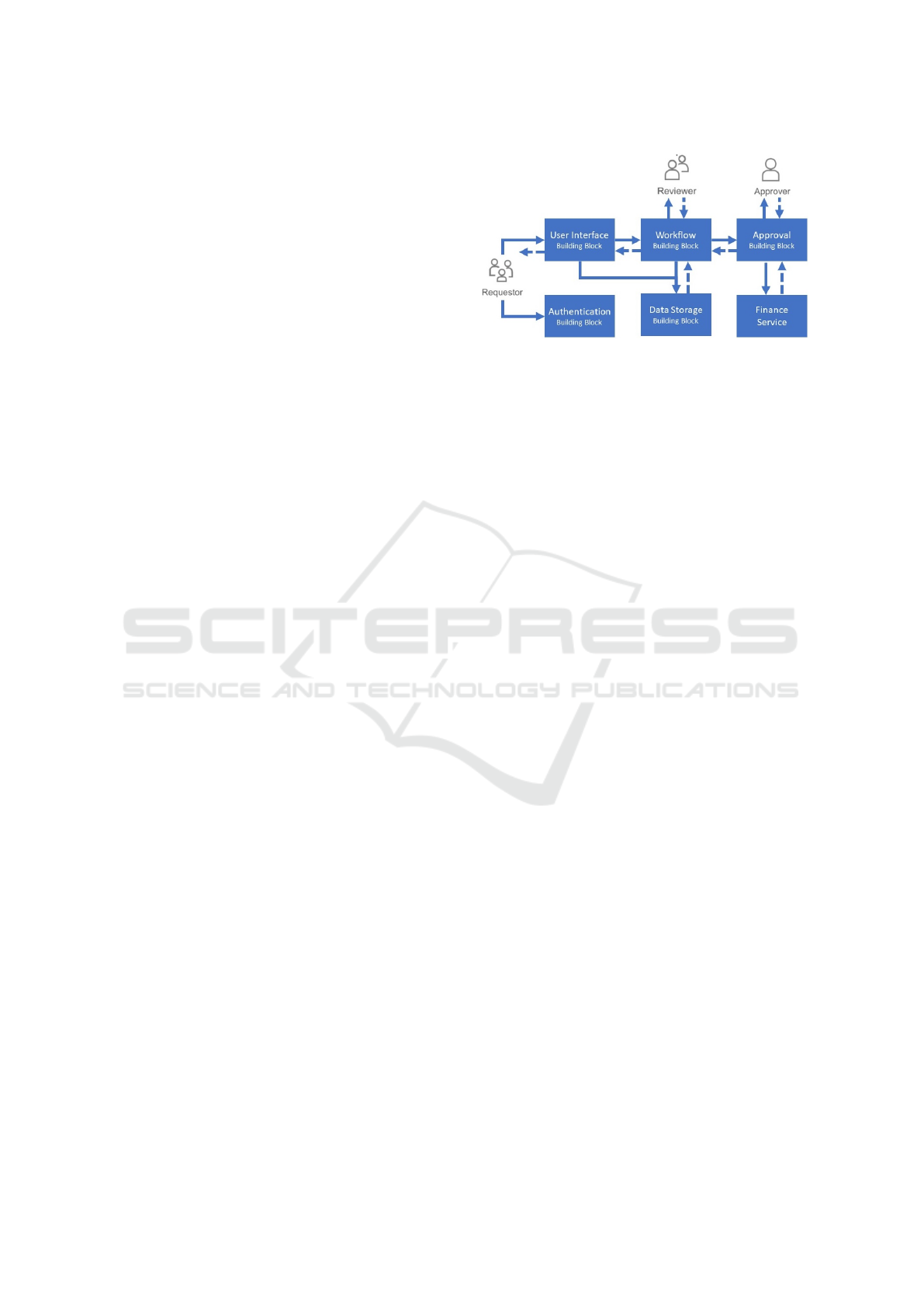

Figure 7: Example Solution Concept Diagram with usage of

Architecture Building Blocks and services for the creation of

project speciﬁc EA artifacts.

context. The processes support a structured workﬂow

and responsibilities can always be identiﬁed.

6 SUMMARY

In summary, our presented concept describes all es-

sential components for EA governance in a federated

context. This approach is independent of the spe-

ciﬁc established EA frameworks, so that each partner

can continue to use its own EA framework. It builds

on top of theirs and regulates necessary coordination,

processes and interfaces in federated collaborations.

Thus, our concept enables a goal-oriented control by

means of EAM. It highly supports the workﬂow by

clear command and control. It has been shown that

our framework can be adapted to individual speciﬁcs.

All activities and decisions concerning the architec-

ture are aligned with the concerns of the company

and the context. The resulting architecture collections

meet the expected business needs of the enterprise and

its stakeholders.

In the future, we will extend our concept in deal-

ing with EA artifacts. In addition, a detailed analysis

of the different EA processes with regard to gover-

nance will be performed.

REFERENCES

Aguilar, F. J. (1967). Scanning the business environment.

Macmillan.

Ambysoft Inc. (2022). The Principles of Agile Modeling

(AM).

Ascher, D., Heiland, E., Schnell, D., Hillmann, P., and

Karcher, A. (2022). Methodology for Holistic Ref-

erence Modelingin Systems Engineering. Interna-

tional Conference on Enterprise Information Systems

(ICEIS), CEUR.

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

612

AXELOS (2019). ITIL 4.

Beauftragten der Bundesregierung f

ur Informationstechnik

(2022). Architekturrichtlinie f

ur die IT des Bundes.

Becker, J. (1995). Strukturanalogien in Informationsmod-

ellen. Ihre Deﬁnition, ihr Nutzen und ihr Einﬂußauf

die Bildung von Grunds

atzen ordnungsm

aßiger Mod-

ellierung (GoM). Wirtschaftsinformatik, Wettbe-

werbsf

ahigkeit, Innovation, Wirtschaftlichkeit. W.

onig. Heidelberg, pages 133–150.

Behara, G. (2022). Enterprise Architecture Governance: A

Holistic View.

BOC Academy (2017). Enterprise Architecture Manage-

ment - An Airport Case Study.

Buckl, S., Dierl, T., Matthes, F., and Schweda, C. M.

(2010). Building Blocks for Enterprise Architecture

Management Solutions. Practice-Driven Research on

Enterprise Transformation, Lecture Notes in Business

Information Processing.

Bundesministerium des Inneren und f

ur Heimat (2022). Or-

ganisationshandbuch.

Bundesministerium des Innern (2007). Leitfaden f

ur En-

twickler vonProzess- und Datenmodellen. Referat IT

2 (KBSt).

Bundesministerium des Innern: Referat IT-Steuerung

Bund (2011). Standards und Architekturen f

eGovernment-Anwendungen (SAGA). Die Beauf-

tragte der Bundesregierung f

ur Informationstechnik

(BfIT).

Business Technology Forum (2019). Business Technologie

Standard.

Gidey, H. K., Kesseler, M., Stangl, P., Hillmann, P., and

Karcher, A. (2022). A Document-based Knowledge

Discovery withMicroservices Architecture. Interna-

tional Conference on Intelligent Systems and Pattern

Recognition (ISPR).

Heiland, E., Hillmann, P., and Karcher, A. (2021). Enter-

prise Architecture Model Transformation Engine. In-

ternational Conference on Operations Research and

Enterprise Systems (ICORES).

Heiland, E., Hillmann, P., and Karcher, A. (2023). Con-

straint based Modeling according to ReferenceDesign.

International Conference on Perspectives in Business

Informatics Research (BIR).

Hillmann, P., Heiland, E., and Karcher, A. (2021). Auto-

mated Enterprise Architecture Model Mining. NISe-

curity.

Hillmann, P., Schnell, D., Hagel, H., and Karcher, A.

(2022). Enterprise Model Library for Business-IT-

Alignment. International Conference on Computer

Science, Engineering and Applications (SEAPP).

Horsch, M. T., Todorov, I. T., Seaton, M. A., and Chiac-

chiera, S. (2022). OSMO: Ontology for Simulation,

Modelling, and Optimization.

Inge, H. (2022). Enterprise Architecture Management - ein-

fach und effektiv.

ISACA (2019). Control OBjectives for Information and re-

lated Technology.

ISACA Germany (2019). COBIT 2019-Rahmenwerk: Gov-

ernance und Managementziele.

Kotusev, S. (2019). Yet Another Taxonomy for Enterprise

Architecture Artifacts. Journal of Enterprise Archi-

tecture Article.

Kurpjuweit, S. (2009). Stakeholder-orientierte Mod-

ellierung undAnalyse der Unternehmensarchitektur.

PhD thesis.

NATO Consultation, Command and Control Board (C3B).

C3 Taxonomy Baseline 5.0.

NATO Training Architecture Framework (2019). Processes

& Governance: Dashboard along an Architecture.

Slide 61.

Obermeier, M. (2014). Enterprise Architecture Man-

agement in der

offentlichenVerwaltung: Design,

Einf”uhrung und Evaluation. PhD thesis.

Ofﬁce of VA Enterprise Architecture (2016). VA EA Vision

and Strategy.

ohn, D. and Hillmann, P. (2021). Reference Service Model

for Federated Identity Management . Conference on

Exploring Modeling Methods for Systems Analysis

and Development.

Raad, O. (2023). Strategic Architecture Governance in the

Norwegian Defence. In TIDE Sprint 41.

Roth, S., Zec, M., and Matthes, F. (2014). Enterprise Archi-

tecture Visualization Tool Survey. Technical report,

Chair for Software Engineering of Business Informa-

tion Systems. Technische Universita

at M

unchen.

Rybaric, R. (2020). Microsoft Power Platform Enterprise

Architecture. Packt Publishing.

Schelp, J. and Stutz, M. (2007). SOA Governance.

The Open Group (2022). The Open Group Architecture

Framework.

Tiemeyer, E. (2023). Next Generation EA-Management

und EA-Governance.

University Columbia (2023). CUIT Enterprise Architec-

ture.

U.S. Department of Veterans Affairs (2023). VA Enterprise

Architecture, VA EA Content.

U.S. Federal Government (2012). The Common Approach

to Federal Enterprise Architecture.

U.S. House, Committee on National Security (1996).

Clinger-Cohen Act, Title 40, National Defense Au-

thorization Act. U.S. House. Conference Report. H.

Report 104-450.

vom Brocke, J. (2018). Konstruktionstechniken

zur Referenzmodellierung - Enzyklopaedie

der Wirtschaftsinformatik. Enzyklopaedie der

Wirtschaftsinformatik.

Zenz, L. J. I., Heiland, E., Hillmann, P., and Karcher,

A. (2023). Aligning Models with Their Realiza-

tion throughModel-based Systems Engineering. Con-

ference on Advanced Enterprise Information System

(AEIS).

Enterprise Architecture Governance of Excellence

613
