I Feel Safe with the Prediction: The Effect of Prediction Accuracy on

Trust

Lisa Graichen

and Matthias Graichen

Department of Psychology and Ergonomics, TU Berlin, Marchstraße 23, Berlin, Germany

Universität der Bundeswehr München, Munich, Germany

Keywords: XAI, HCXAI, Mental Model, Trust.

Abstract: Mental model building and trust are important topics in the interaction with Artificial Intelligence (AI)-based

systems, particularly in domains involving high risk to user safety. The presented paper describes an

upcoming study on applying methods from Human-Centered Explainable AI (HCXAI) to investigate the

influence of AI accuracy on user trust. For the interaction with an AI-based system, we use an algorithm

designed to support drivers at intersections by predicting turning maneuvers. We will investigate how drivers

subjectively feel towards different presented and implemented accuracy levels. Participants will be asked to

rate their respective levels of trust and acceptance. Moreover, we will investigate, whether trust and

acceptance are depending on personality traits.

1 INTRODUCTION

Artificial Intelligence (AI) is being applied in more

and more areas of research and daily life. However,

each technology has predefined conditions under

which it can reach its potential or constraints that may

lead to system failure that users should be aware of in

order to react properly. Depending on the context and

purpose of the application, system failure can have

critical consequences, such as in critical traffic

situations while driving with AI-based Advanced

Driver Assistance Systems (ADAS) or in autonomous

driving.

The development of ADAS using sensors and

algorithms and In-Vehicle Information System to

support the driver with the primary and secondary

driving task has already been a topic for decades

(Bengler et al., 2014), the next huge step in this

development is supposed to be the availability of fully

autonomous driving functions (e.g., see @CITY,

2018 or KARLI, 2022). However, the bare

development cannot be the only goal, but also

facilitating the user to build trust and adequate mental

models about functions and constraints to realize

possible benefits like increased driving safety,

comfort and efficiency (Bengler et al., 2018).

https://orcid.org/0000-0001-8634-6843

https://orcid.org/0009-0009-2774-154X

When it comes to user’s trust in AI applications

we need to mention that trust cannot only be too low,

but also too high. If trust is too uncritical, which

means it cannot be justified by the real possibilities of

the application, it may lead to undesired or even

dangerous situations. So called overtrust can have

several dimensions according to Itoh (2012): 1) User

are not aware of possible malfunctions, 2) users

misuse applications for situations they were not

developed for and 3) users fundamentally

misunderstand the functioning of the system. On the

other hand, if users would not trust a system enough,

they will may not use the respective system on a

regular basis or even not at all and cannot make use

of its benefits. The mentioned relation between a

user’s mental model, their trust in automated systems,

and its actual use has been investigated in several

studies (e.g. see Ghazizadeh et al., 2012 or Beggiato

& Krems, 2013).

From a developer and manufacturer perspective,

it is important to know which level of accuracy users

would find acceptable or worth trusting. Methods of

(HC)XAI have the potential to support the process of

understanding the AI’s functionality and constraints

and to build appropriate trust levels, therefore we

used an explanation that was developed and evaluated

480

Graichen, L. and Graichen, M.

I Feel Safe with the Prediction: The Effect of Prediction Accuracy on Trust.

DOI: 10.5220/0012407900003660

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2024) - Volume 1: GRAPP, HUCAPP

and IVAPP, pages 480-483

ISBN: 978-989-758-679-8; ISSN: 2184-4321

before (L. Graichen et al., 2022). In the presented

study we are addressing the following research

questions:

RQ1: How do users feel towards different prediction

accuracy levels?

RQ2: How do different personality traits influence

trust towards prediction accuracy levels?

2 METHODS

2.1 Design and Independent Variables

A one-way repeated measure design was chosen, with

three prediction accuracy levels representing the

factor levels. The experiment will have two parts. In

the first part participants will rate their trust levels for

different prediction accuracy levels in an online

questionnaire, as this gives us the opportunity to ask

for more different accuracy levels. Prediction

accuracy levels used in this part will be starting with

55% up to 95% in steps of five percent. In the second

part participants will sit in a driving simulator and

perceiving three of the prediction accuracy levels and

respective warnings of cyclists during real driving.

Prediction accuracy levels used in this part of the

experiment will be 70%, 80% and 90%. Accuracy

levels have been chosen based on realistic levels the

algorithm reaches at different points in time between

100m and 0m distance to real life intersections.

2.2 Participants

An opportunity sample of about 35 persons will be

selected using the website of TU Berlin. It will mostly

contain human factors students. This research will

comply with the tenets of the Declaration of Helsinki,

and informed consent will be obtained from each

participant.

2.3 Facilities and Apparatus

A fixed-based driving simulator will be used for the

study. Participants will sit in a driving simulation

mock-up with automatic transmission. We will use

Carla as a driving simulation environment

(Dosovitskiy et al., 2017). To record the driver

interactions with the IVIS, a camera will be

positioned towards the driver on a table close to the

mock-up. To investigate the visual behavior of the

participants towards the displays, a Pupil Labs eye

tracker will be used (see https://pupil-labs.com/). As

a driving scenario, a city scenario was chosen from

the tracks that are provided in Carla (see Figure 1a).

A 15-inch screen will be mounted on the center

console to display the IVIS with the warnings (see

Figure 1b).

2.4 Training Material

Before participants start the two parts of the

experiment, there will be a short training of the AI

used. We will use an algorithm that was originally

designed to support drivers at intersections by

predicting turning maneuvers. When a driver

approaches an intersection, the algorithm predicts

whether they are likely to turn right or go straight (see

M. Graichen, 2019 and Liebner et al., 2013). One

application for such an algorithm is to present drivers

a dynamic warning in situations where they intend to

turn and another traffic participant (e.g., a cyclist)

could potentially cross the anticipated trajectory. To

predict a turning maneuver, the algorithm mainly uses

vehicle data about the driver’s speed and acceleration

and compares this information to the behavioral

pattern drivers typically show when approaching

intersections. However, in certain situations, the

algorithm may falsely predict right turning

maneuvers when the preceding traffic is not

considered. For example, a vehicle decelerating

ahead has an indirect impact on the driver, which can

lead to a velocity profile similar to the pattern shown

before turning maneuvers.

For the training material we created two short

videos, which are based on vehicle data and videos

recorded on a trip through Munich, Germany. The

videos show the road scenery from a driver’s

perspective to achieve a realistic impression of

approaching an intersection. For the video showing a

system limit (e.g., the driver intends to go straight but

the system predicts a turning maneuver, as there is a

preceding vehicle), respective driving scenarios were

chosen.

The video material used consists of a compilation

of the video showing the road scenery and pre-

processed results of the prediction algorithms, which

are presented as diagrams at the bottom left corner

(see Figure 2). One diagram shows the dynamic

maneuver probability for “turning right” or “going

straight.” The second diagram provides information

on the driver’s velocity as well as the anticipated

velocity models for turning right or going straight for

the respective intersection. Additionally, the user sees

information about the potential velocity corridor for

the two possible maneuvers. This makes it possible

for the user to compare if the current velocity

approximates closer to a trajectory typically shown

I Feel Safe with the Prediction: The Effect of Prediction Accuracy on Trust

481

when turning right or going straight at any given time

of the video.

2.5 Procedure

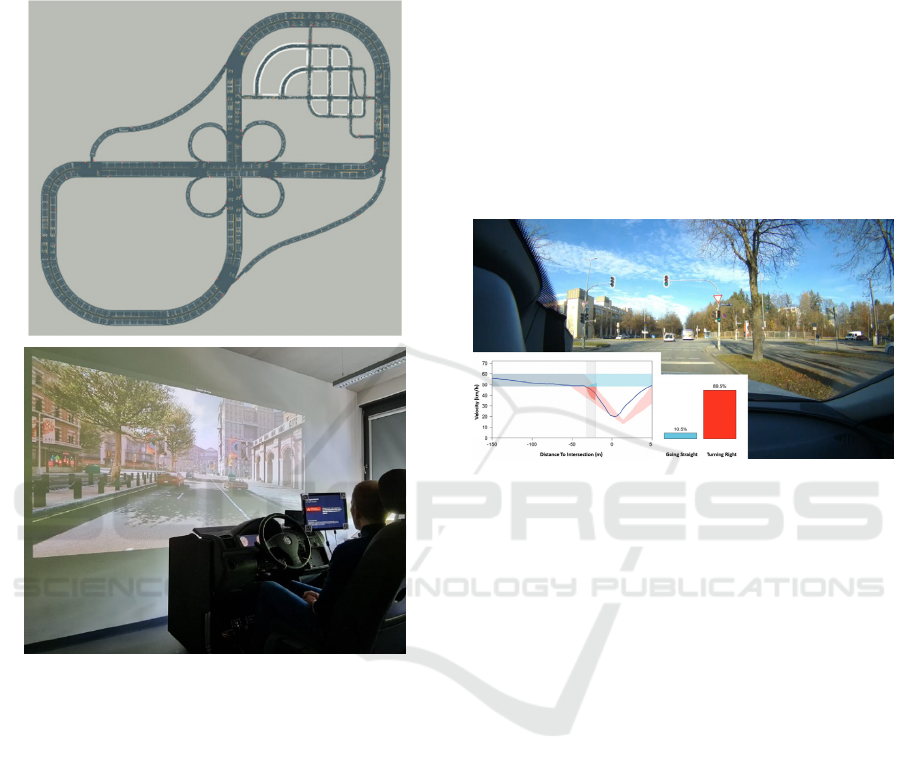

Figure 1: 1a-1b: Track used for the study/Simulator setting.

Upon arrival, participants will be introduced to the

simulator, navigation device, and cyclist warning.

Afterwards the two training videos, one with a system

malfunction, will be presented. Before the experiment

starts, participants will be introduced to the eye-

tracking device, which will then be calibrated

individually. Participants will then rate their

individual trust levels towards different prediction

accuracy levels in the first part of the experiment.

Afterwards they will drive one training trip and three

experimental trips in the driving simulator. Before

each trip they will be told how accurate the AI is

detecting their turning intention (70% vs. 80% vs.

90%). The number of perceived malfunctions during

the trip will be adjusted to this accuracy level. After

each trip they will answer questionnaires pertaining

to trust, personality traits, and workload afterwards.

Participants will be told to drive according to the

German Road Traffic Act and keep to the standard

velocity allowed in urban areas.

2.6 Dependent Variables

For dependent variables, participants will complete a

questionnaire pertaining to trust in the system’s

decision making (Pöhler et al., 2016), which is based

on (Jian et al., 2000). Moreover, participants were

asked to rate their level of workload using NASA-

TLX (Hart & Staveland, 1988), acceptance (Van der

Laan et al., 1997), affinity towards technology (Neyer

et al., 2012) and driving behavior (Reason et al.,

1990).

Figure 2: Training material used in the comprehensive

explanation of the algorithm.

3 IMPLICATIONS

Understanding the constraints and predefined

conditions under which AI-based systems are

designed to operate and produce results is critical,

especially when these systems are used in domains

with high risk to user safety like driving. There are

indications that users tend to both a) request a high

level of accuracy to be willing to use fully automated

cars (Shariff et al., 2021), as they tend to believe they

perform better than the average of all drivers (better-

than-average effect, see Alicke & Govorun, 2005, but

also b) may overtrust AI and technical systems in

general. Therefore, it is important to understand how

users build appropriate mental models and gain trust

and acceptance in using AI-based systems. With the

presented study, we aim to address the question of

how users feel towards different prediction accuracy

levels.

HUCAPP 2024 - 8th International Conference on Human Computer Interaction Theory and Applications

482

REFERENCES

@CITY. (2018). Automated driving in the city.

https://www.atcity-online.de/

Alicke, M. D., & Govorun, O. (2005). The Better-Than-

Average Effect. In M. D. Alicke, D. A. Dunning, & J.

Krueger (Eds.), The Self in Social Judgment (pp. 85–

106). Psychology Press.

Beggiato, M., & Krems, J. F. (2013). The evolution of

mental model, trust and acceptance of adaptive cruise

control in relation to initial information. Transportation

Research Part F: Traffic Psychology and Behaviour,

18, 47–57. https://doi.org/10.1016/j.trf.2012.12.006

Bengler, Klaus; Dietmayer, Klaus; Färber, Berthold;

Maurer, Markus; Stiller, Christoph; Winner, Hermann

(2014): Three decades of driver assistance systems.

Review and Future Perspectives. In: IEEE Intelligent

Transportation Systems Magazine 6 (4), S. 6–22. DOI:

10.1109/MITS.2014.2336271.

Bengler, K., Drüke, J., Hoffmann, S., Manstetten, D., &

Neukum, A. (Eds.). (2018). UR:BAN Human Factors in

Traffic. Approaches for Safe, Efficient and Stressfree

Urban Traffic. Springer. https://doi.org/10.1007/978-3-

658-15418-9

Dosovitskiy, A., Ros, G., Codevilla, F., & López, Antonio,

Koltun, Vladlen. (2017). CARLA: An Open Urban

Driving Simulator. In Proceedings of the 1st Annual

Conference on Robot Learning (pp. 1–16).

Ghazizadeh, M., Lee, J. D., & Boyle, L. N. (2012).

Extending the Technology Acceptance Model to assess

automation. Cognition, Technology & Work, 14(1), 39–

49. https://doi.org/10.1007/s10111-011-0194-3

Graichen, L., Graichen, M., & Petrosjan, M. (2022). How

to Facilitate Mental Model Building and Mitigate

Overtrust Using HCXAI. In Workshop Human-

Centered Perspectives in Explainable AI. Symposium

conducted at the meeting of ACM, fully virtual.

Graichen, M. (2019). Analyse des Fahrverhaltens bei der

Annäherung an Knotenpunkte und personenspezifische

Vorhersage von Abbiegemanövern [Doctoral thesis].

Universität der Bundeswehr München, Neubiberg.

http://athene-forschung.rz.unibw-muenchen.de/129783

Hart, S. G., & Staveland, L. E. (1988). Development of

NASA-TLX (Task Load Index): Results of empirical

and theoretical research. In Advances in Psychology.

Human Mental Workload (Vol. 52, pp. 139–183).

Elsevier. https://doi.org/10.1016/S0166-4115(08)

62386-9

Itoh, M. (2012). Toward overtrust-free advanced driver

assistance systems. Cognition, Technology & Work,

14(1), 51–60. https://doi.org/10.1007/s10111-011-

0195-2

Jian, J.‑Y., Bisantz, A. M., & Drury, C. G. (2000).

Foundations for an Empirically Determined Scale of

Trust in Automated Systems. International Journal of

Cognitive Ergonomics, 4(1), 53–71. https://doi.

org/10.1207/S15327566IJCE0401_04

KARLI. (2022). Künstliche Intelligenz (KI) für Adaptive,

Responsive und Levelkonforme Interaktion im

Fahrzeug der Zukunft. https://karli-projekt.de/

Liebner, M., Klanner, F., Baumann, M., Ruhhammer, C.,

& Stiller, C. (2013). Velocity-Based Driver Intent

Inference at Urban Intersections in the Presence of

Preceding Vehicles. IEEE Intelligent Transportation

System Magazine, 5(2), 10–21. https://doi.org/10.

1109/MITS.2013.2246291

Neyer, F. J., Felber, J., & Gebhardt, C. (2012).

Entwicklung und Validierung einer Kurzskala zur

Erfassung von Technikbereitschaft. Diagnostica, 58(2),

87–99. https://doi.org/10.1026/0012-1924/a000067

Pöhler, G., Heine, T., & Deml, B. (2016). Itemanalyse und

Faktorstruktur eines Fragebogens zur Messung von

Vertrauen im Umgang mit automatischen Systemen.

Zeitschrift Für Arbeitswissenschaft, 70(3), 151–160.

https://doi.org/10.1007/s41449-016-0024-9

Reason, J., Manstead, A., Stradling, S., Baxter, J., &

Campbell, K. (1990). Errors and violations on the

roads: A real distinction? Ergonomics, 33(10-11),

1315–1332. https://doi.org/10.1080/00140139008925

335

Shariff, A., Bonnefon, J.‑F., & Rahwan, I. (2021). How

safe is safe enough? Psychological mechanisms

underlying extreme safety demands for self-driving

cars. Transportation Research Part C: Emerging

Technologies, 126, 103069. https://doi.org/10.

1016/j.trc.2021.103069

Van der Laan, J. D., Heino, A., & Waard, D. de (1997). A

simple procedure for the assessment of acceptance of

advanced transport telematics. Transportation

Research Part C: Emerging Technologies, 5(1), 1–10.

https://doi.org/10.1016/S0968-090X(96)00025-3

I Feel Safe with the Prediction: The Effect of Prediction Accuracy on Trust

483
