Perceptions of Cyber Security Risk of the Norwegian Advanced Metering

Infrastructure

Eirik Lien

, Karl Magnus Grønning Bergh

and Sokratis Katsikas

Department of Information Security and Communication Technology,

NTNU - Norwegian University of Science and Technology, Tekonologivegen 22, Gjøvik, Norway

Keywords:

Cyber Security, Risk Perception, Advanced Metering Infrastructure.

Abstract:

The Advanced Metering Infrastructure (AMI) has contributed to the further digitalization of the energy sector,

but has also increased the complexity and the requirements for specialized knowledge to protect the infras-

tructure and the delivery of power. With different areas of focus and gaps in knowledge, the work of securing

AMI can be challenging. This paper aims to provide an overview of the AMI cyber security risk perception as

reﬂected in the research literature on one hand and amongst the stakeholders in the Norwegian energy sector

on the other. The ﬁndings indicate that there is a gap between these two, both in areas of focus and the under-

standing of risk. Based on the identiﬁed differences, the study proposes solutions to reduce these.

1 INTRODUCTION

AMI is in short an integrated system enabling smart

distribution of electricity to endpoints/end-users. This

is facilitated by 2-way communication in near real-

time, measuring and collecting the electricity ﬂow

and usage data (Hansen et al., 2017; Sæle et al.,

2019). In terms of risk and the threat picture for

AMI, recent reports from the National Security Au-

thority (NSM) (Nasjonal sikkerhetsmyndighet, 2020;

Nasjonal sikkerhetsmyndighet, 2021) and the Police

Security Service (PST) (Politiets sikkerhetstjeneste,

2020; Politiets sikkerhetstjeneste, 2021) provide an

overall picture for critical infrastructure and the en-

ergy sector in Norway. Both types of reports convey a

warning that Norwegian organizations and infrastruc-

ture are already being reconnoitered and mapped out

by adversaries, being both state-actors and individu-

als. In reports from 2020 (Nasjonal sikkerhetsmyn-

dighet, 2020; Politiets sikkerhetstjeneste, 2020), the

threats of intelligence operations towards the energy

sector are highlighted speciﬁcally, where malicious

actors in the form of state actors may have the capac-

ity to affect the Conﬁdentiality, Integrity and Avail-

ability (CIA) of the Information and Communication

Technology (ICT) systems supporting the sector. In

https://orcid.org/0009-0005-3573-2206

https://orcid.org/0009-0004-1378-0031

https://orcid.org/0000-0003-2966-9683

a more global context, there are several incidents that

show the potential in Computer Network Operations

(CNO) on critical infrastructure from an alleged state

actor, such as Black Energy 3 and Crashoverride.

Both hit parts of the Ukrainian electricity grid and

caused temporary massive blackouts (Geiger et al.,

2020). These examples serve to show that state actors

or other adversaries have the motivation, resources,

and knowledge to exploit vulnerabilities in an inter-

connected energy sector.

The digitalization of the society has made the dig-

ital value chain dynamic, complex and challenging

to grasp, and introduces new vulnerabilities and in-

terdependencies between organizations. And within

the information security domain, an argument can be

made that there is a gap or deviation in knowledge

and awareness regarding one’s assets, their vulner-

abilities and the threat landscape (Nasjonal sikker-

hetsmyndighet, 2022). This is also evident for AMI in

the energy sector (Asplund and Nadjm-Tehrani, 2016;

Frogner et al., 2021). If such gaps are not addressed,

they may lead stakeholders to introduce security con-

trols and measures that are not grounded in a realistic

risk picture or are just inappropriate and irrelevant. To

visualize and highlight potential gaps and deviations,

it is necessary to collect and analyze the state of AMI

information security and compare it to the perceptions

of AMI information security amongst the stakehold-

ers in the energy sector.

This paper explores and compares the state of

Lien, E., Bergh, K. and Katsikas, S.

Perceptions of Cyber Security Risk of the Norwegian Advanced Metering Infrastructure.

DOI: 10.5220/0012414900003648

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 10th International Conference on Information Systems Security and Privacy (ICISSP 2024), pages 187-194

ISBN: 978-989-758-683-5; ISSN: 2184-4356

187

AMI security according to literature with the percep-

tions and attitudes of the stakeholders regarding cy-

ber security. It provides a summary of the work re-

ported in (Lien and Bergh, 2023) . The research con-

ducted addressed the question: What are the attitudes

and perceptions of information security risks within

AMI in the energy sector of Norway? To answer

this question, a set of more speciﬁc research ques-

tions (RQs) were developed: RQ1) What information

security risks are prevalent within AMI according to

the literature? RQ2) What information security risks

are prevalent within AMI according to stakeholders

of AMI in Norway? RQ3) How does the information

identiﬁed in the literature review compare to the atti-

tudes and perceptions of stakeholders of AMI in the

energy sector of Norway? RQ4) How can potential

divergence between literature and stakeholder percep-

tion of information security risks within AMI in Nor-

way be addressed?

The remaining of the paper is structured as fol-

lows: Section 2 describes the backround and re-

lated work. Section 3 describes the research meth-

ods employed and the attendant limitations. Section 4

presents the ﬁndings of the Sytematic Literature Re-

view (SLR) performed to answer RQ1, whilst Section

5 those of the interviews conducted to answer RQ2.

Section 6 provides the answer to RQ3 by comparing

and discussing the ﬁndings in sections 4 and 5 and the

answer to RQ4 by providing pertinent recommenda-

tions. Finally, Section 7 summarizes our conclusions

and outlines paths for further research.

2 BACKGROUND AND

RELEVANT WORK

A reference model of AMI, based on a review of

the relevant literature and further elaborated on in

(Lien and Bergh, 2023) is depicted in Figure 1.

AMI consists of Smart Meters (SM), Data Collec-

tors (DC), communication channels, Head-End Sys-

tems (HES) and Meter Data Management Systems

(MDMS), where the types and level of integration of

equipment, network topology, and management sys-

tems may vary. This model also visualizes the scope

of this study, which will focus on information security

risks from the interfaces at the SM up to and includ-

ing the MDMS at the Distribution System Operators

(DSO). The end-user or customer domain from the

HAN-port is thus considered out of scope.

The perception of risk is a subjective judgement,

i.e., an individual’s own assessment of risk. This can

deviate from the objective risk, i.e., risk that is present

regardless of the individual’s perception or knowl-

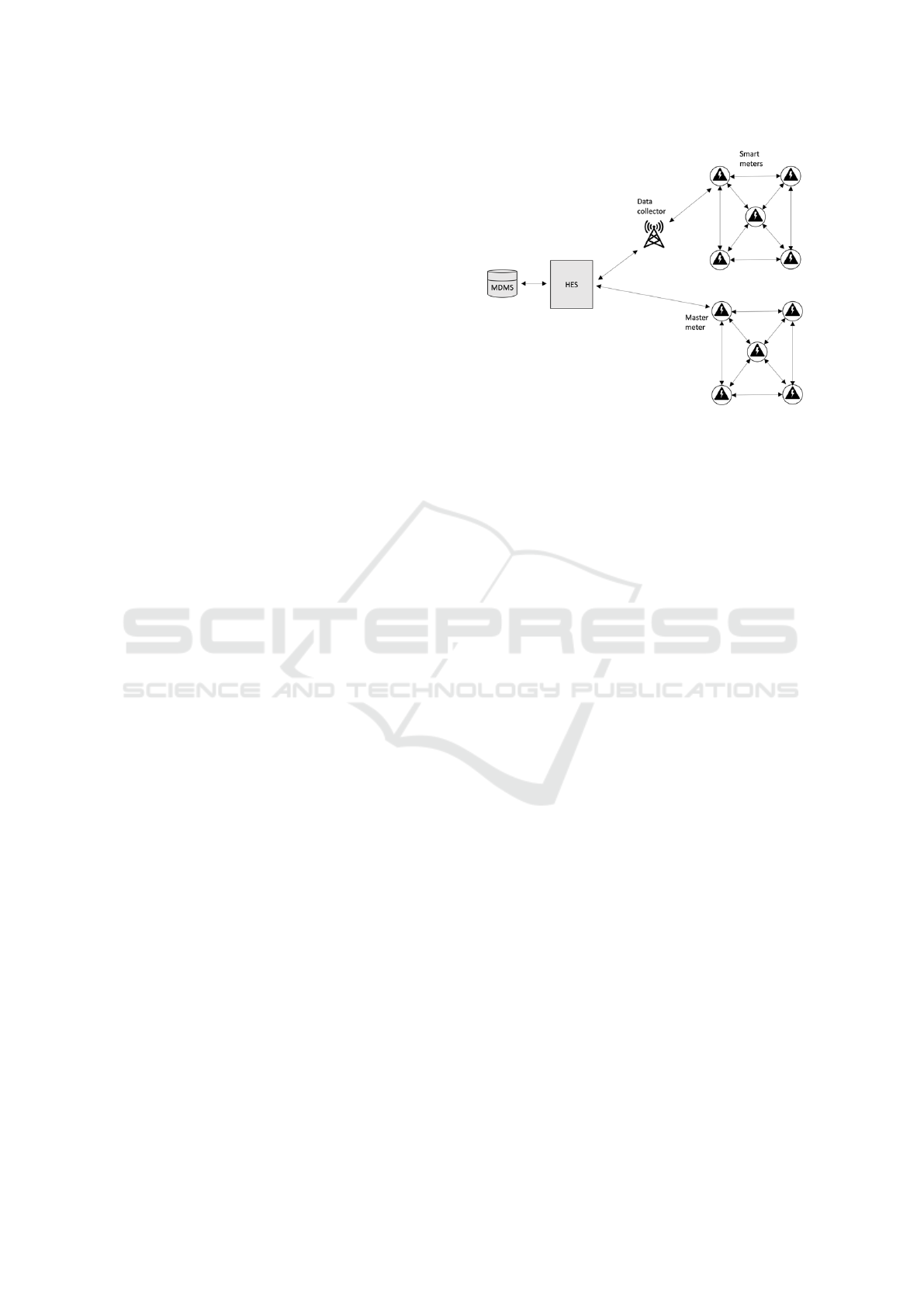

Figure 1: AMI simpliﬁed network topology, adapted from

(Sæle et al., 2019; Frøystad et al., 2018; Line et al., 2012;

Venjum, 2016).

edge of risk (Skotnes, 2015; Larsen et al., 2022). Both

(Skotnes, 2015) and (Larsen et al., 2022) highlight the

complexity of individual risk perception processes,

pointing out how different models of risk perception

are employed from ﬁelds such as engineering and

psychology. The most common and well-recognized

ﬁelds of research is the psychometric paradigm and

heuristic and biases (Larsen et al., 2022). In addi-

tion, (Skotnes, 2015) describes intuitive risk percep-

tion in general, where perception is based on how risk

is communicated, on previous experiences of risk and

on mental mechanisms for handling uncertainty.

The research most closely related to this study

is the work in (Asplund and Nadjm-Tehrani, 2016),

where the attitudes and perceptions of risk of IoT

in three critical societal services in Sweden were in-

vestigated. The study (Asplund and Nadjm-Tehrani,

2016) sought to highlight the risks and perceptions

of risk in services where the integration of IoT has

been pushed forward by regulatory requirements, by

markets and advances in technology, or by a combi-

nation of these. The investigated services were en-

ergy, water and societal services, which have distinct

differences in aspects such as regulations and tech-

nologies used. At the same time, they have common

features, as they all are considered critical societal

services, with strict requirements on conﬁdentiality,

integrity and availability to uphold services. To de-

scribe the perception of risk, (Asplund and Nadjm-

Tehrani, 2016) conducted several interviews based on

questions derived from preliminary workshops with

actors within the services. The results revealed no-

ticeable uncertainty and disaccord on the severity of

risks and threats. The variety in risk perception is hy-

pothesized to be grounded in individual experiences

and perception of what the future may bring in terms

of risks and threats, and differences in competence.

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

188

The research reported in (Skotnes, 2015) investigated

a topic related to that in (Asplund and Nadjm-Tehrani,

2016), looking at risk perception concerning security

and safety of ICT systems amongst power supply net-

work companies in Norway.

3 RESEARCH METHODOLOGY

3.1 Research Design

RQ 1 was addressed through a Systematic Litera-

ture Review (SLR), conducted by following the steps,

phases and principles detailed in (Jesson et al., 2011,

p. 103-127) and depicted in Fig. 2. In terms of scope,

this work considers the complete infrastructure, from

the endpoints to the management and business net-

work of the DSO. Due to the fast pace in ICT develop-

ment and the recent nation-wide deployment of AMI

in Norway, the study has incorporated research con-

ducted within the last 10 years, and excluded research

conducted prior to this. The initial search identiﬁed

1223 potentially relevant sources. After applying the

inclusion and exclusion criteria deﬁned in phases 1-3,

32 sources were left. Details on the interim results of

the process can be found in (Lien and Bergh, 2023).

RQ2 was addressed through Semi-Structured In-

terviews (SSI) utilizing an embedded design with a

structured and a semi-structured part. A total of 27

interviews were conducted. The participants mainly

consisted of representatives from DSOs (37.0%) and

the regulatory authorities (22.2%). The remaining

consisted of power vendors (7.4%), AMI service and

equipment vendors (7.4%), end users (18.5%), and

the group Other (industry organizations and Sub-

ject Matter Experts, 7.4%). Among the participants,

10 (37.0%) were working at the strategic level, 10

(37.0%) at tactical level, and 7 (26.0%) at opera-

tional level. All participants perceived they had some

knowledge of information security related to AMI,

where nearly half of the participants (48.2%) per-

ceived they had a proﬁcient level of knowledge. The

semi-structured interviews generated qualitative data

which were analyzed using inductive meaning coding

and thematic analysis. The relevance of the data was

continually evaluated against the research questions

during coding and analysis. This led to a total of 8

compiled codes, namely (1) Initial perception on the

concept of cyber risk; (2) Cyber risk in operation of

AMI; (3) Cyber situational awareness (SA); (4) Like-

lihood; (5) Prevalent threats; (6) Prevalent vulnerabil-

ities; (7) Prevalent consequences and impacts; (8) En-

ablers and challenges. The questionnaire and the in-

terview guides used can be found in (Lien and Bergh,

2023).

RQ3 was addressed through a comparative anal-

ysis, identifying the consistencies and inconsisten-

cies between literature and stakeholders to produce

evidence-based insights regarding the divergence in

information security risk focus and perception (Lien

and Bergh, 2023). The analysis was conducted by

aligning the compiled inductive codes developed in

the SSI with the deductive codes developed during the

SLR.

3.2 Limitations

3.2.1 SLR

The literature review, and the method chosen may

have excluded or missed relevant academic studies.

These can be in the form of unpublished information

and knowledge not intended for publication, but to be

retained within organizations.

3.2.2 SSI

Due to the sample size (N=27), the interview ﬁndings

may have low generalizability. However, considering

the sample composition, the subjects represent 1/3 of

the end-users using two out the three of the most com-

mon SMs in use in Norway. Thus, their perception of

and focus on information security challenges repre-

sent those of a considerable part of the AMI actors in

Norway.

The analysis and interpretation of the interviews

was conducted using inductive meaning coding and

compilation into categories. This entailed coding

statements as they appeared during the analysis, com-

piling them, and further condensing the statements

before categorizing them. However, this may also

have led to the loss of subtle distinctions along the

way. Similarly, by conducting most of the interviews

and coding in Norwegian (26 out of 27), it may have

led to further loss of distinction in the translation to

English.

The level of detail in all descriptions of the ele-

ments of risk are for both the SLR and SSI gener-

ally overarching in nature and do not necessarily go

into technical details concerning the operationaliza-

tion of threats and vulnerabilities. The energy sector

(including AMI) in the Norwegian context is consid-

ered a critical infrastructure, and as such it is subject

to regulations concerning sharing and publication of

information i.e., (Energiloven – enl, 1990) and (Kraft-

beredskapsforskriften, 2012). This prevents actors

in the Norwegian energy sector and academia from

providing detailed data and information on such cat-

egories through open sources and publicly accessi-

Perceptions of Cyber Security Risk of the Norwegian Advanced Metering Infrastructure

189

Figure 2: SLR phases.

ble databases used in this SLR. Because of this legal

constraint, the study also refrained from probing into

technical details regarding the risk elements in the

SSI, so as to avoid participants being asked to reveal

sensitive and classiﬁed information. This has to a cer-

tain extent led to blurred and general descriptions of

risk elements in the SLR and the SSI. There may also

be cases where the participants have withheld speciﬁc

technical knowledge or other information without no-

tifying the researchers.

4 SLR FINDINGS

The ﬁndings in the SLR indicate a wide range of vul-

nerabilities, threats and consequences at all the dif-

ferent levels of AMI, with a technological focus on

the distributed level. The lack of descriptions of like-

lihood and assessment of risk can be due to lack of

system-speciﬁc evaluations and the focus on theoreti-

cal and simulated environments in the identiﬁed body

of literature. Further, the descriptions of the risk fac-

tors are of a functional nature and lack speciﬁc details

on how these can be put into operations or how they

can be exploited to cause impact to AMI. However,

the nature of the factors still makes them valid, as the

functional descriptions have the potential to affect any

implementation. The elements of risk identiﬁed by

means of the SLR are summarized and tabulated in

Table 5.1 Identiﬁed elements of risk in SLR in (Lien

and Bergh, 2023).

An important observation is the threat from com-

pound and coordinated attacks. As described in

(Frogner et al., 2021) and found in (Gunduz and Das,

2020), (Wei and Wang, 2016) and (Husnoo et al.,

2023), threats can be realized as attacks both in the

physical and the cyber domain via direct or indi-

rect communication and connections. They can oc-

cur as single incidents or as compound, combined and

highly coordinated attacks. Wei et al. in (Wei et al.,

) speciﬁcally look at how different compound and co-

ordinated attacks increase the efﬁciency and the im-

pacts to AMI, and additionally how threats targeting

the DSO control center provide more utility to the at-

tacker compared to threats targeting the distributed el-

ements.

5 INTERVIEWS FINDINGS

5.1 Structured Part Findings

The participants were asked to rate the degree of risk

of 7 potential information security incidents. Risk

was explained as a function of the likelihood of the

incident occurring and the consequences of the inci-

dent. A 5-point Likert-scale was used to rate the de-

gree of risk and consequence: (0) Unknown, (1) Very

low, (2) Low, (3) Medium, (4) High, (5) Extreme. A

similar 5-point Likert-scale was used to rate the de-

gree of likelihood: (0) Unknown, (1) Very unlikely,

(2) Unlikely, (3) Possible, (4) Likely, (5) Very likely.

The results are depicted in Table 4.8 Comparison of

consequence, likelihood and risk in (Lien and Bergh,

2023), where ”M” stands for ”Mean” and ”SD” stands

for ”Standard deviation”.

The ﬁndings from the initial analyses show no

particular patterns between the different participant

groups. By tabulating the risk rankings as shown in

Table 4.14 Risk perception for speciﬁc incidents in

AMI in (Lien and Bergh, 2023), it is clear that the

low-risk perception was the dominating one. How-

ever, in each incident there were those who ranked

the same incident as either high or extreme. The semi-

structured interview provided further insights into this

ranking, where the participants reﬂected up on risk

within different elements of AMI and the system as a

whole.

5.2 Semi-Structured Part Findings

The participants perceive the overall risk to AMI both

at distributed and system level as low, where the level

of consequences and likelihood vary depending on the

level. The perception is based on what appears to be

a consensus about the initial work and audits of both

the individual components and the system, creating

what is perceived as one of the most secure AMI im-

plementations.

The consequences at the distributed HW and com-

munication channels are overall perceived as low

based on the implemented security measures, with a

similarly low perception on likelihood for successful

attacks. It is also considered an unrealistic attack sce-

nario due to the limited gain and potential extensive

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

190

use of specialized knowledge and resources to be able

to create a breach at this level. At system level, the

consequence is considered to be considerably higher

due to the ability to reach the entire infrastructure be-

low the HES and to exercise control over or affecting

data and commands within the system. The IT-nature

and the interconnectedness at this level also provide

natural and common vectors for adversaries aiming

at pivoting into the systems from the corporate WAN.

However, due to being within the corporate WAN, it is

also considered to be better protected and under con-

stant scrutiny, as it is considered the most attractive

target within AMI. The likelihood is nonetheless con-

sidered to be higher when compared to the distributed

elements, but at the same time generally considered

to be unlikely. The outliers in this regard are some of

the end-users, who perceive the likelihood to be likely

and very likely, using the argument that the Norwe-

gian energy sector is an attractive target combined

with a lowered threshold for attacks. This can fur-

ther be inﬂuenced by a lack of detailed system knowl-

edge, their perception and experiences with general

ICT-related threats and how they see the system level

as more or less IT-based with different interconnec-

tions. When consequence and likelihood were com-

bined, the participants still consider the main risks as

low, with the end-users yet as outliers, considering the

risk both as high and extreme.

Further, the ﬁndings in the SSI indicate a more

condensed view of factors with a more system-level

focus. The participants provided assessment of risk

when able to do so, where unwanted malicious cyber

incidents affecting AMI as a whole were assessed as a

low risk. When the HW, communication and system

levels were compared, the level of risk was consid-

ered highest at system level, followed by communi-

cation, and lastly HW with the lowest perceived risk

level. The participants highlighted several vulnerabil-

ities and threats at all levels but believe that the system

will be able to handle them.

The perception of factors from the interviews are

summarized and tabulated in Table 5.3 Identiﬁed el-

ements of risk in interviews (in (Lien and Bergh,

2023)), where the participants share functional de-

scriptions of the factors, answering RQ2. The table

represents the most prominent vulnerabilities, threats,

consequences and risks described as compiled induc-

tive codes.

The indications highlighted by the participants in

the SSI are to a certain degree similar to some of the

ﬁndings in the report on the state of digital vulnerabil-

ities in the Norwegian society (NOU 2015:13, 2015).

The digital value chain, the integration of IT/OT, de-

pendence on others due to outsourcing and a limited

market are elements highlighted for both the general

value chain in the energy sector, and the operational

control centers and smart nets (or AMI) in the report.

These are also elements put forward by the partici-

pants. In terms of AMI in speciﬁc, the tampering

with functionality such as the breaker functionality

at system level is highlighted by the participants as

a considerable vulnerability, introducing signiﬁcant

risk to the system and a potential factor of strate-

gic importance to malicious actors. Similarly, the re-

port highlights the strategic vulnerability that such a

functionality entails. Further, the report also consid-

ers the threat of manipulation and tampering of HW,

data and functionality, both at the SMs, communica-

tion channels and at system level, where the intercon-

nectedness increases the number of vectors. This is

also highlighted by the participants, but where the risk

at the distributed and communication level is consid-

ered to be lower compared to that at the system level.

Lastly, the report points out that there may be privacy

challenges related to measurement data and how the

power consumption is considered Personal Identiﬁ-

able Information (PII), thus potentially vulnerable to

proﬁling threats. Few of the participants view loss of

conﬁdentiality as a considerable impact, and do not

necessarily view the data as PII. The threat from pro-

ﬁling and trafﬁc analysis is primarily highlighted by

some of the end-users due to the criticality or sensi-

tivity of their operations. The similarity in identiﬁed

factors from (NOU 2015:13, 2015) and the ﬁndings

in this study as described in the section above shows

that these may be consistent challenges, warranting a

persistent focus.

6 DISCUSSION AND

RECOMMENDATIONS

6.1 Comparison of the SLR and the SSI

Findings - Identifying the

Mismatches

The ﬁndings indicated how differences exist between

the focus in academic research and the perception of

stakeholders of AMI in terms of information secu-

rity risks, answering RQ3. The complete comparison,

providing an overview of overlaps and mismatches,

was conducted in Section 5.3.1 and tabulated in Ap-

pendix E in (Lien and Bergh, 2023) . The following

paragraphs discuss the main ﬁndings of this compari-

son.

The literature emphasizes and focuses on the tech-

nological aspects, particularly the distributed ele-

Perceptions of Cyber Security Risk of the Norwegian Advanced Metering Infrastructure

191

ments, while the participants in the SSI concentrate on

the system level. Both recognize the complexity and

potential vulnerabilities and threats across all levels

of AMI. However, the SSI and the chosen methodol-

ogy do not provide concrete justiﬁcations for the par-

ticipants’ claims of AMI security and its handling of

vulnerabilities, threats, and consequences outlined in

the SLR towards the distributed elements. Research

efforts to test such perceptions were not signiﬁcantly

identiﬁed in the body of research identiﬁed in the

SLR, potentially due to the chosen methodology and

regulatory requirements on power sensitive informa-

tion. However, the identiﬁed divergence in focus and

perception concerning the distributed level versus the

system level, coupled with a potential lack of recent

research may warrant a need to challenge and verify

the technical and organizational solutions in a real-life

environment. This can aid in leveling and adding to

the knowledge and cyber SA of information security

challenges in the Norwegian implementation.

The study indicates that regulatory requirements

may be a potential obstacle to the sharing of knowl-

edge and information. This obstacle has the poten-

tial to impose constraints on research efforts. Conse-

quently, it may contribute to a cognitive bias amongst

participants, wherein their perspectives are inade-

quately challenged. Furthermore, this cognitive bias

can be further reinforced by a high level of reliance

on a limited set of actors within a small market, such

as in the Norwegian AMI implementation, affecting

the individual actor’s level of knowledge and com-

petence. Given the complex nature of the AMI sys-

tem, indications of a possible cognitive bias and po-

tential limitations imposed by regulations on informa-

tion sharing, a comprehensive approach is warranted.

Such an approach should encompass both technolog-

ical and organizational factors to effectively address

the challenges at hand.

The indications of a need to level the knowledge

and cyber SA implies a need to address the level of

knowledge and competence within information secu-

rity amongst the actors and challenge the system and

the organization. Further, the complexity in AMI and

the energy sector with regards to both technical and

organizational aspects, implies the need for a compre-

hensive approach to information security to alleviate

the complexity and uncertainties.

6.2 Comparison of the SLR and the SSI

Fndings - the Need to Address the

Divergence

The comparison and further the evaluation of the di-

vergence have identiﬁed a difference in perception of

the level of risk and the absence of holistic risk assess-

ments in the SLR (Lien and Bergh, 2023). Further, it

shows the difference in areas of focus for information

security. While the SLR has a technological focus,

with the main body of research conducted on the dis-

tributed elements, the participants in the SSI focus on

the system level. However, both highlight the com-

plexity and potential technological vulnerabilities and

threats associated within all levels of AMI. In this re-

gard, the participants perceive the system overall as

a secure implementation capable of handling most of

the identiﬁed challenges. But the SSI and the cho-

sen methodology do not provide the study with con-

crete justiﬁcation for the participants’ claim of AMI

security and how it handles the vulnerabilities, threats

and consequences like those described in the SLR.

The ability to test such perceptions can be through re-

search on the implementation, but the SLR was not

able to identify signiﬁcant efforts which were pub-

licly available. This can be both due to the methodol-

ogy chosen for the SLR, but also due to the sensitiv-

ity and regulatory requirements to protect information

and knowledge, so as to not provide a cookbook for

malicious actors.

The regulatory requirements are indicated by

the study as a potential challenge regarding sharing

knowledge and information. This may threaten the

validity of this study but can also be potentially lim-

iting to research efforts and thus can create a certain

cognitive bias within the participants, where their per-

ception is not adequately challenged. This cognitive

bias can be further affected by the level of dependence

on others and the trust in a limited set of actors in

a small market such as the Norwegian implementa-

tion. The divergent focus in a complex system such as

AMI, an indicated cognitive bias and potentially ﬁnite

research efforts due to limitations imposed by regula-

tions and information sharing may imply the need for

a comprehensive approach, addressing both techno-

logical and organizational factors.

The justiﬁcation for addressing the divergences

can be summed up in the following potential areas for

improvement:

1. The need to level the knowledge and cyber SA of

information security challenges.

• The need for more holistic risk assessments of

the AMI system.

• The need to challenge a potential cognitive bias

in risk perception and increase knowledge and

competence.

• The ability to challenge, verify and enhance

technical and organizational solutions in a full-

scale/real-life environment.

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

192

2. The need for a comprehensive approach to address

the complexity in AMI and energy sector consid-

ering information security.

• Regulation may limit research efforts.

• Fragmentation of roles and authority.

• Signiﬁcant responsibility for information secu-

rity placed on the individual actor creates un-

certainties and the need for more competence

and knowledge.

6.3 Proposed Solutions to Reduce the

Divergence

The current and future investments in information

security in AMI and the energy sector should be

grounded on a clear perception and awareness of

risks. This study has indicated a divergence between

the research efforts in academic literature and the fo-

cus and perception of risks amongst the stakehold-

ers of AMI. Further, it has indicated how a complex

system and its organization challenges the ability to

obtain a comprehensive view of the risk factors in

the system, and thus makes it challenging to get a

clear perception and awareness of information secu-

rity risks.

To aid in developing a more clear and updated

knowledge and insight of risks in AMI, this study pro-

poses two overarching approaches based on the ﬁnd-

ings.

1. Incentivizing More Research - Enhancing and

Adding to the Level of Knowledge and Cyber

SA. In order to enhance research efforts in both

international and national academia pertaining to

the Norwegian implementation of AMI, the es-

tablishment of a research program that adopts a

comprehensive approach to address information

security risks could be a potential solution. The

primary objective of this program would be to

address the indicated need for strengthening re-

search efforts and contribute to the enhancement

of knowledge and competence. By incentiviz-

ing research and facilitating the exchange of in-

formation and ﬁndings between the stakeholders

involved in the Norwegian AMI implementation

and the academic community, knowledge and in-

sights are added, affecting perception and SA of

information security challenges. Such an effort

could be organized under the regulatory authority

to ensure legal compliance regarding power sen-

sitive information and the sharing of information

and ﬁndings accordingly.

2. Centralized and Enhanced Information Secu-

rity Governance – Reducing Complexity. Es-

tablishing a centralized approval entity can poten-

tially reduce the complexity in organizing and en-

forcing the work around information security in

the energy sector and AMI. By additionally in-

corporating CERT-functionality within, it could

aid in building a more comprehensive cyber SA,

with a mandatory membership for all actors. By

placing the entity within the regulatory author-

ities, the fragmentation is reduced in terms of

roles and responsibilities, empowering one entity

with the overall responsibility for supervision and

pre-approval of technical and organizational solu-

tions. This could provide a more persistent focus

and overview of the overall information security

posture and status in AMI and the energy sector.

7 CONCLUSION

This study produced indications on how information

security risks are perceived amongst stakeholders in

AMI, on the focus areas of literature on information

security risks in AMI, and in which areas these dif-

fer from each other. Further, solutions to reduce the

differences were proposed.

Several aspects could be the subject for further re-

search:

• Extending the present study to cover other coun-

tries.

• Research could give more insights into what fac-

tors inﬂuence perception the most, and thus pro-

vide a foundation for improving risk communica-

tion. Further on perception of risk and inﬂuencing

factors, it could be interesting to conduct a study

measuring cyber security knowledge and informa-

tion security risk perception.

• Research could give more insight into how a ma-

licious actor with resources and capabilities (i.e.,

nation state actor) can exploit the residual risk

to potentially cause severe consequences not ac-

counted for in the initial risk assessments.

• Research could provide a better basis for deci-

sions concerning measures to protect AMI PII

data, potentially improving already implemented

measures such as encryption and authentication or

provide additional measures.

• By researching and challenging a complete im-

plementation of the system in a real-life setting,

a realistic overview of the posture and the poten-

tial for cascading effects from/to AMI and other

dependent or interconnected systems could be ob-

tained.

Perceptions of Cyber Security Risk of the Norwegian Advanced Metering Infrastructure

193

• Research into how updateability in the distributed

HW could be optimized to account for rapid and

continuous updates to keep up with the pace in

technological developments could provide an en-

hancement in technological lifespan for the next

generation of AMI.

• Considering the proposed recommendation of a

centralized approval authority for information

systems in the energy sector and AMI, further

research could investigate the viability and fea-

sibility of such a solution. Research concern-

ing how to organize and unify the regulation of

information security in such an entity could be

conducted, considering the model from the De-

fense sector. Further, research concerning how the

technical evaluation of implementations should be

conducted during the pre-approval process would

be beneﬁcial to development of structures and

routines in relation to organizing such work.

ACKNOWLEDGEMENTS

This work was supported by the Research Council

of Norway [grant number 310105 ”Norwegian Centre

for Cybersecurity in Critical Sectors - NORCICS”].

REFERENCES

Asplund, M. and Nadjm-Tehrani, S. (2016). Attitudes and

Perceptions of IoT Security in Critical Societal Ser-

vices. IEEE Access, 4:2130–2138.

Energiloven – enl (1990). Lov om produksjon, omform-

ing, overføring, omsetning, fordeling og bruk av en-

ergi m.m. (energiloven).

Frogner, K. P., Lien, E., and Bergh, K. M. G. (2021).

Smart energy metering and its infrastructure – A sur-

vey on vulnerabilities and information security chal-

lenges. Department of Information Security and Com-

munication Technology, NTNU.

Frøystad, C., Jaatun, M. G., Bernsmed, K., and Moe, M.

(2018). Risiko- og s

arbarhetsanalyse for økt inte-

grasjon av AMS-DMS-SCADA. Report 978-82-410-

1789-6, NVE.

Geiger, M., Bauer, J., Masuch, M., and Franke, J. (2020).

An Analysis of Black Energy 3, Crashoverride, and

Trisis, Three Malware Approaches Targeting Opera-

tional Technology Systems. In 2020 25th IEEE Inter-

national Conference on Emerging Technologies and

Factory Automation (ETFA), volume 1, pages 1537–

1543. IEEE.

Gunduz, M. Z. and Das, R. (2020). Cyber-security on smart

grid: Threats and potential solutions. Computer Net-

works, 169.

Hansen, A., Staggs, J., and Shenoi, S. (2017). Security anal-

ysis of an advanced metering infrastructure. Inter-

national journal of critical infrastructure protection,

18:3–19.

Husnoo, M. A., Anwar, A., Hosseinzadeh, N., Islam, S. N.,

Mahmood, A. N., and Doss, R. (2023). False data in-

jection threats in active distribution systems: A com-

prehensive survey. Future Generation Computer Sys-

tems, 140:344–364.

Jesson, J., Matheson, L., and Lacey, F. M. (2011). Do-

ing your literature review: Traditional and systematic

techniques. Sage, London.

Kraftberedskapsforskriften (2012). Forskrift om sikker-

het og beredskap i kraftforsyningen (kraftberedskaps-

forskriften).

Larsen, M. H., Lund, M. S., and Bjørneseth, F. B. (2022). A

model of factors inﬂuencing deck ofﬁcers’ cyber risk

perception in offshore operations. Maritime Transport

Research, 3:100065.

Lien, E. and Bergh, K. M. G. (2023). Attitudes and Percep-

tion of AMI Information Security in the Energy Sector

of Norway. Master thesis, NTNU.

Line, M. B., Johansen, G. I., and Sæle, H. (2012).

Risikovurdering av AMS. Kartlegging av infor-

masjonssikkerhetsmessige s

arbarheter i AMS. Report

8214052807, SINTEF.

Nasjonal sikkerhetsmyndighet (2020). Risiko 2020. Ac-

cessed on 2021-09-20.

Nasjonal sikkerhetsmyndighet (2021). Risiko 2021. Ac-

cessed on 2021-09-20.

Nasjonal sikkerhetsmyndighet (2022). Risiko 2022. Ac-

cessed on 2023-04-02.

NOU 2015:13 (2015). Digital s

arbarhet - sikkert samfunn.

Beskytte enkeltmennesker og samfunn i en digitalisert

verden. Accessed on 2022-12-11.

Politiets sikkerhetstjeneste (2020). Nasjonal trusselvurder-

ing 2020. Accessed on 2022-09-10.

Politiets sikkerhetstjeneste (2021). Nasjonal trusselvurder-

ing 2021. Accessed on 2022-09-11.

Skotnes, R. Ø. (2015). Risk perception regarding the

safety and security of ICT systems in electric power

supply network companies. Safety Science Monitor,

19(1):Article 4.

Sæle, H., Ingebrigtsen, K., and Istad, M. (2019). Fremti-

dens avanserte m

ale og styringssystem (ams): Forven-

tet utvikling 2-5

ar frem i tid. Report 978-82-410-

1921-0, SINTEF Energi AS.

Venjum, A. (2016). Smarte m

alere (AMS): Status og planer

for installasjon per 1. halv

ar 2016. Report 978-82-

410-1532-8, NVE.

Wei, L., Rondon, L. P., Moghadasi, A., and Sarwat, A. I.

Review of cyber-physical attacks and counter defense

mechanisms for advanced metering infrastructure in

smart grid. In 2018 IEEE/PES Transmission and Dis-

tribution Conference and Exposition (T&D), pages 1–

9. IEEE.

Wei, M. and Wang, W. (2016). Data-centric threats and

their impacts to real-time communications in smart

grid. Computer Networks, 104:174–188.

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

194
