Inﬂuence of Pixel Perturbation on eXplainable Artiﬁcial Intelligence

Methods

Juliana da Costa Feitosa

, Mateus Roder

, Jo

ao Paulo Papa

and Jos

e Remo Ferreira Brega

Departmant of Computing, School of Science, Sao Paulo State University (UNESP), Brazil

Keywords:

eXplainable Artiﬁcial Intelligence, Pixel Pertubation, Artiﬁcial Intelligence.

Abstract:

The current scenario around Artiﬁcial Intelligence (AI) has demanded more and more transparent explanations

about the existing models. The use of eXplicable Artiﬁcial Intelligence (XAI) has been considered as a solution

in the search for explainability. As such, XAI methods can be used to verify the inﬂuence of adverse scenarios,

such as pixel disturbance on AI models for segmentation. This paper presents the experiments performed

with ﬁsh images of the Pacu species to determine the inﬂuence of pixel perturbation through the following

explainable methods: Grad-CAM, Saliency Map, Layer Grad-CAM and CNN Filters. The perturbed pixels

were considered the most important for the model during the segmentation process of the input image regions.

From the existing pixel perturbation techniques, the images were subjected to three main techniques: white

noise, color black noise and random noise. From the results obtained, it was observed that the Grad-CAM

method had different behaviors for each perturbation technique tested, while the CNN Filters method showed

more stability in the variation of the image averaging. The Saliency Map was the least sensitive to the three

types of perturbation, as it required fewer iterations. Furthermore, of the perturbation techniques tested, Black

noise showed the least ability to impact segmentation. Thus, it is concluded that the perturbation methods

inﬂuence the outcome of the explainable models tested and interfere with these models in different ways. It

is suggested that the experiments presented here be replicated on other AI models, on other explainability

methods, and with other existing perturbation techniques to gather more evidence about this inﬂuence and

from that, quantify which combination of XAI method and pixel perturbation is best for a given problem.

1 INTRODUCTION

Artiﬁcial Intelligence (AI) is commonly used today

to describe the newest experiences of interaction be-

tween computer systems and their users (Kaufman,

2019). Through this interaction that AI systems and

concepts can be found in countless areas of knowl-

edge, such as law, medicine, engineering and mathe-

matics (Russell and Norvig, 2004).

The aim of AI is to make machines partially sim-

ulate the workings of the human mind (Kistan et al.,

2018). Therefore, there is still no AI system that com-

pletely simulates our brains and solves every type of

problem solved by a human being. However, there

is still no knowledge of all the problems that are ca-

pable of being solved by AI systems or of their total

capacity (Teixeira, 2019).

https://orcid.org/0009-0005-6935-1022

https://orcid.org/0000-0002-3112-5290

https://orcid.org/0000-0002-6494-7514

https://orcid.org/0000-0002-2275-4722

From this context, Deep Learning (DL) was cre-

ated with the aim of conﬁguring the parameters of

the input data so that the machine learns on its own,

through pattern recognition, in several layers of arti-

ﬁcial neurons (Goodfellow et al., 2016). In this way,

DL is currently used for image recognition, speech,

object detection and content description (Deng and

Yu, 2014).

According to (Fellous et al., 2019), there are two

possible classiﬁcations for existing ML models. The

ﬁrst is black-box models, whose decisions made by

the machine are difﬁcult for a human being to ex-

plain (e.g. DL). Black boxes are considered to be

more complex and perform better. In contrast, there

are white-box models whose decisions can be ex-

plained and are therefore more transparent (e.g. de-

cision trees) (Camacho et al., 2018).

The advance of AI has also led to concerns about

the transparency of decisions. As an example of this,

it has recently been possible to observe the emergence

of the legal requirement prescribed by art. 22 of

624

Feitosa, J., Roder, M., Papa, J. and Brega, J.

Inﬂuence of Pixel Perturbation on eXplainable Artiﬁcial Intelligence Methods.

DOI: 10.5220/0012424800003660

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2024) - Volume 3: VISAPP, pages

624-631

ISBN: 978-989-758-679-8; ISSN: 2184-4321

the General Data Protection Regulation (GDPR) de-

scribed by the European Union jurisdiction (Wolf and

Ringland, 2020) (Arnout et al., 2019), which ensures

the transparency of an AI system’s decisions. It was

also possible to observe the emergence of the General

Personal Data Protection Act (LGPD), which simi-

larly demonstrates concern about advances in AI and

data protection at the national level (Pinheiro, 2020).

As a result, the search for secure and transparent al-

ternatives has become a priority for researchers in the

ﬁeld.

Based on this context, eXplainable Artiﬁcial Intel-

ligence (XAI) emerged, deﬁned as a set of techniques

that combine AI methods, ML and DL, with effective

transparent approaches to generate explainable out-

puts (Fellous et al., 2019). In other words, the term

XAI refers to techniques that make AI models un-

derstandable to humans (Wolf and Ringland, 2020).

Despite gaining due attention recently, according to

(Xu et al., 2019), concepts related to XAI date back

40 years, where rules were used to explain the func-

tioning of expert systems. However, in 2017, the De-

fense Advanced Research Projects Agency (DARPA)

of the United States of America (USA) created a pro-

gram aimed at XAI, whose goal was to create AI sys-

tems capable of explaining their logic to humans, in

order to characterize their strengths and weaknesses,

and transmit future behavioral information (Gunning

and Aha, 2019).

According to (Wolf and Ringland, 2020), expla-

nations can be classiﬁed as global, whose purpose

is to describe the representations of the model used,

and local, whose purpose is to explain the input data.

Moreover, explainability is based on the human be-

ing’s need to understand the system (Wolf, 2019).

Therefore, based on the user, who may or may not

be an expert, the explanations provided by AI can be

spoken or created to be visualized, as required (We-

ber et al., 2018). According to DARPA’s deﬁnitions,

explanations can be classiﬁed into four modes: ana-

lytical statements, visualizations, cases and rejections

of alternative choices (Gunning, 2017). In both cases,

explainability is achieved based on the prediction pro-

cess of the AI model analyzed.

The classiﬁcation of XAI methods can also be de-

ﬁned according to the methodology used to gener-

ate the explanations. According to (Ivanovs et al.,

2021a), pixel perturbation techniques, e.g., make it

possible to analyze the model’s input in relation to

its output. With this in mind, there are XAI methods

based on pixel perturbation, such as LIME and Occlu-

sion, the aim of which is to better understand the func-

tioning of AI models (Ivanovs et al., 2021a). There-

fore, the input image is repeatedly modiﬁed through

blurring or random colors in speciﬁc regions of the

image (Hendrycks and Dietterich, 2019). Further-

more, the results obtained are compared with the re-

sults of the original (undisturbed) input image. There-

fore, the image region is considered signiﬁcant if its

removal results in a noticeable change in the result

(Gupta et al., 2023).

Much has been said about the search for conﬁ-

dence in AI models. However, the need to align

the explanations of XAI methods with the explana-

tions of human beings demonstrates the concern to

also increase conﬁdence in explainable AI methods

ıaz-Rodr

ıguez et al., 2022). Therefore, although

XAI is presented as one of the solutions to the lack

of transparency in AI models, it is also necessary to

challenge the explanations generated by these meth-

ods, since these explanations can produce different

results when subjected to the global and local pro-

cesses of the models, for example (Ghassemi et al.,

2021). According to (Doshi-Velez and Kim, 2017) we

must be careful with interpretable methods, avoiding

vague statements and considering factors relevant to

the tasks performed and the method used. According

to (Ghassemi et al., 2021), despite being attractive due

to their explainability, XAI methods can have their ex-

planations hindered by the presence of unrecognized

confounding factors. It is also necessary to check that

the results obtained by these methods are not altered

when the AI model is subjected to external factors,

such as changes in the input image.

Given this scenario, it is worth stating the im-

portance of using explainable methods that provide

reliable explanations to the user, based on concepts

and studies related to the transparency of AI mod-

els. As well as the importance of examining the re-

lationship between the input and output of a model

based on pixel perturbation, identifying which part

of the input the model attributes greater relevance to

(Ivanovs et al., 2021a). This work aims to evaluate

XAI methods by analyzing the inﬂuence of pixel per-

turbation. The experiments were applied to a model

for segmenting regions of interest in Pacu ﬁsh. To

train the model, a dataset containing the segmentation

of 2000 different animals was required. MaskRCNN

(He et al., 2017) from a feature extractor trained on

ImageNet (Deng et al., 2009) based on the 18-layer

variant of ResNet (He et al., 2015), (He et al., 2016)

was the architecture applied to the original problem.

For the experiments, 100 ﬁsh images were used

for three different disturbance techniques. In addi-

tion, four different explainable methods were used:

Grad-CAM (Selvaraju et al., 2017), Saliency Map (Si-

monyan et al., 2013), Layer Grad-CAM (whose gra-

dients resulting from Grad-CAM are calculated in re-

Inﬂuence of Pixel Perturbation on eXplainable Artiﬁcial Intelligence Methods

625

lation to the ﬁnal convolution layer) (Chatterjee et al.,

2022) and CNN Filters (Erhan et al., 2009). The re-

sults show which explainable model was the least sen-

sitive to pixel perturbation techniques. In addition, it

is possible to see which of the types of perturbation

had the greatest inﬂuence on the model’s predictive

capacity, and whether these techniques affect each of

the explainable methods differently.

2 RELATED WORKS

Disturbances make it possible to examine the rela-

tionship between the input and output of a model, al-

lowing us to see which part of the input a model at-

tributes greater importance to (Ivanovs et al., 2021b).

Thereby, pixel perturbation can be used to assess both

the accuracy of AI models (Kadir et al., 2023) and

the explainability of explainable methods (Mohamed

et al., 2022). In both cases, when there is inﬂuence

from the changes made to the input, the good perfor-

mance of the tool is proven. In the case of explainable

methods, when this inﬂuence is not proven, it can be

said that the explanations generated do not match the

reality of the model’s inference process. For example,

to evaluate an explanation in terms of describing the

model’s behavior, there is a method that replaces pix-

els or regions of pixels based on the MoRF process,

which is done in descending order based on their av-

erage relevance (Gumpfer et al., 2023).

The use of the perturbation technique extends to

scenarios other than classiﬁcation (Lin et al., 2021)

or image segmentation (Gipi

skis et al., 2023). In the

works carried out by (Schlegel et al., 2019), (Veer-

appa et al., 2022) and (Abanda et al., 2022), for ex-

ample, the technique is considered for input to time

series models, and is even used as a way of assess-

ing the explainability of XAI methods applied to this

type of model. Therefore, it can be seen that input per-

turbation is a commonly used technique and helps to

detect ﬂaws in explainability, or even in the AI model

itself.

For models that use images as input, the perturba-

tion technique makes it possible to check for different

types of noise in different types of images, such as

(Shi et al., 2023). In real scenarios, such as medi-

cal images, these noises can be generated in different

ways during image capture.

Disturbance techniques can help detect whether

the prediction process will be carried out correctly

in the face of these changes. Furthermore, when ex-

plainability methods are applied, the result presented

should be in line with the disturbance of the most

relevant pixels, as can be seen in the ﬁgure shown.

When these are modiﬁed, explainability should be in-

ﬂuenced. Therefore, it can be said that an explainable

method with good performance should be inﬂuenced

by the disturbance made to the AI model input, even

for images and visual explanations.

3 METHODOLOGY

The experiments were performed based on the steps

shown in Figure 1. The codes developed and used in

the process were created with the Pytorch library in

Python, and executed in Google Collaboratory.

The segmentation model used was created from a

Convolutional Neural Network (CNN), more speciﬁ-

cally the MaskRCNN using as feature extractor a vari-

ant of ResNet with 18 layers. The goal of the model is

to segment regions of interest in the ﬁsh such as head

and body dimensions, and ﬁn area for the purpose of

phenotyping and subsequent genetic selection. For

each ﬁsh image used as input, the model generates

as output the classes, the masks of each ﬁsh region,

a bounding box, and the conﬁdence score in the class

prediction.

In total, there were 100 ﬁsh images of the Pacu

species provided by Laboratory of Genetics in Aqua-

culture and Conservation (LaGeAC) at Unesp Jabot-

ical. Each image was manually segmented using a

speciﬁc segmentation tool called LabelBox and then

submitted to the AI model for inference. From this

step, a black and white mask was created whose white

areas represent the ﬁsh.

XAI methods were applied to explain the most im-

portant regions for the MaskRCNN prediction model.

Therefore, four methods were applied: Grad-CAM,

Saliency Map, CNN Filters and Layer Grad-CAM.

Both highlight the image regions of greatest relevance

for the model to identify the ﬁsh regions. Thus, it

is possible to verify whether the result presented by

CNN matches the important regions highlighted by

the explainable methods.

The efﬁciency of the prediction process was tested

from the implementation of pixel perturbation tech-

niques, whose objective was to perturb the regions

highlighted as important for the model from the XAI

methods. As such, the perturbation was applied from

the scores obtained for each pixel in the explainabil-

ity methods. Each method considers a different scale

to highlight the most relevant regions, as presented in

Table 1. To identify borderline values for each of the

methods, visual inspection was used on some of the

dataset images.

From the determined values, three different pixel

perturbation techniques were implemented. These

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

626

Figure 1: Diagram of the methodology used during the experiments.

Table 1: Table of most important pixel values for each XAI

method.

XAI Methods Values

Grad-CAM Greater than 0,01

Saliency Map Greater than 0,045

Layer Grad-CAM Greater than -0,5

CNN Filters Less than 0

Figure 2: Pixel perturbation techniques applied on the same

ﬁsh by the Grad-CAM method.

are: white noise, black color noise and random noise.

Each was applied to the input image from the most

relevant regions identiﬁed by the previously presented

XAI methods. Figure 2 illustrates the different per-

turbations applied to an image from regions extracted

using the Grad-CAM method.

Next, it was necessary to perform a comparison

of the original mask, generated during manual seg-

mentation, with the mask generated during the model

prediction after successive perturbations in the pixels.

The latter was also created in black and white, whose

white regions are equivalent to the important regions

highlighted in the previous step, as illustrated in Fig-

ure 3.

Figure 3: Mask generated during prediction from the Grad-

CAM method.

The comparison was performed based on two in-

dices: Intersection under Union (IoU) and Sorensen

Dice (SD). Both aim to verify how similar the images

to be compared are. In this case, how similar the orig-

inal mask is to the mask generated during prediction

after pixel perturbation. The results obtained were

tabulated according to the perturbation technique and

explainability method used.

All steps were performed in a maximum of ﬁve

iterations per image. In some cases, the model itself

stopped the process even before reaching the maxi-

mum. In these situations, the segmentation model was

not able to perform the prediction after the pixel per-

turbation, thus interrupting the process.

For each iteration, the image used as input was

the image generated as output by the previous itera-

tion, except in the ﬁrst iteration whose input was the

original image of the ﬁsh. In this way, with each pass,

the most relevant pixels were increasingly perturbed

Inﬂuence of Pixel Perturbation on eXplainable Artiﬁcial Intelligence Methods

627

with the intention of making the prediction even more

difﬁcult and consequently impairing the model’s pre-

dictive ability. In Figure 4, the red arrows indicate

the regions that were disturbed in the second itera-

tion, increasing the disturbed region compared to the

ﬁrst iteration.

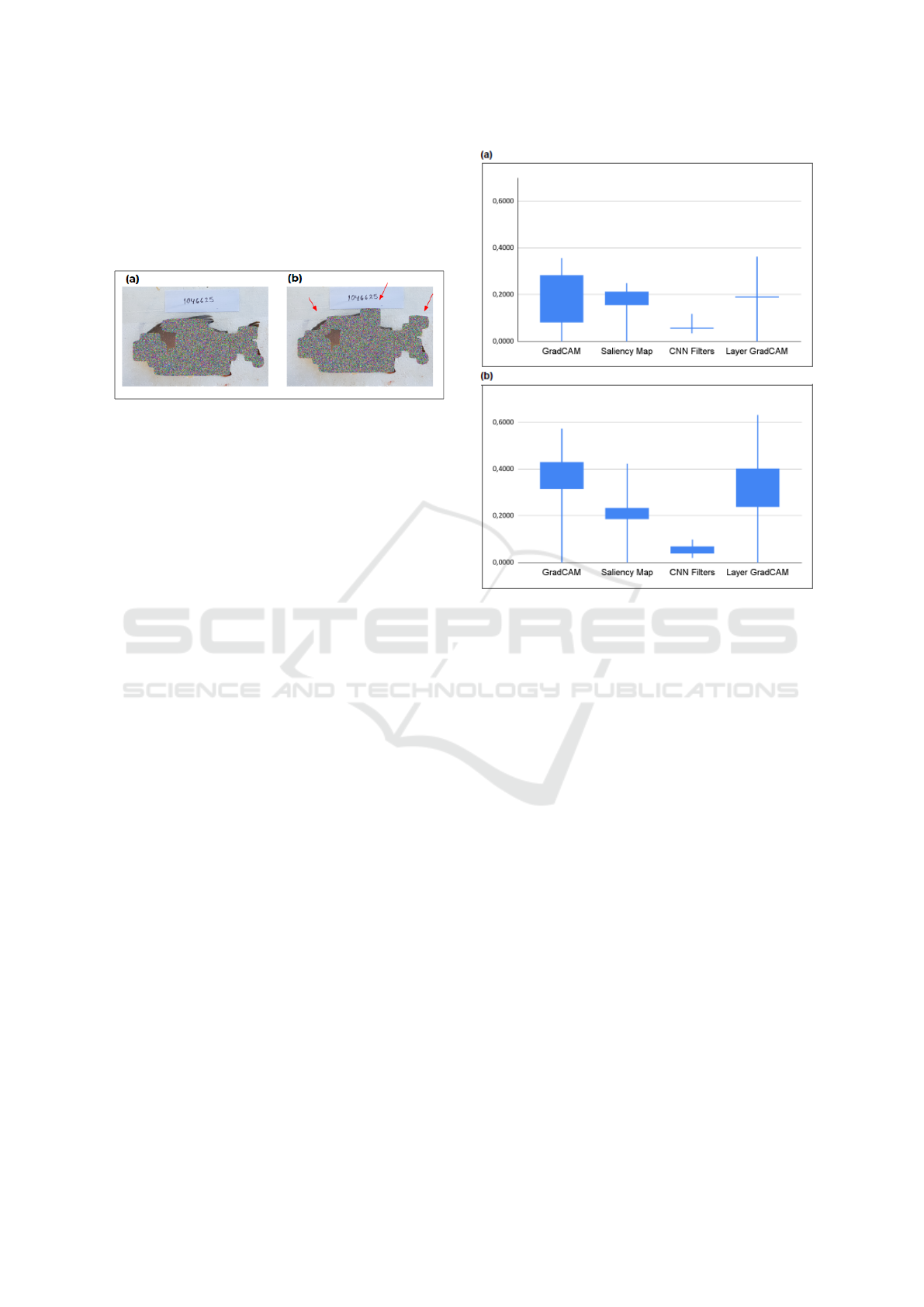

Figure 4: (a) is the image of the ﬁsh in the ﬁrst iteration

of the Grad-CAM method with random pixel disturbance,

and (b) is the image of the ﬁsh in the second iteration of the

Grad-CAM method with random pixel pertubation.

4 RESULTS

From the presented experiments, it was possible to de-

termine the inﬂuence of the perturbation techniques

on the XAI methods. Therefore, by observing the

IoU and SD indices, it was possible to verify the dif-

ferent behavior of the methods. The indices vary ap-

proximately from 0 to 0.6, as presented 5. For the

Grad-CAM method, in both indexes, the variation

was considerable in relation to the other methods. It

is worth mentioning the behavior of the Layer Grad-

CAM method that presented a discrete variation in the

IoU index and for the SD index it presented an op-

posite behavior, being the method with the greatest

variation for this index. These variations show that

the masks (original and prediction) suffered signiﬁ-

cant changes with the disturbance of pixels, making

them increasingly different. This process happened in

a single iteration or along the ﬁve iterations depending

on the combination of the perturbation method with

the XAI technique used.

To determine the results, besides the IoU and SD

indexes, the number of iterations and number of im-

ages generated for each method were observed. It

should be noted that the number of iterations deter-

mined the number of images generated throughout

the experiments. Thus, for each input image, a maxi-

mum of ﬁve output images were generated, depending

on the explainable method and perturbation technique

applied.

Regarding the methods that interrupted the predic-

tion process even before reaching the maximum of

ﬁve iterations, it means that the combination of the

XAI method with the pixel perturbation technique af-

Figure 5: Boxplots of (a) IoU and (b) SD indices from XAI

methods.

fected the model, and therefore impeded the predic-

tion process. Therefore, the Saliency Map obtained

the lowest average number of iterations while demon-

strating a lower sensitivity to different types of pixel

disturbance, making it the best method among the

four.

For the methods that reached the maximum num-

ber of iterations, this means that the model contin-

ued to be able to perform the segmentation even after

the most relevant pixels were disturbed according to

the method. That is, the perturbation did not affect

the model to the extent that it continued to perform

the prediction process. For example, the Layer Grad-

CAM method that presented the maximum average

number of iterations, becoming the worst among the

four methods tested. These results can be observed

through the graph in Figure 6, which shows the aver-

age number of iterations for each XAI method.

When analyzing each perturbation technique indi-

vidually, it was possible to observe that each of them

inﬂuences the same XAI method in different ways. As

presented in Table 2, the Grad-CAM method, for ex-

ample, obtained a signiﬁcant variation in the number

of images from one perturbation technique to another.

It is also possible to observe this same variation in

the average amount of iterations, as shown in Table 3.

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

628

Figure 6: Bar graph of the average number of iterations per

XAI method.

The other methods (Saliency Map, CNN Filters, and

Grad-CAM), for example, did not vary much between

perturbation techniques. Consequently, it is possible

to understand that the methods are inﬂuenced in dif-

ferent ways according to the pixel perturbation tech-

nique applied.

Table 2: Average amount of images generated in each XAI

method according to the pixel disturbance technique ap-

plied.

XAI Methods Pertubation Images

Random 224

Grad-CAM Black 374

White noise 120

Random 123

Saliency Map Black 144

White noise 118

Random 493

Layer Grad-CAM Black 499

White noise 464

Random 188

CNN Filters Black 182

White noise 184

From the implemented pixel perturbation meth-

ods, it is possible to observe that three of the four

XAI methods suffered more inﬂuence from the black

coloration technique, if compared to the other white

noise and random techniques, as illustrated in Fig-

ure 7. It is possible that this phenomenon is related

to the use of padding, which is usually implemented

with pixels of value 0, thus making the model more

resilient to perturbations of this nature. Therefore, for

these methods, the number of iterations and images

generated was higher for this perturbation technique

than for the others. However, the CNN Layers method

Table 3: Average number of iterations by each XAI method

according to the applied pixel perturbation technique.

XAI Methods Pertubation Iterations

Random 2

Grad-CAM Black 4

White noise 1

Random 1

Saliency Map Black 1

White noise 1

Random 5

Layer Grad-CAM Black 5

White noise 5

Random 2

CNN Filters Black 2

White noise 2

Figure 7: Bar graph of the average number of images per

pixel disturbance technique.

was the only one to show less sensitivity to this pertur-

bation technique, becoming the method with the least

variation among the techniques, when considering the

average number of images.

5 CONCLUSIONS

XAI methods are seen as solutions to the lack of trans-

parency in AI models. The objective of these methods

is to highlight which are the most relevant regions of

an image during model prediction. Based on this and

the experiments carried out in this work, the inﬂuence

on the MaskRCNN prediction from pixel perturbation

techniques and on the outputs obtained by explain-

ability methods applied to the segmentation of im-

ages of ﬁsh of the Pacu species was veriﬁed. Thereby,

through the results presented, it is possible to iden-

tify that the perturbation methods inﬂuence the results

Inﬂuence of Pixel Perturbation on eXplainable Artiﬁcial Intelligence Methods

629

of the tested explainability models, and also that the

perturbation techniques interfere with the XAI meth-

ods in different ways, such as the Grad-CAM method,

which had different behaviors. for each technique

tested.

The black color perturbation technique generated

more iterations, and consequently more images, in

three of the four XAI methods presented. Therefore,

it can be concluded that this technique has the least ca-

pacity to generate impact on the segmentation model

among the techniques tested in this work. Still ac-

cording to the average number of iterations and the

average number of images generated, it is possible to

conclude that the Saliency Map method was the least

sensitive to the different perturbation methods and,

therefore, the best among the XAI methods tested on

the problem in question. The CNN Filters method

was the least sensitive to the types of disturbance, pre-

senting less variation in the average number of im-

ages, while the Grad-CAM method was the most sen-

sitive among the four.

For future work, it is suggested that the experi-

ments presented here be replicated in other AI mod-

els and other explainability methods, as well as in

other scenarios beyond image segmentation. Further-

more, it is interesting to test other existing perturba-

tion techniques and their combinations with explain-

ability methods to identify their inﬂuence on the pre-

dictive capacity of the models. Finally, more evidence

about this inﬂuence can be gathered and from this,

it can be quantiﬁed which combination of the XAI

method and pixel perturbation is best for a given prob-

lem.

REFERENCES

Abanda, A., Mori, U., and Lozano, J. (2022). Ad-hoc expla-

nation for time series classiﬁcation. Knowledge-Based

Systems, 252:109366.

Arnout, H., El-Assady, M., Oelke, D., and Keim, D. A.

(2019). Towards a rigorous evaluation of xai meth-

ods on time series. In 2019 IEEE/CVF International

Conference on Computer Vision Workshop (ICCVW),

pages 4197–4201.

Camacho, D. M., Collins, K. M., Powers, R. K., Costello,

J. C., and Collins, J. J. (2018). Next-generation

machine learning for biological networks. Cell,

173(7):1581–1592.

Chatterjee, S., Das, A., Mandal, C., Mukhopadhyay, B.,

Vipinraj, M., Shukla, A., Nagaraja Rao, R., Sarasaen,

C., Speck, O., and N

urnberger, A. (2022). Torch-

esegeta: Framework for interpretability and explain-

ability of image-based deep learning models. Applied

Sciences, 12(4):1834.

Deng, J., Dong, W., Socher, R., Li, L.-J., Li, K., and Fei-

Fei, L. (2009). Imagenet: A large-scale hierarchical

image database. In 2009 IEEE conference on com-

puter vision and pattern recognition, pages 248–255.

Ieee.

Deng, L. and Yu, D. (2014). Deep learning: methods and

applications. Foundations and trends in signal pro-

cessing, 7(3–4):197–387.

ıaz-Rodr

ıguez, N., Lamas, A., Sanchez, J., Franchi,

G., Donadello, I., Tabik, S., Filliat, D., Cruz, P.,

Montes, R., and Herrera, F. (2022). Explainable

neural-symbolic learning (x-nesyl) methodology to

fuse deep learning representations with expert knowl-

edge graphs: The monumai cultural heritage use case.

Information Fusion, 79:58–83.

Doshi-Velez, F. and Kim, B. (2017). Towards a rigorous sci-

ence of interpretable machine learning. arXiv preprint

arXiv:1702.08608.

Erhan, D., Bengio, Y., Courville, A., and Vincent, P. (2009).

Visualizing higher-layer features of a deep network.

University of Montreal, 1341(3):1.

Fellous, J.-M., Sapiro, G., Rossi, A., Mayberg, H., and Fer-

rante, M. (2019). Explainable artiﬁcial intelligence for

neuroscience: Behavioral neurostimulation. Frontiers

in Neuroscience, 13. cited By 0.

Ghassemi, M., Oakden-Rayner, L., and Beam, A. L. (2021).

The false hope of current approaches to explainable

artiﬁcial intelligence in health care. The Lancet Digi-

tal Health, 3(11):e745–e750.

Gipi

skis, R., Chiaro, D., Preziosi, M., Prezioso, E., and Pic-

cialli, F. (2023). The impact of adversarial attacks on

interpretable semantic segmentation in cyber-physical

systems. IEEE Systems Journal.

Goodfellow, I., Bengio, Y., Courville, A., and Bengio, Y.

(2016). Deep learning, volume 1. MIT press Cam-

bridge.

Gumpfer, N., Prim, J., Keller, T., Seeger, B., Guckert, M.,

and Hannig, J. (2023). Signed explanations: Unveil-

ing relevant features by reducing bias. Information

Fusion, page 101883.

Gunning, D. (2017). Explainable artiﬁcial intelligence

(xai). Defense Advanced Research Projects Agency

(DARPA), nd Web, 2:2.

Gunning, D. and Aha, D. (2019). Darpa’s explainable artiﬁ-

cial intelligence program. AI Magazine, 40(2):44–58.

cited By 6.

Gupta, L. K., Koundal, D., and Mongia, S. (2023). Ex-

plainable methods for image-based deep learning: a

review. Archives of Computational Methods in Engi-

neering, 30(4):2651–2666.

He, K., Gkioxari, G., Doll

ar, P., and Girshick, R. B. (2017).

Mask R-CNN. CoRR, abs/1703.06870.

He, K., Zhang, X., Ren, S., and Sun, J. (2015). Deep

residual learning for image recognition. CoRR,

abs/1512.03385.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Iden-

tity mappings in deep residual networks. CoRR,

abs/1603.05027.

Hendrycks, D. and Dietterich, T. (2019). Benchmarking

neural network robustness to common corruptions and

perturbations. arXiv preprint arXiv:1903.12261.

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

630

Ivanovs, M., Kadikis, R., and Ozols, K. (2021a).

Perturbation-based methods for explaining deep neu-

ral networks: A survey. Pattern Recognition Letters,

150:228–234.

Ivanovs, M., Kadikis, R., and Ozols, K. (2021b).

Perturbation-based methods for explaining deep neu-

ral networks: A survey. Pattern Recognition Letters,

150:228–234.

Kadir, M. A., Mohamed Selim, A., Barz, M., and Sonntag,

D. (2023). A user interface for explaining machine

learning model explanations. In Companion Proceed-

ings of the 28th International Conference on Intelli-

gent User Interfaces, pages 59–63.

Kaufman, D. (2019). A intelig

encia artiﬁcial ir

a suplantar

a intelig

encia humana? ESTAC¸

AO DAS LETRAS E

CORES EDI.

Kistan, T., Gardi, A., and Sabatini, R. (2018). Machine

learning and cognitive ergonomics in air trafﬁc man-

agement: Recent developments and considerations for

certiﬁcation. Aerospace, 5(4). cited By 3.

Lin, Y.-S., Lee, W.-C., and Celik, Z. B. (2021). What do

you see? evaluation of explainable artiﬁcial intelli-

gence (xai) interpretability through neural backdoors.

In Proceedings of the 27th ACM SIGKDD Confer-

ence on Knowledge Discovery & Data Mining, pages

1027–1035.

Mohamed, E., Sirlantzis, K., and Howells, G. (2022). A

review of visualisation-as-explanation techniques for

convolutional neural networks and their evaluation.

Displays, 73:102239.

Pinheiro, P. P. (2020). Protec¸

ao de dados pessoais:

Coment

arios

a lei n. 13.709/2018-lgpd. Saraiva

Educac¸

ao SA.

Russell, S. J. and Norvig, P. (2004). Intelig

encia artiﬁcial.

Elsevier.

Schlegel, U., Arnout, H., El-Assady, M., Oelke, D., and

Keim, D. A. (2019). Towards a rigorous evaluation

of xai methods on time series. In 2019 IEEE/CVF In-

ternational Conference on Computer Vision Workshop

(ICCVW), pages 4197–4201. IEEE.

Selvaraju, R. R., Cogswell, M., Das, A., Vedantam, R.,

Parikh, D., and Batra, D. (2017). Grad-cam: Visual

explanations from deep networks via gradient-based

localization. In Proceedings of the IEEE international

conference on computer vision, pages 618–626.

Shi, R., Li, T., and Yamaguchi, Y. (2023). Understand-

ing contributing neurons via attribution visualization.

Neurocomputing, page 126492.

Simonyan, K., Vedaldi, A., and Zisserman, A. (2013).

Deep inside convolutional networks: Visualising im-

age classiﬁcation models and saliency maps. arXiv

preprint arXiv:1312.6034.

Teixeira, J. (2019). O que

e intelig

encia artiﬁcial. E-

Gal

axia.

Veerappa, M., Anneken, M., Burkart, N., and Huber, M. F.

(2022). Validation of xai explanations for multivari-

ate time series classiﬁcation in the maritime domain.

Journal of Computational Science, 58:101539.

Weber, R. O., Johs, A. J., Li, J., and Huang, K. (2018). In-

vestigating textual case-based XAI. In Cox, M. T.,

Funk, P., and Begum, S., editors, Case-Based Reason-

ing Research and Development, volume 11156, pages

431–447. Springer International Publishing. Series Ti-

tle: Lecture Notes in Computer Science.

Wolf, C. T. (2019). Explainability scenarios: Towards

scenario-based xai design. In Proceedings of the 24th

International Conference on Intelligent User Inter-

faces, IUI ’19, page 252–257, New York, NY, USA.

Association for Computing Machinery.

Wolf, C. T. and Ringland, K. E. (2020). Designing acces-

sible, explainable ai (xai) experiences. SIGACCESS

Access. Comput., (125).

Xu, F., Uszkoreit, H., Du, Y., Fan, W., Zhao, D., and Zhu,

J. (2019). Explainable AI: A brief survey on history,

research areas, approaches and challenges. In Tang,

J., Kan, M.-Y., Zhao, D., Li, S., and Zan, H., editors,

Natural Language Processing and Chinese Comput-

ing, volume 11839, pages 563–574. Springer Interna-

tional Publishing. Series Title: Lecture Notes in Com-

puter Science.

Inﬂuence of Pixel Perturbation on eXplainable Artiﬁcial Intelligence Methods

631
