On Augmenting Scenario-Based Modeling with Generative AI

David Harel

, Guy Katz

, Assaf Marron

and Smadar Szekely

Weizmann Institute of Science, Rehovot, Israel

The Hebrew University of Jerusalem, Jerusalem, Israel

Keywords:

Generative AI, Chatbots, Scenario-Based Modeling, Rule-Based Speciﬁcations.

Abstract:

The manual modeling of complex systems is a daunting task; and although a plethora of methods exist that

mitigate this issue, the problem remains very difﬁcult. Recent advances in generative AI have allowed the

creation of general-purpose chatbots, capable of assisting software engineers in various modeling tasks. How-

ever, these chatbots are often inaccurate, and an unstructured use thereof could result in erroneous system

models. In this paper, we outline a method for the safer and more structured use of chatbots as part of the

modeling process. To streamline this integration, we propose leveraging scenario-based modeling techniques,

which are known to facilitate the automated analysis of models. We argue that through iterative invocations of

the chatbot and the manual and automatic inspection of the resulting models, a more accurate system model

can eventually be obtained. We describe favorable preliminary results, which highlight the potential of this

approach.

1 INTRODUCTION

Manually modeling complex systems is a daunting

and error-prone endeavor. Furthermore, even after the

system is modeled, ongoing tasks, such as modiﬁca-

tion and repair, continue to tax human engineers. Cre-

ating tools and methodologies for streamlining and

facilitating this process has been the topic of exten-

sive work, but many aspects of the problem remain

unsolved (Pettersson and Andersson, 2016; Biolchini

et al., 2005).

In recent years, the deep learning revolution has

been causing dramatic changes in many areas, in-

cluding computer science; and this revolution has re-

cently taken yet another step towards general-purpose

AI, with the release of ChatGPT, the learning-based

chatbot (OpenAI, 2022). ChatGPT, and other, simi-

lar tools (Google, 2023; MetaAI, 2023), can be used

for countless kinds of tasks — including the model-

ing and coding of complex systems (Surameery and

Shakor, 2023). An engineer might provide ChatGPT

with a natural-language description of the system at

hand, and receive in return a model of the system, or

even computer code that implements it; and through

iterative querying of ChatGPT, the system can later

be modiﬁed or enhanced. This approach has already

been used in several application domains (Surameery

and Shakor, 2023; Burak et al., 2023; Liu et al., 2023).

Although the ability to integrate ChatGPT

into

the software development cycle will undoubtedly em-

power engineers, there are also potential pitfalls that

need to be taken into account. One drawback of Chat-

GPT and similar tools is that the answers they provide

are often inaccurate, and might overlook important as-

pects of the input query (Liu et al., 2023). Moreover,

the input query itself might be imperfect, and the en-

gineer might not realize this until the system is de-

ployed. Thus, if we make the reasonable assumption

that human engineers will gradually become depen-

dent on chatbots for various tasks, the risk increases

that these inaccuracies will ﬁnd their way into the ﬁ-

nal models of the system at hand and the code that

ensues. We are thus faced with the following chal-

lenge: how can we harness ChatGPT in a way that

lifts a signiﬁcant load of work off the shoulders of the

engineers, but which still results in sound and accu-

rate models?

Here, we advocate the creation of an encompass-

ing modeling scheme that will combine ChatGPT

with more traditional techniques for manual model-

ing of systems (Biolchini et al., 2005; Pettersson and

Andersson, 2016), in a way that will achieve this goal.

Our core idea is to use ChatGPT in a controlled way;

i.e., to repeatedly invoke it for various tasks, but to

We will often use the term ChatGPT somewhat gener-

ically, to represent an arbitrary, modern chatbot.

Harel, D., Katz, G., Marron, A. and Szekely, S.

On Augmenting Scenario-Based Modeling with Generative AI.

DOI: 10.5220/0012427100003645

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 12th International Conference on Model-Based Software and Systems Engineering (MODELSWARD 2024), pages 235-246

ISBN: 978-989-758-682-8; ISSN: 2184-4348

235

then thoroughly inspect and analyze its results, to en-

sure their soundness and accuracy. We argue that

such a scheme, if designed properly, would allow soft-

ware and system engineers to beneﬁt from the capa-

bilities of modern chatbots, but without jeopardizing

the quality of the resulting products. In the long run,

we regard such a scheme as a step towards the Wise

Computing vision (Harel et al., 2018), which calls for

turning the computer into a proactive member of the

software development team — one which can propose

courses of action, detect under-speciﬁed portions of

the model, and assist in the various routine actions

that naturally arise as part of the software develop-

ment cycle.

In order to design such a modeling scheme, we

propose to leverage the extensive work carried out in

the modeling community over the years. Speciﬁcally,

we propose to focus on modeling frameworks that af-

ford two beneﬁts that complement the capabilities of

ChatGPT: (i) the models produced by the framework

are naturally well-aligned with how humans perceive

systems; this, we believe, will make it easier for the

human engineer to inspect ChatGPT’s output; and (ii)

the resulting models are amenable to automated anal-

ysis tasks, such as model checking, which will sup-

port the automated detection of bugs and inconsisten-

cies in the automatically generated models.

Several modeling approaches ﬁt this description,

and many of them can probably be used, but for

the initial evaluation presented here, we focus on

scenario-based modeling (SBM) — a technique that

generates models comprised of simple scenarios,

each of which describes a single aspect of the sys-

tem at hand (Harel et al., 2012b; Damm and Harel,

2001). As we later discuss, this can facilitate the

smooth collaboration between ChatGPT and the hu-

man engineers.

To demonstrate the potential of this combined

framework, we focus on a few tasks that arise nat-

urally as part of a system’s life cycle. Speciﬁcally,

we discuss the initial design of the model, its testing

and the veriﬁcation of its properties, its later enhance-

ment or repair due to the discovery of inconsistencies,

and also a search for under-speciﬁed portions of the

model. Our results, although preliminary, are very

promising, and we hope this paper will form a basis

for further research in this direction.

In the remainder of the paper, we present the key

concepts of our approach, and discuss a high-level

plan for the next steps. We begin by introducing the

concepts of SBM and language model-based chatbots

in Section 2. Next, we present the proposed integra-

tion of SBM and ChatGPT in Section 3, followed by

a discussion of some of the more advanced aspects of

this integration in Section 4. We discuss related work

in Section 5 and conclude in Section 6.

2 BACKGROUND

2.1 Large Language Model-Based

Chatbots

ChatGPT (Chat Generative Pre-trained Transformer)

is a large language model (LLM) based chatbot, de-

veloped by OpenAI (OpenAI, 2022; Chang et al.,

2023). The chatbot is able to conduct an iterative con-

versation of variable length, format, style, level of de-

tail, and language. At each stage, the user presents

a new prompt to ChatGPT, which then replies, based

on all previous prompts in that conversation (the con-

text). Following its debut in 2022, ChatGPT quickly

became highly successful, and inspired multiple other

companies to release their own chatbots (Google,

2023; MetaAI, 2023).

Internally, ChatGPT is implemented using a pro-

prietary series of generative pre-trained transformer

(GPT) models, which in turn are based on Google’s

transformer architecture (Vaswani et al., 2017). Chat-

GPT is ﬁne-tuned for conversational applications,

through a combination of supervised and reinforce-

ment learning techniques, as well as manual ad-

justment by human engineers. ChatGPT’s training,

as well as its inference, are considered very costly

in terms of power consumption and processing re-

sources.

Functionality-wise, ChatGPT is highly versatile.

Some of its many uses include generating student es-

says (AlAfnan et al., 2023), writing and debugging

computer programs (Surameery and Shakor, 2023),

and composing music (Lu et al., 2023). However, it

will sometimes produce plausible-sounding but incor-

rect or nonsensical answers — a common limitation

for large language models (Gregorcic and Pendrill,

2023).

2.2 Scenario-Based Modeling

Scenario-based modeling (Harel et al., 2012b) (SBM)

is a modeling approach aimed at modeling com-

plex, reactive systems. The main component in a

scenario-based (SB) model is the scenario object,

which describes a single behavior of the system at

hand, whether desirable or undesirable, so that one

can specify it as necessary, allowed or forbidden.

Each scenario object does not directly interact with its

counterparts, and can be created in isolation. Cross-

scenario interaction is allowed only through a global

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

236

execution mechanism, which can execute a collec-

tion of scenarios in a manner that produces cohesive,

global behavior.

There exist several ﬂavors of SBM, employing

slightly different mechanisms for cross-scenario in-

teractions. We focus here on a particular set of id-

ioms, which has become quite popular: the request-

ing, waiting-for and blocking of discrete events (Harel

et al., 2012b). During execution, each scenario object

repeatedly visits designated synchronization points,

and in each of these the global execution mecha-

nism selects one event for triggering. A scenario

object may declare events that it wishes to be trig-

gered (requested events), events that it wishes to

avoid (blocked events), and also events it does not

request itself but would like to monitor (waited-for

events). The execution mechanism collects these dec-

larations from each of the scenario objects (or a subset

thereof (Harel et al., 2013a)), selects one event that is

requested and not blocked, and then informs all rele-

vant scenario objects of this selection.

In a given synchronization point, multiple events

may be requested and not blocked, and several strate-

gies have been proposed for selecting one of them.

These include an arbitrary selection, a random se-

lection, a round-robin mechanism, and look-ahead

that simulates possible progression of the execution

and selects events with an attempt to achieve a desir-

able objective speciﬁed a-priori (e.g., the avoidance

of deadlocks). Executing a scenario-based program

in this manner is termed play-out (Harel and Marelly,

2003)).

Fig. 1 depicts a simple example of an SB model.

The system at hand controls the water level in a wa-

ter tank, which is equipped with hot and cold water

taps. Each scenario object appears as a transition sys-

tem, in which nodes corresponds to the predetermined

synchronization points. Scenario object ADDHOT-

WATER repeatedly waits for WATERLOW events, and

when such an event is triggered, it requests three times

the event ADDHOT. Similarly, scenario object AD-

DCOLDWATER requests the addition of cold water.

When the model includes only objects ADDHOTWA-

TER and ADDCOLDWATER, three ADDHOT events

and three ADDCOLD events may be triggered in any

order during execution. If we wish to maintain a more

stable water temperature within the tank, we might

add the scenario object STABILITY, to enforce the

interleaving of ADDHOT and ADDCOLD — through

the use of event blocking. An execution trace of the

model containing all three objects appears in the event

log.

The SBM framework has been implemented

on top of multiple high-level languages, including

wait for

WATERLOW

request

ADDHOT

request

ADDHOT

request

ADDHOT

ADDHOTWATER

wait for

WATERLOW

request

ADDCOLD

request

ADDCOLD

request

ADDCOLD

ADDCOLDWATER

wait for

ADDHOT

while

blocking

ADDCOLD

wait for

ADDCOLD

while

blocking

ADDHOT

STABILITY

···

WATERLOW

ADDHOT

ADDCOLD

ADDHOT

ADDCOLD

ADDHOT

ADDCOLD

···

EVENT LOG

Figure 1: A scenario-based model for a system that controls

the water level in a tank with hot and cold water taps (taken

from (Harel et al., 2014)).

Java (Harel et al., 2010), C++ (Harel and Katz, 2014),

Python (Yaacov, 2023), JavsScript (Bar-Sinai et al.,

2018) and ScenarioTools (Greenyer et al., 2017). Fur-

thermore, SBM has been applied in modeling var-

ious complex systems, such as web-servers (Harel

and Katz, 2014), cache coherence protocols (Harel

et al., 2016a) and robotic controllers (Gritzner and

Greenyer, 2018). In order to simplify the presenta-

tion in the following sections, we mostly describe SB

models as transitions systems.

In formally deﬁning SBM, we follow the deﬁni-

tions of (Katz, 2013). A scenario object O over event

set E is a tuple O = hQ, δ, q

, R, Bi, where the compo-

nents are interpreted as follows:

• Q is the set of states. Each state represents a sin-

gle, predetermined synchronization point;

• q

∈ Q is the initial state;

• R : Q → 2

and B : Q → 2

map states to the sets

of events requested and blocked at these states, re-

spectively; and

• δ : Q×E → 2

is the transition function, which in-

dicates how the object switches states in response

to the triggering of events.

Once the individual scenario objects are created,

they can be composed in a pairwise fashion. Two

scenario objects O

= hQ

, δ

, q

, R

, B

i and O

, δ

, q

, R

, B

i, speciﬁed over a common set of

events E, can be composed into a single scenario ob-

ject O

k O

= hQ

×Q

, δ, hq

, q

i, R

∪R

, B

∪B

where:

• h ˜q

, ˜q

i ∈ δ(hq

, q

i, e) if and only if ˜q

∈

, e) and ˜q

∈ δ

, e); and

• the union of the labeling functions is deﬁned in

the natural way; i.e., e ∈ (R

∪ R

)(hq

, q

i) if

and only if e ∈ R

) ∪ R

), and e ∈ (B

∪

)(hq

, q

i) if and only if e ∈ B

) ∪ B

Using the composition operator k, we can deﬁne

a behavioral model M as a collection of scenario ob-

jects, M = {O

, O

, . . . , O

}. The executions of M are

On Augmenting Scenario-Based Modeling with Generative AI

237

deﬁned to be the executions of the single, compos-

ite object O = O

k O

k . . . k O

. Thus, each execu-

tion starts from the initial state of O, which is the n-

tuple of the initial states of its constituent objects, and

throughout the run, in each state q an enabled event

e ∈ R(q) −B(q) is chosen for triggering, if one exists.

The execution then moves to a state ˜q ∈ δ(q, e), and

the process repeats.

3 INTEGRATING ChatGPT AND

SBM

3.1 Basic Integration

As a ﬁrst step to integrating ChatGPT and SBM, we

present a simple methodology for creating scenario

objects from free-text, using ChatGPT. In order to get

ChatGPT to present its output as a scenario object, we

propose to include in each query a preamble that de-

scribes the SBM semantics, as described in Section 2.

This preamble instructs ChatGPT to present its output

as a transition system, in which each state is labeled

with requested and blocked events, and has a set of

transition rules indicating its successor state, based

on the event later triggered. Note that this preamble

needs only be crafted once, and can then be attached

to any subsequent query. If a speciﬁc implementa-

tion of SBM is used (e.g., C++, Java), the output can

be crafted to match the required syntax of that imple-

mentation.

The simple preamble that we used in our initial

experiments is as follows:

I would like you to help me create a scenario-

based model. A scenario-based model is com-

prised of a ﬁnite set of events, and scenarios.

Each scenario is a sequence of states. In each

state the scenario can request events, wait-for

events, and block events. Afterwards, one event

that is requested by at least one scenario, but is

blocked by no scenario, is selected for trigger-

ing. Scenarios that requested or waited-for this

scenario may then change states, and the pro-

cess repeats itself. Scenarios cannot have inter-

nal loops or variables; these must be expressed

using additional states.

To display scenarios, please use the follow-

ing format. For each state, mention the state’s

name, and the sets of requested and blocked

events. Also, mention the transitions to other

states. For example:

• s1: request X, block Y. If X is triggered, go

to state s2.

• s2: request Y, block X. If Y is triggered, go

to state s2.

Now, here are the details of the speciﬁc

scenario-based model I’d like you to create. . .

Given this preamble, we can use ChatGPT to pro-

duce the model we described in Section 2. To produce

the ADDHOTWATER scenario, we use the following

prompt:

Consider the event set WaterLow, AddHot, Ad-

dCold.

Please suggest a scenario that waits for event

WaterLow (without requesting it). When Water-

Low is triggered, the scenario performs the fol-

lowing, 3 times in a row: request the event Ad-

dHot, and wait for it to be triggered (both in a

single state). When the 3rd AddHot event oc-

curs, the scenario transitions back to its initial

state.

In response to this prompt, the chatbot replies:

• s1: wait for WaterLow. If WaterLow is trig-

gered, go to state s2.

• s2: request AddHot, wait for AddHot. If Ad-

dHot is triggered, go to state s3.

• s3: request AddHot, wait for AddHot. If Ad-

dHot is triggered, go to state s4.

• s4: request AddHot, wait for AddHot. If Ad-

dHot is triggered, go to state s1.

Which is equivalent to the transition system we pre-

sented in Fig. 1. The ADDCOLDWATER scenario can

be generated symmetrically. Now, if we wish to incre-

mentally modify the system by introducing the STA-

BILITY scenario, we can issue the following prompt:

Please suggests a scenario that ensures that uses

blocking to ensure that no two consecutive Ad-

dHot events can be triggered, and that no two

consecutive AddCold events can be triggered;

that is, once AddHot is triggered, AddCold must

be triggered before AddHot can be triggered

again, and vice versa. This scenario should not

request any events, and should work regardless

of any WaterLow events.

And in response, the chatbot produces the STABILITY

scenario, as described in Fig. 1.

We note a subtle difference between the way

we prompted ChatGPT for the ﬁrst two scenarios,

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

238

ADDHOTWATER and ADDCOLDWATER, and our

prompting for STABILITY. In the former two cases,

our prompt contained information that roughly de-

scribed the transition system itself, whereas in the

third case our description was more high-level, and

did not mention the word “state”. Still, in both cases,

ChatGPT produced the desired result. This demon-

strates the wide range of speciﬁcations with which the

chatbot can successfully deal, and suggests that it can

be used even when the engineers are themselves not

entirely certain of the structure of the scenario they

require. While it stands to reason that more accurate

descriptions would lead to more accurate results, it

appears that even high-level descriptions can be very

useful, especially when combined with the automated

analysis techniques that we discuss next.

3.2 The Proposed Methodology

Building upon this basic integration of ChatGPT and

SBM, we now outline a structured LLM-agnostic and

language-agnostic methodology for creating complex

reactive models, i.e., models of systems that interact

with their environment repeatedly over time, and re-

ceive external inputs (Harel and Pnueli, 1985). Nu-

merous modern, critical systems can be regarded as

reactive (Aceto et al., 2007), and consequently there

has been extensive research on developing tools and

methods for modeling these systems. Despite this

tremendous effort, there still remain signiﬁcant gaps,

which could result in models that are inaccurate or

that are difﬁcult to maintain. The present work, which

can be seen as an element of the Wise Computing vi-

sion (Harel et al., 2018), seeks to mitigate these gaps,

through the creation of advanced, intelligent tools that

will begin to undertake the software and system de-

velopment tasks that are normally assigned to hu-

mans. The core of the approach is to have system

components be generated, iteratively and incremen-

tally, with the help of an LLM; and to have the LLM’s

outputs checked systematically, and perhaps automat-

ically, using various tools and methods.

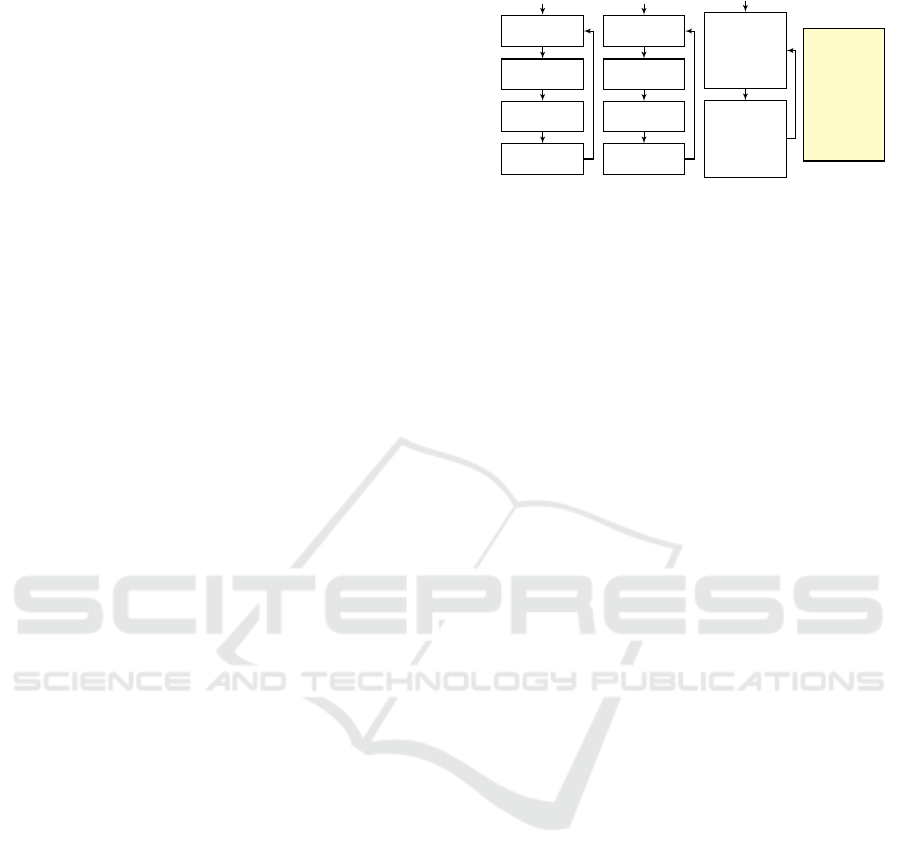

1. Describe the problem and the environment textu-

ally, in natural language.

2. Choose a compositional, scenario-based model-

ing language, which has well-deﬁned execution

semantics and is suitable for the incremental de-

velopment of the system.

3. Obtain an LLM that is familiar with the applica-

tion domain in general, or can readily gain exten-

sive knowledge about that domain, and which can

(or can be taught to) generate code in the chosen

scenario-based language.

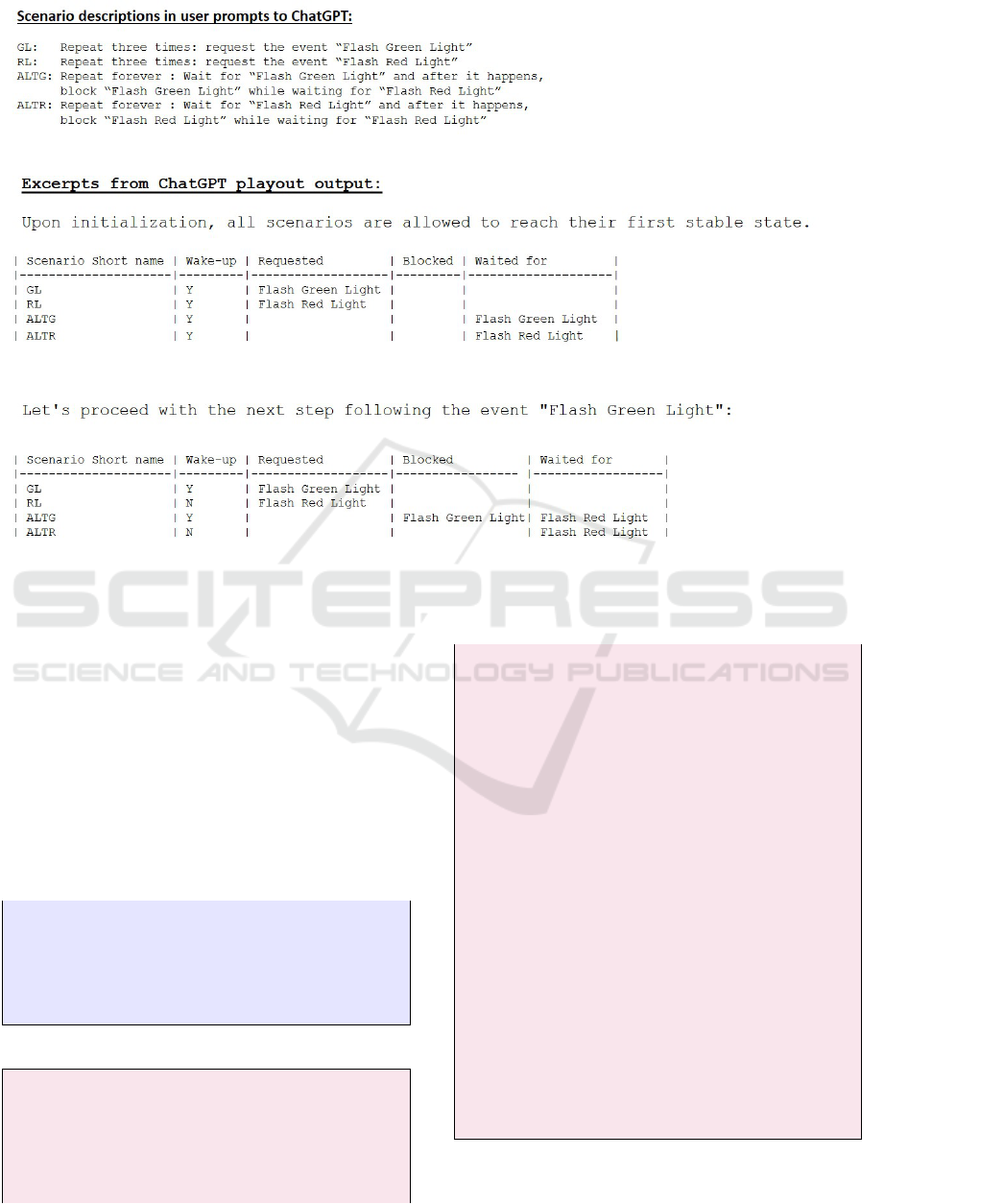

4. Describe, perhaps iteratively, the semantics of the

scenario-based language to the LLM as a pream-

ble. Conﬁrm that the LLM indeed internalizes the

details of the language semantics by teaching it to

execute (i.e., play out (Harel and Marelly, 2003))

systems described as scenarios or rules in the cho-

sen language, where the LLM outputs logs of

triggered events, scenario states, composite sys-

tem states, values of environment variables and

changes thereto, etc.

5. Iteratively add scenarios and reﬁne existing ones,

as follows:

(a) Describe in a prompt one or more scenarios

for certain not-yet-speciﬁed requirements or as-

pects of the system.

(b) Have the LLM generate actual scenarios for the

prompt, in the chosen language.

scription of properties to be veriﬁed, executable

test cases, and assertions for formal veriﬁca-

tion tools, per the original requirements. This

constitutes stating the requirement at hand from

different perspectives.

(d) Carry out initial testing and validation within

the LLM, challenging the LLM to ﬁnd gaps and

incorrect execution paths on its own. Correct

the natural language speciﬁcation and prompts

as needed.

(e) Systematically check the LLM output outside

of the LLM, using any or all of the following:

code reviews by human engineers, unit testing

of individual scenarios, subsystem testing with

some or all of the already-developed scenarios,

model checking of the new scenarios, as well

as those of the composite system, etc. The test-

ing is to be carried out in the execution envi-

ronment of the language, and model checking

is to be carried out using a suitable formal ver-

iﬁcation tool. Both should be independent of

the LLM environment. Possibly automate the

subjecting of generated scenarios to testing and

model checking.

(f) When errors are found, do not modify the gen-

erated code. Instead, revise the LLM prompts

until correct system scenarios and veriﬁcation

and testing properties are generated. This step

is critical for aligning the stakeholder (i.e., cus-

tomer) view of the requirements, the devel-

oper’s understanding, and the actual code.

(g) Once the set of generated scenarios seems

ready, repeat the likes of step (d), asking the

LLM to ﬁnd gaps or potential failures in this

set of scenarios; speciﬁcally look for LLM

On Augmenting Scenario-Based Modeling with Generative AI

239

suggestions of new environment considerations

that prevent the system from working correctly.

This step simulates the common system engi-

neering task of having external experts or po-

tential customers review advanced prototypes

of systems. Repeat earlier steps as needed.

Next, we elaborate on some of these steps, and

provide simple, illustrative examples.

4 USING THE METHOD IN THE

DEVELOPMENT CYCLE

4.1 Code Generation

Code generation is probably the most straightforward

chatbot capability that we propose be integrated into

the development cycle. In Section 3 we showed that

ChatGPT can generate an (executable) SB model — a

capability that has also been demonstrated with other

languages (Surameery and Shakor, 2023; Burak et al.,

2023; Liu et al., 2023). A unique advantage in the

context of SB systems is the ability to generate stand-

alone scenarios, which can be reviewed and tested

separately, and then be incrementally added to the

system under development. In our preliminary testing

for this paper, we experimented with code generation

for requirements in the realms of autonomous vehi-

cles, algorithms on data structures, simulating natural

phenomena, and control systems. In all of these, the

ChatGPT/SBM integration proved useful.

4.2 Modeling

Once ChatGPT understood the principles underlying

scenario-based models, it was able to combine its

knowledge of the problem domain, the world at large,

and logic, in order to develop or enhance a model.

It was able to introduce new environment events, de-

scribe the sensor scenarios that are required for trig-

gering these events, and then add the necessary appli-

cation scenarios that react to these events. For exam-

ple, when we asked ChatGPT to generate scenario-

based code for a bubble-sort algorithm to be used by

a robot moving numbered tiles on a sequence of cells,

it was able to introduce the events of detecting the ar-

rival of a tile at the tail-end of the array, as well as

scenarios for reacting to such events.

4.3 Play Out & Simulation

After a few iterations, we were able to teach ChatGPT

to produce an execution log of an arbitrary scenario-

based speciﬁcation. At ﬁrst we observed “wishful

thinking”, where ChatGPT described the run as it

should be per the problem description. However, as

illustrated in Fig. 2, ChatGPT was then able to follow

the execution steps correctly, displaying at each syn-

chronization point the event that triggered the state

transition that led to this synchronization point, and a

table of all scenarios, indicating for each one whether

or not it was put into action by the triggered event,

and providing its declaration of requested, blocked

and waited-for events.

4.4 SMT-Like Model Analysis

One of the advantages of scenario-based modeling is

its amenability to formal veriﬁcation with appropriate

tools, both by exhaustive model checking traversing

all paths, and by using domain knowledge for Satisﬁa-

bility Modulo Theory (SMT) veriﬁcation (Harel et al.,

2011; Harel et al., 2013b). This is accomplished by

virtue of the abstraction and encapsulation of domain-

speciﬁc processes, actions and conditions as events

and states. System complexity thus emerges from the

composition of relatively small intuitive scenarios re-

ﬂecting individual requirements, and not from the in-

tricate conditional ﬂow of delicate and sensitive pro-

cesses with numerous steps.

Our experiments have shown that ChatGPT is able

to leverage this kind of abstraction and encapsulation

to identify cases that a speciﬁcation either omitted

or handles incorrectly. For example, we presented

ChatGPT with the following three requirements for

an autonomous vehicle: (i) always stop at a red light;

(ii) always obey a police person’s instructions; (iii)

never injure a person. ChatGPT readily recognized

that these requirements may be in conﬂict with each

other. Given the safety property of not entering an in-

tersection when the trafﬁc light is red, it pointed out

that the AV may be unable to stop if the road is icy,

that it may enter the intersection involuntarily if after

stopping it is hit from behind by a car that did not stop,

and, furthermore, that it may injure a person without

moving, if a person walks behind the AV, and another

vehicle hits the person who is then thrust against the

AV.

In a mathematical, SMT-like analysis, ChatGPT

was able to identify a particularly interesting execu-

tion path. We presented it with a system consisting of

the following four scenarios: the ﬁrst requests ﬂash-

ing a red light brieﬂy in response to an external time

tick event, and then waits for any event; the second

does the same with a green light; the third scenario

blocks the event of ﬂashing the red light every third

tick, and another blocks ﬂashing the green light every

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

240

Figure 2: A simulation of scenario execution with ChatGPT. Top: textual description of scenarios in user prompts. Middle

and bottom: The ﬁrst two entries in ChatGPT’s output when requested to play out the execution, showing triggered events,

the scenarios that reacted to the triggered events, and the declarations of each scenario at the next synchronization point.

ﬁve ticks. We then added the requirement that at least

one light must be ﬂashed between any two consecu-

tive time ticks. ChatGPT was able to respond that the

requirement is not satisﬁed, and that every 15 time

ticks (3 · 5) both events will be blocked. ChatGPT

apparently recognized this by arithmetic calculation

and not by step-by-step simulation, as it was able to

quickly reach the same conclusion for arbitrarily large

numbers.

Here is an excerpt from this conversation, after de-

scribing the scenarios. When prompted with

now a new requirement came in: always, after

every tick, at least one light must be ﬂashed.

Does the combined system of red ﬂashing and

green ﬂashing with the 3 and 5 restrictions sat-

isfy the requirement?

ChatGPT replies:

To analyze whether the combined system satis-

ﬁes the new requirement that at least one light

must ﬂash after every tick, we must consider the

synchronization points of both the red and green

systems with their respective restrictions:

The red system ﬂashes on every tick, except

every third one. The green system ﬂashes on ev-

ery tick, except every ﬁfth one. If we consider

the sequence of ticks and apply both restrictions,

the combined system would not ﬂash a light on

a tick that is both a multiple of three and ﬁve —

speciﬁcally, on ticks that are multiples of ﬁfteen,

since 15 is the least common multiple of 3 and

5. At such ticks, both systems would be block-

ing their respective lights from ﬂashing due to

their individual restrictions.

Therefore, on ticks that are multiples of ﬁf-

teen (like the 15th, 30th, 45th tick, and so on),

neither light would ﬂash, violating the new re-

quirement that at least one light must ﬂash after

every tick.

In conclusion, the combined system of red

ﬂashing and green ﬂashing with the restrictions

of not ﬂashing on ticks divisible by three and

ﬁve, respectively, does not satisfy the require-

ment that at least one light must be ﬂashed after

every tick.

ChatGPT also successfully discussed generaliza-

tions of this computation, including calculating the

On Augmenting Scenario-Based Modeling with Generative AI

241

number of composite system states that would have

to be traversed in exhaustive model checking.

It is interesting to note though, that while the

LLM was able to apply its logic to ﬁnd system ex-

ecution paths with special properties, it did not do

well when asked to list all the execution paths pos-

sessing a certain property. For example, we pre-

sented it with a 4-by-4 grid of cells, and asked for

the steps that a robot may take from (0,0) at the bot-

tom left to (3,3) at the top right, using the events for

right, left, up, and down motions. We also required

that the path remains within the grid. ChatGPT was

able to list paths like right,right,right,up,up,up and

right,up,right,up,right,up, but when asked to list all

the paths that go through (1,3) it failed, listing sev-

eral paths that do not reach the desired target, includ-

ing up,up,up,right,down,down,right,up,right. Chat-

GPT is thus not yet ready to carry out exhaustive

model checking on scenario-based systems. This is

not really an issue, however, since with the proposed

methodology veriﬁcation of the LLM’s outputs will

be carried out independently of the LLM environ-

ment.

4.5 Identifying Under-Speciﬁcation

Even when the created model addresses the stated re-

quirements perfectly, as may be possible with syn-

thetic or reduced problem descriptions, there may be

additional areas of the broader problem domain that

can or must be handled. In response to appropriate

prompts ChatGPT was able to signiﬁcantly enrich a

developed model, or helped restate the explicit bound-

aries and expected scope of the intended system.

For example, in (Harel et al., 2023) we presented

ChatGPT with a scenario-based model that was de-

veloped for science teaching purposes. The model de-

scribes how bees depend on the ambient temperature

for switching between hibernation and being active,

ﬂower plants depend on hours of daylight in order to

start blooming, and active bees depend on blooming

ﬂowers for survival. In the original model, average

temperatures and number of daylight hours were pa-

rameters that students could adjust to see how certain

combinations of settings might be sustaining while

others can cause the bees to die out due to hunger.

When we asked ChatGPT to offer enhance-

ments to the education model, it suggested to con-

sider weather-related variations that modify the pre-

speciﬁed ﬁxed average temperature and the number

of daylight hours for a given time of year.

4.6 Explainability

Given a certain observed or expected behavior of the

system, ChatGPT is able to produce a natural lan-

guage description of the cause of that behavior, ﬁnd-

ing a reasonable balance between the arcane details of

the complete execution trace, and the overall require-

ment that ”this is what the system was supposed to

do”.

For example, following a paragraph on the se-

mantics of SB modeling we presented the following

prompt:

In a system with two scenarios, one waits for

time tick events and after each time tick requests

a short beep (100 msec). The other scenario

waits for time ticks, and after each such event

requests a long beep (500 msec). Each of these

scenarios waits for both the short and long beep

events, so that after each time tick, exactly one

beep occurs. Actuator scenarios actually cause

the respective beeping action. Time tick events

are injected by the environment every one sec-

ond. A user reported that it watched the system

for 20 seconds, and never heard a long beep. Can

you explain why this may have happened?

ChatGPT response was:

The user’s report of not hearing a long beep in

a system with two scenarios—one requesting a

short beep after each time tick, and the other re-

questing a long beep after each time tick—can

be explained through the principles of Scenario-

based Modeling (SBM).

In SBM, when multiple scenarios request

different events after a shared trigger event, the

execution environment selects one of these re-

quested events to occur. The selection can be

arbitrary or follow a speciﬁc strategy, such as

alphabetic or lexical order, priority, random,

round-robin, etc. In this case, if the event selec-

tion strategy prioritizes the short beep over the

long beep (for example, due to alphabetic order,

where “short beep” comes before “long beep”),

then the short beep will always be selected to oc-

cur after each time tick, and the long beep will

never be executed. Since time tick events are

injected by the environment every second, and

both scenarios are waiting for this event, each

time tick leads to both scenarios being activated.

However, if the system consistently selects the

short beep event over the long beep event after

each time tick, the scenario requesting the long

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

242

beep will never progress to the state where it ac-

tually triggers the long beep. As a result, only

short beeps will be heard.

In summary, the user’s observation of not

hearing any long beeps can be attributed to

the event selection mechanism within the SBM

framework, which in this case consistently fa-

vors the short beep event over the long beep

event. This could be due to the selection strat-

egy used by the system (like alphabetic order) or

other operational logic speciﬁcs.

We then challenged ChatGPT again:

Thank you. Assume that the developers changed

the selection algorithm and they now select

events randomly. The user tested the system

many times, for hours, and never heard a long

beep. Can you try to explain?

To this, ChatGPT produced a very comprehen-

sive answer, covering possible issues with application

scenarios, the execution infrastructure, and human-

machine interaction. Here are some excerpts:

If the event selection algorithm was changed to

randomly select between the short beep and long

beep events, but the user still never hears a long

beep, there are several potential explanations:

Implementation Error in Random Selection:

The most straightforward explanation could be

a bug or implementation error in the random se-

lection algorithm. It might not be truly random,

or it could be incorrectly favoring the short beep

event due to a coding mistake.

Issue with the Long Beep Scenario: There

might be a problem with the scenario that re-

quests the long beep. This could be a coding

error or a logical ﬂaw in the scenario itself, pre-

venting it from properly requesting the long beep

event.

User Perception or Reporting Error: Finally,

there could be an issue with how the user is per-

ceiving or reporting the beeps. They might be

missing the long beep due to distraction, ambi-

ent noise, or misunderstanding what constitutes

a long beep in the context of this system.

To diagnose the issue accurately, developers

would need to conduct thorough testing and de-

bugging, looking into each of these potential ar-

eas to ﬁnd where the problem lies.

While such explanations are impressive, they were

not perfect. We had cases where we presented Chat-

GPT with well speciﬁed scenarios and a description

of an observed execution log, i.e., an event sequence,

but ChatGPT was not able to retrospectively produce

a step by step play-out sequence that would gener-

ate this execution log. Instead, it provided incor-

rect explanations for that event sequence. While fre-

quently providing ChatGPT with better reminders and

interactive practice of its knowledge of semantics and

play-out may remedy such issues, this caveat is a re-

minder that all outputs produced by the LLM must be

formally checked.

4.7 Accommodating Semantic

Flexibility

Most software development studios are tied to speciﬁc

languages and their associated semantics. In our ex-

periments, ChatGPT was able to accommodate, and

discuss, alternative semantics.

For example, in the water tap example in Sec-

tion 2, when the scenario ADDHOTWATER is in any

of the states where it requests ADDHOT, it cannot

react to WATERLOW, since it is not waiting for that

event. By contrast, in the semantics of the LSC

scenario-based language, the infrastructure constantly

listens for all events that are waited for in the ﬁrst

state of all scenarios. When such an event occurs,

the infrastructure instantiates another copy of the sce-

nario. In fact, from our ﬁrst textual descriptions of

SBP, ChatGPT understood this semantics to be the de-

fault.

In another example, we asked ChatGPT to gener-

ate scenarios for Quicksort. Before starting, it com-

mented that it will be hard, as classical solutions are

recursive. We then pointed out to ChatGPT that there

is a published implementation that is iterative, not

recursive (Harel et al., 2021), that is structured as

instructions to human workers arranging cars in an

automobile dealership parking lot according to, say,

window-sticker price, where each employee had one

narrow role. ChatGPT readily accommodated the

new mindset and produced the desired scenario-based

speciﬁcation.

4.8 Interactive Mutual Learning

In our experiments, we noticed that ChatGPT learns

from multiple prompts, discussions and exploration

better than from concise or detailed descriptions. We

believe that the same may hold for software and sys-

tem developers. Interactive, agile development pro-

cesses may not be just trial and error, or spiral con-

vergence to and discovery of a predeﬁned but poorly

speciﬁed goal. Rather, they are often constructive

processes, where stakeholders and developers build

On Augmenting Scenario-Based Modeling with Generative AI

243

their wishes and plans, as they reﬁne their own under-

standing of the environment, the systems, their needs,

and their future interactions with the system.

An important part of this reﬁnement is producing

more explicit deﬁnitions of elements that are outside

the scope of the system. In contrast, such deﬁnitions

are often totally absent from classical system speciﬁ-

cations.

5 RELATED WORK

Recent advances in LLM-based chatbots have made

a considerable impact on numerous domains. Re-

searchers and engineers are now examining the po-

tential applications of this technology in educa-

tion (AlAfnan et al., 2023), music (Lu et al., 2023),

academia and libraries (Lund and Wang, 2023),

healthcare (Li et al., 2023), and many other areas.

Within the ﬁeld of software engineering, which is

our subject matter here, attempts have been made to

apply chatbots to evaluate the quality of code (Burak

et al., 2023), to correct bugs (Surameery and Shakor,

2023), and to generate code automatically or semi-

automatically (Feng et al., 2023; Dong et al., 2023).

The general consensus appears to be that chatbots will

play a key role in code generation in years to come.

Our work here outlines a possible path towards allow-

ing this integration in a safe and controlled manner.

Our proposed methodology for integrating Chat-

GPT into the software engineering process lever-

ages the large body of existing work on scenario-

based modeling (Harel et al., 2012b; Damm and

Harel, 2001). Speciﬁcally, we propose to make use

of the amenability of SBM to formal analysis tech-

niques (Harel et al., 2015a; Harel et al., 2015b), such

as veriﬁcation (Harel et al., 2011; Harel et al., 2013b),

automatic repair (Harel et al., 2012a), and synthe-

sis (Greenyer et al., 2016). Despite our focus on

SBM, other modeling approaches, with similar traits,

could be used in a similar manner.

Finally, our work here can be regarded as another

step towards the Wise Computing vision (Harel et al.,

2016a; Harel et al., 2016b; Harel et al., 2018), which

seeks to transform the computer into an active mem-

ber of the software engineering team — raising ques-

tions, making suggestions and observations, and car-

rying out veriﬁcation-like processes, even without ex-

plicitly being asked to do so.

6 CONCLUSION

The appearance of large language models, and the

subsequent release of advanced chatbots, is a major

development, and it is likely to revolutionize the do-

main of software engineering in coming years. How-

ever, because of inaccuracies and errors that are in-

herent to the outputs of these chatbots, such an in-

tegration must be performed with care. We outline

here a possible method for such an integration, which

makes use of the advanced features of chatbots, but

which also puts an emphasis on inspecting and ana-

lyzing the results of the integration. We are hopeful

that our work will trigger additional research in this

important direction.

Moving forward, we plan to continue this work

along several axes. First and foremost, we intend

to implement the necessary tools and environments

needed to fully integrate ChatGPT with SBM, and

then use these tools and environments in large, real-

world case studies that will demonstrate the useful-

ness of the approach as a whole.

In addition, we expect that this line of work will

require us to enhance and modify existing tools, both

on the SBM said and on the chatbot one. For instance,

with the current version of ChatGPT, every conver-

sation starts from a blank slate, whereas for the on-

going development of a system, as part of the Wise

Computing vision, it would be more useful to have

the chatbot remember and use previous conversations.

This could be achieved, for instance, by summarizing

each conversation as it ends, and then feeding these

summaries back to the chatbot when a new conversa-

tion starts. In fact, with the newly announced GPTs

feature introduced in ChatGPT one can build a chat-

bot that is customized speciﬁcally for developing SB

models and programs.

Ideally, LLMs will be able learn immediately from

ongoing conversations, yet they will do so selectively,

learning over time, to select what should be retained

in each conversation and for how long.

These developments can also be beneﬁcial in a

broader perspective: prompt engineering methods and

practices that would be developed along the way for

such interactive, incremental development may prove

useful not only in teaching computers, but in enhanc-

ing the training and everyday communications of hu-

man engineers.

ACKNOWLEDGEMENTS

The work of Harel, Marron and Szekely was funded

in part by an NSFC-ISF grant to DH, issued jointly

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

244

by the National Natural Science Foundation of China

(NSFC) and the Israel Science Foundation (ISF grant

3698/21). Additional support was provided by a re-

search grant to DH from the Estate of Harry Levine,

the Estate of Avraham Rothstein, Brenda Gruss, and

Daniel Hirsch, the One8 Foundation, Rina Mayer,

Maurice Levy, and the Estate of Bernice Bernath.

The work of Katz was partially funded by the Eu-

ropean Union (ERC, VeriDeL, 101112713). Views

and opinions expressed are however those of the au-

thor(s) only and do not necessarily reﬂect those of

the European Union or the European Research Coun-

cil Executive Agency. Neither the European Union

nor the granting authority can be held responsible for

them.

REFERENCES

Aceto, L., Ing

olfsd

ottir, A., Larsen, K., and Srba, J. (2007).

Reactive Systems: Modelling, Speciﬁcation and Veri-

ﬁcation. Cambridge University Press.

AlAfnan, M., Dishari, S., Jovic, M., and Lomidze, K.

(2023). ChatGPT as an Educational Tool: Op-

portunities, Challenges, and Recommendations for

Communication, Business Writing, and Composition

Courses. Journal of Artiﬁcial Intelligence and Tech-

nology, 3(2):60–68.

Bar-Sinai, M., Weiss, G., and Shmuel, R. (2018). BPjs: An

Extensible, Open Infrastructure for Behavioral Pro-

gramming Research. In Proc. 21st ACM/IEEE Int.

Conf. on Model Driven Engineering Languages and

Systems (MODELS), pages 59–60.

Biolchini, J., Mian, P., Natali, A., and Travassos, G. (2005).

Systematic Review in Software Engineering. Tech-

nical Report. System Engineering and Computer Sci-

ence Department COPPE/UFRJ, Report ES 679.

Burak, Y., Ozsoy, I., Ayerdem, M., and T

un, E.

(2023). Evaluating the Code Quality of AI-Assisted

Code Generation Tools: An Empirical Study on

GitHub Copilot, Amazon CodeWhisperer, and Chat-

GPT. Technical Report. https://arxiv.org/abs/2304.

10778/.

Chang, Y., Wang, X., Wang, J., Wu, Y., Zhu, K., Chen,

H., Yang, L., Yi, X., Wang, C., Wang, Y., and Ye, W.

(2023). A Survey on Evaluation of Large Language

Models. Technical Report. https://arxiv.org/abs/2307.

03109/.

Damm, W. and Harel, D. (2001). LSCs: Breathing Life into

Message Sequence Charts. J. on Formal Methods in

System Design (FMSD), 19(1):45–80.

Dong, Y., Jiang, X., Jin, Z., and Li, G. (2023). Self-

Collaboration Code Generation via ChatGPT. Tech-

nical Report. https://arxiv.org/abs/2304.07590/.

Feng, Y., Vanam, S., Cherukupally, M., Zheng, W., Qiu,

M., and Chen, H. (2023). Investigating Code Gener-

ation Performance of Chat-GPT with Crowdsourcing

Social Data. In Proc. 47th IEEE Computer Software

and Applications Conf. (COMPSAC), pages 1–10.

Google (2023). Bard. https://bard.google.com/.

Greenyer, J., Gritzner, D., Gutjahr, T., K

onig, F., Glade,

N., Marron, A., and Katz, G. (2017). ScenarioTools

— A Tool Suite for the Scenario-based Modeling and

Analysis of Reactive Systems. Journal of Science of

Computer Programming (J. SCP), 149:15–27.

Greenyer, J., Gritzner, D., Katz, G., and Marron, A. (2016).

Scenario-Based Modeling and Synthesis for Reactive

Systems with Dynamic System Structure in Scenari-

oTools. In Proc. 19th ACM/IEEE Int. Conf. on Model

Driven Engineering Languages and Systems (MOD-

ELS), pages 16–23.

Gregorcic, B. and Pendrill, A.-M. (2023). ChatGPT and the

Frustrated Socrates. Physics Education, 58(2).

Gritzner, D. and Greenyer, J. (2018). Synthesizing Exe-

cutable PLC Code for Robots from Scenario-Based

GR(1) Speciﬁcations. In Proc. 4th Workshop of

Model-Driven Robot Software Engineering (MORSE),

pages 247–262.

Harel, D., Assmann, U., Fournier, F., Limonad, L., Mar-

ron, A., and Szekely, S. (2023). Toward Methodi-

cal Discovery and Handling of Hidden Assumptions

in Complex Systems and Models. In Engineering

Safe and Trustworthy Cyber Physical Systems – Es-

says Dedicated to Werner Damm on the Occasion

of His 71st Birthday. To Appear. arXiV preprint.

https://arxiv.org/abs/2312.16507.

Harel, D., Kantor, A., and Katz, G. (2013a). Relaxing Syn-

chronization Constraints in Behavioral Programs. In

Proc. 19th Int. Conf. on Logic for Programming, Arti-

ﬁcial Intelligence and Reasoning (LPAR), pages 355–

372.

Harel, D., Kantor, A., Katz, G., Marron, A., Mizrahi, L.,

and Weiss, G. (2013b). On Composing and Proving

the Correctness of Reactive Behavior. In Proc. 13th

Int. Conf. on Embedded Software (EMSOFT), pages

1–10.

Harel, D. and Katz, G. (2014). Scaling-Up Behavioral Pro-

gramming: Steps from Basic Principles to Applica-

tion Architectures. In Proc. 4th SPLASH Workshop

on Programming based on Actors, Agents and Decen-

tralized Control (AGERE!), pages 95–108.

Harel, D., Katz, G., Lampert, R., Marron, A., and Weiss, G.

(2015a). On the Succinctness of Idioms for Concur-

rent Programming. In Proc. 26th Int. Conf. on Con-

currency Theory (CONCUR), pages 85–99.

Harel, D., Katz, G., Marelly, R., and Marron, A. (2016a).

An Initial Wise Development Environment for Behav-

ioral Models. In Proc. 4th Int. Conf. on Model-Driven

Engineering and Software Development (MODEL-

SWARD), pages 600–612.

Harel, D., Katz, G., Marelly, R., and Marron, A. (2016b).

First Steps Towards a Wise Development Environ-

ment for Behavioral Models. Int. Journal of Informa-

tion System Modeling and Design (IJISMD), 7(3):1–

22.

Harel, D., Katz, G., Marelly, R., and Marron, A. (2018).

Wise Computing: Toward Endowing System Devel-

On Augmenting Scenario-Based Modeling with Generative AI

245

opment with Proactive Wisdom. IEEE Computer,

51(2):14–26.

Harel, D., Katz, G., Marron, A., and Weiss, G. (2012a).

Non-Intrusive Repair of Reactive Programs. In Proc.

17th IEEE Int. Conf. on Engineering of Complex Com-

puter Systems (ICECCS), pages 3–12.

Harel, D., Katz, G., Marron, A., and Weiss, G. (2014). Non-

Intrusive Repair of Safety and Liveness Violations in

Reactive Programs. Transactions on Computational

Collective Intelligence (TCCI), 16:1–33.

Harel, D., Katz, G., Marron, A., and Weiss, G. (2015b). The

Effect of Concurrent Programming Idioms on Veri-

ﬁcation. In Proc. 3rd Int. Conf. on Model-Driven

Engineering and Software Development (MODEL-

SWARD), pages 363–369.

Harel, D., Lampert, R., Marron, A., and Weiss, G. (2011).

Model-Checking Behavioral Programs. In Proc. 9th

ACM Int. Conf. on Embedded Software (EMSOFT),

pages 279–288.

Harel, D. and Marelly, R. (2003). Specifying and Execut-

ing Behavioral Requirements: The Play In/Play-Out

Approach. Software and System Modeling (SoSyM),

2:82–107.

Harel, D., Marron, A., and Weiss, G. (2010). Program-

ming Coordinated Scenarios in Java. In Proc. 24th

European Conf. on Object-Oriented Programming

(ECOOP), pages 250–274.

Harel, D., Marron, A., and Weiss, G. (2012b). Behavioral

Programming. Communications of the ACM (CACM),

55(7):90–100.

Harel, D., Marron, A., and Yerushalmi, R. (2021). Scenario-

Based Algorithmics: Coding Algorithms by Auto-

matic Composition of Separate Concerns. Computer,

54(10):95–101.

Harel, D. and Pnueli, A. (1985). On the Development of

Reactive Systems. Logics and Models of Concurrent

Systems, F-13:474–498.

Katz, G. (2013). On Module-Based Abstraction and Re-

pair of Behavioral Programs. In Proc. 19th Int. Conf.

on Logic for Programming, Artiﬁcial Intelligence and

Reasoning (LPAR), pages 518–535.

Li, J., Dada, A., Kleesiek, J., and Egger, J. (2023). Chat-

GPT in Healthcare: A Taxonomy and Systematic

Review. Technical Report. https://www.medrxiv.org/

content/10.1101/2023.03.30.23287899v1.

Liu, J., Xia, C., Wang, Y., and Zhang, L. (2023). Is your

Code Generated by ChatGPT really Correct? Rigor-

ous Evaluation of Large Language Models for Code

Generation. Technical Report. https://arxiv.org/abs/

2305.01210/.

Lu, P., Xu, X., Kang, C., Yu, B., Xing, C., Tan, X., and

Bian, J. (2023). MuseCoco: Generating Symbolic

Music from Text. Technical Report. https://arxiv.org/

abs/2306.00110/.

Lund, B. and Wang, T. (2023). Chatting about Chat-

GPT: how may AI and GPT Impact Academia and Li-

braries? Library Hi Tech News, 40(3):26–29.

MetaAI (2023). LLaMa. https://ai.meta.com/llama/.

OpenAI (2022). ChatGPT. https://chat.openai.com/.

Pettersson, O. and Andersson, J. (2016). A Survey of Mod-

eling Approaches for Software Ecosystems. In Proc.

7th Int. Conf. on Software Business (ICSOB), pages

79–93.

Surameery, N. and Shakor, M. (2023). Use Chat GPT

to Solve Programming Bugs. Int. Journal of Infor-

mation Technology & Computer Engineering (IJITC),

3(1):17–22.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A., Kaiser, L., and Polosukhin, I. (2017).

Attention is all you Need. In Proc. 31st Conf. on

Advances in Neural Information Processing Systems

(NeurIPS).

Yaacov, T. (2023). BPPy: Behavioral Programming in

Python. SoftwareX, 24.

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

246
