Cost-Aware TrE-ND: Tri-embed Noise Detection for Enhancing Data

Quality of Knowledge Graph

Jumana Alsubhi*, Abdulrahman Gharawi* and Lakshmish Ramaswamy

School of Computing, University of Georgia, Athens, U.S.A.

Keywords:

Machine Learning, Big Data, Data Quality, Knowledge Graphs, Noise Detection.

Abstract:

In the realm of machine learning, knowledge graphs (KGs) are increasingly utilized for a wide range of tasks,

such as question-answering, recommendation systems, and natural language processing. These KGs are inher-

ently susceptible to noise, whether they are constructed manually or automatically. Existing techniques often

fail to precisely identify these noisy triples, thereby compromising the utility of KGs for downstream applica-

tions. In addition, manual noise detection is costly, with costs ranging from $2 to $6 per triple. This highlights

the need for cost-effective solutions, especially for large KGs. To tackle this problem, we introduce Tri-embed

Noise Detection (TrE-ND), a highly accurate and cost-efﬁcient noise detection approach for KGs. TrE-ND

combines semantic depth, hierarchical modeling, and scalability for robust noise detection in large knowledge

graphs. We also evaluate the overall quality of these KGs using the TrE-ND approach. We validate TrE-ND

through comprehensive experiments on widely recognized KG datasets, namely, FB13 and WN11, each con-

taining varying degrees of noise. Our ﬁndings demonstrate a substantial improvement in noise detection and

KG evaluation accuracy as compared to existing methods. By utilizing the TrE-ND approach, we manage to

ﬂag noisy triples with an average approximate accuracy of 87%, even when up to 40% of the dataset contains

noise. This simpliﬁes the subsequent veriﬁcation process by domain experts and makes it more cost-effective.

Therefore, our proposed method offers a viable solution for efﬁciently addressing the persistent issue of noise

in KGs. This work also paves the way for future research in cost-aware noise mitigation techniques and their

applications in various domains.

1 INTRODUCTION

Knowledge graphs (KGs) have emerged as powerful

tools for representing structured knowledge, playing

a crucial role in a variety of machine learning appli-

cations such as semantic search, question-answering,

recommendation systems, and natural language pro-

cessing (Paulheim, 2017), (Hogan et al., 2021). KGs

are essentially a network of nodes or entities intercon-

nected through various edges or relationships, encap-

sulating knowledge in a machine-readable form. Over

the past few years, there has been a surge in the num-

ber of large-scale KGs.

However, the construction and utilization of KGs

are far from ﬂawless. A pervasive issue with KGs,

especially with very large KGs, is the inevitable pres-

ence of noise or errors, which often distort the knowl-

edge representation and interpretation. Noise in KGs

can arise due to numerous reasons, including inaccu-

rate entity linking, misinterpretation of relations, mis-

∗

These authors contributed equally to this work.

takes in automatic data extraction from unstructured

sources, or even simple human errors during manual

KG construction. Incorporating heterogeneous data

from diverse sources during KG construction often

exacerbates this problem (Paulheim, 2017).

Knowledge graphs typically consist of a set of

triples, where each triple is a pair of entities con-

nected by a relation. A triple consists of a head en-

tity, relation, and tail entity (h, r,t). Noisy triples are

triples that contain some form of error or noise. Noisy

triples degrades the overall quality of the KG, lead-

ing to inaccurate inferences and potentially causing

subsequent tasks, such as querying or other machine

learning applications, to operate on incorrect assump-

tions. Consequently, the identiﬁcation and mitigation

of such noise in a cost-efﬁcient manner becomes a

critical issue (Hogan et al., 2021).

Noise in knowledge graphs typically falls into

two categories: semantic noise and structural noise.

Semantic noise is characterized by subtle seman-

tic errors, which can occur even when entity types

1020

Alsubhi, J., Gharawi, A. and Ramaswamy, L.

Cost-Aware TrE-ND: Tri-embed Noise Detection for Enhancing Data Quality of Knowledge Graph.

DOI: 10.5220/0012431700003636

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 16th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2024) - Volume 3, pages 1020-1027

ISBN: 978-989-758-680-4; ISSN: 2184-433X

align correctly, due to inaccurate assignment of re-

lationships or misinterpretation of an entity’s context.

Conversely, structural noise refers to obvious errors

that are readily identiﬁable, such as when an entity

is paired with an incorrect relation type. The pri-

mary focus of this paper is the detection of seman-

tic noise, which is more challenging to detect be-

cause it involves understanding subtle nuances and

context, which often require domain expertise for ac-

curate identiﬁcation.

There are several techniques presented in the lit-

erature to detect noise in knowledge graphs. Many

noise detection techniques depend on graph embed-

ding methods. These methods lack robustness since

their performance is signiﬁcantly affected by noise,

often leading to reduced accuracy (Choudhary et al.,

2021), (Ji et al., 2021), (Wang et al., 2017), (Gesese

et al., 2019), (Dai et al., 2020). Other noise detec-

tion methods rely on manual inspection by domain

experts, which is costly, especially in large KGs (Qi

et al., 2022), (Gao et al., 2019).

In this paper, we address these limitations by

proposing a novel method called Tri-embed Noise De-

tection (TrE-ND) to enhance the quality of knowledge

graphs. Our approach not only yields higher accu-

racy in noise detection compared to existing methods

but is also cost-effective. TrE-ND is unique in that it

harnesses the capabilities of three distinct knowledge

graph embeddings (KGE), to effectively ﬂag noisy

triples for subsequent validation by domain experts.

In designing TrE-ND this paper makes the follow-

ing contributions:

• First, we demonstrate how to effectively combine

ensemble learning and knowledge graph embed-

ding so as to leverage their unique strengths for

enhancing the effectiveness of noise detection in

KGs.

• Second, we present a hybrid approach that as-

tutely blends automated noise detection with hu-

man expertise for cost-effective and accurate

noise detection in knowledge graphs.

• Third, we conduct an extensive experimental

study on widely used benchmark KG datasets,

FB13 and WN11, and with different noise lev-

els to thoroughly evaluate the costs and beneﬁts

of the proposed TrE-ND approach. This experi-

mental study shows that our hybrid approach out-

performs existing solutions in both accuracy and

cost-effectiveness, demonstrating its clear advan-

tage over other methods, especially when deal-

ing with large-scale KGs with signiﬁcant levels of

noise.

The rest of the paper is structured as follows: Sec-

tion 2 delves into our motivation and background.

Our framework is detailed in Section 3, followed by

our experiments and results in Section 4. Section 5

presents an ablation study. We conclude with future

research recommendations in Section 6.

2 MOTIVATION AND

BACKGROUND

A knowledge graph (KG) is a structured database that

is used to represent knowledge in a form that can be

easily processed by machines, and it is used in vari-

ous domains, including natural language processing,

search engines, and recommender systems, to orga-

nize and make sense of huge amounts of data. A

knowledge graph G can be modeled as a set of triples:

G =

{

, . . . ,t

}

, where each triple t is of the form:

t = (h, r,t). The error in a noisy triple t

′

can appear

in the head or tail of the triple such as t = (h

′

, r,t) or

t = (h, r, t

′

The presence of noise and contradictions in a

knowledge graph is a signiﬁcant issue due to the im-

precision of data sources and inaccuracies in the ex-

traction process. For example, NELL, a widely used

knowledge graph, experiences a gradual decrease in

the accuracy of the knowledge it acquires over time.

Initially, NELL provides an estimated precision of

0.9 in its ﬁrst month, but this falls to 0.71 after two

months (Chen et al., 2020). This decline is mainly

due to the imperfect reliability of extraction patterns,

leading to the occasional extraction of noisy triples.

Therefore, it becomes necessary to develop robust

noise detection methods that can accurately detect the

noise in KGs. Furthermore, it is also essential to de-

velop cost-effective KGs evaluation frameworks so

we can determine their ﬁtness for speciﬁc applica-

tions.

There are several techniques presented in the lit-

erature to detect noise in knowledge graphs, and

many of these techniques depend on graph embed-

ding. However, their effectiveness is often compro-

mised by the presence of noise (Dai et al., 2020).

Knowledge graph embedding aims to maintain the

structural and semantic information of the knowledge

graph in the learned embeddings in order to map items

with comparable relationships or attributes to nearby

locations in the vector space. Knowledge graph em-

beddings can be learned using a variety of methods,

including TransE (Bordes et al., 2013), TransH (Wang

et al., 2014), TransR (Lin et al., 2015), TransD (Ji

et al., 2015), TransG (Xiao et al., 2016), DistMult-

HRS (Zhang et al., 2018), AATE (An et al., 2018),

ConvKB (Nguyen et al., 2018), KG-BERT (Yao et al.,

Cost-Aware TrE-ND: Tri-embed Noise Detection for Enhancing Data Quality of Knowledge Graph

1021

2019), and others. Although the underlying assump-

tions and target functions of these techniques vary,

they all strive to capture the intricate connections

between entities and characteristics in a knowledge

graph. Each of these KGE models has its strengths

and limitations. While some of these methods demon-

strate great performance on clean knowledge graphs,

they lack robustness and resilience when dealing with

noisy KGs. Unlike other methods, TrE-ND approach

leverages the unique advantages of three techniques

to create a more robust and accurate noise detection

method for knowledge graphs, especially when deal-

ing with KGs with high levels of noise. Thus, our ap-

proach is capable of detecting semantic noise in KGs

even in the presence of high levels of noise. TrE-ND

can identify contextual noise, deal with hierarchical

complexity, and adjust to the relational dynamics.

Furthermore, numerous approaches have been

proposed to evaluate and assess the quality of KGs (Qi

et al., 2022), (Gao et al., 2019). However, these ap-

proaches focus on human annotation and cluster sam-

pling, which is time-consuming and labor-intensive.

They do not automatically identify potentially prob-

lematic triples. Our method, on the other hand, sim-

pliﬁes the assessment process by automatically ﬂag-

ging noisy triples, reducing the need for extensive

human annotation and thereby offering a more cost-

effective strategy for KG quality assurance. This

underscores the value of our approach in terms of

cost efﬁciency, demonstrating its clear advantage over

other methods, especially when dealing with large-

scale KGs.

Additionally, detecting noise manually by domain

experts in a KG is much more expensive. The cost

of noise detection has been estimated by (Paulheim,

2018), and Table 1 shows the estimated cost of vari-

ous knowledge graphs. Manual noise detection costs

range between $2 to $6, dramatically higher com-

pared to automated methods, which cost as little as

$0.01. As shown, the manual validation method in-

curs high costs for noise detection in Cyc and Free-

base KGs, at a total of $120M and $6.75B, respec-

tively. In contrast, automatic validation applied to

DBpedia and YAGO KGs signiﬁcantly reduces the

cost, ranging from $5.1M to $11.6M.

In addition, the cost and accuracy of validating

triples in knowledge graphs are signiﬁcantly inﬂu-

Table 1: Cost comparison of knowledge graphs.

KG Method Cost/Triple # Triples Total Cost

Cyc Manual $5.71 21M $120M

Freebase Manual $2.25 3B $6.75B

DBpedia Automatic $0.0185 400M $5.1M

YAGO Automatic $0.0083 1.4B $11.6M

enced by the level of expertise involved. The spec-

trum ranges from expert to novice to automatic vali-

dation, showing a corresponding decrease in cost as

the level of expertise reduces. However, this reduc-

tion in cost is typically accompanied by an increase

in error rate. Manual noise detection relies on human

validators to examine the triples in a KG. The human

validation procedure, however, becomes more expen-

sive and less scalable as knowledge graphs grow in

size, making it unfeasible to handle large data present

in contemporary KGs. To overcome these limitations,

we propose TrE-ND to detect noise and assess the

quality of KGs.

3 TrE-ND NOISE DETECTION

FRAMEWORK

Figure 1 provides an architecture of our proposed

TrE-ND approach. The unique feature of this ap-

proach is that it combines ensemble learning in con-

junction with three distinct knowledge graph em-

bedding, which are KG-BERT, DistMult-HRS, and

TransD.

3.1 Base Models Selection

Firstly, we analyzed the performance of several KGE

techniques. The selection of KG-BERT, DistMult-

HRS, and TransD as the basis for our TrE-ND ap-

proach was driven by their complementary strengths

in knowledge graph embedding. KG-BERT is known

for its superior performance in capturing complex re-

lationships and handling textual attributes in KGs,

KG-BERT excels in understanding the semantic nu-

ances that are often present. It contributes to our

approach by providing a deep, context-aware un-

derstanding of the entities and relations. DistMult-

HRS is effective in modeling hierarchical relations

and capturing transitive properties in KGs. Its abil-

ity to model different types of relations contributes to

the diversity and coverage of our TrE-ND approach.

TransD is excellent at dealing with the scalability of

large KGs and shows a strong ability to generalize

over different types of relationships. Its efﬁciency and

scalability make it ideal for handling large datasets.

Thus, based on extensive experiments, TrE-ND can

detect semantic noise in large KGs, even in the pres-

ence of high levels of noise. Additionally, we con-

ducted an ablation study in Section 5 to verify our

design choices.

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

1022

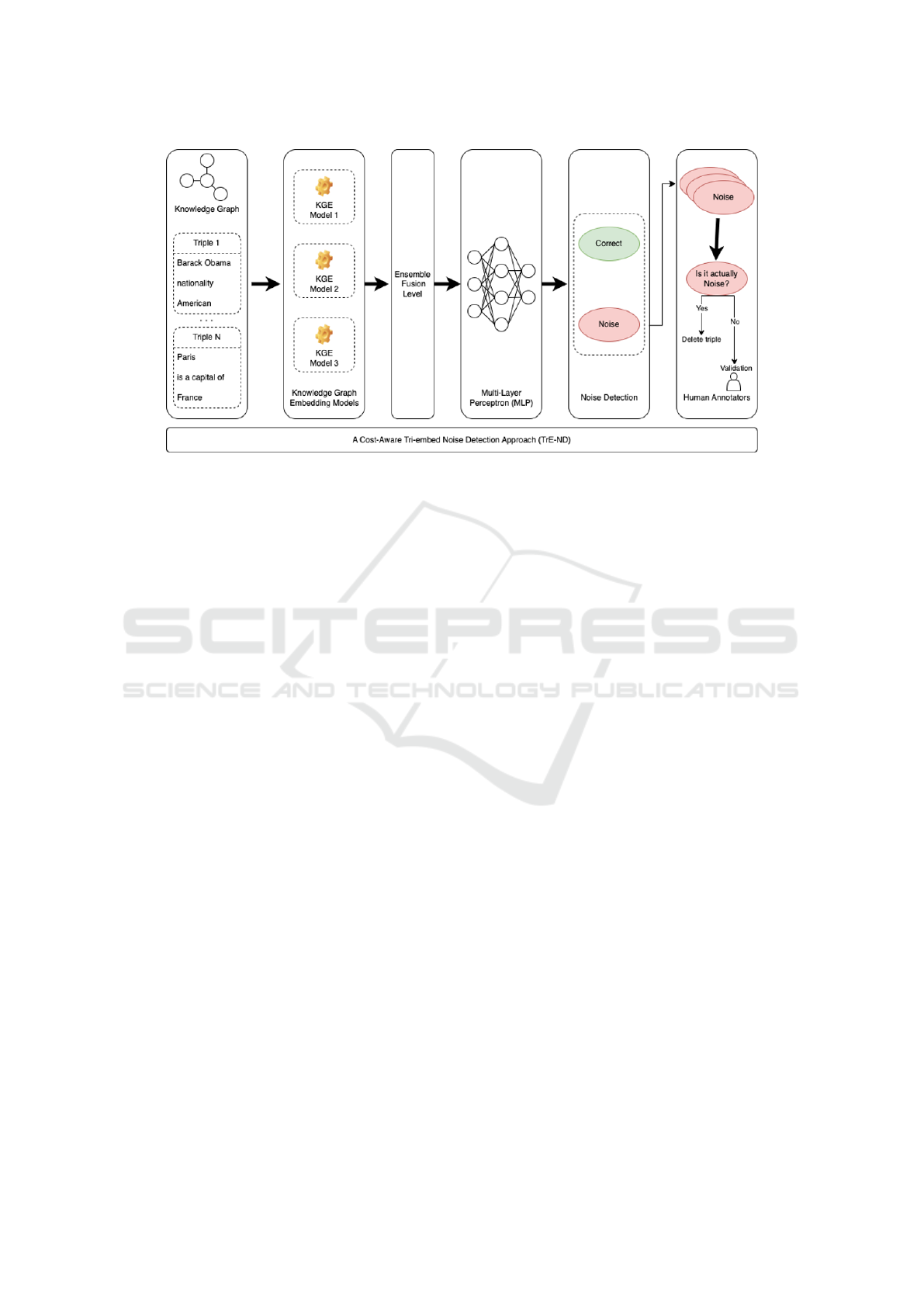

Figure 1: The architecture of our TrE-ND approach.

3.2 Embedding Representation

Given the three embedding models KG-BERT

KG-BERT

), DistMult-HRS (E

DistMult-HRS

), and

TransD (E

TransD

), the embedding for each triple t

using each of these models can be represented as:

KG-BERT

) = E

KG-BERT

)

DistMult-HRS

) = E

DistMult-HRS

)

TransD

) = E

TransD

)

Here, V

) denotes the embedded representa-

tion of triple t

using the speciﬁed embedding model

. Next, these embeddings are concatenated or com-

bined to serve as input to the multi-layer percep-

tron (MLP). Let MLP be a function representing this

multi-layer perceptron. For each triple t

, the input to

the MLP will be the combined embeddings, and the

output O(t

) will be a binary classiﬁcation for noise

or correct:

O(t

) = MLP(V

KG-BERT

),V

DistMult-HRS

),V

TransD

))

Where:

O(t

) =

(

1 if O(t

) ≥ 0.5, t

is noise

0 if O(t

) < 0.5, t

is correct

Overall, TrE-ND involves using three different

embedding methods, KG-BERT, DistMult-HRS, and

TransD, trained separately and then incorporated into

a Multilayer Perceptron for ﬁnal classiﬁcation.

Therefore, we used three distinct knowledge

graph embedding methods that are able to capture the

relational semantics of the graph accurately even in

the presence of noise. Each embedding model has its

own unique strengths. Thus, using these three models

provides a more robust and accurate solution by lever-

aging their individual strengths and offsetting their

weaknesses. We trained each one on the same train-

ing set and with the same level of noise, with the aim

of optimizing entity representations for accurate triple

classiﬁcation or noise detection.

After training the embedding methods with three

different levels of noise, 10%, 20%, and 40%, they

generate low-dimensional representations of entities

and relationships. Then, we independently evaluated

the effectiveness of each technique in the presence of

noise using the testing set. We utilized rank-based

metrics such as Mean Rank (MR), Hits@k, and Mean

Reciprocal Rank (MRR) to measure each embedding

model’s performance in relationship prediction and

triple classiﬁcation. This sheds light on the ideal em-

bedding model to actively utilize in our ﬁnal architec-

ture.

3.3 Ensemble Fusion

To ensemble the three embeddings in our TrE-ND,

we trained the MLP using these embeddings from

the three distinct KGE models, associating them with

their majority label, either noisy or correct. The MLP

was selected for its computational efﬁciency, which is

crucial for large-scale knowledge graphs, its general-

ization capability that aids in robust noise detection,

and its ease of use that facilitates quick implemen-

tation and experimentation. Moreover, based on ex-

tensive experimentation, we chose to use MLP as the

aggregation layer in our TrE-ND approach.

Thus, the three embeddings produced were com-

bined and fed a Multilayer Perceptron after individ-

Cost-Aware TrE-ND: Tri-embed Noise Detection for Enhancing Data Quality of Knowledge Graph

1023

Table 2: Statistics of the FB13 and WN11 datasets.

Dataset Entities Relation Train Valid Test

FB13 75,043 13 316,232 5,908 23,733

WN11 38,696 11 112,581 2,609 10,544

ual evaluations and noise introduction. The MLP

was trained to identify noisy triples, using the outputs

from each of the three embeddings as input features

for each triple. The MLP consists of three hidden lay-

ers, each using a Sigmoid activation function with a

learning rate of 0.01. To prevent overﬁtting, a dropout

rate of 0.5 was applied for regularization.

In the model evaluation phase, we assessed TrE-

ND’s accuracy in identifying noisy triples using the

test set. The procedure entailed passing the test triples

through each embedding model, followed by chan-

neling the resulting embedding vectors into the pre-

trained MLP. Subsequently, we assess the model’s

predictive accuracy by comparing the classiﬁcation

results obtained by MLP with the actual labels.

We measure the model performance using accuracy,

which is a standard binary classiﬁcation metric. This

evaluative process was iteratively conducted across

different noise levels to gauge the model’s resilience

against varying noise intensities.

3.4 Human Validation

After automatically detecting noisy triples, we sug-

gest a secondary layer of validation where the ﬂagged

noisy triples are assessed by human experts in the do-

main. This hybrid approach provides an additional

safety net, ensuring that any false positives from the

automated process are corrected, thus elevating the

conﬁdence in the noise detection results while min-

imizing the cost of human involvement since human

experts are only given the noisy triples to check.

Additionally, after identifying and ﬂagging noisy

triples automatically using TrE-ND, we can assess the

quality of the KG. Through this approach for quality

assessment, we not only contribute to the individual

quality of the KG but also offer a scalable and cost-

effective model that can be adapted for larger, more

complex KGs. Therefore, our methodology has sig-

niﬁcant implications for both the theoretical under-

standing and practical application of KG quality as-

sessment.

4 EXPERIMENTS AND RESULTS

We evaluate the performance of TrE-ND for noise de-

tection and KGs evaluation on popular benchmarks

FB13 and WN11. Then, we show and analyze the ex-

perimental results.

4.1 Datasets

Since there are no explicitly labeled noises or conﬂicts

in these datasets, new datasets with different levels of

noise based on FB13 and WN11 were generated.

To mimic the real-world dataset, we used a com-

mon approach to introduce noise into the training data

systematically (Xie et al., 2018). To generate seman-

tic noise, we corrupt a portion of the original triples by

randomly selecting a triple, and swapping its head or

tail entity with another similar entity, creating a noisy

triple. In other words, noisy triples were created by

modifying the head or tail of a given triple. For exam-

ple, given a true triple like (Barack Obama, National-

ity, American), a plausible negative example could be

(Barack Obama, Nationality, Canadian) instead of an

obviously incorrect one like (Barack Obama, Nation-

ality, Soccer). This is because Canadian and Ameri-

can are both common tails for the Nationality relation.

Thus, the generation of noisy triples was guided by

the principle that the entity chosen for replacement

should have previously been seen in the same posi-

tion. This approach is driven by the fact that most er-

rors in real-world KGs stem from confusion between

similar entities. Hence, our proposed method, TrE-

ND, is evaluated for detecting semantic noise, which

is harder to detect since it often requires specialized

expertise for detection, and it is more common in real-

world KGs. Table 2 displays statistics of the datasets.

4.2 Noise Detection

Noise detection or triple classiﬁcation is the task of

verifying whether an unseen triple is true or not. We

can determine a score for any triple after learning

an embedding model on the KG. Triple classiﬁca-

tion can be done based entirely on these triple scores.

Triples that score higher are more likely to be true

facts. An unseen triple will be forecasted as true if the

score is higher than a threshold; if not, it will be pre-

dicted as false. This task can be evaluated using con-

ventional classiﬁcation metrics like accuracy (Wang

et al., 2017), (Dai et al., 2020).

Detecting noise in knowledge graphs is a

resource-intensive process in terms of time and cost.

TrE-ND automates the noise detection process in

KGs, drastically curtailing costs tied to human anno-

tators. We evaluate the performance of TrE-ND for

noise detection in FB13 and WN11 datasets with dif-

ferent levels of noise. We changed the noise levels

in our training sets to investigate the model’s perfor-

mance under various conditions. Speciﬁcally, we cre-

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

1024

Table 3: Accuracy of noise detection on FB13 and WN11 with 10%, 20%, and 40% of noise. The best scores are highlighted

in bold.

Method FB13 FB13-%10 FB13-%20 FB13-%40 WN11 WN11-%10 WN11-%20 WN11-%40 AVG

TransE 81.1 78.2 76.1 73.3 74.9 71.7 68.4 64.7 73.5

TransH 83.1 80.5 78.3 75.2 78.3 75.8 73.0 69.4 76.7

TransR 82.2 79.1 75.8 72.4 85.7 82.2 78.1 75.3 78.8

TransD 89.1 87.7 84.9 81.2 86.2 83.3 80.5 76.1 83.6

TransG 87.2 86.1 83.4 80.1 87.3 85.4 82.7 79.4 83.9

DistMult-HRS 88.9 87.6 84.2 78.3 88.8 85.1 81.9 79.2 84.2

AATE 87.1 85.3 82.6 77.9 87.6 85.3 82.8 78.8 83.4

ConvKB 87.6 84.9 81.3 78.6 86.2 84.0 84.2 81.5 83.5

KG-BERT 90.3 88.2 85.1 80.7 92.8 87.6 85.1 82.0 86.4

TrE-ND 88.6 88.3 85.4 82.7 91.1 89.0 87.3 84.5 87.1

Figure 2: Best performing noise detection methods in FB13

and WN11 datasets.

ated three versions of the dataset with noise levels at

10%, 20%, and 40%. This approach allowed us to as-

sess the robustness of TrE-ND model across different

noise intensities.

The results of evaluation noise detection meth-

ods are shown in Table 3, which presents the ac-

curacy rates of these various noise detection meth-

ods. We evaluated TrE-ND with other models such as

TransE, TransH, TransR, TransD, TransG, DistMult-

HRS, AATE, ConvKB, and KG-BERT in FB11 and

WN11 datasets under different levels of noise. More-

over, Figure 2 presents the best noise detection meth-

ods, in terms of accuracy, when applied to FB13 and

WN11 datasets. The results in Figure 2 highlight the

superior performance of the TrE-ND model in detect-

ing noise within the FB13 and WN11 datasets. On

average, our TrE-ND model outperforms other mod-

els when it comes to noise detection in both FB13 and

WN11 datasets. As the level of noise increases, TrE-

ND model shows more robustness compared to other

models, which struggle to detect noise in a highly

noisy environment.

TrE-ND is an ideal cost-effective solution for

noise detection in real-world KGs where noise is both

Figure 3: Cost for validating triples in FB13 and WN11

with TrE-ND vsmanual with 10%, 20%, and 40% of Noise.

subtle and abundant. In large-scale KGs, even a small

percentage increase in the accuracy of noise detection

methods can have a signiﬁcant impact. However, the

experimental results show that the improvements of

TrE-ND are signiﬁcant (p < 0.05).

Thus, TrE-ND emerges as a highly cost-effective

and accurate solution for validating noisy triples, par-

ticularly when compared to other automated meth-

ods and manual annotators, who charge between $2

to $6 per triple validation. With its high accuracy

rates across different noise levels in both FB13 and

WN11 datasets, TrE-ND minimizes false positives

Cost-Aware TrE-ND: Tri-embed Noise Detection for Enhancing Data Quality of Knowledge Graph

1025

Table 4: Knowledge graph evaluation using TrE-ND.

Noise% FB13 WN11 Gold Standard Accuracy

10 91.17 91.08 90

20 82.94 82.57 80

40 66.93 66.25 60

and false negatives. This ensures that only genuinely

noisy triples get ﬂagged for review, which can sub-

stantially reduce the volume of triples requiring val-

idation. Consequently, the method can lead to sig-

niﬁcant cost savings: fewer ﬂagged triples mean less

manual validation and, therefore, lower costs. When

compared to other automated methods that show less

accuracy, the cost-effectiveness of TrE-ND becomes

even more apparent. Figure 3 shows the cost savings

achieved when using the hybrid TrE-ND approach as

compared to manual validation, assuming that experts

validate the ﬂagged triples at a cost of $2 per triple.

There is a tradeoff between cost and accuracy, when

human validators are involved to detect noise, the cost

and accuracy increase. For example, the accuracy for

this hybrid approach increased from 85% to 97% in

FB13 with 20% of noise. Furthermore, if the valida-

tors were also asked to ﬁx the errors in the triples, the

accuracy of the KG will be around 99.97%. There-

fore, we can detect almost all the noise in the KG us-

ing our hybrid approach. In summary, all the meth-

ods show a decrease in performance as the noise level

increases. However, TrE-ND demonstrates superior

performance, maintaining high accuracy rates even at

high noise levels. These results indicate the potential

of this approach in providing cost-effective and robust

noise detection in KGs.

4.3 Knowledge Graph Evaluation

It is important to evaluate the quality of knowledge

graphs to understand their reliability, accuracy, and

usefulness to advise downstream applications. Thus,

in this experiment, we automatically evaluate the

quality of knowledge graphs using TrE-ND. The pri-

mary metric used for KG quality evaluation is accu-

racy, calculated based on the noisy triples detected by

our TrE-ND model. Thus, using TrE-ND, we evaluate

the quality of FB13 and WN11 datasets with different

levels of noise 10%, 20%, and 40%. Initially, the TrE-

ND model is used to detect and ﬂag the noisy triples

in the KG dataset. The number of correct triples in

the KG is calculated by subtracting the number of de-

tected noisy triples from the total number of triples

in the dataset. Finally, the accuracy of the KG is cal-

culated by taking the number of correct triples and

dividing it by the total number of triples.

Table 4 displays the evaluation of the FB13 and

WN11 knowledge graphs at various noise levels. The

gold standard accuracy for these knowledge graphs

at noise levels of 10%, 20%, and 40% is 90%, 80%,

and 60%, respectively. These results demonstrate the

effectiveness of TrE-ND in accurately evaluating KGs

under various conditions. TrE-ND shows resilience to

different noise levels, indicating its robustness for the

evaluation of knowledge graph quality.

5 ABLATION STUDY

In this section, we assess the performance of differ-

ent components of TrE-ND to determine the most im-

pactful models for noise detection. We tried multi-

ple combinations of KGE models: TransG, TransR,

and TransD; DistMult-HRS, AATE, and TransG; and

KG-BERT, DistMult-HRS, and TransD. Table 5 illus-

trates the performance of these models on the FB13

and WN11 datasets under varying levels of noise.

The proposed TrE-ND, which leverages KG-BERT,

DistMult-HRS, and TransD, yields the highest aver-

age accuracy across both datasets and all levels of

noise, making it the most robust solution in our study.

This result underscores the contribution of each KGE

model, particularly when dealing with high levels of

noise. TrE-ND-1 consists of DistMult-HRS, AATE,

and TransG, also performs well across both datasets,

demonstrating the effectiveness of this combination in

maintaining performance under different noise condi-

tions. Its average score places it as the second-best

performing model.

The last version shown in Table 5, TrE-ND-2, em-

ploys a combination of three KGE models: TransG,

TransR, and TransD. TrE-ND-2 exhibits a lower av-

erage accuracy compared to the other two versions.

Despite this, it still presents reasonable performance

for noise detection in knowledge graphs. Thus,

this approach provides competitive results across all

datasets, showing its effectiveness for noise detection

in KGs.

Table 5: Accuracy of TrE-ND approach with different combinations of KGE models for noise detection on FB13 and WN11

with 10%, 20%, and 40% of noise. Best scores are highlighted in bold, and second-best scores are underlined.

Method FB13 FB13-%10 FB13-%20 FB13-%40 WN11 WN11-%10 WN11-%20 WN11-%40 AVG

TrE-ND 88.6 88.3 85.4 82.7 91.1 89.0 87.3 84.5 87.1

TrE-ND-1 87.8 85.9 83.6 80.3 88.2 86.1 84.4 81.9 84.7

TrE-ND-2 87.4 86.1 83.8 80.1 84.6 82.5 79.7 76.7 82.6

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

1026

6 CONCLUSION

In conclusion, this research presents an innovative

and cost-effective approach for the detection of noise

in knowledge graphs, a pervasive issue that hinders

the effective utilization of KGs for a range of ma-

chine learning applications. We propose TrE-ND,

which harnesses the strengths of multiple KGE mod-

els, leading to a statistically signiﬁcant improvement

in noise detection accuracy. The experiment results

show the resilience of this approach in noise detection

and KG evaluation, even under high levels of noise.

Future research needs to continue exploring cost-

effective and efﬁcient noise detection strategies, en-

abling the full potential of KGs in various domains.

There is signiﬁcant promise in the development of

techniques that optimally balance cost and accuracy.

In particular, the development of semi-automatic

methods that leverage the integration of Large Lan-

guage Models (LLM) for the validation of triples

could offer a promising avenue.

REFERENCES

An, B., Chen, B., Han, X., and Sun, L. (2018). Accurate

text-enhanced knowledge graph representation learn-

ing. In NAACL, page 745–755.

Bordes, A., Usunier, N., and Garcia-Duran, A. (2013).

Translating embeddings for modeling multi-relational

data. In Proceedings of NIPS, pages 2787–2795.

Chen, X., Jia, S., and Xiang, Y. (2020). A review: Knowl-

edge reasoning over knowledge graph. Expert Systems

with Applications, 141:112948.

Choudhary, S., Luthra, T., Mittal, A., and Singh, R. (2021).

A survey of knowledge graph embedding and their ap-

plications. arXiv preprint arXiv:2107.07842.

Dai, Y., Wang, S., Xiong, N. N., and Guo, W. (2020). A

survey on knowledge graph embedding: Approaches,

applications and benchmarks. Electronics, 9(5):750.

Gao, J., Li, X., Xu, Y. E., Sisman, B., Dong, X. L., and

Yang, J. (2019). Efﬁcient knowledge graph accuracy

evaluation. arXiv preprint arXiv:1907.09657.

Gesese, G. A., Biswas, R., and Sack, H. (2019). A compre-

hensive survey of knowledge graph embeddings with

literals: Techniques and applications. In DL4KG@

ESWC, volume 3140.

Hogan, A., Blomqvist, E., Cochez, M., d’Amato, C., Melo,

G. D., Gutierrez, C., et al. (2021). Knowledge graphs.

ACM Computing Surveys (CSUR), 54(4):1–37.

Ji, G., He, S., Xu, L., Liu, K., and Zhao, J. (2015). Knowl-

edge graph embedding via dynamic mapping matrix.

In Proc. 53rd Annu. Meeting Assoc. Comput. Linguis-

tics 7th Int. Joint Conf. Natural Language Process.,

page 687–696.

Ji, S., Pan, S., Cambria, E., Marttinen, P., and Philip, S. Y.

(2021). A survey on knowledge graphs: Representa-

tion, acquisition, and applications. IEEE transactions

on neural networks and learning systems, 33(2):494–

514.

Lin, Y., Zhang, J., Liu, Z., Sun, M., Liu, Y., and Zhu,

X. (2015). Learning entity and relation embeddings

for knowledge graph completion. In Proceedings of

AAAI.

Nguyen, D. Q., Nguyen, D. Q., Nguyen, T. D., and Phung,

D. (2018). A convolutional neural network-based

model for knowledge base completion and its appli-

cation to search personalization. Semantic Web.

Paulheim, H. (2017). Knowledge graph reﬁnement: A sur-

vey of approaches and evaluation methods. Semantic

web, 8:489–508.

Paulheim, H. (2018). How much is a triple? In ISWC.

Qi, Y., Zheng, W., Hong, L., and Zou, L. (2022). Evaluat-

ing knowledge graph accuracy powered by optimized

human-machine collaboration. In Proceedings of the

28th ACM SIGKDD Conference on Knowledge Dis-

covery and Data Mining, pages 1368–1378.

Wang, Q., Mao, Z., Wang, B., and Guo, L. (2017). Knowl-

edge graph embedding: A survey of approaches and

applications. IEEE Transactions on Knowledge and

Data Engineering, 29(12):2724–2743.

Wang, Z., Zhang, J., Feng, J., and Chen, Z. (2014). Knowl-

edge graph embedding by translating on hyperplanes.

In Proceedings of the AAAI conference on artiﬁcial

intelligence, volume 28.

Xiao, H., Huang, M., and Zhu, X. (2016). Transg: A gener-

ative model for knowledge graph embedding. In Proc.

54th Annu. Meeting Assoc. Comput. Linguistics, page

2316–2325.

Xie, R., Liu, Z., Lin, F., and Lin, L. (2018). Does william

shakespeare really write hamlet? knowledge represen-

tation learning with conﬁdence. In Proceedings of the

AAAI Conference on Artiﬁcial Intelligence, volume 3.

Yao, L., Mao, C., and Luo, Y. (2019). Kg-bert: Bert for

knowledge graph completion. arXiv:1909.03193.

Zhang, Z., Zhuang, F., Qu, M., Lin, F., and He, Q. (2018).

Knowledge graph embedding with hierarchical rela-

tion structure. In EMNLP, page 3198–3207.

Cost-Aware TrE-ND: Tri-embed Noise Detection for Enhancing Data Quality of Knowledge Graph

1027
