Experimental Application of Semantic Segmentation Models Fine-Tuned
with Synthesized Document Images to Text Line Segmentation in a
Handwritten Japanese Historical Document
Sayaka Mori and Tetsuya Suzuki
a
Department of Electronic Information Systems, College of Systems Engineering and Science,
Shibaura Institute of Technology, Saitama, Japan
Keywords:
Text Line Segmentation, Historical Document, Deep Learning, Semantic Segmentation, Data Synthesis.
Abstract:
Because it is difficult even for Japanese to read handwritten Japanese historical documents, computer-assisted
transcription of such documents is helpful. We plan to apply semantic segmentation to text line segmenta-
tion for handwritten Japanese historical documents. We use both synthesized document images resembling
a Japanese historical document and annotations for them because it is time-consuming to manually annotate
a large set of document images for training data. The purpose of this research is to evaluate the effect of
fine-tuning semantic segmentation models with synthesized Japanese historical document images in text line
segmentation. The experimental results show that the segmentation results produced by our method are gener-
ally satisfactory for test data consisting of synthesized document images and are also satisfactory for Japanese
historical document images with straightforward formats.
1 INTRODUCTION
Transcription of Japanese historical documents is
not only a fundamental task in historiography and
Japanese literature, but it has also gained importance
in recent years with efforts to transcribe earthquake
historical documents and use them for disaster pre-
vention (Rekihaku, National Museum of Japanese
History et al., ).
It is difficult even for Japanese to read handwritten
Kana, which is a type of Japanese characters, used in
historical documents because they are quite different
from those currently used.
For this reason, text line segmentation, which is
one of the elemental technologies in transcribing his-
torical Japanese documents, is helpful.
We plan to use semantic segmentation for text line
segmentation for handwritten Japanese historical doc-
uments. Because constructing a large set of manu-
ally annotated document images for machine learn-
ing training data is time-consuming, we automati-
cally synthesize a lot of document images resembling
Japanese historical document and their annotations,
which are center line images of text lines, using a
modified version of our system (Inuzuka and Suzuki,
a
https://orcid.org/0000-0002-9957-8229
2021).
The purpose of this research is to evaluate the
effect of fine-tuning semantic segmentation models
with synthesized Japanese historical document im-
ages in text line segmentation.
The organization of this paper is as follows: In
Section 2, we explain the characteristics of the target
handwritten Japanese historical document. We then
summarize related work in Section 3. We propose our
method in Section 4. Section 5 describes an experi-
ment to select the best semantic segmentation model
among seven models. Section 6 describes an exper-
iment to apply the best semantic model to the target
document. Finally, we provide concluding remarks in
Section 7.
2 THE TARGET DOCUMENT
We selected ”The Tales of Ise” (Reizei, 1994) as a tar-
get handwritten Japanese historical document because
the format is relatively simple. As a result, it is easy
to generate document images resembling those of the
document.
Fig.1 shows the characteristics of its page layout,
which make it difficult to segment text lines.
826
Mori, S. and Suzuki, T.
Experimental Application of Semantic Segmentation Models Fine-Tuned with Synthesized Document Images to Text Line Segmentation in a Handwritten Japanese Historical Document.
DOI: 10.5220/0012433100003654
Paper published under CC license (CC BY-NC-ND 4.0)
In Proceedings of the 13th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2024), pages 826-832
ISBN: 978-989-758-684-2; ISSN: 2184-4313
Proceedings Copyright © 2024 by SCITEPRESS – Science and Technology Publications, Lda.

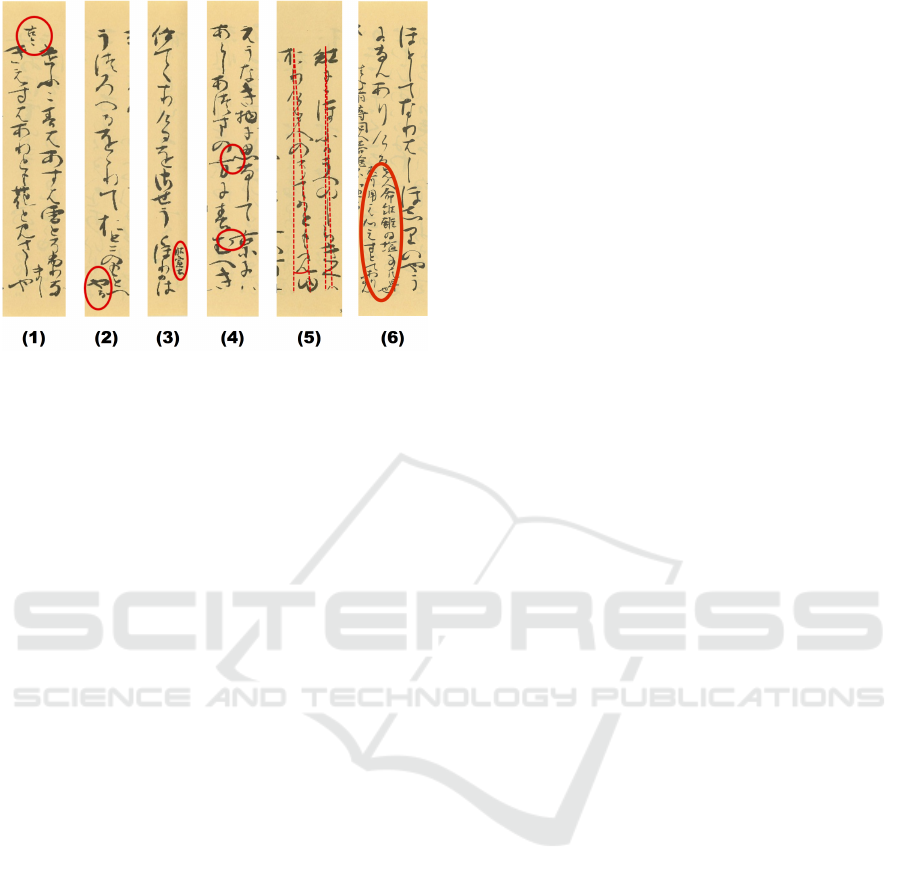

Figure 1: Characteristics of the target document’s layout
adopted from (INUZUKA and SUZUKI, 2020) (Circles and
lines are added in document images scanned from (Reizei,
1994)).
• Fig.1 (1) shows an example where poems in the
document are accompanied by notes representing
the sources of the poems above them.
• Fig.1 (2) shows an example where some text lines
are folded at the bottom of pages.
• Fig. 1 (3) shows an example where some text lines
have readings or additional explanations next to
them.
• Fig.1 (4) shows an example where some charac-
ters in adjoining text lines touch each other.
• Fig.1 (5) shows an example where the center lines
of some text lines are leaning.
• Fig.1 (6) shows an example where there exist
paragraphs with additional paragraphs next to
them.
• There are characters written in a cursive style.
3 RELATED WORK
3.1 KuroNet
KuroNet (CLANUWAT et al., 2019) is a deep neural
network that detects the locations of characters and
recognizes the characters in a given image of a histor-
ical Japanese document. It, however, does not recog-
nize text lines in the document images.
If we integrate a service such as KuroNet with text
line segmentation, we will be able to determine the
reading order of characters in historical Japanese doc-
uments.
3.2 Text Line Segmentation by a Fully
Convolutional Network and
post-processing
Barakat et al. proposed a method for extracting
text lines from handwritten Arabic documents where
some characters touch each other and the orientations
of the text lines are not regular (Barakat et al., 2018).
This method consists of two steps. The first step is
a semantic segmentation by a fully convolutional net-
work, which detects blobs of text lines where one text
line may be divided and two text lines may touch. The
second step is a post-processing that connects dis-
connected components to refine over-segmented sit-
uations. The authors used a publicly available chal-
lenging handwritten dataset (Ha et al., 1995).
3.3 Text Line Segmentation by the
YOLOv3 Object Detection
Algorithm
Our research group applied the YOLOv3 object de-
tection algorithm based on a deep neural network to
text line segmentation in Japanese historical hand-
written documents (Inuzuka and Suzuki, 2021).
One of the problems of using deep neural net-
works for text line segmentation is the creation of a
training data set because it is time-consuming to man-
ually annotate a large set of document images.
Therefore, we implemented a document image
synthesis system in Python and used it to generate
both synthesized document images resembling target
documents and bounding boxes surrounding text lines
as annotations.
Fig.2 shows the document image synthesis pro-
cess. The system consists of four command line in-
terfaces: fonts, format, typeset, and print.
• The fonts command randomly selects at most
given number of fonts for each Japanese Kana
from Kuzushiji-49(Clanuwat et al., 2018) which
is a data set of deformed Kana. It finally records
the resulting font data in a font data file.
• The format command outputs a format resem-
bling the format of a target document based on
a document model to a format file. It randomly
generates various paragraphs and text lines.
• The typeset command reads both a font data file
and a format file, and then records the result of the
typesetting in a file.
• The print command reads both a typesetting file
and a font data file, and then generates both docu-
ment images and bounding boxes surrounding text
Experimental Application of Semantic Segmentation Models Fine-Tuned with Synthesized Document Images to Text Line Segmentation in
a Handwritten Japanese Historical Document
827

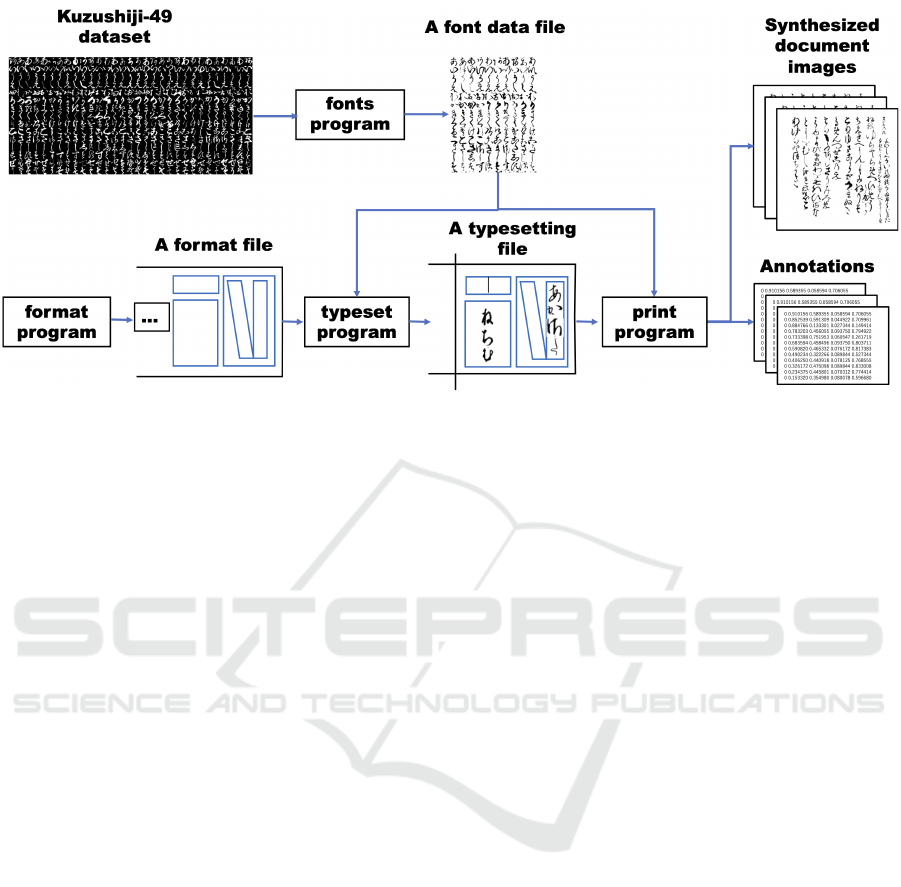

Figure 2: The document image synthesis process amended from (INUZUKA and SUZUKI, 2020).
lines as annotations according to the typesetting
file.
Each text line in synthesized document images is a
meaningless character sequence because it consists of
randomly selected characters from the font data file.
The experiment results in (Inuzuka and Suzuki,
2021) show that a YOLOv3 model trained on a set
of synthesized document images is competitive with
one trained on a set of manually annotated document
images.
However, the segmentation results by the
YOLOv3 model trained on a set of synthesized doc-
ument images include under- and over-segmentation.
Fig.3 and Fig.4 show a page image of the target
document described in Section 2 overlaid with the
manually annotated ground truth and the segmenta-
tion results of the YOLOv3 model trained on a set of
synthesized document images respectively.
4 OUR TEXT LINE
SEGMENTATION METHOD
We propose a text line segmentation method using se-
mantic segmentation for handwritten Japanese histor-
ical documents as follows.
We generate a set of synthesized document images
resembling a target document and their annotations.
The annotations are images with center lines of the
synthesized documents. To generate them, we use
a modified version of the document image synthesis
system described in Section 3.3, enabling it to output
center line images of text lines as annotations.
Subsequently, we train a CNN model for semantic
segmentation using the set of synthesized document
images and their annotations.
When provided with a document image, we apply
the trained CNN model to obtain a segmentation re-
sult.
5 EXPERIMENT 1
We experimented with model selection.
5.1 Method
We used the following semantic segmentation models
and the encoder provided by the Web site ”Segmenta-
tion models pytorch” (Iakubovskii, 2019).
Architecture. Unet++, MAnet, Linknet, FPN, PSP-
Net, PAN and DeepLabV3+
Encoder. EfficientNet
We used the modified system to generate 10,000
images resembling the target document described in
Section 2, each containing around 10 lines, and in-
creased the total number of images to 100,000 using
data augmentation. The size of each image is 256 ×
256. Fig.5(1) shows a page of a synthesized document
image overlaid with center lines.
We used the dataset for both training and testing,
and trained each model using the optimizer Adam for
40 epochs.
5.2 Results
Table 1 shows the average IoU values of the models
for test data. The highest average IoU value among
ICPRAM 2024 - 13th International Conference on Pattern Recognition Applications and Methods
828

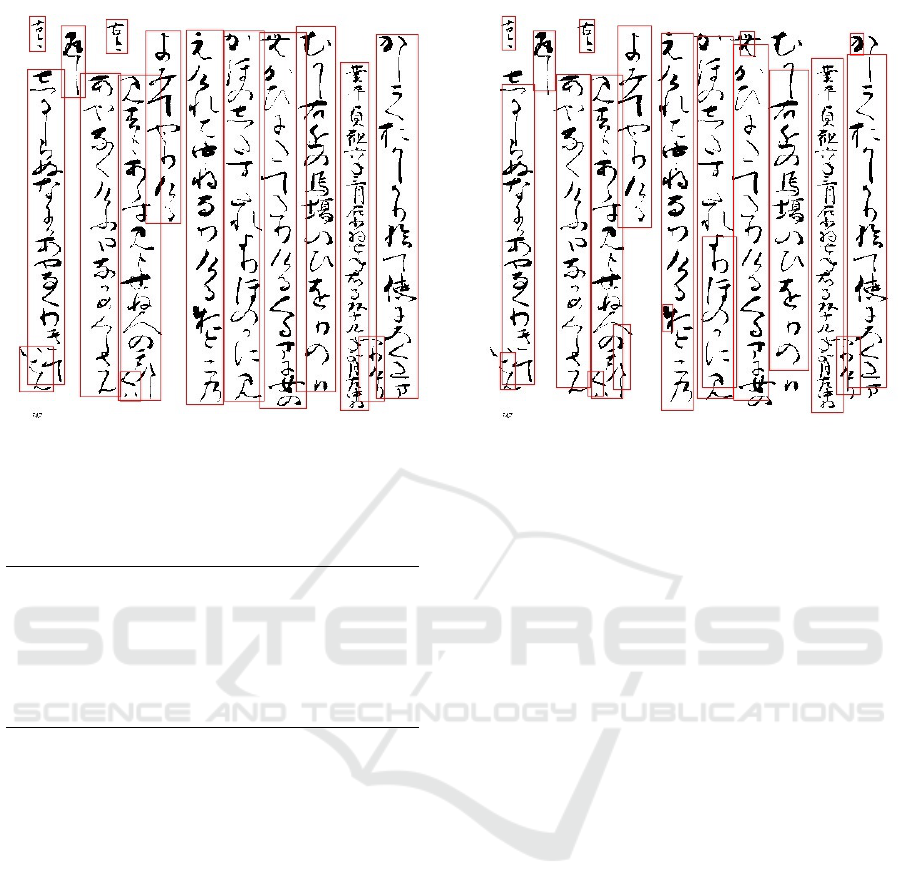

Figure 3: A page image of ”The Tails of Ise” (Reizei, 1994)
overlaid with the ground truth cited from (INUZUKA and
SUZUKI, 2020).
Table 1: Average IoU values for test data.
Model Average IoU values for test data
Unet++ 0.917
Linknet 0.908
MAnet 0.906
FPN 0.883
DeepLabV3+ 0.865
PAN 0.865
PSPNet 0.662
them is 0.917, corresponding to the Unet++ model,
and the lowest IoU value among them is 0.662, corre-
sponding to the PSPNet model.

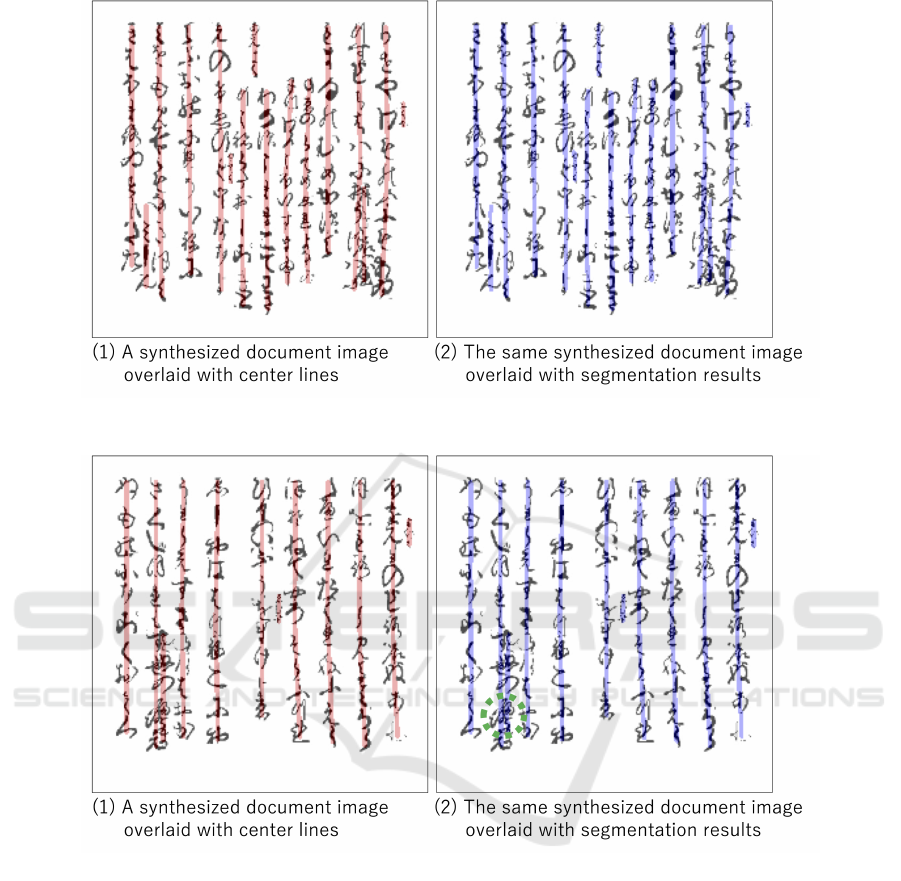

Fig.5 and Fig.6 show segmentation two examples
of the segmentation results for test data produced by
the Unet++ model. Fig.5 shows a successful segmen-
tation result and Fig.6 shows an under-segmentation
result where neighboring two center lines are touch-
ing.
5.3 Evaluation
The Unet++ model outperforms the other six tested
models in terms of IoU. The segmentation results pro-
duced by the Unet++ model are generally satisfactory.
The Unet++ model, however, produced under-
segmentation where neighboring two center lines are
touching as shown in Fig.6. To solve this problem,
we may need to adjust the thickness of center lines as
annotations.
Figure 4: A page image of ”The Tails of Ise” (Reizei, 1994)
overlaid with segmentation results by YOLOv3 cited from
(INUZUKA and SUZUKI, 2020).
6 EXPERIMENT 2
We applied the Unet++ model fine-tuned with synthe-
sized document images to the handwritten Japanese
historical document described in Section 2 and evalu-
ated the segmentation results.
6.1 Method
The differences from the method in Experiment 1 are
as follows.
• Only the Unet++ model was tested.
• The size of each synthesized image is not 256 ×
256 but 512 × 512.
• We applied the trained Unet++ model to the
scanned and binarized document image of ”The
Tales of Ise” consisting of 166 pages (Reizei,
1994).
6.2 Results
Fig.7, Fig.8, Fig.9, and Fig.10 show examples of the
segmentation results produced by the Unet++ model.
• Fig.7 shows a successful result.
• Fig.8 also shows under-segmentation, where the
segmentation of the source of a poem and the seg-
mentation of the poem are connected.
• Fig.9 also shows under-segmentation, where the
center points of characters within the dotted-line
circle are not included in any segmentation.
Experimental Application of Semantic Segmentation Models Fine-Tuned with Synthesized Document Images to Text Line Segmentation in
a Handwritten Japanese Historical Document
829

Figure 5: A successful segmentation result for test data by Unet++.
Figure 6: A segmentation result with under-segmentation for test data by Unet++. Neighboring two center lines are touching
in the dotted-line circle.
• Fig.10 shows over-segmentation, where the left
part and the right part of a character are in two
distinct segmentations.
6.3 Evaluation
As shown in Fig. 7, the Unet++ model produced sat-
isfactory segmentation results for document images
with straightforward formats.
The under-segmentation shown in Fig.8 will be re-
solved by incorporating additional classes, such as the
”source of poem” class in segmentation though we
employed only the ”text line” class in the experiment.
The under-segmentation shown in Fig.9 will be re-
solved by increasing the number of short text lines in
the training data set.
An idea to resolve the over-segmentation shown
in Fig.10 is to include more characters with separate
parts in synthesized document images used for train-
ing data.
7 CONCLUSION
We evaluated the effect of fine-tuning semantic seg-
mentation models with synthesized Japanese histori-
cal document images in text line segmentation. The
annotations in the experiments are the center line im-
ICPRAM 2024 - 13th International Conference on Pattern Recognition Applications and Methods
830

Figure 7: A page image of ”The Tails of Ise” (Reizei, 1994)
overlaid with a successful text line segmentation result pro-
duced by Unet++.
Figure 8: A page image of ”The Tails of Ise” (Reizei,
1994) overlaid with an under-segmentation result produced
by Unet++. The center line of the source of a poem and the
second center line of the poem are connected in the dotted-
line circle.
ages of text lines. We synthesized document images
resembling a target handwritten Japanese historical
document by putting randomly generated texts. We
selected the Unet++ model as the best among the
seven semantic segmentation models in terms of IoU.
Segmentation results produced by the Unet++ model
for test data consisting of synthesized document im-
ages are generally satisfactory. Segmentation results
produced by the Unet++ model for the target docu-
ment are as follows. If the format of the document is
straightforward, the results are satisfactory. We, how-
ever, often observed under- and over-segmentation.
The problems may be resolved by either increasing
the number of classes in semantic segmentation or ad-
justing the biases in the training dataset.
Figure 9: A page image of ”The Tails of Ise” (Reizei,
1994) overlaid with an under-segmentation result produced
by Unet++. A character in the dotted-line circle is not in
any segmentation.
Figure 10: A page image of ”The Tails of Ise” (Reizei,
1994) overlaid with over-segmentation results produced by
Unet++. The separate parts of some characters are in differ-
ent segments in the dotted-line circles.
Future work would include the following. One of
our future works is to improve the performance by
modifying the method for construction of both syn-
thesized document images and annotations. In addi-
tion, we need to apply our method to other historical
documents to confirm the applicability of our method.
ACKNOWLEDGEMENTS
This work was supported by JSPS KAKENHI Grant
Number JP22K12736.
Experimental Application of Semantic Segmentation Models Fine-Tuned with Synthesized Document Images to Text Line Segmentation in
a Handwritten Japanese Historical Document
831

REFERENCES
Barakat, B. K., Droby, A., Kassis, M., and El-Sana, J.
(2018). Text line segmentation for challenging hand-
written document images using fully convolutional
network. In 16th International Conference on Fron-
tiers in Handwriting Recognition, ICFHR 2018, Nia-
gara Falls, NY, USA, August 5-8, 2018, pages 374–
379. IEEE Computer Society.
Clanuwat, T., Bober-Irizar, M., Kitamoto, A., Lamb, A.,
Yamamoto, K., and Ha, D. (2018). Deep learning for
classical japanese literature. CoRR, abs/1812.01718.
CLANUWAT, T., LAMB, A., and KITAMOTO, A. (2019).
Kuronet: Pre-modern japanese kuzushiji character
recognition with deep learning. In 2019 International
Conference on Document Analysis and Recognition
(ICDAR), pages 607–614. (in English).
Ha, J., Haralick, R., and Phillips, I. (1995). Document
page decomposition by the bounding-box project. In
Proceedings of 3rd International Conference on Doc-
ument Analysis and Recognition, volume 2, pages
1119–1122 vol.2.
Iakubovskii, P. (2019). Segmentation models pytorch. https:
//github.com/qubvel/segmentation models.pytorch.
INUZUKA, N. and SUZUKI, T. (2020). Text line segmen-
tation for japanese historical document images using
deep learning and data synthesis. SIG Technical Re-
ports (CH), 2020-CH-122(4):1–6.
Inuzuka, N. and Suzuki, T. (2021). Experimental appli-
cation of a japanese historical document image syn-
thesis method to text line segmentation. In Proceed-
ings of the 10th International Conference on Pattern
Recognition Applications and Methods - Volume 1:
ICPRAM,, pages 628–634. INSTICC, SciTePress.
Reizei, T. (1994). Tales of Ise (photocopy). Kasama Shoin.
Rekihaku, National Museum of Japanese History, Earth-
quake Research institute, the University of Tokyo,
and Research Group for Historical Earthquakes,
Kyoto University. MINNA DE HONKOKU.
https://honkoku.org/index
en.html. Accessed: 2023-
11-05.
ICPRAM 2024 - 13th International Conference on Pattern Recognition Applications and Methods
832
