Model-Driven Methodology for Developing Chatbots Based on

Microservice Architecture

Adel Vahdati

and Raman Ramsin

Department of Computer Engineering, Sharif University of Technology, Azadi Avenue, Tehran, Iran

Keywords: Chatbot, Model-Driven Methodology, Natural Language Processing, Microservice Architecture.

Abstract: With recent advancements in natural language processing algorithms and the emergence of natural language

understanding services, chatbots have become a popular conversational user interface integrated into social

networks and messaging services, providing businesses with new ways to engage with customers. Various

tools and frameworks have been developed to create chatbots and integrate them with artificial intelligence

services and different communication channels. However, developing chatbots is complex and requires

expertise in various fields. Studies have shown that model-driven engineering can help overcome certain

challenges of chatbot development. We propose a model-driven methodology that systematically manages

the creation of an intelligent conversational agent. The methodology uses metamodels at different abstraction

levels that enable the description of the problem domain and solution space. By providing a high-level

structure based on microservice architecture, it improves maintainability, flexibility, scalability, and

interoperability. A criteria-based analysis method has been used to evaluate the proposed methodology.

1 INTRODUCTION

Software systems are now utilizing a novel type of

interface beyond the traditional GUI. Conversational

agents, intelligent assistants, and conversational user

interfaces (CUI) are gaining in popularity (Planas et

al., 2021). Moreover, conversational agents are

already supporting software development activities

such as automation of deployment tasks, assigning

errors and issues to team members, and task

scheduling (Perez-Soler et al., 2020). Their

integration into social networks as communication

channels has facilitated stakeholder participation in

task automation and collaborative modeling (Perez-

Soler et al., 2019; Perez-Soler et al., 2020).

In conversational agents, user interaction is

carried out by sending text, voice messages, or by

using interactive images (as in Gesture Bots). In all

cases, the agent has a mechanism for dialogue, and

the only difference is in the interface/medium through

which this dialogue takes place (Planas et al., 2021).

A chatbot simulates human conversation through

two-way communication using natural language. A

https://orcid.org/0009-0006-4571-8130

https://orcid.org/0000-0003-1996-9906

chatbot platform must offer these features to provide

a useful conversation (Matic et al., 2021):

 Natural language processing (NLP) and natural

language understanding (NLU): understanding

user input and extracting relevant information.

 Conversation flow management

 Performing necessary actions: such as

searching a database or calling other services.

Various tools and frameworks have been

provided by leading companies such as Google

(Dialogflow), Microsoft (Microsoft Bot Framework),

Amazon (Amazon Lex), and IBM (Watson) to create

conversational agents (Perez-Soler et al., 2021).

These tools provide a framework, cloud environment,

and GUI to define the conversation flow. Existing

frameworks use machine learning (ML) algorithms to

identify the user's intention based on the message sent

by the user; for example, Amazon provides services

such as Lex, Comprehend and Polly that can help

create intelligent assistants (Mahmood et al., 2020).

In model-driven development (MDD), a system is

modeled at different levels of abstraction. Model

transformations are used for refining high-level

abstract models into lower-level models, or code

Vahdati, A. and Ramsin, R.

Model-Driven Methodology for Developing Chatbots Based on Microservice Architecture.

DOI: 10.5220/0012433700003645

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 12th International Conference on Model-Based Software and Systems Engineering (MODELSWARD 2024), pages 247-254

ISBN: 978-989-758-682-8; ISSN: 2184-4348

247

(Rodrigues da Silva, 2015; Alam et al., 2018). In

chatbot development, MDD can help reduce

accidental complexity (Alam et al., 2018), leading to

higher productivity, performance and reusability

(Martínez-Gárate et al., 2023).

We propose a model-driven methodology that

guides the process of creating a chatbot. This

methodology encompasses four phases: analysis,

design, implementation, and test; sets of activities and

products have been specified for each phase, and

metamodels have been defined at different levels of

abstraction to describe the problem/solution domains.

In the analysis phase, we provide a metamodel

called CRAC (short for Concept, Responsibilities,

Asynchronous Collaboration) for problem domain

analysis and requirements elicitation. We also

provide a metamodel called Intent to describe the user

goals and how they are expressed in natural language.

In the design phase, we propose a microservice

architecture that helps improve maintainability,

scalability and interoperability. By using various

design patterns, we address the issue of dependency

on NLU services or communication platforms. For

recognizing user intent, we provide a metamodel

called Prompt, which helps describe the prompts used

for interaction with AI services such as ChatGPT;

training phrases are automatically extracted and their

key parameters are tagged by calling ChatGPT

services based on Prompt models. In addition, we

facilitate the description of conversation flow by

providing a metamodel called Dialog.

In the implementation phase, models are

generated based on platform-specific communication

channels and NLU services. Since our proposed

methodology is not dependent on any specific

platform or service provider, these models and model

transformations are introduced in a generic way, and

their details are not provided at this stage; in future,

we plan to define specific metamodels for common

communication platforms and NLU services.

In the test phase, we have defined specific quality

attributes along with a set of evaluation criteria and

metrics. A criteria-based method is used to evaluate

our proposed methodology based on generic software

development criteria, as well as specific criteria

related to MDD and chatbot development.

This paper is structured as follows: Section 2

provides a review of the research background; the

challenges of chatbot development are discussed in

Section 3; in Section 4, the proposed methodology

and architecture are introduced; the proposed

methodology is evaluated in Section 5; and in Section

6, the conclusions and the directions for future work

are presented.

2 RELATED WORKS

Various frameworks have been proposed that

facilitate the creation and deployment of chatbots.

Xatkit (Daniel et al., 2020) is a chatbot development

framework that uses MDD and domain-specific

languages (DSL) to specify the chatbot's behavior

independently of the platform. The designer defines

the user's intentions and behavior by binding them to

actions and responses, and the runtime engine

deploys the chatbot, registers intents, establishes

connections, and launches external services.

CONGA (Perez-Soler et al., 2021) is a web-based

development environment that uses a DSL to model

conversational agents. The specifications are

analyzed and compiled into tools like Rasa or

Dialogflow, and a recommendation component

suggests the best tool for creating a chatbot.

Mahmood et al. (Mahmood et al., 2020) create a

dynamic user interface by utilizing the features of

microservice architecture and flexibility of natural

languages. User intentions are identified based on

requirements; utterances are then mapped to these

intents. Open API specifications are used to create

service models and orchestrate microservices based

on their capabilities and availability.

Matic et al. (Matic et al., 2021) propose an

architecture that allows the use of different NLU

services without dependency on any specific

provider. They provide a general metamodel for NLU

services and two specific metamodels for Dialogflow

and Rasa NLU services, along with mapping rules to

automatically create the required objects/information.

Perez-Soler et al. (Perez-Soler et al., 2019)

present a solution that automates the creation of a

conversational agent that can model by using natural

language. Users can express their ideas in an

incomplete and inaccurate way, and the framework

will store and refine the model.

Ed-douibi et al. (Ed-douibi et al., 2021) propose

an approach that uses a chatbot as an interface for

querying Open Data resources. Users can ask

questions in natural language and the chatbot converts

them into API requests. The API model is generated

and annotated to provide domain-specific

information for configuring the chatbot and querying

Web APIs. Xatkit is used for generating the chatbot.

Perez-Soler et al. (Perez-Soler et al., 2020)

present the use of a chatbot as an interface for

querying domain-specific models using natural

language, suitable for non-technical users. The

chatbot model is automatically generated based on the

domain metamodel, and is implemented using Xatkit.

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

248

3 CHALLENGES OF CHATBOT

DEVELOPMENT

An important challenge in chatbot development is

that some of the vital components and services

needed during design/runtime are proprietary, which

creates dependency on service providers (Perez-Soler

et al., 2021). Ensuring compatibility between

platforms and different tool providers is also a critical

challenge (Martínez-Gárate et al., 2023).

It seems that MDD can facilitate the process of

describing various types of UIs as well as developing

a rich UI (Planas et al., 2021). In this approach,

different metamodels are defined for new platforms.

However, metamodeling and language engineering

are complex processes. In addition, we need

techniques for analyzing model quality, as well as

tools that reflect changes in requirements to the

models (Martínez-Gárate et al., 2023).

Current MDD methodologies lack sufficient

focus on requirements engineering (Martínez-Gárate

et al., 2023). In addition, we need to employ design

patterns and quality metrics for the proposed

solutions to create chatbots based on the MDD

approach (Martínez-Gárate et al., 2023). Chatbots

needs to be maintained and synchronized with

changing requirements; hence, methods are needed

for enhancing maintainability, adaptability, and

scalability (Martínez-Gárate et al., 2023). Table 1

shows some of the questions that need to be answered

when developing chatbots (Perez-Soler et al., 2021;

Matic et al., 2021; Martínez-Gárate et al., 2023).

Table 1: Questions to consider in chatbot development.

# Question

1 How to find the most suitable tool for creating a

chatbot based on its re

uirements?

2 How to design a chatbot independent of the

develo

ment tool and

latform?

3 How to analyse and evaluate a chatbot before

implementation?

4 How to keep up with the rapid growth of the

ecos

stem and tools for develo

chatbots?

5 How to support the migration process of chatbots to

a new tool or

latform?

6 How to integrate a chatbot with new NLU services

rovided by different vendors?

7 How to integrate chatbots with new communication

channels

rovided by different vendors?

8 How to solve the coupling between a chatbot and a

ecific intent reco

nition service?

9 How to obtain training phrases for ML algorithms

to recognize user intents?

4 PROPOSED CHATBOT

DEVELOPMENT

METHODOLOGY

In this section, we introduce our proposed model-

driven methodology for developing chatbots. In this

methodology, models are described at different

abstraction levels. Model-to-model transformations

are used for producing lower-level models from

higher-level ones. Model-to-text transformations are

ultimately used for generating the solution code based

on the desired architecture and design patterns. The

methodology consists of four phases: analysis,

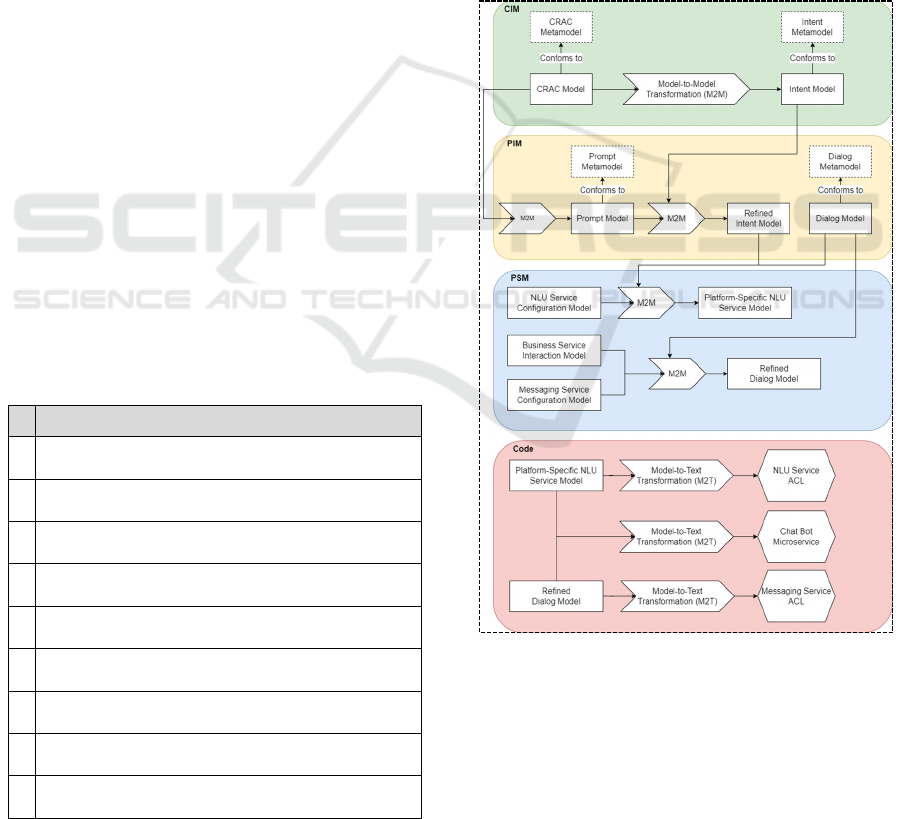

design, implementation and test. Figure 1 provides an

overview of the methodology and the modeling

performed at different levels of abstraction.

Figure 1: Proposed MDD methodology.

4.1 Analysis Phase

The aim of the analysis phase is to explore the

problem domain and understand user goals by natural

language conversation. Models are described at the

highest level of abstraction, i.e., computation-

independent model (CIM). The problem domain and

Model-Driven Methodology for Developing Chatbots Based on Microservice Architecture

249

requirements are first analyzed, and a requirements

model is produced. Then, based on this model and by

using model transformations, user goals are extracted,

and the intent model is generated.

We have proposed the CRAC method (Concept,

Responsibilities, Asynchronous Collaboration) for

analyzing the problem domain and extracting the

requirements. In this method, domain concepts are

first modeled as instances of the DomainConcept

class. High-level system functions that change the

system state from one valid state to another are

modeled as Commands. The execution of these

commands results in a change to the system state,

which is expressed as an Event. Moreover, high-level

functions that involve reading and querying data are

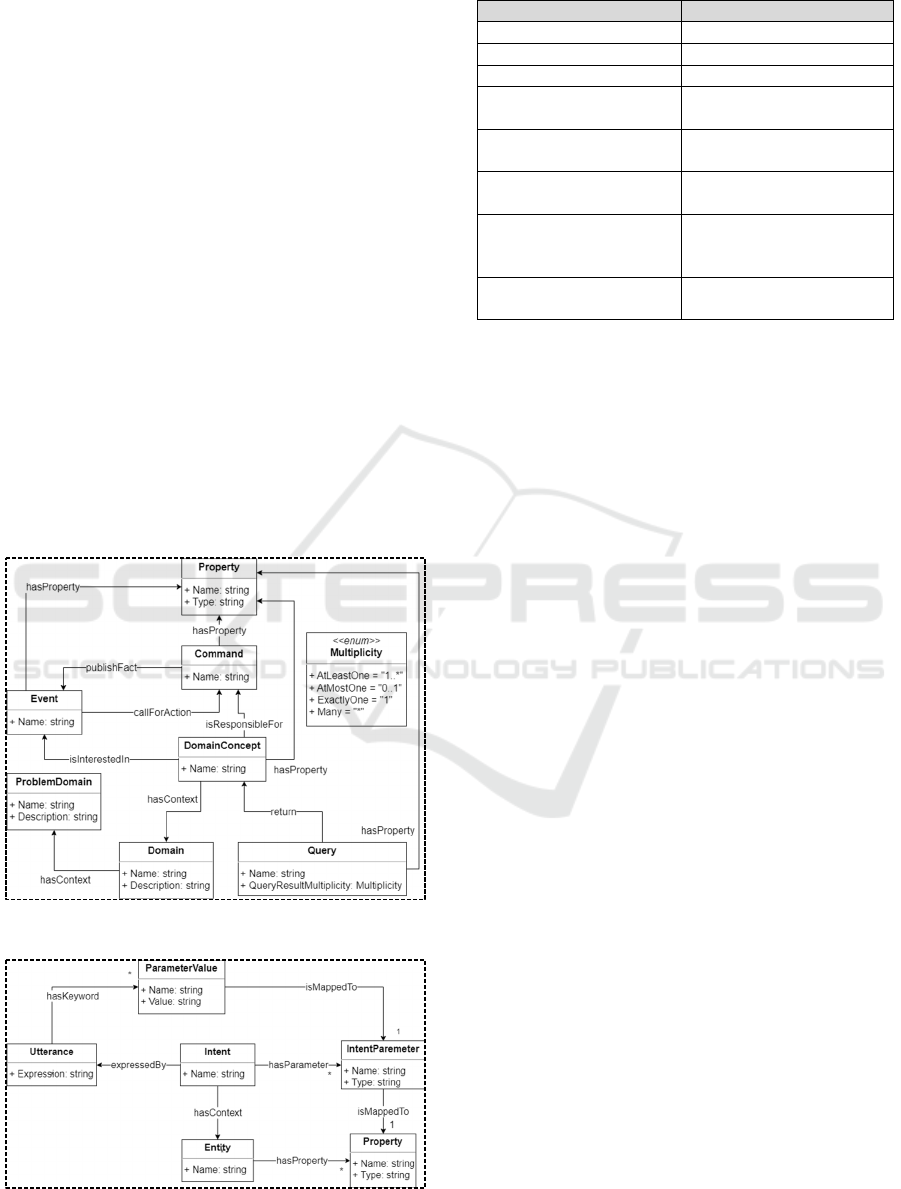

modeled as Queries. Figure 2 shows the metamodel

proposed for describing the problem domain using the

CRAC method. We have also presented a metamodel

(shown in Figure 3) for describing user intents that

are expressed through natural language conversation

with a chatbot. In the proposed method, intent models

are automatically generated from the requirements

model using model-to-model transformations. Table

2 shows how the elements of the CRAC metamodel

correspond to the elements of the Intent metamodel.

Figure 2: CRAC metamodel.

Figure 3: Intent metamodel.

Table 2: Mapping between CRAC and Intent elements.

CRAC metamodel Intent metamodel

DomainConce

t Entit

Comman

Intent

Query Intent

DomainConcept 

Pro

ert

: hasPro

ert

Entity  Property :

hasPro

ert

Command  Property :

hasProperty

Intent  IntentParameter :

hasParamete

Query  Property :

hasProperty

Intent  IntentParameter :

hasParamete

DomainConcept 

Command :

isResponsibleFo

Intent  Entity :

hasContext

Query  DomainConcept

: return

Intent  Entity :

hasContext

4.2 Design Phase

The goal of this phase is to design the architecture of

the chatbot and its interaction with the services

required. The platform-independent models (PIM)

produced in this phase are independent of the

platform and service providers. The activities of this

phase are: preparing an intelligent service for eliciting

user intents, designing the conversation flow between

the chatbot and the user, and providing an architecture

to satisfy functional/non-functional requirements.

The first activity in this phase is detecting the

users' intents and extracting the information

necessary to fulfil the users' requests. The common

approach is to use an AI model and an ML algorithm

and train it by defining a set of phrases for each user

intent, identifying the key parameters of that phrase,

and mapping it to generic or custom entities. In

general, the necessary tasks include: 1) finding

phrases that are commonly used by users to convey

each intent identified in the previous stage, 2)

parameterizing these phrases and identifying entities

and their properties (parameters) and mapping them

to the parameters that are necessary to fulfil the user's

request, 3) refining the user's intent model based on

information obtained in the previous two steps, and 4)

training the AI service to recognize user intent.

The knowledge required to perform tasks 1 and 2

is tacit in nature. Our proposed solution is to first

model this tacit knowledge and then convert it to

explicit knowledge using ChatGPT. For example, a

sample of this prompt template can be raised: “Give

me 5 training phrases about this intent: {intent}”.

This template can be refined as follows: “Give me

{number} training phrases about {intent}. I need

{intent parameters} to fulfil the request”. ChatGPT

can be asked to return its response in a specific

format, which facilitates information extraction.

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

250

ChatGPT can also be used to specify the parameters

desired in training phrases. Table 3 shows a prompt

template, instructing the response format of

ChatGPT. With the help of MDD techniques, these

questions can be described as a prompt model by

using a DSL, and then converted automatically to text

by using model-to-text transformations. This text can

be wrapped as an HTTP request and posted to the

relevant API. We have proposed a metamodel to

describe these questions, as shown in Figure 4. Figure

5 shows the details of this approach and how to

generate questions and interact with ChatGPT.

The second activity in the design phase is

identifying the two-way conversation flow between

the chatbot and the user. For each intent in the intent

model, we need to describe the conversation flow

between the chatbot and the user and the necessary

actions that should be taken to fulfil the user's request.

We have proposed a metamodel for describing the

dialogue flow, as shown in Figure 6 .

Table 3: An example of tagged training phrases.

Tem

late

Give me {number} training phrases about {intent}. I

need {intent parameters} to fulfil the request in my app.

{

the format of res

onse

}

Prom

Give me 5 training phrases about "BookHotel". I need

StartDate, EndDate, HotelId to fulfil request in my app.

Tag each training phrases with a parameter I mentioned.

Put the ta

s inside s

uare brackets.

Answer

1) I want to book a hotel from [StartDate] to [EndDate]

at [HotelId]. 2) Can you help me reserve a room at

[HotelId] from [StartDate] to [EndDate]? 3) I need to

book a hotel stay from [StartDate] to [EndDate]. The

hotel I want to stay at is [HotelId]. 4) Book me a room at

[HotelId] for the dates between [StartDate] and

[EndDate]. 5) I would like to reserve a room at [HotelId]

from [StartDate] to [EndDate].

The third activity in the design phase is providing

an architecture for the chatbot. Our proposed solution

for intelligent chatbot conversations is based on the

microservice architecture, as shown in Figure 7.

Various patterns have been used in this architecture.

One of these patterns is the Anti-Corruption Layer

(ACL) pattern, which acts as a layer between two

subsystems (Richardson, 2018). A chatbot requires

AI services to understand natural language and detect

user intent. It also needs integration with messaging

channels. We have used ACLs as separate technical

microservices. For each provider of NLU services or

messaging channels, we use a microservice for

isolating the external service provider.

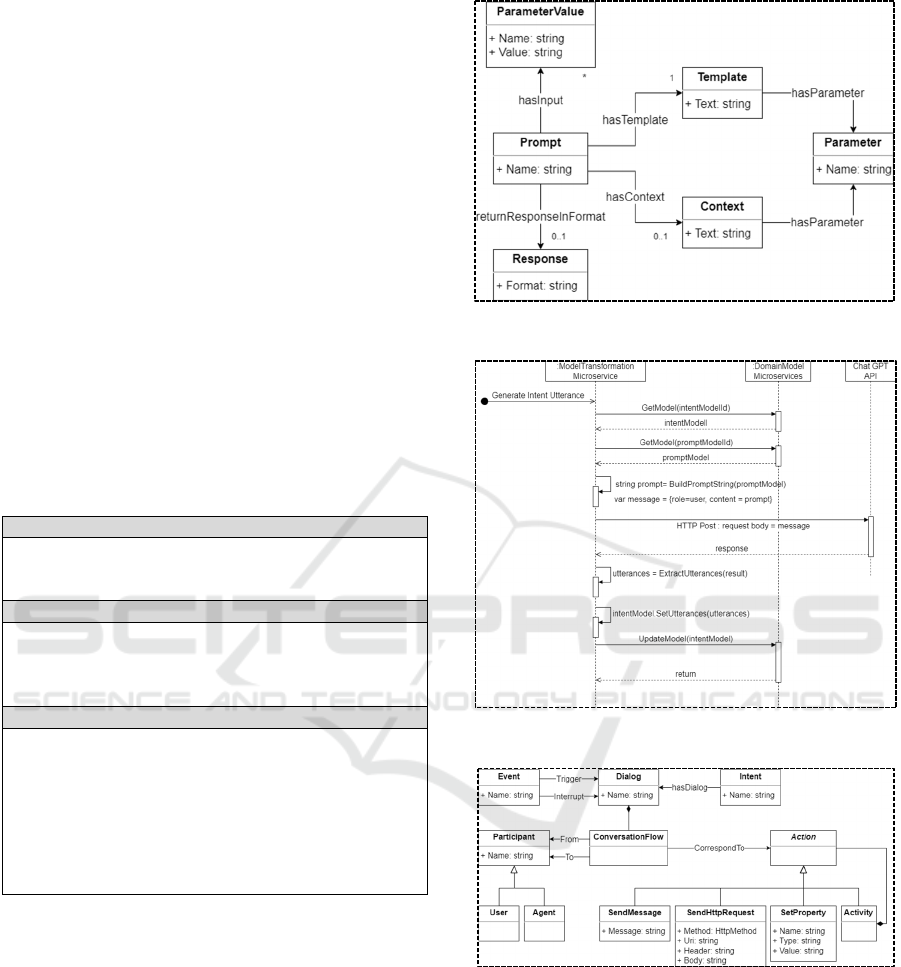

Figure 4: Prompt metamodel.

Figure 5: Using ChatGPT to extract utterances.

Figure 6: Dialog metamodel.

For each provider of NLU services or messaging

channels, the development team can choose the

appropriate technology stack and language for

implementing the ACL microservices, which can be

managed and deployed independently. Changes to the

APIs provided by these services will not affect other

parts of the system. Thus, migration and updates can

be managed without affecting other parts. Since this

microservice serves as a layer between the chatbot

microservice and the NLU service or messaging

Model-Driven Methodology for Developing Chatbots Based on Microservice Architecture

251

channel, it is possible to switch from one service

provider to another without the chatbot microservice

being aware of it. The API Gateway pattern, along

with NLU and messaging services' ACL

microservices, can help us achieve this goal. The API

Gateway provides access to internal microservices.

One of the main functions of the API Gateway is to

direct requests to the relevant microservice, or to

compose microservices (Richardson, 2018).

Therefore, switching between NLU services and

messaging platforms using the functions provided by

the API Gateway is possible, and this change will not

propagate to the chatbot microservice. Authorization

can also be delegated to this layer. Implementing

ACL as a microservice allows for horizontal

scalability (scaling-out) based on workload, and the

API Gateway can act as a Load Balancer.

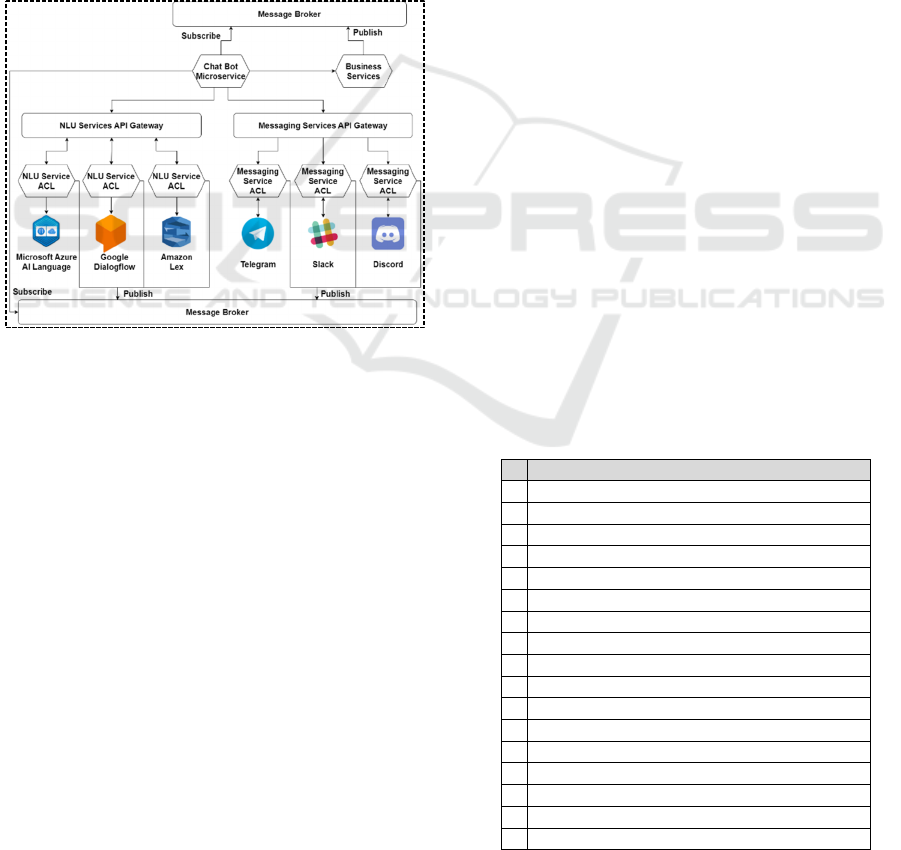

Figure 7: Proposed microservice architecture.

4.3 Implementation Phase

In this phase, platform-specific models (PSM) are

created. By combining the information of the NLU

Service Configuration Model at the PSM level and

the Refined Intent Model and Dialog Model at the

PIM level, the Platform-specific NLU Service Model

is generated by using model-to-model transformation.

Furthermore, the Dialog Model and the model of how

the chatbot interacts with business services (Business

Service Interaction Model), are combined with the

configuration model of the messaging platform

services to generate the Refined Dialog Model.

At the code level, model-to-text transformations

are used to generate the NLU Service ACL

microservice from the Platform-specific NLU Service

Model. This microservice enhances the chatbot's

ability to understand user intent through interaction

with NLU services. Also, the Messaging Service ACL

microservice is generated by using information from

the Refined Dialog Model. By combining the

Platform-specific NLU Service Model and the Refined

Dialog Model, the Chatbot microservice is generated.

4.4 Test Phase

The aim of this phase is to perform verification and

validation on the chatbot. We have identified the

following set of criteria that can serve as a basis for

verification and validation: functional effectiveness

(interpretation accuracy, text synthesis performance,

requested task execution, goal achievement, and

linguistic accuracy), efficiency (resource utilization,

cost effectiveness, and effective service allocation),

robustness (unexpected input handling, graceful

degradation, and user error protection), usability (user

satisfaction and ease of use), and security

(confidentiality, integrity, safety, privacy,

authentication, and authorization) (Radziwill &

Benton, 2017; Motger et al., 2021). There are various

evaluation methods, some automated and some based

on human evaluation. Automated methods are faster

and less expensive, but they are not as accurate as

human judgment (Deriu et al., 2021; Finch & Choi,

2020). Precision, Recall, BLEU, ROUGE, Response

Diversity, and Context Coherence are examples of

automated evaluation methods (Maroengsit et al.,

2019; Finch & Choi, 2020). Human evaluation

methods include Lab Experiments, In-field

Experiments, Crowdsourcing, Expert Appraisal, In-

app Feedback Questions, and Goal/Task

Achievement (Maroengsit et al., 2019; Deriu et al.,

2021; Motger et al., 2021). We have compiled a

checklist, shown in Table 4, for human evaluation of

chatbots (Finch & Choi, 2020; Liang & Li, 2021).

Table 4: Checklist for human evaluation.

# Item

1Res

onse is understandable

2Res

onse is fluent

3Res

onse is natural

4 Response is grammatically correct

5 Response is relevant to the conversation

6 Response is relevant to the input

7Res

onse is lo

icall

riate

8Res

onse is consistent, free of semantic erro

9Res

onse is coherent with context

10 Response

rovides guidance on utterances

11 Response is informative

12 Res

onse

rovides new information

13 Res

onse is context-s

ecific

14 Res

onse is made from diverse words

15 Response is engaging to use

16 Response fulfils objectives of conversation

17 Response indicates understating of user intent

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

252

5 EVALUATION

We have used a criteria-based method to evaluate the

proposed methodology. In this section, we will

introduce the three categories of evaluation criteria;

Evaluation results are shown at the end of the section.

Evaluation criteria belong to three categories:

related to the generic software development lifecycle

(SDLC-related), MDD-related, and chatbot-related.

The generic SDLC criteria include: degree of coverage

of the generic lifecycle and umbrella activities; degree

of support for problem domain analysis, reusability,

and adaptability; completeness of methodology

definition; and the type of the methodology. MDD-

related criteria include: degree of support for modeling

at different levels of abstraction (CIM, PIM, PSM, and

Code), model-to-model and model-to-text

transformations, metadata management, verification

and validation, automatic testing, traceability between

models, and provision of tools (Asadi & Ramsin, 2008;

Ramsin & Paige, 2010). Chatbot-related criteria

include: chatbot input/output type (text/speech/voice);

domain (open/closed); approach (pattern

matching/rule-based/AI-based); knowledge data

structures (structured/semi-structured/unstructured);

degree of support for domain knowledge modeling,

intent modeling, conversation flow modeling, training

phrase elicitation, and training phrase annotation;

degree of dependency on specific NLU service

providers and messaging channels; and degree of

support for architectural design, quality attributes, and

conversational aspects (Singh & Beniwal, 2022;

Motger et al., 2021; Liang & Li, 2021).

The results of evaluation of the proposed

methodology based on the three categories of criteria

are presented in Tables 5, 6 and 7, respectively.

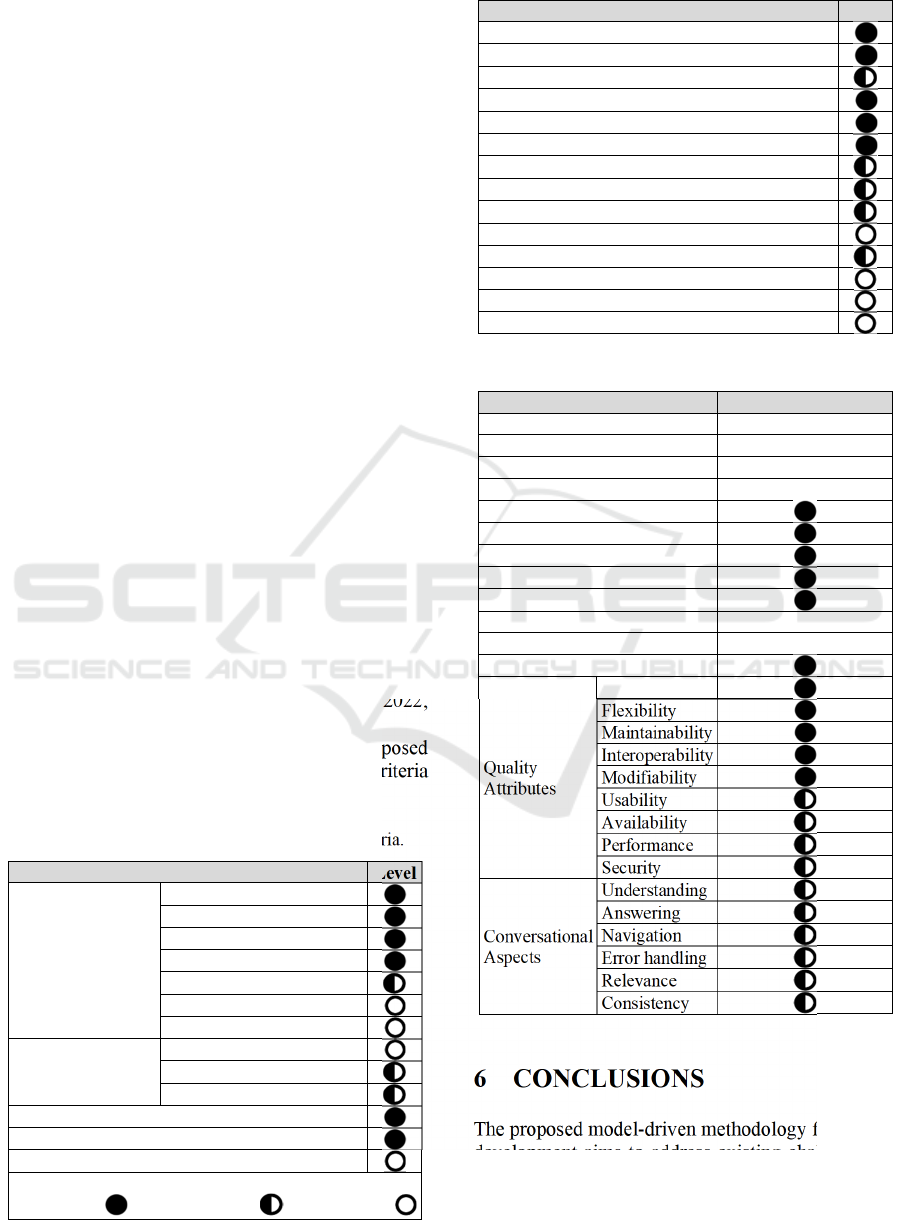

Table 5: Evaluation based on generic SDLC criteria.

Criteria Level

Coverage of

Generic Lifecycle

Requirements Engineering

Analysis

Design

Implementation

Test

Deployment

Maintenance

Coverage of

Umbrella Activities

Project Management

Quality Assurance

Risk Management

Problem Domain Analysis

Reusability

Adaptabilit

Legend:

Full support ; Partial support ; No Support

Table 6: Evaluation based on MDD-related criteria.

Criteria Level

CIM Creation

PIM Creation

PSM Creation

CIM to CIM Model Transformation

CIM to PIM Model Transformation

PIM to PIM Model Transformation

PIM to PSM Model Transformation

PSM to PSM Model Transformation

PSM to Code Model Transformation

Metadata Management

Verification & Validation

Automatic Test

Traceability between Models

Tool Support

Table 7: Evaluation based on chatbot-related criteria.

Criteria Level

Chatbot Input / Output Text

Domain Close

-domain

Approaches AI-

ase

Knowled

e Data Structures

(

Semi

)

Structure

Domain Knowledge Modeling

User Intent Modeling

Conversation Flow Modeling

Training Phrase Elicitation

Training Phrase Annotation

NLU Service Providers Vendo

-inde

endent

Communication Channels Vendo

-inde

endent

Architectural Design

Quality

Attributes

Scalabilit

Flexibilit

Maintainabilit

Interoperabilit

Modifiabilit

Usability

Availability

Performance

Security

Conversational

Aspects

Understanding

Answering

Navigation

Error handling

Relevance

Consistency

6 CONCLUSIONS

The proposed model-driven methodology for chatbot

development aims to address existing challenges by

improving productivity, reusability, scalability,

maintainability, and interoperability. By employing

Model-Driven Methodology for Developing Chatbots Based on Microservice Architecture

253

an MDD approach, code can be automatically

generated from models, increasing productivity. The

platform-independent definition of chatbot-related

artifacts also enhances their reusability. Additionally,

the methodology introduces a new approach to

obtaining data for training NLU services and utilizes

microservice architecture and architectural design

patterns to improve scalability, maintainability, and

interoperability. We plan to further this research by

providing tool support for the methodology and

defining metamodels for common communication

platforms and NLU services.

REFERENCES

Alam, O., Corley, J., Masson, C., & Syriani, E. (2018).

Challenges for reuse in collaborative modeling

environments. MODELS Workshops, 277–283.

Asadi, M., & Ramsin, R. (2008). MDA-Based

Methodologies: An Analytical Survey. In Model Driven

Architecture – Foundations and Applications (Vol.

5095, pp. 419–431). Springer Berlin Heidelberg.

https://doi.org/10.1007/978-3-540-69100-6_30

Daniel, G., Cabot, J., Deruelle, L., & Derras, M. (2020).

Xatkit: A Multimodal Low-Code Chatbot Development

Framework. IEEE Access, 8, 15332–15346.

https://doi.org/10.1109/ACCESS.2020.2966919

Deriu, J., Rodrigo, A., Otegi, A., Echegoyen, G., Rosset, S.,

Agirre, E., & Cieliebak, M. (2021). Survey on

evaluation methods for dialogue systems. Artificial

Intelligence Review, 54(1), 755–810.

https://doi.org/10.1007/s10462-020-09866-x

Ed-douibi, H., Cánovas Izquierdo, J. L., Daniel, G., &

Cabot, J. (2021). A Model-Based Chatbot Generation

Approach to Converse with Open Data Sources. In Web

Engineering (Vol. 12706, pp. 440–455).

https://doi.org/10.1007/978-3-030-74296-6_33

Finch, S. E., & Choi, J. D. (2020). Towards Unified

Dialogue System Evaluation: A Comprehensive

Analysis of Current Evaluation Protocols. Proceedings

of the 21st Annual Meeting of the Special Interest

Group on Discourse and Dialogue, 236–245.

Liang, H., & Li, H. (2021). Towards Standard Criteria for

human evaluation of Chatbots: A Survey. ArXiv

Preprint. http://arxiv.org/abs/2105.11197

Mahmood, R., Joshi, A., Lele, A., & Pennington, J. (2020).

Dynamic Natural Language User Interfaces Using

Microservices. HAI-GEN+ User2agent@ IUI.

https://ceur-ws.org/Vol-2848/user2agent-paper-1.pdf

Maroengsit, W., Piyakulpinyo, T., Phonyiam, K.,

Pongnumkul, S., Chaovalit, P., & Theeramunkong, T.

(2019). A Survey on Evaluation Methods for Chatbots.

Proceedings of the 7th International Conference on

Information and Education Technology, 111–119.

https://doi.org/10.1145/3323771.3323824

Martínez-Gárate, Á. A., Aguilar-Calderón, J. A., Tripp-

Barba, C., & Zaldívar-Colado, A. (2023). Model-

Driven Approaches for Conversational Agents

Development: A Systematic Mapping Study. IEEE

Access, 11, 73088–73103. https://doi.org/10.1109/

ACCESS.2023.3293849

Matic, R., Kabiljo, M., Zivkovic, M., & Cabarkapa, M.

(2021). Extensible Chatbot Architecture Using

Metamodels of Natural Language Understanding.

Electronics, 10(18), 2300. https://doi.org/10.

3390/electronics10182300

Motger, Q., Franch, X., & Marco, J. (2021). Conversational

Agents in Software Engineering: Survey, Taxonomy

and Challenges. ArXiv Preprint. http://arxiv.

org/abs/2106.10901

Perez-Soler, S., Guerra, E., & de Lara, J. (2019). Flexible

Modelling using Conversational Agents. 2019

ACM/IEEE 22nd International Conference on Model

Driven Engineering Languages and Systems

Companion (MODELS-C), 478–482. https://doi.

org/10.1109/MODELS-C.2019.00076

Perez-Soler, S., Daniel, G., Cabot, J., Guerra, E., & de Lara,

J. (2020). Towards Automating the Synthesis of

Chatbots for Conversational Model Query. In

Enterprise, Business-Process and Information Systems

Modeling (pp. 257–265). https://doi.org/10.1007/978-

3-030-49418-6_17

Perez-Soler, S., Guerra, E., & de Lara, J. (2021). Creating

and Migrating Chatbots with Conga. 2021 IEEE/ACM

43rd International Conference on Software

Engineering: Companion Proceedings (ICSE-

Companion), 37–40. https://doi.org/10.1109/ICSE-

Companion52605.2021.00030

Planas, E., Daniel, G., Brambilla, M., & Cabot, J. (2021).

Towards a model-driven approach for multiexperience

AI-based user interfaces. Software and Systems

Modeling, 20(4), 997–1009. https://doi.org/10.1007/

s10270-021-00904-y

Radziwill, N. M., & Benton, M. C. (2017). Evaluating

quality of chatbots and intelligent conversational

agents. ArXiv Preprint. http://arxiv.org/abs/1704.04579

Ramsin, R., & Paige, R. F. (2010). Iterative criteria-based

approach to engineering the requirements of software

development methodologies. IET Software, 4(2), 91–

104. https://doi.org/10.1049/iet-sen.2009.0032

Richardson, C. (2018). Microservices patterns : with

examples in Java. Simon and Schuster.

Rodrigues da Silva, A. (2015). Model-driven engineering:

A survey supported by the unified conceptual model.

Computer Languages, Systems & Structures, 43, 139–

155. https://doi.org/https://doi.org/10.1016/j.cl.2015.

06.001

Singh, S., & Beniwal, H. (2022). A survey on near-human

conversational agents. Journal of King Saud University

- Computer and Information Sciences, 34(10), 8852–

8866. https://doi.org/10.1016/j.jksuci.2021.10.013.

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

254
