Exploring Errors in Binary-Level CFG Recovery

Anjali Pare and Prasad A. Kulkarni

Electrical Engineering and Computer Science, University of Kansas, Lawrence, Kansas, U.S.A.

Keywords:

Reverse Engineering, Control-Flow Graphs, Disassembly.

Abstract:

The control-ﬂow graph (CFG) is a graphical representation of the program and holds information that is criti-

cal to the correct application of many other program analysis, performance optimization, and software security

algorithms. While CFG generation is an ordinary task for source level tools, like the compiler, the loss of high-

level program information makes accurate CFG recovery a challenging issue for binary-level software reverse

engineering (SRE) tools. Earlier research shows that while advanced SRE tools can precisely reconstruct most

of the CFG for the programs, important gaps and inaccuracies remain that may hamper critical tasks, from

vulnerability and malicious code detection to adequately securing software binaries.

In this work, we perform an in-depth analysis of control-ﬂow graphs generated by three popular reverse en-

gineering tools - angr, radare2 and Ghidra. We develop a unique methodology using manual analysis and

automated scripting to understand and categorize the CFG errors over a large benchmark set. Of the several

interesting observations revealed by this work, one that is particularly unexpected is that most errors in the

reconstructed CFGs appear to not be intrinsic limitations of the binary-level algorithms, as currently believed,

and may be simply eliminated by more robust implementations. We expect our work to lead to more accurate

CFG reconstruction in SRE tools and improved precision for other algorithms that employ CFGs.

1 INTRODUCTION

Software reverse engineering (SRE) is the process of

analyzing a software system to extract design and im-

plementation information, especially in cases when

the high-level source code is missing (Eilam, 2005).

SRE is a challenging task. The (forward) software en-

gineering process that translates a program written in

a high-level programming language to a binary exe-

cutable naturally loses important high-level program

information, including data types, function and code

layout, and control-ﬂow information. Furthermore,

developers may use code obfuscation, hand-written

assembly code, and other such techniques to inten-

tionally make it even harder to statically recover all

aspects of the original code syntax and semantic in-

formation (Collberg et al., 1997; Cozzi et al., 2018).

SRE involves several algorithms and heuristics

that attempt to recover different aspects of program

information from the input binary. Steps include, bi-

nary disassembly – translating binary code from ma-

chine code to assembly language, decompilation –

translating assembly/machine code to a higher-level

language representation, like C/C++, and binary anal-

ysis – recovering the control-ﬂow and data-ﬂow in-

formation of the binary executable. These steps are

supported by several ﬁner-level algorithms to perform

tasks, such as code discovery or code and data disam-

biguation, function entry/exit point recovery, function

signature recovery, indirect branch target resolution,

control-ﬂow graph generation, data type recovery, ar-

ray start and bound detection, etc.

Many steps in the SRE process are speculative

and imprecise (Wartell et al., 2011; Meng and Miller,

2016). Fortunately, it is now well-established that

code that is generated by standard compilers, and

without the complexities introduced by obfuscation

and hand-written assembly, has more predictable

properties and clearer patterns (Andriesse et al., 2016;

Hawkins et al., 2017). However, even in such simpler

cases, complications remain during the SRE process

that introduce errors in the program information that

is extracted by even the most sophisticated reverse en-

gineering tools (Pang et al., 2021; Andriesse et al.,

2016). Such errors can have an out-sized effect on the

accuracy of other security and performance transfor-

mations that use this information (Caballero and Lin,

2016; Vaidya et al., 2021; Burow et al., 2017).

Measuring the precision of the different stages of

the SRE process is important to not only understand

546

Pare, A. and Kulkarni, P.

Exploring Errors in Binary-Level CFG Recovery.

DOI: 10.5220/0012435400003648

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 10th International Conference on Information Systems Security and Privacy (ICISSP 2024), pages 546-557

ISBN: 978-989-758-683-5; ISSN: 2184-4356

and resolve their remaining challenges, but also to

more clearly present the capabilities of the modern

SRE tools to researchers and developers that may then

employ them to build more advanced algorithms to

improve the security and performance of binary pro-

grams. Consequently, researchers have built elabo-

rate frameworks to measure and quantify the accu-

racy of modern SRE tools for different binary analysis

tasks (Pang et al., 2021; Kline. and Kulkarni., 2023).

Unfortunately, while these assessment frame-

works and research works report the accuracy num-

bers of different SRE tasks and conduct light anal-

ysis of the results, they typically do not perform a

thorough study to deeply understand the issues that

cause the observed inaccuracies. Such a detailed

study will enable us to measure and categorize the

leading causes of the inaccuracy in different SRE pro-

cesses. We can then further study if and which cate-

gories of inaccuracies are intrinsic limitations of the

reversing process due to loss of program information,

or if they are shortcoming of the adopted algorithm or

implementation. Such detailed analysis will help the

SRE engineers resolve issues and improve their tools

or help researchers focus their efforts on developing

better algorithms for speciﬁc sub-problems.

An exhaustive study to understand errors in any

SRE process is often skipped because it may necessi-

tate a tedious manual study and reasoning over low-

level assembly/machine code. Our goal in this work is

to develop a systematic mechanism and conduct such

studies to examine and understand the sources of er-

rors in key SRE steps. In this current study, we focus

our efforts on investigating the causes of imprecision

in the important control-ﬂow graph (CFG) recovery

step during binary disassembly

For this work, we employ the open-source frame-

work built by Pang et al. (Pang et al., 2021) to obtain

the ground-truth information from the LLVM com-

piler, and their binary-level scripts to retrieve the CFG

from three popular SRE tools, Angr (Shoshitaishvili

et al., 2016), Ghidra (NSA, 2023) and Radare2 (Àl-

varez, 2023). We leverage this information and de-

velop our own systematic and iterative approach us-

ing both manual analysis and automated scripting to

uncover and categorize the key causes of imprecision

during the CFG recovery by the different SRE tools

compared to the ground truth. We limit the scope of

our current work to the study of true negative CFG

edges; in other works, we only attempt to understand

why certain CFG edges that are present in the ground

A CFG has a node for every basic block and an edge

for every possible control ﬂow transfer in the function.

CFGs are used in static analysis and compiler applications

because of their ability to represent the ﬂow of a program.

truth are excluded or missed in the CFGs generated

for binaries by the SRE tools.

Among the three SRE tools and benchmark sets

we employ for this work, we uncover 14 categorizes

of instruction and block patterns that account for most

of the true negative CFG edges. Surprisingly, we ﬁnd

that most causes of imprecise CFG generation by SRE

tools are not intrinsic limitations imposed by the bi-

nary format, but seem to be algorithmic errors that

could be ﬁxed by more robust tool implementation.

Researchers and tool engineers can use our results to

reduce the number of true negative CFG edges and

improve the precision of SRE tools.

We make the following contributions in this work.

1. We develop a novel semi-automatic method to

study and understand the causes of imprecision in

various stages of the SRE process.

2. We apply our methodology to study and under-

stand the causes of true negatives during binary-

level CFG recovery.

3. We categorize instruction and block patterns that

produce most true negative edges in the CFGs

generated by modern binary-level SRE tools.

4. We collect and analyze our data about the preci-

sion of CFG recovery by three modern SRE tools

collected over a large benchmark set with multiple

compilers, and report many interesting and some

counter-intuitive observations.

2 RELATED WORK

Several researchers have reported the causes of im-

precision during different steps of binary disassembly.

In this section we present related works and contrast

them with the work we do in this paper.

Binary disassembly is difﬁcult due to the chal-

lenges imposed by separating code from data,

padding bytes inserted by the compiler for perfor-

mance improvement, variable-sized instructions, in-

direct control transfer instructions, etc. In fact, it has

been shown that solving the disassembly problem is

equivalent to the Halting Problem and is therefore un-

solvable in general (Horspool and Marovac, 1980).

Meng and Miller found example code constructs in

standard libraries that were hard to analyze for many

disassemblers (Meng and Miller, 2016). Andriesse et

al. later showed that although such hard-to-analyze

code constructs are possible, they are not very com-

mon in most unobfuscated binaries that are compiled

by standard compilers (Andriesse et al., 2016).

Pang et al. studied the accuracy of different disas-

sembly stages in 9 open-source disassemblers (Pang

Exploring Errors in Binary-Level CFG Recovery

547

et al., 2021). They also developed an experimental

methodology and framework to conduct this study.

They explored the algorithms and heuristics used dur-

ing the disassembly process by each studied tool,

and identiﬁed some of their weaknesses and beneﬁts.

Since different SRE tools use distinct reversing al-

gorithms, their precision and effectiveness varies for

each task. Researchers have attempted to account for

this reality by developing a method to combine the

analysis results from multiple disassembler to achieve

a better overall result (Shaila et al., 2021).

In contrast, our goal in this work is to determine

and categorize the causes for imprecision in CFGs

reconstructed by popular open-source disassemblers.

We employ the framework built and open-sourced by

Pang et al. for this work (Pang et al., 2021).

3 METHODOLOGY

In this section, we discuss the experimental setup and

methodology used to study CFG reconstruction in re-

verse engineering tools, and analyze and compare the

performance of the tools.

Our unique methodology uses manual analysis

and automated scripting to understand and categorize

the CFG errors over a large benchmark set. We also

study the true positive, false positive and false nega-

tive edges of the CFGs to analyze the overall perfor-

mance of the tools. The main steps of our methodol-

ogy, including the tool analysis and CFG edge catego-

rization steps, are illustrated in Figure 1. We explain

our methodology below.

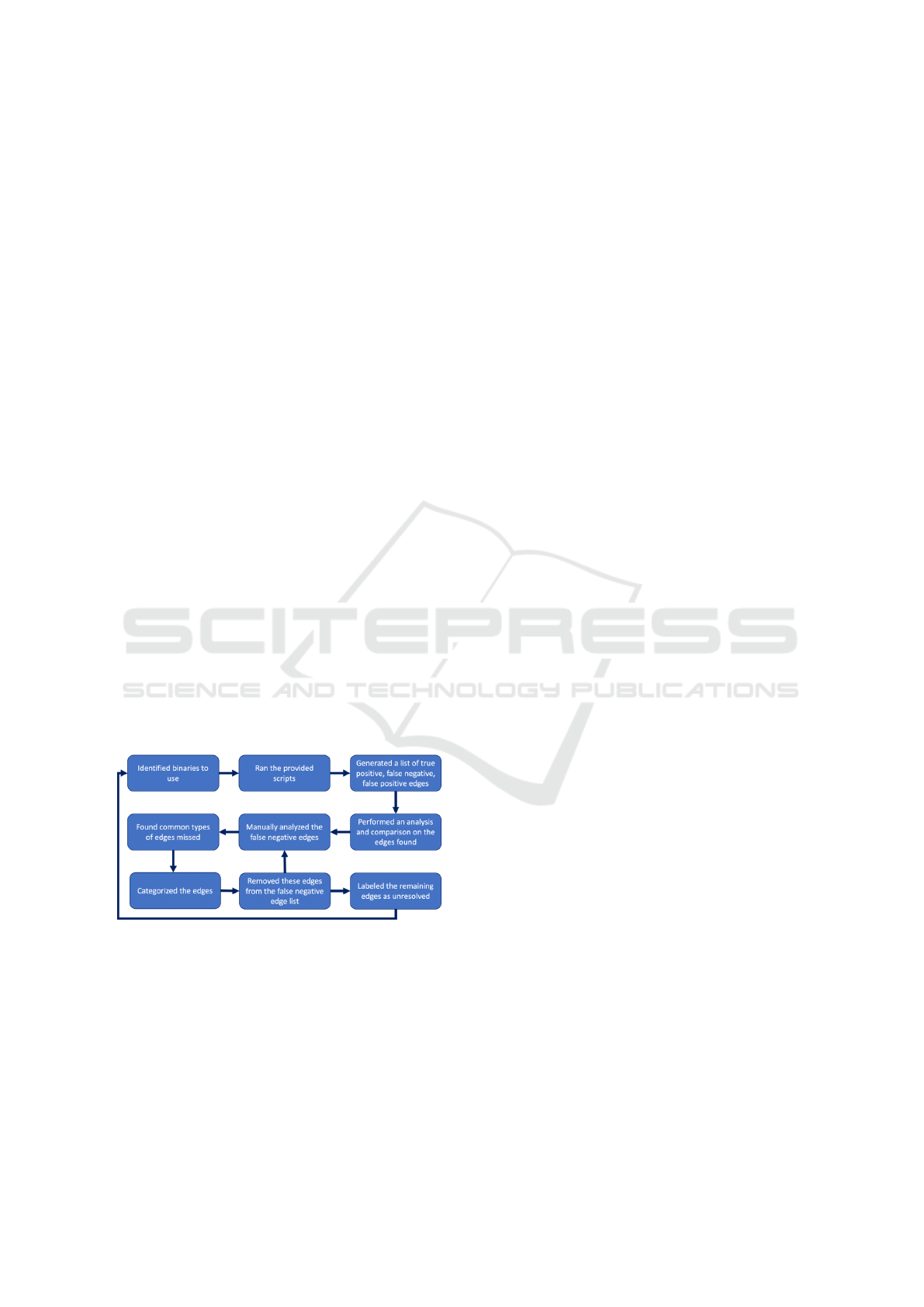

Figure 1: Methodology.

First, we determined the benchmarks and tools to

use for this work. We employ binaries from a sub-

set of the benchmarks provided by the earlier SoK

work(Pang et al., 2021). More speciﬁcally, we use

binaries from 5 categories of benchmarks: (a) 13 pro-

grams from the client set, (b) 104 programs from

coreutils (c) 3 programs from ﬁndutils, (d) 15 pro-

grams from binutils, and (e) 1 servers benchmark. All

binaries were built for the x64-Linux platform using

GCC and Clang compilers with optimization levels of

O0 and O3. We use these binaries to study the accu-

racy of control-ﬂow graphs generated by three popu-

lar binary analysis tools, angr (version 9.2.6), radare2

(version 5.7.9) and Ghidra (version 10.1.2).

We use the scripts and ground truth information

provided by the SoK work (Pang et al., 2021) to com-

pare the accuracy of the control-ﬂow graphs gener-

ated by each tool for our benchmark conﬁgurations.

For each case, we generate a list of true positive,

false positive and false negative edges in the respec-

tive CFG, compared to the ground truth. In this work

we focus on studying and categorizing only the true

CFG edges that are missed by the selected SRE tools.

These edges are called the false negative edges.

Next we employ manual analysis and automated

Ghidra scripting to further analyze and categorize the

false negative edges. We categorize the CFG edges

missed into 14 categories, as discussed in Section 4.

Additionally, we explore the following questions:

(1) What percentage of the CFG edges are correctly

found by the tools for all the benchmarks?

(2) What percentage of true positive edges are found

by all the tools combined for all the benchmarks?

(3) What fraction of edges are missed by each of the

tools as compared to the ground truth?

(4) What fraction of edges are missed by all the tools

combined?

(5) How do the categories of missed edges differ for

the different reverse engineering tools, compilers, op-

timization levels, and benchmarks?

(6) What are the most common categories of missed

edges for the different reverse engineering tools, com-

pilers, and optimization levels?

(7) How many additional edges (false positives) are

found?

(8) What fraction of false negative edges are missed

by pairs of tools?

(9) What fraction of common edges are found by pairs

of tools?

Finally, we determine a set of categories of false

negative edges that we believe are not caused by an

intrinsic algorithmic or analysis limitation, and hence

can be easily correctly by better software implemen-

tations. For our ﬁnal post-processing step, we remove

this set of spurious false negative edges from the list

of missed edges to compute the true accuracy of the

tools regarding precise CFG generation. This compar-

ison helps us study the beneﬁt of ﬁxing the spurious

false negative CFG edge categories to improve CFG

precision for algorithms that require CFGs.

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

548

4 CATEGORIES OF FALSE

NEGATIVE EDGES

We use our methodology described in the last section

to ﬁnd and analyze the most prevalent issues that re-

sult in false negative CFG edges for the three binary

analysis tools studied in this work. We use the ob-

servations from this analysis to categorize the false

negative CFG edges. We describe these causes and

categories of false negative CFG edges in this section.

Edges Across Functions. The binary analysis tools

sometimes miss correctly detecting edges that start at

a basic block in one function and end at a basic block

in another function. We discover these edges by ana-

lyzing the function entry points found by the respec-

tive tools. Figure 2 displays an example of this case

with an edge 0x404ba8 → 0x404bda that is missed.

void <VOID> <RETURN>

__res_context_send.cold.8

00404ba8 CALL <EXTERNAL>::abort

........

undefined AL:1 <RETURN>

_start

........

00404bda HLT

Figure 2: Edges missed across functions.

Loop Edges. Sometimes edges from a basic block

to itself are missed. Figure 4 displays an example of

this case with an edge 0x487858 → 0x487858.

LAB_00487858

00487858 ADD dnptrs,0x8

0048785c CMP qword ptr [dnptrs],0x0

00487860 JNZ LAB_00487858

Figure 3: Same edges missed.

Edges Across Jumps. Some edges from a basic

block that end in JMP instruction to the target basic

block are also missed. Figure 3 displays an example

of this case with an edge 0x415415 → 0x415503.

NOP Edges. Some edges from a basic block that

end in a NOP instruction to the following block are

LAB_00415415

........

00415433 JMP LAB_00415503

LAB_00415503

00415503 MOV dword ptr [RBP + local_2c],0x0

........

Figure 4: Jump edges missed.

missed. Figure 5 displays an example of this case with

an edge 0x4072ba → 0x4072bb that is missed.

LAB_004072ba

004072ba NOP

LAB_004072bb

004072bb MOV RAX,qword ptr [RBP + local_10]

........

Figure 5: Nop edges missed.

Conditional Edges. Sometimes the taken or the

fall-through edges from a block that ends in a con-

ditional jump (such as JZ) are missed. Figures 6 and

Figure 7 display examples of this case with the fall-

through edge 0x48159a → 0x48175b, or the taken

edge 0x48159a → 0x481760 missed, respectively.

0048159a MOV RAX,qword ptr [RBP + local_120]

........

00481759 JZ LAB_00481760

0048175b CALL <EXTERNAL>::__stack_chk_fail

Figure 6: Conditional edges missed 1.

Indirect Call Edges. Sometimes edges from a ba-

sic block that end in an indirect call to the fol-

lowing block miss detection by the tools. Figure

8 displays an example of this case with an edge

0x4324af → 0x4324cc that is missed.

Exploring Errors in Binary-Level CFG Recovery

549

0048159a MOV RAX,qword ptr [RBP + local_120]

........

00481759 JZ LAB_00481760

LAB_00481760

00481760 ADD RSP,0x110

........

Figure 7: Conditional edges missed 2.

004324af MOV RAX,qword ptr [RBP + local_10]

........

004324ca CALL RAX

LAB_004324cc

004324cc MOV RAX,qword ptr [RBP + local_10]

........

Figure 8: Indirect Call edges missed.

Across Block Edges. There are cases when the

SRE tools end basic blocks at non-terminator in-

structions (instructions like a JMP or a JNZ are

terminators). This situation happens for large

basic blocks. The ground truth (from LLVM)

does not perform the block split. For example,

the ground truth may have a single edge from

0x455c3d → 0x455f15. For large basic blocks, the

tools may split the basic blocks and ﬁnd mul-

tiple edges (for instance, 0x455c3d → 0x455d42,

0x455d42 → 0x455d8a, 0x455d8a → 0x455f15), but

not the edge in the ground truth. Then, the edge in

the ground truth shows up as a false negative (while

edges from the split basic blocks are detected as false

positives).

Undeﬁned Function Edges. There are some cases

where the tools are unable to determine the function

starting address, which leads to undeﬁned function

edges. In Ghidra’s decompiler window, these func-

tions are labeled as UndeﬁnedFunction. Figure 9 dis-

plays an example of this case with a false negative

edge 0x403658 → 0x40368a

void UndefinedFunction_00403656(void)

{

FUN_00402f20();

return;

}

Figure 9: Undeﬁned function edges missed.

MOV Edges. Some edges from a basic block

that end in a MOV or a MOVZX instruction to

the following block also go undetected. Figure

10 displays an example of this case with an edge

0x406269 → 0x40626d that is missed by some tools.

00406269 MOV RAX, qword ptr [RBP + local_18]

0040626d LEAVE

0040626e RET

Figure 10: Mov edges missed.

Call Edges. There are some cases where the tools

miss edges that start at a block that terminates

with a CALL instruction to a function and ends at

a block following the CALL instruction. Figure

11 displays an example of this case with an edge

0x44eccb → 0x44ece9 that is missed.

LAB_0044eccb

0044eccb MOV ESI,dword ptr [RBP + local_c]

........

0044ece4 CALL sshpkt_fatal

LAB_0044ece9

0044ece9 MOV EAX,0x0

Figure 11: Call edges missed.

Add Edges: These are missed edges from a basic

block that end in an ADD instruction to the following

block. Figure 12 displays an example of this case with

an edge 0x404657 → 0x40465f that is missed.

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

550

LAB_00404657

00404657 MOV tz, qword ptr [RSP + local_4b8]

0040465c ADD tz,R13

LAB_0040465f

0040465f MOV R13, qword ptr [RSP + local_4a8]

Figure 12: Add edges missed.

Code Mislabeled Data. There are some cases

where the SRE tools ﬁnd it difﬁcult to distinguish

the code and data sections of the code. This leads

to missed edges in these sections.

Add Jump Edges. Some CFG edges from a basic

block that end in an ADD instruction to the follow-

ing block that starts with a JMP instruction were also

missed. Figure 13 displays an example of this case

with an edge 0x459df4 → 0x459e06 that is missed

00459df4 LEA RAX,[switchD_00459e06::switchD_0046c4b0]

00459e03 ADD RDX, RAX

switchD_00459e06::switchD

00459e06 JMP RDX

Figure 13: Add Jump edges missed.

Unresolved Edges. There are a few false negative

CFG edges that we could not match with a common

pattern. We leave such edges as unresolved edges.

5 RESULTS

We study the true positive, false negative and false

positive edges of a control-ﬂow graphs to analyze the

performance of the tools in CFG generation. We re-

port our results and observations in this section.

5.1 True Positive Edges

Table 1 provides information about the percentage of

edges found by the tools for GCC and Clang with op-

timization levels of O0 and O3. As seen in the table,

all the tools are able to ﬁnd most of the edges in the

ground truth. It is observed that all the tools perform

the same or better in most cases when compiled with

GCC_O0 as opposed to GCC_O3. angr displays a

similar pattern for binaries compiled with Clang as

well. No such consistent pattern was observed with

radare2 or Ghidra for Clang. Next, angr and radare2

performed comparatively better than Ghidra for all the

benchmarks. In addition, performance of the tools

was better when compiled with GCC as compared to

Clang for optimization level O0.

Table 2 provides information about the percentage

of edges found by all the tools combined as compared

to the ground truth. Similar to the results seen in Table

1, performance of the tools was better when compiled

with GCC as compared to Clang for both optimization

levels, O0 and O3.

5.2 Edges Missed by the Tools

Table 3 provides information about the total num-

ber of edges missed individually and the common

edges missed by the tools as compared to the ground

truth. As seen in the table, when the total number of

edges missed across all the benchmarks is calculated,

angr has the least and Ghidra has the highest num-

ber of false negative edges. Furthermore, the num-

ber of edges missed when all three tools are used, is

signiﬁcantly lower compared to their individual per-

formance for all the benchmarks. In addition, when

the overall performance of the compilers is observed

across all the benchmarks and tools, we see that bina-

ries compiled with GCC generate a lesser number of

false negative edges as compared to those compiled

with Clang, which implies better performance. This

observation is similar to that seen in Table 2.

5.3 Types of Edges Missed by the Tools

As mentioned in section 4, we categorized the edges

missed into 14 types. For more efﬁcient analysis, we

combine the ADD, ADD JMP, and MOV edge cate-

gories into a Fall Through edge category.

As seen in Table 3, the number of edges missed by

the combination of all the tools is lower compared to

their individual performance. These edges are catego-

rized in Table 4. We ﬁnd that NOP, Undeﬁned Func-

tion and Call edges have the highest number of edges.

angr misses a higher number of NOP, Call and Code

Mislabeled Data edges. radare2 and Ghidra miss

NOP, Undeﬁned Function, and Call edges, most com-

monly. In addition, binaries compiled with GCC_O3

have the highest number of missed NOP edges fol-

lowed by Call and Undeﬁned function edges. A simi-

lar behavior was observed for binaries compiled with

Clang_O3. For binaries compiled with Clang_O0,

Jump, NOP and Undeﬁned Function edges were most

Exploring Errors in Binary-Level CFG Recovery

551

Table 1: Percentage of edges found by the tools for GCC_O0, GCC_O3, Clang_O0 and Clang_O3.

Files Tools GCC_O0 GCC_O3 Clang_O0 Clang_O3

Coreutils

angr 0.9983 0.9746 0.9971 0.9824

radare2 0.9805 0.9776 0.9688 0.9888

Ghidra 0.9660 0.9578 0.9200 0.8599

Findutils

angr 0.9994 0.9821 0.9974 0.9872

radare2 0.9974 0.9695 0.9786 0.9919

Ghidra 0.9757 0.9698 0.8661 0.9427

Binutils

angr 0.9936 0.9706 0.9642 0.9822

radare2 0.9463 0.9866 0.9779 0.9526

Ghidra 0.9336 0.9765 0.8433 0.9091

Clients

angr 0.9962 0.9758 0.9920 0.9826

radare2 0.9932 0.9871 0.9897 0.9925

Ghidra 0.9734 0.9684 0.9669 0.9767

Servers

angr - - 0.9941 0.9857

radare2 - - 0.9993 0.9957

Ghidra - - 0.9389 0.9684

Table 2: Percentage of combined edges found by the tools for GCC_O0, GCC_O3, Clang_O0 and Clang_O3.

Files GCC_O0 GCC_O3 Clang_O0 Clang_O3

Coreutils 0.95 0.92 0.89 0.84

Findutils 0.97 0.93 0.85 0.93

Binutils 0.90 0.94 0.82 0.88

Clients 0.97 0.96 0.96 0.96

Servers - - 0.94 0.96

commonly missed.

As seen in Table 4, there are some edges that are

categorized differently by different tools. For instance

Ghidra labels 26 edges as missed Across Block edges

for GCC_O3. However, these are categorized as Fall

through edges by angr and radare2. A similar case is

observed for Clang_O0. For Clang_O3, the 8 edges

found by Ghidra in the Across Block category are la-

beled as unresolved by angr and radare2. Another

such instance is the Undeﬁned Function and Code

Mislabeled as Data edges. angr labels most of these

edges as Code Mislabeled as Data whereas radare2

and Ghidra label them as Undeﬁned Function edges.

Table 5 and Table 6 provide information about

the types of false negative edges for different reverse

engineering tools, different compilers, different opti-

mization levels, and different types of benchmarks.

Based on the table, Undeﬁned Function, Code Misla-

beled as Data, Across Block, Conditional, and Jump

edge categories have the highest number of edges.

angr misses a higher number of Across Block,

Conditional, Jump, and Fall through edges. radare2

misses a higher number of Conditional, Undeﬁned

Function, Fall Through and Jump edges. Ghidra

misses Across Block, Jump, Undeﬁned Function and

Code Mislabeled as Data edges, most commonly.

Compared to the other tools, Ghidra misses the most

cases of Across Block and Code Mislabeled as Data

edges, whereas angr misses the most cases of Indirect

call and Loop edges. radare2 misses the most cases

of Conditional and Fall through edges as compared

to the other tools. Furthermore, when compiled with

optimization level of O3, the number of NOP edges

missed by the tools increases considerably.

5.4 True Positive Edges after Post

Processing

Apart from the Across function, Indirect Call, Unde-

ﬁned Function and Code Mislabeled as Data Edges,

all the other category edges can be added during the

post processing analysis of the CFGs. Once these

edges are added and are no longer considered as false

negative edges, we compare the new performance of

the tools to the ground truth. Table 7 provides infor-

mation about the percentage of edges found by the

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

552

Table 3: Number of edges missed by the tools. GT, A, R, G stand for ground truth, angr, radare2 and Ghidra, respectively.

Files Compiler GT A R G All A % R % G % All %

Coreutils

GCC_O0 199037 342 3881 6771 0 0.17 1.95 3.40 0.00

GCC_O3 216305 5498 4841 9131 77 2.54 2.24 4.22 0.04

Clang_O0 248508 716 7744 19877 11 0.29 3.12 8.00 0.00

Clang_O3 214830 3777 2397 30106 49 1.76 1.12 14.01 0.02

Findutils

GCC_O0 26049 16 69 633 0 0.06 0.26 2.43 0.00

GCC_O3 31497 565 960 951 11 1.79 3.05 3.02 0.03

Clang_O0 39728 104 852 5318 0 0.26 2.14 13.39 0.00

Clang_O3 30320 389 246 1736 14 1.28 0.81 5.73 0.05

Binutils

GCC_O0 118531 759 6369 7867 0 0.64 5.37 6.64 0.00

GCC_O3 116809 3435 1565 2747 108 2.94 1.34 2.35 0.09

Clang_O0 125622 4498 2775 19683 4 3.58 2.21 15.67 0.00

Clang_O3 125514 2240 5954 11407 78 1.78 4.74 9.09 0.06

Clients

GCC_O0 199649 756 1367 5319 2 0.38 0.68 2.66 0.00

GCC_O3 245260 5937 3154 7762 506 2.42 1.29 3.16 0.21

Clang_O0 257032 2047 2659 8512 93 0.80 1.03 3.31 0.04

Clang_O3 257848 4483 1922 6002 179 1.74 0.75 2.33 0.07

Servers

Clang_O0 14293 84 10 874 0 0.59 0.07 6.11 0.00

Clang_O3 14675 210 63 463 5 1.43 0.43 3.16 0.03

Total 2481507 35856 46828 145159 1137 1.44 1.89 5.85 0.05

Table 4: Types of false negative edges missed by all the tools across all the benchmarks. A, R, G stand for angr, radare2 and

Ghidra, respectively.

Compiler GCC_O0 GCC_O3 Clang_O0 Clang_O3

Tool A R G A R G A R G A R G

Across Blocks 0 0 0 0 0 26 0 0 13 0 0 8

Across Func 2 2 2 0 0 0 0 0 0 0 0 0

Conditional 0 0 0 18 18 18 0 0 0 0 0 0

Jump 0 0 0 6 6 6 25 25 25 12 12 12

Loop 0 0 0 0 0 0 14 14 14 5 5 5

Call 0 0 0 98 99 99 1 1 1 2 2 2

Nop 0 0 0 470 470 470 16 16 16 245 245 245

Undef Func 0 0 0 3 69 69 6 33 33 50 50 50

Fall Through 0 0 0 31 31 6 13 13 0 1 1 1

Code Data 0 0 0 72 5 5 33 6 6 2 2 2

Unresolved 0 0 0 4 4 3 0 0 0 8 8 0

Total 2 2 2 702 702 702 108 108 108 325 325 325

tools for GCC and Clang with optimization levels of

O0 and O3 after post processing. Similar to the data

presented in Table 1, all the tools are able to ﬁnd most

of the edges in the ground truth. However, after post

processing, it is observed that the performance of the

tools improved for all the benchmarks. This compari-

son helps us study the impact of our work in generat-

ing more accurate CFGs that further lead to improved

precision for other algorithms that require CFGs.

5.5 Across Function Edges

We use manual analysis and scripting to determine

the Across Function edges present in the ground truth.

Since these edges start at a basic block in one function

and end at a basic block in another function, they are

Exploring Errors in Binary-Level CFG Recovery

553

Table 5: Types of false negative edges across all the benchmarks. A, R, G stand for angr, radare2 and Ghidra, respectively.

Compiler GCC_O0 GCC_O3 Clang_O0 Clang_O3

Tool A R G A R G A R G A R G

Across Blocks 745 140 18699 5974 160 15971 224 61 11263 527 88 8150

Across Func 2 3 2 0 0 2 2 4 1 0 0 0

Conditional 342 1360 158 4422 3614 27 955 4999 2 5764 1778 1033

Jump 116 4439 232 3517 3588 217 2072 3970 6293 3131 5076 3974

Loop 0 0 0 23 0 4 33 14 20 309 5 315

Call 326 22 19 212 262 522 159 45 75 293 87 341

Indirect 226 1 2 156 0 1 279 0 1 239 0 1

Nop 4 142 4 507 499 471 16 17 16 250 274 260

Undef Func 0 1406 1211 138 1830 2304 48 1683 1702 117 57 3143

Fall Through 111 3981 48 403 524 17 3569 2686 16 386 1647 74

Code Data 0 185 214 77 9 1031 80 563 34845 36 1542 32113

Unresolved 1 7 1 6 34 24 12 0 30 47 28 310

incorrect and should not be present in the CFG. We

ﬁnd 5 such cases in the ground truth. When we ob-

serve the Across Function edges missed by the tools

in Table 5, we ﬁnd that angr, radare2 and Ghidra miss

4, 7 and 5 such edges, respectively.

5.6 True Positive Edges after Post

Processing

Table 7 provides information about the percentage of

edges found by the tools for GCC and Clang with op-

timization levels of O0 and O3 after post processing.

Similar to the data presented in Table 1, all the tools

are able to ﬁnd most of the edges in the ground truth.

However, after post processing, it is observed that the

performance of the tools improved for all the bench-

marks.

6 DISCUSSION

6.1 Edges Missed by the Tools

As seen in the Table 3, edges missed by the combina-

tion of all the tools was lower than the edges missed

individually. This would imply that utilizing all the

SRE tools leads to lower false negative edges. For

most of the missed edges, there was at least one tool

that was able to ﬁnd it accurately and lead to better

CFG reconstruction.

As previously mentioned, there are some false

negative edge cases that could be easily eliminated.

These categories include Conditional, Jump, Loop,

Call, NOP, Fall through and Across Block edges. It is

unclear why the algorithms that the tools use lead to

these categories of false negative edges. However, be-

cause of the nature of these edges, they may be elim-

inated during post processing. Once the edges are

removed, we calculate the performance of the tools

as shown in Table 7. After post processing, the per-

formance of the tools signiﬁcantly improved which

shows that with more robust implementations, we will

be able to generate more accurate CFGs.

6.2 Types of Edges Missed by the Tools

As seen in the previous section, some of the false

negative edges missed are Code Mislabeled as Data

edges. It is hard for reverse engineering tools to sep-

arate code and data regions. Therefore, we see a high

number of edges mislabeled as data leading to false

negative edges.

With the help of Ghidra’s listing view, we are able

to view bytes that Ghidra was able to disassemble

but not assign to a particular function. Ghidra labels

these functions as UndeﬁnedFunctions. Such func-

tions may be created by the SRE tools when they are

unable to determine the start address of the function.

Because of this, these edges are not analyzed and lead

to false negatives. To reduce the false negative edges,

the tools would need to accurately determine the func-

tion start and end addresses.

Another category with a high number of false neg-

ative edges is the Across Blocks edge category. angr

researchers informed us that these edges are missed

because of a limitation that angr inherits from lib-

vex. This limitation states that basic blocks can only

contain certain number of instructions after which the

blocks are terminated. This leads to the Across Block

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

554

Table 6: Types of false negative edges.

Files Compiler Blocks Func Cond Jump Loop Call Indirect Nop Undef Func Fall-Through Code Data Unresolved

Clients

GCC_O0 320 2 217 30 0 73 110 0 0 3 0 1

GCC_O3 2124 0 2315 625 22 138 98 338 39 156 77 5

angr

Clang_O0 190 1 927 393 33 66 161 16 48 170 32 10

Clang_O3 318 0 2965 652 53 11 145 159 36 116 1 27

Clients

GCC_O0 21 2 85 34 0 6 0 2 1210 6 0 1

GCC_O3 18 0 118 707 0 101 0 305 1761 133 4 7

radare2

Clang_O0 10 2 191 475 14 18 0 17 1667 65 200 0

Clang_O3 8 0 834 698 0 66 0 169 26 84 20 17

Clients

GCC_O0 4078 2 0 0 0 4 0 0 1205 2 28 0

GCC_O3 4337 0 25 84 3 122 0 305 2129 17 729 11

Ghidra

Clang_O0 1727 1 2 1003 20 44 0 16 1702 9 3967 21

Clang_O3 1166 0 900 345 55 37 0 162 874 66 2374 23

Coreutils

GCC_O0 106 0 112 47 0 10 67 0 0 0 0 0

GCC_O3 1967 0 1197 2142 0 27 44 70 51 0 0 0

angr

Clang_O0 28 0 6 541 0 10 60 0 0 71 0 0

Clang_O3 135 0 1474 1817 193 23 48 37 13 36 1 0

Coreutils

GCC_O0 105 1 987 1374 0 9 1 133 174 1091 0 6

GCC_O3 123 0 2070 2172 0 40 0 89 59 262 4 22

radare2

Clang_O0 42 0 3197 2089 0 20 0 0 12 2332 52 0

Clang_O3 66 0 440 1740 1 13 0 43 13 39 42 0

Coreutils

GCC_O0 6755 0 0 0 0 9 2 0 4 0 1 0

GCC_O3 8289 0 0 111 0 327 1 71 151 0 173 8

Ghidra

Clang_O0 4469 0 0 1875 0 13 1 0 0 0 13519 0

Clang_O3 2186 0 115 2751 196 229 0 44 1943 3 22397 242

Findutils

GCC_O0 6 0 2 4 0 0 4 0 0 0 0 0

GCC_O3 234 0 166 108 1 0 3 11 14 28 0 0

angr

Clang_O0 1 0 2 97 0 0 4 0 0 0 0 0

Clang_O3 43 0 231 74 14 0 3 3 10 6 5 0

Findutils

GCC_O0 1 0 2 32 0 0 0 3 0 31 0 0

GCC_O3 3 0 752 71 0 120 0 12 0 1 1 0

radare2

Clang_O0 2 0 394 273 0 4 0 0 4 173 2 0

Clang_O3 1 0 120 93 0 1 0 9 10 11 1 0

Findutils

GCC_O0 633 0 0 0 0 0 0 0 0 0 0 0

GCC_O3 714 0 2 7 1 73 0 11 9 0 129 5

Ghidra

Clang_O0 218 0 0 414 0 17 0 0 0 0 4668 1

Clang_O3 314 0 6 144 14 74 0 3 23 1 1144 13

Binutils

GCC_O0 313 0 11 35 0 243 45 4 0 108 0 0

GCC_O3 1649 0 744 642 0 47 11 88 34 219 0 1

angr

Clang_O0 1 1 16 1032 0 81 29 0 0 3292 44 2

Clang_O3 23 0 989 532 49 253 25 48 56 216 29 20

Binutils

GCC_O0 13 0 286 2999 0 7 0 4 22 2853 185 0

GCC_O3 16 0 674 638 0 1 0 93 10 128 0 5

radare2

Clang_O0 5 0 1215 1130 0 3 0 0 0 113 309 0

Clang_O3 11 0 384 2489 4 7 0 50 6 1513 1479 11

Binutils

GCC_O0 7233 0 158 232 0 6 0 4 2 46 185 1

GCC_O3 2631 2 0 15 0 0 0 84 15 0 0 0

Ghidra

Clang_O0 4722 0 0 2899 0 1 0 0 0 6 12048 7

Clang_O3 4388 0 12 718 49 1 1 48 215 4 5941 30

Servers

Clang_O0 4 0 4 9 0 2 25 0 0 36 4 0

angr

Clang_O3 8 0 105 56 0 6 18 3 2 12 0 0

Servers

Clang_O0 2 2 0 3 0 0 0 0 0 3 0 0

radare2

Clang_O3 2 0 0 56 0 0 0 3 2 0 0 0

Servers

Clang_O0 127 0 0 102 0 0 0 0 0 1 643 1

Ghidra

Clang_O3 96 0 0 16 1 0 0 3 88 0 257 2

Total 62002 16 24454 36625 723 2363 906 2460 13639 13462 70695 500

edge category edges in angr. A similar pattern is ob-

served in Ghidra and radare2 when the basic blocks

contain a higher number of instructions.

Fall-through edges were another category of edges

that were commonly missed by the tools. One reason

for this could be that the tools are unable to determine

if the instructions in the fall-through blocks are reach-

able. In addition, the tools could potentially miss call

edges if they are unable to determine whether a func-

tion returns or not. A call to a non-returning function

will not return to the call site and this would lead to

false negative edges.

Indirect Call edges were another category of false

negative edges discussed in this study. Indirect branch

Exploring Errors in Binary-Level CFG Recovery

555

Table 7: Percentage of edges found by the tools for GCC_O0, GCC_O3, Clang_O0 and Clang_O3 after post processing.

Files Tools GCC_O0 GCC_O3 Clang_O0 Clang_O3

Coreutils

angr 0.9997 0.9996 0.9998 0.9997

radare2 0.9991 0.9996 0.9997 0.9997

Ghidra 1.0000 0.9985 0.9456 0.8856

Findutils

angr 0.9998 0.9995 0.9999 0.9994

radare2 1.0000 0.9999 0.9998 0.9996

Ghidra 1.0000 0.9955 0.8825 0.9611

Binutils

angr 0.9996 0.9996 0.9994 0.9990

radare2 0.9983 0.9999 0.9975 0.9881

Ghidra 0.9984 0.9999 0.9040 0.9507

Clients

angr 0.9994 0.9991 0.9990 0.9992

radare2 0.9939 0.9928 0.9927 0.9998

Ghidra 0.9938 0.9883 0.9779 0.9873

Servers

angr - - 0.9980 0.9986

radare2 - - 0.9999 0.9999

Ghidra - - 0.9549 0.9764

targets depend on values that are computed at run-

time. Therefore, predicting these statically may be

challenging. As seen previously, if the tools are un-

able to determine whether the indirect call target is a

returning or non-returning function they could poten-

tially miss these edges.

Table 5 displays the types of edges missed by the

tools. Here it was observed that when compiled with

higher optimization levels, the number of NOP edges

missed increases. This may be observed because with

higher optimization levels, NOP instructions need to

be added for code alignment in the basic blocks.

As seen in Table 4 and 5, tools may categorize

certain edges differently. The tools categorize the

false negative edges based on the control-ﬂow edges

found by them. For example, if a tool does not cor-

rectly identify a particular function start address, it

would categorize that edge as an Undeﬁned Function

edge. If the other tools were able to ﬁnd the function

start address correctly, but the edge was still missed,

it would be categorized as a different false negative

edge type.

6.3 Across Function Edges

We ﬁnd that the ground truth ﬁnds 5 Across Func-

tion edges across all the benchmarks. angr, radare2

and Ghidra miss 4, 7 and 5 such edges, respectively.

As mentioned previously, these edges are categorized

as Across Function edges based on the function en-

try points found by the tools. radare2 may miss some

function entry points which leads to additional across

function edges missed by the tool.

6.4 Compiler Optimization

We did not ﬁnd signiﬁcant or consistent differences in

the performance of the tools when optimization lev-

els of O0 and O3 were used. We hypothesize that

since most optimizations that the compiler applies are

intra-block and keep the structure of the block intact,

we do not see a signiﬁcant decline or improvement

in the performance of the tools when different com-

piler optimization levels are used. Although, when

overall performance was observed, the tools gener-

ated more accurate CFGs when binaries were com-

piled with GCC as opposed to Clang. For this reason,

we hypothesize that the tools are conﬁgured to per-

form better on binaries compiled with GCC.

7 FUTURE WORK

There are multiple avenues for future work. Firstly,

in this work we only study and categorize the false

negative edges of the CFG generated by mainstream

binary analyzers. In the future we will perform a sim-

ilar analysis on the false positive edges of the CFGs.

Secondly, we observe that the edges missed by all

the tools combined is lower than the edges missed

by individual tools. We plan to use this observa-

tion to develop techniques that could utilize multiple

tools leads to lower the overall false negative edges.

Thirdly, we will extend these results will new bench-

marks, compilers and binary analysis tools. Finally,

one of our main contributions of this work is the ob-

servation that many categories of false negative edges

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

556

are not intrinsic limitations of the analysis algorithms,

but seem to be caused by spurious implementation

oversights. Therefore, an important future project

is to attempt to ﬁx such mistakes to directly resolve

many causes of erroneous CFG edges generated by

these tools.

8 CONCLUSION

In this paper we studied three reverse engineering

tools angr, radare2 and Ghidra. We used the bench-

marks and framework developed in the SoK Binary

Disassembly paper (Pang et al., 2021) to compare our

results and perform an in-depth analysis of control-

ﬂow graphs generated by the tools. We focused on

binaries for the x64 architecture, built for Linux oper-

ating systems using GCC and Clang compilers, with

optimization levels of O0 and O3. With the help of

this paper, we studied the performance of the tools for

different compilers and optimization levels, found the

true positive and false negative edges, categorized the

false negative edges, and compared the performance

of the tools before and after post processing. By us-

ing manual analysis and scripting, we were able to

identify that most errors in the generation of CFGs

are not because of the limitations of the algorithms.

Therefore, they can be easily eliminated by more ro-

bust implementations. With the help of this paper, we

aimed to provide information about CFG reconstruc-

tion errors that may lead to more accurate CFG gen-

eration in the SRE tools and any other algorithms that

use CFGs.

REFERENCES

Andriesse, D., Chen, X., Van Der Veen, V., Slowinska, A.,

and Bos, H. (2016). An in-depth analysis of disassem-

bly on full-scale x86/x64 binaries. In Proceedings of

the 25th USENIX Conference on Security Symposium,

SEC’16, page 583–600, USA. USENIX Association.

Burow, N., Carr, S. A., Nash, J., Larsen, P., Franz, M.,

Brunthaler, S., and Payer, M. (2017). Control-ﬂow

integrity: Precision, security, and performance. ACM

Comput. Surv., 50(1).

Caballero, J. and Lin, Z. (2016). Type inference on executa-

bles. ACM Comput. Surv., 48(4).

Collberg, C., Thomborson, C., and Low, D. (1997). A tax-

onomy of obfuscating transformations. Technical re-

port, Department of Computer Science, The Univer-

sity of Auckland, New Zealand.

Cozzi, E., Graziano, M., Fratantonio, Y., and Balzarotti, D.

(2018). Understanding linux malware. In 2018 IEEE

symposium on security and privacy (SP), pages 161–

175. IEEE.

Eilam, E. (2005). Reversing: Secrets of Reverse Engineer-

ing. John Wiley & Sons, Inc., USA.

Hawkins, W., Hiser, J. D., Nguyen-Tuong, A., Co, M., and

Davidson, J. W. (2017). Securing binary code. IEEE

Security & Privacy, 15(6):77–81.

Horspool, R. N. and Marovac, N. (1980). An approach to

the problem of detranslation of computer programs.

The Computer Journal, 23(3):223–229.

Kline., J. and Kulkarni., P. (2023). A framework for as-

sessing decompiler inference accuracy of source-level

program constructs. In Proceedings of the 9th In-

ternational Conference on Information Systems Secu-

rity and Privacy - ICISSP,, pages 228–239. INSTICC,

SciTePress.

Meng, X. and Miller, B. P. (2016). Binary code is not easy.

In Proceedings of the 25th International Symposium

on Software Testing and Analysis, ISSTA 2016, page

24–35, New York, NY, USA. Association for Comput-

ing Machinery.

NSA (2023). Ghidra. https://ghidra-sre.org/.

Pang, C., Yu, R., Chen, Y., Koskinen, E., Portokalidis, G.,

Mao, B., and Xu, J. (2021). Sok: All you ever wanted

to know about x86/x64 binary disassembly but were

afraid to ask. In 2021 IEEE Symposium on Security

and Privacy (SP), pages 833–851.

Shaila, S., Darki, A., Faloutsos, M., Abu-Ghazaleh, N., and

Sridharan, M. (2021). Disco: Combining disassem-

blers for improved performance. In Proceedings of

the 24th International Symposium on Research in At-

tacks, Intrusions and Defenses, pages 148–161.

Shoshitaishvili, Y., Wang, R., Salls, C., Stephens, N.,

Polino, M., Dutcher, A., Grosen, J., Feng, S., Hauser,

C., Kruegel, C., and Vigna, G. (2016). SoK: (State

of) The Art of War: Offensive Techniques in Binary

Analysis. In IEEE Symposium on Security and Pri-

vacy.

Vaidya, R., Kulkarni, P. A., and Jantz, M. R. (2021). Ex-

plore capabilities and effectiveness of reverse engi-

neering tools to provide memory safety for binary pro-

grams. In Deng, R., Bao, F., Wang, G., Shen, J., Ryan,

M., Meng, W., and Wang, D., editors, Information Se-

curity Practice and Experience, pages 11–31, Cham.

Springer International Publishing.

Wartell, R., Zhou, Y., Hamlen, K. W., Kantarcioglu, M.,

and Thuraisingham, B. (2011). Differentiating code

from data in x86 binaries. In Machine Learning and

Knowledge Discovery in Databases: European Con-

ference, ECML PKDD 2011, Athens, Greece, Septem-

ber 5-9, 2011, Proceedings, Part III 22, pages 522–

536. Springer.

Àlvarez, S. (2023). The ofﬁcial radare2 book. https://book.

rada.re/index.html.

Exploring Errors in Binary-Level CFG Recovery

557
