Requirements Engineering for Continuous Queries on IoRT Data:

A Case Study in Agricultural Autonomous Robots Monitoring

Leandro Antonelli

1 a

, Hassan Badir

2 b

, Houssam Bazza

2 c

, Sandro Bimonte

3 d

and Stefano Rizzi

4 e

Liﬁa, Fac. de Inform

atica, UNLP, Buenos Aires, Argentina

Abdelmalek Essaadi University, Tangier, Morocco

TSCF - INRAE, University Clermont, Aubiere, France

DISI, University of Bologna, Bologna, Italy

ﬁ

Keywords:

Requirements Engineering, Continuous Queries, IoRT, Prototyping, Agriculture.

Abstract:

The Internet of Robotic Things (IoRT) is an extension of the Internet of Things, where intelligent mobile

devices acquire sensor data and physically act in the environment. IoRT devices produce huge data streams,

typically analyzed using continuous queries. We propose an approach to engineer requirements about contin-

uous queries over IoRT data. Our proposal is speciﬁcally devised for end-users not skilled in IT and relies,

for requirements elicitation, on spreadsheet-like templates called stream tables. Requirements analysis uses

a novel UML proﬁle, while requirements speciﬁcation and validation rely on a fast prototyping tool so as

to allow end-users to deﬁne continuous queries by themselves and validate them via web-based prototyping.

Non-functional requirements are taken into account as well, in the form of available technological resources

and data sources, and used for requirements validation. The results of some preliminary tests made with some

real users suggest that stream tables are a valuable instrument for the engineering of continuous queries, and

that fast prototyping is an effective support to the speciﬁcation and validation steps.

1 INTRODUCTION

Recently, the advent of sophisticated sensors and

robots, together with the development of communi-

cation technologies, enabled intelligent robots to con-

nect to the Internet, so that they can efﬁciently ex-

change data among themselves and with the cloud.

The Internet of Robotic Things (IoRT) is an exten-

sion of the Internet of Things, where robots monitor

events and merge sensor data to determine a better

course of action, then take real actions in the phys-

ical world (Simoens et al., 2018). Robots usually

embed sensors to collect data from the environment,

but they also produce data that describe their mecha-

tronic behaviour (position, odometry, etc.). Differ-

ently from IoT devices, which typically have limited

https://orcid.org/0000-0003-1388-0337

https://orcid.org/0000-0002-6754-7807

https://orcid.org/0009-0009-4853-1699

https://orcid.org/0000-0003-1727-6954

https://orcid.org/0000-0002-4617-217X

computation resources, robots can produce very large

data streams since they embed computers powered by

the robot battery. Moreover, the embedding of signif-

icant computation and storage resources enables the

use of more complex technologies and software to

manage the produced data stream. Therefore, from

a non-functional point of view, IoRT can have more

demanding requirements than IoT, which strongly im-

pacts the hardware and software architecture adopted

for stream data processing.

IoRT applications usually come with real-time

analysis tools based on complex data streaming com-

putations. In particular, they often rely on continuous

queries that constantly process streaming data to pro-

duce a stream of results. A continuous query is char-

acterized by a frequency and a temporal window, the

latter deﬁning the set of streaming data over which

the query is computed. An example is: “every 2 sec-

onds (frequency) compute the average speed over the

last 2 seconds (temporal window)”. Different kinds of

continuous queries have been deﬁned in the literature,

Antonelli, L., Badir, H., Bazza, H., Bimonte, S. and Rizzi, S.

Requirements Engineering for Continuous Queries on IoRT Data: A Case Study in Agricultural Autonomous Robots Monitoring.

DOI: 10.5220/0012439600003690

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 26th International Conference on Enterprise Information Systems (ICEIS 2024) - Volume 2, pages 113-120

ISBN: 978-989-758-692-7; ISSN: 2184-4992

113

mainly depending on the type of window used (Golab

and

Ozsu, 2003): ﬁxed (where the size of the window

is the same of the frequency), sliding (where the fre-

quency is different from the window size), and land-

mark (where the window is periodically reset). Con-

tinuous queries are processed by streaming engines,

such as Apache Flink, Esper, etc.; their formulation

is based on ad-hoc query languages and requires ad-

vanced IT skills, also in consideration of the different

possible window types.

Requirements have a critical role in the develop-

ment of software of all types. This is also true for

projects involving IoRT-based applications, where ef-

fective and error-proof engineering of functional and

non-functional requirements is a key to success. Un-

fortunately, “conventional elicitation techniques are

often time-consuming and not sufﬁciently scalable for

processing such fast-growing data” (Lim et al., 2021),

so new techniques must be investigated for the IoRT

ﬁeld. Due to the complexity of continuous queries,

managing the related requirements can be particularly

difﬁcult. Additionally, IoRT application domains typ-

ically involve stakeholders with little or no Informa-

tion Technology (IT) skills (Bimonte et al., 2021b),

which further hinders the effectiveness of requirement

engineering. End-users not skilled in IT may ignore

the existence of speciﬁc sensors and robots; thus, they

have no idea of the data made available and of the

analyses that IoRT can offer, and it is difﬁcult for

them to suggest using some sensed data when they

describe their analysis needs. Finally, advanced sen-

sors and robots come with technological constraints

(e.g., the type of communication network, the net-

work latency, and the computation overload) that may

undermine the feasibility of IoRT applications, and

end-users are often unaware of them.

Although IoRT systems have reached a good level

of maturity, only a few efforts have been made to-

wards methods to engineer the related requirements

(see (Aguilar-Calder

on et al., 2022) for a survey);

while some of these methods offer good coverage of

the different steps of requirements engineering, none

of them offers speciﬁc techniques to cope with contin-

uous queries —especially in presence of end-users not

skilled in IT. To overcome this limitation, in this paper

we propose an end-to-end approach in which (non-

IT) end-users and IT users cooperate to engineer re-

quirements about continuous queries over IoRT data.

Our approach can be framed within any methodology

featuring the classical four steps of requirements en-

gineering, namely, elicitation, analysis, speciﬁcation,

and validation (e.g., the one proposed by Kaleem et al.

(2020)). Our main contributions for the four steps are

as follows:

• We propose the use of spreadsheet-like templates

to support requirements elicitation of continuous

queries by non-IT end-users.

• We introduce an UML proﬁle to support require-

ments analysis of continuous queries by IT users

via class diagrams.

• We describe a prototyping tool to support require-

ments speciﬁcation and validation of continuous

queries.

• We consider non-functional requirements as well,

in the form of available technological resources

and data sources, and use them for requirements

validation (Pohl and Rupp, 2015).

The rest of the paper is organized as follows.

Section 2 discusses the related works, while Section

3 describes a case study concerning the monitoring

of agricultural autonomous robots. In Section 4 we

overview the methodological framework and explain

our approach in detail, while in Section 5 we present

an experiment made to assess its validity. Section 6

draws the conclusions and outlines our future work.

2 RELATED WORK

The seminal paper by Golab and

Ozsu (2003) sur-

veys the different types of continuous queries in terms

of data models, semantics, and query languages. In

particular, the basic operators on streams (group by,

aggregate, etc.), the supported windows (ﬁxed, land-

mark, and sliding), and their execution frequency

(streaming or periodic) are discussed. Later on, other

works investigated continuous queries from different

points of view (e.g., (Sumalatha and Ananthi, 2019;

Gomes et al., 2019). Visual languages allow users to

deﬁne complex queries on data without any knowl-

edge of the query language syntax, and therefore they

could be considered as queries elicitation tools. Al-

though some visual languages were proposed in this

direction (e.g., (Silva et al., 2023)), to the best of our

knowledge no work proposes an approach to gener-

ate a continuous query from a simple representation

created by a user with poor IT skills.

Several proposals deal with requirements engi-

neering in the IoT or IoRT domains. An experience

of Use Case modeling in the healthcare domain is

described by Laplante et al. (2016), who emphasize

the stakeholder identiﬁcation phase using actors of

Use Case diagrams. A similar approach using UML

and SysUML modeling is proposed by Meacham and

Phalp (2016). Mezghani et al. (2017) propose a

model-driven development approach based on UML

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

114

and patterns; although they do not describe new ac-

tivities or tools, they introduce the use of patterns and

ontologies. Costa et al. (2017) propose a model-based

approach relying on a modeling language named IoT-

RML. An agent-based approach consisting of three

steps: (i) analysis, (ii) design, and (iii) implementa-

tion is proposed by Fortino et al. (2018). Although the

authors consider the complexity of the cyber-physical

elements, they only focus on one phase of require-

ments engineering, namely, analysis.

Raﬁque et al. (2020) introduce a service-based

framework to develop IoT applications. They do not

include stakeholder identiﬁcation in their proposal,

neither they consider the importance of continuous

queries in IoT scenarios. Silva et al. (2019) present

an approach that deals with many of the stages of the

requirements engineering process; however, they deal

with stakeholders only in a shallow way and do not

mention continuous queries. A ﬁve-step approach is

described by Kaleem et al. (2020). They do not pro-

pose speciﬁc artifacts to deal with continuous queries,

and do not single out speciﬁc stakeholder roles. Silva

et al. (2021) propose a comprehensive approach to

build requirements speciﬁcation documents. Their

proposal addresses the classic stages in the require-

ments engineering process, but continuous queries are

not considered. Zambonelli (2016) propose a gen-

eral approach for software engineering to implement

IoT applications. The activities of their approach are:

(i) actors analysis and identiﬁcation, (ii) functional-

ity and requirements, and (iii) infrastructural analy-

sis. Their phases agree in general terms with our pro-

posal; however, our proposal is speciﬁcally focused

on requirements engineering for continuous queries.

Overall, the main differences between our ap-

proach with the previous ones are as follows. Firstly,

it introduces continuous queries as ﬁrst-class citi-

zens in requirements engineering. Secondly, it dis-

tinguishes two proﬁles of stakeholders, namely, end-

users and IT users, who bring very different contri-

butions to the engineering process; this is very rele-

vant since IoRT applications have an important tech-

nological component and IT users should contribute

with their knowledge and experience in the require-

ments engineering process. Finally, it covers most of

the phases in requirements engineering identiﬁed by

Aguilar-Calder

on et al. (2022).

3 CASE STUDY: MONITORING

OF AGRICULTURAL

AUTONOMOUS ROBOTS

An agricultural robot is an unmanned ground vehicle

equipped with sensors and actuators and able to safely

and autonomously perform one or several tasks on a

farm ﬁeld. Such a robot is composed of a locomotion

part connected to a navigation system, plus an agri-

cultural part with either mounted, semi-mounted, or

towed tools.

In the context of agro-ecology, which aims at

developing new cultural practices leading to an

environment-friendly farming production, farmers

and agriculture stakeholders need a supervising sys-

tem allowing them to monitor the advancement of

robots in ﬁelds, as well as the data sent from sen-

sors (Andr

e et al., 2023). Thanks to this system, the

physical presence of people in the ﬁeld will no longer

be necessary, so they will save time for other tasks.

This supervising system must enable easy monitoring

of all the data usually involved in robotized agricul-

tural tasks: sensors data (e.g., air temperature, wind

speed, etc.); odometry data (i.e., data from motion

sensors to estimate the changes in the robot’s posi-

tion over time); alert data (related for instance to me-

chanical faults of robots or to delays in the planned

task); spatial and alphanumeric data representing con-

textual information (such as the geometries of the

plots, the name of the farmer, etc.) Among these, sen-

sors, odometry, and alert data come in streams: they

are produced in a continuous way, and they are also

queried via continuous queries. For example, it is im-

portant to monitor the movement of the robot in the

ﬁeld (speed, GPS, etc.) and the meteorological con-

ditions (temperature, humidity, etc.) to interrupt the

robot task when either its delay becomes too long, or

the meteorological conditions are not suited for that

task.

4 REQUIREMENTS

ENGINEERING FOR

CONTINUOUS QUERIES

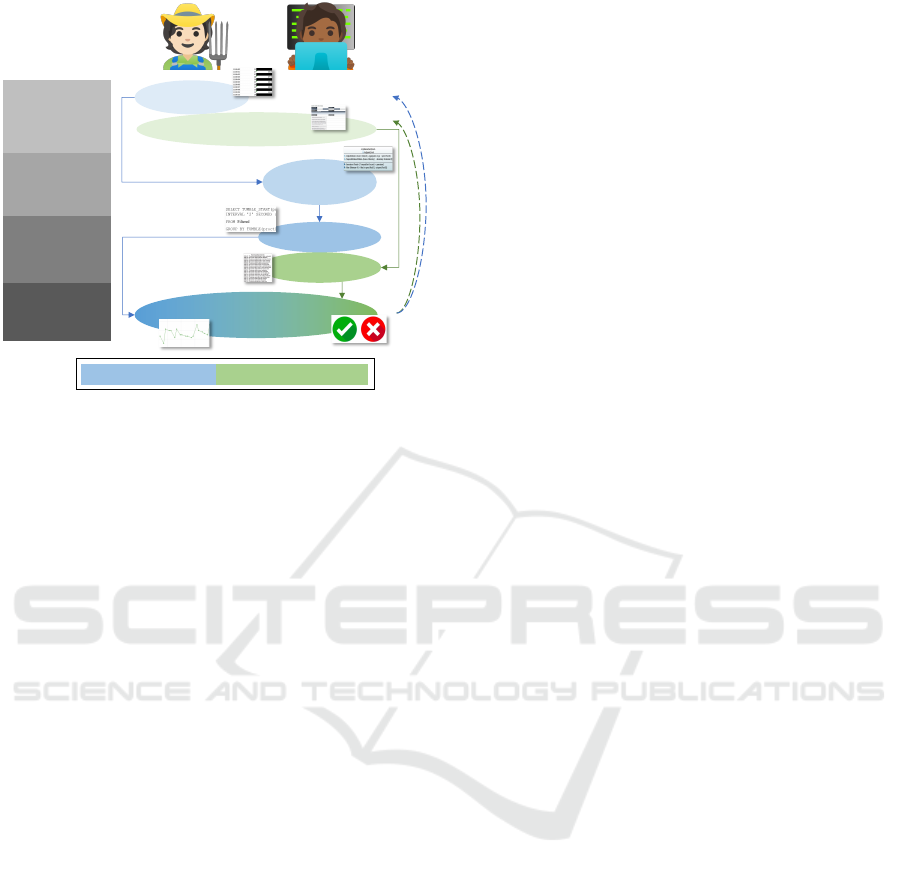

Figure 1 portrays our approach and how it can be

framed within a standard requirements engineering

methodology. On the left-hand side (in grey), the four

steps typically encompassed by requirements engi-

neering; for each step, the speciﬁc techniques we pro-

pose to cope with continuous queries and the stake-

holders involved in each of them. Two different kinds

of stakeholders have been identiﬁed:

Requirements Engineering for Continuous Queries on IoRT Data: A Case Study in Agricultural Autonomous Robots Monitoring

115

Requirement

Elicitation

Requirement

Analysis

Requirement

Specification

Requirement

Va li da tio n

stream tables

interviews

UML class

diagrams

verification

end-user

IT user

nat. language

fast protototyp.

Functional requirements Non-functional requirements

Figure 1: The techniques involved, at each step, to manage

functional (in shades of blue) and non-functional (in shades

of green) requirements for continuous queries on IoRT data.

• End-users (middle column of Figure 1), who are

experts in the applications domain. They are nor-

mally not skilled in IT, and their digital literacy is

limited to the basic usage of spreadsheet tools. We

assume they can manipulate columns and rows

and deﬁne basic formulas in a spreadsheet.

• IT users (leftmost column), who are experts in IoT

and robots and in charge of the system implemen-

tation.

Notably, in Figure 1 we distinguish between

techniques related to functional (in blue) and non-

functional (in green) requirements. Below some

additional explanations (see the work by Aguilar-

Calder

on et al. (2022) for a further description of the

four steps):

1. Requirements Elicitation: aims at identifying

the goals the system has to achieve.

• Functional requirements: to speciﬁcally elicit

the requirements related to continuous queries,

we introduce stream tables, i.e., spreadsheet-

like templates that end-users will ﬁll to state

what data they need and how they should be

computed.

• Non-functional requirements: End-users are in-

terviewed by IT users and asked to describe the

technological constraints entailed by the appli-

cation domain (e.g., low communication band-

width) and to survey the data sources avail-

able (e.g., robot GPS data sent every 10 sec-

onds). Should end-users be unable to provide

the needed information, IT users can actively

help them.

2. Requirements Analysis: refers to creating mod-

els from the raw information obtained from end-

user and make them consistent with each other

(Laplante and Kassab, 2022).

• Functional requirements: To cope with contin-

uous queries, IT users start from the stream ta-

bles created at the previous step to draw a UML

class diagram relying on an ad-hoc proﬁle.

3. Requirements Speciﬁcation: produces a de-

scription of the system behavior.

• Functional requirements: IT users create a pro-

totype that implements continuous queries, thus

providing their formal speciﬁcation via a query

language.

• Non-functional requirements: a list of available

resources is speciﬁed by IT users in natural lan-

guage.

4. Requirements Validation: establishes whether

or not the software requirements correctly capture

the stakeholders’ requirements.

• Functional requirements: end-users check the

prototype to verify that the queries speciﬁed

meet their analytical needs.

• Non-functional requirements: IT users verify

that these queries are consistent with the tech-

nological resources and data sources available,

i.e., that they actually can be implemented.

Should one or both of these checks fail, an itera-

tion to the previous steps is necessary to reﬁne the

requirements.

The techniques involved in the four steps are de-

scribed in detail in the following subsections.

4.1 Requirements Elicitation

At this step we propose to perform two distinct ac-

tivities, namely stream table design and identiﬁcation

of technological and data resources, related to func-

tional and non-functional requirements, respectively.

Stream table design allows end-users to tentatively

express the continuous queries they need on their

own, i.e., without relying on the support of IT users.

The main idea, inspired by Bimonte et al. (2021a),

is to let them use tools they are familiar with, such

as spreadsheets. The template we have deﬁned to this

end, called stream table, can be used by end-users non

skilled in IT to state (i) what data they need and (ii)

how this data is computed. A stream table has two

components: a declaration area, and a data area.

• The declaration area speciﬁes (i) the temporal

frequency for data collection (Acquisition fre-

quency), (ii) the IoRT identiﬁer, i.e., the sensor or

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

116

robot that sends the data, (iii) the data to be col-

lected (Source data), and (iv) a formula applied

to ﬁlter the source data (Filtered data). Moreover,

the declaration area speciﬁes how the data must

be aggregated (Group by, e.g., by robot), and the

computation to be made with its frequency and

time window (Continuous query).

• In the data area, the end-user creates a small case

of computation starting from an example provided

in the template.

The stream table is ﬁlled by end-users in two stages:

1. First, they specify the Acquisition frequency, the

IoRT identiﬁer, the Source data, and the formula

for the Filtered data.

2. Then, they specify the Group by and the Continu-

ous query formula.

The identiﬁcation of technological and data re-

sources available in the application domain involves

both end-users and IT users, and its outcome is nec-

essary at the requirements validation step to conﬁrm

that the continuous queries speciﬁed are feasible. We

propose to execute this activity via interviews focused

on sensing devices, computing resources, and commu-

nication network. These interviews are conducted by

IT users, and answered by end-users. When end-users

cannot provide technical details about technology re-

sources and data sources, IT users are in charge of

retrieve them.

Example 1. A farmer needs to monitor the behavior

of an ADAP2E robot in the ﬁeld to ensure that it re-

spects the planned time scheduling and to check the

air temperature. Speciﬁcally, she wants to issue two

continuous queries:

Que.1 Acquire the robot speed every second, ﬁlter

erroneous data (marked with the ’-1’ value)

and compute its maximum every 2 seconds on

a window of 2 seconds (ﬁxed-window query),

grouped by farm name. The stream table cre-

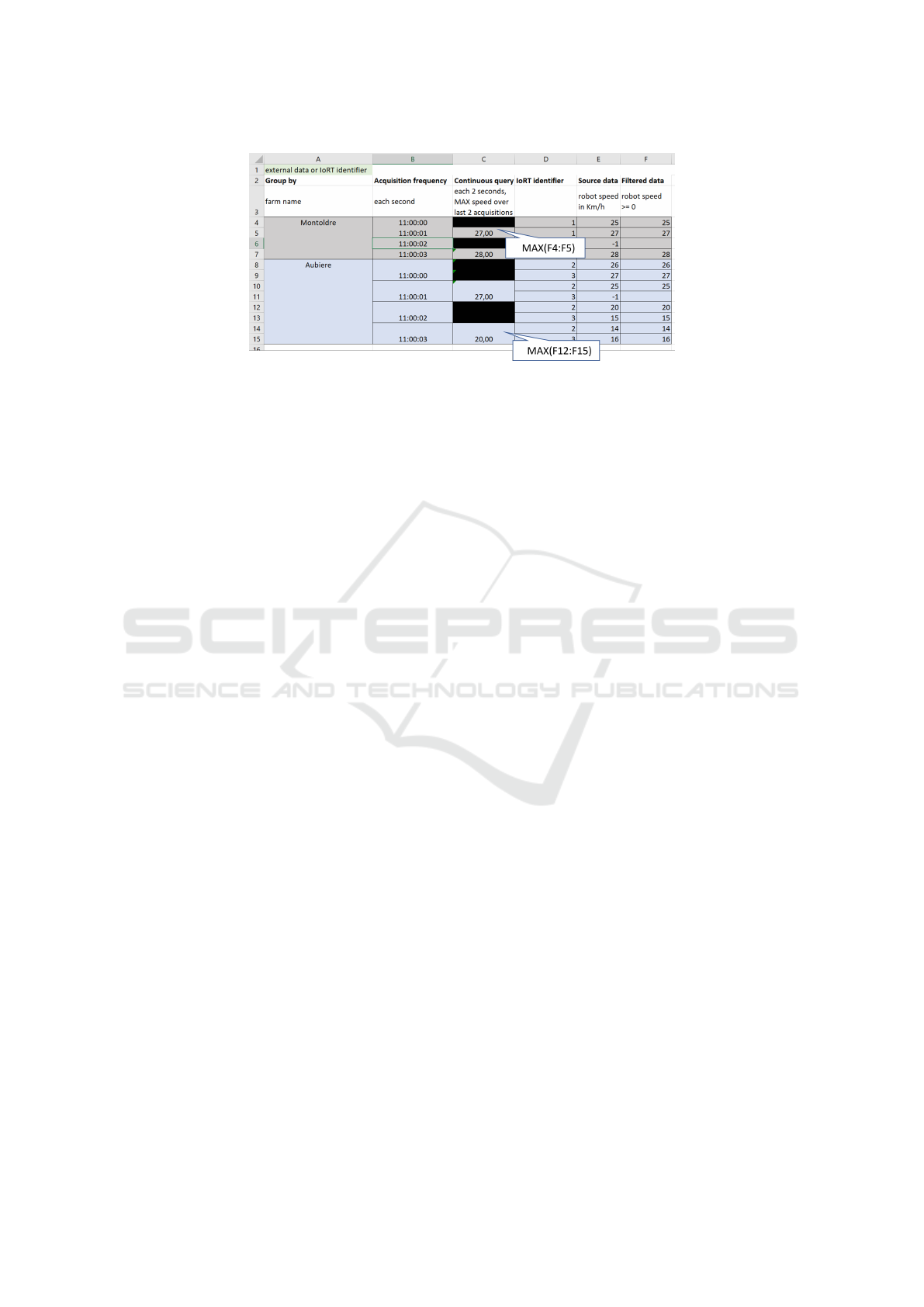

ated by the farmer is shown in Figure 2; black

cells are used to mark the times when the

query is not computed.

Que.2 Sense the temperature every second to com-

pute its average over a window with maximum

size 4 seconds (landmark-window query).

As to the identiﬁcation of technological and data re-

sources, examples of questions asked to end-users

are: “What is the duration of the robots’ batteries?”,

“What kind of devices do you want to use for visu-

alizing data?”, and “What is the speed of the data

connection covering the ﬁelds?”. □

4.2 Requirements Analysis

This step, performed by the IT user, aims to build a

model of the continuous queries deﬁned by end-users

at the previous step; it has a crucial importance since

in at this stage the information gathered during elicita-

tion is organized and its consistency is checked. Then,

the following speciﬁcation will be produced accord-

ing to this model.

To support this step we have deﬁned an ad-hoc

UML proﬁle by extending the proﬁle for IoT data pro-

posed by Bimonte et al. (2023). The representation

of continuous queries given in that work is simpliﬁed

and does not enable the query details (e.g., the tempo-

ral window type and the group by attributes) to be ex-

pressed. Therefore, we extend that proﬁle by provid-

ing a detailed conceptual representation of continu-

ous queries based on either ﬁxed, sliding, or landmark

temporal windows. IT users can use our extended pro-

ﬁle to translate smart tables into UML class diagrams.

Importantly, these diagrams also show how queries

are related to the data elements used by the applica-

tion, thus providing a global picture of the project.

This enables IT users to check that the continuous

queries are consistent with the other data used by the

application.

The UML proﬁle we propose extends the one by

Bimonte et al. (2023) with the following stereotyped

attributes:

• ≪OutputAttribute≫ represents the values re-

turned by the query and has two tagged values:

Source (which class the value comes from) and

Aggregation (the aggregation operator applied).

• ≪GroupingAttribute≫ represents the attribute(s)

used to group the data. The grouping attribute(s)

can be imported from other classes via the Source

tagged value, then they can be used to establish

the compatibility of the continuous query with the

other data used by the application.

• ≪TemporalWindowAttribute≫ represents the

timestamp used in the temporal window. It can

be either explicit (the data source timestamp) or

implicit (the timestamp of data reception).

A continuous query is also characterized by two op-

erations:

• ≪Generation≫, which models the query compu-

tation frequency with the two tagged values Pe-

riod and TemporalUnit.

• ≪Filter≫, which can model a selection condition

over the input data.

We propose three stereotypes for the different kinds

of temporal windows:

Requirements Engineering for Continuous Queries on IoRT Data: A Case Study in Agricultural Autonomous Robots Monitoring

117

Figure 2: Stream table based on a ﬁxed window.

• ≪ContinousQueryFixed≫ for ﬁxed windows. In

this case, the size of the window is the one of the

Generation operation.

• ≪ContinousQuerySliding≫ for sliding windows.

Here, the tagged values WindowSize and Tempo-

ralUnit deﬁne the window size, while the query

frequency is the one of the Generation operation.

• ≪ContinousQueryLandmark≫ for landmark

windows. The tagged values WindowMax and

TemporalUnit model the maximum window size

that can be reached before the window is reset.

4.3 Requirements Speciﬁcation

To provide a formal speciﬁcation for continuous

queries, we have implemented a prototyping tool that

simulates the real implementation. Apache Kafka

(https://kafka.apache.org/) is used as a message bro-

ker; in fact, all IoRT applications commonly use mes-

sage brokers to manage the exchange of data between

the devices and the fog/cloud server, and Kafka is to-

day one of the most used systems in all kind of ap-

plications. Kafka relies on two main components: the

data producer, which is responsible of data genera-

tion and sending, and the data consumer, which pro-

cesses the data. In our tool, the input comes from a

JSON ﬁle that includes historical data owned by end-

users. The data producer is implemented in Java; it

reads the JSON ﬁle and sends the data according to

the frequency deﬁned with the stream table. The con-

sumer is implemented via the Apache Flink streaming

engine (https://ﬂink.apache.org/), a widely adopted

system that implements the continuous queries over

data received by Kafka. The results of these queries

are then sent in input to Kafka. As previously de-

scribed, continuous queries may also use additional,

non-streaming data, therefore a DBMS (PostgreSQL

in our implementation) is also present for their storage

and retrieval. Finally, query results are visualized by

means of Grafana (https://grafana.com/), which can

read and visualize data from Kafka in a simple and

intuitive way so that the end-user can check, during

the following step of requirements validation, that the

query formulated actually matches her/his require-

ment. Note that, although some simulation solutions

for sensors and robots (such as Matlab SimuLink) ex-

ist, they do not rely on the streaming engines and

message broker systems normally used to handle big

data streams. Therefore, an additional advantage of

our prototyping architecture is that of proving that the

continuous queries speciﬁed are actually feasible us-

ing commonly-adopted real stream technologies.

On the non-functional side, the available resources

that emerged during the interviews made to IT users

are speciﬁed using natural language. In our example,

they are speciﬁed as follows:

Res.1 An ADAP2E robot can autonomously move in

the ﬁeld, while sensing and sending data of dif-

ferent types. The robot speed is sensed and

transmitted every second.

Res.2 The sensors deployed in the ﬁeld are battery-

based and are able to acquire data and trans-

mit them via Wi-Fi connection. Batteries are

expected to be replaced approximately every

month; however, their duration heavily de-

pends on the frequency of data transmissions.

4.4 Requirements Validation

The ﬁrst activity performed at each step is related to

non-functional requirements and aims at letting end-

users validate the continuous queries speciﬁed. In-

deed, stream data is continuous, and the static visual-

ization provided by stream tables does not really show

end-users what query results will look like. In other

words, stream tables alone cannot be considered as

an effective tool for requirements validation. On the

other hand, the visualization provided by Grafana as

part of the prototyping process described in Section

4.3 is well-suited to this end, since it gives a dynamic

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

118

view based on historical data. As an example, the

Grafana visualization of the results of query Que.1 is

shown in Figure 3.

The second activity to be carried out aims at

checking the feasibility of the continuous queries

against the non-functional requirements speciﬁed. In

our example, query Que.1 applied to the robot data

turns out to be feasible, since the amount of data re-

quired can be easily processed either by a simple PC

deployed at the farm or in the Cloud. The same is not

true for Que.2. In fact, Que.2 is not feasible since tem-

perature data is collected by battery sensors, and the

acquisition and sending frequencies required are too

high, which would imply that batteries are changed

too often —while IT users suggested that batteries

should be changed every month. Therefore, Que.2

must be redeﬁned taking advantage of the sensor ca-

pability of computing simple functions such as the av-

erage. Thus, farmers create a new stream table where

the acquired data is the 6-hours average temperature

computed by the sensor. The new query, Que.2bis,

can be stated as “every 6 hours, compute the maxi-

mum of the 6-hours average temperature with a max-

imum window size of 24 hours”. Sending data each 6

hours drastically reduces the number of sending oper-

ations of the sensor, thus signiﬁcantly increasing the

battery duration.

5 EXPERIMENT

In this section, we present an experiment we have

conducted to evaluate the effectiveness of stream ta-

bles in the requirements engineering process. Ten

robotics engineers with no previous knowledge of

continuous queries have been enrolled. After a 10-

minutes training about how to use stream tables, we

have asked them to design the following sliding-

window query: “Acquire temperature data every hour

to compute, every 2 hours, the minimum temperature

over the last 4 hours, grouped by plot”.

Most users made a single error: they did not use

black cells to show that the computing frequency was

half the acquisition frequency. However, after a brief

explanation of the error, they all were able to correctly

draw the stream table. Thus, all users completed the

task in 2 iterations; the maximum time they employed

was 5 minutes.

We have also asked our users to answer two ques-

tions:

QST.1 Do you think that a stream table is an effective

tool to represent your analytical needs?

QST.2 How difﬁcult is it for you to edit the stream

table template to suit your analytical needs?

As to question QST.1, all users answered yes, giving

a very positive feedback. As to question QST.2, all

users judged the editing of stream tables very easy.

Finally, we have asked our users to evaluate the

beneﬁts of the Grafana implementation via the fol-

lowing questions:

QG.1 Do you think the visualization with Grafana

helps you better understand what the results of

the continuous query will look like?

QG.2 Do you think the visualization can help you

realize that the implemented continuous query

does not actually match your analytical needs?

All users answered positively to both QG.1 and QG.2.

Among the feedback they provided, most users stated

that having the results of their continuous queries on

historical data quickly visualized signiﬁcantly helps

to keep them actively engaged in the project.

6 CONCLUSION

In this paper we have proposed an approach for

requirements engineering of continuous queries in

IoRT. To this end we have introduced (i) stream ta-

bles as a way to let non-IT end-users communi-

cate their requirements about continuous queries, (ii)

UML stereotypes to precisely model these require-

ments, and (iii) a prototyping tool to let users visu-

alize the results of queries on historical data. Im-

portantly, non-functional requirements in the form of

available resources and data are taken into account at

each step, and used to verify the technical feasibility

of continuous queries.

The results of the preliminary tests made with

some real users suggest that stream tables are a

valuable instrument for the elicitation of continuous

queries, and that the fast prototyping tool based on

Flink and Grafana helps is an effective support to the

speciﬁcation and validation steps. Our future work on

this topic will be mainly focused on investigating the

use of goal modeling languages, such as i

∗

, to let non-

functional requirements be analyzed more precisely

and in close connection with functional requirements

(Salcedo et al., 2021).

ACKNOWLEDGEMENT

This work was supported by the French National

Research Agency project IDEX-ISITE initiative 16-

IDEX-0001 (CAP 20-25) and by the European Union

Next - GenerationEU (PIANO NAZIONALE DI

RIPRESA E RESILIENZA (PNRR) - MISSIONE

Requirements Engineering for Continuous Queries on IoRT Data: A Case Study in Agricultural Autonomous Robots Monitoring

119

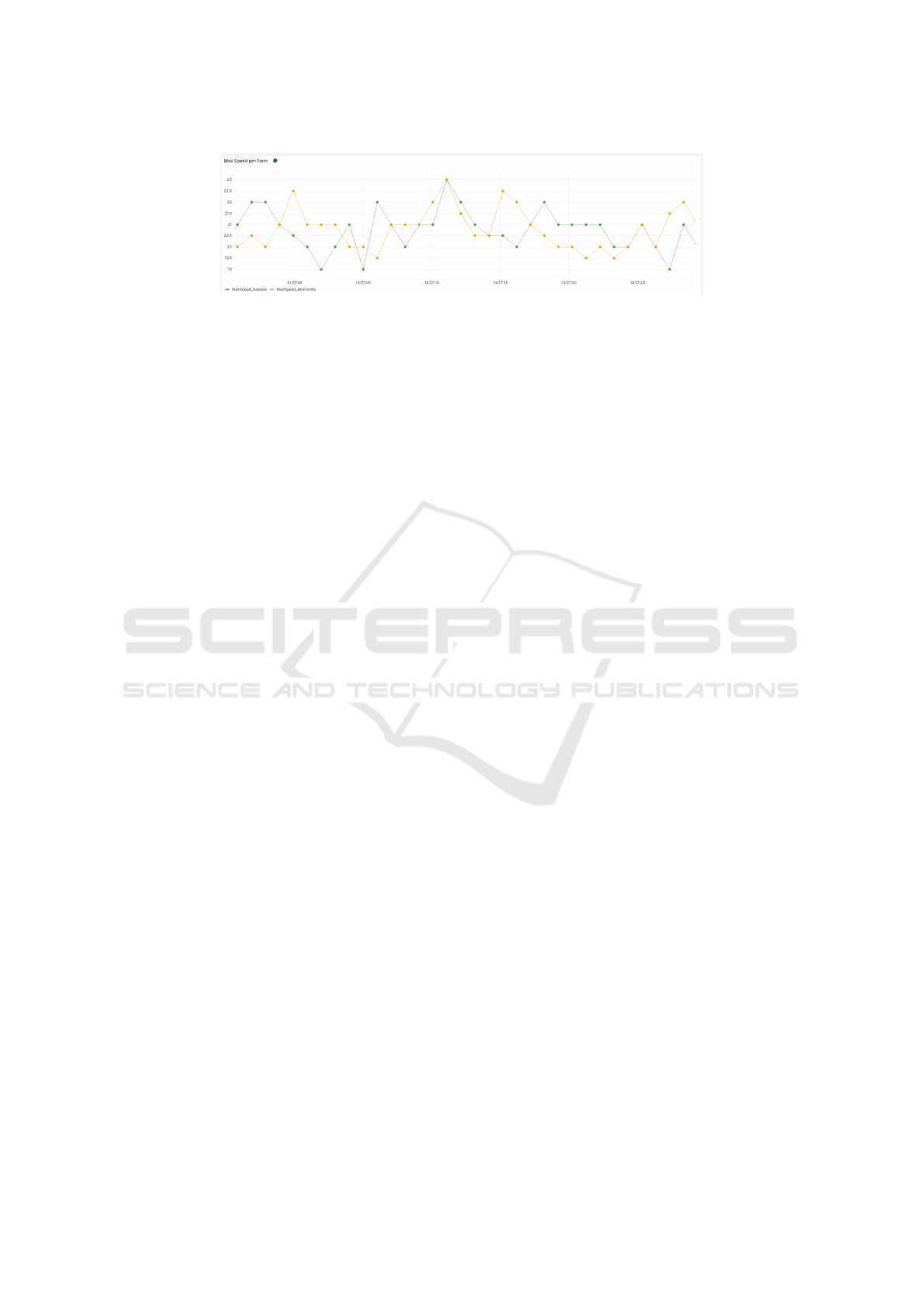

Figure 3: Visualizing the results of Que.1 with Grafana.

4 COMPONENTE 2, INVESTIMENTO 1.4 - D.D.

1032 17/06/2022, CN00000022). This manuscript re-

ﬂects only the authors’ views and opinions, neither

the European Union nor the European Commission

can be considered responsible for them.

REFERENCES

Aguilar-Calder

on, J.-A., Tripp-Barba, C., Zald

ıvar-Colado,

A., and Aguilar-Calder

on, P.-A. (2022). Requirements

engineering for internet of things (IoT) software sys-

tems development: A systematic mapping study. Ap-

plied Sciences, 12(15):7582.

Andr

e, G. et al. (2023). LambdAgrIoT: a new architecture

for agricultural autonomous robots’ scheduling: from

design to experiments. Cluster Computing, 26:2993–

3015.

Bimonte, S., Antonelli, L., and Rizzi, S. (2021a).

Requirements-driven data warehouse design based on

enhanced pivot tables. Requir. Eng., 26(1):43–65.

Bimonte, S. et al. (2021b). On designing and implementing

agro-ecology IoT applications: Issues from applied

research projects. In Proc. EDOC, pages 204–209,

Gold Coast, Australia.

Bimonte, S. et al. (2023). Data-centric UML proﬁle for

agroecology applications: Agricultural autonomous

robots monitoring case study. Comput. Sci. Inf. Syst.,

20(1):459–489.

Costa, B., Pires, P. F., and Delicato, F. C. (2017). Spec-

ifying functional requirements and QoS parameters

for IoT systems. In Proc. DASC/PiCom/DataCom/

CyberSciTech, pages 407–414, Orlando, USA.

Fortino, G. et al. (2018). Agent-oriented cooperative smart

objects: From IoT system design to implementation.

IEEE Trans. on Systems, Man, and Cybernetics: Sys-

tems, 48(11):1939–1956.

Golab, L. and

Ozsu, M. T. (2003). Issues in data stream

management. ACM Sigmod Record, 32(2):5–14.

Gomes, H. M., Read, J., Bifet, A., Barddal, J. P., and

Gama, J. (2019). Machine learning for streaming data:

state of the art, challenges, and opportunities. ACM

SIGKDD Explorations Newsletter, 21(2):6–22.

Kaleem, S., Ahmed, S., Ullah, F., Babar, M., Sheeraz, N.,

and Hadi, F. (2020). An improved RE framework for

IoT-oriented smart applications using integrated ap-

proach. In Proc. AECT, pages 1–6.

Laplante, N. L., Laplante, P. A., and Voas, J. M. (2016).

Stakeholder identiﬁcation and use case representation

for internet-of-things applications in healthcare. IEEE

Systems Journal, 12(2):1589–1597.

Laplante, P. and Kassab, M. (2022). Requirements Engi-

neering for Software and Systems. Auerbach Publica-

tions, New York, 2nd edition.

Lim, S., Henriksson, A., and Zdravkovic, J. (2021). Data-

driven requirements elicitation: A systematic litera-

ture review. SN Computer Science, 2:1–35.

Meacham, S. and Phalp, K. (2016). Requirements engineer-

ing methods for an internet of things application: fall-

detection for ambient assisted living. In Proc. BCS

SQM/Inspire Conference, pages –.

Mezghani, E., Exposito, E., and Drira, K. (2017). A model-

driven methodology for the design of autonomic and

cognitive IoT-based systems: Application to health-

care. IEEE Trans. on Emerging Topics in Computa-

tional Intelligence, 1(3):224–234.

Pohl, K. and Rupp, C. (2015). Requirements Engineering

Fundamentals. Rocky Nook, 2nd edition.

Raﬁque, W., Zhao, X., Yu, S., Yaqoob, I., Imran, M.,

and Dou, W. (2020). An application development

framework for internet-of-things service orchestra-

tion. IEEE Internet of Things Jour., 7(5):4543–4556.

Salcedo, J. A. et al. (2021). Modeling non-functional re-

quirements of a reactive system. In Proc. iStar Work-

shop, pages 15–20, St. John’s, Canada.

Silva, D., Gonc¸alves, T. G., and da Rocha, A. R. C. (2019).

A requirements engineering process for IoT systems.

In Proc. Brazilian Symp. on Software Quality, pages

204–209, Fortaleza, Brazil.

Silva, D., Gonc¸alves, T. G., and Travassos, G. H. (2021).

A technology to support the building of requirements

documents for IoT software systems. In Proc. Brazil-

ian Symp. on Software Quality, page 4, S

ao Lu

ıs,

Brazil.

Silva, E., Fidalgo, R., Ferro, M., and Franco, N. (2023).

Visual query languages to design complex queries: a

systematic literature review. Software and Systems

Modeling, 22:1217–1249.

Simoens, P., Dragone, M., and Safﬁotti, A. (2018). The in-

ternet of robotic things: A review of concept, added

value and applications. International Journal of Ad-

vanced Robotic Systems, 15(1).

Sumalatha, M. and Ananthi, M. (2019). Efﬁcient data re-

trieval using adaptive clustered indexing for continu-

ous queries over streaming data. Cluster Computing,

22(Suppl 5):10503–10517.

Zambonelli, F. (2016). Towards a general software en-

gineering methodology for the internet of things.

arXiv:1601.05569.

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

120
