A Logic-Based Model to Reduce IoT Security Risks

Luiz Otavio Botelho Lento

1,2 a

, Pedro Patinho

1 b

and Salvador Abreu

1,2 c

Department of Informatics, University of

Evora, Portugal

NOVA-LINCS, University of

Evora, Portugal

Keywords:

Risk Management, IoT, Threat Mitigation, Probabilistic Logic, Fuzzy Logic.

Abstract:

As the world becomes more and more dynamic and competitive, people live more and more connected, breath-

ing a cybernetic reality in their lives. IoT systems also do not escape this reality, they are omnipresent, pro-

viding a wide range of services to their users, and increasing their quality of life, enabled by IoT devices. In

parallel with this technology, information security problems are also part of this IoT evolution. A key issue

with IoT environments is ensuring security across all services and devices. The diversity of threats, together

with the lack of concern of most of its administrators and device designers, make the IoT network environment

vulnerable. This article presents RTRMM, a logic-based security risk management model that can help protect

IoT environments, with new strategies to detect, analyze and assess risks, making it possible to predict risks

and aiming to manage them in real time, thereby improving the reliability and safety of the IoT environment.

It makes use of a combination of probability, fuzzy logic, Markov Chains, Games Theory, and Logic Program-

ming to specify, test and validate its functionalities.

1 INTRODUCTION

With the world becoming more dynamic and compet-

itive, people are living increasingly connected lives,

experiencing a cybernetic daily routine. This way, the

vast majority of mankind is connected 24 hours a day,

7 days a week, 365 days a year, as the use of compu-

tational resources has streamlined and facilitated their

daily lives. The Internet is seen as the “oxygen” for

the survival of how we come about in the world, how

we do business and exchange information. IoT sys-

tems also do not escape this reality, they are ubiqui-

tous, providing a wide range of services to their users,

and enhancing their quality of life by enabling smart

devices, sensors and/or anything that is not generally

considered a computer, to generate, exchange and use

data with minimal human intervention (Sabry et al.,

2019). This ability to incorporate and integrate all

these smart devices meets the evolution of the Internet

and wireless technology, causing a great impact on

information and communication technologies (ICT),

and in the Industry 4.0 (Lu, 2017).

In parallel with all this technology, information se-

curity problems are also part of this IoT evolution.

https://orcid.org/0009-0002-5399-2659

https://orcid.org/0000-0001-7906-6114

https://orcid.org/0000-0002-1613-4631

Problems like the capillarity of communication, the

IoT devices are vulnerable to cyberattacks, the lack

of adequate security mechanisms for new threats, as

well as the constant evolution of IoT technologies

are elements that contribute to the growth of vulner-

abilities and the increase of insecurity in the IoT en-

vironment. One of the biggest challenges is ensur-

ing basic security properties such as conﬁdentiality,

integrity and availability of information exchanged

between IoT devices is a major challenge (Ammara

et al., 2018). Furthermore, the limitations in pro-

cessing, storage, and even energy of each IoT de-

vice are factors that limit/prevent the implementation

of more robust information security solutions (Rizvi

et al., 2018). Therefore, perhaps the most appropriate

way to make IoT systems more secure and reliable is

to mitigate and maintain risks at an acceptable level,

giving users more conﬁdence to use its resources and

services.

In this way, this article offers a new vision of

managing security risks in IoT systems in real time.

For this purpose, we created the RTRMM (Real Time

Risk Management Model), a logic-based security risk

management model that can help protect IoT envi-

ronments. This model aims to manage and mitigate

risks in real time, as simultaneous learning occurs.

The model presents new strategies to detect, analyze

Lento, L., Patinho, P. and Abreu, S.

A Logic-Based Model to Reduce IoT Security Risks.

DOI: 10.5220/0012455200003636

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 16th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2024) - Volume 3, pages 1197-1204

ISBN: 978-989-758-680-4; ISSN: 2184-433X

1197

and assess these risks, using techniques that combine

information security risk management strategies with

Fuzzy Logic strategies, Markov Chains, Games The-

ory, logic and probabilistic programming. This article

presents the RTRMM architecture, and the Threat An-

alyzer and Risk Management modules (risk analysis

and assessment features).

2 IoT SECURITY - ISSUES AND

CHALLENGES

Implementing security in an IoT system is also an

arduous and ongoing process. IoT is one of the

more rapidly and dynamically growing technology

that handles protected information. The process is ar-

duous because it consists of a wide range of steps,

and continuous because its management (monitoring

and control) must be carried out periodically due to

the possible changes that the system may undergo,

in addition to the constant and new threats that are

presented in the cyber universe. To facilitate the se-

curity deployment task, understanding the organiza-

tion’s business processes is essential, as this under-

standing facilitates decision-making about which se-

curity controls will be applied, as well as the most ap-

propriate way to implement them, in order to reduce

the risks that an IoT device can suffer (Lento, 2018).

The challenges and problems in IoT systems are

in part similar to most existing computational prob-

lems, differing in their speciﬁcities, such as mem-

ory limitation, processing, amongst others. IoT sys-

tems represent a diversity of interconnected technolo-

gies communicating and sharing data continuously.

Therefore, security risks are created around this uni-

verse, which can cause serious problems for its users,

such as those who use devices that store or inform

data to patients. What can be said about IoT systems

is that the conﬁdentiality, integrity and authenticity of

data exchanged, processed or even stored by devices

in IoT systems is fundamental. Issues such as avail-

ability and response time are also crucial aspects for

certain IoT systems, which must also be addressed. It

is also worth mentioning that an IoT environment has

a diversity of devices and communication technolo-

gies in its domain, which can bring discomfort to its

designers and users, as it can make the search for an

IoT security solution even more difﬁcult (He et al.,

2016). In (Rizvi et al., 2018), it is mentioned that the

open architecture of IoT systems further increases the

challenge of protecting devices, as it increases the di-

versity of functionalities and architectures.

Apart from the challenges already mentioned,

(Malik and Singh, 2019) draws attention to yet more,

such as user privacy, in which data protection is fun-

damental when exchanged over the Internet, ensuring

conﬁdentiality and integrity, in addition to the pri-

vacy of the user and/or devices that are handling this

data. The challenge of identifying and authenticat-

ing devices and/or users can be solved by implement-

ing cryptographic protocols and identity management

strategies, as described in (Osmanoglu, 2014). How-

ever, it is worth emphasizing that the level of security

of this data, for example, depends on the algorithm

and the size of the key used.

3 RTRMM ARCHITECTURE

RTRMM is a new security risk management model for

IoT environments, which aims to address the security

challenges that IoT systems pose in real time. The

logical structure of this model is based on ISO 27005

(ISO/IEC, 2022), as it is a robust approach, consid-

ering all stages of the risk management process in a

clear and objective way, in addition to being an open

architecture, enabling the inclusion of new functional-

ities. It is composed of a set of 4 (four) modules (ﬁg-

ure 1): Threat Analyzer; Risk Management, Threat

Category and Controls DB. All of these modules are

integrated with each other, aiming to detect possible

threats, analyse/evaluate risks and provide security

measures in order to reduce the probability of inci-

dents that may affect the functionality of IoT systems.

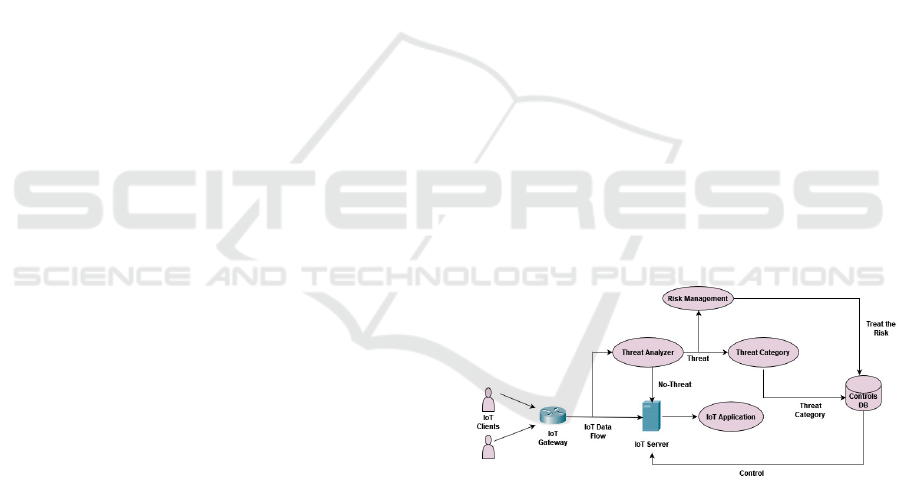

Figure 1: RTRMM Logic Model.

3.1 Threat Analyser Module

The Threat Analyzer is a module that aims to analyze

an IoT data stream in order to verify if a threat exists.

The detection technique applied by Threat Analyzer

is based on the premise of uncertainty and probabil-

ity theories, and fuzzy logic. This architecture was

based on the fuzzy logic technique, as it works with

a degree of uncertainty, but at the same time offers

support for deciding whether a threat occurred or not

(Sanjaa, 2007). The architecture of the Threat Ana-

lyzer module, shown in ﬁgure 2, was based on fuzzy

logic control (FLC) (Iancu, 2012).

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

1198

The choice to work with the fuzzy control archi-

tecture is due to the fact that it is applied to pro-

cesses considered complex and poorly deﬁned, espe-

cially those that can be controlled by a qualiﬁed hu-

man operator without knowledge of their evaluation

dynamics. The developed architecture is composed

of a set of functionalities responsible for analyzing the

IoT data ﬂow in order to check if there is a threat, pre-

senting as a result to the probability of the data ﬂow

having a threat. How does Threat Analyzer work?

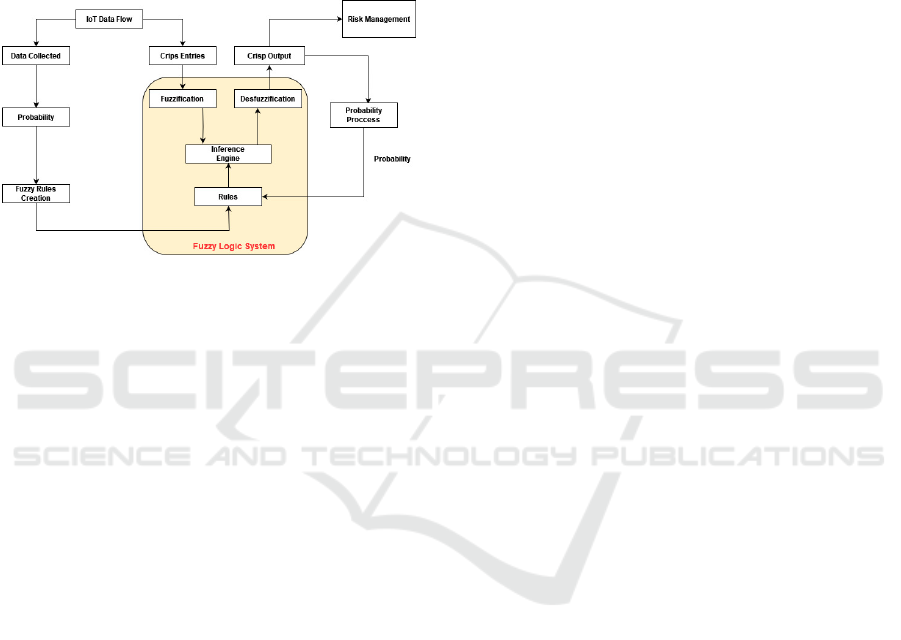

Figure 2: Threat Analyzer Architecture - Adapted from

(Iancu, 2012).

When the IoT ﬂow is analyzed for the ﬁrst time,

the process of inferring the probability value is carried

out based on one or more ﬁelds (protocol, IP address,

ports, ...) of the collected packets. The value to be in-

ferred is determined by the IoT system administrator,

based on external factors such as: history of attacks,

type and volume of trafﬁc, application context of the

device in the IoT system, among others.

The crisp inputs will go through the fuzziﬁcation

process to be used by the inference engine, respon-

sible for comparing the values that underwent the

fuzziﬁcation process with the created rules. The re-

sult of this process is sent to the defuzziﬁcation pro-

cess, which can be forwarded to the Risk Manage-

ment module or re-evaluated with the aim of better

approximating the probability of a threat trail being a

real threat to the system or not.

The system learns by updating the probability val-

ues of a detection, that is, all calculated probability

values are inserted into the composition of new rules

to be evaluated by the system. These new rules will

be applied to a new set of data ﬂows, coming from

the same IoT device, seeking to bring threat detection

closer to reality.

Some technologies were analyzed to determine

probability values andThe design decision for Markov

chain technology (Behrends, 2000). The decision is

due to the fact that for each IoT data ﬂow, a probabil-

ity value is calculated in order to verify the chance of

this ﬂow being a threat. There is no concern with the

previous state, but rather with the result of the current

state for decision making.

3.1.1 Fuzziﬁcation and Desfuzziﬁcation Process

The fuzziﬁcation process will treat input values such

as: port number, IP address, protocol (Crisps inputs),

for relevance values. Four (4) groups were speci-

ﬁed to represent the terms in the fuzziﬁcation pro-

cess, enabling the calculation of the value of the fuzzy

variable. The groups were established based on the

methodology of a qualitative risk analysis (ISO/IEC,

2022). The choice of four (4) levels is because it

makes the analysis simpler and more practical, opti-

mizing time in the process.

1. Really - there is a high probability that it could be

a threat. The degree of relevance is: µS ≥ 0.9

2. Almost - there is a probability of being a threat.

The degree of relevance is: µS ≥ 0.7 ∧ µS < 0.9

3. Sometimes - there is a medium probability of be-

ing a threat. The degree of relevance is: µS ≥ 0.4

∧ µS < 0.7

4. Impossible - the probability of being a threat is

minimal. The degree of relevance is: µS < 0.4

Inference Engine and Inference Rules - - The

Threat Analyzer inference engine is responsible for

applying the inference rules to the fuzzy input to gen-

erate the fuzzy output. The rules are deﬁned together

with the fuzzy inputs according to the membership

functions (reﬂects the knowledge we have regarding

the intensity with which the object belongs to the

fuzzy set (S. and Izquierdo, 2018). To determine the

resulting region, the inference process used the Man-

dami (Mamdani and Assilian, 1975) technique, as it

is intuitive, more suitable for human input, as it has

a more interpretable rule base (IF-ELSE: IF TERM is

Y) and a wide acceptance.

The Defuzziﬁcation process is necessary when the

system is expected to return a number and not the

fuzzy set created for each event. The defuzziﬁcation

technique adopted was the centroid, where its calcula-

tion varies depending on the output, and can assume

discrete or continuous values. In the case of Threat

Analyzer, we work with discrete values, where the

probability value of an anomaly determines whether

or not it is a threat (Jantzen, 2007).

3.2 Risk Management Module

The Risk Management module aims to analyze and

evaluate the threats detected by the Threat Analyzer

directed to IoT systems, dynamically in real time, re-

sulting in the calculated, analyzed and evaluated risk,

A Logic-Based Model to Reduce IoT Security Risks

1199

informing the DB Controls module which evaluated

risks will be treated. This module is divided into

3 (three) basic functionalities, as shown in ﬁgure 3:

Calculate Impact, which aims to calculate the impact

value for the IoT system in the event that an IoT de-

vice is compromised by one or more threats ; risk

analysis (risk analyzer) which aims to analyze and

calculate the risks existing in trafﬁc between com-

ponents of the IoT system; and evaluate risks (risk

assessment), which aims to evaluate the risks deter-

mined by the risk analysis function, in order to deter-

mine those that will be treated.

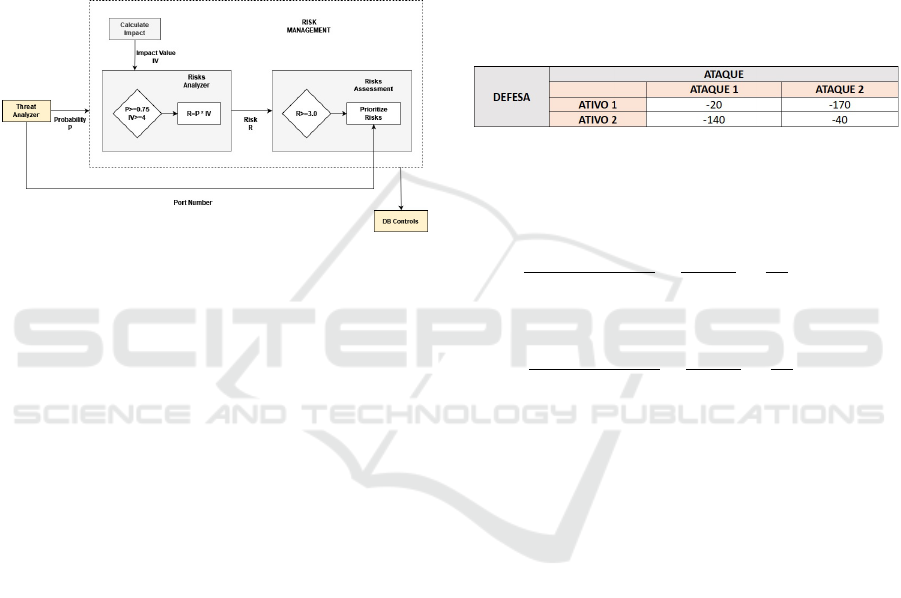

Figure 3: Risk Management Module.

3.2.1 Impact Calculation

Impact is one of the criteria that makes it possible to

know and calculate risk in the risk management pro-

cess. In the RTRMM project, the parameter selected

to determine the importance value was the classiﬁ-

cation level of the IoT device, that is, how impor-

tant it is for maintaining the system’s functionalities.

The Model adopted 4 (four) impact levels, “critical”,

“high”, “medium” and “low”, in which each level re-

ceives a numerical value from 2 to 5, with 5 being

“critical” and the other values being subsequent. in

descending order. See, for example, how the impact

can be calculated taking into account the number of

IoT devices connected to the same functionality;

1. o Critical - ∃d

|i ≥ 2, the system must have at least

2 devices available to meet the system’s needs.

This means that if a device is affected in a secu-

rity incident, there will be at least 2 other devices

that will supply the data transfer demand in the

system.

2. High - ∃d

|i ≥ 1, the system must have at least

1 or more devices available to meet the system’s

needs.

3. Medium - ∃d

— if only if i = 1, the system must

have at least 1 device available to meet the sys-

tem’s needs.

4. Low – the device is not important to the system.

3.2.2 Risk Analysis

The risk analysis process (Risks Analyzer) aims to

know, analyze and calculate the risks, based on all

threats provided by the Threat Analyzer. To analyze

and evaluate the risks, the game theory technique was

adopted. The ﬁgure 4 presents a generic payoff table,

with two attacking and defending players, in which

the defender has two possible defense strategies - de-

fending Asset 1 or defending Asset 2, taking into ac-

count that the attacker can attack both. There is a cost

of 20 euros to defend Asset 1 and 40 euros to defend

Asset 2. At the same time, it is known that there is a

failure cost to defend the Asset of 150 euros and 100

euros for Asset 2.

Figure 4: Payoff Matrix, (Cox, 2009).

With this information, you can:

1 - Know the probability of the attacker maximiz-

ing damage to the defender by attacking asset 1.

(40−170)

(40−170)+(20−140)

130

130+120

130

250

= 0.52

2 - Know the probability of the defender minimiz-

ing the loss by defending the asset1.

(40−140)

(40−140)+(20−170)

100

100+150

100

250

= 0.4

Now we have an assessment of the situation, the

probability of damage that can be caused to an asset,

50%, and the probability of minimizing the success of

an attack, which is lower, which demonstrates a possi-

ble loss if treatment is not taken adequate. In this way,

the asset must be treated. Therefore, all risks that have

a probability pgeq7 must be treated. The probability

distribution for the threat is known based on the pay-

off matrix, in which the probability value is the value

obtained by the attacker being successful in causing

damage to an IoT device. The value of the impact is

related to the importance the device has on the IoT

system (critical, high, medium). The value of vulner-

ability is attributed by risk managers, as they are the

ones who have full knowledge of the IoT system, its

context within the organization and its environment.

The risk calculation is carried out based on threat (A),

vulnerability (V) and impact (I). The risk calculation

formula is represented by the expression:

Risk = A x V x I

3.2.3 Risk Assessment

The risk assessment process of the risk management

module has the functions of determining which risks

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

1200

will be treated and their order of priority. To re-

solve what will be discussed, Game Theory tech-

niques were applied (Sartini et al., 2004; Pim, 2021).

The problem in the risk assessment phase is to de-

ﬁne what will be treated (Treat - T) and what will

not be treated (Do Not Treat - NT), called players,

in game theory. In parallel, two strategies are estab-

lished, RISK and COST, which belong to a set of pure

strategies to deﬁne what to treat and what not to treat.

The risk strategy to be addressed is based on the risk

classiﬁcation, that is, on the risk value calculated in

the risk analysis phase. 4 (four) levels were speciﬁed

to classify the risk. However, as a rule, the RTRMM

project decided to only treat risks that have values

r ≥ 3 (”Critical” and ”High” risks).

The cost strategy, which was called operational

cost, is directly related to the impact that an IoT de-

vice may cause to the IoT system when it is affected

by a threat. To analyze the operational cost for an

IoT system when one or more devices are affected

by one or more threats, factors such as impact analy-

sis, system capillarity, and interconnected devices are

taken into account in the assessment. Therefore, the

cost was classiﬁed into 2 (two) categories, with the

premise that only critical and high risks will be treated

in real time by RTRMM.

The two functions RISK and COST are given by

numeric values, represent the payoffs of N and NT.

The assigned numerical values were obtained from

calculating the risk and operational cost for the IoT

system calculated based on the importance of the IoT

device to the system. The functions are mapped into

the payoffs matrix (ﬁgure 5), in which each cell of this

matrix represents the payoffs of treating (T) and not

treating (NT).

Figure 5: Payoff Matrix.

Solution

The solution is to predict the outcome of the game.

When analyzing risk assessment from the perspective

of treatment, it can be carried out both depending on

the risk and the operational cost. In both situations,

the strategy of dominance was applied, instead of bal-

ance, as the values are dominant compared to others.

Therefore, applying the dominance strategy, the result

for the treatment prioritizes the risk and then the cost.

(RISK,COST)

3.3 Threat Category Module

The Threat Category module aims to classify threats

into categories so that they can be easily searched

when selecting the best security mechanism. The

strategy adopted was to link categories of similar

threats, aiming to reduce the number of security

mechanisms to be applied in the IoT system. Despite

being a somewhat generic strategy, it is useful due to

the need for RTRMM to manage risks in real time. The

similarity strategy groups a set of threats into the same

category, such as DoS (Deny of Service), invasion,

data privacy, among others. Therefore, to categorize

a threat, a set of parameters were established for each

of these categories.

Upon receiving the threat parameters from the

Threat Analyzer, the Threat Category analyzes the

parameters, pre-established by the risk manager, and

classiﬁes it into a category (ﬁgure 6). However, there

is still a question, how to analyze these parameters

and classify the threat.

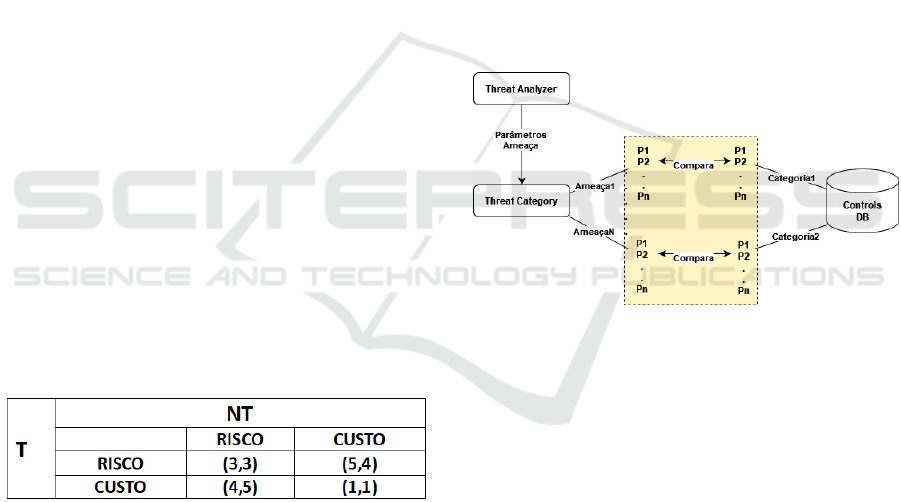

Figure 6: Threat Category Dynamics.

Therefore, a solution was adopted that makes use

of a discrete-time stochastic process, where an acyclic

graph G = (V,E) has a ﬁnite, non-empty set of vertices

V and a set of edges A. Each vertex of this graph rep-

resents a parameter that makes up the threat detected

by the Threat Analyzer, and the path between two or

more sequential vertices deﬁnes a threat category.

Deﬁnition: for each pair of sequential vertices (u,v),

in an acyclic graph G = (V,E), where u and v are

IoT trafﬁc parameters, form an edge of a path that

represents the characteristic threat.

There is an edge only if: e

= {e

, e

, ...,e

where e

is a set of security events.

If (e

∧ e

) ε e

→ ∀e

, e

i+1

∃ e

, where e

is an

edge composed of (e

, e

e+1

)

Deﬁnition. There is a path in an acyclic graph G =

(V, E) if only if there is a set of edges (u,v).

= {e

, e

, ..., e

}, where e

is a set of edges

A Logic-Based Model to Reduce IoT Security Risks

1201

If (e

∧ e

di..n

) ε e

→ ∃ PATH | PATH =

, e

, ..., e

}

The construction of the graph is based on the

information collected in the IoT data ﬂow, that is,

on the detected threat parameters. For each IoT

trafﬁc threat parameter, a vertex of the graph G =

(V,E) corresponds. The edges will be created by

interconnecting these vertices forming several paths.

Each path will correspond to a threat category. All

threat categories will be deﬁned in advance, stored in

a database or deﬁned in real time (zero-day attacks

may create a new category).

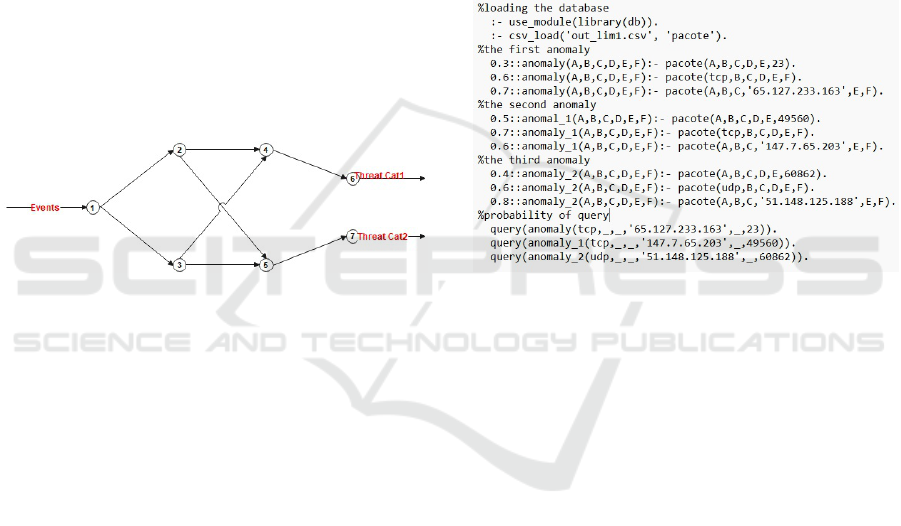

For example, suppose an acyclic graph, like ﬁgure

7, with n = |N| and m = |E|, where n is the number of

vertices and m the number of edges.

Begin tεT = {1, 2, 3, 4, 5, ...}.



T hreat(Cat), if s and t in V(G) there is a path

No −threat, not exist a path

Figure 7: Threat Category.

Therefore, the strategy used in the Threat Cate-

gory is a way to improve the performance of risk man-

agement in RTRMM, as it makes it easier to determine

which security mechanism to use.

4 RTRMM PROTOTYPE

The section aims to present how the RTRMM was im-

plemented, based on the logical model shown in ﬁg-

ure 3. Not all modules were implemented and tested,

as the project is still in the implementation and vali-

dation phase. The functionalities of the implemented

modules were carried out based on logic program-

ming and probabilistic logics, resorting to Prolog and

Problog (de Raedt, 2007).

4.1 Threat Analyzer Prototype

Implementation

The Threat Analyzer module was implemented in

Problog (de Raedt, 2007) and used IoT-23, a network

trafﬁc dataset of Internet of Things (IoT) devices,

generated by “Stratosphere Laboratory, AIC group,

FEL, CTU University, Czech Republic” (Laboratory,

2020), that aims to offer a large dataset, infected by

malware from real IoT devices.

The developed code made use of 6 ﬁelds (IoT

trafﬁc identiﬁcation parameters) from the IoT-23

database, simulating Crisp entries, as in the fuziﬁ-

cation process: protocol; Date of the event; source

and destination IP address; and source port and des-

tination port. Initially. 3 anomalies were speciﬁed,

based on the fuzziﬁcation rules strategy, and on the

malware parameters presented in IoT-23. For each of

the anomalies, three (3) IoT trafﬁc identiﬁcation pa-

rameters were selected for their composition: proto-

col, destination IP address and destination port (ﬁgure

8).

Figure 8: Codiﬁcac¸

ao do Threat Analyzer.

The strategy of inferring the probability value for

each parameter in the composition of each anomaly

was initially based on the analysis/evaluation of the

events presented in IoT-23. The strategy analyzed

the number of occurrences of each parameter in the

IoT-23 database in the N/M ratio. The N value corre-

sponds to the number of occurrences of a parameter

in the IoT-23 database, and M to the total number of

data ﬂows in the IoT-23 database. These values were

inserted in one of the nodes of the Markov network,

which allows the probability value for a packet to be

a threat or not.

4.2 Risk Management Implementation

The implementation of the Risk Management module

was carried out in Problog, using as input a database

with anomalies and their respective probabilities de-

tected by the Threat Analyzer. This database con-

tained eleven (11) entries (anomalies and probabili-

ties), where ﬁve (5) were of one type of anomaly, an-

other ﬁve (5) of another type and, ﬁnally, a single oc-

currence of the third type of anomaly, for each type

of anomaly, the system calculated the probability of

these being a threat or not, as can be seen in ﬁgure 7.

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

1202

The implementation of the Risk Management

module was carried out in Prolog, having as in-

put a database with the anomalies and their respec-

tive probabilities detected by the Threat Analyzer.

This database contained eleven (11) entries with the

anomalies and their respective probabilities, as seen

in ﬁgure 9.

Figure 9: Result Anomalies Detected.

The risk management module created a database

in Prolog, consisting of the type of anomaly and

its probability, in addition to the threat levels pro-

posed by the RTRMM (Really, Almost, Sometimes,

Impossible). The following results were obtained, and

whether they should be adjusted:

• Anomaly - this anomaly scored 0.916 as a result

and is considered “Really”, a high possibility of

being a threat. DEAL WITH THE THREAT -

PRIORITY 2;

• Anomaly 1 - this anomaly scored 0.88 as a result,

being considered “Almost” there is a possibility

of being a threat. DEAL WITH THE THREAT -

PRIORITY 3;

• Anomaly 2 - This anomaly scored 0.952 as a re-

sult and is considered “Really”, a high possibility

of being a threat. TREAT - PRIORITY 1.

Considering that these anomalies are a threat, the

next step of the RTRMM Risk Management is to eval-

uate which of these threats will be treated and their de-

gree of priority. RTRMM assumed that for any threat

that has the degree of relevance (probability) µS ≥ 0.7

it should be treated. The reason for this decision is to

reduce the rate of false positives/negatives, improving

the probability of treating detected threats. The ini-

tial rate of false positives/negatives, without applying

the value of the relevance degree µS ≥ 0.7 was around

20% occurrences, considered very high. With the ap-

plication of the relevance value, this rate was reduced

by approximately 60%, excluding threats with little

probability of being true, improving the reliability of

threat validation.

As for the priority of treatment of threats, RTRMM

initially adopted that the ordering of probabilities cal-

culated by the system will determine the priority of

treatment. This means that the treatment sequence

will be: Anomaly

2; Anamoly; and Anomaly 1.

4.3 Performance

To assess whether RTRMM is viable, a brief perfor-

mance analysis was carried out with two different sit-

uations, as shown in ﬁgure 10.

• Situation 1 - each anomaly had 3 parameters (pro-

tocol, destination address and destination port),

and the system used 3, 5 and 7 anomalies for time

analysis.

• Situation 2 - each anomaly had 5 parameters (pro-

tocol, source and destination address and source

and destination port), and the system used 3, 5 and

7 anomalies for time analysis.

Figure 10: Run-time Comparison.

What can be observed is that the system presented

a performance behavior considered adequate, with its

time growth rate practically proportional (i.e. linear)

to the growth of the number of anomalies, both with

the use of 3 or 5 parameters in the composition of an

anomaly.

5 CONCLUSION

This article presented a new security risk management

model based on probabilistic logic for IoT environ-

ments. The model is able to recognize threats and the

probability of them happening, in addition to analyz-

ing and evaluating the risks, as well as treating them.

The Threat Analyzer and Risk Management modules

were implemented, showing how RTRMM will be able

to perform its functionalities.

Not all modules and functionalities have been

completely implemented and tested, such as the DB

Controls module, the learning strategy in the Threat

Analyzer and the choice of security measure that is

supposed to be applied. Currently, the process is

still in its testing phase regarding its efﬁciency us-

ing Bayesian networks and it will still be subjected to

ﬁnal analysis. Regarding the application of security

measures, the interruption of communication with the

IoT device that is suffering the threat/attack, is be-

ing applied. However, all of these elements are being

worked on in order to be added to the functionality of

RTRMM. The next step of this project is to benchmark

A Logic-Based Model to Reduce IoT Security Risks

1203

RTRMM in IoT Healthcare environments and exten-

sively compare it to competing systems.

ACKNOWLEDGEMENTS

This work was partially supported by Funda¸

ao para a

encia e a Tecnologia, Portugal, through the NOVA

LINCS research center (UIDB/04516/2020).

REFERENCES

Ammara, M., Russellob, G., and Crispo, B. (2018). Internet

of things: A survey on the security of iot frameworks.

In Journal of Information Security and Applications,

pages 8–27. Elsevier.

Behrends, E. (2000). Introduction to markov chains with

special emphasis on rapid mixing. In Advanced Lec-

tures in Mathematics. Spinger.

Cox, L. (2009). Game theory and risk analysis. In Risk

Analysis, Vol.29, pages 1062–1068. Society for Risk

Analysis.

de Raedt, L. (2007). A probabilistic prolog and its applica-

tion in link discovery. In IJCAI-07, pages 2468–2472.

IJCAI.

He, H., Maple, C., Watson, T., Tiwari, A., Mehnen, J., Jin,

Y., and Gabrys, B. (2016). The security challenges in

the iot enabled cyber-physical systems and opportu-

nities for evolutionary computing and other computa-

tional intelligence. In IEEE Congress on Evolutionary

Computation (CEC), pages 1015–1021.

Iancu, I. (2012). A mamdani type fuzzy logic controller.

In Fuzzy Logic – Controls, Concepts, Theories and

Applications, pages 325–349. Intechopen.

ISO/IEC (2022). Iso/iec 27005:2022 information security,

cybersecurity and privacy protection — guidance on

managing information security risks. In ISO/IEC.

ISO/IEC.

Jantzen, J. (2007). Tutorial on fuzzy logic. In Tech. re-

port no 98-E 868. Technical University of Denmark,

Oersted-DTU.

Laboratory, S. (2020). Aposemat iot-23. In

https://www.stratosphereips.org/datasets-iot23.

Stratosphere Laboratory.

Lento, L. O. (2018). Seguranc¸a da Informac¸

ao. UNISUL,

Brasil, 1st edition.

Lu, Y. (2017). Industry 4.0:a survey on technologies, appli-

cations and open research issues. In Journal of Indus-

trial Information Integration, pages 1–10. Elsevier.

Malik, V. and Singh, S. (2019). Security risk management

in iot environment. In Journal of Discrete Mathemat-

ical Sciences and Cryptography vol. 22, no 4, pages

697–709. Taru Publications.

Mamdani, E. and Assilian, S. (1975). An experiment in

linguistic synthesis with a fuzzy logic controller. In

Int. J. Man-mach. Studies, pages 1–13. Elsevier.

Osmanoglu, E. (2014). Identity and access management -

business performance through connected intelligence.

In Syngress. Elsevier.

Pim, B. (2021). Uma breve introduc¸

a teoria dos jogos.

In Revista Eletr

onica Paulista de Matem

atica, vol. 1,

pages 69–80. C.Q.D.

Rizvi, S., Pfeffer III, J., Kurtz, A., and Rizvi, M. (2018).

Securing the internet of things (iot): A security taxon-

omy for iot. In 17th IEEE Int. Conf. On Trust, Secu-

rity And Privacy In Computing And Communications,

pages 163–168. IEEE.

S., I. and Izquierdo, L. R. (2018). Mamdani fuzzy systems

for modelling and simulation: A critical assessment.

In Journal of Artiﬁcial Societies and Social Simula-

tion. JASSS.

Sabry, S. S., Qarabash, N. A., and Obaid, H. S. (2019). The

road to the internet of things: a survey. In 9th An-

nual Information Technology, Electromechanical En-

gineering and Microelectronics Conference (IEME-

CON), pages 290–296. IEEE.

Sanjaa, B. (2007). Fuzzy and probability. In IEEE Xplore,

pages 141–143. IEEE.

Sartini, B., Garbugio, G., Bortolossi, H., Santos, P., and

Barreto, L. (2004). Uma introduc¸

ao a teoria dos jo-

gos. In II Bienal da SBM, pages 1–62. UFB.

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

1204
