Exploring the Design of Low-End Technology to Increase Patient

Connectivity to Electronic Health Records

Rens Kievit

1 a

, Abdullahi Abubakar Kawu

2 b

, Mirjam van Reisen

1 c

, Dympna O’Sullivan

2 d

and Lucy Hederman

3 e

Leiden Institute of Advanced Computer Science (LIACS), Leiden University, Leiden, The Netherlands

Technological University, Dublin, Ireland

School of Computer Science and Statistics, Trinity College Dublin, Dublin, Ireland

Keywords:

Patient Generated Health Data, FAIR Data, Interactive Voice Response, Home Monitoring Devices, Patient

Connectivity.

Abstract:

The tracking of the vitals of patients with long term health problems is essential for clinicians to determine

proper care. Using Patient Generated Health Data (PGHD) communicated remotely allows patients to be

monitored without requiring frequent hospital visits. Issues might arise when the communication of data

digitally is difﬁcult or impossible due to a lack of access to internet or a low level of digital literacy as is the

case in many African countries. The VODAN-Africa project (van Reisen et al., 2021) started in 2020 and

has greatly increased the capabilities of clinics in different countries in both Africa and Asia, but currently

no systems are in place for the integration of external data from patients with long term health problems. In

this article we outline our investigation into methods to increase the connectivity of patients with long term

health problems with their clinics, and propose a solution in the form of a data pipeline prototype based on an

Interactive Voice Response (IVR) system.

1 INTRODUCTION

With the creation of the VODAN-Africa network

(van Reisen et al., 2021), the health data capabilities

of many non-western countries have been improved

tremendously. At the time of this writing, there are

a total of 67 health facilities with patient instances

spread out over 8 countries on the African continent.

The VODAN-Africa network is a novel healthcare

framework that is entirely based on the FAIR prin-

ciples. These were introduced by (Wilkinson et al.,

2016) and describe guidelines to improve the Find-

ability, Accessibility (under well-deﬁned constraints),

Interoperability and Reproducibility of digital ob-

jects. The main goal of the development of these

guidelines was to increase the capability and action-

ability of machine algorithms to better deal with the

quickly increasing volume and complexity of data

https://orcid.org/0000-0003-2328-4117

https://orcid.org/0000-0003-2531-9539

https://orcid.org/0000-0003-0627-8014

https://orcid.org/0000-0003-2841-9738

https://orcid.org/0000-0001-6073-4063

in the modern world.

Within the context of the

VODAN-Africa project, these guidelines create the

possibility of the analysis of healthcare trends on large

geographical scales while being able to maintain data

ownership within the clinics. The former happens

through the standardization of the data ﬂow and cre-

ation of controlled vocabularies which allows inter-

operability between clinics in various countries. Data

ownership is ensured by a smart aggregating data vis-

iting system (van Reisen et al., 2021; Plug et al.,

2022).

The data collection and registration currently only

happens within clinics, where medical staff treat the

patients and collect data, and trained data clerks in-

sert this data into the previously mentioned systems.

Traveling to, or communication with, these clinics,

however, might not always be trivial. In poorer or

more rural regions, proper access to infrastructure

such as roads or the internet might be complicated.

This can be especially difﬁcult for patients with long

term physical-conditions such as asthma, diabetes,

A more detailed description of the guidelines and their

use is described at https://www.go-fair.org/

194

Kievit, R., Kawu, A., van Reisen, M., O’Sullivan, D. and Hederman, L.

Exploring the Design of Low-End Technology to Increase Patient Connectivity to Electronic Health Records.

DOI: 10.5220/0012460900003657

In Proceedings of the 17th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2024) - Volume 2, pages 194-200

ISBN: 978-989-758-688-0; ISSN: 2184-4305

epilepsy and high blood pressure. These are patients

that do not need to be in a clinic at all times, but their

vitals would ideally be tracked at short intervals over

a long period of time to detect developments in their

condition or predict deterioration in advance so that

proper care can be administered. To increase the con-

nectivity of this type of patient, we have developed a

proof of concept in this work for a FAIR-based data

pipeline that is capable of processing Patient Gener-

ated Health Data (PGHD) in a way that makes it inter-

operable with the existing VODAN-Africa framework

without requiring access to the internet. PGHD refers

to health data that is collected by the patient at their

homes or other settings outside the clinic environment

towards their care (Hussein et al., 2021).

This research began with an interview conducted

with a doctor, a patient and two data managers from

a clinic in Nigeria. The results and discussion sur-

rounding this interview are presented by Kawu et al.

(2024). They ﬁnd that PGHD is currently already in

use, mostly for addressing white collar hypertension,

this is when patients typically have higher blood pres-

sure readings in a clinic then they do at home. How-

ever this is limited, purely on paper, and not integrated

with the rest of the electronic health records. From

the interviews, Kawu et al. (2024) deﬁne four rec-

ommendations for a system integrating PGHD with

digital health systems in low resource settings. The

system should be supportive of the economic condi-

tions of users and should be intuitive and accessible

to all users (I). The metadata surrounding the PGHD

should clearly describe both time and location when

the data is gathered (II). The data should be kept sep-

arate from the traditional clinical data to create trust

in data quality (III). The PGHD should be embedded

as part of the clinical workﬂow to ensure continued

engagement with patients (IV).

Following recommendation I, we ﬁnd that the de-

vices to be used for both the collection and communi-

cation of PGHD should be kept both cheap and sim-

ple accounting for the low-resource setting of this re-

search. In a western and more resource-rich context,

wearables can fulﬁll the role of automatically collect-

ing and communicating PGHD over the internet. We

have brieﬂy investigated the possibility of utilizing

them here, but ﬁnd these to often be both too expen-

sive and too unintuitive as was also stated by Kawu

et al. (2024). Therefore we opt for a more practi-

cal approach requiring only a digital health monitor

which a patient is able to use themselves and a work-

ing cell phone. To allow the patient or their carer to

communicate the digital health monitor data, we de-

velop an Interactive Voice Response system which is

accessible over any kind of mobile phone, using the

services provided by Africa’s Talking. We include

various types of auxillary data surrounding the cre-

ation of PGHD and keep our data separate from exist-

ing data source in the VODAN-Africa network to ad-

here to respectively recommendations II and III from

Kawu et al. (2024).

Further, Kawu et al. (2023) provides a framework

which describes how PGHD can be made FAIR using

a curation tool. In this work we use The Center for

Expanded Data Annotation and Retrieval (CEDAR,

Musen et al., 2015). In the following section, we will

outline the method used to achieve patient connec-

tivity using our IVR-developed application with the

CEDAR tool.

2 IMPLEMENTATION

In this section we present the implementation details

of our proof of concept for a data pipeline from data

collection up to data storage and analytics. The imple-

mentation presented here has been developed specif-

ically for a generic blood pressure monitor that can

measure a patient’s pulse rate, systolic- and diastolic

blood pressure readings. However, this can be easily

expanded to include other types of digital health mon-

itors, or even incorporate wearable technology via the

internet if this is available. As suggested by Kawu

et al. (2023), some patients may be required to track

multiple PGHD which will require multiple devices,

hence multiple sources of PGHD should be consid-

ered in the integration with the electronic health sys-

tem. It may be the case that two PGHD devices col-

lect the same or similar data, and so, a consolidation

mechanism may need to be in place.

We present an overview of the pipeline in Fig-

ure 1. It is divided into three sections, the ﬁrst two

of which are further described in the following sec-

tions. The ﬁrst is the data collection & communica-

tion which contains the creation of Patient Generated

Health Data and the communication of this data to the

clinic using the procedures described in the next sub-

section. The second part is the data storage & process-

ing, which contains all the operations performed on

the data within the clinic to transform the raw PGHD

into FAIR data objects. The third and last step is the

data application & access which uses the processed

data objects stored in a clinic for prediction and visu-

alization, this will be expanded upon further in future

work. The code corresponding to the implementation

outlined is accessible online.

The procedures drawn with solid arrows corre-

https://github.com/RenVit318/ivr implementation bp

Exploring the Design of Low-End Technology to Increase Patient Connectivity to Electronic Health Records

195

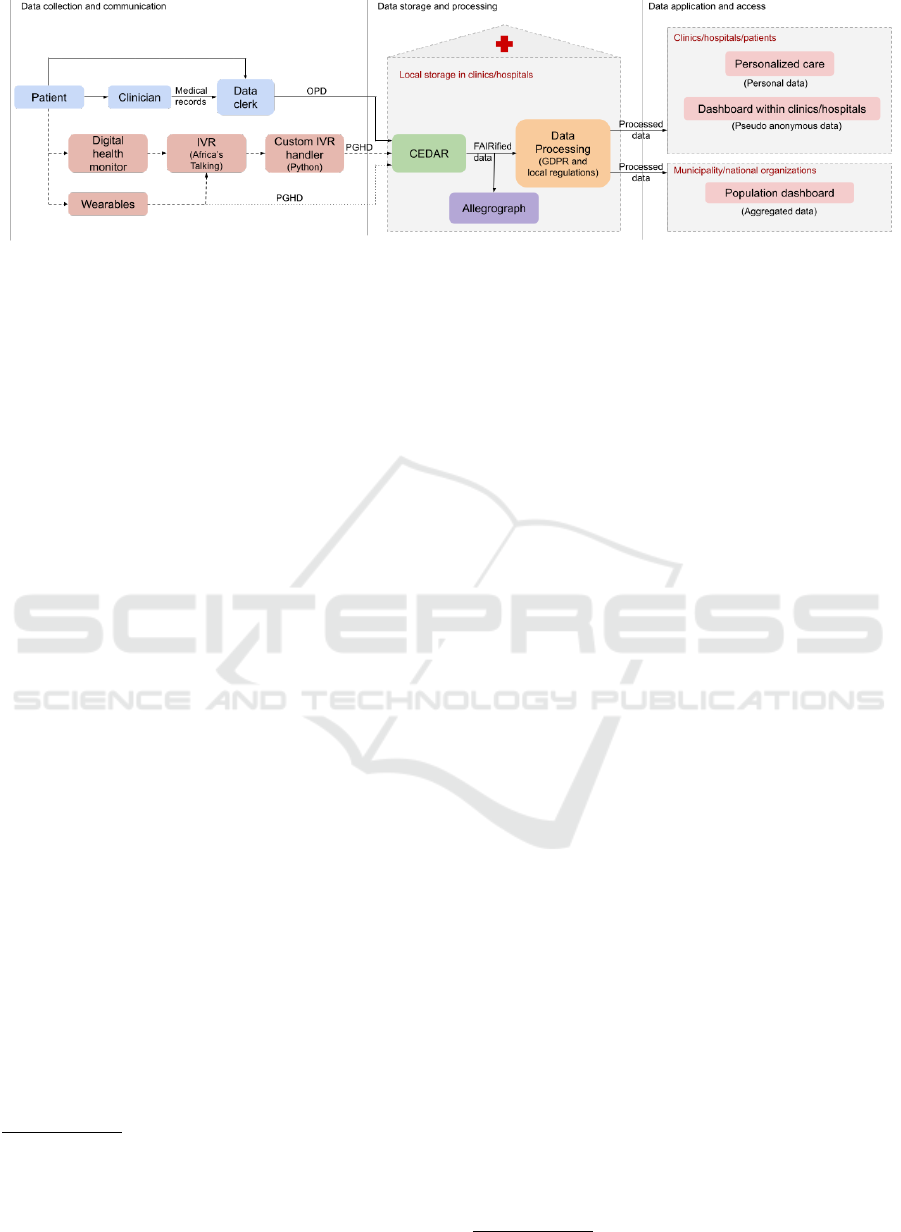

Figure 1: Overview of the complete data pipeline used for the PGHD collection.

spond to procedures present in the current VODAN

implementations. The dashed arrows correspond

to the new pipeline developed in this report. The

dotted arrow leading from “Wearables” directly to

“CEDAR” represents a direct connection between a

digital wearable and CEDAR which requires a direct

internet connection and is therefore not developed in

this work. In the following sections, we will expand

on the pipeline up to and including integration with

CEDAR.

2.1 Data Collection & Communication

The ﬁrst step in any data pipeline is the collection of

the data to be processed. In the current version of the

pipeline this collection has to be performed manually

by the patient or their caregiver. They do this by ei-

ther using a digital blood pressure monitor they have

at home and reading off their vitals from its screen,

or by simply reading these off from a wearable that

continuously monitors them. In both cases the pa-

tient will have to memorize or write down their pulse

rate, systolic blood pressure and diastolic blood pres-

sure. Once they have this data, they call a cellphone

number connected to our Interactive Voice Response

(IVR) system, which we have set up using a service

from Africa’s Talking (AT).

Interactive voice response (IVR) is a technology

that allows people to call and converse with a pro-

gram that uses a synthetic human voice to communi-

cate information and ask questions. The human inter-

acting with this service can respond using the number

keys on their cell phone.

This technology is ubiq-

uitous in telephone systems for hospitals, where you

are normally ﬁrst placed inside a queue and need to

interact with an IVR program ﬁrst to be redirected

In some modern implementations of IVR users can

also respond by speaking which is then translated into text

by a machine learning algorithm. However this is naturally

less reliable than manual key press of numbers on the mo-

bile phone, and is also not currently offered as a possibility

by Africa’s Talking.

to the correct department or physician. Our decision

to utilize IVR for this implementation mainly stems

from its accessibility; there is no requirement for liter-

acy as the data requests are purely conveyed through

sound and key presses. Of course a certain level of

technical literacy is required to utilize both the digi-

tal blood pressure monitor and the cellphone, but that

is inescapable. In addition to this, the IVR service

provided by AT in Nigeria is also the cheapest option

which means less ﬁnancial strain on the clinics.

We have created a custom application written in

Python that runs using Flask (Grinberg, 2018) and uti-

lizes the Africa’s Talking IVR service.

Our applica-

tion communicates with this using Hypertext Transfer

Protocol (HTTP) requests and provides instructions

written in Extensible Markup Language (XML) inter-

pretable by their Application Programming Interface

(API) which describe what to do during a call with a

patient, an example of this XML code is presented in

Figure 3. The full procedure is outlined in Figure 2. It

begins with the PGHD being collected using the BP

monitor (step 1) and then calling our virtual phone

number registered with Africa’s Talking (step 2). The

patient is then greeted and asked for their identiﬁca-

tion number. In future implementation work this can

be used together with the incoming phone number to

authenticate the patient and deduce which type of data

needs to be requested. After this the medical data is

requested ﬁeld-by-ﬁeld (steps 3-6), the patient can re-

spond by inserting the corresponding measurements

using the number pad on their phone. Then some ad-

ditional auxiliary information surrounding the collec-

tion of the data is requested by providing numbered

options. Currently implemented are the position of

the patient during data collection (sitting, standing,

laying), location during the collection (at home, or

not at home), and the person collecting the data (the

patient themselves, or a caregiver). The decision to

use these ﬁelds is based on the results of Kawu et al.

(2024) but could change in the process of future im-

https://africastalking.com/voice

HEALTHINF 2024 - 17th International Conference on Health Informatics

196

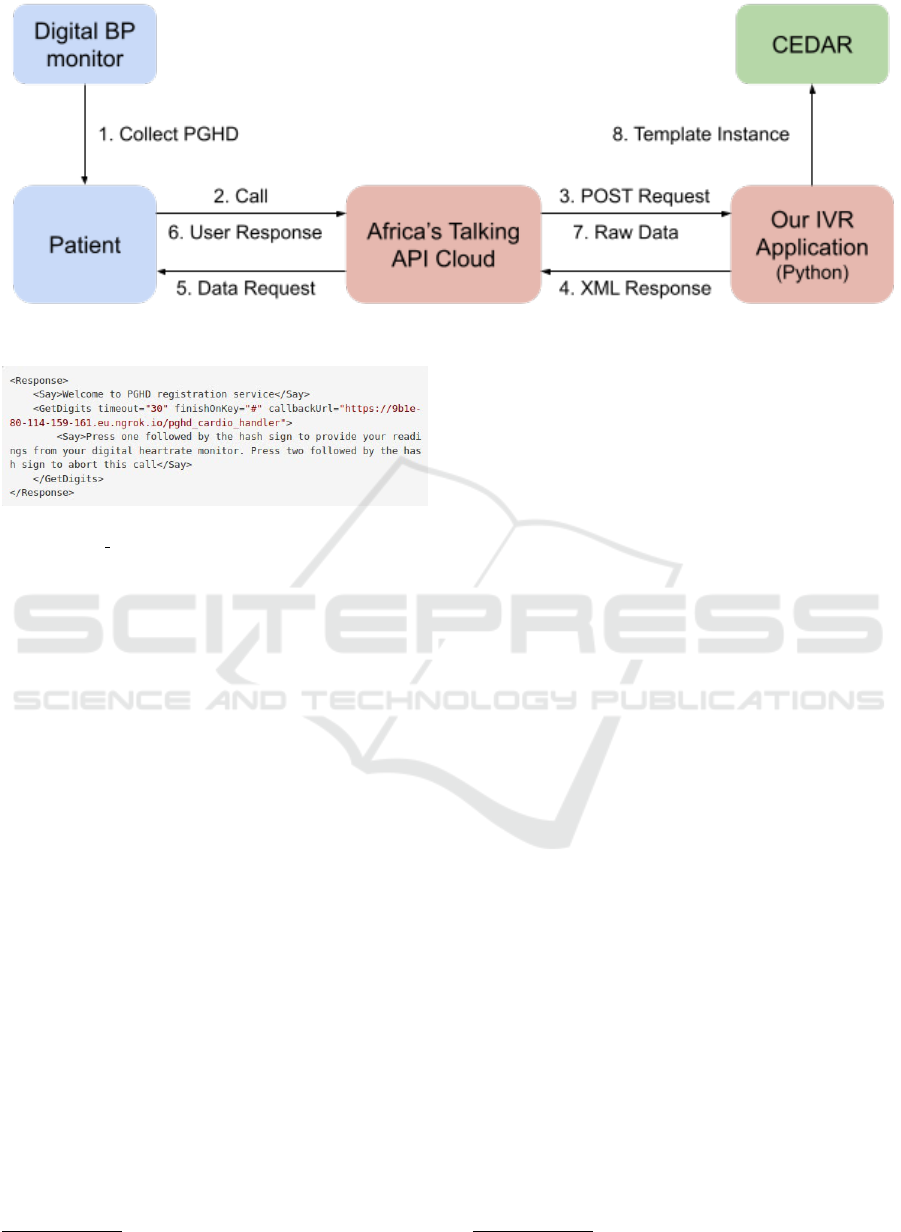

Figure 2: IVR communication protocol used in this work described in more detail in text.

Figure 3: XML Response given when sending a POST re-

quest to /pghd handler.

plementation research. A ﬁeld that is currently empty

is some identiﬁer of the device used for collecting

data, this could be the International Mobile Equip-

ment Identity (IMEI) number which should be known

in the clinic and related to the patient ID.

The call is ended when the application has col-

lected all data and stored it in a local JSON ﬁle. This

ﬁle is sent using an HTTP POST request to CEDAR

using its REST API accessed through application/json

(steps 7 and 8 in Figure 2). In this step the data is con-

verted into FAIR objects and saved as an instance of

our CEDAR template which we will describe in more

detail in the next subsection. Once the data is suc-

cessfully sent it is immediately deleted from our IVR

application and it is ready for the next caller. In a real-

life implementation our application would be hosted

on a web-server, but for the purposes of testing this

prototype we temporarily host it online using ngrok.

2.2 Data Storage & Processing

The second step in the data pipeline commences once

the data communication procedure described above is

completed. As described in more detail above, the

collected data is sent to the CEDAR metadata center

as an instance of the Patient Generated Health

Data: Blood Pressure metadata template created

for this project based on the existing outpatient data

https://ngrok.com/

(OPD) template. Figure 4 shows a ﬁlled-in example

of respectively the JSON ﬁle and the CEDAR tem-

plate. The JSON ﬁle snippet (left) is how the data

is stored during the data collection phase and what

is sent to the CEDAR API in step 8 of Figure 2,

the CEDAR template (right) shows the same infor-

mation in the CEDAR webview. Each CEDAR ﬁeld

is described in the JSON ﬁle by its ﬁeld name, e.g.

hasPulseRate; this is not the same as the preferred

label shown in the template (”The Pulse of the client”)

which is more verbose to improve human readability.

Within the curly brackets the value (@value) and con-

straint on allowed values (@type) are given. For the

three collection detail ﬁelds (CollectionPosition,

CollectionLocation, CollectionPerson) the in-

formation is represented as a URI (@id) which is re-

lated to the ontology made for this project that will be

discussed further later in this section.

Here the PGHD recorded by the patient is stored

along with the date and time of collection, pa-

tient identiﬁcation number and a new ﬁeld indicating

whether IVR was used to communicate the data to

CEDAR. This ﬁnal ﬁeld is included for possible meta

analyses in future work. The date of collection of the

PGHD is currently assumed to be the same as the date

of the phone call. However in reality this might not al-

ways be the case. Nevertheless due to possible issues

that might arise in entering a long form value such as

date using IVR we leave the exploration of this prob-

lem to future work.

The ﬁelds in the CEDAR template related to

the measurement of blood pressure data are linked

through Uniform Resource Identiﬁers (URI) to the

Semantic Mining of Activity, Social, and Health data

(SMASH) ontology (Phan et al., 2016).

This ontol-

ogy describes concepts related to activity, social and

health data. In this work we only utilize the pulse rate,

https://bioportal.bioontology.org/ontologies/SMASH

Exploring the Design of Low-End Technology to Increase Patient Connectivity to Electronic Health Records

197

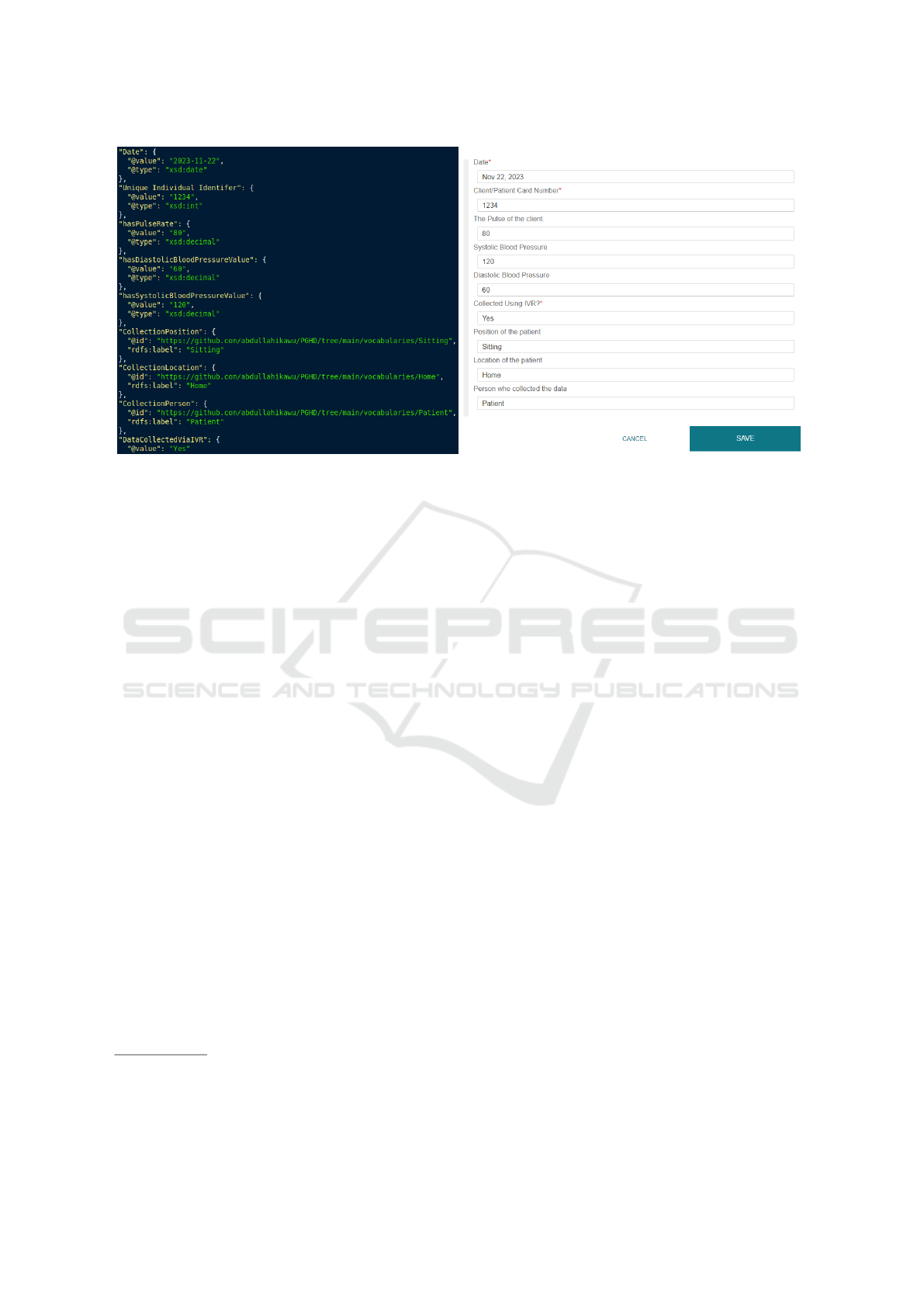

Figure 4: left: Snippet of the JSON package sent to CEDAR. right: Filled-In CEDAR template for collecting Patient Gener-

ated Health Data from a digital blood pressure monitor as used for this project.

systolic- and diastolic blood pressure ﬁeld, however

future work could incorporate ﬁelds such as those re-

lated to whether or not a patient does physical activity.

The patient number is directly linked to the Unique

Individual Identiﬁer from the VODANTERMS on-

tology for interoperability with existing OPD records

that contain information such as the age, gender, di-

agnoses and other physical information of the pa-

tient which could be used for additional monitoring

(Van Reisen et al., 2022).

The ﬁelds related to the

auxiliary information surrounding the measurement

of blood pressure data are linked to a custom ontol-

ogy hosted on BioPortal named PGHD-BP.

We have

opted to create our own ontology for this to allow for

more ﬂexibility in describing the measurements based

on current thoughts and later feedback by patients and

clinicians using our system. The PGHD-BP ontology

is speciﬁcally scoped to describe additional informa-

tion surrounding BP data collected outside a clinical

setting. It currently consists of two broad classes. The

ﬁrst is CommunicationDetail describing the ancil-

lary information regarding the data communication

which currently only describes whether or not the

data was collected via the IVR service. The second

is CollectionDetail which contains the auxiliary

information surrounding data collection described in

subsection 2.1.

https://bioportal.bioontology.org/ontologies/VODAN

A-GENERAL

https://bioportal.bioontology.org/ontologies/PGHD-B

3 DISCUSSION

We have presented a prototype of an implementation

for Patient Generated Health Data with the VODAN-

Africa architecture through CEDAR using Interactive

Voice Response. The implementation presented here

fully adheres to recommendations I (any PGHD inte-

gration system should be conscious of the economic

conditions of its users) and III (PGHD data should

be kept separate from clinical data) by Kawu et al.

(2024). It also partially adheres to recommendation II

(PGHD should be accompanied with contextual meta-

data) insofar as there are rough descriptions surround-

ing the data collection, and a date is included with the

communicated data. As mentioned in subsection 2.2

this date might not be the same as the real date of data

collection, which is an issue to be tackled in future

work. Recommendation IV (PGHD should be em-

bedded in the clinical workﬂow) was not taken into

consideration in this work and is also left for future

implementation research.

It is important to note that the work presented in

section 2 provides a complete workﬂow or pipeline

for the implementation of a PGHD integration sys-

tem, and a fully functional and tested prototype from

data collection up to and including the storage on

(a local version of) CEDAR. However integration

with the VODAN-Africa architecture is not yet imple-

mented, and would require further real-world testing.

However once this integration is deployed, PGHD

data could be included in the existing VODAN-Africa

dashboard, both at an in-clinic level where clinicians

can track the vitals of their patients in ‘real-time’ and

HEALTHINF 2024 - 17th International Conference on Health Informatics

198

aggregated on a national/global level to track the us-

age of PGHD across clinics.

Another crucial aspect that is still lacking in this

pipeline is a proper method of access control. Allow-

ing patients to send data to clinics remotely can in-

troduce a range of issues from both data mismanage-

ment and impersonation perspectives. To tackle these

issues, secure authentication mechanisms would have

to be implemented (Jati et al., 2022). These might

make use of some combination of incoming phone

number, patient ID and date of birth to make sure the

reported PGHD are assigned to the correct patients.

Despite some of these shortcomings, the pipeline

presented in this work provides a strong basis for the

integration of PGHD in low-resource settings which

has not been developed before to the authors knowl-

edge and can serve as a great tool in further improv-

ing the capacities of healthcare in these regions that

require it most.

4 CONCLUSIONS

We have developed a pipeline for the collection and

communication of Patient Generated Health Data

(PGHD) that is functional from the point of data col-

lection to the storage on a (local) CEDAR installation.

The communication of PGHD is performed using

the Interactive Voice Response service provided by

Africa’s Talking in which an automated voice prompts

the user to insert the readings of vitals that they have

gathered themselves along with auxiliary informa-

tion surrounding the measurements. The implemen-

tation presented here is speciﬁcally made for an at-

home blood pressure monitor that is able to measure

a patient’s pulse rate and both systolic- and diastolic

blood pressure. However expansion to more types of

measurement devices is relatively simple by design.

Upon data collection in CEDAR the provided PGHD

is automatically FAIRiﬁed and enriched with meta-

data among which ﬁelds describing the date when the

data was submitted and a ﬂag indicating that the data

was communicated using the IVR service.

While the prototype outlined here is not yet ready

for direct implementation with the VODAN-Africa

framework, once expanded, the inclusion of PGHD

with existing Outpatient Data objects could form a

cornerstone in further care for patients suffering from

long term health problems in low resource settings

such as the one considered in this work. We therefore

emphasize the importance of future work to evaluate

the acceptability and usability of this system with the

patients that need it most.

ACKNOWLEDGEMENTS

We would like to thank the students in Fieldlab 5

from the 2023 Leiden University course ’Data Sci-

ence in Practice’ taught by Prof.dr.Mirjam van Reisen

for their hard work and valuable insights in develop-

ing the pipeline presented in this work.

This work was conducted with the ﬁnancial sup-

port of the Science Foundation Ireland Centre for

Research Training in Digitally-Enhanced Reality (d-

real) under Grant No. 18/CRT/6224. For the pur-

pose of Open Access, the author has applied a CC

BY public copyright licence to any Author Accepted

Manuscript version arising from this submission

REFERENCES

Grinberg, M. (2018). Flask web development: develop-

ing web applications with python. ” O’Reilly Media,

Inc.”.

Hussein, R., Crutzen, R., Gutenberg, J., Kulnik, S., Sare-

ban, M., and Niebauer, J. (2021). Patient-Generated

Health Data (PGHD) Interoperability: An Integrative

Perspective, volume 281, page 228–232. Studies in

health technology and informatics.

Jati, P. H. P., van Reisen, M., Flikkenschild, E., Oladipo,

F., Meerman, B., Plug, R., and Nodehi, S. (2022).

Data Access, Control, and Privacy Protection in

the VODAN-Africa Architecture. Data Intelligence,

4(4):938–954.

Kawu, A. A., Kievit, R., Abubakar, A., van Reisen, M.,

O’Sullivan, D., and Hederman, L. (2024). Explor-

ing the integration of a patient generated health data

in a fair digital health system in low-resourced set-

tings: A user-centered approach. In Proceedings of the

4th African Human Computer Interaction Conference,

AfriCHI ’23, page 215–220, New York, NY, USA. As-

sociation for Computing Machinery.

Kawu, A. A., O’Sullivan, D., Hederman, L., and Reisen, M.

(2023). Fair4pghd: A framework for fair implementa-

tion over pghd. FAIR Connect, 1:35–40.

Musen, M. A., Bean, C. A., Cheung, K.-H., Dumontier, M.,

Durante, K. A., Gevaert, O., Gonzalez-Beltran, A.,

Khatri, P., Kleinstein, S. H., O’Connor, M. J., Pouliot,

Y., Rocca-Serra, P., Sansone, S.-A., Wiser, J. A., , and

the CEDAR team (2015). The center for expanded

data annotation and retrieval. Journal of the American

Medical Informatics Association, 22(6):1148–1152.

Phan, N. H., Dou, D., Wang, H., Kil, D., and Piniewski,

B. (2016). Ontology-based deep learning for human

behavior prediction with explanations in health social

networks (information sciences - if: 4.832). Informa-

tion Sciences, 384.

Plug, R., Liang, Y., Basajja, M., Aktau, A., Jati, P., Amare,

S., Taye, G., Mpezamihigo, M., Oladipo, F., and van

Reisen, M. (2022). Fair and gdpr compliant popula-

tion health data generation, processing and analytics.

Exploring the Design of Low-End Technology to Increase Patient Connectivity to Electronic Health Records

199

van Reisen, M., Oladipo, F., Stokmans, M., Mpezamihgo,

M., Folorunso, S., Schultes, E., Basajja, M., Aktau,

A., Amare, S. Y., Taye, G. T., Purnama Jati, P. H.,

Chindoza, K., Wirtz, M., Ghardallou, M., van Stam,

G., Ayele, W., Nalugala, R., Abdullahi, I., Osigwe, O.,

Graybeal, J., Medhanyie, A. A., Kawu, A. A., Liu, F.,

Wolstencroft, K., Flikkenschild, E., Lin, Y., Stocker,

J., and Musen, M. A. (2021). Design of a fair digital

data health infrastructure in africa for covid-19 report-

ing and research. Advanced Genetics, 2(2):e10050.

Van Reisen, M., Oladipo, F. O., Mpezamihigo, M., Plug,

R., Basajja, M., Aktau, A., Jati, P. H. P., Nalugala,

R., Folorunso, S., Amare, S. Y., Abdulahi, I., Afo-

labi, O. O., Mwesigwa, E., Taye, G. T., Kawu, A.,

Ghardallou, M., Liang, Y., Osigwe, O., Medhanyie,

A. A., and Mawere, M. (2022). Incomplete COVID-

19 Data: The Curation of Medical Health Data by the

Virus Outbreak Data Network-Africa. Data Intelli-

gence, 4(4):673–697.

Wilkinson, M. D., Dumontier, M., Aalbersberg, I. J., Apple-

ton, G., Axton, M., Baak, A., Blomberg, N., Boiten,

J.-W., da Silva Santos, L. B., Bourne, P. E., and et al.

(2016). The fair guiding principles for scientiﬁc data

management and stewardship. Scientiﬁc Data, 3(1).

HEALTHINF 2024 - 17th International Conference on Health Informatics

200
