A Unified Conceptual Framework Integrating UML and RL for

Efficient Reconfiguration Design

Amen Ben Hadj Ali and Samir Ben Ahmed

Faculté des Sciences de Tunis, Tunis El Manar University Tunis, Tunisia

Keywords: RCS Design, UML, OCL, Reinforcement Learning, Reconfiguration Models, Q-Learning, Exploration,

Reconfiguration Design.

Abstract: The problem of early exploration of various design choices to anticipate potential runtime changes at design

time for complex and highly-dynamic Reconfigurable Control Systems (RCS), is still a real challenge for

designers. This paper proposes a novel conceptual framework that integrates the benefits of UML-based

modeling with Reinforcement Learning (RL) to overcome this difficulty. Our proposal exploits UML dia-

grams enriched with OCL constraints to describe the reconfiguration controller structure and dynamics us-

ing predefined reconfiguration knowledge. On the other hand, the reconfiguration controller is designed as a

RL agent (Reinforcement Learning Reconfiguration Agent or RLRA) able to improve its knowledge

through online exploration while running a Q-Learning algorithm. The design process we propose starts

with an abstract UML-based specification of RCS. Then, a RL-based framework in Python language will be

generated from UML/OCL models by applying a generation algorithm. Finally, the resulting framework

will be run to allow the RLRA learning optimized reconfiguration policies and eventually improve first de-

sign specifications with learning feedback. The learning phase supports both offline and online learning and

is based on a Q-Learning algorithm.

1 INTRODUCTION

Manufacturing control systems continue to evolve

steadily in the age of the fourth industrial revolution

(Industry 4.0) (PI, 2016), where a series of require-

ments such as autonomy and reconfigurability

(Elmaraghy et al., 2021), are imposed on future

controllers and control approaches to fit the next

generation of production systems based on the con-

cept of Cyber-Physical System (CPS) (Monostori et

al. 2016). Reconfiguration allows the control system

to switch from one configuration to another, improv-

ing the system's efficiency concerning unexpected

changes such as environmental disturbances, and

unpredictable events, like failures (Koren et al.,

1999).

In this research work, with reconfiguration con-

troller, we refer to the software module that, taking

as input a representation (configuration) of the con-

trolled system managed by the controller, selects a

discrete high-level sequence of reconfiguration ac-

tions (a reconfiguration policy) leading to a safe

configuration of the whole system.

Within the field of Reconfigurable Control Sys-

tems (RCS), designers are faced with two major

difficulties: (1) making reconfiguration knowledge

explicit through appropriate conceptual models,

which is a crucial step for managing reconfiguration

requirements (Lepuschitz, 2018). In this context, the

additional value of UML-based (Unified Modeling

Language) (OMG, 2017) models and model-driven

engineering (MDE) is widely recognized, due to the

high-level abstraction and the automation of analysis

and full code generation that they can provide

(Vyatkin, 2013). (2) Moreover, given the challenge

of fast-changing dynamic manufacturing environ-

ments, it is hardly possible to fully explore all con-

trol software configurations. Thus, the use of Ma-

chine Learning (ML) techniques is a quite natural

and appealing approach. Specifically, Reinforcement

Learning (RL) (Sutton and Barto, 2018) is a subfield

of machine learning that offers algorithms for learn-

ing to control a system by interacting with it and

observing feedback (reward). Using this feedback is

an efficient means to evaluate how well a controller

is performing. This ability is important in the RCS

context since it is difficult to write a deterministic

604

Ben Hadj Ali, A. and Ben Ahmed, S.

A Uniﬁed Conceptual Framework Integrating UML and RL for Efﬁcient Reconﬁguration Design.

DOI: 10.5220/0012468600003636

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 16th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2024) - Volume 2, pages 604-613

ISBN: 978-989-758-680-4; ISSN: 2184-433X

control program that can anticipate all unexpected

changes and thus implement a high-quality control-

ler, but it is relatively easy to specify a feedback

signal that indicates the best reconfiguration actions

to perform. Another advantage of RL is the possibil-

ity of extending the design space based on learning

feedback.

A possible way to overcome the identified diffi-

culties is by combining the benefits of the UML-

based design approach with reinforcement learning

capabilities. As far as we know, the present work is

original since it represents a first attempt to combine

UML and model-driven design principles with RL

benefits into a novel unified conceptual framework

to address the challenges of reconfiguration

knowledge modeling and exploration. The value of

such a design approach is that it enables partial re-

configuration knowledge (prior knowledge) model-

ing and analysis using UML-based models. The rest

of the knowledge (e.g., which sequence of reconfig-

uration actions to select and the order in which to

select them), is learned by the run-time RL model.

Clearly, the proposed reconfiguration controller,

referred to as RLRA (Reinforcement Learning Re-

configuration Agent) is a decision maker that has to

be designed in order to output an “efficient recon-

figuration policy” in every situation. In our work,

the notion of efficiency is typically obtained as an

emerging property coming from the ensemble of

different design objectives, namely, safety and opti-

mal reconfiguration time. The proposed RL-based

framework for RCS design is a Python environment

that is able to run Python 3.6, or above, for the exe-

cution of reconfiguration control functions devel-

oped in Python language. The idea behind using

Python language is to enable the latest advances in

machine learning to integrate at the control level

with existing industrial standards like the IEC 61499

(IEC, 2005).

In this paper, we explore the use of standard

UML (OMG, 2017) models, enriched with OCL

(Object Constraint Language) (OMG, 2014) con-

straints, for the specification of RCS. We shall rely

on UML as a modeling language, since many exist-

ing tools (such as USE (Gogolla, 2007)) provide a

wide variety of analysis capabilities for UML mod-

els, including model validation, instance generation,

or invariant checking. In addition, high-level UML

and OCL models are used in order to encode design

objectives (such as safety) during the early design

stages into lightweight models with lower develop-

ment costs than the full implementation of the con-

trol system.

Furthermore, for safety-critical systems, includ-

ing prior knowledge in the exploration process of the

RL agent is often used as a solution to avoid risky

situations during the exploration (Garcïa, 2015). In

this paper, UML/OCL models give an abstract rep-

resentation of prior knowledge and thus allow to

focus exploration of the RLRA’s state space, reduc-

ing risks as well as the random phase that a RL agent

must endure while learning about a new environ-

ment. In addition, since a RL agent is effectively

operating in a reduced state space, learning will also

be faster.

The contributions of this work are threefold: (1)

the abstract and formal modeling of reconfiguration

knowledge using UML/OCL models and RL math-

ematical fundamentals thus allowing both early

analysis and fast exploration of various design

choices for the lower-level implementation. A set of

rules is defined in order to allow the generation of

RL models from UML/OCL models. (2) In addition,

our design process handles learning since the recon-

figuration controller is designed as a RL agent

(RLRA) and therefore it supports exploitation as

well as exploration. In particular, the RLRA imple-

ments a Q-Learning algorithm and supports opti-

mized exploration. (3) Furthermore, to enforce gen-

eralization and give more flexibility to the design

approach, we define a metamodel that abstracts the

proposed framework knowledge allowing the de-

signer to integrate new concepts, algorithms, and

modeling techniques.

The remainder of the paper is structured as fol-

lows. Section 2 presents the fundamentals of the used

concepts. In particular, it presents the core of the

applied machine learning technique for reconfigura-

tion control design. Section 3 presents a brief review

of related work. Section 4 gives an overview of the

proposed design process. Section 5 focuses on pre-

senting the main contributions of the proposal. Sec-

tion 6 presents a case study that will be used to show

the applicability of the proposed conceptual frame-

work. Finally, the contributions of the paper and the

further challenges are summarized in Section 7.

2 PRELIMINARIES

To provide a comprehensive guide to understanding

the remainder of this paper, this section introduces

some basic theoretical notions of RL.

The central idea of RL is that the learning agent

learns over time by trying the different available

actions in different situations and evaluates the out-

come of each action, both in terms of immediate

A Uniﬁed Conceptual Framework Integrating UML and RL for Efﬁcient Reconﬁguration Design

605

reward (i.e., the action’s immediate effect on the

environment) and long-term cumulative reward (i.e.,

the contribution to the learning agent’s overall ob-

jectives). The basic mathematical model of RL is

Markov Decision Processes (MDP) (Bellman, 1957).

Fundamentally, an MDP aims to solve a sequential

decision-making (control) problem in stochastic

environments where the control actions can influence

the evolution of the system’s state. An MDP is de-

fined as a five-tuple (S, A, R, P, γ) as follows: S is the

state space, and A is the action space.

P: S × A × S → [0, 1] gives the state transition

probability. P( s′|s, a), specifies the probability of

transition to s′ by taking action a in state s. R: S ×

A→

ℝ

is the reward function dictating the reward an

agent receives by taking action a ∈ A in state s ∈ S,

and γ ∈ [0, 1] is the discount factor (Sutton and Bar-

to, 2018).

It is essential to notice that the environment of

our RL agent is the reconfigurable system (the con-

trolled system), in contrast to classical RL frame-

works, where the environment is represented by the

uncontrolled system.

Two main learning strategies are available, ex-

ploration and exploitation. Making sure that the

agents explore the environment sufficiently is a

common challenge for RL algorithms known as the

exploration-exploitation dilemma. The ε-greedy

policy is a well-known method to address the explo-

ration-exploitation trade-off while training the RL

agent. This method, can balance exploration and

exploitation and make sure we are never ruling out

one or the other. Our exploration strategy uses

constraints defined in UML models to give structure

to the reconfiguration design space and thereby

leverage additional information to guide exploration.

Each configuration is considered as a valid

constraints’ combination defined on reconfigurable

active parts (elements) of the control system.

3 RELATED WORK

Solutions and research efforts already exist tackling

RCS design using different approaches. In particu-

lar, for classical manufacturing control systems,

several works (Thramboulidis and Frey, 2011) (Ben

Hadj Ali et al., 2012) (Fay et al. 2015) (Ouselati et

al., 2016) adapt UML and its extensions (such as

SysML and MARTE) for designing and modeling

the control logic (Vyatkin, 2013). These works often

aim to reduce control software complexity by raising

the abstraction level while ensuring automatic gen-

eration of PLC (Programmable Logic Controller)

standard-compliant code (IEC 61131 and IEC

61499) (Vyatkin, 2013). In addition, more recent

research works, such as (Thramboulidis and Chris-

toulakis, 2016) (Schneider et al., 2019) (Müller et

al., 2023) (Bazydło, 2023) (Parant, 2023), introduce

UML-based solutions to model and design the con-

trol part of manufacturing systems compliant with

I4.0 and that are considered CPSs in which multiple

concurrent software behaviors govern industrial

components running on embedded controllers.

As a semi-formal language, UML provides high

relevance to handling the semantic gap between

system design and the actual features of the control

application. However, UML-based design approach-

es suffer from a lack of precise semantics. For this

reason, several researchers propose to combine

UML diagrams with formal languages for the mod-

el-based design of RCS. The formalization of con-

trol model elements is performed using formal lan-

guages (such as Petri nets, Timed Automata, etc.) to

describe specific reconfiguration requirements and

thus guarantee the consistency and the correctness of

the specification and code generation by using veri-

fication techniques (such as model checking) (Vyat-

kin 2013) (Mohamed et al., 2021). These approaches

allow for verifying that the system behaves correctly

for all possible input scenarios by giving a precise

description of the possible system behavior. Howev-

er, most of them are based on an automated trans-

formation from a system description with informally

defined semantics and lack learning capabilities. In

addition, the reviewed works have in common the

exploitation of UML-based metamodels and models

to deal with reconfiguration and reconfigurable

systems modeling (Mohamed et al., 2021) and there-

fore allow the automation of several design steps

such as validation/verification and code generation.

However, they are often static since reconfiguration

knowledge that is not anticipated during design time

is handled statically by revising (modifying) existing

models offline (Ben Hadj Ali and Ben Ahmed,

2023).

Furthermore, several works have proposed many

RL agents to model efficient reconfiguration con-

trollers that can learn optimized reconfiguration

policies (plans). The optimization goal is therefore

formulated using the reward (objective) function of

the RL agent (Wuest et al. 2016) (Kuhnle et al.,

2020) (Shengluo and Zhigang 2022) (Saputri, and

Lee, 2020). Despite learning capabilities, the dy-

namicity of the reconfiguration space is only partial-

ly implemented within these approaches because

they mainly focus on exploitation with random ex-

ploration. Therefore, an effective conceptual frame-

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

606

work, that bridges the gap between UML and RL

modeling, is still needed. In the following sections,

we will detail our proposal to deal with the identified

literature drawbacks.

4 DESIGN PROCESS

To highlight the contributions of this work, we pro-

pose in the following section a generic process for

RCS design represented as a UML activity diagram

(see Figure 1):

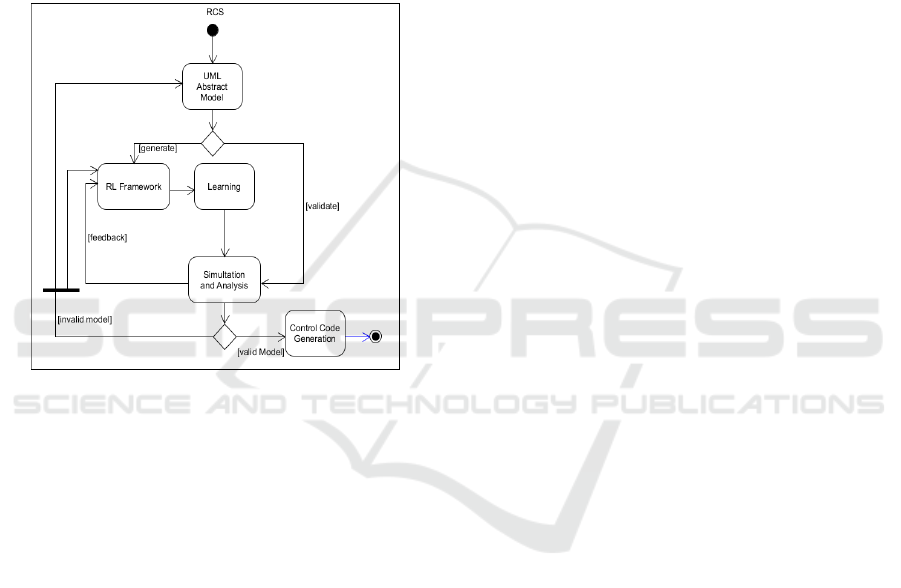

Figure 1: RCS Design process.

a) RCS Abstract Specification: The represen-

tation of reconfiguration knowledge (structures,

behaviors, constraints, etc.) through abstract specifi-

cations using UML/OCL models.

b) RCS Modeling: The output of this step is

an abstract model expressed using a formal or semi-

formal language. In contrast to the majority of re-

viewed approaches, where the design aim is valida-

tion/verification, in this work the design purpose is

learning, therefore the obtained model is expressed

using RL concepts. Thus, this step aims to generate

the code of a RL-based framework which will be

used later for the learning step.

c) Learning: In this proposal, the learning

step allows the RLRA to learn optimized reconfigu-

ration policies using a hybrid strategy supporting

both exploitation and exploration. In particular,

online exploration allows for improving RCS mod-

els (UML-based and RL-based) with operation-time

learned knowledge.

d) Simulation: The obtained RCS model can

be analyzed using simulation. Therefore, the initial

models can be improved or validated and then stored

within the Knowledge Base. In our work, the valida-

tion of the proposed models is undertaken using the

USE (UML-based Specification Environment) tool

(USE, 2021).

e) Code Generation: In this step, the high-

level control code is generated using a specific lan-

guage (such as Java, C/C++, Python, etc.).

The main contributions of this paper focus on the

first three steps of the design process and conse-

quently, they will be detailed in the remainder (i.e.,

Abstract Specification, RL models generation, and

Learning).

5 CONCEPTUAL FRAMEWORK

As stated previously, the design process followed in

this paper progresses from the state-of-the-art RCS

design process by enhancing the reconfiguration

controller (RLRA) with learning capabilities. In-

deed, our process handles a learning phase that gives

the reconfiguration controller the ability to learn

optimized reconfiguration rules and also to improve

its knowledge through online exploration. Our pro-

posed conceptual framework is composed of five

steps (see Fig. 1). The Simulation and Code Genera-

tion steps are out of the scope of this paper. The first

three steps will be detailed in the following sections.

5.1 Abstract Specification Using UML

In this paper, the high-level control part of RCS is

specified as UML diagrams. Structures are described

using class diagrams, whereas behaviors are repre-

sented using state diagrams. Such a choice is often

sufficient for specifying the dynamics of the control

level since UML state machines represent a common

tool used to specify the behavior of complex and

real-time systems (Harel and Politi, 1998).

Therefore, the first step in our conceptual

framework for the design of RCS corresponds to the

elaboration of the RCS UML-based specifications

according to the metamodel of Fig. 3. The proposed

metamodel is structured into three packages corre-

sponding to the respective models of, the state space

(CM, i.e., ConfigurationModel package), the action

space (RM, i.e., ReconfigurationModel package) and

the RL reconfiguration agent (RLRAM, i.e.,

RLRAModel package).

The presented conceptual elements and their in-

teractions are defined as follows: dynamic reconfig-

urations are driven by the Reconfiguration Agent

(RLRA) which monitors the reconfigurable con-

trolled system and allows to reconfigure its actual

A Uniﬁed Conceptual Framework Integrating UML and RL for Efﬁcient Reconﬁguration Design

607

configuration when it detects an internal or external

reconfiguration requirement (trigger). In the remain-

der of this subsection, we will present the basic

concepts and operations defined within the

knowledge metamodel using UML diagrams and

OCL constraints. The central concept in the pro-

posed metamodel is represented by class Reconfigu-

rableElement. This class allows for describing any

changeable and observable part of the control sys-

tem, namely the controller (Class RLRA), any con-

trolled element (class ControlledElement), any re-

configuration constraint (class Reconfig-Constraint)

and any configuration of the RCS (class Configura-

tion). Each object of this class is reconfigurable

since its structure or behavior can change over time.

In the following subsections, we focus on presenting

the main concepts and operations proposed to de-

scribe the controller structure and behavior.

5.1.1 RLRA Structure

The RLRA structure is composed of three compo-

nents as shown in Figure 2: The Monitor, the Learn-

er and the Executor.

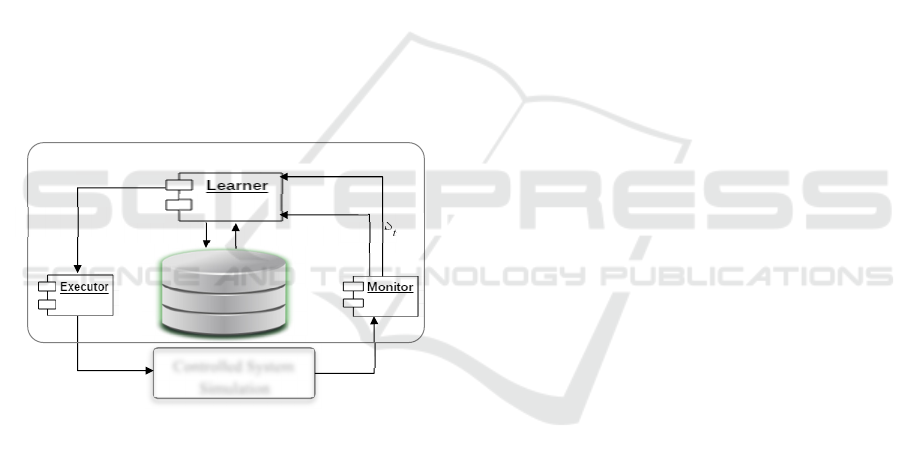

Figure 2: RLRA structure metamodel.

At one moment in time, the RLRA can have only

one active configuration (an object of class Configu-

ration). A configuration is a set of objects of the

class ControlledElement. For each active object

(isActive is True) of the ControlledElement class

(CE) (part of the current Configuration of the

RLRA), we define a set of constraints and reconfigu-

ration points (RP).

A RP represents a change value ∆



of the cur-

rent value of the CE (∆



)that makes the currently

observed constraints (applied on the CE) not satis-

fied.

The operation update for a controlled element

and checkRP for a constraint are described in OCL

as follows:

context ControlledElement::

update(delta: ValueType, ts : Time):

post: value = value@pre + delta

context ControlledElement::

checkRP(ts : Time): Boolean

pre: self.isActive

post:self.constraints->

exists(c.isValid=#true and

c.timestamp=ts and self.rps->

exists(rp.isValid=#true and

rp = not c and rp.timestamp=ts))

In addition, RLRA implements a query operation

(checkRP()) that decides if the agent has not yet

detected a reconfiguration trigger (internal or exter-

nal). This operation is described in OCL:

context RLRA::

checkRP(ts : Time): Boolean

pre: self.safetyLevel=#isSafe

body: self.triggers->

exists(t|t.timeStamp=#ts and

t.check())

When, a reconfiguration Trigger is detected, the

RLRA can start reconfiguring (the executed action ()

is reconfigure). When the current context of the

RLRA is known, (predefined =true) then the Execu-

tor sub-component starts the reconfiguration of the

current configuration until it reaches a safe output

configuration. This configuration is terminal

(isTerminal=true). However, when the context is

unknown, the Learning phase (realized by the

Learner sub-component) is launched to learn a new

(not yet stored in the Knowledge Base) safe output

configuration responding to the reconfiguration

trigger.

Class Context aims to save the history of the

learning phase represented by the knowledge of the

different situations the RLRA can have, i.e., the

current configuration of the agent when a reconfigu-

ration trigger is raised. The eventual solutions for

this context correspond to the reconfiguration poli-

cies learned by the agent during the offline or online

learning phase. If a given context has at least one

solution then it is considered as a known context

(predefined=true) and therefore the agent can exe-

cute the reconfigure() operation, otherwise it must

apply the learn() operation.

RLRA Controller

Knowledge Base

Controlled System

Simulation

Reconfiguration

Policy

t+1

loration

loitation

Offline/Online

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

608

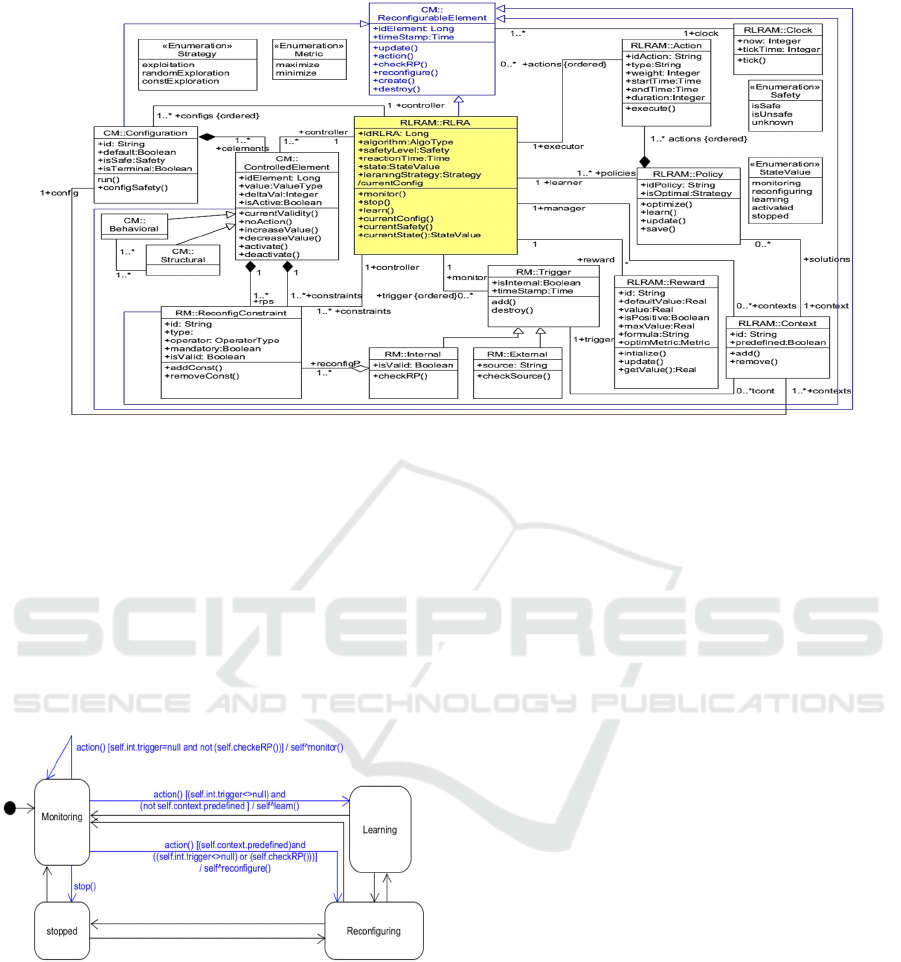

Figure 3: Reconfiguration knowledge metamodel.

5.1.2 RLRA Behavior

The reconfiguration controller is not guided by any

predefined plans, and hence it has to decide to take

an action at each time. The default state of the

RLRA (see Fig. 4) is “monitoring” (the executed

action() is monitor). In this state, the Monitor sub-

component observes the safetyLevel of the RLRA

and thus checks the reconfiguration points of each

observable and reconfigurable element.

Figure 4: Excerpt of the State Machine for the RLRA

behavior.

Furthermore, the controller is associated with a

Clock object that models Time. On every tick

(whose resolution is defined by the user, for

example, in our simulations we have used 0.5

seconds), it invokes operation action() on all active

and reconfigurable elements of the control system.

For example, as shown in Fig. 4, if the RLRA is

monitoring and there is no reconfiguration trigger

(internal or external event), the RLRA keeps moni-

toring; if the reconfiguration point for the agent is

reached (checkRP() returns true) or an external trig-

ger is detected, the agent starts reconfiguring or

learning; and if both steps generate no safe response

to the current reconfiguration request, then the agent

and the controlled system are stopped in order to

avoid dangerous behaviors.

Whenever a RP is reached an instance of class

Trigger is created. Therefore, the behavior of the

Monitor can be specified in OCL as the following

code fragment shows.

context RLRA monitor (ts: Time)body:

begin

def: iConf : Set(ControlledElement)

=self.currentConfig()

def: trig:=self.triggers->

(t|t.timestamp=ts and t.check())

t:=new Trigger, ctx:=new Context

if trig->isEmpty() then

for ce in iConf do

for econst in ce.constraints

for rp in ce.rps

if econst->intersection(not rp)->

notEmpty and rp.isValid and

rp.timestamp = econst.timestamp

then

t.timestamp=ts

insert(t) into Trigger

ctx=self.currentConfig()

ctx.trigger=t

insert(ctx)into Context

end

A Uniﬁed Conceptual Framework Integrating UML and RL for Efﬁcient Reconﬁguration Design

609

5.2 RL Models Generation

5.2.1 State Space

In this work, the state space for the RLRA is the set

of all possible configurations the agent could inhab-

it. In the proposed RL model, a state (denoted s) is

an observable combination of both Structural and

Behavioral controlled elements (see Figure 3) corre-

sponding to a possible configuration and represented

as a vector: s=((v

, v

, …, v

), v

mode

), where the

vector (v

, v

, …, v

) represents the respective

values of p

,…, p

that correspond to the active struc-

tural controlled elements composing the current

configuration. The vector v

mode

gives the values of

behavioral controlled elements (operations) that

describe the operational mode of the current config-

uration. The set C of all possible configurations of

the RLRA is separated into pairwise disjoint subsets:

the set of safe configurations C

safe

and C

unsafe

such as

C≜ 𝐶



∪𝐶



and C

safe

is the set of configura-

tions that satisfy all the system constraints and

which are validated through simulation. C

unsafe

is a

possible configuration that can

result from the learn-

ing process (exploration) and which is not validated

or it violates at least one constraint. Furthermore, the

default configuration is defined by the designer.

5.2.2 Action Space

The action considered by the RL agent is the recon-

figuration control. At each step t, the agent can per-

form an action a

from a discrete action space to a

given reconfigurable element (property) of the cur-

rent configuration. Each defined action corresponds

to the execution of a given operation of the Con-

trolledElement object. As shown in Table 1, action 0

means that the RLRA will maintain its current con-

figuration. Actions 1 and 3 represent positive (i.e.,

increase the value) and negative (i.e., decrease the

value) changes that cannot cause reconfiguration.

Action 2 represents the fact that the new value of the

property S

t+1

(p) (after applying the change ∆



)

triggers a reconfiguration and thus the controller has

to execute an adequate sequence of reconfiguration

actions (a policy) and to bring the system to a safe

destination configuration in order to respond to this

trigger. To prevent the agent from reaching negative

values, we clip the minimum value for all structural

reconfigurable elements to 0. We also limit the max-

imum value to some fixed value to avoid dangerous-

ly high values.

The transition model T(s

t+1

, a

) for the obtained

MDP is deterministic. For action a

, we map it to

different values of changes ∆



as shown in Table

1. For each detected change, we update the proper-

ty’s value using the following rule:



(𝑝) = S



(𝑝) + ∆





(p).

Table 1: Mapping changes to operations and actions.

Action a

012 3

operation noAction

update/

increase

reconfigure

update/

decrease

∆



0 and

∆



∆



<0 an

|∆



<∆



As reconfigurable properties have discrete values

we consider ∆



= 1 as the smallest value of observ-

able change.

5.2.3 Reward Function

To achieve our safe reconfiguration goal, we consid-

er three components when designing the reward

function R(s, a), each with a specific objective.

a) R

safety

encodes the objective that the controller

should apply valid actions (i.e., actions that

maintain the set of reconfiguration constraints

satisfied) when updating the value or reconfigur-

ing a controlled element. If the controller applies

an invalid action, it receives a penalty of −10.

b) R

trigger

is the termination reward the controller

receives when it reaches a safe configuration that

responds to the reconfiguration trigger. If the con-

troller reaches the targeted configuration, it is giv-

en a reward of +10. Otherwise, it receives a penal-

ty of −10.

c) R

time

is the step reward that encourages the

controller to minimize the number of reconfigura-

tion actions required to reach the destination. For

every state along the controller’s path (except the

terminal state), the controller receives a penalty of

−1. The reward function for the RLRA is given by

the following equation:

𝑅



(

𝑠, 𝑎

)

=𝑅



+𝑅



+𝑅



5.2.4 Learning Algorithm

The algorithm used to approach the problem is Q-

learning (Watkins and Dayan, 1992) which incre-

mentally estimates the action value function Q(s, a).

The reconfiguration agent tries to learn the best

policy regarding a specific cost function (Q-value

function) for possible actions that can be performed.

An agent learns a mapping of states to actions based

on a learned policy. Q-learning updates the state-

action value mapping (i.e., updates its weights) at

every time step as follows:

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

610

𝑄

∗

(

𝑠, 𝑎

)

← 𝑄

∗

(

𝑠



,𝑎



)

+𝛼𝑟+ 𝛾𝑚𝑎𝑥



𝑄

∗

(

𝑠



,𝑎



)

 𝑄

∗

(

𝑠



,𝑎



)

In order to make sure the action value function

converges, we allow the agent to explore by apply-

ing the ε-greedy strategy in the offline learning

phase. Specifically, the strategy chooses a random

action with probability ε (ε ϵ [0,1]). Otherwise, it

chooses the greedy action which achieves the maxi-

mum action value function for the current state.

Since most states are not explored at the beginning,

there is much higher uncertainty to start with. There-

fore, we set a relatively high ε at initialization and

decay it over time. Thus, the agent is encouraged to

explore the environment early in the learning pro-

cess and take full advantage of what it has learnt as

the policy converges. Finally, the policy π generated

by Q-learning can be expressed as follows using the

updated action value function Q:

𝜋

(

𝑠

)

=𝑎𝑟𝑔 max

∈

𝑄(𝑠, 𝑎).

The learning step is based on the Q-Learning al-

gorithm such that at each time step, the RLRA must

decide which combination s=((v

, v

, …, v

mode

) is selected

The set of proposed generation rules is imple-

mented using the generation algorithm shown in Fig.5

Algorithm. Generation of the RL framework.

1. Input: UML/OCL models

2. Output: MDP_RCS= < C,A,r,π,γ >, S_Space C,

A_Space A, double [] r, double π, γ

3. Set<Class> RCS_structures

4. Set<Region> RCS_SM //the set of regions

describing the behavior of the RCS

5. RCS_modes, RCS_regions //the set of SM

describing the modes of the RCS

6. Set<ReconfigurableElement> VS, VM //the

set of properties describing the RCS

7. function Generate_StateSpace(Set<ModeSM>

RCS_modes):S_Space

8. for each class c

in RCS_structures do //

define one vector for each class

9. add vector VS

to VS // an ordered set of

reconfigurable structural elements of

the RCS

10. for each value pj in val(pj) do // pj

is an attribute of the class ci

11. add a value vpj to VSi // add a

value for each structural property

12. end for

13. end for

14. for each ModeSMi in RCS_modes do //

define one vector for each Mode_SM

15. add vector VM

to VM // an ordered set

of reconfigurable behavioral elements

of the mode SM

16. for each op

in VM

17. add a value vop

// add a value for

each behavioral property

18. end for

19. end for

20. for each Comb

=(VS

,VM

) //a combination

of structural and behavioral reconfigu-

rable properties

21. add a state Si to C// a configura-

tion within the state space

22. end for

23. return C

24. end function

25. function Gener-

ate_ActionSpace(Set<Region>

RCS_SM):A_Space

26. for each RE in RCS_model

27. for i in [0,3]

28. add ai to A // add a reconfiguration

action to the action space

29. for each Transition Ti in RCS_SM

30. add the preconditions to r // speci-

fy the reward value for the recon-

figuration action

31. add the postconditions to r // spec-

ify the reward value for the recon-

figuration action

32. end for

33. end for

34. end for

35. return A

36. end function

Figure 5: Generation Rules.

In order to assist designers while generating the

RL framework, we implemented the set of genera-

tion rules within a prototype tool (in Python) that

aims to automatize the design process.

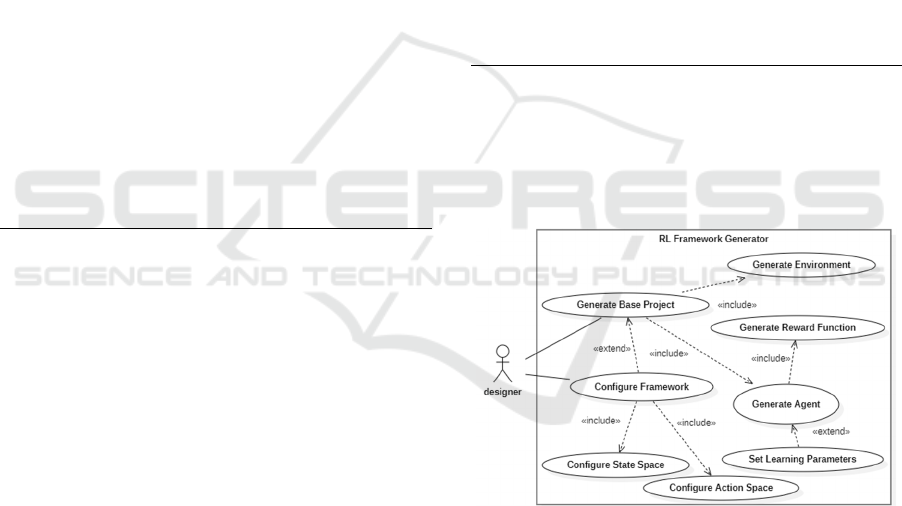

Figure 6: Principal functionalities of RL framework

generator.

An overview of the principal functionalities of

the RL framework generator is given in Fig. 6.

6 CASE STUDY

As a representative example, we use the FESTO

production system (FESTO, 2016), to illustrate the

main features of our proposal. The considered RCS

complies with all the core reconfiguration character-

A Uniﬁed Conceptual Framework Integrating UML and RL for Efﬁcient Reconﬁguration Design

611

istics for manufacturing systems. The FESTO sys-

tem is composed of three units that cooperate to

produce drilled workpieces. We assume in this re-

search work two drilling machines DM1 and DM2

to drill pieces. If one of the drilling machines (DM1

or DM2) is broken, it is replaced by the other unbro-

ken one. In the case where both DM1 and DM2 are

broken, then the production system is stopped. The

state space of our example is based on the combina-

tion of the constraints defined on 5 controlled ele-

ments (DM1, DM2, np, p, mode) (np is the number

of pieces, p is the periodicity of production and

mode corresponds to the operational mode of the

system). According to the considerations mentioned

before, the modeling of the case study follows the

steps of the design process proposed in Section 5.

For the evaluation of the RL framework, we com-

pare two scenarios of implementation: we first im-

plement manually the case study with a ε-greedy Q-

Learning algorithm without considering conceptual

constraints. At a second time we configure the gen-

erated framework with the parameters of the same

case study (number of states, number of configura-

tions, number of controlled elements, etc.). The RL

algorithm is tested using the Python libraries Simpy

(simulation) and Scikit-learn (Q-Learning)

(Pyqlearning, 2016). The reconfiguration algorithm

is implemented with the following default hyperpa-

rameters: the discount factor was γ = 0.8, the learn-

ing rate α = 0.001, and ε=0.05. The performance of

the reconfiguration algorithm and learning process

are compared for different values of ε. For example,

a smart agent explores (ε=1) and takes the future

reward into account (γ = 0.9). A greedy agent cares

only about immediate reward with γ = 0.01 and

ε=0.1. The initial state is chosen randomly. An epi-

sode ends either after the agent reaches the goal or

after 100 steps. In general, the RL-agent converges

in Scenario 2 faster than in Scenario 1. This can be

explained by the reduction of dimension of the de-

sign space when we consider the conceptual con-

straints, which implies the optimization of learning

time.

7 CONCLUSION

In this paper, we propose a conceptual framework

that integrates the benefits of UML-based modeling

with RL concepts to handle the intelligent design of

RCS allowing for reconfiguration model improve-

ment through the exploration of run-time

knowledge. At the first design step, reconfiguration

knowledge is abstracted using UML diagrams.

Thereafter, a RL-based model will be deduced from

established UML models including state and action

spaces. The RL-based framework is generated using

a set of generation rules and allows to formulate the

reconfiguration control problem as an MDP. Be-

sides, we incorporate the controlled system proper-

ties, into the state space and discretize the action

space for reconfiguration control. Moreover, we

encode safety and reconfiguration time objectives

into the reward function. The generated RL frame-

work is then used by the reconfiguration controller

which is designed as a RL agent to learn optimal

reconfiguration policies by applying Q-learning

algorithm. Finally, reconfiguration models can be

improved using learning feedback. The proposed

design approach progresses from the state of the art

of RCS design by studying the coexistence of UML-

based design with RL in a unified model. It also

opens up further research opportunities. Several

aspects will be addressed in future work. Firstly, we

plan a complete implementation of our approach

(specifically, the RL framework generator), as well

as further experimentation and simulation on other

case studies. We can also explore deep-learning

based RL algorithms to solve scenarios with larger

state and action spaces more efficiently.

REFERENCES

Bazydło G. (2023). Designing Reconfigurable Cyber-

Physical Systems Using Unified Modeling Lan-

guage. Energies, 16, 1273.

Bellman, R. (1957). A Markovian Decision Process. Indi-

ana University Mathematics Journal, 6, 679-684.

Ben Hadj Ali, A. and Ben Ahmed, S. (2023).

RLReC: Towards Reinforcement Learning-based Dy-

namic Design of Reconfiguration Control. In the pro-

ceedings of the 27th International Conference on

Knowledge-Based and Intelligent Information & En-

gineering Systems, KES-2023. Procedia Computer

Science, Volume 225, pages 3670-3680.

Ben Hadj Ali, A., Khalgui, M. and Ben Ahmed, S. (2012).

UML-Based Design and Validation of Intelligent

Agents-Based Reconfigurable Embedded Control Sys-

tems. Int. J. Syst. Dyn. Appl., 1, 17-38.

Elmaraghy, H., Monostori, L., Schuh, G. and Elmaraghy,

W.H., (2021). Evolution and future of manufacturing

stems. CIRP Annals, 70, 635-658.

Fay, A., Vogel-Heuser, B., Frank, T., Eckert, K., Hadlich,

T. and Diedrich, C. (2015). Enhancing a model-based

engineering approach for distributed manufacturing

automation systems with characteristics and design

patterns. Journal of Systems and Software, 101, 221-

235.

FESTO. (2016). MPSs

—

The modular production system.

ICAART 2024 - 16th International Conference on Agents and Artiﬁcial Intelligence

612

MPSs—The modular production system. Retrieved

October 30, 2022.

Garcïa, J. and Fernández, F. (2015). A comprehensive

survey on safe reinforcement learning. Journal of Ma-

chine Learning Research, 16(1), 1437-1480.

Gogolla M., Buttner F. and Richters M. (2007). USE: A

UML-based specification environment for validating

UML and OCL, Sci. Comput. Program., vol. 69, no. 1-

3, pages. 27

–

34.

Harel, D. and Politi, M. (1998). Modeling Reactive Sys-

tems with Statecharts: The STATEMATE Approach;

cGraw-Hill, Inc.: New York, NY, USA.

IEC. (2005). Function blocks – Part 1: Architecture. Func-

tion blocks

–

Part 1: Architecture. 2005.

Koren, Y., Heisel, U., Jovane, F., Moriwaki, T.,

Pritschow, G., Ulsoy, G. et al. (1999). Reconfigurable

Manufacturin

stems. CIRP Annals, 48, 527-540.

Kuhnle, A., Kaiser, J., Theiß, F., Stricker, N. and Lanza,

G. (2020). Designing an adaptive production control

system using reinforcement learning. Journal of Intel-

ent Manu

acturin

, 32, 855-876.

Lepuschitz, W. (2018). Self-reconfigurable manufacturing

control based on ontology-driven automation agents.

PhD Dissertation, Technische Universität Wien.

Mohamed, M. A., Kardas, G. and Challenger, M. (2021).

Model-Driven Engineering Tools and Languages for

Cyber-Physical Systems–A Systematic Literature Re-

view. IEEE Access, vol. 9, pages 48605-48630.

Monostori, L., Kádár, B., Bauernhansl, T., Kondoh, S.,

Kumara, S., Reinhart, G. et al. (2016). Cyber-physical

systems in manufacturing. CIRP Annals, 65(2), 621–

641.

Müller, T., Kamm, S., Löcklin, A., White, D., Mellinger,

M., Jazdi, N. and Weyrich, M. (2023). Architecture

and knowledge modeling for self-organized reconfigu-

ration management of cyber-physical production sys-

tems. International Journal of Computer Integrated

anufacturing. 36:12, 1842-1863.

OMG. (2014). Object Constraint Language Specification,

version 2.4 (omg.org/spec/OCL/2.4/PDF).

OMG. (2017). Unified Modeling Language, version 2.5.1

(omg.org/spec/UML/2.5.1/PDF).

Oueslati, R., Mosbahi, O., Khalgui, M. and Ben Ahmed,

S. (2016). A Novel R-UML-B Approach for Modeling

and Code Generation of Reconfigurable Control Sys-

tems. In the proceedings of the 11th International

Conference on Evaluation of Novel Software Ap-

proaches to Software Engineering – ENASE. SciTe-

Press, pages 140-147.

Parant, A., Gellot, F., Zander D., Carré-Ménétrier ,V. and

Philippot, A. (2023). Model-based engineering for de-

signing cyber-physical systems from product specifi-

cations. Computers in Industry, Volume 145.

PI. (2016). Plattform Industrie 4.0–Aspects of the research

roadmap in application scenarios. Plattform Industrie

4.0–Aspects of the research roadmap in application

scenarios. Retrieved October 30, 2022.

Pyqlearning. (2016). pyqlearning. Pyqlearning. Retrieved

October 30, 2022.

utri, T. and Lee, S.

(

2020

)

. The A

lication of Ma-

chine Learning in Self-Adaptive Systems: A Systemat-

ic Literature Review. IEEE Access, 8, 205948-205967.

Schneider, G.F., Wicaksono, H. and Ovtcharova, J.

(2019). Virtual engineering of cyber-physical automa-

tion systems: The case of control logic. Adv. Eng. In-

orm., 39, 127

–

143.

Shengluo Y. and Zhigang X. (2022). Intelligent scheduling

and reconfiguration via deep reinforcement learning in

smart manufacturing. International Journal of Produc-

tion Research, 60:16, 4936-4953,

Sutton R. S. and Barto AG. (2018). Reinforcement learn-

ing: an introduction, 2nd ed. MIT Press, Cambridge,

USA.

Thramboulidis, K. and Christoulakis, F. (2016).

UML4IoT—A UML-based approach to exploit IoT in

cyber-physical manufacturing systems. Comput.

Ind., 82, 259

–

272.

Thramboulidis, K. and Frey, G. (2011). Towards a model-

driven IEC 61131-based development process in in-

dustrial automation. Journal of Software Engineering

and A

lications, 4

(

)

, 217.

USE, (2021), https://sourceforge.net/projects/useocl

Vyatkin, V. (2013). Software engineering in industrial

automation, State-of-the-art. IEEE Transactions on

Industrial In

ormatics, 1234

–

1249.

Watkins, C.J.C.H. and Dayan, P. (1992). Q-

learnin

achine Learnin

8, 279

–

292.

Wuest, T., Weimer, D., Irgens, C. and Thoben, K.D.

(2016). Machine learning in manufacturing: Ad-

vantages, challenges, and applications. Prod. Manuf.

es., 4, 23

–

45.

A Uniﬁed Conceptual Framework Integrating UML and RL for Efﬁcient Reconﬁguration Design

613
