Detecting eBPF Rootkits Using Virtualization and Memory Forensics

Nezer Jacob Zaidenberg

1 a

, Michael Kiperberg

2 b

, Eliav Menachi

3 c

and Asaf Eitani

Department of Computer Science, Ariel University, Ariel, Israel

Department of Software Engineering, Shamoon College of Engineering, Bear Sheva, Israel

Faculty of Computer Science, College of Management Academic Studies, Rishon Le Zion, Israel

Keywords:

eBPF, Rootkit, Virtualization, Forensics.

Abstract:

There is a constant increase in the sophistication of cyber threats. Areas considered immune to malicious code,

such as eBPF, are shown to be perfectly suitable for malware. Initially, the eBPF mechanism was devised to

inject small programs into the kernel, assisting in network routing and ﬁltering. Recently, it was demonstrated

that malicious eBPF programs can be used to construct rootkits. The previously proposed countermeasures

need to be revised against rootkits that attempt to hide their presence. We propose a novel detection scheme

that divides the detection process into two phases. In the ﬁrst phase, the memory image of the potentially

infected system is acquired using a hypervisor. In the second phase, the image is analyzed. The analysis

includes extraction and classiﬁcation of the eBPF programs. The classiﬁer’s decision is based on the set of

helper functions used by each eBPF program. Our study revealed a set of helper functions used only by

malicious eBPF programs. The proposed scheme achieves optimal precision while suffering only a minor

performance penalty for each additional eBPF program.

1 INTRODUCTION

There is a constant increase in the sophistication of

cyber threats. Areas considered immune to malicious

code are shown to be perfectly suitable for advanced,

evasive, and persistent malware. One such example is

eBPF programs. eBPF (extended Berkley Packet Fil-

ter) is a kernel mechanism devised for injecting small

programs into the kernel without recompiling the ker-

nel or introducing new kernel modules. These small

programs can be used in networking, auditing, and se-

curity (Ben-Yair et al., 2019).

eBPF programs are written in a C-like language

and compiled into a bytecode. The kernel can in-

terpret these programs or compile them into a native

code. During the loading of an eBPF program, the

kernel veriﬁes that the program is correct. eBPF pro-

grams are limited. In particular, eBPF programs can-

not call arbitrary functions or access arbitrary mem-

ory locations. Instead, they should rely on helper

functions provided by the kernel. Due to all these lim-

itations, it was believed that eBPF programs cannot be

used as malware.

https://orcid.org/0000-0003-3496-7925

https://orcid.org/0000-0001-8906-5940

https://orcid.org/0000-0001-5149-9209

Unfortunately, recently several advanced mali-

cious eBPF programs were demonstrated: ebpfkit

(Fournier, 2023), bad-bpf (PatH, 2022), boopkit

ova, 2023), and TripleCross (Bajo, 2022). As eBPF

programs execute in kernel mode, these programs can

be used as components of a rootkit, an advanced mal-

ware with high privileges. After penetrating the ker-

nel, the rootkit can hide its presence from any pos-

sible detector executing with similar or lower privi-

leges. The countermeasures proposed by the authors

of the rootkits either assumed that the rootkit would

not attempt to hide itself or that the veriﬁcation could

be performed before loading the eBPF programs.

We propose a different detection system for the

eBPF rootkit that does not assume anything about the

abilities of the kernel. The system consists of four

components:

• a memory acquisition tool,

• a memory image analysis framework,

• an eBPF program extraction tool,

• an eBPF program classiﬁer.

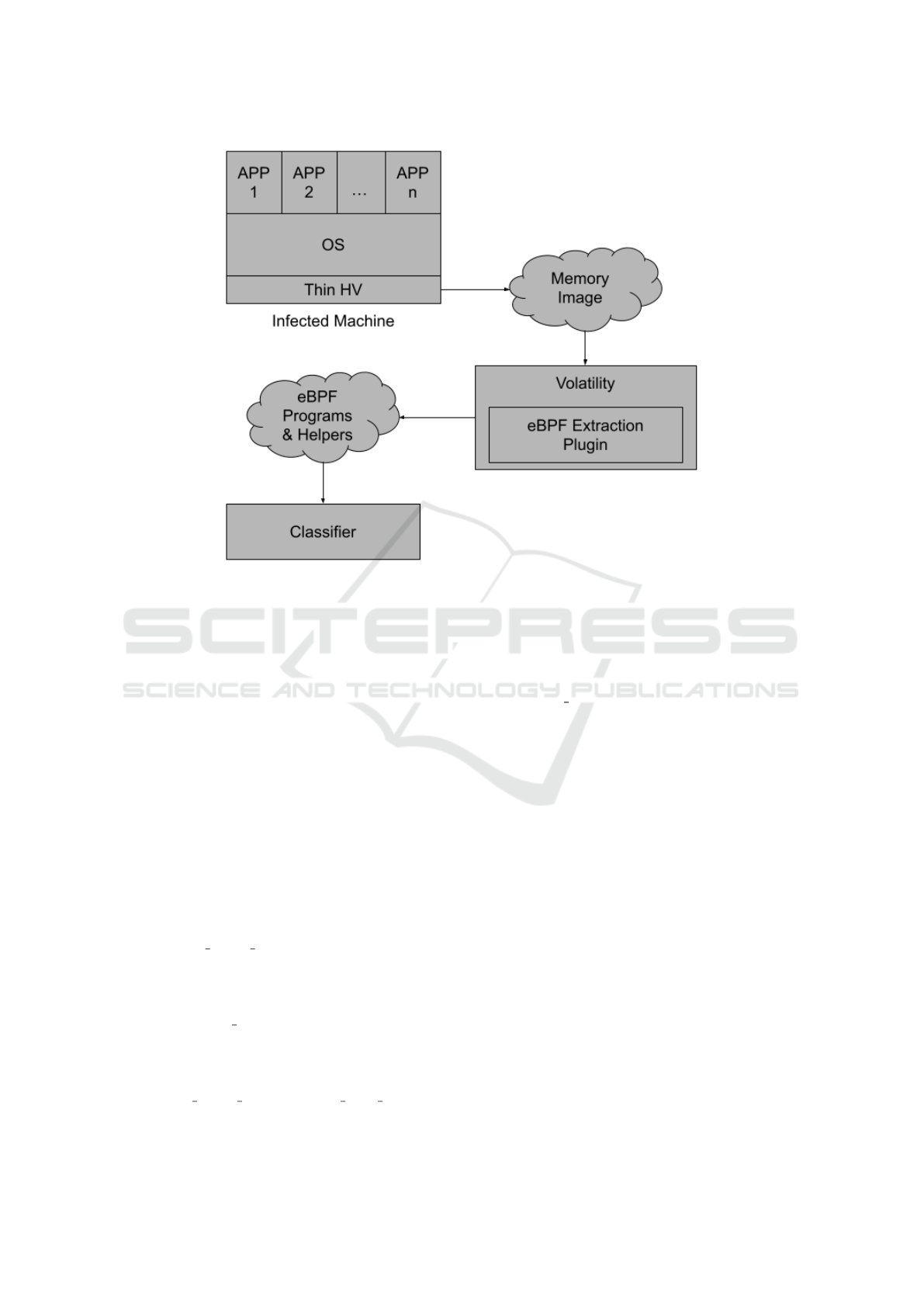

Figure 1 depicts the design of the proposed system.

Our system uses a thin hypervisor for reliable mem-

ory acquisition (Kiperberg et al., 2019). Using a thin

hypervisor guarantees that the resulting memory im-

254

Zaidenberg, N., Kiperberg, M., Menachi, E. and Eitani, A.

Detecting eBPF Rootkits Using Virtualization and Memory Forensics.

DOI: 10.5220/0012470800003648

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 10th International Conference on Information Systems Security and Privacy (ICISSP 2024), pages 254-261

ISBN: 978-989-758-683-5; ISSN: 2184-4356

age will be trustworthy even in the presence of an ac-

tive rootkit. The analysis is performed on a separate

machine, which is believed to be secure. For mem-

ory image analysis, our system uses Volatility (Mo-

hanta et al., 2020), equipped with our plugin for eBPF

program extraction. Finally, our classiﬁer notiﬁes the

user about suspicious programs based on the set of

helper functions they use.

Our evaluation shows that the detection accuracy

of our system is optimal, and the detection latency in-

creases slowly with the number of loaded eBPF pro-

grams. These results suggest that the proposed system

can be used in real-world scenarios.

The main contributions of this paper are:

• We describe a novel system that can detect active

eBPF malware.

• We evaluate the accuracy and the performance of

the proposed system.

• We present a list of suspicious eBPF helper func-

tions.

2 BACKGROUND

2.1 Virtualization

The underlying technology that enables the memory

acquisition component of the described system is vir-

tualization. Virtualization deﬁnes a new execution

mode with higher privileges than the operating sys-

tem, whose purpose is to supervise the execution of

the operating system. The software executing in this

privileged mode is called a hypervisor. This section

provides a short overview of hypervisors and virtual-

ization technology in general. There are two types

of hypervisors: full hypervisors and thin hypervi-

sors. Full hypervisors like Xen (Barham et al., 2003),

VMware Workstation, and Oracle VirtualBox can ex-

ecute several operating systems concurrently.

VT-x, also known as Intel Virtualization Technol-

ogy, is a hardware virtualization technology provided

by Intel for IA-32 processors. Its purpose is to sim-

plify virtualization and enhance the performance of

virtual machine monitors (VMMs) (Karvandi et al.,

2022). VT-x allows processors to act like indepen-

dent processors, enabling multiple operating systems

to run simultaneously on the same machine (Karvandi

et al., 2022).

Other processor vendors also extended their ar-

chitectures with hardware-assisted virtualization. In

addition to Intel VT-x, AMD introduced AMD-v

and ARM introduced ARM-VE. The main goal of

hardware-assisted virtualization is to provide soft-

ware developers with the means to construct efﬁcient

full hypervisors.

This paper focuses on Intel VT-x. Hardware-

assisted virtualization is not cross-platform. Imple-

mentation for other architectures requires similar ad-

ditional re-implementation.

To assist developers with hypervisor development,

VT-x introduces new data structures and instructions

to the instruction set architecture (ISA) (Karvandi

et al., 2022). These additions enable the processor to

efﬁciently support virtualization by providing archi-

tectural support for processor virtualization (Ganesan

et al., 2013). VT-x allows the virtual machine moni-

tor to create and manage virtual machines (VMs) by

intercepting and handling privileged instructions and

events (Neiger, 2006).

When a virtual machine is running on a system

with VT-x enabled, the VMM can allocate resources

and manage the execution of the VM. The VMM can

intercept and handle privileged instructions, such as

those related to memory management and I/O opera-

tions, to ensure proper isolation and control of the VM

(Neiger, 2006). VT-x provides mechanisms for virtu-

alizing the CPU, memory, and I/O devices, allowing

the VMM to provide a virtualized environment for the

guest operating systems (Neiger, 2006).

VT-x also includes features such as Extended Page

Tables (EPT) and Virtual Machine Control Struc-

ture (VMCS) that enhance the performance and ef-

ﬁciency of virtualization (Neiger, 2006). EPT is In-

tel’s implementation for Second Level Address Trans-

lation (SLAT). EPT improves memory virtualization

by reducing the overhead of address translation, while

VMCS provides a data structure that holds the state of

a VM and controls its execution (Neiger, 2006).

Thin hypervisors, in contrast, can execute only a

single operating system. Thin hypervisors’ purpose

is not to execute multiple operating systems. Instead,

the purpose of thin hypervisors is to enrich the func-

tionality of an operating system. The main beneﬁt

of a hypervisor over kernel modules (device drivers)

is the hypervisor’s ability to create an isolated envi-

ronment, which is essential in some cases. In gen-

eral, because thin hypervisors are much smaller than

full hypervisors, they are superior in performance, se-

curity, and reliability. A well-known example of a

commonly used thin hypervisor is Microsoft Device

Guard (Durve and Bouridane, 2017), available since

Windows 10. The hypervisor used in the memory ac-

quisition component described in this paper is thin.

Similarly to an operating system, a hypervisor

does not execute voluntarily but responds to events,

e.g., execution of special instructions, generation of

Detecting eBPF Rootkits Using Virtualization and Memory Forensics

255

exceptions, access to memory locations, etc. The hy-

pervisor can conﬁgure interception of (almost) each

event. The interception of an event (a VM exit) is

similar to the handling of an interrupt, i.e., the proces-

sor executes a predeﬁned function. Another similarity

with an operating system is the hypervisor’s ability

to conﬁgure the access rights to each memory page

through a data structure named the second-level ad-

dress translation table (SLAT). The SLAT resembles

the virtual page table in the operating system and is, in

fact, a page table for operating systems instead of pro-

cesses. An attempt to write to a non-writable (accord-

ing to SLAT) page induces a VM exit and allows the

hypervisor to act. SLAT exists in virtually all CPUs

that are in use today under various brand names (such

as Intel EPT, AMD RVI, ARM VE, etc.)

2.2 Memory Forensics

Memory forensics is the art of acquiring a full image

of the system’s memory during execution and analyz-

ing it in a secondary program. It may be performed by

a computer on itself (for example, scanning the mem-

ory for viruses) or by a known good computer inspect-

ing a possibly infected computer’s memory. Since a

virus or rootkit will attempt to mask its existence from

the operating system it runs on, forensics by a sec-

ondary station is often required.

Memory Forensics by a secondary host consists

of two separate tasks. The ﬁrst task is acquiring a

reliable image of the memory, preferably in a non-

intrusive manner. It is easy to get a reliable, consistent

memory image in an intrusive manner, for example,

by getting the system to a sleep state and copying the

system’s memory ﬁle to a separate computer. It is also

possible to get an unreliable system image by copying

memory pages to disk while the system operates.

The problem is that many artifacts may be created

as the memory content changes during the system ex-

ecution. For example, the process table may point

to memory pages of processes that no longer exist.

Memory inconsistencies are a fundamental problem

in security forensics as artifacts in memory may re-

sult from a malicious virus or rootkits but may also

exist due to inconsistent memory dump (Palutke et al.,

2020). It was previously shown how hypervisors can

overcome both problems and create reliable mem-

ory images in a non-intrusive way (Kiperberg et al.,

2019).

Once an accurate and reliable memory image has

been captured, one can analyze the memory using

many possible tools such as Yara (Cohen, 2017),

Rekall (Stadlinger et al., 2018), and Volatility(Case

and Richard III, 2017). In this work, we focus on

Volatility, which is the most common tool.

2.3 eBPF

eBPF, or extended Berkeley Packet Filter, is a pow-

erful technology in modern operating systems like

Linux. eBPF was initially designed for packet ﬁlter-

ing (Gowtham et al., 2021). eBPF has evolved into a

versatile framework that allows custom code to load

and run in the operating system kernel without requir-

ing modiﬁcations or recompilation.

eBPF enables the creation of small programs (BPF

programs) that can be loaded into the kernel to per-

form various tasks like packet ﬁltering, tracing, mon-

itoring, and more. One of eBPF’s signiﬁcant features

is its safety; eBPF programs undergo rigorous veri-

ﬁcation before running in the kernel, ensuring they

cannot harm the system (Findlay et al., 2020). eBPF

provides high-performance execution due to its JIT

(Just-In-Time)(Van Geffen et al., 2020) compilation

to native machine code, enabling efﬁcient execution

of complex tasks in the kernel space(Scholz et al.,

2018).

eBPF has many use cases, including network-

related operations like packet ﬁltering, tracing sys-

tem calls(De Giorgi, 2023), performance anal-

ysis(Cassagnes et al., 2020), security monitor-

ing(Fournier et al., 2021), and even extending Kuber-

netes capabilities(Miano et al., 2021).

2.4 Rootkits

The ﬁrst task of an attacker is gaining access to a re-

mote computer without the owner’s permission. The

next task, after gaining the initial access, is perform-

ing permission elevation to gain root access. The at-

tacker’s third task is gaining persistence. Persistence

means allowing the attacker to re-access the remote

host after the current session was terminated or af-

ter rebooting and patching the vulnerable software ex-

ploited in the original access. Persistence usually also

means masking the traces of the attack, i.e., hiding the

attacker’s processes and network connections from a

potential observer. It is assumed that if the victim is

aware of the attacker’s activities, she will reinstall the

infected system or at least turn it off, locking the at-

tacker outside of the system.

To achieve persistence, the attacker installs a

rootkit on the victim system. A rootkit is malicious

software designed to gain unauthorized access to a

computer system while remaining hidden from the

user and most security software. The rootkit oper-

ates deep within the operating system, often exploit-

ing vulnerabilities or using advanced techniques to

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

256

conceal its presence and evade detection by antivirus

programs or system scans.

Rootkits can provide attackers with privileged ac-

cess to a system, enabling them to execute various

malicious activities, such as:

• Rookits can hide ﬁles, processes, network connec-

tions, and registry keys, making them difﬁcult to

detect and remove. Rootkits often establish per-

sistence on a system, ensuring they remain active

even after reboots or system updates.

• Some rootkits exploit system vulnerabilities to

gain administrative or root-level privileges, grant-

ing the attacker extensive control over the system.

• Rootkits can create backdoors or remote access

mechanisms, allowing attackers to control the in-

fected system remotely, execute commands, or ex-

ﬁltrate sensitive data.

• Some rootkits might be used to spy, monitor user

activities and keystrokes, or capture sensitive in-

formation without the user’s knowledge.

Rootkits can be challenging to detect and remove

because of their ability to embed themselves deeply

within the system. Therefore, software that aims to

detect rootkits must execute with higher privileges

than the rootkit.

There are multiple types of rootkits using vari-

ous technologies. Rootkits can be created using boot

loaders that boot before the operating system boots

(Li et al., 2011), Hypervisors such as the blue pill

(Rutkowska, 2006), kernel modules, and even rootk-

its that exist in the BIOS or hardware itself (Hili et al.,

2014). In this paper, we focus only on eBPF rootkits.

3 SYSTEM DESIGN

This paper proposes a novel detection system for

eBPF rootkits. The system consists of four compo-

nents:

• a memory acquisition tool,

• a memory image analysis framework,

• an eBPF program extraction tool,

• an eBPF program classiﬁer.

Figure 1 depicts the design of the proposed system.

There are multiple possible approaches for memory

acquisition, ranging from dedicated hardware devices

(Carrier and Grand, 2004) to leveraging system calls

(St

uttgen and Cohen, 2014). Our system uses a thin

hypervisor for reliable memory acquisition (Kiper-

berg et al., 2019). Upon a request of an external entity,

the hypervisor begins the process of memory acqui-

sition. Most memory pages are sent to the external

entity one by one sequentially. However, when the

operating system or a user mode application attempts

to modify some page, the hypervisor sends the page

to an external entity out of order before the modiﬁca-

tion occurs. The resulting image represents an atomic

memory snapshot obtained without freezing the target

machine.

Our system uses Volatility (Mohanta et al., 2020)

for memory image analysis. The Volatility frame-

work is a widely recognized tool in digital foren-

sics, particularly for volatile memory forensics. It

has been utilized in various contexts, showcasing its

adaptability and effectiveness. Volatility is an extend-

able framework. Volatility supports multiple plugins

to be added. These plugins assist in locating, extract-

ing, and analyzing data. For example, it was extended

to live memory address spaces, enabling the dynamic

recreation of kernel data structures for live forensics,

thereby enhancing its applicability in digital investi-

gations (Tobin et al., 2017).

Unfortunately, Volatility cannot locate and extract

the compiled eBPF programs. We have developed

a plugin for Volatility that closes this gap (Mohanta

et al., 2020). The plugin operates as follows:

1. The data structure that stores all the compiled

eBPF programs is located.

2. The data structure is traversed, and the details of

each program are extracted: name, length, loading

time, type, and code.

3. The code is disassembled, and the called functions

are identiﬁed.

4. The function addresses are translated to helper

function names.

The plugin output lists the helper functions invoked

by each currently loaded eBPF program.

The kernel stores all the compiled eBPF programs

in a variable named prog idr of type struct idr.

This type generally represents an associative array

that maps small integers to arbitrary pointers or ob-

jects. The array itself is implemented as a radix

tree. In the prog idr ’s case, the pointees are objects

of type struct prog representing eBPF programs.

This object’s func ﬁeld points to the compiled pro-

gram.

The plugin leverages the infrastructure of Volatil-

ity to locate the prog idr variable and traverse the

radix tree to acquire all the eBPF program objects.

Then, the plugin extracts the compiled program from

each object and disassembles it using the ”capstone”

library (Anh, 2014).

Detecting eBPF Rootkits Using Virtualization and Memory Forensics

257

Figure 1: The design of the eBPF malware detection system. The thin hypervisor responsible for memory acquisition is the

only component on the infected machine. The hypervisor has higher privileges than the applications and the operating system,

making it resilient to rootkits. The other three components run on a separate secure machine. The memory image analysis

framework, Volatility, is equipped with our eBPF program extraction plugin. The plugin output is a list of eBPF programs

and their helper functions. The classiﬁer uses this list to output the potentially malicious programs.

To identify the helper functions used by the eBPF

program, the plugin scans the disassembled code and

locates all the “call” instructions. The argument of

each such instruction represents the address of the

called helper function. The address is converted to

a symbolic name using Volatility’s infrastructure.

In the ﬁnal step, the plugin tests whether the set

of helper functions is suspicious. In its current imple-

mentation, the plugin checks whether the set of helper

functions includes at least one of the functions in Ta-

ble 1. If so, a warning message is displayed.

Table 1 lists the suspicious eBPF helper func-

tions. It was constructed by reviewing the open-

source eBPF rootkits. Each helper function can be

used to accomplish a speciﬁc task by the rootkit:

• The probe write user is used to alter the results

returned by the current system call. For example,

it can be used to change the actual data read from

a ﬁle.

• The override return is used to falsify an er-

ror or success by replacing the return code from

a function. For example, it can prevent the dele-

tion of the rootkit ﬁles.

• The skb store bytes and skb pull data cre-

ate a covert communication channel between the

rootkit and the C&C server.

• The send signal is used to terminate processes

that attempt to reveal the rootkit’s presence.

4 EVALUATION

We have evaluated the proposed system from two per-

spectives: detection precision and detection latency.

We ran a virtual machine with an Ubuntu 22.04 op-

erating system to evaluate the detection precision.

We have pre-installed 134 benign and nine malicious

open-source benign eBPF programs. Then, we took

a snapshot of the virtual machine memory. Finally,

we analyzed the memory image using Volatility and

our plugin. All the malicious and none of the be-

nign eBPF programs were reported. The malicious

programs we tested are part of the bad-bpf project

(PatH, 2022). In addition, we have veriﬁed that all

publicly available eBPF rootkits use one of the helper

functions listed in Table 1. We have tested the follow-

ing rootkits: ebpfkit (Fournier, 2023), bad-bpf (PatH,

2022), boopkit (N

ova, 2023), and TripleCross (Bajo,

2022).

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

258

Table 1: Suspicious eBPF helper functions.

Function Name Description

probe write user Writes to a user-supplied memory region

override return Speciﬁed the return value of the current system call

skb store bytes Writes to a network packet

skb pull data Reads from a network packet

send signal Sends process a signal

We have measured the execution time of Volatility

equipped with our plugin when analyzing a memory

image containing 134 benign eBPF programs and a

memory image containing nine malicious programs.

The execution time was 8.68 seconds in the ﬁrst case

and 7.35 seconds in the second case. Assume that

the execution time can be expressed using the for-

mula T = A+ B · n (i.e., the dependence on n is linear)

where T is the total execution time, A is the execu-

tion time that does not depend on the number and size

of the programs and B is the handling time of a sin-

gle program. From our measurements, we can deduce

that B = 0.11s and A = 7.25. Therefore, the execution

time increases very slowly with n.

5 RELATED WORK

Rootkits based on eBPF programs are relatively new.

Only a few examples of open-source rootkits were

previously discussed: ebpfkit (Fournier, 2023), bad-

bpf (PatH, 2022), boopkit (N

ova, 2023), and Triple-

Cross (Bajo, 2022). The authors presented not only

the rootkits but also countermeasures. Some counter-

measures, such as eBPF program signing and veriﬁca-

tion, are unrelated to the current work. Therefore, in

this review, we concentrate on countermeasures that

aim to detect malicious eBPF programs.

In the current landscape of eBPF rootkit detec-

tion, two tools primarily stand out: Tracee (Security,

2023) and ebpfkit-monitor (Fournier, 2023). Tracee,

developed by Aqua Security, is a runtime security

and forensics tool for Linux built on eBPF technol-

ogy. By leveraging eBPF’s capabilities, Tracee can

trace system and application calls directly from the

Linux kernel without requiring any prior instrumen-

tation. Speciﬁcally, Tracee employs an event named

bpf attach to mark the instance of an eBPF program

being attached to a probe in the system. This event oc-

curs whenever an eBPF program is attached to a per-

formance event of the types: kprobe, uprobe, or trace-

point. The event’s purpose is to provide information

about the eBPF program and the probe itself. The in-

formation includes the eBPF program type, name, ID,

and list of all eBPF helper functions used by the pro-

gram.

On the other hand, ebpfkit-monitor is a utility

that can either statically analyze eBPF bytecode or

monitor suspicious eBPF program loading at runtime.

The tool was speciﬁcally designed to detect ebpfkit, a

rootkit leveraging eBPF.

While these two tools provide valuable capabili-

ties in detecting eBPF rootkits during runtime or be-

fore execution, they have limitations. Both tools are

ineffective at detecting rootkits that have already pen-

etrated the system. Such rootkits can hide themselves

from an internal observer. In contrast, the method pro-

posed in this paper relies on a hypervisor that extracts

a reliable memory image even in the presence of an

active rootkit. The analysis is performed on a sepa-

rate machine, which is believed to be secure.

Memory acquisition is an essential task in foren-

sic analysis. It can be done using means provided by

the operating system, a more privileged software, or

hardware devices. While methods based on operating

system capabilities are the simplest, they can easily

be circumvented by an active rootkit.

Another method of memory acquisition is based

on generic or dedicated hardware. Previous works

show how a generic FireWire card can acquire mem-

ory remotely (Zhang et al., 2010). A dedicated PCI

card, named Tribble, works in a similar manner (Car-

rier and Grand, 2004). The main advantage of a hard-

ware solution is resistance to even the most advanced

rootkits and the reliable memory image it provides.

The two main disadvantages are:

• If the rootkit installed a hypervisor with IO-MMU

(Amit et al., 2010) capability, it can mask certain

memory pages from a speciﬁc PCI interface.

• Hardware solutions suffer from high costs and

complexity. A shutdown is required to add hard-

ware to a running system, which may be com-

plicated in many environments. If the hardware

is installed beforehand, it needs to be determined

which systems are to be inspected, and speciﬁc

hardware needs to be installed on these systems.

Also, memory forensics using physical hardware

may require reaching the inspected system, con-

necting cables, and a secondary inspecting system

to perform the inspection. This process may be

too complicated to be carried out in practice.

Detecting eBPF Rootkits Using Virtualization and Memory Forensics

259

A hypervisor can detect rootkit behavior (Zaiden-

berg and Khen, 2015), but detecting rootkits in mem-

ory dumps is less intrusive and requires fewer VM

exits. Hypervisor-based methods of memory acquisi-

tion have low cost and the same degree of resistance

to rootkits. HyperSleuth (Martignoni et al., 2010) is

a driver with an embedded hypervisor. Its hypervi-

sor is capable of performing atomic and lazy memory

acquisition. The laziness is expressed in the ability of

the hypervisor to continue the normal execution while

the memory is acquired. ForenVisor (Qi et al., 2016)

is a similar hypervisor with additional features that al-

low it to log keyboard strokes and hard-drive activity.

Kiperberg et al. (Kiperberg et al., 2019) showed how

HyperSleuth and ForenVisor can be adapted to multi-

processor systems executing Windows 10. This tool

was selected for memory acquisition in the proposed

system. A similar solution is possible in the ARM

architecture as well(Yehuda et al., 2021).

6 CONCLUSIONS

We described a system for detecting eBPF rootkits.

The system is resilient to active rootkits. The sys-

tem achieves optimal precision while suffering only a

minor performance penalty for each additional eBPF

program. The classiﬁer was developed after studying

the available eBPF rootkits and extracting the poten-

tially malicious helper functions.

In its current implementation, the system requires

the hypervisor to transmit a complete memory image,

which may take considerable time. This aspect can be

optimized by transmitting only those memory pages

required to extract the eBPF programs. Moreover, it

is possible to embed the Volatility framework and our

eBPF extraction plugin in the hypervisor itself, thus

eliminating the need for network transmission.

The system presented is not limited to thin hyper-

visors. Future implementation can include the sys-

tem in a full hypervisor. By building the system in a

full hypervisor, it would be possible to provide eBPF

monitoring service to all guest operating systems.

7 SOURCE CODE AVAILABILITY

AND STATISTICS

The Volatility plug-in described in this paper is open-

sourced and available for download under https://gith

ub.com/AsafEitani/volatility3/tree/ebpf plugin The

virtual machine we used to infect and detect the eBPF

malware is available for download at https://drive.go

ogle.com/drive/folders/1 lvtwV0J9608vP0nbxQ9

SEwyd7xy5TPF?usp=sharing username/password is

eitani/a

The User home directory has two memory dumps

(one with and one without malicious eBPF malware).

Our plug-in also displays statistics about usage:

the number of eBPF programs and helper functions.

Running the plugin on a dump without eBPF rootkits

produces the following output:

$python3 ./vol.py -f ˜/legit_bpf.vmem

linux.ebpf_programs

Execution took 8.684305429458618 seconds.

134 ebpf programs were detected.

1707 total helper functions were used -

28 unique.

12.738805970149254 average helper

per ebpf program.

eBPF Malware not detected.

Running the plug-in on a malicious dump produces

the following output:

$python3 ./vol.py -f ˜/bad-bpf.vmem

linux.ebpf_programs

Execution took 7.350746393203735 seconds.

9 ebpf programs were detected.

6 total helper functions were used -

6 unique.

0.6666666666666666 average helper

per ebpf program.

eBPF Malware detected.

REFERENCES

Amit, N., Ben-Yehuda, M., and Yassour, B.-A. (2010).

Iommu: Strategies for mitigating the iotlb bottleneck.

In International Symposium on Computer Architec-

ture, pages 256–274. Springer.

Anh, Q. N. (2014). Capstone: Next generation disassembly

framework. Proceedings of the 2014 Black Hat USA,

Black Hat USA, 14.

Bajo, M. S. (2022). An analysis of offensive capabilities of

ebpf and implementation of a rootkit. Bachelor Thesis

of Charles III University of Madrid.

Barham, P., Dragovic, B., Fraser, K., Hand, S., Harris,

T., Ho, A., Neugebauer, R., Pratt, I., and Warﬁeld,

A. (2003). Xen and the art of virtualization. ACM

SIGOPS operating systems review, 37(5):164–177.

Ben-Yair, I., Rogovoy, P., and Zaidenberg, N. (2019). Ai

& ebpf based performance anomaly detection system.

In Proceedings of the 12th ACM International Confer-

ence on Systems and Storage, pages 180–180.

Carrier, B. D. and Grand, J. (2004). A hardware-based

memory acquisition procedure for digital investiga-

tions. Digital Investigation, 1(1):50–60.

Case, A. and Richard III, G. G. (2017). Memory forensics:

The path forward. Digital investigation, 20:23–33.

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

260

Cassagnes, C., Trestioreanu, L., Joly, C., and State, R.

(2020). The rise of ebpf for non-intrusive performance

monitoring. In NOMS 2020-2020 IEEE/IFIP Network

Operations and Management Symposium, pages 1–7.

IEEE.

Cohen, M. (2017). Scanning memory with yara. Digital

Investigation, 20:34–43.

De Giorgi, M. (2023). System calls monitoring in android:

An approach to detect debuggers, anomalies and pri-

vacy issues.

Durve, R. and Bouridane, A. (2017). Windows 10 se-

curity hardening using device guard whitelisting and

applocker blacklisting. In 2017 Seventh Interna-

tional Conference on Emerging Security Technologies

(EST), pages 56–61. IEEE.

Findlay, W., Somayaji, A., and Barrera, D. (2020). Bpf-

box: Simple precise process conﬁnement with ebpf.

In Proceedings of the 2020 ACM SIGSAC Conference

on Cloud Computing Security Workshop, pages 91–

103.

Fournier, G. (2023). ebpfkit. https://github.com/Gui774u

me/ebpfkit. Accessed: 21.11.2023.

Fournier, G., Afchain, S., and Baubeau, S. (2021). Runtime

security monitoring with ebpf. In 17th SSTIC Sympo-

sium sur la S

ecurit

e des Technologies de l’Information

et de la Communication.

Ganesan, R., Murarka, Y., Sarkar, S., and Frey, K. (2013).

Empirical study of performance beneﬁts of hardware

assisted virtualization. In Proceedings of the 6th ACM

India Computing Convention, pages 1–8.

Gowtham, V., Keil, O., Yeole, A., Schreiner, F., Tsch

oke,

S., and Willner, A. (2021). Determining edge node

real-time capabilities. In 2021 IEEE/ACM 25th In-

ternational Symposium on Distributed Simulation and

Real Time Applications (DS-RT), pages 1–9. IEEE.

Hili, G., Mayes, K., and Markantonakis, K. (2014). The

bios and rootkits. Secure Smart Embedded Devices,

Platforms and Applications, pages 369–381.

Karvandi, M. S., Gholamrezaei, M., Khalaj Monfared, S.,

Meghdadizanjani, S., Abbassi, B., Amini, A., Mor-

tazavi, R., Gorgin, S., Rahmati, D., and Schwarz, M.

(2022). Hyperdbg: Reinventing hardware-assisted de-

bugging. In Proceedings of the 2022 ACM SIGSAC

Conference on Computer and Communications Secu-

rity, pages 1709–1723.

Kiperberg, M., Leon, R., Resh, A., Algawi, A., and Zaiden-

berg, N. (2019). Hypervisor-assisted atomic memory

acquisition in modern systems. In International Con-

ference on Information Systems Security and Privacy.

SCITEPRESS Science And Technology Publications.

Li, X., Wen, Y., Huang, M. H., and Liu, Q. (2011). An

overview of bootkit attacking approaches. In 2011

Seventh International Conference on Mobile Ad-hoc

and Sensor Networks, pages 428–431. IEEE.

Martignoni, L., Fattori, A., Paleari, R., and Cavallaro, L.

(2010). Live and trustworthy forensic analysis of com-

modity production systems. In Recent Advances in

Intrusion Detection: 13th International Symposium,

RAID 2010, Ottawa, Ontario, Canada, September 15-

17, 2010. Proceedings 13, pages 297–316. Springer.

Miano, S., Risso, F., Bernal, M. V., Bertrone, M., and Lu,

Y. (2021). A framework for ebpf-based network func-

tions in an era of microservices. IEEE Transactions on

Network and Service Management, 18(1):133–151.

Mohanta, A., Saldanha, A., Mohanta, A., and Saldanha, A.

(2020). Memory forensics with volatility. Malware

Analysis and Detection Engineering: A Comprehen-

sive Approach to Detect and Analyze Modern Mal-

ware, pages 433–476.

Neiger, G. (2006). Intel

Wvirtualization technology: Hard-

ware support for efﬁcient processor virtualization. In-

tel Technology Journal.

ova, K. (2023). Boopkit. https://github.com/krisnova/bo

opkit. Accessed: 21.11.2023.

Palutke, R., Block, F., Reichenberger, P., and Stripeika, D.

(2020). Hiding process memory via anti-forensic tech-

niques. Forensic Science International: Digital Inves-

tigation, 33:301012.

PatH (2022). Bad bpf. https://github.com/pathtofile/bad-b

pf. Accessed: 21.11.2023.

Qi, Z., Xiang, C., Ma, R., Li, J., Guan, H., and Wei, D. S.

(2016). Forenvisor: A tool for acquiring and preserv-

ing reliable data in cloud live forensics. IEEE Trans-

actions on Cloud Computing, 5(3):443–456.

Rutkowska, J. (2006). Introducing blue pill. The ofﬁcial

blog of the invisiblethings. org, 22:23.

Scholz, D., Raumer, D., Emmerich, P., Kurtz, A., Lesiak,

K., and Carle, G. (2018). Performance implications of

packet ﬁltering with linux ebpf. In 2018 30th Interna-

tional Teletrafﬁc Congress (ITC 30), volume 1, pages

209–217. IEEE.

Security, A. (2023). Tracee. https://github.com/aquasecurit

y/tracee. Accessed: 21.11.2023.

Stadlinger, J., Dewald, A., and Block, F. (2018). Linux

memory forensics: Expanding rekall for userland in-

vestigation. In 2018 11th International Conference

on IT Security Incident Management & IT Forensics

(IMF), pages 27–46. IEEE.

uttgen, J. and Cohen, M. (2014). Robust linux memory

acquisition with minimal target impact. Digital Inves-

tigation, 11:S112–S119.

Tobin, P. C., Le-Khac, N., and Kechadi, T. (2017). Foren-

sic analysis of virtual hard drives. Journal of Digital

Forensics, Security and Law.

Van Geffen, J., Nelson, L., Dillig, I., Wang, X., and Tor-

lak, E. (2020). Synthesizing jit compilers for in-kernel

dsls. In International Conference on Computer Aided

Veriﬁcation, pages 564–586. Springer.

Yehuda, R. B., Shlingbaum, E., Gershfeld, Y., Tayouri, S.,

and Zaidenberg, N. J. (2021). Hypervisor memory

acquisition for arm. Forensic Science International:

Digital Investigation, 37:301106.

Zaidenberg, N. J. and Khen, E. (2015). Detecting kernel

vulnerabilities during the development phase. In 2015

IEEE 2nd International Conference on Cyber Security

and Cloud Computing, pages 224–230.

Zhang, L., Wang, L., Zhang, R., Zhang, S., and Zhou, Y.

(2010). Live memory acquisition through ﬁrewire. In

International Conference on Forensics in Telecommu-

nications, Information, and Multimedia, pages 159–

167. Springer.

Detecting eBPF Rootkits Using Virtualization and Memory Forensics

261
