Image Generation from Hyper Scene Graphs with Trinomial Hyperedges

Using Object Attention

Ryosuke Miyake, Tetsu Matsukawa

and Einoshin Suzuki

Graduate School and Faculty of Information Science and Electrical Engineering, Kyushu University, Fukuoka, Japan

Keywords:

Image Generation, Hyper Scene Graph, Object Attention.

Abstract:

Conditional image generation, which aims to generate consistent images with a user’s input, is one of the

critical problems in computer vision. Text-to-image models have succeeded in generating realistic images for

simple situations in which a few objects are present. Yet, they often fail to generate consistent images for texts

representing complex situations. Scene-graph-to-image models have the advantage of generating images for

complex situations based on the structure of a scene graph. We extended a scene-graph-to-image model to

an image generation model from a hyper scene graph with trinomial hyperedges. Our model, termed hsg2im,

improved the consistency of the generated images. However, hsg2im has difﬁculty in generating natural and

consistent images for hyper scene graphs with many objects. The reason is that the graph convolutional

network in hsg2im struggles to capture relations of distant objects. In this paper, we propose a novel image

generation model which addresses this shortcoming by introducing object attention layers. We also use a

layout-to-image model auxiliary to generate higher-resolution images. Experimental validations on COCO-

Stuff and Visual Genome datasets show that the proposed model generates more natural and consistent images

to user’s inputs than the cutting-edge hyper scene-graph-to-image model.

1 INTRODUCTION

Conditional image generation, which aims to gener-

ate consistent images with a user’s input, is one of the

critical problems in computer vision. Text-to-image

models (Reed et al., 2016; Zhang et al., 2017; Zhang

et al., 2018; Odena et al., 2017) have been extensively

studied in this problem because of their simple in-

put and applicability in various ﬁelds. Although these

models have succeeded in generating realistic images

for simple situations with few objects, they often fail

to generate consistent images for texts representing

complex situations with multiple objects and their re-

lationships.

This drawback stems from the difﬁculty of map-

ping a long sentence into a single feature vector.

Scene-graph-to-image models can address this draw-

back by using the structured representation of scene

graphs (Johnson et al., 2018). A scene graph con-

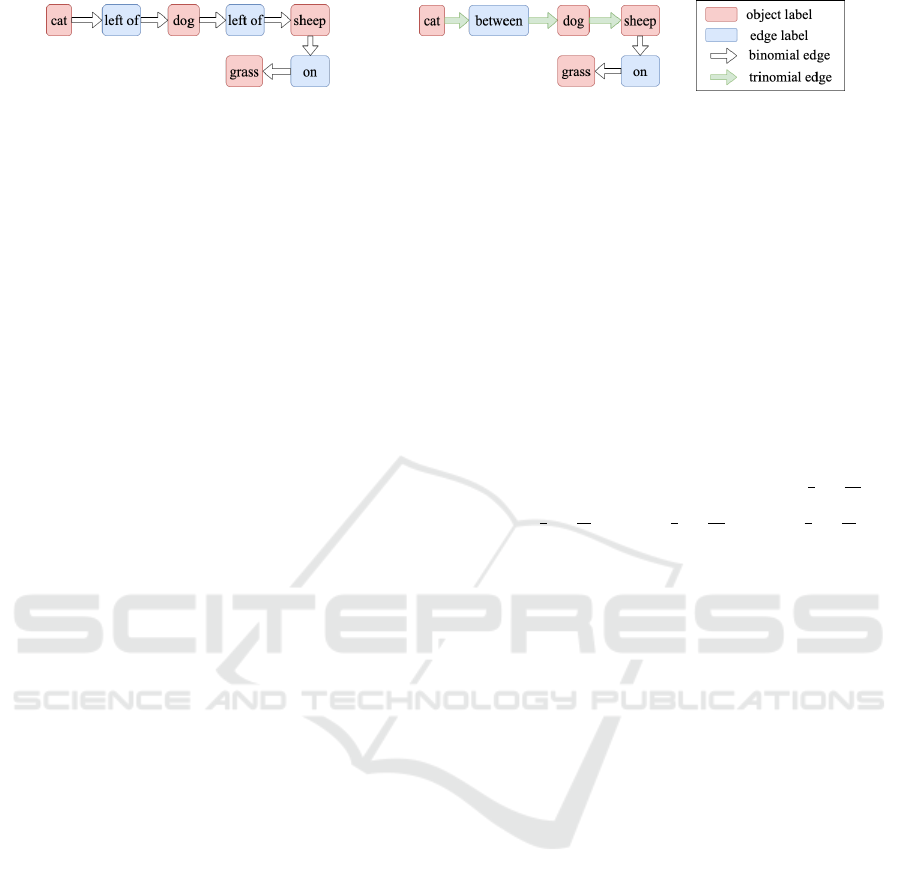

sists of nodes representing objects and binomial edges

describing relationships between two objects (Figure

2 (a)), enabling it to explicitly represent a complex

https://orcid.org/0000-0002-8841-6304

https://orcid.org/0000-0001-7743-6177

situation compared with text. Scene-graph-to-image

models simplify the encoding of complex situations

by converting each object into a feature vector. From

these facts, these models expect to generate proper

images for complex situations.

On the other hand, scene-graph-to-image models

also have a shortcoming, i.e., inaccurate object posi-

tions. We addressed this shortcoming by proposing

an image generation model from hyper scene graphs

hsg2im (Miyake et al., 2023), as an extension of

sg2im (Johnson et al., 2018). Hyper scene graphs

include trinomial hyperedges representing positional

relations among three objects. We increased the types

of hyperedges (Miyake et al., ) of our previous work

(Miyake et al., 2023). A trinomial hyperedge repre-

sents a positional relation among three objects. A tri-

nomial hyperedge enables the model to process the

three objects with one application of a Multi-Layer

Perceptron (MLP), which makes capturing the rela-

tion among three objects easier.

However, hsg2im also has a shortcoming of gen-

erating an unnatural layout for a hyper scene graph

with many objects. Figure 1 shows examples of this

shortcoming. In the layout generated by our hsg2im

(Miyake et al., ), the objects are neither arranged natu-

266

Miyake, R., Matsukawa, T. and Suzuki, E.

Image Generation from Hyper Scene Graphs with Trinomial Hyperedges Using Object Attention.

DOI: 10.5220/0012472500003660

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2024) - Volume 2: VISAPP, pages

266-279

ISBN: 978-989-758-679-8; ISSN: 2184-4321

Hyper scene graph

(a)

Layout (hsg2im) Image (hsg2im)

(b)

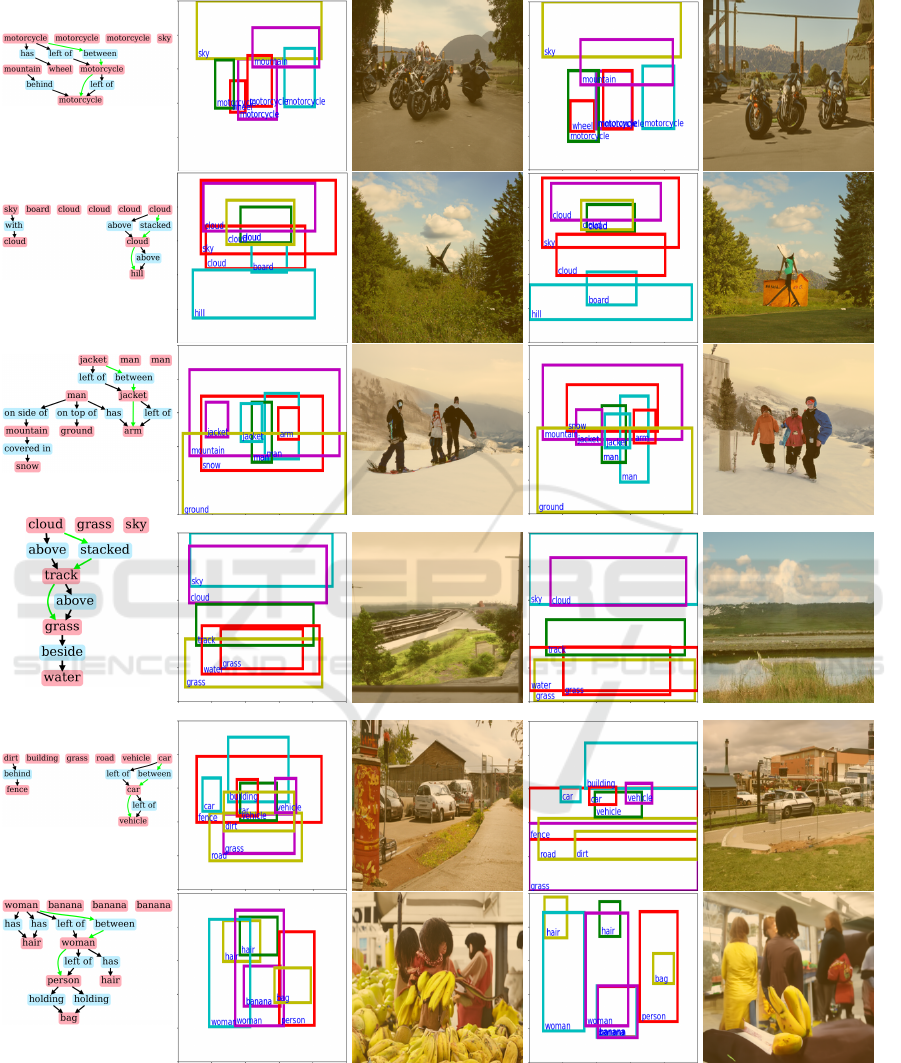

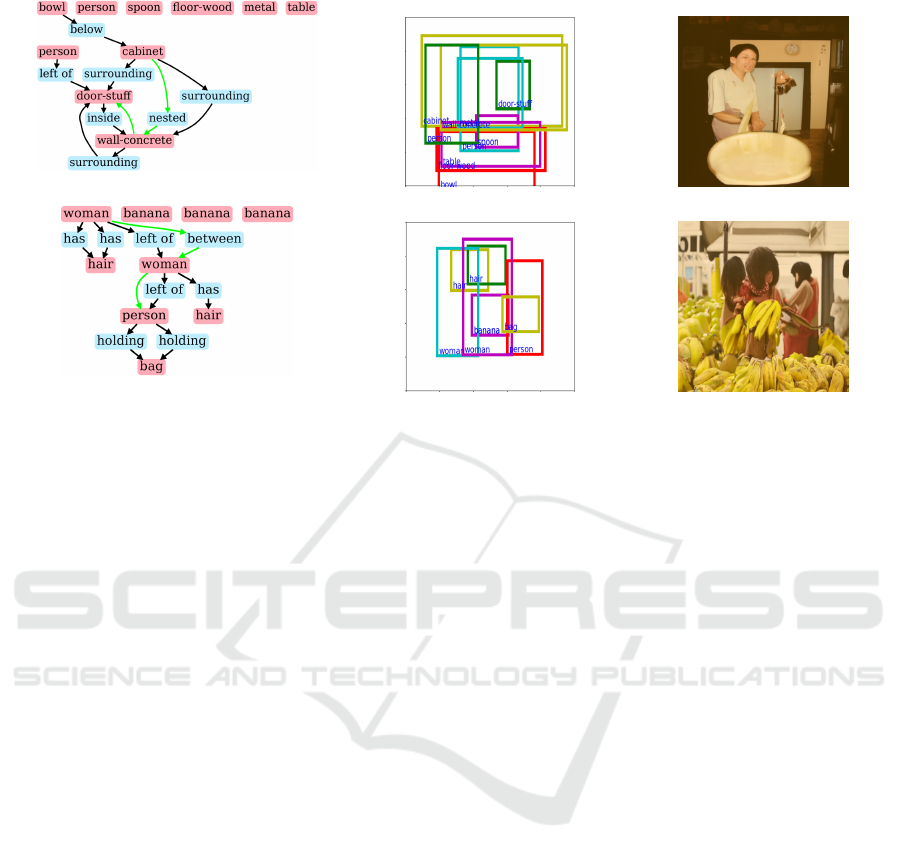

Figure 1: Examples showing the shortcoming of hsg2im (Miyake et al., 2023; Miyake et al., ).

rally nor consistently. In the example of (a), many ob-

jects, i.e., ﬂoor-wood (red box), table (purple), spoon

(purple), and bowl (red) overlap each other in the

middle center, and they cannot be seen in the gen-

erated image. In the example of (b), the hyper scene

graph has a hyperedge woman (light blue) - between

- woman (purple) → person (red); however, woman

(light blue) and woman (purple) overlap each other in

the layout generated by hsg2im, and we cannot see

woman (light blue) clearly.

The reason lies in the graph convolutional net-

work, which converts each object vector to reﬂect the

other objects and relations in hsg2im. The graph con-

volutional network converts the feature vector based

on the edges in the hyper scene graph. This process

makes it difﬁcult to generate object vectors that ac-

curately reﬂect distant objects and relations. Conse-

quently, hsg2im often fails to arrange the objects nat-

urally for a hyper scene graph with many objects.

To address this shortcoming, we propose Object

Attention hsg2im (OA-hsg2im). OA-hsg2im has self-

attention layers for object vectors, which calculate the

attention score for all combinations of two objects in a

hyper scene graph. By converting object vectors with

the attention scores, OA-hsg2im enables the objects to

attend other objects relevant to themselves regardless

of the distance in a hyper scene graph. This conver-

sion also allows the object vectors to reﬂect a wider

range of objects in the hyper scene graph. Therefore,

OA-hsg2im is expected to generate natural layouts

and images which are consistent with the input hy-

per scene graph even if it consists of many objects. In

addition, we use a pre-trained layout-to-image model

LayoutDiffusion (Zheng et al., 2023) as an auxiliary

model to generate higher-resolution images.

In this paper, we also tackle an investigation of

prejudice in the image generation model. In recent

years, the movements for eliminating such prejudice

about genders or professions are becoming more ac-

tive (Zhang et al., 2022). Vision and language datasets

often reﬂect people’s prejudices (Tang et al., 2021),

and image generation models could learn them. We

investigate the prejudice about genders in the pre-

trained LayoutDiffusion (Zheng et al., 2023).

2 RELATED WORK

We categorize conditional image generation models

from three kinds of inputs; texts (Reed et al., 2016;

Zhang et al., 2017; Zhang et al., 2018; Odena et al.,

2017), layouts (Sun and Wu, 2019; He et al., 2021;

Zheng et al., 2023; Hinz et al., 2022), and scene

graphs (Johnson et al., 2018; Miyake et al., 2023;

Miyake et al., ; Herzig et al., 2020). Text-to-image

models have succeeded in generating realistic im-

ages for simple situations in which a few objects are

present. Meanwhile, they often fail to generate con-

sistent images for texts representing complex situa-

tions. Layout-to-image models and scene-graph-to-

image models overcome this shortcoming of text-to-

image models.

For layout-to-image models, He et al. proposed

a model Layout2img, which generates consistent fea-

ture vectors for each object and generates natural im-

ages (He et al., 2021). Zhang et. al proposed a layout-

Image Generation from Hyper Scene Graphs with Trinomial Hyperedges Using Object Attention

267

to-image diffusion model LayoutDiffusion, which has

a diffusion architecture (Ho et al., 2020), enabling

to generate higher-quality images than GAN-based

methods (Zheng et al., 2023). Though layout-to-

image models can control the position of the gener-

ated object with the input, they have difﬁculty in gen-

erating an image from a text due to the dissimilarity

of the structures between a text and a layout.

For scene-graph-to-image models, Johnson et al.

proposed a model sg2im (Johnson et al., 2018).

Scene-graph-to-image models can generate proper

images for complex situations due to the powerful

structured representation of scene graphs (Johnson

et al., 2018). Also, scene-graph-to-image models can

be easily applied to text-to-image models due to the

similarity of the structures between a text and a scene

graph. Actually, Schuster et al. worked on the trans-

formation from a text to a scene graph (Schuster et al.,

2015).

Some researchers have attempted to generate

more consistent images from scene graphs. Herzig et

al. generated images from canonicalized scene graph

(Herzig et al., 2020). Vo et al. introduced an auxiliary

classiﬁer loss in terms of the binomial relations (Vo

and Sugimoto, 2020). We proposed hsg2im, which is

an image generation model from a hyper scene graph

with trinomial hyperedges (Miyake et al., 2023), by

extending sg2im and we also increased the types of

hyperedges (Miyake et al., ). The trinomial hyperedge

allows hsg2im to convolve wider ranges of a scene

graph at once, which improves the positional relations

of objects. These methods are useful for generating

objects with accurate positional relations and thus can

often generate natural layouts for scene graphs with a

small number of objects. However, they often fail to

generate natural layouts for a scene graph with many

objects, since these methods use only MLPs for graph

convolution, which makes generating object vectors

reﬂecting a wide range of scene graphs difﬁcult. In

this paper, we focus on scene-graph-to-image mod-

els due to their advantages and aim to overcome their

shortcoming, i.e., generating an unnatural layout for

a scene graph with many objects. For generating nat-

ural layouts for scene graphs with many objects, we

propose OA-hsg2im, a new image generation model

from a hyper scene graph using object attention.

Some researchers have also attempted to gener-

ate natural and high-resolution images from scene

graphs. Sortino et al. and Yang et al. have succeeded

in generating more realistic images with a VQ-VAE

architecture (Van Den Oord et al., 2017) and a dif-

fusion model architecture (Ho et al., 2020), respec-

tively (Sortino et al., 2023; Yang et al., 2022). These

models do not employ GAN (Goodfellow et al., 2014)

architecture, and thus can be trained stably to gen-

erate realistic and high-resolution images. However,

they require a high training cost: the former per-

forms complex processing such as gradient compu-

tation and optimization of discrete variables and the

latter performs a per-pixel calculation. For example,

a diffusion-based image generation model Patch Dif-

fusion (Wang et al., 2023) takes four days for training

using 16 V100 GPUs, and a VQVAE-based 2D im-

age to 3D image model PixelSynth consumes about

ﬁve days for training with four 2080 Ti GPUs (Rock-

well et al., 2021). In this paper, we use a pre-trained

layout-to-image model LayoutDiffusion (Zheng et al.,

2023) as an auxiliary model for generating natural and

high-resolution image, which makes us avoid a high

training cost.

3 TARGET PROBLEM

3.1 Image Generation from a Hyper

Scene Graph

We deﬁned a hyper scene graph as a scene graph

with an additional hyperedge which represents a re-

lation among three or more objects (Miyake et al.,

2023). Following our previous work, we focus on re-

lations among three objects for simplicity as hyper-

edges and set our target problem to creating generator

G(H) which generates an image

I from a hyper scene

graph H = (V,E,Q). Here, V = {v

,...,v

} denotes

the set of nodes, where n

represents the number of

nodes. E denotes the set of binomial edges in a scene

graph, satisfying E ⊆ V × R

×V , where R

is the en-

tire set of labels for binomial relations. Note that for

) ∈ E, i 6= k. A binomial edge is directed,

i.e., (v

) and (v

) are distinct. Q denotes

the set of trinomial hyperdeges in H, which satisﬁes

Q ⊆ V × R

×V ×V , where R

denotes the entire set

of labels for the trinomial relations. A trinomial hy-

peredge (v

) ∈ Q satisﬁes i 6= k, i 6= l, k 6= l

and is directed as a binomial edge. Figure 2 (b) shows

an example of a hyper scene graph.

3.2 Evaluation Metrics

We aim to generate natural layouts and images that

are consistent with the input, even for complex scene

graphs with multiple objects. We evaluate both the

consistency and the naturalness of the output image.

First, we discuss the input consistency. Our main

objective is to create improved layouts, and we as-

sess the consistency of these layouts by analyzing the

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

268

(a)

(b)

Figure 2: Example of a scene graph (a) and a hyper scene graph (b). This Figure is from (Miyake et al., ). Set V of objects

are the same in both (a) and (b), and they are given by V = {cat, dog, sheep, grass}. The set of the binomial edges in (a) and

(b) are given by E = {(v

(left of),v

), (v

(left of),v

), (v

(on),v

)} and E = {(v

(on),v

)}, respectively. The

set of the trinomial hyperedges in (b) is given by Q = {(v

(between),v

)}. The path cat → left of → dog corresponds

to the binomial edge (v

(cat)),left of,v

(dog)) and represents that a cat is located to the left of a dog. Also, the path cat →

between → dog → sheep corresponds to the trinomial edge (v

(cat)),between,v

(dog),v

(sheep)) and represents from left

to right, a cat, a dog, and a sheep aligned in a row.

positional relationship between objects connected to

the same edge or hyperedge. Intersection over Union

(IoU) (Rezatoﬁghi et al., 2019) is one of the evalu-

ation metrics for the object positions in the layouts,

which is used in the sg2im paper (Johnson et al.,

2018). IoU evaluates the similarity of the layouts be-

tween generated and ground truth layouts, which does

not assess the consistency between the input and gen-

erated layout. The layout which aligns with the input

scene graph is not necessarily unique, and our goal is

not to generate identical layouts to the ground truth

layouts. Therefore, we do not use IoU. We had pro-

posed PTO and AoO as the evaluation metrics for the

consistency with the input (Miyake et al., 2023), and

then we modiﬁed them along with the addition of the

types of hyperedge in (Miyake et al., ). In this paper,

we use PTO and AoO (Miyake et al., ), which are ex-

plained later in Sections 3.2.1 and 3.2.2, respectively.

Second, we explain how to evaluate the natural-

ness of the generated images. We adopt two met-

rics, i.e., Inception Score (IS) (Salimans et al., 2016)

and Fr

echet Inception Distance (FID) (Heusel et al.,

2017), which are widely used as the evaluation met-

rics of the naturalness of the images (Sortino et al.,

2023). We explain them in Sections 3.2.3 and 3.2.4,

respectively.

3.2.1 Positional Relation of Three Objects (PTO)

PTO (Miyake et al., ) evaluates the proportion

of correctly generated the three bounding boxes

for each edge type. Let b

= (x

)

be a rectangle bounding box with vertices

), (x

), where x

< x

and y

< y

, and R

= {between, stacked, nested}.

A set of bounding boxes {b

} corresponding

to a hyperedge (v

) ∈ Q is considered

correctly generated if they satisfy all of the following

conditions for each trinomial relation r ∈ R

The conditions of hyperedge (v

,between,v

)

(Figure 3 (a)) are deﬁned as follows:

1. b

are lined up from left to right in this order

without overlapping, i.e., x

< x

2. b

are not large objects such as the back-

ground, i.e., w

< 0.7w and w

0.7w, where w is the image width and w

= x

−

is the width of i-th bounding box.

3. b

are of nearly equal size, i.e.,

< 2

and

< 2 and

< 2,

where h

= y

−y

is the height of the i-th bound-

ing box.

4. b

are not largely apart horizontally, i.e.,

0.5max(w

) > x

−x

and 0.5 max(w

) >

− x

5. b

are not largely apart verti-

cally, i.e., 0.7max(h

) > y

− y

and

0.7max(h

) > y

− y

The conditions of hyperedge (v

,stacked,v

)

(Figure 3 (b)) are the same with the conditions of hy-

peredge (v

,between,v

), in which x and y are ex-

changed. This relation represents the situation that

the three bounding boxes of similar sizes are aligned

vertically in close positions without overlapping.

The conditions of hyperedge (v

,nested,v

)

(Figure 3 (c)) are deﬁned as follows:

1. b

are not large objects such as the back-

ground, i.e., w

< 0.7w and w

0.7w, where w is the image width and w

= x

−

is the width of i-th bounding box.

2. The inclusion relation b

⊃ b

holds horizon-

tally, i.e., x

< x

3. The inclusion relation b

⊃ b

holds verti-

cally, i.e., y

< y

Using the above conditions, PTO for a hyperedge

Image Generation from Hyper Scene Graphs with Trinomial Hyperedges Using Object Attention

269

(a) between (b) stacked (c) nested

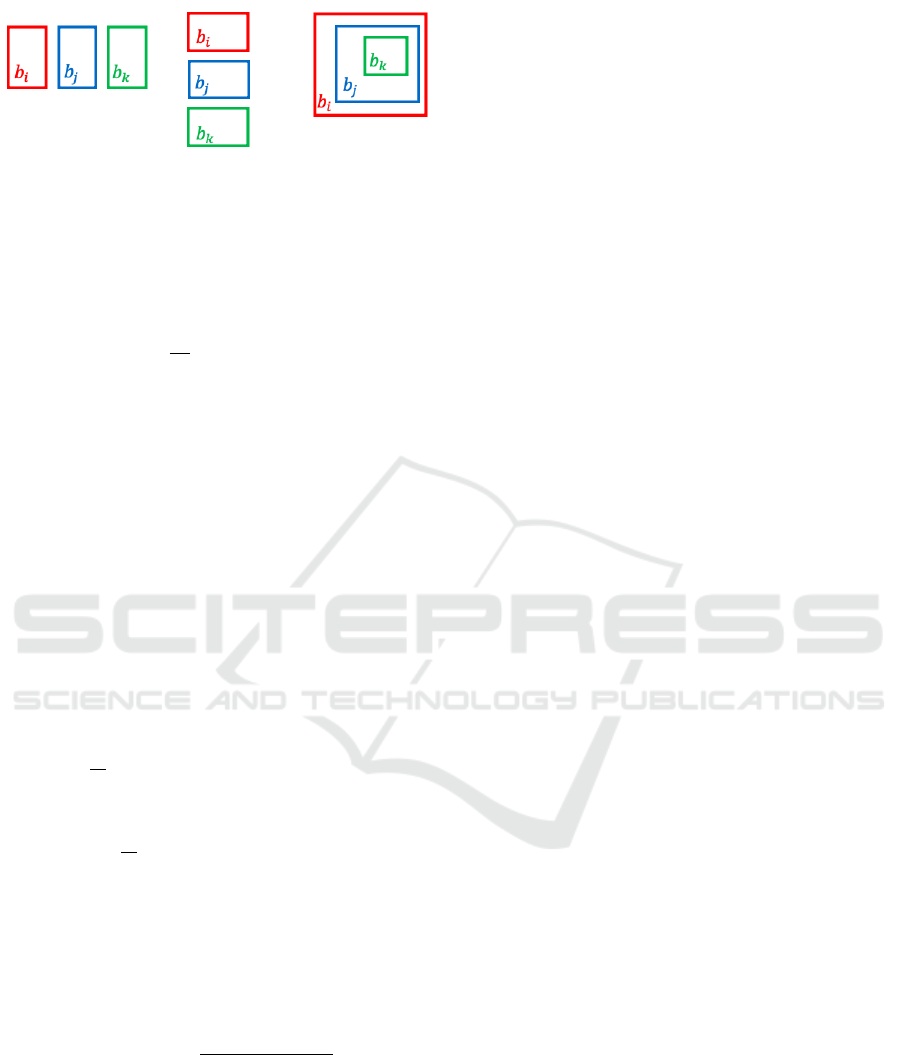

Figure 3: Illustration of the bounding boxes corresponding

to the three types of hyperedges (v

). This Figure

is from (Miyake et al., ).

type r is expressed as follows:

PTO

∑

l=1

J(b

l j

), (1)

where N

is the number of the hyperedge r in the test

dataset. b

l j

and b

are the bounding boxes cor-

responding to the l-th hyperedge r, and J(·,·,·) is the

function which takes 1 if the three bounding boxes

satisfy all conditions of hyperedge r and 0 oherwise.

3.2.2 Area of Overlapping (AoO)

AoO (Miyake et al., ) measures the overlap of

the three objects connected to a trinomial hyper-

edge. Note that the objects connected to the hyper-

edge between and stacked should not overlap each

other, while those connected to the hyperedge nested

should. AoO is deﬁned differently for the former and

the latter trinomial relations as follows:

AoO











∑

l=1

(IoM(b

l j

) + IoM(b

)

+IoM(b

l j

))

if r ∈ {stacked,between},

3 −

∑

l=1

(IoM(b

l j

) + IoM(b

)

+IoM(b

l j

))

if r = nested,

(2)

where IoM(·,·) representing the Intersection over

Minimum between two input bounding boxes mea-

sures the overlapping of the bounding box as follows:

IoM(X,Y ) =

S(X ∩Y )

min(S(X),S(Y ))

. (3)

Here S(·) represents the area of the input region. The

smaller AoO is, the better the overlapping of the three

objects is controlled.

3.2.3 Inception Score (IS)

We use IS (Salimans et al., 2016) as a measure for

evaluating the naturalness of the generated image. IS

is obtained using Inception Network trained on Im-

ageNet (Russakovsky et al., 2015; Szegedy et al.,

2015) with the following equation:

IS = exp(E

(p(y|

I))kp(y)]), (4)

where D

KL(·||·)

is Kullback-Leibler (KL) divergence

between distributions. p(y|

I) is the probability distri-

bution of a label y of a given generated image

I pre-

dicted by Inception Network, and p(y) = E

[p(y|

I)]

is its marginal probability. A higher IS indicates that

the generated images are more natural, as the score

increases as the class labels of the generated images

become more easily identiﬁable and more diverse.

3.2.4 Fr

echet Inception Distance (FID)

echet Inception Distance (FID) (Heusel et al.,

2017), which evaluates the naturalness of the images,

is the distance between the distribution of the embed-

ded representations of the ground truth and generated

images and is thus consistent with humans’ intuition.

FID is calculated using Inception Network, the same

as IS, with the following equation:

FID = km − ˆmk

+ Tr(C +

C − 2(C

1/2

), (5)

where m and C are the average vector and the co-

variance matrix of the feature vectors of the ground

truth images obtained from Inception Network, re-

spectively. ˆm and

C are those of the generated images,

respectively. A lower FID indicates that the gener-

ated images are more natural, as the score decreases

when the feature distribution of the generated images

is close to that of the ground truth images.

4 ORIGINAL MODEL: hsg2im

hsg2im (Miyake et al., 2023; Miyake et al., ), which

is based on an image generation model from a scene

graph sg2im (Johnson et al., 2018), generates an im-

age from a hyper scene graph. sg2im has an MLP

for the binomial edges net1 and an MLP for the di-

mension reduction net2 in its graph convolution net-

work. hsg2im has an additional MLP net3 in graph

convolutional network of sg2im for processing tri-

nomial hyperedges and uses a pre-trained layout-to-

image model Layout2img (He et al., 2021) for gener-

ating higher-quality images.

hsg2im generates images as follows: ﬁrst, objects

and edge labels in a hyper scene graph are converted

into embedding vectors and inputted into the hyper

graph convolutional network. The hyper graph con-

volutional network converts each object vector so that

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

270

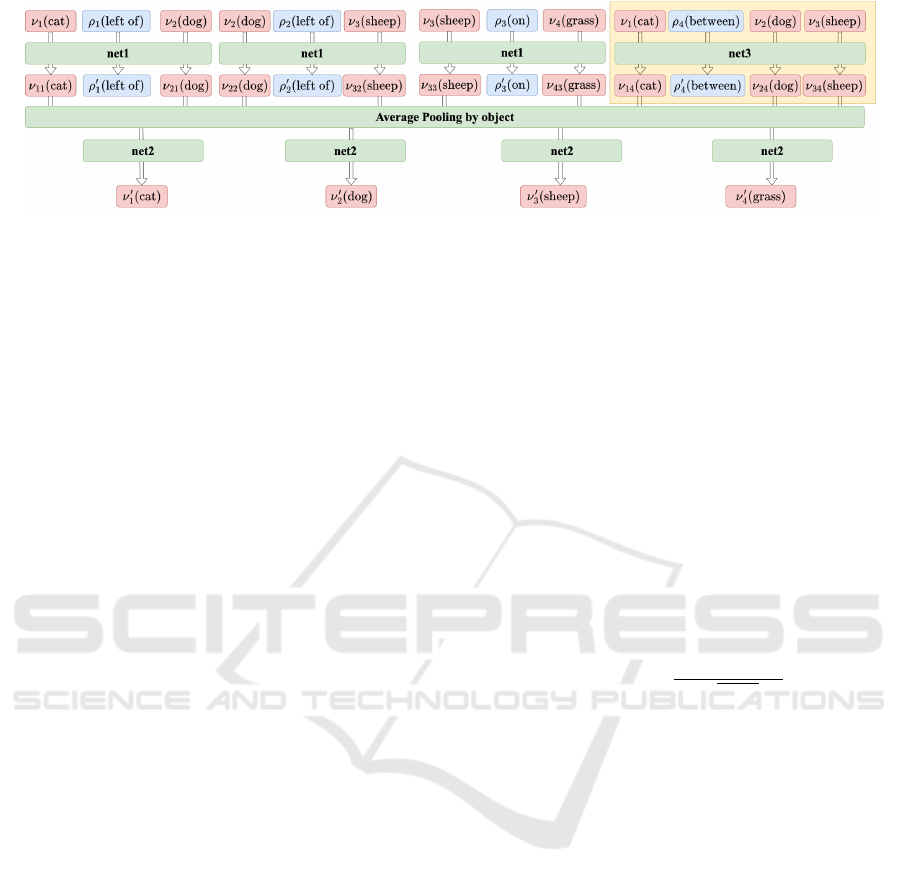

Figure 4: Flowchart of the hyper graph convolutional layer of hsg2im (Miyake et al., 2023; Miyake et al., ). This Figure is

from (Miyake et al., 2023). The part without the yellow region corresponds to that of the graph convolutional network of

sg2im (Johnson et al., 2018). net1, net2, and net3 represent MLPs for binomial edges, dimension reduction, and trinomial

hyperedges, respectively.

it reﬂects other objects and relations. The graph con-

volutional network consists of ﬁve hyper graph con-

volutional layers, and the output of the previous layer

is used as the input to the next layer. Figure 4 shows

the process ﬂow of one of the layers when the scene

graph in Figure 2 (b) is the input. The output of

the graph are then used by a box regression network

to predict bounding boxes. Finally, Layout2img (He

et al., 2021) generates an image from the bounding

boxes.

Though hsg2im possesses the advantage of easily

capturing the relation among three objects, it has also

the disadvantage of often failing to generate natural

layouts for a hyper scene graph with many objects.

The reason is that hsg2im uses only MLPs for graph

convolution, which makes generating object vectors

reﬂecting a wide range of scene graphs difﬁcult.

5 PROPOSED MODEL: OA-hsg2im

We propose Object Attention hsg2im (OA-hsg2im) to

address the shortcoming of hsg2im, i.e., generating an

unnatural layout for a scene graph with many objects.

An overview of the generator of OA-hsg2im is shown

in Figure 5. The modiﬁcations in OA-hsg2im from

hsg2im are summarized as follows:

• OA-hsg2im introduces object attention layers to

reﬂect the relation between distant objects.

• OA-hsg2im performs a positional encoding for

object vectors to give the positional information

in the hyper scene graph object vectors.

• OA-hsg2im employs a pre-trained layout-to-

image model LayoutDiffusion (Zheng et al.,

2023) to generate higher-quality images than Lay-

out2img (He et al., 2021).

In this Section, we explain these three modiﬁcations.

OA-hsg2im has object attention layers before each

of the graph convolutional layers. There are N

object

attention layers and N

graph convolution layers and

the output of the previous layer is used as the input

of the next layer. A ﬂow of the i-th object attention

layer and hyper graph convolutional layer is shown

in Figure 6. The i-th object attention layer converts

object vectors D

i−1

using attention scores, which are

computed for all combinations of two objects in a hy-

per scene graph, with Multi-Head Attention, which

is the same architecture with self-attention in trans-

former (Vaswani et al., 2017). The attention of the j-

th head in the i-th object attention layer is performed

as follows:

Attention(Query, Key,Value)

= softmex

Query ∗ Key

d/N

Value, (6)

where Query = D

i−1

i j

, Key = D

i−1

i j

and Value =

i−1

i j

. N

is the number of the heads. The con-

versions from D

i−1

to Query, Key, Value are per-

formed with the linear layers and W

i, j

, W

i, j

, W

i, j

are

the weight of these layers. The vectors obtained from

each head are concatenated and fed into a linear layer.

The resulting object vectors and edge features cal-

culated from relation vectors F

i−1

are fed into hy-

per graph convolutional layer, which is used in the

hsg2im (Miyake et al., 2023; Miyake et al., ). We

obtain object vectors D

∈ R

×d

and relation vectors

∈ R

×d

, where n

is the number of objects, n

the add-sum of the number of edges and hyperedges

and d is the dimension of object and relation vectors.

We gain D

and F

from the object embedding

network and the relation embedding network, respec-

tively. The attention score, which represents the de-

gree of the relevance of two objects, makes the ob-

ject attend to other ones regardless of the distance be-

tween them in the hyper scene graph. Therefore, we

can obtain object vectors reﬂecting a wider range of

objects in the hyper scene graph than hsg2im (Miyake

et al., 2023; Miyake et al., ) and thus OA-hsg2im is

Image Generation from Hyper Scene Graphs with Trinomial Hyperedges Using Object Attention

271

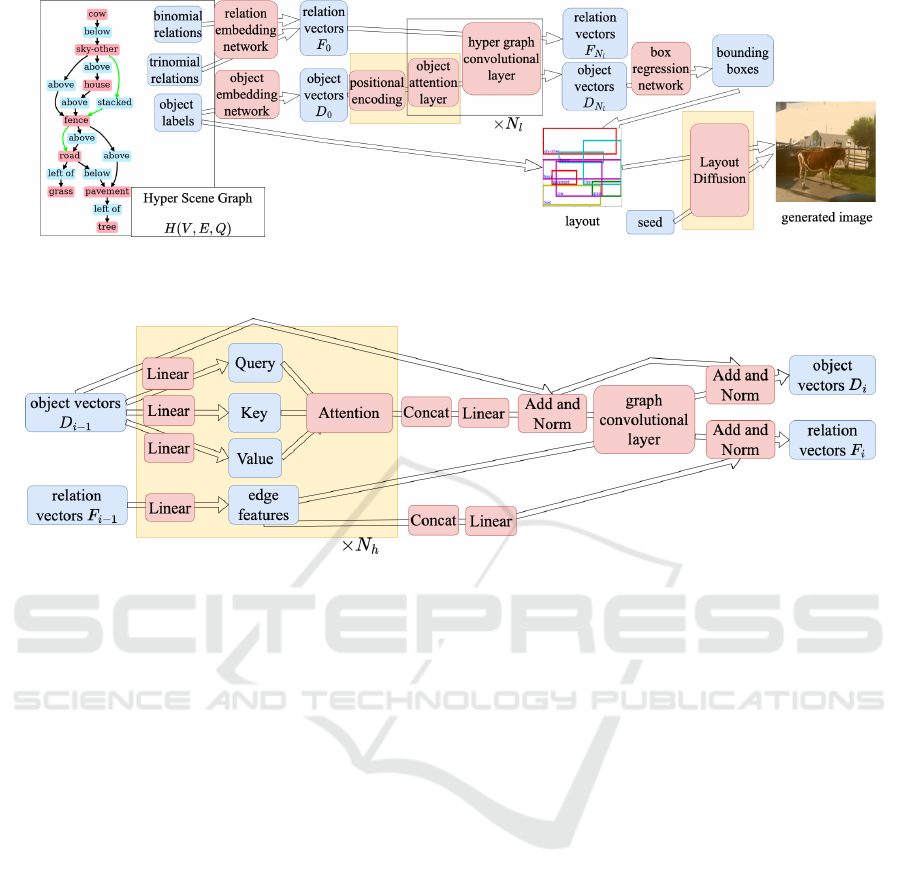

Figure 5: Example of generating an image with OA-hsg2im. The modiﬁed parts from hsg2im (Miyake et al., ) are highlighted

in yellow. N

(= 12) is the number of object attention layers and graph convolutional layers.

Figure 6: Flow of the i-th object attention layer and hyper graph convolutional layer. In the Add and Norm, we perform the

batch normalization to the add-sum of the two input vectors. In the Concat, we concatenate the object vectors obtained from

each head of attention.

expected to generate more natural layouts.

Positional encoding is conducted to give the posi-

tional information in the scene graph object vectors.

We use graph Laplacian as the positional encoding

following the graph transformer (Dwivedi and Bres-

son, 2020). The graph Laplacian ∆ ∈ R

×n

are cal-

culated as follows:

∆ = I − M

−1/2

, (7)

where I ∈ R

×n

is the identity matrix, M ∈ R

×n

and A ∈ R

×n

represent the degree matrix and the

adjacency matrix, respectively. As in the graph trans-

former paper (Dwivedi and Bresson, 2020), we add

positional encoding vectors T ∈ R

×d

, which are

converted from ∆ ∈ R

×d

with a linear layer, to ob-

ject vectors D

Next, we describe image generation using Layout-

Diffusion (Zheng et al., 2023). To generate higher-

resolution images (256×256 pixels), we use a pre-

trained layout-to-image model LayoutDiffusion as an

auxiliary model. LayoutDiffusion takes layout L =

{(v

)}

i=1

as input. Set V = {(v

)}

i=1

of objects

is obtained from the input hyper scene graph and set

B = {(b

)}

i=1

of bounding boxes is generated by OA-

hsg2im. LayoutDiffusion has a diffusion architecture

(Ho et al., 2020) and thus can generate higher-quality

and higher-resolution images than GAN-based meth-

ods.

6 PREJUDICE IN LayoutDiffusion

We investigate prejudice about genders in pre-trained

LayoutDiffusion (Zheng et al., 2023) as follows. We

generate a layout for each of the three hyper scene

graphs in Figure 8 with OA-hsg2im trained on the VG

dataset (Krishna et al., 2017), which is explained in

Section 7.1. We generate ten images, each has three

persons, for each of the three layouts in Figure 8 by

changing the seed of the random function with Lay-

outDiffusion (Zheng et al., 2023) pre-trained on the

VG dataset. We examine how the hyper scene graphs

affect the gender of the persons in the generated im-

ages by counting the number of males and females.

Examples and the results are shown in Figure 8 and

Table 1, respectively.

Hyper scene graph in (a) has no object with gen-

der bias; however, 19 males were generated, while

only 10 females were generated. These results indi-

cate that LayoutDiffusion has learned a prejudice in

VG dataset (Krishna et al., 2017), in which males are

more common than females as persons. In example

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

272

Table 1: Results of counting the males and females for per-

son in the 10 generated images for each of the six hyper

scene graphs. If the image was too dark or blurred to de-

termine the gender, it is assumed to be indistinguishable.

Examples (a)-(c) correspond to Examples (a)’-(c)’, respec-

tively. Each hyper scene graph of the formers has three per-

sons while all of persons are replaced with women in the

hyper scene graphs of the latters.

male female indistinguishable

Example (a) 19 10 1

Example (b) 25 2 3

Example (c) 30 0 0

Example (a)’ 0 27 3

Example (b)’ 3 27 0

Example (c)’ 4 26 0

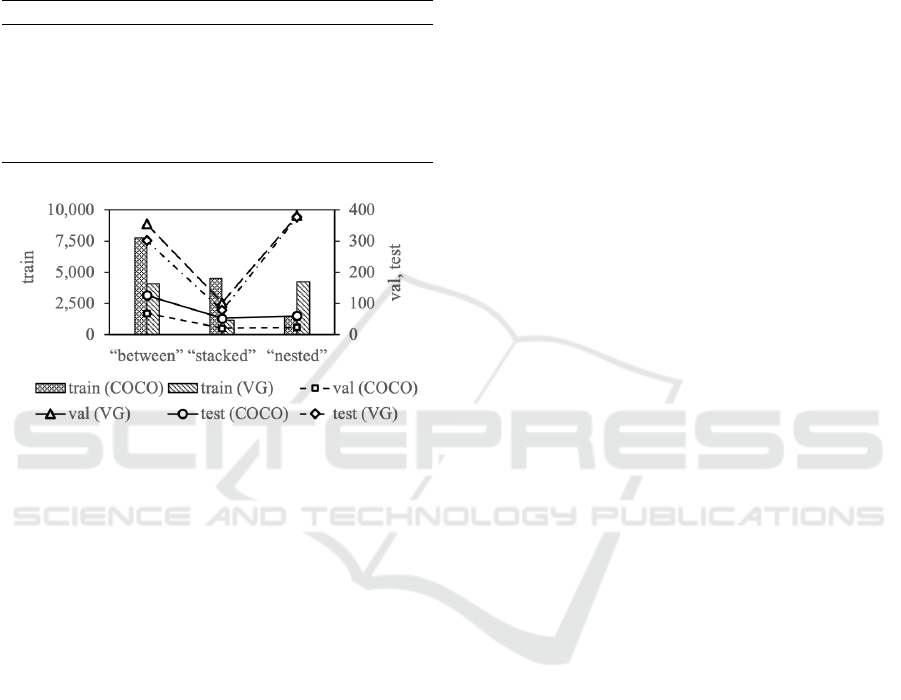

Figure 7: Numbers of three types of trinomial relations in

each dataset.

(b), we specify that three persons are wearing tie in

the generated image and obtained 25 males and 2 fe-

males. In the same way, we specify that three persons

are wearing glove in example (c) in the generated im-

age. We obtained 30 males and 0 female. These re-

sults indicate that LayoutDiffusion has learned a prej-

udice in VG dataset (Krishna et al., 2017), in which tie

and glove are more common for males than females.

Though OA-hsg2im does not handle this gender

bias, the addition of the woman images to the training

sets will alleviate this bias. Also, we conﬁrmed that

the images of the woman are properly generated with

the change of the object label from person to woman

in Example (a)’-(c)’ in Figure 8 and Table 1.

7 EXPERIMENTS

7.1 Dataset

We use the COCO Stuff (COCO) (Caesar et al.,

2018) and Visual Genome (VG) (Krishna et al., 2017)

datasets with additional trinomial hyperedges as in

previous works (Johnson et al., 2018; Miyake et al.,

2023; Miyake et al., ). These datasets are the same

as the our recent work (Miyake et al., ), except for

the test sets. In this paper, we use only samples that

include hyperedges as test sets.

The COCO (Caesar et al., 2018) consists of im-

ages, objects, their bounding boxes, and segmen-

tation masks. Since the COCO dataset does not

contain data on relations between objects, we con-

struct a hyper scene graph by adding nine rela-

tions left of, right of, above, below, inside, sur-

rounding between, stacked, and nested based on the

bounding boxes. Based on the coditions in Sec-

tion 3.2.1, the three types of relations, i.e., between,

stacked and nested, are added as trinomial hyper-

edges in hsg2im. The conditions in adding edges

,left of,v

) and (v

,right of,v

) are the same as hy-

peredge (v

,between,v

). Similarly, the conditions

in adding edges (v

,above, v

) and (v

,below, v

) are

the same as hyperedge (v

,stacked,v

) in which

is ignored, and the conditions in adding edges

,surrounding,v

) and (v

,inside,v

) are the same

as hyperedge (v

,nested,v

). The number of these

types of relations are shown in Figure 7. There are

40,000 training images and 5,000 validation images.

Since the COCO dataset has no test set, we divide the

validation set into a new validation set and a test set

and exclude the samples whose scene does not have

a hyperedges from the test set. As a result, we ob-

tain 24,972 training, 1,667 validation, and 131 test

images.

The VG (Krishna et al., 2017) version 1.4 dataset,

containing 108,077 images annotated with scene

graphs, consists of images, objects, their bounding

boxes, and the binomial relations between the ob-

jects. In the entire dataset, we use objects and rela-

tions which appear more than 2,000 and 500 times,

respectively, following (Johnson et al., 2018). Sam-

ples with less than 2 objects and more than 31 objects

were ignored. We exclude the samples whose scene

does not have a hyperedge from the test set as in the

COCO. As the result, we use 62,602 training, 5,069

validation, and 755 test images. For the VG, we add

the trinomial relations as in the COCO. The number

of these types of relations are shown in Figure 7.

7.2 Implementation Details

We train OA-hsg2im on each of the COCO and Visual

Genome datasets, respectively. We use the optimizer

Adam (Kingma and Ba, 2015) with the epoch upper

bound (= 3 ∗ 10

). We use the number of attention

layer N

= 12 and the attention head N

= 12, and set

the dimension of object and relation vectors d = 768.

Image Generation from Hyper Scene Graphs with Trinomial Hyperedges Using Object Attention

273

Hyper scene graph

(a)

Layout Image 1 Image 2 Image 3

(b)

(c)

(a)’

(b)’

(c)’

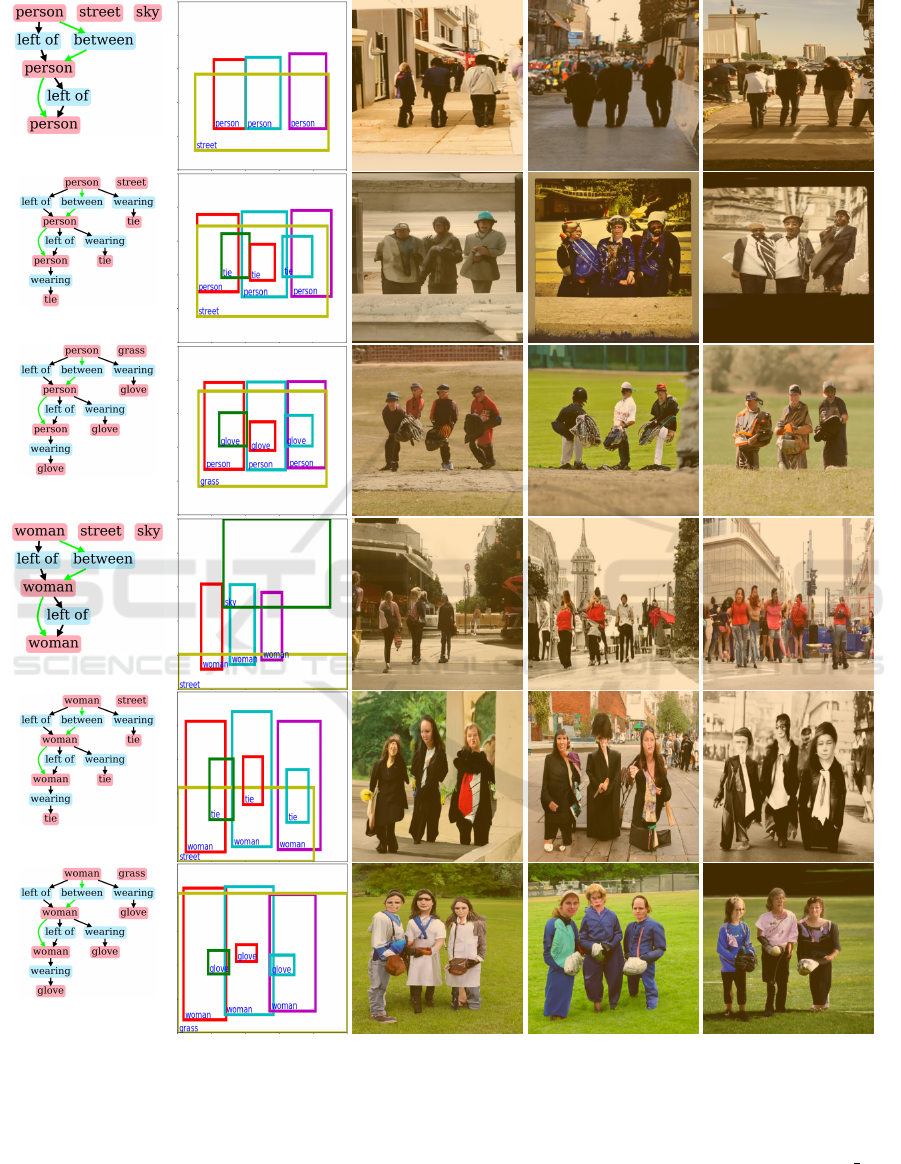

Figure 8: Examples of hyper scene graphs, layouts, and images in the investigation of prejudice about genders in LayoutD-

iffusion (Zheng et al., 2023). We show three generated images for each hyper scene graph. Examples (a)-(c) correspond to

Examples (a)’-(c)’, respectively. Each hyper scene graph of the formers has three persons while all of persons are replaced

with women in the hyper scene graphs of the latters.

We use the loss function L deﬁned as follows:

L = w

MSE

∗ MSE(B,

B) + w

RBL1

∗ L

RBL1

+ w

RBL2

∗ L

RBL2

, (8)

where MSE means Mean Squared Error and w rep-

resents the weight of each loss. B and

B represent a

set of ground truth and generated bounding bounding

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

274

boxes, respectively. We use w

MSE

= 1, w

RBL1

= 1,

RBL2

= 2 ∗ 10

−3

. L

RBL1

and L

RBL2

are the losses in

terms of the relative positions between the two objects

connected to the same edge and hyperedge proposed

in our recent work (Miyake et al., ), respectively.

The former penalizes the difference of relative

vectors, which represent the relative position of the

two objects connected to a binomial edge, between

the ground truth and the generated bounding boxes.

The latter penalizes the difference of binary vectors,

which represent larger and smaller relations of spatial

coordinates of the two objects.

Relative box loss function L

RBL1

is deﬁned as fol-

lows:

RBL1

∑

i=1

MSE(d

), (9)

where N is the number of all types of binomial edges

in one batch, and d

and

are the relative vectors of

the ground truth and generated bounding boxes, re-

spectively. Here, d

is deﬁned by d

= b

− b

, where

and b

are bounding boxes corresponding to the

initial and terminate vertices of i-th binomial edge,

respectively. For example, when the i-th edge is (cow,

below, sky-other) in the hyper scene graph in Figure

5, b

= b

cow

and b

= b

sky−other

Relative box loss function L

RBL2

is deﬁned as fol-

lows:

RBL2

∑

i=1

BCE(g

, ˆg

), (10)

where BCE means the Binary Cross Entropy,

and g

and ˆg

represent the 8-dimensional bi-

nary vectors of the ground truth and generated

bounding boxes, respectively. Here, g

is deﬁned

as g

= (I(x

si0

< x

oi0

), I(x

si1

< x

oi0

), I(x

si0

oi1

), I(x

si1

< x

oi1

), I(y

si0

< y

oi0

), I(y

si1

oi0

), I(y

si0

< y

oi1

), I(y

si1

< y

oi1

)) and ˆg

is de-

ﬁned similarly, where I(·) is an indicator function

which returns 1 when the input condition holds and 0

otherwise.

7.3 Results and Discussion

We evaluate OA-hsg2im by comparing it with hsg2im

(Miyake et al., ) and hsg2im

∗

. hsg2im

∗

is the model

trained with the same conditions of OA-hsg2im ex-

cept for the object attention layers. These models use

the same loss function as Eq. (8). In order to align

the conditions with OA-hsg2im, we use LayoutDiffu-

sion (Zheng et al., 2023) instead of Layout2img (He

et al., 2021) as a pre-trained layout-to-image model

in hsg2im. The quantitative results on the COCO and

the VG are shown in Table 2 (a) and (b), respectively.

We can see that OA-hsg2im shows high PTO scores

more consistently than the other models and all mod-

els show low AoO scores in both datasets. Also, PTO

and AoO scores tend to be better on the COCO than

the VG. The reason would lie in the number of the

types of the relations, i.e., the COCO has nine types

of relations and the VG has 48 types of relations. If

the number of the types is smaller, models can capture

the relations more easily.

In terms of IS, hsg2im

∗

and hsg2im perform better

than OA-hsg2im on the COCO and the VG, respec-

tively. We obtain two FID for each model, i.e., the

distance between the sets of the ground truth image

and the generated images of each model and the dis-

tance between the sets of the generated images from

the ground truth layout and each model. In terms of

the former FID, OA-hsg2im shows better scores than

hsg2im

∗

on both datasets. As for the latter FID, the

images generated from the same hyper scene graph

have the same atmospheres because the seed values

are ﬁxed. In terms of the latter FID, OA-hsg2im

shows better scores on the COCO dataset and slightly

worse scores on the VG dataset. These results show

that OA-hsg2im generates more natural and consis-

tent layouts and images.

Next, we qualitatively evaluate the generated im-

ages. Figures 9, 10 show the generated images of

hsg2im (Miyake et al., ) and OA-hsg2im, on the

COCO and the VG datasets, respectively. In the ex-

ample (b) in Figure 9, the hyper scene graph has ten

objects. In the layout generated by hsg2im (Miyake

et al., ), the objects are not arranged naturally and

consistently. In the example of (b), many objects, i.e.,

ﬂoor-wood (red box), table (purple) and spoon (pur-

ple), and bowl (red), overlap each other in the middle

center, and they cannot be seen in the generated im-

age of hsg2im. On the other hand, ﬂoor-wood (red),

table (purple), spoon (purple) are arranged naturally

in the layout generated by OA-hsg2im, and two per-

sons do not overlap each other. In the example of

(f) in Figure 10, the hyper scene graph has a hyper-

edge woman (light blue) - between - woman (pur-

ple) → person (red); however, woman (light blue) and

woman (purple) overlap each other in the layout gen-

erated by hsg2im, and we cannot see woman (light

blue) clearly. Conversely, they do not overlap at all in

the layout generated by OA-hsg2im, and we can see

woman (light blue). Thus, we can also conﬁrm the

effectiveness of OA-hsg2im in generating natural and

consistent layouts and images.

Image Generation from Hyper Scene Graphs with Trinomial Hyperedges Using Object Attention

275

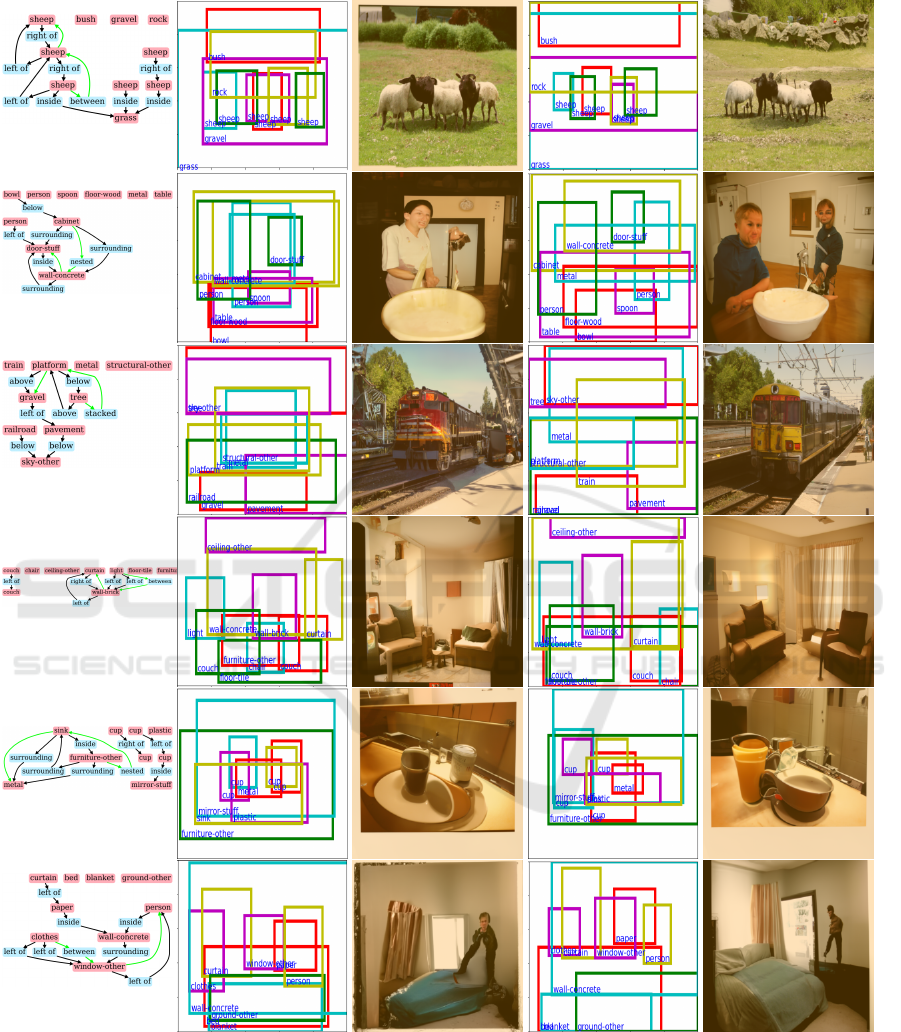

Hyper scene graph

(a)

Layout (hsg2im) Image (hsg2im) Layout (OA-hsg2im) Image (OA-hsg2im)

(b)

(c)

(d)

(e)

(f)

Figure 9: Comparison of images generated by hsg2im (Miyake et al., ) and OA-hsg2im on the COCO datasets.

8 CONCLUSIONS

In this paper, we have proposed a hyper-scene-

graph-to-image model Object Attention hsg2im (OA-

hsg2im) with object attention layers, which is an ex-

tension of hsg2im (Miyake et al., ). In addition, we

use a pre-trained layout-to-image model LayoutDiffu-

sion (Zheng et al., 2023) as an auxiliary model to gen-

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

276

Hyper scene graph

(a)

Layout (hsg2im) Image (hsg2im) Layout (OA-hsg2im) Image (OA-hsg2im)

(b)

(c)

(d)

(e)

(f)

Figure 10: Comparison of images generated by hsg2im (Miyake et al., ) and OA-hsg2im on the VG datasets.

erate more high-resolution images. The object atten-

tion layers convert object vectors so that they attend

to other objects relevant to themselves, regardless of

the distance between them in a scene graph, which

allows OA-hsg2im generate more natural and consis-

tent images with the input. Therefore, OA-hsg2im

can alleviate the problem of hsg2im, i.e., the unnat-

ural layouts for the complex situations, which is our

Image Generation from Hyper Scene Graphs with Trinomial Hyperedges Using Object Attention

277

Table 2: Quantitative results on (a) the COCO dataset (Caesar et al., 2018) and (b) the VG dataset (Krishna et al., 2017). In

FID, the values in parentheses are the distance between the sets of images generated from G.T. (grand truth) Layout and each

model. In G.T. Layout, we obtain IS and FID for the generated images generated from LayoutDiffusion using ground truth

layouts. In G.T. Image, we obtain IS for the ground truth images.

(a)

PTO ↑ AoO ↓

IS ↑ FID ↓

between stacked nested between stacked nested

hsg2im 0.89 0.63 0.77 0.004 0.005 0.09 14.14 196.81 (166.0)

hsg2im

∗

0.87 0.58 0.90 0.003 0.017 0.003 14.89 187.5 (156.7)

OA-hsg2im 0.82 0.79 0.97 0.004 0.002 0.006 14.53 186.1 (151.84)

G.T. Layout - - - - - - 14.23 180.0

G.T. Image - - - - - - 17.76 -

(b)

PTO ↑ AoO ↓

IS ↑ FID ↓

between stacked nested between stacked nested

hsg2im 0.50 0.44 0.86 0.001 0.042 0.04 20.89 84.62 (66.32)

hsg2im

∗

0.78 0.65 0.89 0.009 0.004 0.005 18.41 80.83 (64.16)

OA-hsg2im 0.73 0.71 0.93 0.007 0.008 0.003 19.34 76.47 (68.12)

G.T. Layout - - - - - - 21.05 76.04

G.T. Image - - - - - - 25.11 -

main contribution. The results in terms of PTO and

FID show that OA-hsg2im has succeeded in improv-

ing the consistency and naturalness of the generated

image.

However, we see that the generated images are

less natural than the ground truth images. Trans-

former (Vaswani et al., 2017) has two types of at-

tentions, i.e. the self-attention, which is employed in

OA-hsg2im, and the source-target attention. The lat-

ter attention uses different vectors for obtaining Key

and Query, and is thus useful for combining two fea-

ture spaces, e.g., English and Spanish feature spaces,

in the natural language translation tasks. We can

use this attention in the image generation from hyper

scene graphs for combining the object vector space

and the object bounding box spaces, which would

make the models learn the complex positional rela-

tion between objects and improve the naturalness of

the generated layouts. We believe that this is an inter-

esting direction for our future work.

ACKNOWLEDGEMENTS

A part of this work was supported by JSPS KAK-

ENHI Grant Number JP21K19795.

REFERENCES

Caesar, H., Uijlings, J., and Ferrari, V. (2018). Coco-Stuff:

Thing and Stuff Classes in Context. In Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition, pages 1209–1218.

Dwivedi, V. P. and Bresson, X. (2020). A Generaliza-

tion of Transformer Networks to Graphs. ArXiv,

abs/2012.09699.

Goodfellow, I., Pouget-Abadie, J., Mirza, M., Xu, B.,

Warde-Farley, D., Ozair, S., Courville, A., and Ben-

gio, Y. (2014). Generative Adversarial Nets. Advances

in Neural Information Processing Systems, 27.

He, S., Liao, W., Yang, M. Y., Yang, Y., Song, Y.-Z., Rosen-

hahn, B., and Xiang, T. (2021). Context-Aware Layout

to Image Generation with Enhanced Object Appear-

ance. In Proceedings of the IEEE/CVF Conference

on Computer Vision and Pattern Recognition, pages

15049–15058.

Herzig, R., Bar, A., Xu, H., Chechik, G., Darrell, T., and

Globerson, A. (2020). Learning Canonical Represen-

tations for Scene Graph to Image Generation. In Eu-

ropean Conference on Computer Vision.

Heusel, M., Ramsauer, H., Unterthiner, T., Nessler, B., and

Hochreiter, S. (2017). GANs Trained by a Two Time-

Scale Update Rule Converge to a Local Nash Equilib-

rium. In Advances in Neural Information Processing

Systems.

Hinz, T., Heinrich, S., and Wermter, S. (2022). Semantic

Object Accuracy for Generative Text-to-Image Syn-

thesis. IEEE Transactions on Pattern Analysis and

Machine Intelligence, 44:1552–1565.

Ho, J., Jain, A., and Abbeel, P. (2020). Denoising Diffusion

Probabilistic Models. Advances in Neural Information

Processing Systems, 33:6840–6851.

Johnson, J., Gupta, A., and Fei-Fei, L. (2018). Image Gen-

eration from Scene Graphs. In Proceedings of the

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition, pages 1219–1228.

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

278

Kingma, D. P. and Ba, J. (2015). Adam: A Method for

Stochastic Optimization. Proceedings of the Interna-

tional Conference on Learning Representations.

Krishna, R., Zhu, Y., Groth, O., Johnson, J., Hata,

K., Kravitz, J., Chen, S., Kalantidis, Y., Li, L.-J.,

Shamma, D. A., et al. (2017). Visual Genome: Con-

necting Language and Vision Using Crowdsourced

Dense Image Annotations. International Journal of

Computer Vision, 123(1):32–73.

Miyake, R., Matsukawa, T., and Suzuki, E. Image Genera-

tion from Hyper Scene Graph with Multi-Types of Tri-

nomial Hyperedges. special issue of the Springer Na-

ture Computer Science Journal (under submission).

Miyake, R., Matsukawa, T., and Suzuki, E. (2023). Image

Generation from a Hyper Scene Graph with Trinomial

Hyperedges. In Proceedings of the 18th International

Joint Conference on Computer Vision, Imaging and

Computer Graphics Theory and Applications (VISI-

GRAPP 2023) - Volume 5: VISAPP, pages 185–195.

Odena, A., Olah, C., and Shlens, J. (2017). Conditional

Image Synthesis with Auxiliary Classiﬁer GANs. In

Proceedings of the International Conference on Ma-

chine Learning, pages 2642–2651. PMLR.

Reed, S. E., Akata, Z., Yan, X., Logeswaran, L., Schiele,

B., and Lee, H. (2016). Generative Adversarial Text

to Image Synthesis. ArXiv, abs/1605.05396.

Rezatoﬁghi, H., Tsoi, N., Gwak, J., Sadeghian, A., Reid,

I., and Savarese, S. (2019). Generalized Intersection

over Union: A Metric and a Loss for Bounding Box

Regression. In Proceedings of the IEEE/CVF Con-

ference on Computer Vision and Pattern Recognition,

pages 658–666.

Rockwell, C., Fouhey, D. F., and Johnson, J. (2021). Pixel-

synth: Generating a 3D-Consistent Experience from

a Single Image. In Proceedings of the IEEE/CVF

International Conference on Computer Vision, pages

14104–14113.

Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh, S.,

Ma, S., Huang, Z., Karpathy, A., Khosla, A., Bern-

stein, M., et al. (2015). ImageNet Large Scale Vi-

sual Recognition Challenge. International Journal of

Computer Vision, 115(3):211–252.

Salimans, T., Goodfellow, I., Zaremba, W., Cheung, V.,

Radford, A., and Chen, X. (2016). Improved Tech-

niques for Training GANs. Advances in Neural Infor-

mation Processing Systems, 29.

Schuster, S., Krishna, R., Chang, A., Fei-Fei, L., and Man-

ning, C. D. (2015). Generating Semantically Precise

Scene Graphs from Textual Descriptions for Improved

Image Retrieval. In Proceedings of the Fourth Work-

shop on Vision and Language, pages 70–80.

Sortino, R., Palazzo, S., and Spampinato, C. (2023).

Transformer-based Image Generation from Scene

Graphs. Computer Vision and Image Understanding,

vo.233.

Sun, W. and Wu, T. (2019). Image Synthesis From Recon-

ﬁgurable Layout and Style . In Proceedings of the

IEEE/CVF International Conference on Computer Vi-

sion, pages 10531–10540.

Szegedy, C., Liu, W., Jia, Y., Sermanet, P., Reed, S.,

Anguelov, D., Erhan, D., Vanhoucke, V., and Rabi-

novich, A. (2015). Going Deeper with Convolutions.

In Proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition, pages 1–9.

Tang, R., Du, M., Li, Y., Liu, Z., Zou, N., and Hu, X.

(2021). MitigatingGender Bias in Captioning Sys-

tems. In Proceedings of the Web Conference 2021,

pages 633–645.

Van Den Oord, A., Vinyals, O., et al. (2017). Neural Dis-

crete Representation Learning. Advances in Neural

Information Processing Systems, 30.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, Ł., and Polosukhin, I.

(2017). Attention is All You Need. Advances in Neu-

ral Information Processing Systems, 30.

Vo, D. M. and Sugimoto, A. (2020). Visual-Relation Con-

scious Image Generation from Structured-Text. In

Proceedings of European Conference on Computer

Vision.

Wang, Z., Jiang, Y., Zheng, H., Wang, P., He, P., Wang,

Z., Chen, W., and Zhou, M. (2023). Patch diffusion:

Faster and More Data-Efﬁcient Training of Diffusion

Models. arXiv preprint arXiv:2304.12526.

Yang, L., Huang, Z., Song, Y., Hong, S., Li, G.,

Zhang, W., Cui, B., Ghanem, B., and Yang, M.-H.

(2022). Diffusion-Based Scene Graph to Image Gen-

eration with Masked Contrastive Pre-Training. ArXiv,

abs/2211.11138.

Zhang, H., Xu, T., Li, H., Zhang, S., Wang, X., Huang,

X., and Metaxas, D. N. (2017). StackGAN: Text to

Photo-Realistic Image Synthesis with Stacked Gen-

erative Adversarial Networks. In Proceedings of the

IEEE/CVF International Conference on Computer Vi-

sion, pages 5907–5915.

Zhang, H., Xu, T., Li, H., Zhang, S., Wang, X., Huang, X.,

and Metaxas, D. N. (2018). Stackgan++: Realistic

Image Synthesis with Stacked Generative Adversarial

Networks. IEEE Transactions on Pattern Analysis and

Machine Intelligence, 41(8):1947–1962.

Zhang, K., Shinden, H., Mutsuro, T., and Suzuki, E. (2022).

Judging Instinct Exploitation in Statistical Data Ex-

planations Based on Word Embedding. In Proceed-

ings of the 2022 AAAI/ACM Conference on AI, Ethics,

and Society, pages 867–879.

Zheng, G., Zhou, X., Li, X., Qi, Z., Shan, Y., and Li,

X. (2023). LayoutDiffusion: Controllable Diffusion

Model for Layout-to-Image Generation. IEEE/CVF

Conference on Computer Vision and Pattern Recogni-

tion (CVPR), pages 22490–22499.

Image Generation from Hyper Scene Graphs with Trinomial Hyperedges Using Object Attention

279
