Multimodal Crowd Counting with Pix2Pix GANs

Muhammad Asif Khan

1 a

, Hamid Menouar

1 b

and Ridha Hamila

2 c

Qatar Mobility Innovations Center, Qatar University, Doha, Qatar

Department of Electrical Engineering, Qatar University, Doha, Qatar

Keywords:

Crowd Counting, CNN, Density Estimation, Multimodal, RGB, Thermal.

Abstract:

Most state-of-the-art crowd counting methods use color (RGB) images to learn the density map of the crowd.

However, these methods often struggle to achieve higher accuracy in densely crowded scenes with poor il-

lumination. Recently, some studies have reported improvement in the accuracy of crowd counting models

using a combination of RGB and thermal images. Although multimodal data can lead to better predictions,

multimodal data might not be always available beforehand. In this paper, we propose the use of generative ad-

versarial networks (GANs) to automatically generate thermal infrared (TIR) images from color (RGB) images

and use both to train crowd counting models to achieve higher accuracy. We use a Pix2Pix GAN network ﬁrst

to translate RGB images to TIR images. Our experiments on several state-of-the-art crowd counting models

and benchmark crowd datasets report signiﬁcant improvement in accuracy.

1 INTRODUCTION

Crowd counting has gained signiﬁcant attention in re-

cent years due to its diverse applications across var-

ious domains, including crowd management, urban

planning, security surveillance, event management,

and public safety. The ability to accurately estimate

crowd density and count individuals in congested ar-

eas holds immense practical signiﬁcance, enabling

better resource allocation, improved crowd control

strategies, and enhanced decision-making processes.

The advent of deep learning (DL) has led to a

paradigm shift in crowd counting techniques, achiev-

ing higher accuracy and scalability in diverse real-

world applications.

Most state-of-the-art works on crowd counting use

the density estimation approach (Khan et al., 2022;

?). In density estimation, a deep learning model (typi-

cally a convolution neural network (CNN) or a vision

transformer (ViT)) is trained using annotated crowd

images to learn the crowd density. The annotations

come in the form of sparse localization maps that indi-

cate the head positions of individuals present in each

scene or region of interest. The localization maps are

converted into continuous density maps for each im-

age by applying a Gaussian kernel centered at each

https://orcid.org/0000-0003-2925-8841

https://orcid.org/0000-0002-4854-909X

https://orcid.org/0000-0002-6920-7371

head location. The intensity of the map thus repre-

sents the crowd density at different spatial locations.

The density maps serve as the ground truth for the

crowd images to train the crowd counting model.

A number of different models have been proposed

in the last few years using the density estimation ap-

proach. These models apply various model archi-

tectural innovations and novel learning functions to

improve the accuracy performance. However, most

of these works use optical color images mainly with

reasonable lighting conditions. However, in many

surveillance scenarios images captured using optical

cameras will have poor lighting conditions resulting

in poor performance of the counting models. To im-

prove the accuracy, thermal infrared (TIR) cameras

are used along with the optical camera to capture both

color RGB images and thermal images. Then a crowd

counting model may use one (monomodal) or both

(multimodal) RGB and TIR images to learn the crowd

density in low-light conditions.

Multimodal learning using both optical (RGB)

and thermal (TIR) images for crowd counting has

been proposed in recent works (Wu et al., 2022; Liu

et al., 2023; Thißen and Hergenr

other, 2023). The

simultaneous use of both RGB and TIR images pro-

vides more information to extract enriched features

from the crowd scene leading to better predictions.

Nevertheless, the interest in multimodal crowd count-

ing is increasing, there exist only a few multimodal

806

Khan, M., Menouar, H. and Hamila, R.

Multimodal Crowd Counting with Pix2Pix GANs.

DOI: 10.5220/0012547900003660

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2024) - Volume 3: VISAPP, pages

806-813

ISBN: 978-989-758-679-8; ISSN: 2184-4321

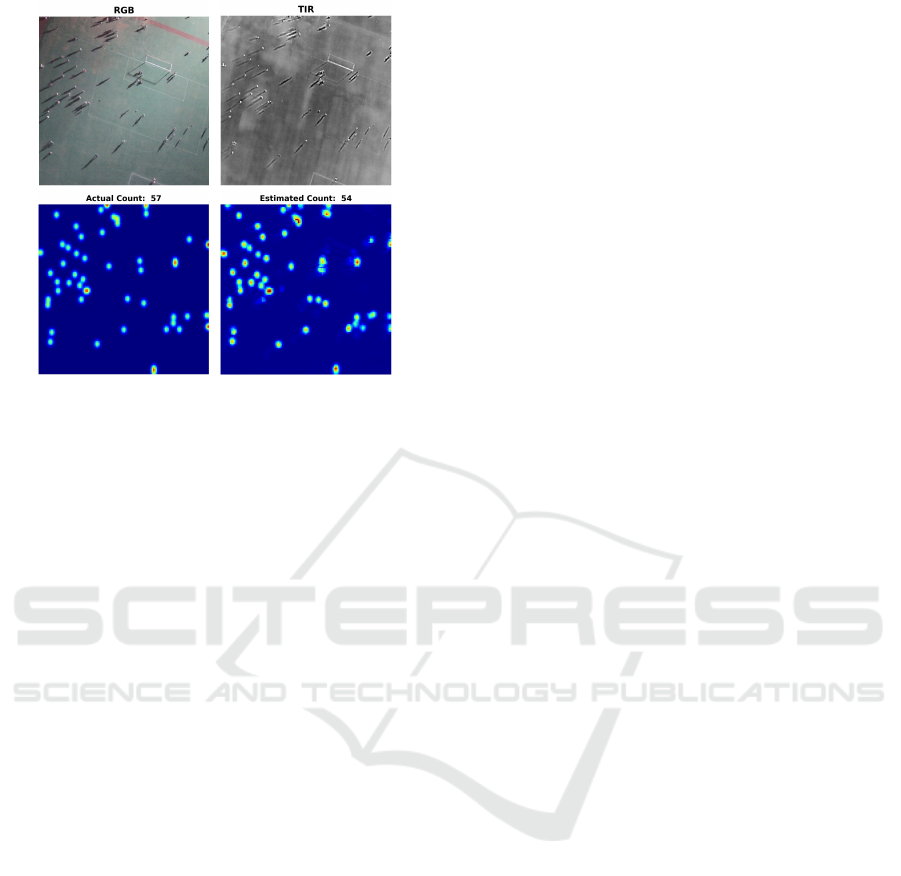

Figure 1: Illustration of counting prediction on a single

sample: RGB image (top-left), corresponding TIR image

(top-right), ground truth density map (bottom-left), and es-

timated density map (bottom-right).

datasets with both optical and thermal images. Thus,

our aim in this paper partly is to address this chal-

lenge. We propose the use of generative adversar-

ial networks (GANs) (Goodfellow et al., 2014) to

generate high-quality synthetic thermal images from

optical images. Generative Adversarial Networks

(GANs) are powerful deep learning models capable to

generate realistic and high-quality data. The Pix2Pix

(Isola et al., 2016; Khan et al., 2023a) is a type of

GAN that translate images from a given source do-

main to a target domain using paired training data.

Pix2Pix has been successfully used in applications

such as mage-to-image translation, image coloriza-

tion, style transfer, etc. The generated thermal images

using Pix2Pix GAN may not contain all the informa-

tion that real thermal images would contain, but they

certainly provide more enriched information that the

model can learn. This paper thus investigates the use

of Pix2Pix GANs to populate the existing monomodal

RGB crowd datasets with multimodal thermal images

to improve the performance of existing crowd models.

The contribution of this paper is as follows:

• We used a Pix2Pix GAN trained on an existing

RGBT crowd dataset to generate high-quality re-

alistic thermal images for RGB crowd images.

Fig. 1 illustrates the RGB-to-TIR image transla-

tion. The efﬁcacy of using synthetic images gen-

erated by Pix2Pix GAN in crowd counting is eval-

uated. For this purpose, various crowd counting

models are trained on RGB, real thermal, and syn-

thetic thermal images.

• We design a minimal end-to-end multimodal

crowd counting method (MMCount) that takes an

RGB input image, generates a thermal counter-

part, and trains on both RGB and thermal images

to predict the crowd density map.

• The performance of the proposed method is eval-

uated on three benchmark datasets using RGB-

only, TIR-only, and RGB+TIR inputs to show the

efﬁcacy of the multimodal scheme.

2 RELATED WORK

2.1 Crowd Counting

Traditional computer-vision methods were based on

detecting people in crowd images using shapes, body

parts, or other image information such as texture,

and foreground segmentation. However, more accu-

rate counting models today use density estimation us-

ing convolution neural networks (CNNs) and vision

transformers (ViTs). The ﬁrst CNN-based crowd-

counting model i.e., CrowdCNN (Zhang et al., 2015)

was a single-column 6-layer CNN architecture. Af-

terward, a large number of CNN architectures using

the density estimation approach were proposed with

progressive improvement in the network architecture,

learning functions, and evaluation methods. MCNN

(Zhang et al., 2016), CrowdNet (Boominathan et al.,

2016), SCNN () proposed multi-column architectures

to overcome the scale variations in crowd images.

MCNN uses three CNN columns with receptive ﬁelds

of different sizes and combines the features learned by

each column to predict the ﬁnal density map. Crowd-

Net (Boominathan et al., 2016) is a 2-layer archi-

tecture containing a 5-layer deep network and a 3-

layer shallow network with feature fusion for ﬁnal

prediction. Scale-aware architectures replaced sim-

ple multi-column networks for learning scale vari-

ations using special multi-scale modules for scale-

relevant feature extraction. MSCNN (Zeng et al.,

2017), a single-column network uses Inception mod-

ules (Szegedy et al., 2015) called multi-scale blobs

(MSBs) for feature extraction in different layers. A

cascaded multi-task learning (CMTL) model (Sindagi

and Patel, 2017) is proposed to adapt to the wide vari-

ations of density levels in images. CMTL is also a

two-column network. The ﬁrst column is a high-level

prior that classiﬁes an input image into groups based

on the total count in the image. The features learned

by the high-level prior are shared with the second col-

umn that estimates the respective density map.

In highly dense crowd images, simple CNN archi-

tectures such as multi-column or scale-aware mod-

els often gain limited accuracy. In highly congested

Multimodal Crowd Counting with Pix2Pix GANs

807

scenes, deeper architectures relying on transfer learn-

ing provide better performance. Authors in (Li et al.,

2018) propose CSRNet (Li et al., 2018) uses VGG16

(Simonyan and Zisserman, 2015) as the front-end to

extract features, and a CNN network with dilated con-

volution. Other models using transfer learning in-

clude CANNet (Liu et al., 2019), GSP (Aich and

Stavness, 2018), TEDnet (Jiang et al., 2019), Deep-

count (Chen et al., 2020), SASNet (Song et al., 2021),

M-SFANet (Thanasutives et al., 2021), and SGANet

(Wang and Breckon, 2022).

2.2 Generative Adversarial Networks

The ﬁrst vanilla GAN architecture was proposed in

(Goodfellow et al., 2014). The Vanilla GAN is a two-

stage architecture comprised of a generator and dis-

criminator engaged in adversarial training. The gen-

erator creates data to fool the discriminator, while

the discriminator aims to distinguish between real

and generated data. During the training, the gener-

ator improves its ability to produce realistic samples.

The conditional GANs (cGAN) (Mirza and Osindero,

2014) extend the Vanilla GAN by allowing the user

to generate speciﬁc types of data by providing spe-

ciﬁc conditioning information. DCGANs (Radford

et al., 2016) employs deep networks in both gener-

ator and discriminator to generate more realistic im-

ages. CycleGANs (Zhu et al., 2017) are proposed

for image-to-image translation without the need for

paired training data and are used in applications such

as style transfer, domain adaptation, etc. Pix2Pix

GANs (Isola et al., 2016) are based on cGANs (Mirza

and Osindero, 2014) to generate a target image con-

ditional on a given input image. StyleGAN (Karras

et al., 2021) allows a style-based generation of more

realistic and diverse images. The Pix2Pix GAN (Isola

et al., 2016) provides a generic framework for image-

to-image translation. Pix2Pix GANs are highly capa-

ble of translating images from one domain to another

and are used in various tasks such as image coloriza-

tion, style transfer, etc. Recently, Pix2Pix GANs have

been used to generate synthetic near-infrared images

of crops (de Lima et al., 2022), lung CT scan images

(Toda et al., 2022), MRA images of brain (Aljohani

and Alharbe, 2022), etc. (Khan et al., 2023a) propose

Pix2Pix GAN based image denoising architecture for

ﬁne-grained density estimation of crowd.

3 THE PROPOSED METHOD

We propose a crowd density estimation framework

MMCount. There are two essential parts; a Pix2Pix

GAN, and a multimodal crowd counting network.

The Pix2Pix GAN generates thermal infrared (TIR)

images from optical RGB images of the crowd scene

and the crowd model uses both RGB and TIR images

to predict the crowd density map. The architecture

of MMCount is shown in Fig. 2 and is explained as

follows:

3.1 Pix2Pix GANs

A Pix2Pix GAN consists of two main components:

a generator and a discriminator. The generator takes

an input RGB image and aims to transform it into

a target TIR image. The generator uses an encoder-

decoder architecture. The encoder encodes the RGB

image into a compact representation, and the decoder

decodes this representation to generate the TIR im-

age.

The discriminator is a CNN architecture that takes

the original RGB image and the generated TIR image

(by generator) and attempts to classify it as real or

fake. It is trained to distinguish between the real TIR

images and the TIR images generated by the genera-

tor.

During the training, the generator aims to mini-

mize the pixel-wise L

loss to generate more realistic

TIR images. The generator also aims to minimize the

binary cross-entropy loss (called adversarial loss or

GAN loss) to fool the discriminator. The discrimina-

tor aims to maximize the adversarial loss to correctly

classify real and generated TIR images. The pixel-

wise L

loss measures the absolute pixel-wise differ-

ence between the generated output and the ground

truth target and is given in Eq. 1:

(G) =

∑

i=1

G(x

) − y

(1)

where G is the generator network, N is number of

samples, x

is the input sample, and y

is the ground

truth value.

The BCE loss or the adversarial loss measures the

similarity between the discriminator’s predictions for

the generated output and the ground truth target and

is given in Eq. 2:

BCE

(D,G) = −

∑

i=1



logD(x

)

+ (1 − y

)log(1 − D(G(x

)))



(2)

where D is the discriminator network, N is the to-

tal number of samples, D

)

is discriminator’s predic-

tion for input x

, and D(G

)

) is discriminator’s pre-

diction for the generated output G

)

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

808

Generator

Discriminator

Crowd Model

Fake TIR

Inference

RGB

Real TIR

Multimodal Counting

using RGB+TIR images

RGB

Training

Real

Fake

Training Crowd model

Figure 2: The proposed method for multimodal crowd counting using RGB+TIR images. The TIR images are generated by a

Pix2Pix GAN trained earlier on RGB+TIR paired datasets.

3.2 The Multimodal Counting Network

The counting network called ”MMCount” is a CNN

architecture with two branches, a RGB branch, and a

TIR branch. Both branches have similar structures

and consist of four convolution layers (conv), each

having 16, 32, 64, and 128 ﬁlters of (3 × 3) size, re-

spectively. Each conv layer is also followed by a Relu

activation and a (2× 2) pooling layer with stride = 2.

The outputs of both RGB and TIR layers are concate-

nated and fused in the fusion layer containing 256 ﬁl-

ters of size 3 × 3. Lastly, a 1 × 1 conv layer is used

to generate the density map. The output density map

generated by the MMCount is 1/8 of the original in-

put images (both RGB and TIR images are of the

same size). The complete architecture is presented

in Table 1

Table 1: The architecture of MMCount. The vector in Conv

layers represents [input channels, output channels, kernel

size, padding, stride]. Each vector in Pool layers represents

[kernel size, stride].

Type RGB layer TIR layer

Conv [3,16,3,1,1] [1,16,3,1,1]

Pool [2,2] [2,2]

Conv [16,32,3,1,1] [16,32,3,1,1]

Pool [2,2] [2,2]

Conv [32,64,3,1,1] [32,64,3,1,1]

Conv [64,128,3,1,1] [64,128,3,1,1]

Conv (Fusion) [256,256,3,1,1]

Conv (Regressor) [256,1,1,1,1]

To train the MMCount model, we use the origi-

nal annotations for the RGB images which are in the

form of head positions. The head positions are used

to generate sparse localization maps i.e., binary matri-

ces of pixel values (same size as the image) in which

a value of 1 denotes the head position whereas a 0

represents no head. Such a dot map is used to create

density maps that serve as the ground truth for the im-

ages to train the model. A density map is generated

by convolving a delta function δ(x − x

) with a Gaus-

sian kernel G

, where x

are pixel values containing

the head positions.

D =

∑

i=1

δ(x − x

) ∗ G

(3)

where, N denotes the total number of dot points with

value 1 in the dot map (i.e., total headcount in the

input image). The integral of the density map D is

equal to the total head count in the image. Visually,

this operation creates a blurring of each head annota-

tion using the scale parameter σ. The value of σ can

be ﬁxed (Cao et al., 2018) or adaptive (Idrees et al.,

2018; Zeng et al., 2017). The typical loss function

used in most crowd density estimation works is the l

loss (euclidean distance) between the target and the

predicted density maps and is given in Eq. 4.

L(Θ) =

∑

||D(X

;Θ) − D

(4)

where N is the total number of samples in training

data, X

is the input image, D

is the ground truth den-

sity map, and D(X

;Θ) is the predicted density map.

Multimodal Crowd Counting with Pix2Pix GANs

809

4 EXPERIMENTS AND RESULTS

4.1 Datasets

4.1.1 DroneRGBT

The dataset contains 3600 pairs of RGB and thermal

images. All images have a ﬁxed resolution of 512 ×

640 pixels. The images cover different scenes e.g.,

campus, streets, parks, parking lots, playgrounds, and

plazas. The dataset is divided into a training set (1807

samples) and a test set (912 samples).

4.1.2 ShanghaiTech Part-B

The dataset is a large-scale crowd-counting dataset

used in many studies. The dataset is split into train

and test subsets consisting of 400 and 316 images, re-

spectively. All images are of ﬁxed size (1024 × 768).

4.1.3 CARPK

This dataset contains images of cars from 4 differ-

ent parking lots captured using a drone (Phantom 3

Professional) at approximately 40-meter altitude. The

dataset contains 1448 images split into train and test

sets of sizes 989 and 459 images, respectively. The

dataset contains a total of 90,000 car annotations and

has been used in several object counting and object

detection studies.

4.2 Evaluation Metrics

The standard and commonly used metric to evalu-

ate the performance of crowd counting models is the

mean absolute error (MAE) calculated using the fol-

lowing Eq. 5.

MAE =

∑

∥e

− ˆg

∥ (5)

where, N is the size of the dataset, g

is the target

or label (actual count) and e

is the prediction (es-

timated count) in the n

crowd image. MAE pro-

vides per-image counting and does not take into ac-

count the incorrect density estimations in the same

image. Grid Average Mean absolute Error (GAME)

(Guerrero-G

omez-Olmedo et al., 2015) can overcome

these errors by computing patch-wise error i.e., an im-

age is divided into 4

non-overlapping patches and

MAE is computed over each patch. GAME is thus a

more robust and accurate metric for crowd-counting.

It is deﬁned in Eq. 6.

GAME =

∑

n=1

(

∑

l=1

− g

|) (6)

By setting L = 0, GAME(0) becomes equivalent

to MAE. GAME(1) means the image is divided into 4

patches and GAME(2) means 16 patches.

4.3 Baselines

First we evaluate the quality of generated TIR im-

ages by measuring their performance in monomodal

crowd counting. For this purpose, four different mod-

els i.e., MCNN (Zhang et al., 2016), CMTL (Sindagi

and Patel, 2017), CSRNet (Li et al., 2018), SANet

(Cao et al., 2018), and LCDnet (Khan et al., 2023b)

are used. Then, to measure the performance of MM-

Count in crowd density estimation using multimodal

crowd counting using RGB+TIR images is evaluated.

We also evaluate the counting performance of multi-

modal learning in MCNN and DroneNet models by

feeding one CNN column with TIR images.

4.4 Settings

In our experiments, we used a ﬁxed value of σ to gen-

erate the ground truth density maps. To be more spe-

ciﬁc, a value of 7, 10 and 15 are used for DroneRGBT,

CARPK, and ShanghaiTech Part-B datasets, respec-

tively. We used the Adam optimizer with a learning

rate of 1 ×10

−3

. We used pixel-wise L

loss function

and BCE loss for training the Pix2Pix GAN and L

MSE loss function to train all crowd counting models.

The crowd counting model training terminates when

the MAE error does not reduces after 10 epochs. All

the models are trained on two RTX-8000 GPUs using

the PyTorch framework.

4.5 Pix2Pix GAN Results

In the ﬁrst set of experiments on Pix2Pix GANs,

the synthetic TIR images are generated and stored

for each dataset. The Pix2Pix model is trained on

the paired RGB and TIR images provided by the

DroneRGBT dataset and the trained model is then

used to generate the TIR images for other datasets.

Fig. 3 shows samples TIR images generated for the

three datasets.

Interestingly, the Pix2Pix GAN architecture have

been effective to generate high quality TIR images

of RGB images from different datasets, despite large

variations in the crowd scenes and camera settings.

4.6 Crowd Counting Results

To evaluate the efﬁcacy of the generated TIR images,

we trained ﬁve crowd counting models over three dif-

ferent inputs i.e., (i) using RGB images, (ii) using

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

810

(a) DroneRGBT. (b) ShanghaiTech Part-B. (c) CARPK.

Figure 3: Thermal infrared (TIR) images generated using Pix2Pix GAN.

real TIR images, and (iii) using generated TIR im-

ages. The purpose is two fold: ﬁrst, to understand

the ability of crowd models from TIR images and

second, the efﬁcacy of generated TIR images to pro-

duce comparable results to the real TIR images. Ta-

ble 2 presents the results of the ﬁrst set of experi-

ments. It can be observed that RGB images produce

Table 2: Accuracy comparison of crowd counting mod-

els over DroneRGBT dataset trained using (i) RGB images

only versus (ii) TIR images only versus (iii) Generated TIR

images only.

Mean Absolute Error (MAE)

Model

RGB TIR Generated TIR

MCNN 17.9 20.2 22.5

CMTL 18.1 19.6 21.4

CSRNet 7.6 10.8 13.7

SANet 16.2 18.3 20.8

LCDnet 21.4 23.2 24.4

higher counting accuracy (lower MAE values) due to

more enriched information. The interesting informa-

tion is the MAE values crowd models using generated

TIR images which are only slightly lower than those

of real TIR images. This strengthens our motivation

to use Pix2Pix GAN to generate TIR images for a

multimodal counting framework. In the second set

of experiments, we trained the proposed multimodal

counting network using monomodal data (RGB-only

and TIR-only images) and multimodal data (using

RGB+TIR images). Furthermore, due to the multi-

column structure of MCNN and DroneNet, we extend

our experiments to train these models by feeding one

of three columns using the TIR images. The TIR im-

ages in both monomodal and multimodal settings in

this experiment are generated by the Pix2Pix GAN.

The performance is measured using the GAME met-

ric with a value L = 0, 1, 2 corresponding to the whole

image, four patches per image, and 16 patches per im-

age. The results are compared in Table 3.

5 CONCLUSIONS

This paper addresses the challenge of the limited

availability of training data in crowd counting sce-

narios and proposes the use of generative adversarial

networks to instantly generate scene-speciﬁc multi-

modal data. A Pix2Pix GAN is used to generate ther-

mal infrared images for the available color RGB im-

ages. The multimodal data (RGB+TIR) is then used

to train or ﬁne-tune a crowd counting model. Exper-

iments are conducted using three publicly available

datasets. The results show improvements in model

performance when trained using actual RGB and syn-

thetic TIR images. The TIR images are generated us-

ing a Pix2Pix GAN trained on cross-scene drone im-

ages and applied to new and unseen RGB images. We

believe the results can be further improved by training

the GAN model on images of more correlated sce-

narios. As a future work, we plan to develop novel

lightweight GAN architectures for real-time perfor-

mance.

ACKNOWLEDGEMENT

This publication was made possible by the PDRA

award PDRA7-0606-21012 from the Qatar National

Research Fund (a member of The Qatar Foundation).

The statements made herein are solely the responsi-

bility of the authors.

Multimodal Crowd Counting with Pix2Pix GANs

811

Table 3: Accuracy comparison of crowd counting models over several datasets (trained using RGB-only versus TIR-only

versus RGB+TIR images). All TIR images are generated using Pix2Pix GAN. GAME(0) is equivalent to MAE.

DroneRGBT ShanghaiTech Pat-B CARPK

Input Model GAME0 GAME1 GAME2 GAME0 GAME1 GAME2 GAME0 GAME1 GAME2

MCNN

RGB 17.9 24.2 42.0 26.4 34.4 55.2 10.1 21.2 43.4

TIR 22.5 27.5 51.3 35.2 38.2 66.7 16.8 28.0 49.0

RGB+TIR 16.2 21.0 35.1 23.2 31.5 48.5 8.9 19.6 36.1

DroneNet

RGB 11.3 22.1 32.7 22.4 30.2 41.9 9.0 20.5 40.1

TIR 18.6 25.2 40.3 29.2 33.4 52.8 15.3 27.6 46.2

RGB+TIR 10.1 18.8 28.4 20.0 29.7 38.3 8.1 18.5 26.8

MMCount

RGB 10.8 21.1 32.4 21.6 28.2 40.1 8.2 18.3 37.5

TIR 16.0 23.3 40.6 27.7 33.6 49.9 15.0 25.6 42.8

RGB+TIR 9.2 18.0 26.0 18.2 28.0 36.4 7.8 15.2 25.0

REFERENCES

Aich, S. and Stavness, I. (2018). Global sum pool-

ing: A generalization trick for object counting with

small datasets of large images. arXiv preprint

arXiv:1805.11123.

Aljohani, A. A. and Alharbe, N. R. (2022). Generating syn-

thetic images for healthcare with novel deep pix2pix

gan. Electronics.

Boominathan, L., Kruthiventi, S. S. S., and Babu, R. V.

(2016). Crowdnet: A deep convolutional network for

dense crowd counting. Proceedings of the 24th ACM

international conference on Multimedia.

Cao, X., Wang, Z., Zhao, Y., and Su, F. (2018). Scale aggre-

gation network for accurate and efﬁcient crowd count-

ing. In ECCV.

Chen, Z., Cheng, J., Yuan, Y., Liao, D., Li, Y., and Lv, J.

(2020). Deep density-aware count regressor. In ECAI.

de Lima, D. C., Saqui, D., Mpinda, S. A. T., and Saito, J. H.

(2022). Pix2pix network to estimate agricultural near

infrared images from rgb data. Canadian Journal of

Remote Sensing, 48:299 – 315.

Goodfellow, I. J., Pouget-Abadie, J., Mirza, M., Xu, B.,

Warde-Farley, D., Ozair, S., Courville, A. C., and Ben-

gio, Y. (2014). Generative adversarial nets. In NIPS.

Guerrero-G

omez-Olmedo, R., Torre-Jim

enez, B., L

opez-

Sastre, R. J., Maldonado-Basc

on, S., and O

noro-

Rubio, D. (2015). Extremely overlapping vehicle

counting. In IbPRIA.

Idrees, H., Tayyab, M., Athrey, K., Zhang, D., Al-Maadeed,

S. A., Rajpoot, N. M., and Shah, M. (2018). Compo-

sition loss for counting, density map estimation and

localization in dense crowds. ArXiv, abs/1808.01050.

Isola, P., Zhu, J.-Y., Zhou, T., and Efros, A. A. (2016).

Image-to-image translation with conditional adversar-

ial networks. 2017 IEEE Conference on Computer

Vision and Pattern Recognition (CVPR), pages 5967–

5976.

Jiang, X., Xiao, Z., Zhang, B., Zhen, X., Cao, X., Doer-

mann, D. S., and Shao, L. (2019). Crowd counting

and density estimation by trellis encoder-decoder net-

works. 2019 IEEE/CVF Conference on Computer Vi-

sion and Pattern Recognition (CVPR), pages 6126–

6135.

Karras, T., Laine, S., and Aila, T. (2021). A style-based

generator architecture for generative adversarial net-

works. IEEE Transactions on Pattern Analysis & Ma-

chine Intelligence, 43(12):4217–4228.

Khan, M. A., Menouar, H., and Hamila, R. (2022). Re-

visiting crowd counting: State-of-the-art, trends, and

future perspectives. ArXiv, abs/2209.07271.

Khan, M. A., Menouar, H., and Hamila, R. (2023a). Crowd

counting in harsh weather using image denoising with

pix2pix gans. In 2023 38th International Confer-

ence on Image and Vision Computing New Zealand

(IVCNZ), pages 1–6. IEEE.

Khan, M. A., Menouar, H., and Hamila, R. (2023b). Lcd-

net: A lightweight crowd density estimation model for

real-time video surveillance. J. Real-Time Image Pro-

cess., 20(2).

Khan, M. A., Menouar, H., and Hamila, R. (2023c). Visual

crowd analysis: Open research problems. AI Maga-

zine, 44(3):296–311.

Li, Y., Zhang, X., and Chen, D. (2018). Csrnet: Dilated

convolutional neural networks for understanding the

highly congested scenes. 2018 IEEE/CVF Conference

on Computer Vision and Pattern Recognition, pages

1091–1100.

Liu, W., Salzmann, M., and Fua, P. V. (2019). Context-

aware crowd counting. 2019 IEEE/CVF Conference

on Computer Vision and Pattern Recognition (CVPR),

pages 5094–5103.

Liu, Z., Wu, W., Tan, Y., and Zhang, G. (2023). Rgb-t multi-

modal crowd counting based on transformer.

Mirza, M. and Osindero, S. (2014). Conditional generative

adversarial nets. ArXiv, abs/1411.1784.

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

812

Radford, A., Metz, L., and Chintala, S. (2016). Unsuper-

vised representation learning with deep convolutional

generative adversarial networks. In 4th International

Conference on Learning Representations, ICLR 2016,

San Juan, Puerto Rico, May 2-4, 2016, Conference

Track Proceedings.

Simonyan, K. and Zisserman, A. (2015). Very deep convo-

lutional networks for large-scale image recognition. In

3rd International Conference on Learning Represen-

tations, ICLR 2015, San Diego, CA, USA, May 7-9,

2015, Conference Track Proceedings.

Sindagi, V. A. and Patel, V. M. (2017). Cnn-based cascaded

multi-task learning of high-level prior and density es-

timation for crowd counting. 2017 14th IEEE Inter-

national Conference on Advanced Video and Signal

Based Surveillance (AVSS), pages 1–6.

Song, Q., Wang, C., Wang, Y., Tai, Y., Wang, C., Li, J., Wu,

J., and Ma, J. (2021). To choose or to fuse? scale

selection for crowd counting. In AAAI.

Szegedy, C., Liu, W., Jia, Y., Sermanet, P., Reed, S. E.,

Anguelov, D., Erhan, D., Vanhoucke, V., and Rabi-

novich, A. (2015). Going deeper with convolutions.

2015 IEEE Conference on Computer Vision and Pat-

tern Recognition (CVPR), pages 1–9.

Thanasutives, P., ichi Fukui, K., Numao, M., and Ki-

jsirikul, B. (2021). Encoder-decoder based convolu-

tional neural networks with multi-scale-aware mod-

ules for crowd counting. 2020 25th International Con-

ference on Pattern Recognition (ICPR), pages 2382–

2389.

Thißen, M. and Hergenr

other, E. (2023). Why existing

multimodal crowd counting datasets can lead to un-

fulﬁlled expectations in real-world applications.

Toda, R., Teramoto, A., Kondo, M., Imaizumi, K., Saito, K.,

and Fujita, H. (2022). Lung cancer ct image genera-

tion from a free-form sketch using style-based pix2pix

for data augmentation. Scientiﬁc Reports, 12.

Wang, Q. and Breckon, T. (2022). Crowd counting via seg-

mentation guided attention networks and curriculum

loss. IEEE Transactions on Intelligent Transportation

Systems.

Wu, Z., Liu, L., Zhang, Y., Mao, M., Lin, L., and Li,

G. (2022). Multimodal crowd counting with mutual

attention transformers. In 2022 IEEE International

Conference on Multimedia and Expo (ICME), pages

1–6.

Zeng, L., Xu, X., Cai, B., Qiu, S., and Zhang, T. (2017).

Multi-scale convolutional neural networks for crowd

counting. 2017 IEEE International Conference on Im-

age Processing (ICIP), pages 465–469.

Zhang, C., Li, H., Wang, X., and Yang, X. (2015). Cross-

scene crowd counting via deep convolutional neural

networks. 2015 IEEE Conference on Computer Vision

and Pattern Recognition (CVPR), pages 833–841.

Zhang, Y., Zhou, D., Chen, S., Gao, S., and Ma, Y. (2016).

Single-image crowd counting via multi-column con-

volutional neural network. In 2016 IEEE Conference

on Computer Vision and Pattern Recognition (CVPR),

pages 589–597.

Zhu, J.-Y., Park, T., Isola, P., and Efros, A. A. (2017).

Unpaired image-to-image translation using cycle-

consistent adversarial networks. 2017 IEEE Interna-

tional Conference on Computer Vision (ICCV), pages

2242–2251.

Multimodal Crowd Counting with Pix2Pix GANs

813
