Extending Semantic RML Mappings with Additional Source Formats

Johannes Theissen-Lipp

1,2 a

, Niklas Sch

afer

3 b

, Max Kocher

1 c

, Philipp Hochmann

1 d

Michael Riesener

3 e

and Stefan Decker

1,2 f

Chair of Databases and Information Systems, RWTH Aachen University, Aachen, Germany

Fraunhofer Institute for Applied Information Technology FIT, Sankt Augustin, Germany

Laboratory for Machine Tools and Production Engineering (WZL), RWTH Aachen University, Aachen, Germany

Keywords:

RML, RDF Mappings, Heterogeneous Formats, Domain-Speciﬁc Language, IFC, UML.

Abstract:

Across many domains, the growing amount of data presents a challenge in extracting meaningful insights. A

signiﬁcant hurdle is the accurate interpretation and integration of data from diverse sources, often dictated by

their speciﬁc applications. The RDF Mapping Language (RML), based on the W3C recommendation R2RML,

can be used to transform heterogeneous data formats to RDF using deﬁned mappings. However, existing

RML implementations only support a limited set of (semi-)structured data sources such as CSV, SQL, XML,

and JSON, neglecting numerous use-cases relying on other formats. This work overcomes this limitation by

proposing a methodology to ﬂexibly extend RML to support additional source formats. We systematically

analyze RML and its implementations to derive a generic concept for the extension of RML. Our contribu-

tions include a general workﬂow for extending RML with new formats and demonstrative implementations

of the RML Mapper for two examples from Building Information Modeling (BIM) and UML class diagrams.

Leveraging open-source code forks and a demonstrative domain-speciﬁc language ensures easy portability to

any other source format. The evaluation covers authoring of mappings, runtime performance, and practical

applicability. The results afﬁrm the effectiveness of our generic methodology for extending RML mappings to

include additional source formats.

1 INTRODUCTION

The growth of web-based platforms and digitalization

across industries has led to a rise in data accumula-

tion, facilitating decision making and cross-domain

collaboration. To ensure effective sharing, semanti-

cally accurate and contextually aware data from dif-

ferent domains such as production, development, and

operations are required (Schuh et al., 2019). The

adoption of the graph-based Resource Description

Framework (RDF) as a standard data model enables

the representation of information and knowledge in a

machine-understandable and accessible manner. RDF

facilitates the merging of data sets from disparate net-

works using global identiﬁers and supporting tools

such as validators and reasoners. However, the appli-

https://orcid.org/0000-0002-2639-1949

https://orcid.org/0000-0003-4329-9244

https://orcid.org/0000-0001-9801-0300

https://orcid.org/0000-0001-8740-5606

https://orcid.org/0000-0001-8633-7728

https://orcid.org/0000-0001-6324-7164

cability of RDF as a general-purpose format is limited

due to potential data enlargement and inefﬁcient pro-

cessing (Ravindra et al., 2011). Certain use cases re-

quire specialized data structures for efﬁcient data ma-

nipulation, leading to interoperability challenges. As

a result, larger data sets often remain in their native

format and are selectively converted to RDF for spe-

ciﬁc purposes. Generating interpretable RDF requires

the inclusion of metadata, which is often implicit in

the source data. Various mapping languages facilitate

the manual addition of semantics from the input data

model to the conversion process.

The RDF Mapping Language R2RML, estab-

lished as a W3C recommendation in 2012 by the

RDB2RDF working group, facilitates the mapping of

relational databases to RDF citer2rml-tr. In addition,

Dimou et al. introduced source-independent map-

pings, extending the capabilities of RML to convert

formats beyond relational databases (Dimou et al.,

2013; Dimou et al., 2014; Dimou et al., 2020). RML

serves as a key mapping language for RDF, supported

by valuable tools such as a graph-based mapping edi-

Theissen-Lipp, J., Schäfer, N., Kocher, M., Hochmann, P., Riesener, M. and Decker, S.

Extending Semantic RML Mappings with Additional Source Formats.

DOI: 10.5220/0012551300003690

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 26th International Conference on Enterprise Information Systems (ICEIS 2024) - Volume 1, pages 201-208

ISBN: 978-989-758-692-7; ISSN: 2184-4992

201

tor (Heyvaert et al., 2016) and an active research com-

munity. Experts analyze the syntactic and semantic

data structures of input data, and formulate and exe-

cute mappings to merge and transform heterogeneous

sources into RDF. Currently, RML supports hierarchi-

cal (e.g., JSON, XML) and tabular (e.g., RDB, CSV)

formats. Despite extensive research, the challenge of

conveniently extending RML’s supported source for-

mats to accommodate new ones based on domain or

application requirements remains.

Enabling RML mappings for different source for-

mats is critical (Lipp et al., 2020). Incorporating

application-speciﬁc metadata is more advantageous

than a generalized approach. Extending RML to sup-

port new graph-based data models enhances knowl-

edge graph construction. The potential and limita-

tions are explored through two use cases: Uniﬁed

Modeling Language (UML) diagrams from Draw.io

and Industry Foundation Classes (IFC). Although

these formats have a graph data model, they lack

RML support.

IFC ﬁles in Building Information Modeling (BIM)

represent 3D building and factory models typically

created in proprietary BIM authoring tools such as

Autodesk’s Revit. Handling the IFC data model is

challenging because it was originally intended as an

exchange format (Malcolm et al., 2021). Converting

relevant components of a model to RDF allows for

reasoner-based evaluations to verify implicit build-

ing information and validate design scenarios (Beetz

et al., 2021; Burggr

af et al., 2021). For example,

the calculation of escape route dimensions could au-

tomatically assists factory planners. RML mappings

could assist in the partial and thus scalable conversion

of IFC ﬁles for further analysis.

Draw.io can create diagrams such as UML class

diagrams representing object-oriented models. Stor-

ing the domain knowledge of class diagrams as an

ontology in an RDF model is desirable. However,

automatic conversion is hindered by the lack of an

established standard for mapping class diagram se-

mantics to ontology semantics. RML mappings could

describe how components are converted to the Web

Ontology Language (OWL), potentially accelerating

model-driven systems engineering.

This paper presents a general methodology for

systematically extending RML with new input for-

mats (see ﬁg. 1). It addresses the research ques-

tions on (i) data format requirements for RML conver-

sion, (ii) enhancing user-friendliness of source-spe-

ciﬁc mapping components, and (iii) software compo-

nents and requirements for RML implementation.

Analysis of the RML

specification

Analysis of source

code of existing

mappers

Interface design for

two concrete formats

Implementation in

existing mappers

General workflow to

extend RML with new

formats

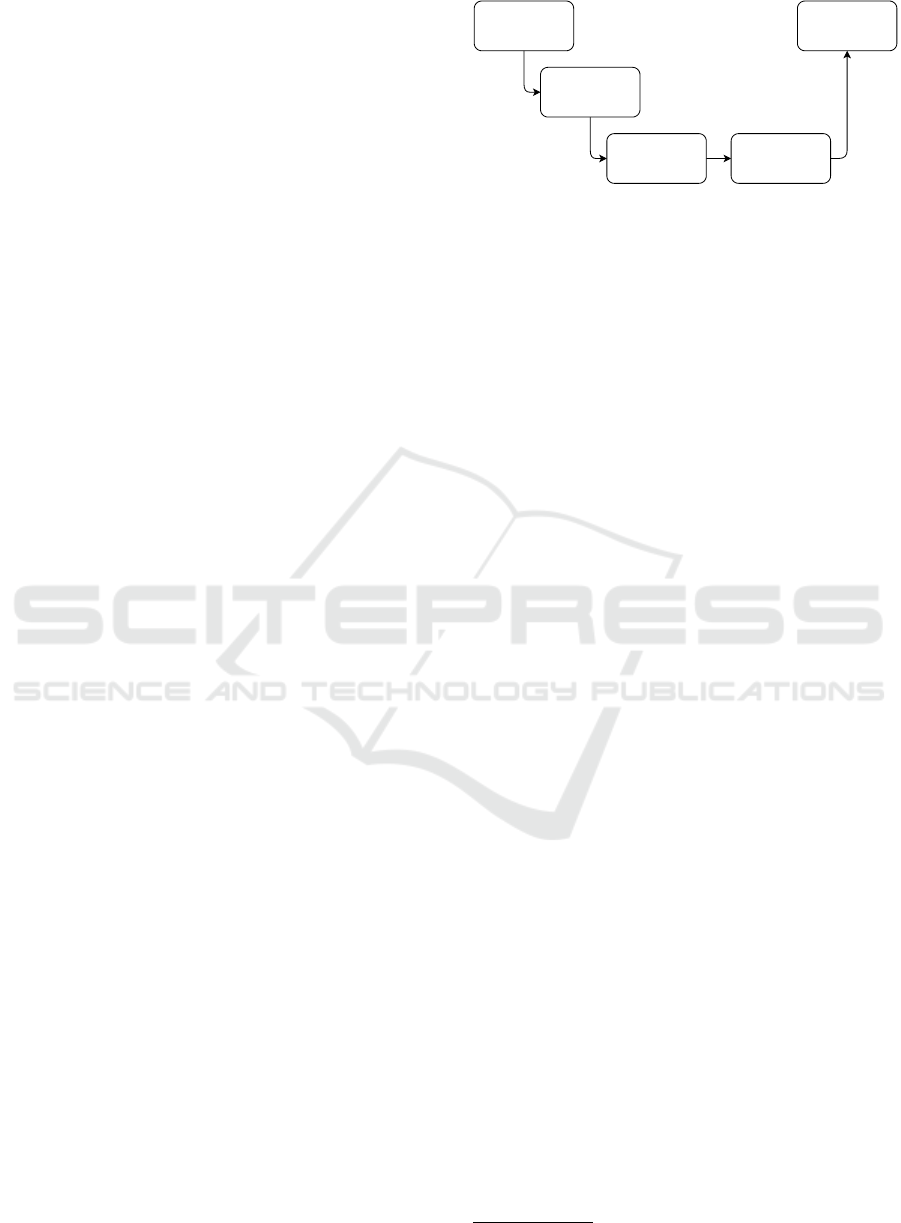

Figure 1: Our ﬁve-step approach for designing generic

RML extensions starts with an analysis of RML speciﬁca-

tions, includes concrete implementations in use cases, and

ﬁnally derives a general RML extension workﬂow.

2 BACKGROUND

In the following, RML and its relation to IFC and

class diagrams are described. IFC deﬁnes a data

schema and exchange ﬁle format structure for BIM

data and is used as a demonstration format to develop

a general workﬂow for extending RML.

2.1 RDF Mapping Language (RML)

Established as a widely used mapping language,

RML builds on W3C recommendations such as

R2RML (Das et al., 2012) and is inﬂuenced by related

research such as RML-star (Iglesias-Molina et al.,

2022). It is inﬂuenced by Dimou et al. (Dimou et al.,

2013; Dimou et al., 2014) and enables users to convert

heterogeneous data formats such as CSV/SQL/XML

into RDF triples. RML mappings are typically de-

ﬁned in RDF format using terms from the RML on-

tology

and executed by RML processors. A mapping

consists of one or more TriplesMaps deﬁning map-

pings from a source ﬁle to RDF triples. The result-

ing nodes can be joined to generate linked data from

heterogeneous sources. While most of a mapping

is source-independent and semantically describes the

creation of the output graph, source-dependent parts

include iterators and references that access the con-

tents of the input ﬁle during the mapping process.

Listing 1 provides an example RML mapping, which

extracts data from a JSON ﬁle by iterating over each

”contact” object, creating triples with the contact’s

name and phone ﬁeld.

2.2 Industry Foundation Classes (IFC)

Deﬁned in the international standard ISO 16739-

1:2018, the buildingSMART organization maintains

IFC as an open speciﬁcation for representing 3D

http://semweb.mmlab.be/ns/rml

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

202

Listing 1: Example RML mapping with an iterator and two

references highlighted in yellow.

<#PhoneMapping>

a rr:TriplesMap ;

rml:logicalSource [

rml:source "phone-numbers.json" ;

rml:referenceFormulation ql:JSONPath ;

rml:iterator "$.contacts[∗]"];

rr:subjectMap [

rr:template

"http://example.com/{name}";

rr:class foaf:Person];

rr:predicateObjectMap [

rr:predicate foaf:phone ;

rr:objectMap [rml:reference "phone"]].

building and factory data for construction and facil-

ity models over their lifecycle. To enable information

sharing and collaboration among users and software

applications, the standard speciﬁes a data schema to

represent facilities with 3D models and their related

metadata. The data schema accords to the EXPRESS

data speciﬁcation language by which industrial prod-

uct data is deﬁned (International Organization for

Standardization, 2018). As an example, listing 2 con-

tains an excerpt of the deﬁnition of a factory door in

the IFC format. The graph-based structure contains

information about the entity, such as height and width,

and relationships to other building elements.

Listing 2: Extract from the EXPRESS deﬁnition for a

IfcDoor entity in IFC 4.3.rc.2.

ENTITY IfcDoor

SUPERTYPE OF (ONEOF

(IfcDoorStandardCase))

SUBTYPE OF (IfcBuiltElement);

OverallHeight : OPTIONAL

IfcPositiveLengthMeasure;

OverallWidth : OPTIONAL

IfcPositiveLengthMeasure;

[...]

END_ENTITY;

Software support for IFC is given, e.g., by the

BIMserver software package (Beetz et al., 2010) that

provides parsing and a Java API to use the contained

entities as Java objects. The API is directly gener-

ated from the EXPRESS schema with the help of the

Eclipse Modeling Framework

. To represent IFC data

in RDF, the ontology IfcOWL (Pauwels and Terkaj,

2016) has been deﬁned by Pauwels and Terkaj. It is

directly related to the EXPRESS schema and includes

a class for each entity type and a property for each re-

lationship.

https://eclipse.dev/modeling/emf/

Several IFC data query languages have been pro-

posed. They aim to provide shortcuts and abstrac-

tions from the IFC data model to make accessibility

easier for authors. BimSPARQL is an extension of

SPARQL that lets the user query IfcOWL data more

conveniently as it deﬁnes special operators and geo-

metric algorithms for common use cases (Zhang et al.,

2018). The BIM query language BimQL (Mazairac

and Beetz, 2013) is a new domain speciﬁc language

whose syntax is similar to SQL and SPARQL. It

deﬁnes shortcuts to hide the technicalities of the

EXPRESS data model and allows binding of vari-

ables, aggregation and comparison of data. BIM-

server comes with a simple ﬁlter language

based on

JSON that can ﬁlter entities based on their type, at-

tributes, and relationships. However, is does not sup-

port any data transformation such as binding of vari-

ables or arithmetic operators. Graph-based search al-

gorithms have been proposed to evaluate a query on

IFC data (Tauscher et al., 2016; Ismail et al., 2017).

2.3 UML Class Diagrams

To aid in model-driven development processes, the

conversion of UML class diagram data to RDF or

OWL is of particular interest to reduce modeling

efforts. For example, relevant transformation rules

to create ontologies in OWL are described (Vo and

Hoang, 2020). Similarly, existing tools such as UML-

toOWL

allow for automized conversion. However,

the available solutions require speciﬁc source for-

mats that are mostly XML-based and thus already ad-

dressed by current RML mappers. In practice, do-

main experts design their class diagrams with end-

user software such as draw.io or the yEd Graph Ed-

itor (redacted, project-internal survey), which provide

their own data formats. An implementation convert-

ing visualizations of ontologies designed in Draw.io

to RDF/OWL was given by Ch

avez-Feria et al. (Feria

et al., 2021)

3 EXTENDING RML WITH

ADDITIONAL SOURCE

FORMATS

An overview of our methodology to extend RML with

new source formats is depicted in ﬁg. 1. The follow-

ing ﬁve subsections cover these ﬁve steps in detail,

respectively.

https://github.com/opensourceBIM/BIMserver/wiki/

JSON-Queries

https://www.sfu.ca/

∼

dgasevic/projects/UMLtoOWL/

Extending Semantic RML Mappings with Additional Source Formats

203

3.1 Analysis of the RML Speciﬁcation

In this section, document refers to the input ﬁle to

be mapped to RDF. Mapping refers to the resulting

RML mapping ﬁle. We derive a general interface that

needs to be implemented to access the data of the doc-

ument. For this purpose, the functions I (Iterator) and

E (Reference Extractor) deﬁne the semantics of two

formal languages, i.e. they map strings to a meaning

and are used to access the content of the document.

I and E are format-speciﬁc, because query languages

are. For example, I

XML

and E

XML

are deﬁned using

XPath. A document is composed of records. The

iterator language I is used to specify the records to

convert. Each record is converted into an RDF node

during RML’s iteration loop. Let D denote the set of

documents and R

denote the set of records contained

in a document d ∈ D. I maps a document d to a subset

of records using a string speciﬁed as rml:iterator

in rml:LogicalSource. The iterator can be omitted

for tabular input.

I(d, i) ∈ P(R

), d ∈ D, i ∈ Strings

I maps a string and a document context to a list of records.

Records are still part of the document’s data model

and cannot be directly mapped to RDF. A reference

extractor E extracts a list of strings from a record us-

ing a reference text (hereafter called reference) at var-

ious points during the iteration loop. These strings are

inserted into RDF, e.g. as labels, predicates or URIs.

Thus, the evaluation of a reference serves as the ac-

tual conversion between data models. It converts the

input’s data model to a list of strings that can be put

directly into RDF.

E(r, e) ∈ P(Strings), r ∈ R

, e ∈ Strings

E maps a string with context of a record to a list of strings.

With this proposal, RML is extended with IFC and

Draw.io Class Diagrams by designing and implement-

ing I

IFC

, I

, E

IFC

and E

3.2 Analysis of Source Code of Existing

Mappers

For the purpose of choosing the best suited RML pro-

cessor to fork and extend, existing processors have

been analyzed regarding the interface described in

section 3.1 can be identiﬁed in their source code and

to what extend their architecture is suitable to be ex-

tended by further input formats. Here, RML Mapper

https://github.com/RMLio/rmlmapper-java

(reference implementation), RocketRML

and SDM-

RDFizer (Iglesias et al., 2020) have been analyzed. In

terms of extensibility and code quality, RML Mapper

and Rocket RML perform similarly well and outper-

form the SDM-RDFizer. Interfaces for I and E can be

identiﬁed in the source code, decoupling the logic of

RML from support for different input formats. Since

the reference implementation RML-Mapper is guar-

anteed to cover all of RML’s features, it is chosen for

the here discussed extension by creating a fork of the

repository

3.3 Extending RML with IFC

IFC is a structured ﬁle format, and entities, entity at-

tributes, and links between entities are deﬁned in the

associated EXPRESS schema. The following section

describes the implementation of IFC ﬁle support in

RML Mapper. For this purpose, the new ontology

ifcrml is introduced. To extend RML by a new for-

mat, as described in section 3.1, I and E for the new

format must be implemented. The following sections

describe design and implementation of I

IFC

and E

IFC

IFC Iterator. The iterator extracts records from the

document, converting each into an RDF subject, en-

suring its individual signiﬁcance. In IFC, records cor-

respond to entities deﬁned in the EXPRESS schema.

While IFC ﬁles contain thousands of entities, not all

are relevant as subjects in the result. Query languages,

including BimQL, are typically used to ﬁlter out rel-

evant records, though textual queries are rare in prac-

tice. BIMserver supports a JSON-based ﬁlter lan-

guage for selecting IFC entities, used in tools like

bimvie.ws for interactive model viewing. While ex-

pressive, BimQL’s limited development and adoption

pose challenges. To address limitations, Java’s full

expressiveness is leveraged using the Function On-

tology (FnO) to implement a ﬁlter function. This

Java function receives entity lists and other param-

eters, returning processed and mapped IFC entities.

FnO deﬁnes function signatures linked to Java meth-

ods, facilitated by ifcrml ontology for parameter as-

signment (De Meester et al., 2020).

IFC ReferenceExtractor. A ReferenceExtractor

extracts text locally from a speciﬁc record. Each

IFC entity contains various attributes that are speci-

ﬁed in the EXPRESS schema. These attributes can

be labels or identiﬁers of other entities for cross-

referencing. A clean syntax has been created that ex-

https://github.com/semantifyit/RocketRML

https://github.com/PHochmann/rmlmapper-java

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

204

tracts text from an attribute by its name. For label

attributes, the reference evaluates its text. If the at-

tribute is a cross-reference to another entity the state-

ment must be continued with an attribute of the ref-

erenced entity until it ends with a label. Attribute

references are separated by a period. Additionally,

a pseudo attribute IfcType has been implemented

that evaluates the name of the EXPRESS class of the

entity. This can be used to structure URIs of en-

tities based on their classes (such as rr:template

"https://standards.buildingsmart.org/IFC/

DEV/IFC2x3/FINAL/OWL/IFCType", which uses the

IFCType attribute to deﬁne an URI template). The

described functionality was implemented using BIM-

server which operates on IFC ﬁles. Communication

between our fork of RML Mapper and a BIMserver

instance follows the architecture from ﬁg. 2.

RML Mapper

BIMserver

BIMserver client API

Mapping RDF

*.ifc,

optional Query

EMF

Objects

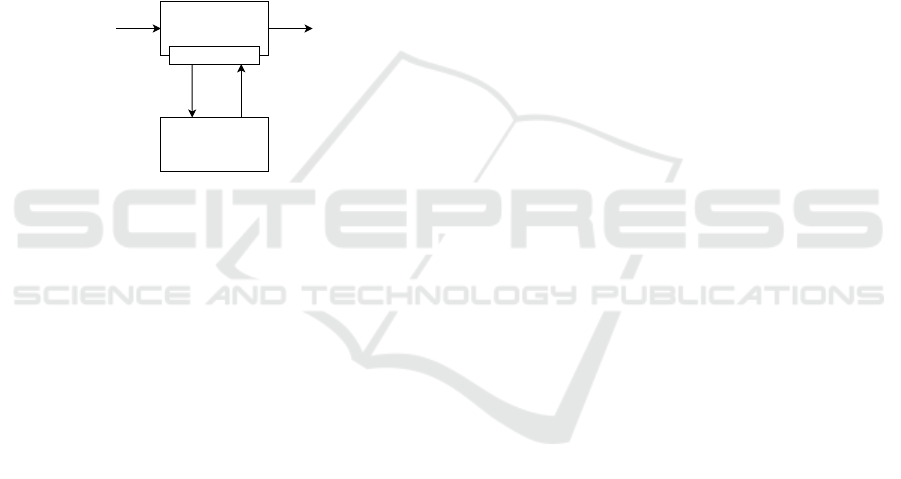

Figure 2: Architecture of our extended RML Mapper that

communicates with a BIMserver to execute mappings for

the IFC format. It transforms *.ifc ﬁles from a local ﬁle

system to the BIMserver (Beetz et al., 2010) for parsing.

We offer optional ﬁltering via provided queries. Returning

Eclipse Modeling Framework objects represent the queried

IFC entities and are ﬁnally transformed to RDF.

3.4 Extending RML with Draw.io Class

Diagrams

UML can express object-oriented structures using

class diagrams. Classes are shown with their names,

attributes and methods, as well as relationships be-

tween classes. Draw.io class diagrams can be ex-

ported as XML, so it would be possible to use the

already existing implementation of RML for XML to

convert information from class diagrams to RDF. Ele-

ments could be selected from XML using XPath. Be-

cause a class diagram is a generic graph, and XML

documents are tree-structured, it is challenging to ex-

tract information directly using XPath. In addition,

the semantics of a class diagram are not fully reﬂected

in its serialization, e.g. which class an arrow points

to. To overcome these problems, we propose a query

language for class diagrams to hide the intricacies of

XML serialization from the mapping author.

Class Diagram Iterator. This section outlines the

design of I

, the iterator tailored to the class di-

agram input format. Identifying the records within

a data model is critical to designing an iterator. In

essence, an iterator accesses these records and fa-

cilitates their availability to the RML mapping en-

gine. The data model of UML class diagrams is sim-

ilar to a generic graph because classes can be con-

nected by arrows indicating inheritance or dependen-

cies. The key to a class diagram is the classes, their

attributes, and the relationships between them. How-

ever, working only with classes as records may not

be intuitive. For example, to map attributes that sat-

isfy some condition X , mapping authors would ﬁrst

have to select classes that potentially contain those

attributes. They could then use a reference such as

”attributes.name where X” to establish a link be-

tween the containing class and the labels of its at-

tributes. Although this method allows multiple val-

ues to be extracted with a single reference, linking the

class to other resources would require repeating the

constraint in each reference. In addition, RML’s joins

could not later link the attributes together because

only nodes that emerge from records can be joined,

compromising the quality of the resulting linked data.

To address these challenges, a simpliﬁed data

model for class diagrams is advocated, consisting of

the record types classes, attributes, and arrows with a

limited number of properties. The iterator is concep-

tualized as a context-free language.An excerpt of the

producing grammar is shown in ﬁg. 3.The start rule S

speciﬁes that each iterator consists of a class selection

and, optionally, a preﬁx and a where clause.A class

selection embodies a recursive statement that encodes

a breadth-ﬁrst search of the diagram, returning a set

of selected classes.It serves as the basis for select-

ing either the classes themselves as records, their at-

tributes, or arrows.The preﬁxes attributes of and

usages of/by modify the record type.If the preﬁx

is omitted, the classes themselves are extracted as

records.A WhereClause allows ﬁltering based on in-

dividual properties of the record. A simple example

is usages by Student to select all arrows coming

from Student classes.

Implementation. Draw.io class diagrams can be

exported as XML ﬁles. Since the meaning of the doc-

ument is not well reﬂected in its syntax, the imple-

mentation was comparatively complex. After using

a standalone XML parser, the deserialized data must

ﬁrst be converted to the target data model. XML has

a tree structure, so IDs and cross-references are used

to represent the arbitrary graph of a class diagram. In

addition, Draw.io’s serialization to XML is more fo-

Extending Semantic RML Mappings with Additional Source Formats

205

S →[Preﬁx] ClassSelection [WhereClause]

Preﬁx →attributes of

Preﬁx →usages (of | by )

WhereClause → where Restriction

Restriction →Reference PropOp String

[PropOp Restriction]

Figure 3: Excerpt from the production rules of the context-

free grammar that produces the iterator language.

cused on the graphical representation of the diagram

using shapes, rather than the semantics of the data be-

ing represented. For example, attributes and functions

within a class rectangle are distinguished by compar-

ing their y-coordinate to the y-coordinate of the line

separating them. Serialized documents created by do-

main experts contain errors such as missing or incor-

rect arrow attachments, which are geometrically re-

constructed in post-processing.

3.5 General Workﬂow to Extend RML

with New Formats

This section addresses the research question of this

work by proposing a a workﬂow for extending RML

with new source formats.

Feasibility Analysis. The criteria for assessing

whether a given format can be supported by RML

in relation to the semantics of the data it contains,

while the syntax inﬂuences the technical implemen-

tation and effort. The data model of the source must

deﬁne mutually delimitable, enumerable records that

contain meaningful data to be converted into an RDF

resource. If individual records can be identiﬁed, it is

necessary to decide how to convert parts of a record

into a textual representation. Records should be sufﬁ-

ciently similar to be treated by a maintainable amount

of TriplesMaps. For each record, similar RDF sub-

graphs are created. Variation of these subgraphs are

generated by joins, non-constant predicates and ob-

jects that can be deﬁned in rr:PredicateMaps and

rr:ObjectMaps. However, the reference texts that

are used to extract a string from a record are always

the same within each TriplesMap. Records should be

kept as simple as possible, to avoid too much variety,

and to keep references simple. At the same time, they

should be complex enough to carry meaning them-

selves. If a logical concept is spread over several

records, it must be reconstructed in the mapping via

joins and cannot be identiﬁed with a single URI. Lim-

ited variety and semantic independence are therefore

conﬂicting goals.

Design of I and E. The iterator language must pro-

vide means for navigating within a document as well

as ﬁltering records based on their shape. A trade off

between expressive strength and ease of use is needed.

In the case of graph-based data models, complex ex-

pressions of navigation patterns on the data might be

needed to retrieve meaningful records. The reference

extractor language should be kept as simple as possi-

ble. To improve maintainability, a reference is only

an attribute name without requiring much navigation

within the record.

Implementation Phase. The complexity of the im-

plementation phase depends on the serialization of the

documents and the complexity of aforementioned lan-

guages. First, a parser is needed to deserialize the

document. The result of the parsing is an object of

a programming language, whose structure reﬂects the

data model of the source format. It provides access to

the contained data. Records are selected from these

objects using the iterator. If records are selected in

such a way, that they cannot be derived directly from

the syntactic structure of the document, the parsed

data must be post-processed. Afterwards, the refer-

ence extractor which takes a record and extracts text

locally can be implemented.

4 EVALUATION

The evaluation of the two demonstrated extension

formats for RML includes several aspects: Author-

friendliness evaluates whether all mapping compo-

nents are intuitive and conversion via RML is time-

efﬁcient. Expressiveness evaluates whether all infor-

mation can be extracted and converted. Performance

evaluates whether large ﬁles can be processed quickly.

All run times were measured using Apache Com-

mons’ StopWatch on an AMD Ryzen 7 PRO 3700U

@2.7GHz, Linux 5.10.84-1-MANJARO with Open-

JDK 17.0.1.

4.1 Conversion of IFC

In the following section, the IFC implementation is

evaluated using an IFC ﬁle provided by the use case.

See ﬁg. 4 for a visual representation of the ﬁle, which

consists of a model of a demonstration factory. The

goal of this use case is to map all coverings (e.g., win-

dows, doors) of a single wall that is speciﬁed by its

GlobalID-attribute to RDF. Each covering should be

converted to a named node and additional labels spec-

ifying its entity-properties, such as name, dimensions,

type of door, and so on.

The lack of expressiveness in the BIMserver ﬁl-

ter language requires entity selection through a Java

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

206

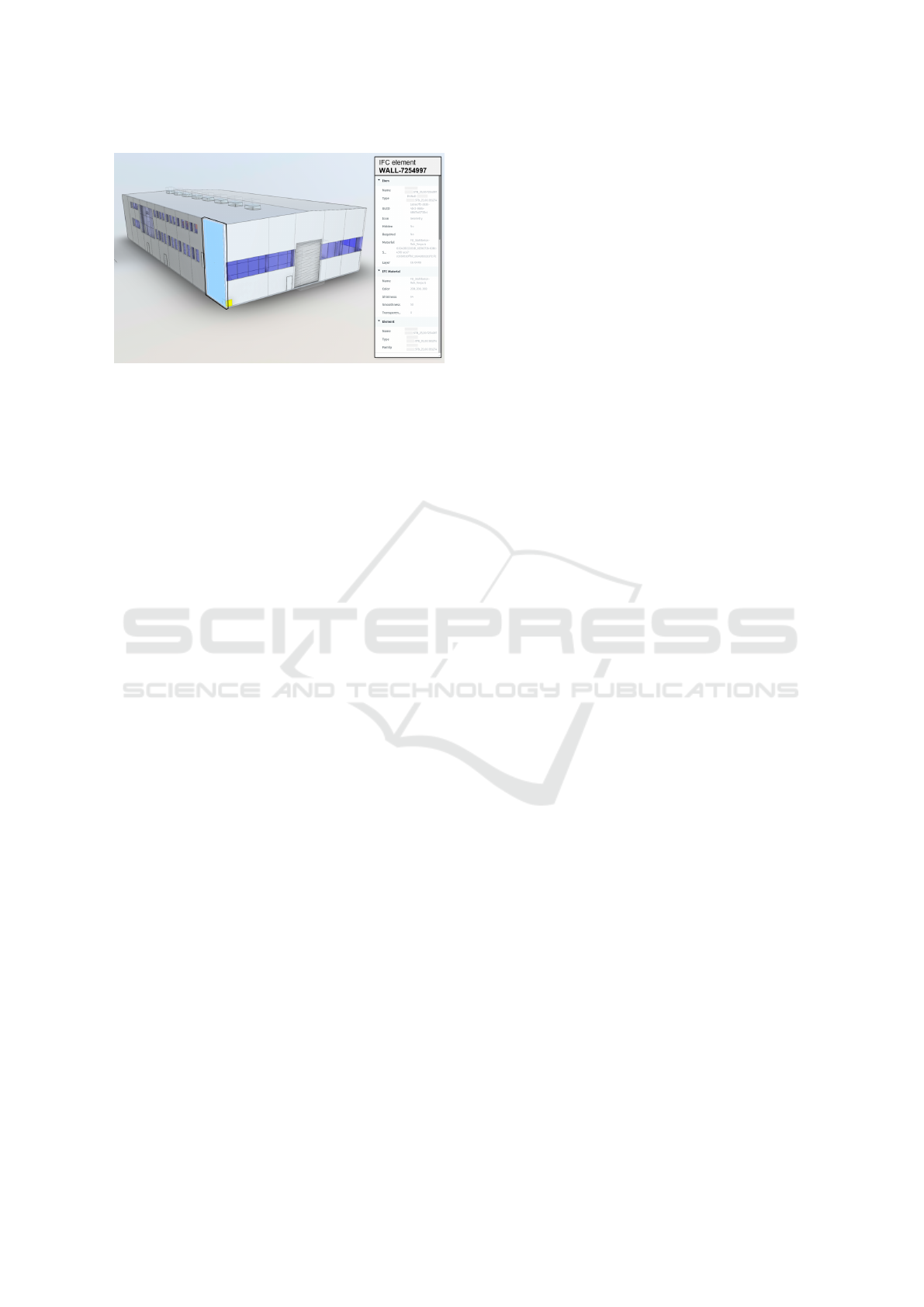

Figure 4: Visual representation of an experimental factory

plan provided by a use case as an IFC ﬁle.

function, which is challenging because it requires de-

tailed knowledge of the EXPRESS schema, especially

for complex cross-references such as IfcRelVoidsE-

lement, IfcOpeningElement, IfcRelFillsElement, and

RelatedBuildingElement. However, these entities

contain few attributes, and obtaining additional infor-

mation about windows or doors increases the com-

plexity of the Java function. While the current state

of the art approach involves converting the entire IFC

model to IfcOWL and validating it using SPARQL

or SHACL, this results in large mapped ﬁles com-

pared to the proposed solution which, while less user

friendly, leverages existing technology without hav-

ing to learn a new language with limited versatility.

The measured runtimes are dominated by the check-

in of the IFC ﬁles to the BIMserver and take up to 46

seconds for an 8 MB ﬁle with 140253 entities, includ-

ing conversion into Java objects. Further processing

takes milliseconds, even though several thousand ob-

jects from the Eclipse Modeling Framework are iter-

ated to select the appropriate objects. Caching these

objects and avoiding multiple check-ins of a ﬁle could

reduce the runtime even more.

The proposed methodology has demonstrated its

effectiveness in partially converting IFC ﬁles. Ex-

traction of records for RDF mapping occurs within

milliseconds, allowing for deeper analysis of use-

case relevant information not possible with full rep-

resentations such as IfcOWL. This solution opens up

new possibilities for analyzing building and plant data

with Semantic Web tools, such as validating planning

scenarios with reasoner-based evaluations or infer-

ring implicit information (Beetz et al., 2021; Burggr

et al., 2021). Proper industrial application may be

limited to experts because of limitations such as the

weak documentation of the IFC query language, the

approaches still in the experimental stage, the limited

expressiveness of the BIMserver ﬁlter language, and

the complexity of the Java ﬁlter function.

4.2 Conversion of Class Diagrams

This section uses a real-world use case to evaluate

support for class diagrams, with the goal of mapping

the diagram to RDF/OWL by describing an equiva-

lent ontology. A comparison can be made with an on-

tology created in an ontology editor such as Prot

While the semantics of the diagram is different from

the standard UML class diagram, it has strong sim-

ilarities as a metamodel with a class concept. UML

classes correspond to OWL classes, arrow relation-

ships correspond to ObjectProperties, and attributes

correspond to DatatypeProperties, with arrows la-

beled with corresponding ObjectProperty names and

attributes specifying DatatypeProperty names. The

RML mapping consists of ﬁve TriplesMaps and took

about an hour to formulate, requiring only basic OWL

knowledge, with a runtime of about 100 milliseconds.

The use of RML for class diagram conversion proved

successful in our application scenario, minimizing the

end-user workload by eliminating the need for man-

ual ontology creation in Prot

e. However, the output

is limited to components of the ontology that can be

described by recognized UML syntax elements, ex-

cluding ontology meta-information from the output.

5 CONCLUSION AND FUTURE

WORK

In this paper, we have extended the RML Mapper to

support two new formats and demonstrated a generic

workﬂow for RML extension. Our exploration of

IFC ﬁle conversion demonstrated the practical appli-

cability of our methodology, albeit the complexity of

the IFC data schema. Support for UML class dia-

grams demonstrated author-friendly mappings using

an iterator language that reﬂects the semantics of the

source data model. Lessons learned from both exam-

ple implementations inﬂuenced the development of a

generic workﬂow for extending RML.

Our work has not only extended the function-

ality of RML, but also addressed speciﬁc chal-

lenges in practical implementations. The pro-

posed enhancements, such as the introduction of

the rml:condition property and considerations for

query language implementation, pave the way for fur-

ther advances in semantic data integration. The evo-

lution of RML to support a broader range of formats

while adhering to the principles of linked data under-

scores our commitment to advancing data interoper-

ability.

Extending Semantic RML Mappings with Additional Source Formats

207

ACKNOWLEDGMENTS

Funded by the Deutsche Forschungsgemeinschaft

(DFG, German Research Foundation) under Ger-

many’s Excellence Strategy – EXC-2023 Internet of

Production – 390621612.

Funded by the FAIR Data Spaces project of

German Federal Ministry of Education and Re-

search (BMBF) under the grant numbers FAIRDS05,

FAIRDS14 and FAIRDS15.

REFERENCES

Beetz, J., Pauwels, P., McGlinn, K., and Torm

a, S. (2021).

Linked Data im Bauwesen, pages 223–242. Springer

Fachmedien Wiesbaden, Wiesbaden.

Beetz, J., van Berlo, L., de Laat, R., and van den Helm,

P. (2010). Bimserver.org – an open source ifc model

server. In Proceedings of the CIP W78 conference,

page 8.

Burggr

af, P., Dannapfel, M., Ebade-Esfahani, M., and

Scheidler, F. (2021). Creation of an expert system for

design validation in bim-based factory design through

automatic checking of semantic information. Proce-

dia CIRP, 99:3–8. 14th CIRP Conference on Intelli-

gent Computation in Manufacturing Engineering, 15-

17 July 2020.

Das, S., Sundara, S., and Cyganiak, R. (2012). R2RML:

RDB to RDF mapping language. Technical report,

W3C. Retrieved from https://www.w3.org/TR/r2rml/,

on 05.05.2022.

De Meester, B., Seymoens, T., Dimou, A., and Verborgh, R.

(2020). Implementation-independent function reuse.

Future Generation Computer Systems, 110:946–959.

Dimou, A., Sande, M. V., De Meester, B., Heyvaert,

P., and Delva, T. (2020). RDF Mapping Language

(RML). Technical report, IDLab - imec - Ghent Uni-

versity. Retrieved from https://rml.io/specs/rml/, on

05.05.2022.

Dimou, A., Vander Sande, M., Colpaert, P., Mannens, E.,

and Van de Walle, R. (2013). Extending r2rml to a

source-independent mapping language for rdf. In In-

ternational Semantic Web Conference (Posters & De-

mos), volume 1035, pages 237–240.

Dimou, A., Vander Sande, M., Colpaert, P., Verborgh, R.,

Mannens, E., and Van de Walle, R. (2014). Rml: A

generic language for integrated rdf mappings of het-

erogeneous data. In LDOW.

Feria, S. C., Garc

ıa-Castro, R., and Poveda-Villal

on, M.

(2021). Converting UML-based ontology conceptu-

alizations to OWL with chowlk. In ESWC2021 Poster

and Demo Track.

Heyvaert, P., Dimou, A., Herregodts, A.-L., Verborgh, R.,

Schuurman, D., Mannens, E., and Van de Walle, R.

(2016). Rmleditor: A graph-based mapping editor

for linked data mappings. In European Semantic Web

Conference, pages 709–723. Springer.

Iglesias, E., Jozashoori, S., Chaves-Fraga, D., Collarana,

D., and Vidal, M.-E. (2020). Sdm-rdﬁzer: An rml

interpreter for the efﬁcient creation of rdf knowledge

graphs. In Proceedings of the 29th ACM Interna-

tional Conference on Information & Knowledge Man-

agement, pages 3039–3046.

Iglesias-Molina, A., Arenas-Guerrero, J., Delva, T., Di-

mou, A., and Chaves-Fraga, D. (2022). RML-star.

Technical report, W3C Knowledge Graph Construc-

tion Community Group. Retrieved from https://

kg-construct.github.io/rml-star-spec/, on 05.05.2022.

International Organization for Standardization (2018). In-

dustry Foundation Classes (IFC) for data sharing in

the construction and facility management industries

— Part 1: Data schema. Standard, International Orga-

nization for Standardization, Geneva, CH.

Ismail, A., Nahar, A., and Scherer, R. (2017). Application

of graph databases and graph theory concepts for ad-

vanced analysing of bim models based on ifc standard.

Lipp, J., Gleim, L., and Decker, S. (2020). Towards

Reusability in the Semantic Web: Decoupling Nam-

ing, Validation, and Reasoning. In Proceedings of

the 11th Workshop on Ontology Design and Patterns.

CEUR Workshop Proceedings.

Malcolm, A., Werbrouck, J., and Pauwels, P. (2021). Lbd

server: Visualising building graphs in web-based en-

vironments using semantic graphs and gltf-models. In

Eloy, S., Leite Viana, D., Morais, F., and Vieira Vaz,

J., editors, Formal Methods in Architecture, pages

287–293, Cham. Springer International Publishing.

Mazairac, W. and Beetz, J. (2013). Bimql – an open query

language for building information models. Advanced

Engineering Informatics, 27:444–456.

Pauwels, P. and Terkaj, W. (2016). Express to owl for con-

struction industry: Towards a recommendable and us-

able ifcowl ontology. Automation in Construction,

63:100–133.

Ravindra, P., Hong, S., Kim, H., and Anyanwu, K. (2011).

Efﬁcient processing of RDF graph pattern matching

on MapReduce platforms. In Proceedings of the sec-

ond international workshop on Data intensive com-

puting in the clouds - DataCloud-SC '11. ACM Press.

Schuh, G., Prote, J.-P., G

utzlaff, A., Thomas, K., Sauer-

mann, F., and Rodemann, N. (2019). Internet of

production: Rethinking production management. In

Wulfsberg, J. P., Hintze, W., and Behrens, B.-A., ed-

itors, Production at the leading edge of technology,

pages 533–542, Berlin, Heidelberg. Springer Berlin

Heidelberg.

Tauscher, E., Bargst

adt, H.-J., and Smarsly, K. (2016).

Generic bim queries based on the ifc object model us-

ing graph theory. In Proceedings of the 16th Interna-

tional Conference on Computing in Civil and Building

Engineering, Osaka, Japan, pages 6–8.

Vo, M. H. L. and Hoang, Q. (2020). Transformation of uml

class diagram into owl ontology. Journal of Informa-

tion and Telecommunication, 4(1):1–16.

Zhang, C., Beetz, J., and Vries, d. (2018). Bimsparql:

Domain-speciﬁc functional sparql extensions for

querying rdf building data. Semantic Web, pages 1–

27.

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

208
