Opportunities and Challenges of AI to Support Student Assessment

in Computing Education: A Systematic Literature Review

Simone C. dos Santos

and Gilberto A. S. Junior

Centro de Informática, Federal University of Pernambuco, Recife, Brazil

Keywords: Computing Education, Student Assessment, Artificial Intelligence, Systematic Literature Review.

Abstract: This study investigates how Artificial Intelligence (AI) can support student assessment in computing

education through a systematic literature review of twenty studies from the past decade. AI's evolution has

significantly impacted various fields, including education, offering advanced capabilities for personalized

teaching, continuous evaluation, and performance prediction. Analysing these studies, evidence showed a

focus on undergraduate students and the employment primarily face-to-face teaching methods, with

engineering education and serious games being more cited contexts. These studies also reveal AI's potential

to create personalized learning experiences using techniques like fuzzy logic, KNN algorithms, and predictive

models to analyse student interactions and performance, particularly in educational games and online courses.

The positive findings demonstrate AI's effectiveness in classifying students' learning profiles, predicting

employability, providing real-time assessments, facilitating targeted interventions, and improving learning

outcomes through personalization. Automated assessments via AI have been shown to reduce teachers'

workload by offering accurate, real-time feedback. However, the studies also highlighted challenges

concerning student engagement, teacher material quality, model generalization, and technical obstacles such

as natural language processing, algorithm stability, and data cleaning. These data-driven factors emphasize

the necessity for further advancements in AI to enhance continuous and effective student assessment as part

of the personalized learning process.

1 INTRODUCTION

Computing teaching has faced many challenges,

especially in promoting more effective learning

methods and enabling students to solve practical

issues (Computer Science Curricula, 2020).

According to Hoed (2016), the high theoretical

content of disciplines is not very stimulating and

leads students to try memorizing specific contents,

but not always successfully. These aspects contribute

to many students dropping out in the initial periods of

undergraduate courses.

To anticipate learning difficulties, intelligent tools

can help teaching methods by providing, for example,

personalized teaching according to the needs of each

student (Hull and Du Boulay, 2015). In addition to

assisting in the learning process, these tools can

support teachers during assessments and learning

management (Zafar and Albidewi, 2015; Malik et al.,

2022), monitor student performance, and carry out

https://orcid.org/0000-0002-7903-9981

appropriate interventions throughout the teaching

process (Maia & Santos, 2022).

According to Salem (2011), the use of AI in

education can be divided into seven main research

areas: educational systems, teaching aspects, learning

aspects, cognitive science, knowledge structure,

intelligent tools and shells, and educational

interfaces. Each research area has different

applications, such as intelligent tutoring systems,

educational robots, and assessment systems.

Specifically for teaching computing, several studies

and research have used AI to make the learning

process more efficient (Broisin et al., 2017; Mostafavi

and Barnes, 2017; Rvers and Koedinger, 2017).

Among several possibilities of use, an AI can

process much more data than a human being and can

provide more personalized learning through

intelligent tutors that can, for example, detect whether

a student learns better with failures or tips (Salem,

2011). Therefore, this technology has enormous

Santos, S. and S. Junior, G.

Opportunities and Challenges of AI to Support Student Assessment in Computing Education: A Systematic Literature Review.

DOI: 10.5220/0012552500003693

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 16th International Conference on Computer Supported Education (CSEDU 2024) - Volume 2, pages 15-26

ISBN: 978-989-758-697-2; ISSN: 2184-5026

potential to support student assessment during the

learning process and promote improvement

interventions before a course or discipline ends when

it may already be too late (Cope et al., 2021). In

addition, AI can be used in learning management to

predict the student's final performance and, using

their history, indicate subjects that best fit their needs

(Salem, 2011).

Because it is an area of vast knowledge and

possibilities for diverse applications, choosing the

most appropriate technologies for the desired

objective is essential, as highlighted in (Mazza and

Milani, 2005). At this point, understanding the

potential of AI to name, calculate, measure, and

represent data, giving meaning to its use (Cope et al.,

2021), can bring more clarity about the opportunities

and challenges to be overcome.

In this context, the following central research

question motivated this study: RQ) How can AI

support student assessment in computing education?

To answer this question, this study used Kitchenham's

Systematic Literature Review (SLR) method

(Kitchenham and Charters, 2007), selecting primary

studies from 2012 to 2022 on the research basis of

great relevance for Computing Education Research.

To report the research results, this paper is divided

into six sections. After this brief introduction, Section

2 presents the primary backgrounds for the research

and its analysis. Section 3 describes the SLR method.

Section 4 presents the results, discussed in Section 5.

Finally, Section 6 comments on the conclusions and

future works.

2 BACKGROUND

2.1 Computing Education Challenges

Considering education as a process that transforms

those who learn (Creasy, 2018), students' engagement

in this process is essential. However, student

engagement is regarded as one of the biggest

challenges in higher education (Quaye et al., 2019),

which is no different in computing education.

According to Hoed (2016), the difficulty in

abstracting the content of the subjects in the initial

periods of computing courses is a critical factor in

discouraging students from continuing the course.

For example, subjects focused on teaching calculus

and algorithms often represent bottlenecks for first-

year students.

The difficulty in assimilating the content is often

linked to the student's habit of memorizing the subject

in the classroom, motivated by a content-based

assessment process focused on punishing rather than

stimulating learning. As a result, failure in initial of

disciplines is one of the biggest causes of dropout in

computing courses.

In this scenario, new teaching methodologies and

practices, aligned with assessment models and

continuous feedback, can be allies to overcome many

challenges. According to Vihavainen et al. (2011),

assessment based on constant feedback helps in

computing learning, providing students with greater

motivation and self-efficacy and, consequently, more

significant engagement. As it requires a lot of effort,

this type of assessment is usually supported by

systems and information technology, especially in the

case of highly populated classes.

On the one hand, Yadav (2016) discusses the

difficulties of teaching computer science in a school

context, highlighting student assessment as one of the

main challenges. Among the points mentioned, the

difficulty in accurately measuring students' learning

is worth highlighting due to the lack of tools for

evaluating computational exercises. Furthermore, it is

noted that, given the interdisciplinary nature of the

questions, the accurate evaluation of these exercises

requires a lot of effort. As a result, teachers use

models for assessment purposes, which can reduce

students' creativity in carrying out tasks. On the other

hand, Hull and Du Boulay (2015) used an Intelligent

Tutor System (ITS) to provide continuous and

personalized feedback according to students' current

knowledge in an SQL course. As a result, they found

that students who used the STI had better results than

those who did not. These studies reinforce the

importance of the assessment modalities, considering

different aspects and models.

2.2 Assessment Modalities

It is possible to implement assessments in three

primary modalities: diagnostic, formative, and

summative.

Diagnostic assessment aims to identify students'

prior knowledge, skills, strengths, and areas for

improvement before instruction begins (Huhta,

2008). This information helps educators tailor their

teaching strategies to meet the specific needs of their

students. As main characteristics, we can point out

that it is usually conducted at the beginning of a

course or unit; it is not typically graded; instead, it

serves as a tool for instructional planning, helping set

realistic learning goals and benchmarks for

improvement (Huff & Goodman, 2007). Examples of

diagnostic assessment are pre-tests that assess

students' knowledge of a subject before starting a new

CSEDU 2024 - 16th International Conference on Computer Supported Education

unit or course; surveys or questionnaires that gather

information about students' learning preferences and

study habits; skill assessments that evaluate students'

competencies in specific areas, such as writing or

math, to tailor instruction accordingly (Gorin, 2007).

Formative assessment is designed to provide

continuous feedback and information during the

instructional process rather than at the end (Huhta,

2008). The goal is to monitor student learning and

provide ongoing feedback that instructors can use to

improve their teaching and students to improve their

knowledge (Gallardo, 2021). This type of assessment

is usually informal and can be integrated into daily

teaching activities. It helps identify students'

strengths and weaknesses in real time, allowing for

immediate adjustments in teaching methods (Kemp &

Scaife, 2012). It also encourages student involvement

in their learning process through self-assessment and

peer feedback. Some examples are quizzes and short

tests that are not graded or have a low impact on the

final grade; classroom discussions where students are

encouraged to ask questions and express their

understanding; homework assignments that provide

insights into students' progress; peer review sessions

where students critique each other's work (Bennett,

2011).

Summative assessment evaluates student

learning, knowledge, proficiency, or success after an

instructional period (Huhta, 2008). This type of

assessment is typically used to assign grades and

measure achievement against predefined standards.

This assessment is usually formal and structured,

often high stakes, affecting students' grades or

progression. It also provides a way to compare

student performance across different educational

settings. More familiar examples of this kind of

assessment are final exams that cover the content

taught throughout the course, term papers or research

projects that require students to demonstrate their

understanding and synthesis of the material, and

standardized tests that measure student performance

against national or state benchmarks (Gallardo,

2021).

Each assessment type plays a crucial role in the

educational process, providing valuable information

that can help improve teaching strategies and enhance

student learning outcomes (Wiliam, 2000).

2.3 AI Technology in Education

According to McCarthy (2010), Artificial

Intelligence (AI) “is a science in which intelligent

programs are produced that can be used to understand

human intelligence.” At the same time, artificial

intelligence is inferior to human intelligence, as it

only performs calculations; still, it is superior,

considering these calculations are made at high speed

and with large numbers (Cope et al., 2021). To make

sense of AI calculations, Cope et al. (2021) point out

four transpositions between number and meaning to

determine what is possible to achieve with the

application of Artificial Intelligence (AI) technology

in education: Naming, Calculability, Measurability,

and Representability. AI for Naming is usually

related to the ontology of classifying data (Novak,

2010). AI to Calculate is determined by the algorithm

used, identifying what can be calculated, whether it is

possible to use a large amount of data, or whether

human intervention is required (Gulson and Sellar,

2022). Measurability defines how data will be

collected, for example, through short answers,

questionnaires, and essays, or still with automated

technology such as data sensors, motion detectors,

keystroke counters, clickstream records, engagement

log files, virtual and augmented reality pathways, or

QR code scans (Montebello, 2019). Finally, the

transposition of representativeness is defined as the

evidence of meaning materialized in text, image, and

sound, which is how the result of a model is

represented to users (Zhang et al., 2020).

Most definitions of artificial intelligence are

focused on its methods, assuming that the evolution

of these calculation methods can make AI results

more human-like. The best-known methods are

machine learning, deep learning in neural networks,

and quantum computing. According to (Cope et al.,

2021), these methods cannot exceed the limits of the

four mentioned transpositions, considering that AI

involves more than these methods.

Machine Learning uses statistical methods to

make predictions based on observed patterns. When

an image or text is tagged or classified using labels

applied by human “trainers,” this method is said to be

Supervised. In unsupervised machine learning, the

computer identifies statistical patterns, and human

trainers are asked to label the text or images where

these patterns occur (Zhai & Massung, 2016: 34–6).

Deep Learning and Neural Networks are

multilayer statistical sequences identifying patterns in

patterns (Krizhevsky, Sutskever, & Hinton, 2012;

Rumelhart, Hinton, & Williams, 1986). To function,

they require large amounts of data and computational

processing. Multiple layers of network analysis

produce less intuitively explainable results than the

single-layer patterns of first-order machine learning.

Quantum computing still holds promise, applying

ideas from quantum mechanics to computation and

replacing bits of 0 and 1 with qubits, determinable as

Opportunities and Challenges of AI to Support Student Assessment in Computing Education: A Systematic Literature Review

probabilities rather than defined numbers (Feynman,

1982; Harrow, 2015).

It is important to emphasize that Artificial

Intelligence will never be the same as human

intelligence. AI cannot replace teachers but support

them through new educational models, using its full

potential to help them (Cope et al., 2021).

2.4 Related Works

The authors of the current study are part of a research

group focused on innovative experiences in

computing education called NEXT (innovative

educational experiences in technology). To

investigate the use of innovative strategies aimed

specifically at student assessment, the group initially

carried out a systematic review with a focus on

student assessment models in the active learning

contexts and, after that, the group carried out an ad

hoc investigation for works that involved AI (due to

its growing impact on society) and student

assessment, motivated for the interest of a group

member concluding his undergraduate course in

computing engineering. From this initial research

step, four related works were analysed.

In (Lopes & Santos, 2021), the authors presented

a Systematic Literature Review on student

assessment models in the context of problem-based

learning (PBL). Of the 47 studies selected, the authors

identified that most studies use a conventional

assessment model, focusing on learning technical

content. In PBL, the authors observed that, in addition

to better absorbing technical knowledge, students

could develop soft skills, explore creativity, optimize

interpersonal relationships in group work, explore the

active resolution of practical problems, and leave the

conventional learning environment. However, the

study found few assessment models prepared for this

range of skills and provided no evidence of using AI

to support these models.

The study in González-Calatayud et al. (2021)

analyses the use of AI for student assessment using

the RSL method in the Scopus and Web of Science

databases. Of the 454 articles initially found, 22

studies are selected with a focus on identifying the

educational and technological impacts of the use of

AI and the type of assessment enhanced by AI in any

educational context. The authors conclude that AI has

many possibilities, mainly in tutoring, assessment,

and personalization of education. Still, they also point

out several challenges, such as the need to humanize

technology, which involves the preparation of IT

professionals, students, and teachers for future

education transformation. The current study focuses

on identifying the technological applicability of AI to

support student assessment models in computing

education. Therefore, it addresses a different

perspective from the study in (González-Calatayud et

al., 2021), which focuses on the educational impact of

the application of AI.

The study (Loras et al., 2021) presents a

Systematic Literature Review to determine what is

known about the study behaviours of computing

students and the role that educational projects play in

their training. After applying all criteria, 107 studies

were selected. The authors identified a common

tendency for students to focus only on a specific

subject, with introductory programming courses

predominating. This study did not consider the use of

technology to support student assessment.

The systematic mapping study in (Ouyang et al.,

2022) examines the functions of AI, technologies

used, and overall effects in 32 articles published

between 2011 and 2020 focusing on online higher

education. The results show the functions of AI,

emphasizing predicting the state of learning,

performance or satisfaction, resource

recommendation, automatic assessment, and

improvement of the learning experience. The study

also identifies that traditional AI technologies are

usually adopted (decision trees, neural networks,

machine learning), while more advanced techniques

(e.g., genetic algorithm, deep learning) are rarely

used. The effects generated by AI applications

highlight the quality of prediction and

recommendations and improvement in students'

academic performance and their online engagement.

3 RESEARCH METHOD

According to Kitchenham and Charters (2007), a

Systematic Literature Review (SLR) is a method

designed to identify, evaluate, and interpret all

available research relevant to a particular research

question, area, topic, or phenomenon of interest. This

study used the SLR method in three phases to conduct

this SRL: Planning, Conducting, and Reporting the

review.

In the first phase, some activities were realized to

have a better understanding of the problem, such as

its context (computing education challenges),

motivation (AI technology in education), and

research concerning student assessments (related

work), as discussed in Section 2. Returning to the

central research question of the current study "How

can AI support student assessment in computing

education?", we defined two secondary questions to

CSEDU 2024 - 16th International Conference on Computer Supported Education

guide the search and selection processes of primary

studies:

 RQ1) What are the opportunities for using AI

in assessing students in computing, considering

these contexts (type of use and impact)?

 RQ2) What are the main challenges of using

AI from the selected contexts?

To answer these research questions, a generic

search string was used, including search terms

concerning AI technologies, student assessment, and

practical characteristics of the studies, as shown in

Table 1.

Table 1: Search string.

Generic String

(“AI” OR “Artificial intelligence” OR “machine

learning” OR “data mining”) AND (“student

assessment” OR “student evaluation”) AND

(

“ex

erience” OR “case stud

” OR “ex

eriment”

)

The search string was tested using an iterative

approach and refined with the help of two

researchers: one graduating student in computing

engineering, a researcher in AI, and one DSc., a

researcher in computing education.

With this string, the collection process was carried

out by extracting primary studies from four highly

relevant research bases with a high impact factor and

a wide variety of studies in computing education:

IEEE Transaction on Education (ToE), ACM

Transactions on Computing Education (ToCE),

Wiley Computer Applications in Engineering

Education (CAEE), and Education Resources

Information Centre (ERIC).

The search process was only automated through

the respective base engine, restricted to the range of

papers published from 2012 to 2022 (closed to new

publications). It is important to emphasize that,

despite the study focusing on computing education,

this term can vary enormously in the experience

reports on the subject, indicating, for example,

disciplines, specific courses, and environments. For

this reason, we chose not to include terms related to

this domain, leaving this aspect as one of the selection

criteria.

To conduct this RSL, a three-step procedure was

carried out to select the articles that could answer the

research questions. First, articles from 2012 to 2022

were selected according to the research planning,

resulting in 90 articles. At this stage, 20 studies were

discarded for being outside this period, resulting 70

studies. Second, by reading the titles and abstracts,

most of these articles were discarded based on

exclusion criteria, resulting 30 studies. We defined

the following exclusion criteria: i) Lack of alignment

with the research theme; ii) Secondary studies

(another RSL or MS); iii) Articles with paid content;

iv) Duplicate or similar articles; v) Articles

unavailable for download or viewing; vi) Articles

with less than four pages; vii) Articles present in

book; viii) Articles not included in conference

proceedings. It is important to note that, due to the

nature of the research databases, all articles are

written in English. At the end of the selection

procedure, the following quality criteria were applied:

i) Well-defined methodology; ii) Proposal well

presented; iii) Practical application; iv) Commented

research limitations and threats; v) Completeness and

Clarity of content. Each quality criterion received an

evaluation, following the value scale: 0 (no attend),

0.5 (partially), and 1 (attend). The studies with a score

lower than 3 were excluded from the research,

resulting 20 qualified primary studies, as shown in

Appendix A. The PRISMA flow chart of study

selection process is shown in Fig. 1.

Figure 1: PRISMA flow chart of study selection process.

Fig. 2 shows results considering each research

source at the end of the selection process.

Figure 2: Articles by research source.

10%

20%

70%

ARTICLES PER RESEARCH SOURCE

ToE To C E CAEE ER I C

Opportunities and Challenges of AI to Support Student Assessment in Computing Education: A Systematic Literature Review

It is possible to see that the most significant

number of publications occurred in 2019 and 2020,

according to Fig. 3.

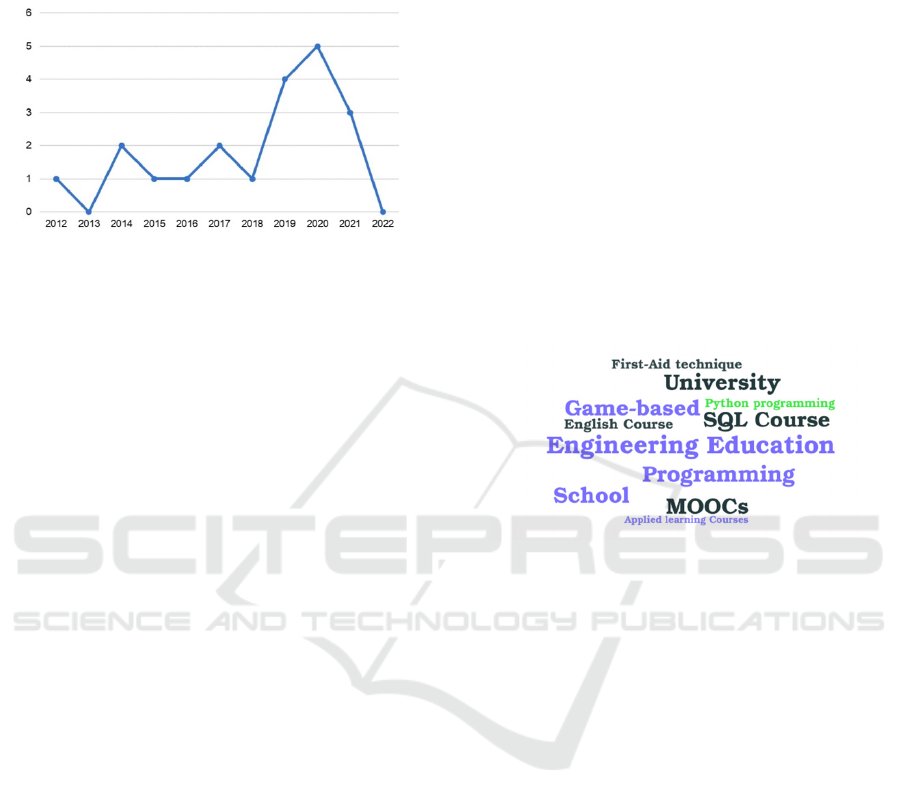

Figure 3: Number of studies on timeline.

This result signals an increase in studies that used

AI in education in recent years of research, showing

the growing importance of the topic for education.

Notably, in the years 2021 and 2022, the number of

articles continued to grow. However, some studies

from these years were excluded because they focused

on assessing the impact of remote teaching during the

COVID-19 pandemic. The complete list of selected

studies and the details of the selection process are

available at http://bit.ly/3HjtiFX.

Some limitations are mainly related to the study

selection process, which is usually challenging in

systematic literature surveys. To mitigate this threat,

highly representative research bases in computing

education were used in addition to defining quality

criteria and applying quality goals based on these

criteria. It is also important to emphasize the practical

approach of the studies, considered from the

definition of the search string, selecting studies that

presented proposals and their results in real

experiences.

An inherent limitation of RSLs with a qualitative

characteristic is the possibility of misinterpretations

in selecting and analysing studies related to the

research questions. To mitigate the impacts of this

characteristic, this study used the strategy advocated

by Kitchenham and Charters (2007) of involving

more than one person responsible for selecting the

studies and a reviewer specialized in the research

topic, seeking to guarantee the quality of the analysis.

4 RESULTS

Analysing selected studies, most of them are related

to undergraduate students, 47.6% of the total.

Meanwhile, schools and graduate courses add up to

19% and 9.5%, respectively. Some studies did not

specify the academic level, equivalent to 23.8%,

concerning online courses or virtual learning

environments that did not identify the study area,

making the objective broader. It is important to note

that the total number of studies shown in the graph is

greater than the number of selected studies because

PS06 is related to undergraduate and graduate studies.

The teaching modality of the studies was

classified into three categories: face-to-face, virtual,

and hybrid. First, the face-to-face teaching modality

consisted of most studies, accounting for 65% of the

total and formed mainly by university students. Next,

with 25%, comes the modality of virtual teaching

environments, which can be found in websites, online

games, or online courses. The hybrid modality was

the one that least represented the selected studies.

Finally, diverse key words were identified in the

studies, as shown the word cloud in Fig. 4.

Figure 4: Context of the studies in key words.

From a word cloud, it is possible to observe that

most of the studies were inserted in the context of

engineering education. Another popular teaching

method was using serious games due to the ease of

obtaining student data while interacting with the

system, programming practices, programming

languages (such as SQL), and Massive Open Online

Courses (MOOCs). Many of the studies reported only

that they were using data from students at a university

and, therefore, were classified more generally as

“University.”

Considering the four transpositions in (Cope et al.,

2021) no evidence was found about ontologies

(namability) in the selected studies. According to

Cope et al. (2021), pedagogical and domain

ontologies allow AI to track student progress and

provide feedback at the right time. However, current

digital learning environments, even e-learning

environments, are not adequately prepared to exploit

the naming capabilities of AI. Students' knowledge

and learning are still, for the most part, restricted to

traditional methods based on summative content tests.

In best-case scenarios, educational data mining can

provide trend analysis based on massive data

collected by the learning platform, which is still not

CSEDU 2024 - 16th International Conference on Computer Supported Education

yet adapted to provide evidence of learning from

learner behaviour in the learning environment, such

as keystrokes and click streams.

Considering calculability transposition, it was

possible to verify the use of fuzzy logic, algorithms

such as K Nearest Neighbour (KNN), Bayesian

Networks, and prediction models such as

Personalized linear multi-regression (PLMR). Fuzzy

logic was frequently cited, having been used by

studies PS01, PS04, PS16, and PS17. The studies

PS02, PS08, PS10, and PS20 used the KNN

algorithm, one of the many supervised learning

algorithms used in data mining and machine learning.

About measurability, most of the data used came

from the interaction of students with educational

games. One example is the PS09 study, which,

through logs of students' gameplay in the game

Raging Skies, evaluated their knowledge in real-time

to change the game's difficulty according to each

student's performance. Another form of the

measurability transposition was related to online

courses, as highlighted in PS15, which used these

data to create a model for predicting student

performance.

Two main types of representability became

evident. First, the system returns the student's

evaluation, as reported in PS10, which predicts the

student's performance at the end of the semester. The

other type cited in PS04 uses the student's assessment

to provide personalized instruction and indicate the

materials they can study.

Regarding research questions, 90% of studies

indicated the opportunity to use AI in student

assessment, describing how this technology was

applied in this context. Only 65% of studies explicitly

mentioned any challenges related to the use of AI, not

always with a technological focus but considering

human and procedural factors as well. It is worth

highlighting that all studies had an applied view on

the topic under discussion.

5 DISCUSSIONS

As opportunities for using AI in the assessment of

computing students, five categories were identified

based on the thematic analysis applied to the studies

by the researchers, described in Section 5.1. These

opportunities are directly related to impacts on the

learning process, discussed at the end of this section.

From the perspective of challenges, we found little

evidence about them, discussed in Section 2.2.

5.1 RQ1. What Are the Opportunities

for Using Ai in Assessing Students

in Computing?

Assessment of Skills. Different approaches in this

category were identified, in general, focused on the

type of diagnostic evaluation to understand the

student's profile as a learner or professional. The

PS01 study, through fuzzy modelling and using data

from students' activities, teachers' opinions, and

interaction histories, classified the types of students'

learning into four categories: (i) Active or Reflective;

(ii) Sensory or Intuitive; (iii) Visual or Verbal; (iv)

Sequential or Global. By surveying these categories,

it is possible to understand the student's learning

profile better and act in a personalized way.

The purpose of PS02 was to evaluate students

according to their level of employability, classifying

them into most likely employable, likely employable,

and less likely employable. For this, it used the KNN

algorithm, academic data, and skills needed in a job,

such as communication skills.

Using the K-Means classification algorithm and

educational data from a virtual English classroom as

a dataset, PS05 identified and classified students into

different groups according to their knowledge, using

AI to diagnose students' performance levels per

group.

Another example of AI being used to analyse

students' learning profiles, PS06 used data from

students' eye movements measured while they

attended a class. From these data, it was possible to

create a model with the Naïve Bayes algorithm, where

it is possible to automatically classify the type of

student learning with 71% accuracy. In addition, it

was also possible to assess the student's concentration

levels.

PS09 focused on formative assessment,

considering student interactions with the educational

game Raging Skies. The student's mastery level is

updated in real-time with Bayesian Knowledge

Tracing and Dynamic Bayesian Network algorithms.

Another example of a diagnostic evaluation, PS13

formulated a model using the DP-means algorithm

based on data from a pre-test on the DeepTutor ITS

platform to group students according to their learning

level, classifying them into high, medium, and low.

Assessment of Tasks. This category concerns the

studies that automatically evaluate students' tasks and

projects; therefore, obtaining a correct and fair

evaluation of student performance is particularly

challenging. PS17 developed a model using the Fuzzy

Opportunities and Challenges of AI to Support Student Assessment in Computing Education: A Systematic Literature Review

AHP algorithm to evaluate and interpret students'

projects. This case was assessed based on criteria

determined by respective experts, where each one

received a weight depending on the quality of the

work.

PS08, on the other hand, used data mining

techniques to analyse the evaluations made on the

work of 672 students from 40 different courses, using

Random Forest, KNN, and Support Vector Machines

algorithms for the analysis. A grade was attributed to

each evaluation, making it possible to identify

possible correction errors, and repetitive exercises

with short answers in-creased long-term memory on

the studied subject, although requiring considerable

teacher effort.

PS18 created a system that automatically

generates this type of question automatically from the

teaching material using the algorithms of BERT,

CoreNLP, and natural language processing

techniques.

PS20 used deep learning techniques to evaluate

students' work without using labels in the data (not

supervised), aiming for an accurate automated

feedback system and with near-expert quality

assessments.

Assessment of Knowledge. Focusing on the

continuous diagnostic evaluation, the study PS04

proposes assessing the students' current knowledge to

personalize the teaching. The study presents

eLGuide, an ITS that can be used in any e-learning

environment. It uses the student's interaction with the

system so that, with Fuzzy Modelling, it can

understand the student's current knowledge and

provide feedback that will help them complete the

course satisfactorily.

Prediction of Performance. Focusing on the type of

diagnostic evaluation, predicting how the

performance of students should be at the end of the

term or academic year while the course is beginning,

can be very important since, when identifying a

student with a high risk of failure, it is possible to take

measures to prevent this from happening. PS03

proposed a methodology that classified students'

behaviour according to their daily or occasional

activities. For this, it used information obtained

through RFID tags present in the students and the

Bayesian Belief Network algorithm to predict the

students' final performance. PS10 showed that it is

possible to predict student performance even with

limited data. In this case, academic data such as

attendance, access to the virtual learning

environment, and the grades of 23 students in the

same class were used. Using the KNN algorithm, they

showed that it was possible to predict student

performance satisfactorily. PS07 and PS11 proposed

the analysis of the student's interaction with games to

create models to predict the students' final knowledge

level, for example, using Naïve Bayes algorithms and

support vector machines (PS07). PS12 created a

model using decision trees and K-means clustering

algorithms to estimate the students' results and

satisfaction with the course. Evaluation records,

demographic data, and satisfaction surveys were used

to calibrate the model. The PS14 created an

evaluation model to monitor the learning level during

the course based on Natural language processing

technologies, such as Word2Vec. PS15 and PS16

used Moodle (a learning management system) to

obtain information about students and used models to

predict student performance in online courses. PS15

used a personalized regression model, while PS16

used the FRBCS-CHI algorithm (Fuzzy Rule-Based

Classification System using Chi's technique) to

predict student performance in the first quarter.

Assessment of Questions in Content Tests.

Concerned about the quality of assessment questions,

PS19 proposed a system, LosMonitor, to help

teachers analyse and monitor the cognitive level of

questions. For this, the support vector machine

algorithm was used in a dataset with 1630 questions

together with the syllabus of 122 courses. The tool

classifies questions according to Bloom's Taxonomy

and notifies the professor when a question is not

aligned with the course objectives. In addition, it

presents graphs and statistics to monitor the quality

and cognitive level of the questions.

According to the studies analysed, evidence was

found that opportunities to use AI have good impacts

on the learning process, especially concerning

personalizing education, improving student

performance, and increasing the quality of the

assessment process.

Personalized teaching can make a difference in

student performance, providing an environment

dedicated to their needs. By evaluating and

classifying students' learning profiles, studies PS01

and PS06 were able to generate an educational

environment that met the specific needs of each

student. PS05 successfully achieved the same

objective by grouping students with similar

knowledge. In addition to having demonstrated that it

is possible to obtain the student's level of expertise in

real-time during gameplay, PS09 also showed that its

models provide insights into the possible learning

CSEDU 2024 - 16th International Conference on Computer Supported Education

trajectories of students. Identifying students at risk of

failing was the concern of studies PS10 and PS16.

They successfully predicted students' final

performance, enabling teachers to guide struggling

students better.

The personalization of navigation in virtual

education environments brought by PS04 with

eLGuide provided better results in students' general

learning than those who did not participate in the

experiment. The continuous evaluation reported by

PS14 obtained highly reliable results. The monitoring

carried out by the tool made it possible for constant

feedback to be sent to the students to help them

maintain higher levels of motivation and better

understand their current level of knowledge. PS02

showed that it was possible to increase students'

employability during graduation. Its prediction of the

probability of a student's admission to a job proved

helpful, as this information makes it possible for

teaching centres to start improvement courses through

e-learning. PS03 achieved its objective with similar

success by allowing specialists to take preventive

actions when identifying students with difficulties.

Several studies have shown that it was possible to

carry out an automated assessment with Artificial

Intelligence and, even so, maintain a quality equal to

or better than a traditional one in a more

straightforward way and reduce the teachers'

workload spent on this type of activity. Despite using

different assessment models, PS07 made it possible

for teachers to know the student's knowledge

precisely on a given subject from the interactions in

the game and, therefore, eliminated the need for

additional tests, facilitating the application of

educational games in teaching. PS19, on the other

hand, showed that the information in LosMonitor

helped professors create questions of higher quality

and more aligned with the course syllabus. PS08

showed that it was possible to successfully identify

poorly classified evaluations, making it possible to

analyse, for example, which departments have the

highest number of errors. PS11 showed that using a

hybrid evaluation model (single-task and multi-task

models), satisfactory results can be achieved in

predicting students' competencies, surpassing the

individual models. PS12 showed that analysing

different sources of information results in a much

richer and more profound assessment of student

performance, something that teachers could not

quickly achieve through exercises. PS15 reported

improved performance in assessing the quality of

students' assignments in real-time, considering the

students' previous work and information such as

engagement and use of study materials. In PS17,

using Fuzzy AHP efficiently modelled the

ambiguities of human thinking and provided fair and

objective evaluations. PS20 showed a system that

predicted students' decisions in a Python course while

performing a task, allowing feedback whenever

necessary and making the assessment more

straightforward, faster, and more consistent.

5.2 What Are the Main Challenges of

Using AI from the Selected

Contexts?

Few studies commented on research challenges,

threats, and limitations concerning RQ2. Among

pieces of evidence, we classified the challenges into

three groups according to following systemic

perspectives:

People:

 The lack of participation of some students in

opinion polls (PS12).

 Experiences carried out with small classes

(PS05).

 Teachers did not always produce quality

material, influencing the results (PS08).

 Data samples from students belonging to the

same school, which may have biased the result

(P05).

Processes:

 Data preparation is a process that requires time,

effort, and specialized people (PS16).

 For the result of a model to have greater

generalization capacity, it should have a more

significant amount of data, which was not

always available (PS13, PS15).

 Decide fairly and assess students' performances

without making any errors in the assessment

and evaluation process (PS17).

 The complexity of the natural language made

the evaluation difficult (PS08).

 The results of the evaluation model were not

satisfactory for a small data set (PS13, PS15).

 Challenges on the measurement models used to

calibrate student proficiency levels (PS09).

Technology:

 Limited use of network bandwidth (PS02).

 Instability in the results of some algorithms

(PS11).

 Difficulty in calibrating algorithm learning

(PS09).

 Data cleaning had to be done manually (PS08).

 Database with erroneously classified entries, or

even non-existent (PS12, PS16).

Opportunities and Challenges of AI to Support Student Assessment in Computing Education: A Systematic Literature Review

 Little data available, which made it impossible

to use specific algorithms (PS13, PS15).

 The accuracy of the model used was not

satisfactory (PS14).

 Insufficient resources to run the algorithm on

larger datasets; Insufficient chosen taxonomy

to give full feedback (PS19).

6 CONCLUSIONS

Most of the studies analysed in this research focused

on evaluating undergraduate students due to the

greater complexity of activities, exercises, and

practices. Using AI to support student assessments,

teachers can have more information about students

and, with a smaller correction load, can dedicate

themselves to the teaching and learning process,

making interventions. In general, Artificial

Intelligence successfully supports assessment

processes and maintains results equal to or superior to

traditional assessments in several aspects.

Consequently, the number of works related to AI in

student assessment increases yearly, showing the

subject's growing importance in the academic field.

Considering how AI is applied, the algorithm most

used by the studies was the Fuzzy model, mainly due

to its characteristic of explaining uncertainty. It is

important to emphasize that intelligent tools do not

replace the role of teachers, so they are being used to

support them, improving the quality of the teaching-

learning process. The most highlighted challenges in

the studies are the technology category, related to AI

processes, and problems related to the data sample.

Due to missing or misclassified data, many studies

spend much more time than expected processing the

data, sometimes even manually, impacting the

breadth and agility of obtaining results.

As future works, this research intends to

investigate the assessment models in detail,

associating them with specific objectives beyond

better understanding the founded challenges to

provide guidelines that minimize them.

REFERENCES

Bennett, R. E. (2011). Formative assessment: A critical

review. Assessment in education: principles, policy &

practice, 18(1), 5-25.

Broisin, J.; Venant, R.; Vidal, P. (2017). Lab4CE: a remote

laboratory for computer education. In: International

Journal of Artificial Intelligence in Education (IJAIE),

27(1), 154-180.

Computer Science Curricula 2020, (2020).

http://www.acm.org, last accessed 2022/13/01

Cope, B.; Kalantzis, M.; Searsmith, D. (2021). Artificial

intelligence for education: Knowledge and its

assessment in AI-enabled learning ecologies. In:

Educational Philosophy and Theory, 53(12), 1229-

1245.

Creasy, R. (2018). The Taming of Education. doi:

10.1007/978-3-319-62247-7_6

Feynman, R. P. (1982). Simulating physics with computers.

International Journal of Theoretical Physics, 21(6–7),

467–488. doi:10.1007/BF02650179

Gallardo, K. (2021). The importance of assessment literacy:

Formative and summative assessment instruments and

techniques. Workgroups eAssessment: Planning,

Implementing and Analysing Frameworks, 3-25.

Gorin, J. S. (2007). Test construction and diagnostic testing.

Cognitive diagnostic assessment for education: Theory

and applications, 173-201.

Gulson, K. N., Sellar, S., & Webb, P. T. (2022). Algorithms

of Education: How datafication and artificial

intelligence shape policy. U of Minnesota Press.

Harlen, W., & James, M. (1997). Assessment and learning:

differences and relationships between formative and

summative assessment. Assessment in education:

Principles, policy & practice, 4(3), 365-379.

Harrow, A. W. (2015). Why now is the right time to study

quantum computing. arXiv:1501.00011v1 [quant-ph].

Hoed, R. M. Dropout analysis in higher education courses

(Análise da evasão em cursos superiors). In:

Dissertation (master's dissertation), 188 (2016).

Huff, K., & Goodman, D. P. (2007). The demand for

cognitive diagnostic assessment. Cognitive diagnostic

assessment for education: Theory and applications, 19-

60.

Huhta, A. (2008). Diagnostic and formative assessment.

The handbook of educational linguistics, 469-482.

Hull, A.; Du Boulay, B. Motivational and metacognitive

feedback in SQL- Tutor. Computer Science Education,

25(2), 238-256 (2015).

Kemp, S., & Scaife, J. (2012). Misunderstood and

neglected? Diagnostic and formative assessment

practices of lecturers. Journal of Education for

Teaching, 38(2), 181-192.

Kitchenham, B.; Charters, S. Guidelines for performing

systematic literature reviews in software engineering

(2007).

Krizhevsky, A., Sutskever, I., & Hinton, G. E. (2012).

ImageNet classification with deep convolutional neural

networks. In F. Pereira, C. J. C. Burges, L. Bottou & K.

Q. Weinberger (Eds.) Neural Information Processing

Systems 2012 (pp. 1097–1105).

Loras, M., Sindre, G., TrÆtteberg, H., Aalberg, T. Study

behavior in computing education - A systematic

literature review. In: ACM TOCE, 22(1), 1-40 (2021).

Lopes, G. B., & dos Santos, S. C. (2021, October). Student

Assessment in PBL-Based Teaching Computing:

Proposals and Results. In 2021 IEEE Frontiers in

Education Conference (FIE) (pp. 1-9). IEEE.

CSEDU 2024 - 16th International Conference on Computer Supported Education

Maia, D., & dos Santos, S. C. (2022, October). Monitoring

Students’ Professional Competencies in PBL: A

Proposal Founded on Constructive Alignment and

Supported by AI Technologies. In 2022 IEEE Frontiers

in Education Conference (FIE) (pp. 1-8). IEEE.

Malik, A., Wu, M., Vsavada, V., Song, J., Coots, M.,

Mitchell, J., Goodman, N.; Piech, C. Generative

Grading: Near Human-level Accuracy for Automated

Feedback on Richly Structured Problems. In: preprint

arXiv:1905.09916 (2019).

Mazza, R.; Milani, C. Exploring usage analysis in learning

systems: Gaining insights from visualisations. In:

AIED’05 workshop on Usage analysis in learning

systems. 65-72 (2005).

Mccarthy, J. What is artificial intelligence? Machine

Learning Services on AWS (2007).

Montebello, M. (2019). The ambient intelligent classroom:

Beyond the indispensable educator. Dortmund NL:

Springer.

Mostafavi, B.; Barnes, T. Evolution of an intelligent

deductive logic tutor using data-driven elements. In:

International Journal of Artificial Intelligence in

Education, 27(1), 5-36 (2017).

Novak, J. D. (2010). Learning, creating and using

knowledge: Concept maps as facilitative tools in

schools and corporations. New York: Routledge.

Ouyang, F., Zheng, L., & Jiao, P. (2022). Artificial

intelligence in online higher education: A systematic

review of empirical research from 2011 to 2020.

Education and Information Technologies, 27(6), 7893-

7925.

Quaye, S. J.; Harper, S. R.; Pendakur. Student engagement

in higher education: Theoretical perspectives and

practical approaches for diverse populations. In:

Routledge (2019).

Rivers, K.; Koedinger, K. R. Data-driven hint generation in

vast solution spaces: a self-improving python

programming tutor. In: IJAIE 27(1), 37-64 (2017).

Rumelhart, D. E., Hinton, G. E., & Williams, R. J. (1986).

Learning representations by back-propagating errors.

Nature, 323(6088), 533–536. doi:10.1038/323533a0

Salem, A. B. M. Intellectual e-learning systems. In:

International Conference on Virtual and Augmented

Reality in Education, 16-23 (2011).

Víctor González-Calatayud, V., Prendes-Espinosa,

P.,Roig-Vila, R. Artificial Intelligence for Student

Assessment: A Systematic Review. In: Appl. Sci.,

11(12), 5467 (2021).

Vihavainen, A., Paksula, M., Luukkainen, M. Extreme

apprenticeship method in teaching programming for

beginners. In: ACM Computer science education, 93-

98 (2011).

Yadav, A.; Gretter, S.; Hambrush, S.; Sands, P. Expanding

computer science education in schools: understanding

teacher experiences and challenges. Computer Science

Education, 26(4), 235-254 (2016).

Wiliam, D. (2000, November). Integrating formative and

summative functions of assessment. In Working group

(Vol. 10).

Zafar, A.; Albidewi, I. Evaluation study of eLGuide: A

framework for adaptive e‐learning. CAEE, 23(4), 542-

555 (2015).

Zhai, C., & Massung, S. (2016). Text data management and

analysis: A practical introduction to information

retrieval and text mining. Williston, VT: ACM and

Morgan & Claypool.

Zhang, C., Yang, Z., He, X., & Deng, L. (2020).

Multimodal intelligence: Representation learning,

information fusion, and applications. IEEE Journal of

Selected Topics in Signal Processing, 14(3), 478-493.

APPENDIX A

Table 1: Selected studies.

ID Authors Title Year

PS01

Li, N.; Chen,

X.; Subramani,

S.; Kadry, S.N.

Improved fuzzy‐

assisted multimedia‐

assistive technology for

engineering education

2020

PS02

Sood, S. K.;

Singh, K. D.

Optical fog‐assisted

smart learning

framework to enhance

students’ employability

in engineering

education

2019

PS03

Verma, P.;

Sood, S. K.;

Kalra, S.

Smart computing based

student performance

evaluation framework

for engineering

education

2017

PS04

Zafar, A.;

Albidewi, I.

Evaluation Study of

eLGuide: A Framework

for Adaptive e-Learning

2015

PS05

De Morais, A.

M.; Araújo, J.

M. F. R.; Costa,

E. B.

Monitoring Student

Performance Using

Data Clustering and

Predictive Modelling

2014

PS06

Pritalia, G. L.;

Wibirama, S.;

Adji, T. B.;

Kusrohmaniah,

Classification of

Learning Styles in

Multimedia Learning

Using Eye-Tracking

and Machine Learning

2020

PS07

Alonso-

Fernández, C.;

Martínez-Ortiz,

I.; Caballero,

R.; Freire, M.;

Fernández-

Manjón, B.

Predicting students'

knowledge after playing

a serious game based on

learning analytics data:

A case study

2019

Opportunities and Challenges of AI to Support Student Assessment in Computing Education: A Systematic Literature Review

Table 1: Selected studies (cont).

ID Authors Title Year

PS08

Cook, J.; Chen,

C.; Reid-

Griffin, A.

Using Text Mining and

Data Mining

Techniques for Applied

Learning Assessment

2019

PS09

Cui, Y.; Chu,

M. W.; Chen,

Analyzing Student

Process Data in Game-

Based Assessments

with Bayesian

Knowledge Tracing and

Dynamic Bayesian

Networks

2019

PS10

Wakelam, E.;

Jefferies, A.;

Davey, N.; Sun,

The potential for

student performance

prediction in small

cohorts with minimal

available attributes

2020

PS11

Henderson, N.;

Kumaran, V.;

Min, W.; Mott,

B.; Wu, Z.;

Boulden, D.;

Lord, T.; Frieda

Reichsman, F.;

Dorsey, C.;

Wiebe, E.;

James Lester, J.

Enhancing Student

Competency Models for

Game-Based Learning

with a Hybrid Stealth

Assessment Framework

2020

PS12

Hung, J. L.;

Hsu, Y. C.;

Rice, K.

Smart computing based

student performance

evaluation framework

for engineering

education

2012

PS13

Khayi, N. A.;

Rus, V.

Clustering Students

Based on Their Prior

Knowledge

2019

PS14

Luo, J.; Sorour,

S. E.; Goda, K.;

Mine, T.

Predicting Student

Grade based on

Freestyle Comments

using Word2Vec and

ANN by Considering

Prediction Results

Obtained in

Consecutive Lessons

2015

PS15

Ren, Z.;

Rangwala, H.;

Johri, A.

Predicting Performance

on MOOC Assessments

using Multi-Regression

Models

2016

ID Authors Title Year

PS16

Zhao, Q.;

Wang, J. L.;

Pao, T. L.;

Wang, L. Y.

Modified Fuzzy

RuleBased

Classification System

for Early Warning of

Student Learning

2020

PS17

Çebi, A.; Karal,

An application of fuzzy

analytic hierarchy

process (FAHP) for

evaluating students'

project

2017

PS18

Lu, O. H. T.;

Huang, A. Y.

Q.; Tsai, D. C.

L.; Yang, S. J.

Expert-Authored and

Machine-Generated

Short-Answer

Questions for

2021

PS19 Allamary, A. S.

LOsMonitor: A

Machine Learning Tool

for Analyzing and

Monitoring Cognitive

Levels of Assessment

Questions

2021

PS20

Malik, A.; Wu,

M.; Vasavada,

V.; Song, J.;

Coots, M.;

Mitchell, J.;

Goodman, N.;

Piech, C.

Generative Grading:

Near Human-level

Accuracy for

Automated Feedback on

Richly Structured

Problems

2021

CSEDU 2024 - 16th International Conference on Computer Supported Education
