MfCodeGenerator: A Code Generation Tool for NoSQL Data Access

with ONM Support

Evandro Miguel Kuszera

1 a

, Leticia Mara Peres

2 b

and Marcos Didonet Del Fabro

3 c

Federal University of Technology, Paran

a, Dois Vizinhos, Brazil

Federal University of Paran

a, Curitiba, Brazil

Universit

e Paris-Saclay, CEA, List, Palaiseau, France

Keywords:

Object-NoSQL Mapper, NoSQL, Code Generation.

Abstract:

NoSQL databases are generally employed in scenarios that require horizontal scalability and ﬂexibility in data

schema. Applications can access the NoSQL database through native APIs or through ONMs (Object-NoSQL

Mappers). The latter provides a uniform data access interface, decoupling the application from the database

and reducing vendor lock-in. However, ONM code creation should be performed by developers and can be

cumbersome and error prone. In this paper we propose an approach to generate ONM code based on a NoSQL

schema that describes the structure of the entities and their relationships. From the NoSQL schema, our

tool is used to generate code for three widely used Java-based ONMs. To evaluate the approach we perform

experiments to read and write data to and from an existing MongoDB database using the generated code.

Through the results obtained, it was possible to verify that the tool is capable of generating code according to

the NoSQL schema and the requirements of the target ONM. This not only streamlines developer access to

NoSQL data but also facilitates comparative evaluations of different ONMs utilizing the same schema.

1 INTRODUCTION

Relational databases (RDB) are the de facto standard

for storing data in most existing applications. How-

ever, the relational model based on tables with rows

and columns, primary and foreign keys, has its lim-

itations when there is a need to scale the application

horizontally (Stonebraker et al., 2007). In addition,

there is also the issue of the need to deﬁne a schema

before storing the data, which impacts its use in appli-

cations that handle semi-structured data and require

ﬂexible data models.

NoSQL databases (Sadalage and Fowler, 2012)

emerged as a solutions for these problems, provid-

ing data model, architecture and query languages dif-

ferent from the relational model. From an applica-

tion standpoint, access to data in the NoSQL database

can be performed through native APIs or through

middlewares. In the context of relational databases

we have ORMs (Object-Relational Mapper) (O’Neil,

2008), that are middlewares which provide mech-

https://orcid.org/0000-0002-4040-0151

https://orcid.org/0000-0002-8922-6975

https://orcid.org/0000-0002-8573-6281

anisms to map objects from application to records

in the database and vice versa. Regarding NoSQL

databases we have ONMs (Object-NoSQL Mappers),

which map objects from application to the target

NoSQL data model.

ONMs are generally used in the development of

new applications, but there are scenarios in which the

database already exists or comes from a migration

from RDB to NoSQL. In all the cases it is necessary

create ONM software artifacts to manipulate the data.

This task should be performed by developers and can

be cumbersome and error prone, even more so if the

existing data is stored in a format other than that sup-

ported by ONM. One way to make the developer’s

work easier is to generate the ONM code automati-

cally.

There are different works that evaluate and com-

pare the ONMs in terms of features and the introduced

overhead to access the data against the native APIs

(St

orl et al., 2015; Reniers et al., 2017; Raﬁque et al.,

2018), but none of them deal with ONM code genera-

tion. In (Chill

on et al., 2019), a solution was proposed

to read the data from a NoSQL database and extract

its schema. Subsequently, the approach automatically

232

Kuszera, E., Peres, L. and Fabro, M.

MfCodeGenerator: A Code Generation Tool for NoSQL Data Access with ONM Support.

DOI: 10.5220/0012557800003690

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 26th International Conference on Enterprise Information Systems (ICEIS 2024) - Volume 1, pages 232-239

ISBN: 978-989-758-692-7; ISSN: 2184-4992

generates ONM code for Morphia

and Mongoose

. However, it does not address limitations of ONMs

concerning the extracted NoSQL schema, which may

have a hierarchical structure with depth not supported

by ONM, or have unsupported relationship types, or

even the format of the data stored in NoSQL may not

be supported by ONM.

In this paper we present the MfCodeGenerator, an

approach for automatic code generation for ONMs

aimed at document-oriented NoSQL databases. Mf-

CodeGenerator uses a NoSQL schema as input and

currently it generates code for three Java-based ONM,

namely Impetus Kundera

, Data Nucleus

and Spring

Data

, but the approach is platform independent and

can be extended to others ONMs and languages. Our

approach allows customizing and adding validations

in the code generation process, allowing to verify if

the NoSQL schema is supported by the ONM, warn-

ing the developer in case it cannot be deﬁned in the

ONM code.

To evaluate the MfCodeGenerator, we conducted

experiments to read and write data in MongoDB us-

ing the generated code. Based on the results obtained,

we veriﬁed that the tool is capable of generating code

according to the NoSQL schema and requirements of

the target ONM. This simpliﬁes the process for de-

velopers to access NoSQL data and also facilitates

the evaluation of different ONMs based on the same

schema. The main contributions of this paper are:

• Our approach automatically generate code from a

NoSQL schema, adding necessary annotations to

support the ONM;

• Developer can add customizations to MfCode-

Generator, to introduce annotations or speciﬁc

code into the generation process.

• The MfCodeGenerator validates the schema

against the target ONM and warns if certain types

of relationships are not supported. This allows

the developer to either adjust the input schema ac-

cordingly or be informed that modiﬁcations to the

generated code will be necessary.

The remainder of this paper is structured as fol-

lows. Section 2 provides the context and necessary

background of the proposed approach. Section 3

presents the MfCodeGenerator, our approach to au-

tomatically generated ONM code, describing its exe-

cution ﬂow and architecture. Section 4 presents the

https://github.com/MorphiaOrg/morphia

https://mongoosejs.com/

https://github.com/Impetus/Kundera

https://www.datanucleus.org/products/accessplatform/

https://spring.io/projects/spring-data

experiments to evaluate the approach. Section 5 dis-

cusses related work. Section 6 concludes the paper.

2 CONTEXT AND BACKGROUND

The approach proposed in this paper aims to au-

tomatically generate code to access data stored in

document-oriented NoSQL databases. As there are

different ways to model entities as collections of doc-

uments, it is interesting to have a way to deﬁne a

schema and generate the code to create, retrieve, up-

date and delete data from the NoSQL database, with

support for different middlewares in a simpliﬁed way.

The approach proposed in this paper can be applied in

different scenarios:

• Application Development: Developers provide a

data schema, and our approach generates code tai-

lored to the chosen ONM.

• ONM Evaluation: Our approach facilitates com-

paring different ONMs by generating custom code

for each from the same input schema.

• RDB to NoSQL Migration: We can generate a

NoSQL schema based on metadata from the re-

lational database, utilizing it to generates code to

read data from the RDB and write into MongoDB.

• Integration with Migration Tools: Through

adapters, our tool can utilize data schema from

other tools to generate code for accessing mi-

grated data.

In a previous study, we introduced a framework

for migrating data from RDB to NoSQL (Kuszera

et al., 2019). Our framework offers a schema that out-

lines the data structure in the NoSQL database. Sub-

sequently, this schema is employed to generate com-

mands for data migration. In this paper we extend our

schema and use it as input to generate ONM code to

access the NoSQL database. The following sections

present an overview of the schema and the Object-

NoSQL mappers supported by the approach.

2.1 NoSQL Schema

We use a set of DAGs (Directed Acyclic Graph) to

represent a NoSQL schema. Each DAG in the schema

represents a NoSQL entity and it has a tree struc-

ture. The root vertex represents the root document and

the remaining vertices represent the embedded docu-

ments. The edges inside a DAG deﬁne the type of

embedding relationship (document or array of docu-

ment). In this paper we extend our schema notation

MfCodeGenerator: A Code Generation Tool for NoSQL Data Access with ONM Support

233

to allows reference relationships between DAGs (en-

tities). Figure 1 shows the DAG elements and an ex-

ample of entity.

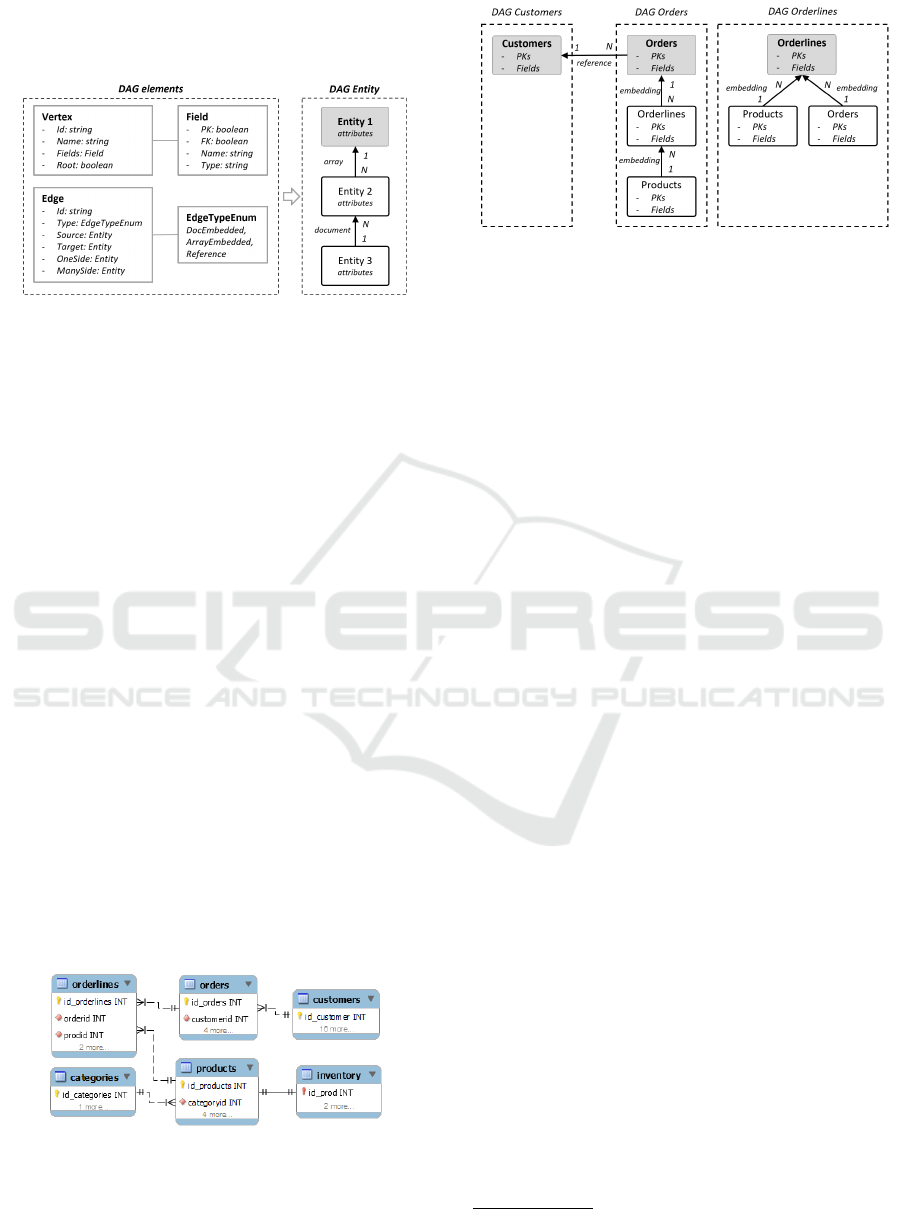

Figure 1: DAG elements (left) and an example of DAG en-

tity (right) composed by three vertices and two edges.

The vertices encapsulate the metadata of the re-

spective document, including name, ﬁelds, data types

and which ﬁelds are identiﬁers (primary keys) or ref-

erence other ﬁelds (foreign keys). The edges encapsu-

late the metadata of the relationship between two ver-

tices (documents), including the primary and foreign

keys, which document is on side one or side many

of the relationship and the type of relationship (doc-

ument embedded, array embedded or reference). The

edge direction shows how to embed the data to create

an entity. Figure 1 (right side) shows an entity com-

posed by three vertices, where the gray color vertex is

the root document and the other vertices are the em-

bedding documents.

From the perspective of migrating from RDB

to NoSQL, developers can create a NoSQL schema

based on the metadata of the RDB. Figure 2 illustrates

the relational schema of a database storing data about

a DVD store. From this relational database we de-

ﬁne the schema with three DAGs of Figure 3. For the

sake of simplicity, only the ﬁelds of type document

are showed, but the entities also have ﬁelds of simple

types that are suppressed. This schema can be lever-

aged to generate code to aid in data migration or to

access migrated data from another tool. In this step,

data access middlewares can be used.

Figure 2: Relational schema of the database used to illus-

trate the proposed approach.

Figure 3: NoSQL schema represented by a set of DAGs.

2.2 Object-NoSQL Mappers (ONMs)

ONMs offer advantages to applications, including de-

coupling from the database, enhancing portability,

and simplifying NoSQL access, thereby boosting pro-

ductivity. However, despite their beneﬁts, encoding

with ONMs remains a laborious and error-prone task.

In this work we focus on Impetus Kundera,

DataNucleus and Spring Data. All of them provide

access to relational and non-relational databases, and

support for CRUD operations (Create, Retrieve, Up-

date, and Delete). They also support MongoDB,

the most widely used document-oriented NoSQL.

DataNucleus implements JPA (Java Persistence API)

and JDO (Java Data Object) interfaces to access the

database, meanwhile Kundera implements only JPA

interface. Both implements JPQL (Java Persistence

Query Language) to query the database. Spring Data

provides custom interface to access the database, by

object-mapping abstractions based on repository con-

cept and annotations. Although the three ONM above

are based on annotations to conﬁgure data access,

they differ in terms of conﬁguration, format and num-

ber of annotations available.

3 MfCodeGenerator

In this section we present our approach, named Mf-

CodeGenerator

. Figure 4 shows the execution ﬂow

of the approach.

MfCodeGenerator takes as input a DAG schema

and an ONM conﬁg, and generates as result ONM

code to access data in document databases. The main

components of it are MfSchemaGenerator, MfCus-

tomization and CodeGenerator. In the ﬁrst phase (1),

MfSchemaGenerator traverses the DAG Schema and

converts it into a MfSchema, which is an abstraction

to represent the DAG entities and their relationships

https://github.com/evandrokuszera/metamorfose-

code-generator

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

234

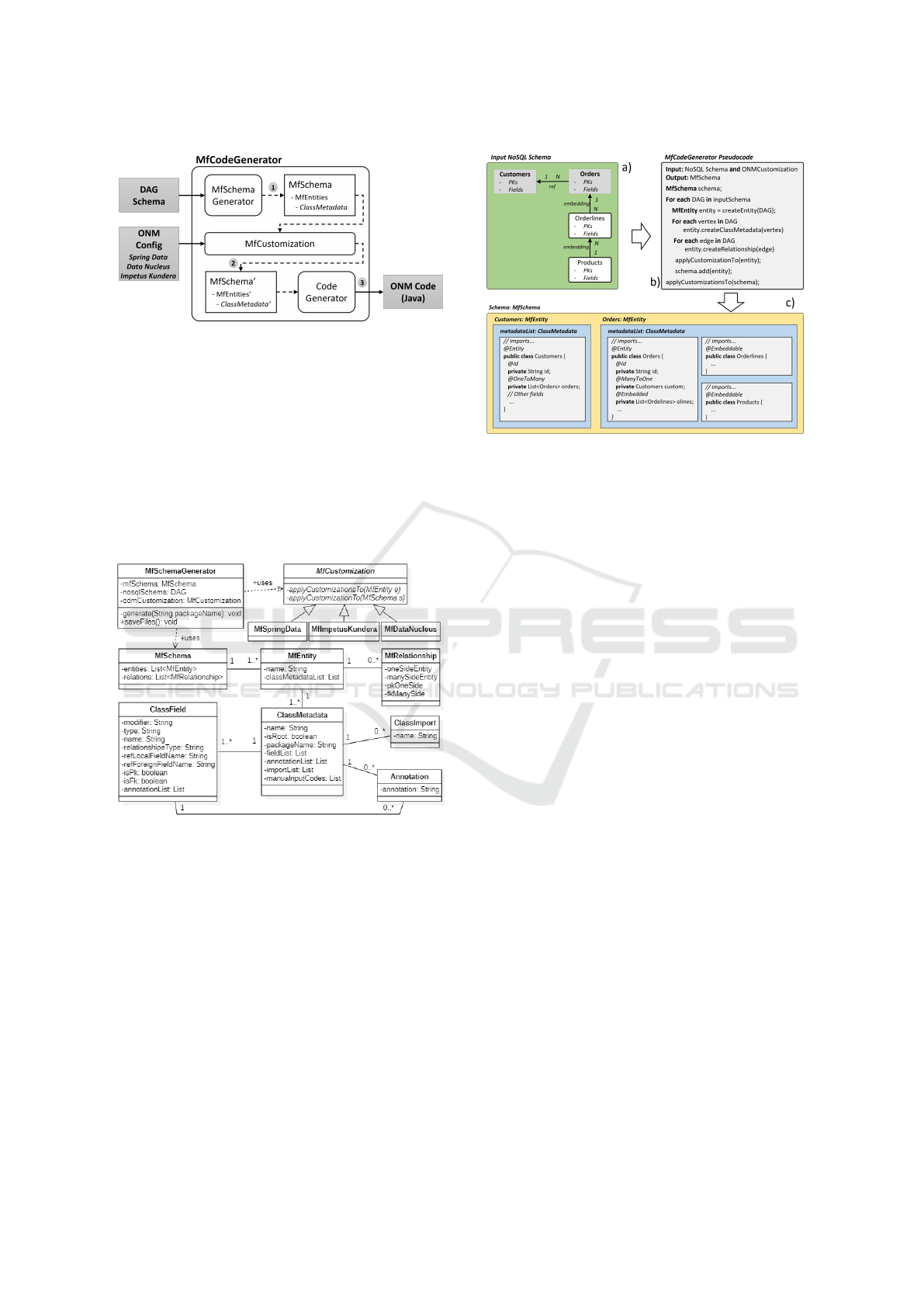

Figure 4: Execution ﬂow of the MfCodeGenerator.

using a Java class notation. At this point, we have a

MfSchema that is agnostic of any ONM. In the sec-

ond phase (2) the generated MfSchema is passed to

MfCustomization, in which it is enriched with new

annotations, ﬁelds and imports, according to target

ONM conﬁg. In the last phase (3), the CodeGener-

ator saves the enriched MfSchema as Java classes on

disk for developers to use in Java projects for NoSQL

database data operations. The target NoSQL database

is MongoDB, but it can be extended to support new

ONMs and databases.

Figure 5: Class diagram of MfCodeGenerator.

Figure 5 depicts the class diagram of MfCode-

Generator, where MfSchema serves as the founda-

tion. It comprises one or more MfEntity objects, that

can be interconnected via MfRelationships. MfEntity

structures can be simple, composed of a single Class-

Metadata object, or hierarchical, comprising multiple

ClassMetadata objects. ClassMetadata encapsulates

entity metadata akin to Java class structure, encom-

passing ﬁelds, imports, and annotations represented

by ClassField, ClassImport, and Annotation classes.

Furthermore, ClassMetadata retains metadata regard-

ing identiﬁer ﬁelds, relationship ﬁelds, and relation-

ship direction.

MfCustomization is an abstract class that provides

an extension point for adding customizations to Mf-

Figure 6: Example of ONM code generated from a NoSQL

schema with two entities (Customers and Orders).

Schema and its respective MfEntity objects, accord-

ing to target ONM.

3.1 Code Generation Process

To illustrate the process to generate ONM code let us

considering the scenario of Figure 6.

Figure 6a shows a NoSQL schema that is com-

posed of entities Customers and Orders. This schema

must be previously created by the developer accord-

ing to the application’s requirements (for example, its

access pattern).

Figure 6b shows the pseudocode of MfCodeGen-

erator. Each schema DAG of input schema is tra-

versed to generate MfEntity objects from vertices and

edges. The information encapsulated in the DAG is

used to create the ClassMetadata objects, denoting the

structure of the entity. After that, these objects are

customized according to the target ONM (applyCus-

tomizationTo) and added to the list of MfSchema enti-

ties. Finally, MfSchema is also customized, allowing

to establish relationships between the entities created

in the previous step.

Figure 6c shows an in-memory representation of

MfSchema, with the generated ONM code. At that

point, the developer can either inspect the schema or

save the code to disk.

The code snipped in the Figure 7 shows how to

call the MfCodeGenerator in a Java project to create

Impetus Kundera ONM code inside a package named

model. As output, two packages are generated, named

”model.customer” and ”model.orders”, with their re-

spective classes to denote the entities Customers and

Orders.

MfCodeGenerator: A Code Generation Tool for NoSQL Data Access with ONM Support

235

p u b l i c c l a s s G e ne r a t or {

p u b l i c s t a t i c v oi d main ( S t r i n g [ ] a r g s )

t hr o ws F il e N ot F o un d Ex c e pt i o n {

/ / L oad in g t h e NoSQL Schema fro m d i s k

NoSQLSchema s chema = l oa dN osq lS ch ema ( ” schema . j s o n ” ) ;

/ / Schema g e n e r a t o r f o r K un de ra ONM an d MongoDB

Mf S ch e m aG e ne r a to r s c h e m a C o d e G e n e r a t o r = new

Mf Da gS ch em aG en er ato r ( sch ema , new

Mf K un d er a M on g oC u s to m iz a t io n ( ) ) ;

/ / G e n e r a t i n g t h e sche ma u s i n g t h e p a c k a g e name mo del

s c h e m a C o d e G e n e r a t o r . g e n e r a t e ( ” mod el ” ) ;

/ / S a v i n g t h e g e n e r a t e d J a v a c l a s s e s i n t o t h e p r o j e c t

s c h e m a C o d e G e n e r a t o r . s a v e F i l e s ( ) ;

}

Figure 7: Code snipped to execute the MfCodeGenerator in

a Java project.

3.2 ONM Conﬁg

In our approach an ONM conﬁg is denoted by a sub-

class of MfCustomization, in which the developer can

provide implementations to enriched the generated

code with new annotations, imports and ﬁelds.

Figure 8 shows a snippet of ONM customization

code implemented for Impetus Kundera. This code

is called by MfSchemaGenerator to apply customiza-

tions to all ClassMetadata objects of the MfEntities

created in the previous stage. In the ﬁrst method of the

sample code, all root classes of schema are annotated

with @Entity and all nested classes with @Embed-

dable. In the second method, classes are annotated

with @OneToMany and @ManyToOne to establish

relationships between entities. Besides Impetus Kun-

dera, we provide a default implementation for Spring

Data and Data Nucleus (see repository), but the de-

veloper can provide new implementations.

p u b l i c c l a s s M f Ku n de r a Mo n go C u st o mi z a ti o n

e x t e n d s M f C l a s s C u s t o m i z a t i o n {

/ / A p p l y i n g c u s t o m i z a t i o n s f o r e a c h e n t i t y

p u b l i c v o i d a p p l y C u s t o m i z a t i o n s T o ( M f E n t i t y en ) {

en . g e t R o o t C l a s s ( ) . a d d I m p o r t ( ” j a v a x . p e r s i s t e n c e . E n t i t y ” ) ;

en . g e t R o o t C l a s s ( ) . a d d I m p o r t ( ” j a v a x . p e r s i s t e n c e . I d ” ) ;

en . g e t R o o t C l a s s ( ) . a d d A n n o t a t i o n ( ” @ E nt i t y ” ) ;

en . g e t R o o t C l a s s ( ) . g e t I d ( ) . a d d A n n o t a t i o n ( ”@Id ” ) ;

en . g e t R o o t C l a s s ( ) . a d d F i e l d ( ” p r i v a t e ” , ” i n t ” , ” cod ” ) ;

/ / . . .

f o r ( C l a s s M e t a d a t a n e s t e d : e n t i t y . g e t N e s t e d C l a s s e s ( ) ) {

n e s t e d . a d d I m p o r t ( ” j a v a x . p e r s i s t e n c e . Emb ed da bl e ” ) ;

n e s t e d . a d d A n n o t a t i o n ( ”@Embeddable ” ) ;

/ / . . .

}

/ / A p p l y i n g c u s t o m i z a t i o n s f o r s ch ema

p u b l i c v o i d a p p l y C u s t o m i z a t i o n s T o ( MfSchema sche ma ) {

f o r ( R e l a t i o n s h i p r e f : s che ma . r e l a t i o n s h i p s ) {

r e f . o n e E n t i t y . a d d I m p o r t ( ” j a v a x . p e r s i s t e n c e . OneToMany ” ) ;

r e f . m a n y E n t i t y . a d d I m p o r t ( ” ja v a x . p e r s i s t e n c e . ManyToOne” ) ;

r e f . o n e E n t i t y . a d d A n n o t a t i o n ( ”@OneToMany( mappedBy = . . . ” ) ;

r e f . m a n y E n t i t y . a d d A n n o t a t i o n ( ”@ManyToOne” ) ;

/ / . . .

}

Figure 8: Code snipped with example of customizations for

the ONM Impetus Kundera.

4 EXPERIMENTS

To evaluate the MfCodeGenerator let us consider the

scenario in which there is a Java application that needs

to persist data in MongoDB database. We choose

MongoDB because it is the most popular document

oriented NoSQL database

. Rather than creating the

code to access the data manually, we will deﬁne a

NoSQL schema and provide it as input to the Mf-

CodeGenerator. Three ONMs are used in the experi-

ments: Spring Data, Data Nucleus and Impetus Kun-

dera.

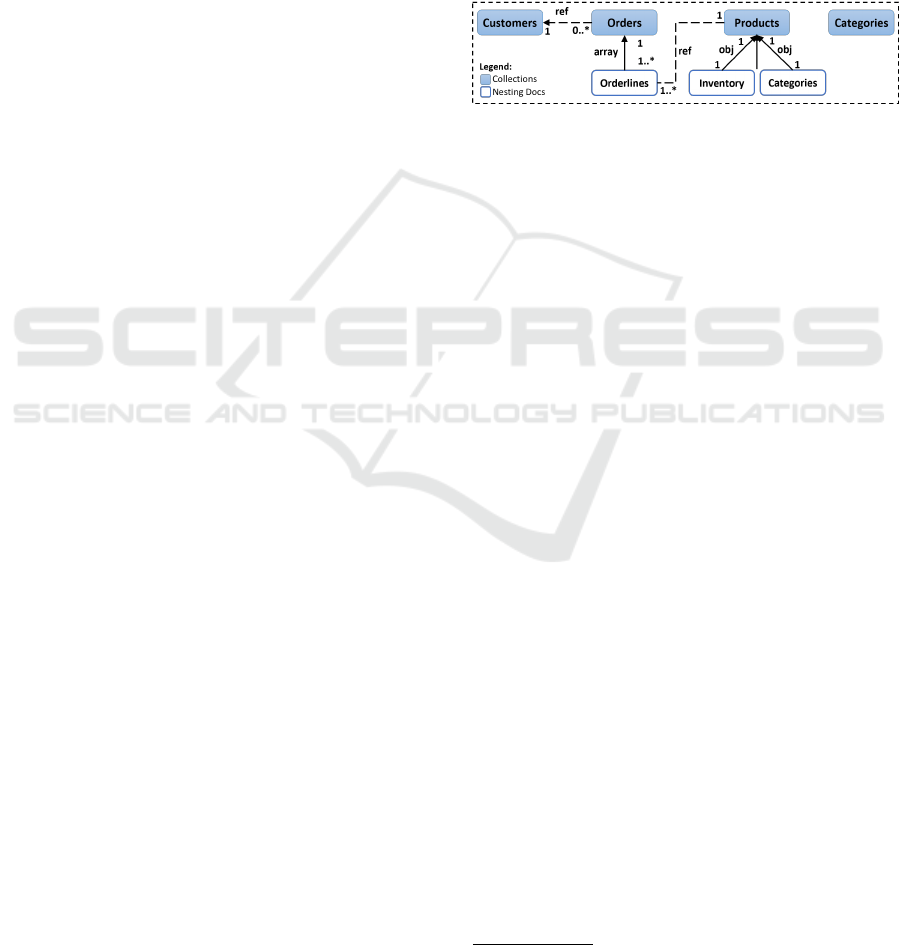

Figure 9: NoSQL schema that represents how the data are

stored in the MongoDB.

Figure 9 illustrates the NoSQL schema employed

in the experiments. We derived this schema from the

relational schema depicted in Figure 2. For the sake of

simplicity, only the names of collections and embed-

ded documents are presented. The schema comprises

four collections: Customers, Orders, Products, and

Categories. There are two types of relationships be-

tween entities: references and nesting, e.g. Customers

and Orders have a reference relationship whereas Or-

ders and Orderlines have a nesting relationship. Cat-

egories appears twice in the schema, as a collection

and as an embedded object in Products collection.

We choose this NoSQL schema because it

presents different types of relationships (references

and nesting) and data redundancy (Categories), which

are interesting aspects to evaluate the MfCodeGener-

ator. However, due to ﬂexibility of NoSQL databases,

it is possible to structure the data in different ways.

4.1 ONM Code Generation

To carry out the evaluation we create a Java project

for each ONM with dependencies for MongoDB and

MfCodeGenerator. Then, we execute the MfCode-

Generator, providing as input parameters the NoSQL

schema, target ONM, and the base package name for

saving the generated classes within the project.

Figure 10 shows the list of generated Java classes

for the Data Nucleus. The number and name of

generated classes are the same for the other ONMs,

since the input NoSQL schema used is the same.

There are four code packages in which each package

https://db-engines.com/en/ranking

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

236

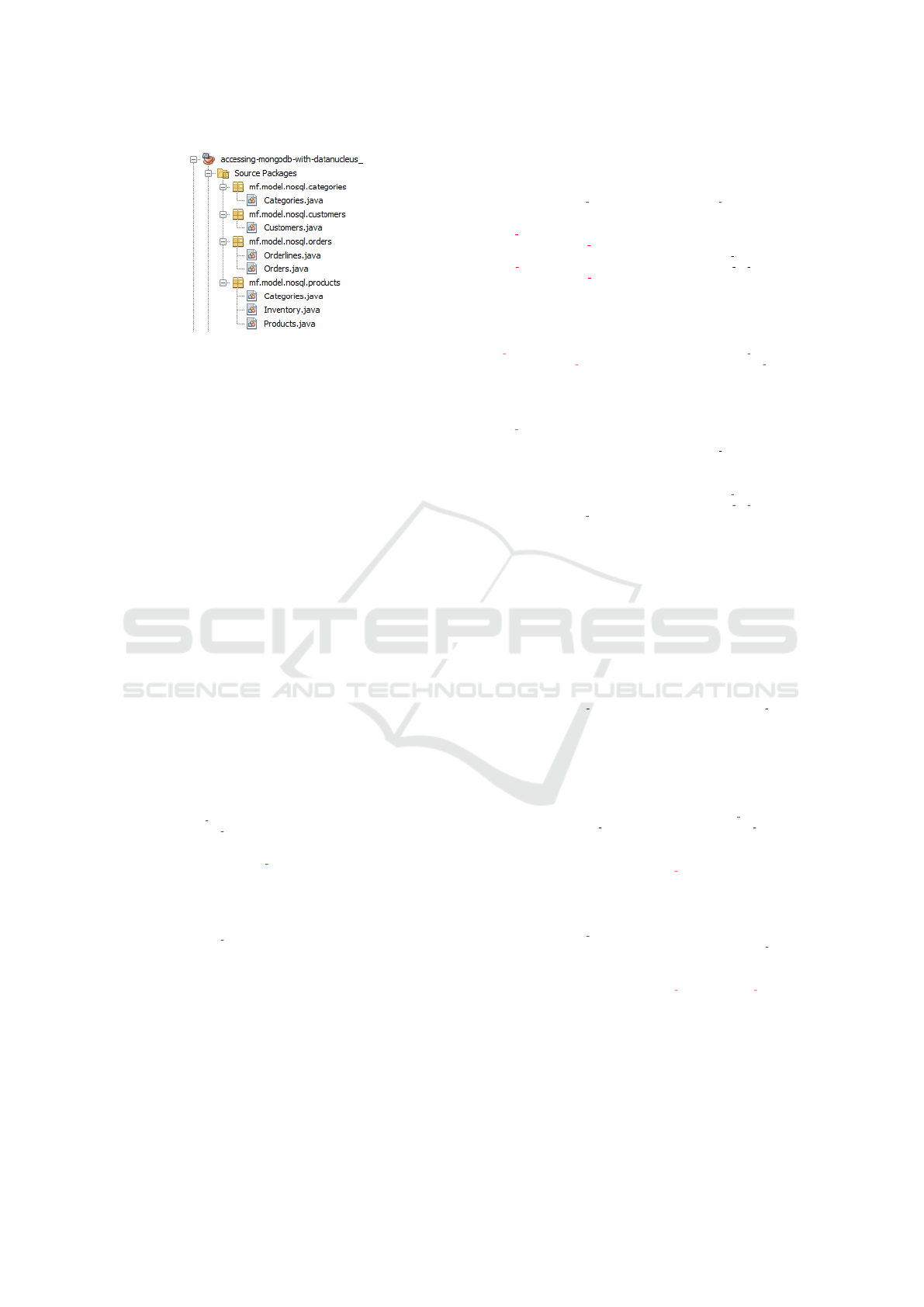

Figure 10: Generated ONM code for data access.

stores one entity of the schema. An entity is com-

posed by one root class, that represent the root docu-

ment of the collection and it could have other classes

that represent nested documents. For example, pack-

age mf.model.nosql.categories stores a single class to

represent the document structure of Categories col-

lection and package mf.model.nosql.products stores

three classes to represent the document structure of

collection Products, where Products is the root class

and Categories and Inventory classes are the nested

documents.

MfCodeGenerator generates code that conforms

to the NoSQL schema, adding attributes to estab-

lish relationships between classes. Figures 11, 12

and 13 present the code generated by MfCodeGener-

ator, highlighting the ONM annotations added in the

classes. For the sake of simplicity, we only show iden-

tiﬁer ﬁelds and relationship ﬁelds, suppressing other

ﬁelds and getter and setter methods. The Categories

entity is not presented because the code is similar to

Customers and it does not bring new aspects to high-

light.

/ / SPRING DATA

@Document ( c o l l e c t i o n =” Cu s t o m e r s ” )

p u b l i c c l a s s C u s t o m e r s {

@Id

p r i v a t e S t r i n g i d ;

p r i v a t e I n t e g e r i d c u s t o m e r ;

@R e ad O nl y Pr o pe r ty

@Do cumen tR efe re nce ( l o o k u p =

” { ’ c u s t o m e r i d ’ : ? # { # s e l f . i d c u s t o m e r }} ” )

p r i v a t e L i s t<Orde r s> o r d e r s ;

}

/ /DATA NUCLEUS a nd IMPETUS KUNDERA

@E n t ity ( name = ” C u s t o m e r s ” )

p u b l i c c l a s s C u s t o m e r s {

@Id

p r i v a t e I n t e g e r i d c u s t o m e r ;

@OneToMany( mappedBy = ” c u s t o m e r i d ” )

p r i v a t e L i s t<Orde r s> o r d e r s ;

}

Figure 11: Customers code generated for all ONMs.

4.2 ONM Code Customization

It is worth noting the use of @AttributeOverride an-

notation in Products class for Data Nucleus (Figure

12). The annotation deﬁnes the attributes name of the

/ / DATA NUCLEUS

@E n t ity ( name=” P r o d u c t s ” )

p u b l i c c l a s s P r o d u c t s {

@Id

p r i v a t e I n t e g e r i d p r o d ;

@Embedded

@ A t t r i b u t e O v e r r i d e ( name=

” p r o d i d ” , c ol umn =

@Column( name= ” p r o d i d ” ) )

@ A t t r i b u t e O v e r r i d e ( name=

” q u a n s t o c k ” , column=

@Column( name= ” q u a n s t o c k ” ) )

@ A t t r i b u t e O v e r r i d e ( name=

” s a l e s ” , colu mn =

@Column( name= ” s a l e s ” ) )

p r i v a t e I n v e n t o r y i n v e n t o r y ;

@Embedded

@ A t t r i b u t e O v e r r i d e ( name=

” i d c a t e g o r y ” , colu mn =

@Column( name= ” i d c a t e g o r y ” ) )

@ A t t r i b u t e O v e r r i d e ( name=

” ca t e g o r y n a m e ” , colu mn =

@Column( name= ” ca t g o r y n a m e ” ) )

p r i v a t e C a t e g o r i e s c a t s ;

@OneToMany( mappedBy=

” p r o d i d ” )

p r i v a t e L i s t<O r d e r l i n e s >

o l i n e s ;

}

/ / IMPETUS KUNDERA

@E n t ity ( name=” P r o d u c t s ” )

p u b l i c c l a s s P r o d u c t s {

@Id

p r i v a t e I n t e g e r i d

p r o d ;

@Embedded

p r i v a t e I n v e n t o r y i n v e n t o r y ;

@Embedded

p r i v a t e C a t e g o r i e s c a t s ;

p r i v a t e L i s t<O r d e r l i n e s >

o l i n e s ;

}

/ / DATA NUCLEUS a nd

IMPETUS KUNDERA

@Embeddable

p u b l i c c l a s s C a t e g o r i e s {

I n t e g e r i d c a t e g o r y ;

S t r i n g c a t e g o r y n a m e ;

}

@Embeddable

p u b l i c c l a s s I n v e n t o r y {

I n t e g e r p r o d i d ;

I n t e g e r q u a n i n s t o c k ;

I n t e g e r s a l e s ;

}

/ / SPRING DATA

@Document ( c o l l e c t i o n =

” P r o d u c t s ” )

p u b l i c c l a s s P r o d u c t s {

@Id

p r i v a t e S t r i n g i d ;

p r i v a t e I n t e g e r i d p r o d ;

p r i v a t e I n v e n t o r y

i n v e n t o r y ;

p r i v a t e C a t e g o r i e s c a t s ;

p r i v a t e L i s t<O r d e r l i n e s >

o l i n e s ;

}

p u b l i c c l a s s C a t e g o r i e s {

I n t e g e r i d c a t e g o r y ;

S t r i n g c a t e g o r y n a m e ;

}

p u b l i c c l a s s I n v e n t o r y {

I n t e g e r p r o d i d ;

I n t e g e r q u a n i n s t o c k ;

I n t e g e r s a l e s ;

}

Figure 12: Products, Categories and Inventory code gener-

ated for all ONMs. Getters and setters are omitted.

/ / DATA NUCLEUS

@E n t ity ( name = ” O r d e r s ” )

p u b l i c c l a s s O r d e r s {

@Id

p r i v a t e I n t e g e r i d o r d e r ;

@Embedded

p r i v a t e L i s t<O r d e r l i n e s >

o l i n e s ;

@ManyToOne

p r i v a t e C u s t o m e r s cu s t om ;

}

@Embeddable

p u b l i c c l a s s O r d e r l i n e s {

p r i v a t e I n t e g e r o l i n e i d ;

p r i v a t e I n t e g e r o r d e r i d ;

p r i v a t e I n t e g e r p r o d i d ;

p r i v a t e I n t e g e r q u a n t i t y ;

p r i v a t e D at e o l i n e d a t e ;

@ManyToOne

p r i v a t e P r o d u c t s p r o d u c t s ;

}

/ / IMPETUS KUNDERA

@E n t ity ( name=” Or d e r s ” )

p u b l i c c l a s s O r d e r s {

@Id

p r i v a t e I n t e g e r i d

o r d e r ;

@ E l e m e n t C o l l e c t i o n

p r i v a t e L i s t<O r d e r l i n e s >

o l i n e s ;

@ManyToOne

@JoinColumn ( name=

” cu s t o m e r i d ” )

p r i v a t e C u s t o m e r s cu s t om ;

}

@Embeddable

p u b l i c c l a s s O r d e r l i n e s {

p r i v a t e I n t e g e r o l i n e i d ;

p r i v a t e I n t e g e r o r d e r i d ;

p r i v a t e I n t e g e r p r o d i d ;

p r i v a t e I n t e g e r q u a n t i t y ;

p r i v a t e D at e o l i n e d a t e ;

p r i v a t e P r o d u c t s p r o d u c t s ;

}

/ / SPRING DATA

@Document ( c o l l e c t i o n =

” O r d e r s ” )

p u b l i c c l a s s O r d e r s {

@Id

p r i v a t e S t r i n g i d ;

p r i v a t e I n t e g e r i d o r d e r ;

p r i v a t e L i s t<O r d e r l i n e s >

o l i n e s ;

@Do cumen tR efe re nce ( l o o k u p =

” { ’ i d c u s t o m e r ’ : ? # { c u s t o m e r i d

}} ” )

p r i v a t e C u s t o m e r s cu s t om ;

}

p u b l i c c l a s s O r d e r l i n e s {

p r i v a t e I n t e g e r o l i n e i d ;

p r i v a t e I n t e g e r o r d e r i d ;

p r i v a t e I n t e g e r p r o d i d ;

p r i v a t e I n t e g e r q u a n t i t y ;

p r i v a t e D at e o l i n e d a t e ;

@Do cumen tR efe re nce ( l o o k u p =

” { ’ i d p r o d ’ : ? # { p r o d i d }} ” )

p r i v a t e P r o d u c t s p r o d u c t s ;

}

Figure 13: Orders and Orderlines code generated for all

ONMs.

MfCodeGenerator: A Code Generation Tool for NoSQL Data Access with ONM Support

237

Inventory and Categories classes, otherwise the ONM

uses a different strategy for naming the data ﬁelds in

MongoDB, preventing the loading of data from the

database. Adding annotations like @AttributeOver-

ride can be conﬁgured in MfCodeGenerator for a spe-

ciﬁc ONM.

The embedded relationships were all generated by

MfCodeGenerator according to the schema. How-

ever, it was not possible to generate all reference-type

relationships. Table 1 shows the list of reference-type

relationships supported by each ONM. We use a no-

tation entity-direction-entity to represent the relation-

ships.

Table 1: List of reference-type relationships deﬁned in the

NoSQL schema supported by ONM and MfCodeGenerator.

Relationship Spring Impetus Nucleus

Customers → Orders Yes Yes Yes

Orders → Customers Yes Yes Yes

Orders.Orderlines → Product Yes Not Yes

Product → Orderlines Not Not Not

The relationship between Products and Order-

lines is generated only in the Orders.Orderlines →

Products direction for Spring Data and Data Nu-

cleus. In the opposite direction, the relationship

Products → Orders.Orderlines does not work for any

ONM. For Impetus Kundera it is possible to establish

the reference-type relationships only between classes

that are annotated with @Entity (see ONM documen-

tation). The reason for this is that Orderlines is not a

root entity, and it is not possible to load the document

from the database directly.

It is important to note that the generated code

conforms to the NoSQL schema and annotations are

added to the code only if they are supported by the

target ONM.

4.3 Evaluation of ONM Code

To evaluate the generated code we seek to answer two

questions: (Q1) Is the generated code able to create,

retrieve, update and delete documents in MongoDB?

(Q2) Do the generated code and ONM support the

relationships from the NoSQL schema?

4.3.1 Answer to Q1

To answer the ﬁrst question, we perform CRUD op-

erations using the generated code for all the ONMs.

The main objective is check if the generated code can

write entities into MongoDB and, then read the data

into memory. For Data Nucleus, Impetus Kundera

and Spring Data it was possible to create an entity,

read, update and persist it again in MongoDB. This

test did not include related data from other entities.

4.3.2 Answer to Q2

For second question we read one document of Cat-

egories, Customers, Orders and Products collections

and check if after reading the root entity the related

data could also be loaded. For all the ONMs the em-

bedded entities could be automatically loaded from

MongoDB without problem and the reference-type

relationships all the related root entities could load

data automatically. However, loading related non-

root entities works only for Spring Data and Data Nu-

cleus in the direction embedded-entity to root-entity,

as showed in Table 1.

We repeated the above two tests with a larger num-

ber of documents (Customers: 10k, Orders: 20k, Or-

derlines: 40k, Products: 10k and Categories: 20). The

results were the same, making it possible to write data

to MongoDB and then, read the data correctly.

4.4 Discussion of the Results

MfCodeGenerator automates the generation of code

for NoSQL database access following the input

NoSQL schema, however, it is necessary to consider

the ONM limitations, such as support for certain types

of relationships and the supported depth of nesting.

MfCodeGenerator offers a validation method to

check if the NoSQL schema aligns with the capabil-

ities of the target ONM, notifying the developer of

any unsupported relationships. For example, when

using Impetus Kundera, MfCodeGenerator ﬂags re-

lationships between entities lacking the @Entity an-

notation. Subsequently, developers can choose to ad-

just the schema or generate the code and implement

required modiﬁcations accordingly.

In future work, we aim to broaden the tool’s eval-

uation scope by incorporating complex schemas and

diverse NoSQL databases and ONMs.

5 RELATED WORK

There are works that evaluate and compare the ONMs

in terms of features (CRUD operations and query sup-

port) and the introduced overhead to access the data

against the native APIs (St

orl et al., 2015; Reniers

et al., 2017). In (Reniers et al., 2019) the authors

presented a survey with an comprehensive compari-

son of eleven ONMs, in terms of program language,

database, query interface and mapping strategies sup-

port. On the contrary, in this work we propose an ap-

proach for automatic generation of ONM code, that

can be used to assist in the evaluation of ONMs.

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

238

The work presented in (Chill

on et al., 2019) in-

troduces a solution for generating ONM code from a

NoSQL schema extracted from an existing database.

While the solution supports Morphia and Mongoose,

it does not address the limitations of ONMs, such

as differences in document embedding levels and al-

lowed annotations for relationship types like @One-

ToOne and @OneToMany. Additionally, variations

in persisting data formats to represent reference rela-

tionships across ONMs are not discussed, necessitat-

ing consideration when reading data from an existing

database.

Our solution is similar to (Chill

on et al., 2019), in

which we can generate ONM code from our NoSQL

schema deﬁnition. However, MfCodeGenerator focus

in Java-based ONM and support Impetus Kundera,

Data Nucleus and Spring Data. Furthermore, our ap-

proach allows customizing and adding validations in

the code generation process, alerting developers if it

cannot be deﬁned in the generated code.

MongoDB introduced the Relational Migrator

tool

, enabling the creation of a NoSQL schema from

an existing RDB and subsequent data migration. Ad-

ditionally, the tool generates ONM code for Java

(Spring Data). However, manual modiﬁcations are

still required for the generated code before integration

into the application, and reference-type relationships

between classes are not generated. In contrast, our ap-

proach supports a broader range of ONMs and can be

integrated with MongoDB tool to generate code for

other ONMs.

6 CONCLUSION

This paper introduced the MfCodeGenerator, an ap-

proach to automatically generate ONM code from an

input NoSQL schema and a set of customization rules

for the target ONM. As a result, a set of Java classes

is generated, enriched with the code to allow reading

and writing objects in the NoSQL database.

MfCodeGenerator generates code for Spring Data,

Data Nucleus and Impetus Kundera ONMs, but it is

worth noting that the approach is platform indepen-

dent and can be extended to other ONMs and lan-

guages. Experimental results demonstrate that the

tool generates the Java classes correctly, with imports,

annotations, ﬁelds, methods and relationships, adher-

ing to the speciﬁed NoSQL schema. The generated

code was evaluated by performing CRUD operations

on MongoDB.

https://www.mongodb.com/products/relational-

migrator

Not all features speciﬁed in the NoSQL schema

could be translated directly into the generated code,

mainly due to constraints imposed by the target ONM,

such as limitations on supported relationship types

and data storage formats required by MongoDB. To

address this, MfCodeGenerator issues warnings to de-

velopers, indicating whether the selected ONM fully

supports the provided NoSQL schema.

As future works it is intended to add support for

new ONMs and NoSQL databases and improve the

mechanism for deﬁning rules for customizing the gen-

erated code, which today is embedded in the MfCode-

Generator source code. Furthermore, we aim to ex-

pand the evaluation of the tool to encompass more

complex scenarios.

REFERENCES

Chill

on, A. H., Ruiz, D. S., Molina, J. G., and Morales, S. F.

(2019). A model-driven approach to generate schemas

for object-document mappers. IEEE Access, 7:59126–

59142.

Kuszera, E. M., Peres, L. M., and Fabro, M. D. D.

(2019). Toward rdb to nosql: Transforming data

with metamorfose framework. In Proceedings of the

34th ACM/SIGAPP Symposium on Applied Comput-

ing, page 456–463, New York, NY, USA.

O’Neil, E. J. (2008). Object/relational mapping 2008: Hi-

bernate and the entity data model (edm). In Proceed-

ings of the 2008 ACM SIGMOD, page 1351–1356,

New York, NY, USA.

Raﬁque, A., Landuyt, D. V., Lagaisse, B., and Joosen, W.

(2018). On the performance impact of data access

middleware for nosql data stores A study of the trade-

off between performance and migration cost. IEEE

Trans. Cloud Comput., 6(3):843–856.

Reniers, V., Landuyt, D. V., Raﬁque, A., and Joosen, W.

(2019). Object to nosql database mappers (ONDM):

A systematic survey and comparison of frameworks.

Inf. Syst., 85:1–20.

Reniers, V., Raﬁque, A., Landuyt, D. V., and Joosen, W.

(2017). Object-nosql database mappers: a benchmark

study on the performance overhead. J. Internet Serv.

Appl., 8(1):1:1–1:16.

Sadalage, P. J. and Fowler, M. (2012). NoSQL Distilled: A

Brief Guide to the Emerging World of Polyglot Persis-

tence. Addison-Wesley Professional, 1st edition.

Stonebraker, M., Madden, S., Abadi, D. J., Harizopoulos,

S., Hachem, N., and Helland, P. (2007). The end of an

architectural era (it’s time for a complete rewrite). In

Proceedings of the 33rd VLDB, University of Vienna,

Austria, 2007, pages 1150–1160.

orl, U., Hauf, T., Klettke, M., and Scherzinger, S. (2015).

Schemaless nosql data stores - object-nosql mappers

to the rescue? In Datenbanksysteme f

ur Business,

Technologie und Web (BTW), volume P-241 of LNI,

pages 579–599. GI.

MfCodeGenerator: A Code Generation Tool for NoSQL Data Access with ONM Support

239
