EmbedDB: A High-Performance Time Series Database

for Embedded Systems

Justin Schoenit

, Seth Akins

and Ramon Lawrence

University of British Columbia, Kelowna, BC, Canada

Keywords:

Database, Key-Value Store, Embedded, Arduino, Internet of Things, SQL, Time Series, SQLite.

Abstract:

Efﬁcient data processing on embedded devices may reduce network communication and improve battery usage

allowing for longer sensor lifetime. Data processing is challenged by limited CPU and memory hardware.

EmbedDB is a key-value data store supporting time series and relational data on memory-constrained devices.

EmbedDB is competitive with SQLite on more powerful embedded hardware such as the Raspberry Pi and

executes on hardware such as Arduinos that SQLite and other previous systems cannot. Experimental results

evaluating EmbedDB on time series query processing show a speedup of ﬁve times compared to SQLite on a

Raspberry Pi on many queries, and the ability to execute data processing on small embedded systems not well

supported by existing databases.

1 INTRODUCTION

Embedded databases are used in a wide variety of

environments from supporting desktop and mobile

applications to use in custom embedded and sensor

systems, including the Internet of Things (IoT). Due

to this diversity of applications and hardware capa-

bilities, there are numerous systems used with dif-

ferent architectural choices and supported features.

Higher performing devices such as cell phones and

the Raspberry Pi have the hardware and operating

system capabilities to run embedded SQL databases

such as SQLite (Gaffney et al., 2022). Embedded and

sensor devices have signiﬁcantly less hardware re-

sources and operating system support, which restricts

the database systems they are able to run.

For embedded devices, the key goal is high per-

formance despite signiﬁcant hardware limitations that

result in many systems being unable to execute on

the smallest devices as either they require too much

RAM, code space, or operating system support. Prior

research has produced systems minimizing memory

usage in this environment (Anciaux et al., 2003; Bon-

net et al., 2001; Douglas and Lawrence, 2014).

Our contribution is EmbedDB, an embedded key-

value, time series database with high performance

https://orcid.org/0009-0000-1791-3437

https://orcid.org/0009-0001-8346-3590

https://orcid.org/0000-0002-6779-4461

on embedded devices, that is ﬂash-optimized, has no

code dependencies, does not require an operating sys-

tem, and functions with only 4 KB of RAM. Em-

bedDB is primarily optimized for storing and query-

ing time series data collected by sensor nodes. Ex-

perimental results demonstrate that EmbedDB outper-

forms SQLite on a Raspberry Pi for many queries and

on smaller embedded devices its read and write per-

formance maximizes hardware capabilities.

2 BACKGROUND

2.1 Embedded Systems

There is a wide range of devices performing data pro-

cessing. Cellphones, tablets, and other mobile devices

have signiﬁcant CPU, memory, and storage capabili-

ties and run an operating system such as iOS or An-

droid. These devices can run relational databases with

the most commonly deployed system being SQLite

(Gaffney et al., 2022). The Raspberry Pi (Raspberry

Pi Foundation, 2023) runs a Linux variant with SD

card ﬂash storage and can execute databases such as

MySQL, PostgreSQL, or SQLite.

Embedded processors may be deployed in many

industrial, environmental, and system sensing and

monitoring applications. These devices trade-off per-

formance to minimize cost and may have a CPU clock

240

Schoenit, J., Akins, S. and Lawrence, R.

EmbedDB: A High-Performance Time Series Database for Embedded Systems.

DOI: 10.5220/0012558100003690

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 26th International Conference on Enterprise Information Systems (ICEIS 2024) - Volume 1, pages 240-249

ISBN: 978-989-758-692-7; ISSN: 2184-4992

speed from 8 to 256 MHz and between 4 KB to 512

KB SRAM. Given the hardware resources, small de-

vices do not typically run Linux and only the highest

performing run some form of embedded OS (Javed

et al., 2018). SQLite and many other embedded

databases do not run on smaller hardware as they re-

quire more SRAM and support for the Linux I/O API.

Embedded devices have features that affect data

processing. Data storage is typically on ﬂash memory

either raw NOR or NAND chips or an SD card. Flash

memory writes are more time-consuming than reads,

and algorithms perform more reads to avoid writes.

Most ﬂash memory is not byte addressable, so bytes

are organized into pages. Flash memory requires that

a page must be erased before writing, which prevents

modifying data in place. Instead, the page is read

from the device, modiﬁed and then written back to

an erased location. Device wear occurs during every

erase/write operation, which may result in failure and

data corruption over time.

SD cards have a page-level abstraction layer. Ref-

erences to logical pages are converted to physical ad-

dresses by a ﬂash translation layer (FTL). This trans-

lation simpliﬁes implementation by ignoring physical

storage characteristics. The FTL handles logical page

overwrites by selecting a new physical page in stor-

age and updating its page translation table. The FTL

ensures pages are written evenly throughout storage.

Without an FTL, the database must handle writes,

erases, and memory management internally.

2.2 Embedded Data Processing

Time series data sets are commonly collected by em-

bedded devices and consist of records where each

record has a timestamp and one or more data values

collected at that timestamp.

Data processing on embedded systems has been

performed with two general approaches. Research on

developing sensor networks such as TinyDB (Madden

et al., 2005) had each embedded, sensor device oper-

ating as a data source that was managed and queried

by a controller that performed the query optimization

and planning. In this architecture, the focus is on efﬁ-

cient query planning and data routing.

Other prior research developed indexes and data

systems for execution on embedded systems with fo-

cus on improving the time and energy efﬁciency for

local data processing. The goal is to provide a light-

weight database abstraction layer that is an alternative

to developers building their own data storage code.

Embedded data systems include Antelope (Tsiftes

and Dunkels, 2011) and LittleD (Douglas and

Lawrence, 2014). These systems support some form

of relational query processing and a limited form of

SQL. Challenges include parsing and optimizing SQL

queries given low memory and efﬁciently executing

relational operators.

Antelope (Tsiftes and Dunkels, 2011) stores

time series data in sorted order and uses a binary

search for record retrieval by timestamp. MicroHash

(Zeinalipour-Yazti et al., 2005) uses binary search

for timestamp queries and range partitioning to in-

dex data values. Bloom ﬁlters are used to summarize

and index data in PBFilter (Yin and Pucheral, 2012).

SBITS (Fazackerley et al., 2021) is a sequential in-

dexing structure supporting timestamp queries using

linear interpolation and data queries by using a user-

customizable bitmap index. Experimentation (Ould-

Khessal et al., 2022) showed that SBITS outperforms

MicroHash and other embedded indexing techniques

including B-trees (Ould-Khessal et al., 2021).

Improved time series indexing is achieved by us-

ing multiple linear approximations to predict a record

location based on its timestamp. Applying learned

indexing to embedded time series indexing demon-

strated (Ding et al., 2023) signiﬁcantly faster record

lookup while only consuming about 1 KB of RAM.

The RAM is used to store the linear approximation

information including the starting point and ending

point of each line. The learned index approach is ef-

fective when the data set is not as regular and can-

not be easily approximated by a single linear func-

tion. Events such as changing the sampling frequency,

power failures, or sensor outages cause the data set to

be less regular and index performance to degrade.

Overall, there is still a need for a data system as

simple as SQLite for small embedded systems.

3 EmbedDB ARCHITECTURE

EmbedDB is a database system that supports both

time series and relational data as key-value records.

The architecture for EmbedDB is in Figure 1 and its

features are:

• Supports small devices with a minimum memory

requirement of 4 KB

• Optimized insert performance for time series data

• Customizable key (Ding et al., 2023) and data in-

dexes (Fazackerley et al., 2021)

• Generic storage support including SD cards and

NOR/NAND chips

• No library or operating system dependencies

• Advanced query API and SQL to C translator for

SQL queries

EmbedDB: A High-Performance Time Series Database for Embedded Systems

241

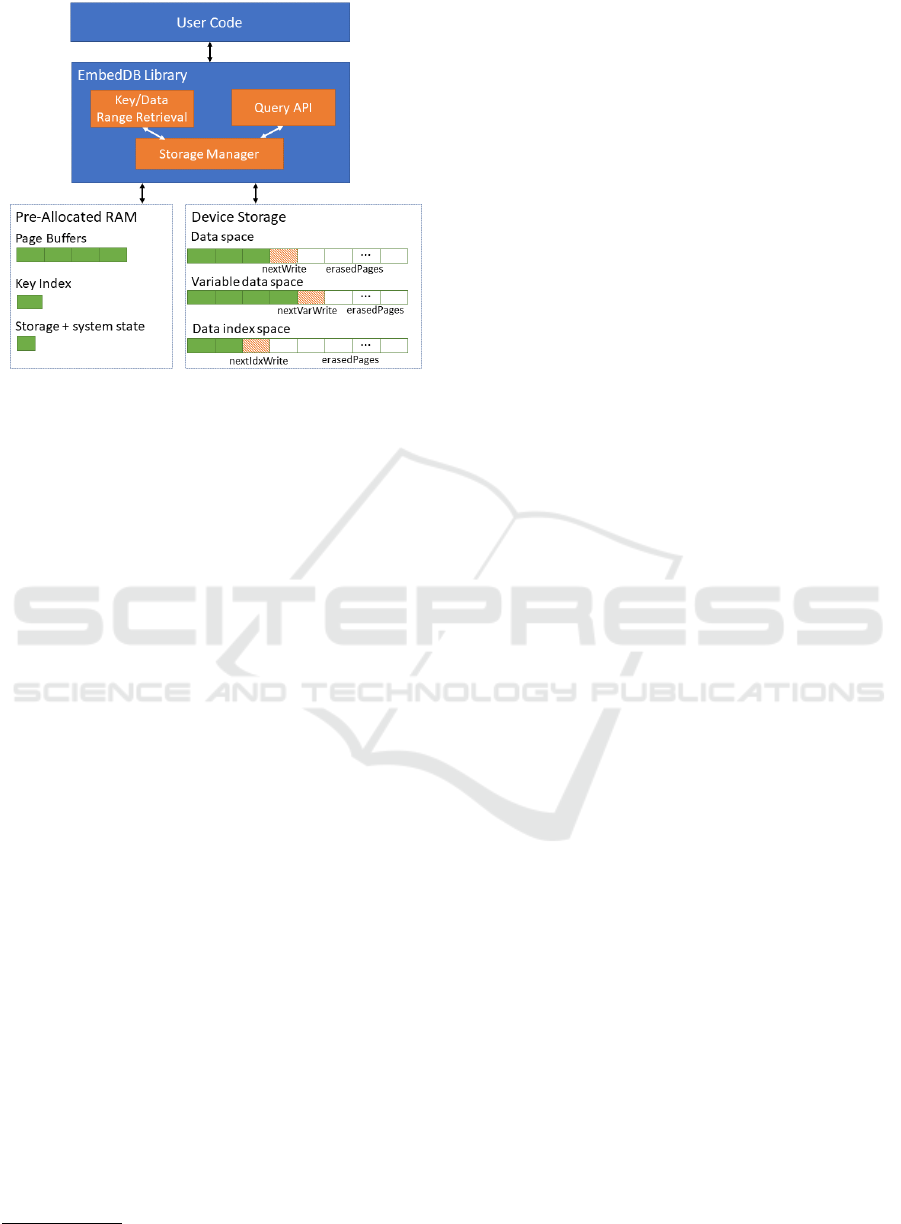

Figure 1: EmbedDB Architecture.

3.1 Storage

A developer using EmbedDB pre-allocates all mem-

ory used by the system including page buffers, the

key index, and the storage and system state. For the

most basic insert functionality, a minimum of 2 page

buffers are used that buffer the current page in mem-

ory before writing to storage and a page is used for

reads. With physical device pages often being 512

bytes, the minimum page buffer size is 1 KB. The C

struct maintaining the storage and system state occu-

pies 200 bytes. The optional key index has variable

size depending on user requirements but is often be-

low 1 KB. In Figure 1, four page buffers are shown,

which is the common conﬁguration. The other two

page buffers are used for reading and writing the data

index, which is an optional component to speed up

data value searches.

The storage manager supports any storage device

that is page accessible. For SD cards with a ﬁle inter-

face, the storage manager interacts using the SDFat

library

and does not manage the physical memory.

For raw NAND, NOR, and DataFlash memory with-

out an FTL, the developer provides EmbedDB with a

memory address range, and EmbedDB manages the

memory space as a circular queue. There is a current

write location where the next write will be performed.

After that location, the system guarantees that pages

are erased by performing block-level erases. Treat-

ing the storage as a circular queue enables developers

to set bounds on the amount of storage consumed, and

the system will guarantee that the latest data is always

preserved. It also ensures consistent device wear and

inserts are performed sequentially for higher perfor-

https://github.com/greiman/SdFat

mance. If the storage space is full, the system over-

writes the oldest data automatically or can be conﬁg-

ured to generate an error and stop adding new data.

The base data storage format consists of ﬁxed-size

key-value records allocated as a sequential time series

index (Fazackerley et al., 2021). The data records are

key and value byte arrays. The key array may be 4

or 8 bytes. The size of the data value array is limited

by the device page size. Using ﬁxed-size records en-

ables efﬁcient storage supporting the most common

use case of small time series records storing a times-

tamp and one or more numeric data values.

To support larger records and variable-sized ﬁelds,

an optional variable data storage is supported, shown

as variable data in Figure 1. Each data record may

link out to the variable-storage memory area. This

enables support for larger text ﬁelds and images. The

variable data space is also managed as a circular

memory range that is distinct from the data space.

3.2 Inserts

EmbedDB is optimized for low-overhead, high-

performance inserts. When a record is inserted, it is

stored in the current write page buffer in RAM. When

a page is full, it is written to storage in the data space

at the nextWrite location. If the record has variable

data, a separate page buffer is used for buffering the

variable data before writing to the variable data space.

Data pages are not overwritten in place. All page

writes are performed on the next erased page in se-

quential order. With no overwriting, there is no need

for write-ahead logging to handle failure. On failure,

the system scans the data space to ﬁnd the last active

page and nextWrite location and proceeds as usual.

3.3 Indexing

The system supports two types of indexes that can be

optionally added to the base record storage. If no in-

dexes are included, key lookup queries are performed

using binary search, and queries examining the data

values require a scan of the entire data ﬁle.

3.3.1 Key Index

Key indexing is performed using a spline learned in-

dex (Ding et al., 2023) that uses a small amount of

memory to store a sequence of linear approximations

that map a record key (timestamp) to a page location

in storage. An example is in Figure 2.

Whenever a data page is written to storage, a key

index record is added consisting of the minimum key

on the page and the page number. In Figure 2, each

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

242

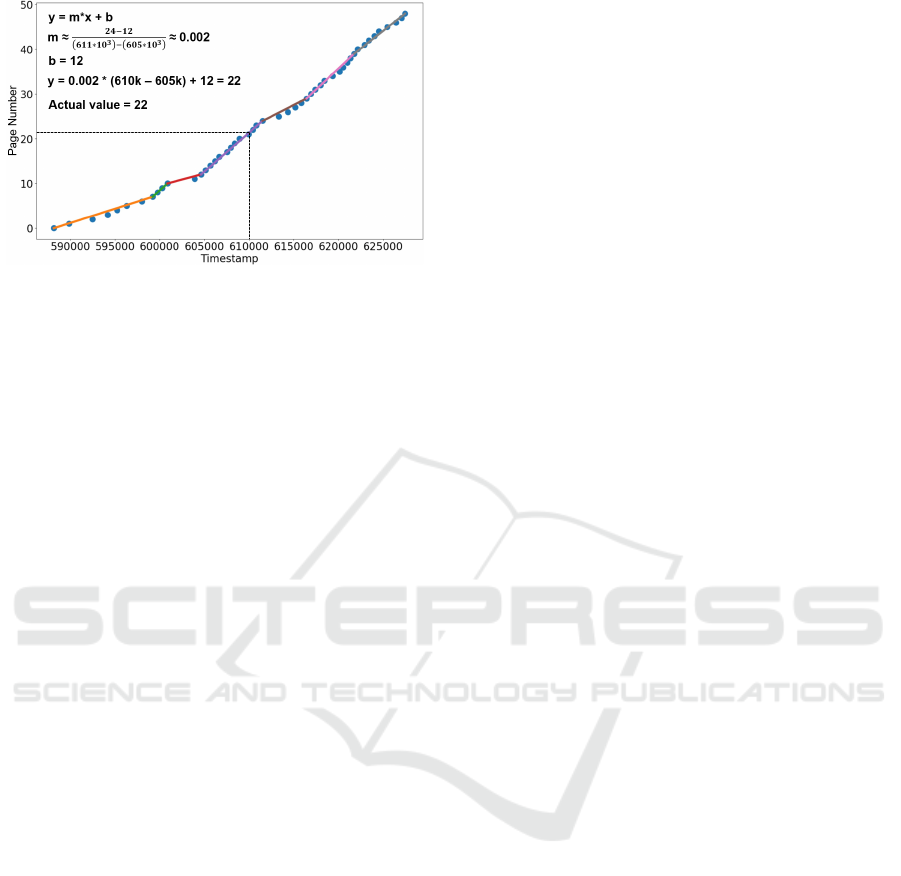

Figure 2: Key Index using Linear Approximations.

blue dot represents a data page number and the mini-

mum key (timestamp) record on that page.

The spline method for building linear approxi-

mations starts the ﬁrst line with the ﬁrst data point.

Whenever a data point is added, it checks to see if

that point is within the given error, ε, speciﬁed by the

user from the current linear approximation. If it is

within the error bound, the point is discarded and no

changes are made. If it is not within the error bound,

the current linear approximation is ended at the previ-

ous point, and this previous point is the start point for

the next linear approximation.

In Figure 2, each color line represents a distinct

approximating line segment (total of 7). For each line

segment, the data stored is the start point of the seg-

ment consisting of key and page number. The end

point is not stored as it is the same as the starting

point of the next line segment. For this example, the

key index occupies (7+1) points * 8 bytes/point = 64

bytes. In general, the memory consumed depends on

the number of keys, the variability of the keys, and the

user speciﬁed error rate tolerance, ε.

A developer provides EmbedDB with a pre-

allocated memory area to use, and EmbedDB man-

ages the index to ﬁt in that memory area. When the

memory is full, some spline points are dropped which

lowers query performance for older data ranges.

For queries on a given key, the table storing the

spline points is searched for the segment start point

just below the key value. Then its linear formula is

used to approximate the page location of the key and

provide a search range of (loc − ε, loc + ε). Figure 2

shows searching for key 610,000.

3.3.2 Data Index

The user may optionally add a data index to speed

up queries on a data value. The data index is imple-

mented using a bitmap ﬁlter that is customizable by

the developer. Similar to (Fazackerley et al., 2021),

the data index consists of a bitmap computed for each

page by a user-supplied function. The size of the

bitmap is conﬁgurable and typically between 1 and

4 bytes. When a page is written, the bitmap function

is applied for every record in the page and the bitmap

updated. The bitmap is stored in the data page as well

as on a data index page, which is written to storage

when full.

For querying, EmbedDB reads the pages in the

data index sequentially and processes each bitmap

contained within. A user query specifying a partic-

ular data range is converted into a query bitmap. If a

page bitmap overlaps with the query bitmap, the page

is read, otherwise it is skipped. Although EmbedDB

must perform a scan of the data set to process a data

value query, it is able to avoid many I/Os by using

the bitmap to only retrieve pages from storage that

potentially have matching data values. The data in-

dex reduces the amount of data scanned based on the

selectivity of the query and how accurate the bitmap

functions capture the data distribution.

For example, consider a case where the data val-

ues have only 8 possible values. An 8-bit bitmap can

be used to indicate the presence of each value in a

page. The number of pages read will depend on how

the data values are present in the pages. In the best

case, only one data value is present in any given page.

In that case, only 1/8 of the data pages are read when

searching for any particular data value as the bitmap

will indicate the pages that contain the queried data

value. In the worst case, all data values appear on

every page, and every page will be read.

In practice, the number of data values are much

larger than the number of bitmap bits, so each bit will

represent a range of data values. The bitmap index is

highly effective for sensor data as data values tend to

be clustered based on the sensor measurements taken.

An advantage is that no random writes are performed

during record insert, and no random reads are per-

formed during queries.

3.4 Query Processing

Figure 3 contains a code example on how EmbedDB

is used to insert records and then perform a query on

a given key and/or data range. Records are inserted

as key-value byte arrays, and are retrieved using the

iterator. The example shows a query with key range

100 to 1000 and for data values >= 50. If the user

supplies a key value or range, then the key index is

used to retrieve the ﬁrst record and then iterate records

sequentially. If a data range is also speciﬁed, the data

ﬁlter is applied by the iterator before returning records

to the user. For queries involving a key, the data index

is not used. For queries involving only a data range,

EmbedDB: A High-Performance Time Series Database for Embedded Systems

243

the data index is used (if available) to only read pages

that potentially may have values in the data range as

indicated by the bitmap index.

Single key lookups are often performed with just

one I/O using the key index. The performance of key

and data range queries depends on the selectivity of

the query and the number of pages scanned.

3.5 Advanced Query API

Often data analysis requires more than key or range

lookup. EmbedDB implements an advanced query

API allowing support for queries typically done using

SQL. The advanced query API builds upon the query

iterators to support common relational operators such

as grouping, aggregation, ﬁltering, and projection. A

developer supplies a function to the core operators to

perform. Operators may be connected together in it-

erator form in complex execution trees. Users can use

the exec() function to execute arbitrary code over top

of an iterator. Example queries supported by the API

are in Table 3. The code and functions are not shown

due to space limitations.

3.6 SQL Pre-Compilation

Many users like the convenience of SQL for specify-

ing queries and the optimization performed by SQL

databases. Prior work has tried to implement a lim-

ited SQL interface for embedded systems (Douglas

and Lawrence, 2014; Tsiftes and Dunkels, 2011), but

there were issues in the amount of SQL that can be

supported and the associated overhead. The challenge

is that parsing a string SQL statement and performing

optimization requires a signiﬁcant amount of mem-

ory that the devices do not have. Further, most em-

bedded systems have very well-deﬁned data process-

ing requirements such that it would be extremely rare

to have dynamic, user-speciﬁed queries that are un-

known to the system before development. This is sig-

niﬁcantly different than databases on servers.

Given these domain constraints, EmbedDB sup-

ports SQL using a pre-compilation tool. The devel-

oper speciﬁes the structure of their key-value store

using a SQL CREATE TABLE statement as well as

CREATE INDEX statements if there is an index on

any data column. The developer then provides the

SQL query that they want to support. The SQL pre-

compiler takes this information and generates C code

that uses the EmbedDB query API to execute the

query. The developer then copies the code into their

project for use.

The advantage is that the expensive parsing and

optimization is performed ofﬂine. This allows much

higher performance during query execution as the

SQL is translated into C code and then compiled.

To perform pre-compilation, an external database

engine is used to parse the query. SQLite would have

been a good choice given that its source code is in C,

but it does not compile the query into a logical query

tree. The database selected was HyperSQL

that fully

supports the SQL standard and parses the query into

a logical query tree suitable for conversion to C code.

The converter systematically checks for parts of

the query that it can support as well as those that

it cannot support. There is currently support for

WHERE clauses involving columns and arithmetic

expressions as well as several common functions such

as floor(), abs(), and round(). Aggregate expres-

sions are also supported along with the use of GROUP

BY. HAVING ﬁlters are handled by applying addi-

tional ﬁltering after the aggregation is computed. In

general, the SQL converter supports everything Em-

bedDB’s query API supports, except for joins.

4 EXPERIMENTAL EVALUATION

EmbedDB was evaluated on multiple hardware plat-

forms, listed in Table 1, that cover a range of capabil-

ities and are representative of typical embedded sen-

sor devices. The largest device, a Raspberry Pi, runs

Linux and is capable of supporting SQLite. The other

hardware is too small for SQLite. The devices using a

SD card for storage support a ﬁle API and isolate the

database from raw ﬂash storage. The DataFlash stor-

age is raw memory without a ﬂash translation layer.

Using raw memory has higher read performance but

requires the database to manage all aspects of ﬂash

storage including page placement and erasing. The

DataFlash memory is unique as it has a considerably

higher read-to-write ratio compared to SD cards. Sys-

tems such as Antelope and LittleD were unable to be

ported to the hardware for evaluation.

The storage performance for sequential and ran-

dom writes was measured by writing a large ﬁle of

10,000 pages either sequentially or randomly. Ran-

dom and sequential read performance was measured

by reading 10,000 pages and inspecting each byte on

the page. These metrics are the maximum possible

I/O performance on the hardware. The high sequen-

tial read performance on the Raspberry Pi may be im-

pacted by operating system buffering.

Multiple data sets were used for the experimenta-

tion as given in Table 2. These data sets include envi-

ronmental monitoring data (uwa), smartwatch X/Y/Z

https://hsqldb.org/

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

244

// Create EmbedDB state

emb e d D B Sta t e * state = ( e mbed D B S tate *) malloc (sizeof( emb e d D B Sta t e ));

state - > keySize = 4; state - > d ataSize = 12;

// Insert records

uint32_t key = 47; in t 3 2 _ t d ata [] = {23 , 32 , -90};

embe d D B P u t ( state , (void*) & key , (void*) d ata );

// Query for single key

int s u c c e s s = em b e d D B Get ( state , (void*) & key , (void*) data );

// Query for key and data range

emb e d DBI t e r ato r it ;

uint32_t itKey ; i n t 3 2 _ t i t D a t a [ 3];

uint32_t minKey = 100 , maxKey = 1000; int32_t minData =50;

it . m i n K e y = & m i n K e y ; it . m a x K e y = & m a x K e y ;

it . mi nData = & m i n D a t a ; it . maxData = NULL ;

em b e d DB I n it I t e ra t o r ( state , & it );

while ( embedD B N e x t ( state , & it , (void*) & itKey , (void*) it D a t a )) {

Process record

}

em b e dDB C l os e I ter a t or (& it );

Figure 3: Query Processing Example.

Table 1: Hardware Performance Characteristics.

Reads (KB/s) Writes (KB/s)

Device Storage Seq Random Seq Random R/W Ratio

Raspberry Pi 3 Model B (4-core

1.2GHz, 1 GB RAM)

SD Card 167075 36208 25600 25559 1.42

ARM Cortex M0+ SAMD21

(48MHz, 32KB RAM)

SD Card 483 414 435 326 1.27

ARM Cortex M0+ SAMD21

(48MHz, 32KB RAM)

DataFlash 495 491 36 37 13.63

Arduino Due (32-bit 84 MHz,

96KB RAM)

SD Card 980 1011 589 579 1.75

Arduino Mega 2560 (8-bit

16MHz, 8KB RAM)

SD Card 409 381 330 379 1.00

gyroscope data (watch), and ethylene concentrations

over time (ethylene). The time series data points are

16 bytes consisting of a 4 byte integer timestamp and

three 4 byte integers of sensor data. The experiments

measure insert throughput, query performance, num-

ber of I/Os, and memory consumption. The metrics

are the average of three runs.

SQLite was conﬁgured to use an INTEGER

PRIMARY KEY for the timestamp value and a sec-

ondary index on the data value. If there were multi-

ple data values in the timestamp record, only the data

value attribute involved in queries was indexed. All

inserts were performed in a single batch transaction

for highest performance with the use of WAL logging

and synchronous setting turned off.

4.1 Insert Performance

Insert performance was measured by inserting

100,000 records from the data sets. The performance

is compared with the theoretical maximum perfor-

mance of the device given its sequential write capa-

bility. The maximum performance is not achievable in

practice as it does not consider any overheads related

to CPU time or additional I/Os required for maintain-

ing the data sets and associated indexes. However, it

gives a metric for comparison in the absence of com-

parable systems capable of running on these devices.

The maximum performance is independent of the data

set and is shown as a black diamond in the graphs.

EmbedDB is compared with SQLite on the Rasp-

berry Pi running Linux, which is the only test device

capable of running SQLite. The results are in Figure

4 for the Raspberry Pi and Figure 5 for the other hard-

EmbedDB: A High-Performance Time Series Database for Embedded Systems

245

Table 2: Experimental Data Sets.

Name Points Sensor Data

uwa (Zeinalipour-Yazti et al., 2005) 500,000 temp, humidity, wind, pressure

ethylene (Fonollosa et al., 2015) 4,085,589 ethylene concentration

watch (Stisen et al., 2015) 2,865,713 smartwatch X/Y/Z gyroscope

ware platforms. The throughput is measured in inserts

per second with higher numbers being preferred.

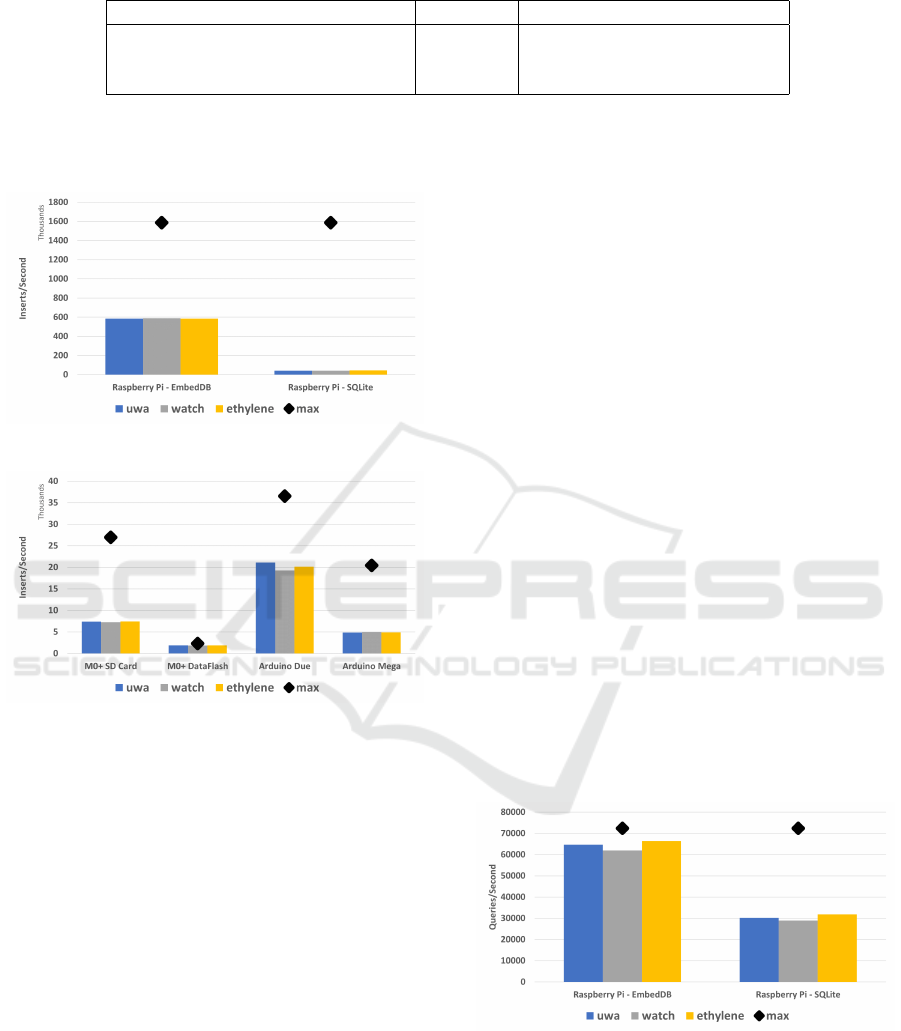

Figure 4: Insert Performance on Raspberry Pi.

Figure 5: Inserts with EmbedDB on Smaller Devices.

There are two insights from these results. First,

EmbedDB signiﬁcantly outperforms SQLite for inser-

tion performance. Even when SQLite is conﬁgured to

batch all inserts, it is still about 10 times slower than

EmbedDB. SQLite performance can be improved by a

factor of two by removing an index on the data value,

but that results in a major reduction for data queries.

EmbedDB is highly efﬁcient for inserts with no over-

head in parsing or during execution. Although Em-

bedDB is not speciﬁcally designed for more powerful

hardware, it has very good performance.

On the Arduino and custom hardware with lower

memory between 8 to 32 KB RAM, EmbedDB’s

insert throughput is between 24% to 83% of the

theoretical maximum write performance. SQLite

achieves 3% of theoretical maximum performance on

the Raspberry Pi while EmbedDB achieves 37%.

The difference between the actual performance

and theoretical maximum performance depends on

hardware characteristics. For slow write DataFlash,

the system is I/O bound so EmbedDB is able to max-

imize its relative performance compared to the the-

oretical maximum. When using the faster SD card,

CPU and other processing time is now a signiﬁcant

factor which reduces the relative percentage. On the

Arduino Mega with a very slow processor, the CPU is

the bottleneck and writing is slower.

4.2 Query Performance

Query performance is tested for three query types:

• Retrieving one record by key (timestamp)

• Retrieving a range of records by key (timestamp)

• Retrieving records that have data values in a given

range

For all query experiments, 100,000 records were

inserted, then the queries were executed.

4.2.1 Record Retrieval by Key (Timestamp)

Record retrieval by key was measured by performing

100,000 random key lookups on the data set created

by inserting 100,000 records in the previous insert

test. The results are in Figures 6 and 7. The theoreti-

cal maximum performance displayed on the charts is

the expected throughput if the system performs one

random I/O on the storage device and has no CPU

overhead. This ideal case is not achievable.

Figure 6: Record Retrieval by Key on Raspberry Pi.

EmbedDB has a factor of two speedup compared

to SQLite achieving 86 to 92% of the theoretical max-

imum performance. There is a signiﬁcant difference

between the two systems on how the key lookup is

performed. SQLite uses a B+-tree while EmbedDB

uses a learned index (Ding et al., 2023). EmbedDB

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

246

Figure 7: Record Retrieval by Key.

uses 1.25 I/Os on average to retrieve a record. Its im-

proved performance is also due to its low overhead

query API that is efﬁcient in returning the data record

to the client application.

EmbedDB achieves between 40 to 70% of the

maximum theoretical performance on the smaller

hardware devices. In these systems, the slower CPU

is a factor besides just performing the random I/O to

retrieve the page containing the record. Once the page

is retrieved, the system must search the page for the

record, and extract it from the page to return to the

client program. One outlier is the watch data set on

the Arduino Mega. Due to the high variability in this

data set, the space required for the learned index was

over 2 KB, which was too large to maintain in the 8

KB RAM. EmbedDB adapted by using binary search

in this case. The query performance is consistent and

stable with 1% variance between runs. This is espe-

cially important for embedded and real-time applica-

tions where consistent performance is critical.

4.2.2 Key Range Retrieval

Performance on retrieving a range of keys is impor-

tant for timestamp queries requiring a window of

records between a start and end time. Key range per-

formance was measured by a query requesting 5% of

the data set starting at a given key (timestamp). The

performance of a key range query is impacted by how

rapidly the system can ﬁnd the starting key value us-

ing its index and then its scan performance to read

the rest of the keys in the range. Since the keys are

inserted in sorted order, sequential I/O should be per-

formed once the starting key is found.

For comparison, the theoretical maximum is cal-

culated as the time to scan 5% of the data set ignoring

the cost to ﬁnd the ﬁrst key value and any CPU pro-

cessing required. Due to the query requiring both se-

quential and random I/O, the average of the sequential

and random I/O speeds were used for the read speed.

As in previous experiments, the theoretical maximum

is an unachievable baseline used only for comparison.

The results are in Figures 8 and Figure 9.

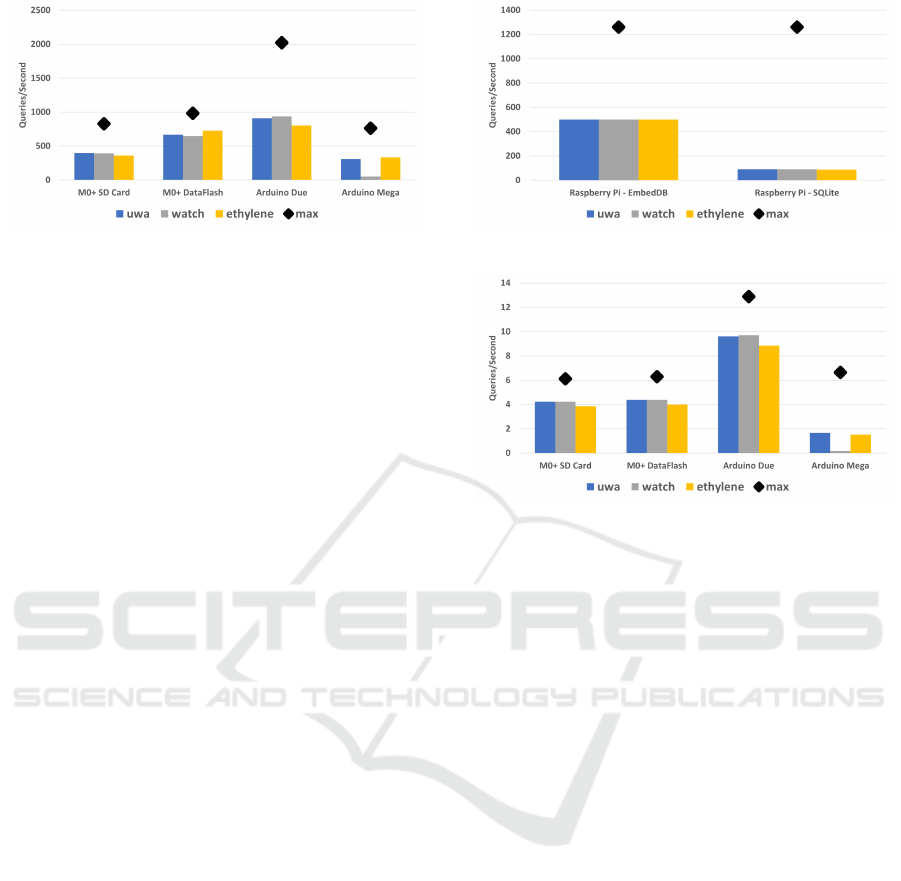

Figure 8: Key Range Retrieval on Raspberry Pi.

Figure 9: Key Range Retrieval.

EmbedDB excels in the key range retrieval task

achieving 40% of the theoretical maximum perfor-

mance with a ﬁve times speedup compared to SQLite.

The efﬁciency of record scanning is the primary factor

in performance for this test. SQLite has dynamic typ-

ing of columns resulting in overheads in record stor-

age and data type conversion. EmbedDB is a key-

value data store storing user-deﬁned byte arrays. This

enables optimized record storage in pages and mini-

mal overhead in returning data to the client applica-

tion. EmbedDB is also ﬁve times faster for scanning

the entire data set.

Key range scan is highly efﬁcient on all hard-

ware platforms. Except for the Arduino Mega, per-

formance is between 63 and 75% of theoretical maxi-

mum and is consistent across all data sets. The CPU-

limited Arduino Mega has slower performance.

4.2.3 Data Range Retrieval

For sensor applications, the time series data may mea-

sure environment information like temperature, hu-

midity, air pressure, or sensor data such as X/Y/Z ac-

celeration. These queries often search for outliers or

points of interest in the time series, such as tempera-

tures that are signiﬁcantly different than normal.

Data range retrieval is evaluated by providing a

selective range of data values to retrieve. The range

is chosen to return about 0.01% of the data set. The

selectivity determines the number of records retrieved

and the performance of the approach.

EmbedDB: A High-Performance Time Series Database for Embedded Systems

247

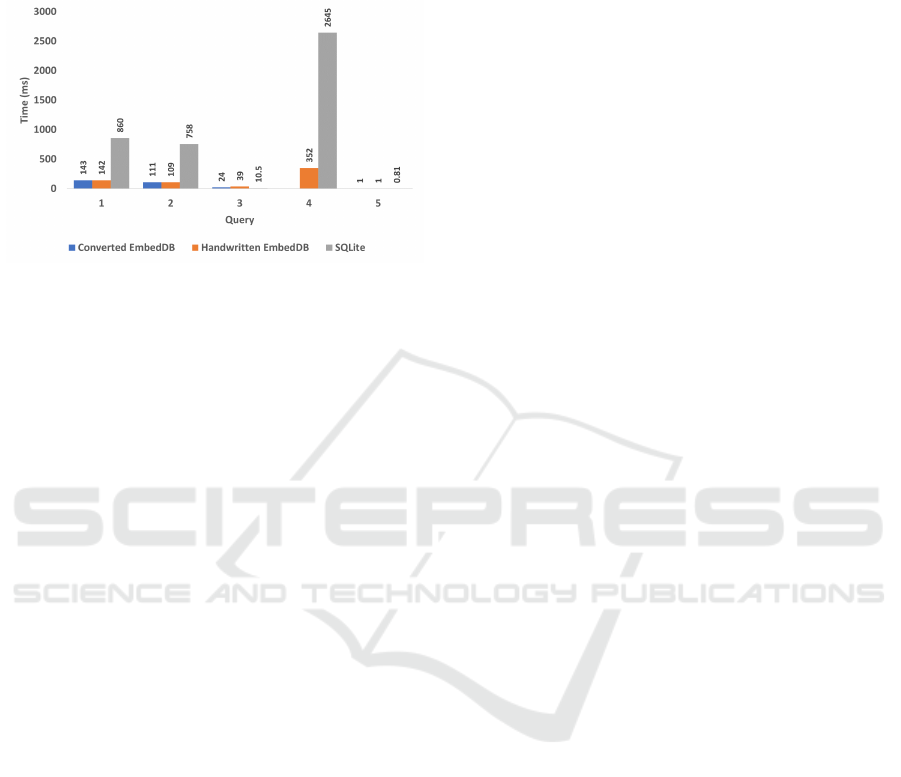

Table 3: SQL Query Results.

# Query

1 Min, max, avg daily temperatures

SELECT key/86400, min(temp), max(temp),

avg(temp)

FROM uwa

GROUP BY key / 86400

2 Avg. temp on days with wind speed > 15 mph

SELECT key/86400, avg(temp), max(wind)

FROM uwa

GROUP BY key/86400

HAVING max(wind) > 15

3 Records with ethylene concentration > 0

SELECT COUNT(*)

FROM ethylene WHERE conc > 0

4 Compare temperatures at two weather stations

in different years

SELECT u.key, s.temp as TempSEA, u.temp

as TempUWA

FROM sea s JOIN (SELECT key + 473385600

as key, temp FROM uwa) u ON s.key=u.key

WHERE s.key >= 1420099200

AND s.key < 1451635200

5 Records with X motion above 500,000,000

SELECT key/706000 as Bucket, COUNT(*)

FROM watch

WHERE x > 500000000

GROUP BY key/706000

The benchmark is the expected time to complete

a scan of the data set. Unlike the previous theoretical

benchmarks, this is not a theoretical maximum that

is unachievable. Instead, the database should be able

to improve upon using a full table scan to answer the

query by using indexing on the data values.

Figure 10: Data Range Query Performance on Raspberry

Pi.

The data range results are in Figures 10 and 11.

EmbedDB uses a bitmap index to reduce the num-

ber of pages read. The bitmap index allows it to only

identify pages to read that potentially may have a data

value in the range. The bitmap index nicely adapts to

different data selectivities. When the data range cov-

Figure 11: Data Range Query Performance.

ers most of the data set, most of the pages are read.

When the data range covers only a small amount of

the data set, there is a signiﬁcant reduction in pages

read. The data set distribution affects the data range

query performance for EmbedDB. Using the bitmap

index, EmbedDB reads between 6 to 20% of the data

set, which results in a performance improvement of a

factor between 3 and 15 compared to sequential scan.

Of the data sets, the uwa temperature data set is

fairly regular as temperature follows a pattern. The

ethylene data set is even more regular and slowly

changing as it monitors a chemical reaction over time.

The bitmap data ﬁlter is especially efﬁcient in only

reading pages that may contain the queried data val-

ues. The watch data set is highly variable as the

X/Y/Z gyroscope data changes frequently in both sign

and direction. This results in lower performance as

more data pages must be scanned to answer the query.

When conﬁgured with a B+-tree secondary index

on the data value, SQLite has superior performance

compared to EmbedDB. The very high selectivity of

0.01% in the experiment favors the B+-tree index.

As a larger percentage of records are returned, Em-

bedDB’s bitmap index that performs sequential I/Os

has higher performance than SQLite’s B-tree index.

This tradeoff of secondary indexes versus scans is

well-known. Implementing a secondary B-tree in-

dex that performs signiﬁcant random I/Os has perfor-

mance issues for small embedded devices.

4.2.4 Memory Usage

The memory used by EmbedDB was 2308 bytes: 200

bytes for state management, 20 bytes for ﬁle interface,

4 page buffers totaling 2048 bytes, and the key index

of 40 bytes for the uwa data. Only the size of the key

index is data set dependent. For ethylene it was 72

bytes, and watch was 2432 bytes.

4.3 SQL Query Performance

EmbedDB’s advanced query API supports SQL op-

erations such as ﬁltering, grouping, and aggregation.

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

248

Figure 12 shows SQLite performance versus Em-

bedDB for the SQL queries in Table 3 where the query

execution code was either developer produced or au-

tomatically generated by the translation tool.

Figure 12: SQL Query Performance.

EmbedDB has faster scan performance than

SQLite that translates into a speedup factor for SQL

queries involving key ﬁltering of about six times.

SQLite outperforms for queries dominated by sec-

ondary data lookup with high selectivity (queries 3

and 5), but EmbedDB remains competitive while con-

suming less memory. There is no performance differ-

ence between developer created versus automatically

generated SQL execution code. Query 4 with a join is

not currently supported by the translator.

5 CONCLUSIONS AND FUTURE

WORK

EmbedDB is a key-value, time series database sup-

porting embedded and sensor devices, especially de-

vices with hardware resources too small to execute

other systems. Its database API consumes minimal

resources and enables high performance data opera-

tions with limited coding by developers. Experimen-

tal results demonstrate its high performance on small

devices, and competitive performance with SQLite

for time series analysis on the Raspberry Pi.

Ongoing work is improving EmbedDB’s perfor-

mance with speciﬁc focus on adding data com-

pression and further improving the efﬁciency of

SQL query processing. EmbedDB is available

as open source for researchers and developers at

https://github.com/ubco-db/EmbedDB.

REFERENCES

Anciaux, N., Bouganim, L., and Pucheral, P. (2003). Mem-

ory Requirements for Query Execution in Highly Con-

strained Devices. In VLDB, pages 694–705.

Bonnet, P., Gehrke, J., and Seshadri, P. (2001). Towards

Sensor Database Systems. MDM ’01, pages 3–14,

London, UK, UK. Springer-Verlag.

Ding, D., Carvalho, I., and Lawrence, R. (2023). Using

learned indexes to improve time series indexing per-

formance on embedded sensor devices. In SENSOR-

NETS 2023, pages 23–31. SCITEPRESS.

Douglas, G. and Lawrence, R. (2014). LittleD: a SQL

database for sensor nodes and embedded applications.

In Symposium on Applied Computing, pages 827–832.

Fazackerley, S., Ould-Khessal, N., and Lawrence, R.

(2021). Efﬁcient ﬂash indexing for time series data

on memory-constrained embedded sensor devices. In

SENSORNETS 2021, pages 92–99. SCITEPRESS.

Fonollosa, J., Sheik, S., Huerta, R., and Marco, S. (2015).

Reservoir computing compensates slow response of

chemosensor arrays exposed to fast varying gas con-

centrations in continuous monitoring. Sensors and Ac-

tuators B: Chemical, 215:618–629.

Gaffney, K. P., Prammer, M., Brasﬁeld, L. C., Hipp, D. R.,

Kennedy, D. R., and Patel, J. M. (2022). SQLite: Past,

Present, and Future. VLDB, 15(12):3535–3547.

Javed, F., Afzal, M. K., Sharif, M., and Kim, B.-S.

(2018). Internet of Things (IoT) operating systems

support, networking technologies, applications, and

challenges: A comparative review. IEEE Communi-

cations Surveys & Tutorials, 20(3):2062–2100.

Madden, S. R., Franklin, M. J., Hellerstein, J. M., and

Hong, W. (2005). TinyDB: An Acquisitional Query

Processing System for Sensor Networks. ACM Trans.

Database Syst., 30(1):122–173.

Ould-Khessal, N., Fazackerley, S., and Lawrence, R.

(2021). B-tree Implementation for Memory-

Constrained Embedded Systems. In 19th Int’l Conf

on Embedded Systems, Cyber-physical Systems, and

Applications (ESCS). CSREA Press.

Ould-Khessal, N., Fazackerley, S., and Lawrence, R.

(2022). Performance Evaluation of Embedded Time

Series Indexes Using Bitmaps, Partitioning, and

Trees. In Invited papers of SENSORNETS 2021, vol-

ume 1674 of Sensor Networks, pages 125–151.

Raspberry Pi Foundation (2023). Raspberry Pi. https:

//www.raspberrypi.org/.

Stisen, A., Blunck, H., Bhattacharya, S., Prentow, T. S.,

Kjærgaard, M. B., Dey, A., Sonne, T., and Jensen,

M. M. (2015). Smart devices are different: Assess-

ing and mitigating mobile sensing heterogeneities for

activity recognition. In Proceedings of the 13th ACM

Conference on Embedded Networked Sensor Systems,

SenSys ’15, page 127–140, New York, USA. ACM.

Tsiftes, N. and Dunkels, A. (2011). A Database in Every

Sensor. SenSys ’11, pages 316–332, New York, NY,

USA. ACM.

Yin, S. and Pucheral, P. (2012). PBFilter: A ﬂash-based

indexing scheme for embedded systems. Information

Systems, 37(7):634 – 653.

Zeinalipour-Yazti, D., Lin, S., Kalogeraki, V., Gunopulos,

D., and Najjar, W. (Dec 13, 2005). MicroHash: An

Efﬁcient Index Structure for Flash-Based Sensor De-

vices. volume 4 of FAST’05, pages 31–44. USENIX.

EmbedDB: A High-Performance Time Series Database for Embedded Systems

249
