Non-Photorealistic Rendering of 3D Point Clouds Using Segment-Speciﬁc

Image-Space Effects

Ole Wegen

1 a

, Josafat-Mattias Burmeister

1 b

, Max Reimann

2 c

, Rico Richter

1 d

and J

urgen D

ollner

2 e

University of Potsdam, Germany

Hasso-Plattner-Institute, University of Potsdam, Germany

Keywords:

3D Point Clouds, Non-Photorealistic Rendering, Segmentation, Image-Based Artistic Rendering.

Abstract:

3D point clouds are a widely used representation for surfaces and object geometries. However, their visual-

ization can be challenging due to point sparsity and acquisition inaccuracies, leading to visual complexity and

ambiguity. Non-photorealistic rendering (NPR) addresses these challenges by using stylization techniques to

abstract from certain details or emphasize speciﬁc areas of a scene. Although NPR effectively reduces vi-

sual complexity, existing approaches often apply uniform styles across entire point clouds, leading to a loss

of detail or saliency in certain areas. To address this, we present a novel segment-based NPR approach for

point cloud visualization. Utilizing prior point cloud segmentation, our method applies distinct rendering

styles to different segments, enhancing scene understanding and directing the viewer’s attention. Our em-

phasis lies in integrating aesthetic and expressive elements through image-based artistic rendering, such as

watercolor or cartoon ﬁltering. To combine the per-segment images into a consistent ﬁnal image, we propose

a user-controllable depth inpainting algorithm. This algorithm estimates depth values for pixels that lacked

depth information during point cloud rendering but received coloration during image-based stylization. Our

approach supports real-time rendering of large point clouds, allowing users to interactively explore various

artistic styles.

1 INTRODUCTION

3D point clouds are unstructured sets of points in

3D space that often lack consistent density or dis-

tribution. The term “cloud” metaphorically reﬂects

their abstract, shapeless nature, akin to atmospheric

clouds. Point clouds can efﬁciently represent di-

verse 3D entities, capturing various shapes, topolo-

gies, and scales. Recent advances in remote sens-

ing technologies, particularly LiDAR (Horaud et al.,

2016) and photogrammetry (Westoby et al., 2012),

have made point cloud acquisition more accessible

and efﬁcient. Consequently, point clouds have be-

come an integral part of spatial computational mod-

els and digital twins, serving various sectors such as

autonomous driving (Li et al., 2021) or infrastructure

management (Mirzaei et al., 2022).

https://orcid.org/0000-0002-6571-5897

https://orcid.org/0000-0003-1890-844X

https://orcid.org/0000-0003-2146-4229

https://orcid.org/0000-0001-5523-3694

https://orcid.org/0000-0002-8981-8583

However, despite their widespread adoption, vi-

sualizing point clouds remains a challenge due to

inherent issues such as incompleteness, point spar-

sity, and inaccuracies arising from the acquisition pro-

cess. These issues often result in point cloud render-

ings that suffer from visual clutter and ambiguity (Xu

et al., 2004). Non-photorealistic rendering (NPR) of-

fers a way to address these challenges by using tech-

niques that do not aim for photorealism, but delib-

erately employ abstraction to enhance scene com-

prehension and guide the viewer’s focus to relevant

scene elements (D

ollner, 2008; DeCarlo and Santella,

2002) (Figure 1). Different NPR approaches for point

clouds have been designed in the last years, using both

object-space and image-space effects (Awano et al.,

2010; Xu et al., 2004; Wagner et al., 2022). How-

ever, many of these approaches uniformly apply the

same visual style to the entire point cloud. While this

helps to reduce visual clutter, it often leads to fore-

ground objects blending into the background. Only

a few methods have adopted a segment-based ap-

proach, allowing distinct rendering styles to be ap-

Wegen, O., Burmeister, J., Reimann, M., Richter, R. and Döllner, J.

Non-Photorealistic Rendering of 3D Point Clouds Using Segment-Speciﬁc Image-Space Effects.

DOI: 10.5220/0012575800003660

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2024) - Volume 1: GRAPP, HUCAPP

and IVAPP, pages 189-200

ISBN: 978-989-758-679-8; ISSN: 2184-4321

189

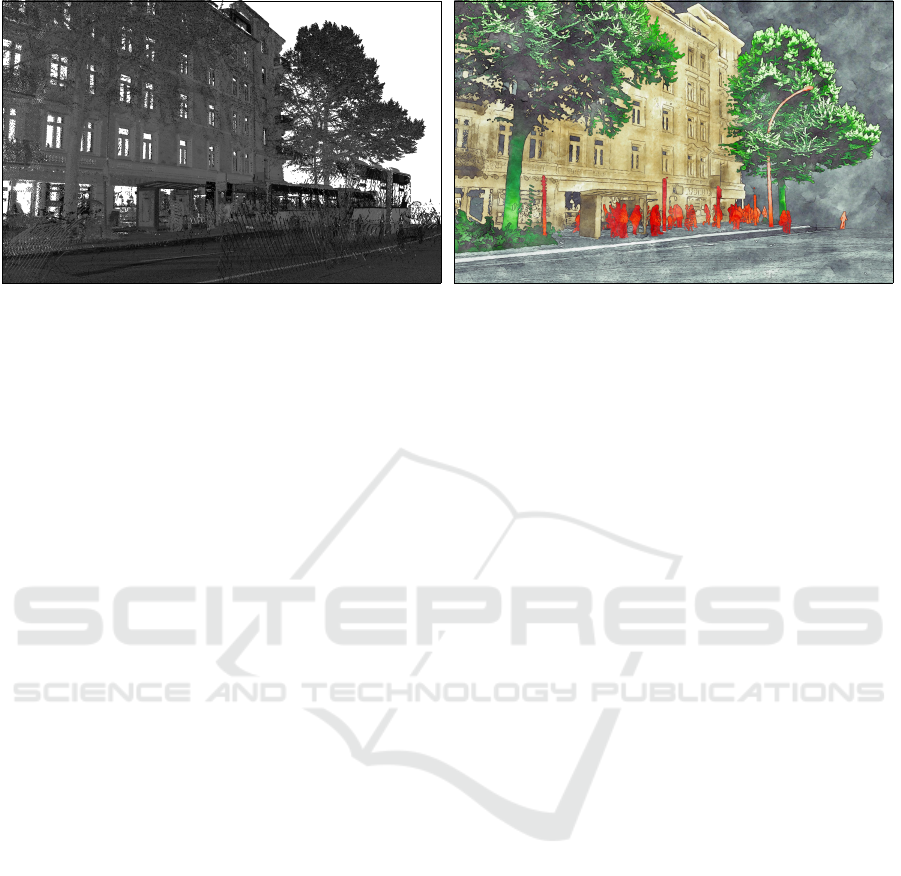

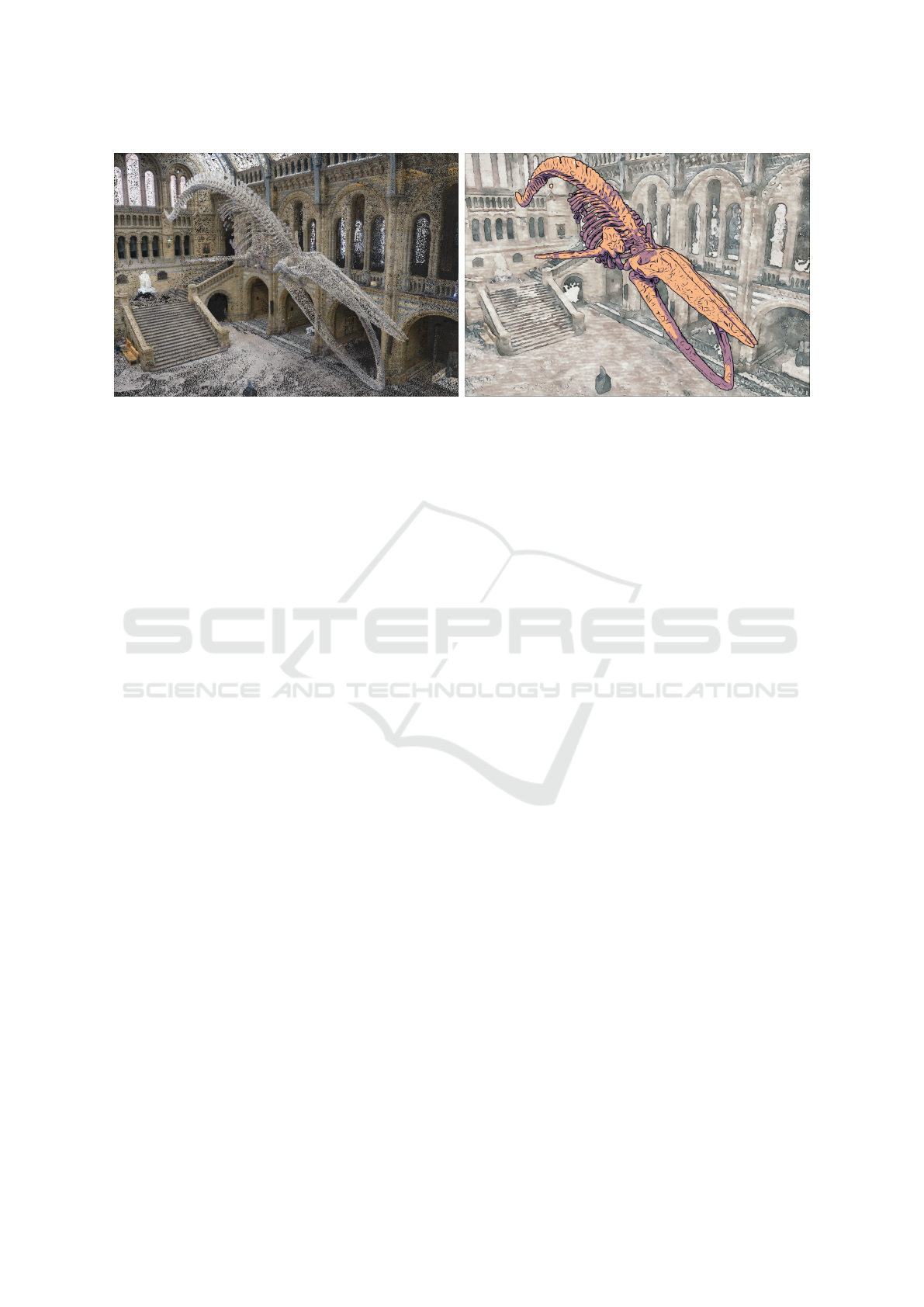

(a) Rendering of a point cloud via rasterization of point prim-

itives. The only available attribute of reﬂectance intensity is

interpreted as a single-channel color.

(b) Example result of a NPR of the same point cloud based

on edge enhancement, class-speciﬁc coloring, ambient occlu-

sion, and a watercolor postprocessing operation.

Figure 1: Comparison of conventional point-based rendering with reﬂectance intensity information (a) and NPR that supports

expressive visualization of point clouds (b), e.g., by highlighting speciﬁc objects and scene parts.

plied to different parts of a point cloud, e.g., individ-

ual stylization of different semantic classes (Richter

et al., 2015; Wegen et al., 2022). Such rendering

approaches are especially suited for complex scenes,

where the same degree of abstraction may not be ap-

propriate for every object or semantic class, or where

it is necessary to highlight certain areas. While prior

works on segment-based point cloud rendering use

simple NPR techniques as a tool for focus+context

visualization, the use of image-based artistic render-

ing (IB-AR) has rarely been explored. As (Gooch

et al., 2010) note, traditional illustration and drawing

styles can effectively convey information and allow

for engaging depictions that capture and maintain the

viewer’s interest. Therefore, in the image stylization

domain, a large variety of IB-AR ﬁlters have been de-

veloped (Kyprianidis et al., 2013) that enable a wide

range of visual effects.

In this work, we introduce an approach for

segment-based stylization of point clouds, using dif-

ferent artistic styles implemented through IB-AR ﬁl-

ters. Several challenges must be addressed to achieve

this goal. First, rendering of large point clouds as well

as subsequent artistic ﬁltering and compositing of per-

segment images must be implemented in a real-time

manner to create an interactive experience. To this

end, we propose a pipeline approach for scene-graph-

based rendering and compositing of point cloud seg-

ments. The approach enables the interactive explo-

ration of large point clouds and allows users to exper-

iment with a variety of artistic styles.

Second, the compositing of different segments

must adhere to the depth order of points. However,

as image-based ﬁltering can shift segment boundaries,

naive composition based on depth testing can lead to

visual artifacts at these boundaries. To address this is-

sue, we employ a compositing method based on lay-

ered depth images and propose a depth inpainting step

to correct the segments’ depth values in areas altered

by image ﬁltering. To summarize, our contributions

are:

1. A pipeline-based approach for segment-based

real-time NPR of point clouds that integrates a va-

riety of image-based stylization techniques.

2. A user-controllable segment compositing ap-

proach based on depth-buffer inpainting that elim-

inates artifacts at segment borders.

The remainder of this work is structured as fol-

lows: In Section 2, we review related work in the ar-

eas of point cloud segmentation, rendering, and NPR.

In Section 3, we present our approach for segment-

based real-time NPR of point clouds. Implementation

details are given in Section 4. In Section 5, we show-

case exemplary results for different application do-

mains, demonstrate the effectiveness of our segment

compositing method, and discuss limitations of our

approach. Finally, Section 6 concludes the paper and

outlines possible directions for future work.

2 BACKGROUND AND RELATED

WORK

This section provides an overview of the research ar-

eas related to our work. After providing a deﬁnition

of 3D point clouds, we present previous work on point

cloud rendering and segmentation, before we subse-

quently review related work in the area of NPR, fo-

cusing IB-AR and NPR for point clouds.

GRAPP 2024 - 19th International Conference on Computer Graphics Theory and Applications

190

2.1 3D Point Clouds

A 3D point cloud is a set of points in space, which is

permutation invariant. Each point is deﬁned at least

by its 3D coordinates, but may have additional at-

tributes, such as reﬂectance intensity or color. In this

paper, we focus on surface point clouds, where each

point represents a discrete sample of a continuous sur-

face. Due to imperfections in the data acquisition pro-

cess, 3D point clouds are often incomplete, have an

irregular point distribution, and contain measurement

inaccuracies and noise. During data preprocessing,

some of these issues can be mitigated (e.g., by ﬁlter-

ing outliers) and additional per-point attributes, such

as surface normals, can be computed.

2.2 Point Cloud Rendering

For point cloud rendering, different approaches have

been developed. A straightforward approach is to use

point primitives supported by graphics APIs to ren-

der individual points with ﬁxed size in screen space.

Alternatively, splatting provides a linear approxima-

tion to the underlying surface by rendering primitives

(e.g., disks) of a certain world-space size and blend-

ing overlapping regions to create the appearance of

smooth surfaces (Zwicker et al., 2001). Recently,

deep learning (DL) approaches have been proposed to

generate high-resolution renderings from low-density

point clouds (Bui et al., 2018; Aliev et al., 2020).

However, these methods often require RGB images,

are time-consuming to train, and the rendering per-

formance is not yet comparable with standard render-

ing approaches. The described rendering techniques

can be implemented with level-of-detail (LoD) data

structures to enable out-of-core rendering of massive

point clouds, enhance rendering performance, and

reduce visual clutter (Scheiblauer, 2014). For this,

point clouds are hierarchically organized in spatial

data structures (e.g., kd-trees or octrees), which are

used during rendering to select a suitable LoD, de-

pending on the virtual view position. Our approach is

compatible with any point cloud rendering technique,

provided it can generate a depth image during the ren-

dering process. For the sake of clarity in our demon-

strations, we opt for a straightforward approach using

point primitive rasterization and do not use any LoD

data structure.

2.3 Segmentation of Point Clouds

Although different subsets of a point cloud may rep-

resent distinct parts of a scene, there is no inherent

order in a point cloud that reﬂects this. Basic struc-

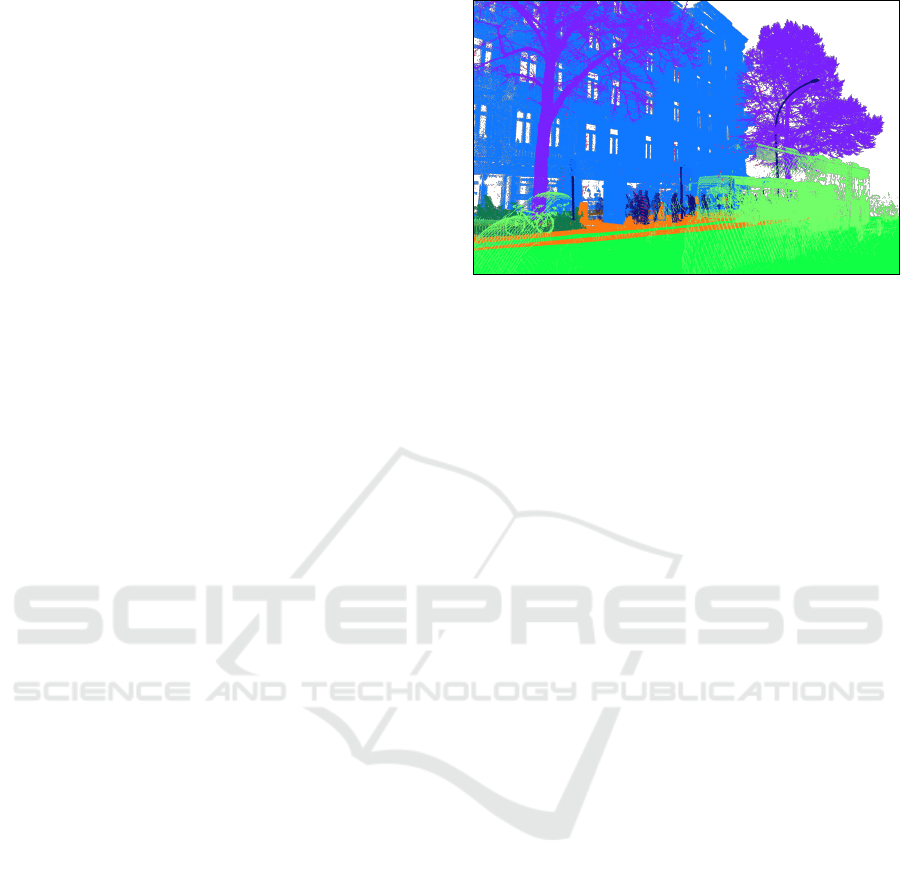

Figure 2: Result of a deep-learning-based semantic segmen-

tation of the point cloud shown in Figure 1.

tural information can be obtained from unsupervised

segmentation algorithms that divide point clouds into

non-overlapping segments. Xie et al. provide an

overview of these methods, of which region grow-

ing, clustering, and model ﬁtting are the most com-

mon ones (Xie et al., 2020). Further information can

be added by semantic segmentation, where each point

is assigned a semantic label (Figure 2), and instance

segmentation, where points with the same semantic

label are grouped into individual objects. This paper

does not focus on the segmentation process itself, as

our segment-based stylization approach is agnostic to

the segmentation method used. Nevertheless, we pro-

vide a brief overview of approaches below.

Semantic Segmentation: can be performed both

with unsupervised, rule-based approaches as well as

with supervised machine learning (ML) approaches.

In rule-based approaches, additional attributes are

computed for each point and subsequently used to dis-

tinguish between different semantic classes. This can

involve deriving geometric descriptors (e.g., linearity,

planarity, scattering) from the distribution of neigh-

boring points (Weinmann et al., 2015). Often, rule-

based approaches are based on a prior point cloud

segmentation with unsupervised algorithms, allowing

classiﬁcation rules to be based on segment shape (Hao

et al., 2022). Supervised ML models for semantic

segmentation can be trained if annotated datasets are

available. In recent years, deep neural networks have

become popular for this task, as they often outperform

statistical ML models, such as random forests (Wein-

mann et al., 2015). A number of DL architectures

have been developed to process point clouds directly,

offering performance advantages over DL architec-

tures that are based on image- or voxel-based inter-

mediate representations (Bello et al., 2020).

Instance Segmentation: approaches often rely on

special shape characteristics of the object category to

be segmented. Many instance segmentation methods

Non-Photorealistic Rendering of 3D Point Clouds Using Segment-Speciﬁc Image-Space Effects

191

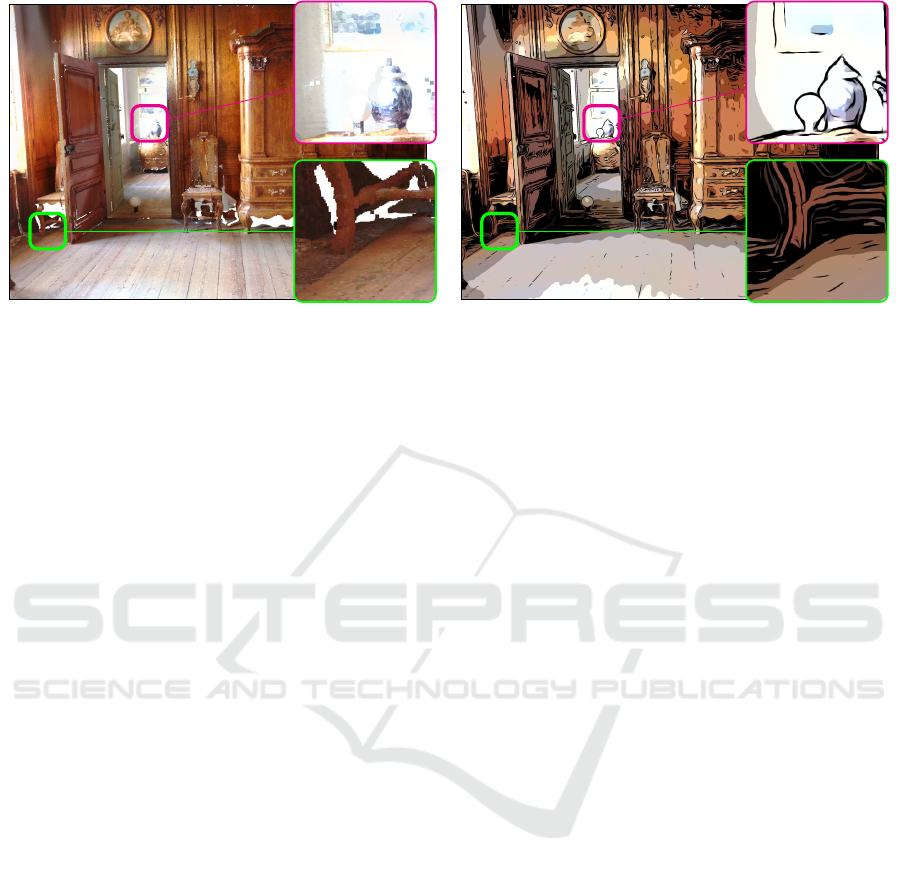

(a) Point rasterization result. (b) NPR based on image-space processing.

Figure 3: Compared to simple point primitive rasterization, NPR mitigates the problem of holes due to missing points and

difﬁculty of perceiving object boundaries.

are based on unsupervised model ﬁtting, region grow-

ing, or clustering algorithms, such as DBSCAN (Ester

et al., 1996). Some authors have also proposed deep

learning approaches (Wang et al., 2018; Luo et al.,

2021).

2.4 Non-Photorealistic Rendering

NPR uses visual abstraction and focus techniques to

simplify images and direct attention, creating aes-

thetically pleasing and easily understandable illus-

trations. IB-AR is a sub-area of NPR that trans-

forms an input image into an artistically stylized

rendition using image ﬁltering techniques. A va-

riety of IB-AR techniques have been proposed that

mimic artistic painting methods, such as oil painting

(Semmo et al., 2016), watercolor (Bousseau et al.,

2006), cartoon ﬁltering (Winnem

oller et al., 2006),

stroke-based painterly rendering (Hertzmann, 1998),

and many others (Kyprianidis et al., 2013). Further,

with the advancements in DL, example-based tech-

niques such as neural style transfer (NST) (Jing et al.,

2020) have emerged, which apply an artistic style ex-

tracted from an input style image to a new content

image. In our approach, we implement the previously

named techniques as part of an image processor re-

sponsible for stylizing point cloud segments.

2.4.1 NPR of Point Clouds

The main strengths of NPR also apply to point cloud

rendering: Scene understanding is enhanced and vi-

sually appealing images can be created (Figure 3).

NPR of point clouds can be categorized into object-

space and image-space approaches. Object-space ap-

proaches control the rendering result via the selection

of geometric primitives (e.g., points, splats, strokes,

or 3D glyphs) and their orientation (e.g., surface-

aligned or view-aligned) and scaling. Image-space

approaches postprocess the image resulting from a

prior point cloud rasterization step. In theory, any

IB-AR technique could be employed during postpro-

cessing. To date, some NST approaches have been

adapted to point clouds (Cao et al., 2020), and eye-

dome lighting has been developed as a technique

to enhance object perception in point cloud render-

ings (Ribes and Boucheny, 2011). However, generic

approaches for integrating point cloud rendering with

arbitrary IB-AR methods have rarely been investi-

gated.

The use of point cloud segmentation techniques

to stylize segments in different ways has been ex-

plored in the past, e.g., by (Richter et al., 2015)

and (Wegen et al., 2022). Both employ semantic-

class-dependent NPR to enhance recognition of ob-

jects. While their approaches are focused on speciﬁc

application domains and mostly employ object-space

techniques, we propose a more general approach to

segment-based point cloud stylization. In particular,

our approach enables per-segment stylization using

a multitude of NPR techniques, including especially

IB-AR methods (Figure 4). The segments can be de-

rived from semantic classes, object instances, point

clusters, or application-speciﬁc attributes.

2.4.2 Depth-Aware IB-AR Techniques

Typically, IB-AR approaches do not make assump-

tions about the geometry an image depicts, which of-

ten leads to a ﬂattening effect in the output. How-

ever, for point clouds, maintaining depth perception is

important. Several image-based approaches incorpo-

rate depth information (either predicted or captured),

GRAPP 2024 - 19th International Conference on Computer Graphics Theory and Applications

192

(a) Direct rendering of a raw point cloud. (b) Segment-based NPR of the same point cloud.

Figure 4: A segmentation of the point cloud enables separate processing and subsequent blending of the rendering results.

to enhance depth perception and improve separation

of foreground and background. For example, NST

was extended to incorporate depth information in the

2D (Liu et al., 2017) and 3D (H

ollein et al., 2022) do-

main. (Shekhar et al., 2021) enhance cartoon styliza-

tion effects by producing salient edges around depth

discontinuities. Similar to our approach, depth-based

segment stitching has been explored in the form of

layered depth images in the context of 3D photo styl-

ization. (Bath et al., 2022) segment an image based

on predicted depth and apply different stylizations

that are then stitched together using a simple form of

depth-inpainting. (Mu et al., 2022) extract a point

cloud from a depth image and use it to condition

view-consistent style transfer features. We also use

depth-aware composition of stylized segments, but in-

stead of generating new content (as done in 3D photo

stylization), we employ depth inpainting to improve

blending between stylized point cloud segments.

3 APPROACH

In the following, we present our approach for combin-

ing IB-AR with segment-based NPR of point clouds.

Figure 5 illustrates the overall process of obtaining a

stylized image from point cloud data. Initially, each

point cloud is preprocessed, e.g., using outlier ﬁlter-

ing or computing additional point attributes. An inte-

gral part of the preprocessing is the segmentation of

the point cloud, i.e., creating segments that represent

point clusters, semantic classes, or object instances.

Subsequently, on a per-frame basis, each point cloud

segment is rendered separately, resulting in at least a

color and a depth image. A rendering pipeline P for

a single segment comprises different processing steps

in a ﬁxed order:

1. The segment is rasterized using point primitives of

a user-deﬁned size. The results are raster images

containing color and depth information for further

processing in subsequent pipeline steps.

2. An arbitrary number of image-based postprocess-

ing steps can be applied to the result of the raster-

ization step. Examples include smoothing, color

grading, or IB-AR ﬁlters.

3. A depth inpainting step is used to counter border

artifacts that can occur when compositing the per-

segment images.

To enable ﬁne-grained control of the rendering

process, each processing step can be parameterized.

After all segments are rendered, the resulting per-

segment images are composited into a ﬁnal image.

3.1 Countering Compositing Artifacts

Since each segment is rendered separately, the ques-

tion arises of how to combine the per-segment results

into a cohesive ﬁnal image. Merely overlaying the re-

sults of each segment fails to accurately represent sce-

narios where segments are partially obscured or inter-

leaved, as is the case with the lantern pole and the tree

in Figure 1. To ensure proper visibility, depth test-

ing has to be employed. However, image-based post-

processing can modify color values at pixels where

no fragment was recorded during rasterization, e.g.,

when adding outlines. These newly colored pixels

would have no valid depth value, leading to artifacts

when compositing the rendered segments. A potential

solution could be to resolve visibility before applying

image ﬁlters: for each segment, the occluded areas are

computed and masked by setting the alpha channel

to zero before applying image-based postprocessing.

While this partially mitigates the problem, it requires

Non-Photorealistic Rendering of 3D Point Clouds Using Segment-Speciﬁc Image-Space Effects

193

Point Cloud

Segment S

Point Cloud

Segment S

Rendering

Pipeline P

Images


Compositing

Rendering

Pipeline P

Images

Final


Per-frame

...

User

ObserveModify

Raw

Point Cloud

Preprocessing &

Segmentation

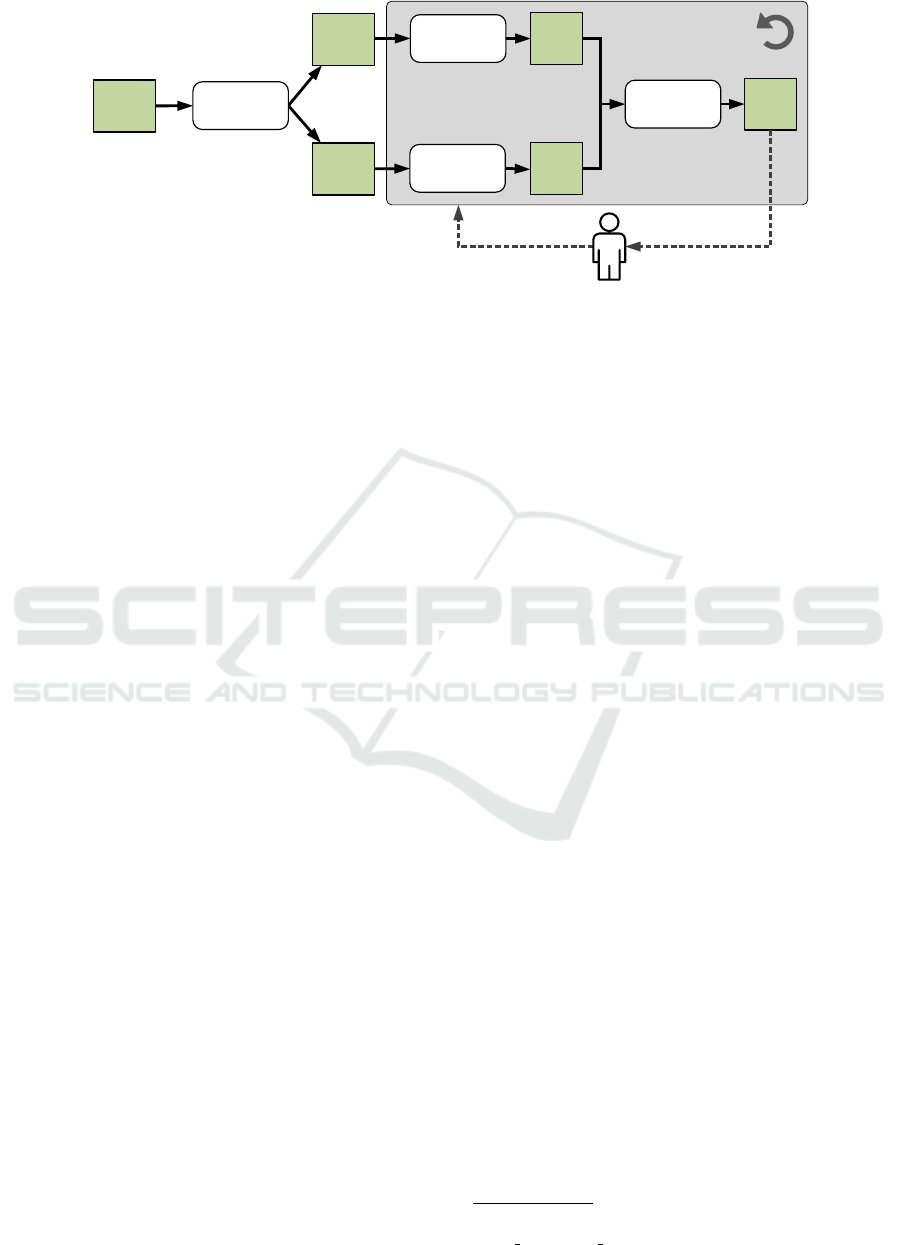

Figure 5: Illustration of the overall rendering approach. First, the point cloud is preprocessed, e.g., using outlier ﬁltering.

Additionally, it is segmented according to point clusters, semantic classes, or object instances. Then, each point cloud segment

is rendered separately and the results are combined into a ﬁnal image. The user can interactively control the processing

pipelines for each point cloud.

the deﬁnition of a strict order of segments, implying

that one segment consistently overlaps the other in ar-

eas lacking depth data. Additionally, by introducing

transparency early in the process, IB-AR techniques

might not produce correct results or overwrite the al-

pha channel as part of their processing pipeline.

Therefore, we propose to instead use a depth in-

painting pass on the per-segment depth buffers. This

inpainting pass is guided by the differences between

the rasterized and the postprocessed color images, as

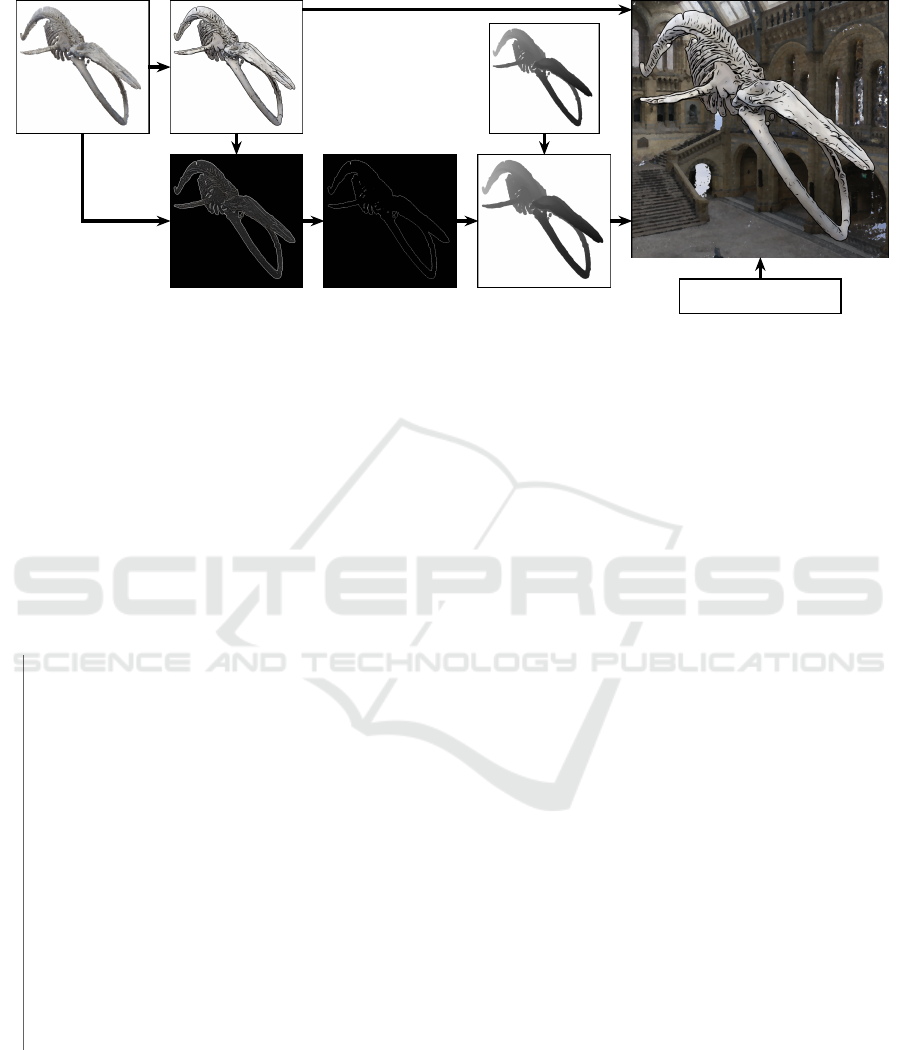

depicted in Figure 6. First, for each segment, the ras-

terized and the postprocessed images are converted to

grayscale and their difference is computed. Subse-

quently, this difference image is converted into a bi-

nary inpainting mask using a user-deﬁned threshold,

encoding areas signiﬁcantly altered by postprocess-

ing. Then, the depth values of all masked pixels are

inpainted. For this, all pixels in a circular neighbor-

hood, whose depth values do not correspond to the far

plane depth, are averaged. The size of the averaging

kernel is user-controllable. Pseudo-code for the depth

inpainting pass is provided in Section 4.

4 IMPLEMENTATION

This sections provides implementation aspects of the

proposed approach. After describing the segmenta-

tion methods we use as part of point cloud preprocess-

ing, we detail our implementation of the described

point cloud stylization approach.

4.1 Point Cloud Segmentation

As described, we perform point cloud segmentation

independently of the rendering in a preprocessing

step. Depending on the application scenario, we em-

ployed different segmentation approaches:

Connected Component Analysis. We use the al-

gorithm implemented in the open source software

CloudCompare.

This algorithm uses an octree and

identiﬁes connected components based on two crite-

ria: The octree level, which deﬁnes the minimum size

of the gap between two components, and the mini-

mum number of points per component, which causes

components with fewer points to be discarded.

Semantic Segmentation. We present examples that

were created using a rule-based approach, as well

as examples based on a DL approach. Speciﬁcally,

we use the rule-based approach of (Richter et al.,

2015), which segments point clouds into ﬁve dis-

joint partitions representing buildings, vegetation, ter-

rain, infrastructure, and water. For this purpose, the

point clouds are ﬁrst segmented using the algorithm

of (Rabbani et al., 2006), after which the label of

each segment is determined in several rule-based clas-

siﬁcation steps. As an example of a DL method,

the pipeline of (Burmeister et al., 2023) is used. It

is based on DL architectures that can directly pro-

cess point clouds, namely KP-FCNN (Thomas et al.,

2019).

Instance Segmentation. As an example of an in-

stance segmentation task, we consider single tree de-

lineation. To segment vegetation point clouds into

individual trees, we use the marker-controlled water-

shed algorithm (Kornilov and Safonov, 2018), with

the local maxima of the canopy height serving as

markers.

www.cloudcompare.org/doc/wiki/index.php/

Label Connected Components

GRAPP 2024 - 19th International Conference on Computer Graphics Theory and Applications

194

Color after

rasterization

Color post-

processed

Color difference Inpainting mask Depth after

inpainting

Depth after

rasterization

Compositing

result

Other Segment Buffers

Figure 6: A ﬂow chart depicting our depth inpainting approach to counter compositing artifacts.

4.2 Point Cloud NPR

The proposed segment-based point cloud styliza-

tion approach was implemented using C++ and

OpenGL 4.3.

Point Rendering. We structure the point cloud to ren-

der as a tree. Each leaf node of the tree comprises a

point cloud segment S with its own rendering pipeline

P that deﬁnes the different stylization steps, as well

as their parameterization. Inner nodes of the tree rep-

resent user-deﬁned groupings of multiple segments,

facilitating their joint manipulation. Changes made to

1 float computeDepth(ivec2 coords, float maskThreshold

,→ , int kernelSize){

2 float originalDepth = readDepthAt(coords);

4 if(colorsAreSimilar(coords, maskThreshold))

5 return originalDepth;

7 // inpaint depth based on neighbor depth

8 float counter = 0.0, finalDepth = 0.0;

9 for (each pixel in a circle around coords with

,→ radius kernelSize){

10 float neighborDepth = readDepthAt(pixel);

12 // skip depth values on the far plane

13 float skipFactor = 1.0 − step(1.0,

,→ neighborDepth);

15 finalDepth += neighborDepth ∗ skipFactor;

16 counter += skipFactor;

17 }

18 return finalDepth /counter;

19 }

Listing 1: GLSL-inspired pseudocode of the function that

estimates the depth of a pixel in the depth inpainting pass.

The colorsAreSimilar corresponds to the calculation of the

inpainting mask (Figure 6), i.e., it retrieves the color after

rasterization and the color after postprocessing at the given

coordinates, computes their intensity difference, and thresh-

olds the result according to the maskThreshold.

inner nodes, e.g., addition of stylization steps or ad-

justment of processing parameters, are propagated to

all child nodes. However, child nodes may override

the pipeline conﬁguration inherited from their parent.

This hierarchical structure enables intuitive and effec-

tive control of the rendering. General settings can be

applied to multiple segments by specifying them in

higher-level nodes, while still allowing for individual

parameterization at lower levels.

Image Filtering. For postprocessing after rasteri-

zation, we integrated several IB-AR effects that can

be parameterized by the user. Examples include a

cartoon effect (Winnem

oller et al., 2006), a water-

color ﬁlter (Bousseau et al., 2006), an oilpaint ﬁl-

ter (Semmo et al., 2016), image warping, and color

grading. To deﬁne the effects to be applied to

each segment, we use the description format for im-

age and video processing operations introduced by

urschmid et al., 2017). This format provides a con-

sistent description of the effect parameters and their

presets and allows multiple IB-AR effects to be com-

bined in a pipeline.

Maintaining Interactivity. To facilitate interactive

navigation through the scenes during rendering, we

employ two approaches: First, the image styliza-

tion per segment is performed asynchronous to the

rest of the rendering in a separate thread. This en-

ables smooth navigation, even with computationally

intensive postprocessing pipelines. However, if the

processing times for certain segments differ signiﬁ-

cantly, image artifacts can occur during camera move-

ment. This is due to the fact that during postprocess-

ing of a segment, the virtual viewpoint might change,

which then already inﬂuences the rendering result of

other segments. As a result, segments rendered from

slightly different view points might be combined in

the compositing stage. Second, we provide the option

Non-Photorealistic Rendering of 3D Point Clouds Using Segment-Speciﬁc Image-Space Effects

195

Table 1: The point clouds used in the paper.

Figures Reference

1,2,12 Street scene in the city of Hamburg, scanned with mobile mapping

vehicle. Provided by AllTerra Deutschland GmbH.

3 “Tottieska malmg

arden, Faro Pointcloud, Decimated” (https://skfb.

ly/6RTvX) by HagaeusBygghantverk. Licensed under Creative Com-

mons Attribution.

4,6,11,12 “Hintze Hall, NHM London [point cloud]” (https://skfb.ly/6sXWG)

by Thomas Flynn. Licensed under Creative Commons Attribution-

NonCommercial.

7 “Stone Grifﬁn, Downing College, Cambridge” (https://skfb.ly/OVZx)

by Thomas Flynn. Licensed under Creative Commons Attribution.

8 From “Hessigheim 3D” dataset (K

olle et al., 2021).

10 Street scene in the city of Essen, scanned with mobile mapping vehi-

cle. Provided by the Department for Geoinformation, Surveying and

Cadastre of the City of Essen.

9, 12 Forest area scanned with aerial LiDAR, obtained from OpenGeo-

DataNRW (www.opengeodata.nrw.de). Licensed under Data licence

Germany - Zero - Version 2.0

to automatically switch to lower resolution buffers

during camera movement, to maintain interactivity in

scene navigation on systems with less computational

power. If the virtual camera is not moved for 500 mil-

liseconds, high-resolution buffers are used again for

rendering.

Depth Inpainting. The implementation of the depth

inpainting pass is shown in Listing 1. Although the

generation of the difference image, the inpainting

mask, and the processed depth buffer are conceptu-

ally separate steps, we implemented them as a single

shader for performance reasons.

5 RESULTS

The proposed rendering process can be customized on

different granularity levels: each point cloud segment

is rendered by an individual processing pipeline and

each pipeline step can be controlled interactively by a

set of parameters. This makes the approach capable of

producing diverse results. In the following, we show-

case example renderings for point clouds with up to

82 million points, employing different pipeline con-

ﬁgurations (see Table 1 for the point cloud sources).

Please also refer to the supplementary video.

While our prototype mainly showcases our ap-

proach’s feasibility and is not fully optimized for

performance, basic runtime and scene statistics are

shown in Table 2 for reference. All images were

rendered with a resolution of 1920 × 1080 pixels on

a machine equipped with an AMD Ryzen 7 3700-X

processor, 32GB RAM, and an NVIDIA RTX 3090

graphics card. The rendering performance of a given

scene is inﬂuenced by numerous factors, including

number of points, viewpoint, the rendering pipelines

and their parameterization, the number of point cloud

segments and depth inpainting kernel size.

(a) (b) (c) (d) (e)

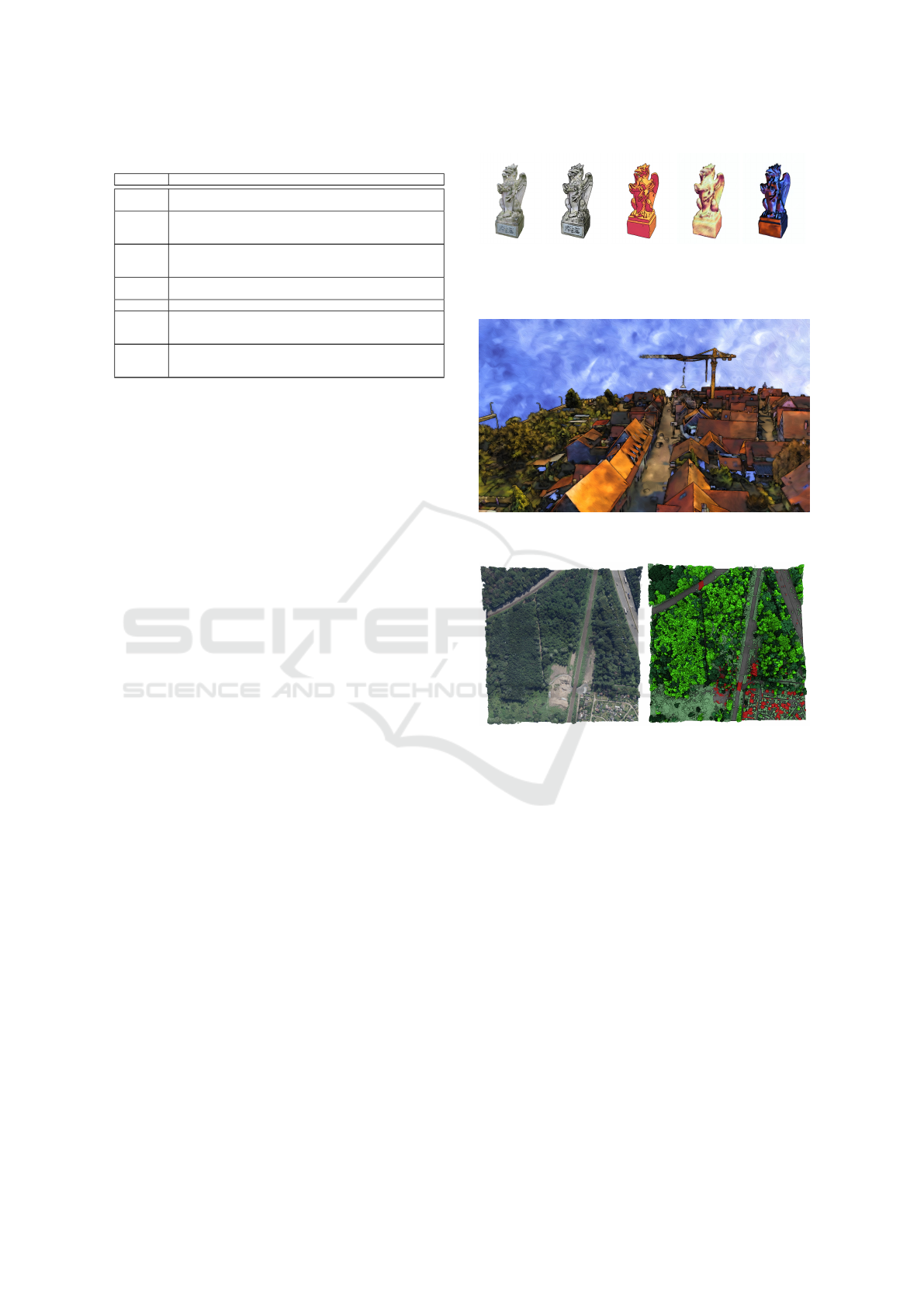

Figure 7: Different IB-AR ﬁlters applied to point cloud (a):

toon (b), posterization (c), oil painting (d,e).

Figure 8: An edge enhancement and oilpaint IB-AR ﬁlter

applied to a point cloud obtained by a UAV.

(a) Original point cloud (b) Stylized result

Figure 9: NPR based on semantic segmentation and tree

instance segmentation.

5.1 Exemplary Results

Application of IB-AR to non-segmented point clouds

enables aesthetic and diverse rendering results, as

demonstrated in Figure 3, Figure 7, and Figure 8.

When integrated with segmentation, the approach am-

pliﬁes the strengths of NPR, such as highlighting key

areas, resulting in engaging visualizations. In the fol-

lowing, we present a few application examples of this

approach.

NPR in Vegetation Mapping. Figure 9 shows a point

cloud of a forest area. The NPR is parameterized by

segmentation results with respect to coloring and edge

thickness to facilitate the simultaneous distinction

of semantic classes and individual trees. Figure 10

shows results for a mobile mapping point cloud. The

point cloud is segmented into ﬁve classes (low veg-

GRAPP 2024 - 19th International Conference on Computer Graphics Theory and Applications

196

Table 2: Rendering performance for the scenes depicted in this paper (capped at 60 FPS). Please note that for the measurements

with an additional number in brackets, an unoptimized CPU-side pencilhatching IB-AR ﬁlter is used on some of the segments.

The number in brackets reports the performance for the case that this ﬁlter is exchanged for a GPU-accelerated cartoon ﬁlter.

We further state the used segmentation methods, if applicable: SSDL = deep learning semantic segmentation, SSR = rule-

based semantic segmentation, CC = connected components analysis, ISA = algorithmic instance segmentation. Please also

refer to Section 4 for more details on the segmentation methods.

Figure 1(b) 3(b) 4(b) 7(b)-(e) 8 9(b) 10(d) 11 12(d) upper 12(d) middle 12(d) lower

Number of Points 18.3M 4.8M 2.5M 3M 82M 12M 64.8M 2.5M 2.5M 18.3M 12M

Segmentation SSDL - CC - - SSR+ISA SSDL CC CC SSDL SSR

FPS 53 60 60 60 48 60 32 45 (60) 12 (60) 22 (45) 12 (60)

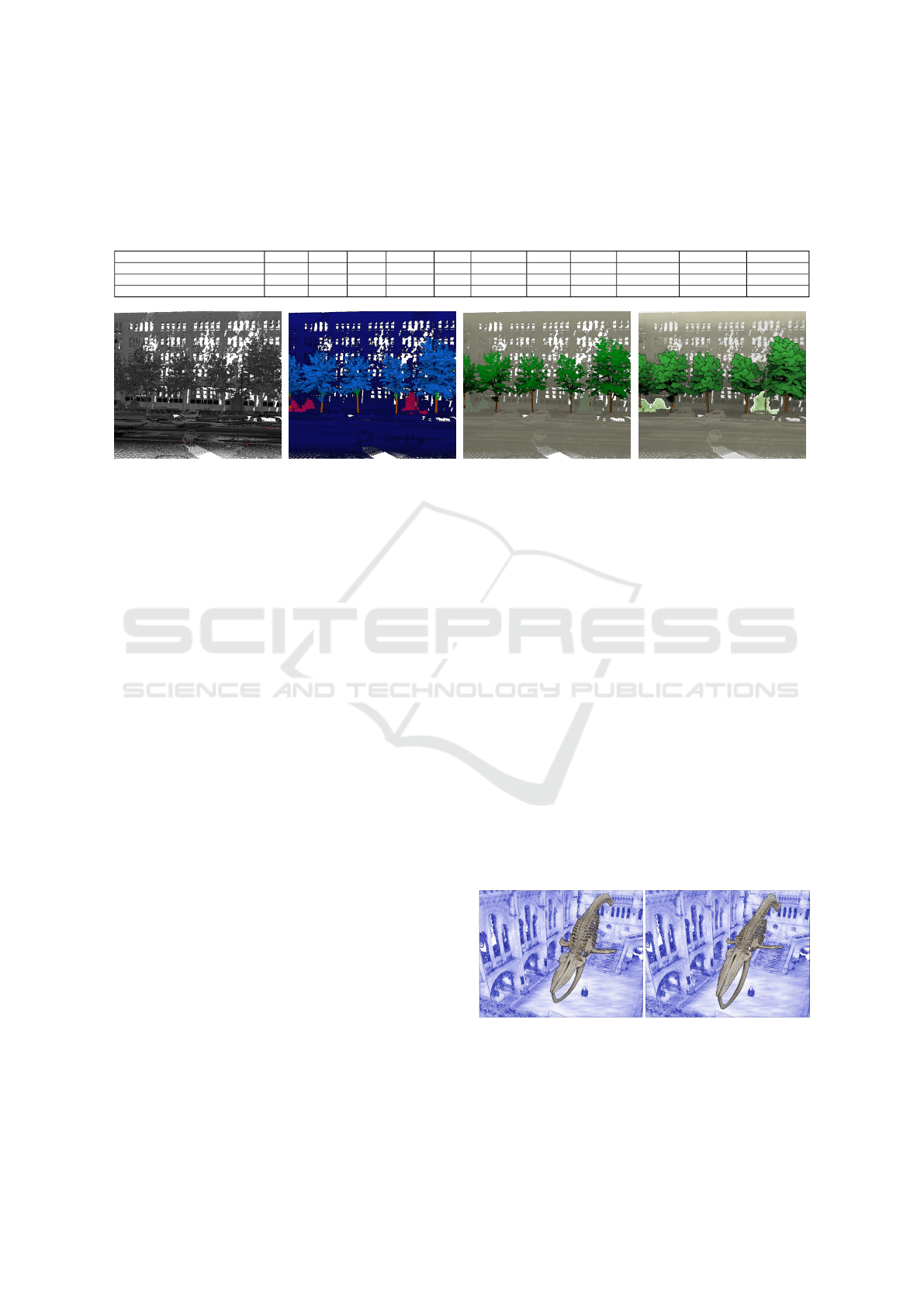

(a) Reﬂectance intensity (b) Semantic segmentation (c) Class-based coloring (d) Stylized vegetation

Figure 10: Application example in the area of urban vegetation mapping.

etation, tree trunks, tree branches, tree crowns, non-

vegetation) using a DL approach (Figure 10b). Then,

coloring (Figure 10c), as well as cartoon and water-

color ﬁltering (Figure 10d) are applied to the vegeta-

tion classes, using black outlines for trees and white

outlines for low vegetation.

NPR for Urban Visualization. The point cloud

shown in Figure 1 was obtained via mobile map-

ping. Preprocessing involved the exclusion of points

assigned to the transportation category (e.g., buses,

bicycles). Vegetation elements were recolored to

green, pedestrians to red, and architectural structures

to beige. To conceal gaps within the point cloud and

augment the overall aesthetic quality, a watercolor ef-

fect was then applied to the entire image. By smooth-

ing larger surfaces (e.g., building facades) and empha-

sizing smaller objects (e.g., pedestrians), the conﬁgu-

ration of the urban landscape can be observed more

easily.

Animations via Warp Filtering. In Figure 11, we

employed a warping-based geometric transformation

to the segmented representation of a whale skele-

ton, with temporal parameterization to simulate the

motion of swimming (see the supplementary video).

Our depth inpainting approach ensures visual coher-

ence by maintaining the correct depth ordering for the

transformed image pixels

5.2 Comparison of Compositing

Methods

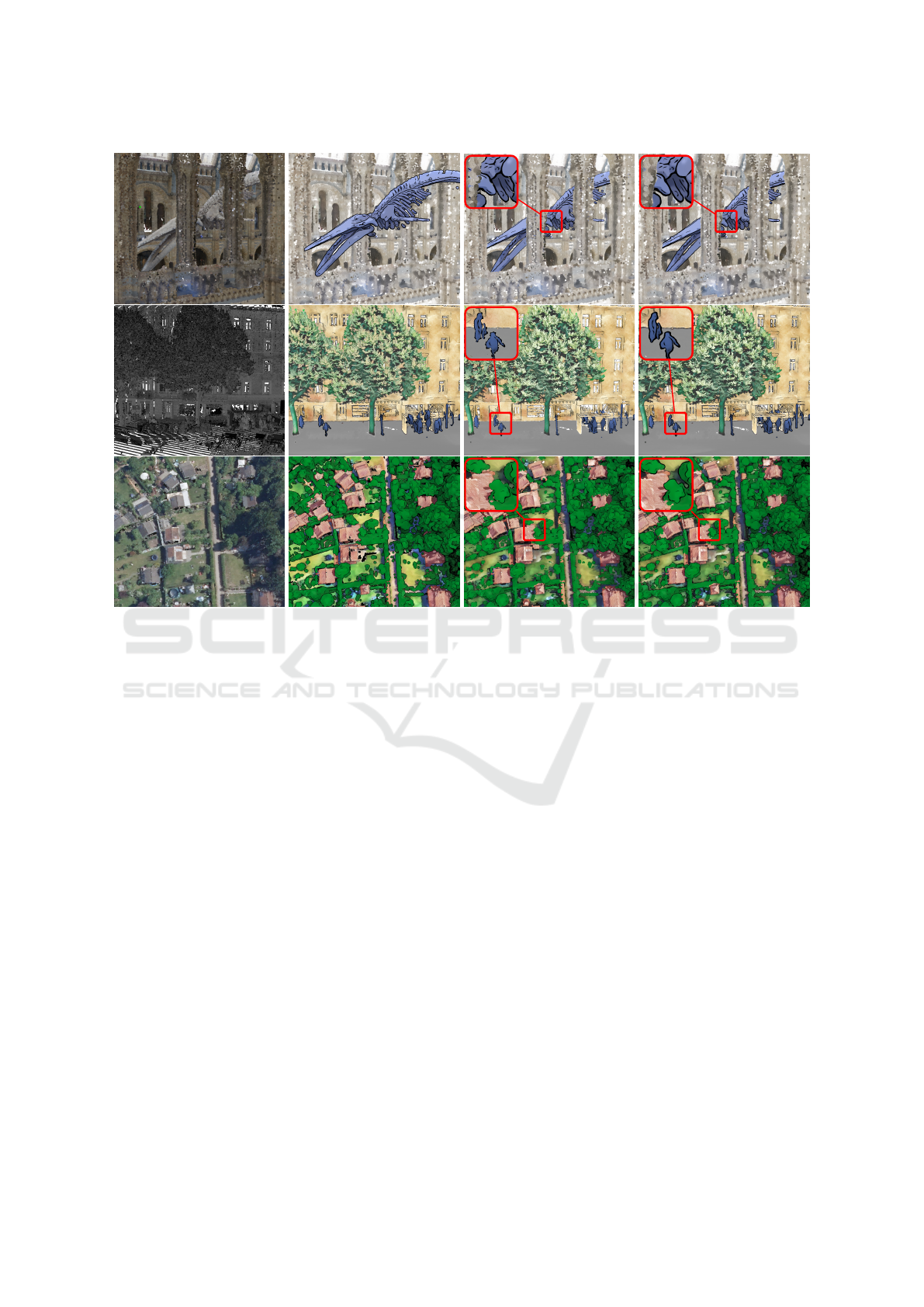

Figure 12 illustrates our compositing technique and

compares it to alternative approaches:

Layering without Depth Test. As demonstrated in

Figure 12b, a naive layering of per-segment results is

inadequate if segments overlap. This approach fails to

resolve occlusions correctly, leading to visual errors.

Layering with Per-Fragment Depth Tests. Incor-

porating per-fragment depth tests (Figure 12c) im-

proves the compositing of layers by ensuring that

segments obstruct each other appropriately. How-

ever, this method produces visual artifacts at segment

boundaries, especially when a cartoon ﬁlter is applied.

Boundaries may be added at pixels without depth in-

formation, resulting in a jittery appearance as the ﬁl-

ter’s overdraw effect is not integrated seamlessly.

Our Depth Inpainting Approach. Our depth in-

painting approach (Figure 12d) addresses these short-

comings, leading to smooth outlines and, thus, a more

uniform and aesthetically pleasing representation. As

the missing depth information at segment boundaries

is effectively estimated, a cohesive and visually stable

output is ensured.

(a) Timestamp 1 (b) Timestamp 2

Figure 11: A geometric warp transformation that is param-

eterized over time is applied to one of the segments.

Non-Photorealistic Rendering of 3D Point Clouds Using Segment-Speciﬁc Image-Space Effects

197

(a) Original (b) Layering (c) Naive depth testing (d) Ours with depth inpainting

Figure 12: Comparison of our approach to other compositing approaches.

5.3 Discussion

One notable advantage of using image-space ﬁltering

methods for segment-based NPR of point clouds is

their independence from specialized data structures,

often required for organizing point clouds in object-

space approaches, as well as their generality - any im-

age ﬁltering method can be applied without needing

adaption to point cloud geometry. However, com-

bining image-space NPR with segment-based point

cloud rendering raises the following issues:

Validity of Pixel Information. Image-based NPR ap-

proaches often assume that each pixel contains valid

data. However, when rendering sparse point clouds,

pixels may represent background values rather than

meaningful information, which can cause problems

with image-based processing steps. For example, the

sparsity of point clouds can cause edge ﬁlters to place

an excessive number of edges around single points.

To mitigate this problem, gap-ﬁlling techniques can

be used, such as increasing the point size or using

splatting. Alternatively, image-based smoothing can

be combined with our depth inpainting approach.

Handling Intersecting Segments and Edge Zones.

In segment-based point cloud rendering, dealing with

overlapping segments and ambiguous boundary zones

is challenging and often requires manual adjustment

of the parameters used to compose the per-segment

images. However, the proposed parameters of our

depth inpainting approach allow for manual adjust-

ment and provide a degree of control over these com-

plex areas.

Depth Precision Constraints. In scenarios where

the far plane is very far away from the camera, depth

precision may be insufﬁcient for distant parts of the

scene. This can lead to inaccuracies during depth

testing, resulting in visual artifacts when compositing

the per-segment images.

Regardless of whether object- or image-space meth-

ods are used, the following additional issues arise

with segment-based NPR of point clouds:

Inter-Frame Consistency. Achieving consistent ren-

dering results for different camera viewpoints is chal-

lenging, especially when the user can interactively

control the camera. Because camera movements can

lead to variations in the screen-space point density,

visual artifacts such as ﬂickering and popping can oc-

cur.

GRAPP 2024 - 19th International Conference on Computer Graphics Theory and Applications

198

Segmentation Quality Dependence. As the render-

ing techniques and their parameters are selected based

on the preceding segmentation, the quality of the ﬁ-

nal image is greatly inﬂuenced by the segmentation

quality. In case of erroneous segmentation, the visual

quality of the result can be signiﬁcantly degraded, po-

tentially even communicating incorrect information

(e.g., in Figure 1, the lantern pole has been classiﬁed

as a pedestrian).

In summary, the successful implementation of

segment-based image-space NPR for point clouds

currently requires high-quality data and segmentation

results, as well as careful conﬁguration of user param-

eters. If these constraints are met, it is an effective

approach to reduce noise or highlight certain objects

in point cloud renderings, as our results show.

6 CONCLUSIONS AND FUTURE

WORK

The integration of point clouds with NPR tech-

niques has signiﬁcant potential for various applica-

tions. NPR of point clouds improves the clarity of

their depiction, reduces visual complexity, and en-

ables a wide range of expressive graphical represen-

tations. We demonstrated that in this context the in-

tegration of IB-AR provides a high degree of artistic

freedom and enables diverse stylization results. Fur-

ther, we have shown that point cloud segmentation

allows to enhance and combine existing NPR tech-

niques, improving object perception and enabling the

highlighting of speciﬁc objects or semantic classes.

To counter artifacts that can arise during composition

of per-segment rendering results, we proposed a depth

inpainting approach that effectively deals with com-

plex scenes comprising overlapping and intersecting

segments. As our overall approach strongly depends

on the quality of the point cloud segmentation, more

accurate segmentation techniques are required to fur-

ther enhance the stylization results in the future. The

development of foundational models through suitable

pretraining methods seems to be a promising research

direction. Further, in our current approach, the styl-

ization and depth inpainting parameters need to be

ﬁne-tuned manually. In the future, automatic deduc-

tion of these parameters from point cloud properties

(e.g., density or segment overlap) could be investi-

gated. Overall, our work shows that point clouds are

not only useful for analysis tasks, which is perceived

as their main application in current scientiﬁc litera-

ture, but also for artistic stylization and the creation

of helpful and engaging visualizations.

ACKNOWLEDGEMENTS

We thank AllTerra Deutschland GmbH and the De-

partment for Geoinformation, Surveying and Cadas-

tre of the City of Essen for providing mobile map-

ping data. This work was partially funded by the Fed-

eral Ministry of Education and Research, Germany

through grant 01IS22062 (”AI research group FFS-

AI”) and grant 033L305 (”TreeDigitalTwins”).

REFERENCES

Aliev, K., Sevastopolsky, A., Kolos, M., Ulyanov, D., and

Lempitsky, V. S. (2020). Neural point-based graph-

ics. In Proc. European Conf. Computer Vision, ECCV,

pages 696–712. Springer.

Awano, N., Nishio, K., and Kobori, K. (2010). Interac-

tive stipple rendering for point clouds. In Proc. 18th

Int. Conf. Central Europe Computer Graphics, Visual-

ization and Computer Vision, WSCG, pages 193–198.

aclav Skala-UNION Agency.

Bath, U., Shekhar, S., Tjabben, H., Semmo, A., D

ollner, J.,

and Trapp, M. (2022). Trios: A framework for interac-

tive 3D photo stylization on mobile devices. In Proc.

Int. Conf. Graphics and Interaction, ICGI. IEEE.

Bello, S. A., Yu, S., Wang, C., Adam, J. M., and Li, J.

(2020). Review: Deep learning on 3D point clouds.

Remote Sens., 12(11):1729.

Bousseau, A., Kaplan, M., Thollot, J., and Sillion, F. X.

(2006). Interactive watercolor rendering with tempo-

ral coherence and abstraction. In Proc. 4th Int. Symp.

Non-Photorealistic Animation and Rendering, NPAR,

pages 141–149. ACM.

Bui, G., Le, T., Morago, B., and Duan, Y. (2018). Point-

based rendering enhancement via deep learning. Vis.

Comput., 34(6-8):829–841.

Burmeister, J.-M., Richter, R., and D

ollner, J. (2023). Con-

cepts and techniques for large-scale mapping of ur-

ban vegetation using mobile mapping point clouds and

deep learning. In Proc. Digital Landscape Architec-

ture Conf., pages 451–462. Wichmann.

Cao, X., Wang, W., Nagao, K., and Nakamura, R. (2020).

Psnet: A style transfer network for point cloud styl-

ization on geometry and color. In Proc. IEEE Winter

Conference Applications of Computer Vision, WACV,

pages 3326–3334.

DeCarlo, D. and Santella, A. (2002). Stylization and

abstraction of photographs. ACM Trans. Graph.,

21(3):769–776.

ollner, J. (2008). Visualization, photorealistic and non-

photorealistic. In Encyclopedia of GIS, pages 1223–

1228. Springer.

urschmid, T., S

ochting, M., Semmo, A., Trapp, M., and

ollner, J. (2017). ProsumerFX: Mobile design of im-

age stylization components. In Proc. SIGGRAPH Asia

Mobile Graphics & Interactive Applications, pages

1:1–1:8. ACM.

Ester, M., Kriegel, H.-P., Sander, J., and Xu, X. (1996).

A density-based algorithm for discovering clusters in

large spatial databases with noise. In Proc. 2nd Int.

Non-Photorealistic Rendering of 3D Point Clouds Using Segment-Speciﬁc Image-Space Effects

199

Conf. Knowledge Discovery and Data Mining, KDD,

pages 226–231. AAAI Press.

Gooch, A. A., Long, J., Ji, L., Estey, A., and Gooch, B.

(2010). Viewing progress in non-photorealistic ren-

dering through heinlein’s lens. In Proc. 8th Int. Symp.

Non-Photorealistic Animation and Rendering, NPAR,

pages 165–171. ACM.

Hao, W., Zuo, Z., and Liang, W. (2022). Structure-based

street tree extraction from mobile laser scanning point

clouds. In Proc. 5th Int. Conf. Image and Graphics

Processing,ICIGP, pages 373–379. ACM.

Hertzmann, A. (1998). Painterly rendering with curved

brush strokes of multiple sizes. In Proc. 25th Annu.

Conf. Computer Graphics and Interactive Techniques,

SIGGRAPH, pages 453–460. ACM.

ollein, L., Johnson, J., and Nießner, M. (2022).

StyleMesh: Style transfer for indoor 3D scene recon-

structions. In Proc. IEEE/CVF Conf. Computer Vision

and Pattern Recognition, CVPR, pages 6198–6208.

Horaud, R., Hansard, M. E., Evangelidis, G. D., and

enier, C. (2016). An overview of depth cameras and

range scanners based on time-of-ﬂight technologies.

Mach. Vis. Appl., 27(7):1005–1020.

Jing, Y., Yang, Y., Feng, Z., Ye, J., Yu, Y., and Song, M.

(2020). Neural style transfer: A review. IEEE Trans.

Vis. Comput. Graph., 26(11):3365–3385.

Kornilov, A. S. and Safonov, I. V. (2018). An overview of

watershed algorithm implementations in open source

libraries. J. Imaging, 4(10):123.

Kyprianidis, J. E., Collomosse, J., Wang, T., and Isenberg,

T. (2013). State of the ”art”: A taxonomy of artis-

tic stylization techniques for images and video. IEEE

Trans. Vis. Comput. Graph., 19(5):866–885.

olle, M., Laupheimer, D., Schmohl, S., Haala, N., Rot-

tensteiner, F., Wegner, J. D., and Ledoux, H. (2021).

The Hessigheim 3D (H3D) benchmark on semantic

segmentation of high-resolution 3D point clouds and

textured meshes from UAV LiDAR and multi-view-

stereo. ISPRS J. Photogramm. Remote Sens., 1:11.

Li, Y., Ma, L., Zhong, Z., Liu, F., Chapman, M. A., Cao, D.,

and Li, J. (2021). Deep learning for lidar point clouds

in autonomous driving: A review. IEEE Trans. Neural

Networks Learn. Syst., 32(8):3412–3432.

Liu, X.-C., Cheng, M.-M., Lai, Y.-K., and Rosin, P. L.

(2017). Depth-aware neural style transfer. In Proc.

15th Int. Symp. Non-Photorealistic Animation and

Rendering, NPAR, pages 4:1–4:10. ACM.

Luo, H., Khoshelham, K., Chen, C., and He, H. (2021).

Individual tree extraction from urban mobile laser

scanning point clouds using deep pointwise direction

embedding. ISPRS J. Photogramm. Remote Sens.,

175:326–339.

Mirzaei, K., Arashpour, M., Asadi, E., Masoumi, H., Bai,

Y., and Behnood, A. (2022). 3D point cloud data pro-

cessing with machine learning for construction and

infrastructure applications: A comprehensive review.

Adv. Eng. Informatics, 51:101501.

Mu, F., Wang, J., Wu, Y., and Li, Y. (2022). 3D photo

stylization: Learning to generate stylized novel views

from a single image. In Proc. IEEE/CVF Conf. Com-

puter Vision and Pattern Recognition, CVPR, pages

16273–16282.

Rabbani, T., van den Heuvel, F., and Vosselman, G. (2006).

Segmentation of point clouds using smoothness con-

straints. In Proc. ISPRS Commission V Symposium,

pages 248–253.

Ribes, A. and Boucheny, C. (2011). Eye-dome lighting: A

non-photorealistic shading technique. Kitware Source

Quarterly Magazine, 7.

Richter, R., Discher, S., and D

ollner, J. (2015). Out-of-

core visualization of classiﬁed 3D point clouds. In 3D

Geoinformation Science: Selected Papers of the 3D

GeoInfo 2014, pages 227–242. Springer.

Scheiblauer, C. (2014). Interactions with gigantic point

clouds. PhD thesis, Institute of Computer Graphics

and Algorithms, Vienna University of Technology.

Semmo, A., Limberger, D., Kyprianidis, J. E., and D

ollner,

J. (2016). Image stylization by interactive oil paint

ﬁltering. Comput. Graph., 55:157–171.

Shekhar, S., Reimann, M., Mayer, M., Semmo, A., Pase-

waldt, S., D

ollner, J., and Trapp, M. (2021). Interac-

tive photo editing on smartphones via intrinsic decom-

position. Comput. Graph. Forum, 40(2):497–510.

Thomas, H., Qi, C. R., Deschaud, J.-E., Marcotegui, B.,

Goulette, F., and Guibas, L. J. (2019). KPConv: Flex-

ible and deformable convolution for point clouds. In

Proc. IEEE/CVF Int. Conf. Computer Vision ICCV,

pages 6410–6419.

Wagner, R., Wegen, O., Limberger, D., D

ollner, J., and

Trapp, M. (2022). A non-photorealistic rendering

technique for art-directed hatching of 3D point clouds.

In Proc. 17th Int. Joint Conf. Computer Vision, Imag-

ing and Computer Graphics Theory and Applications,

VISIGRAPP, pages 220–227. SCITEPRESS.

Wang, W., Yu, R., Huang, Q., and Neumann, U.

(2018). SGPN: Similarity group proposal network

for 3D point cloud instance segmentation. In Proc.

IEEE/CVF Conf. Computer Vision and Pattern Recog-

nition, CVPR, pages 2569–2578.

Wegen, O., D

ollner, J., Wagner, R., Limberger, D., Richter,

R., and Trapp, M. (2022). Non-photorealistic render-

ing of 3D point clouds for cartographic visualization.

Abstr. Int. Cartogr. Assoc., 5:161.

Weinmann, M., Jutzi, B., Hinz, S., and Mallet, C. (2015).

Semantic point cloud interpretation based on optimal

neighborhoods, relevant features and efﬁcient classi-

ﬁers. ISPRS J. Photogramm. Remote Sens., 105:286–

304.

Westoby, M. J., Brasington, J., Glasser, N. F., Hambrey,

M. J., and Reynolds, J. M. (2012). ‘Structure-

from-Motion’ photogrammetry: A low-cost, effective

tool for geoscience applications. Geomorphology,

179:300–314.

Winnem

oller, H., Olsen, S. C., and Gooch, B. (2006).

Real-time video abstraction. ACM Trans. Graph.,

25(3):1221–1226.

Xie, Y., Tian, J., and Zhu, X. X. (2020). Linking points

with labels in 3D: A review of point cloud seman-

tic segmentation. IEEE Geosci. Remote Sens. Mag.,

8(4):38–59.

Xu, H., Gossett, N., and Chen, B. (2004). PointWorks: Ab-

straction and rendering of sparsely scanned outdoor

environments. In Proc. 15th EG Workshop on Ren-

dering Techniques, EGWR, pages 45–52. Eurograph-

ics Association.

Zwicker, M., Pﬁster, H., van Baar, J., and Gross, M. H.

(2001). Surface splatting. In Proc. 28th Annu. Conf.

Computer Graphics and Interactive Techniques, SIG-

GRAPH, pages 371–378. ACM.

GRAPP 2024 - 19th International Conference on Computer Graphics Theory and Applications

200
