An Integrated Visualization Approach Combining Dynamic Data-Flow

Analysis with Symbolic Execution

Laura Troost, Hendrik Winkelmann

and Herbert Kuchen

Department of Information Systems, University of M

unster, M

unster, Germany

Keywords:

Data-Flow Analysis, Symbolic Execution, Test Case Generation, Language Server Protocol.

Abstract:

Although studies have emphasized that generating test cases with respect to data-ﬂow coverage is a highly

effective approach to ensure software quality, there is still a lack of appropriate tooling. We contribute to

this by extending the open source dynamic data-ﬂow analysis and visualization tool Dacite with symbolic

execution using the open source tool Mulib. Thereby, given a Java program and JUnit test cases, the covered

data ﬂow cannot only be identiﬁed but the user is able to receive feedback about the data ﬂow not covered

by existing test cases and can automatically generate test cases for those. This is especially suited for unit

testing and early integration testing. Furthermore, to enhance the comprehensibility the identiﬁed data ﬂow is

visualized for the user with an integrated visualization using the Language Server Protocol.

1 INTRODUCTION

Software testing is one of the most widely adopted

techniques for assuring high-quality of software sys-

tems (Bluemke and Rembiszewski, 2009; Ribeiro

et al., 2019; Su et al., 2015). To assess the quality

of test cases so that a test suite with higher quality

detects more faults, test adequacy criteria are used

(Ribeiro et al., 2019). For this, different criteria exist

such as control-ﬂow coverage and data-ﬂow coverage

(Frankl and Weiss, 1993). While control-ﬂow cover-

age criteria examine the execution ﬂow of test cases,

e.g., measuring which lines were covered, data-ﬂow

coverage focuses on the ﬂow of value deﬁnitions and

usages through the program (Allen and Cocke, 1976;

Ribeiro et al., 2019). Even though it has been shown

that data-ﬂow-based criteria are more effective than

control-ﬂow-based criteria in exposing errors (Frankl

and Weiss, 1993; Hemmati, 2015; Ribeiro et al.,

2019), control-ﬂow coverage is more commonly used

in practice.

One reason for this is the lack of appropriate data-

ﬂow coverage tools. Hence, a prototype called Dacite

(DAta-ﬂow Coverage for Imperative TEsting) (Troost

and Kuchen, 2022) was developed. In contrast to most

other tools for data-ﬂow analysis that employ a static

analysis, Dacite dynamically identiﬁes the reachable

https://orcid.org/0000-0002-7208-7411

https://orcid.org/0000-0002-6057-3551

data ﬂows of a given Java program and its JUnit test

cases. During this execution, it considers challenges

such as aliasing and inter-procedural data ﬂows that

are hard to solve statically (Troost and Kuchen, 2022).

Moreover, it provides an integrated visualization of

the identiﬁed data ﬂow for common Integrated Devel-

opment Environments (IDEs) based on the Language

Server Protocol (LSP) (Troost et al., 2023). However,

as the data ﬂow is derived during the execution, only

the passed data ﬂow is identiﬁed with no indication of

which data ﬂow was not covered yet which is crucial

during the test development.

For this reason, this paper proposes the combi-

nation of Dacite with the symbolic execution engine

Mulib (Winkelmann and Kuchen, 2022). The idea is

that by executing the program symbolically, all paths

are systematically traversed, and thus, all reachable

data ﬂow is derived. This way, the user can receive

feedback about which data ﬂow was not covered yet

by the existing test cases regarding the coverage cri-

teria all-uses which requires the coverage of all deﬁ-

nition and usage combinations (Frankl and Weyuker,

1988). The main contributions are:

1. We integrated the data-ﬂow visualization tool

Dacite with the symbolic execution engine Mulib.

2. By tracking the data ﬂow during the symbolic ex-

ecution and comparing it to the data ﬂow covered

by existing test cases, it is derived which data ﬂow

is not accounted for yet.

Troost, L., Winkelmann, H. and Kuchen, H.

An Integrated Visualization Approach Combining Dynamic Data-Flow Analysis with Symbolic Execution.

DOI: 10.5220/0012586200003687

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2024), pages 39-50

ISBN: 978-989-758-696-5; ISSN: 2184-4895

3. To facilitate comprehensibility the unaccounted-

for data ﬂow is visualized to the user adhering to

the LSP approach so that the existing IDE integra-

tions are extended with minimal effort.

4. By utilizing input-output mappings which are de-

rived from the symbolic execution, test cases cov-

ering the unaccounted-for data ﬂow are automati-

cally generated and suggested to the user.

5. To be able to symbolically execute the program,

a driver method initializing the symbolic values

is necessary. This is automatically generated and

suggested to the user to increase the usability.

Our approach is mainly suited for unit testing and

early integration testing involving a small number of

classes. For system testing, the symbolic execution

might take too long.

After explaining the concepts of data-ﬂow analy-

sis and Dacite in Section 2, Section 3 describes sym-

bolic execution using Mulib. We then describe im-

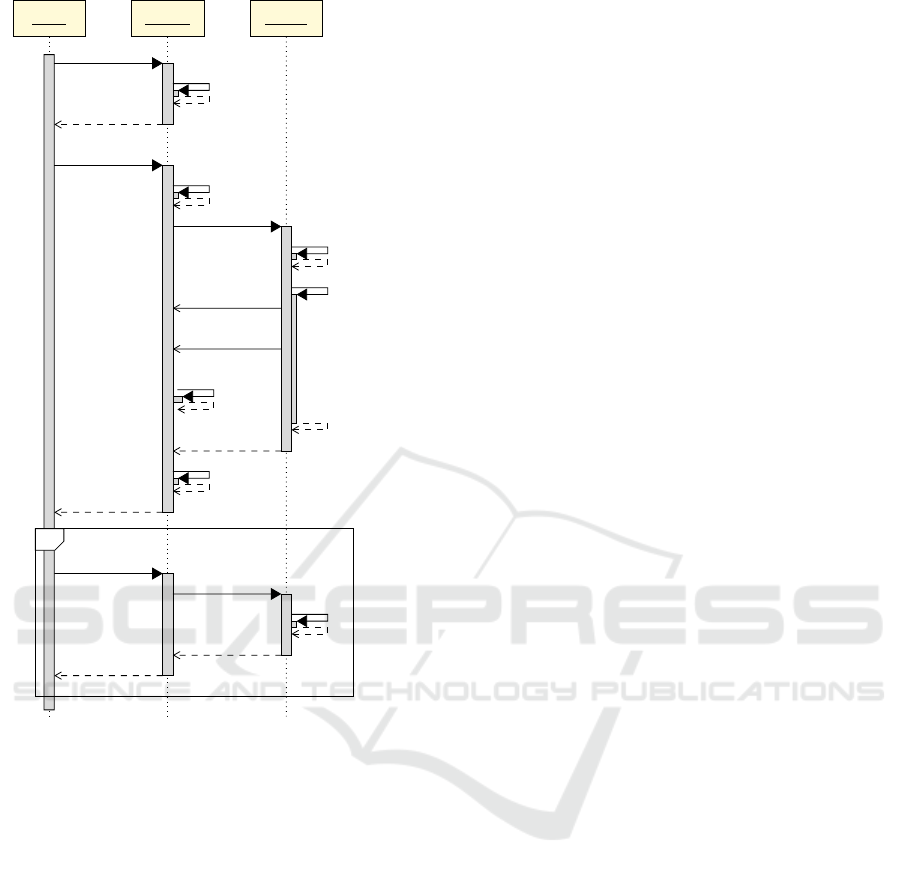

plementation aspects in Section 4. Therefore, ﬁrst,

the workﬂow between the user and the components is

illustrated. Afterwards, the adaptations necessary to

Dacite and Mulib for combining the data-ﬂow analy-

sis with symbolic execution are elaborated. Next, the

test case generation and extensions to the visualiza-

tion are described. In Section 5, the results are eval-

uated and validated given benchmark examples. Sec-

tion 6 summarizes the related work concerning data-

ﬂow analysis in combination with symbolic execution

and Section 7 concludes the results of this paper.

2 DYNAMIC DATA-FLOW

ANALYSIS WITH DACITE

Before describing the implementation of combining

Dacite’s data-ﬂow analysis with the symbolic execu-

tion of Mulib, the following sections aim to explain

the general concepts of data-ﬂow analysis and the

Dacite prototype ﬁrst.

2.1 Concept of Data-Flow Analysis

The concept of data ﬂow considers the ﬂow of def-

initions and usages of data through the program.

In Dacite, these are represented as deﬁnition-usage

chains (DUCs) (Troost and Kuchen, 2022; Troost

et al., 2023). A DUC relates each variable usage to

its most recent deﬁnition. In this context, a deﬁni-

tion (def ) is made when a variable receives a new

value and a usage (use) when this value is referred

to (de Araujo and Chaim, 2014; Troost et al., 2023).

Consider the data ﬂow of the program in Listing 1.

The program calculates the factorial of a given num-

ber.

Listing 1: An implementation of the factorial calculation

with the data ﬂow for n.

1 p u b l i c i n t f a c t o r i a l ( i n t n ) {

2 i n t r e s u l t = 1 ;

3 i n t i = 1 ;

4 w h i l e ( i <= n ) {

5 r e s u l t = r e s u l t

i ;

6 i = i + 1 ;

7 }

8 r eturn r e s u l t ;

use

def

9 }

There are 11 DUCs in this program as follows,

six chains for the variable i, four for the variable

result, and one for the variable n in the form of a

triple (variable, de f inition, usage):

(i, int i = 1, while(i <= n))

(i, int i = 1, result = result ∗ i)

(i, int i = 1, i = i + 1)

(i, i = i + 1, while(i <= n))

(i, i = i + 1, result = result ∗ i)

(i, i = i + 1, i = i + 1)

(result, int result = 1, result = result ∗ i)

(result, int result = 1, return result)

(result, result = result ∗i, result = result ∗ i)

(result, result = result ∗i, return result)

(n, f actorial(int n), while(i <= n))

Listing 1 illustrates the reachable data ﬂow for

variable n. Supposing that the function factorial

was called externally, i.e., from a class that should not

be analyzed, the parameter deﬁnitions of this method

are considered to be variable deﬁnitions (Troost et al.,

2023). With the deﬁnition in line 1, the usage of vari-

able n in line 4 can be reached. Analogously, the

data ﬂows of i and result can be illustrated but were

omitted for the sake of clarity.

Since DUCs utilize information on the association

of deﬁnition and usage, they often are found to be

more effective in exposing errors when compared to

other control-ﬂow metrics e.g. line coverage (Frankl

and Weiss, 1993; Ribeiro et al., 2019). It has been

shown that it can increase fault detection up to 79%

in comparison to common control-ﬂow metrics (Hem-

mati, 2015). However, on the other hand, due to its in-

creased complexity, it is more expensive to derive the

corresponding information which may be one reason

why control-ﬂow metrics are more commonly used

in practice (Hemmati, 2015; Ribeiro et al., 2019; Su

et al., 2015). Another reason is the lack of appropriate

tools for tracking the data ﬂow of a program. Hence, a

prototype called Dacite (DAta-ﬂow Coverage for Im-

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

perative TEsting) was developed (Troost and Kuchen,

2022).

2.2 Dacite

Dacite is an open-source tool

that dynamically iden-

tiﬁes reachable data ﬂows in Java programs and visu-

alizes them within code editors.

Most existing tools derive the data ﬂow by stat-

ically analyzing the program. This approach has

some severe limitations in distinguishing reachable

and non-reachable DUCs or identifying aliases, i.e.,

two variables pointing to the same object (Pande et al.,

1994; Denaro et al., 2014). To overcome these issues,

Dacite dynamically analyzes the program by instru-

menting Java programs using the open source frame-

work ASM

based on Java Virtual Machine (JVM)

bytecode (Troost and Kuchen, 2022). With this,

Dacite is able to modify the bytecode of analyzed

classes before they are loaded into the JVM (Troost

et al., 2023). Consequently, whenever a deﬁnition or

usage occurs within the program, methods are auto-

matically added to the source code to collect and an-

alyze the data-ﬂow information during the execution.

These methods are executed along with the program.

All deﬁnitions and subsequent usages of variables that

were passed during the execution and the relevant in-

formation are forwarded to an analyzer class. In this

analyzer class, this information is combined to derive

passed DUCs (Troost and Kuchen, 2022).

By utilizing this dynamic approach, aliases can be

directly identiﬁed during the execution. Thus, they

are taken into account for the association of a usage

to its most recent deﬁnition. Additionally, in contrast

to other tools, Dacite analyzes the data ﬂow in de-

tail, i.e., it considers DUCs over boundaries of meth-

ods and classes and the precise treatment of array el-

ements and object ﬁelds (Troost and Kuchen, 2022).

Due to the identiﬁcation of DUCs during the execu-

tion, only those DUCs that were passed during the

execution are identiﬁed. This prevents the static prob-

lem of identifying DUCs that are not executable or

reachable. However, even though the information of

passed DUCs is useful when comparing JUnit test

cases, users do not yet receive feedback about DUCs

that were not covered by tests. This would be espe-

cially valuable in the testing context.

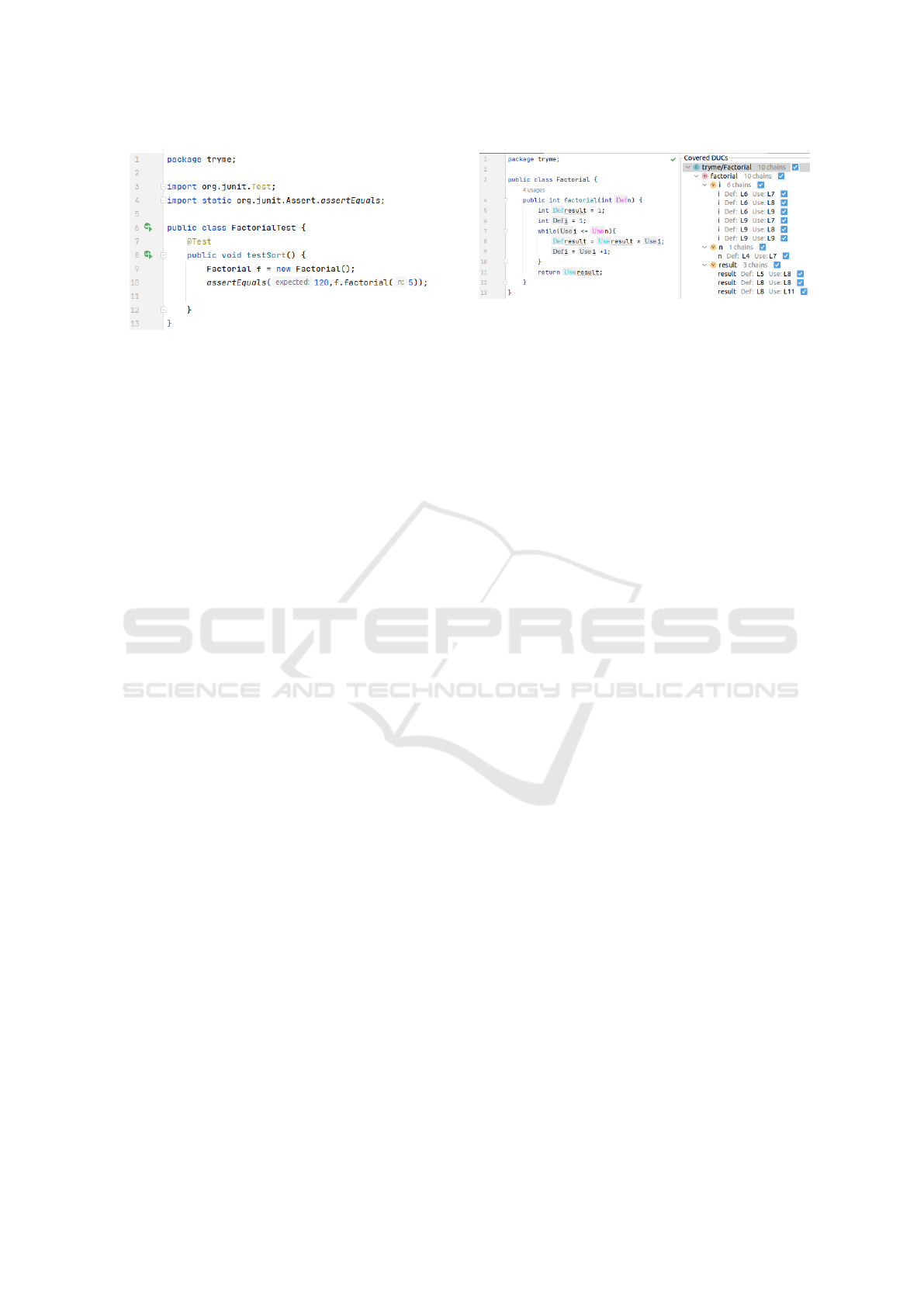

To increase the comprehensibility of the identi-

ﬁed data-ﬂow information, the data ﬂow is visualized

within the editor during the test development. To mit-

igate the development effort for implementing differ-

ent IDE integrations, common and IDE-independent

https://github.com/dacite-defuse/DynamicDefUse

https://asm.ow2.io

functionalities are extracted into a separate compo-

nent denoted language server. This is then reused

for different IDEs using the Language Server Pro-

tocol (LSP) which provides a standardized commu-

nication protocol via JSON (Microsoft Corporation,

2023a). For Dacite, next to the language server con-

taining functionalities such as executing the analysis

and deriving the source code positions of DUCs, there

exist two IDE integrations at this point, IntelliJ and

Visual Studio Code (VS Code) utilizing this approach

(Troost et al., 2023).

Given the factorial example in Listing 1 and the

JUnit test case calculating the factorial of 5 (see Fig-

ure 1), Figure 2 demonstrates the visualization of

Dacite’s data-ﬂow analysis in IntelliJ based on this ex-

ample. The Dacite visualization includes an expand-

able tree-like list of all identiﬁed DUCs covered by

the given test sorted by their class, method, and vari-

able. This is shown on the right-hand side of Figure

2 in form of the 10 DUCs covered by the test case.

Notice that the DUC (result, int result = 1,

return result) is not shown, since it is not cov-

ered by this test case. To increase the comprehensibil-

ity, the identiﬁed DUCs can be highlighted within the

code editor using the checkboxes. Distinctive colors

are utilized to enable the differentiation of variables

from each other (see Figure 2 on the left).

3 SYMBOLIC EXECUTION WITH

MULIB

Symbolic execution is a well-known technique for au-

tomated software veriﬁcation and test case generation

(Cadar and Sen, 2013). Mulib is an open-source sym-

bolic execution engine for programs compiled to Java

bytecode (Winkelmann and Kuchen, 2022).

It is ca-

pable of handling symbolic primitive values and sym-

bolic arrays (with primitive or reference-typed ele-

ments) (Winkelmann and Kuchen, 2022; Winkelmann

et al., 2021; Winkelmann and Kuchen, 2023). In the

following, ﬁrst, it is described how symbolic execu-

tion works and how it can be used to generate test

cases. Thereafter, the concept of driver methods is

explained in the context of Mulib.

3.1 Symbolic Execution for Test Case

Generation

In symbolic execution (Cadar and Sen, 2013), vari-

ables and ﬁelds are not limited to holding concrete

values, such as, e.g. the value int i = 42;. Instead,

https://github.com/NoItAll/mulib

An Integrated Visualization Approach Combining Dynamic Data-Flow Analysis with Symbolic Execution

Figure 1: Screenshot of the JUnit test case used to execute

the Dacite Analysis.

symbolic values are allowed. Symbolic values are not

limited to a concrete value and rather describe a whole

domain of values. During symbolic execution these

domains are restricted via constraints. Constraints,

on the other hand, are generated, e.g., whenever a

symbolic value is part of the condition of a condi-

tional jump. Again, consider the iterative formula-

tion of computing a factorial known from Listing 1.

A potential symbolic value might be the parameter n.

For each evaluation of the while-condition i <= n,

(line 4), a choice point with two choice options is cre-

ated. Here, the constraints would be 1 <= n and 1 >

n, where n holds the symbolic value, since it is the

ﬁrst iteration of factorial. Such a choice option is

a representation of nondeterminism: The ﬁrst choice

option considers the case where 1 <= n is true. If this

choice option is evaluated, ﬁrst, the new constraint

is pushed onto a constraint stack, and the constraint

stack is evaluated in terms of its satisﬁability. If the

constraint system is found to be satisﬁable, symbolic

execution enters the body of the while-loop (lines 5

and 6) assuming in the following that the symbolic

value of n is larger than or equal to 1. It then would

loop back, check the while-condition (line 4) and en-

counter another choice point with the choice options

2 <= n and 2 > n. Consider the case where now the

second choice option with the constraint 2 > n is as-

sumed to be true. In this instance, symbolic execution

would not enter the while-loop and instead return the

result.

When symbolic execution terminates, it is possi-

ble to assign concrete values to the symbolic values

by picking a value that satisﬁes all constraints us-

ing the constraint solver. For the exempliﬁed con-

straint stack 1 ≤ n ∧ 2 > n, the value 1 would be

assigned to n, yielding an input-output mapping of

n = 1, return = 1. Such an input-output mapping can

then be transformed into an executable JUnit test case.

After completing this instance of execution, symbolic

execution checks for other, unevaluated choice op-

tions, here, 1 > n or 2 <= n. It backtracks and re-

Figure 2: Exemplary screenshot of the Dacite visualization

in IntelliJ based on given test.

sets the constraint system to the state when encounter-

ing the respective constraint and, if the new constraint

stack is satisﬁable, spawns a new execution instance.

This execution would then assume the respective con-

straint to be true. If the accumulated constraints are

not satisﬁable, the current execution is discarded and

a remaining choice option is tried.

The decision on which choice option to evalu-

ate next is subject to a search algorithm, such as,

for example, Depth-First Search (DFS), Breadth-First

Search (BFS), or Iterative Deepening Depth-First

Search (IDDFS), and potential budgets, such as a time

budget, a maximal number of choice points to con-

sider during symbolic execution, etc.

In conclusion, symbolic execution can be used

to systematically traverse the execution paths of a

Method Under Test (MUT). The initial downside

of Dacite, mentioned in Subsection 2.2, can be rec-

tiﬁed by a symbolic execution that ﬁnds the reach-

able DUCs. In theory, by systematically traversing all

executable paths, Mulib is able to ﬁnd all reachable

DUCs. However, in case that Mulib is stopped due to,

e.g., an exhausted (time) budget, it may happen that

not all traversable paths are traversed and some DUCs

are not found. Nevertheless, in practice, Mulib offers

developers important insights into uncovered behav-

ior (see Section 5).

3.2 Driver Methods for Symbolic

Execution

To generate test cases for an MUT using symbolic ex-

ecution, Mulib encloses it in a search region via a so-

called driver method (Winkelmann et al., 2022). A

search region comprises all code that shall be symbol-

ically executed. The driver method sets up the, poten-

tially symbolic, inputs, executes the MUT using these

inputs, and records the output of the MUT. Consider

Listing 2 for an exemplary driver method.

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

Listing 2: A driver method for initializing the context in

which an MUT test is called.

1 s t a t i c i n t d r i v e r F a c t o r i a l ( ) {

2 F a c t o r i a l f a c = new F a c t o r i a l ( ) ;

3 Mul ib . remember ( fa c , ” a r g 0 ” ) ;

4 i n t n =

5 M uli b . r e m e m b e r e d F r e e I n t ( ” a r g 1 ” ) ;

6 i n t r e s u l t = f a c . f a c t o r i a l ( n ) ;

7 r e t u r n r e s u l t ;

8 }

In the driver, the inputs with which the MUT

is called are constructed. Since factorial is not

static, an object of the class deﬁning the method, here

Factorial is generated (line 2). This object is re-

membered in its current state (line 3). If factorial

had a state that would be mutated by the MUT, the

state before executing fac.factorial(n) could be

retrieved later on, using the name it was remembered

by. This functionality is needed in order to keep

track of previous values in case of destructive updates

(Visser et al., 2004). Thereafter, a symbolic value of

type int is generated (lines 4 and 5) and used to call

the MUT (line 6). Afterwards, the result is returned

from the driver method. More details on the inner

workings of Mulib are given in Subsection 4.2.

Such driver methods can be custom-tailored to the

search region at hand. For instance, symbolic values

can be restricted to reduce the run time of the sym-

bolic execution. Consider, for instance, Listing 1: If

n is not restricted, the loop in lines 4–7 potentially

is executed indeﬁnitely. By restricting n to, e.g., to

all values n < 5, the search space is pruned. Further-

more, complex input objects can be constructed while

accounting for their invariants and potentially restrict-

ing only parts of the inputs to be symbolic. In con-

sequence, if driver methods are being restricted, this

must be done carefully to still allow for discovering

all DUCs.

For the given example, a call to Mulib.get-

PathSolutions(Factorial.class, "driver-

Factorial", mb) executes this driver method until

either a budget has been reached or all possible choice

options have been evaluated. mb is a conﬁguration

builder in which various budgets can be set. In Mulib,

the remembered values, as well as the return value

are contained in Solution objects which are part of

the output.

4 IMPLEMENTATION

To be able to derive which DUCs are not covered yet

by given JUnit test cases regarding the coverage cri-

teria all-uses which requires the coverage of every

existing DUC (Frankl and Weyuker, 1988), the dy-

namic data-ﬂow analysis of Dacite needs to be com-

bined with the symbolic execution of Mulib. More-

over, based on the symbolic execution, input and out-

put values can be determined for an MUT which can

be used for the test case generation. Consequently, for

each identiﬁed unaccounted-for DUC, a test case can

be generated covering this chain. This test case then

is suggested to the user.

To facilitate these functionalities, both tools need

to be adapted to be able to interact with one another.

Subsection 4.1 ﬁrst presents the interaction workﬂow

between the user, Dacite, and Mulib. Afterwards,

given the concepts of Mulib in Section 3, Subsec-

tion 4.2 outlines the necessary adaptations and exten-

sions of Mulib in more detail. Then, the adaptations

to Dacite and the visualization for the derived DUCs

are elaborated in Subsection 4.3 while Subsection 4.4

provides more details on the test case generation.

4.1 Workﬂow

As mentioned before, Dacite and Mulib need to inter-

act in order to derive unaccounted-for DUCs. More-

over, the user interacts with Dacite via its IDE inte-

gration e.g. into Intellij IDEA. Figure 3 illustrates this

interaction.

After using Dacite to identify all passed DUCs

as shown in Figure 2, the user can start the process

of deriving the unaccounted-for DUCs by pressing a

corresponding button. To be able to execute the pro-

gram symbolically, a driver method is required to set

up the symbolic inputs, execute the MUT, and record

the output (see Subsection 3.2). Hence, when the user

starts the process, ﬁrst a driver method is automati-

cally generated by Dacite and shown to the user. This

allows the user to make adaptions to the driver. For

instance, the domains of values might be restricted,

e.g., the length of a symbolic array might be limited.

After the user has ﬁnished adapting the driver

method, they can press a button to start the symbolic

execution. For this, Dacite ﬁrst instruments the pro-

gram classes to be able to derive DUCs during the

symbolic execution as described in Subsection 2.2 for

the dynamic analysis analogously. Afterwards, the

Mulib process of symbolic execution is triggered with

the given driver method. For this purpose, Mulib ﬁrst

loads the classes with the Dacite instrumentation and

transforms them to enable symbolic execution. In-

structions from Dacite are not transformed (see Sub-

section 4.2). Then, the classes adapted by both Dacite

and Mulib are executed. During this process due to

the Dacite instrumentation, DUC information is for-

warded to the analyzer class whenever a usage or

deﬁnition occurs. This information is utilized to de-

An Integrated Visualization Approach Combining Dynamic Data-Flow Analysis with Symbolic Execution

User

Dacite Mulib

start Process

generate driver

display driver

start symbolic

execution

instrumentation

transformation

symbolic execution

DUC information

Solutions

derive DUCs

compare DUCs

not covered DUC

generate test cases

TCG

executable test

cases

display test cases

optopt

Figure 3: Sequence diagram illustrating the interaction be-

tween the user and the components, Dacite and Mulib.

rive the corresponding DUCs. Moreover, Solution

objects containing concrete input and output values

for the current execution path are forwarded to the

analyzer class whenever the symbolic execution has

reached a leaf node of the search tree. This infor-

mation is necessary for the test case generation later

on and is related to the identiﬁed DUCs on this path.

This process of the symbolic execution is indepen-

dent of the previously executed dynamic analysis of

Dacite as described in Subsection 2.2 to derive the

passed DUCs. However, when the symbolic execu-

tion ﬁnishes, Dacite compares the symbolically de-

rived DUCs with the passed DUCs from the original

analysis to derive differences, i.e., DUCs that were

not passed by the given JUnit test cases. These DUCs

are then forwarded and displayed to the user.

Lastly, after receiving feedback about the DUCs

that are not covered yet by the given JUnit test cases,

the user has the option to receive automatically gen-

erated test cases for them. Therefore, Dacite displays

a button which when pressed by the user invokes the

corresponding methods in Mulib to generate test cases

for the given Solution objects. The executable test

cases are returned to Dacite and displayed to the user

in a new class. In our running example, a JUnit test

case for factorial(0) would be generated with ex-

pected result 1. This test case covers the last and cur-

rently uncovered DUC (result, int result = 1, return

result).

4.2 Adaptations to Mulib

Since the JVM does not account for symbolic values

by itself, Mulib transforms the driver method and all

code used within it and generates partner classes for

the classes used in the search region (Winkelmann and

Kuchen, 2022). For this, similar to Dacite, Mulib uses

the bytecode library Soot (Vall

ee-Rai et al., 2010).

A partner class represents the original class in the

search region and has been adapted so that symbolic

execution is accounted for. For instance, calls to in-

dicator methods, such as Mulib.rememberedFree-

Int(...) are replaced with method calls that return

a Sint-typed value. Sint is a library class of Mulib

that can represent symbolic expressions. These li-

brary types reference the symbolic execution engine

of Mulib which is capable of performing search as

was exempliﬁed in Subsection 3.1. For instance, in-

stead of comparing two integer numbers, e.g., i0 < i1,

a method is invoked that checks whether there is a

symbolic value involved in the if condition and if

there is, which choice point should be evaluated, e.g.,

i0.ltChoice(i1, se). se here is a facade for con-

tacting the symbolic execution engine. For more de-

tails, see (Winkelmann and Kuchen, 2022). One par-

ticularity of Mulib is that, during this program trans-

formation, special cases can be deﬁned that are ex-

empt from said transformation. Mulib thus is able

to ignore method calls added by the instrumentation

of Dacite while transforming the remaining search re-

gion. While, in the past, approaches to record DUCs

in symbolic execution relied on a very tight inte-

gration between the symbolic execution engine and

the DUC analyzer (Winkelmann et al., 2022), by ex-

cluding the functionality of an instrumentation-based

stand-alone DUC analyzer from the program transfor-

mation in Mulib, minimal adaptations are necessary.

For the purpose of remembering objects at a spe-

ciﬁc state, a new type of constraint, a Partner-

ClassObjectRememberConstraint has been imple-

mented. There are two cases. Either we know the

contents of a (implicitly) remembered array or other

object, or it is symbolic and not yet lazily initial-

ized. Lazy initialization is a technique for symbol-

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

ically representing objects (Khurshid et al., 2003):

When symbolically initializing an object, the ﬁelds

of this object are set to symbolic values. In conse-

quence, object-typed ﬁelds are set to symbolic object

references that, in turn, are initialized symbolically.

Since class graphs oftentimes have circular dependen-

cies, generating a symbolic instance of an object with

an object-typed ﬁeld might lead to a an endless re-

cursion. To circumvent the eager initialization of the

respective circular object graph, ﬁelds are only initial-

ized when a ﬁeld access occurs. In consequence, if a

remembered object either was initialized by executing

a constructor, or is symbolic and was already lazily

initialized, a deep-copy of it is stored in the aforemen-

tioned constraint. If, while executing the MUT, the

object is altered, a copy of the state before executing

the MUT can still be used for recreating the inputs for

a test case. However, if the object is symbolic and was

not already lazily initialized, we instead store an iden-

tiﬁer for the object and record all subsequent accesses

such as loads from an array or retrieving a value from

an object’s ﬁeld. Loads of reference-typed values are

represented by loading the identiﬁer of the element

(see (Winkelmann and Kuchen, 2023) for more infor-

mation). These accesses, up until a write access, are

used to label the object, thus recreating its initial state.

Finally, callback methods were added to Mulib:

Every time the driver method is exited, either because

a result was found, a budget was exceeded, or we

backtrack due to the chosen search strategy, we pro-

vide the option to specify a callback. This is required

to deal with potential DUCs, as is explained in Sub-

section 4.3.

4.3 Adaptations to Dacite’s Analysis

To support the process depicted in Figure 3, two adap-

tions are necessary for Dacite’s analysis, ﬁrst, the gen-

eration of the driver method and second, the handling

of the symbolic execution.

Concerning the former, the symbolic execution

with Mulib expects a driver method as shown in List-

ing 2. However, developing such a method requires

domain knowledge about the methods of Mulib and

its symbolic execution. To facilitate users without this

knowledge to derive which DUCs are not covered by

the given JUnit test cases, this driver method is auto-

matically generated by Dacite. For this, a static anal-

ysis using ASM was carried out based on a speciﬁed

test case in order to derive the MUT, its input and

output values, and their types. Methods called in this

test case that stem from classes within deﬁned pack-

ages are considered to be MUTs and are extracted.

With this information, driver methods are automati-

cally generated containing a default setup initializing

the symbolic inputs that can be adapted if needed (see

Subsection 3.2).

The second adaptation of Dacite concerns how

DUCs are derived during symbolic execution. First,

in contrast to the original dynamic analysis the in-

strumented .class-ﬁles are saved so that Mulib

will load the already instrumented classes instead

of the original ones. Afterwards, a call to

Mulib.getPathSolutions(...) starts the sym-

bolic execution within Mulib. During this, the DUC

information is collected within the analyzer class. To

derive which deﬁnition belongs to a variable usage

next to the variable name and its index with which it

is stored within the bytecode variable table, the vari-

able value is utilized. The runtime value of a variable

is necessary to uniquely map a usage to its deﬁnition.

When dealing with symbolic values, assigning a

variable usage to its last deﬁnition is not always di-

rectly possible as it is not clear whether the deﬁnition

and usage concern the same value and thus, form a

DUC. For instance, consider two symbolic variables

of the class Sint, n1 and n2. Both have a set of con-

straints e.g. n1 < 2 but no concrete values. One pos-

sible scenario is that after resolving the constraints af-

ter terminating an execution path, n1 and n2 have the

same value e.g. 1. But it is also possible that they

have a different value, e.g. n1 = 1 and n2 = 0. This

poses the challenge that during the symbolic execu-

tion, not all variables can be immediately compared

to derive the corresponding DUCs. Hence, the DUCs

for those variables that cannot be compared can only

be derived at a later point when the symbolic values

have been labeled to concrete ones. Hence, a differ-

ent handling has to be implemented for such values

denoted here potential DUCs. Therefore, instead of

directly relating a usage to its deﬁnition as for con-

crete values (for more detail see (Troost and Kuchen,

2022)), symbolic usages and deﬁnitions are collected

separately. Only when a leaf node of the symbolic

execution is reached, the analyzer is called via a call-

back method of Mulib (see Subsection 4.2) to resolve

the symbolic values, map each usage to its last deﬁni-

tion, and store the generated DUCs. Furthermore, for

all DUCs derived at this execution path, a Solution

object including the input and output values for this

path is added to account for the test case generation

later on. So for each DUC, a set of Solution objects

can be derived as a DUC can be covered by more than

one combination of input and output values and its

corresponding execution path. Moreover, vice versa,

for each Solution object it can also be derived which

DUCs are covered with this which is necessary for

the test case reduction later on (see Subsection 4.4).

An Integrated Visualization Approach Combining Dynamic Data-Flow Analysis with Symbolic Execution

The result of the analysis is forwarded as an XML list

of derived DUCs and Solution objects to the lan-

guage server (see Subsection 2.2). There, it is com-

pared which DUCs were already identiﬁed during the

analysis of executing the existing JUnit tests. The dif-

ference, i.e., the DUCs which are not covered by the

existing tests, are stored and displayed to the user.

4.4 Test Cases Generation

After symbolically executing the program, the user

can trigger the test case generation for the DUCs not

covered by the given test cases (see Figure 3). This is

performed by Mulib’s test case generator.

This test case generator transforms input-output-

relations into a String representation of an executable

JUnit test class calling the MUT with the speciﬁed

input and comparing the output to the expected one

from the relation. Before any String is generated, the

number of test cases is reduced. We strive for a loss-

less reduction with regards to some metric. While

Mulib itself is capable of collecting branch coverage

as a metric, in the given integration, the metric is the

all-uses coverage (Frankl and Weyuker, 1988), i.e.,

all DUCs that have not yet been covered by the pre-

existing test set should be covered.

To derive the test cases before the reduction, all

distinct Solution objects are collected from those

unaccounted-for DUCs, i.e., DUCs that were not cov-

ered using the initial test set. For each Solution object,

the set of unaccounted-for DUCs which were cov-

ered in the path of this solution or test case is derived.

Thus, the coverage is represented as a BitSet where

each set bit represents the unique identiﬁer of one

those unaccounted-for DUC. Consequently, two test

cases covering the same DUCs have the same BitSet

and hence, can be reduced to one test case. We search

for a minimal subset of test cases so that the number

of set bits and thus, the number of covered DUCs, is

equal to the number of set bits in the overall set of

test cases. Since this is an instance of the NP-hard set

coverage problem, typically heuristics are employed

(Majchrzak and Kuchen, 2009). We employ a con-

ﬁgurable set of heuristics which are described in the

following.

1. The ﬁrst strategy sequentially adds test cases to a

result set of the to-be-added test case increases the

cardinality of the overall bit vector (Winkelmann

et al., 2022).

2. The second strategy starts with a set of test cases

where each test case is included. Then, test cases

are iteratively removed if the overall cardinality of

the remaining test cases did not decrease (Winkel-

mann et al., 2022).

3. The third strategy starts out with an empty set of

test cases. It then greedily adds the test case that,

for the current result set of test cases, offers the

maximum increase in cardinality when added to

the result set.

These strategies offer a low run time and can be

combined either sequentially or compete with one an-

other. It is, for instance, possible, to ﬁrst reduce a test

set via the ﬁrst strategy and then forward the output to

the second strategy. It is also possible to specify that

multiple (combinations of) strategies should compete

with one another, where the smallest test set is chosen.

4.5 Extensions to the Visualization

As mentioned in Subsection 2.2, Dacite’s visualiza-

tion is based on the Language Server Protocol (LSP)

to mitigate the implementation effort for developing

integrations for different IDEs. In order to extend the

visualization to unaccounted-for DUCs and test case

generation, it is desirable to adhere to the existing ar-

chitecture (language server and client) and LSP stan-

dard message types (Microsoft Corporation, 2023b).

There are three different user interactions and vi-

sualizations necessary as depicted in Figure 3. First,

the user needs to start the process of generating a

driver method for the symbolic execution. This is dis-

played by the language client, e.g. IntelliJ, as a but-

ton within the tool window next to the list of covered

DUCs. This triggers the driver generation for the cur-

rent test case. After the generation, the driver method

within a driver class is created as a new ﬁle and is

displayed to the user.

Afterwards, the user requires an option for start-

ing the symbolic execution when they are ﬁnished

adapting or inspecting the driver method. This can

be displayed similarly to Dacite’s analysis trigger

with a LSP request Code Lens (Troost et al., 2023).

For these requests, the language server determines

whether the opened ﬁle the user is inspecting adheres

to the naming standard as described above and hence,

contains one or more driver methods. If that is the

case, the corresponding button is displayed to the user

by the client. The derived DUCs not covered by the

existing tests are visualized analogously to the cov-

ered DUCs as depicted in Figure 2. This gives the

user a structured collapsible list of the derived unac-

counted for DUCs sorted by the class, method, and

variable the value deﬁnition occurred for. To increase

the comprehensibility of this list, the DUCs can be

highlighted within the source code as well using the

color red to distinguish the DUCs covered and not

covered by the given tests. Figure 4 illustrates these

extensions for the IDE IntelliJ IDEA. Given the facto-

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

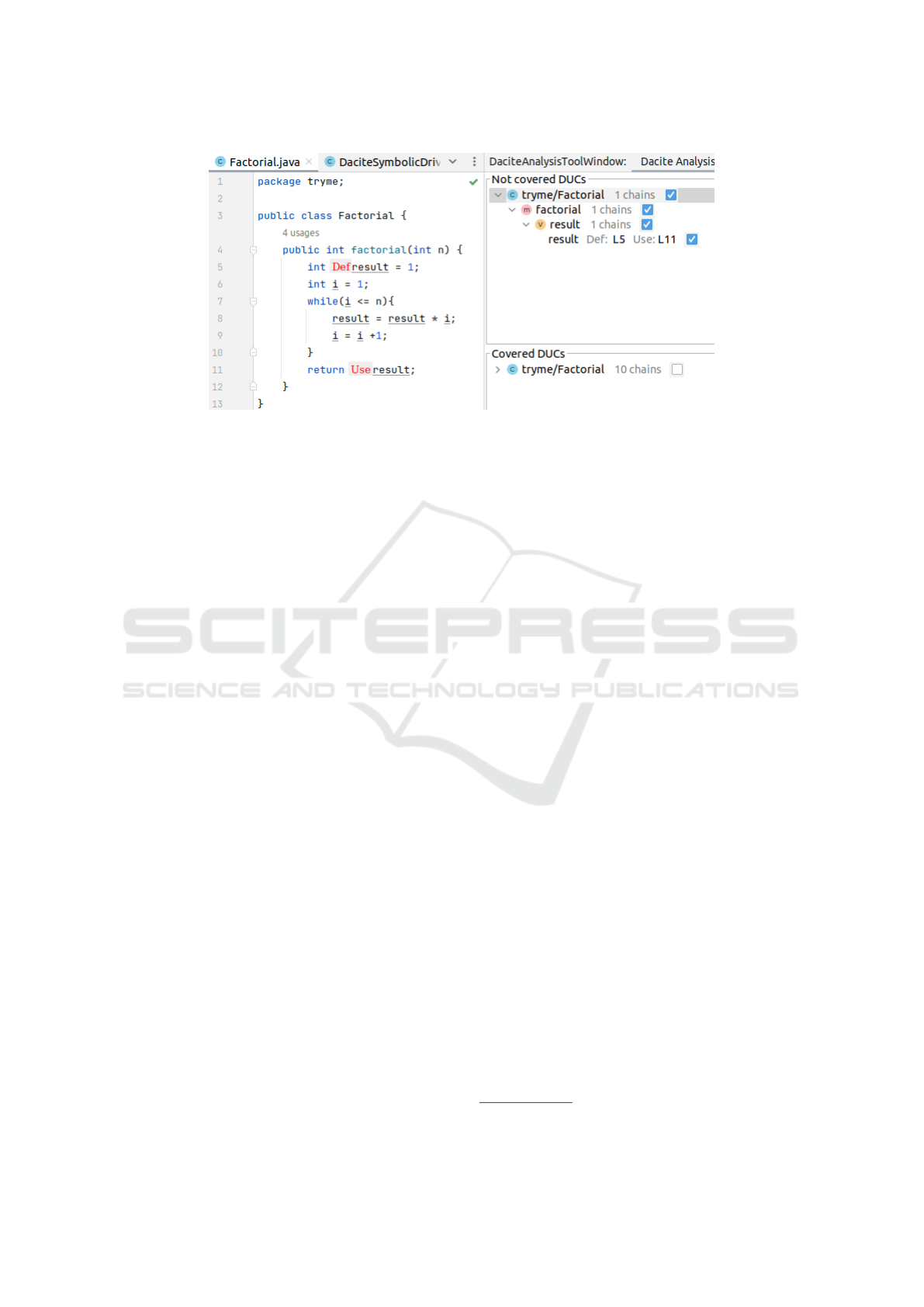

Figure 4: Exemplary screenshot of the Dacite visualization extensions in IntelliJ.

rial example in Section 2 and a JUnit test calculating

the factorial for the number ﬁve, the symbolic execu-

tion was executed with the corresponding driver (see

Listing 2). Based on this test, one DUC can be identi-

ﬁed which is not covered yet: (result, int result = 1,

return result). This is returned by the symbolic exe-

cution and can be seen on the right above the list of

covered DUCs in Figure 2. Using the checkbox, the

corresponding DUC is highlighted within the editor.

Lastly, the user requires an option to generate test

cases for the unaccounted-for DUCs. This is dis-

played by the language client analogously to the trig-

ger for the driver generation as a button within the

tool window which creates a new class containing the

generated test cases. By adhering to the existing ar-

chitecture and LSP requests, both IDE integrations,

IntelliJ and VS Code could be extended by these fea-

tures as shown exemplary in Figure 4 without much

further effort.

5 EVALUATION

In order to evaluate and demonstrate the derivation

of unaccounted-for DUCs based on the symbolic ex-

ecution with Dacite and Mulib, this approach was ex-

ecuted on a set of different examples. The major-

ity of examples are retrieved from the SV-COMP set

of software veriﬁcation which is a publicly available

benchmark suite for veriﬁcation and validation soft-

ware tools released from the annual competition for

software veriﬁcation SV-COMP (Beyer, 2021).

Different types of algorithmic challenging exam-

ples were selected, e.g. recursive, sorting, searching,

and algorithms exhibiting large sequences of case dis-

tinctions, to demonstrate the wide applicability of this

approach. Next to the example presented in Section

2 and the algorithms for the Euclidean greatest com-

mon divisor, ten examples were retrieved from SV-

COMP. Besides different smaller well-known bench-

marks such as the recursive Fibonacci algorithm,

greatest common divisor, insertion sort, and recursive

algorithms checking whether a number is even or odd

or whether it is a prime number, we have also tested

larger and more complex examples. An implemen-

tation of the traveling salesperson problem, a wheel

brake system, which determines based on the envi-

ronment how much brake pressure should be applied,

an implementation of a complex alarm system and

the implementation of an infusion manager system are

utilized. Due to the exponential increase in possible

paths during symbolic execution, Glass-box test case

generation based on the code is mainly suited for unit

testing and for testing a small number of classes in

combination (Cadar and Sen, 2013). Hence, we have

focused on such scenarios in our experiments.

For each example, a basic JUnit test case was

added as a starting point for deriving DUCs that are

not accounted for by the given test e.g. considering

the factorial example in Listing 1 a test case execut-

ing the algorithm for the number ﬁve was added (see

Figure 1). Based on this, a driver method was auto-

matically generated using the approach explained in

Section 4. This can already be utilized to retrieve

results from the symbolic execution. However, in

order to generate better results, this driver method

was adapted. The set of examples and adapted driver

methods too are open source

Moreover, in order to avoid an enormous or even

inﬁnite number of iterations of the symbolic execu-

tion especially for the more complex examples, the

execution time was restricted to 10 seconds. Note

that these 10s encompass the complete symbolic ex-

https://github.com/dacite-defuse/examples

An Integrated Visualization Approach Combining Dynamic Data-Flow Analysis with Symbolic Execution

Table 1: Executed examples with the LOC, the minimal/maximal run time in seconds, the number of covered DUCs, the

number of unaccounted-for DUCs by the initial test case, and the number of automatically generated and reduced test cases

covering these unaccounted-for DUCs with a symoblic execution limit of 10s.

Example LOC Min/Max run Covered Unaccounted- Reduced

time in s DUCs for DUCs Test Cases

Factorial 12 1.92/2.07 s 10 1 1

Fibonacci 14 1.93/2.19 s 2 2 1

EuclidianGcd 16 1.93/2.15 s 14 4 3

InsertionSort 17 1.92/2.20 s 36 6 2

RecursiveGcd 22 2.08/2.22 s 2 9 2

EvenOdd 27 2.00/2.16 s 3 3 1

Hanoi 35 2.40/2.77 s 5 3 1

Prime 50 1.96/2.52 s 3 0 0

TspSolver 78 5.20/5.52 s 21 34 2

WBS 241 2.75/2.95 s 41 55 5

Infusion 692 18.99/19.61 s 25 194 34

Alarm 1378 17.68/18.45 s 169 79 10

ecution started by Mulib until the derived DUCs are

identiﬁed (see the workﬂow of Mulib in Figure 3).

Although the execution time can oftentimes be re-

duced by providing more complex driver methods,

i.e., restricting the input space by employing knowl-

edge on the program, 10 seconds has been found to

be both acceptable in practice as well as covering

many unaccounted-for DUCs. As a search strategy,

we retrieve new choice options in an IDDFS fashion:

a choice option with the lowest depth in the search

tree is navigated to using symbolic execution. Then,

the search region is executed until either a budget is

reached or a path solution is found. To assure termi-

nation, the exploration of the search tree has been lim-

ited to a depth of 64. This limit has been determined

via experimentation.

Table 1 presents the results. For each example,

the number of executable Lines Of Code (LOC) ex-

cluding empty lines and comments was derived This

serves as an indicator of the method’s complexity.

Furthermore, the minimal and maximal overall exe-

cution time of symbolic execution out of ﬁve differ-

ent executions in seconds is given for each example.

The complete process of generating the driver and ex-

ecuting the symbolic execution until the test case gen-

eration is dependent on several user interactions (see

Figure 3) which impedes comparable run time mea-

surements. The time displayed in the table was mea-

sured from the moment the user starts the symbolic

execution (after the driver generation) until the delta

of DUCs which were not covered by the initial test

case is derived and visualized to the user (the second

process in Figure 3). This incorporates the main and

most expensive computations (the instrumentation by

Dacite, symbolic execution by Mulib, and transfor-

mation and visualization of the identiﬁed data ﬂow)

and thus, presents a sufﬁciently comparable bench-

mark. In addition, the number of DUCs covered by

the initial JUnit test case, the number of DUCs de-

rived from the symbolic execution that are not ac-

counted for by the initial test case, and the number

of JUnit test cases, that were automatically generated

and reduced, covering those DUCs is also displayed

for each example.

All execution times range in seconds while the ex-

ecution time of the majority of examples remains un-

der the conﬁgured limit of 10s for the symbolic execu-

tion. This shows that the symbolic execution for these

examples was not aborted in the middle due to this

limitation. For the two larger examples (Infusion and

Alarm), in addition to the results in Table 1 the sym-

bolic execution was executed again with a higher limit

of 120 s to make sure that no DUCs were missed due

to the budget. The example Infusion did not identify

more DUCs with more time leading to the assumption

that all reachable DUCs were already identiﬁed. As

the Infusion but especially the Alarm example is con-

siderably larger and more complex in terms of con-

ditional statements than typical MUTs subject to unit

testing, it is reasonable that it requires more execution

time than the other examples. Increasing the sym-

bolic execution limit to 15 min has yielded that the

Alarm example has 253 DUCs, thus 84 unaccounted-

for DUCs. However, only a small amount of time al-

ready resulted in the identiﬁcation of the majority of

unaccounted-for DUCs which would improve the test

coverage.

The results demonstrate that our approach is able

to identify missing DUCs for each example and is

able to generate tests covering these. It can be seen

that for the example Prime no further DUCs have

been identiﬁed. As the example given by SV-COMP

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

contains an endless loop, only the already identiﬁed

DUCs are reachable. This further demonstrates that

the symbolic execution by Mulib is able to derive

only those DUCs that can be executed by the program.

To validate if all unaccounted-for DUCs were identi-

ﬁed, the number of overall DUCs was derived for the

smaller examples manually due to the lack of a com-

parable data-ﬂow analysis tool. For the more complex

examples, deriving all possible DUCs per hand is not

feasible as these consist of hundreds of chains (see

Table 1). However, due to the advanced visualization

and source code highlighting, provided by Dacite, the

data ﬂow can be comprehended, and missing chains

are identiﬁed by a generated annotation. The gener-

ated test cases were validated by executing them with

the data-ﬂow analysis in combination with the ini-

tial test cases to demonstrate that all unaccounted-for

DUCs are then covered.

With the scope of symbolic execution in mind, we

deem the results acceptable and usable in practice, in

particular for unit testing and early integration test-

ing. Our approach provides the largest beneﬁt when

applied to algorithmically challenging applications,

since for such applications it is hard to reach data-

ﬂow coverage by manually developed test cases.

6 RELATED WORK

There exist few approaches to aiding the data-ﬂow

analysis by combining it with symbolic execution.

The majority focus on a static data-ﬂow analysis

which implies the limitation that the identiﬁed DUCs

may not be reachable within the program (see Subsec-

tion 2.2). For this, Arzt et al. (Arzt et al., 2015) devel-

oped a tool for Java programs denoted TASMAN as a

separate post-analysis step based on symbolic execu-

tion to overcome this limitation. Via symbolic execu-

tion, the tool scans for contradictions on a data-ﬂow

path and thus is only used to eliminate false positives

from the data-ﬂow analysis. Further information to

generate test cases is not derived and a visualization

is not conducted (Arzt et al., 2015).

Su et al. (Su et al., 2015) combine symbolic exe-

cution with static analysis and model-checking for C

programs. A dynamic symbolic execution is utilized

to automatically generate test data based on the data

ﬂow derived from a static analysis. For each iden-

tiﬁed DUC, the symbolic execution is started to ﬁnd

test data covering this DUC based on a search strategy

that looks into the more promising control ﬂow ﬁrst.

To reduce the amount of time trying to cover an un-

reachable DUC, model-checking is used additionally

to identify unreachable DUCs (Su et al., 2015). How-

ever, by searching for every chain, paths are executed

multiple times even if the chains are covered by the

same input data. This is prevented by our approach of

deriving the data ﬂow during the symbolic execution.

Moreover, Su et al. (Su et al., 2015) focus solely on

the test data creation and do not mention any test data

reduction approach or visualization.

In (Winkelmann et al., 2022), a dynamic data-ﬂow

analysis is used as a means for test case reduction

for a test case generator based on symbolic execu-

tion. The data ﬂow is tracked during the execution of

paths. However, the focus lies on the symbolic execu-

tion and test case generation so that the resulting data

ﬂow is solely used for the reduction and not commu-

nicated or visualized to the user. Moreover, the data

ﬂow is only derived for the symbolic execution and

not for existing test cases. In consequence, it is not

indicated which DUCs were already covered by the

existing test suite. Finally, the approach is hardwired

into a custom JVM that was adapted to allow for sym-

bolic execution. In contrast, both Mulib and Dacite,

are standalone tools. It was demonstrated that two

standard tools following the program instrumentation

and transformation paradigm can be integrated with

a relatively small amount of effort, without affecting

their generality.

7 CONCLUSION AND FUTURE

WORK

The dynamic data-ﬂow analysis of Dacite is only able

to identify DUCs that were covered by the given tests

so far. In this paper, we have combined Dacite with

the symbolic execution of Mulib to derive DUCs that

have not been covered yet. To achieve this, a symbolic

driver is generated automatically based on given tests

and given to the user. With this driver, the symbolic

execution is triggered within Mulib, during which

DUCs are collected by Dacite. Both Dacite and Mulib

are adapted to facilitate the interactions without af-

fecting their generality. Moreover, the delta of derived

DUCs and already covered DUCs, the unaccounted-

for DUCs are visualized to the user integrated into

common IDEs. Additionally, test cases can be gener-

ated for those unaccounted-for DUCs.

In the future, we plan to further optimize the

symbolic execution for deriving the unaccounted-for

DUCs. One way would be to prune the search re-

gion based on the existing JUnit test cases and conse-

quently the already covered DUCs for those paths. If,

for instance, a region of the program cannot contain

any more DUCs, these paths do not need to be re-

garded any longer during symbolic execution. This

An Integrated Visualization Approach Combining Dynamic Data-Flow Analysis with Symbolic Execution

serves as a countermeasure against the well-known

problem of path explosion (Cadar and Sen, 2013).

REFERENCES

Allen, F. E. and Cocke, J. (1976). A program data ﬂow

analysis procedure. Communications of the ACM,

19(3):137.

Arzt, S., Rasthofer, S., Hahn, R., and Bodden, E. (2015).

Using targeted symbolic execution for reducing false-

positives in dataﬂow analysis. In Proceedings of the

4th ACM SIGPLAN International Workshop on State

of the Art in Program Analysis, pages 1–6.

Beyer, D. (2021). Software veriﬁcation: 10th comparative

evaluation (sv-comp 2021). Proc. TACAS (2). LNCS,

12652.

Bluemke, I. and Rembiszewski, A. (2009). Dataﬂow test-

ing of java programs with dfc. In IFIP Central and

East European Conference on Software Engineering

Techniques, pages 215–228. Springer.

Cadar, C. and Sen, K. (2013). Symbolic execution for soft-

ware testing: Three decades later. Commun. ACM,

56(2):82–90.

de Araujo, R. P. A. and Chaim, M. L. (2014). Data-ﬂow test-

ing in the large. In 2014 IEEE Seventh International

Conference on Software Testing, Veriﬁcation and Val-

idation, pages 81–90. IEEE.

Denaro, G., Pezze, M., and Vivanti, M. (2014). On the right

objectives of data ﬂow testing. In 2014 IEEE Seventh

International Conference on Software Testing, Veriﬁ-

cation and Validation, pages 71–80. IEEE.

Frankl, P. G. and Weiss, S. N. (1993). An experimental

comparison of the effectiveness of branch testing and

data ﬂow testing. IEEE Transactions on Software En-

gineering, 19(8):774–787.

Frankl, P. G. and Weyuker, E. J. (1988). An applicable fam-

ily of data ﬂow testing criteria. IEEE Transactions on

Software Engineering, 14(10):1483–1498.

Hemmati, H. (2015). How effective are code coverage cri-

teria? In 2015 IEEE International Conference on

Software Quality, Reliability and Security, pages 151–

156. IEEE.

Khurshid, S., P

areanu, C. S., and Visser, W. (2003). Gen-

eralized symbolic execution for model checking and

testing. In Proceedings of the 9th International Con-

ference on Tools and Algorithms for the Construction

and Analysis of Systems, TACAS’03, page 553–568,

Berlin, Heidelberg. Springer-Verlag.

Majchrzak, T. A. and Kuchen, H. (2009). Automated test

case generation based on coverage analysis. In 2009

Third IEEE International Symposium on Theoretical

Aspects of Software Engineering, pages 259–266.

Microsoft Corporation (2023a). Language

server extension guide. https://code.

visualstudio.com/api/language-extensions/

language-server-extension-guide. Last accessed

September 01, 2023.

Microsoft Corporation (2023b). Language Server Protocol

Speciﬁcation - 3.17. https://microsoft.github.io/

language-server-protocol/speciﬁcations/lsp/3.17/

speciﬁcation. Last accessed September 01, 2023.

Pande, H. D., Landi, W. A., and Ryder, B. G. (1994). In-

terprocedural def-use associations for c systems with

single level pointers. IEEE Transactions on Software

Engineering, 20(5):385–403.

Ribeiro, H. L., de Araujo, P. R., Chaim, M. L., de Souza,

H. A., and Kon, F. (2019). Evaluating data-ﬂow

coverage in spectrum-based fault localization. In

2019 ACM/IEEE International Symposium on Empir-

ical Software Engineering and Measurement (ESEM),

pages 1–11. IEEE.

Su, T., Fu, Z., Pu, G., He, J., and Su, Z. (2015). Combining

symbolic execution and model checking for data ﬂow

testing. In 2015 IEEE/ACM 37th IEEE International

Conference on Software Engineering, volume 1, pages

654–665. IEEE.

Troost, L. and Kuchen, H. (2022). A comprehensive

dynamic data ﬂow analysis of object-oriented pro-

grams. In Proceedings of the 17th International

Conference on Evaluation of Novel Approaches to

Software Engineering - ENASE, pages 267–274. IN-

STICC, SciTePress.

Troost, L., Neugebauer, J., and Kuchen, H. (2023). Visu-

alizing dynamic data-ﬂow analysis of object-oriented

programs based on the language server protocol.

In Proceedings of the 18th International Confer-

ence on Evaluation of Novel Approaches to Soft-

ware Engineering - ENASE,, pages 77–88. INSTICC,

SciTePress.

Vall

ee-Rai, R., Co, P., Gagnon, E., Hendren, L., Lam, P.,

and Sundaresan, V. (2010). Soot: A java bytecode

optimization framework. In CASCON First Decade

High Impact Papers, CASCON ’10, page 214–224,

USA. IBM Corp.

Visser, W., P

areanu, C. S., and Khurshid, S. (2004). Test

input generation with java pathﬁnder. SIGSOFT Softw.

Eng. Notes, 29(4):97–107.

Winkelmann, H., Dagef

orde, J. C., and Kuchen, H. (2021).

Constraint-logic object-oriented programming with

free arrays. In Hanus, M. and Sacerdoti Coen, C.,

editors, Functional and Constraint Logic Program-

ming, pages 129–144, Cham. Springer International

Publishing.

Winkelmann, H. and Kuchen, H. (2022). Constraint-logic

object-oriented programming on the java virtual ma-

chine. In Proceedings of the 37th ACM/SIGAPP

Symposium on Applied Computing, SAC ’22, page

1258–1267, New York, NY, USA. Association for

Computing Machinery.

Winkelmann, H. and Kuchen, H. (2023). Constraint-

logic object-oriented programming with free arrays

of reference-typed elements via symbolic aliasing.

In Proceedings of the 18th International Confer-

ence on Evaluation of Novel Approaches to Software

Engineering - ENASE, pages 412–419. INSTICC,

SciTePress.

Winkelmann, H., Troost, L., and Kuchen, H. (2022).

Constraint-logic object-oriented programming for test

case generation. In Proceedings of the 37th ACM/SI-

GAPP Symposium on Applied Computing, SAC ’22,

page 1499–1508. ACM.

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering
