Large Language Models in Civic Education on the Supervision and

Risk Assessment of Public Works

Joaquim J. C. M. Honório

1a

, Paulo C. O. Brito

1b

, J. Antão B. Moura

2c

and Nazareno F. Andrade

2d

1

Graduate Program in Computer Science, Federal University of Campina Grande (UFCG), Brazil

2

Systems and Computing Department, Federal University of Campina Grande (UFCG), Brazil

Keywords: Civic Education, Large Language Models, Machine Learning, Public Works.

Abstract: The Public Administration spends an estimated 13 trillion USD annually worldwide, of which

approximately 20% is allocated to public works. Despite strict rules, unfinished works for legal reasons,

including corruption, are not atypical, negatively impacting the region’s economy, culture, and society.

Civic awareness about this problem may help reduce such losses. This study investigates the use of Large

Language Models (LLM) and Retrieval-Augmented Generation (RAG) to support civic education on risks

in public works. While LLMs interpret and create human language, RAGs combine text production with

access to other external data, allowing contextualized responses. Here, we evaluate how these technologies

can facilitate the population’s understanding of technical information about public works. To this end, we

initially create and evaluate 4 Machine Learning models for risk prediction of public work failure, using

data from real public works. We provide a failure estimate for each contracted work based on the most

efficient model. These data and others related to government development and risk processes are accessed

and presented to the user through a web support system. Tests with 35 participants indicate a significant

improvement in citizens ability to understand complex aspects related to risks and contracts of public works.

1 INTRODUCTION

In the current situation of increasing complexity of

public funded, government managed projects, citizen

education becomes very relevant to monitoring and

assessing costs, quality, and effectiveness of said

projects. Of particular interest here are the so called

“public works”. The participation of the community

as an observer is important to properly monitor

project activities, and to ensure that the community’s

needs are met and that the public administration is

transparent and effective (Twizeyimana &

Andersson, 2019).

Public Administrations worldwide procure – i.e.,

contract the acquisition, of – goods, services and

works from companies to the yearly tune of an

estimated 13 trillion US dollars

1

. Corruption and

a

https://orcid.org/0000-0001-5746-2108

b

https://orcid.org/0000-0002-0913-7586

c

https://orcid.org/0000-0002-6393-5722

d

https://orcid.org/0000-0001-5990-9495

mismanagement of procurement contracts, however,

may cause up to 30% of this estimate to be lost, with

procurement contracts be responsible for 57% of all

bribery cases in the Organization for Economic Co-

operation and Development (OECD) countries

2

.

These large numbers suggest an important problem

in terms of supporting the Public Administration to

manage procurement contracts and society at large

to monitor more effectively, by forecasting risk of

contract failure in special.

Information about public works projects is

frequently made available via government

transparency portals, public databases, and

independent organizations. Aside from particular

contract information, it is common to give statistical

estimations, frequently collected using Machine

Learning (ML) approaches. These estimates, aimed

1

The

Global

Value

of

Public

Procurement:

https://spendnetwork.com/13-trillion-the-global-value-

of-public-procurement/

2

OCDE

-

Highlights

Reforming

Public

Procurement:

https://www.oecd.org/gov/public-procurement/public-

procurement-progress-report-highlights.pdf.

Honório, J., Brito, P., Moura, J. and Andrade, N.

Large Language Models in Civic Education on the Supervision and Risk Assessment of Public Works.

DOI: 10.5220/0012589300003693

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 16th International Conference on Computer Supported Education (CSEDU 2024) - Volume 2, pages 27-38

ISBN: 978-989-758-697-2; ISSN: 2184-5026

27

at both the general public (e.g.: citizens) and

regulatory agencies, can include projections of costs

(Bayram & AlJibouri, 2016) (Barros, Marcy, &

Carvalho, 2018), contractual additions (Gallego,

Rivero, & Martínez, 2021), bid-rigging (Huber &

Imhof, 2019), and execution time (Titirla &

Aretoulis, 2019), among other things, as well as the

risk of project failure owing to legal rulings (Sun &

Sales, 2018) (Gallego, Rivero, & Martínez, 2021).

Several studies have investigated applying

machine learning to assess risks in public works.

However, non-specialists – such as members of the

general population – may need help to use these

strategies in practice (Yang, Suh, Chen, & Ramos,

2018). While robust, machine learning frequently

allows for complicated outcomes their complexity

nature requires specialist expertise for interpretation,

making citizen participation and comprehension

difficult. Chat assistants can help overcome this

barrier, improving a lay person’s understanding of

technical issues (Pérez, Daradoumis, & Puig, 2020).

Large Language Models (LLM) are extensively

trained language models that can comprehend and

generate human language, trained with a large

volume of textual data (Kasneci, et al., 2023).

Retrieval-augmented generation (RAG) is an

extension of the models mentioned above that

enables the incorporation of the capability to obtain

and use information from external source (Lewis, et

al., 2020). By being combined with RAG, LLM’s

replies may include up-to-date external information

beyond the range of the data they were trained in.

In everyday life, LLMs offer support in various

applications, facilitating access to information in

different areas (Kasneci, et al., 2023). In education,

these tools pave the way for the creation of tutors

specialized in specific areas. They can be adapted to

offer personalized support in different disciplines,

for example, to answer multiple-choice questions

about code (Jaromir, Arav, Christopher, & Majd,

2023), for medical education (Kung, et al., 2023), to

give feedback to students (Wei, et al., 2023), among

others. Despite efforts, these models are yet to be

applied to the context of public works to support

civic education.

Despite advances in research developed around

ML in public works management, there are

limitations in results obtained so far. Firstly, there

are few efforts published in academic circles aimed

at predicting risks in public works, most of which

are directed at the entire area of government

procurement. Furthermore, there is a lack of

academic efforts specifically aimed at the practical

application of these technologies so that they are

accessible to the non-specialized population. This

scenario highlights the need for methods that enable

technical information to be made available in a more

accessible language, allowing greater understanding

and community participation in supervising, and

monitoring public works.

This work aims to support civic education by

making information about complex topics, such as

predictions generated by machine learning

algorithms more easily accessible to the non-

technical, general public. To achieve this objective,

a model for estimating risks in public works is

developed based on ML techniques to predict the

risk of project failure. Simultaneously, a chat

assistant model is developed that utilizes LLM and

RAG to transform and contextualize this technical

information into a language easily comprehensible

and accessible to non-technical citizens. Thus, this

article addresses the following research

questions that are derived from the above objectives:

 Is it feasible to develop a specialized ML model

for assessing and predicting risks in public

works projects?

 Are LLM models capable of assisting non-

experts in understanding information about

public works?

 How does the integration of external

information (e.g., processes, machine learning

models, data on public works) through RAG

affect the accuracy of the information provided?

This article contributes to Civic Education (and

also, to applications of Artificial Intelligence – AI),

by promoting transparency and citizen participation

through simplifying complex information about

public works. To date and to the best of our

knowledge, this is the first article to:

 Evaluate the performance of LLM and RAG

models, including their limitations, in

simplifying complex information about public

works.

 Provide an overview of the development flow to

describe complex information in an accessible

manner, contributing to transparency and civic

education.

 Present a risk prediction model for estimating a

public work’s failure risk.

To facilitate replication of the contents of this

article, all used instruments and procedures are made

available according to practices of the Open Science

Framework (https://osf.io/7byd9/) in the external

repository.

CSEDU 2024 - 16th International Conference on Computer Supported Education

28

2 FUNDAMENTALS AND

RELATED WORK

2.1 Problem Definition

In the development of a ML model for risk

assessment in public works, a detailed set of project

characteristics is crucial. Let 𝑃=



𝑝



,𝑝



,…,𝑝





be

the complete set of available projects. A given

project, p



, where 𝑖 = 1,2,…𝑛 , is described by a

feature vector

x

𝑝

𝑖



⃗

that belongs to the risk space R



,

where 𝑑 represents the variables such as cost,

duration, dimension, type of infrastructure, among

others.

The main function of the ML model, denoted by

M, is to map this feature vector to a risk estimate.

Mathematically, this is represented by the function

M:R



→



0,1



, which generates an estimated

probability of failure or a degree of risk,

𝑅







, for

each project p



. The aim of the model is to fine-tune

this mapping function to minimize the prediction

error, quantified by the sum of squared differences

between the observed real risks,

R





, and the model’s

estimates,

𝑅







. This goal is expressed by the

objective Equation 1.

min



𝑅





− 𝑅



















(1)

Where 𝑛 is the total number of projects

evaluated. This minimization process is crucial to

ensure that the model makes accurate predictions

about the risks associated with different

infrastructure projects.

An assistant, 𝐴, is a chatbot that functions to

transform the quantitative outputs of the model 𝑀

into clear and understandable textual explanations.

The model 𝐴 can be described by the function

𝐴:

𝑅



𝑝

𝑖

×𝑅



×𝒟→𝒯, where 𝒟 is a set of external

data and 𝒯 is the space of all possible explanatory

texts. For each project 𝑝



, 𝐴 generates an

explanatory text

𝑇





, which is a function of the risk

estimates

𝑅







, the project’s features 𝑥







⃗

, and the

contextual data from 𝒟.The efficacy of the chat

assistant is evaluated based on the accuracy, clarity,

and relevance of the textual explanations

𝑇





, by

presenting a random subset 𝑆 of selected projects for

assessment. Here, 𝑆 is mathematically defined as a

specific collection of elements, chosen from a larger

set 𝑃 of all possible projects, such that 𝑆⊆𝑃.

2.2 Machine Learning Model for Risk

Prediction

In recent years, the application of data mining and

machine learning (ML) techniques has gained

significant attention in improving the accuracy

around public procurement. Previous research in

public works has focused on estimating cost (Titirla

& Aretoulis, 2019), duration of projects (Titirla &

Aretoulis, 2019), preventing collusion in bidding

(Huber & Imhof, 2019) and predicting risk,

inefficiencies (Gallego, Rivero, & Martínez, 2021).

In parallel, ML studies have addressed risk

estimation and anomaly detection in all types of

government procurement, including works

(Domingos, Carvalho, Carvalho, & Ramos, 2016)

(Ivanov & Nesterov, 2019) (Sun & Sales, 2018).

One widely adopted framework in data mining

projects is the CRISP-DM (Cross-Industry Standard

Process for Data Mining) methodology, known for

its systematic and structured approach. Studies have

showcased its effectiveness in guiding the prediction

process and providing actionable insights for

decision-makers (Schröer, Kruse, & Gómez, 2021).

The methodology includes the steps illustrated in

Figure 1, starting with Business Understanding,

where relevant data for public works is collected and

prepared. The next step, Data Understanding

defines project objectives and aligns data analysis

with these goals. In Data Preparation, data is

cleaned, and key features are selected for prediction.

The Modelling step involves selecting machine

learning algorithms and splitting the data for training

and testing. Evaluation assesses model performance

using metrics like F1-score and ROC-AUC, with

adjustments made as needed. Finally, Deployment

implements resulting models in real-world scenarios,

integrates them into systems.

Figure 1: Overview of the CRISP-DM Methodology for

Risk Model Development.

Within the Modelling step of CRISP-DM,

various machine learning algorithms have been

utilized to predict public contracting outcomes.

Data

Understanding

Data

Preparation

Evaluation

Deployment

Modelling

Business

Understanding

Start

En

d

Large Language Models in Civic Education on the Supervision and Risk Assessment of Public Works

29

Notably, Random Forest (RF) (Auret & Aldrich,

2012) algorithms have proven to be robust and

accurate, capable of handling complex data

structures and capturing nonlinear relationships.

Artificial neural networks (ANN) (Hond, Asgari, &

Jeffery, 2020) with their ability to learn complex

patterns, have also shown promise in forecasting

contracting outcomes. Additionally, Stochastic

Gradient Boosting (SGB) (Bentéjac, Csörgő, &

Martínez-Muñoz, 2021), known for its ensemble

learning technique, has demonstrated its

effectiveness in improving prediction accuracy.

Logistic regression (LR), a classical statistical

method (Christodoulou, et al., 2019), has been

utilized as well, offering interpretability and model

transparency.

Evaluation metrics play a vital role in assessing

the performance of prediction models. Studies in this

field have employed various evaluation metrics to

gauge the accuracy and reliability of the models.

Here, adopted metrics are accuracy, precision, recall,

F1-Score, and area under the ROC curve.

Precision (Equation 2) is a metric that measures

the proportion of correctly predicted positive

instances out of all instances classified as positive.

In the context of public works contract failure

prediction, precision indicates the model’s ability to

accurately identify contracts that are likely to fail. A

higher precision suggests that the model has a lower

rate of false positive predictions, minimizing the

chances of wrongly flagging contracts as failures.

𝑃

=

∑

𝑇𝑃

∑

𝑇𝑃 +

∑

𝐹𝑃

(2)

Where true positives (𝑇𝑃) represent the instances

correctly identified as contract failures. These are

cases where the prediction aligns with the actual

outcome, indicating that the model accurately

identified a failing contract. True negatives ( 𝑇𝑁)

denote instances correctly identified as successful

contracts, where the model correctly predicts the

absence of failure. On the other hand, false positives

(𝐹𝑃) occur when the model incorrectly predicts a

contract failure that succeeds. False negatives (𝐹𝑁)

represent cases where the model fails to identify an

actual contract failure, incorrectly classifying it as a

successful contract.

Recall (Equation 3), also known as sensitivity or

true positive rate, evaluates the proportion of

correctly predicted positive instances out of all

actual positive instances. In the context of contract

failure prediction, recall assesses the model’s ability

to capture and identify all contracts that are failing.

A higher recall indicates that the model can

effectively identify a larger portion of failing

contracts.

𝑅

=

∑

𝑇𝑃

∑

𝑇𝑃 +

∑

𝐹𝑁

(3)

F1-Score (Equation 4) is a composite metric that

combines precision and recall into a single value. It

considers both false positives and false negatives

and provides a balanced measure of the model's

performance.

𝐹1 =

∑

𝑃

∗

∑

𝑅

∑

𝑃

+

∑

𝑅

(4)

ROC-AUC is a metric commonly used in binary

classification tasks and evaluates the model's ability

to discriminate between positive and negative

instances at various probability thresholds. It plots

the true positive rate against the false positive rate

and calculates the area under the resulting curve. A

higher ROC-AUC score indicates better

discrimination ability and overall performance of the

contract failure prediction model.

By employing these metrics, we aim to

comprehensively evaluate the performance of the

public works contract failure prediction models

proposed in this article. The adopted metrics

provided a robust set of measurements, capturing

different aspects such as false positives, false

negatives, overall accuracy, and discriminative

ability of the models in predicting contract failures.

2.3 Large Language Models

AI is increasingly evident in various domains and

stands out in education. Among the most notable

technological advances today is LLM, which

emphasizes OpenAI's ChatGPT

3

. Generative AI

encompasses the creation of novel synthetic content

for diverse tasks (García-Peñalvo & Vázquez-

Ingelmo, 2023). These models, including Generative

Pre-trained Transformers (GPT), are based on deep

neural networks, which allows them to understand

and generate text effectively (Leippold, 2023). GPT-

3.5 Turbo

4

, with its 175 billion parameters, has

outstanding capacity compared to previous models.

Despite the gains brought through LLM, it

presents restrictions. One of the most significant is

“hallucination”

caused by returning generic or

3

ChatGPT: https://chat.openai.com/

4

GPT-3.5 Turbo: https://platform.openai.com/docs/model-

index-for-researchers

CSEDU 2024 - 16th International Conference on Computer Supported Education

30

Figure 2: Flowchart depicting the entire process from risk prediction for each project in the study set to the question-and-

answer mechanism of the chat assistant.

fictitious information, which can lead to a loss of

credibility and trust among users (Yuyan, et al.,

2023). Furthermore, although advanced, these

models still struggle with challenges related to

understanding contexts, which can result in

responses that do not capture what was asked by the

user.

The potential of the LLM in education has been

studied for different purposes. Researchers evaluated

the effectiveness of GPT-3 in programming tests

with code snippet questions (Jaromir, Arav,

Christopher, & Majd, 2023) (Savelka, Agarwal,

Bogart, Song, & Sakr, 2023). Another study

evaluated GPT-3 in medical exams, achieving or

approaching approval without specialized training,

suggesting its potential in medical education and

clinical decisions (Kung, et al., 2023). GPT has also

been evaluated in automated educational feedback

systems, showing that it generates detailed, coherent

responses aligned with instructor assessments,

potentially helping to develop students’ learning

skills (Wei, et al., 2023). Research has also explored

how English learners perceive and use ChatGPT

outside of the classroom, finding that LLM’s

perceived usefulness has had positive perceptions

for its actual use in informal English learning

(Guangxiang & Chaojun, 2023). Other researchers

have proposed an architectural model aimed at LLM

research, with practical use in education (Gonzalez,

2023).

Despite advances in integrating LLMs into

various educational areas, there is a significant gap

in the literature in terms of a lack of studies focused

on using LLMs to address complex topics in civic

education, such as processes and statistics. Thus, this

work adds to those in the literature by exploring the

effectiveness of these models to enrich teaching and

learning on socially relevant topics such as citizens’

awareness of risks of public works projects running

afoul of the law, intended quality and costs or of

social interests.

3 MATERIALS AND METHODS

3.1 Methodology

In this study, we evaluate the use of LLM and RAG

to teach complex concepts in civic education,

focusing on risk estimates of public works failure.

Initially, we develop and evaluate four different ML

models, selecting the most efficient one based on the

ROC-AUC metric. The selected ML model is then

integrated with the chat assistant to enhance system-

generated responses. Figure 2 presents an overview

of the structure used.

What does the risk of this work mean?

Question

Consider that the query contains the data of the work

(

𝑝



) selected in the panel and the predicted risks ( 𝑅







) for it.

Retrieval

Model

Processes of dev. of

the local works

How the risk model

was developed and

risk levels

Knowledge

Considering the estimated risk, it

suggests a moderate to high likelihood

of legal challenges affecting the

project’s completion.

Pre-trained

LLM

A

nswe

r

Search

External data (𝒟)

Query

Query +

𝒟

Response

Public Works

List Provider

(P) Public

Works Data

Risk

Predictor

Best

Classification

Model

Features

Training

Set

Test

Candidate

Classification

Models

Random Subset

of Public

Works

Evaluation with

the ROC-AUC

Including class balancing

techniques.

∀p



∈S, R







S

⊆

P

Large Language Models in Civic Education on the Supervision and Risk Assessment of Public Works

31

As part of the methodology, a questionnaire

5

was

applied to measure different aspects of the user's

experience with the chat assistant which makes use

of the risk estimate produced by the selected ML

method. The questionnaire was designed to assess

the users’ understanding of the concepts presented,

the accuracy of the delivered information, the ease

of use and the practicality of applying the

information in real-world scenarios. The

questionnaire also included questions that ranged

from demographic information to specific questions

about public works concepts - such as risk. Users

received the questionnaire digitally after

participating in an interactive session with the chat

assistant, during which they explored information

about public works and risk prediction. This process

ensured that users’ responses reflected their practical

experiences using the system. All interaction

between the user and the system was conducted

entirely in Portuguese.

We employed a combination of research

methods to analyze both quantitative and qualitative

descriptive data gathered from evaluation by users.

To assess participants perspectives quantitatively we

applied techniques to evaluate their responses on

five-point Likert scales. Additionally, we conducted

a qualitative analysis using content analysis

methodology, where writers assessed the feedback.

This approach aimed to explore factors that might

not be adequately captured by the data gathered

from the sample.

Combining quantitative and qualitative

approaches gave us a more comprehensive

understanding of user perceptions. Although Likert

scales helped us measure values, analyzing the final

answers provided qualitatively made it possible to

interpret the quantitative data more deeply. This

combination of quantitative methods improved our

research, contributing to understanding how chat

assistants can be applied effectively in civic

education.

3.2 Data Set

In the development of both the Risk Estimation

Model and the Chat Assistant, we utilized data from

5

Text Assistant Survey Questionnaire: https://osf.io/

7byd9/?view_only=7e2f643daa5b4d09a68b7284e54291

59

Brazilian public works, spanning the period from

2010 to 2019. The selection of this timeframe allows

for considerable completeness of the available data

during these years. By encompassing a decade of

public contracting records, this study ensures a

comprehensive and robust analysis of the dynamics

and patterns within the Brazilian public

administration regarding works procurement. In

total, four databases were used:

 Companies’ Registers: this database, provided

by the Federal Revenue Service in Brazil (in

Portuguese, Receita Federal

6

), has data about

companies’ registries, partners, investors,

registration status, the national classification of

economic activities and other data about legal

entities in Brazil. This base is available in a

database format, making it difficult to use

directly. To solve this difficulty, the database

was configured in a local environment.

 Status of Public Works Contracts: this

database provided by Tramita

7

consists of a

system for internal processing and managing

electronic documents/processes. It is possible to

access it from the start of procurement until it is

archived. For research on public works, the data

gathered in Tramita is essential, mainly for

collecting information regarding accurate

contract resolutions (whether a work contract

has been successfully completed or terminated

for administrative reasons). Although Tramita

is a system that does not require internal

credentials to access processes and documents,

there is no means to access and download the

complete dataset of contract terminations. To

circumvent such limitation, contractual data

through 2019 was made available by auditors

with special access to the tool.

 Contract Attributes: through the SAGRES

8

application it is possible to access information

such as budget execution, bidding,

administrative procurements, registration

information, and personnel payrolls of related

jurisdictional units.

6

Companies in Brazil: https://dados.gov.br/dados/

conjuntos-dados/cadastro-nacional-da-pessoa-juridica--

-cnpj

7

System for electronic processes: https://tramita.tce.

pb.gov.br/tramita/pages/main.jsf.

8

Electronic reporting system SAGRES: https://tce.pb.

gov.br/sagres-online

CSEDU 2024 - 16th International Conference on Computer Supported Education

32

 Public Works Attributes: Through the

databases from the Geo-PB

9

and Painel de

Obras

10

, it is possible to access information

regarding the public works carried out in the

state of Paraíba in Brazil. The data in this

system gathers information about geo-

references, contract number, financial amounts

which were paid, type, and built area, among

other details of a public work.

During the cleaning process, incorrect,

incorrectly formatted, duplicated, and incomplete

data were removed from the data set. After cleaning,

the data were integrated into one file, resulting in a

sample with 643 works.

3.3 Risk Prediction Model

Four supervised machine learning algorithms were

evaluated: Artificial Neural Networks (ANN),

Random Forest (RF), Logistic Regression, and

Stochastic Gradient Boosting (SGB). The training

for each was conducted using Scikit-learn

11

library

in Python, streamlining the creation and adjustment

of machine learning models by merely changing

specific parameters. The data sets were divided in

chronological order to prevent information leakage

between training and testing phases. For each model,

cross-validation was conducted with five subsets,

considering metrics such as Precision, Recall, F1-

Score, and ROC-AUC.

In building the ANN, the primary parameters set

were size and decay. The size refers to the number

of neurons in the hidden layer, with values of 1, 3,

and 5, while decay, a regularization parameter, was

set at 0, 0.1, and 0.0001. For the RF models the

number of predictors was randomly selected for each

branch of the trees at each node, with values of 2,

14, and 26. The development of SGB involved a

number of trees ranging between 50, 100, and 150,

and depth values of 1, 2, and 3.

In this study, 10 attributes from relevant

literature were selected, chosen for their importance

and applicability to the subject. The selection was

based on bibliographic reviews and consultations

with experts, aiming to ensure that each attribute

contributed significantly to the study. The attributes

used in each algorithm were:

 Total Bids Won: The total number of bids won

by the company (contractor).

9

Information’s about public works: https://tce.pb.

gov.br/noticias/geo-pb-ferramenta-de-controle-de-

obras-e-servicos-de-engenharia

10

Information’s about public works: https://painel

deobras.tce.pb.gov.br/

11

Scikit-learn: https://scikit-learn.org/stable/

 Total Bids Disputed: Total number of bids

(including those won) the company participated

in.

 Number of Previous Failures: Total number of

failures in the conclusion of the work.

 Bid Type: Modality of public procurement

process, classified into six types: competitive

bidding, invitation, price taking, contest, trading

floor, and auction.

 Number of Activities: The number of company

activities according to the National

Classification of Economic Activities (CNAE),

indicating the activities performed by the

company.

 Age of the Company (Years): The time

elapsed from the creation of the company until

the conclusion of the contract.

 Pending Submission of Information to

Control Agencies: History of pending

registrations, such as lack of monitoring, lack of

georeferencing, outdated estimates, among

others.

 Number of Districts Served: The number of

districts in which the contractor has worked.

 Value of the Work: Total amount destined to

the execution of the work.

Duration: Time estimated for the development

of the work.

After defining and evaluating the algorithms'

hyperparameters, the performances of the four

classification models were assessed and compared

using the original data sample and two artificial

balancing methods (undersampling and

oversampling).

3.4 Chat Assistant

A user interface developed in React

12

(see Figure 3)

was implemented to conduct the empirical

evaluation of the use of LLM and RAG, which

connects to an API built in Flask Python

13

. This API

is responsible for the functions: returning responses

generated by the LLM/RAG model, carrying out the

calculation of risks associated with public works,

and providing information relevant to the work that

the user is viewing on the interface (see Figure 2,

which presents an overview of the architecture

used).

12

React: https://react.dev/learn

13

Flask Python: https://flask.palletsprojects.com/en/3.0.x/

Large Language Models in Civic Education on the Supervision and Risk Assessment of Public Works

33

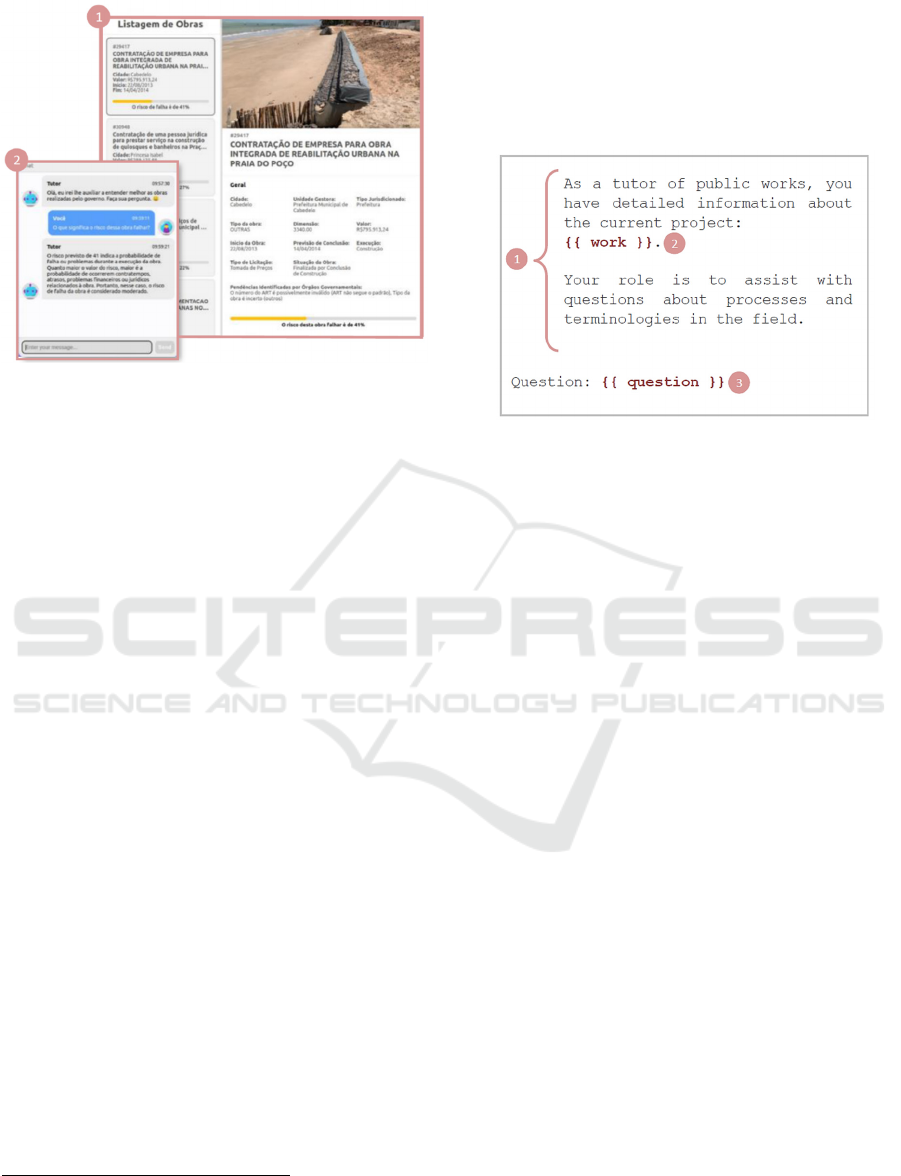

Figure 3: Demonstration of the chat assistant interface

presented to the user. (1) data provided to the user

regarding the works, including risk estimates; (2) chat that

allows the user to ask questions, including about elements

presented in item 1.

The chat assistant was built using the LLM

algorithm, specifically GPT 3.5 Turbo. We chose

this algorithm because it offers a more affordable

solution compared to GPT-4 but is still effective in

generating coherent responses. To utilize this

algorithm, we integrated it with the OpenAI API

14

.

This integration was implemented to enhance the

experience of experiment participants by ensuring

faster response times through resources. We relied

on the Langchain

15

library to integrate the user

interface and specific system functionalities.

For the responses generated by the system to be

relevant to the context of public works education, it

was necessary to create a prompt. The prompt

created, as shown in Figure 4, was designed to direct

the way the system processes and answers the

questions. As it can be seen, it was developed to act

as a tutor on the topic of public works, having

detailed information about the work being presented

to the user.

A range of external data was made available for

the models. The first refers to information about the

risk prediction model, including data on the input

variables, the methodology used in its construction,

and the variables that have the most significant

impact on the calculated risk results obtained

through the measurement of the importance of each

of them through Random Forest. This integration

14

OpenAI API: https://platform.openai.com/

15

Langchain:

https://python.langchain.com/docs/get_

started/introduction

was added to ensure that when users inquire about

specific aspects of the risk model, the assistant,

through RAG, can provide accurate and detailed

answers. In addition, information was also made

available on local public works development

processes, specifically the processes used in Brazil.

Figure 4: Representation of the prompt used in the chat

assistant: (1) Describes the task that an AI should perform;

(2) Information about the work 𝑝



and 𝑅







displayed in

the interface; (3) User-entered question.

4 RESULTS AND DISCUSSION

4.1 Risk Prediction Model

In a first experiment, the data used for training the

classification models were not balanced, so the

contracts considered as high risk corresponded to

37% of the data.

The Random Forest, Stochastic Gradient

Boosting, and Neural Networks models were the

least effective in distinguishing between the classes,

having a ROC-AUC close to or equal to 0.5. The

small amount of available data is considered to have

compromised the learning process of the models due

to the attempt to minimize classification errors,

resulting in classifying all being low risk.

After class balancing through the undersampling

technique on the training set, the resulting sample

had 192 data items, 96 for each class. It can be seen

from Table 1 that, in this second experiment, the

most effective model, with a ROC-AUC of 0.64,

was Random Forest, correctly classifying 19

contracts as high risk and with 9 false positives.

Despite the Random Forest model having a higher

ROC-AUC, the Neural Networks model correctly

classified 24 contracts as high risk, with only 4 false

positives. Finally, Logistic Regression was the

model with the worst performance among the others,

where the classifier labelled all contracts as high

CSEDU 2024 - 16th International Conference on Computer Supported Education

34

Table 1: Comparison of machine learning model performances with different data balancing methods. The Random Forest

model under Oversampling, highlighted for its top ROC-AUC score, is the best performer.

Balancing method Model Precision Recall F1-Score ROC-AUC

Original Data Sample

RF - 1 0 0.5

ANN 0.32 0.24 0.27 0.54

LR 0.29 0.19 0.22 0.66

SGB - 1 0 0.5

Undersampling

RF 0.68 0.38 0.48 0.64

ANN 0.86 0.27 0.41 0.61

LR 0.26 1 0.41 0.5

SGB 0.33 0.65 0.44 0.62

Oversampling

RF

0.42 0.63 0.51 0.75

ANN

0.71 0.39 0.50 0.66

LR

0.64 0.39 0.48 0.65

SGB

0.47 0.39 0.43 0.67

risk. It is believed that this performance was due to

insufficient data from the balancing technique used.

In the third and last experiment, class balancing

was performed through the oversampling technique

applied to the training set, resulting in a sample with

1094 data items, 547 for each class. Finally, as with

balancing through oversampling, the Logistic

Regression was the model with the worst

performance when the ROC-AUC metric was

observed (see Table 1). Despite the low efficiency

when compared to the other models, the model

correctly classified 18 high-risk contracts, but just

like the Neural Networks model, it obtained a high

value of false negatives compared to Random

Forest.

Among the three experimental scenarios

observed for the risk modelling of public works

procurement, the classifiers that best differentiated

the high and low-risk classes were, based on the

ROC-AUC metric, Random Forest with

Oversampling technique, Random Forest with

undersampling technique, and Logistic Regression

through the original sample without any balancing

treatment.

The oversampling technique, aimed at increasing

the number of records in the class with lower

frequency until the base is balanced, together with

Random Forest, was the treatment with the highest

ROC-AUC among the others, having a confidence

interval ranging from 0.64 to 0.87 (95% CI). Next,

the Logistic Regression algorithm proved to have

better results when used with the original sample

(95% CI: 0.46 - 0.81). Finally, the undersampling

technique, also with the Random Forest algorithm,

was the approach with the lowest results with a

ROC-AUC of 0.64 (95% CI: 0.57 - 0.72). All the

results presented can be seen in Figure 5.

Figure 5: Comparison between the algorithms with the

best results, and their data balancing techniques.

It is possible to use machine learning-based

classifiers to reveal risks in public works, considering

that the ROC-AUC values are higher than the

threshold value of 0.5 (random classifier). Despite

such threshold, as there is an overlap between the

confidence intervals, there is no significant difference

between the approaches used to indicate the most

effective approach. In the best-case scenario, Random

Forest with Oversampling will provide better results

than the others. In contrast, in the worst-case scenario,

the Logistic Regression with the original balancing

may be less effective than the other approaches and,

in the best case, superior to Random Forest with

undersampling. By measuring the importance of each

of the Random Forest with oversampling input

variables, it was possible to identify that the 5 most

important variables for the result were: value of the

work, dimension, number of activities of the

contracted company, pending issues detected by

government agencies and estimated duration.

The above observations come with limitations.

Generalizing our findings faces the threat of data

poor representativeness, as public data we used may

not reflect the full range of projects or adequately

capture the diversity of contexts and conditions in

other countries.

0.45

0.55

0.65

0.75

0.85

LR

Original dataset

RF

Undersampling

RF

Oversampling

ROC-AUC

Large Language Models in Civic Education on the Supervision and Risk Assessment of Public Works

35

4.2 Chat Assistant

The research used questionnaires to evaluate LLM

within the scope of civic education and supervision

of public works. Quantitative and qualitative

analyses were based on responses to a questionnaire

administered to 35 individuals.

The average age of the individuals was 38 years

old with ages ranging from 19 to 54 years. In terms

of gender distribution there were 19 males, 14

females and 2 participants who identified as other.

When it comes to education most participants (16)

had completed high school while 14 had a university

undergraduate degree and 5 held a postgraduate

degree. This indicates that the sample used in this

study exhibits a range of educational levels. The

inclusion of ages and educational backgrounds

showcases the diversity, within this participant

group.

We also included some questions to gauge

participants understanding of AI. The results showed

that 20 participants had no knowledge about it; 10

had a basic understanding; 4 had moderate

knowledge; and only one demonstrated advanced

knowledge. Alongside AI knowledge we also

assessed their familiarity with public works. Most

participants categorized their knowledge of works as

basic (18) while 16 indicated they had no knowledge

and only one said it had “advanced knowledge”.

Figure 6 presents users’ experiences with the

chat assistant, evaluated using a 5-level Likert scale.

The graph highlights that 21 participants strongly

agree with the clarity and ease of understanding of

the chat assistant’s responses. Ease of use also

scored highly, with 34 participants agreeing or

strongly agreeing with its ease of use. For

understanding public works, 32 participants gave

ratings that ranged from neutral to strongly agree. As

can be seen, only a tiny portion of the responses

demonstrate disagreement, which suggests strong

user approval of the chat assistant’s features.

A better understanding of users’ responses was

possible through the joint analysis of quantitative

(Likert questions) and qualitative (open questions)

approaches. This analysis made it possible to

identify that participants with no or basic knowledge

of AI tended to focus on general questions about

public works or superficial questions about risk. In

contrast, participants with more advanced or

moderate knowledge of AI used external data

through RAG more effectively, especially to

understand complex processes such as risk

estimation in public works. This group demonstrated

to take full advantage of RAG’s advanced

capabilities, leveraging its potential for more

complex and detailed tasks (e.g., how the models

were built, algorithms used, and the importance of

each variable).

It was also found that some users rated the

clarity and precision of the system’s responses as

low (strongly disagree or neutral). This classification

occurred especially in situations where they were

looking for unavailable external information, such as

details about tenders that a specific company had

already participated in. The lack of availability of

this data in the databases consulted by RAG led to

the provision of more generic responses, affecting

users' perception of satisfaction with the system.

These same participants highlighted that it would be

indifferent for them to implement such functionality

in government systems.

Analysis of the responses demonstrates that the

RAG and the LLM have distinct but complementary

roles in disseminating information and civic

education. RAG, with its ability to access and

integrate information from external databases,

proved to be particularly efficient on two fronts: the

first was to provide details regarding simple

information presented to the user during the iteration

Figure 6: Graph depicting participant ratings of the chat assistant on five aspects: response accuracy, ease of use,

helpfulness, understanding of public works, and response clarity, using a 5-point Likert scale from 'Strongly Disagree' to

'Strongly Agree'.

Accuracy of Text Assistant Responses

Ease of Using Text Assistant

Helpfulness of Text Assistant Responses

Understanding Public Works via Assistant

Clarity in Text Assistant Responses

Strongly Disagree Disagree Neutral Agree Strong Agree

CSEDU 2024 - 16th International Conference on Computer Supported Education

36

with the public work, such as the value of work and

the type of bidding. The second regarded resolving

more detailed questions with complex subjects, such

as risks estimation. Despite these benefits, the

effectiveness of the RAG is limited by the

availability and scope of information in the

databases to which it has access. The lack of specific

information, such as details about companies

involved in public works projects, resulted in less

satisfactory responses for some users.

Finally, it was observed that, using LLM in

conjunction with the developed prompt, it was

possible to transform technical and complex

information into understandable explanations. By

presenting specialized concepts in a more accessible

way, it was possible to contribute to easing the

comprehension of public works. Such a contribution

can improve civic education and promote greater

understanding among the population regarding the

processes inherent to the management and

supervision of public works projects.

5 CONCLUSIONS

Considering the inherent complexities surrounding

purchases and contracts made by government

agencies, civic education becomes essential to

enable an understanding of how government

resources are being spent. Based on this, the

investigation reported in this article focused on

developing and evaluating the use of LLM and RAG

to simplify the presentation of concepts related to

public works and their contracting process and risk

estimation carried out through AI’s machine

learning (ML). The goal was to make these

advanced ideas easily understandable to citizens and

encourage their informed involvement.

This study initially focused on developing a

predictive model for estimating the risk of public

work failures, using ML methods. Based on ROC-

AUC values, the Random Forest algorithm coupled

with the Oversampling technique for data balancing,

was the most efficient approach among the 4

evaluated, evidenced by the model’s ability to

differentiate between high and low risk contracts.

In addition to the risk prediction model, this

study also evaluated the applicability of LLM and

RAG to civic education in the context of public

works projects. To carry out this assessment,

questionnaires were applied to people of different

ages and educational levels. Through quantitative

and qualitative analysis of the data, it was possible

to verify that: (i) there was a strong approval for the

use of chat assistant resources, where most

participants reported that this resource could be

available in government tools; (ii) participants with

less knowledge of AI tended to focus on general

questions about public works, while those with

moderate or advanced knowledge more effectively

used external data to understand risk estimation

processes; and (iii) in specific cases, the lack of

external data affects user satisfaction due to the

generation of generic responses.

Based on these findings, it is possible to

conclude that it is feasible to develop risk predictors

to predict whether public work will be halted due to

court decisions. To this end, the Random Forest

algorithm proved to be the most efficient among the

algorithms analyzed. Furthermore, LLM models

may also help understand complex information

related to the risk prediction model and public

works. Finally, integrating external information

through RAG enabled the user to have accurate

answers on different topics. However, it is necessary

to make it clear to target users to avoid searches

involving non-existent data, causing inaccurate

answers.

Thus, this study emphasizes the significance of

AI in educational methods and fostering greater

civic engagement and understanding of the

complexities associated with the supervision and

execution of public works.

ACKNOWLEDGEMENTS

This work was carried out with support from the

National Council for Scientific and Technological

Development (CNPq), Brazil. We extend our

gratitude to Jair Guedes for prior discussions and

support on LLMs, and to the anonymous reviewers

for their constructive criticism.

REFERENCES

Auret, L., & Aldrich, C. (2012). Interpretation of nonlinear

relationships between process variables by use of

random forests. Minerals Engineering, 35, (pp. 27-42).

doi:https://doi.org/10.1016/j.mineng.2012.05.008

Barros, L. B., Marcy, M., & Carvalho, M. T. (2018).

Construction cost estimation of Brazilian highways

using artificial neural networks. International Journal

of Structural and Civil Engineering Research, pp. 283-

289.

Bayram, S., & A. S. (2016). Efficacy of estimation

methods in forecasting building projects’ costs.

Large Language Models in Civic Education on the Supervision and Risk Assessment of Public Works

37

Journal of construction engineering and management

v. 142, p. 142.

Bentéjac, C., Csörgő, A., & Martínez-Muñoz, G. (2021).

A comparative analysis of gradient boosting

algorithms. Artificial Intelligence Review, 54, (pp.

1937-1967). doi:https://doi.org/10.1007/s10462-020-

09896-5

Christodoulou, E., Ma, J., Collins, G. S., Steyerberg, E.

W., Verbakel, J. Y., & Van Calster, B. (2019). A

systematic review shows no performance benefit of

machine learning over logistic regression for clinical

prediction models. Journal of clinical epidemiology,

110, pp. 12-22.

Domingos, S. L., Carvalho, R. N., Carvalho, R. S., &

Ramos, G. N. (2016). dentifying it purchases

anomalies in the Brazilian Government Procurement

System using deep learning. 15th IEEE International

Conference on Machine Learning and Applications

(ICMLA) doi: 10.1109/ICMLA.2016.0129, (pp. 722-

727).

Gallego, J., Rivero, G., & Martínez, J. (2021). Preventing

rather than punishing: An early warning model of

malfeasance in public procurement. International

Journal of Forecasting 37.1, pp. 360-377.

García-Peñalvo, F., & Vázquez-Ingelmo, A. (2023). What

do we mean by GenAI? A systematic mapping of the

evolution, trends, and techniques involved in

Generative AI.

Gonzalez, B. (2023). Smart Surveys: An Automatic

Survey Generation and Analysis Tool. In Proceedings

of the 15th International Conference on Computer

Supported Education - Volume 2: CSEDU, (pp. 113-

119). doi:10.5220/0011985400003470

Guangxiang, L., & Chaojun, M. (2023). Measuring EFL

learners’ use of ChatGPT in informal digital learning

of English based on the technology acceptance model.

Innovation in Language Learning and Teaching, (pp.

1-14). doi:10.1080/17501229.2023.2240316

Hond, D., Asgari, H., & Jeffery, D. (2020). Verifying

Artificial Neural Network Classifier Performance

Using Dataset Dissimilarity Measures. 19th IEEE

International Conference on Machine Learning and

Applications (ICMLA) (pp. 115-121). IEEE.

doi:10.1109/ICMLA51294.2020.00027

Huber, M., & Imhof, D. (2019). Machine learning with

screens for detecting bid-rigging cartels. International

Journal of Industrial Organization 65, pp. 277-301.

Ivanov, D., & Nesterov, A. (2019). Identifying bid leakage

in procurement auctions: Machine learning approach.

Proceedings of the 2019 ACM Conference on

Economics and Computation., (pp. 69-70).

doi:https://doi.org/10.1145/3328526.3329642

Jaromir, S., Arav, A., Christopher, B., & Majd, S. (2023).

Large Language Models (GPT) Struggle to Answer

Multiple-Choice Questions About Code. International

Conference on Computer Supported Education.

Kasneci, E., Seßler, K., Küchemann, S., Bannert, M.,

Dementieva, D., Fischer, F., & ... & Kasneci, G.

(2023). ChatGPT for good? On opportunities and

challenges of large language models for education.

Learning and individual differences, (p. 103).

Kung, T. H., Cheatham, M., A., M., Sillos, C., De Leon,

L., Elepaño, C., & Tseng, V. (2023). Performance of

ChatGPT on USMLE: Potential for AI-assisted

medical education using large language models. PLoS

digital health, 2(2).

Leippold, M. (2023). Thus spoke GPT-3: Interviewing a

large-language model on climate finance. Finance

Research Letters. doi:https://doi.org/10.1016/j.

frl.2022.103617

Lewis, P., Perez, E., Piktus, A., Petroni, F., Karpukhin, V.,

Goyal, N., & ... & Kiela, D. (2020). Retrieval-

augmented generation for knowledge-intensive NLP

tasks. Advances in Neural Information Processing

Systems, 33, (pp. 9459-9474).

Pérez, J. Q., Daradoumis, T., & Puig, J. M. (2020).

Rediscovering the use of chatbots in education: A

systematic literature review. Computer Applications in

Engineering Education 28.6, (pp. 1549-1565).

Savelka, J., Agarwal, A., Bogart, C., Song, Y., & Sakr, M.

(2023). Can generative pre-trained transformers (gpt)

pass assessments in higher education programming

courses? In Proceedings of the 28th Annual ACM

Conference on Innovation and Technology in

Computer Science Education, (pp. 117–123).

doi:https://doi.org/10.1145/3587102.3588792

Schröer, C., Kruse, F., & Gómez, J. M. (2021). A

systematic literature review on applying CRISP-DM

process model. Procedia Computer Science, (pp. 526-

534). doi:https://doi.org/10.1016/j.procs.2021.01.199

Sun, T., & Sales, L. J. (2018). Predicting public

procurement irregularity: An application of neural

networks. Journal of Emerging Technologies in

Accounting 15.1, pp. 141-154.

Titirla, M., & Aretoulis, G. (2019). Neural network

models for actual duration of Greek highway projects.

Journal of Engineering, Design and Technology 17.6,

pp. 1323-1339.

Twizeyimana, J. D., & Andersson, A. (2019). The public

value of E-Government–A literature review.

Government information quarterly, pp. 167-178.

Wei, D., Jionghao, L., Hua, J., Tongguang, L., Yi-Shan,

T., Dragan, G., & Guanliang, C. (2023). Can Large

Language Models Provide Feedback to Students? A

Case Study on ChatGPT. IEEE International

Conference on Advanced Learning Technologies

(ICALT) doi: 10.1109/ICALT58122.2023.00100.

Yang, Q., Suh, J., Chen, N. C., & Ramos, G. (2018).

Grounding interactive machine learning tool design in

how non-experts actually build models., (pp. 573-

584).

Yuyan, C., Qiang, F., Yichen, Y., Zhihao, W., Ge, F.,

Dayiheng, L., . . . Yanghua, X. (2023). Hallucination

Detection: Robustly Discerning Reliable Answers in

Large Language Models. In Proceedings of the 32nd

ACM International Conference on Information and

Knowledge Management (CIKM '23), (pp. 245–255.).

doi:https://doi.org/10.1145/3583780.3614905.

CSEDU 2024 - 16th International Conference on Computer Supported Education

38
