Analysis of Student-Problems While Working with Physical Computing

Devices

Eric Sch

atz

, Lutz Hellmig

and Alke Martens

Institute of Computer Science, University of Rostock, Albert-Einstein-Straße 22, 18059 Rostock, Germany

Keywords:

Physical Computing, Student Problems, Student Assumptions, STEM.

Abstract:

During physical computing events, we have offered to school-students, we have observed different problems

students struggle with while working with sensors and actuators of physical computing devices. Whereas

some problems have been caused by simple programming errors, some of them were not explainable just

by the code. In those cases, programs worked correctly in simulations but not on the real device. In this

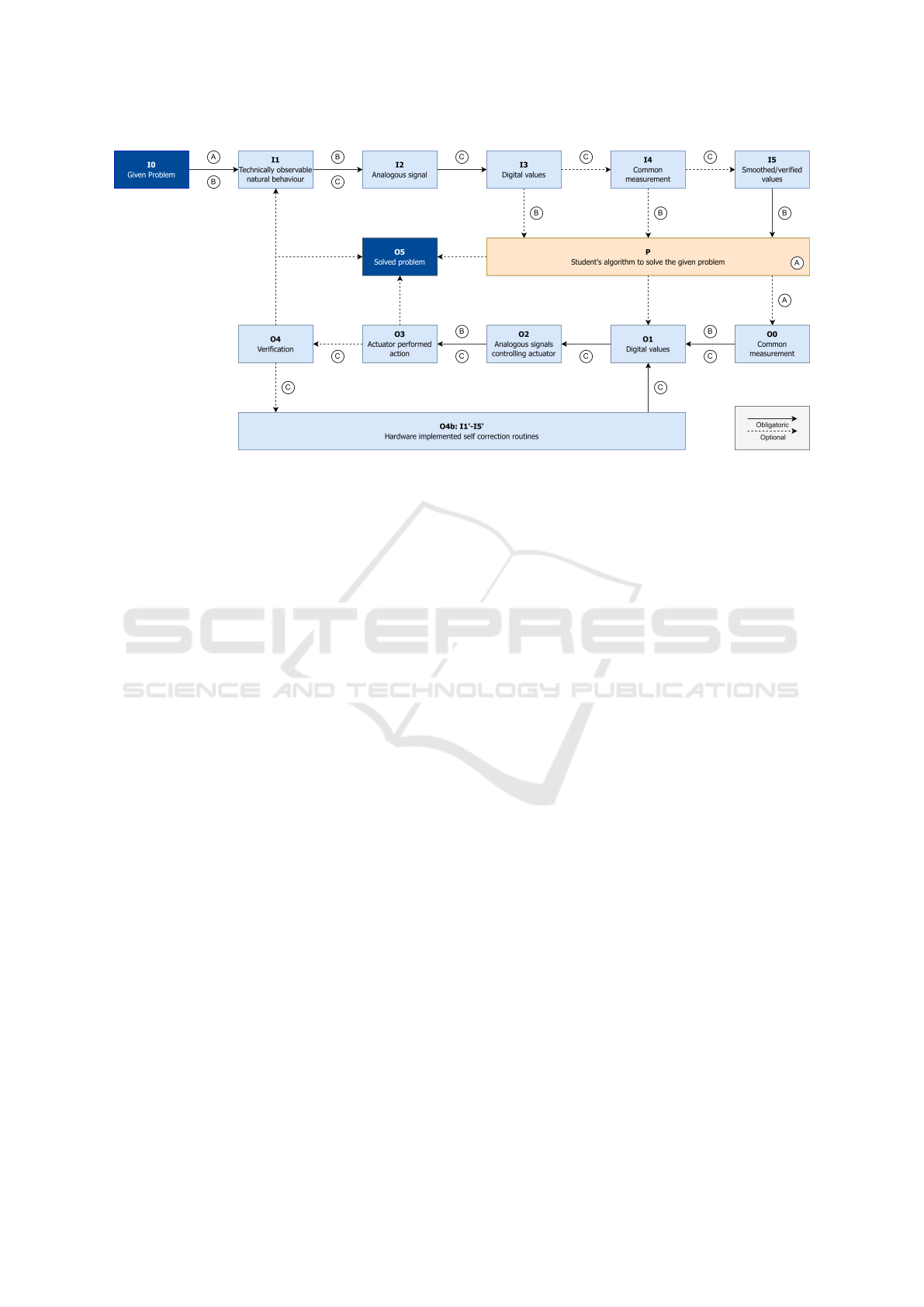

paper looked at different error origins in context of working with physical computing devices. For further

analysis, proposed a model of different stadiums, data passes while a task or problem is solved with a physical

computing application. Using this model, located observed issues in order to identify wrong assumptions,

made by students.

1 INTRODUCTION

From a number of teachers, we have worked with dur-

ing physical computing workshops, we got the feed-

back that they keep running into several problems us-

ing physical computing devices in class. Even though

they really enjoyed working on that topic during our

workshops, they speak of many pitfalls which detain

them of integrating physical computing in several sit-

uations in their lecture. Some of the stated doubts

have also been observed by Schmalfeldt and Przy-

bylla in (Schmalfeldt and Przybylla, 2021). Many

teachers also claimed the usage of physical comput-

ing in class needs way more preparation time as a

class without physical computing. Another big con-

cern was physical computing devices may lead to too

many and diverse problems which makes it hard for a

teacher to provide help for students and makes class

too discerning for their students. Teachers told us,

they use physical computing only where it is explic-

itly mentioned in the curriculum and if though, only

in a very basic way: For example they avoided using

the calliope(Calliope, 2022) with extentiones such as

the Callibot (Scheglmann, 2023). As we noticed that

those concerns where typically expressed by teach-

ers which did not study computer science and were

https://orcid.org/0009-0009-7866-1128

https://orcid.org/0009-0002-2942-765X

https://orcid.org/0000-0002-9411-920X

struggling with some of the given tasks themselves,

this feedback led us to the question how upcoming

student issues can be systematized and on which false

assumptions they are based. Our aim is to identify sig-

niﬁcant origins for struggle of students while work-

ing with different physical computing devices in order

to guide students and teachers to overcome the prob-

lems.

We did a pilot-study to get a list of exemplary is-

sues, students struggle with while working with while

working with physical computing devices. In order to

systematize the issues, we deﬁned categories of ori-

gins. To locate the issue origins, we are developed

a model of how information is processed in different

stadiums in a a physical computing device. Based on

that model, teacher-interventions can be investigated.

2 OBSERVATION OF DIFFERENT

STUDENT ISSUES DURING A

PILOT STUDY

2.1 Pilot-Study in Context of a

Computer Science Competition

In order to get an overview of different issues, stu-

dents struggle with, we did a pilot-study in the context

of a computer science competition our work group is

322

Schätz, E., Hellmig, L. and Martens, A.

Analysis of Student-Problems While Working with Physical Computing Devices.

DOI: 10.5220/0012590000003693

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 16th International Conference on Computer Supported Education (CSEDU 2024) - Volume 1, pages 322-329

ISBN: 978-989-758-697-2; ISSN: 2184-5026

involved to. This competition (its name is Landes-

olympiade Informatik, short: LOI) consisted out of

ﬁve preparation- and one competition day. About 45

students coming from different schools from 7th to

9th grade participated in this event. Within this com-

petition, the students worked with robot cars as shown

in Figure 1 which have been designed and built by our

work group.

During the ﬁve preparation days, we taught the ba-

sics about the usage of the robots in order to balance

different backgrounds of the students coming from

different school with a diverse quality of computer

science education. At each preparation day, there was

always one employee from our work group accompa-

nied by two to four university students.

For this work, we concentrate on the observations

we made during the preparation days. During those

days, we typically gave learning tasks to the students,

combined with frontal teaching blocks. Most of the

students were working in pairs. If they struggled at a

task, they called for help by one of us.

2.2 Physical Computing Device for a

Computer Science Competition

In preperation of this competition, we designed a

physical computing device and built about 30 exem-

plars. We called it Floid which stands for fancy-

landesolympiade-informatik-device.

Floid is a simple robot car which can be pro-

grammed with the block based development envi-

ronment Microsoft MakeCode. We provide a li-

brary (github.com/eschaetz/loi-mv-sek1) for it,

which contains blocks for all functions and imports

the necessary drivers. The robot uses the BBC Mi-

cro:Bit V1 (Brandhofer and Kastner-Hauler, 2020) as

computing device. Floid has a number of actuators:

• A differential-drive (Haun, 2013) consisting out

of four DC-motors; two on each side. The motors

on each side are wired parallel, which means they

can not be controlled independently. The robot

steers, if the motors at one side rotate faster or in

a different directions than the motors at the other

side.

The in the library included block drive contains

two parameters: steering from -10 to 10 (left to

right) and power from -10 to 10 (full power back-

wards to full power frontwards)

• One NeoPixel, which is a ring of eight RGB-LED

at the bottom of the robot

• One display on the top of the robot which can dis-

play 2x16 characters

On the sensor-side it has :

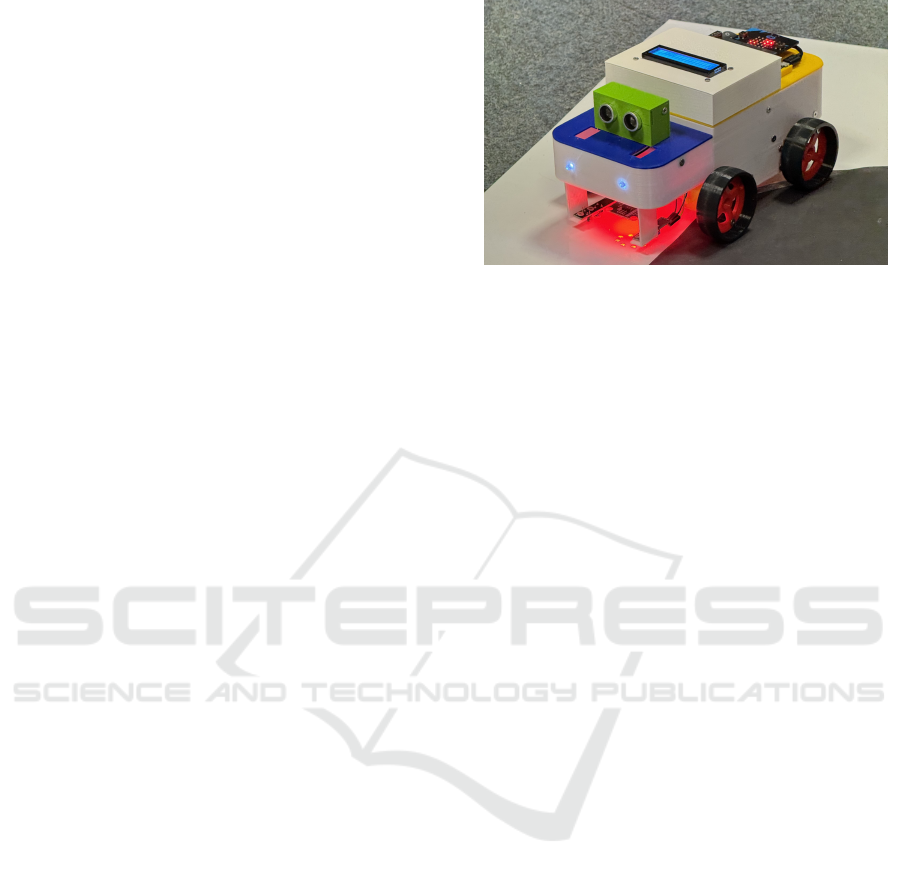

Figure 1: Floid, a simple robots built by out workgroup,

students were working with during our pilot-study.

• One ultrasonic distance sensor (Type SR04)

• Two digital line-tracking-sensors which return

only 1 for a dark and 0 for a bright surface

All components are shown in Figure 2. Along those

robot-speciﬁc components, students can use the sen-

sors which are built-in to the Micro:Bit, such as radio,

an ambient-light sensor, an accelerometer and two

buttons (Brandhofer and Kastner-Hauler, 2020)(Mi-

crobit Foundation, 2020)(H

uwe and H

uwe, 2019).

The robot is powered by a power-bank which is in the

bottom of the robot. The chassis is completely 3D-

printed. This way, the robot looks really unique and

we can easily reproduce and replace broken parts or

develop new extensions for it.

All in all this robot is quite susceptible for defects,

which are typically easy to repair. In the case of our

study, this can be seen as an advantage, since that gave

us the opportunity to observe how students realize de-

fects and how they handle them.

2.3 Observed Student-Statements

Students typically described error symptoms to us but

called it error. Those symptoms looked quite diverse

but can be summarized in the following seven most

signiﬁcant observed-statements (OS).

• OS1. Robot doesn’t start moving

• OS2. Motors rotate with different speeds, even

though the set speed did not change (this is espe-

cially a problem in turns, as a 90° turn can take

1000 ms up to 1500 ms or even more)

• OS3. Data shown on the display is not correct

• OS4. Line-Tracking-Sensors don’t recognize a

line

• OS5. Values from distance are not correct

• OS6. Pressed buttons are not recognized

• OS7. Received radio signals are not recognized

Analysis of Student-Problems While Working with Physical Computing Devices

323

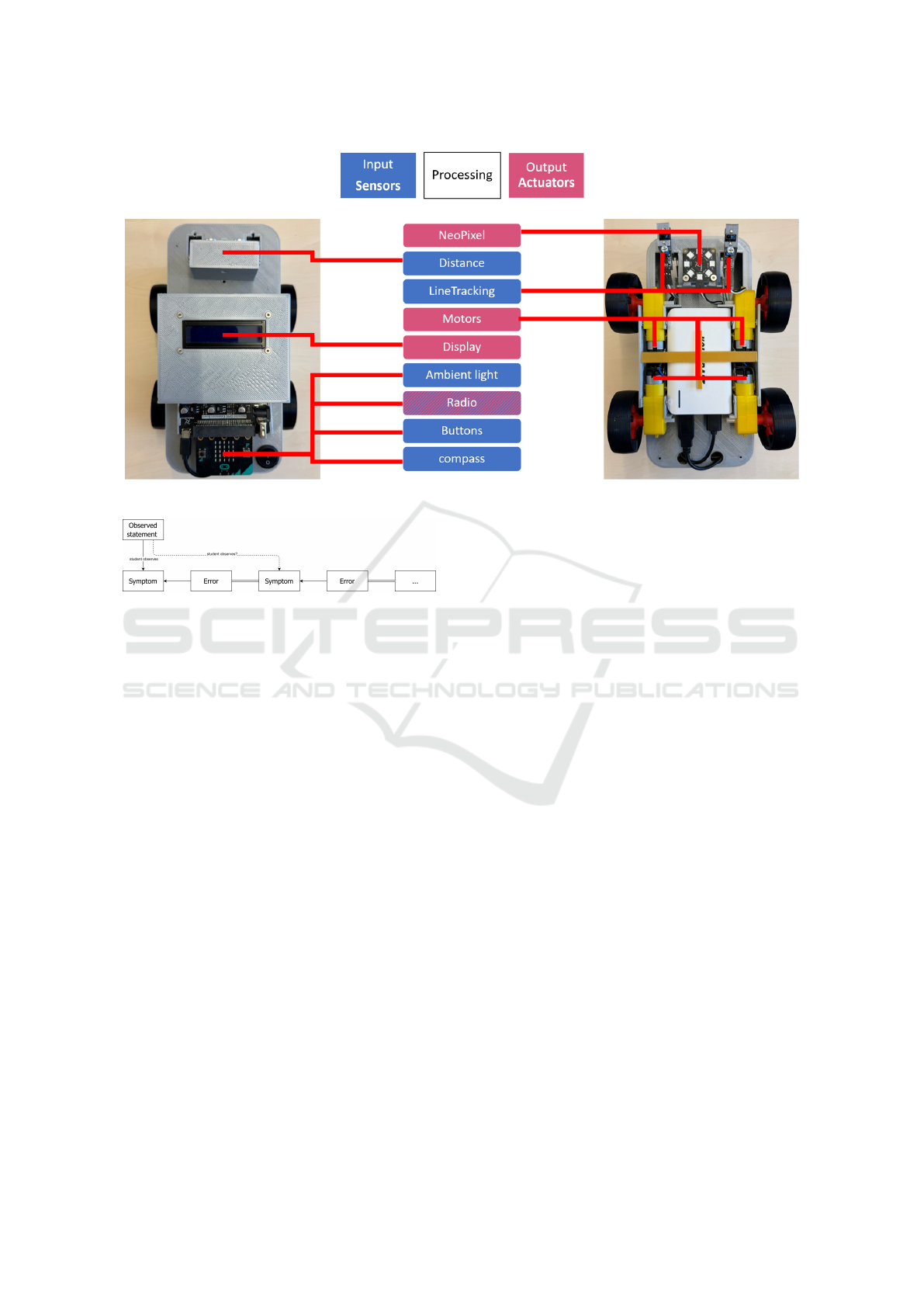

Figure 2: Components of Floid.

Figure 3: Errors causing symptoms which can be symptoms

itself caused by other errors.

3 ISSUE ORIGIN

3.1 Student Statement vs. Symptom vs.

Error

Students typically told us they have an error but most

of the time described an error symptom. The errors

which caused the symptoms were quite diverse. At

this point it needs to be said, an error, which causes a

symptom, can sometimes be a symptom resulting of

another (deeper) error. Referring to Figure 3, differ-

ent students described symptoms at different stages.

In order to ﬁx the students issue, it is necessary to

identify the initial error.

3.2 Different Categories of Origins

In many cases, the symptoms were caused by typ-

ical programming errors which were more or less

hard to ﬁnd while looking at the code. In order to

identify and solve those errors, students use differ-

ent debug strategies as described by Romeike and

Michaeli (Michaeli and Romeike, 2019). However,

those strategies mostly are meant for classical soft-

ware development at a PC and do not focus on physi-

cal computing.

Sometimes, symptoms have been caused by hard-

ware defects for example due a broken motor, a faulty

sensor or a loose wire. These errors can appear on

classroom PCs as well, but this usually happens not

as often as with physical computing devices since

personal computers usually include hardware health

checks and are usually more robust than physical

computing devices like our robots. We built a test

routine which helped us to identify broken parts at the

robot.

In some cases, the observed symptom had its ori-

gin in neither one of those two categories, as the hard-

ware was working all in all appropriate and the soft-

ware seemed to be correct as well but the program still

not worked as it was supposed to. Therefore, there

are errors existing, which are neither resulting from

broken hardware, nor from software bugs, students

made. This leads us to deﬁne a third error category:

Sometimes error-symptoms are caused by hardware

speciﬁc reasons, meaning hardware is used in an in-

appropriate way by disregarding hardware speciﬁca-

tions.

In conclusion the observed errors can be divided

into three categories:

1. Category A. Student Caused Bug

Those errors are caused by the students.

2. Category B. Hardware Speciﬁcation Errors

Errors, which appear when hardware is used in an

inappropriate way.

3. Category C. Hardware Defect

Errors which are caused by broken components

CSEDU 2024 - 16th International Conference on Computer Supported Education

324

Figure 4: Errors from one category causing errors from another one.

Table 1: Examples of hidden errors from different origin

categories.

Hidden error (exemplary) Origin

OS1 Program is stuck in an inﬁ-

nite loop

OS1 Motor is not given enough

power

OS1 Motor is broken C

OS3 Wrong variable is shown on

display

OS3 Two threads are trying to ac-

cess the display simultane-

ously which leads to inter-

fering data on the I²C Bus

OS3 Loose wire C

OS5 Measurement is set to inches

instead of centimeters

OS5 Sensor values are oscillating

and need to be smoothed

OS5 Sensor is physically broken C

As shown in Figure 4, errors from one category can

cause errors from another one.

The examples stated in Table 1 show, a symptom

can be caused by several errors coming from differ-

ent categories. This increases the complexity of ﬁnd-

ing errors while working with physical computing de-

vices signiﬁcantly.

3.3 Borders Between Those Categories

For some examples shown in 1, the category are quite

clear and easy to determine. However, in some cases

the border between two categories can be ﬂuent. If

a hardware component is not used in an appropriate

way, this can also be seen as a software bug. However,

from the view of a student, the software is correct.

The border between categories A and B can be de-

ﬁned by using a simulation software of the robot: If

the program is working in the simulation but not on

the real device, than the error is from category B or

C, if it does not work in the simulation, than it is in

category A. Off course this border depends on which

special cases are included in the used model of the

simulation software. This way, the border can be de-

ﬁned starting from category A.

The border between B and C can be deﬁned by

hardware tests: If the hardware passes the test, than

the error is from A or B, if it fails, than it is from C.

This procedure requires hardware-tests which detect

every kind of hardware anomaly. This way the border

is deﬁned outgoing from category C.

In conclusion category B combines all errors

which are in between those two borders and can only

be deﬁned from the outside, nearing from both neigh-

bor categories. This leads to the insight, that category

B is an abstract category: In case a provided simula-

tion software to the robot is complete and a provided

hardware test detects every hardware anomaly, every

error would either be in A or C. However, a complete

simulation is almost impossible to create, since the

underlying model would need to include every sin-

gle behavior of the device and every relevant physical

law.

The approach of deﬁning the border between A

and B via a simulation has its weak point as there is

not a simulation software available for every physical

computing device. In this case, a simulation can be re-

placed by assumptions students have about the robot:

As every simulation application is based on a model

of the device, a student is creating a program assum-

ing different behavior patterns of the device. Mean-

ing every student has its own model of the robot in

its head. This leads to the insight, that the border be-

tween A and B can be individual for each student: If a

student assumes a motor is rotating once it gets elec-

tricity than the error would be in B, if the provided

power is not enough for the motor to turn. If a student

is aware, that there is a minimum of power a motor

needs, than the problem is in A for this particular stu-

dent.

Analog to a disappearing category B if a complete

simulation exists, there would be no category B if a

student understands every particular part of a device

and has no black-box left. This scenario is as unreal-

istic as a complete simulation.

Concluding, the more complex a device is, the

more it is unrealistic to create a complete model of it,

either in context of a simulation or in a students head.

Analysis of Student-Problems While Working with Physical Computing Devices

325

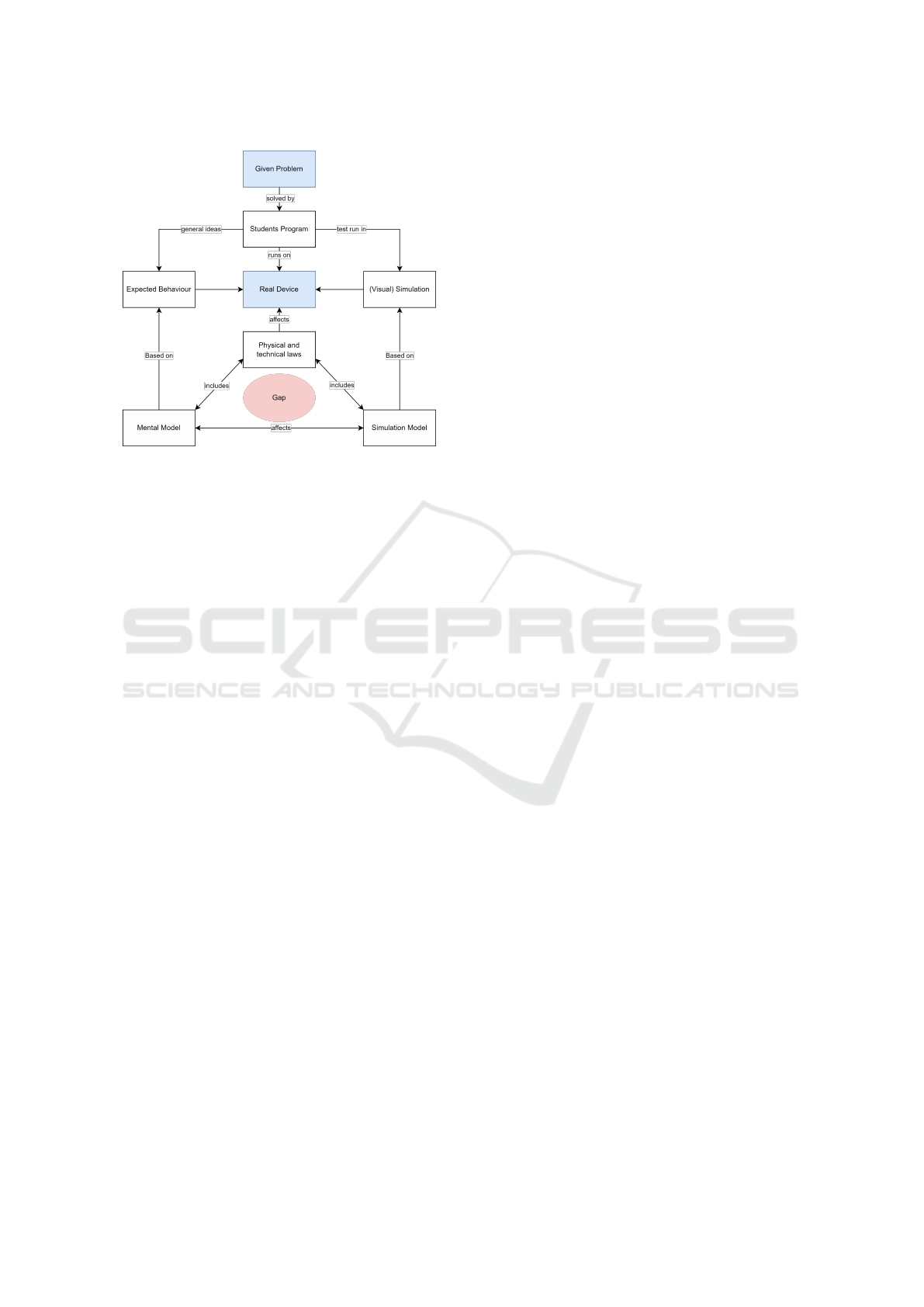

Figure 5: Origin category B can be seen as the gap between

students’ mental models of the device or a simulation model

and the physical and technical laws.

This leads to the point of an always existing category

B with ﬂuent borders. It can been interpreted as the

gap between the physical and technical laws and the

students’ mental model of the robot or the simulation

model as shown in Figure 5.

We have observed that students tend to assume the

problem causing their symptom is located in A or C. If

they were not able to ﬁnd an error in A they frequently

claimed their robot is broken. Not only a large num-

ber of students had problems identifying errors in B,

many students also did not realize the existence of a

category B.

4 DATA HANDLING IN

PHYSICAL COMPUTING

DEVICES

As physical computing stands for the student activity

of developing computer systems which interact with

their environment via sensors and actuators (Przy-

bylla and Romeike, 2017), errors can appear not only

in the procession of data but also in the generation of

sensor values or during the action performance of an

actuator. Thus, in contrast to pure virtual program-

ming (e. g. a console program or scratch), student’s

have to care not only about the P of the IPO-model

but also on the I and O. Therefore a closer look on

this parts in necessary.

4.1 Sensor Data Handling

Sensors are often seen as black-boxes, especially by

students. However, in order to understand and solve

speciﬁcation errors, it may be helpful to have some

knowledge about their basic functionality. Thus, we

are proposing an abstract model of six stadiums of

sensor data.

The model is outgoing from a given problem (sta-

dium I0) which can be named explicitly in a task or

can appear implicitly while solving another problem.

In order to solve the given problem, a physical com-

puting device is monitoring a technical observable

natural behavior (stadium I1) using sensors which

determines a value on a basis of physical laws. As a

result, a sensor provides analogous signals (stadium

I2) with a continuous domain. Those signals need

to be converted into digital values (stadium I3) on a

discrete value margin. While the digital values repre-

sent the output of the sensor, the data needs to be con-

verted into a common measurement (stadium I4) in

order to be comparable to requirements in the given

tasks or data from other sensors. Depending on the

functionality of the sensor, the data can be of differ-

ent quality. Due mathematical smoothing algorithms

the raw values can be converted into veriﬁed values

(stadium I5).

The steps to get information from one stadium to

another address various STEM-disciplines, as illus-

trated in Figure 6.

Different devices and components return the value

at different states to the student: The ambient-light

sensor of the BBC Micro:Bit for example returns the

values after stadium I3 (Microbit Foundation, 2020),

while distance values of the ultrasonic sensor SR04

are returned in centimeters which is stadium I4. Thus,

I4 and I5 are optional stadiums as illustrated in Figure

4.2 Proposal of an Extended IPO-Model

The proposed model in Figure 6 addresses only the

process of generating sensor-data. However, errors

may also appear during the performance of an actua-

tor. Therefore, the model needs to be extended by the

output components.

The program of the students affects the processing

part of the IPO-Model and controls the output compo-

nents, in this case the actuators.

In our model, actuators get data either in form of

a common measurement (stadium O0) or as digi-

tal data (stadium O1). This data gets converted into

analog signals affecting the actuating components

(stadium O2). Therefore, the actuator is performing

CSEDU 2024 - 16th International Conference on Computer Supported Education

326

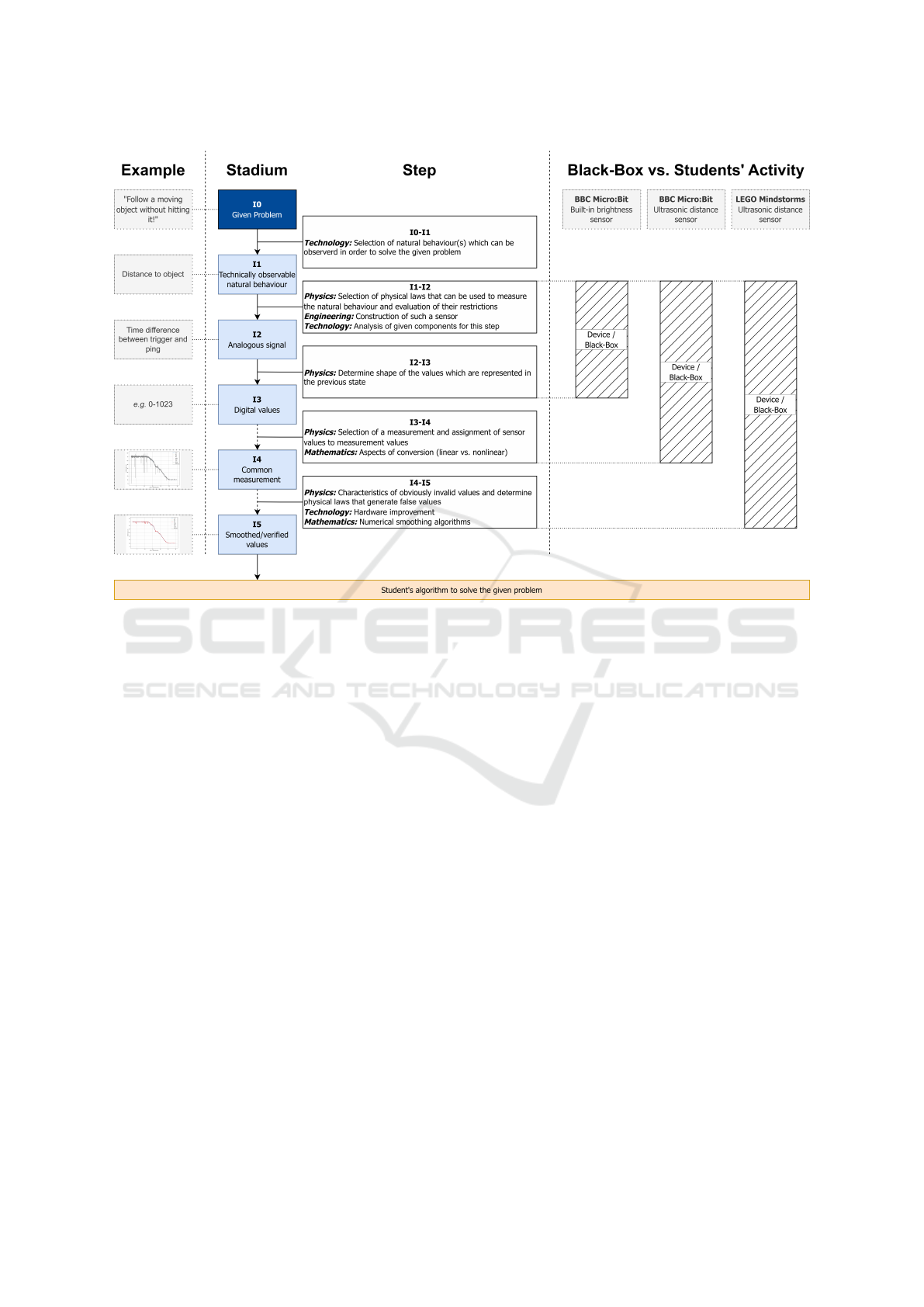

Figure 6: Process of generating data via sensors though different stadiums.

the action (stadium O3). In some cases, the problem

is solved (stadium O5) at this point, in other cases

a veriﬁcation (stadium O4) takes place. This can ei-

ther be done by a student which would lead to state I1,

meaning that sensors need to verify the action of the

actuator or by hardware implemented self correcting

routines (stadium O4b).

As the model now includes the whole journey,

data goes through a physical computing system, in-

cluding input and output components, it can be seen

as an extended or more detailed IPO-Model.

As shown in Figure 7, this process is not always lin-

ear, as several states are optional and data can take

a loop through the model. Different devices, such

as Lego Mindstorms (LEGO Group, 2022), OzoBot

(Ozo Edu Inc., 2022), BBC Micro:Bit (Microbit

Foundation, 2020), Calliope Mini (Calliope, 2022),

Sphero Bolt (Sphero, 2022) are very diverse and re-

turn data at different stadiums to the student. Thus,

students have to do some steps themselves in order

to work with data in different stadiums, while some

parts are hidden in black-boxes as shown in Figure 6.

4.3 Error Focuses Within Extended

IPO-Model

While students run through the Physical Computing

Process proposed by Schulz and Pinkwart (Schulz and

Pinkwart, 2016) they have to think about different

connections between the stadium of our model at dif-

ferent places during this process. For example when

they are at the point of choosing input and output they

have to think about how to come to stadiums I1 and

O3. Depending on the chosen device, they don’t need

to care about some steps and stadiums at this point.

However, while ”identify the problem” in ”evalua-

tion” of the Physical Computing Process (Schulz and

Pinkwart, 2016), we have observed during our pre-

study they have to think about all stadiums, as symp-

toms can be caused by errors from each category. Er-

rors usually appear during the steps between different

stadiums. Certain errors sometimes can only be from

certain origin categories as shown in Figure 7.

5 DISCUSSION

Our model may help to differ errors from different

origins. Due different strategies, the amount of errors

Analysis of Student-Problems While Working with Physical Computing Devices

327

Figure 7: Extended IPO-Model according to data in physical computing applications.

can be in- or decreased, for example can the devel-

opment environment help to reduce errors from cat-

egory A and until a certain point also from category

B. The usage of a more robust device may reduces

the number errors from category C. However, a sys-

tem is never going to be complete and errors are al-

ways possible. From a pedagogical perspective, this

insight leads to the question about the pedagogical po-

tential of errors from different categories. It needs to

be deliberated between the frustration students gener-

ate if a device doesn’t work as supposed to and they

don’t ﬁnd the error in their program and how prob-

lems from different categories force students to de-

velop and practice strategies to ensure the problem is

neither from B or C; and if so, how to locate it. It

needs to be determined, whether this helps reaching

standards of computer science education as for exam-

ple Bildungsstandards Informatik (R

ohner, 2016) or

if the fears of the teachers of our workshop were cor-

rect and those errors overcharge students and teachers

as well.

6 CONCLUSION

In this work, we have designed a pilot-study in order

to ﬁnd out exemplary issues, students struggle with,

while working with physical computing devices. For

this study, we have constructed out own physical com-

puting device Floid in appereance of a robot car. This

device is unique and generates several issues, which

can be seen as an advantage for our scientiﬁc purpose

– a more robust device may lead to less issues, but

there are most likely be some issues left. Our device

gave us the opportunity observing students, how they

handeled those issues.

We developed a model of different issue origins and

connected the observed issues to those categories.

Even though quite some issues were caused by the

device, there were also some of them caused by stu-

dents programs or by disregarding speciﬁcations.

In order to locate the issues and errors from different

categories, we developed a model of stadiums, infor-

mation passes in a physical computing device. This

model can be seen as an extended or more detailed

IPO-model.

7 OUTREACH

As mentioned, the study was still a pilot-study. We

are going to repeat it the upcoming fall. as the focus

on the pilot-study was evaluating which issues stu-

dents struggle with, our aim is to evaluate different

interventions during the next study.

REFERENCES

Brandhofer, G. and Kastner-Hauler, O. (2020). Der

micro:bit und Computational Thinking. Lehr-

Lernprozesse gestalten, analysieren und evaluieren

(2020), page 20.

Calliope (2022). Calliope.

Haun, M. (2013). Handbuch Robotik: Programmieren und

Einsatz intelligenter Roboter. Springer Berlin Heidel-

berg, Berlin, Heidelberg.

uwe, P. and H

uwe, S. (2019). IoT at Home: Smart Gad-

gets mit Arduino, Raspberry Pi, ESP8266 und Cal-

liope entwickeln. #makers do it. Hanser, M

unchen.

CSEDU 2024 - 16th International Conference on Computer Supported Education

328

LEGO Group (2022). MINDSTORMS EV3 | MINT ab der

neunten Klasse.

Michaeli, T. and Romeike, R. (2019). Debuggen im Unter-

richt – Ein systematisches Vorgehen macht den Unter-

schied. In Informatik f

ur alle. Gesellschaft f

ur Infor-

matik.

Microbit Foundation (2020). The new BBC micro:bit with

speaker and microphone.

Ozo Edu Inc. (2022). Ozobot | Robots to code and create

with.

Przybylla, M. and Romeike, R. (2017). Von Eingebetteten

Systemen zu Physical Computing. In Informatische

Bildung zum Verstehen und Gestalten der digitalen

Welt, pages 257–266, Oldenburg.

ohner, G. (2016). Bildungsstandards Informatik - Sekun-

darstufe II. page 88.

Scheglmann, R. (2023). Calli:Bot – unsere-schule.org.

Schmalfeldt, T. and Przybylla, M. (2021). Erhebungsinstru-

ment f

Uberzeugungen zum Physical Computing. In

Bildung von Lehrkr

aften in allen Phasen.

Schulz, S. and Pinkwart, N. (2016). Towards Support-

ing Scientiﬁc Inquiry in Computer Science Educa-

tion. In Proceedings of the 11th Workshop in Primary

and Secondary Computing Education, pages 45–53,

unster Germany. ACM.

Sphero (2022). Coding Robot: Sphero BOLT | Teach

STEM for Kids.

Analysis of Student-Problems While Working with Physical Computing Devices

329
