Automated Classification of Phonetic Segments in Child Speech Using

Raw Ultrasound Imaging

Saja Al Ani

, Joanne Cleland

and Ahmed Zoha

James Watt School of Engineering, University of Glasgow, Glasgow G12 8QQ, U.K.

School of Psychological Sciences and Health, University of Strathclyde, Glasgow, U.K.

Keywords: Ultrasound Tongue Imaging, Child Speech, Texture Descriptor, Convolutional Neural Networks.

Abstract: Speech sound disorder (SSD) is defined as a persistent impairment in speech sound production leading to

reduced speech intelligibility and hindered verbal communication. Early recognition and intervention of

children with SSD and timely referral to speech and language therapists (SLTs) for treatment are crucial.

Automated detection of speech impairment is regarded as an efficient method for examining and screening

large populations. This study focuses on advancing the automatic diagnosis of SSD in early childhood by

proposing a technical solution that integrates ultrasound tongue imaging (UTI) with deep-learning models.

The introduced FusionNet model combines UTI data with the extracted texture features to classify UTI. The

overarching aim is to elevate the accuracy and efficiency of UTI analysis, particularly for classifying speech

sounds associated with SSD. This study compared the FusionNet approach with standard deep-learning

methodologies, highlighting the excellent improvement results of the FusionNet model in UTI classification

and the potential of multi-learning in improving UTI classification in speech therapy clinics.

1 INTRODUCTION

Speech sound disorder (SSD) is a common condition

in early childhood, with a range of speaking

difficulties affecting intelligibility (Shahin et al.,

2019). Current approaches to the assessment and

treatment of SSD rely on the perceptual skills of the

treating clinicians, but this is known to be subject to

difficulties with reliability and time-consuming.

Technical solutions to this problem are required,

particularly the automatic classification of images

into specific speech sounds, for assessment and

tracking progress in speech therapy. Utilising

ultrasound tongue imaging (UTI) to visualise the

movement and deformation of the tongue is currently

a prominent technique in clinical phonetics that

shows promise for the assessment and treatment of

SSDs. This approach can image tongue motion at a

relatively high frame rate of 60 Hz or higher, allowing

for the observation of subtle and quick movements

during speech production. Recent developments in

the field of UTI have focused on feature selection and

contour extraction (Xu et al., 2016). Despite these

enhancements, accurate interpretation remains a

challenge characterised by high-level speckle noise

and information loss during dimension reduction

(Zhu et al., 2018).

In response to these obstacles, researchers have

made remarkable advances in deep learning using

Convolutional Neural Networks (CNNs). CNN has

become the method of choice for researchers

investigating UTI processing, offering a solution that

addresses tasks such as contour segmentation, feature

selection, and tongue image classification, which are

critical for enhancing the accuracy and efficiency of

UTI analysis (Hueber et al., 2007) and, in turn, its

clinical application in speech therapy clinics.

However, the efficiency of deep learning models

requires a sufficient amount of labelled data, which is

difficult to acquire in practice owing to the cost of

labelling. Therefore, using multimodal learning with

image and texture features can be beneficial,

particularly in the healthcare sector, where the

integration of medical images with another source of

information can lead to more precise diagnoses and

treatment recommendations. In this study, we

explored UTI classification using a multi-learning

data approach, including our proposed FusionNet

model. This model combines UTI data with extracted

texture features, utilising a combination of image and

texture feature processing layers to enhance the

analysis and classification of UTI. For the

326

Al Ani, S., Cleland, J. and Zoha, A.

Automated Classiﬁcation of Phonetic Segments in Child Speech Using Raw Ultrasound Imaging.

DOI: 10.5220/0012592700003657

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 17th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2024) - Volume 1, pages 326-331

ISBN: 978-989-758-688-0; ISSN: 2184-4305

classification task, we employed various sets of deep-

learning methodologies. This included CNN and

DNN models, as well as pre-trained models, such as

ResNet50 and Inception V3. Our inclusive approach

involved the FusionNet model along with these

established methods to demonstrate the efficacy of

various techniques in UTI classification.

2 RELATED WORK

Inspired by advancements in deep learning,

researchers have studied various supervised and

unsupervised learning techniques to distinguish

between ultrasound tongue motion. For instance,

Hueber et al. and Cai et al. (Hueber et al., 2007), (Cai

et al., 2011) recommended applying principal

component analysis (PCA) and discrete cosine

transform (DCT) to extract features in their

classification tasks for silent speech synthesis and

recognition. However, these feature representations

may lose important details from the UTI during the

overall dimension reduction procedure. Xu et al.(Xu

et al., 2017) are an outliner because they use CNN to

analyse tongue gesture classification from ultrasound

data. However, this study only focused on two

speakers, with generalisation to a third. Furthermore,

an automatic approach for extracting the contour of

the tongue from ultrasound data has been presented

by Fabre et al. (Fabre et al., 2015). Using data from

eight speakers for training and one held-out speaker

for evaluation, the system was assessed in the

speaker-independent mode. In each of these studies,

a significant decrease in accuracy was observed when

speaker-independent systems were used compared to

speaker-dependent systems. You et al. discussed

strategies for using several unlabelled UTI datasets to

enhance the effectiveness of the UTI classification

challenge (You et al., 2023). Using masking

modelling, they investigated self-supervised learning.

Their approach increased the classification accuracy

in four different circumstances by an average of

13.33% compared with earlier competing algorithms.

In these studies, CNN models have been widely

employed owing to their effectiveness and significant

generalisation capacity. Achieving this robustness

requires a sizable training dataset, which is rarely

available when researchers employ their dataset. This

study explored a multi-learning approach using two

types of inputs. By combining the two types of inputs,

the feature selection process can be significantly

enhanced, leading to more promising results.

3 EXPERIMENTAL SETUP

3.1 Image Dataset

In this work, we utilised the Ultrax Typically

Developing dataset (UXTD), which was obtained

from the openly accessible UltraSuite repository

(Eshky et al., 2018). This dataset was previously used

in studies by (Ribeiro et al., 2019) and (Xiong et al.,

2022). The dataset consists of a combination of

phrases with words and phoneme speech data. For

this study, only type A (semantically unrelated

words) and type B (non-words) utterances were

selected. Nine children's raw scan line data that

represents the target utterances were extracted and

transformed into 600x480x3 PNG images and four

classes were determined to classify utterances:

1) bilabial and labiodental phones (e.g. /v/, /p/,

/b/).

2) dental, alveolar and postalveolar phones

(e.g. /th/, /d/, /t/, /z/, /sh/).

3) velar phones (e.g. /g/, /k/).

4) alveolar approximant /r/.

3.2 Texture Features Dataset

Texture analysis in ultrasound imaging plays a key

role in the analysis of surface defect discovery (Xie,

2008) and image-based medical diagnosis

(Castellano et al., 2004). In image processing, textural

images refer to a specific pattern of distribution and

dispersion of the intensity of the pixel illumination

repeated sequentially throughout the image (Fekri-

Ershad, 2019).

The process involves extracting features from an

image based on its textural appearance and

subsequently utilising these features for

classification. In the current study, a Local Binary

Patterns (LBP) operator was employed to

demonstrate texture feature analysis. LBP is one of

the textural image descriptors that can identify the

local spatial structure and the local contrast of the

image or part of it. It has become a broadly used

texture descriptor due to its high classification

accuracy in the implementation and extraction of

proper features. This descriptor works by analysing

each pixel with its neighbouring pixels by comparing

them to a threshold value of its grayscale (Zhenhua

Guo et al., 2010). The pixel serves as a centre of

reference, and its grayscale level determines the

classification of its neighbours as either 0 or 1. The

centre pixel is then assigned a value which is a

calculated sum of its binary neighbours:

Automated Classiﬁcation of Phonetic Segments in Child Speech Using Raw Ultrasound Imaging

327

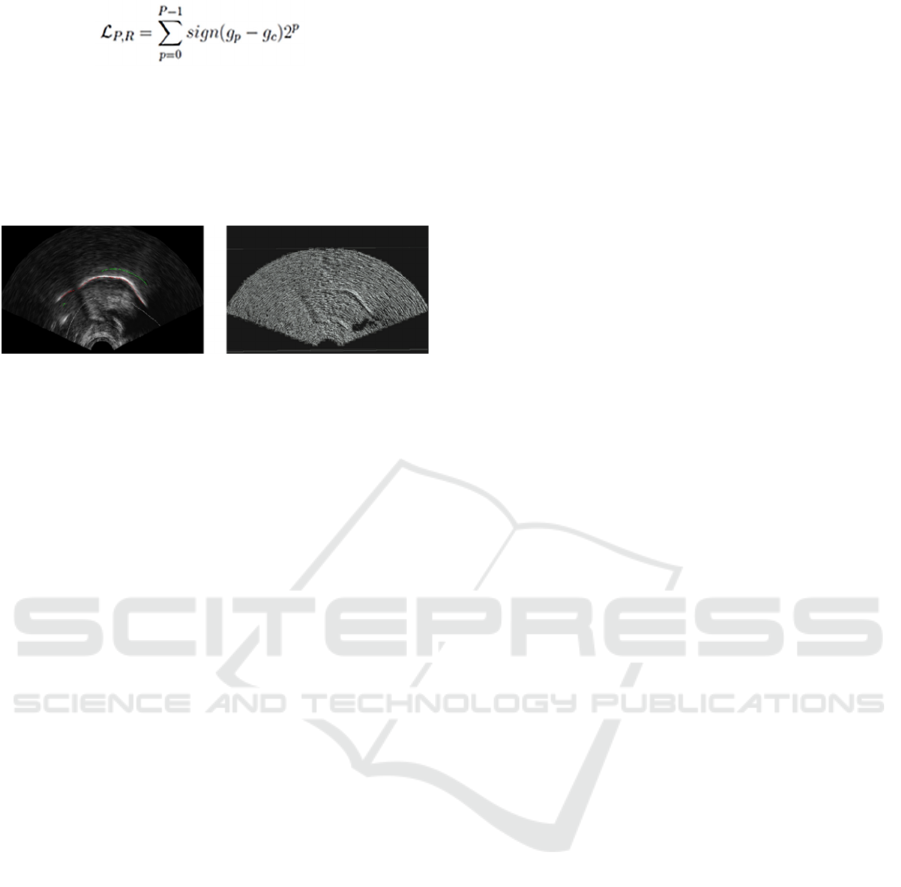

(1)

The above equation involves the grey levels of the

centre and neighbouring pixels (g

and g

), the total

number of neighbourhood pixels (p), the radius (R),

and binary values from thresholding.

Figure 1

displays examples of the original UTI and the UTI

after the LBP operator has been applied.

(a) (b)

Figure 1: (a) original UTI, (b) UTI after performing LBP.

3.3 Classification Models

For the classification task, several deep learning

methodologies have been developed, such as CNN

and DNN models, which were adopted by Ribeiro et

al. (Ribeiro et al., 2019). Furthermore, pre-trained

models including ResNet50 and Inception V3 were

involved, along with our proposed method, the

FusionNet model.

A CNN is a specific type of neural network created

to address image recognition problems.

Convolutional layers are important because they can

learn localized characteristics with a much smaller

number of parameters. A collection of compact,

locally receptive filters that convolve the entire input

image are used in these layers. These filters are highly

effective at detecting local characteristics because

they analyse the relationships between pixels in

smaller image areas. Pooling layers reduce spatial

information by calculating averages over small

regions in each feature map, thereby reducing the

computational costs. Furthermore, fully connected

are fed into the classification layer with fewer

parameters, and therefore, less computing

complexity.

The next model is the DNN, which is based on the

perceptron model (Rosenblatt, 1958). Each node

encounters several weighted inputs that are added to

an activation function to produce the output value.

This Perceptron can be integrated into a feedforward

network, with the outputs of all nodes in one layer

flowing into each node in the next, resulting in a

completely connected network.

The ResNet50 architecture is a convolutional

neural network with 50 layers deep (He et al., 2015).

The main intention of using ResNet50 is the ease of

optimisation and the fact that it has been trained on

more than a million images from the ImagNet

database (Krizhevsky et al., 2012), which makes it

useful when we have limited data.

Furthermore, the Inception V3 is a convolutional

neural network with 48 layers (Szegedy et al., 2015).

It is known for its efficiency in capturing features at

multiple scales and performance in image

classification and computer vision tasks. The final

layer of both pre-trained models was adapted to be

compatible with the number of classes.

Finally, our proposed multi-learning method uses

the FusionNet model. This model consists of two

main parts: image processing layers for handling

visual information, and texture descriptor processing

layers for including additional texture-related

features. The image layers utilise convolutional

operations and max pooling for hierarchical feature

extraction, whereas the texture layers comprise fully

connected neural network segments. The outputs

from these parts were concatenated and passed

through fully connected layers with dropout

regularization, leading to the final classification

output. This architecture allows the model to leverage

both visual and texture information to improve the

performance in classification tasks.

All network architectures used in this study were

optimised for 50 epochs using the stochastic gradient

descent (SGD) optimiser at a learning rate of 0.001

and 32 mini-batches. After the training phase, the

testing procedure begins by loading the test data. A

dataset of randomly selected images and texture

features is created to test the models. These data

inputs were fed into the proposed models to predict

the test dataset. Comparisons were made between the

outcome values of each model testing phase.

3.4 Learning Scenarios

To compare our approach with other deep learning

algorithms, we utilised data from nine speakers

sourced from the UXTD dataset, a dataset previously

employed by (Ribeiro et al., 2019) in their research.

In our experiments, several scenarios were

considered. First, it is speaker-dependent, where the

training process is customised based on the unique

samples of an individual speaker. Second, in the

multi-speaker scenario, the system was trained using

a dataset that included UTI samples from multiple

speakers. The goal is to develop a model that can

recognise and adapt to a variety of speakers. Third,

speaker-independent systems aim to be more

adaptable by being trained on a broader range of

BIOIMAGING 2024 - 11th International Conference on Bioimaging

328

speaker samples; however, the main objective is to

develop a model that can generalise well across

speakers without being specifically tuned to any

speaker's characteristics.

Three training and testing stages were performed.

In step 1, only the UTI input using the DNN and CNN

models was employed. In step 2, we further refined

the CNN and DNN model architectures to enhance

the model performance and utilise the pre-trained

ResNet50 and Inception models. Finally, in Step 3,

we investigated the performance of our proposed

FusionNet model, which combined images and

texture features as an input to train a deep learning

model.

4 RESULTS

We trained five models at different stages using two

different training input setups. For each stage, we

present the results for every network structure to

demonstrate how different architectures may vary the

performance of the proposed deep learning model.

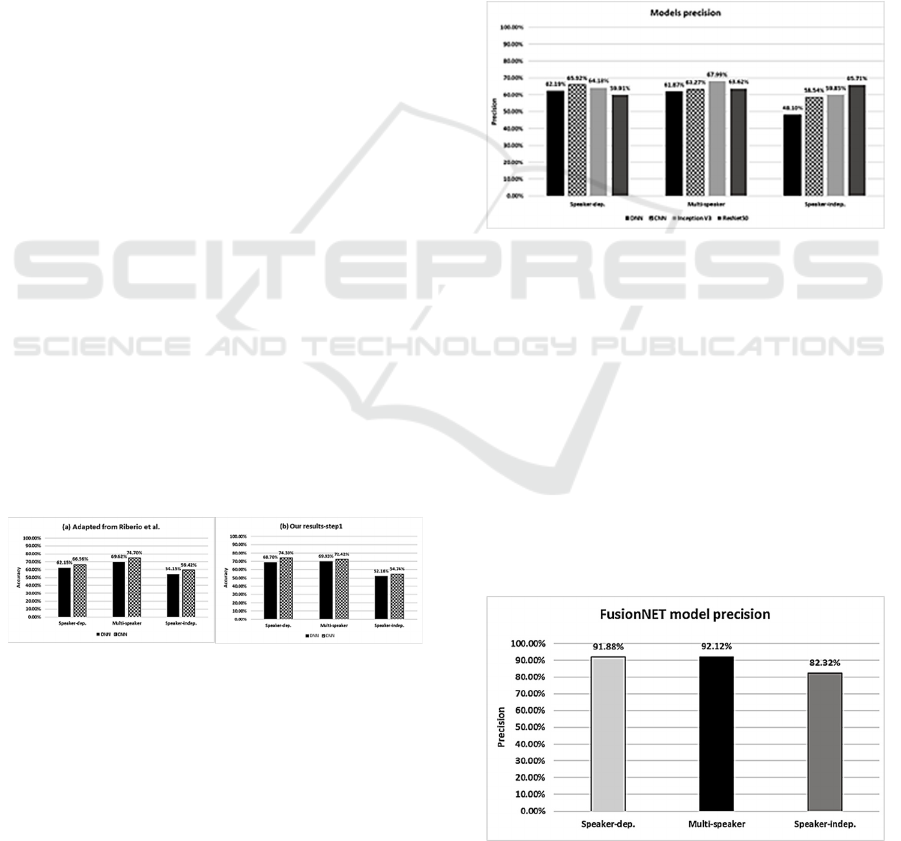

The results of step 1, UTI using CNN and DNN

models, are shown in Figure 2, presenting an

accuracy comparison with previously published data

(Ribeiro et al., 2019). When comparing the model

classifier, we observed that the CNN classifier

outperformed all scenarios. Examining training

scenarios, speaker-dependent systems demonstrate

better performance at 74.30% accuracy compared to

multi-speaker systems with 72.42% accuracy, which

shows that the system adapted its learning to the

unique attributes of a specific speaker. Speaker-

independent systems underachieve, which explains

the challenge involved in generalisation to unseen

speakers.

(a) (b)

Figure 2: Accuracy scores for DNN and CNN models (a)

previously published data[11], (b) our results.

After modifying the CNN and DNN models in Step

2, we reevaluated the classification. Furthermore, we

conducted an assessment using ResNet50 and

Inception V3 for all the speaker scenarios. Figure 3

shows the precision results for different scenarios. In

this case, CNN and Inception V3 consistently

demonstrated higher precision values across speaker-

dependent, multi-speaker, and speaker-independent

regions than DNN and ResNet50. DNN shows

competitive precision in speaker-dependent and

multi-speaker scenarios but experiences a significant

drop in precision for speaker-independent scenarios.

ResNet50 performed well in speaker-independent

scenarios, displaying higher precision values;

however, CNN and Inception V3 maintained

comparable performance in multi-speaker settings.

Inception V3 outperformed it with consistently high

precision across various scenarios. The precision

results across different scenarios reveal notable

distinctions among the evaluated models for UTI

classification, especially in scenarios with diverse

speaker characteristics.

Figure 3: Models’ precision performance.

Owing to the observed declines in precision for

particular models and scenarios, in step 3, an alternate

methodology was introduced and examined to

improve the performance of the UTI classification.

Figure 4 presents the precision performance results of

the proposed FusionNet model across the speaker

scenarios. In the speaker-dependent set, the model

demonstrated a high precision of 91.88%. For the

multispeaker scenario, the model demonstrated

robust performance with a precision of 92.12%. In

particular, in a challenging speaker-independent

scenario, the model successfully achieved a precision

of 82.32%.

Figure 4: FusionNet model precision performance.

Automated Classiﬁcation of Phonetic Segments in Child Speech Using Raw Ultrasound Imaging

329

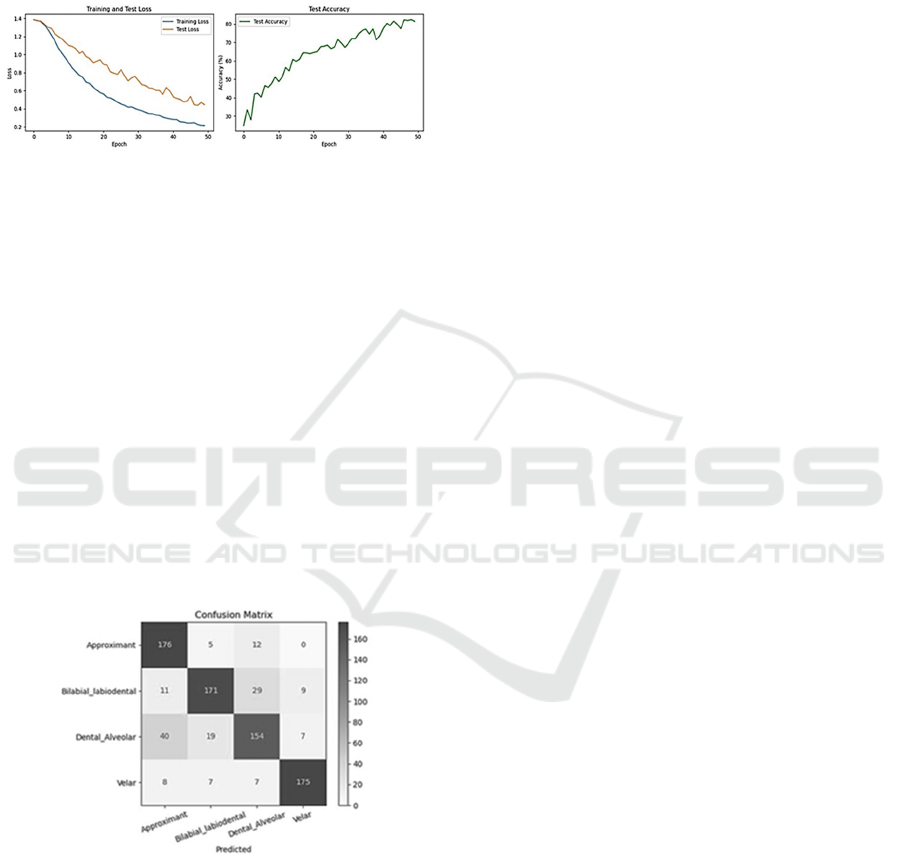

The behaviour of the training and testing losses

and accuracy for speaker-independent are shown in

Figure 5, where the losses decrease slowly, and the

testing accuracy reaches almost its highest accuracy

after 45 iterations and stabilises in further iterations

with steady improvement.

Figure 5: The accuracy and loss behaviours of the training

and testing.

The high accuracy of the testing data is a sign

of the success of the classifier. Confusion matrices

were implemented to examine the performance of the

FusionNet model further. In the confusion matrices,

the row represents the actual utterances class, and the

column represents the utterances class predicted by

the model Figure 6 presents the confusion matrices

where the model successfully achieved high accuracy

in classifying the classes in the speaker-independent

scenario. However, the most misclassified images in

the dental-alveolar class scored relatively low

accuracy compared to the other classes.

The implementation of the FusionNet model was

shown to be an approach to the initial performance

challenges, leading to a significant improvement in

precision.

Figure 6: Confusion matrix for speaker-independent on the

testing dataset.

5 CONCLUSION

In recent years, deep learning methodologies,

particularly CNN, have been applied across diverse

domains, including the diagnosis of speech disorders,

phonetics studies, and segmentation of the tongue.

The success of these techniques in speech fields has

encouraged the idea of conducting this research by

employing deep learning techniques for phonetics

segment classification. In this study, image

processing and deep learning algorithms have shown

promising results in classifying UTIs from child

speech. Accurate classification of UTI from child

speech can be used for the automatic assessment of

child speech. The performance of adapting different

methodologies has been promising, although it

degrades when evaluating previously unseen data,

thereby emphasising the need for robust adaptability.

An encouraging approach for improving the

classification precision in all speaker scenarios was

developed through the integration of multi-learning

data. In particular, speaker-independent results

showed excellent improvement, with a precision of

82.32%. To provide more clarity on the reported

findings, future research should focus on two main

aims. First, it seeks to expand the size of the dataset

by including more samples. Second, it investigates

which speaker scenarios or patterns contribute to

classification errors.

REFERENCES

Cai, J., Denby, B., Roussel-Ragot, P., Dreyfus, G., &

Crevier-Buchman, L. (2011). Recognition and Real

Time Performance of a Lightweight Ultrasound Based

Silent Speech Interface Employing a Language Model.

https://doi.org/10.21437/Interspeech.2011-410

Castellano, G., Bonilha, L., Li, L. M., & Cendes, F. (2004).

Texture analysis of medical images. Clinical

Radiology, 59(12), 1061–1069. https://doi.org/10.1016/

j.crad.2004.07.008

Eshky, A., Ribeiro, M. S., Cleland, J., Richmond, K.,

Roxburgh, Z., Scobbie, J., & Wrench, A. (2018).

UltraSuite: A Repository of Ultrasound and Acoustic

Data from Child Speech Therapy Sessions. Interspeech

2018, 1888–1892. https://doi.org/10.21437/Inter

speech.2018-1736

Fabre, D., Hueber, T., Bocquelet, F., & Badin, P. (2015,

September). Tongue Tracking in Ultrasound Images

using EigenTongue Decomposition and Artificial

Neural Networks. Interspeech 2015 - 16th Annual

Conference of the International Speech Communication

Association. https://hal.archives-ouvertes.fr/hal-01228

917

Fekri-Ershad, S. (2019). Texture Image Analysis and

Texture Classification Methods - A Review. 2.

He, K., Zhang, X., Ren, S., & Sun, J. (2015). Deep Residual

Learning for Image Recognition (arXiv:1512.03385).

arXiv. http://arxiv.org/abs/1512.03385

Hueber, T., Aversano, G., Chollet, G., Denby, B., Dreyfus,

G., Oussar, Y., Roussel, P., & Stone, M. (2007).

Eigentongue Feature Extraction for an Ultrasound-

BIOIMAGING 2024 - 11th International Conference on Bioimaging

330

Based Silent Speech Interface. 2007 IEEE International

Conference on Acoustics, Speech and Signal

Processing - ICASSP ’07, 1, I-1245-I–1248.

https://doi.org/10.1109/ICASSP.2007.366140

Krizhevsky, A., Sutskever, I., & Hinton, G. E. (2012).

ImageNet Classification with Deep Convolutional

Neural Networks. Advances in Neural Information

Processing Systems, 25. https://papers.nips.cc/

paper_files/paper/2012/hash/c399862d3b9d6b76c8436

e924a68c45b-Abstract.html

Ribeiro, M. S., Eshky, A., Richmond, K., & Renals, S.

(2019). Speaker-independent classification of phonetic

segments from raw ultrasound in child speech. ICASSP

2019 - 2019 IEEE International Conference on

Acoustics, Speech and Signal Processing (ICASSP),

1328–1332.

https://doi.org/10.1109/ICASSP.2019.8683564

Rosenblatt, F. (1958). The perceptron: A probabilistic

model for information storage and organization in the

brain. Psychological Review, 65(6), 386–408.

https://doi.org/10.1037/h0042519

Shahin, M., Ahmed, B., Smith, D. V., Duenser, A., & Epps,

J. (2019). Automatic Screening Of Children With

Speech Sound Disorders Using Paralinguistic Features.

2019 IEEE 29th International Workshop on Machine

Learning for Signal Processing (MLSP), 1–5.

https://doi.org/10.1109/MLSP.2019.8918725

Szegedy, C., Vanhoucke, V., Ioffe, S., Shlens, J., & Wojna,

Z. (2015). Rethinking the Inception Architecture for

Computer Vision (arXiv:1512.00567). arXiv.

http://arxiv.org/abs/1512.00567

Xie, X. (2008). A Review of Recent Advances in Surface

Defect Detection using Texture analysis Techniques.

ELCVIA: Electronic Letters on Computer Vision and

Image Analysis, 1–22.

Xiong, Y., Xu, K., Jiang, M., Cheng, L., Dou, Y., & Wang,

J. (2022). Improving the Classification of Phonetic

Segments from Raw Ultrasound Using Self-Supervised

Learning and Hard Example Mining. ICASSP 2022 -

2022 IEEE International Conference on Acoustics,

Speech and Signal Processing (ICASSP), 8262–8266.

https://doi.org/10.1109/ICASSP43922.2022.9746804

Xu, K., Roussel, P., Csapó, T. G., & Denby, B. (2017).

Convolutional neural network-based automatic

classification of midsagittal tongue gestural targets

using B-mode ultrasound images. The Journal of the

Acoustical Society of America, 141(6), EL531–EL537.

https://doi.org/10.1121/1.4984122

Xu, K., Yang, Y., Stone, M., Jaumard-Hakoun, A.,

Leboullenger, C., Dreyfus, G., Roussel, P., & Denby,

B. (2016). Robust contour tracking in ultrasound tongue

image sequences. Clinical Linguistics & Phonetics,

30(3–5), 313–327. https://doi.org/10.3109/026992

06.2015.1110714

You, K., Liu, B., Xu, K., Xiong, Y., Xu, Q., Feng, M.,

Csapó, T. G., & Zhu, B. (2023). Raw Ultrasound-Based

Phonetic Segments Classification Via Mask Modeling.

ICASSP 2023 - 2023 IEEE International Conference on

Acoustics, Speech and Signal Processing (ICASSP), 1–5.

https://doi.org/10.1109/ICASSP49357.2023.10095156

Zhenhua Guo, Lei Zhang, & Zhang, D. (2010). A

Completed Modeling of Local Binary Pattern Operator

for Texture Classification. IEEE Transactions on Image

Processing, 19(6), 1657–1663. https://doi.org/10.1109/

TIP.2010.2044957

Zhu, J., Styler, W., & Calloway, I. C. (2018). Automatic

tongue contour extraction in ultrasound images with

convolutional neural networks. The Journal of the

Acoustical Society of America, 143(3_Supplement),

1966–1966. https://doi.org/10.1121/1.5036466

Automated Classiﬁcation of Phonetic Segments in Child Speech Using Raw Ultrasound Imaging

331
