Similarity-Slim Extension: Reducing Financial and Computational Costs

of Similarity Queries in Document Collections in NoSQL Databases

William Zaniboni Silva

, Igor Alberte Rodrigues Eleut

erio

, Larissa Roberta Teixeira

Agma Juci Machado Traina

and Caetano Traina J

unior

Institute of Mathematics and Computer Sciences (ICMC), University of S

ao Paulo, S

ao Carlos, Brazil

Keywords:

Similarity Query, NoSQL, Metric Access Methods, Cloud-Based Storage, Billing Reduction.

Abstract:

Several popular cloud NoSQL data stores, such as MongoDB and Firestore, organize data as document col-

lections. However, they provide few resources for querying complex data by similarity. The comparison

conditions provided to express queries over documents are based only on identity, containment, or order re-

lationships. Thus, reading through an entire collection is often the only way to execute a similarity query.

This can be both computationally and ﬁnancially expensive, because data storage licenses charge for the num-

ber of document reads and writes. This paper presents Similarity-Slim, an innovative extension for NoSQL

databases, designed to reduce the ﬁnancial and computational costs associated with similarity queries. The

extension was evaluated on the Firestore repository as a case study, considering three application scenarios:

geospatial, image recommendation and medical support systems. Experiments have shown that it can reduce

costs by up to 2,800 times and speed up queries by up to 85 times.

1 INTRODUCTION

Several popular cloud NoSQL data stores, such as

MongoDB (MongoDB, 2023) and Firestore (Kesavan

et al., 2023; Google, 2023a), organize data as docu-

ment collections. The query costs are associated with

the number of read and write operations performed

on the documents: for example, reading 100,000 doc-

uments in Firestore costs US$ 0.06, as shown in Table

Table 1: Firestore costs to handle documents in

USA(Google, 2023h).

Operation over 100,000 documents cost

Read US$ 0.06

Write US$ 0.18

Delete US$ 0.02

Although NoSQL stores provide powerful re-

sources to retrieve data based on relationships of iden-

tity, order, containment, and even some support for

https://orcid.org/0000-0003-2961-9627

https://orcid.org/0009-0007-3987-8880

https://orcid.org/0009-0007-9917-4404

https://orcid.org/0000-0003-4929-7258

https://orcid.org/0000-0002-6625-6047

spatially located queries (Koutroumanis and Doulk-

eridis, 2021), include indexing structures to acceler-

ate them (Qader et al., 2018), few resources, if any,

are provided to query by similarity complex data such

as images, geolocated objects, and texts.

Often, reading the entire collection of documents

is the only way to perform similarity queries. Consid-

ering that the licenses charge for the number of doc-

ument operations, this can turn to be expensive. To

the best of the authors’ knowledge, there is no work

in the literature focused on optimizing the amount

of document reads/writes and the associated ﬁnancial

cost to perform similarity queries in NoSQL docu-

ment stores.

This work aims at creating an extension for

NoSQL data stores, called Similarity-Slim, which re-

duces the amount of reads when performing similar-

ity queries on large document collections. As a case

study, we also perform experiments to evaluate the ex-

tension using the Firestore data store. The similarity

comparisons are evaluated using a distance function

deﬁned by the application. The search algorithm re-

trieves exact answers, meaning that when the k near-

est neighbors are requested, the response is the cor-

rect, not an approximate answer.

The experiments were conducted on three real-

world datasets: Geonames (Unxos GmbH, 2023),

Silva, W., Eleutério, I., Teixeira, L., Traina, A. and Traina Júnior, C.

Similarity-Slim Extension: Reducing Financial and Computational Costs of Similarity Queries in Document Collections in NoSQL Databases.

DOI: 10.5220/0012606300003690

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 26th Inter national Conference on Enterprise Information Systems (ICEIS 2024) - Volume 1, pages 95-106

ISBN: 978-989-758-692-7; ISSN: 2184-4992

DeepLesion (Yan et al., 2018; Yan et al., 2019) and

FeatSet+ (Cazzolato et al., 2022). They contain data

from a variety of complex domains (geospatial points,

sets, and images) of varying cardinalities and dimen-

sionalities. The performance of the queries using our

solution was compared with equivalent queries exe-

cuted by a sequential scan (i.e., reading the entire col-

lection). Brieﬂy, the main contributions of this work

are as follows:

• The new Similarity-Slim extension, which is em-

ployed to optimize the time and reduce the cost

of similarity queries in cloud-based NoSQL doc-

ument stores.

• The analysis of a variety of case studies to validate

the extension in geospatial application, image rec-

ommendation, and medical support systems.

• Analysis of a case study that validates the use of

the extension on Google Firestore.

The remainder of the paper is structured as fol-

lows: Section 2 presents concepts required to un-

derstand this work; Section 3 describes the proposed

extension; Section 4 illustrates the experiments, and

Section 5 presents our conclusions and future work.

2 BACKGROUND AND RELATED

WORK

This section shows the basic concepts required to un-

derstand this paper. Section 2.1 presents the deﬁnition

of similarity queries, Section 2.2 illustrates the con-

cepts that allow optimizing them, Section 2.3 presents

a brief introduction to the Firestore infrastructure, and

Section 2.4 reviews relevant related works.

2.1 Similarity Queries

Similarity queries perform comparisons based on the

similarity between pairs of elements, which can be

evaluated, for example, by a distance function d

that measures the similarity as a real number that is

smaller for more similar pairs. In this work, we call

”complex” the data that, to be compared, requires the

deﬁnition of how to measure similarity – in fact, at

least one distance function, as there are usually sev-

eral ways to assert similarity even among the same

objects.

Many distance functions are deﬁned in the litera-

ture (Deza et al., 2009; Wilson and Martinez, 1997),

for different data domains, such as: the Manhattan

distance to evaluate similarity among dimensional ar-

rays (such as the features extracted from images)

(Zhang and Lu, 2003); the Jaccard distance for sets

(e.g. sets of keywords) (Niwattanakul et al., 2013)

and the Orthodromic distance for geospatial points

(Cong and Jensen, 2016). Figure 1 visually shows

those distance functions applied to two complex ele-

ments A and B.

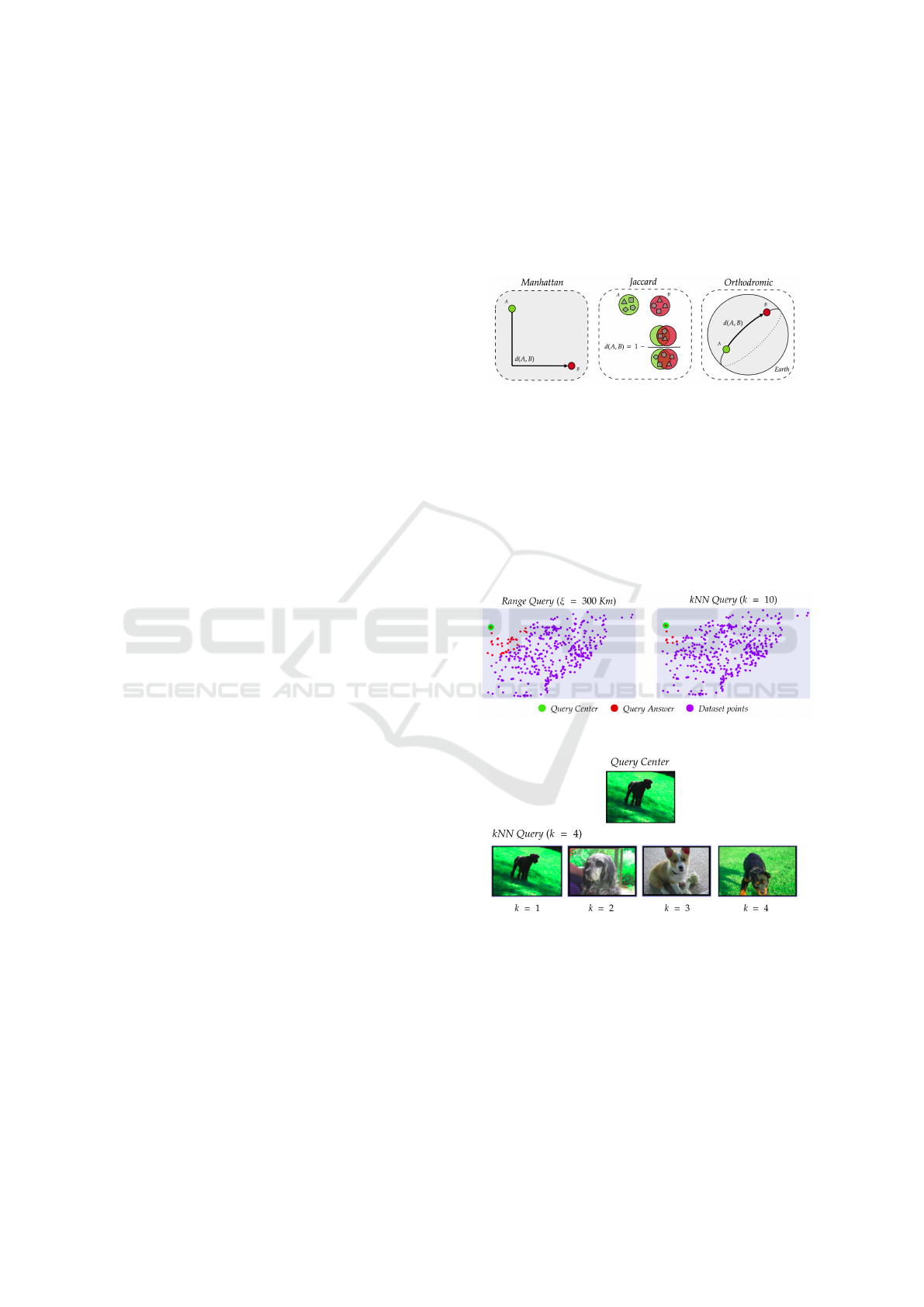

Figure 1: Some common distance functions.

A similarity query is deﬁned by specifying a query

center s

, a similarity comparison operator (Barioni

et al., 2011) and a threshold. There are two basic op-

erators: the Similarity Range (Rg), whose threshold

is a similarity radius ξ; and the k-Nearest Neighbors

(kNN), whose threshold is the amount of elements k.

A Range Query retrieves the elements whose similar-

ity to s

does not exceed ξ. A k-Nearest Neighbors

query retrieves the k elements nearest to s

Figure 2: Similarity queries in a geospatial application.

Figure 3: Similarity query in an image recommendation

system.

Figures 2 and 3 exemplify similarity queries in a

geospatial application and in an image recommenda-

tion system, respectively. Figure 2 shows a subset of

the Geonames dataset (Unxos GmbH, 2023) queried

by a range (left) and a kNN query (right) using the

Orthodromic distance to measure similarity between

geolocated points. In Figure 3, the similarity between

images of dogs (Cazzolato et al., 2022) is measured

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

using the Manhattan distance to execute a kNN query

with k = 4.

2.2 Metric Access Methods

A distance function d over a data domain M is called

a metric when it satisﬁes the following properties for

any elements a, b, c ∈ M .

• Non-negativity: d(a, b) ≥ 0.

• Identity of Indiscernibles: d(a, b) = 0 iff a and b

are the same element.

• Symmetry: d(a, b) = d(b, a).

• Triangular inequality: d(a, b) ≤ d(a, c) + d(c, b).

When these conditions are met, M is said to be

a metric space under d. Those properties are useful

to create indexing structures, called Metric Access

Methods (MAM), which can greatly speed up sim-

ilarity queries. There are many MAMs described in

the literature (Shimomura et al., 2021; Chen et al.,

2022), such as the M-Tree (Ciaccia et al., 1997) and

the Slim-Tree (Traina-Jr et al., 2000). They store

data in ﬁxed-size memory pages (or store a maximum

number c of elements per page) in a hierarchical struc-

ture, partition the metric space into metric balls, and

support dynamic updates. The Slim-Tree is an evolu-

tion of the M-Tree, which seeks to reduce the overlap

of the subspaces covered by nodes in the same hierar-

chical level (Traina-Jr et al., 2000).

Similarity queries are executed on a Slim-Tree us-

ing the following algorithms:

• Range queries are executed with a branch-and-

bound algorithm. It descends from the root to the

leaves using the threshold ξ and the triangular in-

equality property to evaluate whether each subtree

can be pruned by ensuring that its covered sub-

space does not overlap the query ball.

• The kNN query is performed by the best-ﬁrst al-

gorithm (Roussopoulos et al., 1995): the nodes

are visited following a single priority queue that

searches in the sub-trees for the elements closest

to the query center s

. A dynamic threshold ξ as-

sumes the distance value from s

to the k

ele-

ment already found. The threshold makes it possi-

ble to prune sub-trees using the triangular inequal-

ity.

2.3 Firestore Infrastructure

Firestore is a NoSQL document store made available

by Google for mobile and web application develop-

ment (Google, 2023a). It stores data as key/value

pairs within documents, organizing documents into

collections. Firestore does not impose a schema on

the documents, making them highly customizable.

It supports a wide range of data types, including

boolean, bytes, date and time, ﬂoating-point numbers,

geographical points, integers, arrays, maps, null val-

ues, and text strings. Each document in a collection

is assigned a unique ID, and each document can store

up to 1 megabyte of data.

An application can either retrieve all documents in

a Firestore collection or selectively fetch only those

that meet speciﬁc criteria. In the latter approach, the

queries must include conditions based on the key-

value pairs within the documents. It’s worth noting

that Firestore queries utilize indexes that are automat-

ically generated for all keys when a new document is

added.

Cloud Functions (Google, 2023b) are employed

to deploy backend code that manipulates data and re-

sponds with the corresponding updates in Firestore.

This also includes either reading and processing each

new document added to a collection or reading the

entire collection. It is also possible to combine the

resources of Cloud Functions and Firestore to cre-

ate extensions to publish and use new features in the

data store (Google, 2023f). Usually, these extensions

are used to connect third-party resources to the data

store: for example, they can provide full-text search

(Google, 2023d), semantic search (Google, 2023e),

and approximate matches in vector similarity search

(Google, 2023c).

Reading/writing documents in Firestore incurs

costs, as shown in Table 1 and detailed in the Fire-

store pricing documentation (Google, 2023h).

2.4 Optimizing Similarity Queries on

Data Stores

In the literature, the main focus on optimizing similar-

ity queries in data stores aims at reducing query time.

Works like MSQL (Lu et al., 2017), SIREN (Barioni

et al., 2006), and RAFIKI (Nesso et al., 2018) use in-

dexing structures to speed up similarity queries in a

Database Management System (DBMS). For exam-

ple, MSQL organizes the complex data using a B

Tree and the others using a Slim-Tree.

In the NoSQL domain, there is a great focus on

how to perform similarity queries over big data. For

example SigTrac (Damaiyanti et al., 2017) targets

similarity queries over road trafﬁc data using Mon-

goDB, (Kim et al., 2018) and (Kim et al., 2020) stud-

ies how to support the whole lifecycle of a similarity

query in Apache AsterixDB (The Apache Software

foundation, 2023). TrajMesa (Li et al., 2020) focuses

on queries over trajectory data domains, and (Karras

Similarity-Slim Extension: Reducing Financial and Computational Costs of Similarity Queries in Document Collections in NoSQL

Databases

Table 2: Main differences between Similarity-Slim and related works.

Method

NoSQL document

collection domain

Applied over any metric

domain data

Exact Range and

kNN queries

Focused on billing

reduction

MSQL (Lu et al., 2017) No Yes No No

SIREN (Barioni et al., 2006)

RAFIKI (Nesso et al., 2018)

No Yes Yes No

SigTrac (Damaiyanti et al., 2017) Yes No No No

(Kim et al., 2018)

(Kim et al., 2020)

No No No No

TrajMesa (Li et al., 2020) No No Yes No

(Karras et al., 2022) No No Yes No

Similarity-Slim Yes Yes Yes Yes

et al., 2022) works with similarity queries in spatial

data. Developing resources to help execute similar-

ity queries over spatial data in NoSQL stores are pre-

sented and described in (Gonc¸alves et al., 2021) and

(Cos¸kun et al., 2019).

Table 2 summarizes the main differences between

the related works above and our solution based on

four criteria: whether it is used in document collection

NoSQL store; applied over any generic metric domain

data; exact similarity queries; and focus on billing re-

duction. To the best of the authors’ knowledge, un-

til now, there is no work focused on optimizing the

billing of similarity queries in cloud document stores.

This work aims at closing this gap, presenting the

Similarity-Slim Extension, which transfers a battle-

tested technology to a new problem domain: transfer

a MAM initially developed for relational databases to

a cloud-based NoSQL document store, aiming at re-

ducing the ﬁnancial query cost of similarity queries.

3 THE PROPOSED EXTENSION

In this paper, we introduce an innovative extension,

called the Similarity-Slim, designed to signiﬁcantly

reduce the ﬁnancial costs associated with executing

similarity queries over a data collection T

stored

in a NoSQL Store, such as the Google Cloud Fire-

store. We assume that the queries involve compar-

isons based on a complex attribute S, which is a com-

ponent of every individual document Doc

∈ T

The size limit of a document in Firestore is sig-

niﬁcantly larger than the size required to store each

document Doc

. Thus, the basic idea for reducing the

number of read operations is to concatenate multiple

Doc

into a single concatenated Firestore document

Doc

. However, for this to be effective, the docu-

ments stored together must be ones that will also need

to be read together during the queries - a random con-

catenation will require reading many scattered Doc

documents, making the process even worse.

The central idea of our extension is to integrate a

Figure 4: Concatenating c = 3 document’s complex at-

tributes from collection T

in another document on collec-

tion T

MAM into the NoSQL store and to use its structure

to identify the objects to be stored together, consoli-

dating the complex attributes S from multiple individ-

ual documents Doc

into a single composite document

Doc

: we deﬁne c as the maximum number of com-

plex attribute values that are consolidated together in

the same document Doc

. Provided the concatenated

values of the complex attributes from the Doc

doc-

uments are meaningful to answer a query, multiple

read operations on the data collection T

can be trans-

formed into fewer read operations on a new collection

that store the documents Doc

Figure 4 shows an example of the main idea of

this extension: instead of reading all three docu-

ments from collection T

, it is necessary only one

read on collection T

to obtain all complex attributes

S = t[S](Doc

), i ∈ [1, 3].

Our extension uses the Slim-tree (Traina-Jr et al.,

2000) MAM to select the documents that have the

complex attributes that are worth storing together.

The main reasons to choose it are:

• When deployed within an RDBMS, a Slim-tree

answers similarity queries requiring signiﬁcantly

fewer accesses to external memory, often being

the best option regarding this property (Traina-Jr

et al., 2000). So, aiming at the objective of this

work, the Slim-Tree can reduce the number of ac-

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

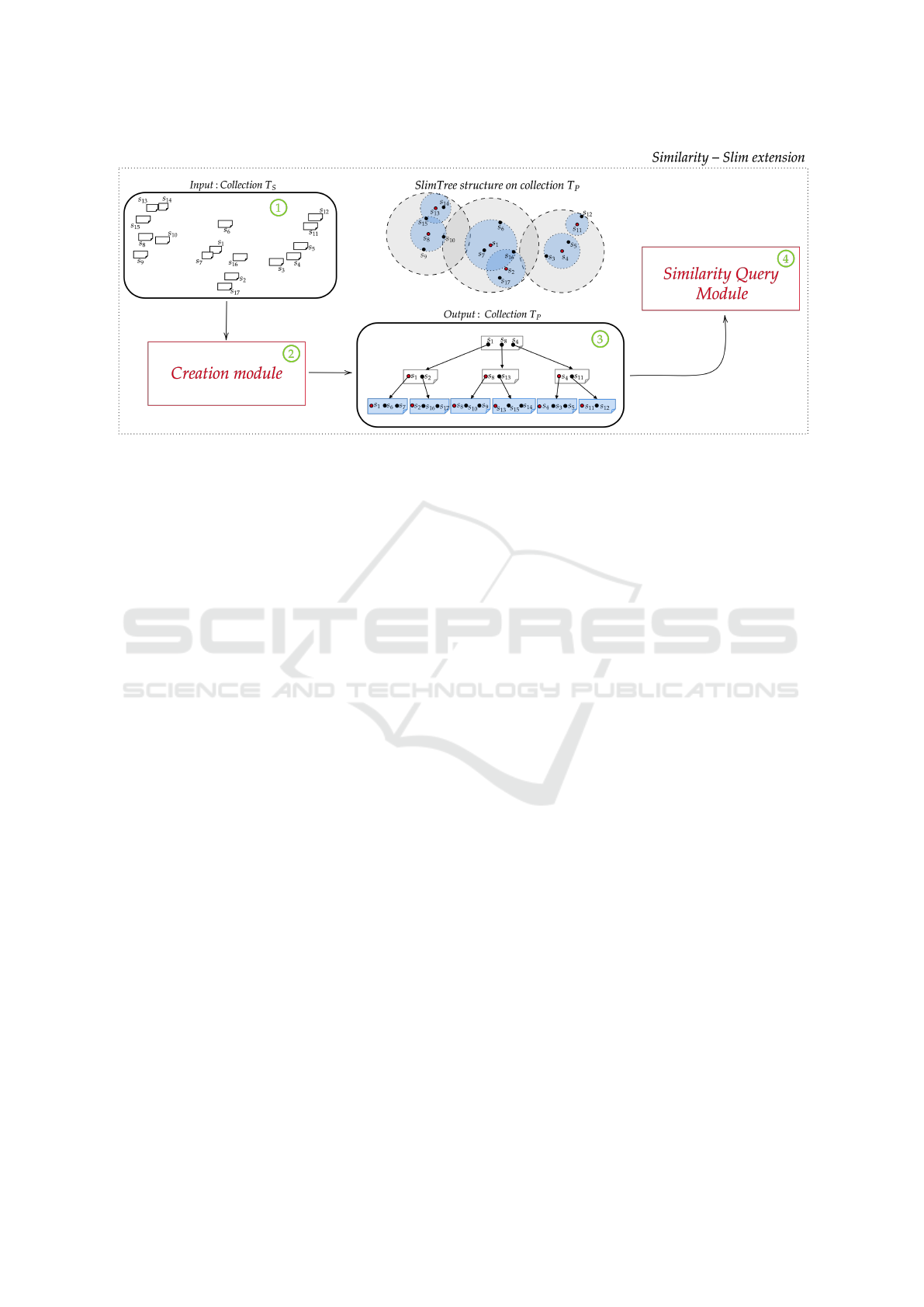

Figure 5: Similarity-Slim framework applied over a collection T

cesses (reads) to documents in the NoSQL data

stores domain competitively with or better than

the other compared MAMs.

• Its structure uses two types of nodes (index and

leaf nodes) well-tailored for storage in a doc-

ument store. Correspondingly, each document

Doc

stored in T

will always be either an index

Doc

or a leaf Doc

document.

• It allows customizing the maximum number c of

documents that are worth storing together in a

node.

(Notice that the effective number of elements in

each node can be smaller than c).

Every original document identiﬁer Id

and S

value from document Doc

∈ T

is stored in a leaf

document in T

, whereas the index documents store

only copies of S values existing in a few documents

from T

: just those required to create the structure.

In short, the extension is responsible for concate-

nating and indexing the documents from the collec-

tion T

in another collection T

using the complex

values S from each Doc

∈ T

. Therefore, instead of

performing the similarity query reading every docu-

ment in collection T

, it is performed ﬁrst navigating

in T

and only reading the Doc

documents required

to be in the answer. Figure 5 shows a sketch of how

Similarity-Slim works in four steps.

• Step 1: Shows the input collection T

using a

dataset with 17 documents Doc

, i ∈ [1, 17]. The

value of the complex attribute t[S] in each doc-

ument is shown as s

= t[S](Doc

) in a two-

dimensional representation.

• Step 2: Consist of the module responsible by in-

dexing, concatenating the complex attributes t[S],

and generating the documents from collection T

• Step 3: Shows the output collection T

. As can

be seen, the documents from T

are concatenated

into 6 documents (in blue), while the other 4 doc-

uments (in gray) are used to index them.

• Step 4: Consist of the module responsible for per-

forming the optimized similarity queries on col-

lection T

Similarity-Slim comprises two main modules: a

create module and a similarity query module, which

are described following.

3.1 The Create Module

The create module is responsible for indexing the T

collection, creating the T

collection. The application

must deﬁne how to measure the similarity between

documents Doc

∈ T

using the value t[S](Doc

) of

attribute S in each document. The indexing process

uses the Slim-Tree creation algorithm to structure the

data in T

into T

. When the index collection T

does not yet exist, a new one is built from scratch,

and the complete collection T

is loaded. Otherwise,

each new document is added to both T

and T

col-

lections, i.e., T

not need to be rebuilt, just updated

with the S value and document identiﬁer Id

from

the new document. The ﬁnancial cost associated with

this module comes from reading documents from T

and performing read and write operations on T

Figure 5 shows a two-dimensional representation

of 17 documents in an Euclidean space and a hierar-

chical model of them in a Slim-Tree using a maximum

number c = 3 of elements per document in T

: leaf

documents (Doc

) are displayed in blue and index

documents (Doc

) are displayed in light gray. Every

document identiﬁer from collection T

is stored in a

Similarity-Slim Extension: Reducing Financial and Computational Costs of Similarity Queries in Document Collections in NoSQL

Databases

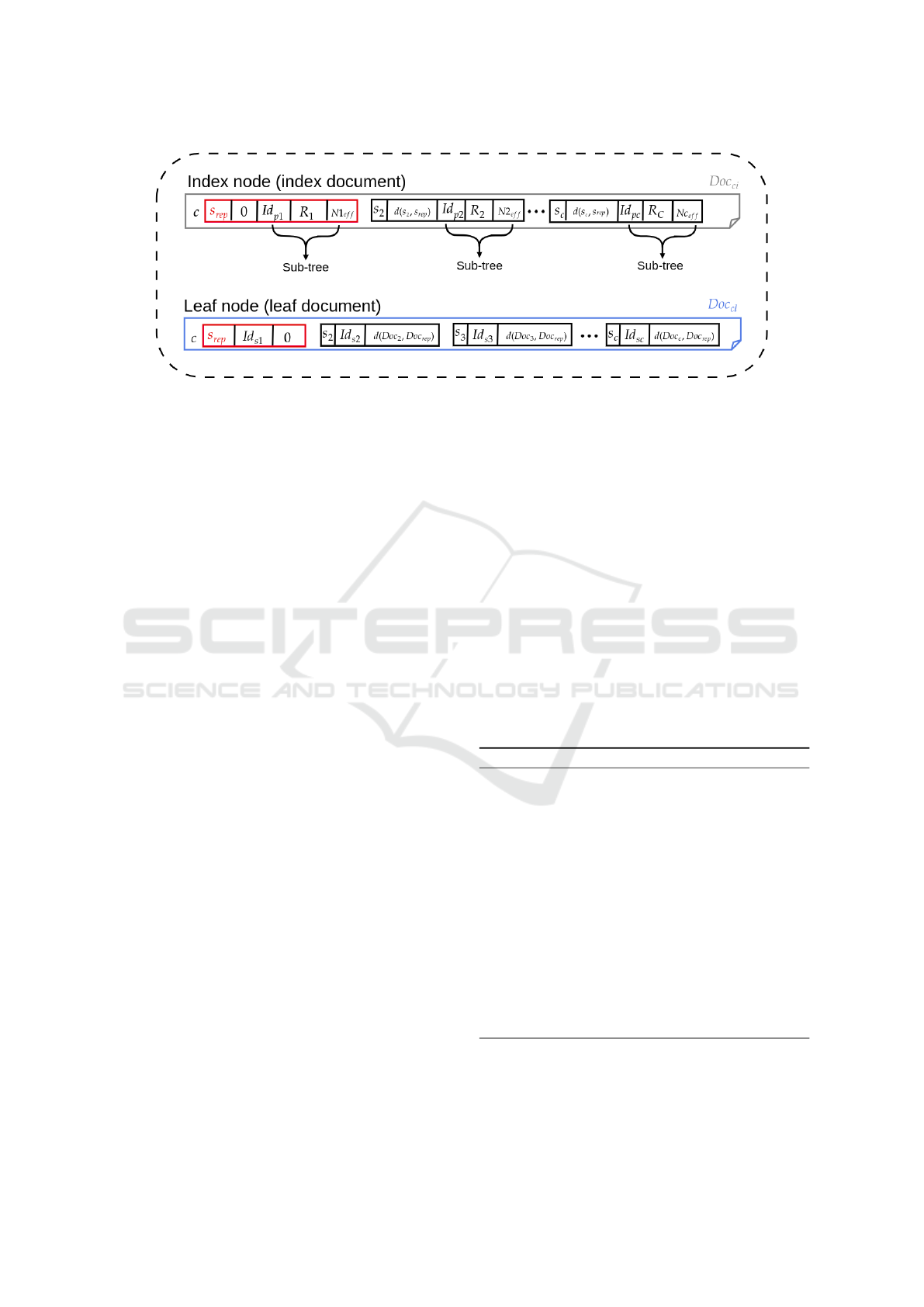

Figure 6: Slim nodes (documents) on collection T

leaf document in T

Figure 6 shows how the complex data are kept in

each type of document in T

. There is a representa-

tive complex value s

rep

from attribute S, deﬁned by

the Slim-Tree’s creation algorithm for creating the in-

dexing structure, for both types (displayed as a red

dot in Figure 5). Each index document Doc

∈ T

also stores the distances d(s

, s

rep

) from the value

t[s](Doc

) of each element that it stores to its rep-

resentative s

rep

and each leaf document Doc

∈ T

stores the corresponding distances d(Doc

, Doc

rep

The information about each sub-tree is stored in the

corresponding index documents, including: the sub-

tree covering radius R

, the number of elements in

the sub-tree Nc

e f f

, and the document identiﬁer Id

of the sub-tree root in collection T

. The leaf doc-

uments include the document identiﬁers Id

of the

corresponding documents in collection T

3.2 The Similarity Query Module

This module is responsible for executing the simi-

larities queries. Every similarity search intended to

be executed over collection T

can now be executed

over collection T

using the algorithms introduced

in Section 2.2, and detailed below on Sections 3.2.1

and 3.2.2.

Each query is posed by specifying the following

parameters: the query center s

and either the search

radius ξ for a range query, or the amount k for a kNN

Query. The query module retrieves the list of docu-

ments identiﬁer Id

that satisﬁes the similarity condi-

tion. Now, the query answer can be returned by read-

ing those documents from collection T

. Therefore,

the ﬁnancial cost of this module is associated with

reading the documents from the Slim-Tree structure

in collection T

and, if there are documents as query

answers, reading them in collection T

3.2.1 Range Query

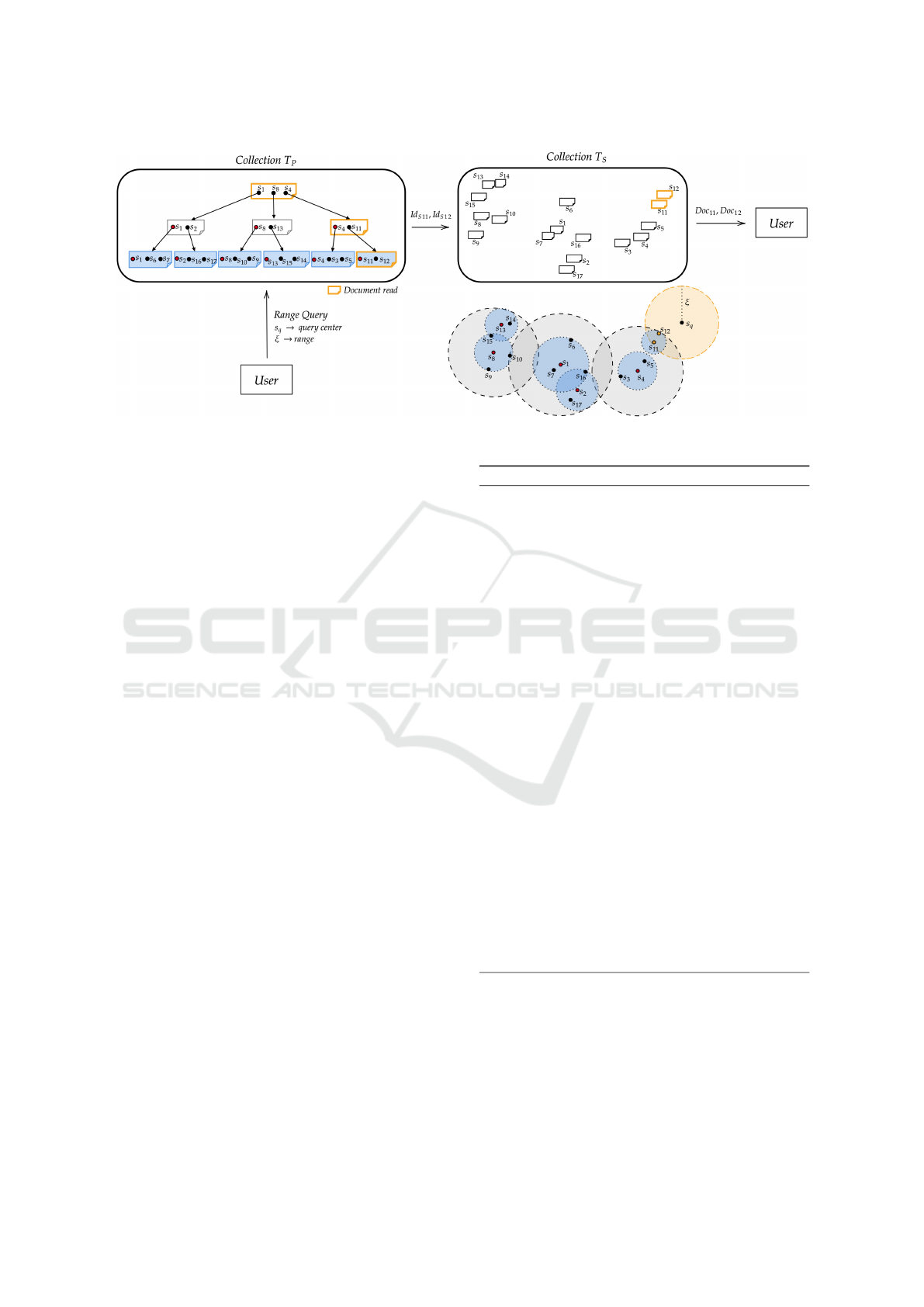

Algorithm 1 shows how the range query is performed

over the collection T

to obtain the list result of docu-

ment identiﬁers Id

that satisﬁes the similarity condi-

tion. It receives as input the document identiﬁer Id

from the document root of the Slim-Tree on collec-

tion T

and the query ball Q =< s

, ξ > (result is

pre-initialized as empty). The document doc

with

identiﬁer Id

is read and the algorithm evaluates each

element s

stored in the document; if doc

is an index

and the sub-tree centered at s

cannot be pruned, the

algorithm is called recursively passing the document

identiﬁer Id

as the document root of the respective

sub-tree (lines 5-7); if it is a leaf and s

is covered by

the query ball Q, then the document identiﬁer Id

added to the result list (lines 11-13). After that, all

documents from result are read on collection T

Algorithm 1: Range query over collection T

1: procedure RANGEQUERY(Id

, Q, result)

2: doc

← read document with identiﬁer Id

3: if doc

is an index document then

4: for each s

in doc

5: if sub-tree centered at s

cannot be pruned then

6: return rangeQuery(Id

, Q, result)

7: end if

8: end for

9: else ▷ doc

is a leaf document

10: for each s

in doc

11: if s

is covered by the query ball Q then

12: add Id

in result

13: end if

14: end for

15: end if

16: return result

17: end procedure

Figure 7 shows an example of a Range Query per-

formed on the T

collection: three documents from

the T

collection and two documents from the T

col-

lection must be read to obtain all documents that sat-

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

100

Figure 7: Similarity query module - example of a Range Query performed over collection T

isfy the query parameters.

3.2.2 kNN Query

Algorithm 2 illustrates how the kNN query is per-

formed over collection T

. It receives as input the

document identiﬁer Id

from the document root of

the Slim-Tree on collection T

, the query center s

and the amount k of documents to be returned. It starts

initializing the dynamic query range (d

) as ∞ and the

priority list (PQ) as empty (line 3). At each iteration,

a document of the structure is read and each of its el-

ements s

is analyzed. If it is an index document and

the ball centered at s

cannot be pruned, then the docu-

ment identiﬁer Id

from the root document of the cor-

responding sub-tree is added to the priority queue us-

ing the distance between s

and the query center (lines

7-9) as its priority. If it is a leaf document and s

covered by the query ball, then (s

, Id

) is added to

the result list (line 14). If result has more than k el-

ements, the farthest one is removed and the radius of

the query ball is updated to the value of the distance

between the query center and the element at position

k (lines 18-20). The choice of the document that is

analyzed at each iteration of the algorithm is done by

the single priority queue, so it selects the document

with the lowest priority that contains an intersection

between its elements with the query ball (line 25-27).

After that, all k documents from result are read on

collection T

4 EXPERIMENTS

We evaluated the Similarity-Slim extension for three

different applications. They employ datasets with

varying cardinalities (n), dimensionality (E), and dis-

Algorithm 2: kNN query over collection T

1: procedure KNNQUERY(Id

, s

, k)

2: doc

← read document with identiﬁer Id

3: d

← ∞, PQ ← empty, result ← empty

4: repeat

5: if doc

is an index document then

6: for each s

in doc

7: if sub-tree centered at s

cannot be pruned then

8: add (s

, Id

) into PQ with priority d(s

, s

)

9: end if

10: end for

11: else ▷ doc

is a leaf document

12: for each s

in doc

13: if s

is covered by the query ball < s

, d

> then

14: add (s

, Id

) into result

15: if |result| > k then

16: remove the element k + 1 from result

17: end if

18: if |result| = k then

19: d

← d(s

, result[k](s

))

20: end if

21: end if

22: end for

23: end if

24: repeat

25: Id

← PQ[0](Id

)

26: until intersection of PQ[0](s

) with the query ball < s

, d

> is

not null or PQ is empty

27: doc

← read document with identiﬁer Id

28: until PQ is empty

29: return result

30: end procedure

tance functions (d), covering many meaningful use

cases. Each dataset is stored as a collection with one

document in Firestore per original document.

• Geo-Spatial Application. We use a subset of n =

1, 000, 000 elements from the Geonames dataset

(Unxos GmbH, 2023). It contains geospatial

points and information about the corresponding

Similarity-Slim Extension: Reducing Financial and Computational Costs of Similarity Queries in Document Collections in NoSQL

Databases

101

Figure 8: Financial cost of creating Slim-Tree varying the number of elements per node (c).

locations. The complex data has two dimensions

(latitude and longitude), and we assume that the

similarity is their geographic distance measured

by the Orthodromic distance function.

• Image Recommendation. We use a dataset of

features extracted from n = 20, 580 images of

dogs (Cazzolato et al., 2022). The complex data

is the color layout characteristics extracted, which

has 16 dimensions, and the similarity is measured

using the Manhattan distance function.

• Physician Diagnosis Support System. We use

the DeepLesion dataset (Yan et al., 2018; Yan

et al., 2019). It contains sets of tags from anno-

tated lesions identiﬁed on CT images and other

information about patients. There are n = 22, 450

elements in the dataset. The complex data are adi-

mensional sets of tags whose similarity is mea-

sured using the Jaccard distance function.

Notice that Firestore must now store two docu-

ment collections: T

with the original, complete doc-

uments including the complex data, and T

with the

indexing structure and only the complex data from the

original documents.

The experiments evaluate useful metrics for simi-

larity queries: the query time, the number of similar-

ity calculations and, most importantly for this exten-

sion, the ﬁnancial costs associated with the creation

and similarity query modules.

The experiments varied the maximum number of

elements per Slim-Tree node (c), and computed the

ﬁnancial costs to handle the documents, as shown in

Table 1, corresponding to the Firestore costs in EUA

(multi-region) (Google, 2023h).

The Similarity-Slim extension was implemented

in Python 3.11 and is available as open-source soft-

ware in our GitHub (William Zaniboni Silva, 2024)

ready to be deployed as a Firestore backend using

Cloud Functions. The experiments were made using a

Google-provided Firestore Emulator (Google, 2023g)

running on a Dell-G3 computer with an Intel Core i7-

8750H 2.20 GHzx12 processor, 16GB of RAM and

480 GB SSD, under the Ubuntu 20.04.4 LTS operat-

ing system.

Section 4.1 shows experiments performed on the

create module, and Section 4.2 presents the results ob-

tained evaluating the similarity query module. The

metrics used to evaluate the creation module are the

average of 10 index creation operations, shufﬂing the

document ordering in the dataset. The metrics ob-

tained from the query module correspond to the aver-

age of 20 distinct queries performed with random cen-

ters. The averages of the ﬁnancial cost in the queries

were scaled for 10,000 queries for better visualiza-

tion.

4.1 The Create Module Costs

The ﬁrst experiments evaluated the cost of creating

a Slim-Tree structure. As explained in Section 3.1,

this cost is related to reading the entire T

collection

and reading/writing the Slim-Tree documents in the

collection.

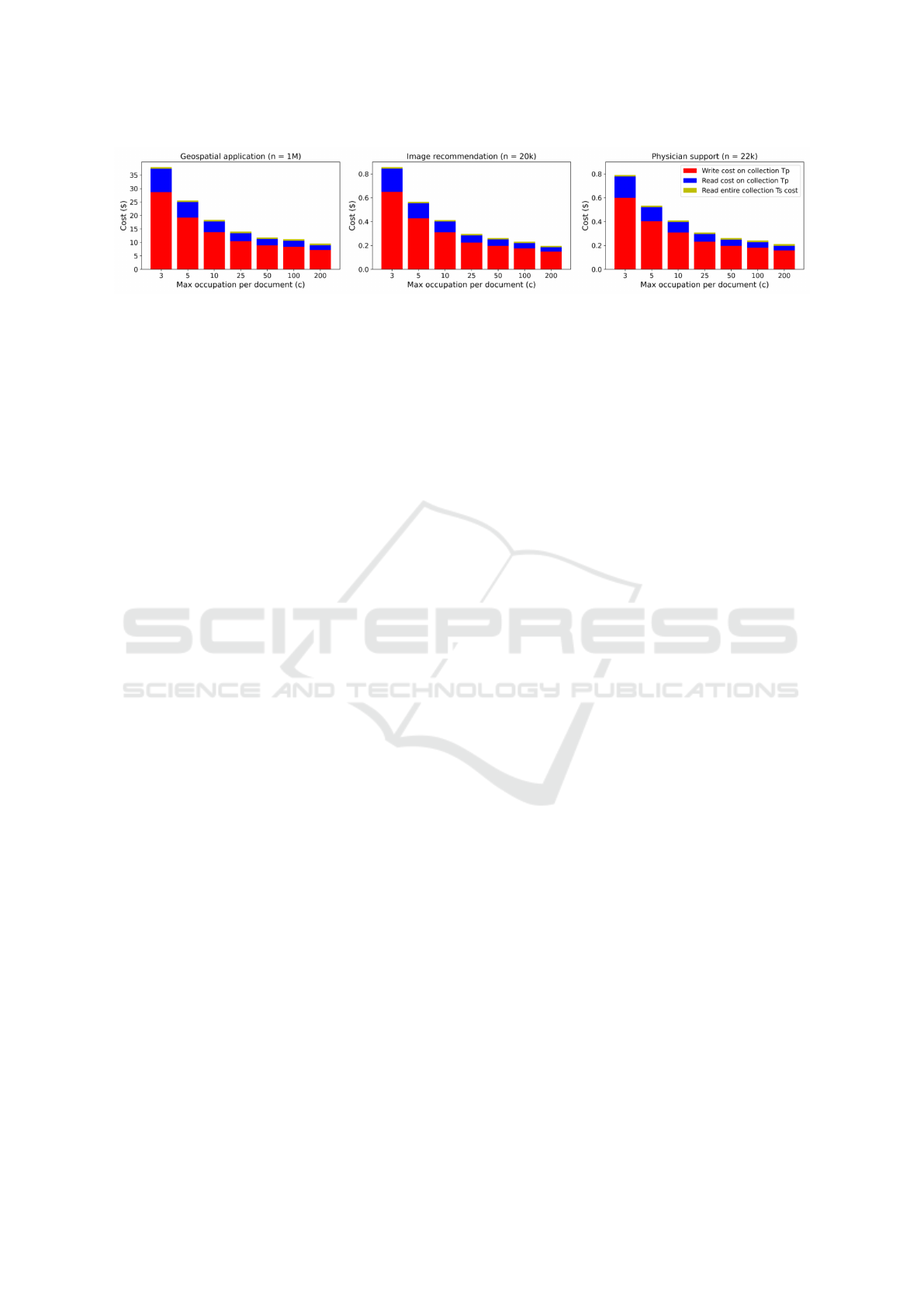

Figure 8 shows the ﬁnancial cost to create a Slim-

Tree for each application. As can be seen, the ﬁnan-

cial cost decreases with increasing values of c. For

example, in the geospatial application, for c = 3, cre-

ating the Slim-Tree costs around $38, and for c = 100,

the cost drops to $11. As it can be seen in red, the total

cost is steadily dominated by the cost to write on the

documents from collection T

: it happens because the

Slim-Tree’s create algorithm usually performs more

write than read operations and the ﬁnancial cost of a

write is 3 times more expensive than a read. For in-

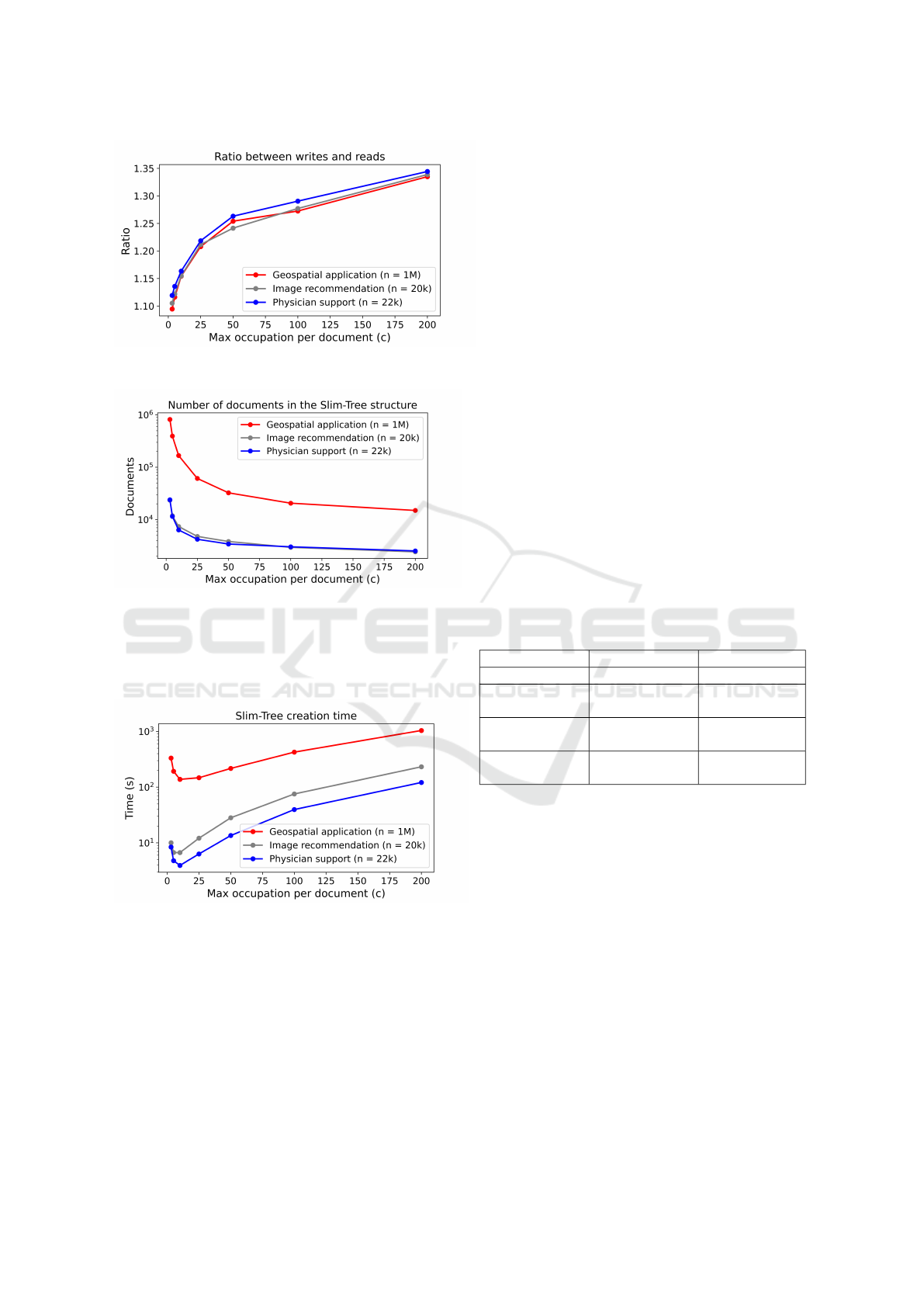

stance, Figure 9 shows the ratio between the number

of writes and reads that are performed on the creation

of collection T

: the ratio increases with increasing c

and almost stabilizes at 1.3 for c = 200 in every ap-

plication.

Figure 10 shows the number of documents that

were created for the Slim-Tree structure, i.e., the num-

ber of documents on the collection T

that concate-

nates and indexes the documents from T

. For exam-

ple, in the geospatial application, for c = 3 it is neces-

sary around 800,000 documents, whereas for c = 200,

this amount drops to 15,000.

Another important metric from the create module

is the time to create an index structure. Figure 11

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

102

Figure 9: Ratio between reads and writes for creating the

Slim-Tree on collection T

Figure 10: Number of documents on the collection T

shows the total time required to create each Slim-

Tree. As it can be seen, there is a minimum time that

occurs at around c = 10 for all applications, and after

that, the time increases signiﬁcantly.

Figure 11: Time required to create a Slim-Tree.

4.2 The Similarity Query Module Costs

The main metric analyzed here is the ﬁnancial cost

of executing similarity queries. As discussed in Sec-

tion 3.2, this cost is related to reading documents

in the Slim-tree structure and then reading the doc-

uments that satisfy the query parameters on collec-

tion T

We compare query executions asking the Simi-

larity query module for the same queries executed

through sequential scans on the entire T

collection

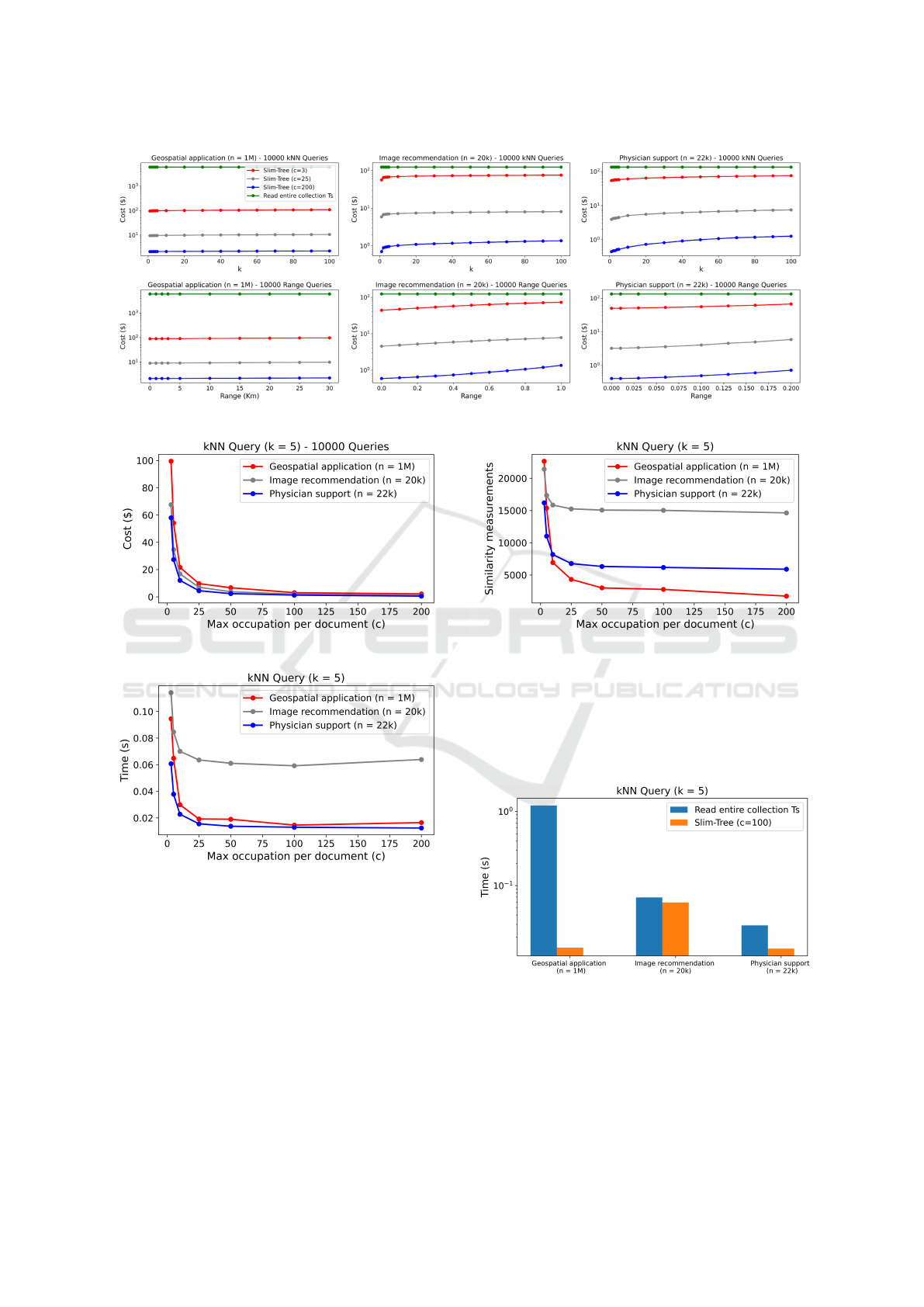

and using the index structure. Figure 12 shows the

costs associated with the range (bottom row) and the

kNN queries (top row), varying the number of ele-

ments per node as c ∈ {3, 25, 200}. For kNN queries,

k varies from 1 to 100 (which covers the most fre-

quent queries). For range queries, the radius varies

from zero to the average radius obtained by the corre-

sponding kNN query with k = 100.

As it can be seen, for small range and k thresholds,

the Similarity-Slim extension (with c = 200) can re-

duce the similarity query cost by around 2, 800 times

for the geospatial application, 130 times for image

recommendation and 260 times on physician diagno-

sis support system, and it essentially keeps the same

order of magnitude for the cost reduction as these

thresholds increase. To help understand the reason

why this cost reduction is achieved, Table 3 shows the

average number of document reads in each collection

for a kNN query (for k = 5) on the geospatial appli-

cation: even with 15, 000 documents in collection T

for c = 200 (Figure 10) and 1, 000, 000 documents in

collection T

, only around 357.28 documents reads in

collection T

and 5 documents reads in collection T

were required to perform the query.

Table 3: Documents reads in a kNN (k = 5) Query on a

geospatial application (n = 1M).

Method Reads from Tp Reads from Ts

Sequencial scan 0 1,000,000

Slim-Tree

(c=3)

16,584.82 5

Slim-Tree

(c=25)

1,617.08 5

Slim-Tree

(c=200)

357.28 5

The experiments show that the query cost de-

creases with increasing c. As discussed in Section 2.3,

a Firestore document can store up to 1 Mbytes of data,

so we can increase c until a document in T

reaches

this limit. However, to assist in deﬁning a default

value for c, we looked at the impact of c on com-

mon queries. Figure 13 shows the cost of kNN queries

(k = 5) with varying c. As can be seen, after c = 100,

there is only a marginal cost reduction for every evalu-

ated application. Thus, we set c = 100 as the default.

Furthermore, Figure 14 and Figure 15 show the im-

pact of c in the query time and in the number of sim-

ilarity calculations, respectively: this recommended

default allows for reduction of the query time over

every application.

We also compared the Similarity-Slim extension

with sequentially scanning the full T

collection re-

garding the total time required to execute each query.

Similarity-Slim Extension: Reducing Financial and Computational Costs of Similarity Queries in Document Collections in NoSQL

Databases

103

Figure 12: Financial cost of similarity queries varying the number of elements per node (c).

Figure 13: Impact of c in a kNN query cost.

Figure 14: Impact of c in a kNN query time.

The experiments revealed that the extension could

also accelerate the queries: it happens because, for

similarity queries, the execution time is strongly re-

lated to the number of similarity calculations that

must be executed, and a MAM targets to reduce them.

Figure 16 shows an example of the query time re-

quired by a kNN query with k = 5 for each applica-

tion. As it can be seen, in addition to the ﬁnancial

cost reduction, a query executed in a Slim-Tree with

c = 100 is 86 times faster in the geospatial applica-

tion, 1.2 times faster on image recommendation, and

2 times faster on physician support, always returning

Figure 15: Impact of c in the number of similarity calcula-

tions in a kNN query.

the same result (the query answer is exact). In this ex-

ample, the query execution took 360 times less sim-

ilarity calculations on the geospatial application, 1.4

times less on image recommendation, and 3.6 times

less on physician support.

Figure 16: Time to perform the queries.

5 CONCLUSION

This paper presented Similarity-Slim, an extension

for NoSQL document stores aiming at reducing the

ﬁnancial cost of performing similarity queries over

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

104

document collections in cloud-based data stores. It

uses a Metric Access Method integrated into the data

store’s resources to reduce both the ﬁnancial cost and

the total query time of the similarity queries. The fun-

damental concepts presented can be applied to any

metric domain whose datasets are described by docu-

ments stored in document stores, although in this pa-

per, we evaluated its applicability using the Google

Cloud Firestore as the case study. Regarding ﬁnan-

cial costs, the experiments showed that the extension

always reduces the expenses of similarity queries. In

fact, depending on the cardinality and dimensionality

of the data, the extension was able to reduce the cost

by up to 2, 800 times for small range and k.

We foresee that Similarity-Slim is a valuable re-

source to help make similarity queries more popular

and accessible in NoSQL cloud-based systems and

more speciﬁcally, in mobile and web app applications

that use Firestore as data stores. In this work we eval-

uated Geo-spatial applications, recommendation sys-

tems, and physician diagnosis support systems as case

studies, conﬁrming that all of them can beneﬁt from

the concepts presented.

The core of the proposed extension consists of

employing a successful existing indexing structure,

originally developed to perform similarity queries in

RDBMSs, now retooled to assist in obtaining cheaper

storage and retrieval of documents in a NoSQL store.

As the results obtained were very good, they pro-

vide support for us to explore the extension for other

NoSQL databases, like MongoDB, to develop other

types and variants of similarity queries, and under-

take the development of a new, more reﬁned MAM,

speciﬁcally developed to further reduce the number

of documents that need to be read when answering

similarity queries over document stores.

ACKNOWLEDGEMENTS

We thank the support from the S

ao Paulo Research

Foundation (FAPESP, grant 2016/17078-0), the Na-

tional Council for Scientiﬁc and Technological De-

velopment (CNPq), and the Coordination for Higher

Education Personnel Improvement (CAPES).

REFERENCES

Barioni, M. C. N., dos Santos Kaster, D., Razente, H. L.,

Traina, A. J., and J

unior, C. T. (2011). Querying mul-

timedia data by similarity in relational dbms. In Ad-

vanced database query systems: techniques, applica-

tions and technologies, pages 323–359. IGI Global.

Barioni, M. C. N., Razente, H., Traina, A., and Traina Jr, C.

(2006). Siren: A similarity retrieval engine for com-

plex data. In Proceedings of the 32nd international

conference on Very large data bases, pages 1155–

1158.

Cazzolato, M. T., Scabora, L. C., Zabot, G. F., Gutier-

rez, M. A., Jr., C. T., and Traina, A. J. M. (2022).

Featset+: Visual features extracted from public image

datasets. Journal of Information and Data Manage-

ment (JIDM), 13(1).

Chen, L., Gao, Y., Song, X., Li, Z., Zhu, Y., Miao, X., and

Jensen, C. S. (2022). Indexing metric spaces for exact

similarity search. ACM Computing Surveys, 55(6):1–

39.

Ciaccia, P., Patella, M., and Zezula, P. (1997). M-tree: An

efﬁcient access method for similarity search in metric

spaces. In Vldb, volume 97, pages 426–435.

Cong, G. and Jensen, C. S. (2016). Querying geo-textual

data: Spatial keyword queries and beyond. In Pro-

ceedings of the 2016 International Conference on

Management of Data, pages 2207–2212.

Cos¸kun,

I., Sertok, S., and Anbaro

glu, B. (2019). K-nearest

neighbour query performance analyses on a large

scale taxi dataset: Postgresql vs. mongodb. The In-

ternational Archives of the Photogrammetry, Remote

Sensing and Spatial Information Sciences, 42:1531–

1538.

Damaiyanti, T. I., Imawan, A., Indikawati, F. I., Choi, Y.-

H., and Kwon, J. (2017). A similarity query system

for road trafﬁc data based on a nosql document store.

Journal of Systems and Software, 127:28–51.

Deza, E., Deza, M. M., Deza, M. M., and Deza, E. (2009).

Encyclopedia of distances. Springer.

Gonc¸alves, H. C., Carniel, A. C., Vizinhos-PR-Brazil, D.,

and Carlos-SP-Brazil, S. (2021). Spatial data handling

in nosql databases: a user-centric view. In GeoInfo,

pages 167–178.

Google (2023a). Cloud ﬁrestore. https://ﬁrebase.google.

com/products/ﬁrestore?hl=pt-br. Last checked on

Dec 03, 2023.

Google (2023b). Cloud functions. https://ﬁrebase.

google.com/docs/functions?hl=pt-br. Last checked on

Dec 03, 2023.

Google (2023c). Firebase extension: Reverse image search

with vertex ai. https://extensions.dev/extensions/

googlecloud/storage-reverse-image-search. Last

checked on Dec 03, 2023.

Google (2023d). Firebase extension: Search ﬁre-

store with algolia. https://extensions.dev/extensions/

algolia/ﬁrestore-algolia-search. Last checked on

Dec 03, 2023.

Google (2023e). Firebase extension: Semantic search

with vertex ai. https://extensions.dev/extensions/

googlecloud/ﬁrestore-semantic-search. Last checked

on Dec 03, 2023.

Google (2023f). Firebase extensions. https:

//ﬁrebase.google.com/products/extensions?hl=pt-br.

Last checked on Dec 03, 2023.

Google (2023g). Firestore emulator. https://ﬁrebase.google.

Similarity-Slim Extension: Reducing Financial and Computational Costs of Similarity Queries in Document Collections in NoSQL

Databases

105

com/docs/emulator-suite/connect ﬁrestore?hl=pt-br.

Last checked on Dec 03, 2023.

Google (2023h). Firestore pricing. https://cloud.google.

com/ﬁrestore/pricing?hl=pt-br. Last checked on

Dec 03, 2023.

Karras, A., Karras, C., Samoladas, D., Giotopoulos, K. C.,

and Sioutas, S. (2022). Query optimization in nosql

databases using an enhanced localized r-tree index. In

International Conference on Information Integration

and Web, pages 391–398. Springer.

Kesavan, R., Gay, D., Thevessen, D., Shah, J., and Mohan,

C. (2023). Firestore: The nosql serverless database for

the application developer. In 39th IEEE International

Conference on Data Engineering, ICDE 2023, pages

3376–3388, Anaheim, CA, USA. IEEE.

Kim, T., Li, W., Behm, A., Cetindil, I., Vernica, R., Borkar,

V., Carey, M. J., and Li, C. (2020). Similarity query

support in big data management systems. Information

Systems, 88:101455.

Kim, T., Li, W., Behm, A., Cetindil, I., Vernica, R., Borkar,

V. R., Carey, M. J., and Li, C. (2018). Supporting

similarity queries in apache asterixdb. In EDBT, pages

528–539.

Koutroumanis, N. and Doulkeridis, C. (2021). Scal-

able spatio-temporal indexing and querying over a

document-oriented nosql store. In EDBT, pages 611–

622.

Li, R., He, H., Wang, R., Ruan, S., Sui, Y., Bao, J., and

Zheng, Y. (2020). Trajmesa: A distributed nosql stor-

age engine for big trajectory data. In 2020 IEEE

36th International Conference on Data Engineering

(ICDE), pages 2002–2005.

Lu, W., Hou, J., Yan, Y., Zhang, M., Du, X., and Mosci-

broda, T. (2017). Msql: efﬁcient similarity search in

metric spaces using sql. The VLDB Journal, pages

3–26.

MongoDB (2023). Mongodb. https://www.mongodb.com/.

Last checked on Dec 03, 2023.

Nesso, M. R., Cazzolato, M. T., Scabora, L. C., Oliveira,

P. H., Spadon, G., de Souza, J. A., Oliveira, W. D.,

Chino, D. Y., Rodrigues, J. F., Traina, A. J., et al.

(2018). Raﬁki: Retrieval-based application for imag-

ing and knowledge investigation. In 2018 IEEE 31st

International Symposium on Computer-Based Medi-

cal Systems (CBMS), pages 71–76. IEEE.

Niwattanakul, S., Singthongchai, J., Naenudorn, E., and

Wanapu, S. (2013). Using of jaccard coefﬁcient for

keywords similarity. In Proceedings of the interna-

tional multiconference of engineers and computer sci-

entists, volume 1, pages 380–384.

Qader, M. A., Cheng, S., and Hristidis, V. (2018). A com-

parative study of secondary indexing techniques in

lsm-based nosql databases. In Proceedings of the 2018

International Conference on Management of Data,

page 551–566, Houston, TX, USA. Association for

Computing Machinery.

Roussopoulos, N., Kelley, S., and Vincent, F. (1995). Near-

est neighbor queries. In Proceedings of the 1995 ACM

SIGMOD international conference on Management of

data, pages 71–79.

Shimomura, L. C., Oyamada, R. S., Vieira, M. R., and

Kaster, D. S. (2021). A survey on graph-based meth-

ods for similarity searches in metric spaces. Informa-

tion Systems, 95:101507.

The Apache Software foundation (2023). Apache asterixdb.

https://asterixdb.apache.org/. Last checked on Dec 03,

2023.

Traina-Jr, C., Traina, A., Seeger, B., and Faloutsos, C.

(2000). Slim-trees: High performance metric trees

minimizing overlap between nodes. In Advances

in Database Technology—EDBT 2000: 7th Interna-

tional Conference on Extending Database Technology

Konstanz, Germany, March 27–31, 2000 Proceedings,

pages 51–65. Springer.

Unxos GmbH (2023). Geonames: geographical database.

https://www.geonames.org/. Last checked on Dec 03,

2023.

William Zaniboni Silva (2024). Similarity slim -

database and image group (gbdi-usp) - source

code. https://github.com/WilliamZaniboni/ICEIS-

2024-Similarity-Slim-Python. Last checked on

Feb 10, 2024.

Wilson, D. R. and Martinez, T. R. (1997). Improved het-

erogeneous distance functions. Journal of artiﬁcial

intelligence research, 6:1–34.

Yan, K., Peng, Y., Sandfort, V., Bagheri, M., Lu, Z., and

Summers, R. M. (2019). Holistic and comprehen-

sive annotation of clinically signiﬁcant ﬁndings on di-

verse ct images: learning from radiology reports and

label ontology. In Proceedings of the IEEE/CVF Con-

ference on Computer Vision and Pattern Recognition,

pages 8523–8532.

Yan, K., Wang, X., Lu, L., and Summers, R. M. (2018).

Deeplesion: automated mining of large-scale lesion

annotations and universal lesion detection with deep

learning. Journal of medical imaging, 5(3):036501–

036501.

Zhang, D. and Lu, G. (2003). Evaluation of similarity mea-

surement for image retrieval. In International Con-

ference on Neural Networks and Signal Processing,

2003. Proceedings of the 2003, volume 2, pages 928–

931 Vol.2.

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

106
