Combining Goal-Oriented and BPMN Modelling to Support

Distributed Microservice Compositions

Jesús Ortiz

, Victoria Torres

and Pedro Valderas

PROS Research Centre, Universitat Politècnica de Valéncia, Valencia, Spain

Keywords: Microservices, BPMN, Tropos, Goals, Transformation.

Abstract: Organizations usually use Business Processes (BPs) to describe how to achieve their goals. However, the

decentralization found nowadays in many organizations force them to work with fragmented BPs that need to be

coordinated to achieve these goals. In this context, microservices architectures are a good choice to coordinate

such fragments. Nevertheless, these types of architectures increase the complexity of the underlying BPs since

the control flow is split among the different microservices, and there is not a clear link among how each

microservice participates in the achievement of each goal. In addition, one of the main challenges that

developers face when creating a microservices composition is to identify the microservices that are required

to support the organization’s goals. To this end, in this paper, we propose to combine goal-oriented modelling

with microservices compositions based on the choreography of BPMN fragments. The major contribution of this

paper is the definition of a model-driven development approach to align both descriptions (goals and BPs)

automatically through a model transformation that derives BPMN-based microservices compositions from goal

diagrams. The main benefits of this solution are twofold: (1) to facilitate the distributed development of

microservice compositions directed through goals, and (2) to help developers to maintain the composition aligned

with the established goals when the composition evolves.

1 INTRODUCTION

Business processes (BPs) are the key instrument to

organize and understand the interrelationships of the

different activities in an organization to describe their

goals (Weske, 2007). When these activities are

performed in a decentralized way, e.g., by different

departments within the same organization,

microservices architectures turn into a very interesting

and convenient way to implement such processes due

mainly to their decoupling nature. Microservices

architectures (Lewis, 2014) propose the decomposition

of applications into small independent building blocks

(the microservices) that focus on single business

capabilities. Microservices can be deployed and

maintained independently by different development

teams, which leads to more agile developments and

technological independence between them. When we

want to support the goals defined in the BPs of

organizations that use such architecture, microservices

https://orcid.org/0000-0002-9352-1045

https://orcid.org/0000-0002-2039-2174

https://orcid.org/0000-0002-4156-0675

need to be composed. From the point of view of the

software engineering field, two different approaches

can be found in the traditional SOA architectures

(Rosen, 2012) to coordinate the interactions between

services: (1) orchestration, when the coordination is

achieved from a single endpoint (Peltz, 2003), and (2)

choreography when it is achieved in a decentralized

way (Yahia, 2016).

Within microservices architectures, to keep a

lower coupling and dependency among microservices

for deployment and evolution, these compositions are

usually implemented by means of event-based

choreographies. The development team of each

microservice is in charge of supporting the

participation of the microservice in the event-based

choreography in an independent and autonomous

way. This solution, although improving the

development independence demanded by this

architecture, makes difficult to analyze the

composition when maintenance or evolution is

Ortiz, J., Torres, V. and Valderas, P.

Combining Goal-Oriented and BPMN Modelling to Support Distributed Microservice Compositions.

DOI: 10.5220/0012621000003687

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2024), pages 75-86

ISBN: 978-989-758-696-5; ISSN: 2184-4895

required. This is because the control flow is split

among different microservices, and there is not a clear

link among how each microservice participates in the

achievement of each organization’s goal. In addition,

one of the main challenges that developers face when

creating a microservices composition is identifying

the microservices that are required to support the

organization’s goals. The identification of

microservices is a well-known problem in the

research community because it is a complex, time-

consuming, and error-prone task (Tizzei, 2017;

Carvalho, 2020). Commonly, microservices

architectures are derived from monolithic legacy

systems, and developers must follow criteria such as

cohesion, coupling, and communication between

microservices to divide a monolithic system into

microservices. Besides, identifying the microservices

that are required to support the goals of an organization

while defining the way they have to be composed

makes this task even more complicated.

In this work, we present a model-driven

development (MDD) approach that combines BPMN

with goal-oriented modelling and achieves their

synergy in order to improve these problems. This

approach supports the creation of distributed

microservices compositions based on event-based

choreographies of BPMN fragments. On the one

hand, goal-oriented modelling is used to help

business process engineers better identifying the

required microservices by analyzing the functional

responsibilities that can be derived from the identified

goals. To do so, we rely on the Tropos software

development methodology (Castro, 2002) since it

allows us to represent organization’s goals with a

high level of abstraction and also offers an easy-to-

understand visual representation for developers who

have little experience with goal modelling (Bresciani,

2002).

On the other hand, BPMN (Miers, 2008) is used

to represent the microservices composition that is

required to achieve the identified goals (Dietz, 2004).

We use BPMN since it provides an intuitive and easy

way to represent the semantics of complex processes

and it is used by experts on the notation to define

these processes, but also by other process

stakeholders such as customers, marketing

professionals, or finance employees that just need to

analyze them (Nysetvold, 2006; Harmon, 2011;

Andrade, 2016). The BPMN model is defined in two

steps: first, a model transformation is applied to the

Tropos diagram in order to obtain a preliminary

BPMN model. This model represents the

microservices composition in a global way,

identifying the main functional responsibilities of

microservices and the coordination required among

them, but without defining the specific tasks that each

microservice must perform. In the second step, this

BPMN model is complemented by independent

BPMN fragments that are created by the development

team of each microservice. These BPMN fragments

describe the tasks that each microservice must

perform to fit its functional responsibilities. These

BPMN fragments are executed through an event-

based choreography, which provides the high level of

independence and decoupling among microservices

required by this type of architecture.

Thus, the main contributions of the proposed

MDD approach are twofold:

• It facilitates the identification of the

microservices that participate in a composition

and helps developers relate the goals defined

in a Tropos diagram to a BPMN process. This

maintains the composition aligned with the

established goals, which is a valuable

mechanism to analyze the composition when

requirements change, and the composition

needs to evolve.

• It supports the distributed definition of a

microservices composition through a set of

independent BPMN fragments that must be

created by the development team of each

microservice. This provides a high level of

autonomy and independence among

development teams to create the whole

composition collaboratively.

Note that the combination of BPMN with goal-

oriented modelling has already been discussed by the

scientific community (Alves, 2013; Horita, 2014;

Koliadis, 2006). However, these works focused their

efforts on orchestrated processes that are supported

by monolithic systems. In our work, we focus on

choreographed processes that are supported by

systems deployed in distributed environments. Note

also that the proposed approach supports very early

stages of system development, where the specific

system requirements are not yet clear. Therefore, the

system domain is represented at a high level of

abstraction. We focus on specifying the objectives to

be achieved, without specifying details of how to

achieve them, to generate an executable BPMN

diagram that will be aligned with the defined goals.

The rest of this paper is organized as follows:

Section 2 presents the proposed model-driven

development approach to create distributed

microservices compositions and explains the different

steps that conform it. Section 3 exemplifies the benefits

of our approach when a microservices composition

based on the choreography of BPMN fragments needs

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

to be evolved. Section 4 analyses the related work.

Finally, conclusions are commented on in Section 5.

2 MDD OF MICROSERVICES

COMPOSITION

In this section, we present a MDD approach to create

distributed microservices compositions by using a

Tropos diagram and BPMN models. To this end, the

following main three steps are proposed (see Figure

1):

1. Tropos diagram construction. In this step,

the Business Engineer identifies the goals of

the process of an organization and builds a

Tropos diagram to represent them (section

2.1).

2. BPMN collaboration diagram template

creation. In this step, a model transformation

is automatically applied to derive a BPMN

collaboration diagram template from the

previously created Tropos diagram. The

resulting BPMN model represents a

choreography of BPMN fragments (section

2.2).

3. BPMN fragment definition. In this step,

each microservice developer must complete

its corresponding BPMN fragment to define

the tasks that the microservice must perform

to achieve its goals (section 2.3).

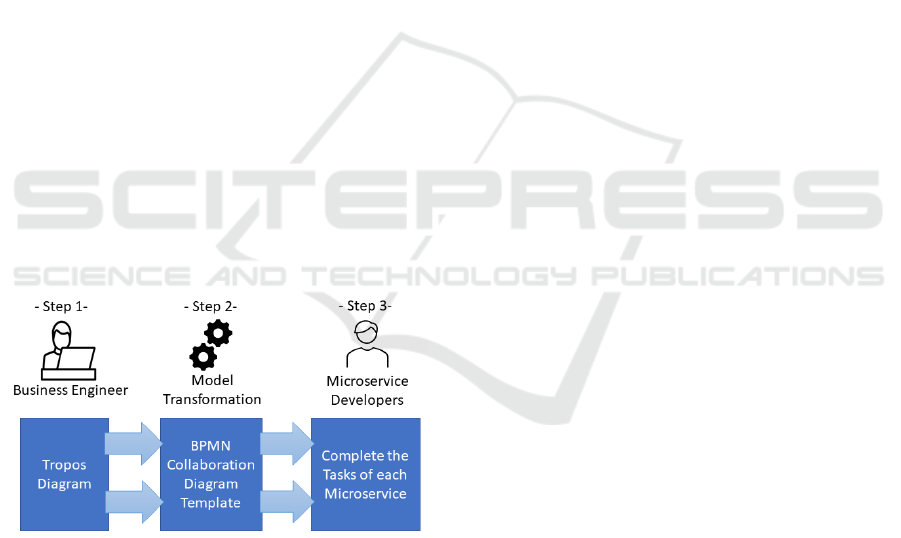

Figure 1: MDD approach for Microservices Composition.

To explain the main concepts of our approach, we use

a running example based on the e-commerce domain.

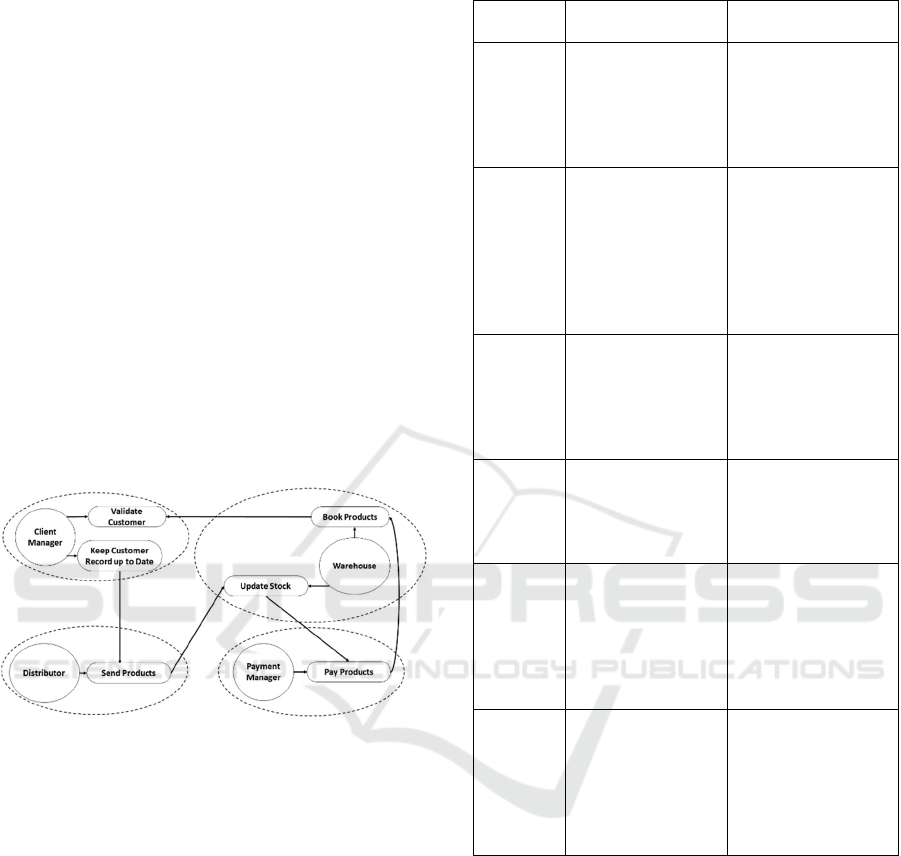

In this example, the system must manage the process

of placing an order in an online shop, following the

next sequence of actions: first, the system must

checks the availability of the ordered items. If all the

items are available, the system books the requested

items and processes the payment with the client. Once

the payment process has been successfully

completed, the system updates the stock of the

purchased items, creates a shipment order, and

assigns it to a delivery company. Afterwards, the

system updates the client record and informs the

client about the shipment details. Then, the process

finishes.

2.1 Definition of BP Goals with Tropos

To represent the goals of a business process we use

Tropos (Bresciani, 2004), which is a goal-driven and

agent-oriented language that aims to identify the

motivations of software systems and the role that they

will play in an organization (Hammer, 1994).

Models in Tropos are acquired as instances of a

conceptual metamodel resting on several concepts.

However, in this paper, we only focus on the ones

used to integrate Tropos with our microservices

composition approach, which are the following:

• Actor: It represents an entity that has strategic

goals and intentionality within the system or the

organizational setting.

• Goal: It represents actors’ strategic interests.

There are two types of goals: (1) hard goals,

which are goals with a clear definition or criteria

for deciding whether they are satisfied or not;

and (2) soft goals, which are typically used to

represent non-functional requirements. In this

paper, we just focus on hard goals and therefore,

the term goal is used to refer to a hard goal. The

incorporation of soft goals to the approach

presented in this paper is left as further work.

• Dependency: It indicates that one goal depends

on another to be achievable.

To build a Tropos diagram, the first step is to

identify the different actors that participate in a

system process. To do so, we analyze the process to

identify its core business functionalities. We propose

to employ a data-driven strategy, dividing the process

between the different data chunks that are managed

during the process. For example, in the motivating

example, we can identify the following data chunks:

(1) the client data, (2) the stock data, (3) the payment

data, and (4) the shipment data. Therefore, four actors

can be defined as responsible of each data chunk: i.e.,

Client Manager, Warehouse, Payment Manager and

Distributor.

Once the actors have been identified, we must

relate them to goals. Goals can be defined as what the

actor must achieve. Therefore, a goal is an abstraction

of the actor's behavior. Figure 2 shows the Tropos

diagram describing the actors (circles) participating

in the running example, and their respective strategic

high-level goals (round-corner rectangles linked to

Combining Goal-Oriented and BPMN Modelling to Support Distributed Microservice Compositions

them). We can identify the following goals for each

actor: for the Client Manager actor, validate the

customer and keep the customer data up to date; for

the Warehouse actor, book the products and update

the stock; for the Payment Manager actor, process the

payment, and finally; for the Distributor actor, send

the products to the client.

In addition to defining actors and goals, we can

also identify that some goals depend on the

completion of others in order to be achievable. For

example, the Book Products goal of the Warehouse

actor cannot be achieved until the customer is

validated. Therefore, there is a dependency between

the goal of the Warehouse actor and the goal of the

Client Manager. A dependency between two goals is

depicted by a solid arrow connecting them, where the

goal that is pointed by the arrow is considered the

depender goal (i.e., the goal that must be achieved

first) and the goal at the other end is the dependee

(i.e., the goal that depends on the completion of the

previous one). This also allows designers to specify

an order between the different goals.

Figure 2: Representation example of a Tropos diagram.

Inspired by works such as (Greenwood, 2009), we

propose to extend the goal representation in Tropos

by defining a pre-condition and a post-condition for

each goal. These conditions are based on the data

required by a goal to be realizable (pre-condition) and

achieved (post-condition). Therefore, the pre-

condition will be related to the availability of data

with a specific structure before the system tries to

achieve a goal and the post-condition with the

creation of data with a specific structure after a goal

is achieved. Note that we consider data as a list of

attributes defined as pairs key-value.

Table 1 represents the goals represented in Figure

2 with the associated pre- and post-conditions. For

example, to achieve the Validate Customer goal, the

system must receive the customer’s data. In the same

way, to consider this goal achieved, the system must

know the status of the client (i.e., whether the client

has been correctly validated or not).

Table 1: Goal definition.

Goal

Name

Pre-condition Post-condition

Validate

Customer

Name: Customer

Data

Data:

- Customer Name

- Customer

Address

Name: Customer

Checked

Data:

- Customer Status

(Valid | Not Valid)

Book

Products

Name: Ordered

Products

Data:

- Customer Status

== Valid

- Purchased

Products (Name,

Quantit

Name: Stock

Checked

Data:

- Products Status

- Total Price

Pay

Products

Name: Payment

Data

Data:

- Products Status

- Total Price

- Payment Metho

Name: Payment

Checked

Data:

- Payment Status

(OK | Fail)

Updated

Stock

Name: Valid

Payment

Data:

- Payment Status

== O

Name: Stock

Updated

Data:

- Stock Status (OK |

Fail

)

Send

Products

Name: Shipping

Information

Data:

- Stock Status ==

- Customer

Address

Name: Shipment

Managed

Data:

- Delivery Company

- Estimated

Delivery Time

Keep

Customer

Record

up to

Date

Name: Products

Shipped

Data:

- Delivery

Company

- Estimated

Delivery Time

Name: Purchase

Processed

Data:

- Products Status

- Estimated

Delivery Time

2.2 From Tropos to BPMN

Once the Tropos diagram has been defined, we can

derive a structured BPMN collaboration diagram

from it. This structured BPMN collaboration diagram

represents a microservices composition. We use

BPMN collaboration diagrams instead of BPMN

choreography diagrams since collaboration diagrams

allow us to separate the microservices that participate

in a composition by business responsibilities and also,

allow us to represent the dependencies between the

different microservices. In addition, collaboration

diagrams can be used to describe the internal behavior

of each microservice together with the collaborative

behavior of the whole composition. On the contrary,

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

in BPMN choreography diagrams it is more complex

to separate microservices by business responsibilities,

since they focus more on defining the composition

from a global perspective, as well as the messages

exchanged between the different participants.

Furthermore, collaboration diagrams can be executed

by most BPMN engines on the market while choreo-

graphy diagrams are not supported (Corradini, 2018).

We have defined a model transformation to

automatically generate a microservices composition

template defined in a BPMN collaboration diagram

from Tropos diagrams (see Algorithm 1). To achieve

this, we need to consider that each actor in the Tropos

diagram represents an entity that is in charge of a

specific business responsibility (e.g., managing

customer data, managing payment, and so on). By

definition, a microservice is a building block that

focuses on a specific business capability. Thus, we can

consider that each actor in Tropos can be supported

by a microservice. Considering that microservices are

independent and autonomous components of a global

system, we have decided to transform each actor of

the Tropos diagram (and then each microservice) into

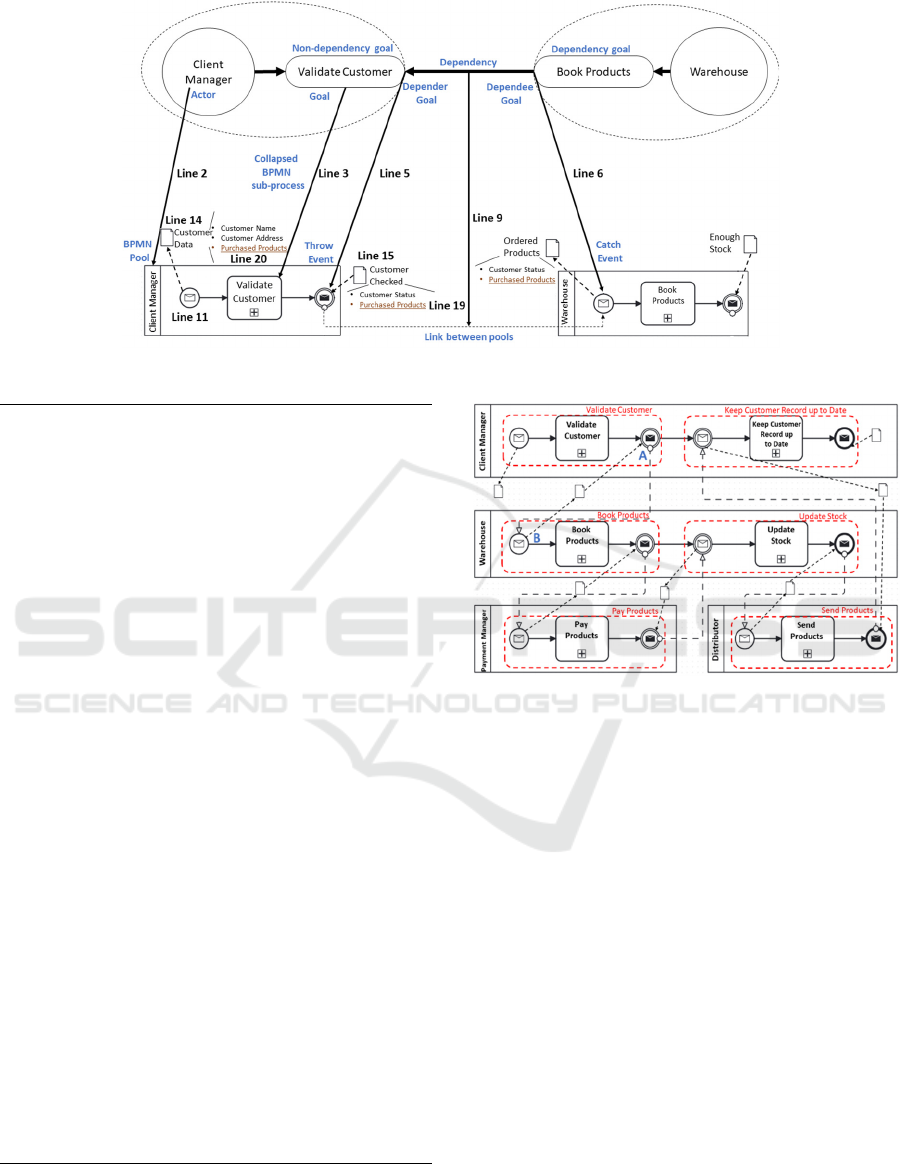

a BPMN pool (line 2 of Algorithm 1). Figure 3

represents graphically how the transformation

algorithm is applied to the running example. As we

can see, the Client Manager actor is derived into the

Client Manager BPMN pool, which represents a

microservice. In the same way, the Warehouse actor

is derived into the Warehouse pool.

To represent a goal in a BPMN pool, we use

collapsed BPMN sub-processes. A collapsed BPMN

sub-process is a group of tasks that performs a part of

the entire process. In this case, we associate each goal

with a collapsed BPMN sub-process to indicate that

this goal can be achieved through the group of tasks

represented by the sub-process. Therefore, each goal

is derived into a collapsed BPMN sub-process (line

3). In Figure 3, the Validate Customer and Book

Products goals are transformed into a collapsed

BPMN sub-process with the same name.

The next step of the transformation is surrounding

each sub-process with a catching intermediate

message event as a previous element, and a throwing

intermediate message event as a subsequent element

(lines 4 - 6). In BPMN, these elements are used to

indicate that a process either needs the reception of

some message (catching) or is able to produce it

(throwing). We use them to represent both the

dependency between goals and the pre- and post-

conditions of a goal in the BPMN model.

On the one hand, each dependency between two

goals (line 9) is represented by connecting the throwing

event after the sub-process that represents the depender

goal with the catching event defined before the sub-

process that represents the dependee goal. For instance,

in Figure 3, the throwing event after the Validate

Customer sub-process (depender goal) is connected to

the catching event before the Book Products sub-

process (dependee goal). After this step, if a catching

intermediate message event of a pool is not connected

to any throwing event, it is transformed into a catching

start message event (line 11). In the same way, if a

throwing intermediate message event of a pool is not

connected to any catching event, it is transformed into

a throwing end message event (line 12). For instance,

the sub-process that represents the goal Validate

Customer (without dependencies) is linked with a start

catching message event.

On the other hand, note that goals have pre- and

post-conditions that are associated with the

availability and creation of specific data. To represent

this in BPMN, the catching and throwing events that

surround each sub-process are linked to a BPMN data

object that defines the data required in the pre-

condition and post-condition of the corresponding

goal (lines 13 – 15). In Figure 3, the Customer Data

data object is connected to the catching event of

Client Manager to represent the pre-condition of the

goal

Validate Customer and the Customer Checked

data object is linked to the throwing event to represent

the post-condition of the same goal.

Finally, for each goal dependency (represented by

two connected throwing and catching events), it is

analyzed whether or not the post-condition of the

depender goal (i.e., the data object associated with the

throwing event of the corresponding sub-process)

creates all the data required by the pre-condition of the

dependee goal (defined in the data object associated to

the catching event of the corresponding sub-process).

In case the pre-condition of a dependee goal is not

satisfied by the post-condition of a depender goal, the

BPMN data objects associated with the catching and

throwing events of the sub-process of the depender

goal are extended with the data required by the

dependee goal (lines 17 - 22). With this action, we are

indicating the sub-process that represents the depender

goal receives and propagates some data that is created

earlier in the process in order to be used by a

subsequent sub-process. For example, the Book

Products goal (dependee) has a pre-condition that

needs the list of the purchased products and the

customer status. However, the post-condition of the

Validate Customer goal (depender) only creates the

customer status (see Table 1). Thus, the purchased

products (propagated data) are added to the data

objects of the catching and throwing events of the

Validate Customer sub-process.

Combining Goal-Oriented and BPMN Modelling to Support Distributed Microservice Compositions

Figure 3: Established mappings between Tropos and BPMN.

INPUT: A Tropos diagram.

OUTPUT: A BPMN collaboration diagram.

1 For each actor in the Tropos diagram:

2 A BPMN pool is created;

3 Each goal defined is represented as a collapsed BPMN sub-

process;

4 For each goal:

5 A throwing intermediate message event element is added

as a succeeding element of the collapsed sub-process that

represents the goal;

6 A catching intermediate message event element is added

as a preceding element of the collapsed sub-process that

represents the goal;

7 End For

8 For each goal with dependency:

9 The throwing intermediate message event of the depender and

the catching intermediate message event of the dependee

goal are linked to represent the interaction between goals;

10 End For

11 The catching intermediate message events that are not

connected to any throwing intermediate message event, are

transformed into a catching start message event;

12 The throwing intermediate message events that are not

connected to any catching intermediate message event, are

transformed into a throwing end message event;

13 For each catch/throwing event:

14 A BPMN data object is linked to the catching event to

represent the pre-condition of its corresponding goal;

15 A BPMN data object is linked to the throwing event to

represent the post-condition of its corresponding goal;

16 End For

17 For each catching event:

18 If the catching event receives less data than its throwing

event sends:

19 The data is added to the throwing event which sends

the data to the catching event;

20 The data is added to the initial catching event of the

fragment that contains the throwing event;

21 End if

22 End For

23 End For

Algorithm 1: From Tropos to BPMN collaboration

diagram.

Figure 4: Obtained structured BPMN collaboration.

Figure 4 shows the resulting BPMN collaboration

diagram when applying the transformation for the

running example. It represents a microservices

composition composed of four microservices that

correspond to the four actors defined in the Tropos

diagram: Client Manager, Warehouse, Payment

Manager, and Distributor. Each pool includes as

many collapsed BPMN sub-processes as goals linked

to the actor. For example, the Client Manager

microservice includes two collapsed BPMN sub-

processes that correspond to the goals: Validate

Customer and Keep Customer Record up to Date.

Likewise, dependencies between goals have been

supported by sending/receiving events between

pools. For example, note how the dependency

between the Book Products goal and the Validate

Customer goal is supported by the throwing event of

the Client Manager (see A in Figure 4) microservice

and the catching event of the Warehouse microservice

(see B in Figure 4).

Note that each pool must be executed by an

autonomous microservice. Thus, the developers of

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

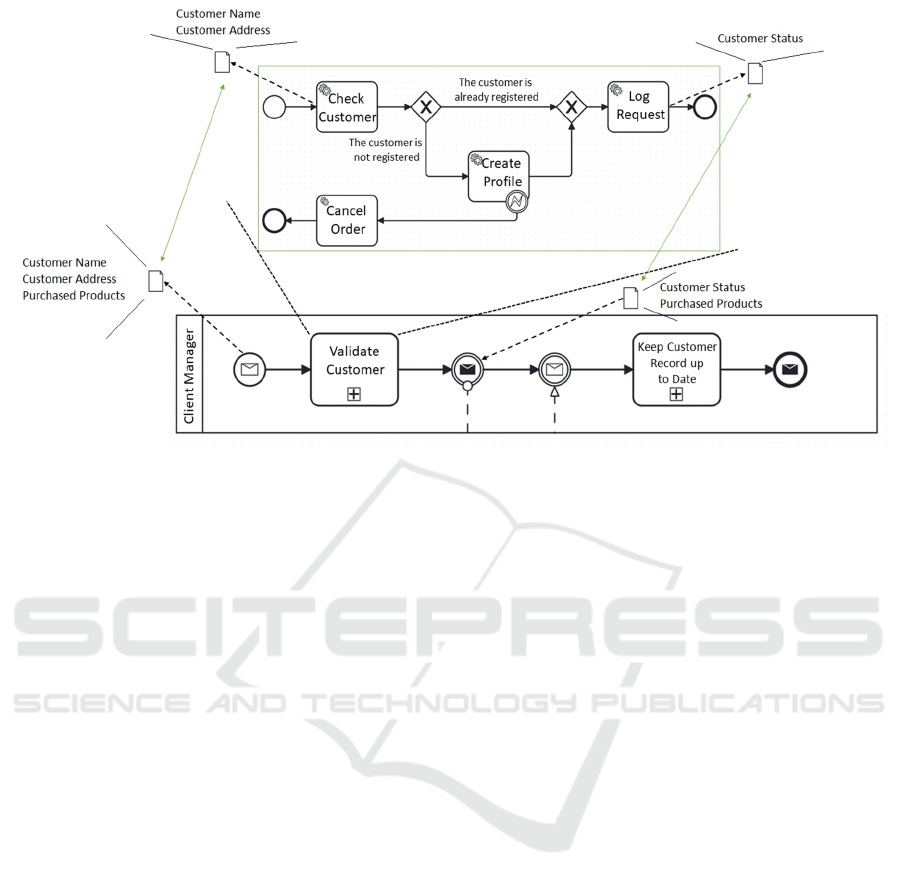

Figure 5: Refinement of the collapsed BPMN sub-process Validate Customer.

each microservice must complete them as we explain

in the next sub-section.

2.3 Definition of Microservice Tasks

When the structured BPMN collaboration diagram

has been generated, the next step is to specify the

tasks that the collapsed BPMN sub-processes must

perform to achieve the defined goals. Note that

BPMN pools represent microservices, which are

autonomous and independent software elements that

can be developed by different development teams.

Thus, the developers of a specific microservice can

focus on the specification of the tasks of the sub-

processes of the corresponding BPMN pool. Each

BPMN sub-process can be developed independently

of the others as long as they achieve the goals which

are related, specifically as long as they achieve the

pre-condition and post-condition of the goal.

For example, for the collapsed BPMN sub-

process Validate Customer of the Client Manager

microservice (see Figure 4), developers of this

microservice may decide to define the following tasks

(see Figure 5): Check Customer to begin the process

of registration. If the customer is not registered, the

Create Profile task is executed to register the new

customer. If the customer completes the registration

process or is already registered, the Log Request task

stores the purchase made by the client and the sub-

process terminates. An exception path is also added

to cancel the purchase order if the customer does not

want to perform the registration process with an

exception boundary event and the Cancel Order task.

In the example represented in Figure 5, the

Validate Customer BPMN sub-process is aligned

with its related goal, i.e., the BPMN sub-process can

reach the pre-condition and achieve the post-

condition for the Validate Customer goal defined in

Table 1. In the example, the Client Manager

microservice receives an event that includes the

customer’s name, the customer’s address, and the

purchased products. Therefore, the BPMN sub-

process of the example is aligned with the goal pre-

condition. The customer’s name and the customer’s

address are used by the tasks of the sub-process to

check if the customer already exists and create a

customer profile otherwise. In addition, at the end of

the process, the customer status is created. Thus, the

BPMN sub-process of the example is also aligned

with the goal post-condition, as it creates all the data

specified in the condition. Note also that the

purchased products received by this sub-process are

not used. This data is received at the beginning of the

composition (when the Client Manager microservice

receives the initial event) and must be propagated to

the next sub-processes.

3 SUPPORTING EVOLUTION

The proposed model-driven approach allows

developers to insert a group of tasks inside collapsed

BPMN sub-processes. With our approach,

microservices can be developed autonomously.

Developers can define the microservice tasks

Combining Goal-Oriented and BPMN Modelling to Support Distributed Microservice Compositions

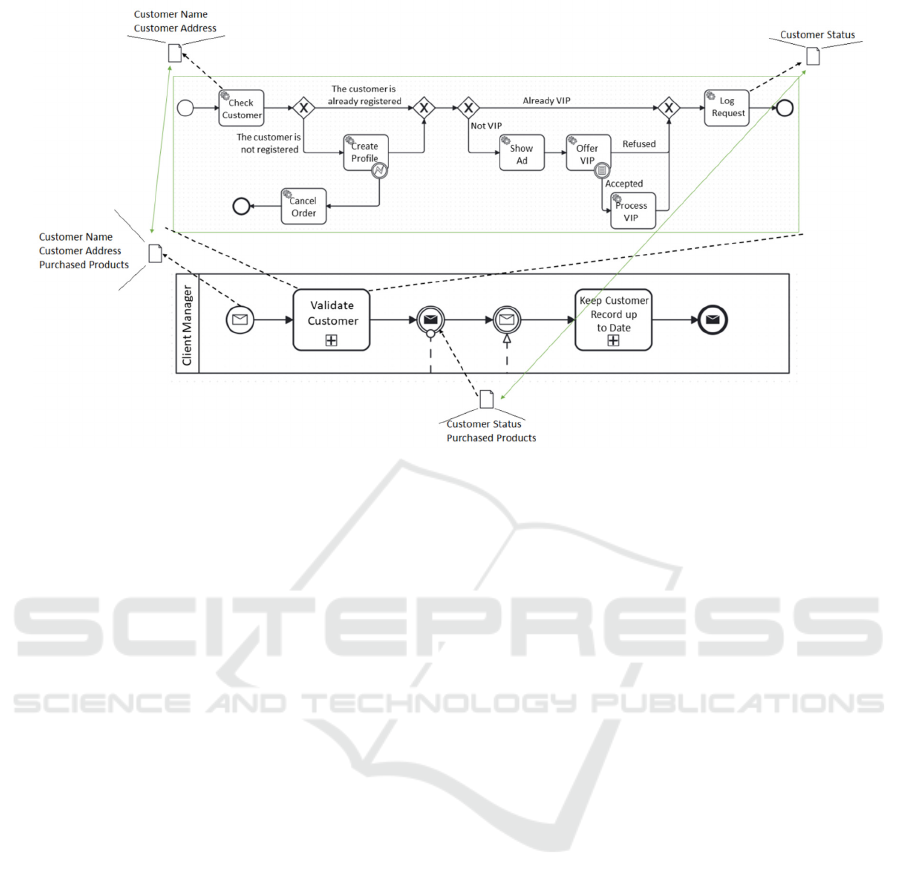

Figure 6: Modified Validate Customer collapsed BPMN sub-process.

independently. This approach offers developers

another benefit: once a microservice has been

developed, the development team of one microservice

can change the tasks contained in a BPMN sub-

process independently of the other participants, as

long as the sub-process continues aligned with its

established goals, i.e., developers can change the

tasks contained in the collapsed BPMN sub-

processes, but they cannot make modifications to the

throw/catching events that surround the collapsed

sub-processes, since they specify the pre- and post-

conditions that the sub-process must achieve.

Therefore, the only condition that developers must

consider is that the evolved sub-process must still be

able to achieve the pre-condition and the post-

condition of the goal that it supports. Consequently,

developers can perform changes in their BPMN

fragments without the need to involve or coordinate

them with other development teams that are

developing other microservices. Note that

microservices compositions are generally built to

avoid dependencies and be reusable as much as

possible. Our solution focuses on reuse within the

domain of the system being designed. Therefore, the

developed fragments can be reused by other systems

that have domains equivalent to the designed system.

For example, if the Client Manager development

team wants to differentiate between VIP clients and

regular clients (if the store offers a premium service),

the Validate Customer collapsed BPMN sub-process

can be modified independently as follows (see Figure

6).

In this example, a new path is added to the

Validate Customer sub-process to identify if the client

is already VIP or not. In the case that is not a VIP

client, two new tasks are added: Show Ad and Offer

VIP, to offer the advantages of the premium service.

Finally, the client can refuse or accept the offer. If it

is accepted, a new task Process VIP is added to

considered a BPMN sub-process, that can be

exchanged with the BPMN sub-process shown in

Figure 5 at any time since the new sub-process is still

aligned with the pre-condition and post-condition of

its related goal (see Table 1). According to the pre-

condition of the Validate Customer goal, the Client

Manager microservice catches an event to receive the

customer’s data, the customer’s address, and the

purchased products. In the definition of the new sub-

process, this data continues to be used by the Check

Customer task, and therefore the pre-condition

continues to be met. On the other hand, according to

the post-condition of the Validate Customer goal,

when the sub-process finishes all its tasks, the

microservice must send an event that includes the

customer status and the purchased products. This is

also supported in the new sub-process since the Log

Request task generates as a result of its process the

customer status, and the purchased products are

received by the initial catching Event of the Client

Manager microservice. Consequently, the new sub-

process is also aligned with the goal post-condition.

Therefore, the BPMN sub-processes can be

modified independently from the rest of the

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

composition since they are developed from the local

perspective of the microservice developer. In

addition, since developers must continue to meet the

pre-condition and post-condition of the goal, we

ensure that the microservices composition remains

aligned with the established goals if it evolves.

4 PROOF OF CONCEPT

VA L I D AT I O N

In order to validate the proposed model-driven

approach, we have developed the representative

example and deployed the resulting microservices

composition in a microservices architecture. The

main goal of this preliminary validation was to

evaluate whether the microservices compositions

implemented by following the proposed steps can be

executed correctly. Currently, the approach presented

is implemented and integrated in a development

environment that supports the different steps of the

approach. Thus, we have validated the proposed

model-driven approach as follows:

1. We created the Tropos diagram by using the

CGM-Tool

2. Once the goal model was created, we applied the

proposed model transformation in order to

obtain the BPMN model with the general view

of the microservices composition.

3. Then, the authors of the paper played the role of

microservice developers in order to

independently create the BPMN sub-process

that supports the goals represented in the

previous BPMN model. To do so, the BPMN.io

modeler was used.

4. The microservices composition was deployed

and executed in the architectural solution

presented below.

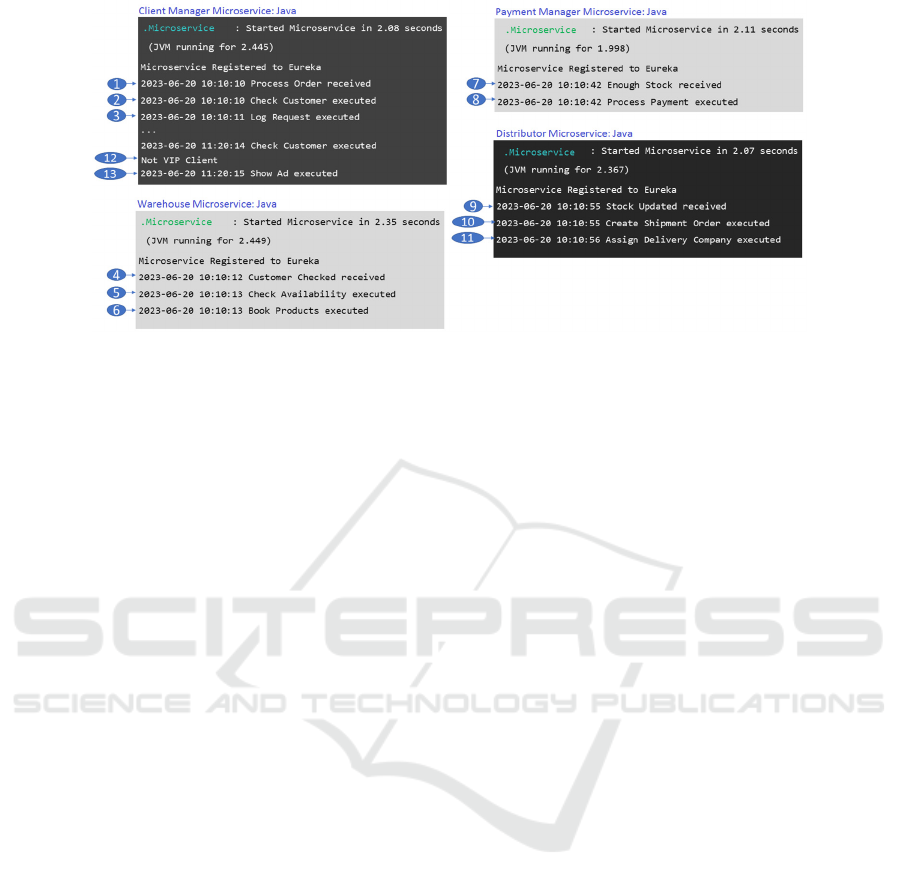

5. We evaluated the correct execution by analyzing

the logs generated by each microservice.

6. We evolved the microservices composition as

explained in Section 3 and deployed it again to

evaluate the execution of the new version.

Model Transformation Implementation. To

perform the transformation from a Tropos diagram to

a BPMN collaboration diagram, we have

implemented a model transformation based on

Algorithm 1 using Java

. We have used the CGM-

Tool to generate the Tropos diagram, which

http://www.cgm-tool.eu/index.html

https://bpmn.io/

https://github.com/MicroservicesResearch/Tropos2BPMN

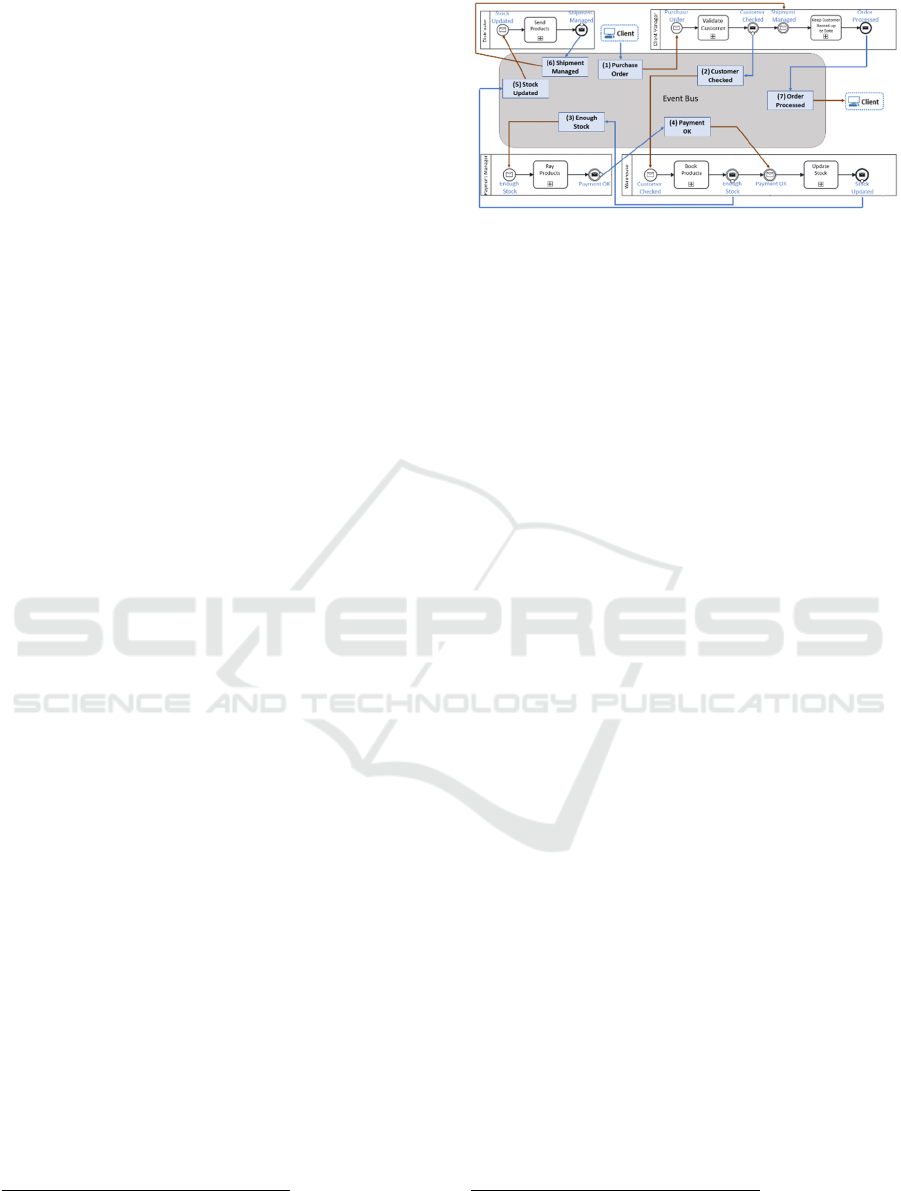

Figure 7: From BPMN collaboration diagram to BPMN

fragments.

represents the diagram in XML. Currently, there are

several solutions to implement model transformations

(Czarnecki, 2003). In this work, we have used a direct

manipulation approach based on two parsers, one

parser to read the XML generated by the CGM-Tool

and the Java BPMN parser provided by Camunda.

The Architectural Solution.

Once the

microservices composition was completed it was

deployed in a microservices architecture

implemented as follows (Ortiz, 2022): the Spring

Boot Java framework was used to implement all the

microservices. Each microservice was endowed with

a Camunda BPMN engine that oversees the execution

of its respective BPMN fragment to execute (1) the

sub-processes defined in its BPMN pool, and (2) the

catch/throwing events to either receive or publish

asynchronous events in a communication bus to

support the collaboration with the rest of participants.

This communication bus was supported by a

RabbitMQ message broker.

Therefore, each microservice executes its

corresponding BPMN fragment and informs other

participants about its progress through the publication

of events. In this way, the microservices composition

is executed by means of an event-based choreography

of BPMN fragments in which microservices wait for

specific events to execute their corresponding piece

of work (see Figure 7). Note that these events are

named manually and allow data exchange between

microservices. Following the motivation example,

the resulting choreography begins when the

composition receives the Process Order event. Then,

each microservice performs its defined tasks and

publishes its progress through events on the

communication bus. The whole process ends when

the Client Manager microservice has updated the

client’s data and sends him a notification to inform

Specific tool support to create this architectural solution

is available at: https://github.com/microserviceresearch/

microservices-composition-infrastructure

Combining Goal-Oriented and BPMN Modelling to Support Distributed Microservice Compositions

Figure 8: Logs generated in the composition deployment.

him that the purchase process has finished

successfully through the Order Processed event.

Logs Evaluation. To validate the correctness of the

executed microservices composition, we analyzed the

logs generated by each microservice. In general

terms, both the initial deployment of the

microservices composition and the evolutions

performed worked adequately. The evaluation

consisted of checking if the choreography shown in

Figure 7 was deployed correctly and if the

microservices could correctly execute their processes

and achieved their pre- and post-conditions (they

received/sent the corresponding events). As a

representative example, Figure 8 presents the logs

generated in the deployment of the choreography

shown in Figure 7. This figure illustrates the logs for

each deployed microservice. Lines 1 through 3 show

the correct execution of the Client Manager

microservice, where it first receives the Process Order

event and then executes the tasks defined in the

Validate Customer sub-process (i.e., Check Customer

and Log Request). In the same way, we can also

observe the correct execution of the Warehouse (lines

4 through 6), Payment Manager (lines 7 and 8) and

Distributor (lines 9 through 11) microservices.

Additionally, the Validate Customer sub-process of the

Client Manager microservice was modified as shown

in Figure 6. The Client Manager microservice was re-

deployed, executing the task Show Ad since the client

was not VIP (lines 12 and 13). Therefore, we

concluded that the evolution was executed correctly.

It is worth remarking that, as commented above,

this constitutes a preliminary validation of the

approach. However, a more precise evaluation is

planned as further work.

5 RELATED WORK

In the research community, we can find several works

that relate BPs with goals. We have classified these

works in two different groups according to how this

relation is achieved. The first group relates to the works

that propose methods to relate goal diagrams with BPs.

(Alves, 2013) proposes a model driven approach to

obtain BPMN models from i* models. It proposes a

heuristic process for mapping i* models to BPMN

models but the execution order of the BPMN tasks

obtained from the i* model must be manually defined

by developers. In our work, the execution order of the

tasks is automatically derived by the transformation

algorithm. (Koliadis, 2006) proposes the GoalBPM

methodology for relating business models to high level

stakeholders’ goals modelled using KAOS. In their

work, to relate a BPMN model with a KAOS model, it

is first necessary to create both models and then apply

their proposed methodology to relate them. In our

work, we derive a BPMN model from a goal diagram

and at the same time we relate the goals with the

processes. (Horita, 2014) proposes a transformation

approach to transform KAOS models into BPMN

models by using refinement patterns. The limitation of

their work is that the KAOS models are defined at a

low level, considering each goal directly a BPMN task.

Consequently, the KAOS models can be considered as

direct representations of BPMN models and vice-

versa. In our work, we use collapsed BPMN sub-

processes so that developers can define processes that

can achieve the defined goals. In addition, it is not clear

if their proposal can support more complex situation

such as interaction between different actors.

(Sabatucci, 2019) proposes an automatic approach that

focuses on extracting goals from BPs but does not

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

address the reverse process, i.e., how to relate goals

to BPs as we do in our work. In our work we focus on

first defining the goal diagram, so that from the

beginning the BPs are directed by the defined goals.

(Brown, 2006) and (Kazhamiakin, 2004) present an

approach to specify the requirements that a system

must fulfil based on goal diagrams. These two

approaches focus on modelling monolithic systems,

and do not support distributed environments. Our

proposal is focused on supporting distributed systems,

i.e., an event-based microservices composition based

on the choreography of BPMN fragments. (Huber,

2016) proposes to integrate semantic queries into

process activities to support runtime discovery and

dynamic invocation of goal-based IoT-services. This

work also does not support distributed systems, and

uses proprietary tools, while in our approach, since we

use the BPMN standard, it can be integrated with

different commercial tools that run BPMN models.

The second group relate to the works that propose

to extend BPMN to explicitly define goals in the

process models. (Braubach, 2010; Jander, 2011)

propose an approach based on the notion of process

goals to relate business goals to workflows. However,

these approaches consider that the goals are embedded

with the workflows and thus, they are not considered

two different models, which limits their autonomy. A

change in a BP must be directly translated to a change

in the goals. These two works differ from ours in that

we keep using the standard BPMN notation, which

means that our BPMN descriptions can be executed in

any BPMN engine (i.e., we are not tied to any

proprietary tool). Furthermore, in our work, a

modification in a BP does not have to directly affect to

the goal diagram, if the modified BP still satisfies the

pre- and post-conditions of its goal. (Greenwood,

2009) proposes an extension of the BPMN language to

define goals in BPMN processes and also considers

that the goals are embedded to workflows. This work

also differs from ours in that their work introduces

modifications to the BPMN language. In our work, we

do not introduce any kind of complexity to the BPMN

models, which were originally designed to describe

processes and no other aspects as goals in this case. In

fact, introducing new concepts into a well-known and

consolidated notation can be risky since it can

introduce complexity to the model (Zugal, 2011).

6 CONCLUSIONS AND FURTHER

WORK

This paper explores how to combine goal-oriented

modelling with microservices compositions based on

the choreography of BPMN fragments, and achieve

their synergy, benefiting from the advantages of both.

For modelling business goals, we rely on the Tropos

software development methodology. The

contribution of this work is a model-driven

development approach to develop distributed

microservices composition directed through goals.

For this purpose, we propose a model transformation

to obtain a structured BPMN collaboration diagram

from a Tropos diagram. The resulted BPMN

collaboration diagram is composed through

independent pools (the microservices), which can be

developed by different development teams. Each

microservice is made up of a set of collapsed BPMN

sub-processes that developers must complete to

define the tasks that the microservice must perform to

achieve its related goals. The collapsed BPMN sub-

processes can be changed without involving other

microservices as long as the new sub-process

continues fulfilling the pre-condition and the post-

condition of its related goal, in order to maintain the

composition aligned with the established goals.

As a future work, we want to develop the reverse

process, i.e., to derive a Tropos diagram from a

BPMN collaboration diagram that represents a

microservices composition based on the

choreography of BPMN fragments. In this way, the

intrinsic goals of an existing microservices

composition can be obtained. In addition, with the

reverse process we can support more complex

evolution scenarios to ensure that the composition, as

it evolves, remains aligned with the established goals,

i.e., allowing changes that not only affect the tasks

that the microservices perform but also affect the

communication between microservices (e.g., changes

in throw/catching elements). In addition, we want to

extend the current approach to also support soft goals,

which we consider that can be very interesting in a

distributed environment and extend our approach to

consider cases such as legacy systems.

ACKNOWLEDGEMENTS

This work is part of the R&D&I project

PID2020-114480RB-I00 funded by

MCIN/AEI/10.13039/501100011033. It is also

supported by the Research and Development Aid

Program (PAID-01-21) of the UPV and funded with

the Aid to First Research Projects (PAID-06-22),

Research Vice-Rectorate of the Polytechnic

University of Valencia (UPV).

Combining Goal-Oriented and BPMN Modelling to Support Distributed Microservice Compositions

REFERENCES

Alves, R., Silva, C., and Castro, J. (2013). A bi-directional

mapping between i* and BPMN models in the context of

business process management. ER@BR.

Andrade, E., van der Aa, H., Leopold, H., Alter, S., and

Reijers, H. (2016). Factors leading to business process

noncompliance and its positive and negative effects:

Empirical insights from a case study.

Braubach, L., Pokahr, A., Jander, K., Lamersdorf, W., and

Burmeister, B. (2010) Go4flex: Goal-oriented process

modelling. In Intelligent Distributed Computing IV

(IDC), Morocco (pp. 77-87). Springer Berlin Heidelberg.

Bresciani, P., and Sannicolò, F. (2002). Applying Tropos

Requirements Analysis for defining a Tropos tool. In

Agent-Oriented Information System (AOIS). In Fourth

International Bi-Conference Workshop (pp. 135-138).

Bresciani, P., Perini, A., Giorgini, P., Giunchiglia, F., and

Mylopoulos, J. (2004). Tropos: An agent-oriented

software development methodology. In Autonomous

Agents and Multi-Agent Systems, 8, (pp. 203-236).

Brown, G., Cheng, B. H., Goldsby, H., and Zhang, J. (2006).

Goal-oriented specification of adaptation requirements

engineering in adaptive systems. In Proceedings of the

2006 international workshop on Self-adaptation and self-

managing systems (pp. 23-29).

Carvalho, L., Garcia, A., Colanzi, T. E., Assunção, W. K.,

Pereira, J. A., Fonseca, B., ... and Lucena, C. (2020). On

the performance and adoption of search-based

microservice identification with tomicroservices. In

IEEE International Conference on Software Maintenance

and Evolution (ICSME) (pp. 569-580).

Castro, J., Klop, M., and Mylopoulos, J. (2002). Towards

requirements-driven information system engineering: the

Tropos project. Information Systems, vol. 27 (pp. 365-

389).

Corradini, F., Morichetta, A., Polini, A., Re, B., and Tiezzi,

F. (2018). Collaboration vs. choreography conformance

in BPMN 2.0: From theory to practice. In IEEE 22nd

International Enterprise Distributed Object Computing

Conference (EDOC), (pp. 95-104).

Czarnecki, K., Helsen, S. (2003). Classification of model

transformation approaches. In: Proceedings of the 2nd

OOPSLA Workshop on Generative Techniques in the

Context of the Model Driven Architecture, vol. 45, (pp.

1–17).

Dietz, J.L.G. (2004). Basic Notions Regarding Business

Processes and Supporting Information. In Systems

Proceedings of BPMDS’04, CAiSE’04 Workshops

Proceedings, Riga, Vol. 2 (pp. 160-168).

Greenwood, D., and Ghizzioli, R. (2009). Goal-oriented

autonomic business process modelling and execution.

INTECH Open Access Publisher.

Hammer, M. and Champy, J. (1994). Reengineering the

Corporation – A manifesto for Business Revolution.

Nicholas Brealey Publishing.

Harmon, P., and Wolf, C. (2011). Business process modeling

survey. Business process trends, 36(1), (pp. 1-36).

Horita, H., Honda, K., Sei, Y., Nakagawa, H., Tahara, Y., and

Ohsuga, A. (2014). Transformation approach from

KAOS goal models to BPMN models using refinement

patterns. In Proceedings of the 29th Annual ACM

Symposium on Applied Computing (pp. 1023-1024).

Huber, S., Seiger, R., Kühnert, A., Theodorou, V., and

Schlegel, T (2016). Goal-based semantic queries for

dynamic processes in the internet of things.

International

Journal of Semantic Computing, 10(02), (pp. 269-293).

Jander, K., Braubach, L., Pokahr, A., Lamersdorf, W., and

Wack, K. J. (2011). Goal-oriented processes with

GPMN. International Journal on Artificial Intelligence

Tools, 20(06) (pp. 1021-1041).

Kazhamiakin, R., Pistore, M., and Roveri, M. (2004). A

framework for integrating business processes and

business requirements. In Proceedings. Eighth IEEE

International Enterprise Distributed Object Computing

Conference, (EDOC) (pp. 9-20).

Koliadis, G., and Ghose, A. (2006). Relating business

process models to goal-oriented requirements models in

KAOS. In Advances in Knowledge Acquisition and

Management (PKAW) China, 7-8, Revised Selected

Papers 9 (pp. 25-39). Springer Berlin Heidelberg.

Lewis, J., and Fowler, M. (2014). Microservices.

https://martinfowler.com/articles/microservices.html

(accessed December 2023).

Miers, D., and Stephen, W. (2008). BPMN Modelling and

Reference Guide. Future Strategies Inc.

Nysetvold, A. G., and Krogstie, J. (2006). Assessing business

process modeling languages using a generic quality

framework. In Advanced Topics in Database Research,

Volume 5 (pp. 79-93).

Ortiz, J., Torres, V., and Valderas, P. (2022). Microservice

compositions based on the choreography of BPMN

fragments: facing evolution issues. Computing (pp. 1-42)

Peltz, C. (2003). Web services orchestration and

choreography. Computer, 36(10), 46-52.

Rosen, M., Lublinsky, B., Smith, K. T., and Balcer, M.

(2012). Applied SOA: service-oriented architecture and

design strategies. John Wiley & Sons.

Sabatucci, L., and Cossentino, M. (2019). Supporting

dynamic workflows with automatic extraction of goals

from BPMN. ACM Transactions on Autonomous and

Adaptive Systems (TAAS), 14(2), (pp. 1-38).

Tizzei, L. P., Nery, M., Segura, V. C., and Cerqueira, R. F.

(2017). Using microservices and software product line

engineering to support reuse of evolving multi-tenant

saas. In Proceedings of the 21st International Systems

and Software Product Line Conference-Volume A (pp.

205-214).

Weske, M. (2007). Business Process Management:

Concepts, Languages, Architecture. Springer.

Yahia, E. B. H., Réveillère, L., Bromberg, Y. D., Chevalier,

R., and Cadot, A. (2016). Medley: An event-driven

lightweight platform for service composition. In Internat.

Conf. on Web Engineering (pp. 3-20).

Zugal, S., Pinggera, J., and Weber, B. (2011). Assessing

process models with cognitive psychology. Enterprise

modelling and information systems architectures

(EMISA).

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering
