Bringing Systems Engineering Models to Large Language Models: An

Integration of OPM with an LLM for Design Assistants

Ram

on Mar

ıa Garc

ıa Alarcia

1 a

, Pietro Russo

2 b

, Alfredo Renga

2 c

and Alessandro Golkar

1 d

Department of Aerospace and Geodesy, Technical University of Munich, Ottobrunn, Germany

Dipartimento di Ingegneria Industriale, Universit

a degli Studi di Napoli Federico II, Napoli, Italy

Keywords:

Large Language Models, Systems Engineering, Model-Based Systems Engineering, Object-Process

Methodology, Engineering Design, Design Assistant.

Abstract:

Although showing remarkable zero-shot and few-shot capabilities across a wide variety of tasks, Large Lan-

guage Models (LLMs) are still not mature enough for off-the-shelf use in engineering design tasks. Organiza-

tions implementing model-based systems engineering practices into their product development processes can

leverage on ontologies, models, and procedures to enhance LLMs applied to engineering design tasks. We

present a methodology to integrate an Object-Process Methodology model of a space system into an LLM-

based spacecraft design assistant and show a performance improvement, as compared to a conventional LLM.

The benchmark is evaluated through subjective expert-assessed and an objective cosine-similarity-based cri-

teria. The results motivate additional efforts in integrating Model-Based Systems Engineering practice into

LLMs as means to improve their performance and reduce shortcomings such as hallucinations and black-box,

untraceable behavior.

1 INTRODUCTION

In the last ﬁve years, research and development of

foundation models such as Large Language Models

(LLMs) has experienced exponential growth. To-

day, these models display excellent capabilities in text

generation and question-answering tasks. Particularly

after the release of ChatGPT by OpenAI in late 2022,

LLMs have emerged as a technology with the po-

tential of transforming science, engineering and busi-

ness. The current efforts in industry and academia

focus on the development and commercialization of

applications enabled by LLMs to support a myriad of

tasks typically carried out by humans. (Myers et al.,

2023)

Engineering design tasks are not extraneous to the

potential impact of LLMs. Many design processes

can either be supported or automated to some extent

by LLM-based tools, thanks to well-established stan-

dards and procedures, and data of heritage products

and services that can be ingested and learned by the

https://orcid.org/0000-0002-3341-2509

https://orcid.org/0009-0009-6365-1226

https://orcid.org/0000-0002-1236-0594

https://orcid.org/0000-0001-5993-2994

models. However, there are shortcomings related to

LLMs that prevent them from being able to be used,

off-the-shelf, to assist in engineering design tasks.

Hallucinations and incapability to perform numerical

calculations are some of them (Kaddour et al., 2023),

impacting negatively their reliability in these tasks.

This paper presents a methodology to increase the

reliability of design assistants based on LLMs, ad-

dressing some of the aforementioned challenges, by

the integration through prompting of generic system

models of the system under design. In particular, we

apply this methodology to a spacecraft design assis-

tant able to produce technical requirements and spec-

iﬁcations with a high-level space mission statement

as the input (Garcia Alarcia and Golkar, 2023), with

Object-Process Methodology (OPM) models. The

work shows an improvement in the performance of

the design assistant when compared to one with-

out an LLM+OPM integration. Our preliminary re-

sults show a promising pathway for the integration

of Model-Based Systems Engineering (MBSE) con-

structs, in particular, systems models, into foundation

models and LLMs, for a higher degree of accuracy

and trustworthiness in engineering design tasks.

334

García Alarcia, R., Russo, P., Renga, A. and Golkar, A.

Bringing Systems Engineering Models to Large Language Models: An Integration of OPM with an LLM for Design Assistants.

DOI: 10.5220/0012621900003645

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 12th International Conference on Model-Based Software and Systems Engineering (MODELSWARD 2024), pages 334-345

ISBN: 978-989-758-682-8; ISSN: 2184-4348

2 STATE OF THE ART &

RESEARCH QUESTION

Foundation models, this is, general-purpose AI mod-

els trained on large quantities of data that can perform

a myriad of different tasks, have gone a long way in

the last half a decade. In 2018, the introduction of

the Generative Pre-trained Transformer-1 (GPT-1) by

OpenAI (Radford and Narasimhan, 2018) and of the

Bidirectional Encoder Representations from Trans-

formers (BERT) by Google (Devlin et al., 2019),

based on the essential contributions of the transformer

architecture with self-attention mechanism (Vaswani

et al., 2023) and word embeddings (Mikolov et al.,

2013), were the cornerstones of a revolution that

has changed the Natural Language Processing (NLP)

discipline with the emergence of what nowadays is

known as Large Language Models (LLMs).

Today, current state-of-the-art LLMs such as GPT-

4 from OpenAI (OpenAI, 2023), Gemini from Alpha-

bet (GeminiTeam, 2023), Llama 2 from Meta (Tou-

vron et al., 2023), and Falcon (Almazrouei et al.,

2023) or Mistral (Jiang et al., 2023) (from TII and

Mistral AI, on the open-source side) are models with

billions of parameters that even show zero-shot ca-

pabilities in text, picture, audio or video generation,

among other modalities. Research and development is

steering towards the applications side, as in the case of

chatbots (in particular after the introduction of Chat-

GPT by OpenAI) and more broadly assistants, as the

question is also posed on whether these models are

the predecessors of an Artiﬁcial General Intelligence

(Bubeck et al., 2023). With the current state-of-the-

art LLMs, there is for many tasks no longer need

for building complex systems trained from scratch,

and in many cases even ﬁne-tuning base models, as

the general-purpose models show excellent capabili-

ties with one-shot or few-shot in-context learning and

prompt engineering.

However, for some other tasks, such as engineer-

ing design, this is not the case. Due to the high com-

plexity, interdependent, and iterative nature of these

processes, with also speciﬁc norms and practices be-

ing instituted in each industry, the direct application

of conventional LLMs is not enough. Even though

this starts to be explored, for instance by NVIDIA in

the chip design industry (Liu et al., 2023), there is

still a need to enhance LLMs for engineering design.

In this sense, the models can leverage:

• Accumulated heritage, such as previous products

and services and their data

• Ontologies of the respective industrial ﬁelds, with

the important concepts and their relationships

• The standards and processes that apply

• Other typical norms and practices

Despite this, shortcomings that are still faced come in

the form of hallucinations (nonsensical or unfaithful

text generation (Ji et al., 2023)), lack of particularly

well-structured inputs and outputs, no calculation ca-

pabilities due to their statistical nature, poor domain

specialization in many ﬁelds relying on proprietary

data (Ling et al., 2023), and performance limits as-

sociated to the reduced context windows of the mod-

els as well as token output limitations (Ratner et al.,

2023).

The augmentation of LLMs with Knowledge

Graphs (structures that capture and display informa-

tion in an arranged way, including the interrelations

between entities) at training, validation, and also in-

ference time has already been explored by a series

of works (Agrawal et al., 2023), as means of mini-

mizing hallucinations. However, this is to the best of

our knowledge the ﬁrst work that looks at augmenting

LLMs with systems engineering models, in particular

in the frame of a design assistant.

In essence, there appears to emerge a signiﬁcant

opportunity to incorporate foundation models, partic-

ularly LLMs, into the engineering design discipline

that is still relatively unexplored, facing some chal-

lenges that shall be researched. Additionally, the in-

dustry sectors that would beneﬁt the most from this

integration are particularly the ones following sys-

tems engineering discipline practices and standards.

The way systems engineering decomposes the engi-

neering process into smaller steps going from a high

level driven by the stakeholders’ needs and require-

ments to system requirements, a system architecture,

and ﬁnally a system design, and structures the product

or service life-cycle (INCOSE, 2023b), is beneﬁcial

to the structuring of an LLM-based design assistant.

This applies in particular to organizations follow-

ing Model-Based Systems Engineering (MBSE) prac-

tices. The system models that are built during a prod-

uct’s design, be it in Systems Modeling Language

(SysML) (Hause, 2006), Object-Process Methodol-

ogy (OPM) (Dori, 2002), Uniﬁed Modeling Language

(UML) (Koc¸ et al., 2021), in code, etc., can be inte-

grated into the LLM to improve its performance on

new designs.

Our contribution answers the question of whether

the integration of MBSE into an LLM, in particular of

an OPM semantic model of a generic system through

prompting, effectively improves the reliability of a de-

sign assistant tool based on an LLM.

Bringing Systems Engineering Models to Large Language Models: An Integration of OPM with an LLM for Design Assistants

335

3 METHODOLOGY

In this work, we integrate a generic model of the sys-

tem under design, through prompting, with a design

assistant based on an LLM. In particular, the design

assistant ﬁrst takes a space mission statement as user

input in natural language. In the background, with-

out user intervention, the generic system model is in-

cluded as well into the prompts. The LLM component

of the design assistant transforms that initial mission

statement into a list of technical speciﬁcations.

The results of this process are then compared with

the output of the same LLM without the system model

integrated, to understand if the design assistant tool

performances are improved by the MBSE-LLM inte-

gration. In both this and the former case, the same list

of subsystem requirements or technical speciﬁcations

are expected as an output, starting from the same mis-

sion statement.

3.1 Model-Based Systems Engineering

Tool

The Model-Based Systems Engineering (MBSE) tool

used in this work is the Object-Process Methodology,

a conceptual language for systems modeling, which

natively exploits a bi-modal representation: Object-

Process Diagram (OPD), a visual representation of

the system including the entities of the model (ob-

jects, processes, and states) and links and relations

among them, and Object-Process Language (OPL),

a list of English sentences describing the model in

a human-oriented language. Each OPD, except for

the System Diagram (SD), the top-level OPD, can

be obtained by reﬁnement, in-zooming, or unfolding,

of a thing (object or process) in its ancestor OPD,

to avoid the loss of details and to keep the overall

view of the system. The text is automatically gen-

erated by the OPM software (OPCloud or OPCAT) as

the model is created. (Dori, 2002) The natural lan-

guage representation is ideal as it makes the integra-

tion of this MBSE tool with Large Language Models

(LLMs) easier. Other MBSE tools exist, like SySML,

that allow to model different aspects of a system (e.g.

SySML uses four types of diagrams: structure, be-

havior, requirements, and parametric). However, they

are practically equivalent for our purposes, since only

the architecture of a generic system must be mod-

eled. OPM has been selected because it is more intu-

itive and natively exploits the bi-modal representation

(OPD and OPL).

Our implementation of the generic space system

of systems for the integration in the design assistant

is composed of three systems: space segment, ground

segment, and user segment (as represented by Figure

1). The space segment includes the launcher and one

or more spacecraft with their relevant subsystems; the

ground segment comprises the ground stations and the

mission control center; the user segment refers to the

users and their services. For each subsystem, com-

ponents and properties are deﬁned. The measurable

properties are indicated with the proper measurement

unit. If the number of components is more than one,

the properties values are deﬁned as vectors.

As for the spacecraft, the OPM model describes

its payload, the orbit, the associated ground stations

for data processing, Telemetry & Telecommand sub-

system, Command & Data Handling subsystem, Atti-

tude & Orbit Control subsystem, Propulsion subsys-

tem, Electrical & Power subsystem, Thermal Control

subsystem, the structure, as well as general spacecraft

parameters and the launcher to be used for orbit inser-

tion.

The space system model has been designed to be

meaningful while being as generic as possible, includ-

ing a large set of potential spacecraft components.

The values of the properties are all preset as tbd (to

be deﬁned) as they are aimed to be completed by the

design assistant tool upon the generation of the tech-

nical speciﬁcations. A view of the model at a lower

decomposition level is illustrated in Figure 2.

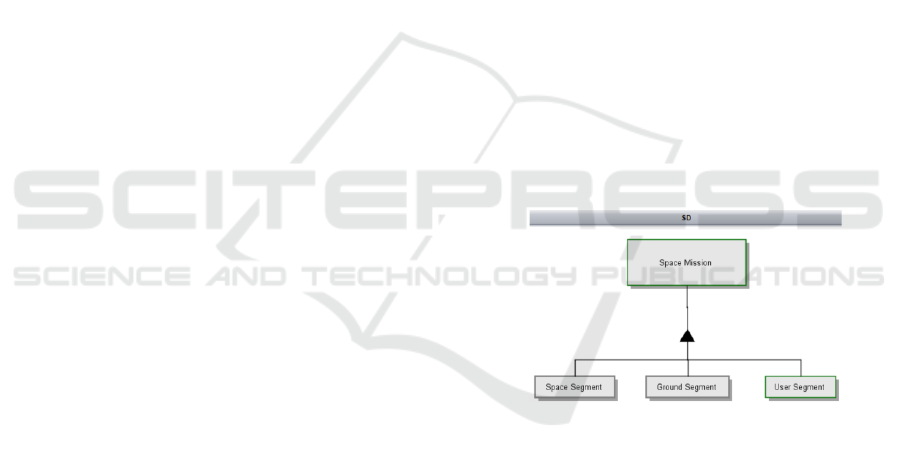

Figure 1: Object-Process Methodology System diagram of

the space system of systems. Highest level view.

3.2 Large Language Model

A Large Language Model (LLM) is used to convert

the high-level mission statement into technical speci-

ﬁcations, which are used to derive the design elements

necessary for the following design steps (e.g., system

budgets, CAD models, etc.). Thanks to its capability

of processing and generating human-like language,

the LLM takes as an input the mission statement to-

gether with the generic OPL to be modiﬁed and com-

pleted. It then produces a new OPL, and so with it the

list of subsystem requirements, for the speciﬁc mis-

sion of interest. The research challenge is to trans-

form a high-level mission statement, which can be

ambiguous, inconsistent, or incomplete due to the use

MBSE-AI Integration 2024 - Workshop on Model-based System Engineering and Artiﬁcial Intelligence

336

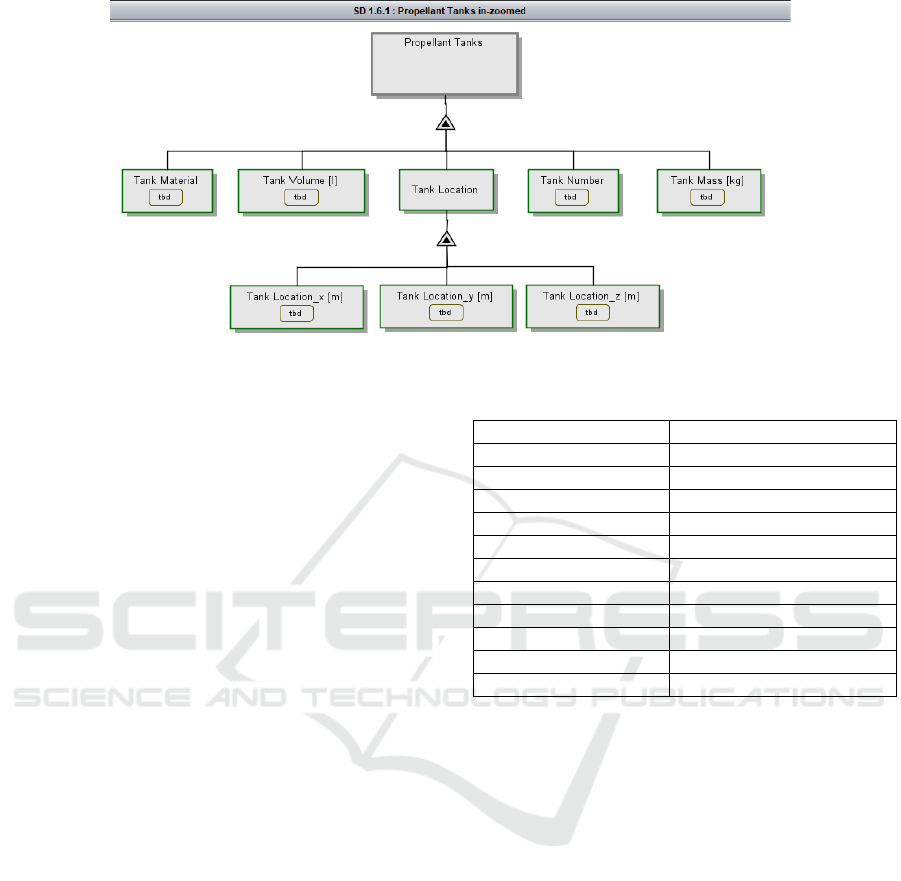

Figure 2: Object-Process Methodology diagram of a propellant tank.

of natural language, into clear, unambiguous, trace-

able, and comprehensive technical requirements, fol-

lowing systems engineering practice. At the time of

the paper, many LLMs are available (GPT 3.5, GPT 4,

BARD, Falcon, PaLM, Claude, and others). Each one

of them has different characteristics, advantages and

drawbacks. We used GPT 4 - an API based LLM - for

the work presented in this paper, to facilitate the inte-

gration with other applications, e.g. a chatbot design

assistant, and for its context length.

3.3 LLM + OPM Integration

The OPL is integrated into the design assistant by

prompting the LLM, and one of the challenges faced

is that the current OPL length (around 9600 tokens)

is longer than most of the current LLMs context win-

dows limits. Indeed, because of the direct relation be-

tween computational costs and context window size,

the number of tokens an LLM can process is limited.

In this work, OpenAI’s GPT 4-128k (November 2023

version), codenamed gpt-4-1106-preview, has been

used due to its larger 128k context window, through

API calls. However, the OPL has been divided into

smaller chunks, following the system model structure

depicted in Table 1.

To control the results for the variation of the se-

lected LLM, the objective criterion is also obtained

using a different model from OpenAI, GPT 3.5, in

its version gpt-3.5-turbo-16k with a 16k-token con-

text window. Due to the size of the OPL and the slid-

ing context window, it is feasible that some parts of

the OPL are cut, however, this impact is reduced by

the use of the average cosine similarity metric. Us-

ing other LLMs is at this point not feasible due to the

small context window sizes (4096 tokens for Llama

2, 2048 tokens for Falcon, or 4096 tokens for Mistral,

Table 1: Number of tokens for each of the OPL chunks.

OPL CHUNKS NUMBER OF TOKENS

Payload 347

Orbit 182

Ground Station 579

TT&C 766

CDH 493

AOCS 3043

Propulsion Subsystem 1071

EPS 1488

TCS 1413

Spacecraft 239

Launcher 12

for instance).

These OPL pieces are given as input to the LLM

step by step, by adding new inputs to the previous

context, for three reasons:

• The previous input-output pairs represent a con-

text and contain the required information so that

the LLM can proceed in the design process.

• The previous input-output pairs represent an ex-

ample on how to generate technical speciﬁcations,

increasing the average quality of the output.

• Compatibility with LLMs having shorter context

windows.

3.4 Benchmarking

To evaluate the design assistant tool’s performance,

two different criteria have been implemented to score

the output: a subjective criterion, based on an expert’s

review, and an objective criterion, thought of as a nu-

merical scoring.

Bringing Systems Engineering Models to Large Language Models: An Integration of OPM with an LLM for Design Assistants

337

3.4.1 Subjective Criterion

A tool generating technical speciﬁcations for the de-

sign of a system shall be trustworthy above all. Trust-

worthiness is evaluated as the weighted average of

six parameters that should characterize a requirement

(the output of the tool), as stated by the International

Council of Systems Engineering’s Systems Engineer-

ing Body of Knowledge (SEBoK) (INCOSE, 2023a).

We propose a parametric deﬁnition of trustworthi-

ness, decomposed as follows:

• Clarity: the output is understandable.

• Coherency: the output is compliant with the mis-

sion statement and the previous information.

• Unambiguity: the output is not subject to differ-

ent interpretations and no alternatives or redun-

dancies are generated.

• Completeness: the output is complete and sufﬁ-

cient to proceed to the next step of the design pro-

cess.

• Traceability: the output can be traced back to

higher level speciﬁcations (e.g. mission state-

ment) and its source.

• Veriﬁability: the output can be easily veriﬁed

through various veriﬁcation processes.

Each metric receives a score, ranging from 0 to 100

%, based on the ratio between the number of output

lines fulﬁlling the parameter and the total number of

output lines. Thus, the score is the percentage of out-

put satisfying the metric, as rated by an expert indi-

vidual. Only for completeness, the overall score is

the weighted average of two additional contributions:

coverage (weight=0.4), representing the percentage of

system aspects covered by the output; and granularity

level (weight=0.6), related to the level of detail of the

generated content, which must be the one of a tech-

nical speciﬁcation. Coverage and granularity are as-

signed a 40/60 weight allocation to represent the idea

that the latter is more important due to the need to ob-

tain a sufﬁciently detailed list of requirements as an

output to the model.

A weight is assigned to each parameter as spec-

iﬁed by Table 2, coming from analyses, past knowl-

edge, and experience. All the metrics contribute in

the same way to trustworthiness, except for traceabil-

ity, which is the most important parameter, since the

source of the output plays a very important role. In-

deed, tracing requirements from their origins through

the system design is crucial for ensuring that the sys-

tem meets its intended objectives and for managing

changes effectively, making expert analyses and in-

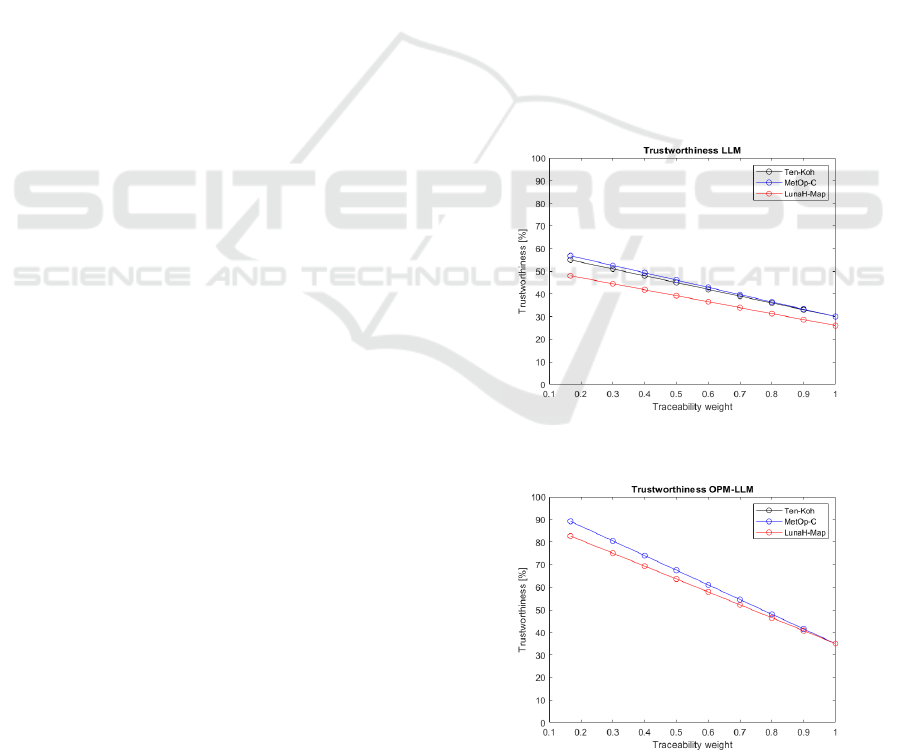

terventions easier. A preliminary sensitivity analysis

has been performed to select and support the weights

of the subjective criterion. The results are brieﬂy de-

scribed in Section 4.

Table 2: Evaluation metrics and relevant weights for the

subjective criterion.

METRICS WEIGHTS

Clarity 0.1

Coherency 0.1

Unambiguity 0.1

Completeness 0.1

Traceability 0.5

Veriﬁability 0.1

3.4.2 Objective Criterion

A clear problem when evaluating the output of a

Large Language Model, which appears in a more ac-

centuated manner when this output is a technical re-

quirement or speciﬁcation, is that there is not a single

solution, but rather a wide variety of alternative so-

lutions that can be properly formulated and be tech-

nically feasible. And even more, each of these valid

solutions has an almost inﬁnite amount of ways of be-

ing formulated linguistically (i.e., in text) into one or

more sentences. This issue rules out the classical ap-

proaches used for evaluating Machine Learning mod-

els’ output, in which the result from a model is evalu-

ated with a validation dataset containing for each en-

try a set of ﬁnite correct outputs, also known as labels.

In this evaluation, we propose the use of the co-

sine similarity metric in order to provide an objective

result that does not rely on subjective scoring. Cosine

similarity is a distance-based similar metric already

used for LLM output evaluation by other works in the

ﬁeld (Chen et al., 2023).

Cosine similarity for a vector of words ~o contain-

ing the words produced by the LLM, and a vector

of words ~g containing the words of a gold standard

answer -the comparison reference-, is deﬁned as fol-

lows:

cos sim(~o,~g) =

~o ·~g

|~o||~g|

(1)

In practical terms, we implement the co-

sine similarity metric in Python program-

ming language, through scikit-learn library’s

sklearn.metrics.pairwise.cosine similarity function.

To achieve a higher degree of text format agnosti-

cism, we remove the set of English stop words from

both the output vector and the gold standard vector as

speciﬁed in the nltk library’s corpus. The words are

converted from strings to word embeddings with the

gensim library’s gensim.models.word2vec function

implementing the well-known word2vec algorithm

MBSE-AI Integration 2024 - Workshop on Model-based System Engineering and Artiﬁcial Intelligence

338

(Mikolov et al., 2013). To account for the differences

in the lengths of the vectors, we use padding. In our

case, we zero-pad the shortest vector to match the

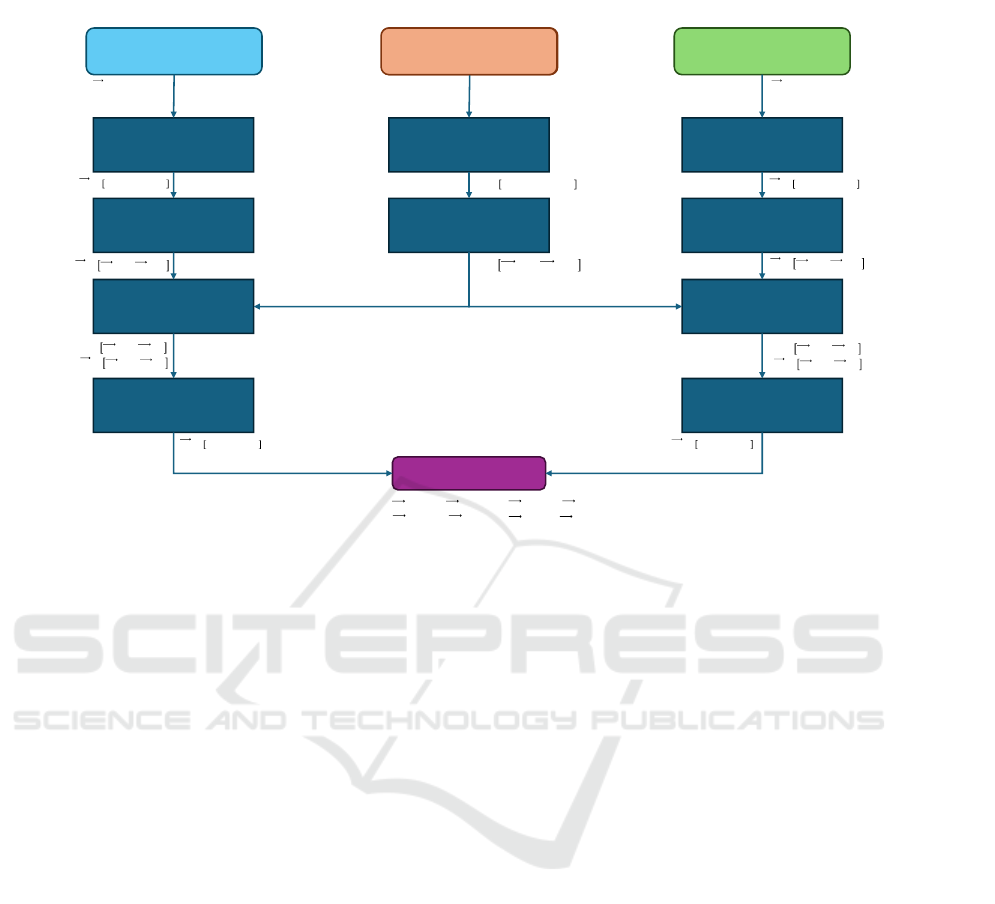

length of the longest one. The Appendix includes

a ﬂowchart of the objective criterion’s steps, for a

sinthesized view of it.

All in all, we measure how close, conceptually, is

the output of the design assistant to a gold standard

reference. When the output is close to the reference

the score tends to 1, when it is opposite to the refer-

ence the score tends to -1. Thus, we account for dif-

ferent plausible possibilities in the output, as they will

all be conceptually close to the gold standard. By us-

ing cosine similarity, and even more by having elim-

inated stop words, we also avoid formatting-induced

scoring changes that other methodologies might suf-

fer from.

4 RESULTS & DISCUSSION

4.1 Case Study

To evaluate the design assistant tool, we have chosen

three space missions for which a large amount of in-

formation is publicly available, especially in terms of

design choices explanations, and requirements. Com-

paring the results of the design assistant tool with the

real design of a system helps in validation and evalu-

ation. Having three different space missions also al-

lows us to control the results for the variability of the

mission statement. The mission statements are en-

tered to a design assistant with an off-the-shelf LLM,

and to a design assistant with an LLM that is also

fed the generic OPM of the space system. Techni-

cal speciﬁcations are retrieved and assessed using the

subjective criterion and the objective criterion. The

ﬁrst selected baseline mission is the Ten-Koh small

satellite in Low Earth Orbit, developed by the Kyushu

Institute of Technology (Fajardo et al., 2019). The

second selected mission is the big MetOp-C meteo-

rological satellite (4300 kg) from the European Space

Agency and EUTMETSAT, ﬂying on an 884-km Sun-

Synchronous Orbit (SSO) (Righetti et al., 2020). The

third baseline mission is the LunaH-Map from NASA,

made of 6U CubeSats for lunar mapping (Hardgrove

et al., 2019). The inputs are available below for re-

producibility.

”Space radiation poses challenges to satellites,

causing anomalies like single event effects, ionizing

radiation-induced component degradation, and

charging issues. Designing satellites capable of

withstanding these anomalies requires a deep

understanding of the radiation environment.

Galactic cosmic rays, solar energetic particles, and

trapped high-energy particles contribute to this

environment, with unpredictable energy variability

in the low-Earth orbit (LEO) region, where most

satellites are located. High-energy electrons,

protons, and ions impact spacecraft differently

based on mission design, epoch, and class. Manned

missions must consider particle population

unpredictability in mission duration and life

support systems. Recent missions like Van Allen

Probes, THEMIS, MMS, ERG (ARASE), Proba-2,

and Swarm have explored near-Earth space,

providing direct measurements of charged

particles. Create a small satellite able to

characterize the plasma environment, detect

MeV-range electrons, and study material sample

changes in the space environment to demonstrate

that small, low-cost spacecraft can offer a

cost-effective approach to space environment

research, utilizing commercial components. A

detailed design is required.”

Mission Statement 1: Ten-Koh mission

Bringing Systems Engineering Models to Large Language Models: An Integration of OPM with an LLM for Design Assistants

339

”Considering the critical role satellites play in

monitoring and understanding our planet’s climate

and environmental changes, our goal is to

contribute to the next generation of Earth

observation satellites. Our envisioned satellite will

be equipped with cutting-edge instrumentation

designed to provide accurate and comprehensive

data on Earth’s atmosphere, weather patterns, and

climate dynamics. We aim to enhance our

understanding of key environmental indicators,

including greenhouse gas concentrations,

atmospheric composition, and surface temperature

variations. The mission objectives include

achieving a high level of precision in data

collection and analysis, allowing for improved

weather forecasting, climate modeling, and

environmental monitoring. We aspire to contribute

to global efforts in mitigating the impacts of

climate change by providing policymakers,

scientists, and the public with invaluable insights

into Earth’s dynamic systems. In the spirit of

collaboration, our mission seeks to establish

international partnerships to maximize the impact

and reach of our satellite’s observations. By

fostering cooperation with other space agencies,

research institutions, and commercial entities, we

aim to create a robust network of data-sharing and

collaborative initiatives that transcend borders.

Furthermore, our satellite will be designed with

scalability and adaptability in mind, ensuring that

it can accommodate future technological

advancements and evolving scientiﬁc requirements.

This adaptability will enable our mission to remain

at the forefront of Earth observation, continuously

contributing to the collective knowledge about our

planet’s changing environment. A detailed design

is required.”

Mission Statement 2: MetOp-C mission

”In response to the growing interest in lunar

exploration and the imminent expansion of lunar

activities within the next two decades, our goal is

to advance scientiﬁc knowledge and contribute to

the sustainable development of lunar resources.

Our focus lies in mapping the abundance of

hydrogen down to one meter beneath the surface of

the lunar south pole. Inspired by the renewed

interest in Moon exploration and the establishment

of a lunar space economy, our mission is dedicated

to the development of a small satellite (CubeSat

6U) capable of providing a high-resolution map of

the abundance and distribution of hydrogen-rich

compounds, like water, in this region of the Moon

and expand on the less accurate maps made by

previous missions. Our vision is to create a

cost-effective and innovative approach to lunar

environment research, addressing unique

challenges in the development of a CubeSat

intended to run longer and travel further than most

LEO CubeSat missions. LunaH-Map aims to

demonstrate the capabilities of small spacecraft in

conducting sophisticated space environment

studies. Through LunaH-Map, we aim to pave the

way for a new era of lunar exploration, where

comprehensive data on water-ice and hydrogen

distribution at the lunar south pole serves as a

foundation for informed decision-making and

sustainable resource utilization. By pushing the

boundaries of technology and embracing a

cost-effective approach, LunaH-Map aspires to

inspire future missions and stakeholders to join us

in unlocking the full potential of the Moon for the

beneﬁt of humanity and the advancement of space

exploration. A detailed design of the mission is

required.”

Mission Statement 3: LunaH-Map mission

MBSE-AI Integration 2024 - Workshop on Model-based System Engineering and Artiﬁcial Intelligence

340

4.2 Results of the Subjective Criterion

The outputs are not reproduced in this article due to

their lengthiness, but the results of the subjective cri-

terion are shown in Table 3 for an off-the-shelf LLM

(GPT-4 128K) and in Table 4 for the LLM+OPM in-

tegration. In all the cases the outputs are the design

of the required space mission, but with different char-

acteristics highlighted by the parameters scores. They

are clear and understandable (clarity score 100%) and

respect the mission statements and what is asked in

input. In addition, the design choices are coherent

with each other (coherency score 100%). An im-

portant difference exists, instead, in terms of ambi-

guity: the outputs of the LLM not integrated with

an OPM model are ambiguous (unambiguity score

is lower than 40%), because most of the suggested

solutions can be interpreted differently and many al-

ternatives are provided (e.g. aluminum or composite

frame are possible choices for Ten-Koh structure; a

propulsion system respecting mass and volume con-

straints is proposed without further speciﬁcations for

MetOp-C and LunaH-Map), unlike the outputs of the

tool which follow the structure of the system model

(unambiguity score 100% for Ten-Koh and MetOp-

C missions). The only exception is represented by

the lunar mission (unambiguity score 85%), whose

output is slightly ambiguous, because orbit, ground

station and communication subsystem are not com-

pletely designed by the tool. Regarding complete-

ness, coverage and detail level are analyzed: all the

system aspects are covered by the LLM+OPM tool,

while this is not always true for the LLM (MetOp-

C orbit and LunaH-Map Command&Data Handling

subsystem are not included in the outputs); and only

the MBSE-LLM integration allows us to reach the de-

tail level of technical speciﬁcations. The main preva-

lent problem is the low traceability (around 30% for

the LLM and 35% for the tool). The outputs can be

traced back to the mission statement, but not to their

origin. Integrating the OPM with the LLM makes the

requirements slightly more traceable because all the

design choices belong to the generic system model.

However, this is not enough to solve the problem, es-

pecially for numbers, which are the result of a prob-

abilistic approach, instead of the application of equa-

tions and physics models. Nonetheless, the tool out-

puts are still veriﬁable (veriﬁability score higher than

80%), because speciﬁc solutions are provided with

relevant numbers, while only small parts of the LLM

outputs can be veriﬁed, due to their ambiguities and

low detail level (veriﬁability score lower than 50%).

In general, it is possible to notice that the scores of

the two Earth missions are very similar, unlike the

lunar mission score. The main reason can be found

in the large amount of data available for space mis-

sions around the Earth with respect to interplanetary

missions, which makes easier the design of an Earth-

based mission. As a result of these considerations, we

can state that LLM trustworthiness is very low, but it

is improved by almost 50% thanks to the integration

with an MBSE tool.

Based on the scores of the metrics, a preliminary

sensitivity analysis has been carried out to support the

choice of metric weights and thus to verify the robust-

ness of the evaluation criterion. It consists of varying

one metric weight per time, from 0 to 1, keeping all

the other weights equal to each other. The results, not

fully reproduced in the article for a matter of brevity,

consistently show an improvement in the performance

with LLM+OPM integration across all scenarios of

metric weights. Moreover, traceability is the param-

eter with the largest impact on the LLM+OPM tool

performance, as expected, while for the off-the-shelf

LLM, clarity, coherency, and unambiguity are also

not negligible. Figures 3 and 4 exhibit the results of

the sensitivity analysis for the traceability weight in

both cases.

Figure 3: Effect of traceability weight variation on LLM

trustworthiness.

Figure 4: Effect of traceability weight variation on

LLM+OPM trustworthiness.

Bringing Systems Engineering Models to Large Language Models: An Integration of OPM with an LLM for Design Assistants

341

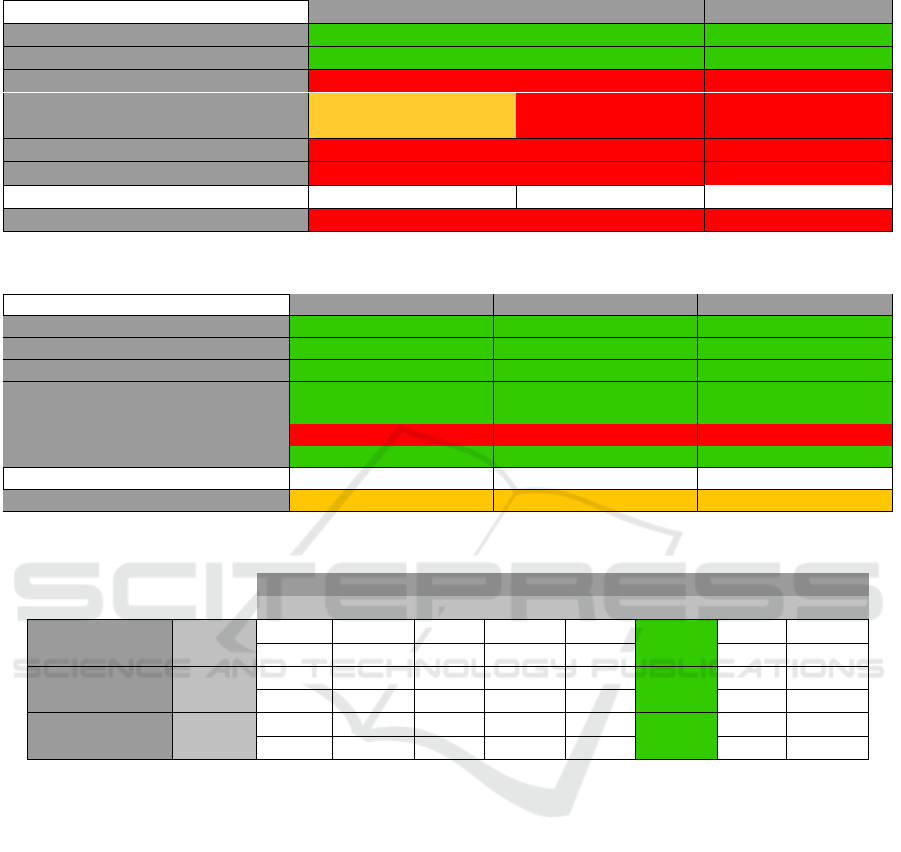

Table 3: Off-the-shelf GPT-4 subjective evaluation results.

LLM subjective evaluation results Ten-Koh MetOp-C LunaH-Map

Clarity 100% 100% 100%

Coherency 100% 100% 100%

Unambiguity 20% 35% 11%

Completeness

(0.4*Coverage + 0.6*DetailLevel)

46%

(0.4*100% + 0.6*10%)

38%

(0.4*91% + 0.6*3%)

36%

(0.4*91% + 0.6*0%)

Traceability 30% 30% 26%

Veriﬁability 35% 38% 15%

Trustworthiness 45.1% 46% 39.2%

Table 4: LLM+OPM integration subjective evaluation results.

Tool subjective evaluation results Ten-Koh MetOp-C LunaH-Map

Clarity 100% 100% 100%

Coherency 100% 100% 100%

Unambiguity 100% 100% 85%

Completeness

(0.4*Coverage + 0.6*DetailLevel)

100%

(0.4*100% + 0.6*100%)

100%

(0.4*100% + 0.6*100%)

91%

(0.4*100% + 0.6*85%)

Traceability 35% 35% 35%

Veriﬁability 100% 100% 85%

Trustworthiness 67.5% 67.5% 63.6%

Table 5: Results of the objective criterion evaluation.

Minimum Maximum Average Std. deviation

LLM +OPM LLM +OPM LLM +OPM LLM +OPM

gpt-3.5 0.065 0.038 1.000 1.000 0.986 0.990 0.038 0.036Mission 1

(Ten-Koh) gpt-4 -0.458 0.172 1.000 1.000 0.977 0.991 0.066 0.031

gpt-3.5 -0.582 -0.544 1.000 1.000 0.984 0.992 0.052 0.040Mission 2

(MetOp-C) gpt-4 -0.817 -0.798 1.000 1.000 0.973 0.986 0.087 0.048

gpt-3.5 -0.680 -0.669 1.000 1.000 0.985 0.988 0.076 0.075Mission 3

(LunaH-Map) gpt-4 -0.696 -0.255 1.000 1.000 0.976 0.988 0.083 0.049

4.3 Results of the Objective Criterion

The results of the objective criterion are shown in

Table 5. They are controlled for mission statement

variability, with the three selected baseline missions

presented before, and for the LLM variability, using

gpt-3.5-16k-turbo and gpt-4-1106-preview. For each

token of the output, its cosine similarity to the corre-

sponding token in the gold standard reference is cal-

culated, and a vector of cosine similarities is built.

The table displays the minimum value encountered

in that vector, the maximum, the average value, and

the standard deviation. The results are presented for

the design assistant with an off-the-shelf LLM with-

out any OPM integration (labeled LLM in the table)

and for the design assistant with an LLM+OPM inte-

gration (labeled +OPM in the table).

The results are clear and conﬁrm what was seen

already with the subjective criterion. They show that

our OPM integration improves the quality of the de-

sign assistant’s output consistently for all the mission

statements and all the LLMs, as displayed in the Aver-

age columns. This is due to the space systems ontol-

ogy that the OPM of a generic space mission provides,

and the in-context learning thereby performed by the

LLM at inference time, improving domain-speciﬁc

knowledge and reducing hallucinations. Additionally,

the integration of the OPM consistently improves the

predictability of the results, as seen in the Standard

deviation columns. This is due to the structuring of

the input and the output that naturally happens when

integrating a systems engineering model (in this case,

the OPM), bringing a structure with a set of rules,

with the LLM.

MBSE-AI Integration 2024 - Workshop on Model-based System Engineering and Artiﬁcial Intelligence

342

5 CONCLUSION

In this work, we have discussed the shortcomings

of using off-the-shelf LLMs for engineering design

tasks, particularly in the context of a design assistant

for spacecraft that drafts technical requirements with

a high-level mission statement as input. We have in-

troduced a methodology for integrating Model-Based

Systems Engineering models, in particular an Object-

Process Methodology model, to an LLM to improve

its reliability. We presented partial, preliminary re-

sults with both a subjective criterion, looking for the

traits that make design assistant requirements trust-

worthy, and an objective criterion comparing the out-

puts directly to a golden reference. The results show

an improvement in the quality of the outputs with the

LLM+MBSE integration. These improvements are

associated with the introduction of an ontology, being

learned in context by the LLM, that reduces halluci-

nations, as well as a higher degree of structure impact-

ing both the input and the output, all coming naturally

from the properties of the system model being intro-

duced.

In future work, we aim to increase the complete-

ness of the results in particular with a thorough sen-

sitivity analysis of weights of the subjective criterion.

Additionally, dealing with smaller LLMs and ﬁtting

the system models to their reduced context window

remains one of the biggest open challenges, in par-

ticular, to enable these kinds of design assistants to

run on smaller devices in the edge. Related to it, un-

derstanding whether a deeper-level integration of sys-

tem models would be more useful and reliable than

prompting is also an open area for further investiga-

tion. Additionally, Large Language Models that have

been trained or ﬁne-tuned in systems engineering or

more broadly engineering design data such as books,

papers, and standards shall be created and thoroughly

assessed to understand the performance improvement

compared to the state-of-the-art generalist models.

ACKNOWLEDGEMENTS

The authors would like to express gratitude to Prof.

Dr. Dov Dori and Dr. Hanan Kohen for granting ac-

cess to OPCloud for research purposes. We are also

grateful to Prof. Dr. Merouane Debbah for his men-

toring and insightful comments.

REFERENCES

Agrawal, G., Kumarage, T., Alghami, Z., and Liu, H.

(2023). Can Knowledge Graphs Reduce Hallucina-

tions in LLMs? : A Survey. ArXiv, abs/2311.07914.

Almazrouei, E., Alobeidli, H., Alshamsi, A., Cappelli, A.,

Cojocaru, R., Debbah, M.,

Etienne Gofﬁnet, Hesslow,

D., Launay, J., Malartic, Q., Mazzotta, D., Noune, B.,

Pannier, B., and Penedo, G. (2023). The Falcon Series

of Open Language Models. ArXiv, abs/2311.16867.

Bubeck, S., Chandrasekaran, V., Eldan, R., Gehrke, J.,

Horvitz, E., Kamar, E., Lee, P., Lee, Y. T., Li, Y.,

Lundberg, S., Nori, H., Palangi, H., Ribeiro, M. T.,

and Zhang, Y. (2023). Sparks of Artiﬁcial General

Intelligence: Early experiments with GPT-4. ArXiv,

abs/2303.12712.

Chen, Z., Du, W., Zhang, W., Liu, K., Liu, J., Zheng, M.,

Zhuo, J., Zhang, S., Lin, D., Chen, K., and Zhao, F.

(2023). T-eval: Evaluating the tool utilization capa-

bility step by step. ArXiv, abs/2312.14033.

Devlin, J., Chang, M., Lee, K., and Toutanova, K. (2019).

BERT: Pre-training of Deep Bidirectional Transform-

ers for Language Understanding. In Burstein, J.,

Doran, C., and Solorio, T., editors, Proceedings of

the 2019 Conference of the North American Chap-

ter of the Association for Computational Linguistics:

Human Language Technologies, NAACL-HLT 2019,

Minneapolis, MN, USA, June 2-7, 2019, Volume 1

(Long and Short Papers), pages 4171–4186. Associ-

ation for Computational Linguistics.

Dori, D. (2002). Object-Process Methodology – A Holistic

Systems Paradigm. Springer, New York.

Fajardo, I., Lidtke, A. A., Bendoukha, S. A., Gonzalez-

Llorente, J., Rodr

ıguez, R., Morales, R., Faizullin, D.,

Matsuoka, M., Urakami, N., Kawauchi, R., Miyazaki,

M., Yamagata, N., Hatanaka, K., Abdullah, F., Ro-

jas, J. J., Keshk, M. E., Cosmas, K., Ulambayar,

T., Saganti, P., Holland, D., Dachev, T., Tuttle, S.,

Dudziak, R., and ichi Okuyama, K. (2019). Design,

Implementation, and Operation of a Small Satellite

Mission to Explore the Space Weather Effects in LEO.

Aerospace, 6(10).

Garcia Alarcia, R. M. and Golkar, A. (2023). Architec-

ture of a generative design tool for spacecraft and user

front-end implementation through a chatbot smart de-

sign assistant. In IAC 2023 Congress Proceedings,

74th International Astronautical Congress.

GeminiTeam (2023). Gemini: A Family of Highly Capable

Multimodal Models. ArXiv, abs/2312.11805.

Hardgrove, C., DuBois, J., Heffern, L., Cisneros, E., Bell,

J., Crain, T., Starr, R., Prettyman, T., Lazbin, I., Roe-

buck, B., Struebel, N., Clark, E., Nelson, D., Bauman,

J., Williams, B., Johnson, E., Christian, J., Stoddard,

G., Tsay, M., Model, J., Hruby, P., Babuscia, A., Stem,

S., Sanders, D., Hegel, E., Wiens, M., Parlapiano, S.,

Hailey, P., O’Brien, T., Mesick, K., and Coupland, D.

(2019). The Lunar Polar Hydrogen Mapper (LunaH-

Map) Mission. In 33rd Annual AIAA/USU Conference

on Small Satellites.

Hause, M. (2006). The SysML Modelling Language. In

Fifth European Systems Engineering Conference.

Bringing Systems Engineering Models to Large Language Models: An Integration of OPM with an LLM for Design Assistants

343

INCOSE (2023a). Guide to the Systems Engineering Body

of Knowledge. International Council on Systems En-

gineering, San Diego, CA, 2.9 edition.

INCOSE (2023b). INCOSE systems engineering handbook.

John Wiley & Sons, Nashville, TN, 5 edition.

Ji, Z., Lee, N., Frieske, R., Yu, T., Su, D., Xu, Y., Ishii, E.,

Bang, Y. J., Madotto, A., and Fung, P. (2023). Sur-

vey of Hallucination in Natural Language Generation.

ACM Comput. Surv., 55(12).

Jiang, A. Q., Sablayrolles, A., Mensch, A., Bamford,

C., Chaplot, D. S., de las Casas, D., Bressand, F.,

Lengyel, G., Lample, G., Saulnier, L., Lavaud, L. R.,

Lachaux, M.-A., Stock, P., Scao, T. L., Lavril, T.,

Wang, T., Lacroix, T., and Sayed, W. E. (2023). Mis-

tral 7B. ArXiv, abs/2310.06825.

Kaddour, J., Harris, J., Mozes, M., Bradley, H., Raileanu,

R., and McHardy, R. (2023). Challenges and

Applications of Large Language Models. ArXiv,

abs/2307.10169.

Koc¸, H., Erdo

gan, A. M., Barjakly, Y., and Peker, S. (2021).

UML Diagrams in Software Engineering Research: A

Systematic Literature Review. Proceedings, 74(1).

Ling, C., Zhao, X., Lu, J., Deng, C., Zheng, C., Wang, J.,

Chowdhury, T., Li, Y., Cui, H., Zhang, X., Zhao, T.,

Panalkar, A., Cheng, W., Wang, H., Liu, Y., Chen,

Z., Chen, H., White, C., Gu, Q., Pei, J., and Zhao, L.

(2023). Domain Specialization as the Key to Make

Large Language Models Disruptive: A Comprehen-

sive Survey. ArXiv, abs/2305.18703.

Liu, M., Ene, T.-D., Kirby, R., Cheng, C., Pinckney, N.,

Liang, R., Alben, J., Anand, H., Banerjee, S., Bayrak-

taroglu, I., Bhaskaran, B., Catanzaro, B., Chaudhuri,

A., Clay, S., Dally, B., Dang, L., Deshpande, P.,

Dhodhi, S., Halepete, S., Hill, E., Hu, J., Jain, S.,

Khailany, B., Kokai, G., Kunal, K., Li, X., Lind, C.,

Liu, H., Oberman, S., Omar, S., Pratty, S., Raiman,

J., Sarkar, A., Shao, Z., Sun, H., Suthar, P. P., Tej, V.,

Turner, W., Xu, K., and Ren, H. (2023). ChipNeMo:

Domain-Adapted LLMs for Chip Design. ArXiv,

abs/2311.00176.

Mikolov, T., Chen, K., Corrado, G., and Dean, J. (2013). Ef-

ﬁcient Estimation of Word Representations in Vector

Space. In Bengio, Y. and LeCun, Y., editors, 1st In-

ternational Conference on Learning Representations,

ICLR 2013, Scottsdale, Arizona, USA, May 2-4, 2013,

Workshop Track Proceedings.

Myers, D., Mohawesh, R., Chellaboina, V. I., Sathvik,

A. L., Venkatesh, P., Ho, Y.-H., Henshaw, H., Al-

hawawreh, M., Berdik, D., and Jararweh, Y. (2023).

Foundation and large language models: fundamentals,

challenges, opportunities, and social impacts. Cluster

Computing.

OpenAI (2023). GPT-4 Technical Report. ArXiv,

abs/2303.08774.

Radford, A. and Narasimhan, K. (2018). Improving

Language Understanding by Generative Pre-Training.

Preprint.

Ratner, N., Levine, Y., Belinkov, Y., Ram, O., Magar, I.,

Abend, O., Karpas, E., Shashua, A., Leyton-Brown,

K., and Shoham, Y. (2023). Parallel context win-

dows for large language models. In Rogers, A.,

Boyd-Graber, J., and Okazaki, N., editors, Proceed-

ings of the 61st Annual Meeting of the Association for

Computational Linguistics (Volume 1: Long Papers),

pages 6383–6402, Toronto, Canada. Association for

Computational Linguistics.

Righetti, P., de Juana Gamo, J., and Sancho, F. (2020).

Metop-c deployment and start of three-satellite opera-

tions. The Aeronautical Journal, 124(1276):902–916.

Touvron, H., Martin, L., Stone, K., Albert, P., Almahairi,

A., Babaei, Y., Bashlykov, N., Batra, S., Bhargava,

P., Bhosale, S., Bikel, D., Blecher, L., Ferrer, C. C.,

Chen, M., Cucurull, G., Esiobu, D., Fernandes, J., Fu,

J., Fu, W., Fuller, B., Gao, C., Goswami, V., Goyal,

N., Hartshorn, A., Hosseini, S., Hou, R., Inan, H.,

Kardas, M., Kerkez, V., Khabsa, M., Kloumann, I.,

Korenev, A., Koura, P. S., Lachaux, M.-A., Lavril,

T., Lee, J., Liskovich, D., Lu, Y., Mao, Y., Martinet,

X., Mihaylov, T., Mishra, P., Molybog, I., Nie, Y.,

Poulton, A., Reizenstein, J., Rungta, R., Saladi, K.,

Schelten, A., Silva, R., Smith, E. M., Subramanian,

R., Tan, X. E., Tang, B., Taylor, R., Williams, A.,

Kuan, J. X., Xu, P., Yan, Z., Zarov, I., Zhang, Y., Fan,

A., Kambadur, M., Narang, S., Rodriguez, A., Sto-

jnic, R., Edunov, S., and Scialom, T. (2023). Llama

2: Open Foundation and Fine-Tuned Chat Models.

ArXiv, abs/2307.09288.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, L., and Polosukhin, I.

(2023). Attention Is All You Need. In Proceedings of

the 31st Conference on Neural Information Process-

ing Systems (NIPS 2017). Association for Computing

Machinery.

APPENDIX

To better illustrate the methodology’s objective crite-

rion, Figure 5 presents a ﬂowchart of the steps fol-

lowed to compute the cosine similarity values be-

tween the design assistant’s output using an off-

the-shelf LLM and the golden standard, as well as

between the design assistant’s output leveraging an

LLM+OPM integration and the golden standard. The

ﬂowchart also illustrates the metrics that are calcu-

lated to compare the cosine similarity values and

benchmark the improvement attained by the integra-

tion of the space mission’s OPM system model.

MBSE-AI Integration 2024 - Workshop on Model-based System Engineering and Artiﬁcial Intelligence

344





 











 













 











Remove English

stop words















 







 







Gold standard















Compare results

LLM+OPM

output (2)

Convert words to

word embeddings

Remove English

stop words

Convert words to

word embeddings

Pad the smallest

word vector

Remove English

stop words

Convert words to

word embeddings

Pad the smallest

word vector

Compute cosine

similarity

Compute cosine

similarity

 







) vs )

) vs )

) vs )

) vs )





 















 





























 











 















 















 











Gold standard

Off-the-shelf LLM

output (1)



Figure 5: Flowchart of the methodology’s objective criterion.

Bringing Systems Engineering Models to Large Language Models: An Integration of OPM with an LLM for Design Assistants

345
