Compliance by Design for Cyber-Physical Energy Systems: The Role of

Model-Based Systems Engineering in Complying with the EU AI Act

Dominik Vereno

, Katharina Polanec and Christian Neureiter

Josef Ressel Centre for Dependable System-of-Systems Engineering, Salzburg University of Applied Sciences,

Urstein S

ud 1, 5412 Puch/Salzurg, Austria

ﬁ

Keywords:

Model-Driven Engineering, Domain-Speciﬁc Language, Risk Management, High-Risk AI Applications,

Regulatory Compliance, Smart Grid.

Abstract:

In the evolving landscape of intelligent power grids, artiﬁcial intelligence (AI) plays a crucial role, yet its

integration into critical infrastructure poses signiﬁcant risks. The new EU AI Act, regulating such high-risk

applications, introduces stringent requirements such as risk management and data governance. This study

aims to harness the potential of model-based systems engineering (MBSE) for enabling compliance by design

in smart grids, ensuring adherence to regulation from early development stages. Through a detailed analysis

of the AI Act’s seven requirement for high-risk applications, the paper aligns them with established MBSE

practices. The ﬁndings reveal MBSE as an effective tool for ensuring compliance, leading to three strate-

gic recommendations: integrating mature disciplines into holistic MBSE approaches, establishing a broadly

accepted AI modeling formalism, and creating a standardized model-based compliance assessment process.

In conclusion, MBSE is a key enabler for creating dependable and safe AI applications, offering a positive

outlook for future smart grid developments that are innovative yet compliant by design.

1 INTRODUCTION

The transition towards smart grids marks a pivotal

development in modern electricity infrastructure, ad-

dressing challenges like integrating renewable energy

and moving to electric transport (Farhangi, 2010). Ar-

tiﬁcial intelligence (AI) plays a crucial role in meet-

ing these challenges and harnessing their potential to

improve grid efﬁciency and stability through applica-

tions such as power-ﬂow optimization, load manage-

ment, fault detection, and information security (Ali

and Choi, 2020). However, implementing data-driven

decision-making in critical infrastructure necessitates

strict adherence with regulatory frameworks.

The European Union‘s new regulation for harmo-

nized rules on AI (AI Act) (European Commission,

2021) is a major regulatory milestone, with poten-

tial global implications. It categorizes AI applications

based on risk levels, ranging from minimal to unac-

ceptable. High-risk applications, which include those

used in power grid operations, must adhere to seven

stringent requirements covering aspects like risk man-

agement, data governance, and transparency. Navi-

https://orcid.org/0000-0002-7930-6744

https://orcid.org/0000-0001-7509-7597

gating these regulations for complex grid applications

poses signiﬁcant challenges.

In navigating the complexities of cyber-physical

systems of systems, model-based systems engineer-

ing (MBSE) emerged as a vital tool. At its core is

the formalized application of digital models that sup-

ports various engineering activities ”beginning in the

conceptual design phase and continuing throughout

development and later life cycle phases” (INCOSE,

2007). MBSE is inherently suited to dealing with

complexity via abstraction and separation of concerns

(Neureiter et al., 2020). It further facilitates trace-

ability throughout various modeling artifacts, such as

components, requirements, and test cases.

The energy sector has been adopting MBSE ap-

proaches for over a decade (Lopes et al., 2011). A

key development in this ﬁeld is the Smart Grid Ar-

chitecture Model (SGAM) (Smart Grid Coordination

Group, 2012), which has inspired various standards-

aligned, model-based engineering methods (Uslar

et al., 2019). The SGAM Toolbox is a prominent ex-

ample, focusing on high-level interdisciplinary mod-

eling of energy use cases (Neureiter et al., 2016b).

Such a holistic model-based approach is required to

deal with the interdisciplinarity and complexity of

Vereno, D., Polanec, K. and Neureiter, C.

Compliance by Design for Cyber-Physical Energy Systems: The Role of Model-Based Systems Engineering in Complying with the EU AI Act.

DOI: 10.5220/0012623000003645

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 12th International Conference on Model-Based Software and Systems Engineering (MODELSWARD 2024), pages 365-370

ISBN: 978-989-758-682-8; ISSN: 2184-4348

365

smart grids. MBSE fosters a uniﬁed model instead

of a disparate set of documents, bringing together di-

verse stakeholders. MBSE is therefore uniquely po-

sitioned to ensure compliance for AI applications in

power grids.

This paper explores how the inherent beneﬁts of

MBSE can be leveraged to facilitate compliant AI ap-

plications in cyber-physical energy system. We focus

on embedding compliance from the initial engineer-

ing stages, striving for compliance by design. There

are two main research objectives and contributions:

1. Analyzing MBSE’s potential in helping to meet

the seven high-risk AI requirements, focusing on

its beneﬁts and existing MBSE efforts that could

aid compliance.

2. Recommending essential areas for further re-

search and consolidation, directed at researchers,

practitioners, and regulatory authorities.

This research seeks to spotlight the intersection

of MBSE and AI, emphasizing the signiﬁcant role of

MBSE in devising AI applications that are not only

innovative but also compliant and safe. Our goal is to

inspire progress in this promising ﬁeld, with the ulti-

mate objective of developing safe, reliable, and efﬁ-

cient energy systems for the future.

2 MBSE‘s ROLE IN ENSURING AI

ACT COMPLIANCE

For high-risk applications, the AI Act lays out seven

requirements. This chapter delineates each require-

ment and evaluates the role of MBSE in fulﬁlling it.

We aim to assess the impact of MBSE, highlight exist-

ing work, and identify areas for further research. Ta-

ble 1 outlines MBSE‘s impact on each requirement,

using a scale from Ancilliary (1) to Fundamental (4),

to illustrate its potential in ensuring compliance.

2.1 Risk Management System

The AI Act mandates a continuous and iterative pro-

cess for identifying, analyzing, and evaluating risks

associated with AI systems. It involves implement-

ing measures for risk reduction, including design con-

siderations, control measures, and providing adequate

user information.

With electricity infrastructure, risks range from

minor disruptions to catastrophic failures that can

threaten property and life. Risk management is thus

critical in smart grids and is a well-established dis-

cipline across many domains. MBSE has emerged

as an effective approach for risk management, offer-

ing comprehensive system models that capture com-

plex interconnections and interdependencies. Rele-

vant works in this area include the integration of fail-

ure mode and effects analysis (FMEA) into MBSE

for early risk mitigation by (H

unecke et al., 2023)

and the model-based assessment of security risks in

smart grids by (Neureiter et al., 2016a); moreover,

(Uluda

g et al., 2023) present a comprehensive model-

based risk management approach. MBSE‘s holistic

perspective aids in early risk detection and ongoing

management throughout a system’s lifecycle, also fa-

cilitating effective communication of risk manage-

ment strategies to stakeholders and regulatory bod-

ies. However, advancements in this ﬁeld require

further maturation of model-based risk management

approaches and the development of AI-speciﬁc risk

management and modeling methods.

2.2 Data and Data Governance

For high-risk AI applications, providers must ensure

data quality and robust data management practices.

This entails using reliable datasets for training, vali-

dation, and testing. Data management also includes

careful design choices in data collection and prepara-

tion, including annotation, cleaning, and bias exami-

nation, to guarantee datasets are relevant, representa-

tive, error-free, and complete.

This is particularly crucial as the volume and com-

plexity of data in modern ICT-heavy power grids have

increased dramatically.

With AI’s growing role in critical operations, any

data-related faults could have signiﬁcant repercus-

sions. MBSE provides an effective framework for

creating detailed digital architecture models, crucial

for modeling and managing data ﬂows. Such mod-

els are likely a suitable basis for compliance assess-

ment. For example, (Vereno et al., 2022) present an

approach for model-based assessment of data quality,

an essential compliance aspect. Moreover, the neces-

sity to model data pipelines, processing steps, and AI-

speciﬁc aspects like bias monitoring is evident. The

RAMI 4.0 Toolbox (Binder et al., 2019), closely re-

lated to SGAM Toolbox, advances this approach fur-

ther, offering a method for designing high-level infor-

mation architecture to support AI integration (Binder

et al., 2022). This work showecases the potential of

MBSE in being a highly beneﬁtial tool in ensuring

compliant data governance.

MBSE-AI Integration 2024 - Workshop on Model-based System Engineering and Artiﬁcial Intelligence

366

Table 1: Potential impact of MBSE on fulﬁlling EU AI Act requirements for high-risk applications.

Article no. Requirement name Impact of MBSE

9 Risk management systems Signiﬁcant (3)

10 Data and data governance Signiﬁcant (3)

11 Technical documentation Fundamental (4)

12 Record-keeping Ancillary (1)

13 Transparency and provision of information to users Ancillary (1)

14 Human oversight Beneﬁcial (2)

15 Accuracy, robustness, and cybersecurity Beneﬁcial (2)

2.3 Technical Documentation

AI regulation stipulates the need for comprehensive

technical documentation, crucial for both regulatory

compliance and maintaining AI solution integrity.

This documentation should be prepared before mar-

ket placement or service initiation. It must compre-

hensively capture the system’s complexity, covering

system descriptions, software architecture, and algo-

rithms. The technical documentation allows author-

ities to thoroughly assess compliance, with speciﬁc

elements detailed in Annex IV of the Act.

MBSE stands out as an inherently suitable

methodology for this purpose, with its focus on creat-

ing comprehensive models that link heterogeneous as-

pects like requirements engineering, use case descrip-

tions, and technical architecture. Despite MBSE‘s

suitability, a challenge remains in the speciﬁc area

of model-based engineering for AI. The current land-

scape, as reviewed by (Raedler et al., 2023), re-

veals a lack of a uniﬁed, widely accepted approach

to AI-speciﬁc modeling. Establishing a standardized

methodology in this area is necessary for integrating

AI more effectively into MBSE frameworks. Such

integration would not only streamline compliance ef-

forts but also enhance the efﬁcacy and reliability of

the technical documentation process, thereby ensur-

ing robust and compliant AI solutions.

2.4 Record-Keeping

High-risk AI systems must have capabilities for log-

ging operations, ensuring traceability and account-

ability in their functioning. This is particularly crucial

for monitoring performance and modiﬁcations.

Here, MBSE can offer support, although it is not a

critical or necessary component. MBSE‘s strengths

in modeling data ﬂows can facilitate the setup and

maintenance of logging and record-keeping mecha-

nisms. However, the core principles of MBSE, which

revolve around system architecture and design, do not

directly align with the primary objectives of record-

keeping. Essentially, while MBSE can contribute to

a structured approach in managing data records, its

role in this aspect of AI system compliance is more

complementary than fundamental.

2.5 Transparency and Provision of

Information to Users

Providers must establish transparency, providing

users with clear, accurate information about the sys-

tem’s capabilities, performance, limitations, and in-

tended use.

In addressing this requirement, MBSE can play a

supportive role. While not critical for this require-

ment, MBSE can help by deﬁning speciﬁc view-

points in the system model that address user con-

cerns, enhancing their understanding of the AI sys-

tem‘s functionality. These viewpoints can detail the

system’s identity, capabilities, performance character-

istics, limitations, and maintenance needs. The focus

of MBSE in this context would be on creating clear,

comprehensive views that facilitate user comprehen-

sion, thereby contributing to the overall transparency

of high-risk AI systems.

2.6 Human Oversight

High-risk AI systems must be designed for effective

human oversight. This involves integrating human–

machine interface tools to enable human operators to

intervene and override the system as needed, thereby

minimizing risks to health, safety, or rights. These

oversight measures, integral to the system’s design,

ensure that overseers can comprehend the AI’s opera-

tions and outputs, stay alert to automation biases, and

intervene effectively whenever necessary.

When operating the critical electricity infrastruc-

ture, it is crucial to ensure safe operation by having it

overseen by human operators with the ability to step

in when needed.

MBSE is particularly useful here, as it supports

the design of AI systems by clearly outlining where

and how human operators can interact and make deci-

sions. This ensures that human oversight is an integral

part of the system from the start.

Compliance by Design for Cyber-Physical Energy Systems: The Role of Model-Based Systems Engineering in Complying with the EU AI

Act

367

Leveraging this potential requires incorporating

the extensive work on human–machine interfaces and

human-in-the-loop systems into established architec-

ture frameworks. Thoroughly assessing the impact of

human oversight and intervention further necessitates

integrating human behavior models for validation and

simulation, as explored in studies like those by (Ngo

et al., 2022). The successful integration of these var-

ied advancements is crucial for the multidisciplinary

engineering of AI applications that are both safe and

compliant, under effective human supervision.

2.7 Accuracy, Robustness, and

Cybersecurity

The EU AI Act demands that high-risk AI sys-

tems must consistently exhibit high accuracy, robust-

ness, and cybersecurity throughout their lifecycle.

Providers must implement safeguards to ensure re-

silience against errors, faults, inconsistencies, and se-

curity threats. Additionally, AI systems that continue

learning post-deployment must have mechanisms to

mitigate biases resulting from feedback loops and

protect against unauthorized alterations and attacks.

This is crucial in grid operations to ensure reliabil-

ity and safety, preventing system failures and cyber-

security breaches which can have far-reaching conse-

quences.

In this context, MBSE offers a valuable approach.

It facilitates the integration of security assessments

within the system design, particularly through tools

like the SGAM Toolbox, as shown by (Neureiter

et al., 2016a). However, integrating formalisms for

accurately modeling and managing aspects such as

system robustness and bias is an area that requires fur-

ther development within MBSE. This is particularly

important for detecting and mitigating biases, espe-

cially in systems that evolve or learn over time.

3 RECOMMENDATIONS

Our analyses revealed MBSE‘s varying degrees of

impact across the seven requirements. While some as-

pects were speciﬁc to individual requirements, over-

arching trends emerged. Based on these ﬁndings, we

propose three key recommendations to enable com-

prehensive MBSE for compliance by design. These

recommendations are directed at academia, industry

practitioners, and regulatory bodies.

3.1 Integrating Mature Disciplines with

MBSE

Several areas addressed in the AI Act’s requirements

are already mature discplines, including risk manage-

ment, data governance, and human-in-the-loop sys-

tems (sections 2.1, 2.2, and 2.6). These ﬁelds are

advanced and well studied. Our analyses have high-

lighted that it is critical to utilize them collectively,

in order to not only comply with a subset of require-

ments, but all of them. Holistic MBSE approaches

present ideal crucibles in which to bring the disparate

disciplines together. Here, MBSE not only serves as a

technical tool but as a comprehensive framework for

an interdisciplinary compliance strategy.

There are two main challenges in this endeavor:

First, for each discipline, (de-facto) standards for

modeling have to be identiﬁed or established, re-

quiring in-depth knowledge of the respective indus-

try‘s best-practices and standardization. For exam-

ple, the smart-grid community—with its great need

for interdisciplinary cooperation—created the SGAM

reference architecture framework; it also converged

on a broadly used domain ontology, the Common

Information Model (Uslar et al., 2012). Second,

all such widely establish modeling approaches have

to be properly formalized and harmonized with an

established MBSE methodology. Such a harmo-

nization has to take place on a semantic, syntactic,

and tool-based level—requiring common ontologies,

data-model standards, and programming interfaces.

(Binder et al., 2021) found that in industrial engineer-

ing, simply introducing a theoretical concept—such

as the RAMI 4.0 framework—is not enough. For

practical application, it requires a formalized model-

ing approach and tool support.

3.2 Establishing a Broadly Accepted

Modeling Formalism for AI

For most of the requirements, an approach for mod-

eling AI aspects of a system are beneﬁticial. Par-

ticularly, the proper technical documentation (Sec-

tion 2.3) proving compliance to various requirements

would beneﬁt signiﬁcantly from such a modeling for-

malism. However, in the domain of model-driven

AI engineering there is a noticeable lack of an estab-

lished, widely-accepted methodology; rather, the ﬁeld

is characterized by a variety of disparate appraoches

(Raedler et al., 2023). The lack of standardization not

only hinders compliance efforts but also affects the

overall quality and robustness of AI systems. This

situation underscores the urgent need for the commu-

nity to converge on a small set of standardized for-

MBSE-AI Integration 2024 - Workshop on Model-based System Engineering and Artiﬁcial Intelligence

368

Community of MBSE

researchers and practitioners

Community of AI

researchers and practitioners

Regulatory bodies and

governmental agencies

2. Establishing a Broadly

Accepted Modeling

Formalism for AI

1. Integrating Mature

Disciplines with

MBSE

3. Creating a Standardized

Method for Compliance

Assessment

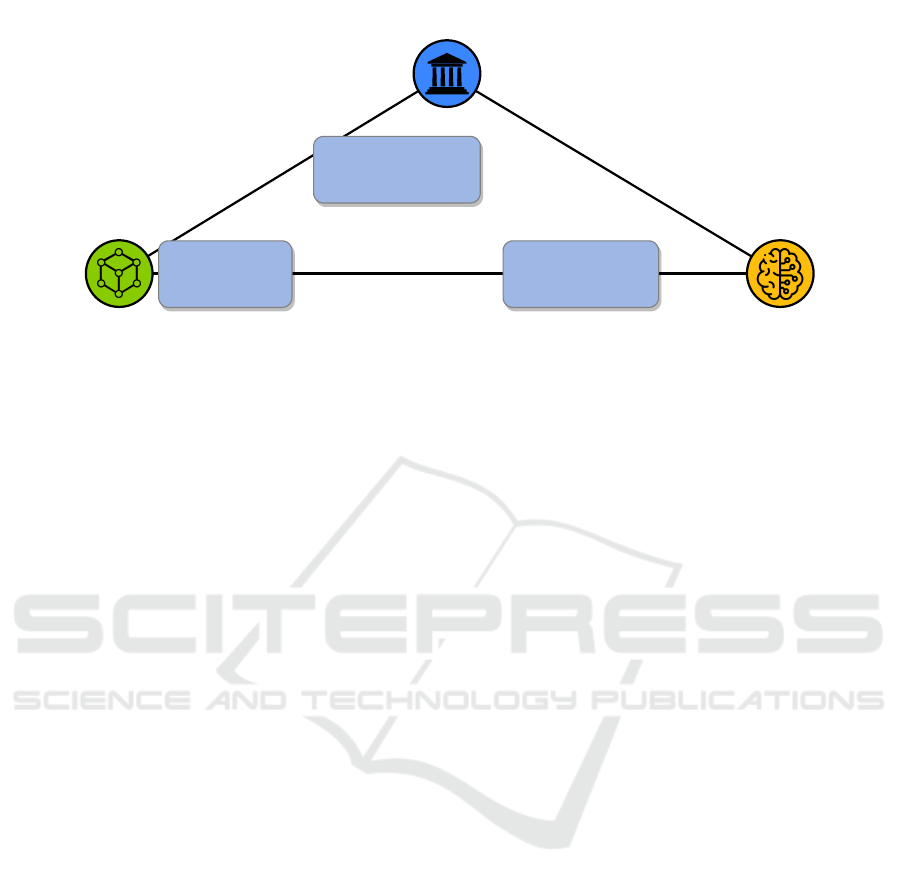

Figure 1: Recommendations addressing MBSE and AI communities, and regulatory bodies.

malisms for AI description, which would then be in-

tegrated into broader MBSE methodologies. These

formalisms should include aspects of explainable AI

to ensure transparency and accountability in AI sys-

tem design. Such consolidation would facilitate the

detailed description of AI models, including aspects

like hyper-parameterization, optimization goals, per-

formance metrics, and bias monitoring, making it a

pivotal step towards a more uniﬁed and effective ap-

proach to AI system design and assessment.

3.3 Creating a Standardized Method for

Compliance Assessment

Looking into the potential impact of MBSE for as-

suring compliance has shown that there is a variety

of approachs for using models to assess various sys-

tem characteristics—e.g. risk, cybersecurity, and data

quality. There is great potential in using comprehen-

sive models to assess compliance. On the one hand, it

enables compliance by design from the earliest stages

of application development. On the other hand, it

allows veriﬁcation post-implementation, which is es-

sential for regulatory agencies in charge of assessing

adherence to the AI Act. Therefore, a standardized

method for assessing compliance based on a model-

based technical documentation is needed, including

processes, guidelines, and tools. This necessitates

collaborative efforts between academia, industry, and

government to establish a clear, structured compli-

ance assessment process. Standardizing compliance

assessment methods will streamline audits and im-

prove transparency, aiding providers to meet regula-

tory standards and to avoid penalties. It further offers

regulatory bodies an efﬁcient tool for assessing com-

pliance in a continuous and cost-effective way.

4 CONCLUSIONS

AI is a signiﬁcant driver in the modernization of

power grids. To use this technology in the European

energy infrastructure, it must be compliant with the

EU AI Acts requirements for high-risk AI applica-

tions. The paper explores how the promising MBSE

paradigm can enable developing such applications in

way that ensures compliance by design. Our analy-

ses underline that MBSE’s inherent strengths make it

an ideal tool for meeting the AI Act’s requirements,

especially in technical documentation, risk manage-

ment, and data governance. MBSE shows immense

potential in some areas, while in others, it likely plays

a more supportive rather than a fundamental role.

The study highlights the need for action from the

MBSE community, AI researchers and practitioners,

as well as regulatory bodies. First, it is crucial to in-

tegrate well-established and mature disciplines with

MBSE for comprehensive development. Second, the

AI community must converge on a broadly accepted

AI modeling formalism. Finally, a joint effort is

needed to establish a standardized method for model-

based compliance assessment. In conclusion, MBSE

stands out as a key enabler for developing innovative

yet compliant high-risk AI applications in smart grids.

However, realizing this potential requires collabora-

tive and interdisciplinary efforts to align advanced en-

gineering practices with regulatory standards.

ACKNOWLEDGEMENTS

The ﬁnancial support by the Austrian Federal Min-

istry for Digital and Economic Affairs and the Na-

tional Foundation for Research, Technology and De-

Compliance by Design for Cyber-Physical Energy Systems: The Role of Model-Based Systems Engineering in Complying with the EU AI

Act

369

velopment and the Christian Doppler Research As-

sociation as well as the Federal State of Salzburg is

gratefully acknowledged.

REFERENCES

Ali, S. S. and Choi, B. J. (2020). State-of-the-art artiﬁcial

intelligence techniques for distributed smart grids: A

review. Electronics, 9(6).

Binder, C., Neureiter, C., Lastro, G., Uslar, M., and Lieber,

P. (2019). Towards a standards-based domain speciﬁc

language for industry 4.0 architectures. In Bonjour,

E., Krob, D., Palladino, L., and Stephan, F., editors,

Complex Systems Design & Management, pages 44–

55, Cham. Springer International Publishing.

Binder, C., Neureiter, C., and L

uder, A. (2022). Towards a

domain-speciﬁc information architecture enabling the

investigation and optimization of ﬂexible production

systems by utilizing artiﬁcial intelligence. The In-

ternational Journal of Advanced Manufacturing Tech-

nology, 123(1–2):49–81.

Binder, C., Neureiter, C., and L

uder, A. (2021). Towards

a domain-speciﬁc approach enabling tool-supported

model-based systems engineering of complex indus-

trial internet-of-things applications. Systems, 9(2).

European Commission (2021). Proposal for a Regulation

of the European Parliament and of the Council

laying down harmonised rules on Artiﬁcial Intel-

ligence (Artiﬁcial Intelligence Act) and amending

certain Union legislative acts. https://digital-

strategy.ec.europa.eu/en/library/proposal-regulation-

laying-down-harmonised-rules-artiﬁcial-intelligence-

artiﬁcial-intelligence.

Farhangi, H. (2010). The path of the smart grid. IEEE

Power and Energy Magazine, 8(1):18–28.

unecke, P., Binder, C., Hoffmann, D., L

uder, A., and

Neureiter, C. (2023). Facilitating fmea investigation

of industrial systems during basic engineering with

rami 4.0. In 2023 IEEE 28th International Confer-

ence on Emerging Technologies and Factory Automa-

tion (ETFA), pages 1–7.

INCOSE (2007). Systems Engineering Vision 2020. Tech-

nical Report INCOSE-TP-2004-004-02, International

Council on Systems Engineering.

Lopes, A., Lezama, R., and Pineda, R. (2011). Model based

systems engineering for smart grids as systems of sys-

tems. Procedia Computer Science, 6:441–450. Com-

plex adaptive sysytems.

Neureiter, C., Binder, C., and Lastro, G. (2020). Review

on domain speciﬁc systems engineering. In 2020

IEEE International Symposium on Systems Engineer-

ing (ISSE), pages 1–8.

Neureiter, C., Eibl, G., Engel, D., Schlegel, S., and Uslar,

M. (2016a). A concept for engineering smart grid se-

curity requirements based on sgam models. Computer

Science - Research and Development, 31(1):65–71.

Neureiter, C., Uslar, M., Engel, D., and Lastro, G. (2016b).

A standards-based approach for domain speciﬁc mod-

elling of smart grid system architectures. In 2016 11th

System of Systems Engineering Conference (SoSE),

pages 1–6.

Ngo, S., DeAngelis, D., and Garcia, L. (2022). Model-

ing human-cyber interactions in safety-critical cyber-

physical/industrial control systems. In 2022 IEEE

19th International Conference on Mobile Ad Hoc and

Smart Systems (MASS), pages 716–717.

Raedler, S., Berardinelli, L., Winter, K., Rahimi, A., and

Rinderle-Ma, S. (2023). Model-driven engineering for

artiﬁcial intelligence – a systematic literature review.

Smart Grid Coordination Group (2012). Smart

grid reference architecture. Technical report,

CEN/CENELEC/ETSI, Brussels, Belgium.

Uluda

g, Y., Evin, E., and G

urb

uz, N. G. (2023). Integra-

tion of systems design and risk management through

model-based systems development. Systems Engi-

neering, 26(1):48–70.

Uslar, M., Rohjans, S., Neureiter, C., Pr

ostl Andr

en, F.,

Velasquez, J., Steinbrink, C., Efthymiou, V., Migli-

avacca, G., Horsmanheimo, S., Brunner, H., and

Strasser, T. I. (2019). Applying the smart grid archi-

tecture model for designing and validating system-of-

systems in the power and energy domain: A european

perspective. Energies, 12(2).

Uslar, M., Specht, M., Rohjans, S., Trefke, J., and

Vasquez Gonzalez, J. M. (2012). The Common In-

formation Model CIM: IEC 61968/61970 and 62325 -

A practical introduction to the CIM. Springer Berlin

Heidelberg.

Vereno, D., Polanec, K., and Neureiter, C. (2022). Evaluat-

ing and improving model-based assessment of contex-

tual data quality in smart grids. In 2022 IEEE Power

& Energy Society Innovative Smart Grid Technologies

Conference (ISGT), pages 1–5.

MBSE-AI Integration 2024 - Workshop on Model-based System Engineering and Artiﬁcial Intelligence

370
