Embracing Uniﬁcation: A Comprehensive Approach to Modern Test

Case Prioritization

Andreea Vescan

, Radu G

aceanu

and Arnold Szederjesi-Dragomir

Computer Science Department, Faculty of Mathematics and Computer Science,

Babes¸-Bolyai University, Cluj-Napoca, Romania

Keywords:

Regression Testing, Test Case Prioritization, Uniﬁcation, Requirements, Test Cases, Faults.

Abstract:

Regression testing is essential for software systems that undergo changes to ensure functionality and identify

potential problems. It is crucial to verify that modiﬁcations, such as bug ﬁxes or improvements, do not affect

existing functional components of the system. Test Case Prioritization (TCP) is a strategy used in regres-

sion testing that involves the reordering of test cases to detect faults early on with minimal execution cost.

Current TCP methods have investigated various approaches, including source code-based coverage criteria,

risk-based, and requirement-based conditions. However, to our knowledge, there is currently no comprehen-

sive TCP representation that effectively integrates all these inﬂuencing aspects. Our approach aims to ﬁll this

gap by proposing a comprehensive perspective of the TCP problem that integrates numerous aspects into a

uniﬁed framework: traceability information, context, and feature information. To validate our approach, we

use a synthetic dataset that illustrates six scenarios, each with varying combinations of test cases, faults, re-

quirements, execution cycles, and source code information. Three methods, Random, Greedy, and Clustering,

are employed to compare the results obtained under various time-executing budgets. Experiment results show

that the Clustering method consistently outperforms Random and Greedy across various scenarios and bud-

gets.

1 INTRODUCTION

Regression testing is a crucial aspect of software qual-

ity assurance, designed to verify that the software

continues to function correctly after modiﬁcations. It

involves reexecuting test cases from a test suite to

ensure that previously developed and tested software

still performs as expected after changes such as en-

hancements, patches, or conﬁguration changes. How-

ever, given that software projects often operate un-

der time and resource constraints, executing the en-

tire test suite is often impractical. This has led to

the development of regression test selection strate-

gies, with the aim of identifying a subset of the test

suite that is likely to detect potential faults, while min-

imizing the cost of testing (Engstr

om et al., 2010).

Despite its practical importance, regression testing re-

mains a challenging task due to its inherent trade-off

between effectiveness and efﬁciency, as well as dif-

ﬁculties in accurately capturing the dependencies in

https://orcid.org/0000-0002-9049-5726

https://orcid.org/0000-0002-0977-4104

https://orcid.org/0000-0002-1106-526X

complex software systems. There is an increase in the

number of publications (Singh et al., 2023) related to

it, the main publication fora being conferences, fol-

lowed by journals. Thus, the regression testing prob-

lem is worth exploring, being an omnipresent one dur-

ing the software development life cycle. It is essential

to ﬁnd efﬁcient and effective test case executions with

the aim of obtaining higher qualitative systems.

Regression test selection techniques are classiﬁed

by researchers (Yoo and Harman, 2010) into three

types: Test Suite Minimization (TSM), Test Case Se-

lection (TCS), and Test Case Prioritization (TCP).

Testing was mainly centered on structural coverage

as in the study (Rothermel et al., 1999), few investi-

gations (Salehie et al., 2011), (Srikanth et al., 2016)

considered the relations between functional require-

ments and faults, and fewer examined dependencies

between requirements. Test Case Prioritization is an

essential strategy in regression testing with the aim of

ordering test cases so that the most important ones

are executed ﬁrst, detecting potential defects early

in the testing process. Testing was mainly centered

on structural coverage as in the study (Rothermel

396

Vescan, A., G

aceanu, R. and Szederjesi-Dragomir, A.

Embracing Uniﬁcation: A Comprehensive Approach to Modern Test Case Prioritization.

DOI: 10.5220/0012631000003687

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2024), pages 396-405

ISBN: 978-989-758-696-5; ISSN: 2184-4895

et al., 1999), few investigations (Salehie et al., 2011)

considered the relations between functional require-

ments and faults, and fewer examined dependencies

between requirements.

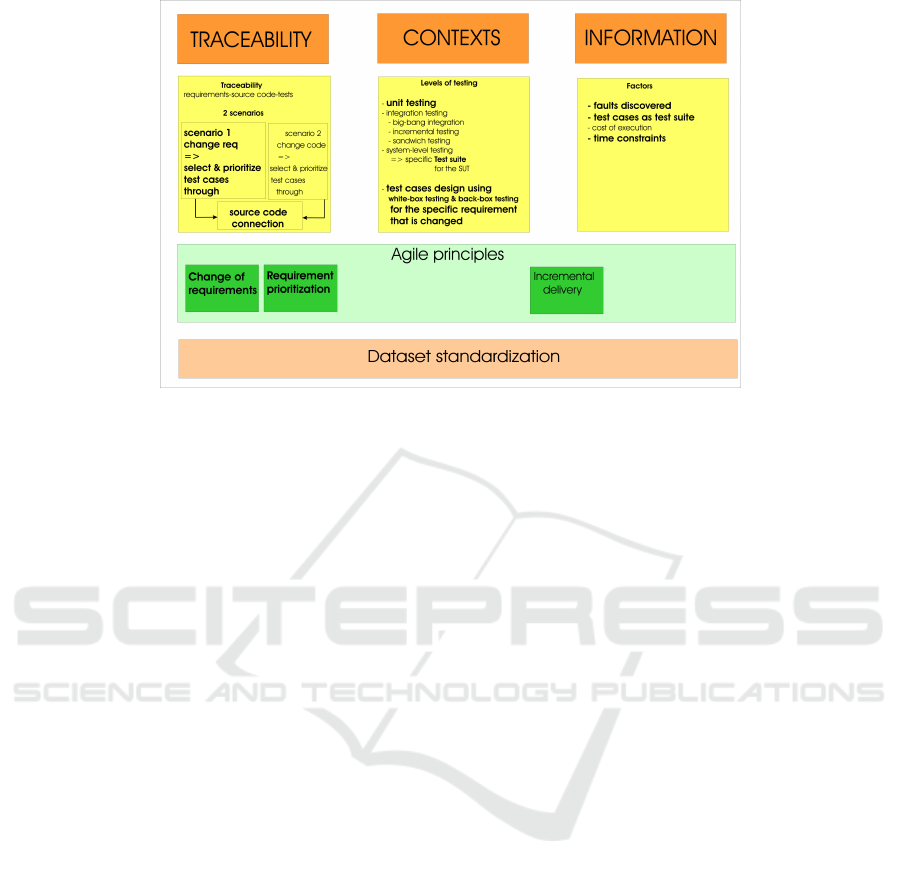

In this paper, we propose a modern testing per-

spective of the Test Case Prioritization problem by

outlining inﬂuencing factors on the design of the

TCP, with particular applied contexts and adequate

applied methods. First, we proposed the use of re-

quirements and the connection to the source code and

implemented test cases. These traceabilities, namely,

requirements-to-code and code-to-test cases, will al-

low the two different actions to be operationalized

when a change occurs: if a requirement is changed

(or improved), this should trigger the test cases as-

sociated with it through the source code; and if the

change occurs in the source code, this should trigger

again the associated test cases. Second, the context

when applying TCP may inﬂuence the decision on

the approach used, that is, the test suite being part of a

unit test set, an integration test set, or a system test set.

Third, the available information on the system under

test (SUT) and the associated artifacts, namely, faults,

test cases, time constraints, inﬂuence the decision on

what method to be used to maximize the detection of

potential faults while minimizing the execution cost.

Moreover, we have proposed a synthetic dataset with

various information available and discussed the solu-

tions for 6 different scenarios using 3 methods to con-

struct the TCP solution.

The paper is organized as follows:

Section 2 outlines the context of the investiga-

tion, along with the motivation, TCP background, and

state-of-the-art approaches. Our uniﬁed approach to

modern TCP is outlined in Section 3, while the case

study with the synthetic dataset and the 6 scenarios

for building TCP solutions are provided in Section

4. The potential impact on researchers and practition-

ers is provided in Section 5. Section 6 discusses the

threats to validity with respect to the investigation of

the research. The last section concludes our investi-

gation and also provides a future research agenda.

2 THEORETICAL BACKGROUND

ABOUT TEST CASE

PRIORITIZATION

This section presents relevant theoretical and tech-

nical background elements, starting with the context

and the motivation behind this research and continu-

ing with the theoretical elements of Test Case Priori-

tization and related work.

2.1 Context and Motivation

The Software Development Life Cycle (SDLC)

(Burnstein, 2010) is a process used by the software

industry to design, develop and test high-quality soft-

ware. It consists of a detailed plan describing how to

develop, maintain, replace, and alter or enhance spe-

ciﬁc software. The process is divided into different

phases, each phase having its speciﬁc goals and de-

liverables.

The traditional SDLC, often referred to as the Wa-

terfall model, has the following stages: Requirements

Gathering and Analysis, System Design, Implementa-

tion, Integration and Testing, Deployment, and Main-

tenance. The Waterfall model follows a strict top-

down approach, with each phase being entirely com-

pleted before the next one begins and not having the

possiblity to return to a previous phase, thus changes

are difﬁcult to implement once the project is under-

way. Agile development was introduced as a response

to the drawbacks of the Waterfall model and other tra-

ditional software development methodologies. It ap-

proaches software development in incremental cycles,

allowing more ﬂexibility, collaboration, and adapt-

ability. The Agile SDLC model follows the same

steps as traditional SDLC, but the execution of these

stages is fundamentally different. Instead of a sequen-

tial design process, the Agile methodology follows an

incremental approach. Developers start with a sim-

plistic project design and then begin working on small

modules.

The traditional SDLC, often referred to as the Wa-

terfall model, strictly follows a sequence of stages

from Requirements Gathering to Maintenance, with

no room for revisiting completed phases. This rigidity

can make changes challenging once the project starts.

Agile methodologies, developed in response to these

issues, adopts an incremental cycle approach to soft-

ware development, promoting ﬂexibility and collabo-

ration. Although the Agile SDLC model has the same

stages as Waterfall, its execution differs, focusing on

starting with a simple design and progressively work-

ing on small modules.

In February 2001, an Agile Manifesto (Apke,

2015) was drafted and signed. It is short, less than

500 words in length, and simply contains a set of

four values and 12 Agile principles. The core val-

ues are: individuals and interactions over processes

and tools, working software over comprehensive doc-

umentation, customer collaboration over contract ne-

gotiation, and responding to change over following a

project plan. The principles are related to these val-

ues and deﬁnes some guidelines on how to collaborate

with customers and respond to changes efﬁciently.

Embracing Uniﬁcation: A Comprehensive Approach to Modern Test Case Prioritization

397

Agile methodologies offer several improvements

on handling requirements compared to traditional wa-

terfall methodologies: Flexibility and Adaptability -

allow for changes in requirements at any point in the

project, Frequent Inspection and Adaptation - em-

phasize frequent inspection and adaptation, which al-

lows the team to adjust requirements as needed, and

to immediately address any issues or changes, Cus-

tomer Involvement - promote close customer col-

laboration, meaning that requirements can be clari-

ﬁed, validated, and adjusted continuously based on

customer feedback, Prioritization - requirements are

typically prioritized based on value, risk, and neces-

sity, allowing the most important features to be de-

veloped ﬁrst, Incremental Delivery - deliver soft-

ware in small, functional increments. This allows the

team to gather feedback and adapt requirements as the

project progresses, rather than attempting to deﬁne all

requirements upfront.

Agile methodologies enhance requirement han-

dling via: Flexibility and Adaptability, enabling

changes throughout the project; Frequent Inspection

and Adaptation, allowing constant requirement mod-

iﬁcations; Customer Involvement, promoting continu-

ous feedback-based requirement adjustments; Priori-

tization, based on value, risk, and necessity to develop

essential features ﬁrst; and Incremental Delivery, sup-

porting feedback and adaptation through regular in-

crements of functional software.

Some of the Agile methodologies used are: Scrum

(Schwaber and Sutherland, 2017), Kanban (An-

derson, 2010), Extreme Programming (XP) (Beck,

2000), and Lean (Poppendieck and Poppendieck,

2003) software development.

A new way of handling customer functionality

speciﬁcations has also emerged: user stories, tradi-

tionally refer to a detailed speciﬁcation of what a sys-

tem should do. They are usually more formal and

technical in nature. In traditional waterfall method-

ologies, these are often written up front and then

handed off to the development team. They may in-

clude functional requirements (what the system must

do), non-functional requirements (qualities the sys-

tem must have, like performance or security), and

constraints (limits on the design of the system). , on

the other hand, are a tool used in Agile methodolo-

gies to represent a small, independent piece of busi-

ness value that a team can deliver. A user story is

usually written from the perspective of an end user

and describes a piece of functionality that is valu-

able to that user. User stories are intentionally written

in a less formal and more conversational language.

The classic format of a user story is “As a [type of

user], I want [an action] so that [a beneﬁt or value]”.

They are often accompanied by acceptance criteria

that deﬁne the boundaries and expectations of the

story. Although both user stories and requirements

aim to guide the development process, the key differ-

ences between them are in their format, their level of

detail, and how they are used in the development pro-

cess.

As we can observe, the introduction of Agile

methodologies radically changed SDLC, and while

TCP has already seen some small adaptations, we be-

lieve that further reﬁnements are needed. We need a

way to address the different ways of describing func-

tionalities, frequent changes to them, prioritization

and reprioritization of given features, and incremental

delivery which, although does not have a direct im-

pact on test cases, but because of resource constraints

(especially time, but maybe computing resources too)

it can inﬂuence how we prioritize our tests.

To conclude, the shift to Agile methodologies has

signiﬁcantly impacted SDLC, and while TCP has al-

ready seen some small adaptations, we believe that

further reﬁnements are needed. We need to address

the different ways of describing functionalities, the

frequent changes to them (change of requirements),

prioritization and reprioritization of given features

(requirement prioritization), and incremental de-

livery, which can inﬂuence the way we prioritize our

tests.

2.2 Test Case Prioritization Background

There are many ways to deﬁne Test Case Prioritiza-

tion (TCP), but no one deﬁnition covers all the re-

quirements, contexts, and information that play a part

in or can affect this process. According to (Graves

et al., 1998), the Test Case Prioritization problem can

be formally deﬁned as follows:

Deﬁnition 1. Test Case Prioritization (Graves et al.,

1998): a test suite, T, the set of permutations of T, PT;

a function from PT to real numbers, f. The goal is to

ﬁnd T ∈ PT such that:

(∀T

′′

)(T

′′

∈ PT )(T

′′

̸= T

′

)[ f (T

′

) ≥ f (T

′′

)] (1)

In Deﬁnition 1, the function f assigns a real value

to a permutation of T according to the test adequacy

of the particular permutation.

Since this deﬁnition lacks time constraints for ex-

ecuting test suites, Time-limited Test Case Prioriti-

zation (TTCP) is used in papers like (Spieker et al.,

2017) and (Vescan et al., 2023b) in order to enhance

the TCP problem by adding this constraint. TCP was

associated with improvement testing in (Juristo and

Moreno, 2004), with the aim of increasing the fault

detection rate or decreasing the cost and time of the

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

398

prioritization process. The authors emphasize that

even if TCP is mainly applied for regression testing,

it can also be applied at the initial phase of testing or

even for software maintenance. A deﬁnition of TCP

that considers requirements and dependencies in the

prioritization process was proposed in (Vescan et al.,

2021). In (Paterson et al., 2019), the authors employ

the use of defect prediction for TCP. Consequently,

given the diverse range of existing TCP approaches,

each addressing different facets of the various con-

textual components involved in the TCP process, it

becomes important to establish a uniﬁed framework

for TCP. This comprehensive approach would ensure

consistency and clarity among the ways researchers

tackle this complex process.

In order to evaluate the effectiveness of a TCP

approach, several metrics are proposed. For exam-

ple, APFD (Average Percentage of Faults Detected)

(Pradeepa and VimalDevi, 2013) measures the effec-

tiveness of a test suite in detecting faults as early as

possible during the testing process and is deﬁned as

follows:

APFD = 1 −

∑

i=1

T F

n × m

(2)

where: T F

is the position of the ﬁrst test case that

detects the i-th fault, m is the total number of faults

detected by the test suite and n is the total number of

test cases.

An extension of APFD to incorporate the fact that

not all test cases are executed and failures can be

undetected is the Normalized APFD (NAPFD) (Qu

et al., 2007):

NAPFD = p −

∑

i=1

T F

n × m

2 × n

(3)

where p is the number of faults detected by the pri-

oritized test suite divided by the number of faults de-

tected in the entire test suite. Variations of the afore-

mentioned metrics include, for example, incorporat-

ing weights associated with the faults based on their

severity.

2.3 State of the Art on Test Case

Prioritization

Test case selection and prioritization is an inten-

sively investigated topic in the literature, and it has

been approached in several ways by addressing dif-

ferent optimization goals and by using a plethora of

techniques in doing so (Pan et al., 2022; Bertolino

et al., 2020; Khalid and Qamar, 2019; Kandil et al.,

2017; Almaghairbe and Roper, 2017; Medhat et al.,

2020). According to the machine learning tech-

nique involved, test case selection and prioritization

studies could be classiﬁed into the following cate-

gories: supervised learning, unsupervised learning,

reinforcement learning, and natural language process-

ing (Pan R., 2022).

Recent studies apply reinforcement learning (RL)

techniques to Test Case Prioritization (TCP) in Con-

tinuous Integration (CI) due to the ability of RL to

adapt to the dynamic nature of CI without need for

full retraining. Once trained, the RL agent can eval-

uate a test case, assign it a score, and use that score

to order or prioritize the test cases. Although most

of the RL studies consider only the execution history

to train their agent, we have found one study, namely

(Bertolino et al., 2020), where, in addition to the ex-

ecution history, code complexity metrics have also

been used. In their very comprehensive research pa-

per, the authors (Bertolino et al., 2020) evaluate and

compare 10 machine learning algorithms, focusing on

the comparison between supervised learning and re-

inforcement learning for the Test Case Prioritisation

(TCP) problem. Experiments are performed on six

publicly available datasets, and based on the results,

the authors propose several guidelines for applying

machine learning to regression testing in Continuous

Integration (CI).

In (Bertolino et al., 2020), the authors also

propose some new metrics (Rank Percentile Aver-

age (RPA) and Normalized-Rank-Percentile-Average

(NRPA)) to evaluate how close a prediction ranking

is to the optimal one. Unfortunately, in (Pan R.,

2022) it is explained in detail that the NRPA met-

ric is not always suitable. Nevertheless, the paper

from (Bertolino et al., 2020) remains a very thorough

and elaborate research study, and the authors from

(Pan R., 2022) include it in a short list of research

papers that are actually reproducible.

The main idea of clustering in the TCP context is

the assumption that test cases with similar character-

istics, such as coverage and other attributes, are likely

to have comparable fault detection abilities. Many

articles, such as, for example, (Khalid and Qamar,

2019) utilized the K-means algorithm or variations of

the K-means algorithm. The Euclidean distance is the

most commonly used similarity measure in cluster-

ing, but there are some attempts to use other similar-

ity measures, like the Hamming distance. The paper

of (Kandil et al., 2017) is an example in this sense. In

this study, the authors represent coverage information

for a test case as binary strings, where each bit indi-

cates whether or not a source code element has been

covered by a test. An interesting approach is proposed

in (Almaghairbe and Roper, 2017) where the authors

use clustering for anomaly detection of passing and

failing executions. The key idea is that failures tend

Embracing Uniﬁcation: A Comprehensive Approach to Modern Test Case Prioritization

399

to be grouped into small clusters, while passing tests

will group into larger ones, and their experiments sug-

gest that their hypothesis is valid.

Supervised learning is probably one of the most

commonly used ML techniques to address TCP as a

ranking problem. Speciﬁcally, these techniques typ-

ically use one of three distinct ranking models for

information retrieval: pointwise, pairwise, and list-

wise ranking. In (Bertolino et al., 2020), the au-

thors used a state-of-the-art ranking library (Dang and

Zarozinski, 2020) and evaluated the effectiveness of

Random Forest (RF), Multiple Additive Regression

Tree (MART), L-MART, RankBoost, RankNet, Coor-

dinate ASCENT (CA) for TP. Their results show that

(MART) is the most accurate model. Although su-

pervised learning can achieve high accuracy, a major

issue is that a full dataset should be available before

training. In order to support incremental learning, the

model often needs to be rebuilt from scratch, which is

time-intensive and hence not quite ideal for CI.

The use of NLP seems quite limited. The core mo-

tivation to apply NLP techniques is to exploit infor-

mation in textual software development artifacts (e.g.,

bug description) or source code that is treated as tex-

tual data. In general, the idea is to transform test cases

into vectors and then to compute the distance between

pairs of test cases. The test cases are then prioritized

using different strategies. An interesting approach is

proposed in (Medhat et al., 2020), where NLP is used

to preprocess the speciﬁcations that describe the com-

ponents of the system under test. Then they used re-

current neural networks to classify the speciﬁcations

into the following components: user device, proto-

cols, gateways, sensors, actuators, and data process-

ing. On the basis of this classiﬁcation, test cases be-

longing to these standard components were selected.

Then, they used search-based approaches (genetic al-

gorithms and simulated annealing) to prioritize the se-

lected test cases.

3 THE UNIFIED APPROACH TO

MODERN TCP

Our disrupted proposal for the Test Case Prioritization

problem is outlined next. We discuss the factors that

inﬂuence it, namely, considering traceability informa-

tion, emphasizing the used contexts, the applied meth-

ods, and the available information. Figure 1 shows the

main elements of the TCP problem that we consider.

3.1 Traceability Perspective

The ﬁrst aspect related to the TCP uniﬁcation ap-

proach refers to traceability. In this regard, two of

the aspects presented above related to the Agile per-

spective are included, namely, change of requirements

and requirement prioritization.

The aspect related to the change of requirements

is explained. To consider it, we propose using re-

quirements and the link to the source code and to

the test cases. These connections allow two dif-

ferent actions to be performed when a change oc-

curs: a change in requirements triggers the associated

test cases through the connection with source code,

and a change in source code triggers the linked test

cases. In this second action, further analysis could

be performed to identify requirements that are dif-

ﬁcult to implement. Several previously investigated

approaches use the change of requirements aspect as

in (Tiutin and Vescan, 2022). Three other considera-

tions are next discussed:

• We propose to include a probability of change for

a requirement, thus having more test cases for a

requirement that is likely to change often (and also

consider the proper design of the test cases such

that no test smells exist). Therefore, the impact on

the designed and implemented test cases should

be considered.

• Dependencies between requirements play an im-

portant role in the regression testing process and

the method used.

• Another important aspect regarding requirement

- test case traceability refers to the way the con-

nection is considered: from 0, 1 to whether the re-

quirement is implemented in the test case or not,

to a degree of membership. Thus, a test case may

partially cover a requirement.

The second view regarding traceability refers to

the requirement prioritization, meaning that some re-

quirements are prioritized in the development pro-

cess, which requires consistent testing. In this re-

spect, using the dependencies between requirements,

when a change is performed in one of the prioritized

requirements, not only directly associated test cases

should be executed, but also the requirements that

are dependent on. This aspect remains to be further

analyzed, depending on the tested context (unit test-

ing, incremental testing, or system testing), determin-

ing whether to store the speciﬁc element or compute

based on the available information.

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

400

Figure 1: Overview of the approach.

3.2 Contexts Perspective

The second aspect related to the TCP uniﬁcation ap-

proach refers to the contexts of testing, more speciﬁ-

cally to the level of testing, namely, the type of test

cases in the test suite: unit tests, integration tests,

system-level tests. We argue that the type of test cases

may inﬂuence the method used to prioritize them.

When a change is made on a speciﬁc source code,

it may be the case to just run the unit tests associ-

ated with that functionality; however, when changing

a source code part, depending on the associated re-

quirements, it may be the case that an end-to-end test

case suite should be executed. This is included as part

of the incremental delivery from the Agile perspec-

tive.

3.3 Information Perspective

The third aspect related to the TCP uniﬁcation ap-

proach, which is still related to the Agile perspective

on the incremental delivery, refers to the available in-

formation, such as faults, cost of execution, time con-

straints, cycles runs, and so on.

The available information on the system under

test (SUT) and the associated artifacts, namely, faults,

test cases, time constraints, inﬂuence the decision on

what method to use to maximize the detection of po-

tential faults while minimizing the execution cost.

There is a need for the uniﬁcation for the TCP prob-

lem, deﬁning the theoretical framework (input and

output as available information, the context of testing)

that plays a role in the decision of the method used

to prioritize (artiﬁcial intelligence methods as, for ex-

ample, genetic algorithms, nature-inspired algorithms

such as ant colony systems, or machine learning algo-

rithms as random forest). Thus, the theoretical frame-

work is common, but the applied method varies de-

pending on the available information and context.

3.4 Scenario Example

Considering each perspective as outlined in Figure 1,

a scenario may consider the requirement changes in

the context of unit testing with information regarding

test cases, faults, and time constraint (execution bud-

get) to execute regression testing. Another scenario

might be when the requirements are not available but

the results of test case execution in various cycles in

the continuous integration environments are available.

Therefore, we advocate that the investigation of

TCP should consider the traceability requirement-

code-test-fault, the context, and the available infor-

mation on the SUT.

Furthermore, a particular general dataset is needed

for scientiﬁc research on the best TCP approaches. As

stated above, there exist various datasets (Software-

artifact Infrastructure Repository (SIR) (SIR, nd), De-

fect4J (Just et al., 2014), JTeC (JTeC, nd), GitHub-

based mining repositories (GitHub, nd)) constructed

with speciﬁc information about the system under test.

Standardization of the dataset format is needed to fa-

cilitate the research of various proposals in the same

context. Various standardizations may exist depend-

ing on the context of testing, namely, testing level and

available information on the SUT.

Embracing Uniﬁcation: A Comprehensive Approach to Modern Test Case Prioritization

401

4 CASE STUDY

A synthetic dataset was constructed as provided in Ta-

ble 1 containing the information between test cases,

requirements and faults, the relationship between test

cases and source code, and the links between test

cases and cycles, and test case duration.

The synthetic dataset was constructed to be used

for the initial evaluation of our proposal considering

all the perspectives outlined above about TCP: trace-

ability, context, and available information. In building

the dataset we have used various information from the

existing datasets such as Software-artifact Infrastruc-

ture Repository (SIR) (SIR, nd), Defect4J (Just et al.,

2014), JTeC (JTeC, nd), GitHub-based mining repos-

itories (GitHub, nd).

For requirements and source code we considered

value 1 if the test case is connected to the speciﬁc

requirement or source code. For faults, we considered

1 if the test case failed, and thus found the speciﬁc

fault. The meanings in the cycles column are: 0 if the

test case was not run in those speciﬁc cycles, 0.5 if it

was run but with pass, and 1 when the test case was

run with a fail result.

In what follows, we will present the results ob-

tained in various scenarios, having different informa-

tion available as described in Table 2.

The scenarios are:

• Scenario 1 (S1): test cases and faults,

• Scenario 2 (S2): test cases, faults, and require-

ments, along with the speciﬁc requirements that

were changed,

• Scenario 3 (S3): test cases, faults, and the verdict

of the last cycle,

• Scenario 4 (S4): test cases, faults, and cycles,

namely, the rounded average verdict cycle,

• Scenario 5 (S5): test cases, faults, requirements,

and cycles,

• Scenario 6 (S6): test cases, faults, source code,

and cycles, namely, the rounded average verdict

cycle.

The methods used for the experiments are:

• Random: a random generation of the test case is

performed.

• Greedy: test cases are selected ﬁrst based on the

faults and then based on the other speciﬁc condi-

tions as in each scenario.

• Clustering (G

aceanu et al., 2022): test cases are

added in different clusters based on the fault ca-

pabilities and based on each scenario-based con-

ditions.

The metric used for the evaluation is the NAPFD

(Qu et al., 2007), however, for each scenario, different

information is incorporated into the formula. For ex-

ample, in the requirements-based scenario, the faults

that are considered are those linked to the require-

ments that are changed.

The TCP solutions obtained for each employed

method are provided in Table 3. The experiments

were performed with various time budget conﬁgura-

tions, from 10 to 100. The majority of the best results

obtained are for the Clustering method for almost all

budgets. The best results are in bold in Table 3.

The obtained solutions for Greedy and Clustering

are provided at this link along with the dataset (Ves-

can et al., 2023a). We present here, due to space lim-

itation, only the solutions for the scenario S5 for bud-

get 50, for Greedy and Clustering.

The Greedy solution is: [10, 11, 5, 1, 9, 12, 13, 6,

3, 2, 15, 16, 7, 17, 4, 8, 14]. For the Clustering so-

lution, the clusters are also emphasized: [1, 5], [11],

[10, 12], [13, 9], [15], [14, 4, 8, 17, 7], [6, 16, 2, 3].

The analysis reveals that while the Greedy solution

identiﬁes the correct test cases sooner than the Clus-

tering solution, it overlooks the duration of these tests.

In contrast, the Clustering solution incorporates all

relevant information, including test duration, thereby

offering a more comprehensive and balanced solution.

5 POTENTIAL IMPACT ON

RESEARCHERS AND

PRACTITIONERS

The article has the potential to disrupt current practice

on regression testing, more speciﬁcally on test case

prioritization. This section details the implications of

our contributions for both researchers and practition-

ers.

For the academic community, our study offers a

new perspective on the problem of prioritizing test

cases. We introduce a framework that uniﬁes the com-

ponents that are involved in TCP like artifact trace-

ability, context (e.g. unit testing, integration testing,

etc.), and information (e.g. faults, execution costs,

etc.). In our experiments, we investigate several sce-

narios that demonstrate the beneﬁts of a comprehen-

sive approach to TCP.

For professionals in the ﬁeld, our method could be

integrated into their regression testing workﬂows. Im-

plementing our approach as a plugin in the Integrated

Development Environment (IDE), for example, could

save signiﬁcant time otherwise spent on manual test

case selection after code changes take place. Addi-

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

402

Table 1: Synthetic dataset.

tc requirements faults source code cycles d

1 2 3 4 5 1 2 3 4 5 6 7 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 9 10

1 1 0 0 0 0 0 0 0 1 0 0 0 1 0 0 0 0 0 0 0 1 0.5 0.5 1 1 1 1 1 0.5 0.5 0.2

2 0 1 0 0 0 1 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0.5 0.5 1 0.5 0.5 0 0 0 0 0 0.5

3 0 1 0 0 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 1 1 1 1 0.5 0.5 0.5 0.5 0.5 0.5 0.8

4 1 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.3

5 1 0 0 0 0 0 0 1 0 0 0 0 1 0 0 0 0 0 0 0 0.5 1 0.5 1 0.5 1 0.5 1 0.5 1 0.2

6 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 1 0 1 0 0 0 0 0 0.5 0.5 1 1 0.5 0.5 1 0.6

7 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0.5 0.5 0.5 0.5 0 0 0 0.5

8 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0.5 0.5 0.5 0 0 0 0 0.5 0.5 0.5 0.4

9 0 0 0 1 0 0 1 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 1 1 1 0.5 0.5 1 0.3

10 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 0 0 0 0 1 0 0 0 1 1 0.5 1 0.5 1 0.5 0.7

11 0 0 0 1 1 0 1 0 0 0 0 0 0 0 0 0 0 0 1 1 0 0 0 0 0 0 0 0 0.5 1 0.8

12 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0 0 0 0 1 0.5 1 0.5 1 0.5 1 0.9

13 0 0 0 1 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 1 1 1 0.5 0.5 1 0.1

14 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 0 0 0 0 0.5 0.5 0.5 0.5 0 0.5 0.3

15 0 0 0 0 1 0 0 0 0 0 1 0 0 1 0 0 0 0 0 1 0 0 1 1 0.5 0.5 0.5 1 0.5 0.5 0.2

16 0 0 0 0 1 0 0 0 0 0 0 1 0 0 1 0 0 0 0 1 0 0 0 0 0.5 0.5 1 0.5 0.5 1 0.8

17 0 0 0 0 1 0 0 0 0 0 0 0 1 0 0 1 0 1 1 1 0.5 0.5 0.5 0.5 0.5 0.5 0 0 0 0 0.5

Table 2: NAPFD values for the Random, Greedy and Clus-

tering approaches for various budget values.

S TC faults reqs c-lastV c-avgV code

S1 ✓ ✓

S2 ✓ ✓ ✓

S3 ✓ ✓ ✓

S4 ✓ ✓ ✓

S5 ✓ ✓ ✓ ✓

S6 ✓ ✓ ✓ ✓ ✓

tionally, we encourage practitioners to consider new

aspects of regression testing beyond traditional meth-

ods. By presenting novel ideas and future directions,

our aim is to inspire them to consider other crucial as-

pects of regression testing that need to be addressed.

6 THREATS TO VALIDITY

Experiments may be susceptible to speciﬁc threats to

validity, with research outcomes being affected by di-

verse factors. The following enumerates potential in-

ﬂuences on the results obtained, along with the corre-

sponding actions to mitigate them.

Internal. The primary internal validity threat is the

use of the NAPFD metric. It is not designed for multi-

criteria based evaluations, its main scope is to ﬁnd

faults as early as possible, without taking into con-

sideration other elements like requirements or source

code relations. In order to mitigate this, we have im-

plemented an NAPFD metric that has as goal ﬁnding

all testcases that expose faults and have the correct re-

quirements and source code links. In the future, a new

metric might be needed that can also evaluate par-

tial results, which means, for example, that test cases

that expose a fault and have the correct requirement

should be higher in the priority than test cases that do

not have the correct requirement.

Table 3: NAPFD values for the Random, Greedy and Clus-

tering approaches for various budget values.

Scenario Budget Random Greedy Clustering

10 13.54 21.43 42.86

25 25.25 35.71 57.14

50 39.29 64.29 72.22

75 51.8 77.27 77.27

80 53.93 79.17 80.77

100 64.46 85.29 85.29

10 8.64 21.43 21.43

25 13.47 28.57 28.57

50 21.2 47.62 45.71

75 28.16 50.79 51.95

80 29.59 51.43 52.75

100 36.04 53.78 53.78

10 9.95 28.57 28.57

25 17.78 42.86 42.86

50 27.15 56.12 58.04

75 35.51 60.71 62.5

80 36.96 61.69 63.19

100 43.53 65.13 65.13

10 8.29 21.43 37.5

25 15.77 42.86 42.86

50 24.62 50 50

75 32.48 51.95 52.04

80 33.73 52.38 52.04

100 39.1 53.78 52.94

10 5.7 21.43 28.57

25 9.91 42.86 42.86

50 17.74 50 51.43

75 24.25 51.95 53.06

80 25.66 52.38 53.06

100 32.01 53.78 53.78

10 3.48 21.43 21.43

25 6.54 37.5 38.57

50 11.94 40.18 40.71

75 17.1 40.91 41.21

80 18.05 41.07 41.33

100 23.14 41.6 41.6

Construct. In the absence of a dataset that can cap-

ture all the information we need, the creation of a

synthetic dataset was necessary. We have consid-

ered only the case where a test case exposes only one

single fault, but in practice this might not always be

Embracing Uniﬁcation: A Comprehensive Approach to Modern Test Case Prioritization

403

true. For subsequent research, transforming existing

datasets might be the correct way to go.

External. Our approach is validated only on a sin-

gle dataset. Clearly, more datasets are needed to re-

liably demonstrate the potential impact of this ap-

proach. Provided that an effective method for trans-

forming and repurposing existing datasets is identi-

ﬁed, this should logically be the next course of action.

7 CONCLUSIONS AND FUTURE

RESEARCH AGENDA

The Test Case Prioritization problem is deﬁned and

investigated under various conditions and with dif-

ferent available information on SUT. We have identi-

ﬁed several challenges in the uniﬁcation process that

are outlined below, along with the research agenda,

namely the identiﬁcation and implementation of the

research steps.

Traceability. The connection between requirements

and source code and test cases is a challenge in the

uniﬁcation process. Up until now, to the best of

our knowledge, the majority of TCP was considered

under the second scenario that we outlined above,

namely, a change in the source code to trigger the test

cases. Few approaches considered requirements, in

this regard the relation requirements to test cases be-

ing done through source code. Our research agenda

on this aspect will investigate this traceability by link-

ing ﬁrst requirements to test cases using Behavior-

Driven Development (BDD).

Context. An important aspect when performing re-

gression testing is considering the test suite as part

of a different level of testing: unit testing, integration

testing, and system-level testing. In this challenge,

our objective is to investigate the impact of different

types of test suites on the method used to prioritize.

The complexity of the test cases in the test suite and

the number of test cases in the test suite may have an

impact on the decision on the method used for priori-

tization.

Information. The available information of the SUT is

another challenge in the TCP problem. Having avail-

able faults, the cost of executing the test cases, and the

time constraints are just a few of the many factors that

inﬂuence the TCP solution. Our aim was to investi-

gate the effect of having partial factors and all factors

available. Regarding testing time, an analysis of the

trade-off between the improved prioritization and the

potential increase in testing time will be investigated.

Dataset. While a multitude of datasets for regression

testing/TCP exist (as provided above, SIR, Defect4J,

JTeC, GitHub), each is speciﬁcally tailored to study

a unique aspect, which results in a lack of standard-

ization between known and desired outcomes. Fur-

thermore, these datasets should have stronger indus-

try support, in the sense that academic research should

align more closely with real-world industry scenarios.

In conclusion, regression testing is an important

step during the software development life cycle, and

TCP is one of the strategies that leads to ﬁnding faults

sooner with a minimum execution cost. However, cur-

rently, there is no formal deﬁnition of TCP that ade-

quately covers the various inﬂuencing factors. Since

there is currently no TCP formalization that general-

izes the various inﬂuencing factors, our vision is to

ﬁll this gap with a uniﬁed TCP framework that ad-

equately integrates numerous perspectives: require-

ments, context, and information.

ACKNOWLEDGMENT

This work was funded by the Ministry of Research,

Innovation, and Digitization, CNCS/CCCDI - UE-

FISCDI, project number PN-III-P1-1.1-TE2021-0892

within PNCDI III.

REFERENCES

Almaghairbe, R. and Roper, M. (2017). Separating pass-

ing and failing test executions by clustering anoma-

lies. Software Quality Journal, 25(3):803–840.

Anderson, D. J. (2010). Kanban: Successful Evolution-

ary Change for Your Technology Business. Blue Hole

Press.

Apke, L. (2015). Understanding the Agile Manifesto.

Lulu.com, United States.

Beck, K. (2000). Extreme Programming Explained: Em-

brace Change. Addison-Wesley Professional.

Bertolino, A., Guerriero, A., Miranda, B., Pietrantuono, R.,

and Russo, S. (2020). Learning-to-rank vs ranking-

to-learn: Strategies for regression testing in contin-

uous integration. In Proceedings of the ACM/IEEE

42nd International Conference on Software Engineer-

ing, ICSE ’20, page 1–12, New York, NY, USA. As-

sociation for Computing Machinery.

Burnstein, I. (2010). Practical Software Testing. Springr,

Sprineger Professional Computing.

Dang, V. and Zarozinski, M. (2020). Ranklib.

Engstr

om, E., Runeson, P., and Skoglund, M. (2010). A sys-

tematic review on regression test selection techniques.

Information and Software Technology, 52(1):14–30.

GitHub (n.d.). Github. https://github.com/. Accessed:

2023-05-23.

Graves, T. L., Harrold, M. J., Kim, J., Porters, A., and

Rothermel, G. (1998). An empirical study of regres-

sion test selection techniques. In Proceedings of the

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

404

20th International Conference on Software Engineer-

ing, pages 188–197.

aceanu, R. D., Szederjesi-Dragomir, A., Pop, H. F., and

arbu, C. (2022). Abarc: An agent-based rough sets

clustering algorithm. Intelligent Systems with Appli-

cations, 16:200117.

JTeC (n.d.). Jtec: A large collection of java test classes for

test code analysis and processing. https://github.com/

MSR19-JTeC/JTeC. Accessed: 2023-05-23.

Juristo, N. and Moreno, A. (2004). Reviewing 25 years

of testing technique experiments. Empirical Software

Engineering, 9(7-44).

Just, R., Jalali, D., and Ernst, M. D. (2014). Defects4j: A

database of existing faults to enable controlled test-

ing studies for java programs. In Proceedings of the

2014 International Symposium on Software Testing

and Analysis, ISSTA 2014, page 437–440, New York,

NY, USA. Association for Computing Machinery.

Kandil, P., Moussa, S., and Badr, N. (2017). Cluster-based

test cases prioritization and selection technique for ag-

ile regression testing. Journal of Software: Evolution

and Process, 29(6):e1794. e1794 JSME-15-0111.R1.

Khalid, Z. and Qamar, U. (2019). Weight and cluster based

test case prioritization technique. 2019 IEEE 10th An-

nual Information Technology, Electronics and Mobile

Communication Conference (IEMCON), pages 1013–

1022.

Medhat, N., Moussa, S. M., Badr, N. L., and Tolba,

M. F. (2020). A framework for continuous regression

and integration testing in iot systems based on deep

learning and search-based techniques. IEEE Access,

8:215716–215726.

Pan, R., Ghaleb, T. A., and Briand, L. (2022). Atm:

Black-box test case minimization based on test code

similarity and evolutionary search. arXiv preprint

arXiv:2210.16269.

Pan R., Bagherzadeh M., G. T. e. a. (2022). Test case selec-

tion and prioritization using machine learning: a sys-

tematic literature review. Empir Software Eng, 29:1 –

43.

Paterson, D., Campos, J., Abreu, R., Kapfhammer, G. M.,

Fraser, G., and McMinn, P. (2019). An empirical

study on the use of defect prediction for test case

prioritization. In 2019 12th IEEE Conference on

Software Testing, Validation and Veriﬁcation (ICST),

pages 346–357.

Poppendieck, M. and Poppendieck, T. (2003). Lean Soft-

ware Development: An Agile Toolkit. Addison-Wesley

Professional.

Pradeepa, R. and VimalDevi, K. (2013). Effectiveness

of test case prioritization using apfd metric: Survey.

In International Conference on Research Trends in

Computer Technologies (ICRTCT—2013). Proceed-

ings published in International Journal of Computer

Applications®(IJCA), pages 0975–8887.

Qu, X., Cohen, M., and Woolf, K. (2007). Combinatorial in-

teraction regression testing: A study of test case gen-

eration and prioritization. In 2007 IEEE International

Conference on Software Maintenance, Los Alamitos,

CA, USA. IEEE Computer Society.

Rothermel, G., Untch, R. H., Chu, C., and Harrold, M. J.

(1999). Test case prioritization: An empirical study. In

Proceedings IEEE International Conference on Soft-

ware Maintenance-1999 (ICSM’99).’Software Main-

tenance for Business Change’(Cat. No. 99CB36360),

pages 179–188. IEEE.

Salehie, M., Li, S., Tahvildari, L., Dara, R., Li, S., and

Moore, M. (2011). Prioritizing requirements-based

regression test cases: A goal-driven practice. In 2011

15th European Conference on Software Maintenance

and Reengineering, pages 329–332.

Schwaber, K. and Sutherland, J. (2017). The Scrum Guide.

Singh, A., Singhrova, A., Bhatia, R., and Rattan, D. (2023).

A Systematic Literature Review on Test Case Priori-

tization Techniques, chapter 7, pages 101–159. John

Wiley & Sons, Ltd.

SIR (n.d.). Software-artifact infrastructure repository. http:

//sir.unl.edu/. Accessed: 2023-05-23.

Spieker, H., Gotlieb, A., Marijan, D., and Mossige, M.

(2017). Reinforcement learning for automatic test

case prioritization and selection in continuous integra-

tion. In Proceedings of the 26th ACM SIGSOFT Inter-

national Symposium on Software Testing and Analy-

sis, ISSTA 2017, page 12–22, New York, NY, USA.

Association for Computing Machinery.

Srikanth, H., Hettiarachchi, C., and Do, H. (2016). Require-

ments based test prioritization using risk factors: An

industrial study. Information and Software Technol-

ogy, 69:71 – 83.

Tiutin, C.-M. and Vescan, A. (2022). Test case prioritiza-

tion based on neural networks classiﬁcation. In Pro-

ceedings of the 2nd ACM International Workshop on

AI and Software Testing/Analysis, AISTA 2022, page

9–16, New York, NY, USA. Association for Comput-

ing Machinery.

Vescan, A., Chisalita-Cretu, C., Serban, C., and Diosan,

L. (2021). On the use of evolutionary algorithms for

test case prioritization in regression testing consider-

ing requirements dependencies. In Proceedings of the

1st ACM International Workshop on AI and Software

Testing/Analysis, AISTA 2021, page 1–8, New York,

NY, USA. Association for Computing Machinery.

Vescan, A., G

aceanu, R., and Szederjesi-Dragomir, A.

(2023b). Neural network-based test case prioritization

in continuous integration. In 2023 38th IEEE/ACM

International Conference on Automated Software En-

gineering Workshops (ASEW), pages 68–77. IEEE.

Vescan, A., Gaceanu, R., and Szederjesi-Dragomir, A. (ac-

cessed November 2023a). Embracing uniﬁcation:a

comprehensive approach to modern tcp.

Yoo, S. and Harman, M. (2010). Using hybrid algorithm

for pareto efﬁcient multi-objective test suite minimi-

sation. J. Syst. Softw., 83(4):689–701.

Embracing Uniﬁcation: A Comprehensive Approach to Modern Test Case Prioritization

405
