Industrial Validation of a Neural Network Model Using the Novel

MixTCP Tool

Arnold Szederjesi-Dragomir

, Radu G

aceanu

and Andreea Vescan

Computer Science Department, Faculty of Mathematics and Computer Science,

Babes¸-Bolyai University, Cluj-Napoca, Rom

ania

Keywords:

Test Case Prioritization, Continuous Integration, Neural Network, Elixir.

Abstract:

Test Case Prioritization (TCP) is crucial in the fast-paced world of software development to speed up and

optimize testing procedures, particularly in Continuous Integration (CI) setups. This paper aims to ﬁrst validate

a state-of-the-art neural network model to TCP in CI environments, by applying it into a real-world industrial

context, and second to propose MixTCP, a tool that integrates the neural network model and signiﬁcantly

enhances the regression testing experience from the software developer perspective. MixTCP is implemented

in the Elixir programming language and employs the NEUTRON model, a state-of-the-art approach that uses

neural networks to intelligently prioritize test cases, effectively improving fault detection and reducing testing

time. The tool is composed of loosely coupled components (Mix TCP task, TCP Server, and NEUTRON

model), thus enabling the integration of other Test Case Prioritization solutions too. The results show that

MixTCP has the potential to be a valuable asset to modern software development methods, offering software

engineers a more efﬁcient, a more user-friendly, and an overall easier to integrate TCP approach.

1 INTRODUCTION

The efﬁciency and effectiveness of testing processes

(Ammann and Offutt, 2016) are highly important in

the continually evolving landscape of software de-

velopment. The adoption of continuous integration

(CI) and deployment processes has highlighted the

crucial importance of optimizing Test Case Prioriti-

zation (TCP). For maintaining software quality it is

essential to use TCP which determines the order of

test case execution to maximize early fault detection.

However, traditional TCP approaches, which are fre-

quently based on heuristics, are becoming impractical

when faced with the complexity and dynamic nature

of current software projects, especially in Continuous

Integration (CI) settings (Spieker et al., 2017; Elbaum

et al., 2014; Lima and Vergilio, 2022).

Therefore, the aim of the paper is twofold:

1. to validate a neural network-based model for TCP

in CI by applying it in real-world industrial set-

tings, and

2. to integrate the neural network-based model in a

https://orcid.org/0000-0002-1106-526X

https://orcid.org/0000-0002-0977-4104

https://orcid.org/0000-0002-9049-5726

test case prioritization tool in order to facilitate its

use by software developers.

In order to address the ﬁrst aim of this paper,

we employ the NEUTRON (Vescan et al., 2023)

model, which is a state-of-the-art neural network-

based method to prioritize test cases. Experiments

on benchmark datasets have shown its effectiveness

across various budget constraints, obtaining competi-

tive or superior results compared to other state-of-the-

art approaches. Speciﬁcally designed for CI settings,

NEUTRON effectively reorders test cases to detect

faults earlier, thereby optimizing the testing process.

With the aim of validating NEUTRON, we applied it

in a private industrial project containing 59 test ﬁles

with 297 test cases throughout the test ﬁles.

The second aim of this paper is to introduce

the MixTCP tool that embeds the NEUTRON model

(Vescan et al., 2023), including its functionality, prac-

tical use, and evaluation results. We show how

MixTCP seamlessly interacts with existing develop-

ment workﬂows while providing a user-friendly in-

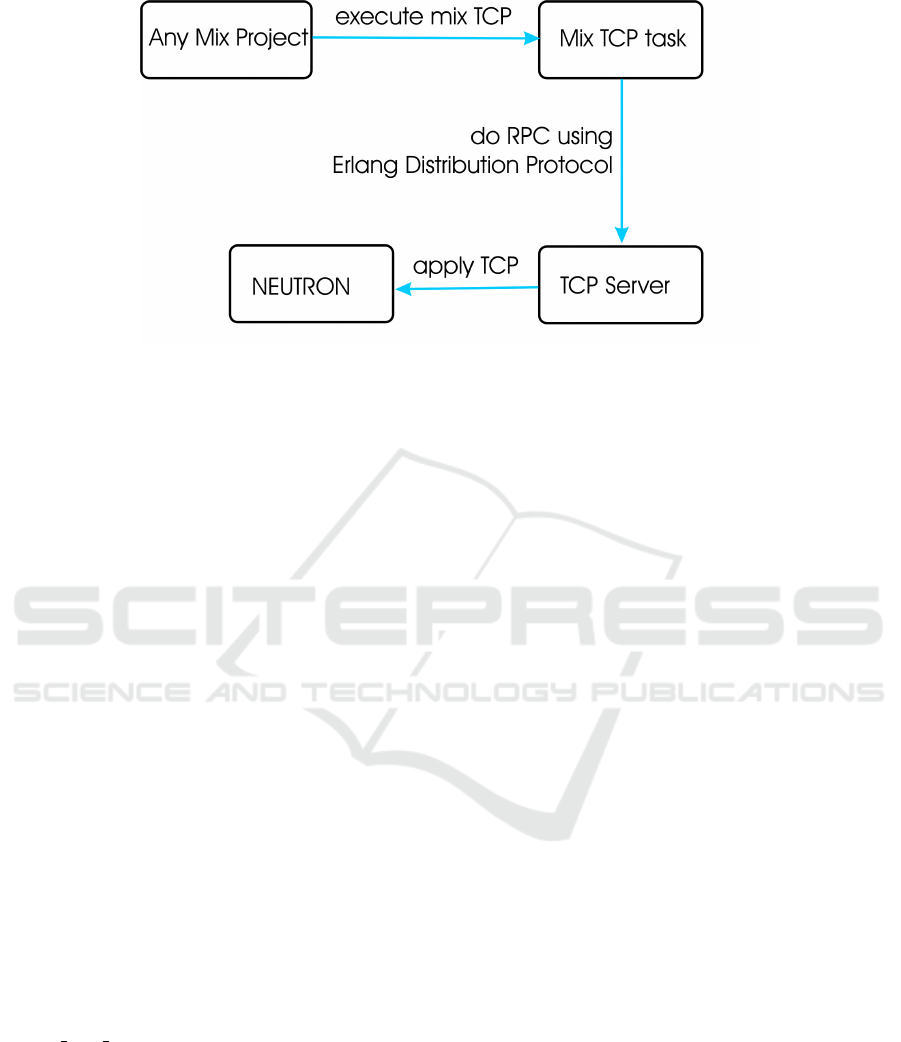

terface for TCP management. The architecture of

MixTCP is composed of three main components: the

Mix TCP task, the TCP Server, and the NEUTRON

model. The Mix TCP task serves as the user inter-

face, allowing developers to easily interact with the

110

Szederjesi-Dragomir, A., G

aceanu, R. and Vescan, A.

Industrial Validation of a Neural Network Model Using the Novel MixTCP Tool.

DOI: 10.5220/0012631100003687

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2024), pages 110-119

ISBN: 978-989-758-696-5; ISSN: 2184-4895

tool using a CLI (Command Line Interface). The TCP

Server is the core of the system, responsible for pro-

cessing test data and orchestrating the overall work-

ﬂow of the tool. It acts as a bridge between the user in-

terface and NEUTRON. Furthermore, the paper high-

lights the potential of the tool to signiﬁcantly improve

the TCP process, ultimately contributing to more efﬁ-

cient and successful CI workﬂows.

MixTCP represents an important step forward in

software engineering by bridging the gap between re-

search and real-world software testing needs. It pro-

vides a more efﬁcient and effective approach to TCP,

particularly in CI environments, and contributes to the

ongoing integration of artiﬁcial intelligence into soft-

ware development practices.

The remainder of this paper is structured as fol-

lows. Section 2 motivates the need for TCP investi-

gations, presenting the theory and deﬁnition of TCP,

and ﬁnalizing with the other theoretical elements that

will be used in our investigation. Section 3 high-

lights the current existing approaches in TCP. Section

4 describes the design and implementation of the pro-

posed tool along with the tool architecture, while Sec-

tion 5 presents experiments and results. The threats to

validity are presented in Section 6 and Section 7 con-

cludes our paper and presents possibilities for future

research directions.

2 THEORETICAL BACKGROUND

This section presents relevant theoretical and techni-

cal background elements, starting with the motivation

behind this research and continuing with the TCP per-

spectives, TCP related work, and concepts on Elixir

and Mix.

2.1 Motivation

In the current rapid software development market, the

ability to produce high-quality software quickly and

consistently is not only an advantage, but it is also a

requirement. Continuous Integration (CI) procedures

have become an essential component of modern soft-

ware development, allowing teams to integrate code

changes in a timely and efﬁcient manner. However,

this high speed brings with it its own set of obsta-

cles, particularly in the ﬁeld of software testing. Test

Case Prioritization (TCP) becomes a necessity in this

context, but it raises its own challenges. With the in-

creasing complexity of software systems and the fre-

quency of code changes, classic TCP approaches are

no longer appropriate. These methods, which fre-

quently rely on heuristic or manual procedures, are

time-consuming, error-prone, and incapable of scal-

ing to meet the growing size of testing needs. This in-

efﬁciency can result in delayed detection of important

ﬂaws, higher testing expenses, and, ultimately, slower

deployment of the project in production.

2.2 TCP and NAPFD

According to (Graves et al., 1998), the Test Case Pri-

oritization problem can be deﬁned as in Deﬁnition 1.

Deﬁnition 1. Test Case Prioritization (Graves et al.,

1998): a test suite, T, the set of permutations of T, PT;

a function from PT to real numbers, f. The goal is to

ﬁnd T ∈ PT such that:

(∀T

′′

)(T

′′

∈ PT )(T

′′

̸= T

′

)[ f (T

′

) ≥ f (T

′′

)]. (1)

In order to evaluate the effectiveness of a TCP

approach, several metrics are proposed. For exam-

ple, APFD (Average Percentage of Faults Detected)

(Pradeepa and VimalDevi, 2013) measures the effec-

tiveness of a test suite in detecting faults as early as

possible during the testing process and is deﬁned as

follows:

APFD = 1 −

∑

i=1

T F

n × m

. (2)

where: T F

is the position of the ﬁrst test case that

detects the i-th fault, m is the total number of faults

detected by the test suite, and n is the total number of

test cases. This metric is especially useful for compar-

ing different prioritization algorithms, where the goal

is to reorganize the test cases so that those most likely

to ﬁnd ﬂaws run ﬁrst.

An extension of APFD to incorporate the fact that

not all test cases are executed and failures can be

undetected is the Normalized APFD (NAPFD) (Qu

et al., 2007):

NAPFD = p −

∑

i=1

T F

n × m

2 × n

. (3)

where p is the number of faults detected by the pri-

oritized test suite divided by the number of faults

detected throughout the test suite. Variations of the

aforementioned metrics include, for example, the

incorporation of weights associated with the faults

based on their severity.

2.3 Elixir and Mix

Elixir (Elixir, nd) is a functional programming lan-

guage, known for its concurrency and fault tolerance

capabilities. It runs on the Erlang VM, thus giv-

ing developers complete access to Erlang’s ecosys-

tem (Erlang, nd). Besides all the features that make

Industrial Validation of a Neural Network Model Using the Novel MixTCP Tool

111

Elixir stand out from other programming languages,

we have also chosen it to implement the MixTCP tool

because the real work project on which we validate

the NEUTRON approach is also written in Elixir.

Mix (Mix, nd) is a build automation tool for work-

ing with applications written in the Elixir. Besides

many other operations, it lets programmers create

projects, format, build, test or run the code, and ﬁ-

nally to package and deploy. As Mix is widely used

for all kinds of tasks in a project (many times even

the single tool used), we ought to implement our tool

as a Mix archive. These archives can usually be in-

stalled directly from Github to a central repository

(typically /.mix/archives), thus any project can make

use of them without needing any additional setup or

dependency management. One thing to note is that

mix test operates on ﬁles, so we choose to implement

the test case prioritization process per test ﬁle and not

per test case.

3 RELATED WORK

Extensive research has been conducted in the ﬁeld of

test case selection and prioritization, with numerous

approaches that address various optimization objec-

tives and employ a wide range of techniques (Pan

et al., 2022; Bertolino et al., 2020; Khalid and Qa-

mar, 2019; Kandil et al., 2017; Almaghairbe and

Roper, 2017; Medhat et al., 2020). Depending on

the machine learning methods applied, studies on test

case selection and prioritization can be categorized

into four main groups: supervised learning, unsuper-

vised learning, reinforcement learning, and natural

language processing (Pan R., 2022).

Recent studies have applied reinforcement learn-

ing (RL) to Test Case Prioritization (TCP) in Contin-

uous Integration (CI) due to the adaptability of RL to

the dynamic nature of CI without the need for full re-

training. Once trained, the RL agent can evaluate a

test case, assign it a score, and use that score to or-

der or prioritize the test cases. While most RL stud-

ies focus solely on the execution history of training,

one study, (Bertolino et al., 2020), incorporates code

complexity metrics. In this comprehensive paper, the

authors compare 10 machine learning algorithms, em-

phasizing the differences between supervised learning

and RL for TCP. They conducted experiments on six

public datasets, providing guidelines for applying ma-

chine learning in CI regression testing. In (Bertolino

et al., 2020), the authors also introduce new metrics

(Rank Percentile Average (RPA) and Normalized-

Rank-Percentile-Average (NRPA)) to evaluate how

close a prediction ranking is to the optimal one. How-

ever, (Pan R., 2022) shows that NRPA may not always

be suitable. Nonetheless, (Bertolino et al., 2020) is a

thorough and reproducible study and is recognized by

(Pan R., 2022) as a signiﬁcant contribution.

Clustering in the context of Test Case Prioritiza-

tion (TCP) operates on the assumption that test cases

with similar attributes, such as coverage, exhibit sim-

ilar fault detection capabilities. Numerous studies,

including (Khalid and Qamar, 2019), employ the K-

means algorithm or its variations for this purpose. Al-

though the Euclidean distance is the commonly used

similarity measure in clustering, some explore alter-

natives such as the Hamming distance, as seen in

(Kandil et al., 2017). An interesting approach can be

found in (Almaghairbe and Roper, 2017), where clus-

tering is used for anomaly detection of passing and

failing executions.

Supervised learning is a widely used ML tech-

nique for addressing TCP as a ranking problem, typ-

ically employing one of three ranking models: point-

wise, pairwise, or listwise. In (Bertolino et al., 2020),

the authors evaluated various models such as Ran-

dom Forest (RF), Multiple Additive Regression Tree

(MART), L-MART, RankBoost, RankNet, and Coor-

dinate ASCENT (CA) for TCP using a state-of-the-art

ranking library (Dang and Zarozinski, 2020). MART

emerged as the most accurate model. However, a key

drawback of supervised learning is the requirement of

a complete dataset before training.

The use of NLP in TCP is relatively limited, but it

aims to extract and use information from textual soft-

ware development artifacts (e.g., bug descriptions) or

treat source code as textual data. In general, this in-

volves converting test cases into vectors and calculat-

ing the distances between them, followed by different

prioritization strategies. An interesting approach, as

presented in (Medhat et al., 2020), utilizes NLP to

preprocess the speciﬁcation of the components of the

system. Recurrent neural networks are then used to

classify speciﬁcations into components such as user

devices, protocols, gateways, sensors, actuators, and

data processing. On the basis of this classiﬁcation,

test cases related to these components are selected,

and search-based techniques, such as genetic algo-

rithms and simulated annealing, are used for priori-

tization.

In the following, some studies are presented that

speciﬁcally target the CI context.

In the approach from (Elbaum et al., 2014), the

authors use the sliding time window to choose the

test suits to be applied in a pre-submit phase of test-

ing by tracking their history. In a subsequent post-

submit phase, a similar approach is employed to pri-

oritize tests. Experiments with the Google Shared

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

112

Dataset of Test Suite Results (GSDTSR) indicate that

the testing load is reduced and delays in fault detec-

tion are reduced. In (Spieker et al., 2017), an innova-

tive method is introduced to prioritize and select test

cases in Continuous Integration (CI) environments.

This approach uses reinforcement learning to priori-

tize test cases based on their duration, previous execu-

tion, and failure history. The study evaluates the pro-

posed method using industrial datasets and compares

it with deterministic test case prioritization methods.

The results indicate that this approach can effectively

learn to prioritize test cases in 60 cycles, even without

prior information on the test cases. This suggests its

promise for CI test case prioritization. In (Lima and

Vergilio, 2022), a Multi-Armed Bandit (MAB) ap-

proach is introduced for the prioritization of test cases

in CI environments. MAB problems are a simpliﬁed

form of Reinforcement Learning (RL), as they do not

require context information, do not change environ-

ment states, and do not involve state spaces or func-

tion approximators. Extensive experiments were con-

ducted, showing that, with certain parameter conﬁgu-

rations, the MAB approach outperformed the method

proposed in (Spieker et al., 2017). In (Omri and Sinz,

2022), an approach based on the Dueling Bandit Gra-

dient Descent (DBGD) algorithm is introduced. Eval-

uation of several industrial datasets indicates that after

150 cycles, the proposed method outperforms other

state-of-the-art approaches.

Most approaches from related work in CI use on-

line models for prioritization and advocate that this

choice is an advantage for the continuous integration

context because the training phase is eliminated. Nev-

ertheless, to obtain comparable results with determin-

istic methods, rather signiﬁcant volumes of data are

still needed (e.g. at least 60 cycles, that is, about two

months of data, for one of the state-of-the-art methods

(Spieker et al., 2017)). The approach of (Omri and

Sinz, 2022), which is to our knowledge the best in the

literature, needs 150 cycles (that is, about 5 months of

data) to achieve this result. Considering the vast vol-

umes of data (and time span) needed by these meth-

ods to become efﬁcient, we argue that eliminating the

training phase is not necessarily a great advantage as

it may seem. Our approach, which uses a neural net-

work, needs, of course, a training phase, but our ex-

periments show that it outperforms related approaches

in some of the studied use cases. In our experiments,

we investigate several scenarios, some of which in-

volve transformations of the original datasets, enrich-

ing them with additional features, to improve the per-

formance of our model.

The NEUTRON approach from (Vescan et al.,

2023) uses a neural network to prioritize test cases

in continuous integration environments. Experiments

are carried out on benchmark datasets (Spieker et al.,

2017) obtaining better results in terms of NAPFD

for some budgets compared to the following state-

of-the-art methods: Elbaum (Elbaum et al., 2014),

RETECTS (Spieker et al., 2017), COLEMAN (Lima

and Vergilio, 2022), LearnTec (Omri and Sinz, 2022).

This is why we have chosen our NEUTRON approach

for validation in a real-world industrial context.

TCP Tools. Despite decades of research on test

case prioritization techniques, there is a noticeable ab-

sence of practical and user-friendly tools in this do-

main. The MOTCP tool by (Islam et al., 2012) uses a

multi-objective test prioritization technique that uses

information related to the code and requirements cov-

erage, along with test case cost execution. Two case

studies were performed with MOTCP using 4 Java

programs with various numbers of requirements and

available test cases. The tool proposed by (Sam-

path et al., 2011) allows testers to prioritize and re-

duce user-session-based test cases. The investigation

using tertiary studies by (Singhal et al., 2021) pro-

vided a comprehensive list of tools used in the TCP

area, some used for analysis purposes, some provid-

ing code coverage information ((EMMA, nd), (Cober-

tura, nd), (JaCoCo, nd)), and some to specify the mu-

tation adequacy score ((MutGen, nd), (muJava, nd)).

The tool developed by (Cleanscape, nd) also provides

the Regress tool from the toolkit for effective regres-

sion testing to identify a representative subset of tests

to revalidate modiﬁed software. The tool proposed by

(ATAC, nd) investigates how thoroughly a program

is tested by a set of tests using data ﬂow coverage

techniques, identiﬁes areas that are not well tested

and identiﬁes overlap among tests. The authors ad-

vocate for the development of practical tool support

in the near future to demonstrate the real-world value

of test-case prioritization.

4 PROPOSED MixTCP TOOL

An overview of the MixTCP tool is provided below,

along with the architecture and prerequisites for run-

ning the tool with example commands.

4.1 Overview

This section explains the main functionalities of the

MixTCP tool. The main components of the tool are:

Mix TCP task, TCP Server, and NEUTRON model,

as provided in Figure 1.

Communication between the task and the server is

done using RPC (Remote Procedure Call) via Erlang

Industrial Validation of a Neural Network Model Using the Novel MixTCP Tool

113

Figure 1: Overview of the approach.

Distribution Protocol (EPD, nd), while the commu-

nication between the server and NEUTRON is just a

function call as we have integrated our neural network

model in the server itself.

In what follows, we outline the architecture of the

MixTCP tool, provide the prerequisites needed to run

it and offer some examples on how to use it.

4.2 Architecture

As observed in Figure 1 our tool consists of 3 compo-

nents: Mix TCP task, TCP Server and NEUTRON.

Firstly, the Mix task, which is installed as a Mix

archive globally for multiple Mix projects, is the CLI

(Command Line Interface) tool that the user uses to

interact with MixTCP. The tool requires that the des-

ignated execution folder be a Mix project. Without

this, it will be unable to execute the selected tests and

will signal this. The console tool has four parameters:

1. number of test ﬁles to run (-n): this will specify

how many test ﬁles to run

2. server (-s): address of the TCP Server to commu-

nicate with

3. cookie (-c): cookie used to be able to connect with

the server (this always needs to be the same both

on the client and the server)

4. test runs folder (-f): folder where previous test

runs are stored (this is used by NEUTRON to ef-

ﬁciently prioritize the tests for the current run).

Communication between the task and the server

occurs via Remote Procedure Calls (RPCs), using the

Erlang Distribution Protocol (EPD, nd). Basically, ev-

ery time an Elixir/Erlang system is started, the Erlang

Port Mapper Daemon (EPMD) is also started. This

OS-level process/service keeps track of the ports on

which Erlang nodes are running. These nodes use it

to locate each other. Hence, when the task seeks to es-

tablish a connection with the server, it approaches the

EPMD, requests the port number of the server, and

subsequently attempts to connect to the server. Con-

nections are initiated through a TCP/IP handshake

process during which cookies and versions are com-

pared. If all criteria are successfully met, the connec-

tion is then established, and exchanging of messages,

remote functions calls, or even spawning of new pro-

cesses remotely will be possible. For our use case,

we will call a function, passing the test runs folder,

which will then carry out the test case prioritization

on behalf of the Mix task.

Secondly, the TCP server, as mentioned above,

exposes a function that opens and processes the

folder, parses the cycles, and builds the data needed

for the NEUTRON neural network. The server re-

quires direct access to the folder, as it will navigate to

the ﬁlesystem, enumerate all ﬁles within that folder,

and ultimately read and parse them. Each ﬁle will

contain the logs for multiple test ﬁles and multiple

test cases per test ﬁle. During their processing the test

cases are aggregated, and only test ﬁles are considered

as an input for NEUTRON.

Communication between the server and NEU-

TRON is straightforward, occurring via a local func-

tion call. The third component refers to the NEU-

TRON model that we have proposed in (Vescan et al.,

2023). We have trained and built the NEUTRON neu-

ral network model in a separate environment and then

just integrated it (together with its parameters) into

the server system.

As shown in the paper of (Vescan et al., 2023), by

training NEUTRON solely on the IOF/ROL dataset, it

is still able to produce decent prioritizations on other,

considerably different datasets. It uses the following

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

114

data organized per test ﬁle as input:

• cycles: number of cycles the test ﬁle was executed

in;

• duration: ﬁrst we compute the sum of the testcase

durations, and then we compute the average over

all cycles;

• total runs: number of runs over all cycles (as usu-

ally each test ﬁle is run only once per cycle this

will be equal to cycles, but to have a more general

solution we have also included this; also cycles

can be deﬁned or built differently);

• fault rate: if one of the testcases in a test ﬁle fails,

the whole test ﬁle fails and then we compute the

number of fails throughout all cycles divided by

the number of total runs.

4.3 Prerequisites

As prerequisites to run the tool, we need to install

Erlang OTP and Elixir, but if one intends to use the

tool, it is likely that these are already installed, as we

are going to use it in an already existing Mix Project.

Steps needed to run:

1. install the Mix task as an archive in our local

archives directory, so it can be called using Mix

from any existing project without any additional

setup;

2. start the TCP server, that will be used by the task

to apply TCP on the tests from the given project;

3. run the Mix task with the desired parameters, that

will connect to the server to obtain the prioritized

tests and then take only the ﬁrst ones and run them

in the current project.

The server needs access to the folder with previ-

ous test runs. If there is no data from previous cycles

all tests will be executed, regardless of how many we

speciﬁed to the tool. This cycle will serve as data for

the subsequent usages of the tool.

4.4 Commands to Execute the Tool

To start the server the following command can be

used in the tool’s Git repository (as seen in Figure 2):

iex --sname tcp@localhost --cookie 1234 -S mix

Figure 2: Running the TCP Server.

This will start a terminal with all the code from the

project. The server’s name or address and the cookie

to use (as presented before these will be needed for the

communication with the Mix task) are also speciﬁed.

After the server is started, the Mix task can be run

in any other Mix project with this command (as seen

in Figure 3 too):

MIX_ENV=test mix tcp\

-n 10 \

-s tcp@localhost \

-c 1234 \

-f $(pwd)/test_runs\

> 2023_11_17_10_31

Figure 3: Running the Mix task.

4.5 Advantage of the MixTCP Tool

The proposed tool, MixTCP is a solution that ad-

dresses these difﬁculties by utilizing the power of ar-

tiﬁcial intelligence. MixTCP augments TCP by em-

ploying the NEUTRON model, a state-of-the-art neu-

ral network approach, to prioritize test cases. Unlike

prior approaches, MixTCP can analyze large volumes

of historical test data providing an intelligent and ef-

fective prioritization, ensuring that the most critical

tests are executed ﬁrst. By automating and improv-

ing the TCP process, MixTCP enhances testing accu-

racy and speed while signiﬁcantly decreasing manual

work. As a result, bugs are identiﬁed more quickly,

testing resources are used more efﬁciently, and new

products or updates to already existing products are

released more quickly.

The contributions and advantages of MixTCP are

as follows:

• Integration with NEUTRON, a state-of-the-art ap-

proach for TCP in CI environments. Machine

learning has been explored in previous research

and there are indeed some recent and notable con-

tributions to TCP in CI contexts (Spieker et al.,

2017; Bertolino et al., 2020; Pan R., 2022; Lima

and Vergilio, 2022; Elbaum et al., 2014). Nev-

ertheless, to our knowledge, none of the related

works is integrated in a tool like MixTCP, making

it rather difﬁcult for these approaches to be rapidly

adopted by the industry.

• Development in Elixir, which is a language known

for its capabilities in handling concurrent pro-

cesses and distributed systems. This could make

MixTCP particularly effective in large-scale, com-

plex testing environments.

• Empirical validation in industrial settings. The

tool has been rigorously tested and validated in

real-world industrial settings.

• User experience and integration. MixTCP is user-

friendly and easy to integrate in existing projects.

Industrial Validation of a Neural Network Model Using the Novel MixTCP Tool

115

5 EVALUATION

In this section, we ﬁrst describe our evaluation setup

and then present our experiments and results.

5.1 Evaluation Setup

To empirically validate our tool, we employed it in a

private industrial project characterized by the follow-

ing attributes: (also seen in Table 1): 59 test ﬁles, 297

test cases throughout the test ﬁles, failing rate was not

measured, but is moderate throughout development

cycles. For this evaluation, we have selected the top N

test cases to run with a random N (that is not too big

or too small), but in a real-world scenario one would

select the top test cases based on the budget/time al-

located for running the tests.

Table 1: Dataset properties.

Property Name Property Value

# of test ﬁles 59

# of test cases 297

failing rate moderate

5.2 Experiments and Results

We have designed an experiment that considers vari-

ous execution cycles as speciﬁed in the following and

as see in Figure 4).

Figure 4: Experiment Cycles.

The experiment design steps are:

• the tests were executed multiple times, throughout

8 cycles;

• each cycle is a single execution of a subset of

tests;

• for the ﬁrst 3 cycles we have executed all tests,

without using the tool;

• starting with the fourth cycle, we have started us-

ing MixTCP, that prioritized the tests by analyzing

data from all previous cycles, thus, we conducted

only a select subset of these tests, choosing them

based on their assigned priority order;

• in order to compute NAPFD we take the next cy-

cle’s test runs to decide each test ﬁle’s verdict;

• NAPFD is computed for cycles between 3 and 7,

the 3rd cycle’s NAPFD will tell how well the tests

were predicted in the 4th cycle;

• as there are only 8 cycles, no score can be com-

puted for the 8th cycle yet;

• there were 8 faults exposed throughout the exper-

iment.

In order to measure the results, we used the same

metric as in the NEUTRON (Vescan et al., 2023) ap-

proach, namely NAPFD. This metric provides a suf-

ﬁcient overview of the general performance of a TCP

approach. The results are shown in Table 2. As one

can observe, the performance of the tool is consider-

ably better than running the tests in a Random way

(which is the default behavior in Elixir).

Table 2: Random and NEUTRON NAPFD per cycle.

Cycle Random NAPFD NEUTRON NAPFD

3 5.82% 12.18%

4 13.15% 22.25%

5 18.81% 35.06%

6 32.16% 48.20%

7 45.86% 81.46%

Figure 5 graphically illustrates the outcomes for

Random and NEUTRON across the cycles, clearly

showing a notable enhancement in performance for

both.

Figure 5: NAPFD per cycle.

This improvement can be attributed to two pri-

mary factors:

1. as we run more and more cycles, it becomes more

and more likely to ﬁnd failing tests; this is why

both performances grow;

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

116

2. NEUTRON has another reason and that is the size

of the data; as we are trying to predict tests that

fail, having more data makes this prediction more

accurate as the tool will choose tests that are more

likely to fail.

In conclusion, MixTCP, by using NEUTRON,

helps faulty tests to be found earlier, its performances

increase as there are more and more historical data,

and because it prioritizes tests, it is even possible not

to run the whole test suite every time. In this way, it

also demonstrates the application and integration of

NEUTRON in real-world projects.

6 THREATS TO VALIDITY

Experiments may be sensitive to particular threats to

validity, and the outcome of this research may be in-

ﬂuenced by a variety of factors. Next, several points

are indicated that may have inﬂuenced the results ob-

tained, stating the action taken to mitigate them.

Internal. One potential threat to validity is the

presence of bugs in our implementation. However,

through comprehensive testing and code review, we

hope to have signiﬁcantly reduced the likelihood of

such issues. Moreover, the tool is validated in real-

world industrial settings, thus further minimizing this

risk.

Construct. The metrics used to evaluate performance

may not fully describe how effective the tool is in real-

world scenarios because such measurements do not

capture the user friendliness of the tool and its ease of

integration in an existing project. However, we hope

that the explanations accompanied by some screen-

shots provide sufﬁcient details in this sense.

External. The initial results of the NEUTRON ap-

proach were based on three industrial datasets. In-

deed, we should have used more datasets, but to our

knowledge, there were no other datasets that have

the required data, especially historical information re-

garding the execution of the test cases. To mitigate

this situation, the MixTCP tool was applied in real

world industrial contexts. Nevertheless, applications

of the tool in more projects perhaps from diverse do-

mains would help in ensuring that it generalizes prop-

erly.

7 CONCLUSIONS AND FUTURE

WORK

Regression testing, a subset of software testing, in-

volves re-running functional and non-functional tests

to ensure that the previously developed and tested

software still performs after a change. Test Case Pri-

oritization (TCP) becomes particularly challenging in

Continuous Integration (CI) contexts because as the

number of test cases grows, running the entire test

suite for every change becomes time-consuming and

resource-intensive. TCP aims to address this by de-

termining the most critical tests to run ﬁrst to detect

faults earlier. However, traditional TCP methods, of-

ten based on heuristics, may not be able to effectively

adapt to the frequent changes and evolving require-

ments, leading to inefﬁciencies and delays in the test-

ing process. This makes the development of more

intelligent and adaptive TCP methods essential for

modern CI practices. This paper focuses on the in-

tegration of the NEUTRON model, a state-of-the-art

neural network-based approach for Test Case Priori-

tization in Continuous Integration environments. The

NEUTRON model has been validated using an indus-

trial dataset and incorporated into the MixTCP tool for

practical use by software developers.

The aim of this paper is twofold: ﬁrstly, to validate

the NEUTRON model by applying it in real-world in-

dustrial settings; and secondly, to integrate this neural

network-based model into the MixTCP tool, thereby

facilitating its practical application by software devel-

opers in the ﬁeld.

Developed using Elixir, a functional programming

language well known for its concurrency and fault tol-

erance, MixTCP stands out for its practical usefulness

and proven effectiveness in real-world industrial set-

tings. It is composed of three main loose coupled

components (Mix TCP task, TCP Server, NEUTRON

model), making it a versatile tool for various software

development environments.

The evaluation of MixTCP in real-world industrial

settings validates its beneﬁts in improving the TCP

process. The tool has shown a clear improvement in

the prioritization of the test cases, which ultimately

leads to earlier fault detection and also more efﬁcient

use of testing resources. This has signiﬁcant impli-

cations for the speed and quality of software devel-

opment, as it enables quicker releases and more reli-

able software products. The empirical validation of

MixTCP outlines its practical applicability and effec-

tiveness, conﬁrming its potential as a valuable tool in

modern software development practices.

Our future efforts will be directed towards ensur-

ing that MixTCP successfully integrates in any devel-

opment environment. We also plan to integrate other

state-of-the-art TCP approaches into our tool, facili-

tating faster adoption by the software industry. An-

other idea for future work is to validate the efﬁcacy of

the tool with practitioners by conducting an empirical

Industrial Validation of a Neural Network Model Using the Novel MixTCP Tool

117

study in which the results and overall experience with

and without using the tool are compared.

ACKNOWLEDGMENT

This work was funded by the Ministry of Research,

Innovation, and Digitization, CNCS/CCCDI - UE-

FISCDI, project number PN-III-P1-1.1-TE2021-0892

within PNCDI III.

REFERENCES

Almaghairbe, R. and Roper, M. (2017). Separating pass-

ing and failing test executions by clustering anoma-

lies. Software Quality Journal, 25(3):803–840.

Ammann, P. and Offutt, J. (2016). Introduction to Software

Testing. Cambridge University Press, 2 edition.

ATAC (n.d.). Atac: a test coverage analysis tool. https:

//invisible-island.net/atac/atac.html. Accessed: 2023-

11-19.

Bertolino, A., Guerriero, A., Miranda, B., Pietrantuono, R.,

and Russo, S. (2020). Learning-to-rank vs ranking-

to-learn: Strategies for regression testing in contin-

uous integration. In Proceedings of the ACM/IEEE

42nd International Conference on Software Engineer-

ing, ICSE ’20, page 1–12, New York, NY, USA. As-

sociation for Computing Machinery.

Cleanscape (n.d.). Suds software visualization and

test toolkit. https://stellar.cleanscape.net/products/

testwise/help/introduction.html. Accessed: 2023-11-

19.

Cobertura (n.d.). Cobertura: A code coverage utility for

java. https://cobertura.github.io/cobertura/. Accessed:

2023-11-19.

Dang, V. and Zarozinski, M. (2020). Ranklib. https:

//sourceforge.net/p/lemur/wiki/RankLib/. Accessed:

2023-11-19.

Elbaum, S., Rothermel, G., and Penix, J. (2014). Tech-

niques for improving regression testing in continuous

integration development environments. In Proceed-

ings of the 22nd ACM SIGSOFT International Sym-

posium on Foundations of Software Engineering, FSE

2014, page 235–245, New York, NY, USA. Associa-

tion for Computing Machinery.

Elixir (n.d.). Elixir programming language. https://

elixir-lang.org. Accessed: 2023-11-19.

EMMA (n.d.). Emma: a free java code coverage tool. http:

//emma.sourceforge.net/. Accessed: 2023-11-19.

EPD (n.d.). Erlang distribution protocol. https://www.

erlang.org/doc/apps/erts/erl

dist protocol.html. Ac-

cessed: 2023-11-19.

Erlang (n.d.). Erlang programming language. https://www.

erlang.org/. Accessed: 2023-11-19.

Graves, T. L., Harrold, M. J., Kim, J., Porters, A., and

Rothermel, G. (1998). An empirical study of regres-

sion test selection techniques. In Proceedings of the

20th International Conference on Software Engineer-

ing, pages 188–197.

Islam, M. M., Marchetto, A., Susi, A., Kessler, F. B., and

Scanniello, G. (2012). Motcp: A tool for the prior-

itization of test cases based on a sorting genetic al-

gorithm and latent semantic indexing. In 2012 28th

IEEE International Conference on Software Mainte-

nance (ICSM), pages 654–657.

JaCoCo (n.d.). Jacoco java code coverage library. https:

//www.eclemma.org/jacoco/. Accessed: 2023-11-19.

Kandil, P., Moussa, S., and Badr, N. (2017). Cluster-based

test cases prioritization and selection technique for ag-

ile regression testing. Journal of Software: Evolution

and Process, 29(6):e1794. e1794 JSME-15-0111.R1.

Khalid, Z. and Qamar, U. (2019). Weight and cluster based

test case prioritization technique. 2019 IEEE 10th An-

nual Information Technology, Electronics and Mobile

Communication Conference (IEMCON), pages 1013–

1022.

Lima, J. A. P. and Vergilio, S. R. (2022). A multi-armed

bandit approach for test case prioritization in continu-

ous integration environments. IEEE Transactions on

Software Engineering, 48(2):453–465.

Medhat, N., Moussa, S. M., Badr, N. L., and Tolba,

M. F. (2020). A framework for continuous regression

and integration testing in iot systems based on deep

learning and search-based techniques. IEEE Access,

8:215716–215726.

Mix (n.d.). Mix. https://hexdocs.pm/mix/Mix.html. Ac-

cessed: 2023-11-19.

muJava (n.d.). mujava: a mutation system for java pro-

grams. https://cs.gmu.edu/

∼

offutt/mujava/. Accessed:

2023-11-19.

MutGen (n.d.). Mutgen - motif based mutation simulation

library. https://github.com/fhcrc/mutgen. Accessed:

2023-11-19.

Omri, S. and Sinz, C. (2022). Learning to rank for test case

prioritization. In 2022 IEEE/ACM 15th International

Workshop on Search-Based Software Testing (SBST),

pages 16–24.

Pan, R., Ghaleb, T. A., and Briand, L. (2022). Atm:

Black-box test case minimization based on test code

similarity and evolutionary search. arXiv preprint

arXiv:2210.16269.

Pan R., Bagherzadeh M., G. T. e. a. (2022). Test case selec-

tion and prioritization using machine learning: a sys-

tematic literature review. Empir Software Eng, 29:1 –

43.

Pradeepa, R. and VimalDevi, K. (2013). Effectiveness

of test case prioritization using apfd metric: Survey.

In International Conference on Research Trends in

Computer Technologies (ICRTCT—2013). Proceed-

ings published in International Journal of Computer

Applications®(IJCA), pages 0975–8887.

Qu, X., Cohen, M., and Woolf, K. (2007). Combinatorial in-

teraction regression testing: A study of test case gen-

eration and prioritization. In 2007 IEEE International

Conference on Software Maintenance, pages 255—

264, Los Alamitos, CA, USA. IEEE Computer Soci-

ety.

ENASE 2024 - 19th International Conference on Evaluation of Novel Approaches to Software Engineering

118

Sampath, S., Bryce, R. C., Jain, S., and Manchester, S.

(2011). A tool for combination-based prioritization

and reduction of user-session-based test suites. In

2011 27th IEEE International Conference on Software

Maintenance (ICSM), pages 574–577.

Singhal, S., Jatana, N., Suri, B., Misra, S., and Fernandez-

Sanz, L. (2021). Systematic literature review on test

case selection and prioritization: A tertiary study. Ap-

plied Sciences, 11(24).

Spieker, H., Gotlieb, A., Marijan, D., and Mossige, M.

(2017). Reinforcement learning for automatic test

case prioritization and selection in continuous integra-

tion. In Proceedings of the 26th ACM SIGSOFT Inter-

national Symposium on Software Testing and Analy-

sis, ISSTA 2017, page 12–22, New York, NY, USA.

Association for Computing Machinery.

Vescan, A., Gaceanu, R., and Szederjesi-Dragomir, A.

(2023). Neural network-based test case prioritization

in continuous integration. In 2023 38th IEEE/ACM In-

ternational Conference on Automated Software Engi-

neering Workshops (ASEW), pages 68–77, Los Alami-

tos, CA, USA. IEEE Computer Society.

Industrial Validation of a Neural Network Model Using the Novel MixTCP Tool

119
