Modernization of Legacy Systems to Microservice Architecture: A

Tertiary Study

Nathalia Rodrigues de Almeida, Gabriel Nagassaki Campos,

Fernando Rodrigues de Moraes and Frank Jos

e Affonso

Department of Statistics, Applied Mathematics and Computation, S

ao Paulo State University – UNESP,

PO Box 178, Rio Claro, S

ao Paulo, 13506-900, Brazil

Keywords:

Modernization, Monolithic System, Microservice Architecture, Systematic Mapping Study.

Abstract:

Modernization of legacy systems to Microservice Architecture (MSA) has been a subject of interest in both

academia and industry. MSA facilitates the development of systems by composing them as a collection of

small, loosely coupled, and independent services. Despite the importance of this architectural style for system

modernization, there is a lack of comprehensive study of how the modernization process must be conducted,

regarding the main steps that must be executed, besides architectural patterns that may be used during this pro-

cess. The goal of this paper is to provide a panorama and analysis, providing a panorama on the modernization

of legacy systems to MSA. To do so, we conducted a tertiary study following the guidelines of a Systematic

Mapping Study, based on 20 secondary studies. Our overview reveals some evidence related to modernization,

such as the main motivations, the main architectural patterns, and the macro steps of a process. Moreover, a

discussion of the main ﬁndings is addressed in our study. As the study presented in this paper addresses a

research theme that is constantly evolving, the presented panorama may be an important guide for researchers

and practitioners in the development of future work to advance and consolidate such theme.

1 INTRODUCTION

Nowadays, software systems have played an impor-

tant role in our society, operating in various seg-

ments, such as public and private institutions, air-

ports, and communication systems. In parallel, a no-

table increase in the complexity of these systems and

their computational environments has been observed

in recent years (Lewis and Fowler, 2014). In a sce-

nario not far, system integration was a feasible alter-

native to expand the accessibility of legacy systems

to a larger user base, achieved simply by moderniz-

ing its interface. According to Pressman and Maxim

(2019), legacy can be understood as a system devel-

oped with obsolete computing resources (e.g., archi-

tectural models, programming languages, databases,

among others) for the current computing scenario.

Regarding operation, these systems have been contin-

ually maintained to meet changing business require-

ments and computing platforms. In this paper, this

concept is restricted to systems designed based on

a monolithic architecture built on logical units (e.g.,

client-side, server-side, and database). Thus, any

https://orcid.org/0000-0002-5784-6248

changes to the system involve building and deploy-

ing a new version of the application (e.g., server-

side) (Lewis and Fowler, 2014).

In a short period ago, integration techniques based

on API (Application Programming Interface) have

been used as a feasible alternative adopted by com-

panies to provide new functionalities to their users

from a legacy system (Erl et al., 2012). Over time,

this type of system does not meet the most current

requirements, besides beginning to present execution

adversities (Grubb and Takang, 2003; Newman, 2019;

Colanzi et al., 2021). In these systems, monolithic ar-

chitectures encompass functionalities in large individ-

ual components, rising to inherent limitations in terms

of scalability, maintenance, and deployment perfor-

mance (Abgaz et al., 2023).

Based on the exposed context, software modern-

ization has been an alternative adopted by companies

to make their systems available to their users, consid-

ering recent technologies, architectural models, and

computing scenarios (Lewis and Fowler, 2014). The

Microservices Architecture (MSA) has been adopted

because it enables the achievement of structural, func-

tional, and data decoupling. MSA enables us to meet

Almeida, N., Campos, G., Moraes, F. and Affonso, F.

Modernization of Legacy Systems to Microservice Architecture: A Tertiary Study.

DOI: 10.5220/0012633300003690

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 26th International Conference on Enterprise Information Systems (ICEIS 2024) - Volume 2, pages 581-592

ISBN: 978-989-758-692-7; ISSN: 2184-4992

581

new recent trends of development (e.g. DevOps – De-

velopment and Operations) that demand ever-faster

release cycles through partitioning systems into sepa-

rately compilable services (Abgaz et al., 2023).

In this paper, modernization is a process starting

from the legacy system (e.g., monolithic) to MSA.

Some approaches, techniques, and methods for guid-

ing modernization activities have been proposed in

the literature, focusing on some aspects (e.g., the

legacy’s modules and their dependencies) and ne-

glecting others (e.g., the data model structure). Re-

searchers and practitioners have also focused their ef-

forts on establishing panoramas or state-of-the-art on

this research topic in secondary studies. However,

these studies lack guidance on aspects that perme-

ate the activities and interests related to the modern-

ization of the system. Therefore, to the best of our

knowledge, there is no tertiary study on the modern-

ization of legacy systems to MSA.

According to Kitchenham et al. (2010); Petersen

et al. (2015), a tertiary study aims to synthesize

knowledge from secondary studies, providing a wide

view of a research area. Therefore, a better under-

standing concerning the modernization of legacy sys-

tems to MSA can contribute to the development of

new solutions (e.g., approaches, methods, and tools).

Aiming to contribute to this research area, we present

in this paper a Systematic Mapping Study (SMS) on

modernization of legacy systems to MSA. Our anal-

yses were based on 20 secondary studies, where we

sought to explore aspects related to the studies them-

selves, the motivation to modernize, the patterns used

in modernization, and the main activities of a mod-

ernization process itself.

The remainder of this paper is organized as fol-

lows. Section 2 presents background about microser-

vice and software modernization and an overview of

related work. Section 3 addresses the main ﬁndings of

our study. A discussion of these ﬁndings is reported in

Section 4. Finally, Section 5 presents our conclusions

and perspectives for future work.

2 BACKGROUND AND RELATED

WORK

In this section we present the background and related

work that contributed to the development of our study.

Initially concepts of microservice and software mod-

ernization are reported. Next, related work (i.e., ter-

tiary studies) on modernization of legacy system to

microservices is addressed.

Microservices. MSA has emerged as a dominant

architectural style in recent years. Although count-

less studies have been conducted on the subject, there

is no precise deﬁnition of this style. However, it

is deﬁned by shared features, including but not lim-

ited to, scalable services, organization around busi-

ness capabilities, automated deployment, and a de-

centralized approach to languages and data. Accord-

ing to Lewis and Fowler (2014), “the term “Microser-

vice Architecture” has sprung up over the last few

years to describe a particular way of designing soft-

ware applications as suites of independently deploy-

able services”. This approach enables each com-

ponent to be updated, modiﬁed, or replaced with-

out disrupting the functionality of others, offering in-

creased adaptability in the development process. As

explained by Richardson (2018), “Microservices are

a way of breaking up large monolithic applications

into a set of small, loosely coupled, and independently

deployable services that enable organizations to de-

liver software more quickly”. Within an MSA, ser-

vices are ﬁne-grained, and communication protocols

are lightweight, which enhances modularity, making

applications easier to comprehend, develop, test, and

more resilient. Additionally, services can be devel-

oped and deployed independently, providing ﬂexibil-

ity and scalability.

Modernization. The monolith was the primary ar-

chitectural approach used for years in the industry,

as it was easy to develop, deploy, and offer inherent

beneﬁts, such as simpliﬁed codebase management,

streamlined debugging processes, and direct scalabil-

ity within a single software unit. However, over time

and with its increasing size, it presents various is-

sues, impacting productivity, deliveries, and including

challenges related to codebase complexity, difﬁculties

in accommodating evolving technologies, and the po-

tential for slower development cycles and releases.

With these drawbacks and the emerging success of

microservices, numerous companies set their sights

on this new architecture, sparking widespread inter-

est and prompting various organizations to consider

migrating. Migrating or modernizing from a legacy

system to a microservice-based one is not a trivial

task. Many academic studies have been conducted

to comprehend and discover the best techniques for

optimizing this process. However, similar to the mi-

croservices themselves, the migration/modernization

processes lack a consolidated deﬁnition and a sin-

gle and solid step-by-step guide, providing companies

with an array of options (Colanzi et al., 2021).

As related work, to the best of our knowledge,

there is no tertiary study about the modernization of

legacy systems to MSA. To do so, we combined the

terms “tertiary study” and “microservices” with their

synonyms and executed the search string in the same

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

582

publication databases of this study (Almeida et al.,

2023). As presented in Section 3, the secondary stud-

ies available in the literature address different aspects

of the investigation, leaving gaps related to the mod-

ernization process itself and its associated aspects.

3 A PANORAMA ON

MODERNIZATION OF LEGACY

SYSTEMS TO MSA

This section presents the main ﬁndings of our ter-

tiary study, which provides a panorama on the mod-

ernization of legacy systems to MSA. To do so, we

elaborated a research protocol based on guidelines

proposed by Kitchenham et al. (2010) and Petersen

et al. (2015), which can be found in full in Almeida

et al. (2023). We conducted our study from August

31 to November 30, 2023, and involved four people:

two software engineering researchers and two mi-

croservice researchers/practitioners with strong pro-

fessional experience in the area.

After strictly following the guidelines of our re-

search protocol, 20 studies were selected to compose

the ﬁnal list of our investigation, as shown in Table 1.

The ﬁrst column shows the ID for each study, and the

second one is the reference for each study. Each ref-

erence is composed of the author’s name(s), and the

publication title with an external link where the sec-

ondary study was published. The third column shows

the publication year of each study. Next, we report

the main ﬁndings of our study in Sections 3.1 – 3.4

based on Research Questions (RQ) deﬁned in our pro-

tocol (Almeida et al., 2023).

3.1 Overview of Secondary Studies

The results reported in this section are related to RQ1,

which describes the relationship between the studies’

publication venues, publication year, studies’ nature,

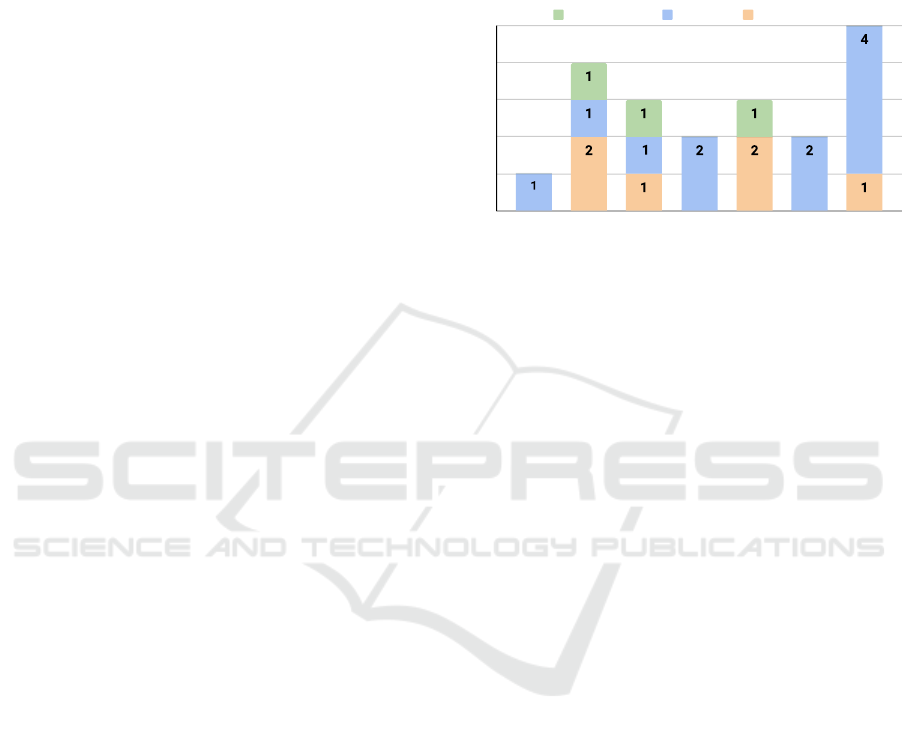

and types of each secondary study. Figure 1 illus-

trates the distribution of studies relating the interests

of RQs 1.1 and 1.2. The columns illustrate the distri-

bution of studies in relation to the publication venues

identiﬁed in our study (i.e., Conference, Journal, and

Symposium) for each year. We limited our analysis

to the last six full years and aimed to get the most

up-to-date and recent data. Thus, 55% of the studies

were published in Journals (S3, S4, S7, S8, S10, S11,

S12, S13, S16, S18, and S19), 30% in Conferences

(S6, S9, S14, S15, S17, and S20), and only 15% in

Symposium (S1, S2, and S5). This information alone

provides solid data that reveals a wider concentration

of studies in publication venues with a high rigor of

evaluation (i.e., Journal). Moreover, it can be said that

studies published in venues with a lower level of ma-

turity (i.e., Symposium and Conference) are moving

towards becoming more solid studies for interested

scientiﬁc and practitioner communities.

2017 2018 2019 2020 2021 2022 2023

Symposium Journal Conference

Figure 1: Yearly distribution of publications.

The nature and type of studies reveal the research

interests of the scientiﬁc and industry communities in

understanding aspects related to the modernization of

legacy systems to MSA. Concerning the studies’ na-

ture (RQ 1.3), we elaborated three categories, namely:

(i) Academic, a category that covers studies conducted

mainly by academic researchers, focusing only on

theoretical and experimental investigations, without

direct emphasis on industrial application; (ii) Indus-

trial, a category that covers studies led by researchers

with a focus on applications aimed at industry and

without academic bias; and (iii) Mixed, a category

that covers studies conducted in a hybrid way, involv-

ing researchers and practitioners, with content aimed

at industry and/or academia. Regarding the studies’

type (RQ 1.4), we categorized the secondary stud-

ies in three categories: Systematic Literature Review

(SLR); SMS, and Survey. Figure 2 illustrates the dis-

tribution of the publications per nature and type.

With 10 studies (50%), “Survey” was the most

recurrent type of study in our investigation. “SMS”

with 6 studies (30%) and “SLR” with 4 studies (20%)

complete our distribution. Drawing a parallel be-

tween this information and the nature of the stud-

ies, it is observed a balance between studies consid-

ered academic (i.e., Academic category) and studies

with industry participation (i.e., Industrial and Mixed

categories). This relationship reveals the interest of

academia and industry in the modernization of legacy

systems to MSA. From the academic side, it is noted

an interest in understanding the industry’s pains in

modernizing such systems and developing solutions

(e.g., processes, methodologies, frameworks) that can

minimize the impacts related to this type of activity.

On the industry side, evidence shows interest in so-

Modernization of Legacy Systems to Microservice Architecture: A Tertiary Study

583

Table 1: List of studies analyzed in our study.

ID Reference Year

S1 Luz, Welder and Agilar, Everton and de Oliveira, Marcos C

esar and de Melo, Carlos Eduardo R.

and Pinto, Gustavo and Bonif

acio, Rodrigo, An Experience Report on the Adoption of Microser-

vices in Three Brazilian Government Institutions

2018

S2 Colanzi, Thelma and Amaral, Aline and Assunc¸

ao, Wesley and Zavadski, Arthur and Tanno,

Douglas and Garcia, Alessandro and Lucena, Carlos, Are We Speaking the Industry Language?

The Practice and Literature of Modernizing Legacy Systems with Microservices

2021

S3 Velepucha, Victor and Flores, Pamela, A Survey on Microservices Architecture: Principles, Pat-

terns and Migration Challenges

2023

S4 Razzaq, Abdul and Ghayyur, Shahbaz A. K., A systematic mapping study: The new age of

software architecture from monolithic to microservice architecture—awareness and challenges

2023

S5 Cojocaru, Michel-Daniel and Uta, Alexandru and Oprescu, Ana-Maria, Attributes Assessing the

Quality of Microservices Automatically Decomposed from Monolithic Applications

2019

S6 Kalske, Miika and M

akitalo, Niko and Mikkonen, Tommi, Challenges When Moving from

Monolith to Microservice Architecture

2018

S7 Abgaz, Yalemisew and McCarren, Andrew and Elger, Peter and Solan, David and Lapuz, Neil

and Bivol, Marin and Jackson, Glenn and Yilmaz, Murat and Buckley, Jim and Clarke, Paul, De-

composition of Monolith Applications Into Microservices Architectures: A Systematic Review

2023

S8 Knoche, Holger and Hasselbring, Wilhelm, Drivers and Barriers for Microservice Adoption – A

Survey among Professionals in Germany

2019

S9 Carvalho, Luiz and Garcia, Alessandro and Assunc¸

ao, Wesley K. G. and Bonif

acio, Rodrigo

and Tizzei, Leonardo P. and Colanzi, Thelma Elita, Extraction of Conﬁgurable and Reusable

Microservices from Legacy Systems: An Exploratory Study

2019

S10 Muhammad Haﬁz Hasan and Mohd Hafeez Osman and Novia Indriaty Admodisastro and

Muhamad Sufri Muhammad, Legacy systems to cloud migration: A review from the architec-

tural perspective

2023

S11 Ghayyur, Shahbaz Ahmed Khan and Razzaq, Abdul and Ullah, Saeed and Ahmed, Salman,

Matrix clustering based migration of system application to microservices architecture

2018

S12 Hassan, Sara and Bahsoon, Rami and Kazman, Rick, Microservice transition and its granularity

problem: A systematic mapping study

2020

S13 Bamberger, Burkhard and K

orber, Bastian, Migrating Monoliths to Microservices Integrating

Robotic Process Automation into the Migration Approach

2022

S14 Salii, Sh. and Ajdari, J. and Zenuni, Xh., Migrating to a microservice architecture: beneﬁts and

challenges

2023

S15 Di Francesco, Paolo and Lago, Patricia and Malavolta, Ivano, Migrating Towards Microservice

Architectures: An Industrial Survey

2018

S16 Velepucha, Victor and Flores, Pamela and Torres, Jenny, Migration of Monolithic Applications

Towards Microservices Under the Vision of the Information Hiding Principle: A Systematic

Mapping Study

2020

S17 Velepucha, Victor and Flores, Pamela, Monoliths to microservices-Migration Problems and

Challenges: A SMS

2021

S18 Taibi, Davide and Lenarduzzi, Valentina and Pahl, Claus, Processes, Motivations, and Issues for

Migrating to Microservices Architectures: An Empirical Investigation

2017

S19 Weerasinghe, Sidath and Perera, Indika, Taxonomical Classiﬁcation and Systematic Review on

Microservices

2022

S20 Michael Ayas, Hamdy and Leitner, Philipp and Hebig, Regina, The Migration Journey Towards

Microservices

2021

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

584

S19

S12

S16

S17

S14

S15

S18

S20

Mixed

Industrial

Mixed

S13

S10

Academic

SLR

SMS

Survey

Academic

S11

Figure 2: Publications’ distribution per nature and type.

lutions that suit their needs without bringing major

technological impacts or high learning curves.

3.2 Motivations

The motivations outlined in each secondary study

were analyzed to address RQ2, as shown in Table 2.

The ﬁrst column presents all motivations identiﬁed in

our investigation, while the other columns correspond

to studies that presented some evidence for such mo-

tivations. Next, we addressed a description of each

motivation concerning each study.

Before presenting our analysis of the motivations

extracted from secondary studies, it is worth high-

lighting that seven of the twenty studies did not

present motivational evidence about the moderniza-

tion activity (S3, S7, S9, S12, S13, S16, and S17).

According to our analysis, identiﬁed modernization

motivations can be classiﬁed into two categories,

namely: (i) pre-modernization, which represents

studies that highlighted some adversity in legacy sys-

tems and proposed software modernization to address

it; and (ii) post-modernization, which encompasses

the studies that reported interest in achieving the mod-

ernization advantages.

Regarding pre-modernization motivations, six

studies (S1, S4, S5, S8, S14, and S20) reported dif-

ﬁculties in carrying out frequent deployments (“De-

ployment frequency”), impacting their ability to stay

updated with market innovations and reducing com-

petitive advantage. “Adding new functionalities” was

addressed by two studies (S6 and S15). This moti-

vation reveals the complexity of integrating new fea-

tures because of the legacy nature of systems, imped-

ing agility in modiﬁcations. Adverse issues related

to integrating new developers were also highlighted

by two studies (S1 and S5), which reported extended

adaptation time (“Developer onboarding”), delaying

the effective commencement of development.

Concerning post-modernization motivations,

“Maintainability” and “Scalability” with seven

studies (S2, S8, S10, S14, S18, S19, and S20) in

common were the main motivational factors related to

post-modernization. Individually, these motivational

factors were identiﬁed in S4 (Maintainability) and

S11 (Scalability). Therefore, the need for scalable,

adaptable, and maintainable systems emerged as a

signiﬁcant priority in the aforementioned studies.

“Flexibility” was identiﬁed in three studies (S1, S4,

and S10). This feature enables independent updates

of system components, promoting agility, and facili-

tating incremental innovations during the transition to

MSA. “Cost and time savings” were factors detected

in two studies (S4 and S14). This is attributed to the

modular nature of MSA, enabling precise updates

on speciﬁc components and reducing overall main-

tenance costs. Additionally, shorter development

cycles and agile deployments lead to cost savings

and ﬁnancial beneﬁts. “Polyglot”, motivational

factor identiﬁed in two studies (S4 and S8), refers

to microservices’ ﬂexibility in supporting multiple

programming languages, expanding development

options, and preserving developers’ knowledge.

“Team responsibilities”, feature identiﬁed in one

study (S18), represents the effective task and respon-

sibility distribution among teams during the system

transition to MSA. This feature enables greater au-

tonomy and agility in development decisions, driving

independent improvements in each microservice.

We identiﬁed three core motivations in study S14,

namely: “Performance”, “Fault tolerance”, and

“Agility”. The ﬁrst relates to operational efﬁciency,

the second addresses the system’s ability to handle

issues without signiﬁcant interruptions, and the third

refers to the capability of quick adaptation-essential

elements in pursuing MSA. S19 underscores that

modernization offers opportunities for more granular

and ﬂexible security policies, safeguarding individual

services and reducing breach impacts, strengthening

overall system resilience (“Security”).

Drawing a counterpoint concerning moderniza-

tion, two studies (S6, S18) highlighted the use of “De-

vOps practices” as an essential factor for the continu-

ous delivery of software. Considering the scenario of

constant innovations, companies are avoiding distanc-

ing themselves from modernization (or technological

transformation). In this direction, S18 mentioned an

important jargon “Because everybody does it” as a

Modernization of Legacy Systems to Microservice Architecture: A Tertiary Study

585

Table 2: An overview of the motivations found in our study.

Motivation S1 S2 S4 S5 S6 S8 S10 S11 S14 S15 S18 S19 S20

Adding new functionalities D D

Agility D

Because everybody does it D

Cost and time savings D D

Deployment frequency D D D D D D

Developer onboarding D D

DevOps practices D D

Fault tolerance D

Flexibility D D D

Maintainability D D D D D D D D

Performance D

Polyglot D D

Scalability D D D D D D D D

Security D

Team responsibilities D

motivational factor, highlighting the desire to keep up

to date, even though these companies fail because of

the lack of minimum knowledge to conduct a mod-

ernization activity.

3.3 Patterns Addressed in

Modernization

As found in our investigation, we must follow a step

set to guarantee the success of the modernization of

legacy systems to MSA. This recommendation is es-

sential to avoid the feature perpetuation of legacy sys-

tems in the new systems. Moreover, it is also im-

portant to apply speciﬁc patterns in each moderniza-

tion phase, as these patterns signiﬁcantly contribute to

transitioning from a legacy system to MSA.

To answer RQ3, we analyzed the patterns reported

by each secondary study. Of the 20 studies, 14 studies

(70%) reported some evidence of the use of patterns

during the modernization process. S4, S7, S9, S10,

S11, and S16 were the studies that did not present

concrete evidence on the investigation subject of this

RQ. To organize such patterns and their applicabil-

ity, we adopted and extended the structure presented

in the study S19, as illustrated in Figure 3. Next, a

description of the main patterns of each category is

addressed for reasons of space and scope.

Service decomposition is a category that encom-

passes a pattern set related to the system’s ability

to operate independently across multiple connected

services. These patterns play important roles in the

breakdown of a legacy system into microservices,

creating smaller services, and optimizing application

performance. Effective use of these patterns requires

architects to have solid business domain knowledge,

combined with a deep and speciﬁc technical under-

standing of it (S19). We found evidence of the Stran-

gler pattern in ﬁve studies (S1, S2, S14, S15, and

S18) and we elect it as the main pattern in this cat-

egory. During the transition phase, the Strangler pat-

tern facilitates the gradual replacement of the old sys-

tem with the new architecture (S1).

Data management encompasses different pat-

terns for organizing and structuring system data. The

pattern selection in this category must be guided

by speciﬁc business demands, enabling architects

to choose those that best meet the identiﬁed re-

quirements (i.e., MSA). According to our analyses,

the Database per Service pattern can be considered

one of the most important in this category, since

it provides that each service maintains its exclusive

database, which is only accessed through its API. The

strategy behind this pattern enables independence be-

tween services, giving each one full control over its

persistent data, without direct sharing with other ser-

vices. This pattern also allows the use of different

databases, according to the speciﬁc needs of each ser-

vice (Richardson, 2018).

Microservices deployment is a category that

deals with deploying services independently, en-

abling seamless updates and scalability for microser-

vices. By deploying these microservices across var-

ious servers, it becomes feasible to scale the system

and optimize performance as required. To do so, it is

recommended to maintain a dependable deployment

environment and implement ongoing monitoring. Of

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

586

MSA

Service

Deco m p o siti o n

Sel f-cont ained

service

S19

Decompos e b y

business capab i l i t y

S19

Str angler

S14

S15

S18

DDD

S17

Dat a

Management

Database p e r

service

S19

Shared databa se S19

Ev e nt sourcing S19

Shared Dat a

Microservice Design

Dat a f l o w-driven S13

Data-Dr iven

Design

D e p l o y m e n t

Multiple service

instances p e r ho s t

S19

Serverless

d e p l o y m e n t

S19

ContainerizedS19

Bac kend f o r

Fronte n d

API BasesAPI GatewayS19

Service

Discovery

Client-side

discovery

S19

Server-side

service discovery

S19

Resiliency

Circuit

Break e r

S12

S19

Bulkhead

S12

Figure 3: Taxonomy of architectural patterns for modernization of legacy systems to MSA.

the four patterns of this category, Serverless deploy-

ment (S19) represents a solution that hides any server

concept (i.e. reserved or allocated resources), hosts,

or containers. In short, the server cloud receives a ser-

vice code and runs it transparently. The customers are

charged by the requests for the resources consumed.

The API Bases category deals with the exposure

of microservices through API managers, which super-

vise and control the interfaces provided by such ser-

vices. From an operational viewpoint, it facilitates

the scaling of microservices based on demand, dy-

namically adjusting to changes in trafﬁc. API Gate-

way, a pattern identiﬁed in the S19 study, enables cus-

tomers to access services centrally, directing requests

to speciﬁc services, simplifying access to microser-

vices, and adapting APIs according to the individual

needs of each customer. Thus, this pattern enables the

improvement of the user experience, isolating the cus-

tomer from the complexity of the microservices struc-

ture (Richardson, 2018).

Service Discovery is a category that covers

the discovery and communication of microservices.

Richardson (2018) emphasizes the importance of en-

abling dynamic and efﬁcient communication among

microservices, facilitating automatic discovery and

interaction without dependence on static or manual

setups. We identiﬁed Server-side Service Discovery

pattern in two studies (S3 and S19) of our investi-

gation, which is a method of dynamic service dis-

covery in an MSA. To do so, it uses a router that

consults a service registry, directing requests to avail-

able instances. Although it simpliﬁes client code and

some cloud platforms offer this feature, this pattern

requires the conﬁguration of an additional component

(i.e., router), which may introduce more networking

steps compared to Client-side Discovery.

Resiliency encompasses different patterns for re-

covering and maintaining the operational stability of

a system in the face of internal or external failures.

Circuit Breaker was the most recurrent pattern in our

investigation, being found in 4 studies (S6, S8, S12,

and S19). In short, the goal of this pattern is to pre-

vent failures in services from affecting the stability

of the system. For instance, when a service is un-

available or has high latency, Circuit Breaker pauses

requests to that service, avoiding overloading the call-

ing service and, after a while, enabling the service to

be tested again. If the problematic service is work-

ing, requests are resumed, otherwise, the interruption

period remains (Richardson, 2018).

3.4 Modernization: Challenges,

Beneﬁts, and Processes

The results reported in this section are related to

RQ4, which describes the relationship between the

challenges faced during modernization, the main ex-

pected beneﬁts after the system’s modernization, and

the main steps recommended for a modernization pro-

cess. Next, we address each element of this relation-

ship in Sections 3.4.1 – 3.4.3.

3.4.1 Faced Challenges

To evaluate the RQ4.1, we compiled the extracted

data in Figure 4, which shows the challenges faced

during the modernization process of our study ac-

cording to the occurrence number. Of the 20 stud-

ies selected in our investigation, four (S5, S9, S16,

and S20) did not present concrete evidence regarding

Modernization of Legacy Systems to Microservice Architecture: A Tertiary Study

587

the faced challenges during the modernization pro-

cess. Next, a description of the main challenges is

addressed for space and scope reasons.

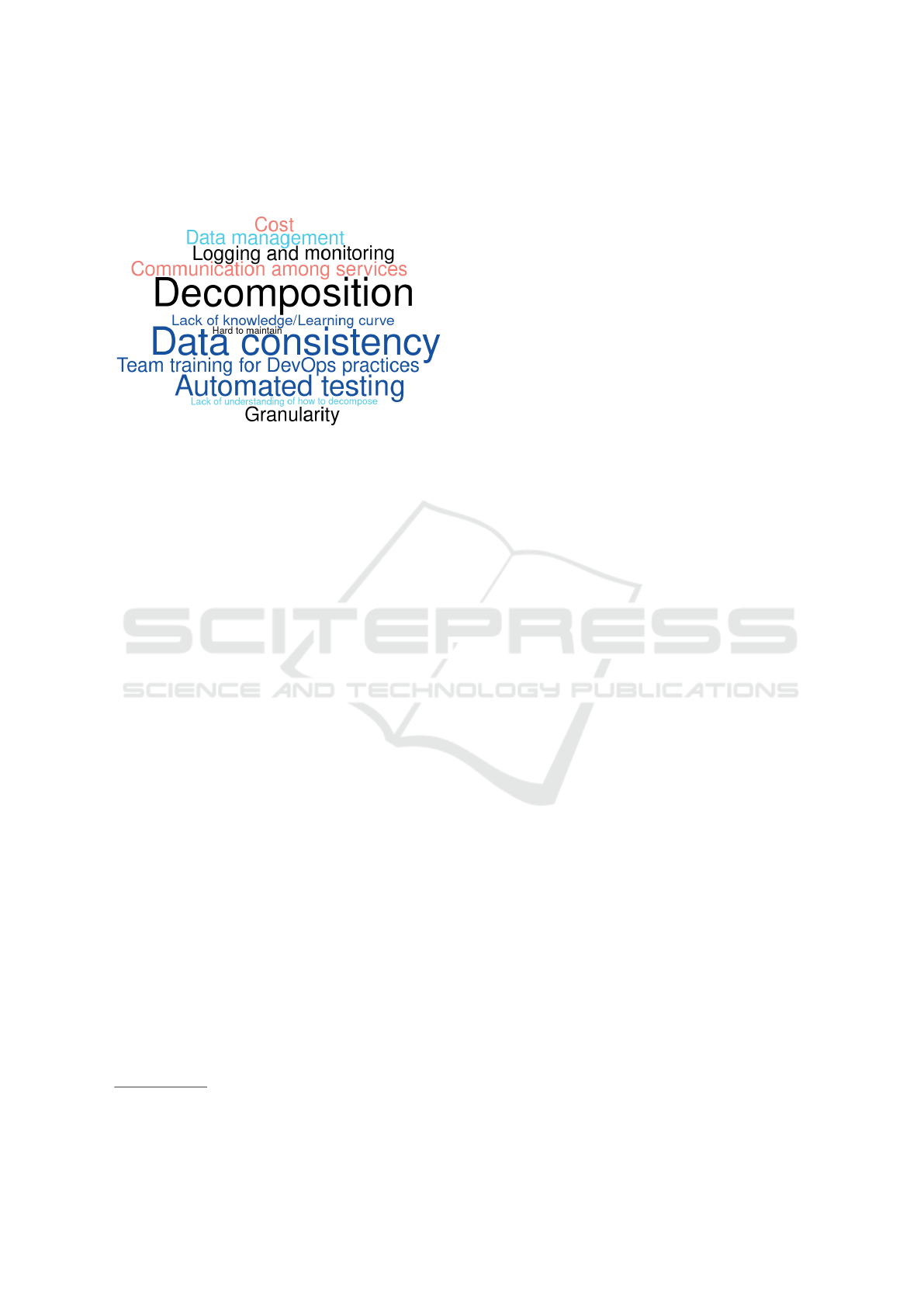

Figure 4: Challenges faced during the modernization pro-

cess of legacy systems to MSA.

According to our analysis, Decomposition, found

in 10 studies (S3, S4, S6, S7, S10, S11, S15, S17,

S18, and S19), was one of the biggest obstacles

faced by developers during the modernization pro-

cess. This activity consists of fragmenting legacy sys-

tems, complex systems, or services into smaller, more

manageable parts (i.e., microservices), facilitating the

system’s development, maintenance, and scalability.

In this direction, it is equally important to consider

granularity to avoid excessively detailed components,

which can harm system performance (S6).

Lack of knowledge/Learning curve was another

challenge identiﬁed in our analysis with seven stud-

ies (S1, S3, S4, S8, S15, S17, and S18). The lack of

knowledge can generate severe impacts during system

modernization, resulting in severe performance prob-

lems if the migration is not correctly conducted. In

parallel, the learning curve (S17) can further prolong

the duration of the process, making it take longer to

complete and generating other discomforts for com-

panies (e.g., continuous software delivery).

Data consistency and Data management were

the challenges mentioned in four (S2, S4, S8, and

S19) and two (S6 and S18) studies, respectively.

These issues can be considered ﬁrst-class elements in

the microservice design, since the absence of ACID

transactions between services is a limitation that can

result in severe problems, including the loss of es-

sential information. Therefore, maintaining data in-

tegrity when migrating to a microservice environment

is essential to ensuring that critical information is not

compromised during the modernization process (S8).

With three studies (S4, S6, S8), Automated test-

An acronym that refers to four properties, namely:

Atomicity, Consistency, Isolation, and Durability.

ing also emerges as a challenge during the modern-

ization of legacy systems to MSA. To do so, requires

more comprehensive testing, considering complex in-

teractions between services. Adapting existing tests

to this structure involves time and effort, especially

because of the database separation, which demands

more careful data management to execute the tests.

These adversities highlight the importance and com-

plexity of automated testing during the modernization

process (S6).

Team training for DevOps practices has been

a challenge faced by companies, as identiﬁed in two

studies (S3 and S18). This activity includes perform-

ing tasks such as Continuous Integration and Contin-

uous Deployment (CI/CD), considerably reducing de-

velopment, testing, and distribution times in different

environments, such as pre-production and production.

Therefore, investing in DevOps training programs be-

comes necessary to equip teams with the competen-

cies to use DevOps tools, foster collaboration between

development and operations, and get a mindset of

continuous improvement.

Service Granularity was the challenge found in

two studies (S6 and S12). The granularity level de-

termines the size and functional scope of each ser-

vice in an MSA, impacting the efﬁciency and overall

functionality of the system. Therefore, early decid-

ing on this issue can make it difﬁcult to analyze and

adapt microservices over time. Accurate and thought-

ful choice of granularity is essential to the modern-

ization success and the microservice’s effectiveness

throughout the software life cycle (S12).

Another signiﬁcant challenge is Communication

among services, which was found in two studies (S13

and S18). Efﬁcient communication between services

is vital for their integration and synchronization. Lack

of clear and consistent communication can result in

interoperability problems, leading to failures in the

system’s functioning. This challenge is especially

critical early in development, where the communica-

tion infrastructure must be established from the be-

ginning to ensure a smooth and effective transition to

the microservices’ environment (S18).

Finally, Logging and monitoring were critical

challenges cited by studies S6 and S8 during the

modernization process. Continuous monitoring and

event logs are essential elements used to identify and

solve problems, ensuring system performance and se-

curity. Without a comprehensive logging and mon-

itoring strategy, it becomes difﬁcult to detect faults

and diagnose problems early, which compromises the

system’s stability and reliability (S6).

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

588

3.4.2 Expected Beneﬁts

Regarding the expected beneﬁts after modernization

(RQ4.2), we analyzed the collected data to delineate

and identify the achievements resulting from this tran-

sition. Our analyses centered on studies providing ex-

plicit and measurable data regarding the beneﬁts re-

alized post-modernization completion (S1, S14, S17,

and S18). Three of the 20 studies reviewed did not

specify particular beneﬁts (S5, S7, and S11), and the

remaining studies did not report an adequate explana-

tion of the real expected beneﬁts. Next, a considera-

tion of our ﬁndings is addressed.

Scalability was a beneﬁt identiﬁed in three studies

(S14, S17, and S18). It embodies the system’s capac-

ity for dynamic resource expansion or reduction, en-

suring the application can handle increased users or

workload without compromising performance (Lewis

and Fowler, 2014). For instance, microservices can

be ﬂexible through horizontal scalability, enabling

business-driven expansion of the application using

seamless addition or removal of service instances as

necessary. In parallel, these studies also highlighted

an improvement in maintenance, suggesting that mi-

grating to microservices not only enhances scalability

but also streamlines system maintenance. This bene-

ﬁt is tied to the modular nature of microservices, en-

abling the development, updating, and correction of

speciﬁc system parts without affecting others. Thus,

maintenance becomes more agile and less prone to

disruptions across the entire application (S18).

Performance enhancement was underscored by

two studies (S14 and S18) as a signiﬁcant beneﬁt of

migrating to microservices. This improvement stems

from the ability of microservices to distribute work-

loads more efﬁciently, resulting in faster response

times and an overall enhanced user experience. The

ability to optimize services individually enables the

swift resolution of speciﬁc bottlenecks (S14).

Continuous delivery was identiﬁed as a beneﬁt in

two studies (S1 and S17). This emphasizes the impor-

tance of continuous and automated software deliver-

ies. The migration to microservices facilitates the ef-

ﬁcient implementation of CI/CD practices, a basis of

DevOps, enabling incremental updates, quick adapta-

tion, and more reliable software delivery (S1).

Delving into speciﬁc gains, a reduction in time-

to-market emerged prominently in one particular

study (S1). Modernization enables quick product and

service launches to the market, aided by the microser-

vice’s modularity that facilitates independent work on

speciﬁc system parts. While highlighted in a speciﬁc

study, the reduction in the time to make functionali-

ties available to end-users signiﬁcantly helps compa-

nies respond agilely to market demands, giving them

a competitive edge (S1).

Availability was underscored as a beneﬁt in one

of the analyzed studies (S14). The modernization of

legacy systems to MSA establishes a more resilient

architecture, ensuring greater service availability. Mi-

croservices enable independent deployment and scal-

ing, reducing the likelihood of widespread failures

and enhancing resilience against interruptions (S14).

The S14 study revealed that team improvement

was a beneﬁt highlighted after modernization because

the main purpose was increased productivity. Teams

can work independently on speciﬁc services using the

MSA. The modular organization of this architectural

style enables faster and more independent updates and

maintenance, enhancing the efﬁciency of the develop-

ment process (S14).

Modernization of legacy systems to MSA was

linked to better cost efﬁciency in one study (S14).

MSA enables more efﬁcient resource allocation, scal-

ing services according to their speciﬁc demand. De-

spite potential initial high migration costs (S4), the

long-term ﬂexibility and scalability can lead to sig-

niﬁcant cost optimization (S14).

Finally, the use of new technologies emerged as a

post-modernization beneﬁt in one study (S17). With

independent services using diverse technologies, or-

ganizations can employ advanced frameworks, pro-

gramming languages, and development tools, ensur-

ing they remain updated and innovative within their

technological environment (S17).

3.4.3 Modernization Process

Based on the evidence presented for RQs 4.1 and

4.2, understanding the phases of a modernization pro-

cess to minimize the impacts of this activity type and

aligning future expectations is still an issue that must

be investigated (RQ4.3). Of the 20 studies, only four

investigated this issue (S2, S15, S18, and S20). Thus,

a process for modernization was organized in three

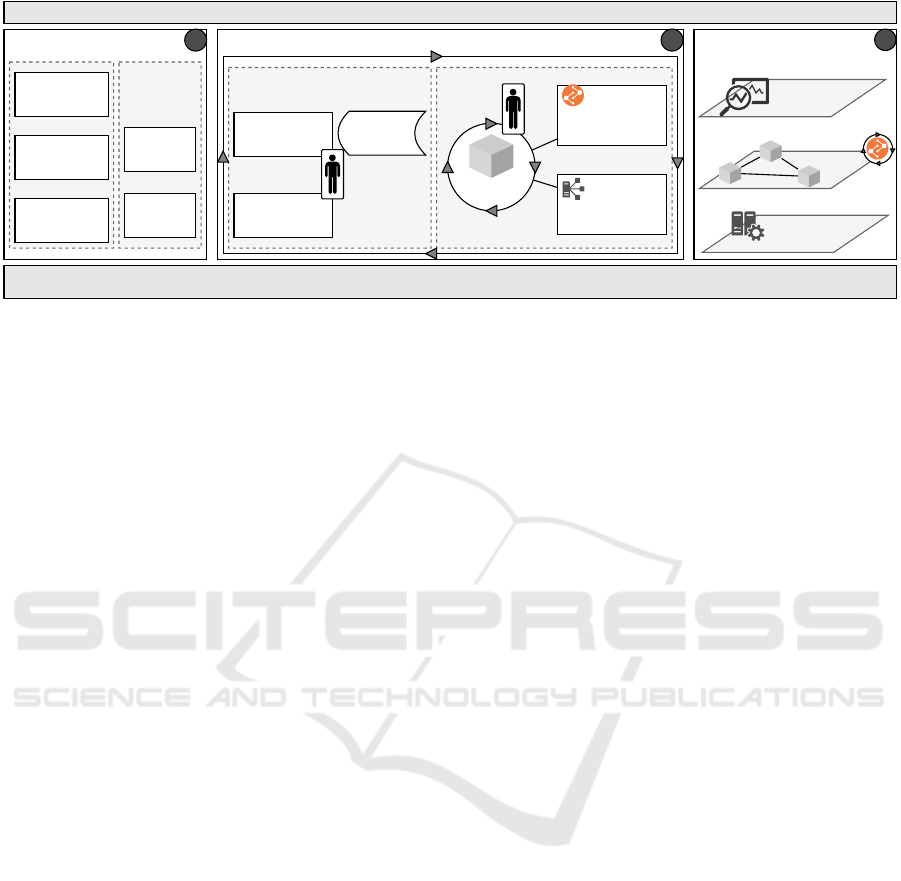

macro steps, as illustrated in Figure 5. This pro-

cess should not be considered a silver bullet solution,

but an essential guide for any stakeholder to under-

stand the main steps for modernizing legacy systems

to MSA. By proposing this process, we aim to provide

these stakeholders with a clear and solid vision of the

tasks and knowledge that permeate this activity type

so that the challenges presented in RQ4.1 are met and

the expectations reported in RQ4.2 are fulﬁlled. Next,

we address a description of each step.

Understanding legacy systems (Step 1) from both

a logical (i.e., structural and behavioral) and organiza-

tional (i.e., architectural) viewpoint were key aspects

investigated and reported by studies S2, S15, and S20.

In short, this understanding can be gained through

Modernization of Legacy Systems to Microservice Architecture: A Tertiary Study

589

Microservice ArchitectureDevelopment and DeploymentLegacy System

Source Code

Models

Documentation

Artifacts

Source

Code

Models

Reverse

Engineering

Monitoring

Tools

Deployment

Pattern Catalog

Knowledge/Experience

Configuration

and

Integration

tests

Strangler

Database per service

Circuit Breaker

API Gateway

Multiple service instances per host

Server-side service discovery

Concepts Infrastructure Technologies

1 2 3

Service

Decomposition

Structural

Analysis

DDD

Practices

Decisions

Microservice

Automatic

execution of

unit tests

Dependency

Analysis

Decisions

Design

Figure 5: Modernization process of legacy systems to MSA.

pre-existing documentation of the legacy system (e.g.,

source code, test artifacts, documentation, and archi-

tectural artifacts) or reverse engineering techniques.

At this stage, software engineers must investigate

the motivating forces for system modernization (S2),

identifying operational gaps and limitations in the

legacy system (i.e., technical, operational, and orga-

nizational aspects). In deeper investigation, these en-

gineers must understand, at a minimum, the follow-

ing aspects of the legacy system: structures, behav-

iors, organization, and interactions between modules.

Therefore, it can be said that the conduction of this ac-

tivity emphasizes that understanding legacy systems

is not just informative, but also provides the basis for

microservice design in the new architecture.

As reported by studies S2, S15, S18, and S20,

conducting a modernization process involves the

transformation of existing implementation artifacts

with the system or recovered through reverse engi-

neering techniques, followed by the gradual integra-

tion of microservices with the legacy system until the

modernization is completed in full (S2). Thus, we

suggest that the Step 2 activities be conducted cycli-

cally based on the prior knowledge of the develop-

ment teams (Soldani et al., 2018) and supported by

the use of architectural patterns (Richardson, 2018).

According to a study conducted by Soldani et al.

(2018), developers’ lack of knowledge has been the

main cause of unsuccess in the adoption or any at-

tempt to transition an existing system to MSA. For

space and scope reasons, details about the framework

of MSA concepts will not be reported in this paper.

However, an overview of this research theme was pre-

sented in Section 2. Similarly, details concerning ar-

chitectural patterns are also not presented in this sec-

tion, with only the main ones from our investigation

being highlighted for each development phase. More

details about such patterns can be seen in Section 3.3.

As illustrated in Figure 5, Step 2 represents the de-

velopment and deployment of microservices, a macro

activity in the referred process that involves funda-

mental design decisions for modernization sprints in

an incremental/cyclical approach. Furthermore, it is

worth highlighting that this step should not be con-

fused with the ﬁnal architecture (i.e., MSA), focusing

on both tasks: the decomposition of the legacy system

and the design of microservices. Next, we addressed

the details of each task.

The main purpose of decomposition is to pre-

pare the legacy system for the design of microser-

vices. To do so, software engineers must identify

services for the new architecture, which can be sup-

ported by the application of DDD (Domain-Driven

Design) practices (S15) or by the Stranger architec-

tural pattern, as suggested by S15 and S18. Accord-

ing to Di Francesco et al. (2018), decomposing the

legacy system into smaller components and immedi-

ate experimentation through gradual integration be-

tween the legacy and microservices has proven to be

a feasible strategy for monitoring the system’s evolu-

tion (S15 and S20). It is worth highlighting that the

structural analysis of the system, the deﬁnition of the

architecture, and the prioritization of service develop-

ment appear as important steps that can be achieved

in parallel to the decomposition. Finally, the possibil-

ity of inserting new functionalities into the system is

a way of modernizing the system to a new computa-

tional model, besides meeting new market demands.

Microservices design is based on the deﬁnition of

the MSA, including design decisions to meet func-

tional and non-functional requirements. In summary,

this task entails the creation or modiﬁcation of soft-

ware and other necessary components, including mi-

croservices. During this stage, the use of practices

such as CI/CD, API deﬁnition, and DevOps practices,

mentioned in Sections 3.2 and 3.3 have proven essen-

tial to manage complexity and ensure transition efﬁ-

ciency, offering the knowledge basis necessary for a

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

590

dynamic and adaptable architecture. Concerning the

development of microservices, the use of an incre-

mental/evolutionary approach with continuous soft-

ware delivery must be used so that tests and de-

pendencies between microservices can be conducted

gradually, considering redeployment of the system

from scratch or implementation gradually to elimi-

nate the existing legacy system. At this stage, it is

recommended to use automated processes (i.e., tools,

and frameworks) to better manage tasks. Finally, it

is worth highlighting that documentation of the new

architecture, especially through architectural, textual

documents and diagrams, has proven to be a funda-

mental element in the transition from the legacy sys-

tem to MSA, since it is an important source of infor-

mation to meet the real motivations for modernization

(see RQ2 – Section 3.2) and guarantee future expecta-

tions with the new system (see RQ4.2 – Section 3.4).

The MSA is ﬁnally introduced in Step 3, showcas-

ing three layers: (i) microservice; (ii) conﬁguration;

and (iii) monitoring. Microservices are deployed in

the execution environment (Item i), and veriﬁcation

and validation tasks of microservices ensure adequate

system integration, whether parts of the legacy sys-

tem are used as a reference for testing. At this stage,

microservices’ integration tests also occur as a way

of ensuring that the functionalities delivered are reli-

able and comply with the requirements established in

the previous stages. Conﬁguring supporting artifacts

is crucial to preparing the DevOps environment (Item

ii), facilitating the transition from the legacy system

to the new MSA. Finally, continuous monitoring of

microservices and infrastructure enables to evaluation

of the success of modernization (Item iii), analyzing

factors such as service availability, performance, and

resource utilization (S2 and S20).

4 DISCUSSION OF RESULTS

This section provides a discussion of the results of our

study. Our investigation suggests that the moderniza-

tion of legacy systems to MSA is a complex activ-

ity that must be carefully conducted by experienced

teams and supported by development infrastructure.

The main ﬁndings and results are listed as follows.

Our in-depth analysis revealed critical aspects

concerning DDD in modernizing legacy systems to

MSA. The ambiguity surrounding DDD, whether

considered as a potential pattern (S3, S5, S17) or a

comprehensive set of concepts, guidelines, and prac-

tices, adds complexity to the modernization of these

legacy systems. Varied interpretations of DDD can

directly inﬂuence the strategies adopted by develop-

ment teams (i.e., practitioners), impacting the effec-

tiveness and scope of the modernization activities.

Alongside the conceptual complexity, the studies

selected in our investigation highlighted a signiﬁcant

motivation for migrating to MSA: market pressure

based on the “everyone is doing it” phenomenon men-

tioned by the study S18. While this drive for upgrad-

ing is legitimate, it often leads to rushed approaches

and implementations without the required expertise

per this architectural style (see Section 3.4.2). Con-

sequently, this might inadvertently introduce inappro-

priate practices, creating anti-patterns that preserve

legacy features in the modernized systems.

Other important evidence found in our investiga-

tion reveals the close relationship between deploy-

ment frequency and time-to-market. Legacy systems

(or monoliths) unable to adapt quickly lose the abil-

ity to meet market changes, resulting in a disconnect

from user needs and competition. This adversity in

keeping pace with changes can partly be attributed to

the lack of experience and technical knowledge within

the involved teams, as evidenced in six studies of our

investigation (S1, S4, S5, S8, S14, and S20).

Although deep details of the modernization pro-

cess proposed in this paper have not been reported

in the Section 3.4.3 for space and scope reasons, our

view is that the macro activities of this referred pro-

cess can be considered a useful roadmap, offering a

structured guide for any stakeholder (i.e., researchers

and practitioners) interested in a process to modernize

a legacy system to MSA.

5 CONCLUSIONS AND FUTURE

WORK

Our study delved into a wide spectrum of existing re-

search, revealing that this research topic is still emer-

gent, and of common interest in both academia and

industry. By synthesizing insights from various sec-

ondary studies, we offered a comprehensive overview

of motivations, main architectural patterns organized

in a taxonomy, faced challenges, expected beneﬁts,

and macro steps to conduct the modernization.

By analyzing motivations (see Section 3.2), we

uncovered a diversity of driving factors. Pre-

motivations highlighted challenges in legacy systems,

such as the need to incorporate new functionalities

and the difﬁculty in performing frequent updates be-

cause of the monolithic nature of these systems. In

contrast, post-motivations emphasized the pursuit of

maintainability, scalability, cost efﬁciency, and ben-

eﬁts, such as enhanced operational performance and

ﬂexibility in updating speciﬁc components.

Modernization of Legacy Systems to Microservice Architecture: A Tertiary Study

591

The detailed analysis revealed the extensive appli-

cation of speciﬁc patterns at each stage of the mod-

ernization process. One example is the “Strangler”

pattern, which provides a step-by-step for the iden-

tiﬁcation of candidates for (micro)service, support-

ing a step of a modernization process of legacy sys-

tems to MSA. Similarly, the “Database per Service”

pattern, emerges as an effective solution for indepen-

dence among services and decoupled persistence data.

These and other patterns (see Section 3.3), when con-

sciously and systematically applied, play a critical

role in the success of modernization toward MSA.

Regarding the modernization process itself, a

challenging path involving several steps must be over-

come. For instance, “Service decomposition” de-

mands a careful approach to fragmenting legacy sys-

tems into smaller, manageable components (i.e., mi-

croservices). “Data management” plays a pivotal role

in this process, requiring speciﬁc strategies to main-

tain consistency and integrity of data when migrating

to a distributed architecture. By systematically and

comprehensively addressing the steps of the proposed

process in this paper (see Section 3.4.3) combined

with architectural patterns reported in Section 3.3, it is

possible to establish a cohesive and successful mod-

ernization guide, facilitating a smooth and efﬁcient

transition from legacy systems to MSA.

As future work, we intend to conduct a more spe-

ciﬁc investigation of the research topic explored in

this paper. Despite various approaches being pro-

posed, a solid guide that details software moderniza-

tion comprehensively is still a subject to be investi-

gated in-depth. Therefore, our goal is to ﬁll this gap

by creating a process that provides clear and practical

steps to assist organizations in the modernization of

legacy systems to MSA, considering a more dynamic

and efﬁcient framework based on microservices. In

this sense, it is worth highlighting that the process

presented in Section 3.4.3 can be used as a basis for

elaboration of this process, as it brings together the

most recent evidence related to this research topic.

ACKNOWLEDGEMENTS

This study was ﬁnanced in part by the Coordenac¸

de Aperfeic¸oamento de Pessoal de N

ıvel Superior -

Brasil (CAPES).

REFERENCES

Abgaz, Y., McCarren, A., Elger, P., Solan, D., Lapuz, N.,

Bivol, M., Jackson, G., Yilmaz, M., Buckley, J., and

Clarke, P. (2023). Decomposition of monolith appli-

cations into microservices architectures: A systematic

review. IEEE Transactions on Software Engineering,

49(8):4213–4242.

Almeida, N. R., Campos, G. N., Moraes, F. R., and Affonso,

F. J. (2023). Systematic mapping protocol – mapping

study on modernization of legacy systems to mi-

croservice architecture. on-line. https://drive.google.

com/ﬁle/d/1jwx27Noo8Ir zoBSA4xz8pbU8bjCKkza/

view?usp=sharing, accessed on March 19, 2024.

Colanzi, T., Amaral, A., Assunc¸

ao, W., Zavadski, A.,

Tanno, D., Garcia, A., and Lucena, C. (2021). Are we

speaking the industry language? the practice and lit-

erature of modernizing legacy systems with microser-

vices. In The 15th Brazilian Symposium on Software

Components, Architectures, and Reuse, page 61–70,

New York, NY, USA. Association for Computing Ma-

chinery.

Di Francesco, P., Lago, P., and Malavolta, I. (2018). Migrat-

ing towards microservice architectures: An industrial

survey. In IEEE International Conference on Software

Architecture (ICSA), pages 29–2909.

Erl, T., Balasubramanian, R., Pautasso, C., Wilhelmsen, H.,

Carlyle, B., and Booth, D. R. (2012). SOA with REST

: principles, patterns & constraints for building en-

terprise solutions with REST. Prentice Hall, Philadel-

phia, PA.

Grubb, P. and Takang, A. A. (2003). Software Maintenance:

Concepts And Practice. World Scientiﬁc Publishing,

Singapore, Singapore, 2 edition.

Kitchenham, B., Pretorius, R., Budgen, D., Brereton, O. P.,

Turner, M., Niazi, M., and Linkman, S. (2010). Sys-

tematic literature reviews in software engineering – a

tertiary study. Information and Software Technology,

52(8):792–805.

Lewis, J. and Fowler, M. (2014). Microservices. on-

line. https://martinfowler.com/articles/microservices.

html, acessed on March 19, 2024.

Newman, S. (2019). Monolith to Microservices: Evolution-

ary Patterns to Transform Your Monolith. O’Reilly

Media, Sebastopol, CA.

Petersen, K., Vakkalanka, S., and Kuzniarz, L. (2015).

Guidelines for conducting systematic mapping stud-

ies in software engineering: An update. Information

and Software Technology, 64:1–18.

Pressman, R. and Maxim, B. (2019). Software Engineering:

A Practitioner’s Approach. McGraw-Hill Education.

9th Edition.

Richardson, C. (2018). Microservices patterns. Manning

Publications Company.

Soldani, J., Tamburri, D. A., and Van Den Heuvel, W.-J.

(2018). The pains and gains of microservices: A sys-

tematic grey literature review. Journal of Systems and

Software, 146:215–232.

ICEIS 2024 - 26th International Conference on Enterprise Information Systems

592
